LumaSense IMPAC IS 310, IMPAC IGA 310 User Manual

MANUAL

IMPAC Pyrometer

IS 310 • IGA 310

Confidential Information

The material contained herein consists of information that is the property of LumaSense
Technologies and intended solely for use by the purchaser of the equipment described in this
manual. All specifications are subject to change without notice. Changes are made periodically
to the information in this publication, and these changes will be incorporated in new editions.

LumaSense Technologies prohibits the duplication of any portion of this manual or the use
thereof for any purpose other than the operation or maintenance of the equipment described
in this manual, without the express written permission of LumaSense Technologies.

Copyright

© LumaSense Technologies 2018. All rights reserved.

Trademarks

IMPAC is a trademark of LumaSense Technologies.

All other trademarks are trademarks, registered trademarks, and/or service marks of their
respective holders.

Service Centers

LumaSense Technologies, Inc.

North America
Sales & Service

Santa Clara, CA, USA
Ph: [phone]
Ph: [phone]
Fax: [phone]

LumaSense Technologies GmbH

Other Than North America
Sales & Support

Frankfurt, Germany
Ph: [phone]
Fax: [phone]

Global and Regional Centers

Our Headquarters

LumaSense Technologies, Inc.
Santa Clara, CA, USA
Ph: [phone]
Fax: [phone]

Americas, Australia, & Other Asia

LumaSense Technologies, Inc.
Santa Clara, CA, USA
Ph: [phone]
Fax: [phone]

Europe, Middle East, Africa

LumaSense Technologies GmbH
Frankfurt, Germany
Ph: [phone]
Fax: [phone]

France

LumaSense Technologies Sarl
Erstein, France
Ph: [phone]

Fax: [phone]

India

LumaSense Technologies, India
Mumbai, India
Ph: +

91 22 67419203

Fax: + 91 22 67419201

China

LumaSense Technologies, China
Shanghai, China
Ph: [phone]

Ph: [phone]

E-mail [email protected]
[email protected]
[email protected]

Website http://www.lumasenseinc.com

Part No 3 856 051 - EN
Revision F
June 2018

IS 310 / IGA 310 Manual Contents • iii

Contents

1 General Information ......................................................................................................... 5

1.1 Information about the user manual ....................................................................... 5

1.1.1 Legend ...................................................................................................................... 5

1.1.2 Terminology ............................................................................................................. 5

1.2 Safety ......................................................................................................................... 5

1.2.1 Electrical connection ................................................................................................ 5

1.3 Limit of liability and warranty ................................................................................ 6

1.4 Unpacking the Instrument ....................................................................................... 6

1.5 Service Request, Repair, or Support ....................................................................... 6

1.6 Shipments to LumaSense for Repair ...................................................................... 7

1.7 Transport, Packing, Storage .................................................................................... 7

1.8 Disposal / decommissioning .................................................................................... 7

2 Introduction ....................................................................................................................... 9

2.1 Appropriate use ........................................................................................................ 9

2.2 Scope of delivery ...................................................................................................... 9

2.3 Technical data ........................................................................................................... 9

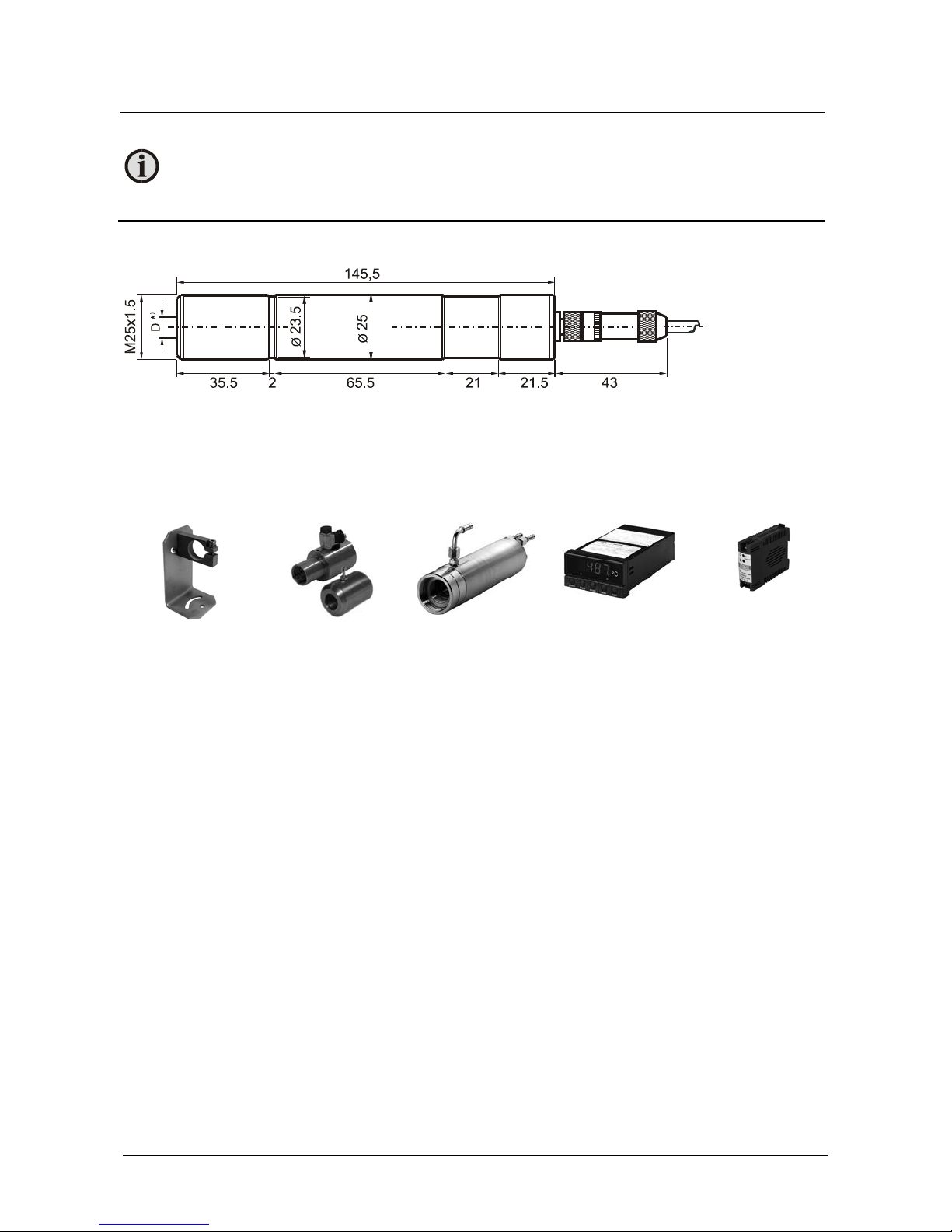

2.4 Dimensions .............................................................................................................. 10

2.5 Accessories (Option) ............................................................................................... 10

3 Controls and Installation................................................................................................ 11

3.1 Electrical Installation.............................................................................................. 11

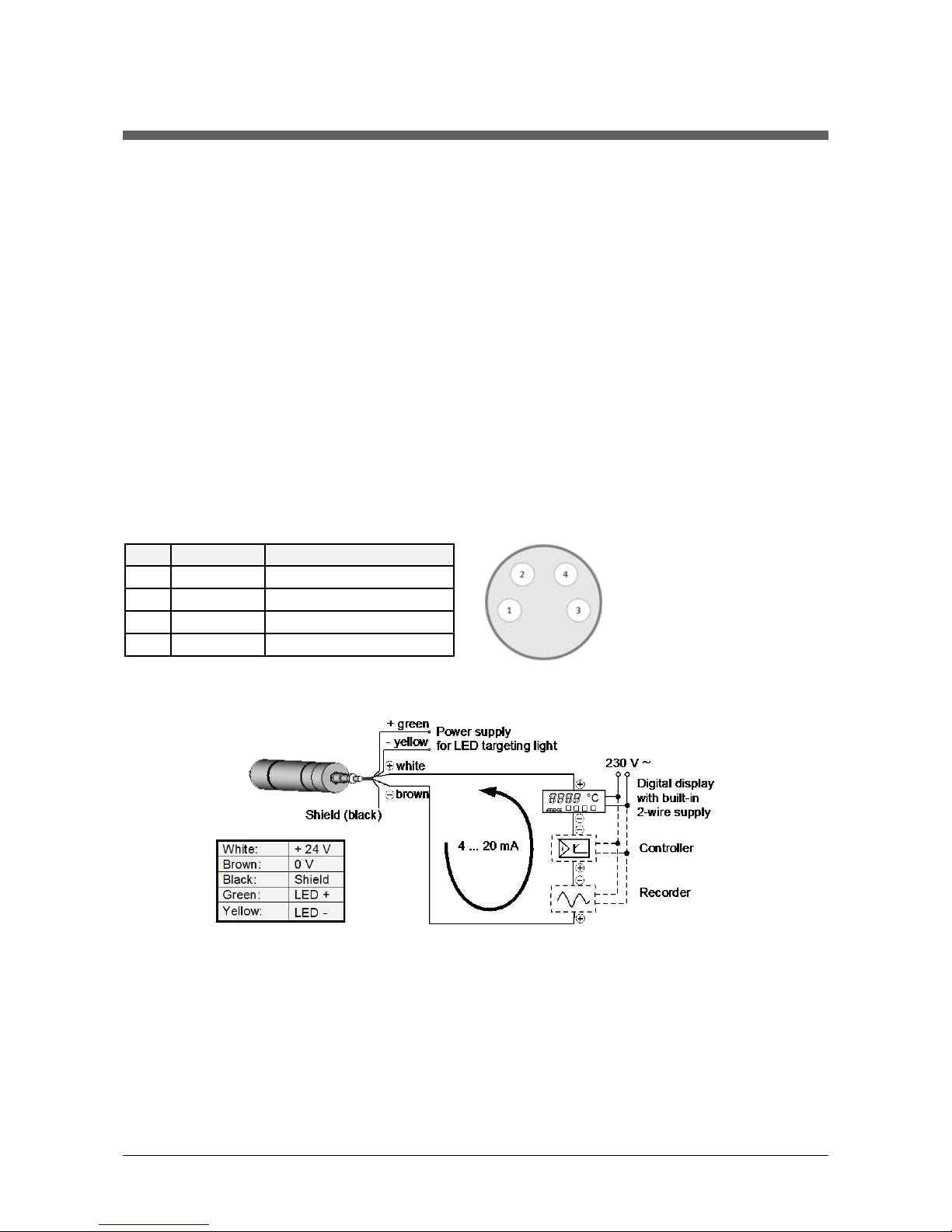

3.1.1 Pin assignment of male socket on the back of the pyrometer........................... 11

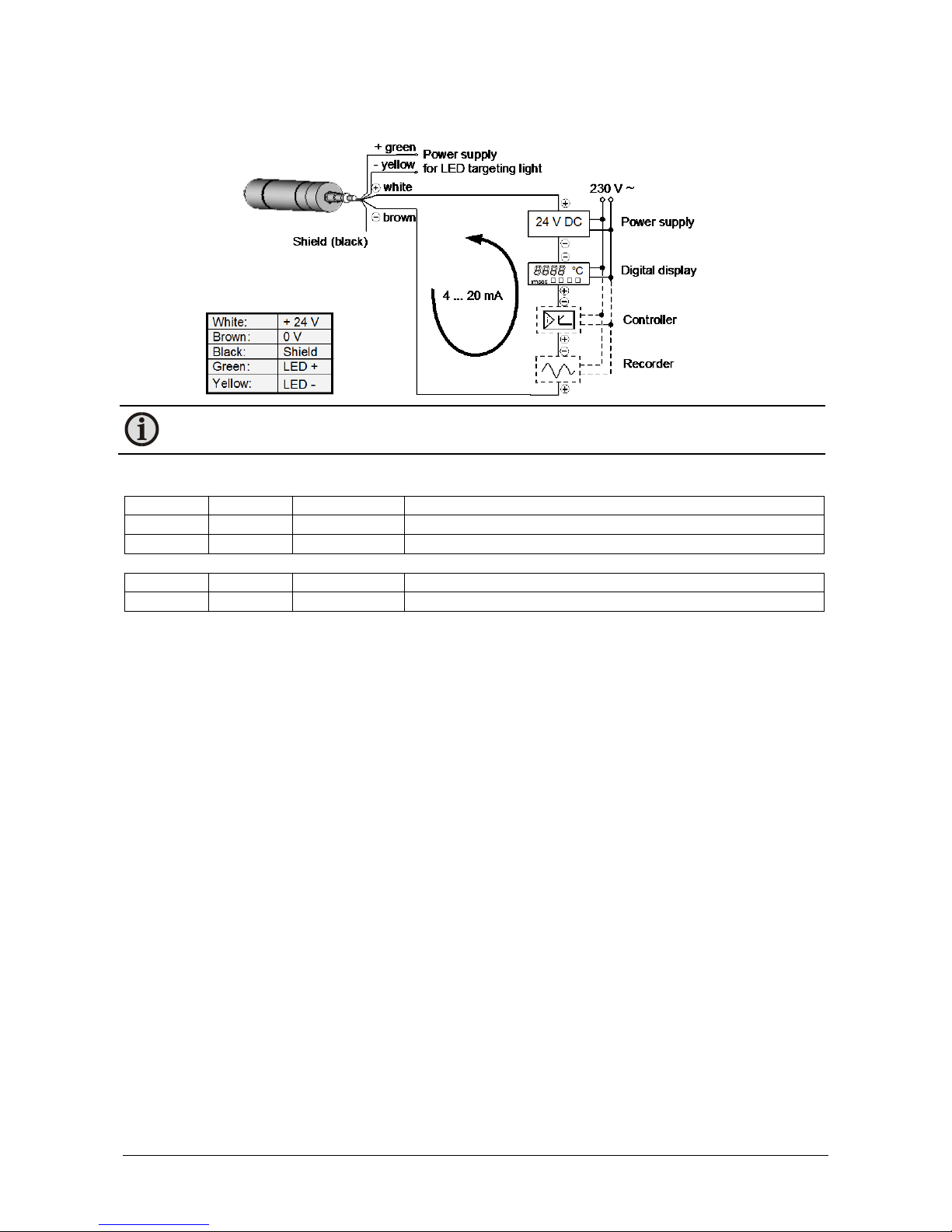

3.1.2 Connection of additional devices ......................................................................... 11

3.1.3 Calculation of the measuring temperature from current output ...................... 12

3.2 LED targeting light ................................................................................................. 12

3.3 Optics ....................................................................................................................... 12

4 Parameter Descriptions / Settings ................................................................................. 15

4.1 Emissivity (ε) ........................................................................................................... 15

4.1.1 Emissivity table ....................................................................................................... 15

5 Maintenance .................................................................................................................... 17

5.1 Safety ....................................................................................................................... 17

5.2 Service ...................................................................................................................... 17

6 Troubleshooting .............................................................................................................. 19

7 Reference Numbers ......................................................................................................... 21

7.1 Reference numbers instrument ............................................................................ 21

7.2 Reference numbers accessories ............................................................................ 21

IS 310 / IGA 310 Manual Contents • iv

Index ....................................................................................................................................... 23

IS 310 / IGA 310 Manual General Information • 5

1 General Information

1.1 Information about the user manual

Congratulations on choosing the high quality and highly efficient IMPAC pyrometer.

This manual provides important information about the instrument and can be used as a work of
reference for installing, operating, and maintaining your pyrometer. It is important that you
carefully read the information contained in this manual and follow all safety procedures before
you install or operate the instrument.

To avoid handling errors, keep this manual in a location where it will be readily accessible.

1.1.1 Legend

Note: The note symbol indicates tips and useful information in this manual. All notes
should be read to effectively operate the instrument.

Attention: This sign indicates special information which is necessary for a correct
temperature measurement.

Warnings and Cautions: The general warnings and cautions symbol signifies the
potential for bodily harm or damage to equipment.

MB Shortcut for Temperature range (in German: Messbereich)

1.1.2 Terminology

The terminology used in this manual corresponds to the VDI- / VDE-directives 3511, Part 4.

1.2 Safety

This manual provides important information on safely installing and operating the
pyrometer. Several sections of this manual provide safety warnings to avert danger. These safety
warnings are specified with a warning symbol. You must read and understand the contents of
this manual before operating the instrument even if you have used similar instruments or have
already been trained by the manufacturer.

It is also important to continually pay attention to all labels and markings on the instrument and
to keep the labels and markings in a permanent readable condition.

Warning: The pyrometer is only to be used as described in this manual. It is
recommended that you only use accessories provided by the manufacturer.

In addition, signs and markings on the device is to be observed and maintained in legible
condition.

1.2.1 Electrical connection

Follow common safety regulations for mains voltage (230 or 115 V AC) connecting additional
devices operating with this mains voltage (e.g. transformers). Touching mains voltage can be
fatal. An incorrect connection and mounting can cause serious health or material damages.

Only qualified specialists are allowed to connect such devices to the mains voltage.

IS 310 / IGA 310 Manual General Information • 6

1.3 Limit of liability and warranty

All general information and notes for handling, maintenance, and cleaning of this instrument
are offered according to the best of our knowledge and experience.

LumaSense Technologies is not liable for any damages that arise from the use of any examples
or processes mentioned in this manual or in case the content of this document should be
incomplete or incorrect. LumaSense Technologies reserves the right to revise this document and
to make changes from time to time in the content hereof without obligation to notify any
person or persons of such revisions or changes.

All instruments from LumaSense Technologies have a regionally effective warranty period.
Please check our website at http://info.lumasenseinc.com/warranty

for up-to-date warranty
information. This warranty covers manufacturing defects and faults which arise during
operation, only if they are the result of defects caused by LumaSense Technologies.

The Windows compatible software was thoroughly tested on a wide range of Windows
operating systems and in several world languages. Nevertheless, there is always a possibility that
a Windows or PC configuration or some other unforeseen condition exists that would cause the
software not to run smoothly. The manufacturer assumes no responsibility or liability and will
not guarantee the performance of the software. Liability regarding any direct or indirect
damage caused by this software is excluded.

The warranty is VOID if the instrument is disassembled, tampered with, altered, or otherwise
damaged without prior written consent from LumaSense Technologies; or if considered by
LumaSense Technologies to be abused or used in abnormal conditions.

There are no user-serviceable components in the instrument.

1.4 Unpacking the Instrument

Thoroughly inspect the instrument upon delivery to purchaser. Check all materials in the
container against the enclosed packing list. LumaSense Technologies cannot be responsible for
shortages against the packing list unless a claim is immediately filed with the carrier. The
customer must complete final claim and negotiations with the carrier.

Save all packing materials, including the carrier’s identification codes, until you have inspected
the pyrometer and find that there is no obvious or hidden damage. Before shipment, the
pyrometer was examined and has been tested. If you note any damage or suspect damage,
immediately contact the carrier and LumaSense Technologies, Inc.

1.5 Service Request, Repair, or Support

Contact LumaSense Technologies Technical Support in case of a malfunction or service request.
Provide clearly stated details of the problem as well as the instrument model number and serial
number. Upon receipt of this information, Technical Support will attempt to locate the fault
and, if possible, solve the problem over the telephone.

If Technical Support concludes that the instrument must be returned to LumaSense Technologies
for repair, they will issue a Return Material Authorization (RMA) number.

Return the instrument upon receipt of the RMA number, transportation prepaid. Clearly
indicate the assigned RMA number on the shipping package exterior. Refer to Section 1.6,
Shipments to LumaSense for Repair, for shipping instructions.

IS 310 / IGA 310 Manual General Information • 7

Technical Support can be contacted by telephone or email:

Santa Clara, California

• Telephone: [phone] or [phone]

• Email: [email protected]

Frankfurt, Germany

• Telephone: [phone]

• Email: [email protected]

Erstein, France

• Telephone [phone]

• Email [email protected]

1.6 Shipments to LumaSense for Repair

All RMA shipments of LumaSense Technologies instruments are to be prepaid and insured by
way of United Parcel Service (UPS) or preferred choice. For overseas customers, ship units air­freight, priority one.

The instrument must be shipped in the original packing container or its equivalent. LumaSense
Technologies is not responsible for freight damage to instruments that are improperly packed.

Contact us to obtain an RMA number (if Technical Support has not already assigned one).
Clearly indicate the assigned RMA number on the shipping package exterior.

Send RMA Shipments to your nearest technical service center:

Santa Clara, California

Frankfurt, Germany

LumaSense Technologies, Inc.
3301 Leonard Court
Santa Clara, CA 95054 USA
Telephone: [phone]
[phone]

Email: [email protected]

LumaSense Technologies GmbH
Kleyerstr. 90
60326 Frankfurt
Germany
Telephone: [phone]

Email: eu[email protected]

1.7 Transport, Packing, Storage

With faulty shipping, the instrument can be damaged or destroyed. To transport or store the
instrument, please use the original box or a box padded with sufficient shock-absorbing
material. For storage in humid areas or shipment overseas, the device should be placed in
welded foil (ideally along with silica gel) to protect it from humidity.

The pyrometer is designed for a storage temperature of -20 to 70 °C with non-condensing
conditions. Storing the instrument out of these conditions can cause damage or result in
malfunction of the pyrometer.

1.8 Disposal / decommissioning

Inoperable IMPAC pyrometers must be disposed of in compliance with local regulations for
electro or electronic material.

IS 310 / IGA 310 Manual General Information • 8

To ensure consistent document formatting, this page was intentionally left blank.

IS 310 / IGA 310 Manual Introduction • 9

2 Introduction

2.1 Appropriate use

The IS 310 and IGA 310 are stationary pyrometers for non-contact temperature measurement of
metallic surfaces, graphite, ceramics, etc.

2.2 Scope of delivery

Instrument, works certificate, and user manual.

Note: A connection cable is not included with the instrument and has to be ordered
separately (see Chapter 7, Reference numbers).

2.3 Technical data

Temperature Ranges:

IS 310

IGA 310

650 ... 1800 °C (MB 18)

800 ... 2300 °C (MB 23)
1100 ... 2500 °C (MB 25)

300 ... 1300 °C (MB 13L)

500 ... 1500 °C (MB 15)

Spectral Range:

IS 310

0.8 ... 1.1 µm (Si photo detector)

IGA 310

1.45 ... 1.8 µm (InGaAs photo detector)

Power Supply:

24 V DC ± 25% stabilized, ripple < 50mV
5 ... 30 V DC for LED targeting light (I ≤ 30 mA)

Output:

4 ... 20 mA load independent current, linear to temperature

Max load: Max. 500 Ω at 24 V

Max. 200 Ω at 18 V

Max. 800 Ω at 30 V

Emissivity:

0.2 ... 1; Adjustable

Accuracy:

(ε = 1, T

amb.

= 23 °C)

Up to 1500 °C: 0.8% of measured value + 1 °C
Above 1500 °C: 1% of measured value + 1 °C

Repeatability:

(ε = 1, T

amb.

= 23 °C)

0.3% of measured value
Response Time t90:

10 ms

Sighting:

LED targeting light

Housing:

Stainless Steel

Weight:

215 g

Ambient Temperature:

0 ... 70 °C

Storage Temperature:

-20 ... 70 °C

Mounting Position:

Any

Protection Class:

IP65 (DIN 40050)

Connection Cable:

2 m - 30 m, with connector

CE label:

According to EU-directives about electromagnetic immunity

IS 310 / IGA 310 Manual Introduction • 10

Note: The calibration / adjustment of the instruments was carried out in accordance

with VDI/VDE directive “Temperature measurement in industry, Radiation
thermometry, Calibration of radiation thermometers”, VDI/VDE 3511, Part 4.4.

For additional details on this directive, see http://info.lumasenseinc.com/calibration or
order the directive from “Beuth Verlag GmbH” in D-10772 Berlin, Germany.

2.4 Dimensions

*) D: Aperture dependent on instrument type, see Section 3.3 Optics

2.5 Accessories (Option)

Numerous accessories guarantee easy installation of the pyrometers. The following overview
shows a selection of suitable accessories:

Mounting

support

Air purges

Water cooling

jackets

LED digital

displays with

built-in power

supply

Power supplies

for carrier rail

All dimensions in mm

IS 310 / IGA 310 Manual Controls and Installation • 11

3 Controls and Installation

3.1 Electrical Installation

The instruments are supplied by 24 V DC (± 25%) and a ripple < 50 mV. Ensure correct polarity
when connecting the instrument to the power supply. The power consumption (in this case,
4 ... 20 mA) is also the measuring signal. The instrument doesn’t need any time for starting or
preheating and is immediately ready for operation. To switch off the instrument, interrupt the
instrument’s power supply.

Cable colors: White: +24 V DC Green: LED +5 ... 30 V DC
Brown: 0 V Yellow: LED 0 V
Black: Screen

To meet the electromagnetic requirements, a shielded connecting cable must be used. The
shield of the connecting cable is usually only connected on the pyrometer side. If the connecting
cable is extended, the extension cable also needs to be shielded. Do not connect the shield in
the control cabinet to avoid ground loops.

3.1.1 Pin assignment of male socket on the back of the pyrometer

Pin

Color

Indication

1

White

+ 24 V power supply

2

Brown

0 V power supply

3

Green

LED +

4

Yellow

LED -

3.1.2 Connection of additional devices

Example for wiring using a digital display with integrated power supply:

IS 310 / IGA 310 Manual Controls and Installation • 12

Example for wiring using an external power supply:

Note: Additional analyzing instruments, e.g. controllers, recorders, etc. can be
connected in series as shown in drawing above.

3.1.3 Calculation of the measuring temperature from current output

IS 310

MB 18

Temp. [°C] =

71.875  current [mA] + 362.5

IS 310

MB 23

Temp. [°C] =

93.750  current [mA] + 425

IS 310

MB 25

Temp. [°C] =

87.500  current [mA] + 750

IGA 310

MB 13L

Temp. [°C] =

62.500  current [mA] + 50

IGA 310

MB 15

Temp. [°C] =

62.500  current [mA] + 250

3.2 LED targeting light

The pyrometers are equipped with an LED targeting light for aiming onto the measuring object.
The center of the light marks the center of the spot. For use of this targeting light, a separate
power supply is necessary with 5 ... 30 V DC and a current of I ≤ 30 mA.

Measuring is possible while the LED targeting light is on. We recommend using a low supply
voltage to keep the thermal loading of the pyrometer small.

3.3 Optics

The pyrometers are equipped ex works with one of the following optics. These optics focus to a
certain distance, i.e. in these distances each optics achieves its smallest spot size in relation to
the measuring distance. The spot size will change in any other distance (shorter or longer).
Please note that the measuring object must be as least as big as the spot size.

IS 310 / IGA 310 Manual Controls and Installation • 13

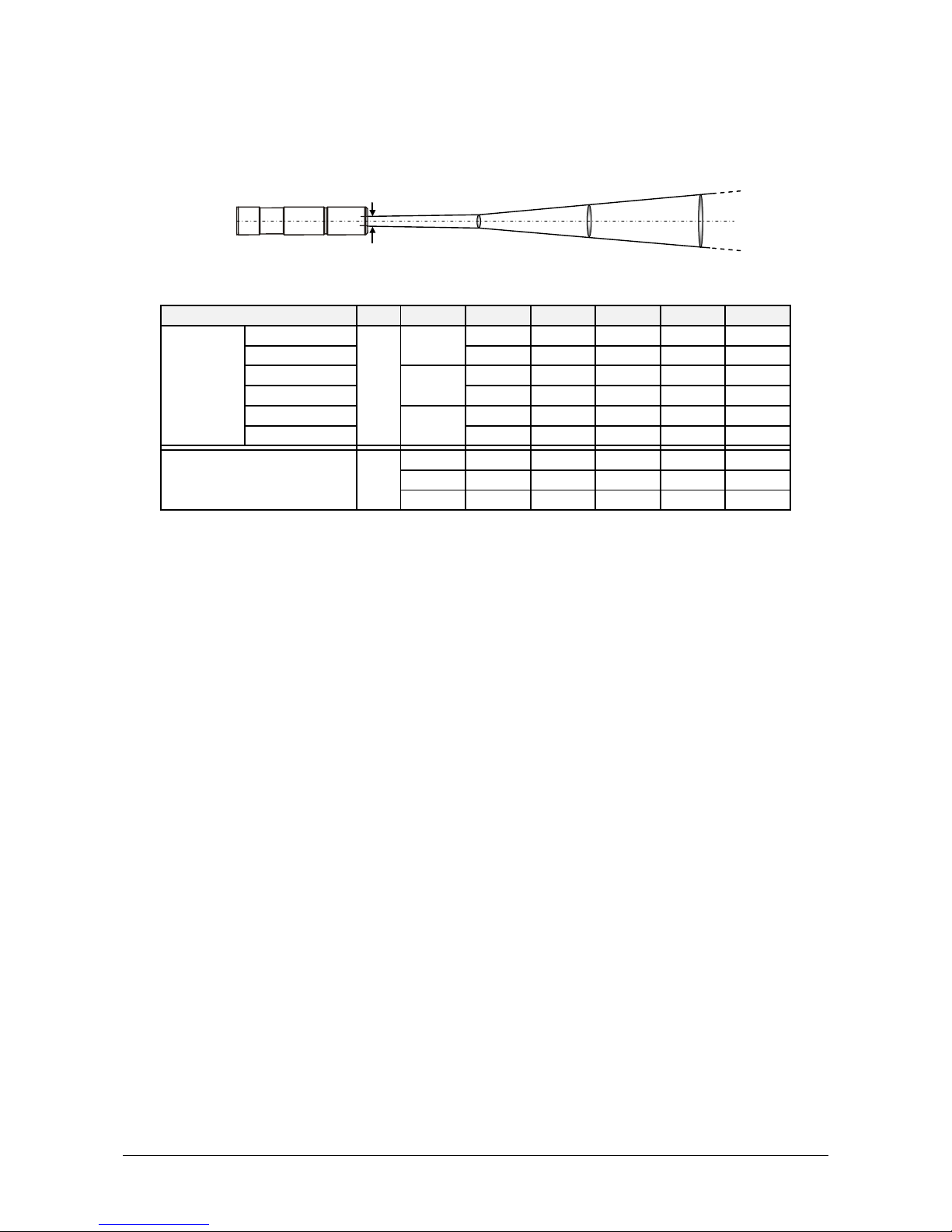

The following drawing and table shows the size of the spots in mm in relation to the measuring
distance. Values between the mentioned data can be calculated by interpolation. The spot size
for measuring distance 0 is the aperture diameter of the optics.

Type D a M a1

M1

a2

M2

IS 310

(MB 18)

5.2

250

1.8

500

8.8

1000

23

(MB 23+25)

1

500

7.2

1000

20

(MB 18)

600

4

1000

10.1

2000

26

(MB 23+25)

2

1000

6.8

2000

20

(MB 18)

1400

9

2000

15.1

3000

25

(MB 23+25)

4.5

2000

8.7

3000

16

IGA 310

9

250 2 500

13

1000

35

600

4.5

1000

13.5

2000

36

1400

9

2000

16.8

3000

30

Spot size

Measuring distance

D a a

aMM

M

IS 310 / IGA 310 Manual Controls and Installation • 14

To ensure consistent document formatting, this page was intentionally left blank.

IS 310 / IGA 310 Manual Parameter descriptions / settings • 15

4 Parameter Descriptions / Settings

4.1 Emissivity (ε)

For a correct measurement, it is necessary to adjust the emissivity ε. This emissivity is the
relationship between the emission of a real object and the emission of a black body radiation
source (this is an object which absorbs all incoming rays and has an emissivity of 100%) at the
same temperature. Different materials have different emissivities ranging between 0% and
100% (settings at the pyrometer between 0.2 ... 1, equivalent to 20 … 100%). Additionally, the
emissivity is dependent on the surface condition of the material, the spectral range of the
pyrometer, and the measuring temperature. The emissivity setting of the pyrometer has to be
adjusted accordingly. Typical emissivity values of various common materials for the two spectral
ranges of the instruments are listed in the emissivity table below. The tolerance of the emissivity
values for each material is mainly dependent on the surface conditions. Rougher surfaces have
higher emissivities.

Note: The pyrometer is set ex works to an emissivity of 100%.

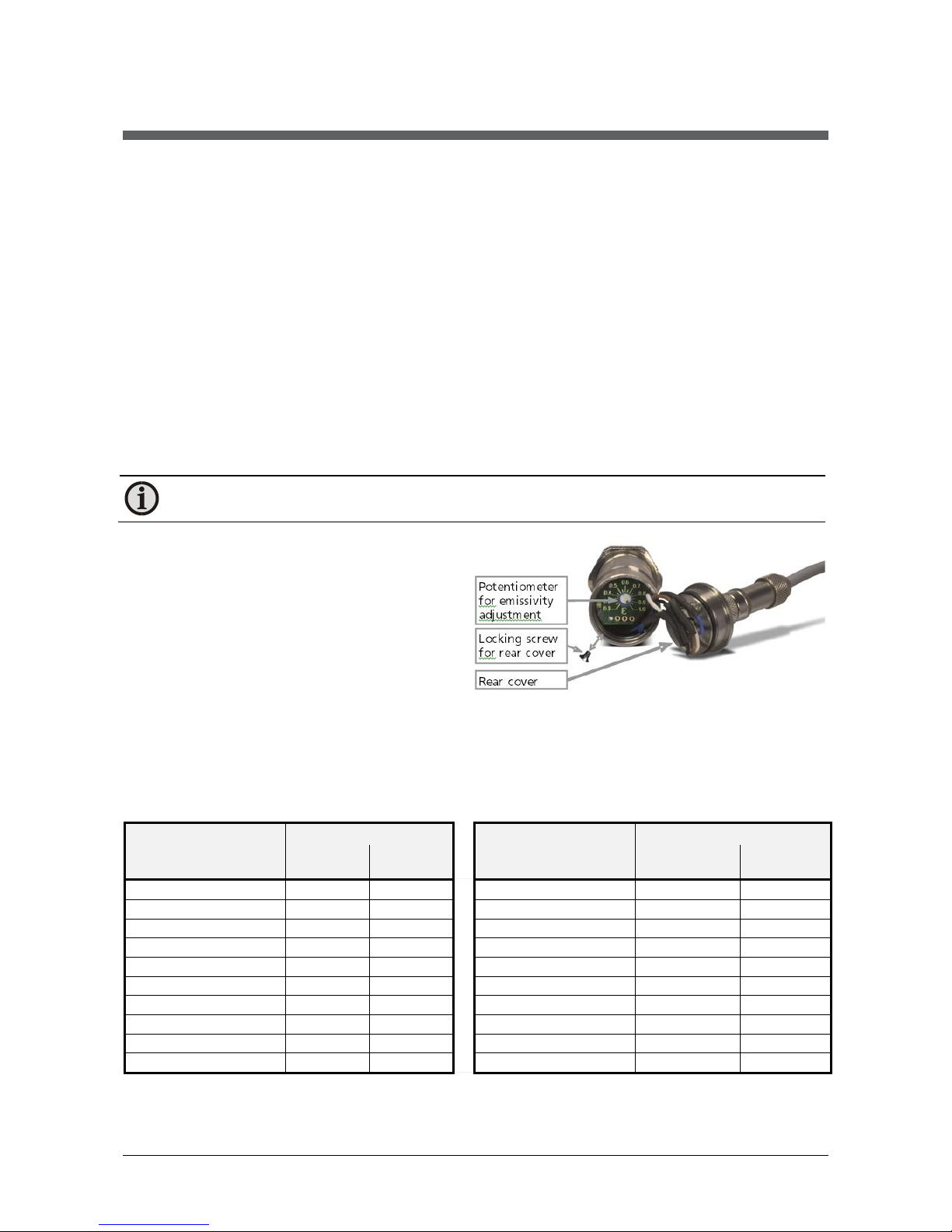

To adjust the emissivity factor to your own
purpose, you have to remove the rear cover
by unscrew the locking screw. Be sure to
remove the cover carefully. In the tube there
is a scale that can be turned with a small
screwdriver. Adjust the emissivity factor to
your desire. After that, push the cable
carefully back in the tube, put the cover on
the tube and tighten the locking screw for
the cover.

The following table may give brief information of the correct setting of the emissivity. For exact
measurement we recommend a comparison measurement with a contact thermometer (e.g.
TASTOTHERM MP 2000 with a suited probe).

4.1.1 Emissivity table

Measuring object

Emissivity [%]

Measuring object

Emissivity [%]

IS 310

(at 0.9 µm)

IGA 310

(at 1.6 µm)

IS 310

(at 0.9 µm)

IGA 310

(at 1.6 µm)

„Blackbody furnace“

1

1 Zinc

0.58

0.45...0.55

Steel heavily scaled

0.93

0.85...0.9 Nickel

0.22

0.15...0.2

Steel rolling skin

0.88

0.8...0.88

Gold, Silver, bright

0.02

0.02

Steel, molten

0.3

0.2...0.25

Porcelain glazed

0.6

0.6

Slag

0.85

0.8...0.85

Porcelain rough

0.8...0.9

0.8...0.9

Aluminum, bright

0.15

0.1 Graphite

0.8...0.92

0.8...0.9

Chromium, bright

0.28...0.32

0.25...0.3

Chamotte

0.45...0.6

0.45...0.6

Brass oxidized

0.65...0.75

0.6...0.7

Earthenware, glazed

0.86...0.9

0.8...0.9

Bronze, blank

0.03

0.03 Brick

0.85...0.9

0.8...0.9

Copper, oxidized

0.88

0.7...0.85 Soot

0.95

0.95

IS 310 / IGA 310 Manual Parameter descriptions / settings • 16

To ensure consistent document formatting, this page was intentionally left blank.

IS 310 / IGA 310 Manual Maintenance • 17

5 Maintenance

5.1 Safety

If the pyrometer is integrated into a running machine process, the machine has to be switched
off and secured against restart before servicing the pyrometer.

5.2 Service

The pyrometer has no serviceable internal parts. The lens can be cleaned with compressed air,
which is dry and free of oil. If the lens requires a more thorough cleaning, use a soft, dry cloth
(such as a clean camera lens cloth).

Caution: Do not clean or touch the lens with acids or solvents!

IS 310 / IGA 310 Manual Maintenance • 18

To ensure consistent document formatting, this page was intentionally left blank.

IS 310 / IGA 310 Manual Troubleshooting • 19

6 Troubleshooting

Before sending the pyrometer for repair, try to find the error and to solve the problem with the
help of the following list.

Temperature indication too low

• Incorrect alignment of the pyrometer to the object

⇒ New correct alignment to achieve the max. temperature signal

• Measuring object is smaller than spot size

⇒ Check measuring distance, smallest spot size is at nominal measuring distance (see 3.3)

• Emissivity set too high

⇒ Set lower correct emissivity corresponding to the material (see 4.1)

• Lens contaminated

⇒ Clean lens carefully (see 5.2)

Temperature indication too high

• Emissivity set too low

⇒ Set higher correct emissivity corresponding to the material (see 4.1)

• The measurement is influenced by reflections of hotter machine parts

⇒ Try to avoid the influence of the interfering radiation or change measuring position

Measuring errors

• Indicated temperature is decreasing during the use of the pyrometer, contamination of

the lens

⇒ Clean lens Recommendation: use of air purge

• Indicated temperature is decreasing during the use of the pyrometer, although the air

purge unit is used. Probably compressed air is not clean or air failed

⇒ Clean the lens and use clean, dry and oil free compressed air

• Strong HF-interferences

⇒ Correct the connection of the cable shield (see 3.1)

• Instrument overheated

⇒ Use cooling jacket with air or water cooling

IS 310 / IGA 310 Manual Troubleshooting • 20

To ensure consistent document formatting, this page was intentionally left blank.

IS 310 / IGA 310 Manual Reference Numbers • 21

7 Reference Numbers

7.1 Reference numbers instrument

Pyrometer Optics

Temperature Range

650 … 1800 °C

(MB 18)

800 … 2300 °C

(MB 23)

1100 … 2500 °C

(MB 25)

IS 310

a = 250 mm 3 902 210 3 902 250 3 902 310
a = 600 mm 3 902 220 3 902 260 3 902 320
a = 1400 mm 3 902 230 3 902 270 3 902 330

Pyrometer Optics

Temperature Range

300 … 1300 °C

(MB 13L)

500 … 1500 °C

(MB 15)

IGA 310

a = 250 mm

3 902 050

3 902 110

a = 600 mm

3 902 060

3 902 120

a = 1400 mm

3 902 070

3 902 130

7.2 Reference numbers accessories

3 821 610

Connection cable IS 310 / IGA 310, 2 m

3 821 620

Connection cable IS 310 / IGA 310, 5 m

3 821 630

Connection cable IS 310 / IGA 310, 10 m

3 821 640

Connection cable IS 310 / IGA 310, 15 m

3 821 650

Connection cable IS 310 / IGA 310, 20 m

3 821 660

Connection cable IS 310 / IGA 310, 25 m

3 821 670

Connection cable IS 310 / IGA 310, 30 m

3 852 290

Power supply NG DC for carrier rail mounting housing
(100 ... 240 V AC, 50 ... 60 Hz ⇒ 24 V DC, 1 A)

3 852 280

Power supply, 230 V AC, 500 mA, => 24 V DC, for C/Z-carrier rail mounting

3 890 650

DA 4000, LED-display, 2-wire power supply, 2 limit switches (relay contacts),
230 V AC

3 891 220

DA 4000, LED-display, 2-wire power supply, 2 limit switches (relay contacts),
115 V AC

3 890 520

DA 6000, LED-display, RS232, 2-wire power supply, max. value storage, analog
output

3 890 530

DA 6000, LED-display with RS485

3 890 150

DA 6000-T, digital display, RS232, measures the time to cool from 800 °C to 500 °C
(for welding processes)

3 890 610

Galvanic separator for measuring output (carrier rail mounting housing)

3 826 760

Converter 4...20 mA into 0...20 mA, 24 V DC, for DIN Rail

3 834 230

Adjustable mounting support, stainless steel

3 846 170

Mounting tube

3 835 180

Air purge unit, stainless steel

3 837 480

Water cooling jacket series 310 & 320, stainless steel, with integrated air purge
unit

IS 310 / IGA 310 Manual Reference Numbers • 22

Flange system:

3 846 240

Tube support with air purge and flange

3 846 280

Ceramic tube ∅ 24, 600 mm long, closed

3 846 250

Support for instrument

IS 310 / IGA 310 Manual Index • 23

Index

A

Accessories 10
Analyzing devices 11
Appropriate use 9

C

Calculation of the measuring temperature

12
Changing of optics or fiber 17
Controls and Installation 11

D

Disposal 7

E

Electrical connection 5
Electrical Installation 11
Emissivity 15

G

General Information 5

I

Installation

Electrical 11

L

Legend 5
Liability 6

M

Maintenance 17

O

Optics 12

R

Reference numbers

Accessories 21

Instrument 21
Reference Numbers 21
Repair 6, 7

S

Safety 5
Scope of delivery 9
Service Request 6
Settings / parameter descriptions 15
Shield 11
Support 6

T

Technical Data 9
Troubleshooting 19

U

Unpacking the Instrument 6

W

Warranty 6
