Certified LUXEON
Luminaire Manufacturer
INC.
MODELS
LS698-K, LS698-K-CP
TO SUIT
LS553LED - Ix23-x / LS563LED - Ix23-x
Line voltage input 100-240V AC
IP68 rated, Class 1
Rx23-x Rx23-xLS553LED - / LS563LED
Remote LED driver 350mA constant current
IP68 rated, Class 3
A.C.N. 010 572 773
IMPORTANT INSTRUCTIONS
For installation of:
pre-installation and drive over kit LS698-K
IMPORTANT
- This product must only be installed by a licensed electrical worker. P
complies with local authority standards.
- This fixture is suitable for wall, floor and in-grade mounting. Suitable for drive-over applications.
lease ensure that Installation
Lumascape USA Inc.
1300 Industrial Rd., Unit #19
San Carlos, CA 94070, USA
T 1-(650)-595-LUMA(5862)
F 1-(650)-595-5820
E info@lumascape.com
W www.lumascape.com
WARNING
DO NOT INTERFERE WITH OR DISCONNECT CABLE FROM FITTING. WARRANTY WILL BE VOID IF CABLE ASSEMBLY IS
1
11” (280mm) min
FINISHED
FLOOR LEVEL
HOLE MINIMUM
5.25”
(133mm)
CONDUIT
31
”
(
790mm)
ARMOURED CABLE
SPACE REQUIREMENTS
- Site fixtures ensuring the hole is as specified.
IMPORTANT NOTE:
Electrical conduit used as per NEC.
2
FIXTURE
OUTER
HOUSING
REMOVE FIXTURE FROM OUTER
HOUSING
Remove the two screws fom the lid of the
fixture. Carefully pry the fixture from the
brass collar and place in a safe location for
future installation
ARMOURED CABLE/SPLICE BOX
CONFIGURATION
3
FOR CONDUIT ENTRY
CONFIGURATION
ONLY
FIT CONDUIT AND PLACE
FIXTURE
Feed cable from fixture through conduit.
Screw conduit to outer housing and place
fixture into hole.
IMPORTANT NOTE:
Electrical conduit used as per NEC.
4
POUR CONCRETE
Ensure top of brass collar is at the finished
floor level prior to pouring.
IMPORTANT NOTES:
Ensure that the collar is flush with the
finished floor level
Ensure inside faces of brass collar remain
clean from debris and concrete.
LUMASCAPE USA INC
Free Call 1-866-695-LUMA(5862)
T 1-(650)-595-LUMA(5862) 1-(650)-595-5820
C1741US - 2012_03_REV-004
Part Number Description Application
LS783 DRIVER LED 350mA 40W Remote supply for 4 to 6 fittings
LS784 DRIVER LED 550mA 20W Remote supply for 6 to 9 fittings
Remote LED Drivers
MODELS
TO SUIT
INC.
LS698-K, LS698-K-CP
LS553LED-X-IXX23 / LS563LED-X-
IX23
Line voltage input 100-240V AC
LS553LED-X-RXX23 / LS563LED-X-RX23
Remote LED driver 350mA constant current
IP68 rated, Class 3
A.C.N. 010 572 773
5
IMPORTANT NOTE FOR REMOTE
DRIVER MODEL, (LS5X3-X-DXXXX):
Connections are in series.
Ensure cable polarities are correct:
Brown or Red (+) positive
Black or Blue (-) negative
Main lines must be a minimum of 4mm if
supplied connection devices are used.

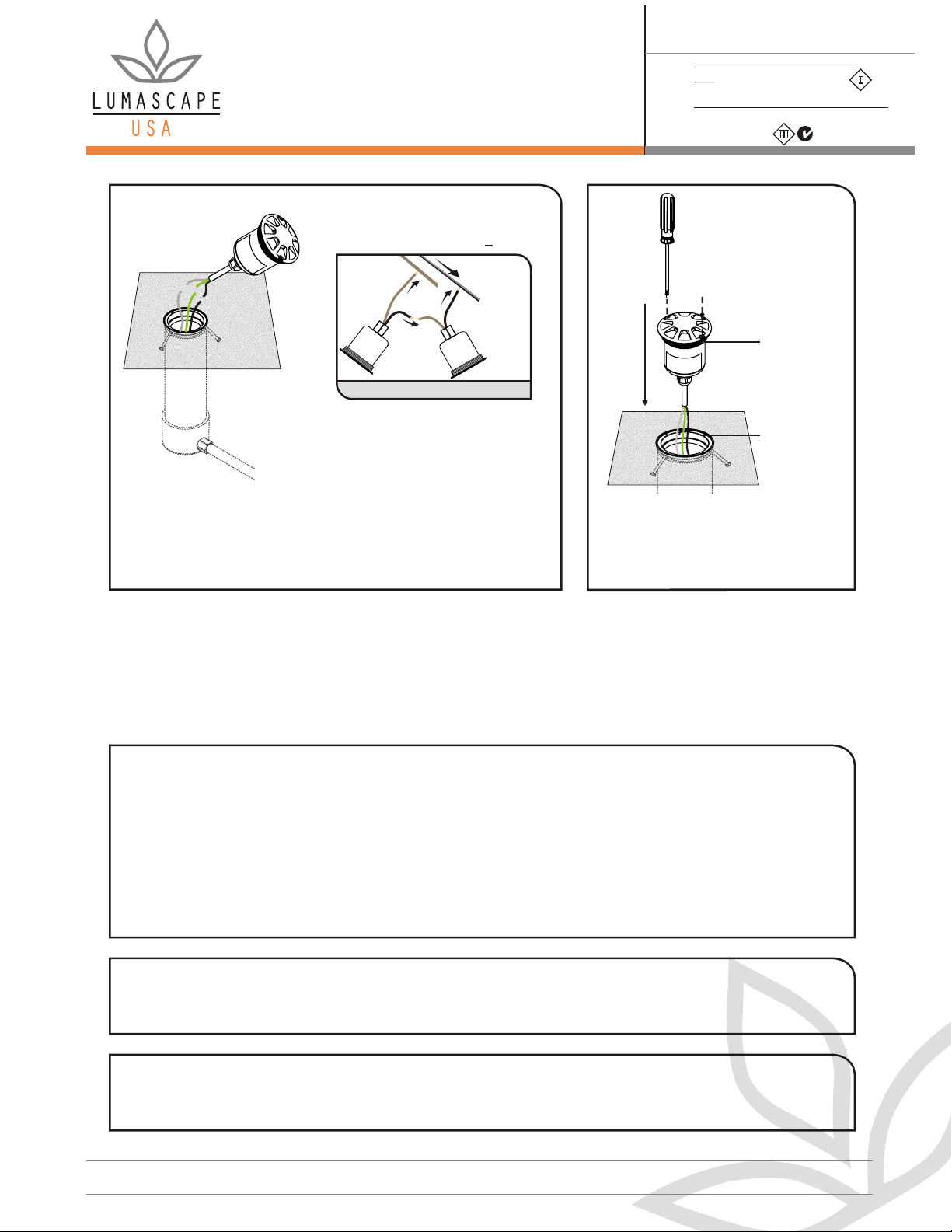

TERMINATE FIXTURE
Connect lead from the bottom of the fixture to the
cable inside the outer housing.
Constant Current Supply
from Remote Driver
++
++
__
CONNECTIONS FOR REMOTE MODEL ONLY
__
__
++
6
O-RING
SEALING
SURFACE
2
FIT FIXTURE INTO HOUSING
Check the brass collar and the o-ring on the fixture
are clean and free from debris. Note there is a film
of grease on the o-ring. If necessary replace with
tm
Molykote Valve and Oring Lubricant, or equivalent.
technical data - remote driver, 350mA input
Source: Luxeon LED 1 Watt
Input: Remote LED driver 350mA constant current (see below for recommended drivers)
technical data - line voltage input
Source: Luxeon LED 1 Watt
Input: 100-240V AC, 50/60Hz
warning
The correct power supply must be used in conjunction with the Luxeon LED light sources. This will ensure the maximum life of
the LED light source.
www.lumascape.com
LUMASCAPE USA INC
Free Call 1-866-695-LUMA(5862)
T 1-(650)-595-LUMA(5862) 1-(650)-595-5820
C1741US - 2012_03_REV-004
