LS421LED-D24: Centria LED 24 V DC
Warranty voided if not installed as per installation instructions
Screw base onto surface, eg. wall
Connect power to control board - Note 24 V DC
With DMX control - see wiring and settings overleaf Without DMX control
OR
OR
MODELS: LS421LED Surface Mount Integral Driver
INPUT VOLTAGE: 24 V DC ripple free
INPUT CURRENT: 400 mA max
24 W LED (14 W LED narrow)
Suitable for wet locations
Suitable for mounting below 1.2m
Ta 50°C
No power tools
CAUTION COMPONENTS FINISHED APPEARANCE
Insert cabling into glandsTwist glands onto base. Remove power
knockout/s as required
A.C.N. 0105 72 773
t 90 C
bung
x2
x4
screw
x2
x2
gland
Allen key
x1
1.
4.
2.
3.
SPOTLIGHT AND FLOODLIGHT
_
+
2x RJ45
DMX out (see RJ45 DMX wiring)
DMX in (see RJ45 DMX wiring)
_
+
NOTE: If only 1 DMX cable, use bung.
RJ45
DMX in
_
+
IN0052 - 28 May 2014
INSTALLATION INSTRUCTIONS
Lumascape Lighting Industries Pty Ltd
38-44 Enterprise Street, Cleveland, QLD 4163, Australia
PO Box 1875, Cleveland D.C., QLD 4163, Australia
T 07 3286 2299
F 07 3286 6599
E sales@lumascape.com.au
W www.lumascape.com.au

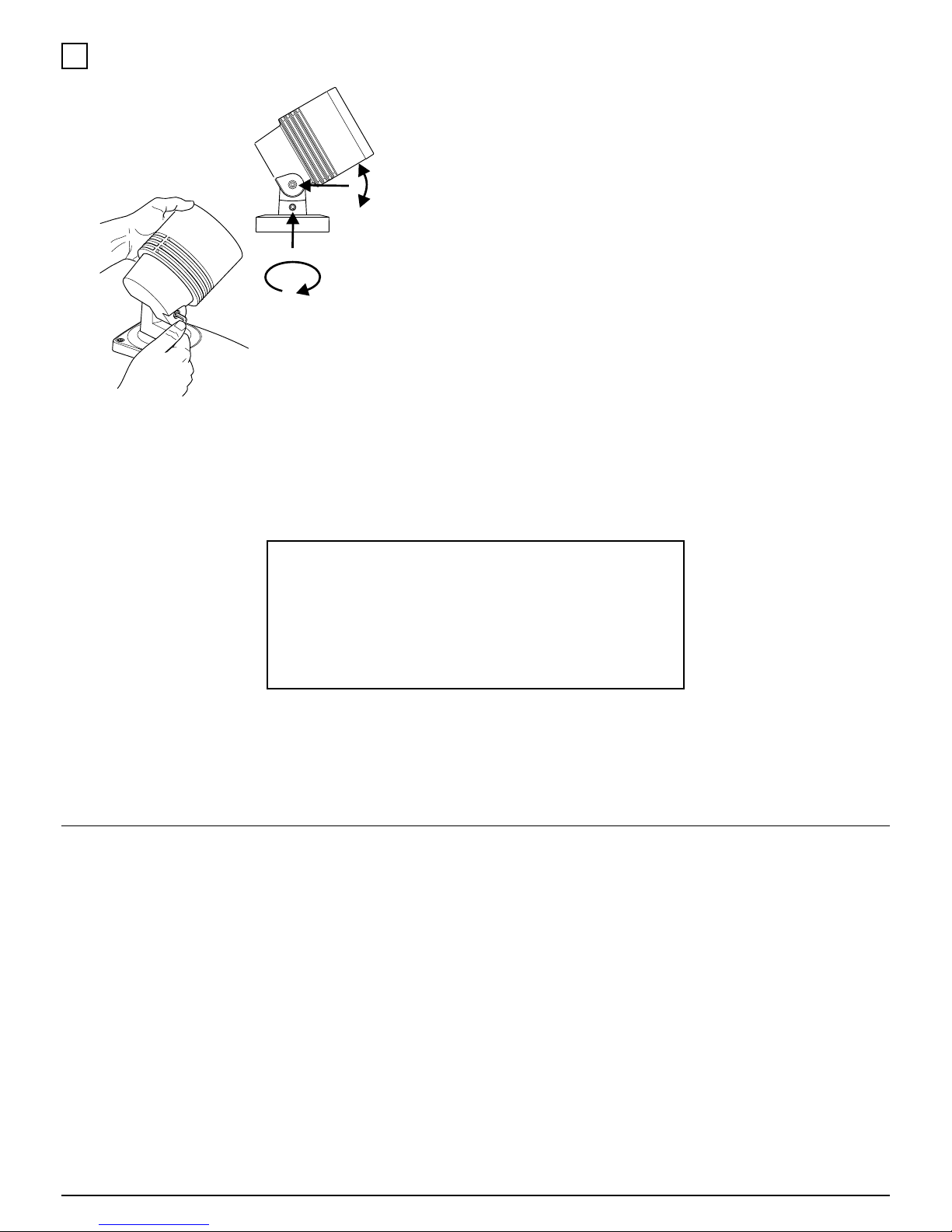

Use the Allen key to aim the luminaire to
desired angle.
Screw onto base, DO NOT use power tools.
Ensure correct torque is applied (2 Nm).
WARNING - To reduce the risk of FIRE or INJURY:
1. Luminaires and transformers to be installed by licensed electrical contractors.
2. Luminaires to be used for intended purpose only.
3. Do not operate the luminaires with a missing or damaged parts.
4. Use only genuine Lumascape parts to replace damaged or missing components.
5. Refer to instructions for installation and operating requirements.
6. Ensure installation complies with local regulations
Voltage insulation test (megger) will permanently damage product and will void warranty.
SAVE THESE INSTRUCTIONS.
SAFETY INSTRUCTIONS
RJ45 DMX WIRING
Wire# Wire Colour DMX512 Function
1 white/orange data 1+
2 orange data 1-
3 white/green data 2+
4 green data 2-
5 blue Not Assigned
6 white/blue Not Assigned
7 white/brown Data Link Common for data 1
8 brown Data Link Common for data 2
Drain
* Use this setting for single colour operation without DMX control.
SWITCH SETTINGS
SW3 SW2 SW1
DMX
0 0 1
to
5 1 2
*CH 1,2,3=100% 9 9 5
SEQUENCE 9 9 8
5. 6.
IN0052 - 28 May 2014
2 Nm
2 Nm
4 Nm
Copyright ©2014 Lumascape Lighting Industries Pty. Ltd. ABN 21 010 572 773
ww w.lumascape.com.au
Warranty voided if not installed as per installation instructions
Screw base onto surface, eg. wall.
Connect cabling to switch board.
SPOTLIGHT AND FLOODLIGHT
MODELS: LS421LED Surface Mount Integral driver
INPUT VOLTAGE: 100-240 V 50/60 Hz
INPUT CURRENT: 500 mA max
27 W LED
Suitable for wet locations
Suitable for mounting below 1.2m
Ta 50°C
CAUTION COMPONENTS FINISHED APPEARANCE
Insert cabling into gland.Twist glands onto base.
A.C.N. 0105 72 773
t 90 C
90
o
SWITCH SETTINGS
SW3 SW2 SW1
9 9 5
Screw onto base, DO NOT use power tools.
Ensure correct torque is applied.
x2
gland
x4
screw
Allen key
x1
No power tools
IN0051 - 28 May 2014
1.
4. 5.
2. 3.
2 Nm
INSTALLATION INSTRUCTIONS
Lumascape Lighting Industries Pty Ltd
38-44 Enterprise Street, Cleveland, QLD 4163, Australia
PO Box 1875, Cleveland D.C., QLD 4163, Australia
T 07 3286 2299
F 07 3286 6599
E sales@lumascape.com.au
W www.lumascape.com.au
LS421LED: Centria Single Colour
Questions?
Call 07 3286 2299
Email sales@lumascape.com.au
www.lumascape.com.au
Use the Allen key to aim the luminaire to
desired angle.
WARNING - To reduce the risk of FIRE or INJURY:
1. Luminaires and transformers to be installed by licensed electrical contractors.
2. Luminaires to be used for intended purpose only.
3. Do not operate the luminaires with a missing or damaged parts.
4. Use only genuine Lumascape parts to replace damaged or missing components.
5. Refer to instructions for installation and operating requirements.
6. Ensure installation complies with local regulations
Voltage insulation test (megger) will permanently damage product and will void warranty.
SAVE THESE INSTRUCTIONS.
SAFETY INSTRUCTIONS
6.
2 Nm
4 Nm
IN0051 - 28 May 2014
Copyright ©2014 Lumascape Lighting Industries Pty. Ltd. ABN 21 010 572 773
ww w.lumascape.com.au
