Luma 700, 500 Installation Manual

Download

Page 1

700 Series Bullet 500 Series Bullet

IP-Enabled HD Surveillance Camera

Installation

Manual

Important!

Ensure your NVR

has the latest

ﬁrmware!

Page 2

2 3

Luma 500/700 Series Bullet IP Camera Luma 500/700 Series Bullet IP Camera

Additional Resources

If desired, you can add an SD card (up to 128 GB) to the camera. An SD card or a network drive is required if you want to keep a log of the camera’s activities.

You can acquire a PDF of the web interface manual and other materials from the product page at SnapAV.com.

Safety Tips

} Handle this device with care. } Do not strike or shake this device. } Do not operate this device beyond its speciﬁed power source ratings. } Protect the power cord from being stepped on or pinched, particularly where it connects to the device and

to the power outlet.

} Do not use this device near any heat sources such as radiators, heat registers, stoves, or other such heat-

generating equipment.

} The performance and lifespan of the SD card (if used) is affected by temperature. For best results, use this

device in temperatures ranging from -22–140 °F.

} Clean this device with a dry cloth. Do not use strong or abrasive detergents when cleaning the device,

especially the lens. If dirt is hard to remove, use a mild detergent and wipe gently.

} Make a note of the conﬁguration settings and save them. This helps when changing the conﬁguration,

when upgrading the device, or with recovery if unexpected failure or trouble occurs.

Read this page before you go to the job site!

For maximum control and convenience, connect your camera to the Internet via your NVR or through a local network router.

Internet connectivity allows you to use OvrC, a powerful remote maintenance service. See OvrC.com for details. In addition, Internet connectivity allows your client to use the Luma Surveillance mobile app to check on the camera from anywhere.

For installation using this guide, you must be able to access this camera through a personal computer. If your surveillance system is not on a network, you’ll have to use the NVR’s local interface for installation. See the NVR user’s manual for details.

Required Equipment

} This camera and all box contents } A network connection (and an NVR, if desired) } Admin rights to a computer that can access the network } Power source: either PoE or 12V DC } Mobile phone with the Luma Surveillance mobile app (recommended) or CCTV tester } Phillips screwdriver

Page 3

4 5

Luma 500/700 Series Bullet IP Camera Luma 500/700 Series Bullet IP Camera

Overview

Before installing, familiarize yourself with the parts of your camera.

Installation

Before you start, ensure that the device is in good condition and all the assembly parts are included. Also ensure that your recorder has the very latest ﬁrmware. Use OvrC to update the ﬁrmware, or consult your NVR manual.

} Ensure the mounting surface is strong enough to hold three times the weight of the camera plus the mount. } If the mounting surface is cement, use the included wall anchors to install the camera. If mounting to a

wood surface, secure the camera using self-tapping wood screws (not included).

} If the product does not function properly, please contact technical support. Do not disassemble the camera

for repair or maintenance.

Box Contents

} Camera } Self-adhesive mounting template } 4 x wall anchors (with screws) } 3mm hex wrench } CC tester cable } Weatherprooﬁng kit for PoE cable

Important!

Before attaching this to

your Luma NVR, update

the recorder to the latest

ﬁrmware! If you don’t,

essential features of your

camera may not function.

Access panel

underneath the camera

Sunshade

Adjustment

Screw

Sunshade

Level

Screw

Elbow Screw

Base

Screw

Reset Button

Access

Panel

Video

Port

SD Card

Slot

Page 4

6 7

Luma 500/700 Series Bullet IP Camera Luma 500/700 Series Bullet IP Camera

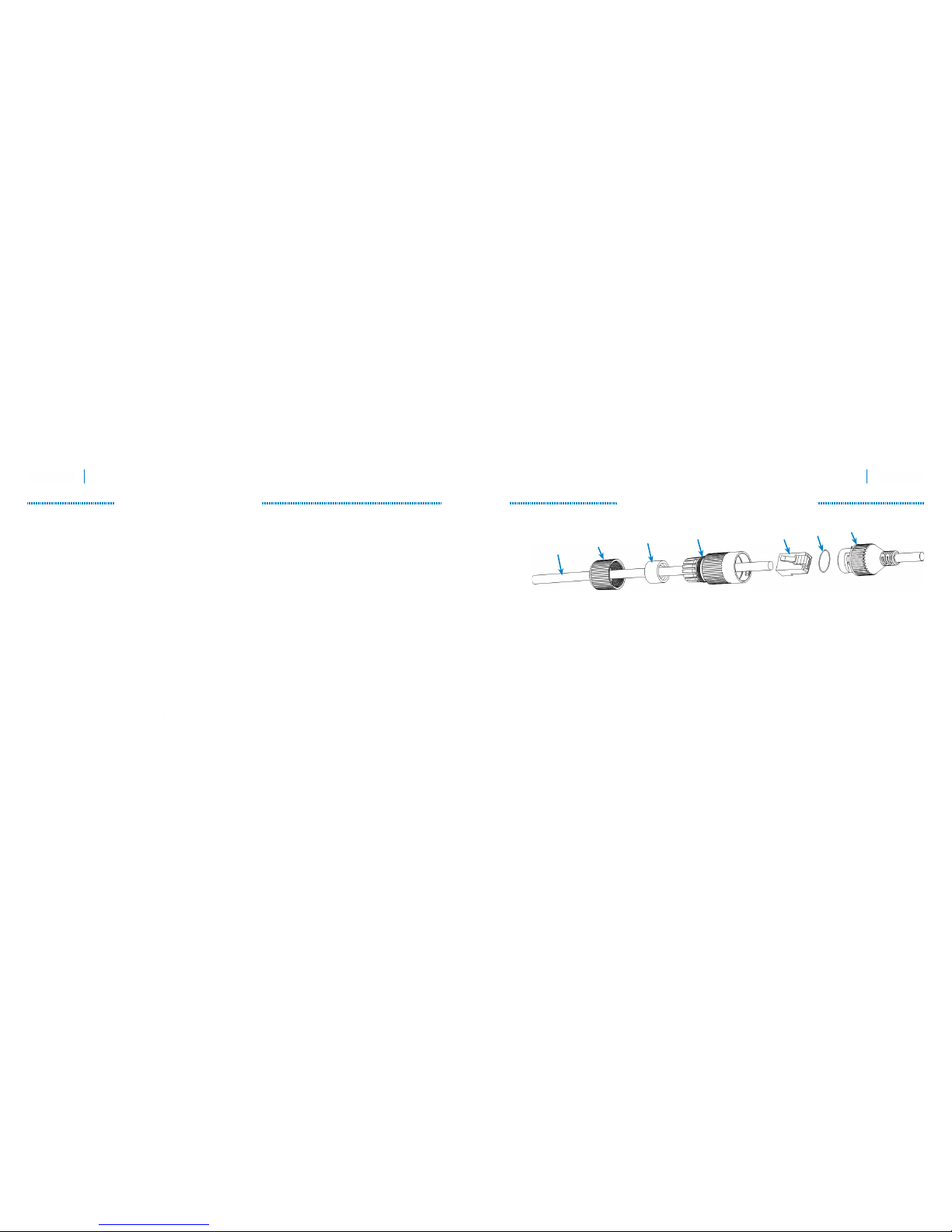

Weatherprooﬁng the PoE Cable

1. Before terminating the RJ45 cable , slide it through the lock nut , the thick rubber gasket , and the weatherproof endcap  as shown. Ensure the notched side of the rubber gasket  faces the endcap .

2. Terminate the RJ45 cable  with a network plug .

3. Place the O-ring  onto the end of the camera’s network interface socket  with the ﬂat side toward the camera. Push it past the locking teeth as far as it easily goes.

4. Connect the RJ45 plug  to the camera’s network socket .

5. Align the teeth on the weatherproof endcap  with the gaps on the camera’s network interface socket , then insert the socket into the endcap. Twist until they click into position (the O-ring  gives you a little ﬂexibility while still weatherprooﬁng the connection).

6. Slide the thick rubber gasket  into the weatherproof endcap , and secure it by screwing the lock nut  tightly onto the endcap .

Prepare for Installation

1. Drill a cable hole and pilot holes for your screws in the mounting surface, using the supplied template shown. The cable hole needs to be at least 1 inch wide.

2. CAUTION! Before terminating your RJ45 for an outdoor install, you must weatherproof it! See the next page for how to weatherproof

your cable.

3. Attach power to the camera.

} If using PoE, attach the RJ45 cable to the connector. } If using 12V DC for power, locate the red and black wire bundle

(on the 700, there are two sets of wires: one has red and black only, the other is a bundle of eight). Attach the hot line to the red wire, and the ground to the black wire.

4. For the 700 only: Connect the leads in the eight-wire bundle as shown for additional features. Secure all other wires so they don’t cause a short circuit.

} Blue Alarm in hot } Green Alarm in ground } Black Alarm out hot } White Alarm out ground

} Orange Audio in hot } Gray Audio in ground } Purple Audio out hot } Red Audio out ground







 





Page 5

8 9

Luma 500/700 Series Bullet IP Camera Luma 500/700 Series Bullet IP Camera

Install the Camera with No Recorder

1. Route the cables through the cable hole.

2. Attach the base of the camera to the mounting surface and secure it with screws.

3. Plug the camera into your network switch or router.

4. Attach either a PoE cable or a power supply.

5. Check that the camera is powered up.

6. Continue setup using the steps on the following pages using the camera’s web interface.

Install the Camera with an NVR

1. Route the cables through the cable hole.

2. Attach the base of the camera to the mounting surface and secure it with screws.

3. Ensure your NVR has the latest ﬁrmware. If it does not, you may experience troubles locating the camera, and certain functions may not work.

4. Plug your camera into your recorder. The NVR autodetects your camera and assigns it an IP address.

5. Check that the camera is powered up.

6. Complete the installation using the instructions given with your NVR’s guide. You do not need to continue using this manual. Wherever possible, we recommend changing settings using your NVR.

Optional Extra Setup

This camera has a few features that are not available on your NVR.

} It has advanced detection features: line crossing and area intrusion. After completing installation, see the

camera’s web interface manual to set these up.

} The 700 (only) has a motorized varifocal lens. See page 15 for details. You can adjust the lens from your

camera’s live view screen or from the NVR’s live view screen.

Page 6

10 11

Luma 500/700 Series Bullet IP Camera Luma 500/700 Series Bullet IP Camera

Edit the Network Settings

If you need to change the network settings at a later date, consult the web interface manual.

Set the IP Address

At the top of the right column of the Luma Utility, make a note of the IP address; you’ll need it in the next step.

Deselect the Enable DHCP box to make the IP address static.

Change the Server and HTTP Ports

The HTTP port defaults to 80. This port enables you to access your camera through a web browser.

The server port defaults to 8000. This port enables the Luma Surveillance mobile app to access your system.

For security reasons, we suggest you change your ports and make a note of the new port numbers for your records. Consult your server or router manual for common and reserved port numbers to avoid.

To conﬁrm changes, enter the password admin and then click Save.

Discover the Camera

If you plugged your camera into an NVR, do not continue using this guide! Complete the setup using the manual provided with your NVR.

If you are not using an NVR is your installation, continue setup using the following instructions.

Download and Install the Luma Utility

Visit any NVR’s product page at SnapAV.com and download the Luma Utility installer. The utility locates your camera and sets up communications.

Once it has downloaded, double-click on the Luma Utility icon to run the installer. You can click through and accept the defaults.

Run the Luma Utility

Double-click the Luma Utility icon to run the program.

It searches the local network for all Luma Surveillance devices. If your camera does not appear, ensure that the network connections are secure and that the camera is powered up, then click the

button.

Click on the entry for your camera to view its details. Double-clicking on the camera opens its web interface. Note that Chrome is not a supported browser for the web interface.

Page 7

12 13

Luma 500/700 Series Bullet IP Camera Luma 500/700 Series Bullet IP Camera

Check the Camera

After logging in, your screen shows the live page, which should look similar to the illustration below. If it does not appear, check the connection to your network, and ensure that the camera is powered up.

Click the Settings Menu icon to access the web interface tools and ﬁnish setup.

Start the Web Interface

Get the Luma Plug-In

Open your browser, type the IP address of the camera into the address bar, and hit Return.

Below the login window, you may see the words, “Please click here to download and install the plug-in. Close the browser when installing the plug-in.” If so, download the plug-in and close all instances of your browser, including any running in the background.

Install the LumaWebComponents plug-in.

Restart your browser and return to your camera’s login window.

Enter admin for both the user name and password.

You might get a pop-up message that asks whether you want to run the Luma Web Components plug-in. You must allow the plug-in to access your system over the web.

Be sure to save your camera’s web page as a favorite in your browser.

Note that Google Chrome is not a supported browser.

Settings

Icon

PTZ Icon

Page 8

14 15

Luma 500/700 Series Bullet IP Camera Luma 500/700 Series Bullet IP Camera

Adjust the Zoom and Focus (700 only)

The 700 series has a motorized varifocal lens.

To adjust the focus, return to the live screen (see page 13) and click the PTZ icon

. This

opens up the PTZ menu on your screen.

In the PTZ menu, click on the buttons circled.

} The Zoom– button on the top left widens the angle of vision, providing a more

panoramic view.

} The Zoom+ button on the top right lowers the angle of vision, providing a tighter

view.

} The Focus– button on the bottom left focuses on near objects. } The Focus+ button on the bottom right focuses on distant ones.

Adjust the Camera

1. This camera has an elbow joint ﬂanked by two rotational joints for perfect pan and tilt control. Loosen the three hex screws in the camera. Check the camera’s aim using either the camera’s web-based UI, the Luma Surveillance app, or a CC tester.

2. Adjust the angle of the elbow as desired, and tighten the elbow hex screw, A. Rotate the camera so that it faces the proper direction, and tighten the base screw, B. Finally, spin the camera casing so that the picture is level, and tighten the level hex screw, C.

3. Adjust the sunshade. Use a quarter to loosen the sunshade screw (do not remove it). Slide the shade to the desired position, and tighten the screw when ﬁnished. We recommend that you do not remove the shade,

even for indoor installations.

Level

Screw

Elbow Screw

Base

Screw

Page 9

16 17

Luma 500/700 Series Bullet IP Camera Luma 500/700 Series Bullet IP Camera

Set Up Port Forwarding

Port forwarding is typically found under the Applications & Gaming section of your router. Refer to your router’s user manual for full details.

To complete port forwarding, you will need:

} the IP address of the camera, and } the server and HTTP port.

You set these values on page 11.

Once you’ve ﬁnished, pointing your browser to your device’s URL (example: MyHome.WirepathDDNS.com) gets you to the login page of your camera, no matter where you are. If you changed your HTTP port from the default location (80), add a colon and the new port number to the URL (e.g., MyHome.WirepathDDNS:8042).

Set Up Dynamic DNS

DDNS allows you to connect to your surveillance system from anywhere, via the Internet, using a web address that’s easy to remember.

Click on Basic Network Settings > DDNS.

Click the box labeled Enable DDNS, then choose a type from the DDNS Type drop-down menu. We recommend WirepathDDNS. Next, choose a server address. We recommend

ns2.wirepathdns.com.

Enter your desired domain in the Domain box. This creates a personalized server address, which is shown under Device URL.

If someone has already registered your desired domain, the system adds a unique ID (typically two to four digits) to your domain. If you do not like these digits, try another domain or server address.

Example: If you choose the domain myhome (as shown), your system’s URL would be myhome.WirepathDDNS.com. If someone already had claimed the myhome URL, then your system’s URL would be something like myhome13.WirepathDDNS.com.

Click Save to ﬁnalize the settings here.

Page 10

18 19

Luma 500/700 Series Bullet IP Camera Luma 500/700 Series Bullet IP Camera

Calibrate the Camera’s Clock

Click on System Settings > Time Settings.

Synchronize the Time

At the top, choose your time zone. North American time zones range from GMT-10:00 (Hawaii) to GMT-03:30 (Newfoundland).

By default, the system uses network time protocol (NTP) to synchronize your system to Coordinated Universal Time. We strongly recommend using NTP to keep your system

well calibrated.

If you want to use manual time sync, or if your system is isolated from the Internet, see the camera web interface manual (available online).

Disable DST if Necessary

If you are in a location that does not observe daylight saving time, click the Enable DST checkbox to deselect it.

Click Save to conﬁrm changes.

Create Users and Set Passwords

Click on User Management.

Change the Admin Password

Click on the admin account, then click Modify.

Passwords cannot be longer than 16 characters. If you are using an NVR, to ensure compatibility with the NVR’s local interface, passwords can only contain numbers, letters, spaces, and the following special characters: . , : - /

Use a password that is long and easy to remember. A password like parisinthespring is much more secure and easier to remember than a password like D3x^7b.

Add Additional Users

Click the Add button. Enter the new account’s user name and password. Account names can be up to 32 characters long. If you are using an NVR, to ensure compatibility with the NVR’s local interface, user names should contain numbers and letters only.

We recommend that you add accounts by individual users’ names, so that you always know which user is involved with any activity.

Choose the account’s level. There are two levels for users: operator and user. The only difference is the default permissions they are given. You can customize permissions for each account individually. See the camera web interface manual (available online on your camera’s product page) for more details.

Page 11

Luma 500/700 Series Bullet IP Camera

Support

Need Help? Contact Tech Support!

If you need further clariﬁcation, please email [email protected]. For more information, instructional videos, support documentation, or ideas, visit our website and view your item’s product page.

3-Year Limited Warranty

This Luma Surveillance™ product has a 3-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modiﬁed or disassembled. Products to be repaired under this warranty must be returned to a designated service center with an assigned return authorization (RA) number. Contact technical support for an RA number.

Version 160712-1359
