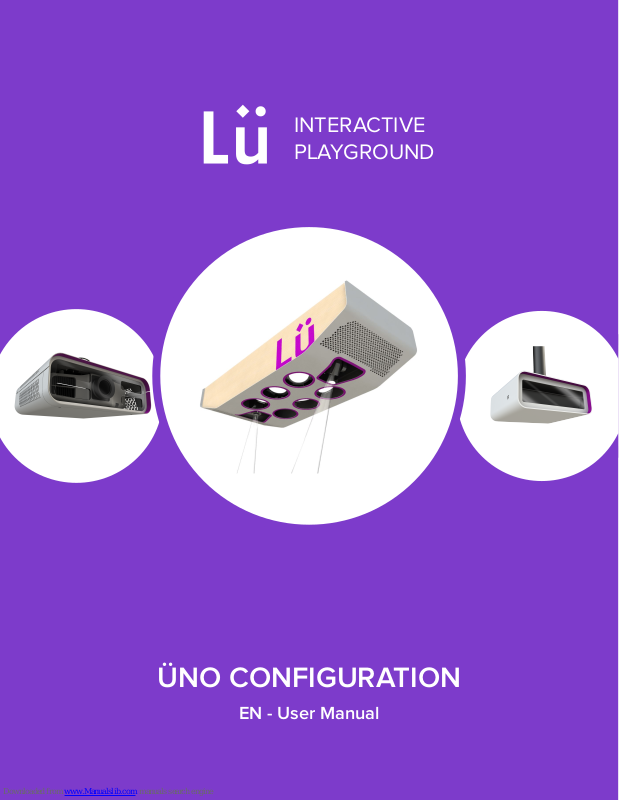

Lu Interactive Playground UNO CONFIGURATION User Manual

INTERACTIVE PLAYGROUND
EN - User Manual
ÜNO CONFIGURATION
!
Important Safety Instructions
2. Always connect the product to a grounded circuit
3. Do not use this apparatus near water.
4. Clean only with a dry cloth.
5. Do not block any ventilation openings. Install in accordance with the manufacturers instructions.
6. If mounting the product overhead, make sure there is adequate support for the product’s weight and always secure the product using a safety cable.
7. Only use attachments/accessories specified by the manufacturer.
8. Unplug this apparatus during lightning storms or when unused for long periods of time.
9. Do not use Lû system in an environment where temperatures exceed +40°C (104°F).
10. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
11. To completely disconnect AC power from this apparatus, the power supply cord must be unplugged.
12. Do not expose this apparatus to dripping or splashing and ensure that no objects filled with liquids.
13. Lü loudspeakers are easily capable of generating sound pressure levels sucient to cause permanent hearing damage to anyone within normal coverage distance. Caution should be taken to avoid prolonged exposure to sound pressure levels exceeding 90 dB.
IMPORTANT: Do not modify this product! Changes or modifications not expressly approved by the manufacturer could void the user’s warranty.
About This Guide
The Lü Interactive System User Manual has basic product information such as safety and operation.
Disclaimer
Thie information and specifications contained in this user manual are subject to change without notice.
INTERACTIVE PLAYGROUND
Lü Limited Warranty
Two-Year Projector Limited Warranty and 90-Day Lamp Limited Warranty.
What Is Covered: Lü Interactive Playground inc. (“Lü”) warrants to the original purchaser of the Epson projector product enclosed in Lü system, with this limited warranty statement that the product will be free from defects in workmanship and materials for a period of two (2) years from the date of original purchase. This limited warranty applies only to the projector and not to the projector lamp, which carries a limited warranty period of ninety (90) days from the date of original purchase. For warranty service, you must provide proof of the date of original purchase.
One-Year System Limited Warranty.
What Is Covered: Lü Interactive Playground inc. (“Lü”) warrants to the original purchaser of the system this limited warranty statement that the product will be free from defects in workmanship and materials for a period of one (1) year from the date of original purchase.
INTERACTIVE PLAYGROUND
Congratulations with the purchase of this Lü Interactive Playground!
This system was crafted with passion by the team at SAGA in Canada and we really hope you will enjoy using it.
What Is Included
This system was installed by our professional partners in respect of all local laws and regulations. You are now equipped by:
(3) ceiling mounted modules:
Light & Sound Module
6x 200w LED PAR to manage the ambiant lighting and general colors, 2x Robotised LED light fixtures for special light eects and a powerful 2000 watts sound system.
Projector Module
5500 lumens WXGA projector protected in a custom enclosure
Camera Module
3D camera system.
(2) remote controllers:
Projector’s remote controller Lü system remote controller
INTERACTIVE PLAYGROUND
Interactive screen
Maximum size: 20’ (5.8m) Large x 11’ (3.3m) High Must be a flat, solid, bright surface.
Playground dimensions and specifications
Operation
Game Area
Centred in front of the interactive screen Recommended size: 30’ (9m) Large x 30’ (9m) Long Minimum ceiling heights: 14’ (4.3m) Maximum ceiling heights: 28’ (8.5m)
To maximize immersion, ambiant lighting must be controllable. When our system is in operation, general lights must be turned o and no window should allow direct sunlight in the room.
INTERACTIVE PLAYGROUND
Lü homepage
The round boxes represent the available games. Select a game or an option using the yellow frame.
Turn on/o the lights by
selecting the light bulb.
Access the setting menu by
selecting the gear
Access the light menu by
selecting the console
Access the internet browser
Operation
INTERACTIVE PLAYGROUND
Remote controller
1
2
3
Move Selection
Select Button
1. Mute
2. Left Click Button (and Click for drag)
3. Right Click Button
Volume
2
3
On/O Switch
USB charging
port
Quit game or
program
Confirm Choices
& Start Games
Pause / Start
Operation
INTERACTIVE PLAYGROUND
General operations
Turn ON/OFF lights (Main Menu): F1 Volume UP: V+ Volume DOWN: V­Exit Game: Esc + ENTER Pause Game: SPACE BAR Choose Game: , , , Move Selection: , , , Begin Game: ENTER or OK Select: ENTER or OK Exit Lü / Go back to Windows Desktop: Win + D Move Mouse: Use Trackpad Left click: One Trackpad Click or Left Click Button Right click: Double Trackpad Click or Right Click Button Mute : Mute Button Drag with mouse : Click on the left click button while moving finger on the trackpad
Remote controller - Shortcuts
Galactic Game
Go to next level: N
Puzz Game
Highlight errors: B Change image: N
Operation
Target
Display settings: O Reset timer and points:: R
INTERACTIVE PLAYGROUND
Calibration
Calibration will adjust the camera used to detect balls on the wall. Once the system is calibrated, it is not necessary to repeat the operation each time. The system should only be calibrated when you feel that the contact between the ball and the wall is not accurate. To calibrate the system, follow the steps below:
1. Select the button in the setting menu.
2. Click on the button.
3. While the system is calibrating, a calibration grid will appear and after a few seconds the message “Calibration Successful” will display.
4. Press “Esc” and “Enter” to return to the homepage.
5. Throw a ball into the white section to confirm that the contact of the ball on the wall is now adjusted.
Operation
INTERACTIVE PLAYGROUND
Operation
Lighting Application
With the Lü system, you can control the dierent spotlights for personalized lighting of the room according to the ongoing event (corporate event, school activity, intra-company challenge, fair, gala, show, etc.). To personalize lighting, follow these steps:
1. Select the side of the gym you want to control (D1, D2 or both)
2. To select from the preset list, choose from the dropdown menu and click on the Apply button.
3. To select a color, click on the color you want.
4. You can always adjust the general light level using the MASTER LIGHT LEVEL slider.
INTERACTIVE PLAYGROUND
Troubleshooting
How to turn computer ON?
Computer will automatically boot connected to a power alimentation. To reboot it, shutdown the power alimentation, wait one minute, and turn it back on.
How to turn the projector ON?
To turn the projector ON, first make sure the modules are powered. Then, press the “ON” button using the projector remote and wait for the image to be displayed. The projector will also boot automatically when it receives electrical power.
INTERACTIVE PLAYGROUND
Recommended Servicing
Cleaning the Air Filter!
You need to clean the projector's air filter in the following situations:
The filter or vents get dusty.
You see a message telling you to clean it.
The projector's Filter light flashes orange.
1. Turn o the projector, wait for the projector to beep, and unplug the power cord.
3. Slide the air filter cover latch and open the air filter cover.!
4. Pull the air filter out of the projector.!
4. Tap each side of the air filter 4 to 5 times to shake o any excess dust.!
!
Caution:!
Do not use excessive force when tapping the air filter, or it may crack and become unusable. Do not rinse the air filter in water, or use any detergent or solvent to clean it. Do not use canned air; the gases may leave a residue, or push dust and debris into the projector's optics or other sensitive areas.!
5. Vacuum the front of the air filter (the side with the tabs) to remove any remaining dust.!
!
Note:If dust is dicult to remove or the air filter is damaged, replace the air filter.!
6. Place the air filter back in the projector as shown and push gently until it clicks into place.!
!
7. Close the air filter cover.
INTERACTIVE PLAYGROUND
Technical Specifications
d d d d d d d
CAMERA MODULE
LIGHT & SOUND
MODULE
PROJECTOR
MODULE
INSTALLATION
POSITION*
16’ (4.9m) from the wall
18’ (5.5m) high
18’ (5.5m) from the wall
20’ (6m) high
30’ (9m) from the wall
18’ (5.5m) high
SIZE
12’’ L x 12’’ L x 8’’ H
30 x 30 x 20 (cm)
33’’ L x 84’’ L x 20’’ H
84 x 213 x 50 (cm)
22’’ L x 20’’ L x 10’’ H
56 x 50 x 25 (cm)
WEIGHT
10 kg
33 lbs
125 kg
275 lbs
25 kg
55 lbs
RIGGING
1.5’’ (3.8cm) pipe mounting bracket
4 Hanging Points
(+2 rig points for
installation)
1.5’’ (3.8cm) pipe mounting bracket
POWER
CONSUMPTION
100-240V - 75W
100-240V - 1000W
100-240V - 462W
* Installation positions are optimal positions, but can be adapted to dierent spaces when required. Contact us for more details.
INTERACTIVE PLAYGROUND
Complete documentation
For more detailed informations about some selected Lü interactive playground components:
Video projector - Epson 5520w projector
https://files.support.epson.com/docid/cpd5/cpd52631.pdf
Loudspeakers - Electro-Voice ZLX 12P
http://www.electrovoice.com/binary/ZLX_F01U319253_en.pdf
PC Computer - Intel NUC
https://www.intel.com/content/www/us/en/products/boards­kits/nuc/kits/nuc6i5syh.html
DMX Distribution - Chauvet Data Stream 4 https://www.chauvetdj.com/wp-content/uploads/2015/12/ Data_Stream_4_UM_Rev2_WO-1.pdf
Wireless microphone - Shure BLX14R
http://pubs.shure.com/guide/BLX4R/en-US
Contact informations
For support, any questions or comment on this product:
+1 418 781-0797 support@play-lu.com
202-707 St-Vallier E. St Quebec, QC, Canada G1K 3P9
