LR600 Auto Levelling Rotary Laser Level
USER GUIDE
Page 2
2
LR600
Lufkin LR600
The LR600 is a professional instrument with an extremely rugged design, enabling precision
automatic levelling. Self-levelling range ± 5° horizontal, accuracy 1 mm / 10 m, temperatureresistant sensor system (SLS). Highest reliability is guaranteed through the anti-drift system
(ADS): The electronics permanently monitor the measuring process and switch the laser off in
the case of any outside interference or disturbance. Adjustable horizontal tilt, easy one-button
operation. Includes LRD120 laser detector and remote control unit.
General safety instructions
Caution: Do not look directly into the beam.
Lasers must be kept out of reach of children.
Never intentionally aim the device at people. This
is a quality laser measuring device and is 100%
factory adjusted within the stated tolerance. For
reasons of product liability, we must also draw
your attention to the following: Regularly check the calibration before use, after transport and
after extended periods of storage. We also wish to point out that absolute calibration is only
possible in a specialist workshop. Calibration by yourself is only approximate and the accuracy
of the calibration will depend on the care with which you proceed.
Limited Lifetime Guarantee
Apex Tool Group quality products are Guaranteed against any defect in material or workmanship.
Damage caused by abuse, improper use or excessive wear is not covered by this warranty.
This warranty is provided in addition to other rights and remedies you have under law: Our
goods come with guarantees that cannot be excluded under the Australian Consumer Law. You
are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to a major
failure.
Claims should be returned, with proof of purchase, to the place of purchase or returned prepaid
to the address on back page of this guide. Repaired or replacement goods will be returned at our
cost.
Note: This product is a precision instrument that must be handled and treated with care.
Avoid shocks and impact. Always keep and carry in the case! Switch all lasers off when not
in use. For cleaning, use a soft cloth and glass cleaner.
Laser light !
Do not stare into the
beam or view directly
with magnifiers.
Class 2/3 laser
EN60825-1:2007-10
Page 3
3
LR600

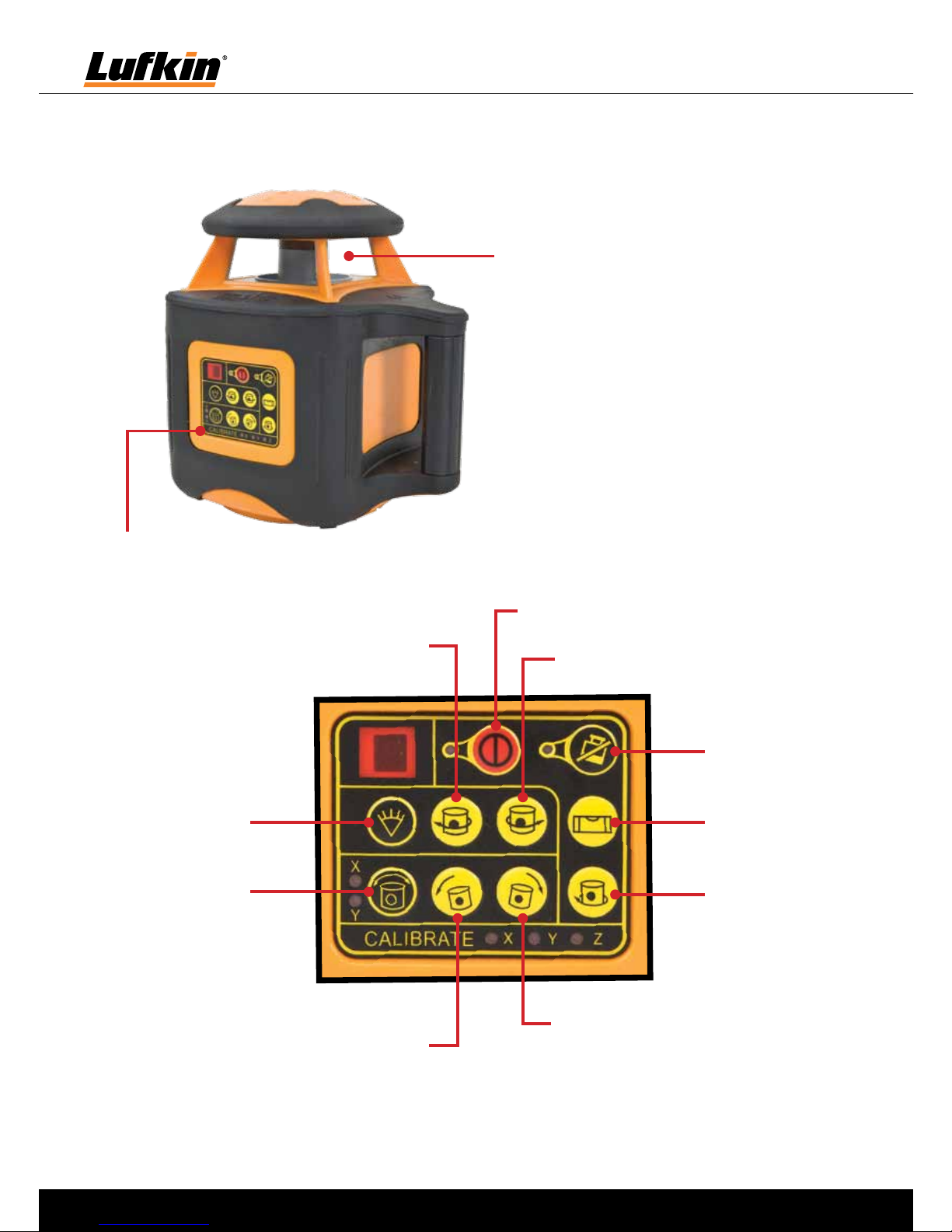

Safety Mode
Rotation Speed
Tilt Right
Re-level Control
On Off
Laser Window
Control Panel
Move Scan Right
Move Scan Left
Scan Mode
Slope
Tilt Left
Page 4
4
LR600

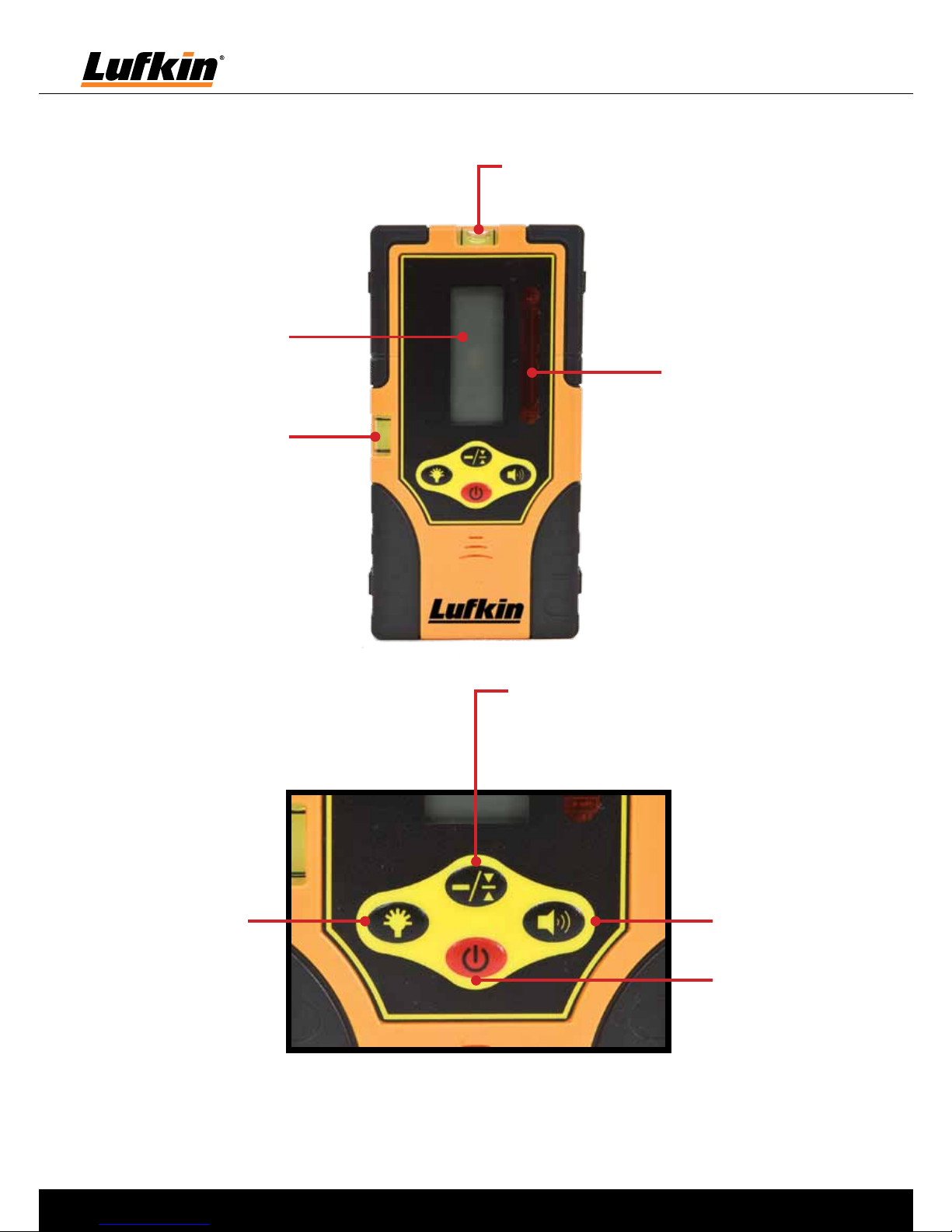

Included Accessories:
Laser Detector
Close-up of detector controls
Horizontal Levelling Vial
LCD Screen
Detector Window
Volume Control
On / Off
Back Light
Sensitivity Adjustment
(high - med - low)
Vertical Levelling Vial
Page 5
5
LR600

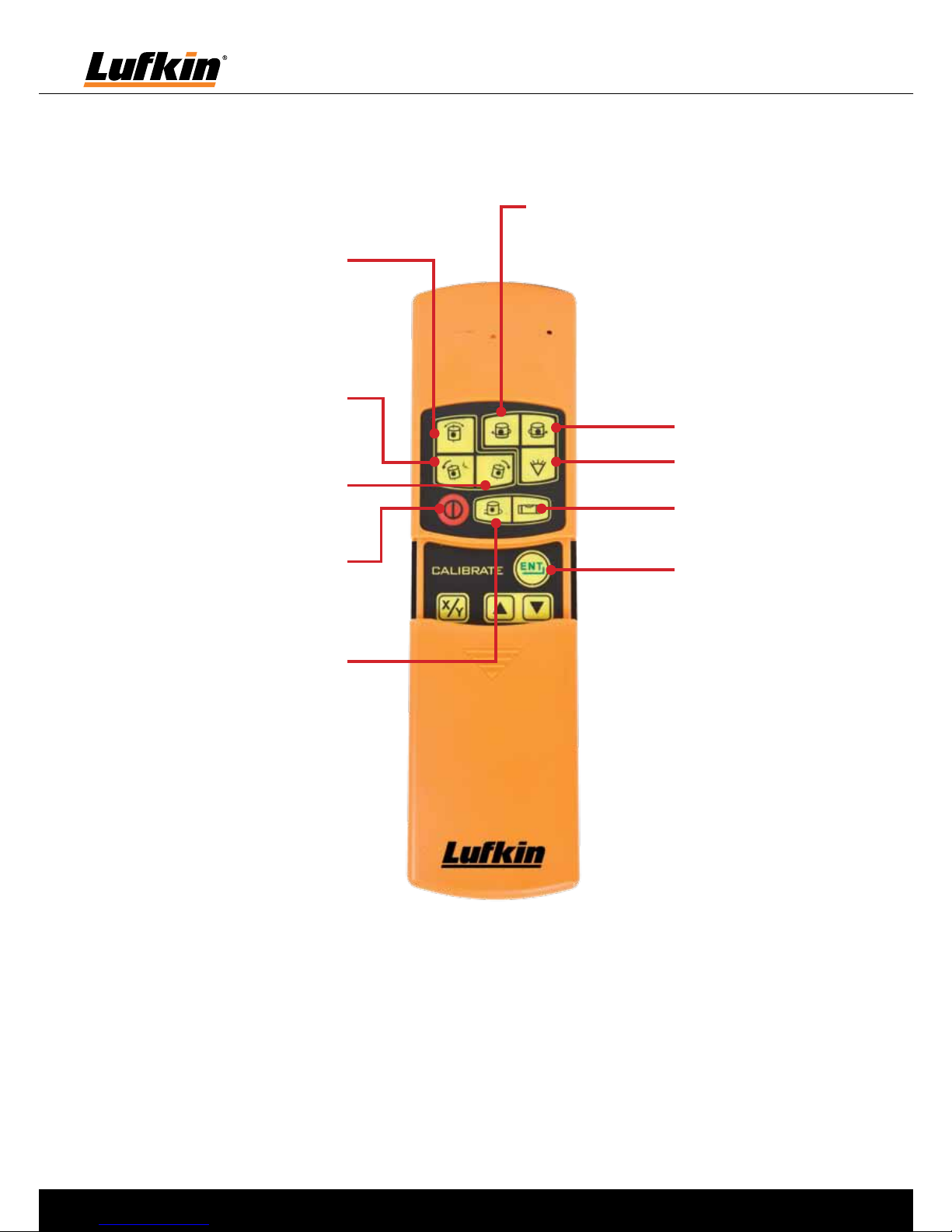

Remote Control
Calibration Panel
Rotation Speed
Re-level Control
On Off
Move Scan Right
Move Scan Left
Scan Mode
Tilt
Tilt Left
Tilt Right
Page 6
6
LR600
Operation of the LR600

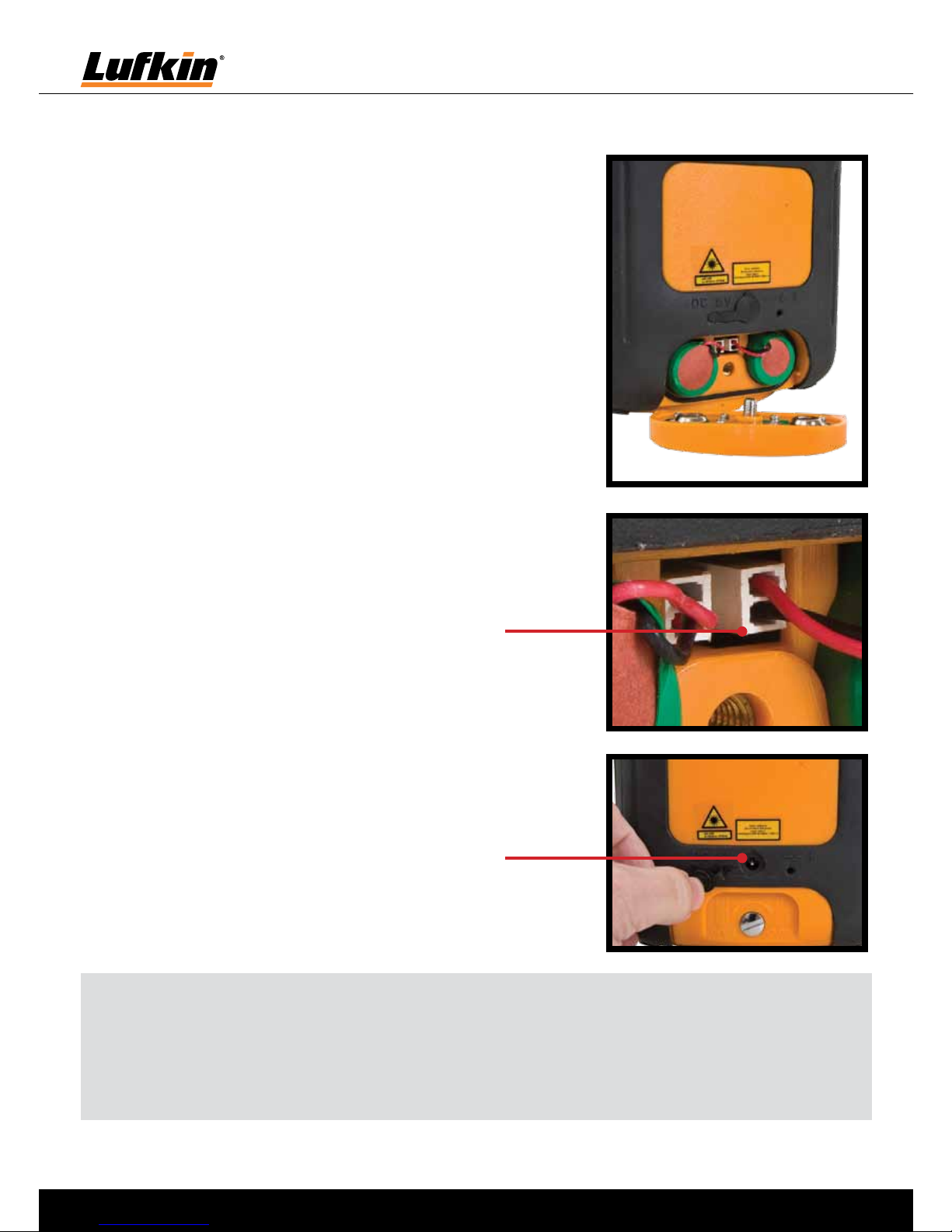

Charging the batteries
• BeforeusingtheLR600,fullychargethebatteries
• Openthebatterycompartment,insertthebatteries
and connect the plugs to the sockets. The plugs fit in
the sockets in one position only (see pictures on right).
close the battery compartment.
• Connectthebatterycharger/mainsunittoamains
source and plug into the socket. Please only use
the charger/mains unit supplied with the device. If a
different one is used, the warranty will become void.
• Thedevicecanalsobeoperatedwithstandardalkaline
batteries (4 x type C). Insert the batteries as shown by
the installation symbols. Ensure the polarity is correct.
• IftheLEDblinksconstantly,eitherthebatteriesmustbe
exchanged or recharged.
Note: Do not expose batteries to excessive heat such as sunshine, fire, etc. Dry batteries
must not be recharged. Used batteries must not be disposed of as household waste.
Please take them to a collection point for used batteries or for special waste. Ask your local
authority for further details.
Pull back rubber weather seal
to reveal charging socket
Plugs fit to sockets as shown
Page 7
7
LR600

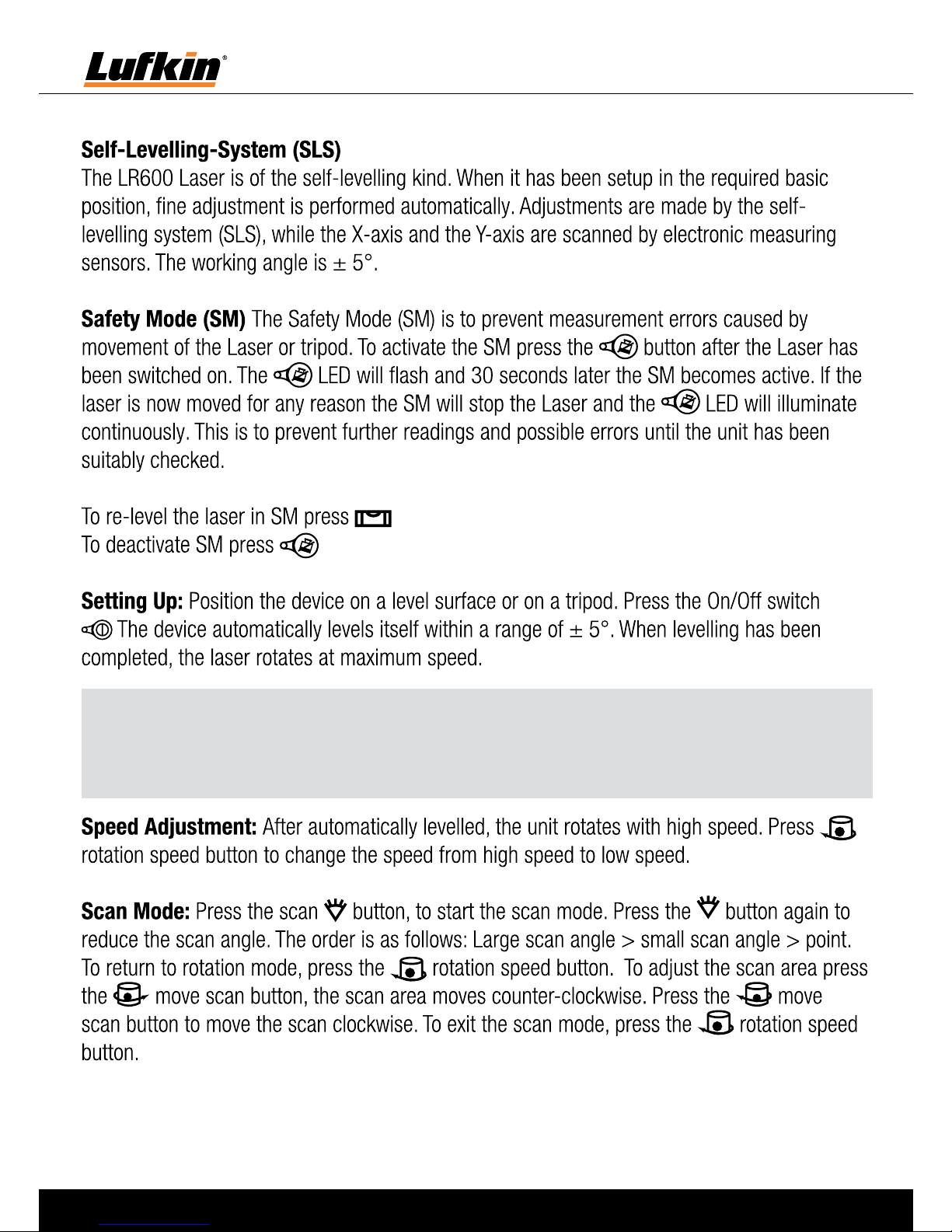

Note: If the device is too far off the horizontal (more than 5°), a warning signal will sound
and the rotor head will not rotate. In this case, the device must be repositioned on a more
level surface.
Page 8
8
LR600

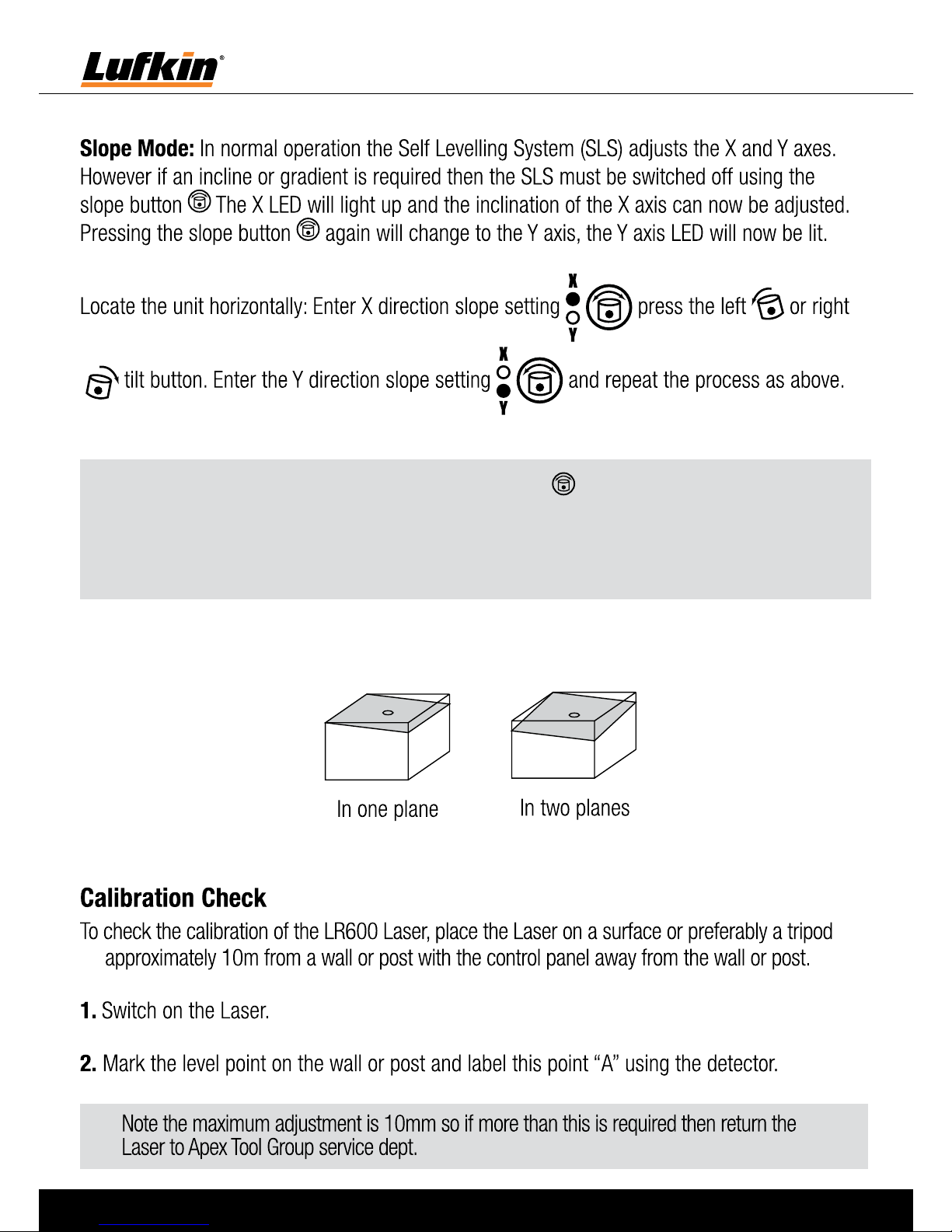

Note: When the unit is automatically levelled, press the
button and the unit will returned
to normal operation. When the unit is in safety mode, press this button to exit from the safety
mode and enter into the slope setting mode.
Page 9
9
LR600

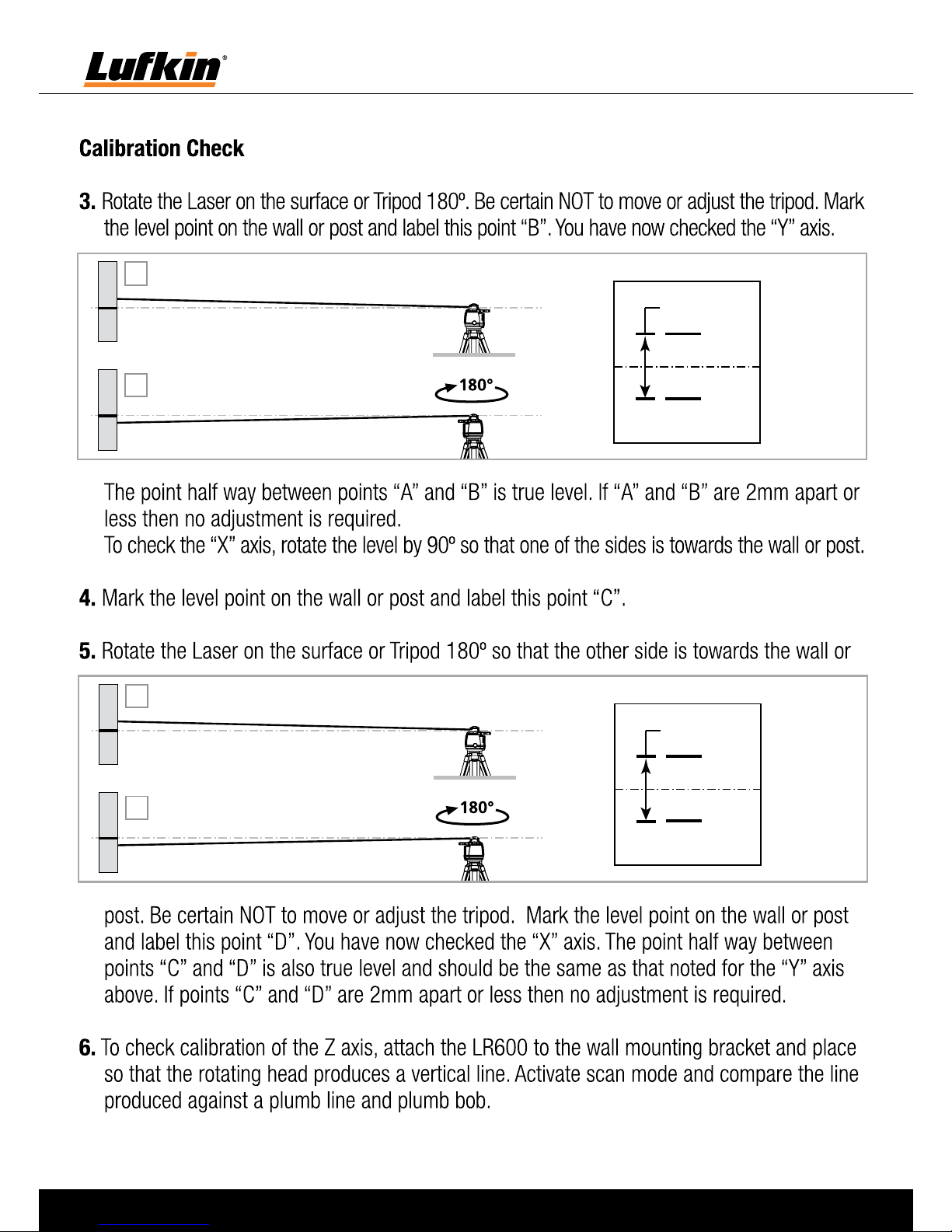

A
B
Max 2mm
1
A
2
B
C
D
Max 2mm
1
C
2
D
Page 10
10
LR600

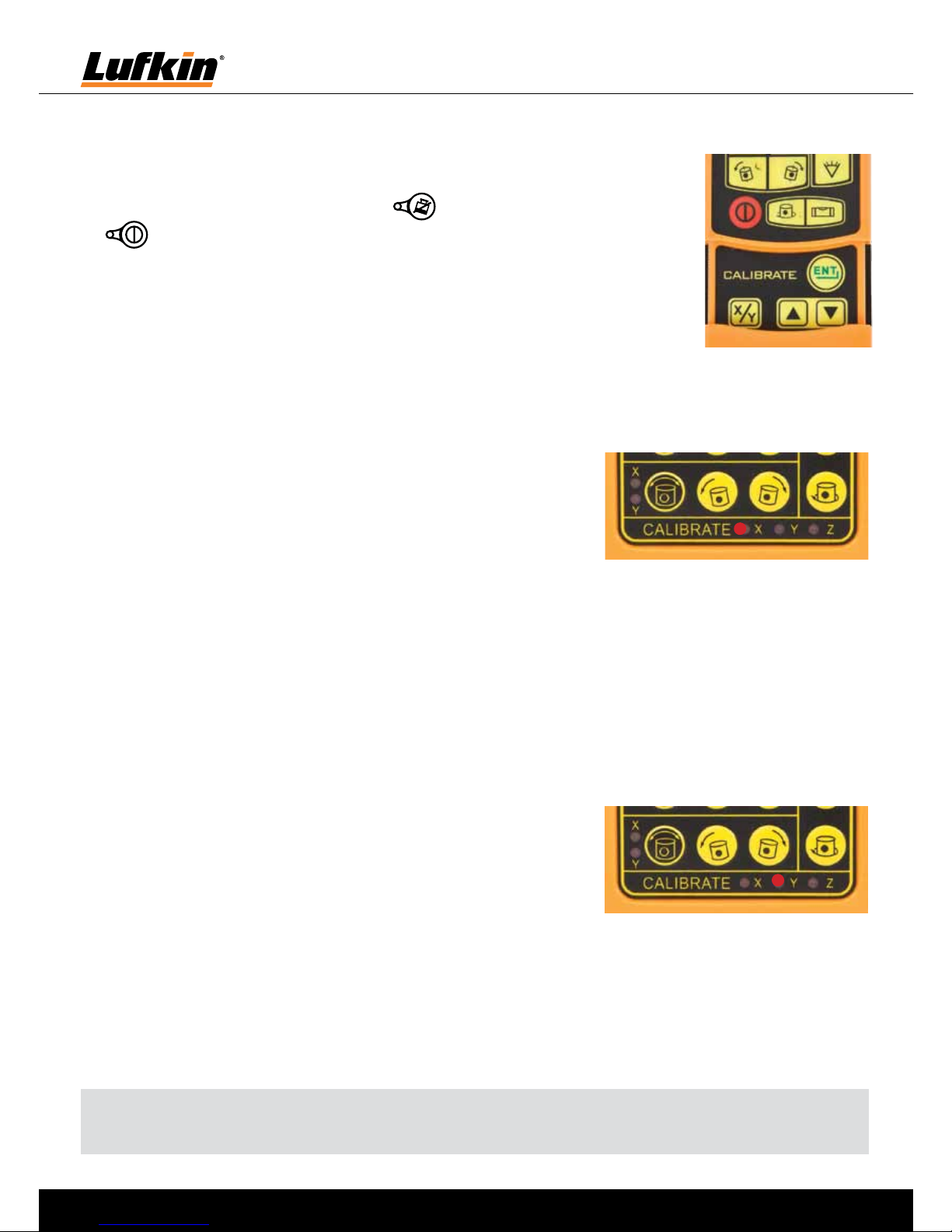

Calibration Adjustment
1. Switch the LR600 off.
2. Hold down the safety mode button and briefly press on/off button
. Keep holding the safety mode button down until the LED’s on the
control panel flash 2 times. (Approximately 10 seconds).
3. Calibration adjustments are all made using the calibration panel on the
remote control.
X Axis Adjustment
1. Turn the LR600 so that the X axis faces a wall or post (reference surface).
2. Activate calibration adjustment mode as described above.
3. Press the X / Y button on the remote control twice. The X
LED on the calibrate panel will illuminate as shown on the
right. The laser head will start rotating and the X axis can
now be adjusted.
4. Adjust the position of the beam using up down buttons on
the remote control until the desired position is achieved.
5. To save the new setting press ENT button on the remote control. The X axis LED will now
turn off.
Y Axis Adjustment
1. Turn the LR600 so that the Y axis faces a wall or post (reference surface).
2. Activate calibration adjustment mode as described above.
3. Press the X / Y button on the remote control 3 times. The Y
LED on the calibrate panel will illuminate as shown on the
right. The laser head will start rotating and the Y axis can
now be adjusted.
4. Adjust the position of the beam using up down buttons on
the remote control until the desired position is achieved.
5. To save the new setting press ENT button on the remote control. The Y axis LED will now
turn off.
Note: When either the X or Y axis has been adjusted, perform a full calibration check as
adjustment of 1 axis can sometimes affect the other axis.
Page 11
11
LR600
Calibration Adjustment

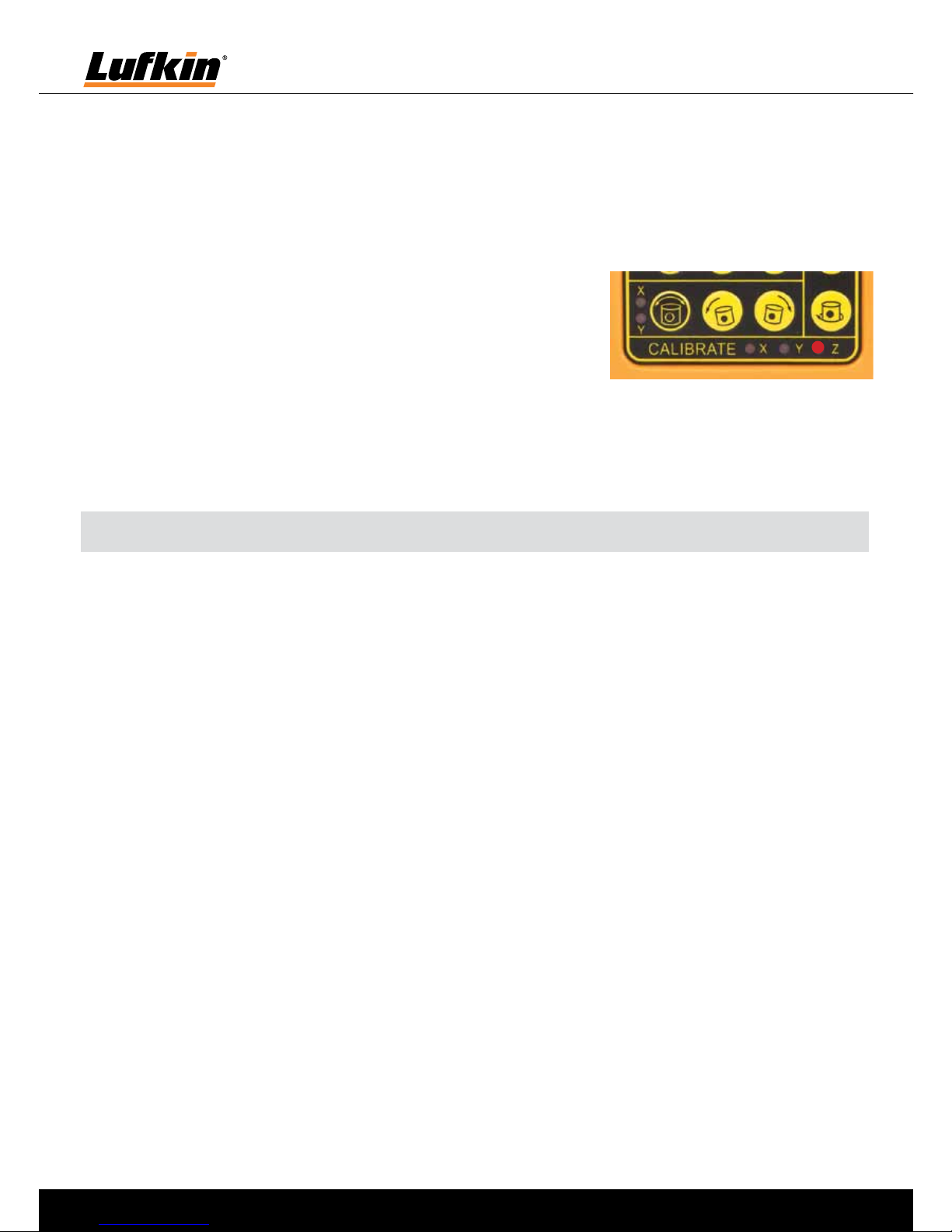

Z Axis Adjustment
1. Set up the LR600 so that the Z axis (vertical line) aligns with a vertical plumb line.
2. Activate calibration adjustment mode as described previously.
3. Press the X / Y button on the remote control 3 times. The Z
LED on the calibrate panel will illuminate as shown on the
right. The laser head will start rotating and the Z axis can
now be adjusted.
4. Adjust the position of the beam using up down buttons on
the remote control until the desired position is achieved.
5. To save the new setting press ENT button on the remote control. The Z axis LED will now
turn off.
Note When calibration is complete, switch the LR600 off completely before using it further.
Page 12
12
LR600
LR600 Specifications
Self-levelling range ± 5°
Adjustment speed approx. 30 sec – on entire working angle
Precision Horiz ± 1 mm/10 m - Vert ± 1.5mm/10m
Sensor Electronic levelling device
Horizontal levelling Automatic
Rotation speed 120 RPM (low) & 500 RPM (high)
Remote control Infrared IR
Laser wavelength 635 nm
Laser Class II/III (EN60825-1:2003-10)
Laser output rating < 1 mW
Rechargeable batt. operating time approx. 20 h
Non-rechargeable battery life approx. 30 h, 4 x Typ C
Battery recharging time approx. 14 h
Ambient operating temperature range -10°C ... +50°C
Weight 3 kg
Technical Specifications
