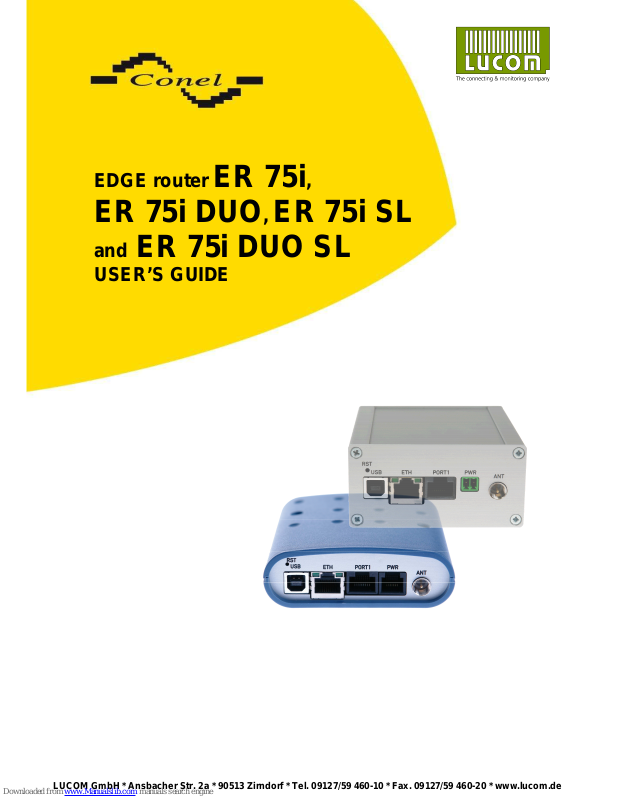

Lucom ER 75i, ER 75i DUO SL, ER 75i SL User Manual

EDGE router ER 75i,

ER 75i DUO, ER 75i SL

and ER 75i DUO SL

USER’S GUIDE

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONTENTS

2

Contents

1. Safety instructions 5

2. Description of the ER 75i, ER 75i DUO, ER 75i SL and ER 75i DUO SL routers 6

2.1. Introduction 6

2.2. Delivery Identification 7

2.3. Antenna Connection 8

2.4. SIM Card Reader 9

2.5. Power Supply 9

2.6. Technical parameters 9

2.7. Description of individual components of the router 10

2.7.1. GSM/GPRS/EDGE module 10

2.7.2. Control microcomputer 10

2.8. User interfaces (Connectors) 11

2.8.1. Connection of the PWR Supply Connector 13

2.8.2. Connection of the ETH Connector 14

2.8.3. Connection of the Connector USB 14

2.8.4. Connection of the optional connector PORT1 15

2.8.4.1. Expansion port RS232 15

2.8.4.2. Expansion port RS485 16

2.8.4.3. Expansion port RS422 17

2.8.4.4. Expansion port M-BUSD 19

2.8.4.5. Expansion port CNT 20

2.9. Technical specification of optional PORT1 21

2.10. Modem status indication 24

2.11. Putting into operation 24

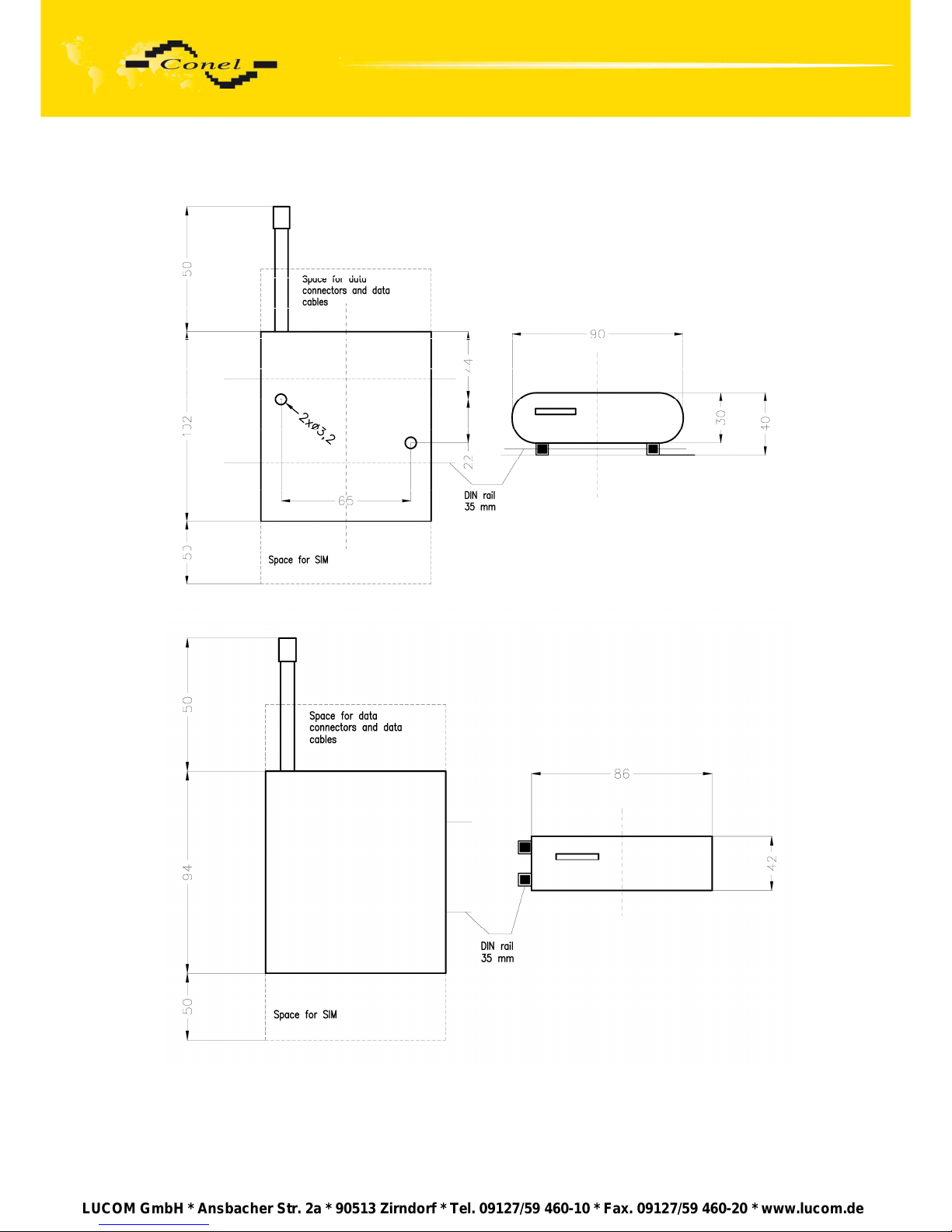

2.12. Mechanical external dimensions and mounting recommendations 25

3. Expansion port mounting 28

3.1. Expansion port mounting for ER 75i and ER 75i DUO router 28

3.2. Expansion port mounting for ER 75i SL and ER 75i DUO SL router 30

4. Configuration setting over web browser 32

4.1. Network Status 33

4.2. DHCP Status 34

4.3. IPsec status 34

4.4. GPRS Status 34

4.5. DynDNS status 35

4.6. System Log 35

4.7. LAN Configuration 36

4.8. VRRP Configuration 40

4.9. GPRS Configuration 41

4.10. Firewall Configuration 45

4.11. NAT Configuration 47

4.12. OpenVPN Tunnel Configuration 50

4.13. Ipsec Tunnel Configuration 53

4.14. GRE Tunnel Configuration 55

4.15. L2TP tunnel Configuration 57

4.16. DynDNS Client Configuration 59

4.17. NTP Client Configuration 60

4.18. SNMP Configuration 60

4.19. SMTP Configuration 62

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONTENTS

3

4.20. SMS Configuration 63

4.21. Expansion Port Configuration 70

4.22. Start-up script 72

4.22.1. IO program 72

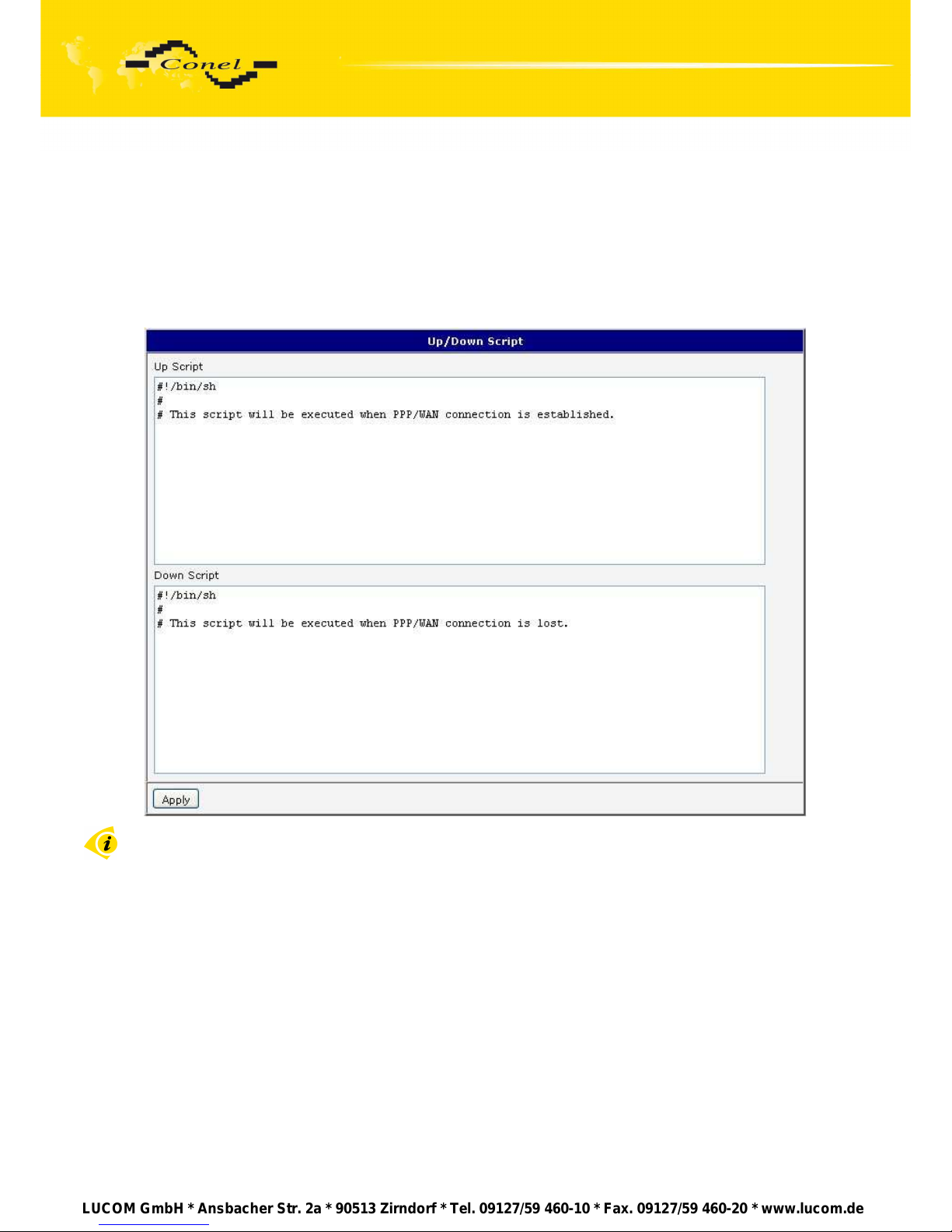

4.23. Up/Down script 74

4.24. Automatic update configuration 74

4.25. Change profile 75

4.26. Change password 75

4.27. Set real time clock 76

4.28. Set SMS service center address 76

4.29. Unlock SIM Card 76

4.30. Send SMS 77

4.31. Backup Configuration 77

4.32. Restore Configuration 77

4.33. Update firmware 78

4.34. Reboot 78

4.35. Default settings 79

4.35.1. LAN Configuration 79

4.35.2. VRRP Configuration 80

4.35.3. Firewall Configuration 80

4.35.4. GPRS Configuration 81

4.35.5. NAT Configuration 82

4.35.6. OpenVPN Tunnel Configuration 82

4.35.7. Ipsec Tunnel Configuration 84

4.35.8. GRE Tunnel Configuration 85

4.35.9. L2TP Configuration 85

4.35.10. DynDNS Configuration 86

4.35.11. NTP Configuration 86

4.35.12. SNMP Configuration 86

4.35.13. SMTP Configuration 87

4.35.14. SMS Configuration 87

4.35.15. Expansion Port Configuration 88

4.35.16. Startup Script 88

4.35.17. Up/Down Script 89

4.35.18. Automatic Update 89

5. Configuration setting over Telnet 90

6. Driver installation 91

7. Control by AT commands 93

8. Possible problems 93

9. Reference 93

10. FAQ 93

11. Customer’s care 95

12. Product disposal information 96

13. Guarantee Claim Guidelines 97

14. Guarantee certificate 100

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONTENTS

4

Symbols used

Danger – important notice, which may have an influence on the user’s safety
or the function of the device.

Attention – notice of possible problems, which can arise in specific cases.
Information, notice – information, which contains useful advice or special interest.

GPL license

Source codes under GPL license are available free of charge by sending email to

[email protected].

Conel s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic
Issue in CZ, 5/16/2011

Declared quality system
ISO 9001

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

SAFETY INSTRUCTIONS

5

1. Safety instructions

Please, observe the following instructions:

• The communication module must be used in compliance with any and all applicable
international and national laws and in compliance with any special restrictions regulating
the utilization of the communication module in prescribed applications and environments.

• To prevent possible injury to health and damage to appliances and to ensure that all
the relevant provisions have been complied with, use only the original accessories.
Unauthorized modifications or utilization of accessories that have not been approved may
result in damage to the communication module and in a breach of applicable regulations.
Unauthorized modifications or utilization of accessories that have not been approved may
result in the termination of the validity of the guarantee.

• The communication module must not be opened. Only the replacement of the SIM card is
permitted.

• Caution! The SIM card could be swallowed by small children.

• Voltage at the feed connector of the communication module must not be exceeded.

• Do not expose the communication module to extreme ambient conditions. Protect

the communication module against dust, moisture and high temperature.

• It is recommended that the communication module should not be used at petrol stations.
We remind the users of the duty to observe the restrictions concerning the utilization
of radio devices at petrol stations, in chemical plants, or in the course of blasting works
in which explosives are used.

• Switch off the communication module when travelling by plane. Utilization
of the communication module in a plane may endanger the operation of the plane
or interfere with the mobile telephone network, and may be unlawful. Failure to observe
these instructions may result in the suspension or cancellation of telephone services for
the respective client, or, it may result in legal sanctions; it may also result in both
eventualities.

• When using the communication module in close proximity of personal medical devices,
such as cardiac pacemakers or hearing aids, you must proceed with heightened caution.

• If it is in the proximity of TV sets, radio receivers and personal computers, the telephone
may cause interference.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DESCRIPTION

6

2. Description of the ER 75i, ER 75i DUO, ER 75i SL
and ER 75i DUO SL routers

2.1. Introduction

EDGE router is a compact electronic device based on the module which enables data

transfers using GSM, GPRS and EDGE technologies.

Primarily, the router expands the capabilities of the module by the option of connecting
more PCs by means of the built-in Ethernet interface. In addition, the firmware of the router
provides automatic establishment and maintenance of GPRS connection. By means
of integration of a DHCP server it provides the users with simple installation and Internet
access.

In addition, the router is equipped with a USB 2.0 Full Speed interface which is designed
only for connection to a PC with Windows 2000, Windows XP or Windows Vista operating
system. For operation it is sufficient to install drivers from the supplied CD to the PC.

By consumer request it is possible to equip the router with a modulus port PORT1
and extend the functionality of EDGE router about RS232, RS485/RS422, M-BUSD or CNT
(I/O module).

The EDGE router has four versions. The first version is the basic ER 75i, the second
version is the ER 75i DUO with two SIM cards, third version is the ER 75i SL in an aluminum
box and the last version is the ER 75i DUO SL with two SIM cards in an aluminum box.

Examples of Possible Applications

• mobile office

• image transmission

• security system

• telematics

• telemetry

• remote monitoring

• monitoring of traffic information

• vending and dispatcher machines

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DESCRIPTION

7

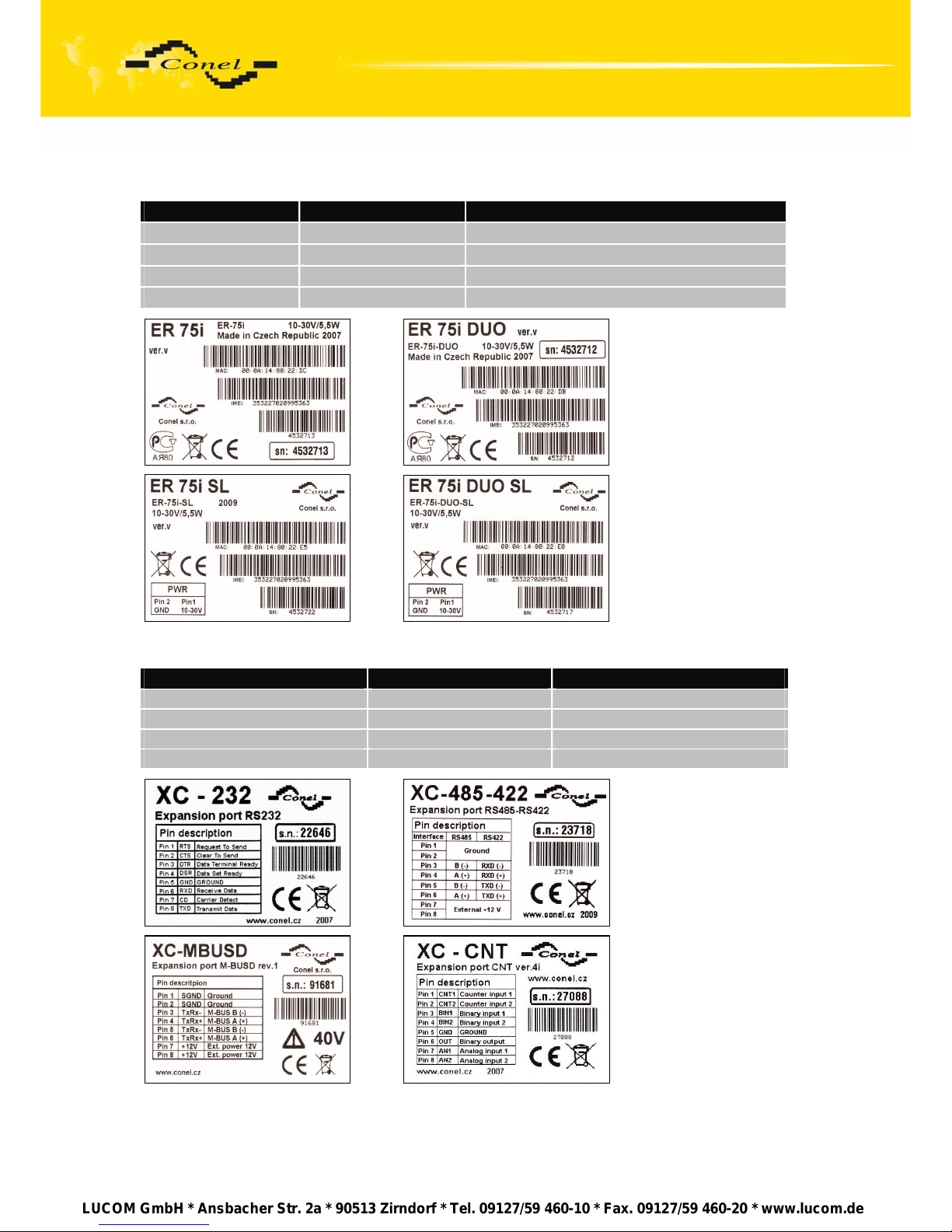

2.2. Delivery Identification

Trade name Type name Other

ER 75i ER-75i Version with 1 SIM
ER 75i DUO ER-75i-DUO Version with 2 SIM
ER 75i SL ER-75i-SL Version in aluminum box with 1 SIM
ER 75i DUO SL ER-75i-DUO-SL Version in aluminum box with 2 SIM

Specimen label of optional PORT1:

Trade name of PORT1 Type name of PORT1 Power supply

Expansion port RS232 XC-232 Internal power supply
Expansion port RS485-RS422 XC-485-422 Internal/external power supply
Expansion port M-BUSD XC-MBUSD External power supply
Expansion port CNT XC-CNT Internal power supply

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DESCRIPTION

8

Basic delivered set of router includes:

• EDGE router ER 75i or ER 75i DUO or ER 75i SL or ER 75i DUO SL,

• power supply,

• crossover UTP cable,

• external magnetic antenna,

• installation CD containing instructions and drives,

• plastic clips for the DIN bar with fixing screws.

In addition to the basic it is possible to deliver:

• expansion port RS232, RS485/RS422, M-BUSD or CNT (separation columns are in

distribution),

• USB A-B cable.
Router is standardly designed for:

• mounting to a panel using through holes (only version ER 75i and ER 75i DUO),

• or possibility to be put on a worktop,

• mounting onto the DIN rail by the plastic clips, which are included.

2.3. Antenna Connection

The whip antenna is connected to the router using an FME on the back panel.

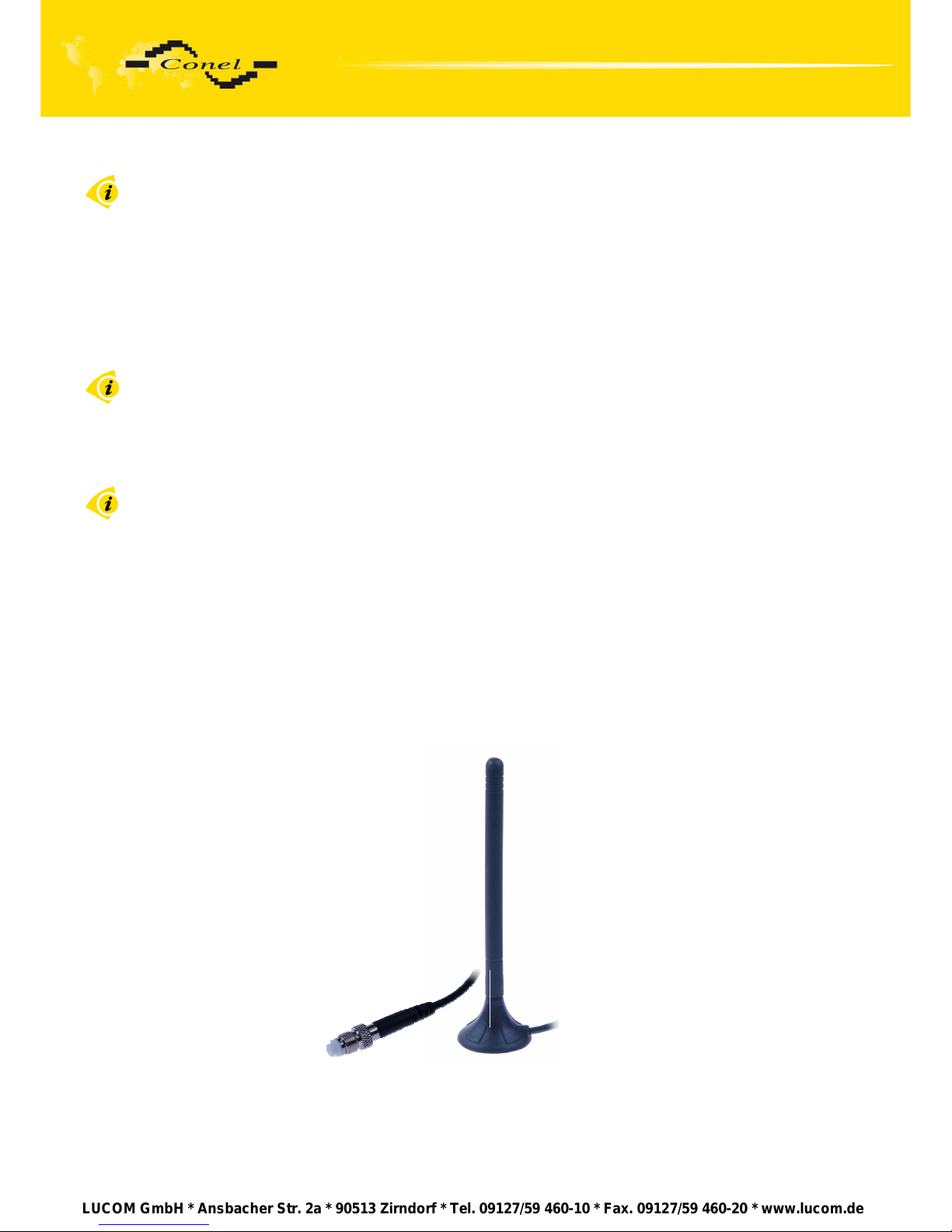

External whip antenna:

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DESCRIPTION

9

2.4. SIM Card Reader

The SIM card reader for 3 V and 1.8 V SIM cards is located on the front panel
of the modem. For putting the modem into operation it is necessary to insert an activated SIM
card with unblocked PIN in the reader.

1. Make sure that the modem is not being powered.

2. Press the small yellow button next to the reader to eject the reader holder.

3. Insert the SIM card in the reader holder and slide it in the reader.

2.5. Power Supply

The router requires +10 V DC to +30 V DC supply. Protection against reversal
of polarity without signaling is built into the modem.

The power consumption during receiving is 1 W. The peak power consumption during
data sending is 5,5 W. For correct operation it is necessary that the power source is able to
supply a peak current of 500 mA.

2.6. Technical parameters

GSM module MC75i

Complies with standards EN 301 511, V9.0.2

EN ETSI 301 489-1 V1.9.1
EN 60950-1:06 ed.2

Frequency bands EGSM850, EGSM900, GSM1800

and GSM1900

Transmit power Class 4 (2 W) for EGSM850

Class 4 (2 W) for EGSM900
Class 1 (1 W) for GSM1800
Class 1 (1 W) for GSM1900

Temperature range Operation

Storage

-30 oC to +60 oC

-40 oC to +85 oC

Protection rating Freely

In switch board

IP20

IP56
Supply voltage +10 až +30 V DC
Consumption Reception

Transmission

1 W

5,5 W
Dimensions ER 75i,

ER 75i DUO
ER 75i SL,

ER 75i DUO SL

30x90x102 mm (attachment to DIN rail

35mm)

42x86x94 mm

(attachment to DIN rail 35mm)

Weight 140 g
Antenna connector FME – 50 Ohm
User interface ETH

USB
PORT1

Ethernet – connector RJ45 (10/100 Mbit/s)

USB 2.0 – connector USB-B

Optional – connector RJ45 (150 b/s -

- 230400 b/s), RS232, RS485/RS422,

M-BUSD, CNT

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DESCRIPTION

10

2.7. Description of individual components of the router

2.7.1. GSM/GPRS/EDGE module

The MC75i OEM module is used for GSM network wireless communication. It is
integrated into the printed circuit board. The slide-out SIM card reader is accessible from
the front panel. The FME antenna connector is accessible from the back panel.

The router is equipped with a USB 2.0 Full Speed interface which is brought to the
USB-B connector marked USB. The MC75i module is connected to the control computer via
the RS-232 high-speed serial interface.

GSM/GPRS/EDGE module

• Communicates in four GSM bands (850MHz, 900MHz, 1800MHz, and 1900MHz).

• In the GPRS mode it is able to transmit in three „Time Slot“ and receive in two (GPRS

multi-slot class 10 – the maximum bit rate of reception is 42.8 kb/s) or transmit in one
„Time Slot“ and receive in four (GPRS multi-slot class 12 – the maximum bit rate
of reception is 85.6 kb/s).

• In the EDGE mode it is able to transmit in three „Time Slot“ and receive in two (EDGE

multi-slot class 10 – the maximum bit rate of reception is 118.4 kb/s) or transmit in one
„Time Slot“ and receive in four (GPRS multi-slot class 12 – the maximum bit rate
of reception is 236.8 kb/s).

• Supports coding schemes CS1 to CS4 and MCS1 to MCS9.
Beware! The transmitting and receiving in timeslots depends on the operator networks

possibilities.

2.7.2. Control microcomputer

The core of the router is a 32-bit microprocessor with 16 MB RAM, 4 MB FLASH
EEPROM, serial interface RS232 and an Ethernet interface 10/100 Mbit/s. The microcomputer
is connected to the MC75i OEM module through the serial interface and controls
the communication via GSM/GPRS. Towards to the user it is connected on the Ethernet
interface.

The software is built on the uClinux operating system.

The router supports services such as DHCP, NAT, GRE, IPSec tunnels, etc.

The router settings are saved in the FLASH EEPROM memory. All configuration
of the modem can be done through a web interface (HTTP) which is security password
controlled.

Actual firmware version: 2.1.1 (22.4.2011)

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DESCRIPTION

11

2.8. User interfaces (Connectors)

On the back panel of the router the following connectors are located:

• one RJ12 connector or MRT9 (PWR) – for connection of the power supply adapter,

• one RJ45 connector (ETH) – for connection into the local computer network,

• one RJ45 connector (optional PORT1) – for connection of the local any arrangement over

RS232, RS485/422, M-BUSD or CNT,

• one FME connector (ANT) – for connection of the antenna,

• one USB-B connector (USB) – for connection of the router to the PC.

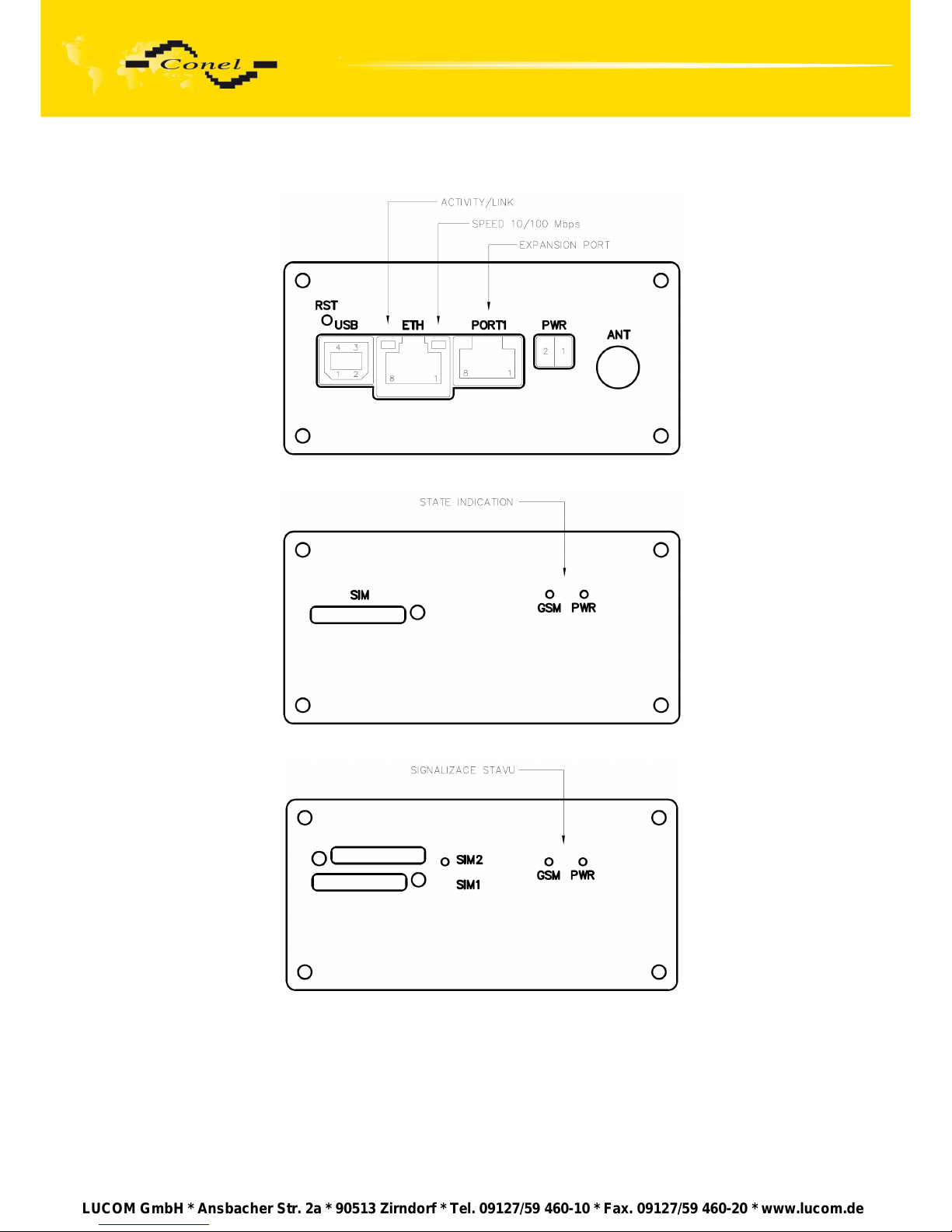

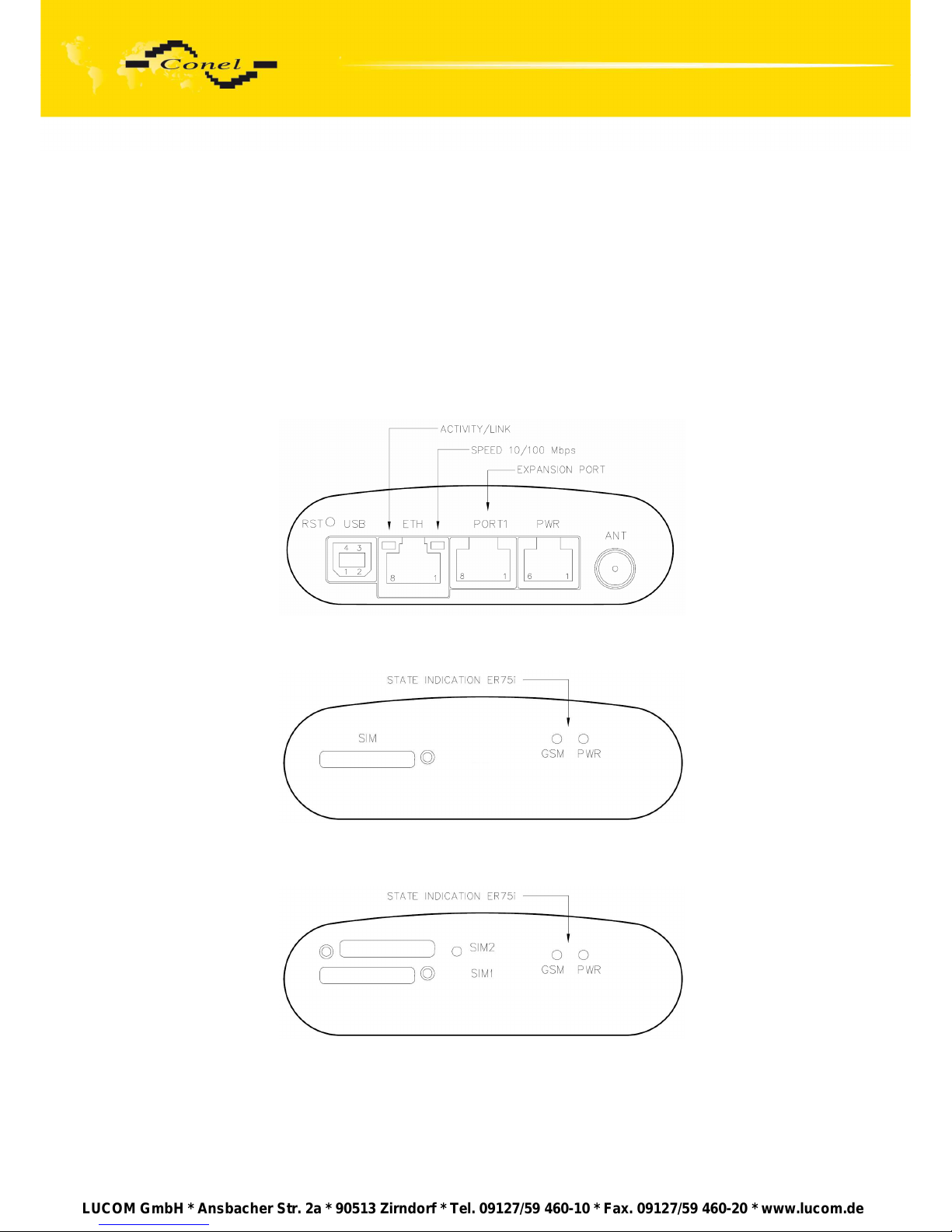

Rear panel ER 75i and ER 75i DUO

Front panel ER 75i

Front panel ER 75i DUO

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DESCRIPTION

12

Rear panel ER 75i SL and ER 75i DUO SL

Front panel ER 75i SL

Front panel ER 75i DUO SL

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DESCRIPTION

13

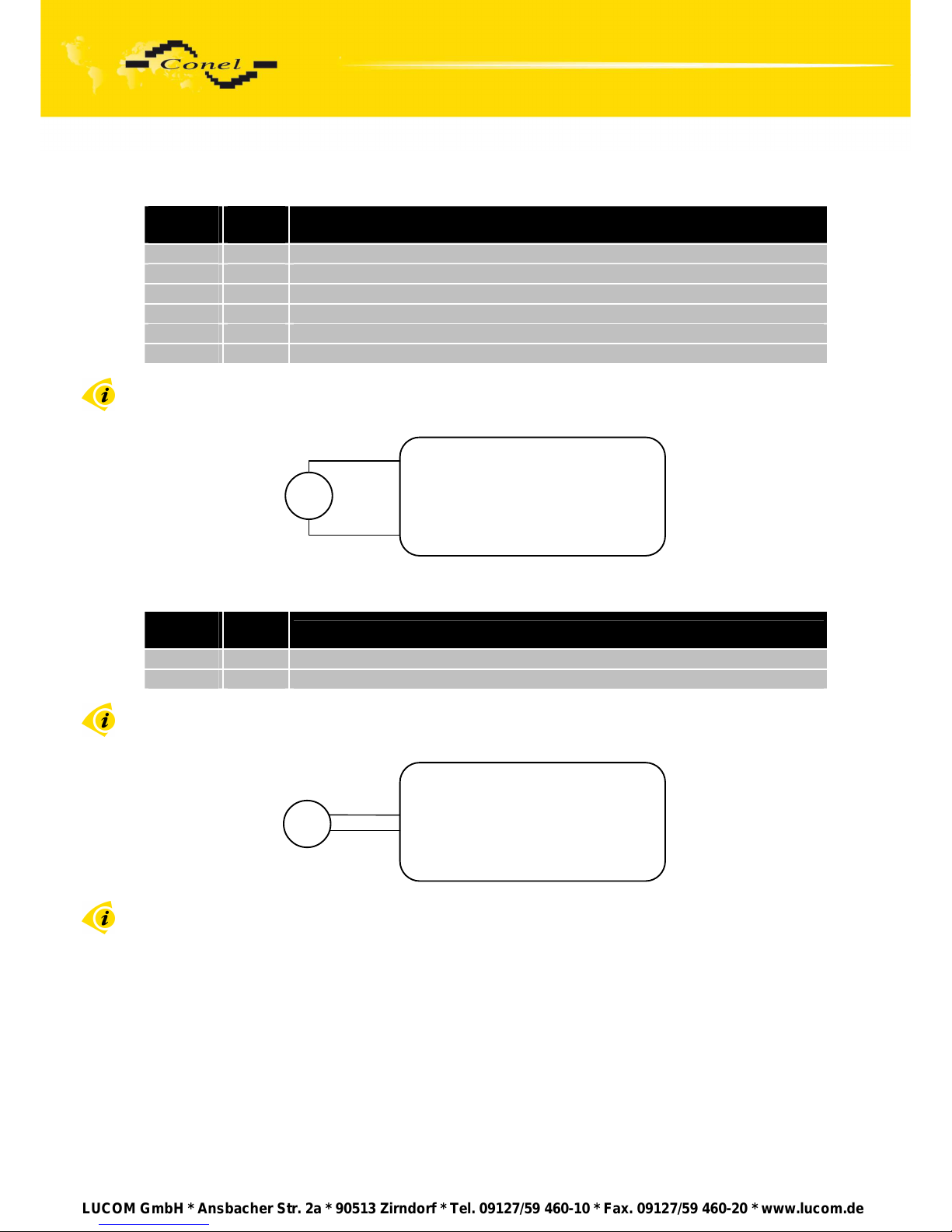

2.8.1.

Connection of the PWR Supply Connector

• Panel socket RJ12.

Pin

number

Signal

mark

Description

1 +UN Positive pole of DC supply voltage (+10 to +30 VDC)
2 NC Signal not connected
3 NC Signal not connected
4 +UN Positive pole of DC supply voltage (+10 to +30 VDC)
5 GND Negative pole of DC supply voltage
6 GND Negative pole of DC supply voltage

Circuit example:

• Panel socket MRT9.

Pin

number

Signal

mark

Description

1 +UN Positive pole of DC supply voltage (+10 to +30 VDC)
2 GND Negative pole of DC supply voltage

Circuit example:

The positive pole +UN is marked by a red socket on the power supply.

Pin 1 – +UN
Pin 2 – NC
Pin 3 – NC
Pin 4 – +UN
Pin 5 – GND

Pin 6

–

GND

Router

DC

+

Pin 1 – +UN
Pin 2 – GND

Router

DC

+

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DESCRIPTION

14

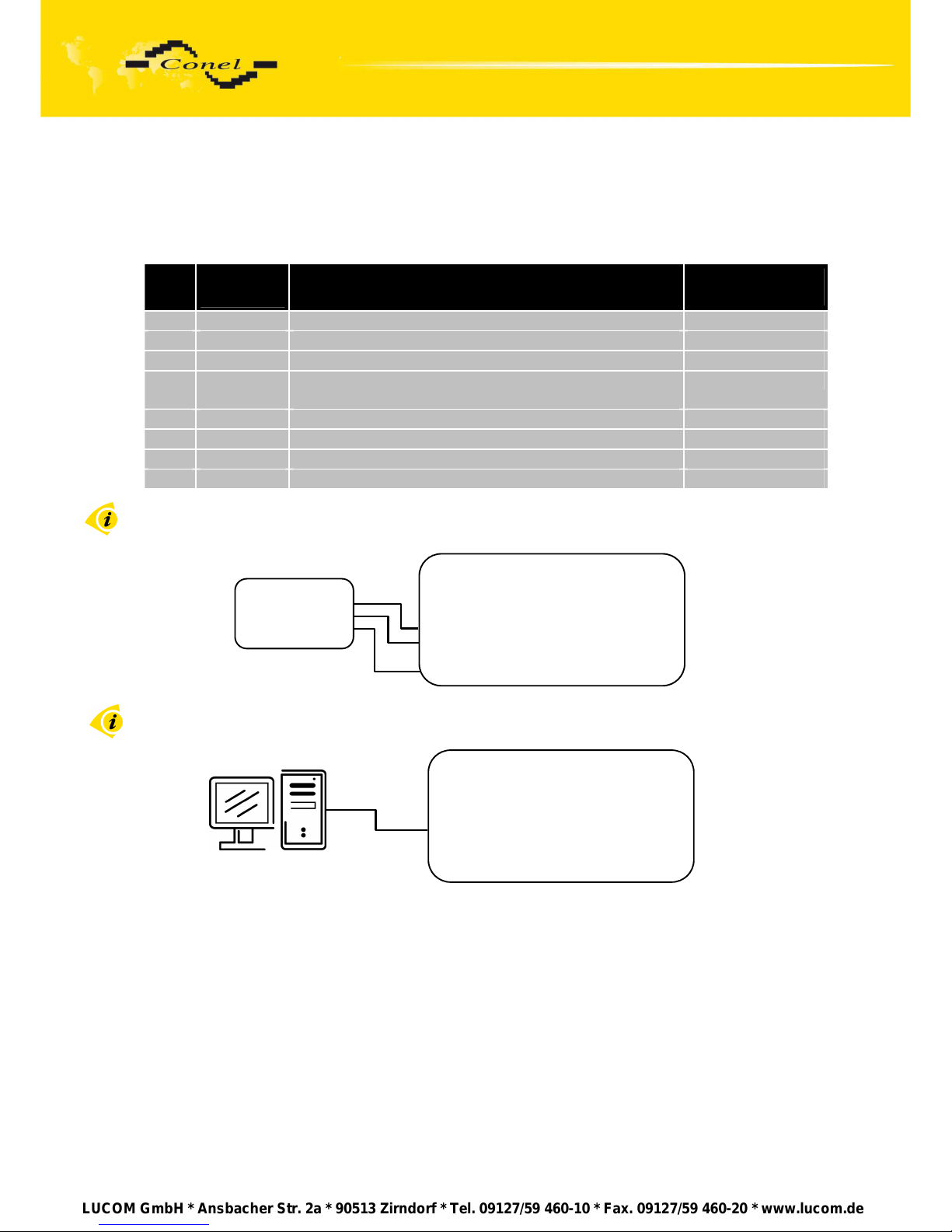

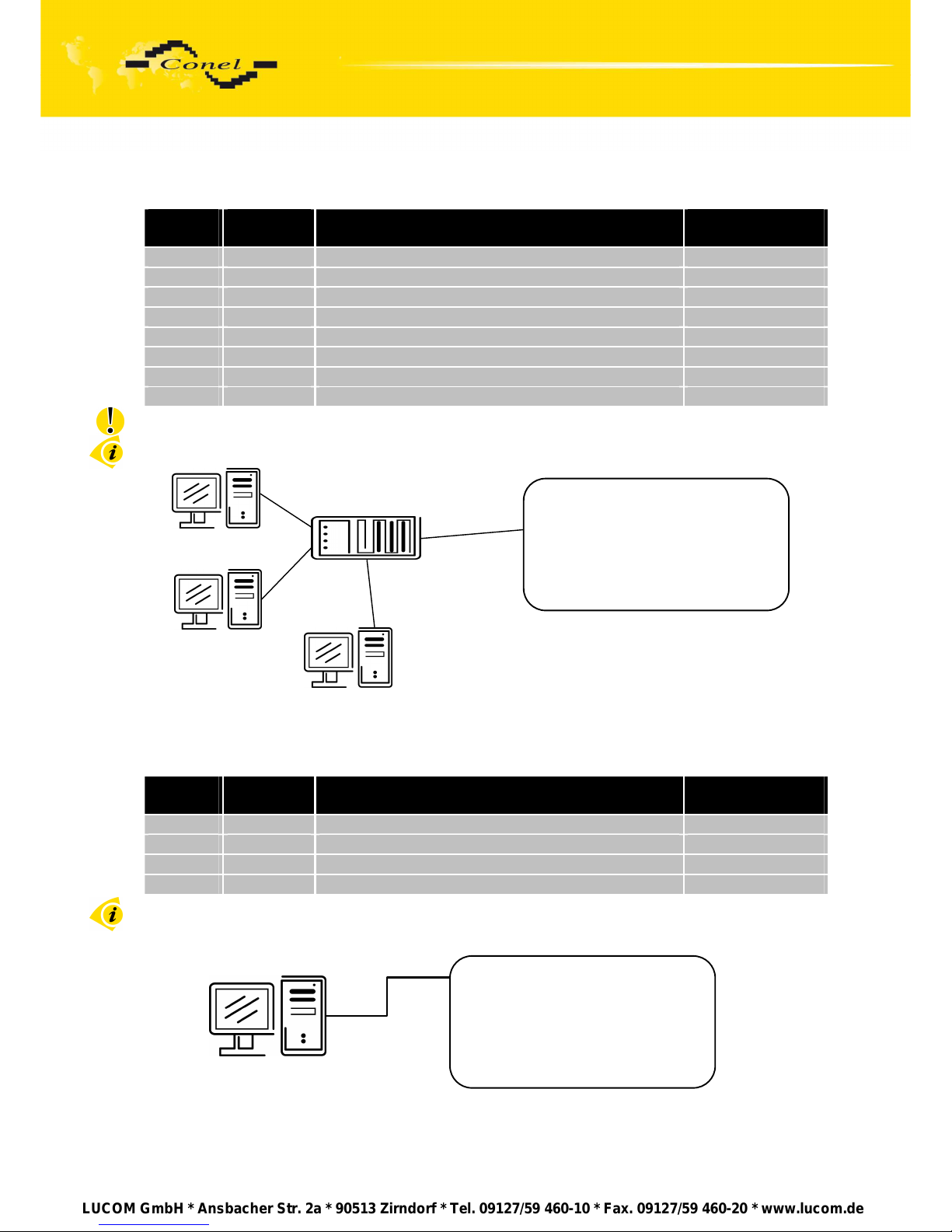

2.8.2.

Connection of the ETH Connector

Panel socket RJ45.

Pin

number

Signal

mark

Description

Data flow

direction

1 TXD+ Transmit Data – positive pole Input/Output
2 TXD- Transmit Data – negative pole Input/Output
3 RXD+ Receive Data – positive pole Input/Output
4 --- ---
5 --- ---
6 RXD- Receive Data – negative pole Input/Output
7 --- ---
8 --- ---

ATTENTION! Port ETH is not POE (Power Over Ethernet) compatible!

The ETH router connection:

2.8.3. Connection of the Connector USB

Panel socket USB-B.

Pin

number

Signal

mark

Description

Data flow

direction

1 VCC Positive pole of 5V DC supply voltage
2 USB data - USB data signal – negative pole Input/Output
3 USB data + USB data signal – positive pole Input/Output
4 GND Negative pole of DC supply voltage

The USB router connection:

Router

USB
ETH
PORT1

PWR

UTP cable

Switch

Router

USB
ETH
PORT1

PWR

USB cable A-B

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DESCRIPTION

15

2.8.4.

Connection of the optional connector PORT1

Panel socket RJ45.

2.8.4.1. Expansion port RS232

(RS232 – DCE – Data Communication Equipment)

Pin
No.

Signal

name

Description

Data flow

direction

1 RTS Request To Send Input
2 CTS Clear To Send Output
3 DTR Data Terminal Ready Input
4 DSR Data Set Ready – connected to +3,3 V over 330 Ohm

resistor

Output

5 GND GROUND – signal ground
6 RXD Receive Data Output
7 CD Carrier Detect Output
8 TXD Transmit Data Input

Circuit example:

The router connection to the PC:

• cable KD2 is connected to serial port PC (example COM1)

Router

ETH
PORT1
PWR

Cable KD-2

Pin 1 – RTS
Pin 2 – CTS
Pin 3 – DTR
Pin 4 – DSR
Pin 5 – GND
Pin 6 – RXD
Pin 7 – CD
Pin 8 – TXD

Router

Meter

GND
RXD
TXD

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DESCRIPTION

16

The router connection to equipment with full-value RS232 interface:

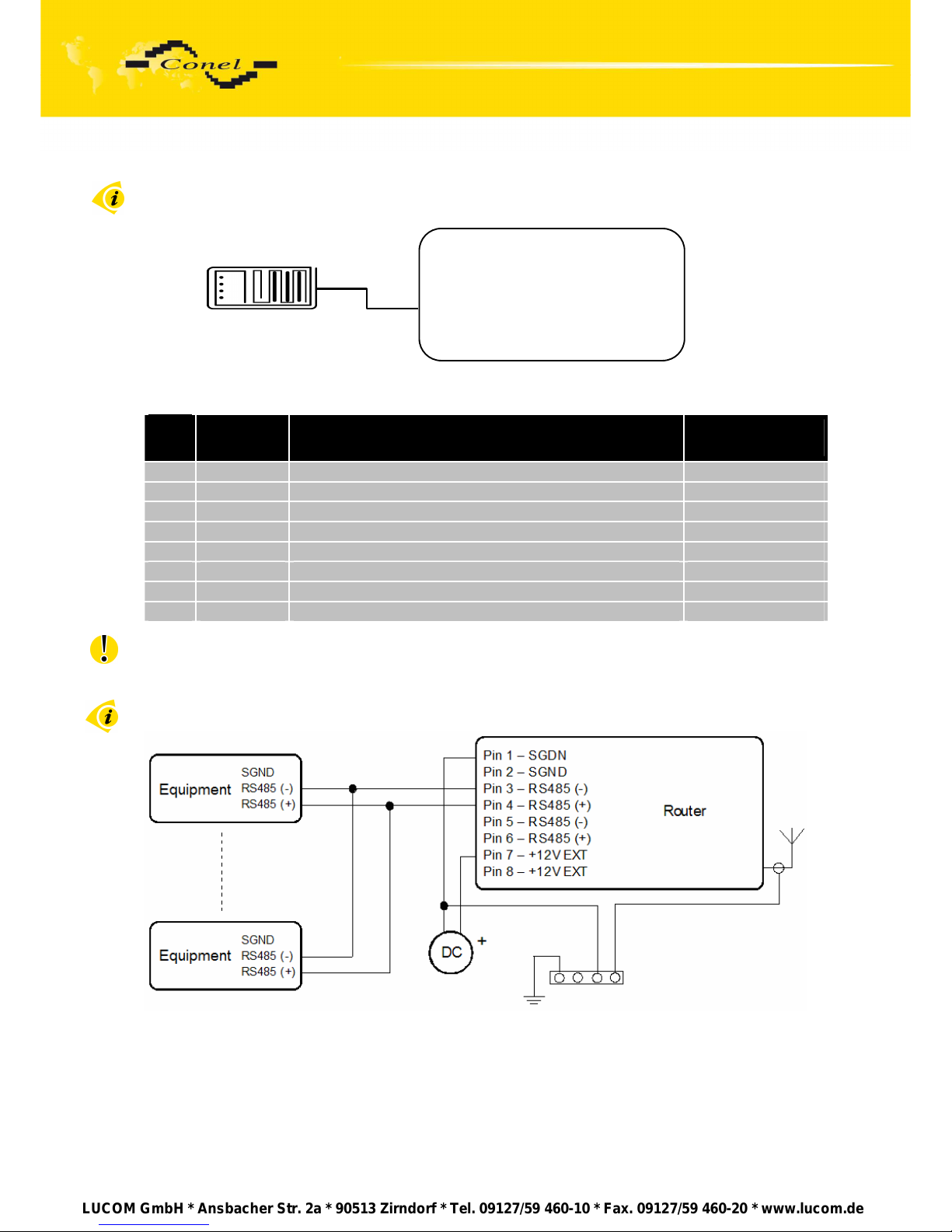

2.8.4.2. Expansion port RS485

Pin
No.

Signal

name

Description

Data flow

direction

1 SGND Signal and power supply ground
2 SGND Signal and power supply ground
3 TxRx- RS485 B (-) Input/Output
4 TxRx+ RS485 A (+) Input/Output
5 TxRx- RS485 B (-) Input/Output
6 TxRx+ RS485 A (+) Input/Output
7 +12V EXT External power supply
8 +12V EXT External power supply

ATTENTION! Power supply is selected on the expansion port RS485 by help
of a jumper, 2.9. If galvanic separation is required the converter must have an external

power supply.
Circuit example of the equipment with a router with data length less than 10 m:

Router

ETH
PORT1
PWR

Cable KD-2

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DESCRIPTION

17

Circuit example of the equipment with a router with data length more than 10 m:

At RS485 data cable more than 10m it is need to use overvoltage protection
on the router side!

2.8.4.3. Expansion port RS422

Pin
No.

Signal

name

Description

Data flow

direction

1 SGND Signal and power supply ground
2 SGND Signal and power supply ground
3 RxD- Receive Data (-) Output
4 RxD+ Receive Data (+) Output
5 TxD- Transmit Data (-) Input
6 TxD+ Transmit Data (+) Input
7 +12V EXT External power supply
8 +12V EXT External power supply

ATTENTION! Power supply is selected on the expansion port RS422 by help
of a jumper, 2.9. If galvanic separation is required the converter must have an external
power supply.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DESCRIPTION

18

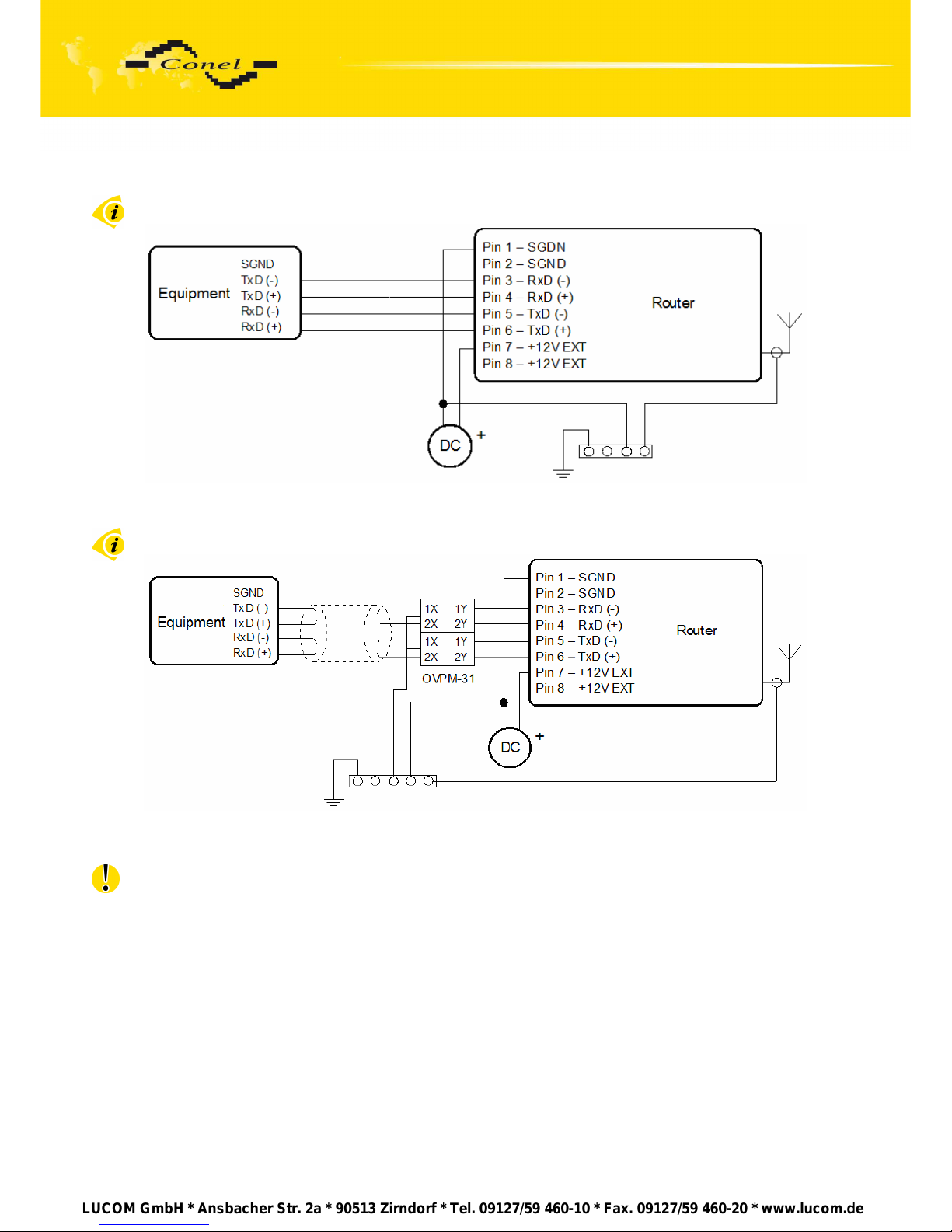

Circuit example of the equipment with router with data length less than 10 m:

Circuit example of the equipment with a router with data length more than 10 m:

At RS422 data cable more than 10m it is need to use overvoltage protection
on the router side!

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DESCRIPTION

19

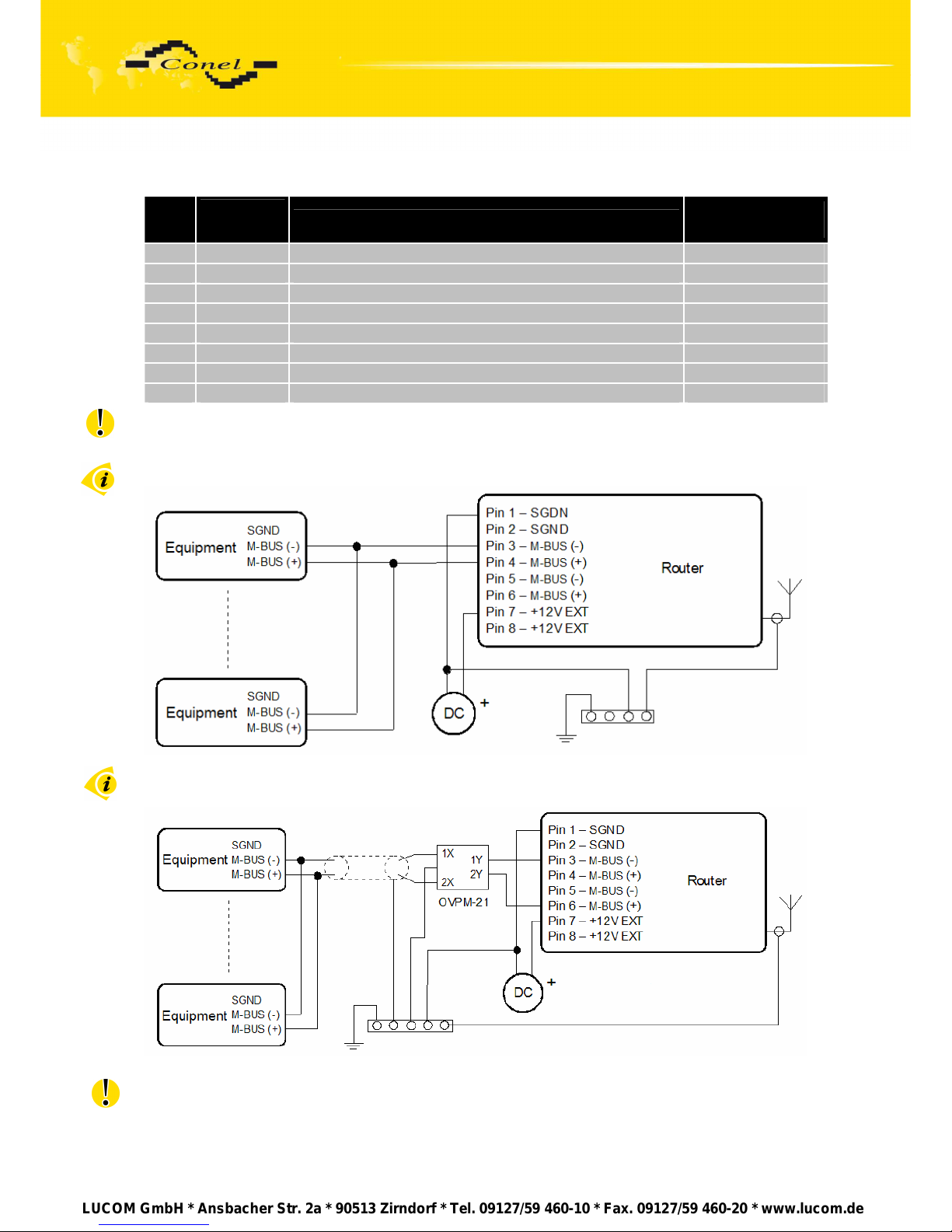

2.8.4.4. Expansion port M-BUSD

Pin
No.

Signal

name

Description

Data flow

direction

1 SGND Signal and power supply ground
2 SGND Signal and power supply ground
3 TxRx- M-BUS B (-) Input/Output
4 TxRx+ M-BUS A (+) Input/Output
5 TxRx- M-BUS B (-) Input/Output
6 TxRx+ M-BUS A (+) Input/Output
7 +12V EXT External power supply
8 +12V EXT External power supply

ATTENTION! External supply is for converter M-BUSD!

If galvanic separation is required the converter must have external power supply.
Circuit example of the equipment with a router with data length less than 10 m:

Circuit example of the equipment with a router with data length more than 10 m:

If an M-BUS data cable more than 10m it is need to use overvoltage protection
on the router side!

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DESCRIPTION

20

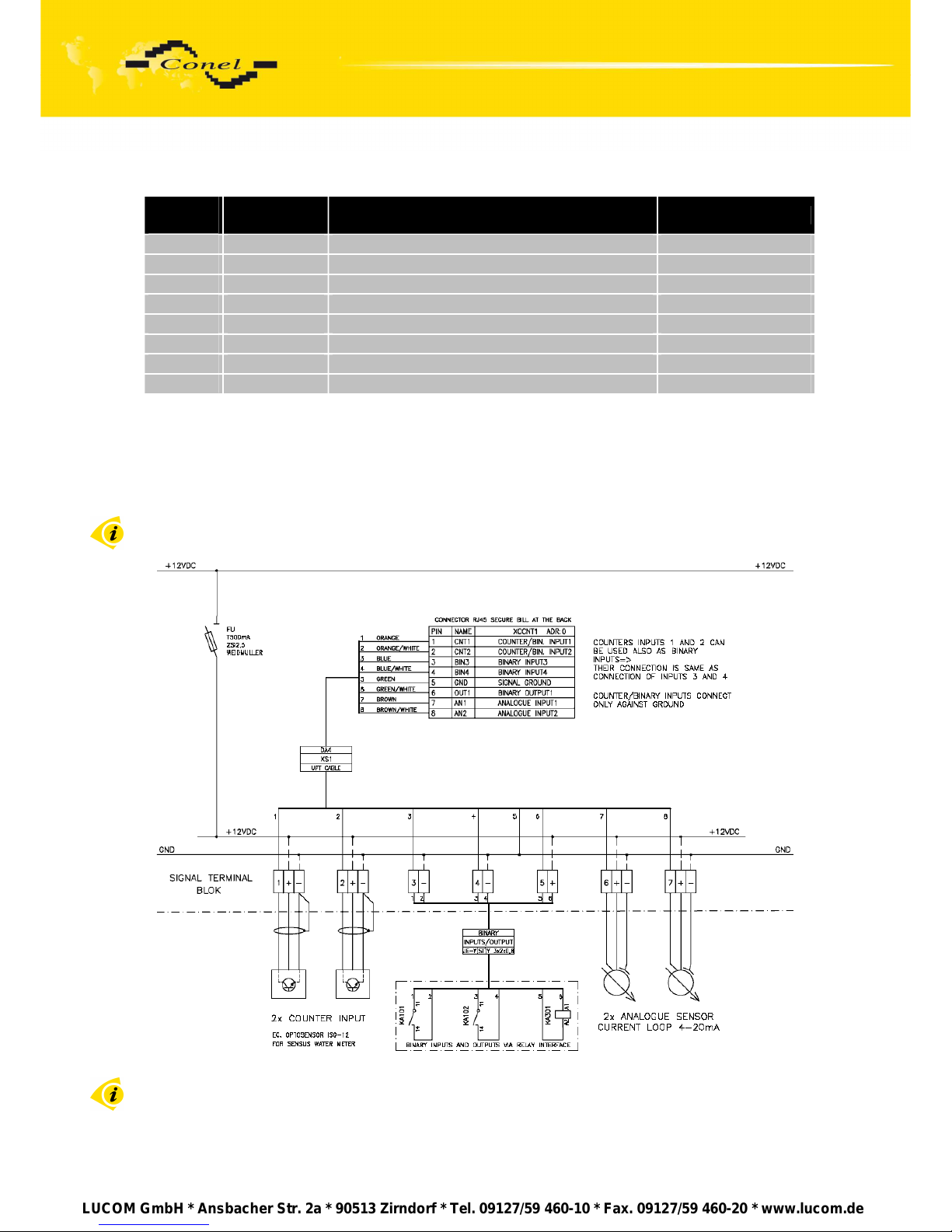

2.8.4.5. Expansion port CNT

Pin

number

Signal mark

Description Data flow direction

1 BIN1/CNT1 Binary input/counter input Input
2 BIN2/CNT2 Binary input/counter input Input
3 BIN3 Binary input Input
4 BIN4 Binary input Input
5 GND Signal ground
6 OUT1 Binary output (open collector) Output
7 AN1 Analogue input Input
8 AN2 Analogue input Input

The user interface CNT is for monitoring and processing of analogue and binary
signals and to control (settings) of binary signals. Available are 2 counter and 2 binary inputs
or 4 binary inputs, 2 analogue inputs and 1 binary output. The setting of binaries and counter
inputs by the help of firmware in which the single inputs and output is defined. Binary output
is off in default configuration(it is not switched to ground).

Typical connection of a router measuring circuits:

The router does not support to modify any signals of the CNT port, for example logical
functions.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DESCRIPTION

21

2.9. Technical specification of optional PORT1

• Expansion port RS232

Expansion port RS232

Power supply Internal ....

Operating temperature -20 .. +55 C Environment
Storage temperature -20 .. +85 C
Emission EN 55022/B
Immunity ETS 300 342

Standards

Safety EN 60950
Max. operating bus current 15 mA
Max. bit rate 230400 bps
Max. overvoltage ±30 V

RS232 specifications
(EN 1434)

Max. total cable length
(300Bd, 200nF/km)

20 m

• Expansion port RS485

Expansion port RS485 RS485 RS422

External +10 .. +30 V

Internal ....

Supply power Max. 1 W

Power supply

Supply current Max. 4 mA
Operating temperature -20 .. +55 C Environment
Storage temperature -20 .. +85 C
Emission EN 55022/B
Immunity ETS 300 342

Standards

Safety EN 60950
Max. devices (each 1,5 mA) 256
Max. bit rate 38400 bps
Short circuit strength Permanent

RS485 specifications
(EN 1434)

Max. total cable length
(300Bd, 200nF/km)

1200 m

External or internal power supply of module Expansion port RS485/RS422 can be
made by wiring jumpers J2 and J3 on this module. If external power supply of the module is
required, jumpers J2 and J3 must be connected to pins 2 - 3. Internal power supply is made
by connecting pins 1 - 2 with jumpers J2 and J3.

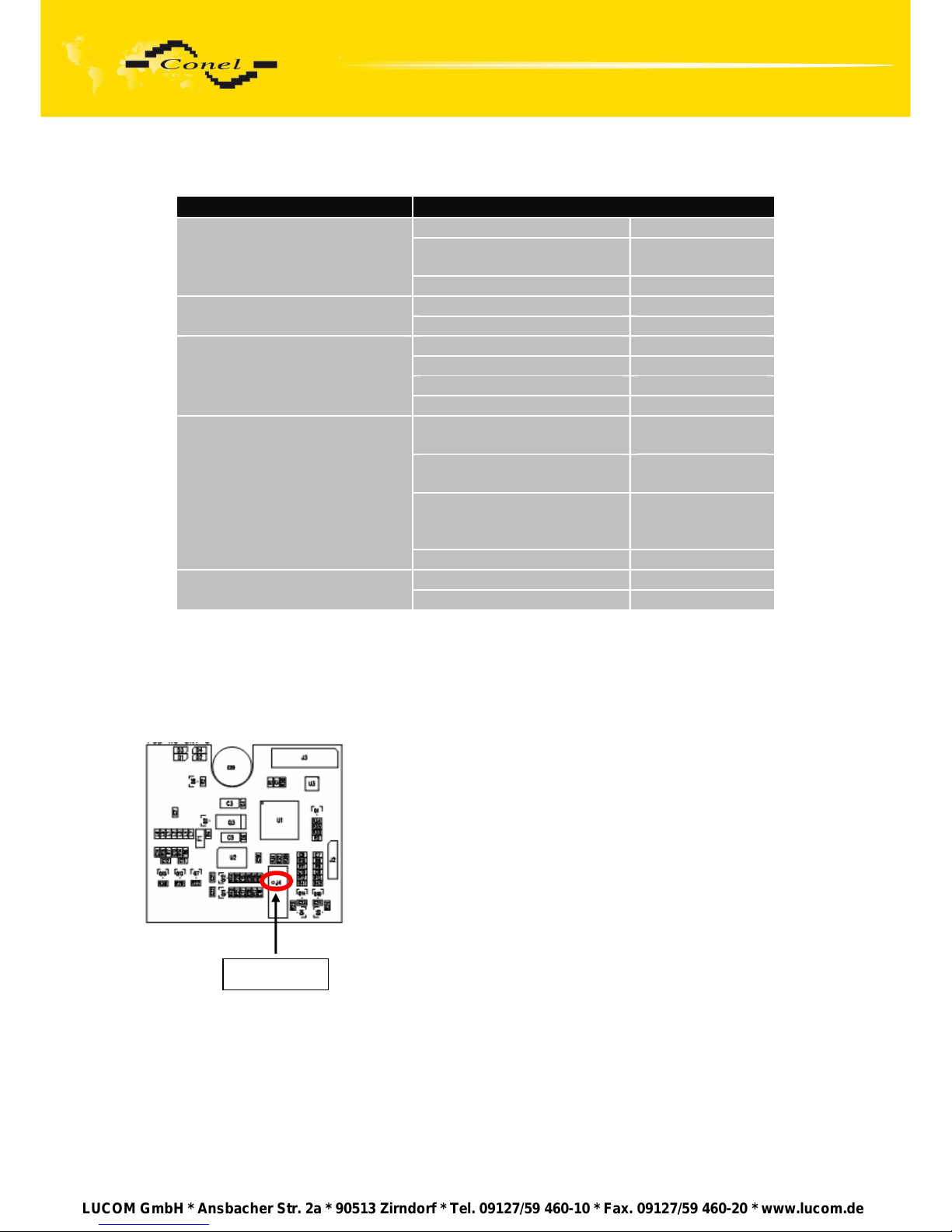

Interface behavior of module Expansion port RS485/RS422 can be made by wiring
jumpers J4, J5 and J6 on this module. If RS485 is required, jumpers J4 and J5 must be
connected and jumper J6 disconnected. If RS422 is required, jumpers J4 and J5 must be
disconnected and jumper J6 connected.

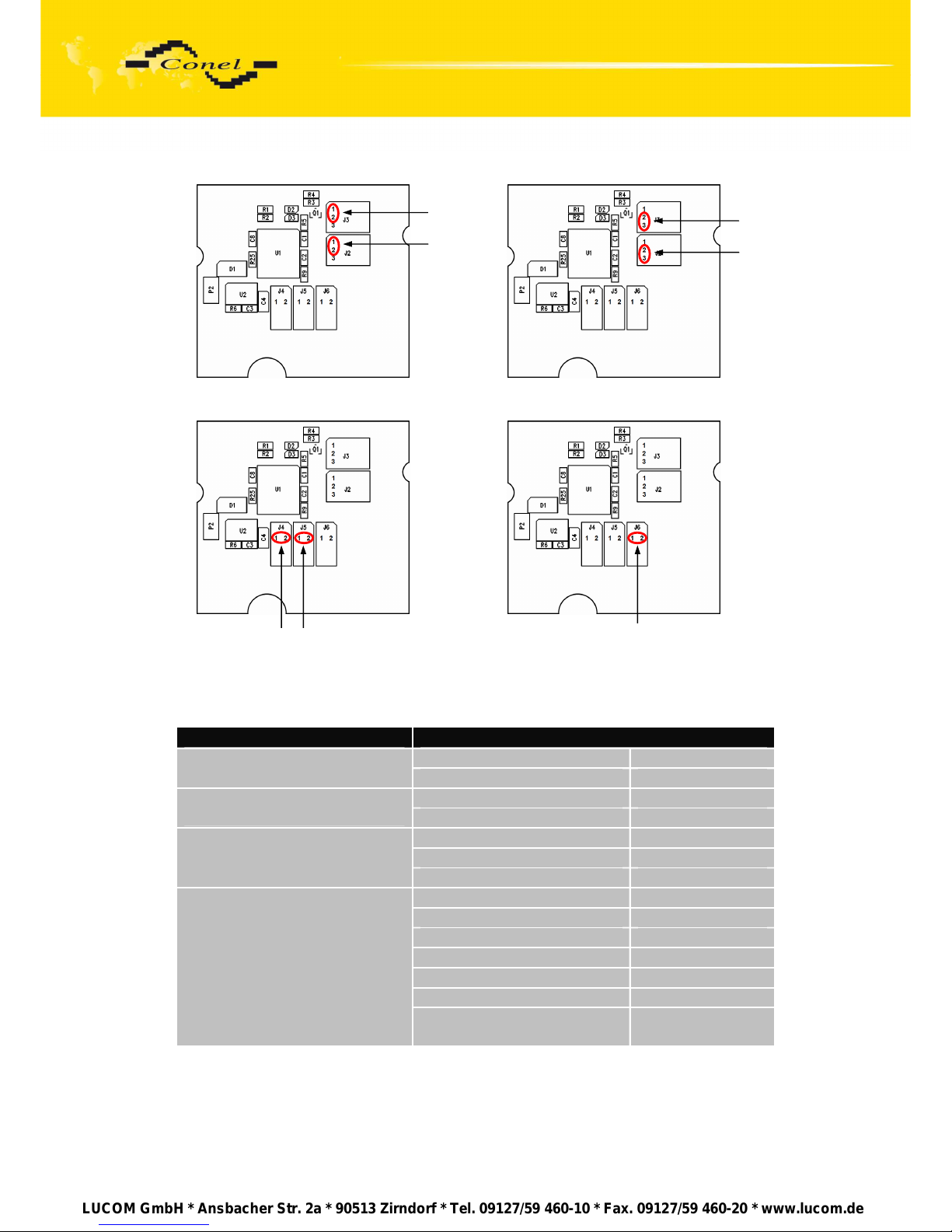

Jumper placement can be seen in the picture below (module Expansion port
RS485/RS422 from TOP layer). We recommend that internal power supply is only chosen
in the event that it is not possible to ensure external power supply. If internal power supply is
chosen, converter RS485/RS422 is not galvanic separated.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DESCRIPTION

22

The jumper circuitry for internal supply The jumper circuitry for external supply

The jumper circuitry for RS485 The jumper circuitry for RS422

• Expansion port M-BUSD

Name of product Expansion port M-BUSD

External +10 .. +30 V Power supply
Supply power Max. 30 W
Operating temperature -20 .. +55 C Environment
Storage temperature -20 .. +85 C
Emission EN 55022/B
Immunity ETS 300 342

Standards

Safety EN 60950
Max. devices (each 1,5 mA) 30
Max. operating bus current 60 mA
Overload detection 100 mA
Short circuit strength Permanent
Bus voltage mark 36 .. 43 V
Bus voltage space 24 .. 31 V

M-BUS specifications
(EN 1434)

Max. total cable length
(300Bd, 200nF/km)

1000 m

Jumper J2

Jumper J3

Jumper J2

Jumper J3

Jumpery J4 a J5

Jumper J6

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DESCRIPTION

23

• Expansion port CNT

Name of product Expansion port CNT

Internal

….

Sleep 100 µA (counter

is functional)

Power supply

Operation 2 mA
Operating temperature -20 .. +55 C Environment
Storage temperature -20 .. +85 C
Emission EN 55022/B
Immunity ETS 300 342
Safety EN 60950

Standards

Isolation EN 60747
2x counter Max. 100 Hz,

Ratio max. 1:10

2x analogue inputs 0 .. 20 mA,

Rin 100 Ohms

2x binary inputs reed contact

is J4 20mA
is not J4 8µA

Inputs/Outputs

1x output (open collector) 100 mA
Voltage resistance Permanent Others
Sleeping mode Controlled

If active level is set as log. 1, electric current can be selected with jumper. When
jumper J4(viz. picture) is mounted on pins, electric current value is 20 mA. When jumper J4
is not mounted, electric value is 8µA. If current value is 20mA, CNT has higher consumption,
also it has higher resistance to industrial noise.

Jumper J4

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DESCRIPTION

24

2.10. Modem status indication

On the front and back panel of the modem there are altogether four LED indicators,
which inform on the modem status.

Panel Color Description

Description

Front Green PWR

Blinking 1:9 ................... join GPRS connection

Blinking 9:1 ................... establishing of GPRS connection

Permanently on ……….. starting of the ER 75i

Front Red GSM Blinking ………..GSM/GPRS communication in progress

Front Yellow SIM

On ...................... active the second SIM card

Off ...................... non active the second SIM card

Back Green –

On ...................... selected 100 Mbit/s

Off ...................... selected 10 Mbit/s

Back Green –

On........................ the network cable is connected

Blinking ………… data transmission

Off ...................... the network cable is not connected

2.11. Putting into operation

Before putting the ER 75i, ER 75i DUO, ER 75i SL or ER 75i DUO SL router into
operation it is necessary to connect all components needed for the operation of your
applications and the SIM card must be inserted (the modem is off). The SIM card must support
the GPRS.

The modem is put into operation by connection of the power supply to the modem.
In the default setting the modem starts to login automatically to the preset APN. The behavior
of the modem can be modified by means of the web interface which is described
in the following chapter.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DESCRIPTION

25

2.12. Mechanical external dimensions and mounting recommendations

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DESCRIPTION

26

For the majority of applications with a built-in modem in a switch board it is possible to
recognize two sorts of environments:

• non public and industry environment of low voltage with high interference,

• public environment of low voltage without high interference.

For both of these environments it is possible to mount modems to a switch board,
the following is no need to have examination immunity or issues in connection with EMC
according to EN 60439-1 ed.2:00 + A1:04.

For compliance of EN 60439-1 ed.2:00 + A1:04 specification it is necessary to
observe next assembly of the modem to the switch board:

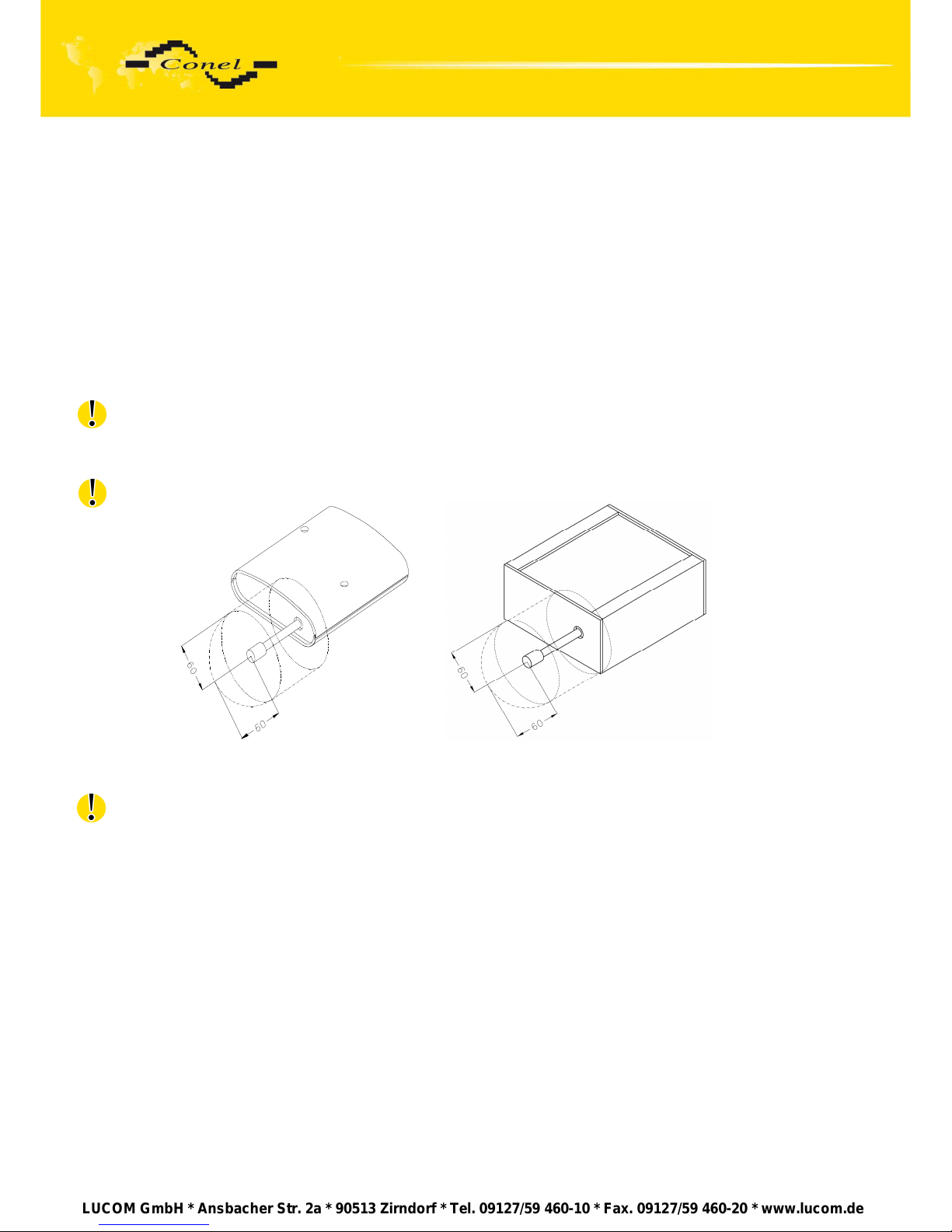

• for round antennas we recommend to observe a distance of 6 cm from cables and

metal surfaces on every side according to the next picture due to the elimination

of interference, while using an external antenna except for the switch-board it is

necessary to fit a lightening conductor,

• before mounting a modem on sheet-steel we recommend using an external antenna,

• for single cables we recommend to bind the bunch according to the following picture,

for this use we recommend:

 length of the bunch (combination of power supply and data cables) can

be maximum 1,5 m, if the length of data cables exceeds 1,5 m or in the
event of, the cable leads towards the switch - board, we recommend
installing over - voltage protectors (surge suppressors),

 with data cables they mustn't carry cables with reticular tension

~ 230 V/50 Hz,

 all signals to sensors must be twisted pairs.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DESCRIPTION

27

• sufficient space must be left before individual connectors for handling of cables,

• for correct function of the modem we recommend to use in switch - board earth-

bonding distribution frame for grounding of power supply of modem, data cables

and antenna,

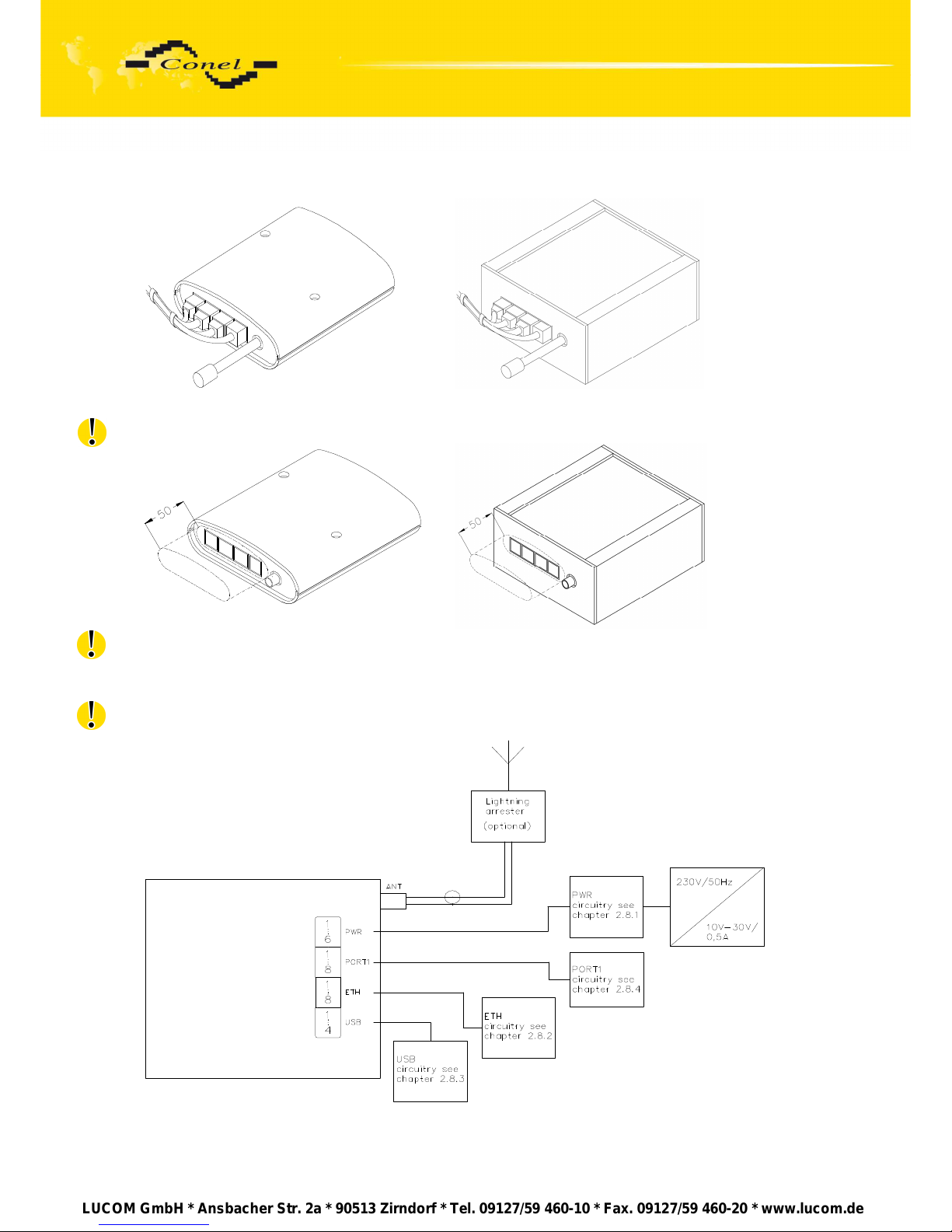

• the circuit diagram of the router is on the following pictures.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

EXPANSION PORT MOUNTING

28

3. Expansion port mounting

3.1. Expansion port mounting for ER 75i and ER 75i DUO router

Attention! Expansion port includes when the router is switched off.

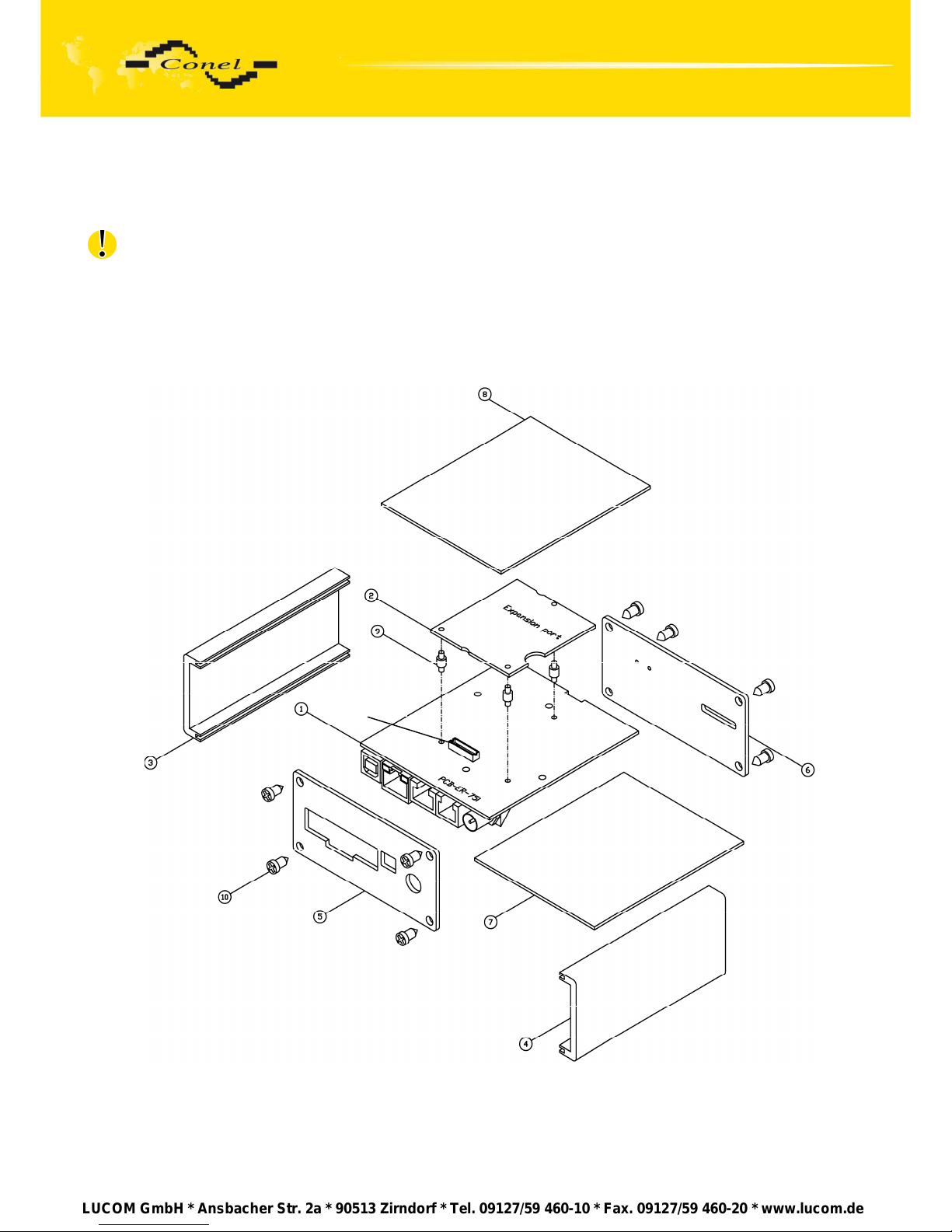

After unscrewing two screws (position 8) on the box bottom part (position 4)
and removing box top part (position 3), connect the expansion port PORT1 (position 2) to
connector J3 (see below) of the router B-ER-75i motherboard (position 1) from the TOP side.
The expansion port is mounted to the motherboard by the help of three spacers (position 7).
After mounting the expansion port, the box is screwed together by the help of three screws.

Connector J3

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

EXPANSION PORT MOUNTING

29

Parts list and description

Part

Description Number

1 EDGE router motherboard 1
2 Expansion port PORT1 1
3 Box top part 1
4 Box bottom part 1
5 Rear head 1
6 Front head 1
7 Spacers for expansion port PORT1 mounting to motherboard 3
8 Screw for box completion 2

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

EXPANSION PORT MOUNTING

30

3.2. Expansion port mounting for ER 75i SL and ER 75i DUO SL router

Attention! Expansion port includes when the router is switched off.

After unscrewing four screws (position 10) on the rear panel (position 5)
and removing it is possible to take out the B-ER-75i motherboard (position 1). The expansion
port PORT1 (position 2) is connected to connector J3 (see below) of the router B-ER-75i
motherboard (position 1) from TOP side. The expansion port is mounted to the motherboard
by the help of three spacers (position 9). After mounting the expansion port the box is
screwed together by the help of four screws.

Connector J3

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

EXPANSION PORT MOUNTING

31

Parts list and description

Part

Description Number

1 EDGE router motherboard 1
2 Expansion port PORT1 1
3 Left box part 1
4 Right box part 1
5 Rear head 1
6 Front head 1
7 Bottom box part 1
8 Top box part 1
9 Spacers for expansion port PORT1 mounting to motherboard 3

10 Screw for box completion 8

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

32

4. Configuration setting over web browser

Attention! If the SIM card is not inserted in the router, then it is impossible to operate.

The inserted SIM card must have activated GPRS. Insert the SIM card when the router is
switched-off.

Monitoring of the status, configuration and administration of the router can
be performed by means of the web interface, which is available after insertion of IP address
of the modem into the web browser. The default IP address of the modem is 192.168.1.1.
Configuration may be performed only by the user "root" with initial password "root".

For providing higher security of your network we recommend changing this password!
More about changing password can be found in chapter 4.26.

The left part of the web interface contains the menu with pages for monitoring
of the Status, Configuration and Administration of the router.

After green LED starts to blink it is possible to restore initial settings of the router
by pressing button RST on front panel. After press button RST it is restoration of the
configuration and reset (green LED will be on).

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

33

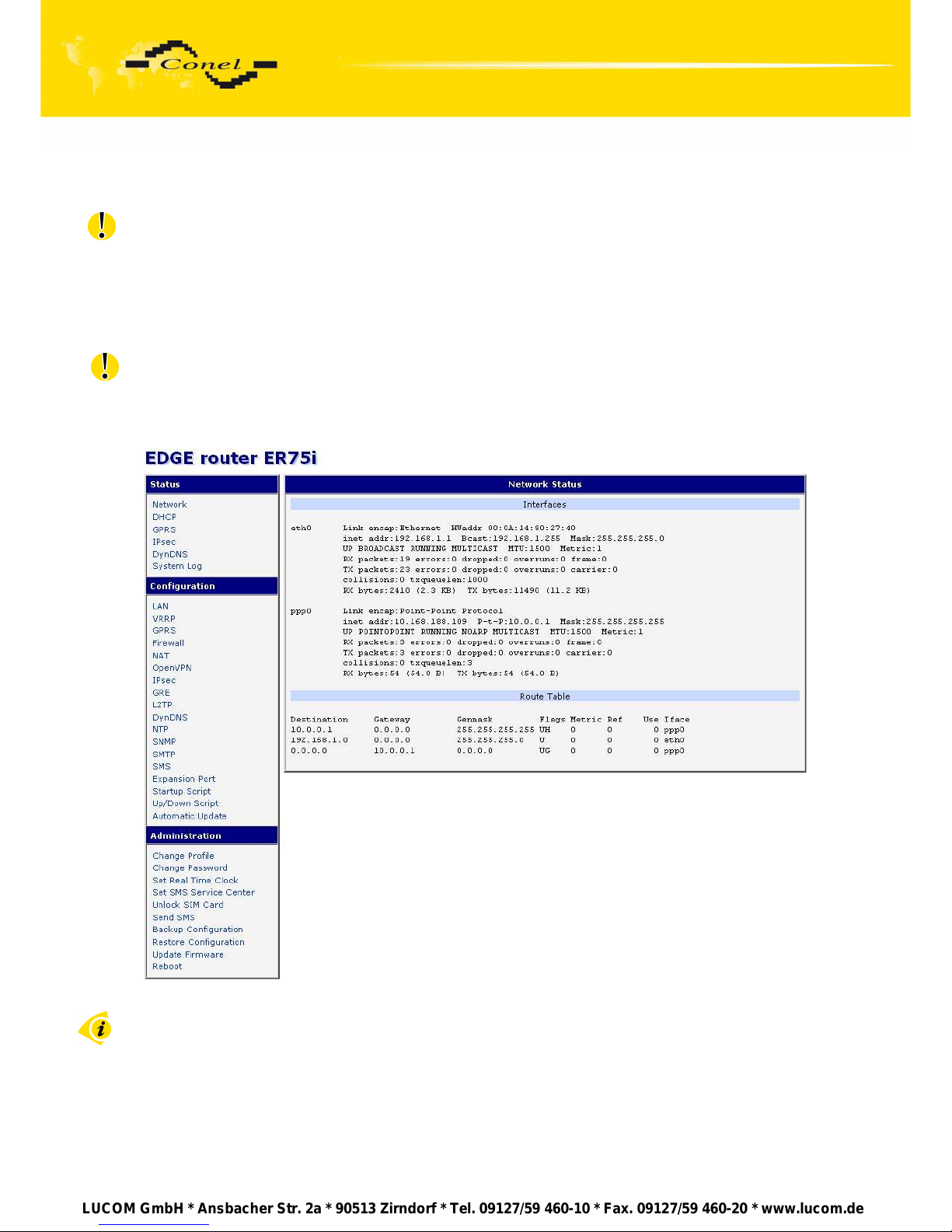

4.1. Network Status

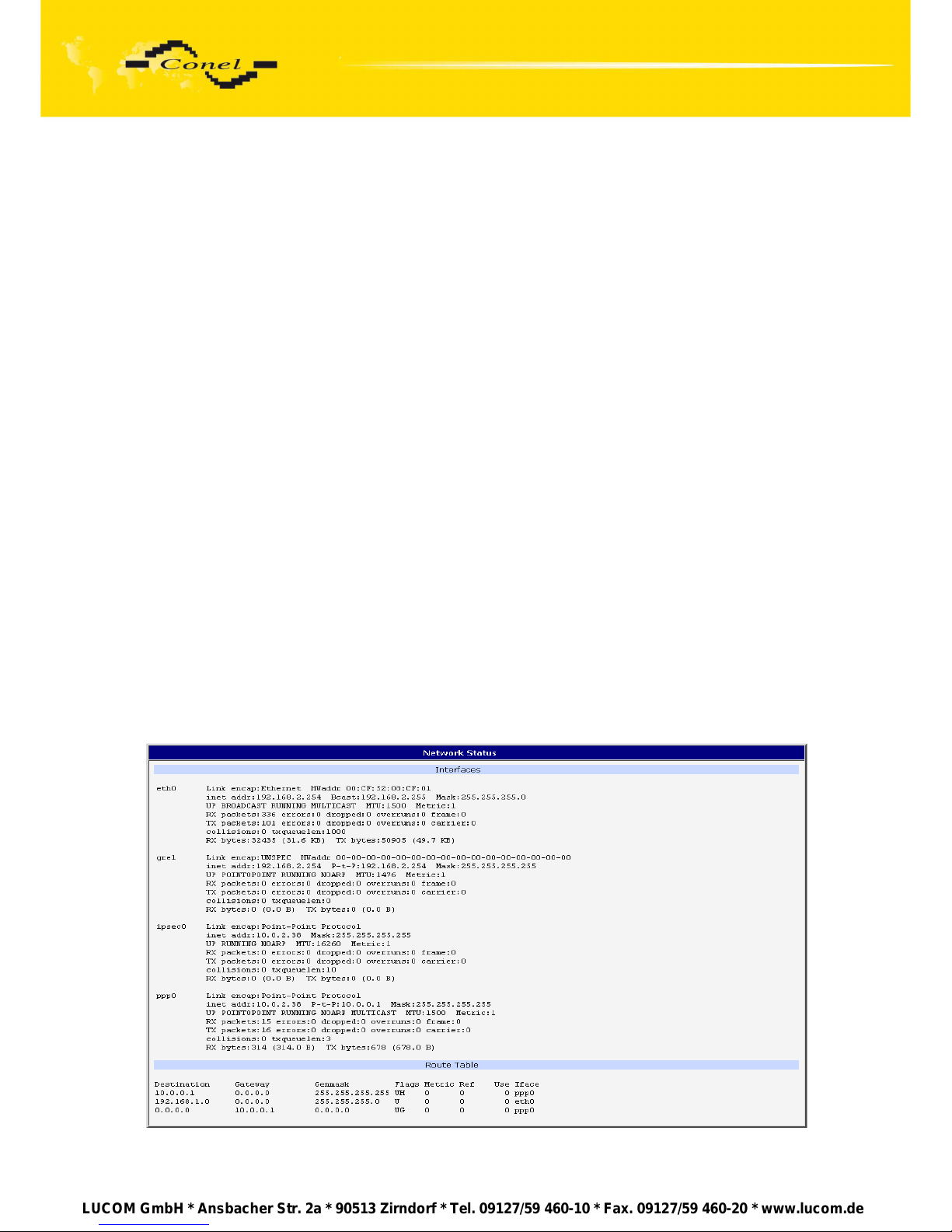

To view the system information about the modem operation, select
the System Information menu item. The bottom part of the window contains information about
the system memory usage. The upper part of the window displays detailed information about
active interfaces:

• eth0 – parameters of networks interface

• ppp0 – PPP interface (active connection to GPRS/EDGE)

• tun0 – OpenVPN tunnel interface

• gre1 – GRE tunnel interface

• ipsec0 – IPSec tunnel interface

By each of the interfaces are then shown the following information

• HWaddr – hardware (unique) address of networks interface

• inet – own IP address

• P-t-P – IP address second ends connection

• Bcast – broadcast address

• Mask – mask of network

• MTU – maximal size of packet, which is equipment able transmit

• Metric – number of routers, over which packet must pass

• RX packets – received packets, errors – number of errors, dropped – dropped

packets

• TX packets – transmit packets, errors – number of errors, dropped – dropped packets

• collisions – number of collisions

• RX bytes – total number of received bytes

• TX bytes – total number of transmit bytes

It is possible to elicit GPRS connection state from the network information. If the GPRS

connection is active, then it is in the system information shown as ppp0 connection.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

34

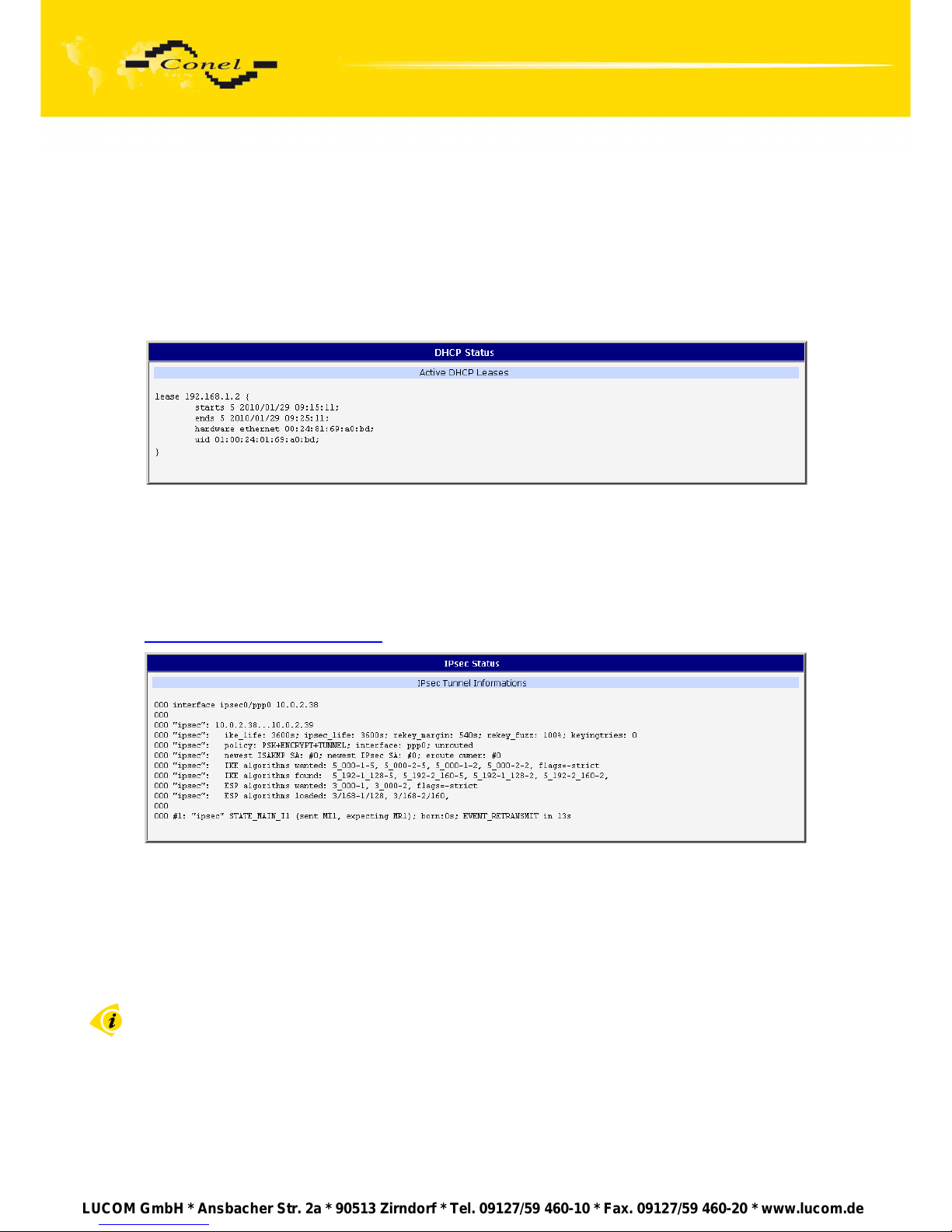

4.2. DHCP Status

Information about IP addresses, which was leased to the router by the DHCP server,
is possible to find in menu in sum DHCP:

• lease 192.168.1.2 (generally IP address) – assigned IP address

• starts – information about time of assignation of IP address

• ends – information about time of termination IP address validity

• hardware ethernet – hardware MAC (unique) address

• uid – unique ID

In the extreme the DHCP status can display two records for one IP address. That
could have been caused by resetting of network cards.

4.3. IPsec status

Information on actual IPsec tunnel state can be called up in option IPsec in the menu.
Detailed information on the description shown below can be found on the following link

http://www.freeswan.org/doc.html.

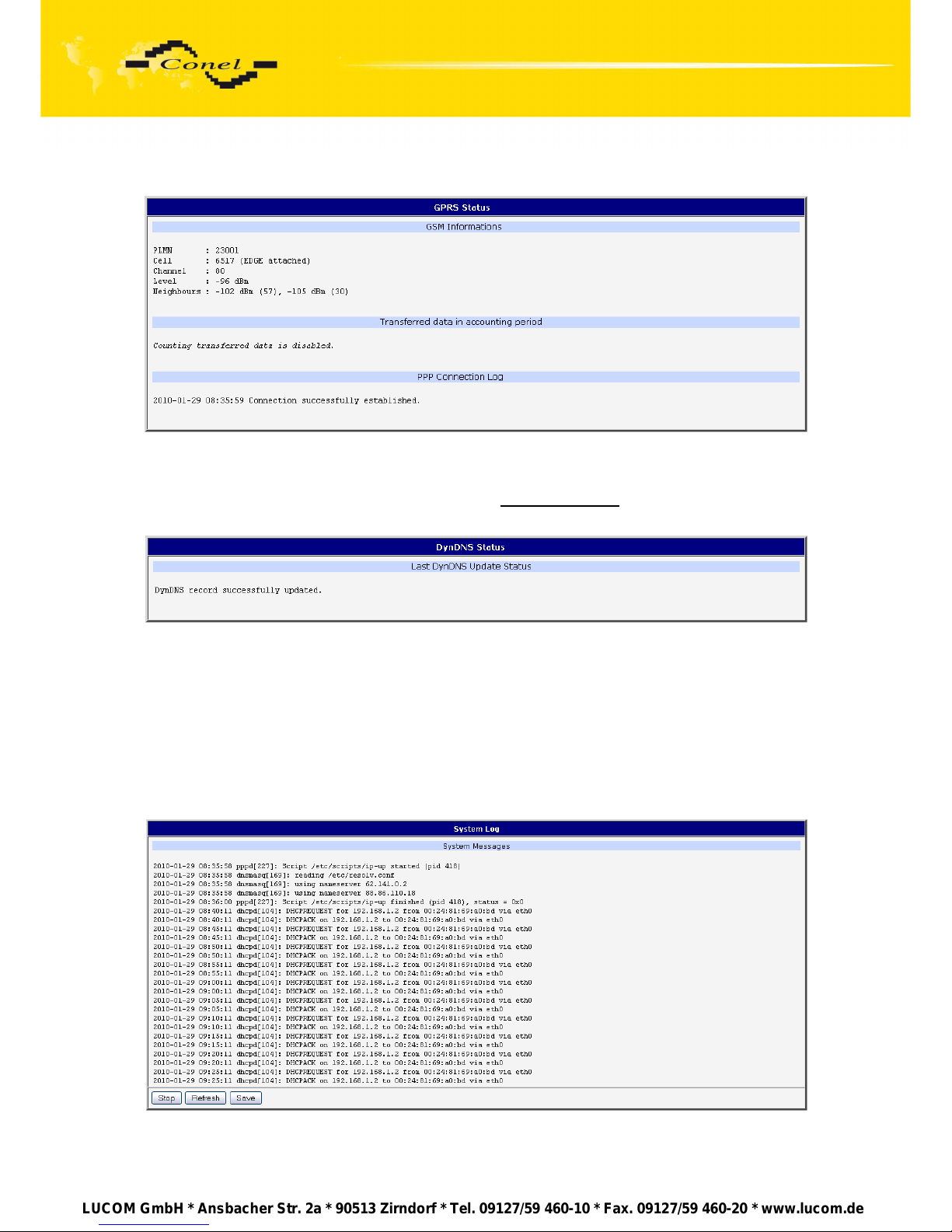

4.4. GPRS Status

The item GPRS in the menu contains up-to-date information about PLMN (code of
operator), cell, channel and signal quality of the selected cell, as well as neighboring hearing
cells. In the middle part of window is shows information about transferred data in accounting
period. The GPRS Connection Log is in the bottom of this window where information about
the make-up of the GPRS connection is and pertinent problems on this formation.

Information about transferred data is show when the parameter Data Limit is set
(GPRS configuration) and it set parameter (Switch to backup SIM card hen data limit to
exceeded); or when the parameter Data Limit is set (GPRS configuration) and it set
parameter Send SMS when data limit is exceeded (SMS configuration). Information about
transferred data is show for primary SIM card only.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

35

4.5. DynDNS status

DynDNS up - dating entry result on server www.dyndns.org can be called up in option
DynDNS item in the menu.

4.6. System Log

In case of any problems with connection to GPRS it is possible to view the system log
by pressing the System Log menu item. The System log observes only connection to GPRS
and formation of IPsec tunnel. The upper part of the window displays possible errors at GPRS
connection establishment. After switching on the log daemon by pressing the Start button,
the bottom part of the window displays detailed reports from individual applications running
in the modem. To update the contents of the window press the Refresh button. By the help of
button Save it is possible to save the system log to the computer.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

36

Program syslogd can be started with two options that modifies its behaviour. Option "­S" followed by decimal number set maximal number of lines in one log file. Option "-R"
followed by hostname or IP address enable logging to remote syslog daemon. For starting

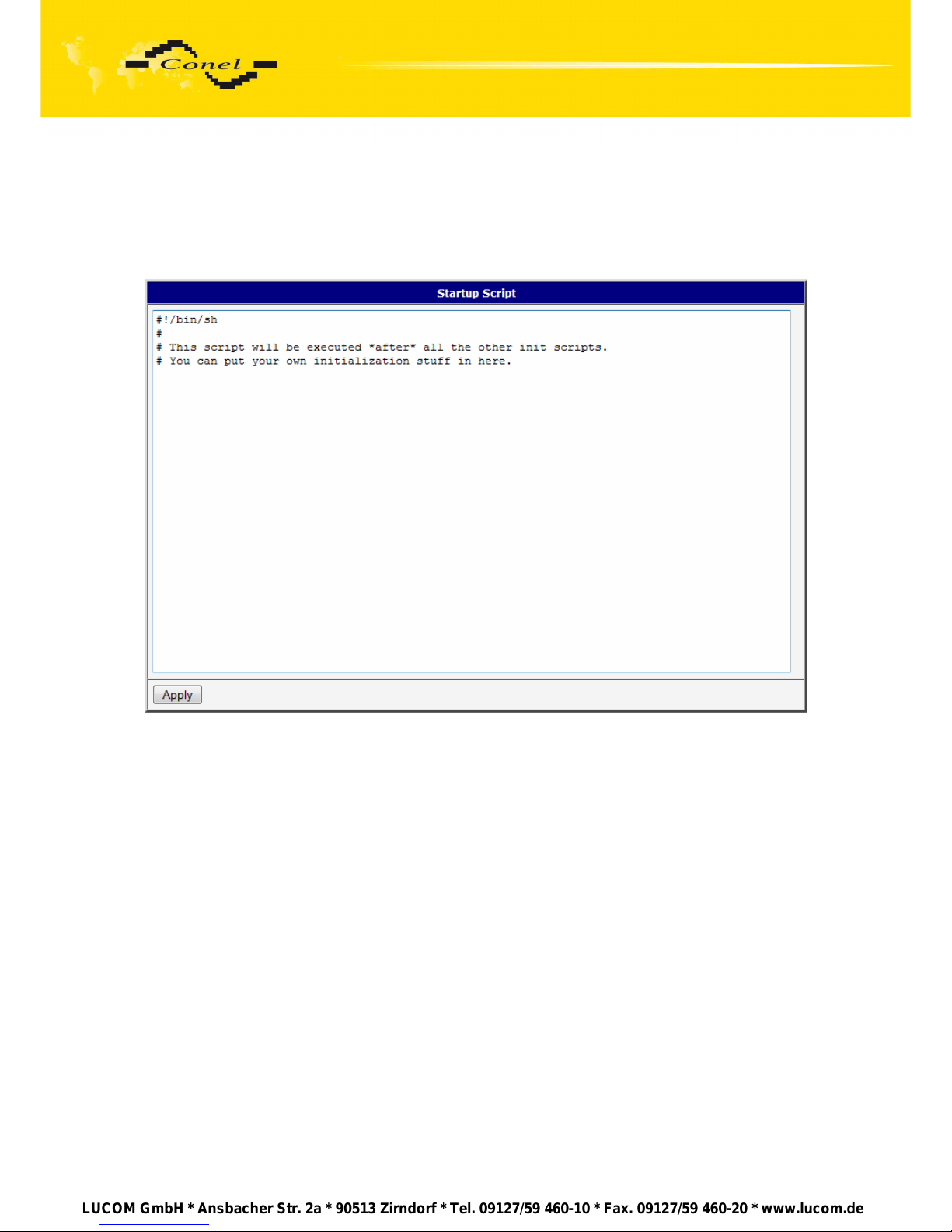

syslogd with these options you could modify script "/etc/init.d/syslog" or add lines "killall
syslogd" and "syslogd <options> &" into Startup Script.

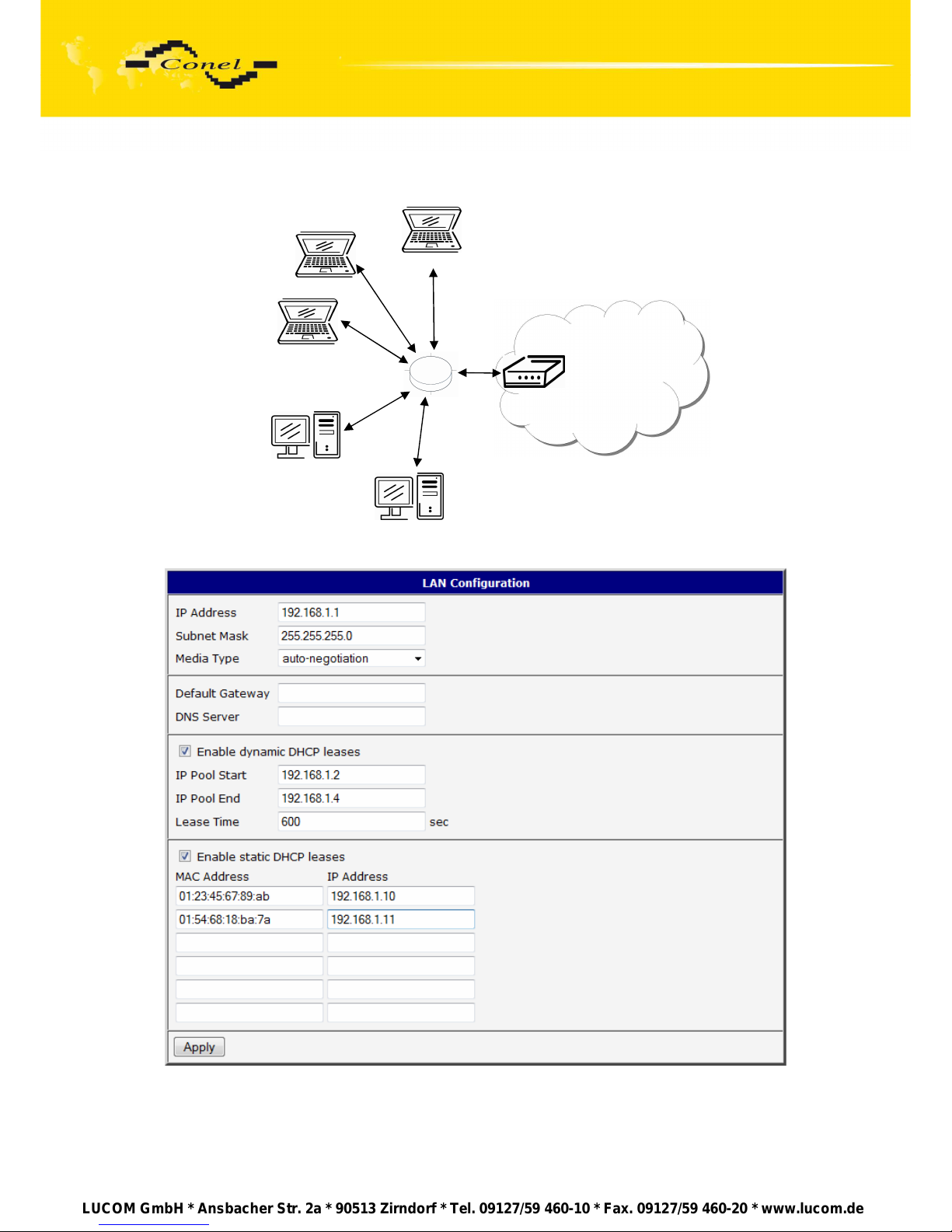

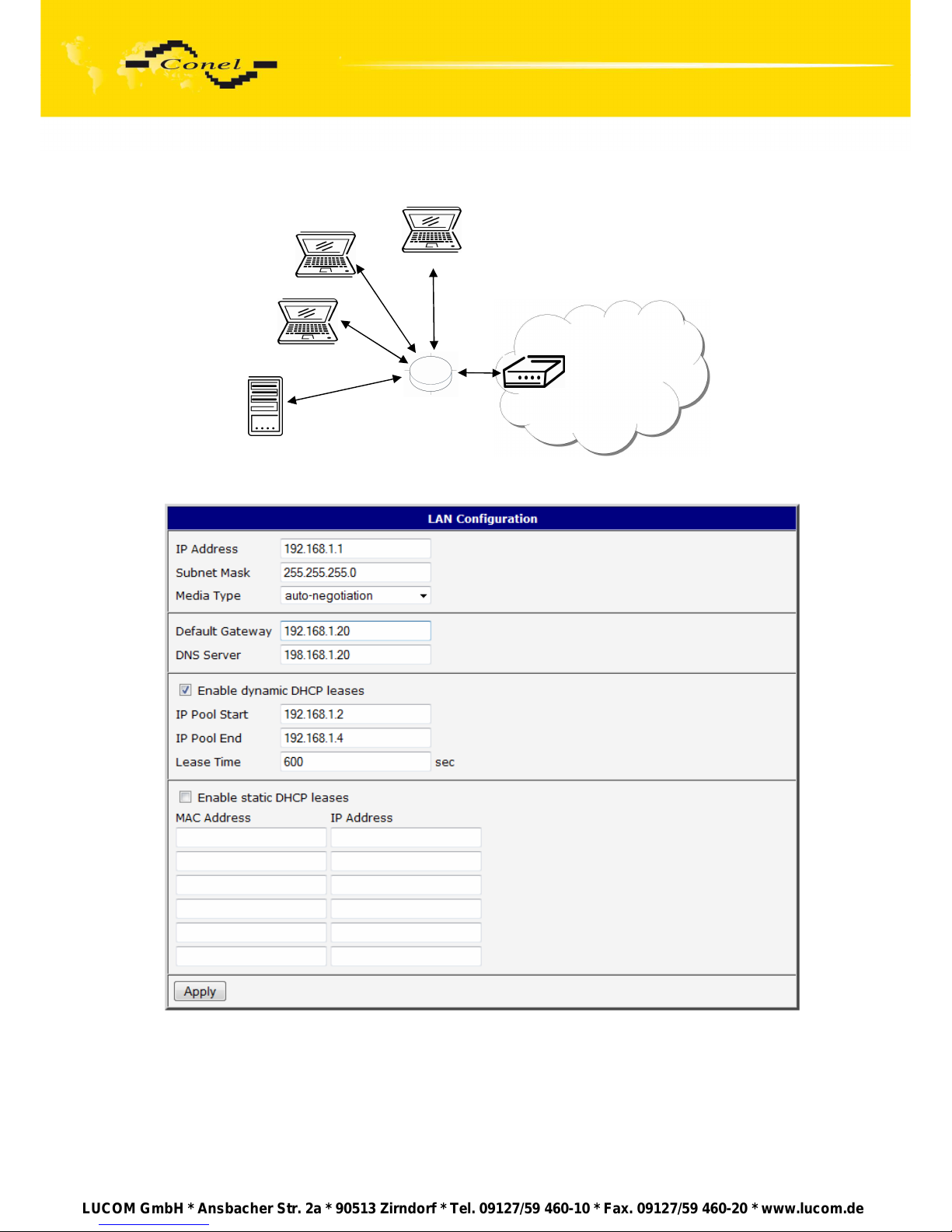

4.7. LAN Configuration

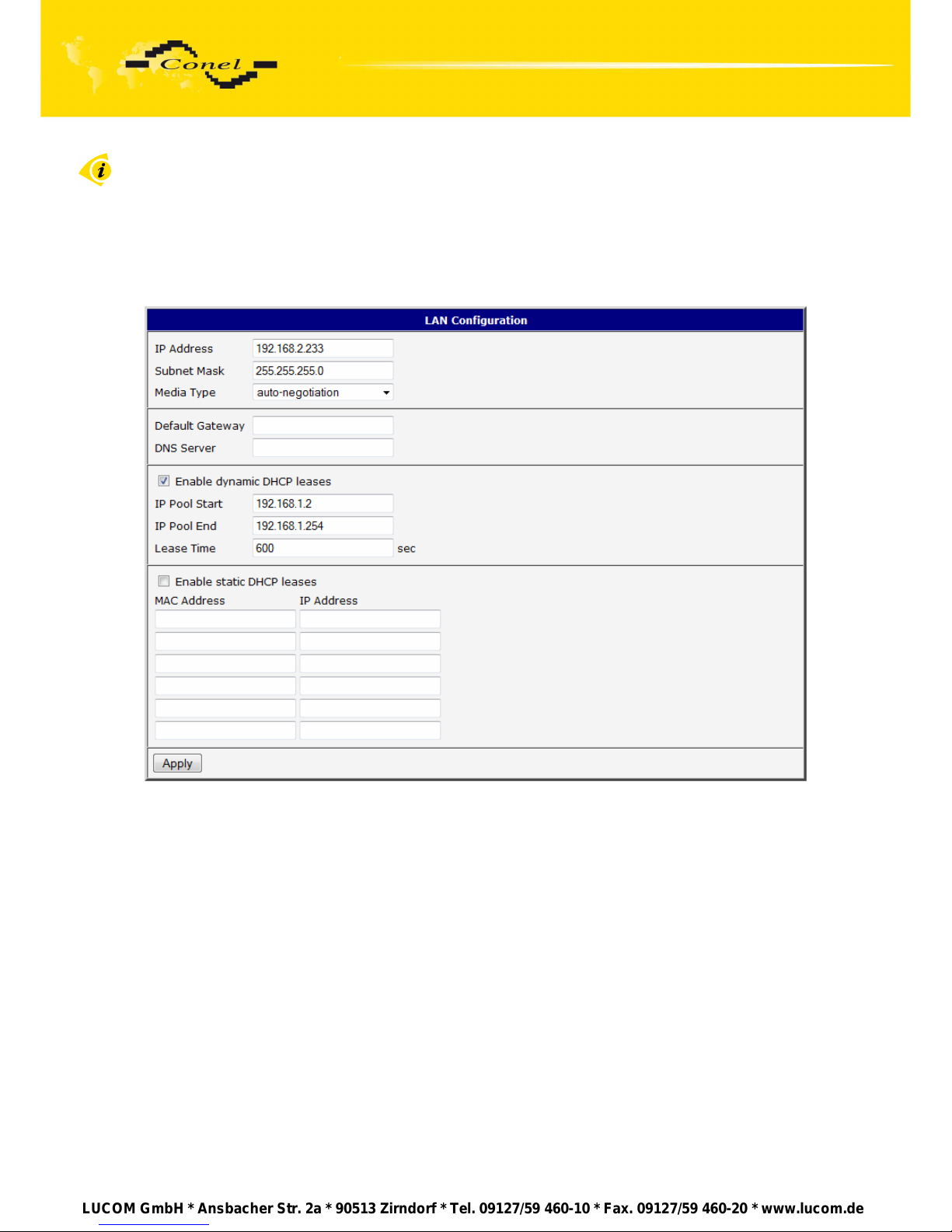

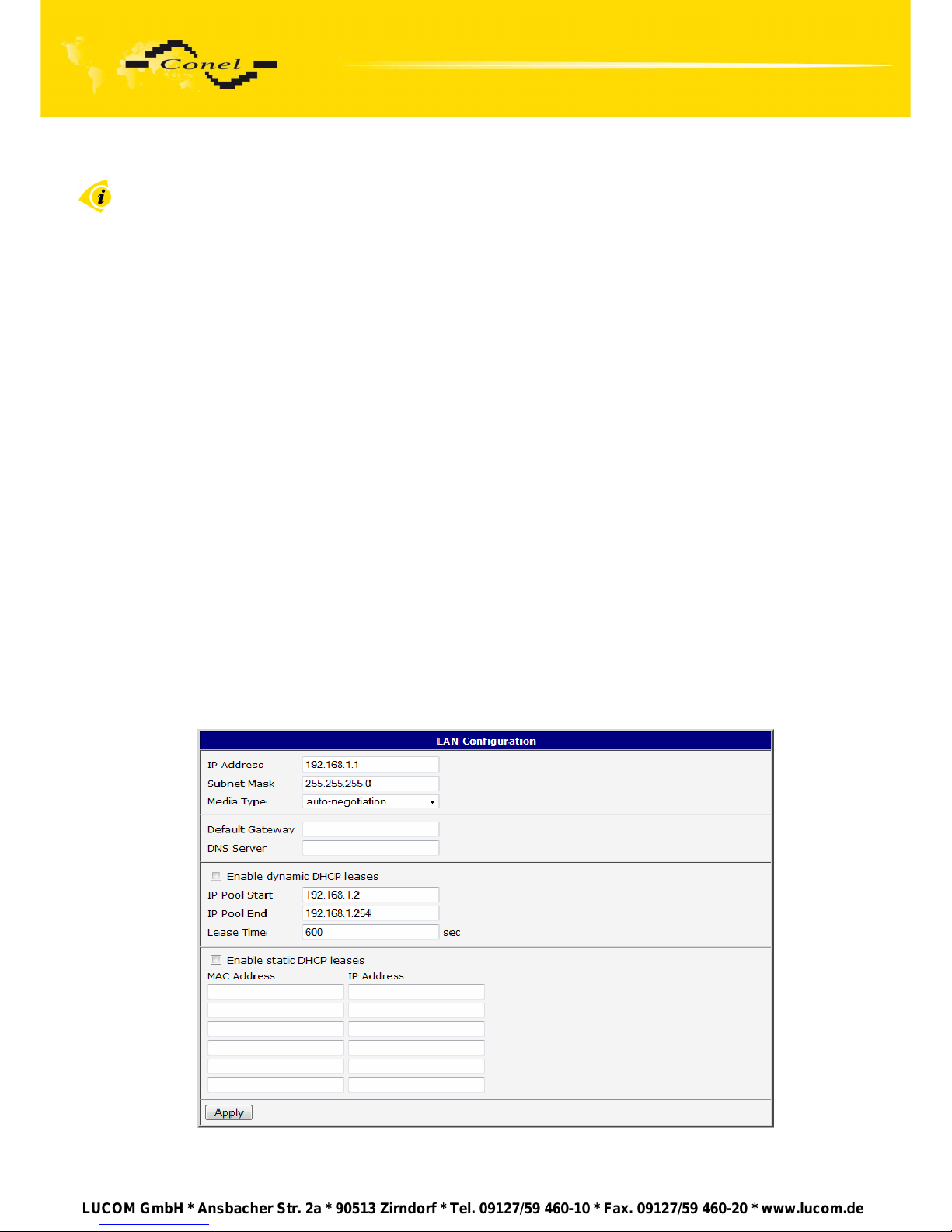

To enter the network configuration, select the LAN menu item. In the first part of
the window it is possible to define the network interface IP address (IP address), the network
mask (Subnet Mask) and media type (Media Type), in the majority of cases set Auto-
Negotiation.

In the second part of the window is possible to define Default Gateway and DNS
server.

In the third part of the window, it is possible to define the DHCP server by checking the
Enable dynamic DHCP server option. In the window it is possible to define the beginning
(IP Pool Start) and end (IP Pool End) of the pool of IP addresses which will lease to DHCP
clients. By parameter Lease time is possible to define time after which the client can use IP
address.

In the fourth part of the Windows it is possible, by checking the Enable static

DHCP server option, to define leases up to six static IP Addresses, which conform to MAC
Address of the connected equipment etc.

The changes in settings will apply after pressing the Apply button.

The DHCP server assign IP addresses to the connected clients from defined address
pool, IP address of the gate and IP address of the primary DNS server. It is important not to
overlap ranges of static engaged IP address with address allotted by the help of DHCP, or
collision of addresses may occur, thereby malfunctioning the network.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

37

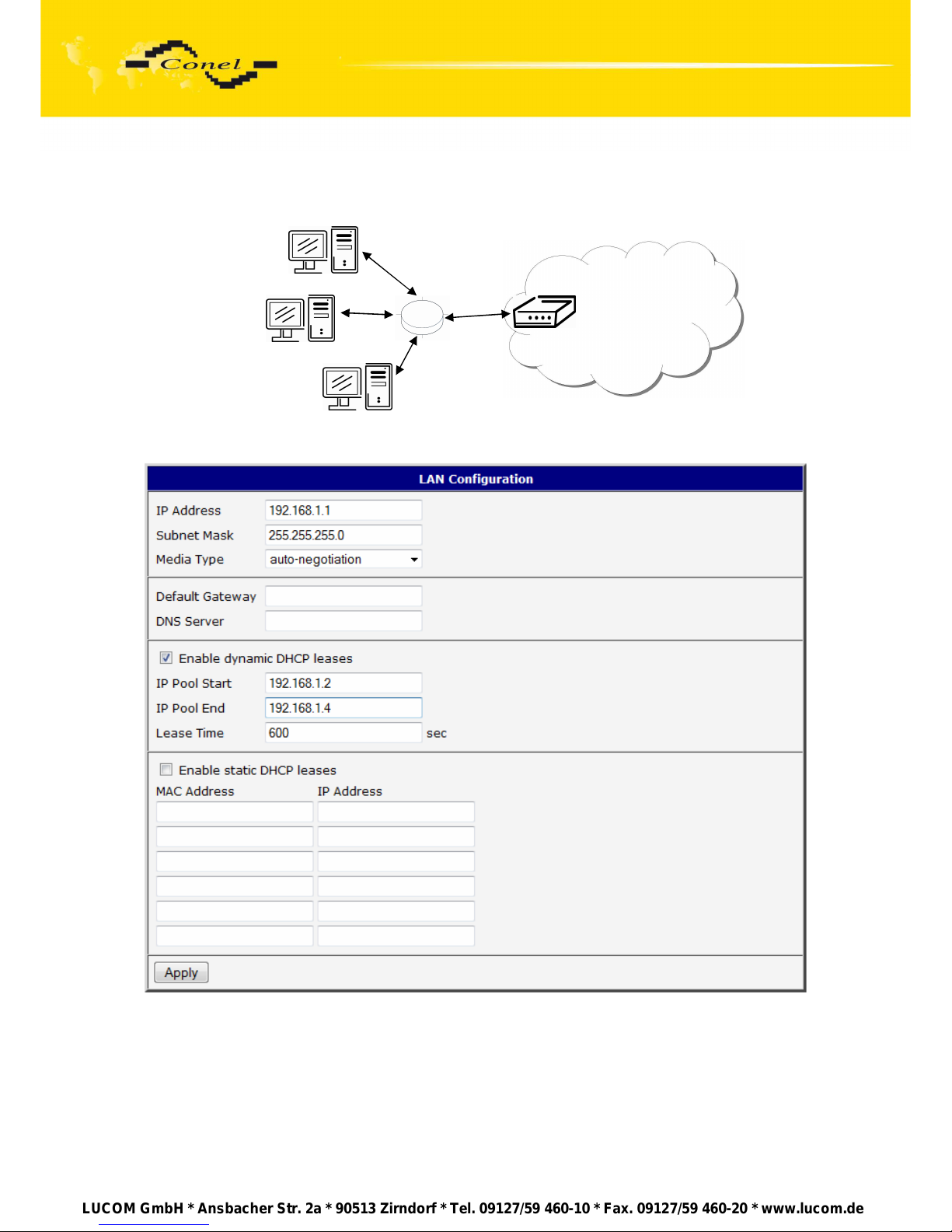

Example of the network interface with dynamic DHCP server:

192.168.1.3

192.168.1.4

ETH

192.168.1.2
GSM/GPRS

192.168.1.1

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

38

Example of the network interface with dynamic and static DHCP server:

192.168.1.3

192.168.1.4
ETH

192.168.1.2

GSM/GPRS

192.168.1.10
01:23:45:67:89:ab

192.168.1.11
01:54:68:18:ba:7e

192.168.1.1

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

39

Example of the network interface with default gateway and DNS server:

192.168.1.3

192.168.1.4

192.168.1.1

ETH

192.168.1.2

GSM/GPRS

192.168.1.20

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

40

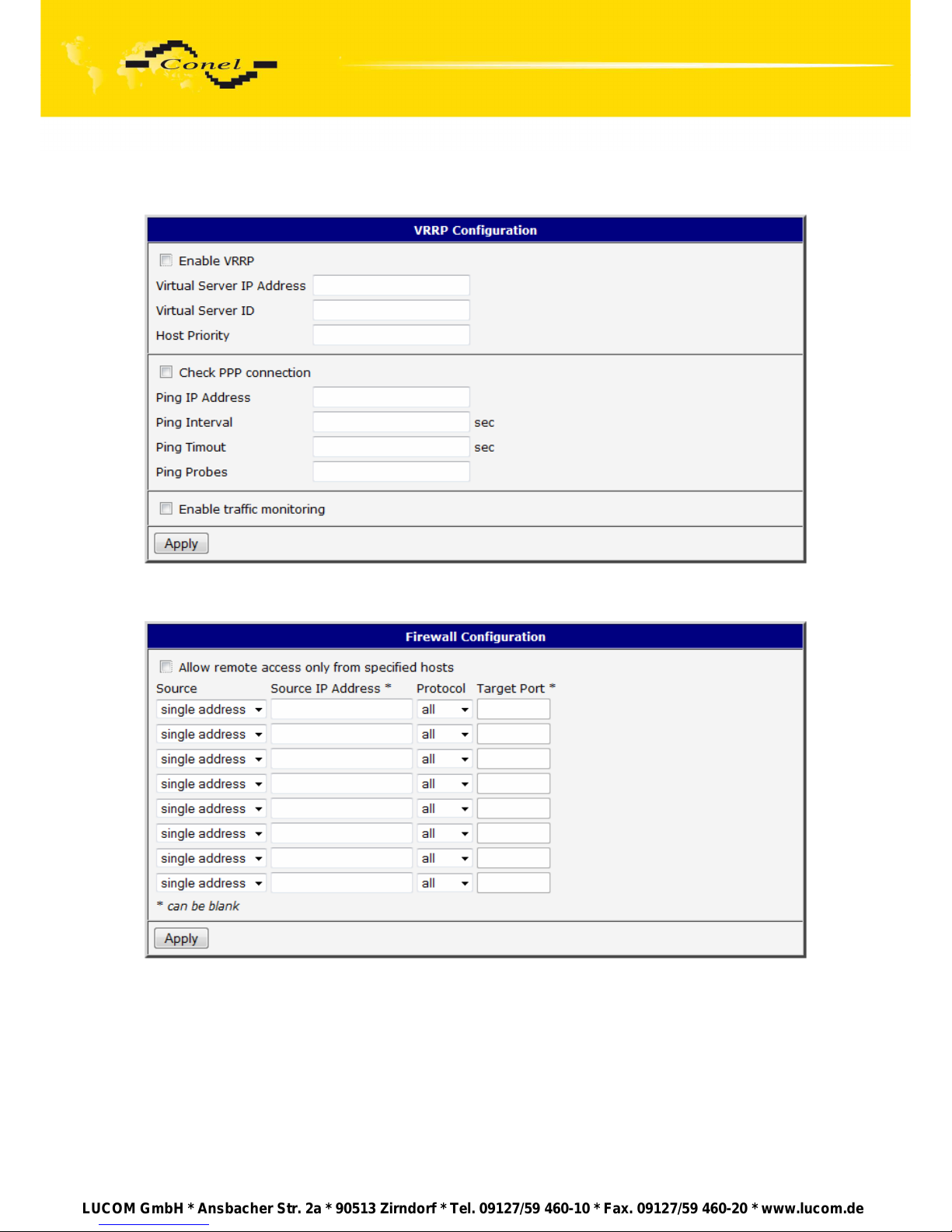

4.8. VRRP Configuration

To enter the VRRP configuration select the VRRP menu item. VRRP protocol (Virtual
Router Redundancy Protocol) is a technique, by which it is possible to forward routing from
main router to backup router in the case of the main router failure. If the Enable VRRP is
checked, then it is possible to set the following parameters. Parameter Virtual Server IP
Address sets virtual server IP address. This address should be the same for both routers. a
connected device sends its data via this virtual address. Parameter Virtual Server ID
distinguishes one virtual router on the network from others. This implies that the main and
backup routers must use the same value for this parameter. The router, with higher priority
set by the parameter Host Priority, is the main router. According to RFC 2338 the main router
has the highest possible priority - 255. The backup router has priority in range 1 – 254 (init
value is 100). The priority value equals 0 is not allowed.

It is possible to set Check PPP connection flag in the second part of the window.
The currently active router (either main or backup) will send testing messages to defined
Ping IP Address at periodic time intervals (Ping Interval) with setting time of waiting for
answer (Ping Timeout). The function check PPP connection is used as a supplement of
VRRP standard with the same final result. If there are no answers from remote devices (Ping
IP Address) for a defined number of probes (Ping Probes), then connection is switched to the
other line. It is possible to use for example a DNS server of mobile operator as a test
message (ping) IP address. There's an additional way for evaluating the state of the active
line. It is activated by selecting Enable traffic monitoring parameter. If this parameter is set
and any packet different from ping is sent to the monitored line, then any answer to this
packet is expected for Ping Timeout. If Ping Timeout expires with no answer received then
process of testing the active line continues the same way like in the case of standard testing
process after first test message answer drops out.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

41

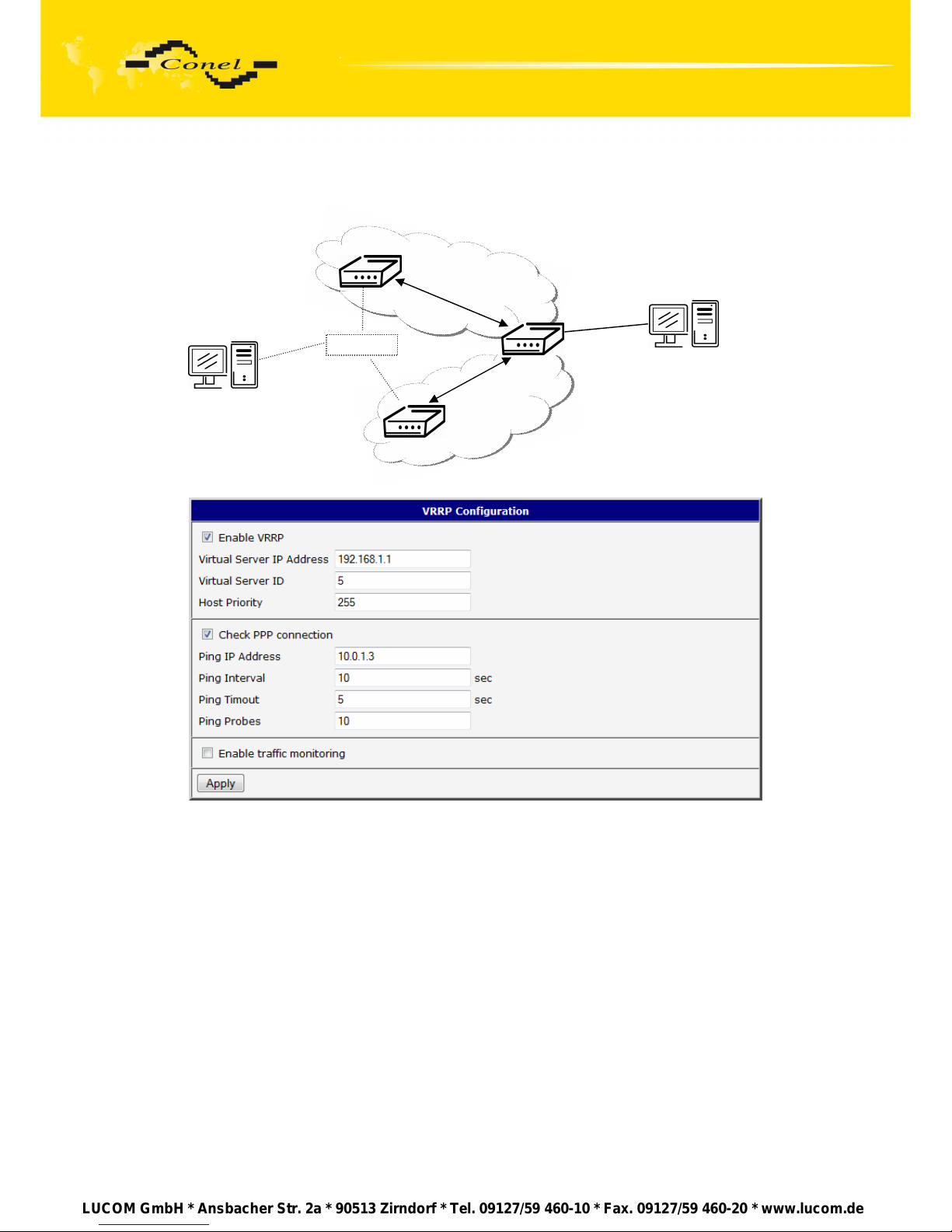

Example of the VRRP protocol:

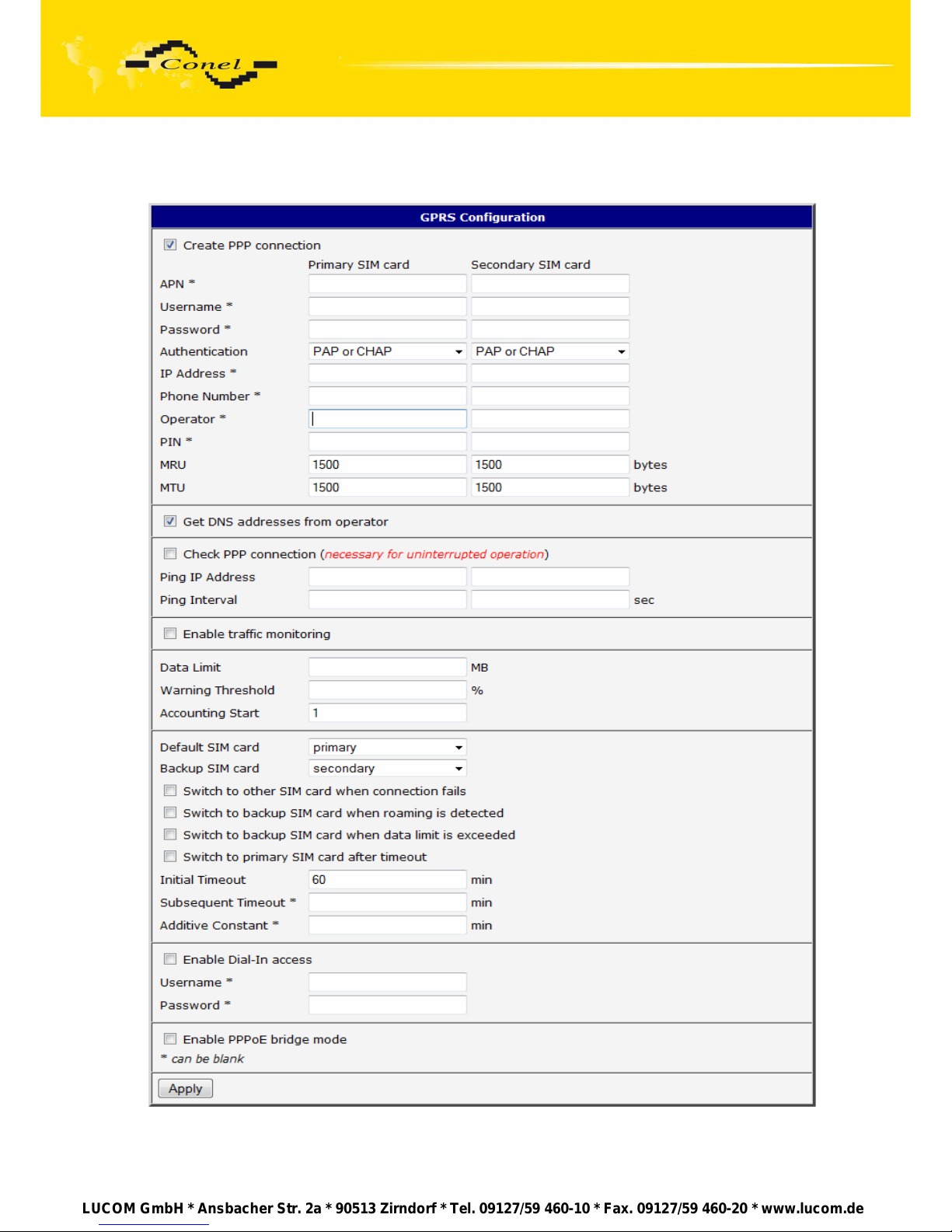

4.9. GPRS Configuration

To enter the GPRS connection configuration select the GPRS menu item.
If the Create GPRS connection option is selected, the modem automatically tries to establish
GPRS connection after switching-on. In this window it is possible to define Username,
Password, authentificate protocol in the GSM network (Authentication), IP address
(IP Address) and phone number (Phone Number) for two different APN. If the IP address field
is not filled in, the operator automatically assigns the IP address when it is establishing the
connection. The router uses phone number *99***1# as default number. When it is set other
phone number, it will be use for establish GPRS or CSD connection.

If the APN field is not filled in, then the router automatically selects the APN by the
IMSI code of the SIM card. If the PLMN (operator number format) is not in the list of APN,
then default APN is “internet“. The mobile operator defines APN. The PLMN parameter is
possible to define in Operator item. If the PPPoE bridge mode is activated, then login is
taken from the connected client. By parameter PIN it is possible to put PIN to the SIM card
always during the starting of the router.

Main router
Virtual server ID 5
Host priority 255

192.168.1.1

192.168.1.2

192.168.1.3

Backup router
Virtual server ID 5
Host priority 100

ETH

10.0.1.3

APN 1

APN 2

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

42

Attention! If one SIM card is inserted into the router, which has two different APN’s,
the router cannot have the second SIM socket mounted. Otherwise it will switch to
secondary APN false. Also, correct PIN must be filled. For SIM cards with two APN’s
there will be the same PIN for both APN`s. Otherwise the SIM card can be blocked by
false SIM PIN.

The choice Get DNS address from operator is given for easier configuration on client
side. If this field is filled in, then the router tries to get an IP address of primary
and secondary DNS server from the operator automatically.

If the Check PPP connection option is selected, it has active control of connection
over PPP. The modem will automatically send the ping question to the selected domain
name or IP address (Ping IP Address) in periodic time intervals (Ping Interval). If the PING
failed, new ping be sent immediately. After three unsuccessfully pings on appropriate IP
address the router terminates connection and tries to establish a new connection. It is
possible to use, for example, the DNS server of a mobile operator as the ping IP address.

If the Enable Traffic Monitoring option is selected, then the router stops sending ping
questions to the Ping IP Address and it will watch traffic in PPP connection. If PPP
connection is without traffic longer than the Ping Interval, then the router sends ping
questions to the Ping IP Address.

Parameter Data limit set limit for data sending via GPRS. Parameter Warning
Threshold determine per cent of Data Limit in the range of 50% to 99%, which if is exceeded,
then the router sends an SMS in the form Router has exceeded (value of Warning
Threshold) of data limit. By the parameter Accounting Start it is possible to specify day
in month when it will start accounting defined in Data limit. If the parameter Switch to backup
SIM card when data limit is exceeded (see next) or Send SMS when datalimit is exceeded
(see SMS configuration) are not selected the data limit will not count.

At the bottom of configuration it is possible to set rules for switching between two
APN’s on the SIM card, in the event that one SIM card is inserted or between two SIM cards,
in the event that two SIM cards are inserted. Parameter Default SIM card sets default APN
or SIM card, from which it will try to establish the PPP connection. If this parameter is set
to none, the router launches in off-line mode and it is necessary to establish PPP connection
via SMS message.

If parameter Backup SIM card is set to none, then parameters Switch to other SIM

card when connection fails, Switch to backup SIM card when roaming is detected and Switch
to backup SIM card when data limit is exceeded switch the router to off-line mode.

If PPP connection fails, then the parameter Switch to other SIM card when connection
fails ensures switch to secondary SIM card or secondary APN of the SIM card. Failure of the

PPP connection can occur in two ways. When I start the router, when three fails to establish
a PPP connection. Or if it is checked Check the PPP connection, and is indicated by the loss
of a PPP connection.

In case that the roaming is detected the parameter Switch to backup SIM card
when roaming is detected enables switching to secondary SIM card or secondary APN
of the SIM card.

Parameter Switch to backup SIM card when data limit is exceeded enables switching
to secondary SIM card or secondary APN of the SIM card, when the data limit of default APN
is exceeded.

Parameter Switch to primary SIM card after timeout defines conditions, how to switch
back to the default SIM card or default APN.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

43

Parameter Switch to backup SIM card when binary input is active enables switching
to secondary SIM card or secondary APN of the SIM card, when binary input ‘bin0’ is active.

Parameter Switch to primary SIM card after timeout enable defines the method, how
the router will try to switch back to default SIM card or default APN.

The following parameters define the time after which the router attempts to go back
to the default SIM card or APN. The first attempt to switch back to the primary SIM card or
APN shall be made for the time defined in the parameter Initial Timeout, range of this
parameter is from 1 to 10000 minutes. In an unsuccessful attempt to switch to default SIM
card, the router on the second attempt to try for the time defined in the parameter
Subsequent Timeout, range is from 1 to 10000 minutes. Any further attempt to switch back to
the primary SIM card or APN shall be made in time computed as the sum of the previous
time trial and time defined in the parameter Additive constants range is 1-10000 minutes.

Example: If parameter Switch to primary SIM card after timeout is checked and
parameters are set as follows Initial Timeout – 60min. Subsequent Timeout 30min
a Subsequent Timeout - 20min.The first attempt to switch the primary SIM card or APN shall
be carried out after 60 minutes. Switched to a failed second attempt made after 30 minutes.
Third after 50 minutes (30 +20). Fourth after 70 minutes (30 +20 +20).

Parameter Initial Timeout sets the time after which the Router tries to make connection
with default APN, range of this parameter is from 1 to 10000 minutes. Parameter Subsequent
Timeout sets the time period for every other next attempt to make connection with default
APN, range is from 1 to 10000 minutes. Parameter Additive Constant sets the amount of time
which is added to every attempt at main connection establishment after unsuccessful defined
attempt (for example: Additive Constant is 15 minutes. After a second unsuccessful attempt at
main connection establishment time of next attempt is extended by about 30 minutes etc.).
Range is from 1 to 1000 minutes.

In the bottom part of the window it is possible to define access over CSD connection
by Enable Dial-In Access function. Access can be secured by used the Username
and Password. When the router is in offline mode, the router is permanently available via
CSD connection.

In the last part of the window, is possible to switch on the PPPoE server by checking
off Enable PPPoE bridge mode. Then server waits for client from ethernet. After connection,
router sets the PPP connection over GPRS. Router then act as a transparent bridge between
PPPoE and PPP.

Attention! We recommend checking the GPRS connection in case of uninterrupted
running.

Annotation:

• MTU (Maximum Transmission Unit) – it is the identifier of the maximum size of
packet, which is possible to transfer in a given environment.

• MRU (Maximum Receiving Unit) – it is the identifier of the maximum size of
packet, which is possible to receive in a given environment.

Default value is 1500 bytes. Other settings may cause incorrect transmission of data.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

44

The changes in settings will apply after pressing the Apply button.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

45

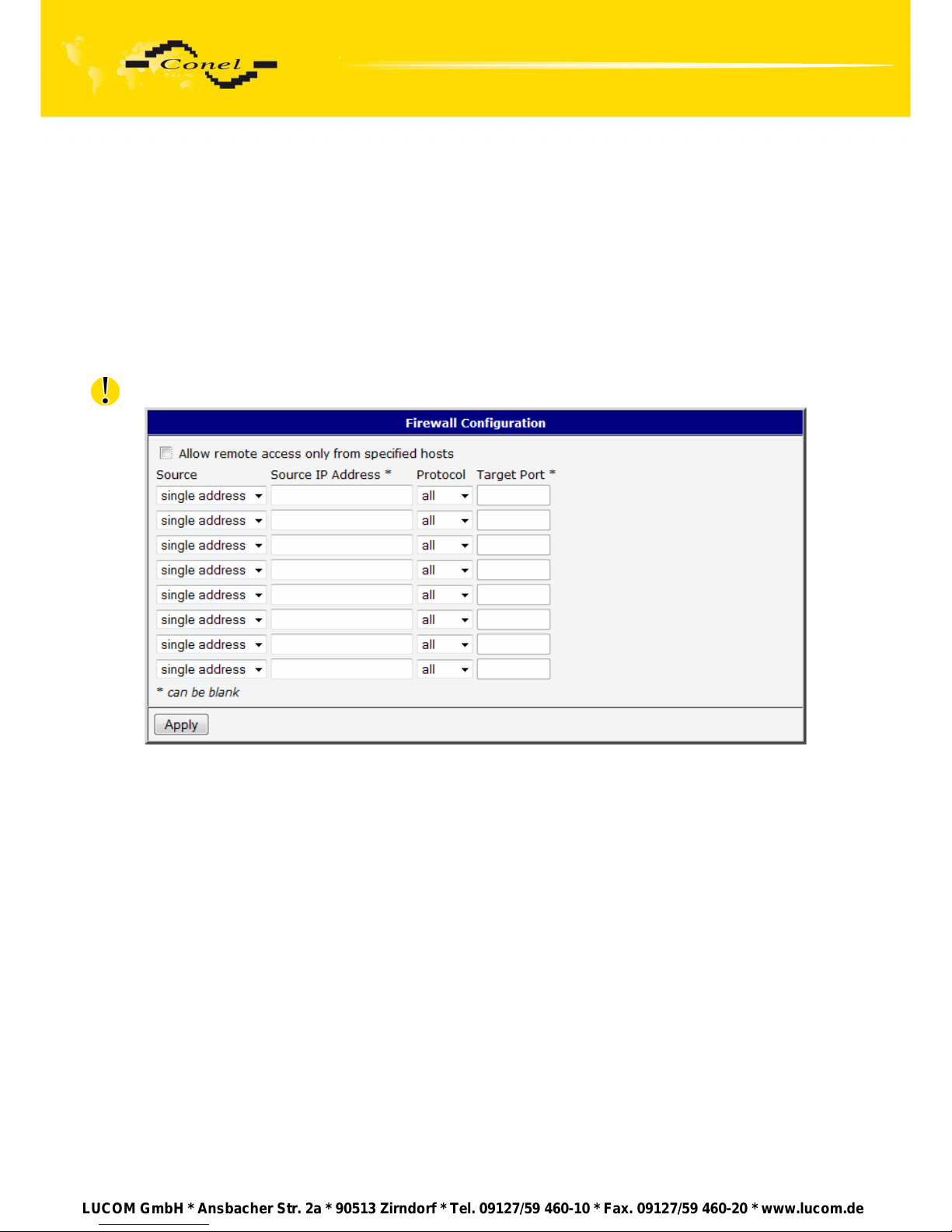

4.10. Firewall Configuration

By the help of a firewall it is possible to set IP addresses from which are possible to
remotely access the router. The choice Allow remote access only from specified hosts is
given for easier configuration of hosts. In this firewall configuration it is possible to set up to
four remote accesses by the help of Source, Source IP Address, Protocol and Target Port.

Parameter Source defines if access is allowed to one IP address which is defined by
Source IP Address, or every IP addresses. In menu Protocol it is possible to specify protocol
for remote access, it is possible to allow all protocols (all), or only one protocol UDP, TCP or
ICMP. By parameter Target Port it is possible to specify a port number.

The changes in settings will apply after pressing the Apply button.
Caution! Firewall doesn’t filter via Ethernet.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

46

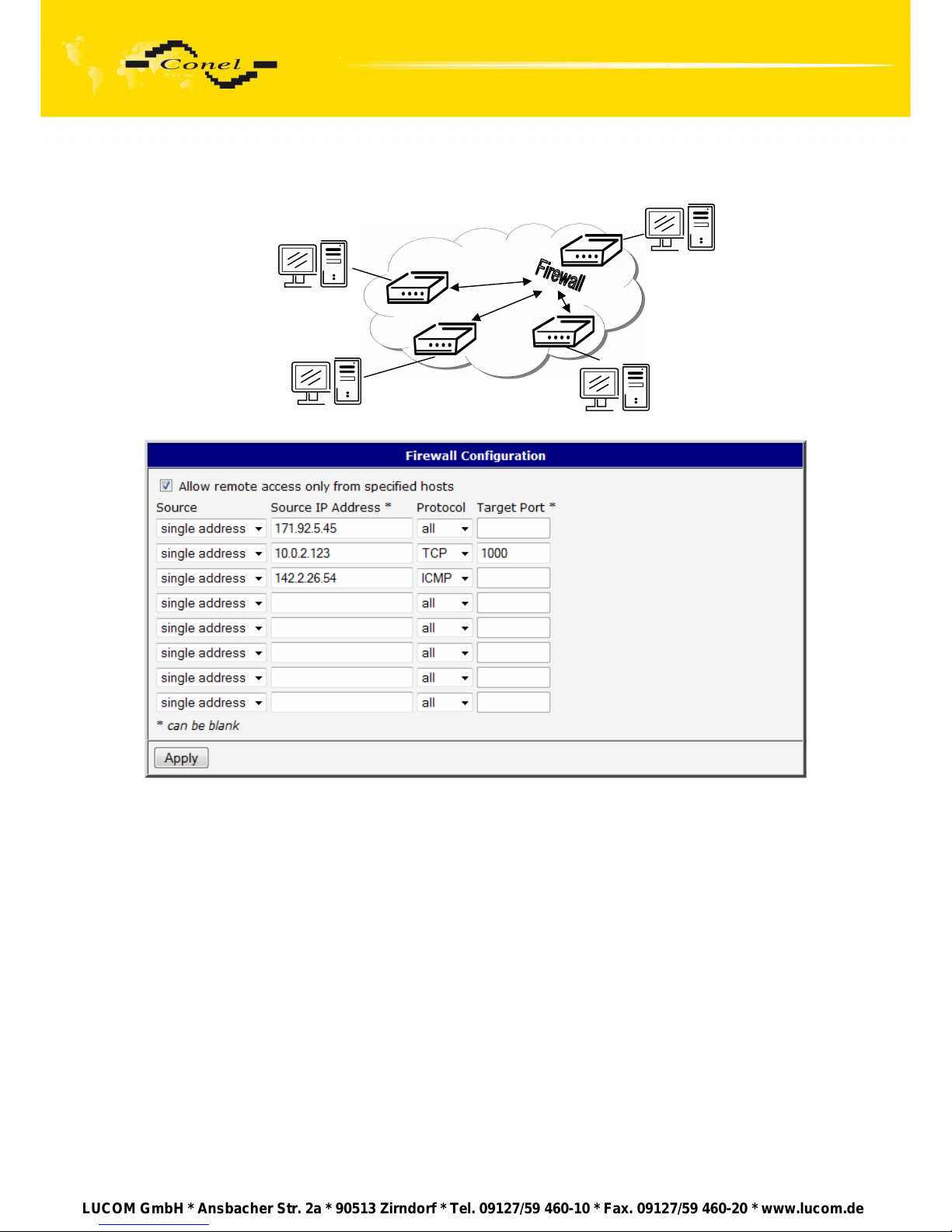

Example of the firewall configuration:

10.0.2.123

171.92.5.45

TCP/1000

ICMP

ALL

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

47

4.11. NAT Configuration

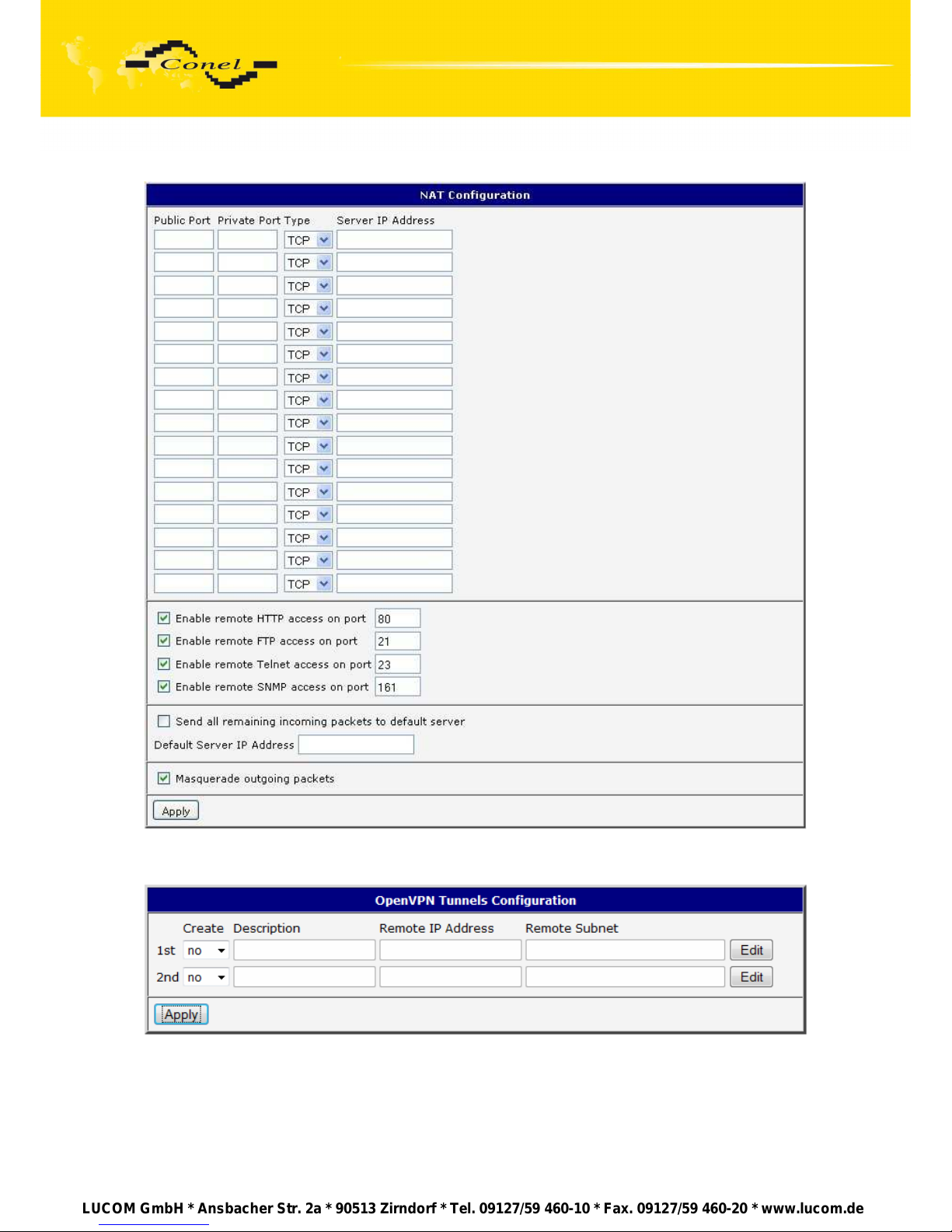

To enter the Network Address Translation configuration, select the NAT menu item.
By checking off the Send all incoming packets to default server item and setting
the Default Server item it is possible to put the router into the mode in which all incoming data
from GPRS will be routed to the computer with the defined IP address.

If the Enable remote HTTP access field and port number is filled in, then configuration
of the router over web interface is possible. Choice Enable remote FTP access on port and
port number makes it possible to access over FTP. Choice Enable remote Telnet access and
port number makes it possible to access over Telnet. Choice Enable remote SNMP access
and port number makes it possible to access to SNMP agent. Choice Masquerade outgoing
packets option turns the system address translation NAT.

The changes in settings will apply after pressing the Apply button.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

48

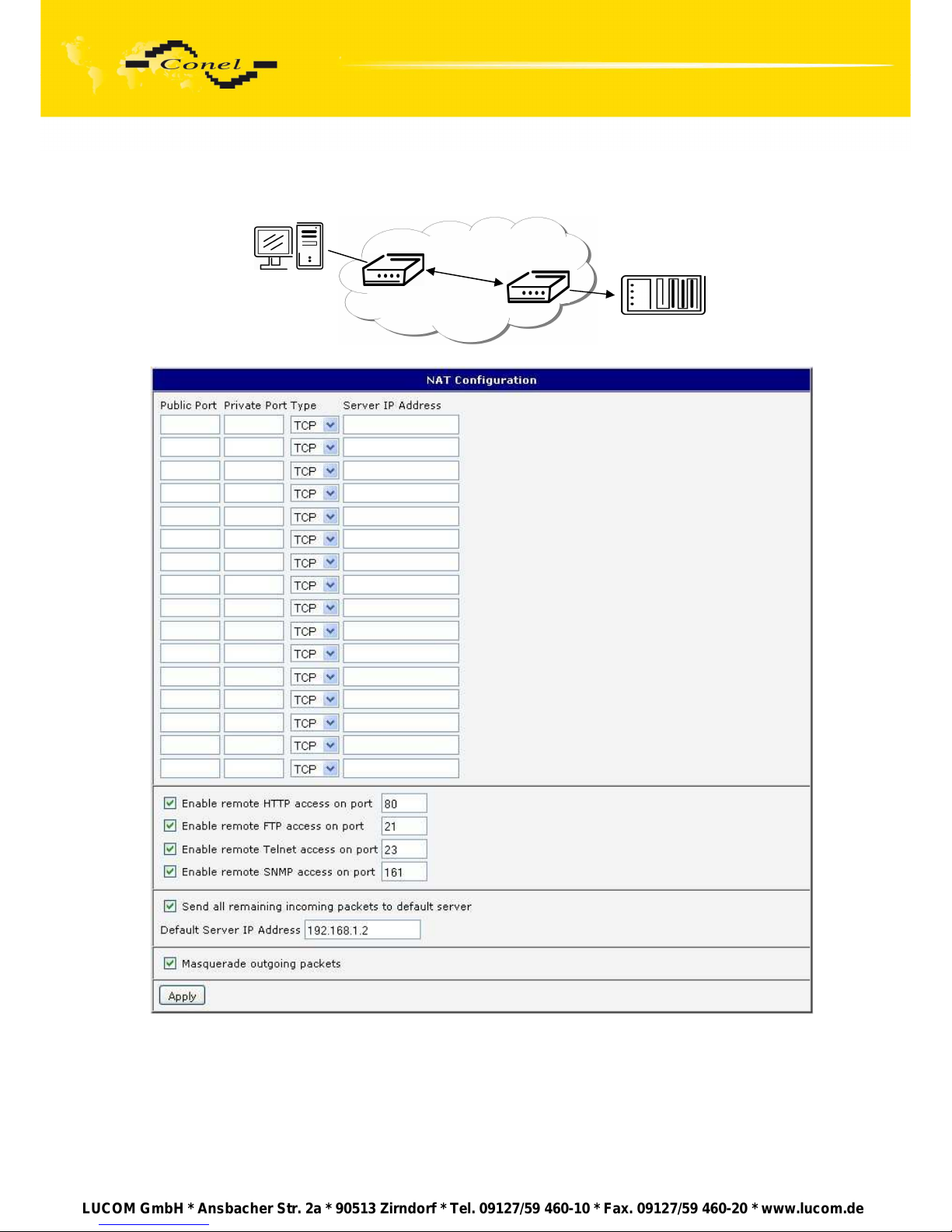

Example of the configuration with one connection equipment on the router:

In these configurations it is important to have marked choice of Send all remaining
incoming packets it default server, IP address in this case is the address of the device behind
the router. Connected equipment behind the router must have set Default Gateway on the
router. Connected device replies, while PING on IP address of SIM card.

162.209.13.222

192.168.1.2

ppp0 10.0.0.1

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

49

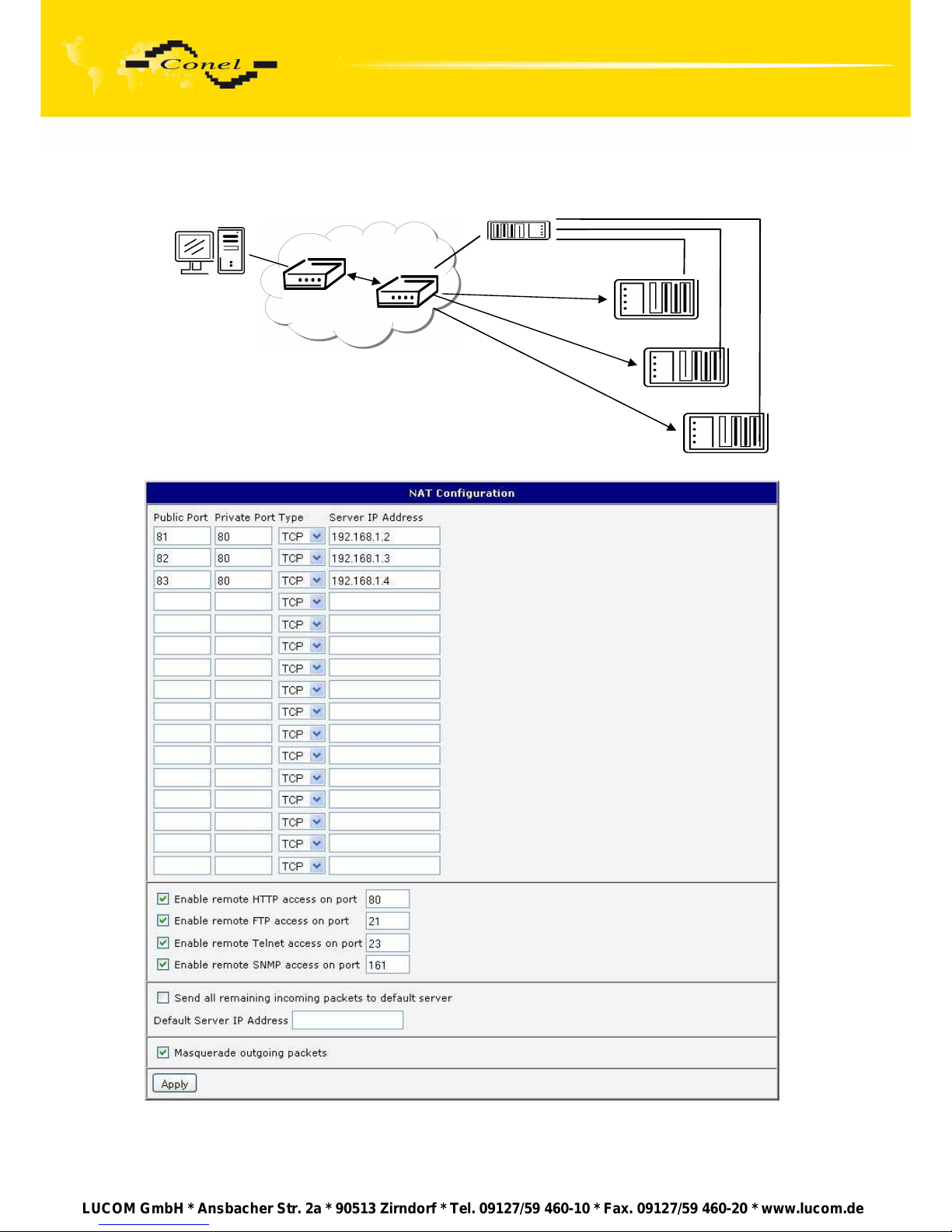

Example of the configuration with more connected equipment:

162.209.13.222

192.168.1.2:80

192.168.1.3:80

192.168.1.4:80

ppp0 10.0.0.1

SWITCH

10.0.0.1:81

10.0.0.1:82

10.0.0.1:83

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

50

In this configuration equipment wired behind the router defines the address Server IP
Address. The router replies, while PING on address of SIM card. Access on web interface
of the equipment behind the router is possible by the help of Port Forwarding, when behind
IP address of SIM is indicating public port of equipment on which we want to come up.
At demand on port 80 it is surveyed singles outer ports (Public port), there this port isn’t
defined, therefore at check selection Enable remote http access it automatically opens the
web interface ER 75i. If this choice isn’t selected and is selected volition Send all remaining
incoming packets to the default server fulfill oneself connection on induction IP address. If it
is not selected election Send all remaining incoming packets to default server and Default
server IP address then connection requests a failure.

If necessary set more than twelve rules for NAT, then is possible insert into start up
script following script:

iptables –t nat –A napt –p tcp –dport [PORT_PUBLIC] –j DNAT –to-destination
[IPADDR]:[PORT1_PRIVATE]

Concrete IP address [IPADDR] and ports numbers [PORT_PUBLIC]
and [PORT1_PRIVATE] are filled up into square bracket.

4.12. OpenVPN Tunnel Configuration

OpenVPN tunnel configuration can be called up by option OpenVPN item in the
menu. OpenVPN tunnel allows protected connection of two networks LAN to the one which

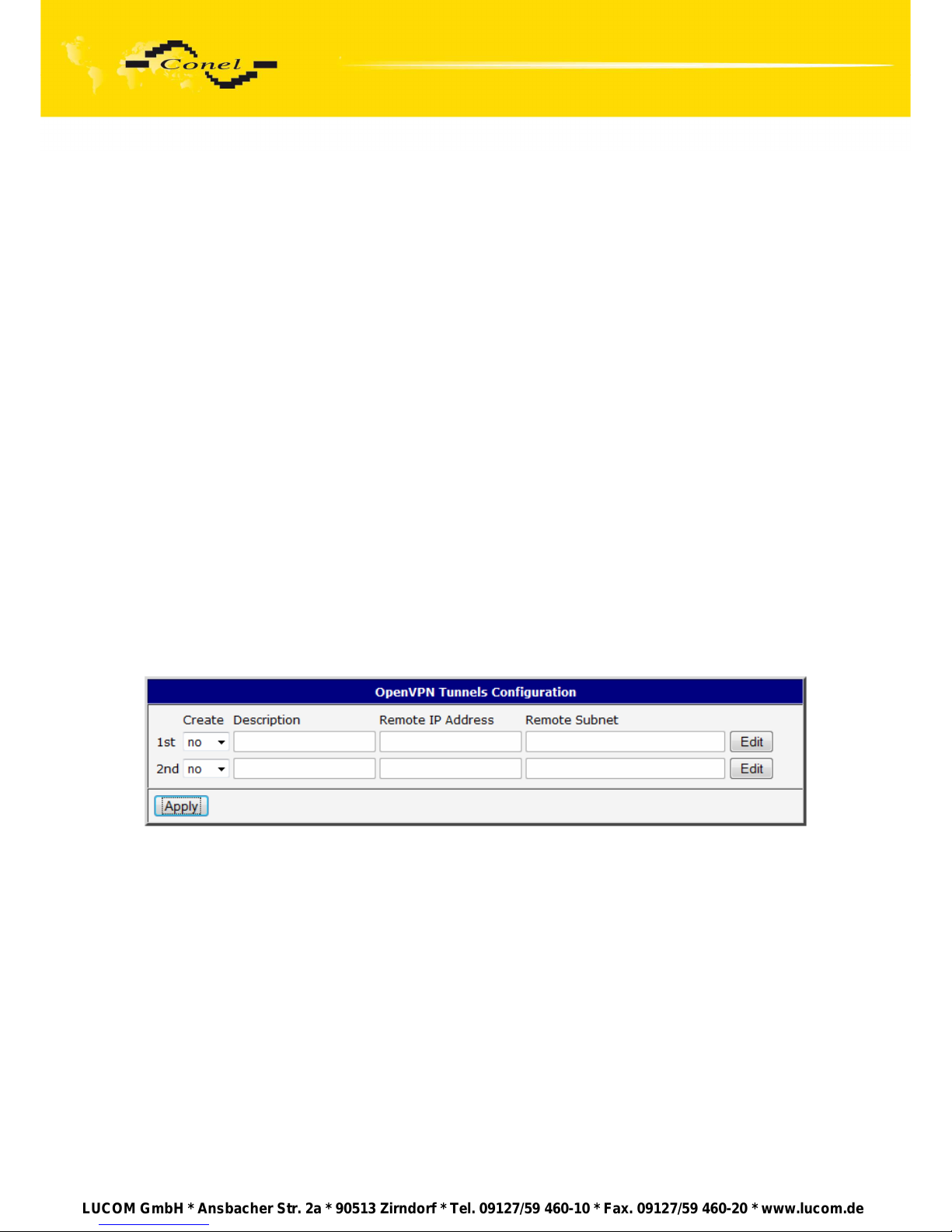

looks like one homogenous. In the OpenVPN Tunnels Configuration window are two rows,
each row for one configured OpenVPN tunnel. The column Create switches on tunnels, other
columns contain values view set in the OpenVPN Tunnel Configuration windows;
configuration is possible by the Edit button.

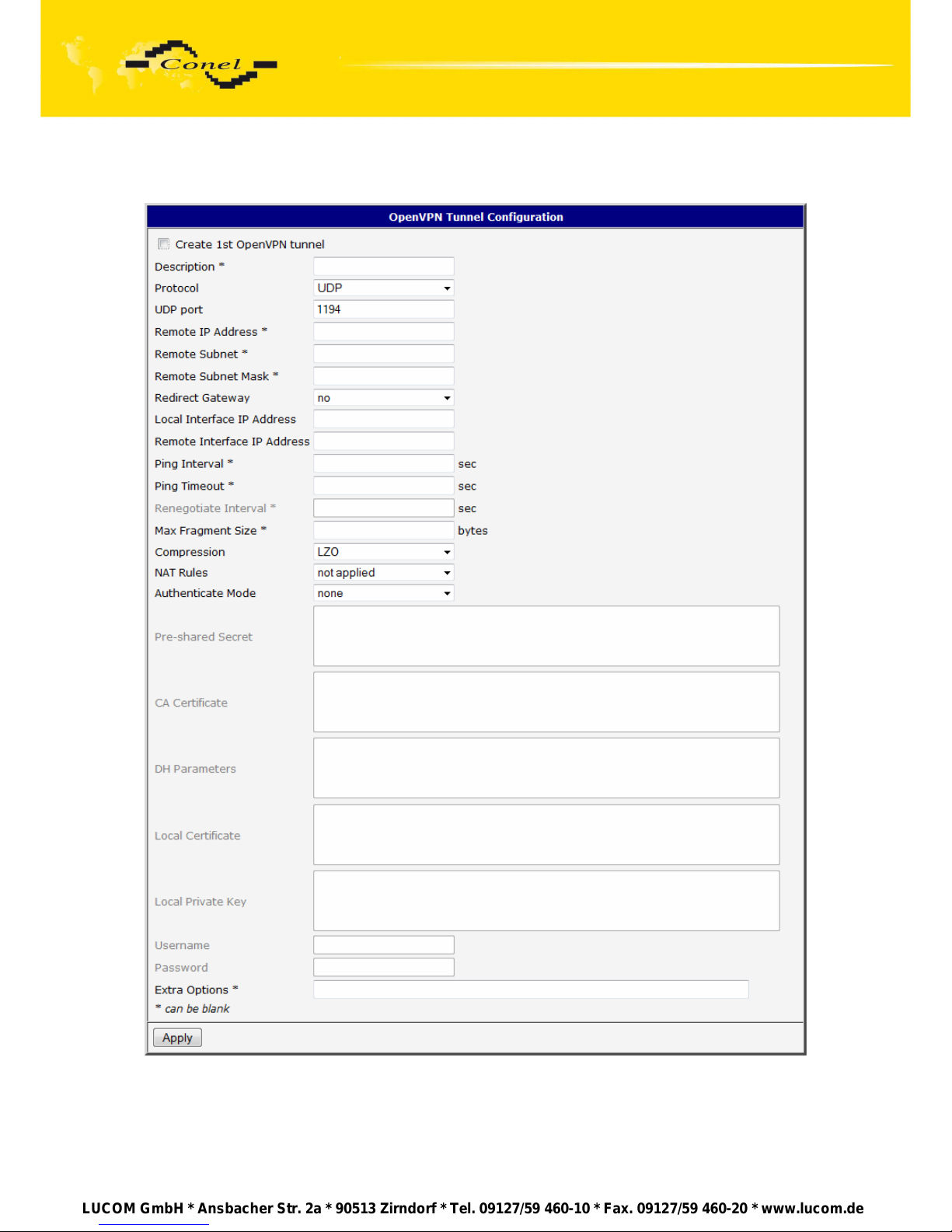

In the window can be defined tunnel name (Description) and Protocol, by which the
tunnel will communicate. At choice is UDP, TCP server or TCP client protocol which has to
have defined port protocol (UDP port nebo TCP port). On off – side tunnel IP address
(Remote External IP Address), address nets behind off – side tunnel (Remote Subnet), mask
nets behind off – side tunnel (Remote Subnet Mask). By parameter Redirect Gateway is
possible to redirect all traffic on Ethernet. Parameter Local Interface IP Address defines local
interface IP address, parameter Remote Interface IP Address defines the interface IP
address of the off-side tunnel. Parameter Ping Interval defines the time period after which it
sends a message to off-side and by parameter Ping Timeout waits on message from off-side
tunnel. For OpenVPN tunnel right verify parameter Ping Timeout has to be bigger than Ping
Interval. Parameter Renegotiate Interval sets renegotiate period (reauthorization) of the
OpenVPN tunnel. This parameter is possible to set only at username/password
authentication or at X.509 certificate using. By parameter Max Fragment Size it is possible to
define maximum sending packet size. Sending data is possible compress by lossless LZO
compressions by parameter Compression, compression has to be on both tunnel ends.
By parameter NAT Rules it is possible to apply set NAT rules to OpenVPN tunnel. By

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

51

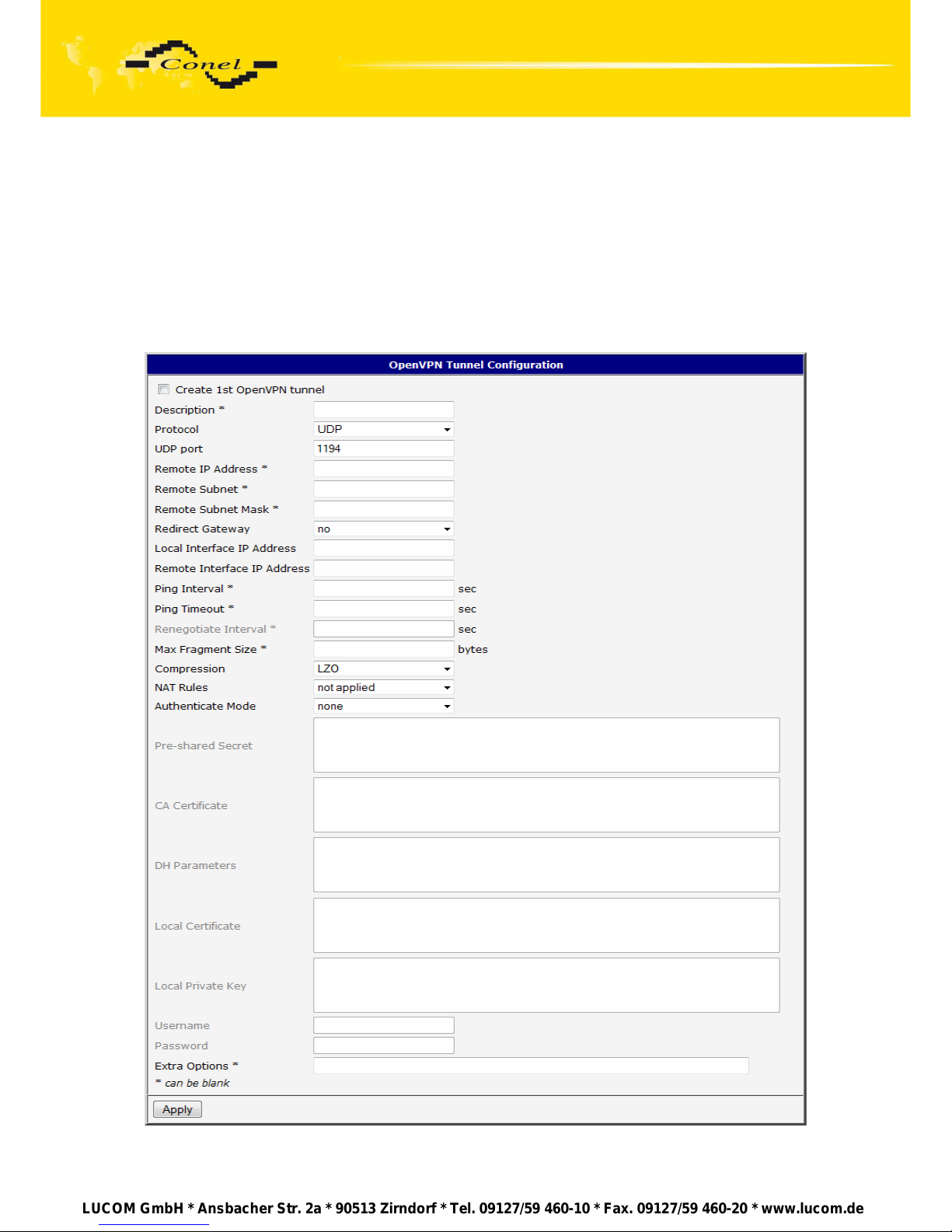

Authenticate Mode it is possible to choose authentication. On choice are none
authentication, or by Pre-shared secret which set shared key for both off-side tunnel; or by

Username/Password which enable authentication by CA Certificate, Username and
Password; next can be X.509 Certificate (client), this enables authentication by CA
Certificate, Local Certificate and Local Private Key; last possibility is X.509 Certificate
(server) which enables authentication by CA Certificate, DH Parameters, Local Certificate

and Local Private Key. By the help of parameter Extra Options it is possible to define
additional parameters of the OpenVPN tunnel, for example DHCP options etc.

The changes in settings will apply after pressing the Apply button.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

52

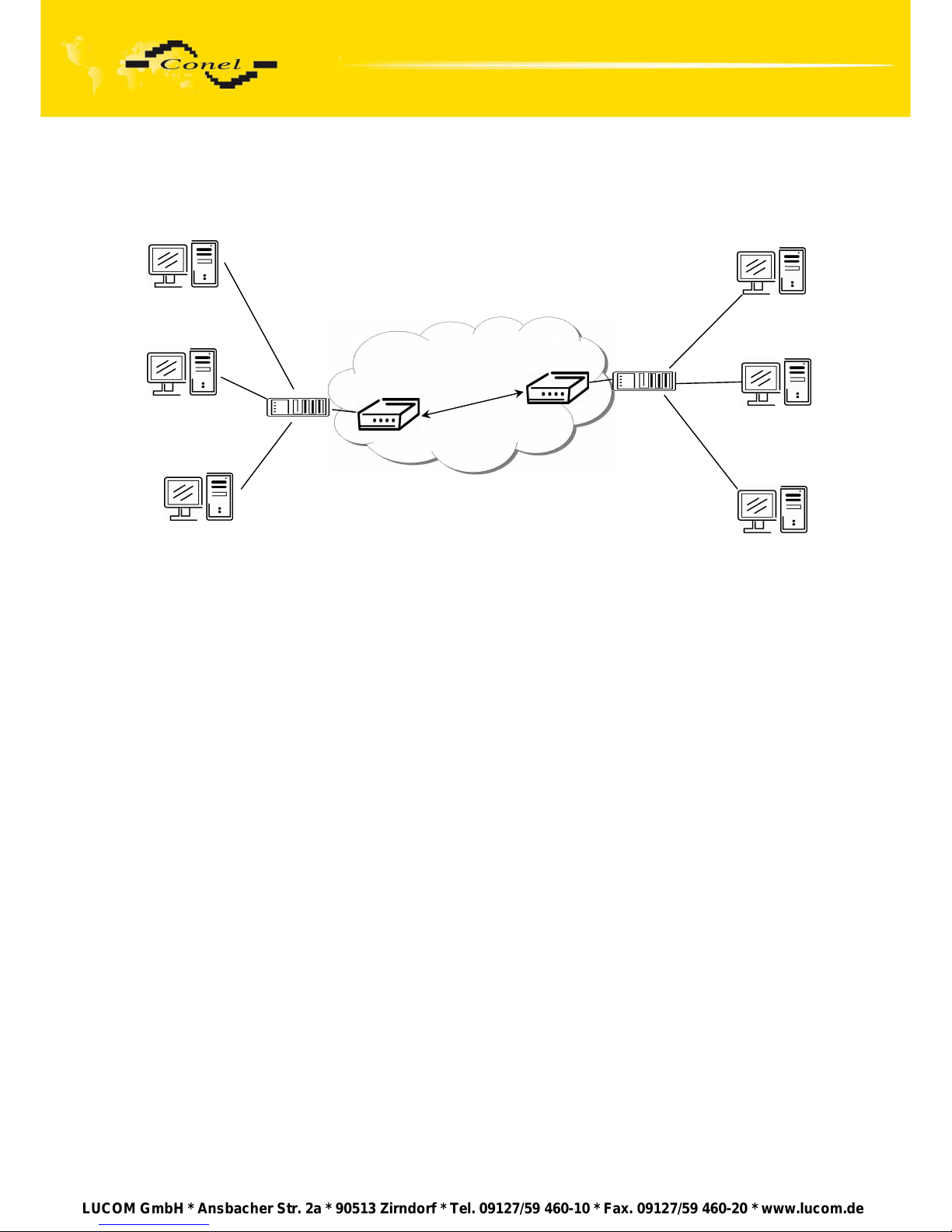

Example of the OpenVPN tunnel configuration:

OpenVPN tunnel configuration:
A B

Protocol UDP UDP
UDP Port 1194 1194

Remote IP Address: 10.0.0.2 10.0.0.1

Remote Subnet: 192.168.2.0 192.168.1.0

Remote Subnet Mask: 255.255.255.0 255.255.255.0
Local Interface IP Address: 19.16.1.0 19.16.2.0

Remote Interface IP Address: 19.16.2.0 19.18.1.0

Compression LZO LZO
Authenticate mode: none none

192.168.1.4

192.168.1.3

192.168.1.2

192.168.2.2

192.168.2.3

192.168.2.4

ppp0 10.0.0.1

192.168.1.0
tun0 19.16.1.0

ppp0 10.0.0.2

192.168.2.0
tun 0 19.16.2.0

OpenVPN tunnel

Default Gateway 192.168.1.1

Default Gateway 192.168.2.1

A

B

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

53

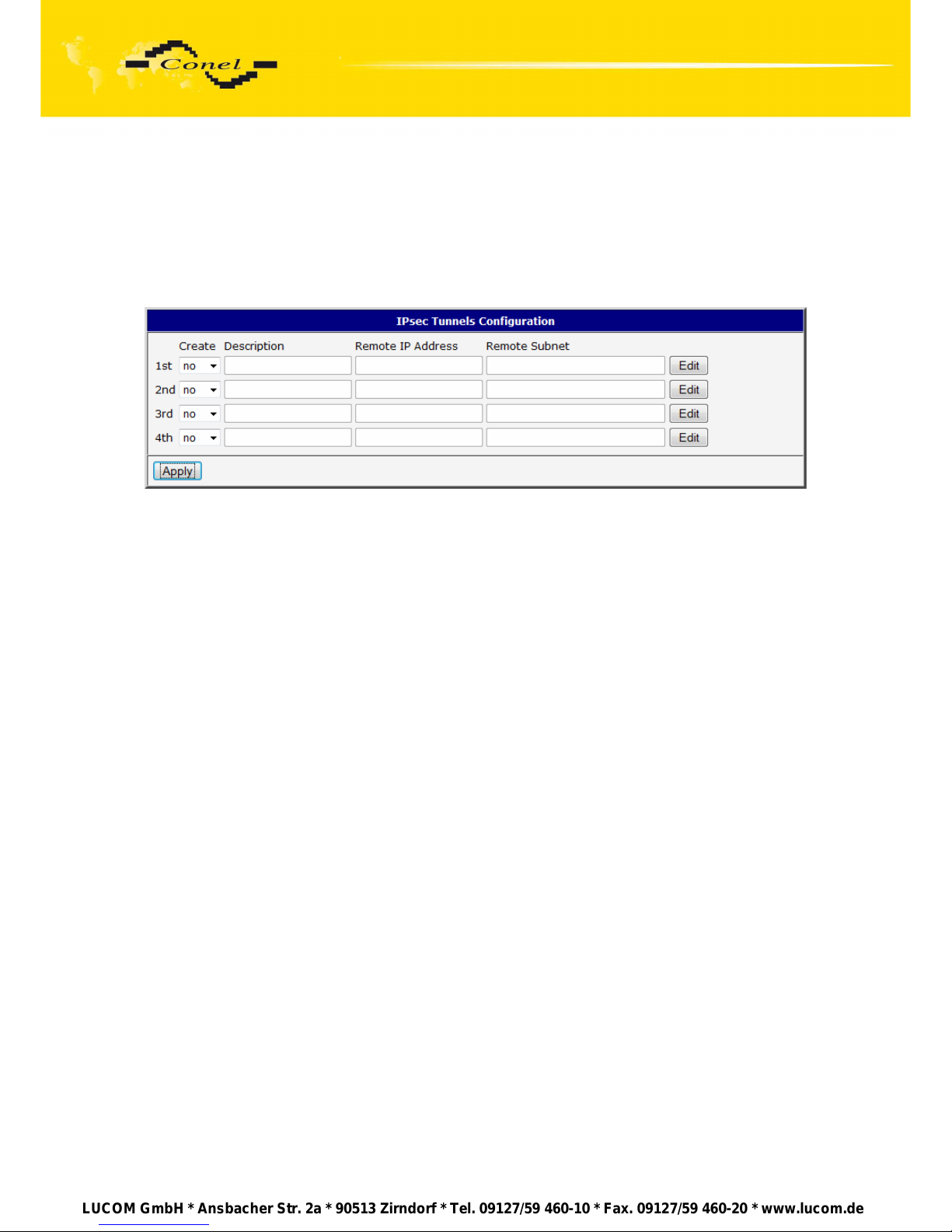

4.13. Ipsec Tunnel Configuration

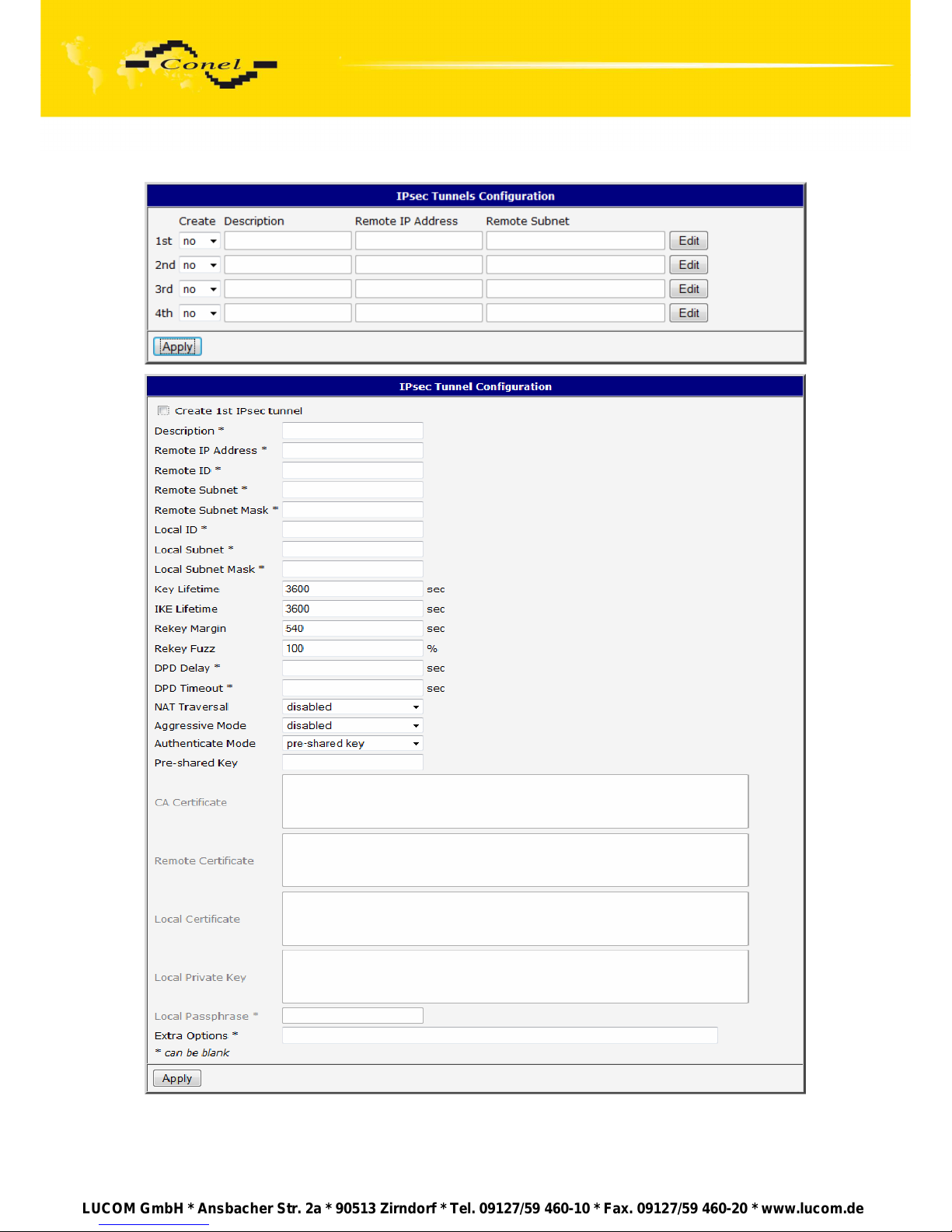

Ipsec tunnel configuration can be called up by option Ipsec item in the menu. Ipsec
tunnel allows protected connection of two networks LAN to the one which looks like one
homogenous. In the Ipsec Tunnels Configuration window are four rows, each row for one
configured IPSec tunnel. The column Create switches on tunnels, other columns contain
values view set in the Ipsec Tunnel Configuration windows; configuration is possible by
the Edit button.

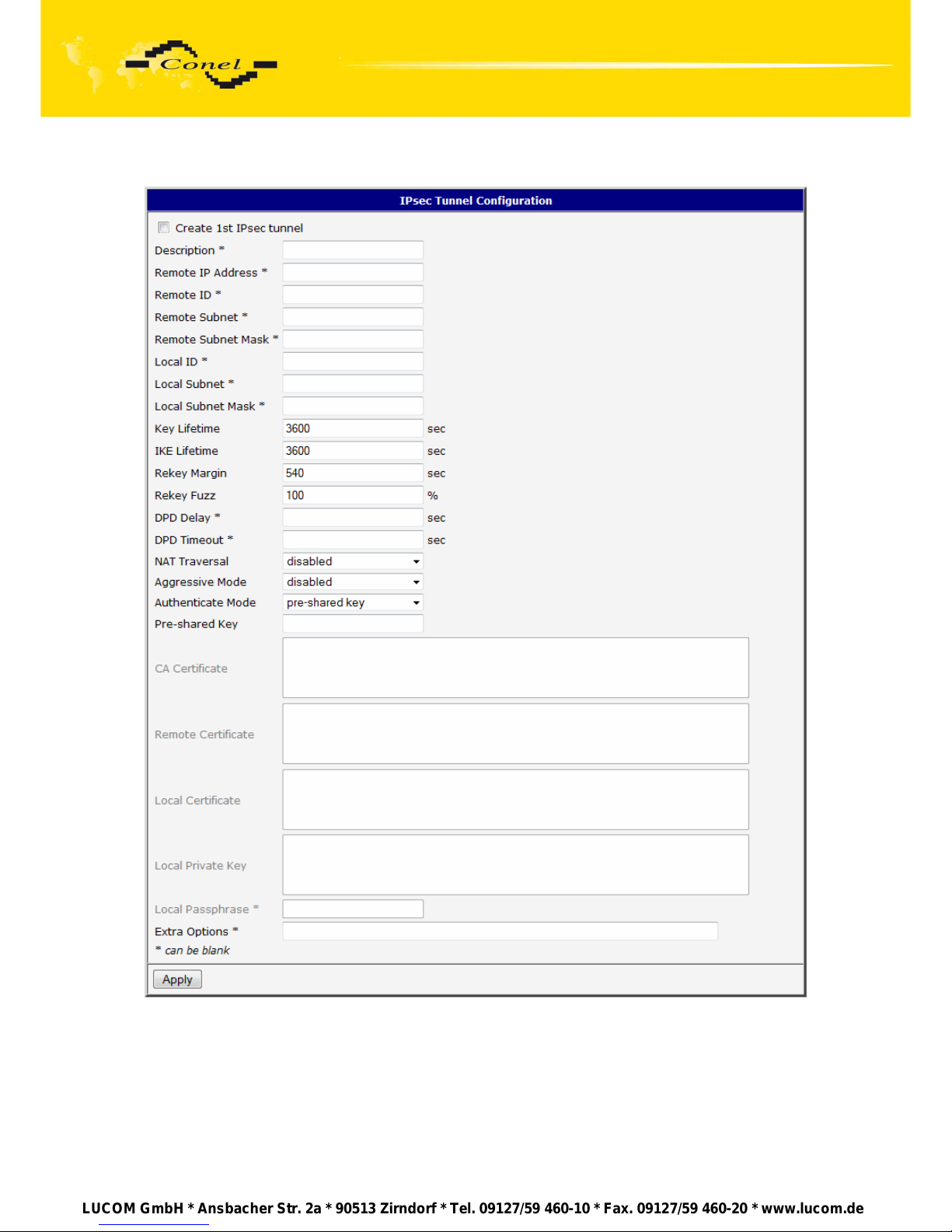

In the Ipsec Tunnel Configuration windows it is possible to define the tunnel name
(Description), off – side tunnel IP address or domain name (Remote IP Address),
identification of off-side tunnel (Remote ID), address nets behind off – side tunnel (Remote
Subnet), mask nets behind off – side tunnel (Remote Subnet Mask), identification of local
side (Local ID), local subnet address (Local Subnet), local network mask (Local Subnet
Mask), sharable key for both parties tunnel (Pre shared Key), service life keys (Key Lifetime)
and service life IKA SA (IKE Lifetime). Rekey Margin specifies how long before connection
expiry should attempt to negotiate a replacement begin. Rekey Fuzz specifies the maximum
percentage by which Rekey Margin should be randomly increased to randomize re-keying
intervals. Parameter DPD Delay defines time after which is made Ipsec tunnel verification. By
parameter DPD Timeout is set timeout of the answer. If address translation between two end
points of the Ipsec tunnel is used, it needs to allow NAT Traversal (Enabled). If parameter
Aggressive mode is enabled, then establishing of Ipsec tunnel will be faster, but encryption
will set permanently on 3DES-MD5. Authentication is possible to set by parameter
Authenticate mode, at choice are following possibilities: Pre-shared key or X.509 Certificate.
Parameter Pre-shared Key set shared key for both off-side tunnel. At authentication by X.509
certificate it is necessary put in certificates CA Certificate, Remote Certificate and Local
Certificate and private key Local Private Key and Local Passphrase. The certificates and
private keys have to be in PEM format. As certificate it is possible to use only certificate
which has start and stop tag certificate. Parameters ID contain two parts: hostname and
domain-name. Items which can be blank, are used for to exact Ipsec tunnel identification. By
the help
of parameter Extra Options it is possible to define additional parameters of the Ipsec tunnel,
for example secure parameters etc.

The changes in settings will apply after pressing the Apply button

.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

54

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

55

Example of the IPSec Tunnel configuration:

Ipsec tunnel configuration:
A B

Remote IP Address: 10.0.0.2 10.0.0.1

Remote Subnet: 192.168.2.0 192.168.1.0

Remote Subnet Mask: 255.255.255.0 255.255.255.0
Local Subnet: 192.168.1.0 192.168.2.0

Local Subnet Mask: 255.255.255.0 255.255.255.0
Authenticate mode: pre-shared key pre-shared key

Pre-shared key test test

4.14. GRE Tunnel Configuration

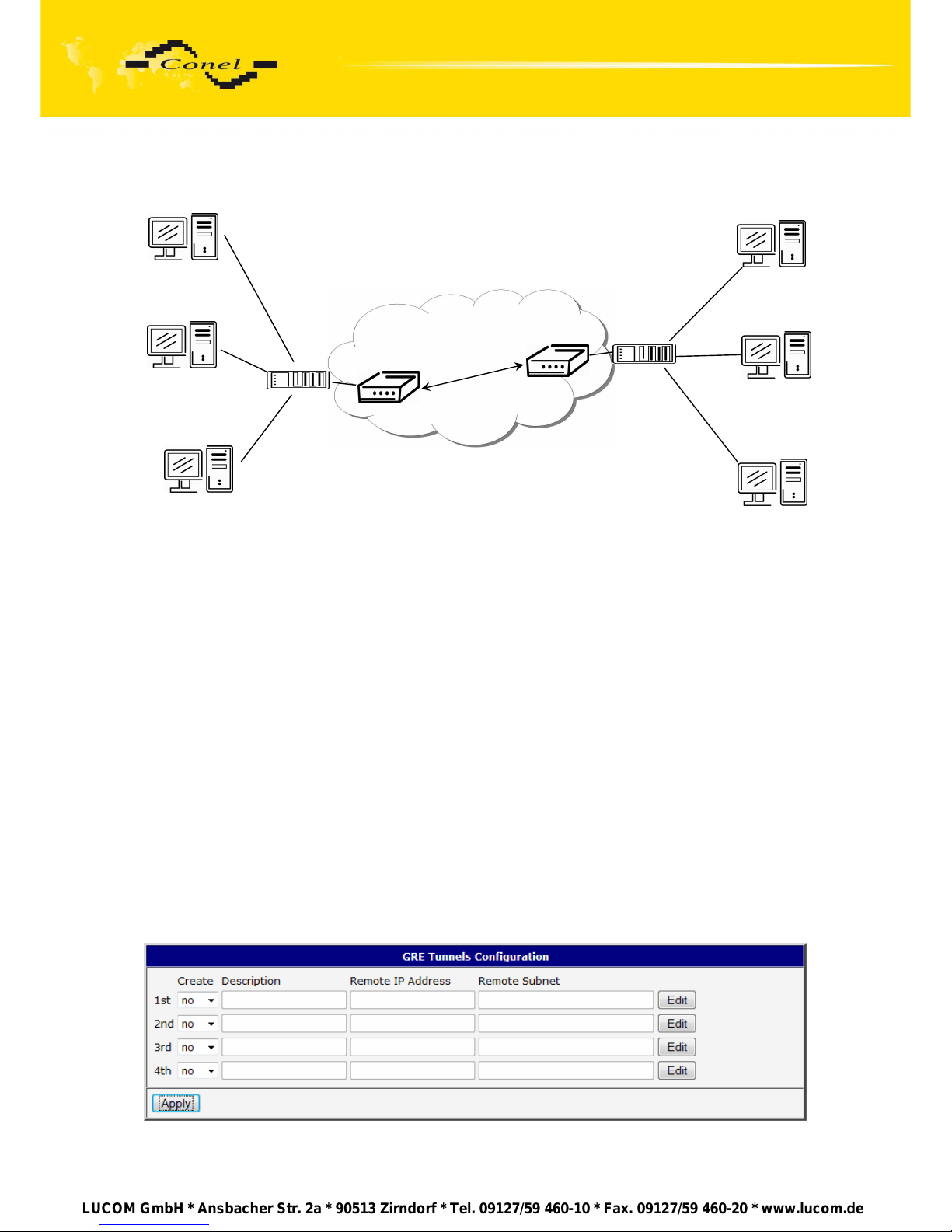

To enter the GRE tunnels configuration, select the GRE menu item. It is possible
configure up to four GRE tunnels. In the GRE Tunnels Configuration window are four rows,
each row for one configured GRE tunnel. The column Create switch on tunnels, other
columns contain values view set in the GRE Tunnel Configuration windows; configuration is
possible by Edit button.

192.168.1.4

192.168.1.3

192.168.1.2

192.168.2.2

192.168.2.3

192.168.2.4

ppp0 10.0.0.1

192.168.1.0

ppp0 10.0.0.2

192.168.2.0

IPSec tunnel

Default Gateway 192.168.1.1

Default Gateway 192.168.2.1

A

B

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

56

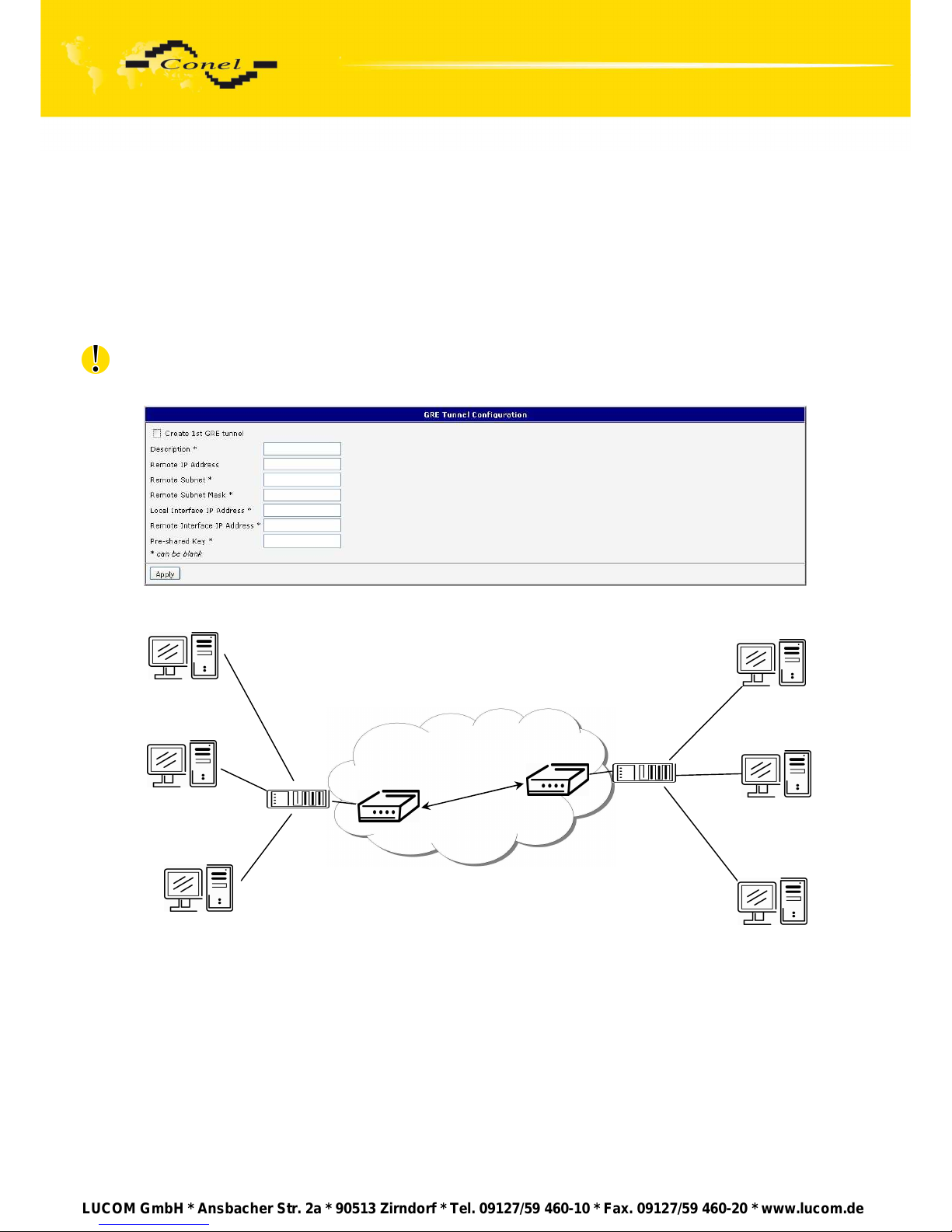

The tunnels are active after entry of choice Create x GRE tunnel. In the singles
window it is possible to define the IP address of the remote side of the tunnel (Remote

External IP Address), internal IP address of the local side of the tunnel (Local Internal IP
Address), internal IP address of the remote side of the tunnel (Remote Internal IP Address),

address of the network behind the remote side of the tunnel (Remote Subnet) and the mask
of the network behind the remote side of the tunnel (Remote Subnet Mask). The GRE tunnel
is used for connection of two networks to one that appears as one homogenous. Last item
(“Pre-shared Key”) defines 32b number that identifies shared key of tunnel. This code must
be on both sides of same.

Attention, GRE tunnel doesn’t connect itself via NAT.

The changes in settings will apply after pressing the Apply button.

Example of the GRE Tunnel configuration:

GRE tunnel Configuration:
A B

Remote External IP Address: 10.0.0.2 10.0.0.1
Remote Subnet: 192.168.2.0 192.168.1.0

Remote Subnet Mask: 255.255.255.0 255.255.255.0

192.168.1.4

192.168.1.3

192.168.1.2

192.168.2.2

192.168.2.3

192.168.2.4

ppp0 10.0.0.1

192.168.1.0

ppp0 10.0.0.2

192.168.2.0

GRE tunnel

Default Gateway 192.168.1.1

Default Gateway 192.168.2.1

A

B

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

57

4.15. L2TP tunnel Configuration

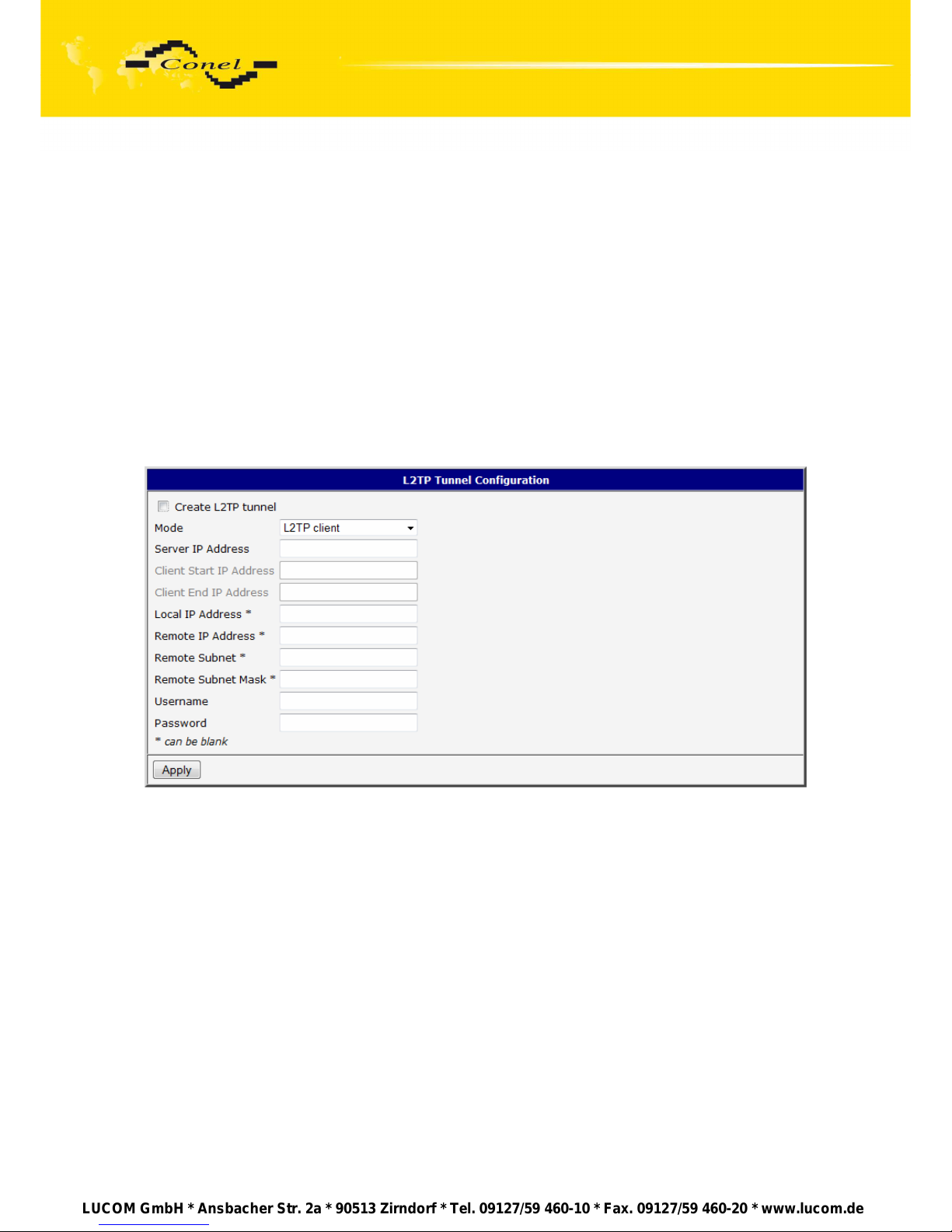

To enter the L2TP tunnels configuration, select the L2TP menu item. L2TP tunnel
allows protected connection by password of two networks LAN to the one which it looks like
one homogenous. The tunnels are active after enter of choice Create L2TP tunnel.

In the window it is possible to define L2TP tunnel mode (Mode) on the router side,
in case of client IP address of server (Server IP Address), start IP address in range, which is
offered by server to clients (Client Start IP Address), end IP address in range, which is
offered by server to clients (Client End IP Address), IP address of the local side of the tunnel
(Local IP Address), IP address of the remote side of the tunnel (Remote IP Address),
address of the network behind the remote side of the tunnel (Remote Subnet), the mask
of the network behind the remote side of the tunnel (Remote Subnet Mask), username for
login to L2TP tunnel (Username) and password (Password).

The changes in settings will apply after pressing the Apply button.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

58

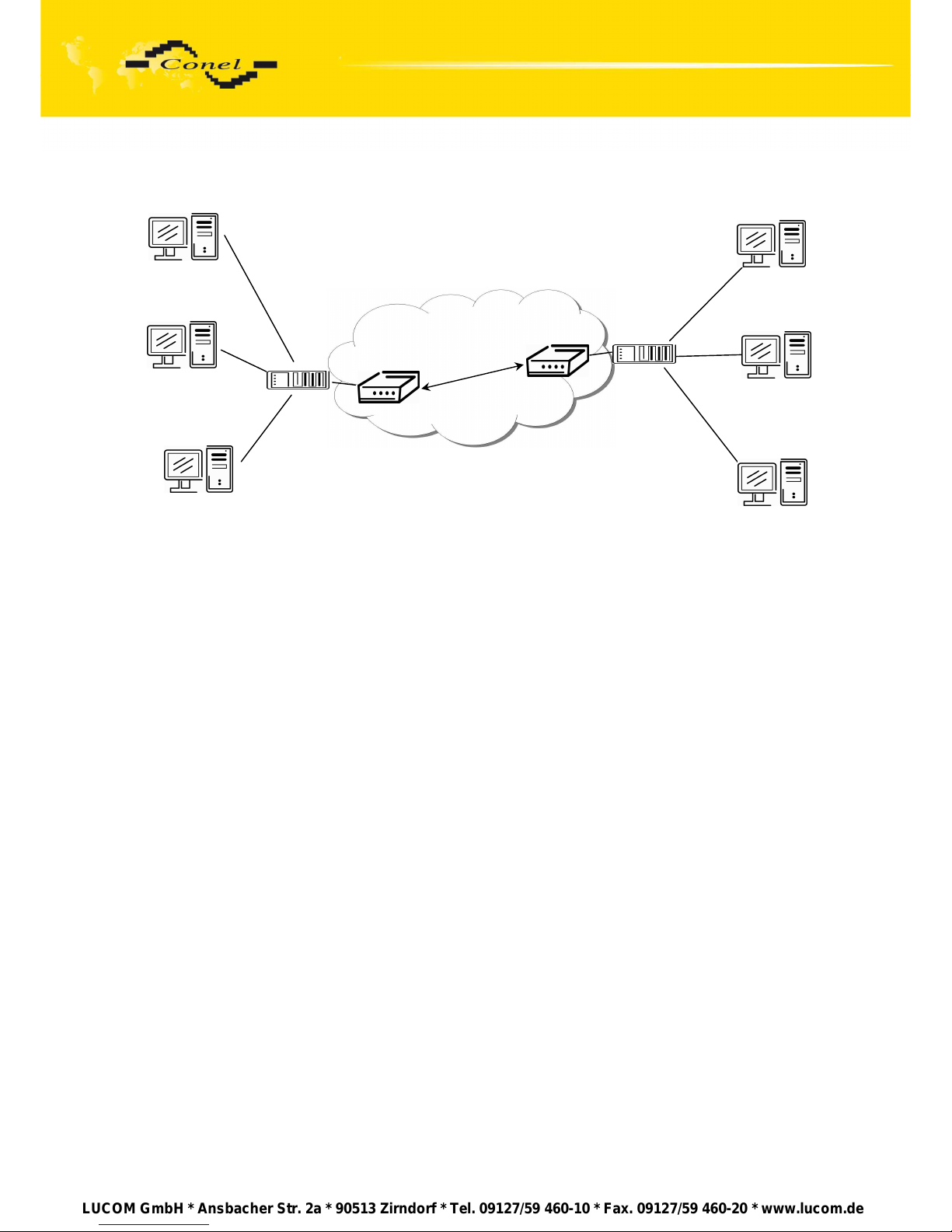

Example of the L2TP Tunnel configuration:

L2TP tunnel Configuration:
A B

Mode L2TP Server L2TP Client
Server IP Address --- 10.0.0.1

Client Start IP Address: 192.168.1.2 ---

Client End IP Address: 192.168.1.254 ---

Local IP Address: 192.168.1.1 ---

Remote IP Address --- ---

Remote Subnet 192.168.2.0 192.168.1.0

Remote Subnet Mask 255.255.255.0 255.255.255.0

Username user user

Password password password

192.168.1.4

192.168.1.3

192.168.1.2

192.168.2.2

192.168.2.3

192.168.2.4

ppp0 10.0.0.1

192.168.1.1

ppp0 10.0.0.2

192.168.2.1

L2TP tunnel

Default Gateway 192.168.1.1

Default Gateway 192.168.2.1

A

B

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

59

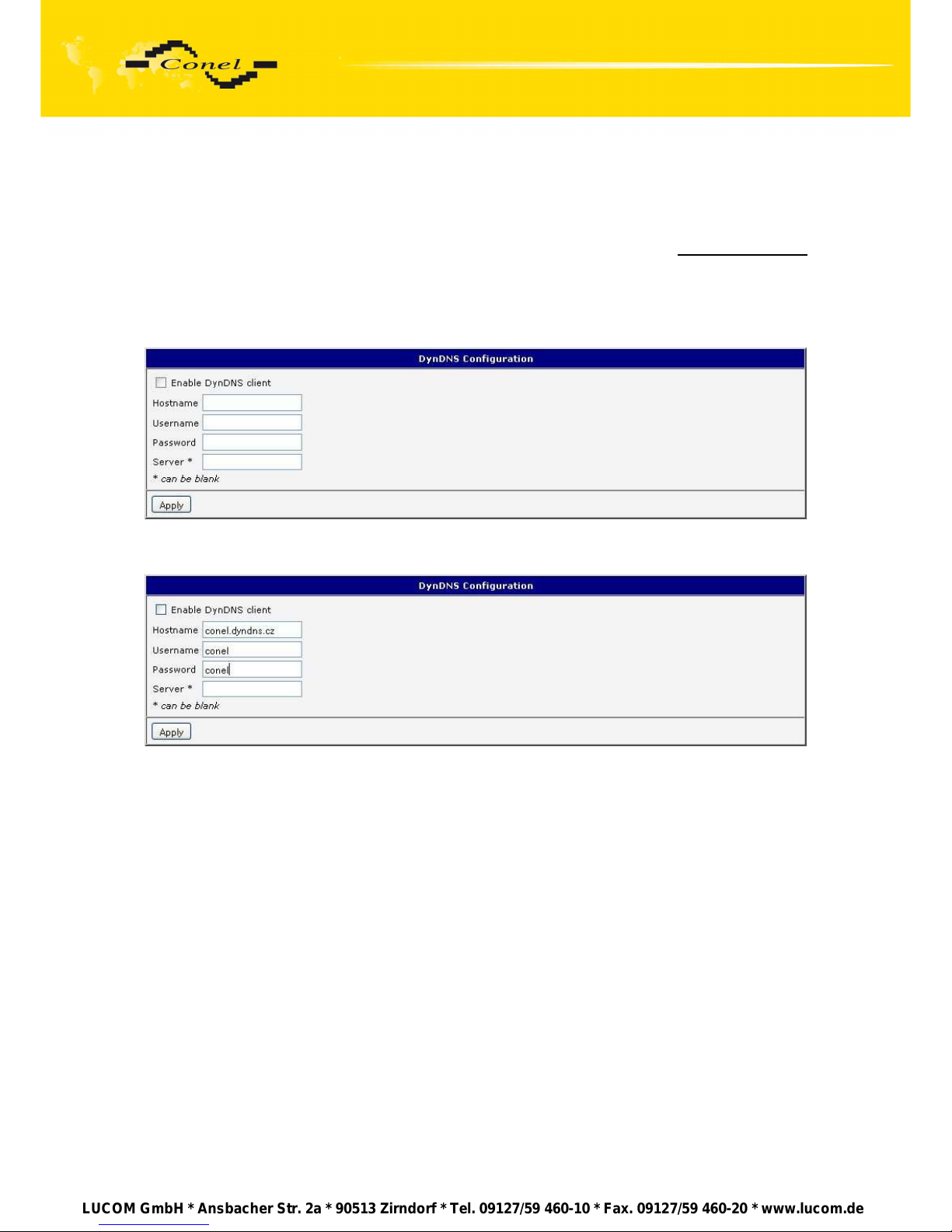

4.16. DynDNS Client Configuration

DynDNS client Configuration can be called up by option DynDNS item in the menu. In
the window can be defined a third order domain registered on server www.dyndns.org
(Hostname), user name (Username) and password (Password). If you want to use a different
server than www.dyndns.org, fill in his address to the item server (Server). If this item is left
blank, the default server is used.

The changes in settings will apply after pressing the Apply button.

Example of the DynDNS client configuration with domain conel.dyndns.org, username
conel, password conel and default server http://members.dyndns.org:

If DNS servers are not assigned by the operator, then it is possible to configure it by
inserting of script into start up window:

echo “nameserver xxx.xxx.xxx.xxx“ > /et/resolf.conf, where xxx.xxx.xxx.xxx is
IP address of the first DNS server,

echo “nameserver yvy.yyy.yyy.yyy“ >> /et/resolf.conf, where yvy.yyy.yyy.yyy is
IP address of the ettin DNS server.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

60

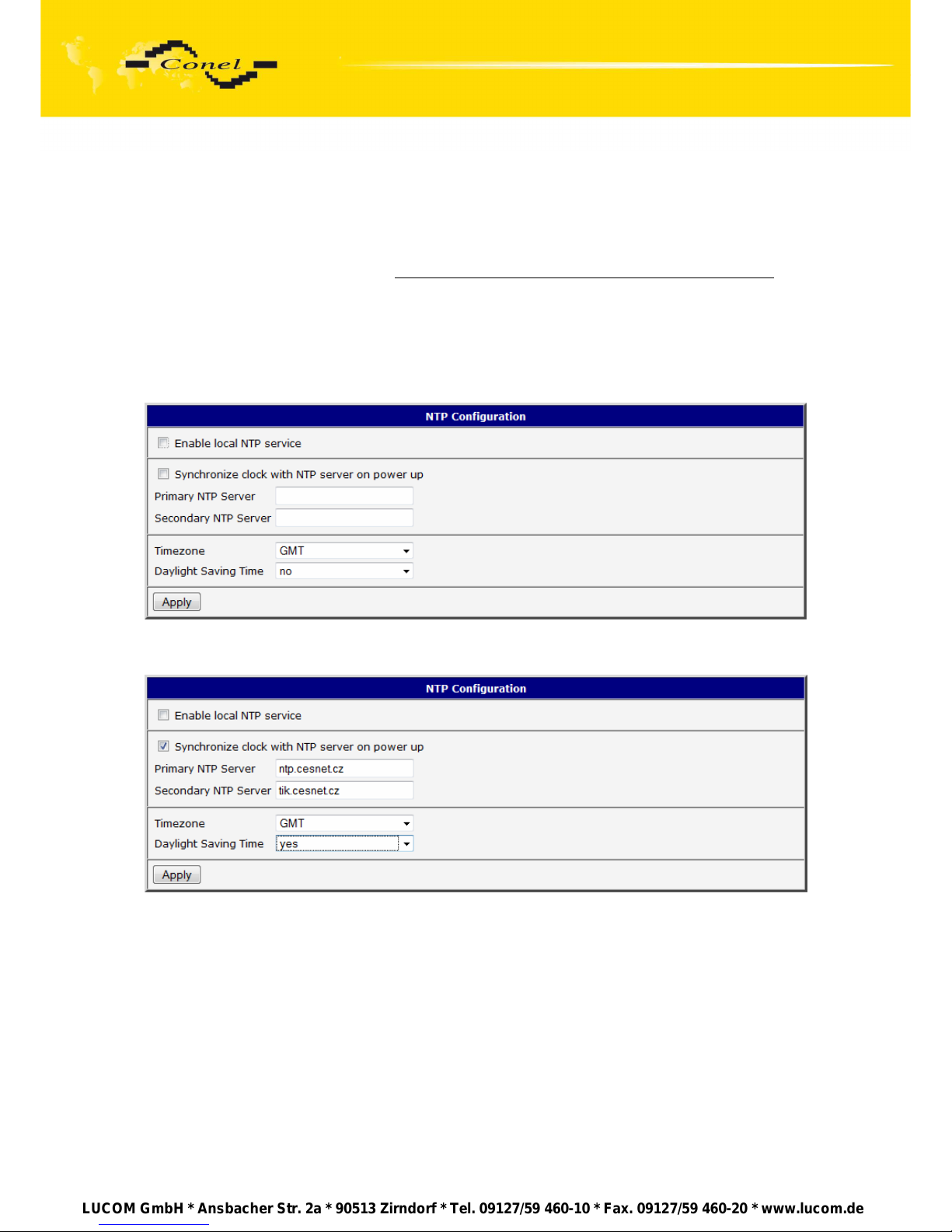

4.17. NTP Client Configuration

NTP client Configuration can be called up by option NTP item in the menu. In the
window can be defined the address prime (Primary NTP server Address) and secondary
NTP server (Secondary NTP server Address), by the help of which the router, after first
interface to the GPRS from make power supply, will adjust the inner clock. Example of NTP
server address can be seenon ntp.isc.org/bin/view/Servers/StratumOneTimeServers. By
parameter Timezone it is possible to set the time zone of the router. By parameter Daylight
Saving Time is possible to define time shift.

By parameter Enable local NTP service it is possible to set the router in mode, that it
can serve as NTP server for other devices.

The changes in settings will apply after pressing the Apply button.

Example of the NTP configuration with set primary and secondary NTP server and with
daylight saving time:

4.18. SNMP Configuration

To enter the SNMP Configuration it is possible with SNMP agent ver.1 configuration
which sends information about the router, eventually about the status of the expansion port
CNT or M-BUSD.

The Community item defines the password for access to the SNMP agent. Item
Contact identifies a person who manages the router together with information how to contact
this person, item Name is the designation of the router and item Location describes the
physical placing of the router.

By choosing Enable XC-CNT extension it is possible to monitor the expansion port
CNT inputs status or by choosing Enable M-BUS extension and enter the Baudrate, Parity

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

61

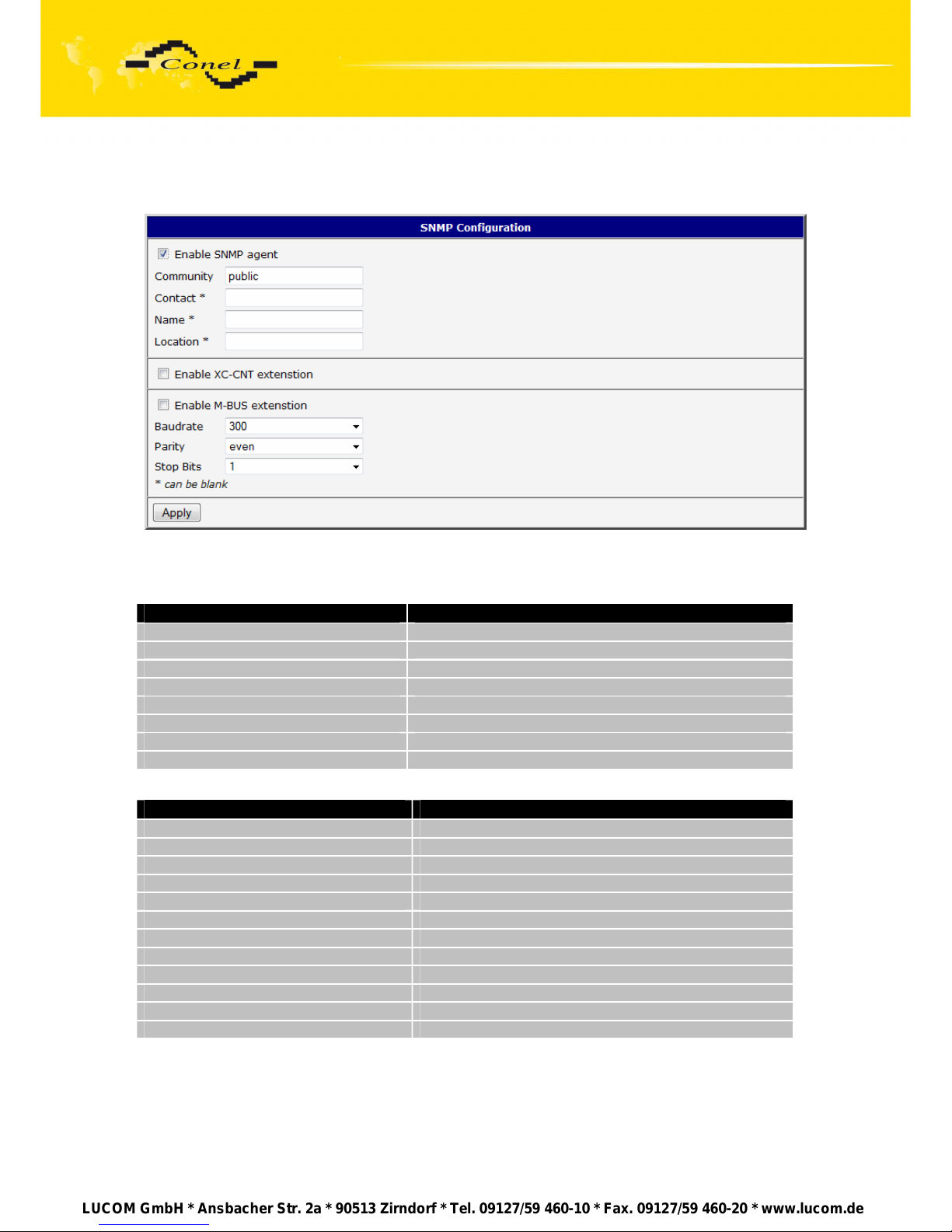

and Stop Bits it is possible to monitor the meter status connected to the expansion port
M-BUSD status.

Every monitor value is uniquely identified by the help of number identifier OID –
Object Identifier. OID is finished by „.9“.

For the expansion port CNT the following range of OID is used:

OID Description

.1.3.6.1.4.1.30140.2.1.1.0 Analogy input AN1 (range 0-4095)
.1.3.6.1.4.1.30140.2.1.2.0 Analogy input AN2 (range 0-4095)
.1.3.6.1.4.1.30140.2.1.3.0 Counter input CNT1 (range 0-4294967295)
.1.3.6.1.4.1.30140.2.1.4.0 Counter input CNT2 (range 0-4294967295)
.1.3.6.1.4.1.30140.2.1.5.0 Binary input BIN1 (values 0,1)
.1.3.6.1.4.1.30140.2.1.6.0 Binary input BIN2 (values 0,1)
.1.3.6.1.4.1.30140.2.1.7.0 Binary input BIN3 (values 0,1)
.1.3.6.1.4.1.30140.2.1.8.0 Binary input BIN4 (values 0,1)

For the expansion port M-BUSD the following range of OID is used:

OID Description

.1.3.6.1.4.1.30140.2.2.<address>.1.0 IdNumber – meter number
.1.3.6.1.4.1.30140.2.2.<address>.2.0 Manufacturer
.1.3.6.1.4.1.30140.2.2.<address>.3.0 Version – specified meter version
.1.3.6.1.4.1.30140.2.2.<address>.4.0 Medium – type of metered medium
.1.3.6.1.4.1.30140.2.2.<address>.5.0 Status – errors report
.1.3.6.1.4.1.30140.2.2.<address>.6.0 0. VIF – value information field
.1.3.6.1.4.1.30140.2.2.<address>.7.0 0. measured value
.1.3.6.1.4.1.30140.2.2.<address>.8.0 1. VIF – value information field
.1.3.6.1.4.1.30140.2.2.<address>.9.0 1. measured value
…
.1.3.6.1.4.1.30140.2.2.<address>.100.0 47. VIF – value information field
.1.3.6.1.4.1.30140.2.2.<address>.101.0 47. measured value

The meter address can be from range 0..254 when 254 is broadcast.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

62

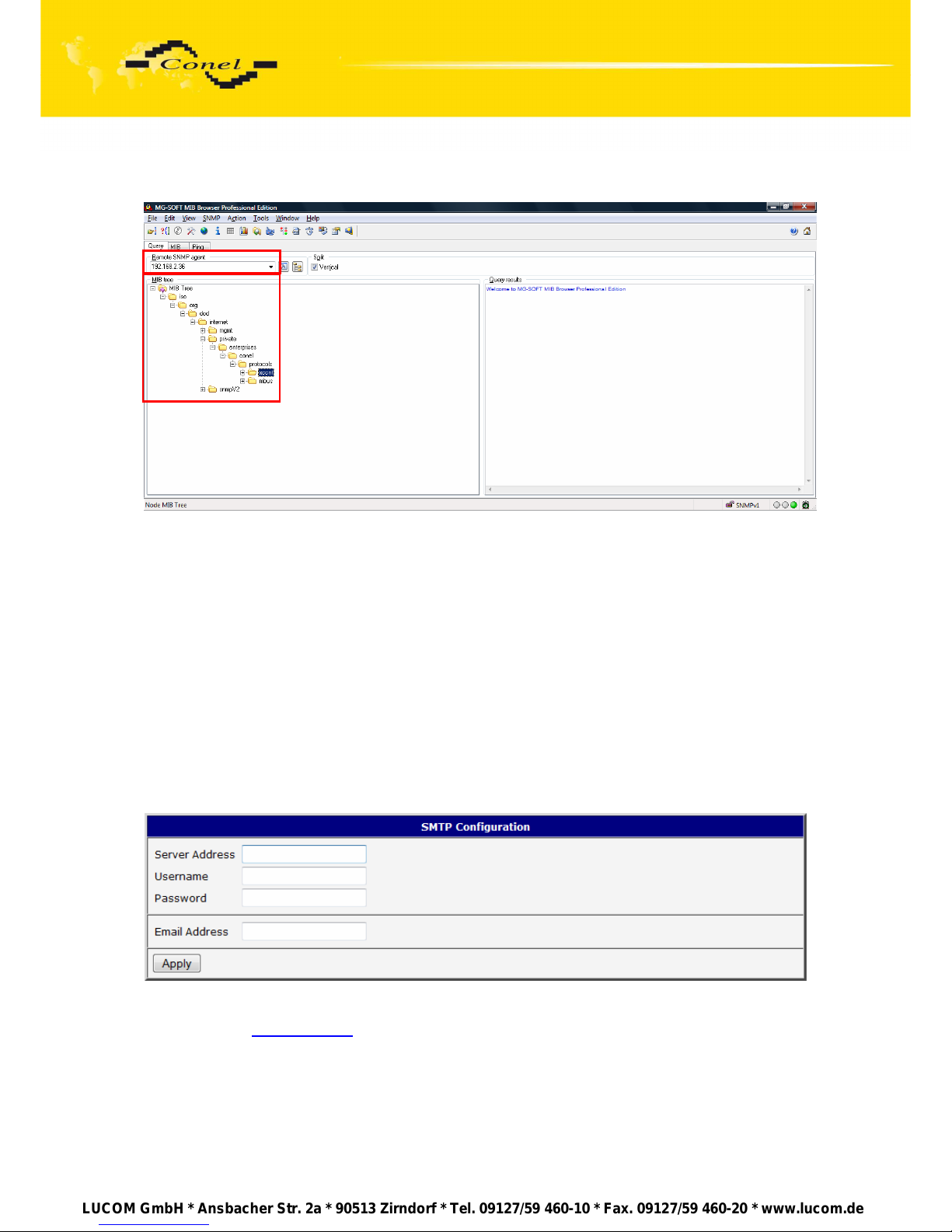

Example of the MIB browser:

It is important to set the IP address of the SNMP agent (ER 75i) in field Remote SNMP
agent. After enter the IP address is in a MIB tree part is possible show object identifier.
The path to objects is:

iso->org->dod->internet->private->enterprises->conel->protocols

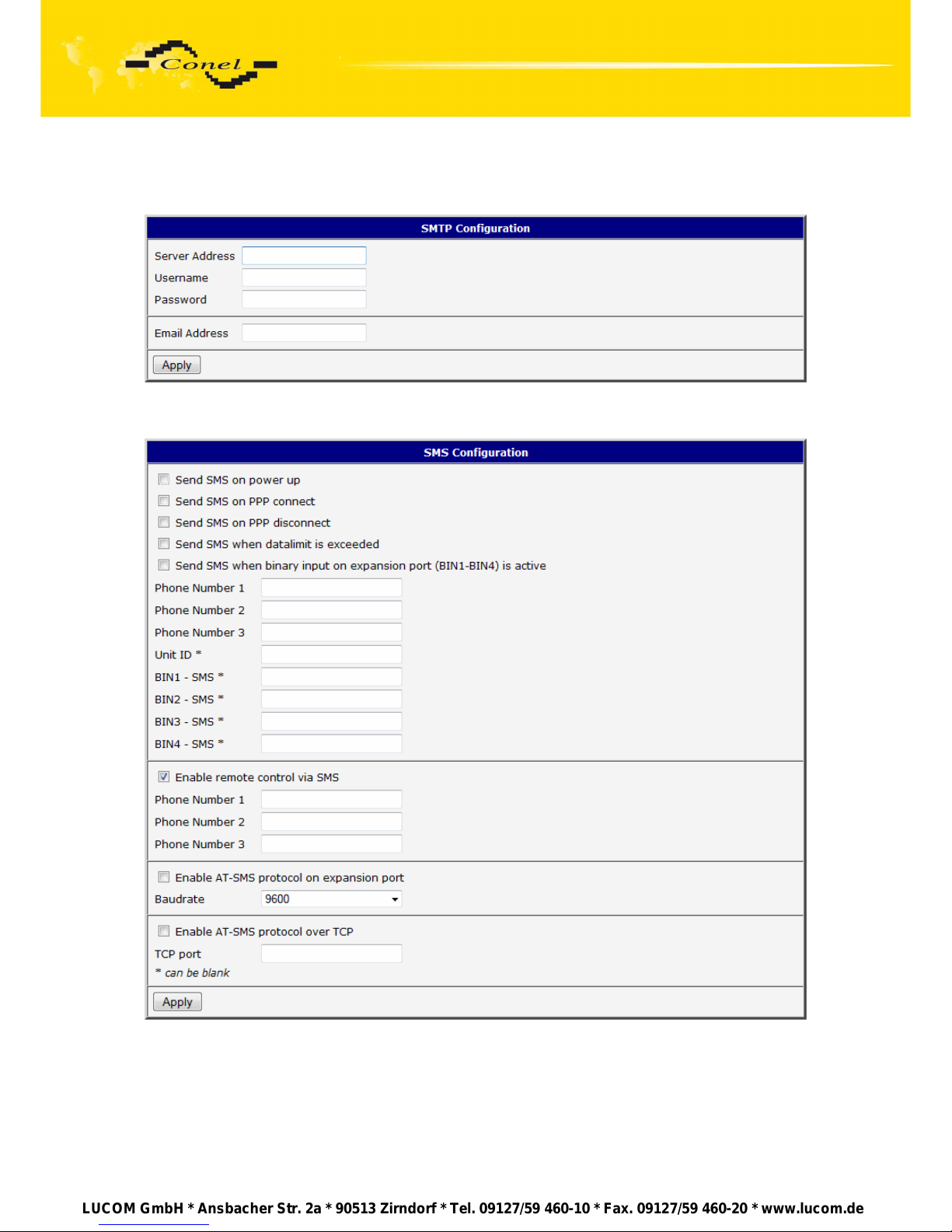

4.19. SMTP Configuration

Configuration of SMTP can be entered by clicking on SMTP menu item. In the window,
there is possible to enter login values to e-mail server, from which e-mails will be sent. The
required values are: address of SMTP server (Server Address), login name (Username),
password and e-mail address (Email Address). It is possible to send only one file in
attachment.

After that is possible to send e-mail messages by using this command:

email –T [recipient address] –S[subject] –M[message body] –A[path to attachment]

Example of sending e-mail:

email –T [email protected] –S Test message –M The whole text of message

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

63

4.20. SMS Configuration

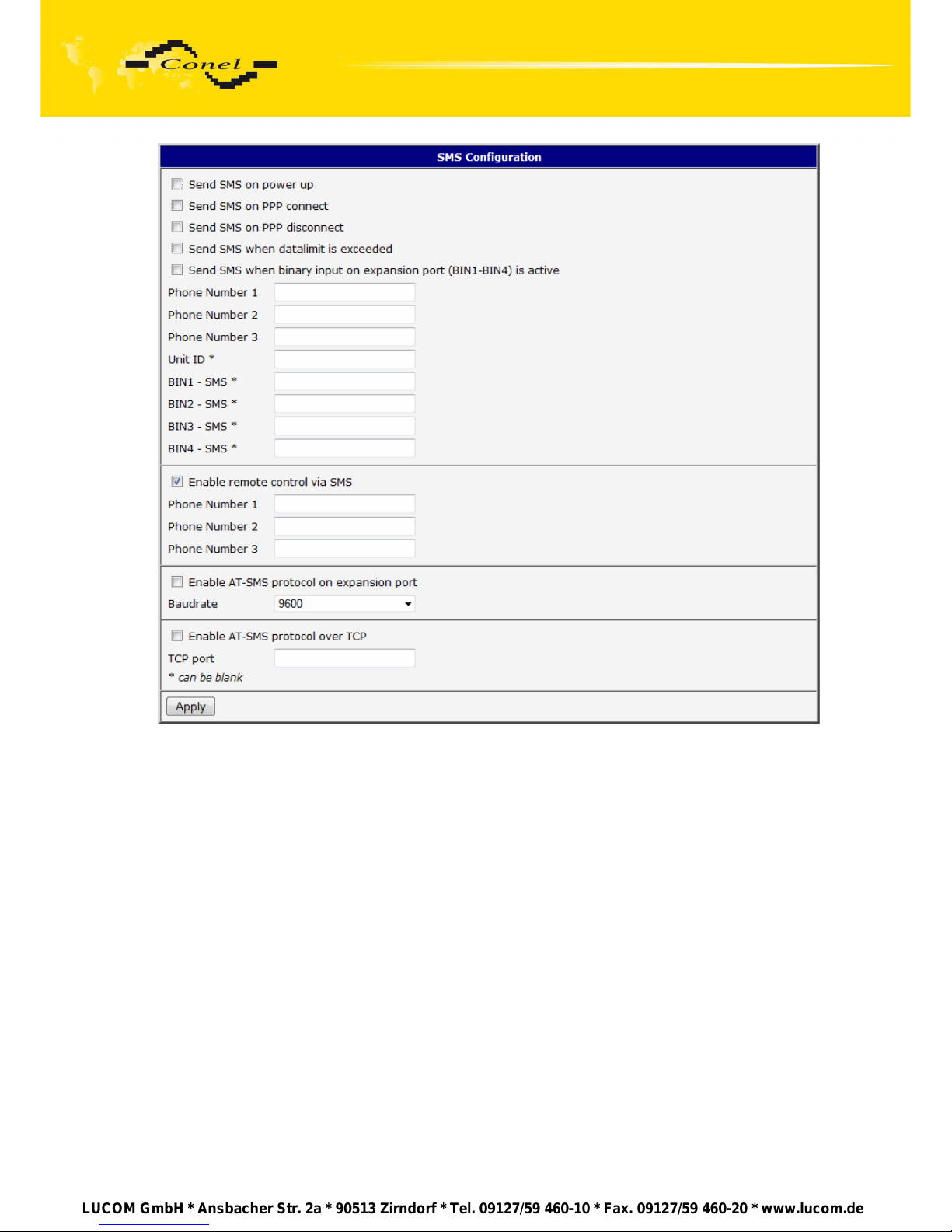

In the SMS Configuration menu it is possible to select automatic sending of SMS
messages following power up (Send SMS on power up) and at the start (Send SMS on PPP
connect) or the loss (Send SMS on PPP disconnect) of the PPP connection and at data limit
exceeded (Send SMS when datalimit exceeded). With switch-on parameter Send SMS when
binary input is active it is possible to define SMS for each of four binary inputs in windows
BIN1-SMS, BIN2-SMS, BIN3-SMS and BIN4-SMS, which will be sent if those binary inputs
are active. It is possible to send information to three telephone numbers. Unit ID is the name
of the router that it will send an SMS message to. Unit ID may have a random form.

In the second part of the window it is possible to set function Enable remote control
via SMS. After this it is possible to establish and close PPP connection by SMS message.
This control can be configured for up to three numbers. If is set Enable remote control via
SMS, all incoming SMS are processed and deleted. In the default settings this parameter is
turned on.

If no phone number is filled in, then it is possible to restart the router with the help
of SMS in the form of Reboot from any phone number. While filling of one, two or three
numbers it is possible to control the router with the help of an SMS sent only from these
numbers. While filling of sign “*” it is possible ro control the router with the help of an SMS
sent from every numbers.

Control SMS message doesn’t change the router configuration. If the router is
switched to offline mode by the SMS message the router will be in this mode up to next
restart. This behaviour is the same for all control SMS messages.

It is possible to send controls SMS in the form:

SMS Description

go online sim 1 Switch to SIM1 card
go online sim 2 Switch to SIM2 card
go online Switch router in online mode
go offline PPP connection termination
set out1=0 Set output on 0 on the Expansion port CNT
set out1=1 Set output on 1 on the Expansion port CNT
reboot Router restart
get ip Router send answer with IP address SIM card

By choosing Enable AT-SMS protocol on external port and Baudrate it is possible to
send/receive an SMS on the serial port.

By choosing Enable AT-SMS protocol on TCP port and enter the TCP port it is
possible to send/receive an SMS on the TCP port. SMS messages are sent by the help of a
standard AT commands. More about the AT commands in reference [1].

Choices Enable AT-SMS protocol on external port and Enable AT-SMS protocol
on TCP port mustn’t be chosen at the same time.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

64

After powering up the router, at introduction of the telephone number comes SMS in
the form of:

ER75i (Unit ID) has been powered up. PLMN:xxxxx,Cell:xxxx,Channel:xx,Level:-xxdBm.

Where PLMN is – number of mobile operator, Cell – number of cell, Channel – used

channel, Level – level signal
After PPP connect, at introduction of the telephone number comes SMS in the form:
ER75i (Unit ID) has established PPP connection. IP address xxx.xxx.xxx.xxx
After PPP disconnect, at introduction of the telephone number comes SMS in the form:

ER75i (Unit ID) has lost PPP connection. IP address xxx.xxx.xxx.xxx

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

65

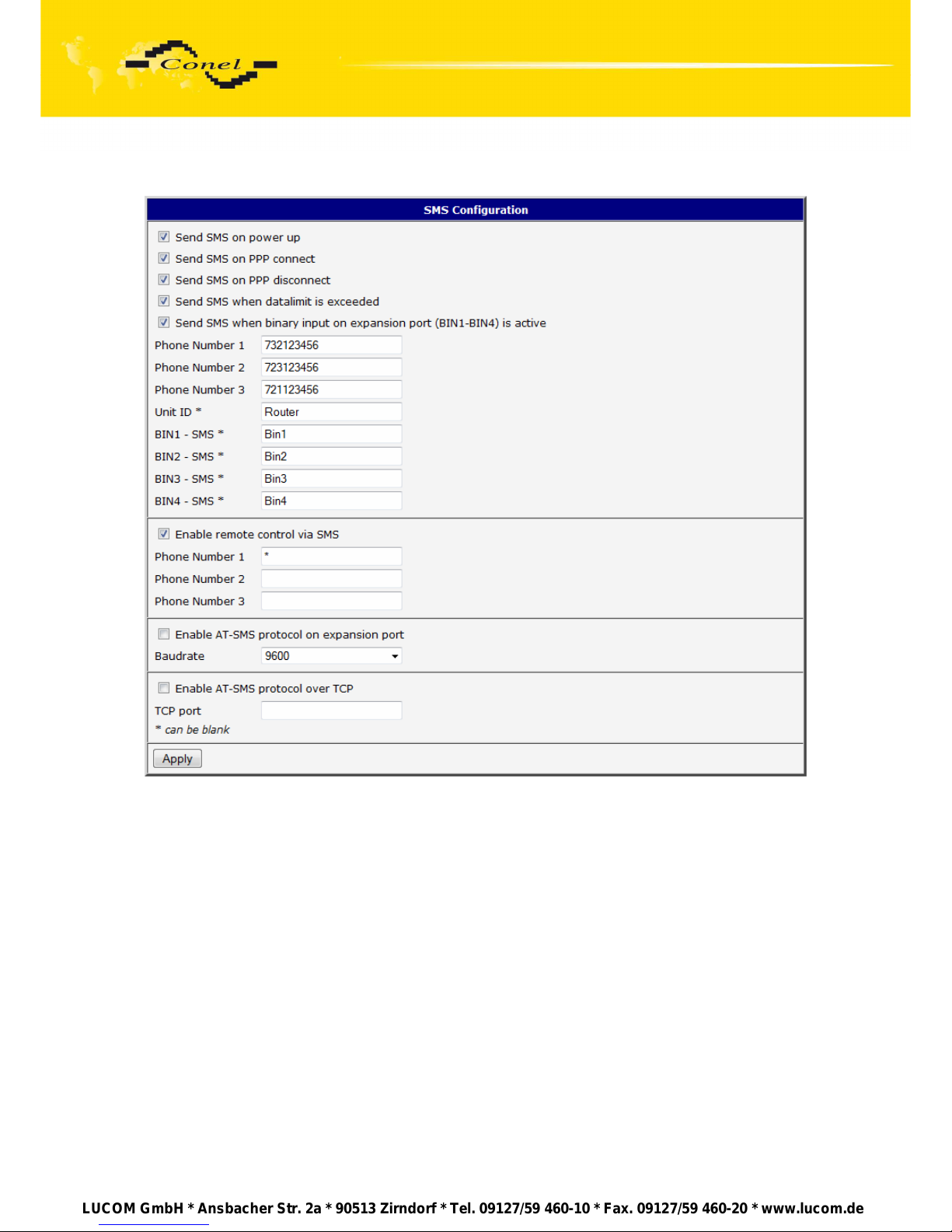

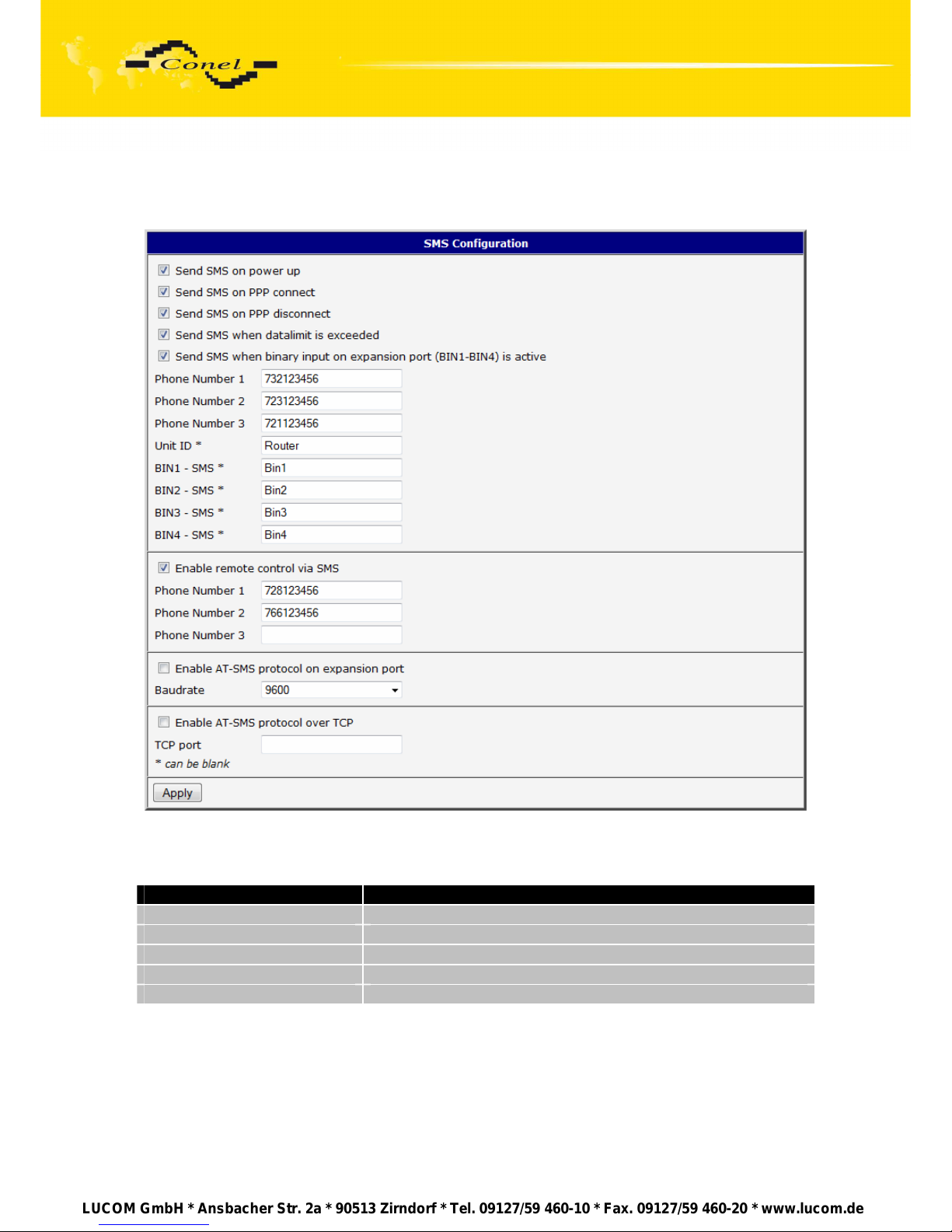

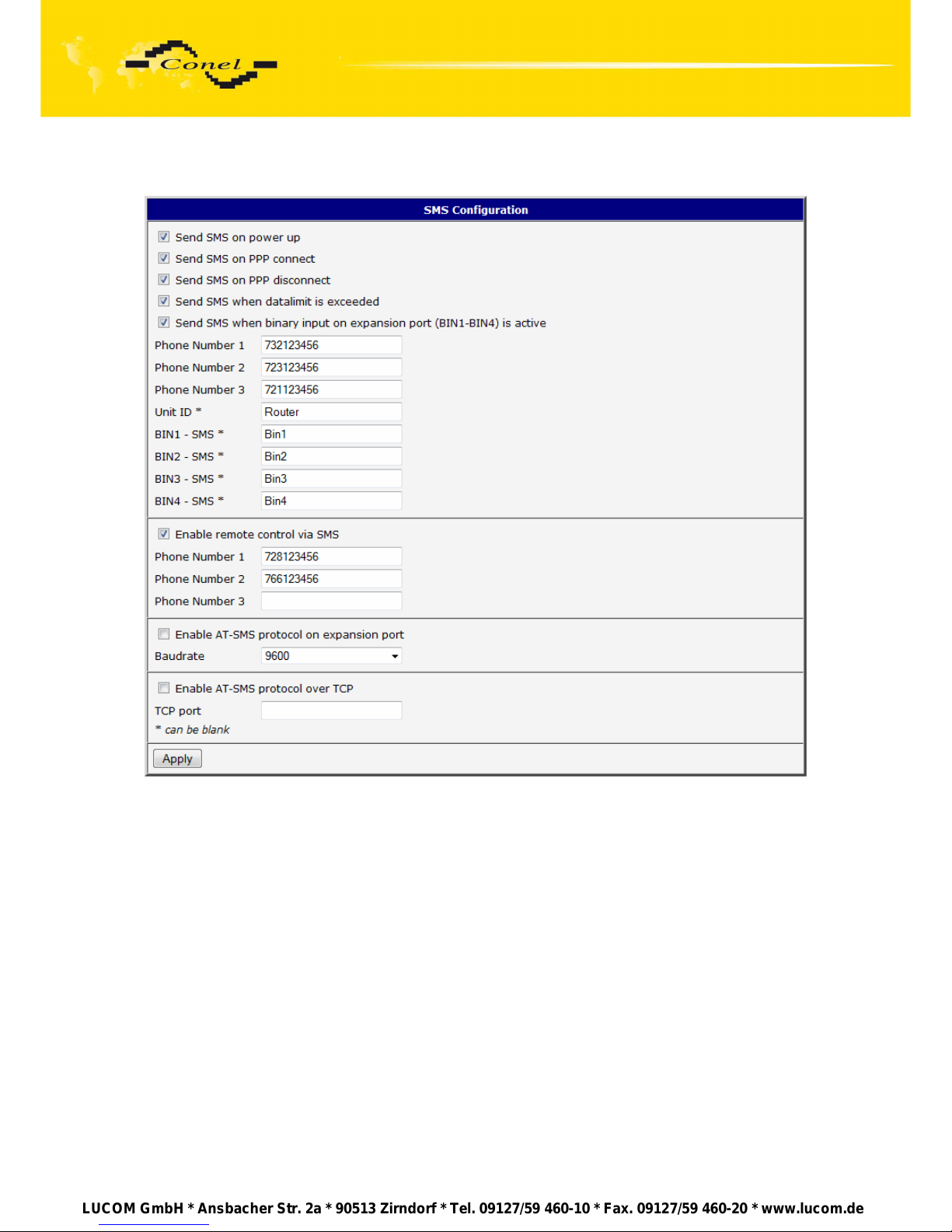

Configuration of sending this SMS is following:

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

66

Example of the router configuration for SMS sending via serial interface:

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

67

Example of the router configuration for controlling via SMS from every phone numbers:

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

68

Example of the router configuration for controlling via SMS from two phone numbers:

The SMS is possible to do for example in HyperTerminal program. After establishing
connection with the router via serial interface or Ethernet, it is possible to do with SMS by
the help of the next AT commands (more about AT commands see reference [1]):

AT commands Description

AT+CMGF=1 Set the text mode for SMS writing
AT+CMGS=”tel. number” Commands enables to send SMS on entered tel. number
AT+CMGL=ALL List of all SMS messages
AT+CMGR=<index> Read of the definite SMS (all SMS has our index)
AT+CMGD=<index> SMS delete according to index

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

69

For the text mode for SMS writing is used command AT+CMGF=1.

AT+CMGF=1 Enter

OK

The SMS message is created by the help of command AT+CMGS=<tel. number>.
After Enter button is pressed is displayed mark >, behind this mark it is possible to write your
own SMS message. The SMS message is sent by the help of CTRL+Z (SMS sending takes
a few minutes). SMS writing is possible to cancel by pressing Esc.

AT+CMGS=”712123456” Enter

>Hello World! CTRL+Z (keys combination)

OK

It is possible to find the new SMS by the help of command AT+CMGL=ALL. This
command reproaches all SMS messages.

AT+CMGL=ALL Enter

+CMGL: <index>, <status>,<sender number>, ,<date>,<time>

SMS text.

+CMGL: 1,“REC UNREAD“,“[phone]“, ,“08/02/02, 10:33:26+04“

Hello World!

Where <index> is ordinal number of the SMS,

<status> is SMS status:

REC UNREAD – SMS unread

REC READ – SMS read

STO UNSENT – stored unsent SMS

STO SENT – stored sent SMS

ALL – all SMS messages

<sender number> is tel. number from which the SMS was receive,

<date> is date of SMS received,

<time> is time of SMS received.

It is possible to read the new SMS message by command AT+CMGR=<index>.

AT+CMGR=1 Enter

+CMGL: <index>, <status>,<sender number>, ,<date>,<time>

SMS text.

+CMGL: 1,“REC READ“,“[phone]“, ,“08/01/12, 9:48:04+04“

Hello World!

Received SMS is possible delete by command AT+CMGD=<index>.

AT+CMGD=1 Enter

OK

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

70

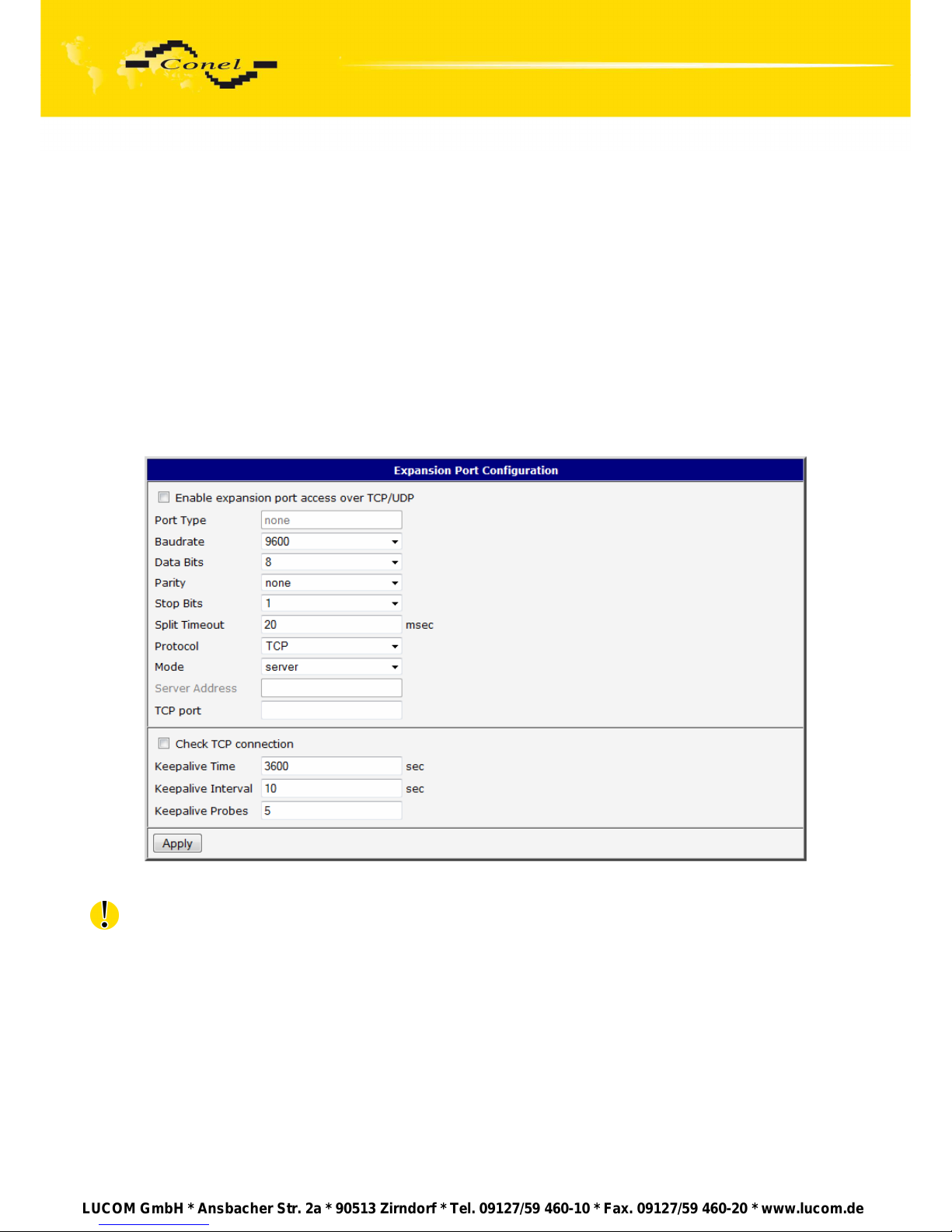

4.21. Expansion Port Configuration

The expansion port configuration can be called up by airbrush option External Port
in menu. Inside the window can be defined Baudrate, number of Data bits, Parity, number
of Stop bits, Protocol and Mode. Split timeout is for messages.

In mode TCP server it is necessary to enter the TCP port, on which the router will
listen to incoming requests about TCP connection. In mode TCP client it is necessary to
enter the Server address and final TCP port.

At Check TCP connection it activates verification of coupled TCP connection. Inside
the window can be define time, after which it will carry out verification of the connection
(Keepalive Time), waiting time on answer (Keepalive Interval) and number of tests
(Keepalive Probes).

The changes in settings will apply after pressing the Apply button.

In case of M-BUS expansion board installed and when chosen protocol is not M-BUS
or M-BUS TCP then sent data will be returned back to the device! If e.g. LINE protocol is set­up on this port, then data will return back to the source.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

71

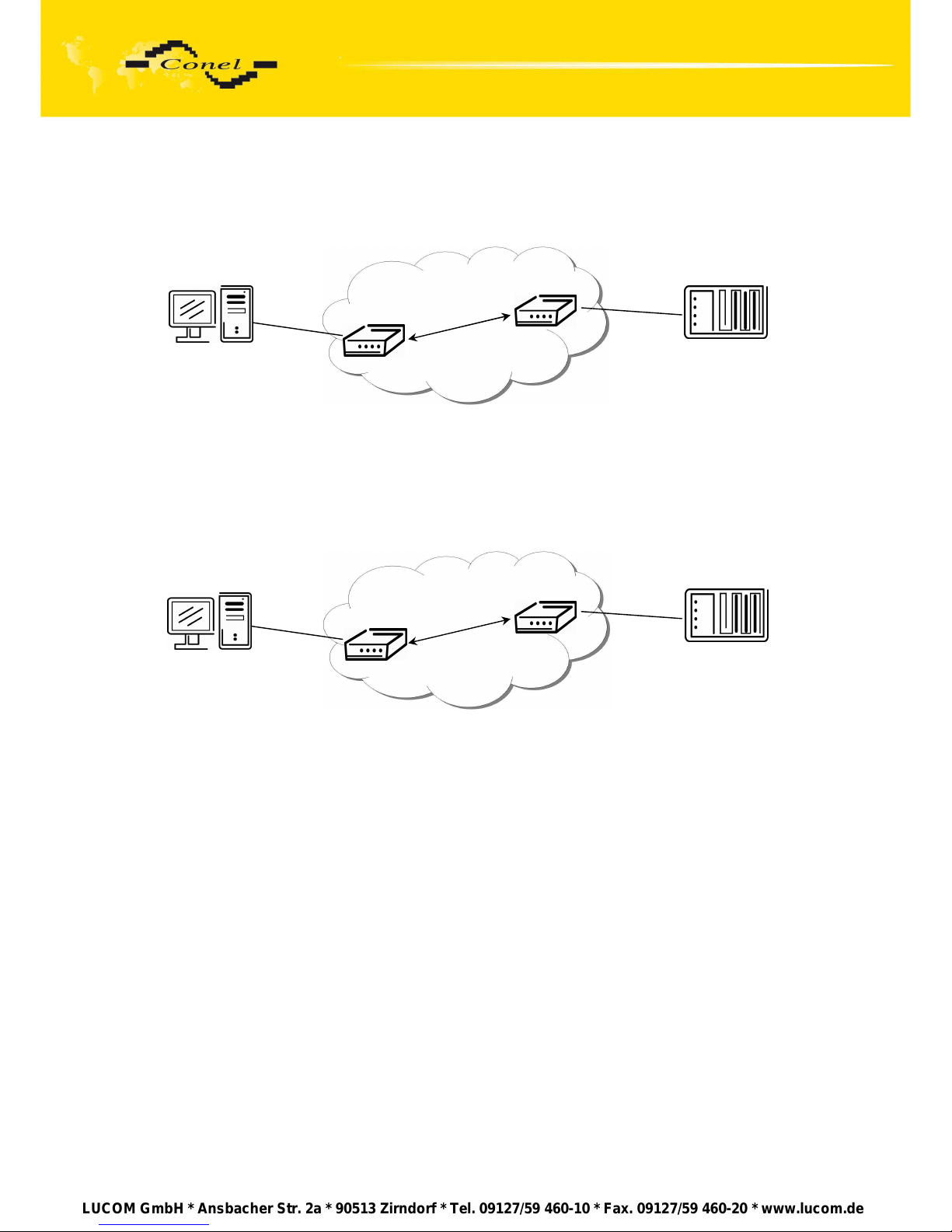

Example of external port configuration:

ppp0 10.0.0.1

ppp0 10.0.0.2

ER-75i settings

Mode: TCP server
Server Address: ­TCP Port: 2000

RS232

RS232

PC

PLC

ER-75i settings

Mode: TCP client
Server Address: 10.0.0.2
TCP Port: 2000

192.168.1.100

ppp0 10.0.0.1

192.168.1.1

ppp0 10.0.0.2

PC application settings:

TCP connection on 10.0.0.2:2000

ER-75i settings

Mode: TCP server
Server Address: ­TCP Port: 2000

ETH

RS232

PC

PLC

Default Gateway 192.168.1.1

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

72

4.22. Start-up script

In the window Startup Script it is possible to create own scripts which will be executed
after all initial scripts. This script is not stored or restored when using web interface backup or
restore option.

The changes in settings will apply after pressing the Apply button.

4.22.1. IO program

Program "io" can be used to set binary outputs (syntax: io set out0|out1 0|1) and get
state of binary inputs (syntax: io get bin0|bin1|bin2|bin3|bin4).

This is an example how to read inputs by using this program:

while true

do

io get bin4

BIN4=$?

if [ "$BIN4" != "$OLD4" ]; then

if [ "$BIN4" = "1" ]; then

gsmsms 739546801 "test SMS bin4-1"

fi

if [ "$BIN4" = "0" ]; then

gsmsms 739546801 "test SMS bin4-0"

fi

OLD4=$BIN4

fi

sleep 2

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

73

io get bin3

BIN3=$?

if [ "$BIN3" != "$OLD3" ]; then

if [ "$BIN3" = "1" ]; then

gsmsms 739546801 "test SMS bin3-1"

fi

if [ "$BIN3" = "0" ]; then

gsmsms 739546801 "test SMS bin3-0"

fi

OLD3=$BIN3

fi

sleep 2

done

Change take effect after restarting router by the help of button Reboot in web
administration or by SMS message.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

74

4.23. Up/Down script

In the window Up/Down Script it is possible to create own scripts. In the item Up script
is defined scripts, which begins after establishing a PPP connection. In the item Down Script
is defines script, which begins after lost a PPP connection. This script is not stored or
restored when using web interface backup or restores option.

The changes in settings will apply after pressing the Apply button.

Change take effect after restarting router by the help of button Reboot in web
administration or by SMS message.

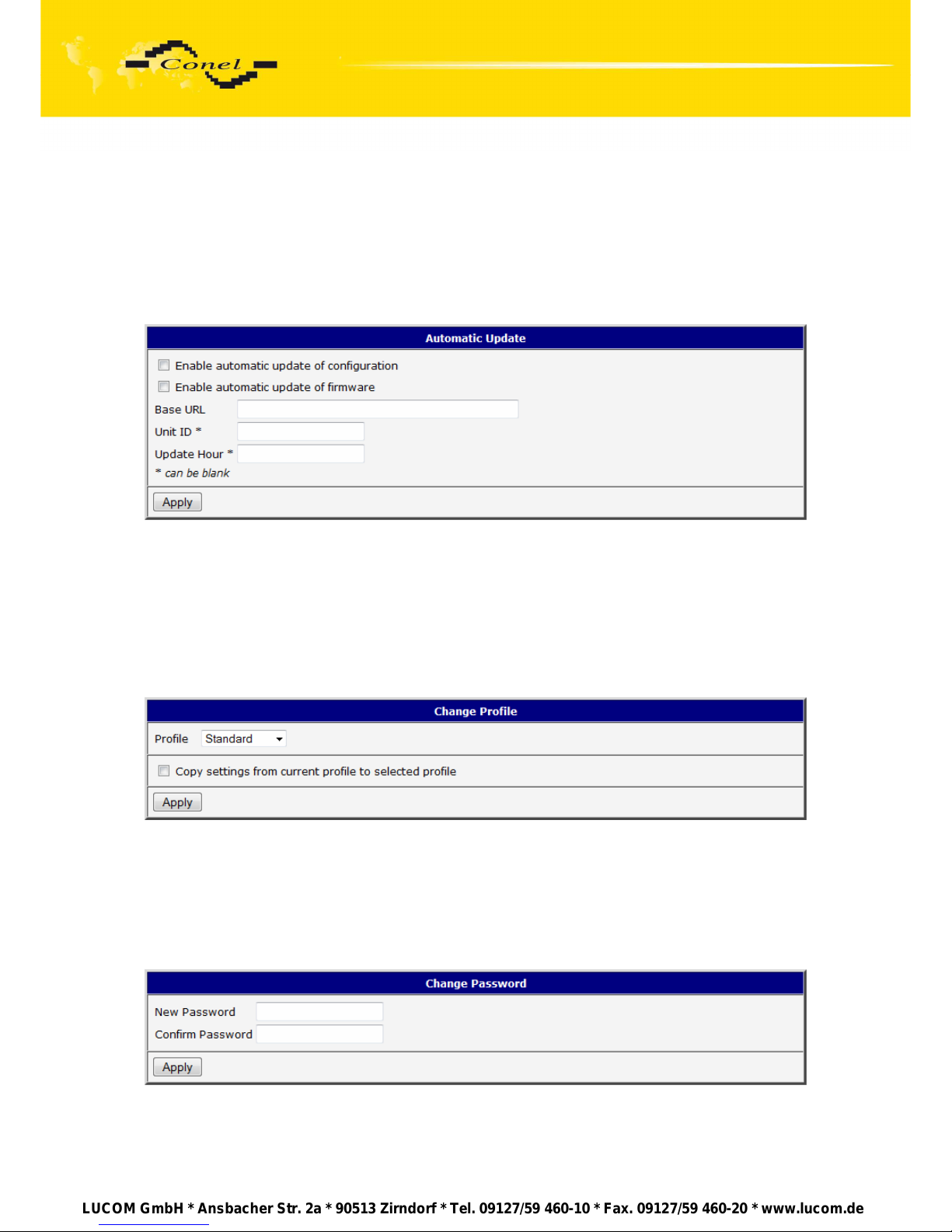

4.24. Automatic update configuration

In the window Automatic update it is possible to set automatic configuration update.
This choice enables that the router automatically downloads the configuration
and the newest firmware from the server itself. The configuration and firmware are stores
on the server.

By Enable automatic update of configuration it is possible to enable automatic
configuration update. By parameter Base URL it is possible to enter base part of the domain
or IP address, from which the configuration file will be downloaded. In the case that Unit ID is
empty, the contents of parameter Unite ID or MAC address is added to Base URL.
The configuration file name is from parameter Base URL, hardware MAC address of ETH0
interface and cfg extension. Hardware MAC address and cfg extension is connected
automatically and it isn’t needed to enter this. By parameter Unit ID enabled it defines the

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

75

concrete configuration name which will be download to the router. When using parameter
Unit ID, hardware MAC address in configuration name will not be used.

Automatic configuration update starts 5 minutes after turning on the router and then
every 24 hours or it is possible to set the time of automatic configuration in parameter Update
Hour. If the entered URL is different configuration than in the router then the router
downloads this configuration and restarts itself.

The changes in settings will apply after pressing the Apply button.

4.25. Change profile

To open the dialog box for changing profile select the Change Profile menu item.
Profile switch is making by press the button Apply. Change take effect after restarting router
by the help of button Reboot in web administration or by SMS message. It is possible select
the standard profile or up to three alternative profiles. It is possible to copy actual
configuration to selected configuration by selecting Copy settings from current profile to
selected profile.

4.26. Change password

To open the dialog box for changing the access password select the Change Password
menu item. The new password will be saved after pressing the Apply button.

In basic settings of the router the password is set on default form root. For higher
security of your network we recommend changing this password.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

76

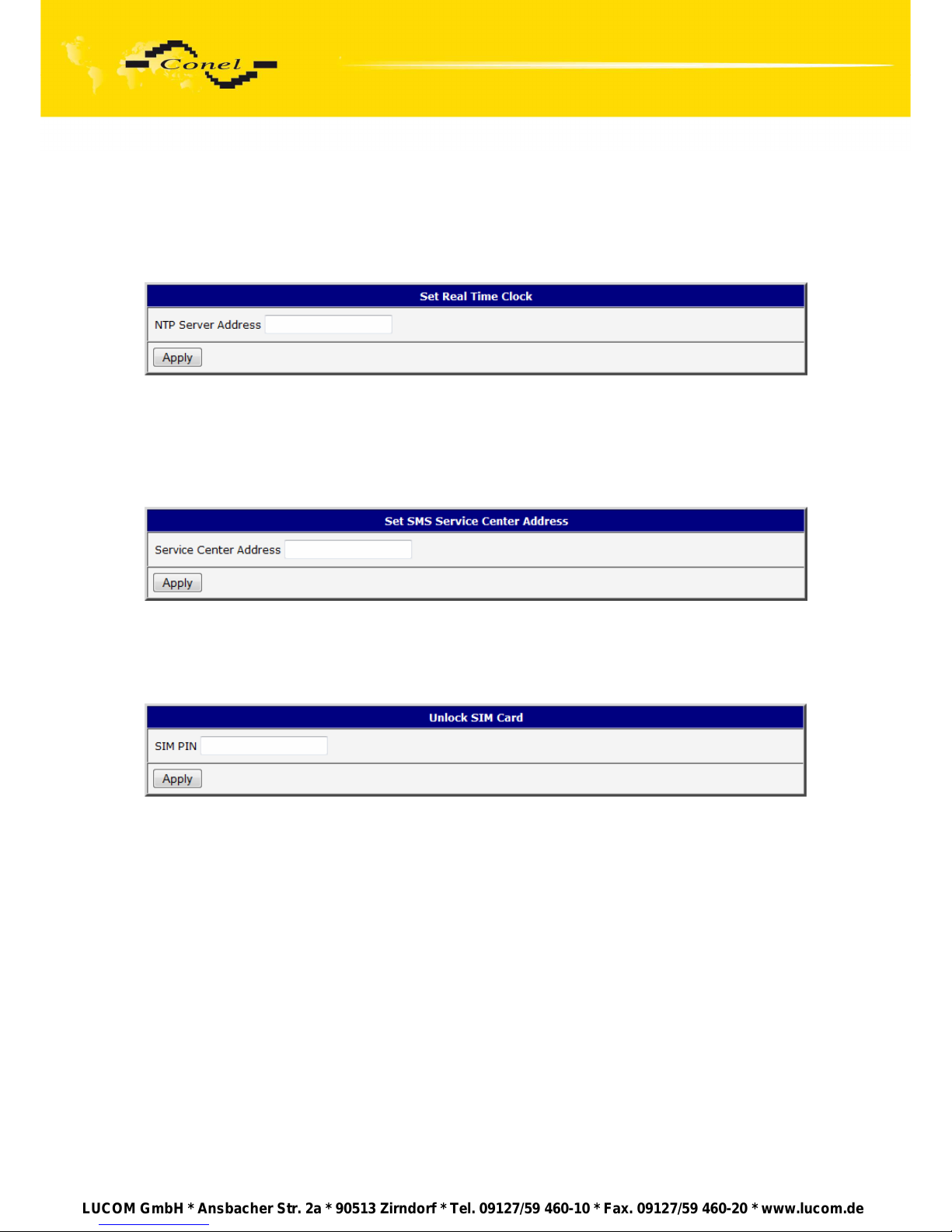

4.27. Set real time clock

One – shot inner clock of the router etting can be called up in option Set Real Time
Clock item in the menu. Clocks are set according to the engaged NTP server after push-
button operation Appl.

4.28. Set SMS service center address

In some cases it is need to set phone number of the SMS service centre because of
SMS sending. This parameter cannot be set when the SIM card has set phone number of the
SMS service centre. The phone number can to have formed without international prefix xxx
xxx xxx or with international prefix for example +420 xxx xxx xxx.

4.29. Unlock SIM Card

Possibility to unlock SIM PIN is under Unlock SIM Card item. If the inserted SIM card
is secured by a PIN number, enter the PIN to field SIM PIN and push-button Apply.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

77

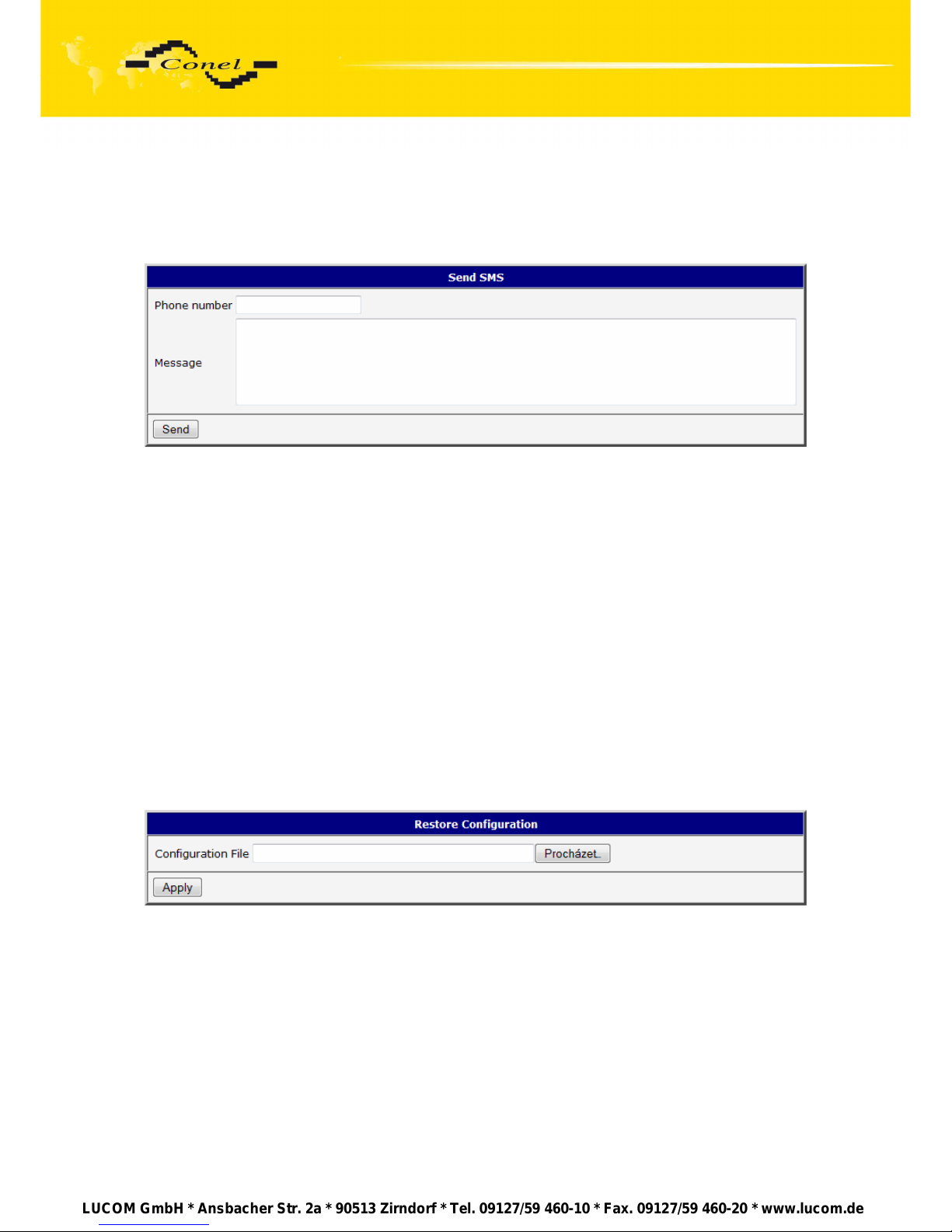

4.30. Send SMS

Sending SMS messages is possible in menu Send SMS. The SMS message will be
sent after entering the Phone number and text SMS (Message) and by pushing button Send.

SMS message sending via HTTP request is in the form:

GET /send_exec.cgi?phone=%2B420712345678&message=Test HTTP/1.1

Authorization: Basic cm9vdDpyb290

HTTP request will be sent to TCP connection on router port 80 which sends an SMS
message Test to phone number 420712345678. Authorization is in the format
“user:password” coded by BASE64, example is for root:root.

4.31. Backup Configuration

The router configuration is possible to save by help of the Backup Configuration menu
item. After clicking on this menu it is possible to check a destination directory, where it will
save the router configuration.

4.32. Restore Configuration

In case it is needed to restore the router configuration, it is possible in Restore
Configuration menu item to check configuration by help Browse button.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

78

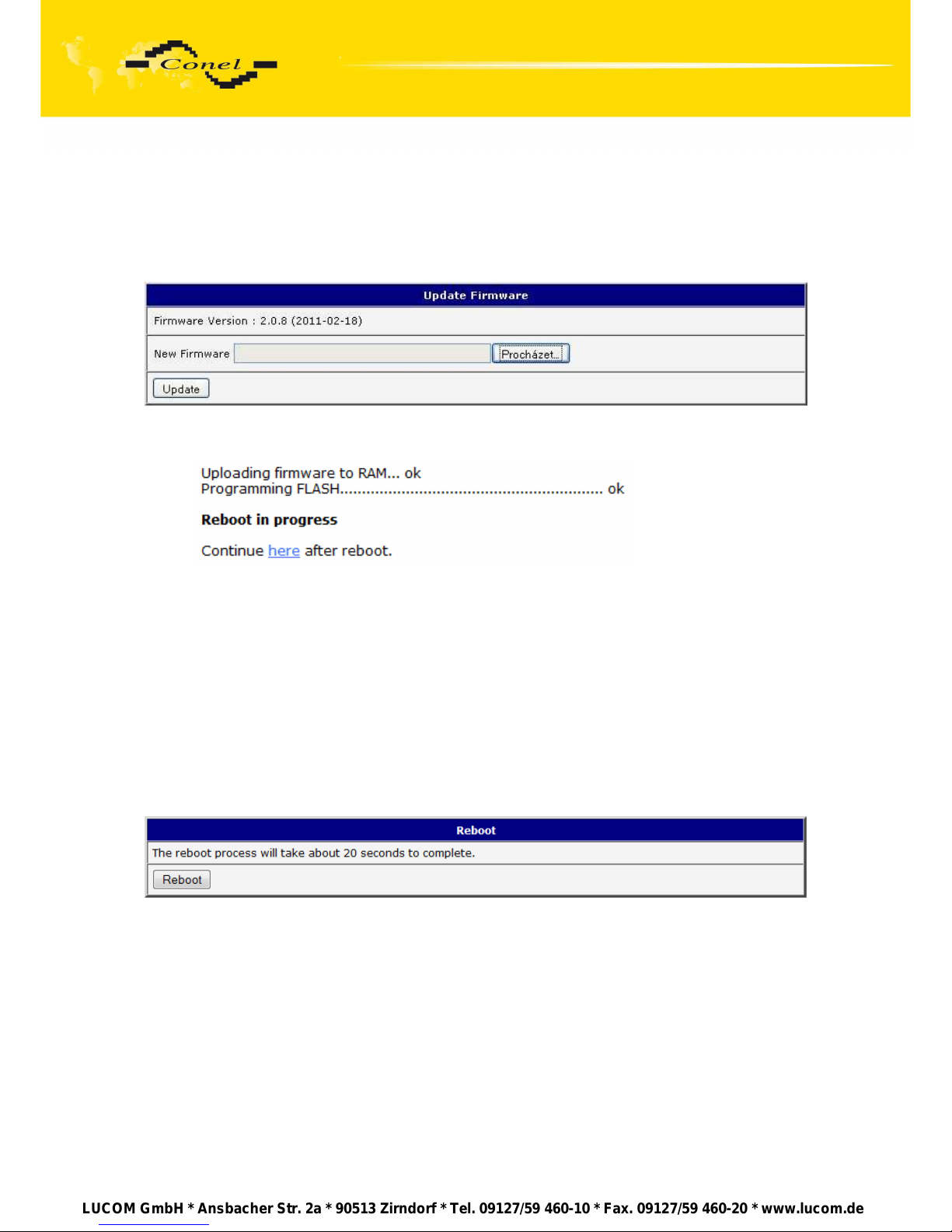

4.33. Update firmware

To view the information about the firmware version and instructions for its update select
the Update Firmware menu item. The new firmware will be checked after pressing Browse
button and update the following pressing the Update button.

After successful firmware updating the following statement is listed:

There is information about updating of the FLASH memory.

By firmware actualization from 1.1.1 version the router configuration is remains include
IP address. By actualization older firmware than 1.1.1 the IP address will be set on

192.168.1.1 and all values are in defaults state. From firmware version 2.0.3 is provided simply
file name check of new firmware file. Upload firmware of different device can cause damage of
the router! Total update time lasts for 3 – 4 minutes. During updating of the firmware
permanent power supply has to be maintained. We strongly recommend not using distant
update because of possible blackout of GPRS connection.

4.34. Reboot

To reboot the router select the Reboot menu item and then press the Reboot button.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

79

4.35. Default settings

After green LED starts to blink it is possible to restore initial settings of the router
by pressing button RST on front panel. After press button RST it is restoration of the
configuration and reset (green LED will be on).

4.35.1. LAN Configuration

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

80

4.35.2. VRRP Configuration

4.35.3. Firewall Configuration

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

81

4.35.4. GPRS Configuration

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

82

4.35.5. NAT Configuration

4.35.6. OpenVPN Tunnel Configuration

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

83

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

84

4.35.7. Ipsec Tunnel Configuration

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

85

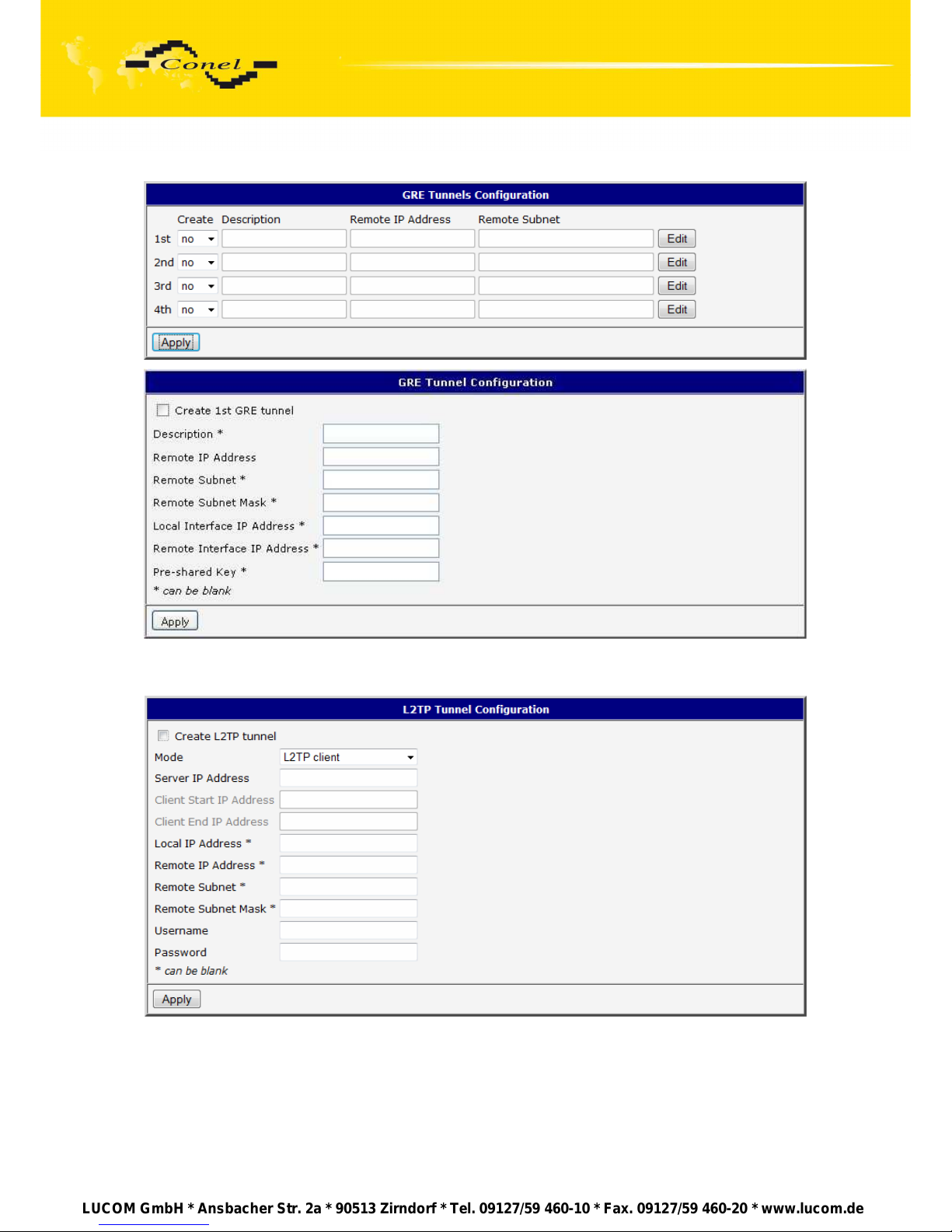

4.35.8. GRE Tunnel Configuration

4.35.9. L2TP Configuration

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

86

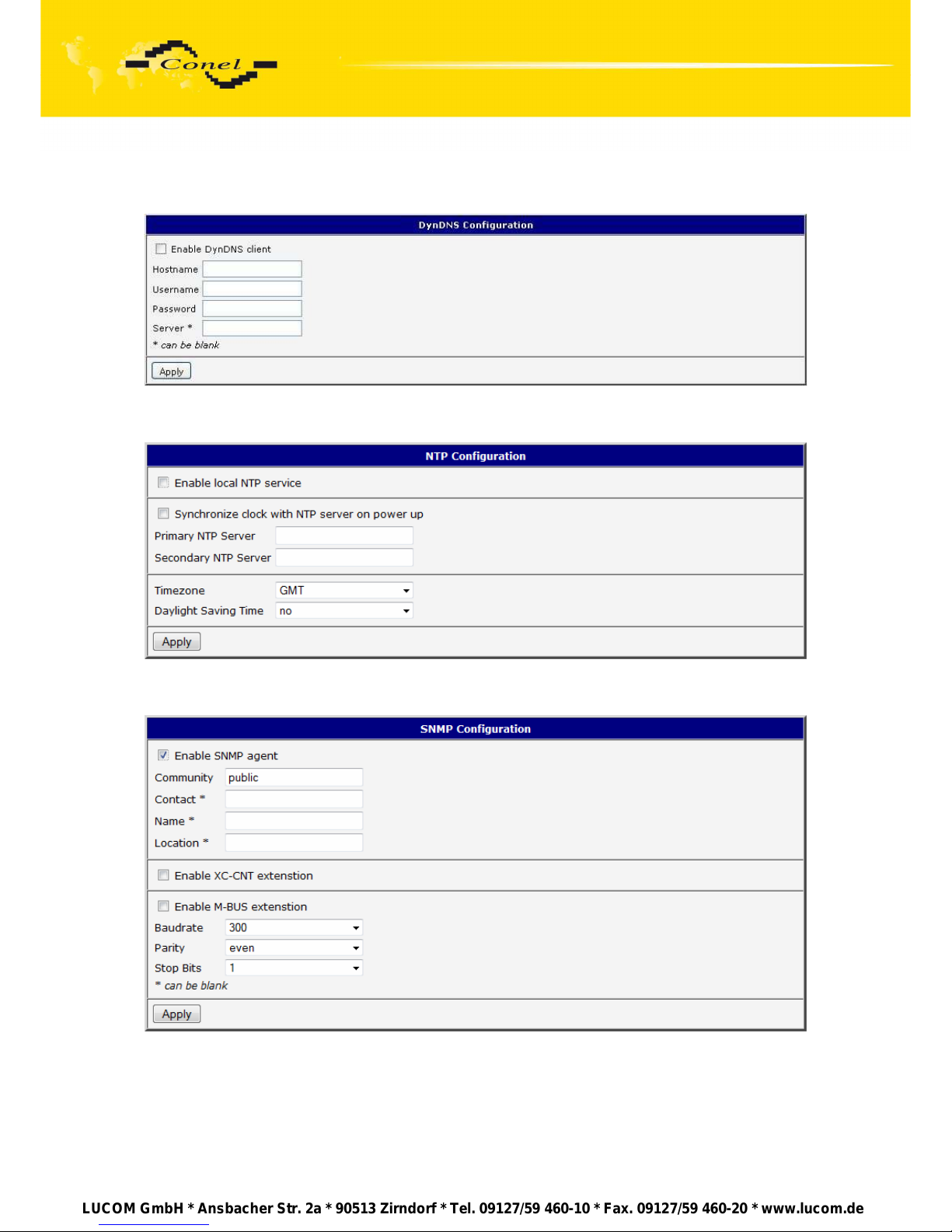

4.35.10. DynDNS Configuration

4.35.11. NTP Configuration

4.35.12. SNMP Configuration

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

87

4.35.13. SMTP Configuration

4.35.14. SMS Configuration

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

88

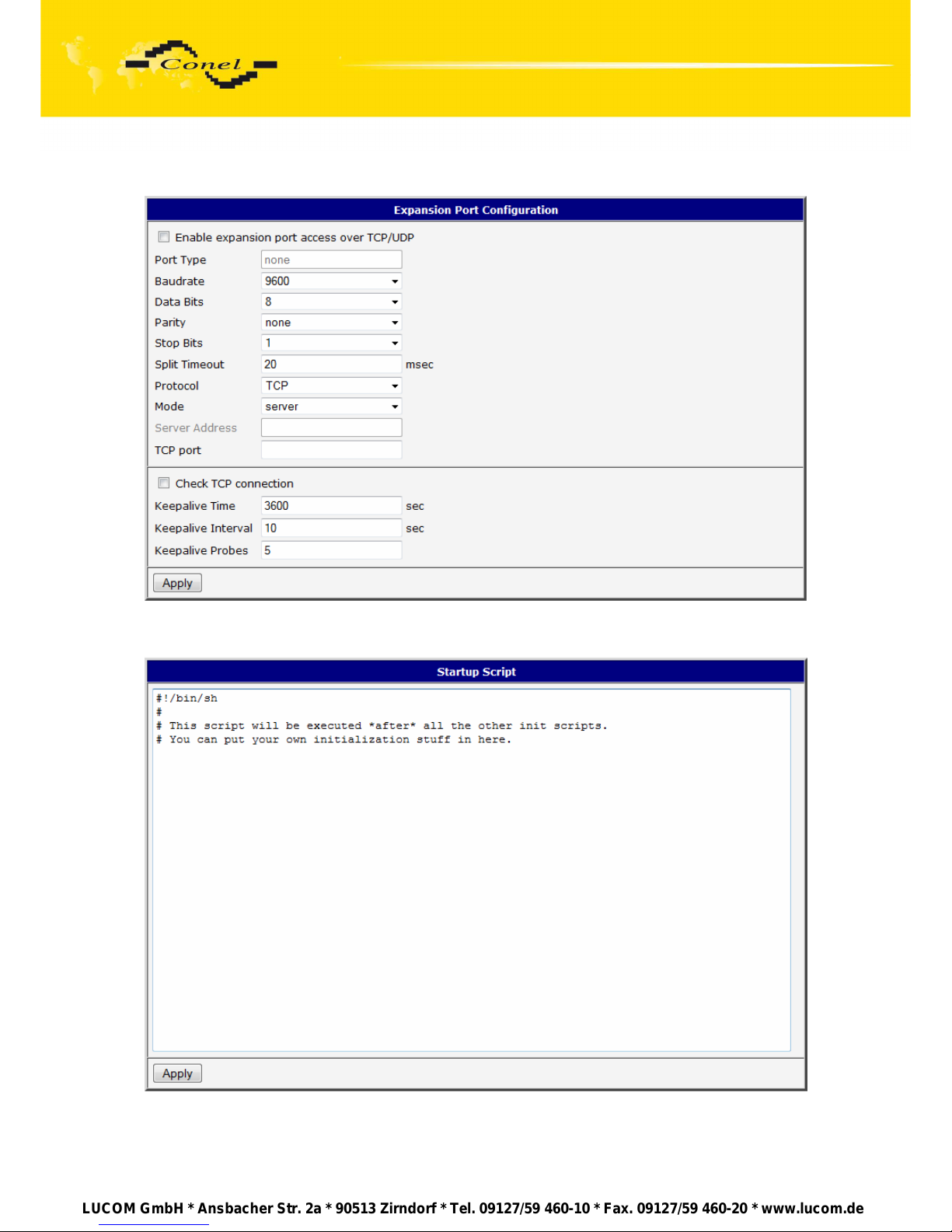

4.35.15. Expansion Port Configuration

4.35.16. Startup Script

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

89

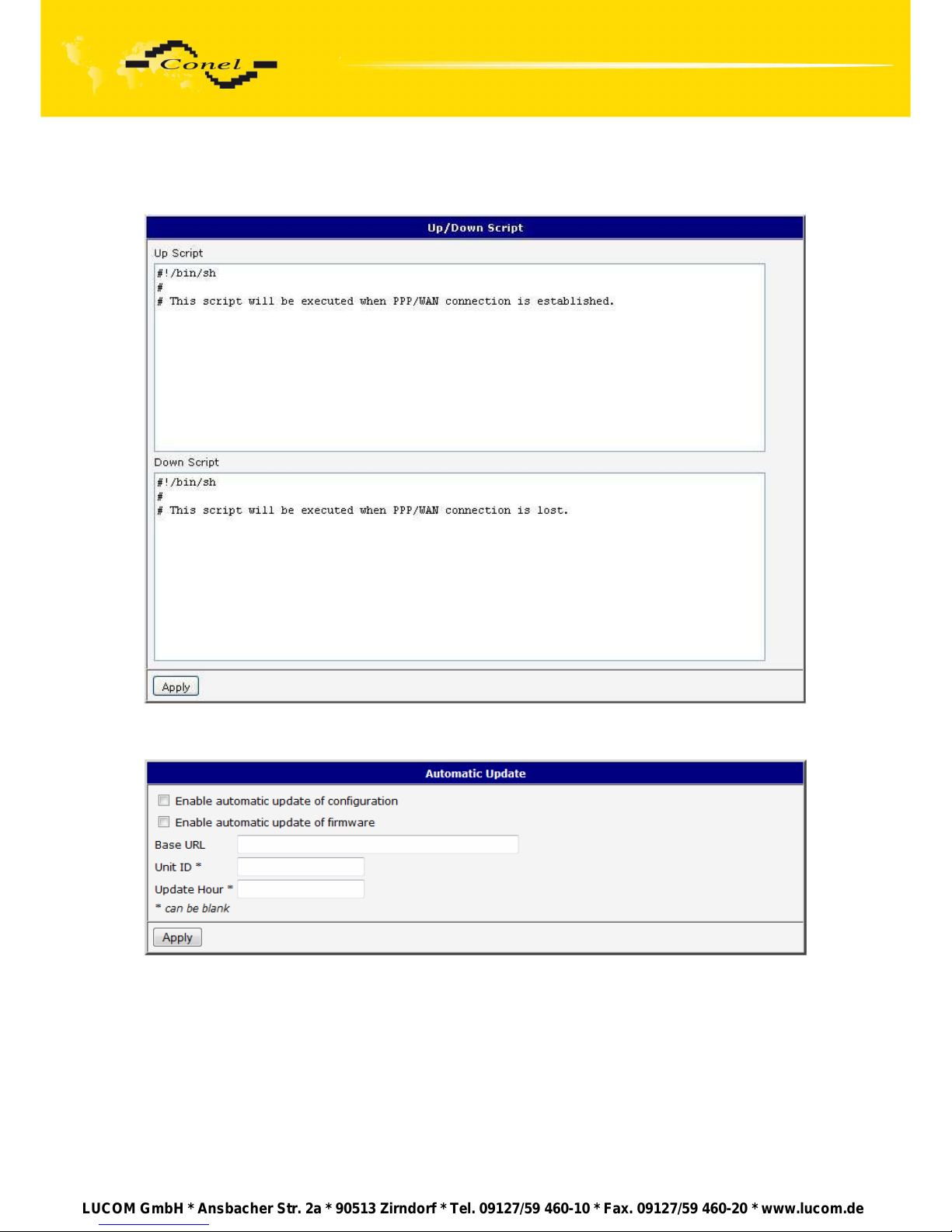

4.35.17. Up/Down Script

4.35.18. Automatic Update

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

CONFIGURATION

90

5. Configuration setting over Telnet

Attention! If the SIM card isn’t included in the router, it is impossible for the router to

operate. The Included SIM card must be activated for GPRS transmissions. Insert the SIM
card when the router is switched off.

Monitoring of status, configuration and administration of the router can be performed by
means of the Telnet interface. After IP address entry to the Telnet interface it is possible to
configure the router by the help of commands. The default IP address of the modem is

192.168.1.1. Configuration may be performed only by the user “root” with initial password
“root”.

For Telnet exists the following commands:

Command Description

cat file contain write
cp copy of file
date show/change of system time
df displaying of informations about file system
dmesg displaying of kernel diagnostics messages
echo string write
email sends an e-mail
free displaying of informations about memory
gsmat AT commend send
gsminfo displaying of informations about signal quality
gsmsms SMS send
hwclock displaying/change of time in RTC
ifconfig displaying/change of interface configuration
io reading/writing input/output pins
ip displaying/change of route table
iptables displaying/modification of NetFilter rules
kill process kill
killall processes kill
ln link create
ls dump of directory contain
mkdir file create
mv file move
ntpdate synchronization of system time with NTP server
passwd password change
ping ICMP ping
ps displaying of processes information
pwd dump of actual directory
reboot restart
rm file delete
rmdir directory delete
route displaying/change of route table
service start/stop of service
sleep pause on set seconds number
slog displaying of system log
tail displaying of file end
tcpdump monitoring of network
touch file create/actualization of file time stamp
vi text editor

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DRIVERS

91

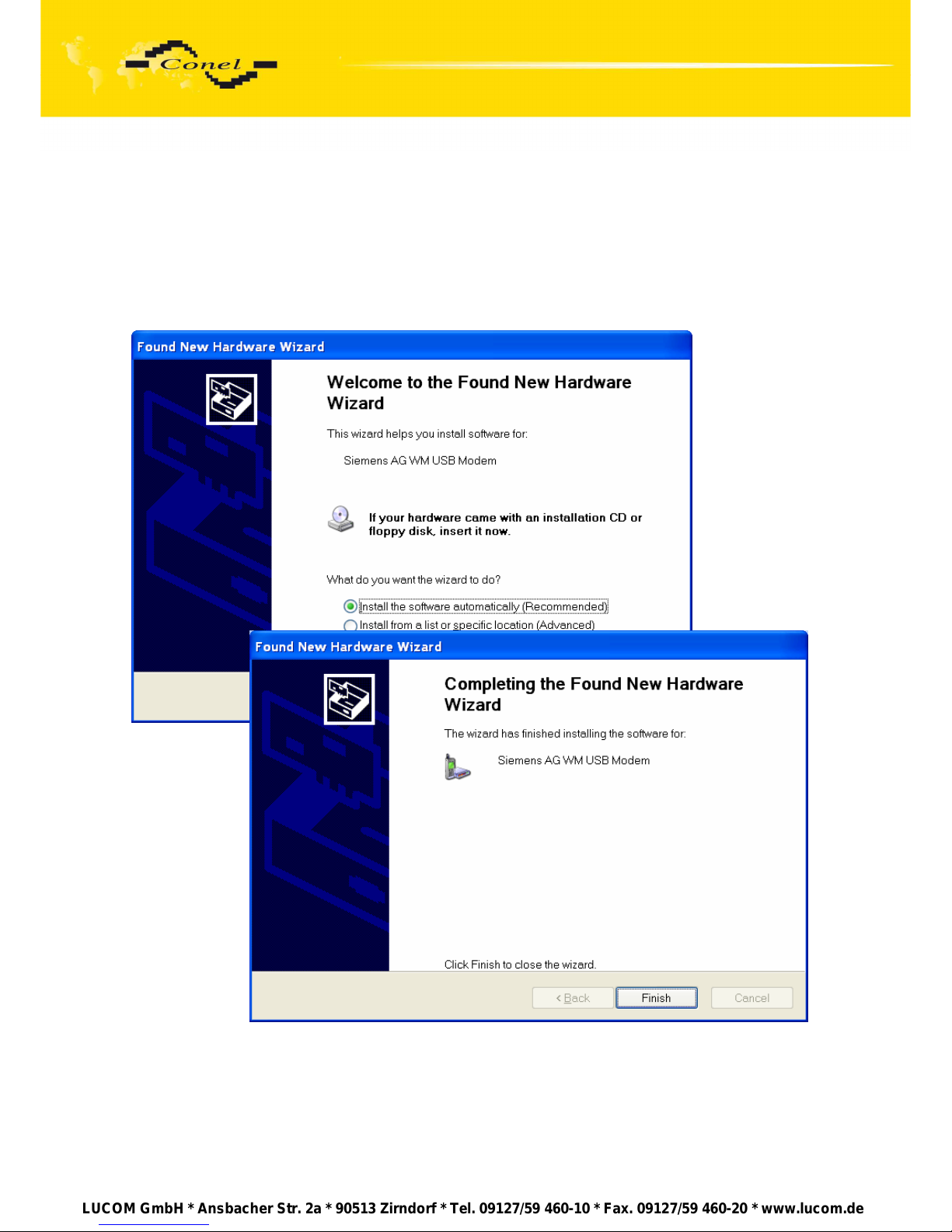

6. Driver installation

Connect the USB cable to the router and to the PC. Windows detects router as a new
USB modem, starts the Add Hardware wizard and requests the driver for "MC75i" or „Siemens
AG WM USB Modem“. Follow the instructions of the wizard and enter the path to
the "usbmodem.inf" file. Windows will copy the needed files to your computer and configure
the modem by assigning a free COM port. After completion of copying the files click
on the Finish button.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DRIVERS

92

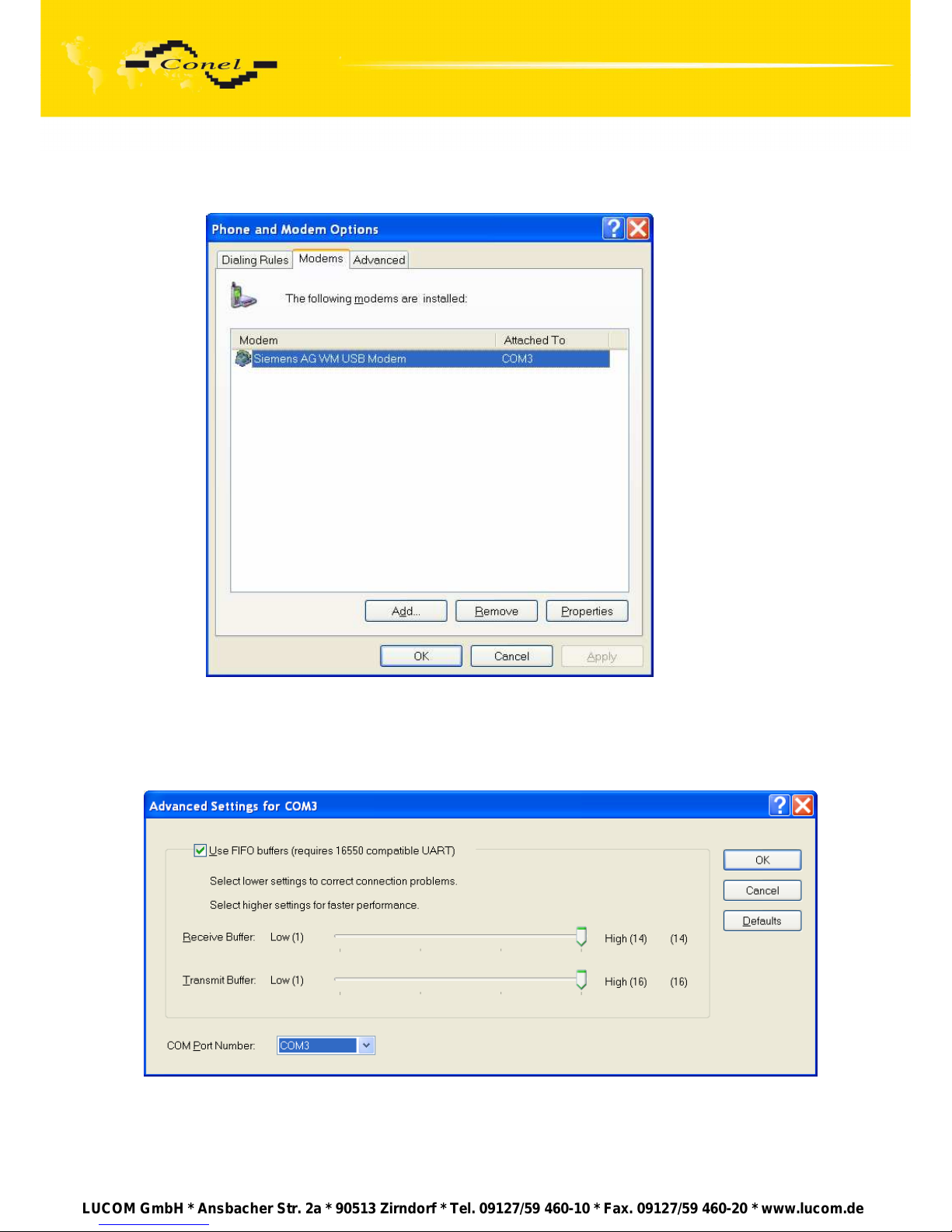

You will find the installed modem in the Phone and modem options control panel
(Start | Settings | Control Panel | Phone and Modem Options | Modems).

.

You can change the assigned COM port in the Device Manager. Select “Siemens AG
WM USB Modem” in the installed devices list, click on Properties, select the Details tab and
click on the Advanced port settings button. Then select the required free COM port
from the COM port number menu. The change of COM port setting will apply only after
disconnection and reconnection of the USB cable.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

AT COMMANDS, PROBLEMS, REFERENCE AND FAQ

93

7. Control by AT commands

The router is controlled and programmed by AT commands. Structure of the AT
command match used module MC75i. AT commands are possible to find on website
www.siemens.com/wm.

8. Possible problems

Some network cards are able to be set in situation, when it is not possible to connect

the router. It is possible to solve this problem in the following steps:

 hand by selection communication rates 10 MB/s in property network cards,
 connect router over switch,
 starts computer only after finalization start router.

9. Reference

[1] Siemens: MC75i_ATC_V00.031 – AT command Set, 2008

10. FAQ

 I can’t get from internet on equipment, which is connected to router and I have NAT

enabled.

 The device's gateway has to be configured as the router.

 Router resets itself, connection on Ethernet fails.

 It is necessary to use an antenna, which will be situated far from power supply.

 I don’t get on web server at NAT.

 The remote http access of the router has to be disabled, default server address

has to be your web server and the gateway of the web server has to be the IP
of router.

 GPRS connection fails.

 Check signal power. If signal power is weak, you will have to use a better

antenna. If the environmental cells have a similar signal it will be necessary to
use a directive antenna. Signal levels have to be in the range -50dBm and ­90dBm.

 It is necessary to set ping, which will check the connection and, in the case of fail

ping, restart connection.

 GPRS connection won't be established.

 Recheck GPRS settings - APN, name, password and IP address.
 Try to enter PIN – verification if the SIM card hasn’t set PIN code.
 In private APN it is appropriate to switch the DNS server send off.
 Switch log system on and observe where the error turns up.

 Connection fails on Ethernet or connection isn’t establishing.

 On ethernet interface of the router it is possible to switch auto negotiation off and

set a rate and duplex by hand.

 How is it possible to enter AT commands?

 It is necessary to use a USB connection, but it is impossible to connect to GPRS

from the router together.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

AT COMMANDS, PROBLEMS, REFERENCE AND FAQ

94

 DynDNS not function.

 In private APN not functional.
 If the same IP address is recorded in your canonic name as dynamically assign

address, it means that the operator is using NAT or firewall.

 NAT is possible to verify by the help of the ping on address of your server with

static IP address and by the help of the router address verify and address in ping.

 Firewall is possible to verify, for example by remote access on web interface.
 The operator doesn’t give out address DNS servers and without DNS server’s it

is impossible to connect to server dyndns.org. In log system will be this message:

 DynDNS daemon started
 Error resolving hostname: no such file or directory
 Connect to DynDNS server failed

 IPSec tunnel is establishing but communication doesn’t function.

 Probably it is badly set up route conditionals of connected equipment or it is bad

set up GW.

 FTP doesn’t function.

 Router doesn’t support the active FTP mode, supports the passive mode only.

 RS232 doesn’t function.

 It is necessary to verify present the expansion port RS232.
 Verify present the expansion port RS232 in router configuration in menu „external

port“, or verify connection locally by the help Telnet-Hyper terminal.

 L2TP or IPSec isn’t establishing.

 Verify the reason in the log system.

 How do I get to know that EDGE is functional?

 If download is higher than 85.6 kb/s then EDGE is functioning.

 I switched the router to offline mode by the SMS message, but the router is in online

mode after restart.

 Control SMS message doesn’t change the router configuration. If the router is

switched to offline mode by the SMS message the router will be in this mode up
to next restart. This behaviour is the same for next all control SMS messages.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

AT COMMANDS, PROBLEMS, REFERENCE AND FAQ

95

11. Customer’s care

Up to date information about the product are on website:

http://www.conel.cz/

Upkeep-advices:

The SIM-card must be handled carefully as with a credit card. Do not bend, do not scratch on
this and do not expose to static electricity.
During cleaning of the modem do not use aggressive chemicals, solvents and abrasive
cleaners!

Conel Company hereby declares that the modem narrated in this user’s guide fits all basic
demands of directive 1999/5/EC (R&TTE).

Declaration about consistency was issued and is possible get it at producer.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

DISPOSAL INFORMATIONS

96

12. Product disposal information

The WEEE (Waste Electrical and Electronic Equipment: 2002/96/EC) directive has
been introduced to ensure that electrical/electronic products are recycled using the best
available recovery techniques to minimize the impact on the environment. This product
contains high quality materials and components which can be recycled. At the end of it’s life
this product MUST NOT be mixed with other commercial waste for disposal. Check with the
terms and conditions of your supplier for disposal information.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

GUARANTEE CLAIM GUIDELINES

97

13. Guarantee Claim Guidelines

Dear customer,

The product that you have purchased was tested by the manufacturer and, before
it was sold, the product’s functions were checked once more by our company’s technician.
However if, in spite of the above-mentioned measures, a breakdown of this product occurs
during the guarantee period, which makes proper utilization of the product impossible,
we ask you to observe the Guarantee Claim Guidelines when asserting a guarantee claim.

To facilitate the possible guarantee claim procedure, please, when taking over
the product, make sure that the seller, who is selling you the product, has properly filled
in the relevant parts of the guarantee certificate, including the date of sale, stamp
and signature.

This guarantee claim procedure applies to the products that have been purchased.
This guarantee claim procedure does not apply to the services that have been provided.

Guarantee periods of products

Guarantee of the purchased device, power supply unit, antenna, data cable,
and possible accessories is provided, with a guarantee period of 24 months from the date
of sale. The date of sale is at the same time the date of acceptance of the product
by the customer.

Lodging a guarantee claim

The guarantee claim must be lodged at the seller from whom the relevant object
of the guarantee claim has been purchased. When lodging the guarantee claim,
the customer is to submit the properly filled-in guarantee certificate and the complete object
of the guarantee claim. The object of the guarantee claim should be submitted in a state
corresponding to the state at the sale.

Caution!

The seller does not guarantee that individual settings or data stored in the object
of the guarantee claim will be retained.

When lodging the guarantee claim, the customer is obligated to specify the particular
defect of the guarantee claim object, possibly its symptoms and, furthermore, the particular
right resulting from the liability for defects that he is asserting.

Settling a guarantee claim

Depending on the circumstances, the seller shall ensure the defect removal free
of charge; possibly, the seller shall exchange the object of the guarantee claim for a new
product or, possibly, settle the guarantee claim in a different way which is in compliance
with the Civil Code and with the Consumer Protection Act.

At the moment when the customer has lodged the guarantee claim and the object
of the guarantee claim has been accepted by the seller, running of the guarantee period
is interrupted. Running of the guarantee period shall continue from the date of acceptance
of the repaired object of the guarantee claim or of the exchanged faultless product
by the customer or, in the event that neither of the two has been accepted by the customer,
from the date when the customer was obligated to accept the repaired object
of the guarantee claim or the exchanged product. In the event that a guarantee claim
resulting from a defect covered by the guarantee has been lodged and the defective object
of the guarantee claim has been exchanged by the seller for a new product (including the
exchange of the IMEI), the ownership of the original object of the guarantee claim is passed

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

GUARANTEE CLAIM GUIDELINES

98

hereupon onto the seller, and the ownership of the new product, onto the buyer. A new
guarantee period starts running from the date of acceptance of the new product. In the event
that the seller, upon agreement with the customer, has settled the guarantee claim by
exchanging the object of the guarantee claim for a faultless product, the new guarantee of
the product shall expire as follows:

1. After the expiration of a period of 12 months from the date of acceptance
of the exchanged product by the customer.

2. On the date when the guarantee period of the original product (the object
of the guarantee claim) would have expired if the original product had not been
exchanged, whichever is later.

3. The guarantee claim is not justified if the defect being claimed has not been
detected by the seller within the framework of the guarantee claim settlement,
or if the guarantee does not apply to the defect of the product pursuant to Article
4 of the Guarantee Claim Guidelines.

4. If the defect being claimed has not been detected, and the functional state
of the guarantee claim object has been demonstrated to the customer,
the customer is obligated to refund the provable expenses incurred in connection
with expert assessment of the defect being claimed.

5. If, during the process of assessment of justifiability of the guarantee claim,
a defect of the product is detected which is not covered by the guarantee (a repair
not covered by the guarantee), the seller shall notify of this fact the customer,
and the customer shall notify the seller whether he wants to have this defect
removed at a price quoted by the seller. Precise conditions of the repair not
covered by the guarantee will be specified in a drawn-up report signed
by the customer and seller. If the customer does not require the defect removal
by a repair not covered by the guarantee under the conditions communicated
by the seller, the device will be returned to the customer, after he has refunded
the provable expenses incurred in connection with the expert assessment
of the claimed defect.

The guarantee does not apply to the defects caused by the following:

1. Mechanical damage (e.g. by a fall, etc.).

2. Utilization of power supply units and other accessories that are not suitable,
possibly, are not recommended for the particular product.

3. Interconnecting the product with non-standard accessories.

4. Installation or utilization of the product in contradiction to the operating
instructions, or utilization of the product for purposes that are not usual for this
type.

5. Incompetent handling, possibly intervention into the product by an unauthorized
person or by a repair shop that has not been authorized by the manufacturer.

6. Damage caused by the natural elements (flooding, fire, etc.) or by other local
effects (storm, mains over voltage, etc.).

7. Storage under conditions outside the temperature range.

8. Operation in a chemically aggressive environment.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

GUARANTEE CLAIM GUIDELINES

99

Other guarantee claim conditions

The fact that the object of the guarantee claim does not correspond to parameters
that have been set for other similar types of products can not be considered to be a defect.
For the assessment whether a defect has occurred, the product parameters included
in the technical documentation of the product are decisive.

The guarantee shall be terminated in the event of any modification of the object
of the guarantee claim or in the event that the serial number of the object of the guarantee
claim has been damaged or is illegible due to other reasons.

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de

GUARANTEE CERTIFICATE

100

14. Guarantee certificate

Type of the device

Serial number
Guarantee period (in

months)

Seller

Date of sale

Stamp of the seller

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. [phone] * Fax. [phone] * www.lucom.de
