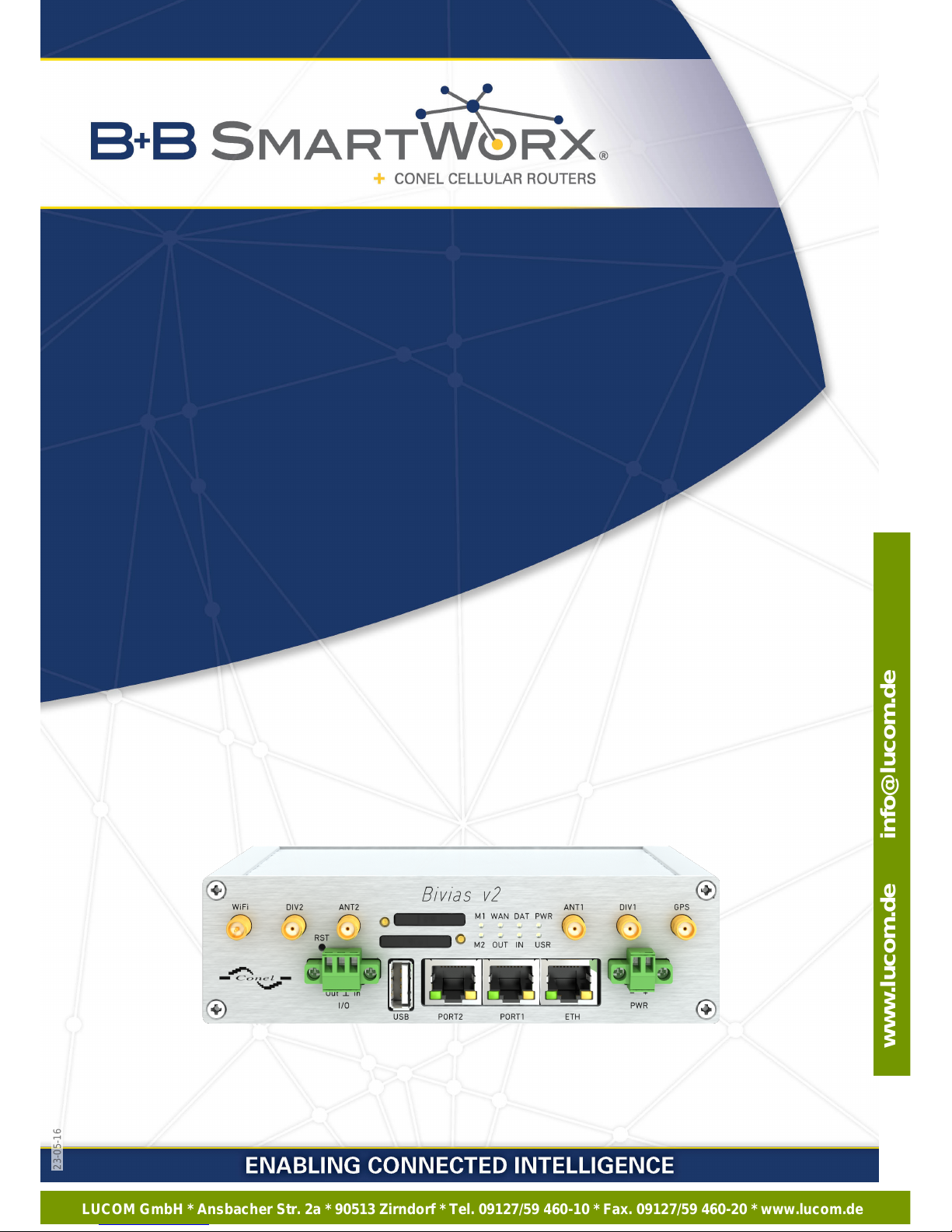

Page 1
Twin Cellular Module Router
Bivias v2
USER’S MANUAL
23-05-16
www.lucom.de info@lucom.de
Page 2
USED SYMBOLS
Used symbols
Danger – Information regarding user safety or potential damage to the router.
Attention – Problems that can arise in specific situations.
Information, notice – Useful tips or information of special interest.
GPL licence
Source codes under GPL licence are available free of charge by sending an email to:
[email protected].
Advantech B+B SmartWorx s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic
Manual Rev. 1 released in CZ, May 6, 2016
i
23-05-16
www.lucom.de info@lucom.de
Page 3
CONTENTS
Contents
1 Safety Instruction 2
2 WEEE directive 3
3 Router Description 4
4 Contents of Package 5
5 Router Design 6
5.1 Router versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5.2 Delivery identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5.3 Version of module firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5.4 Order codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5.5 Basic dimensions of the router box . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.6 Mounting recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.7 Removing from the DIN rail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.8 Description of the front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.8.1 Status indication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.8.2 Power connector PWR . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.8.3 Antenna connector ANT1, ANT2, DIV1, DIV2, GPS and WiFi . . . . . . 17
5.8.4 SIM card reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.8.5 Ethernet Port ETH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.8.6 PORT1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.8.7 PORT2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.8.8 USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.8.9 I/O Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.8.10 Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6 First Use 24
6.1 Connecting the router before first use . . . . . . . . . . . . . . . . . . . . . . . 24
6.2 Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.3 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.3.1 Configuration over web browser . . . . . . . . . . . . . . . . . . . . . . . 25
6.3.2 Configuration over Telnet . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7 Technical Parameters 27
7.1 Basic parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.2 Standards and regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
ii
23-05-16
www.lucom.de info@lucom.de
Page 4
CONTENTS
7.3 Technical parameters of module . . . . . . . . . . . . . . . . . . . . . . . . . . 28
7.3.1 LTE module (LL, LH and LC versions) . . . . . . . . . . . . . . . . . . . 28
7.3.2 HSPA+ module (LH, HH and HC versions) . . . . . . . . . . . . . . . . . 28
7.3.3 CDMA module (LC and HC versions) . . . . . . . . . . . . . . . . . . . . 29
7.4 Technical parameters of GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7.5 Technical parameters of processor . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.6 Technical parameters of I/O port . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.7 Technical parameters of expansion port . . . . . . . . . . . . . . . . . . . . . . 31
8 Recommended Literature 32
9 Troubleshooting 33
9.1 FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
10 Customers Support 35
iii
23-05-16
www.lucom.de info@lucom.de
Page 5
LIST OF FIGURES
List of Figures
1 Contents of package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Front panels of Bivias v2 SL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Example of the router label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4 Basic dimensions of the router box . . . . . . . . . . . . . . . . . . . . . . . . . 10

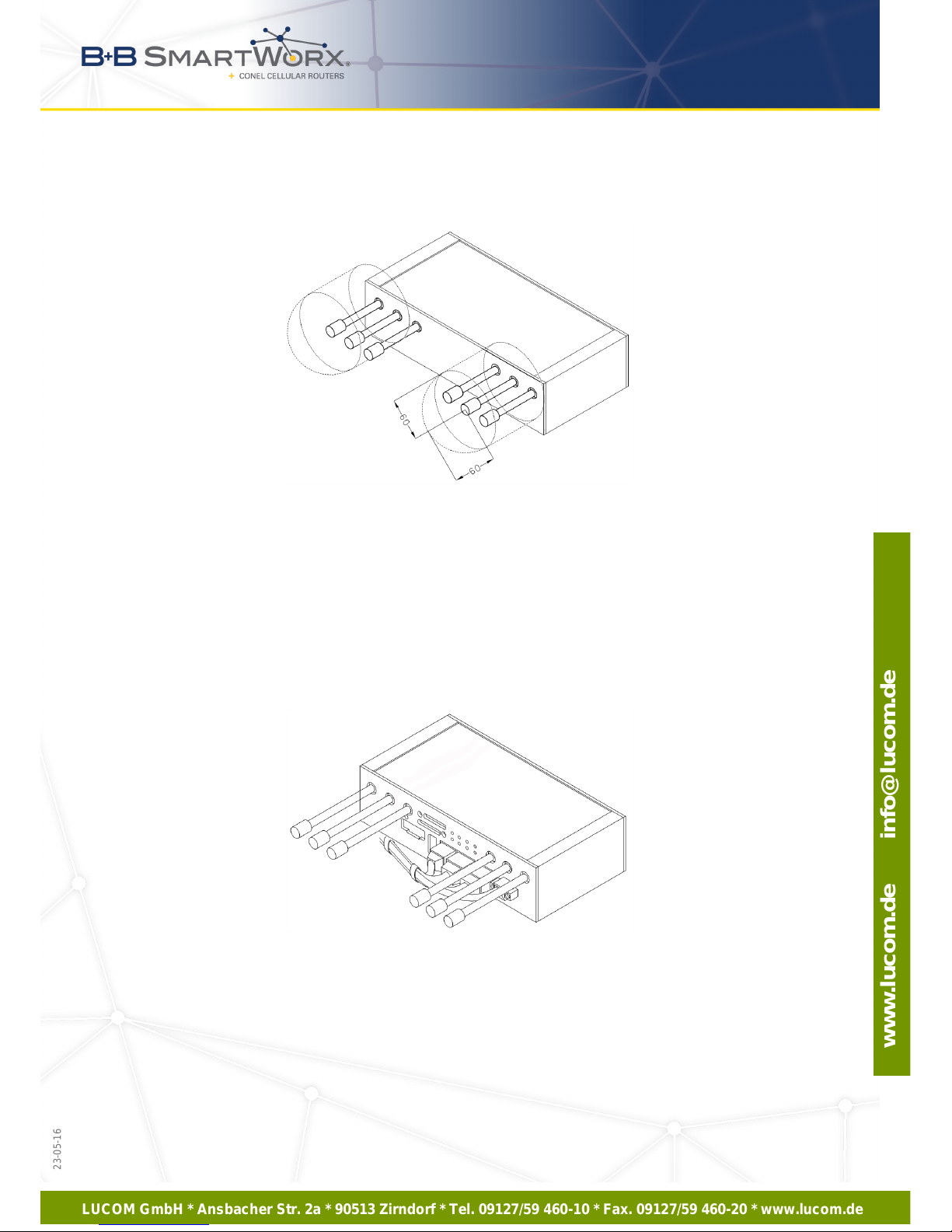

5 Space around antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6 Cable routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7 Space in front of connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

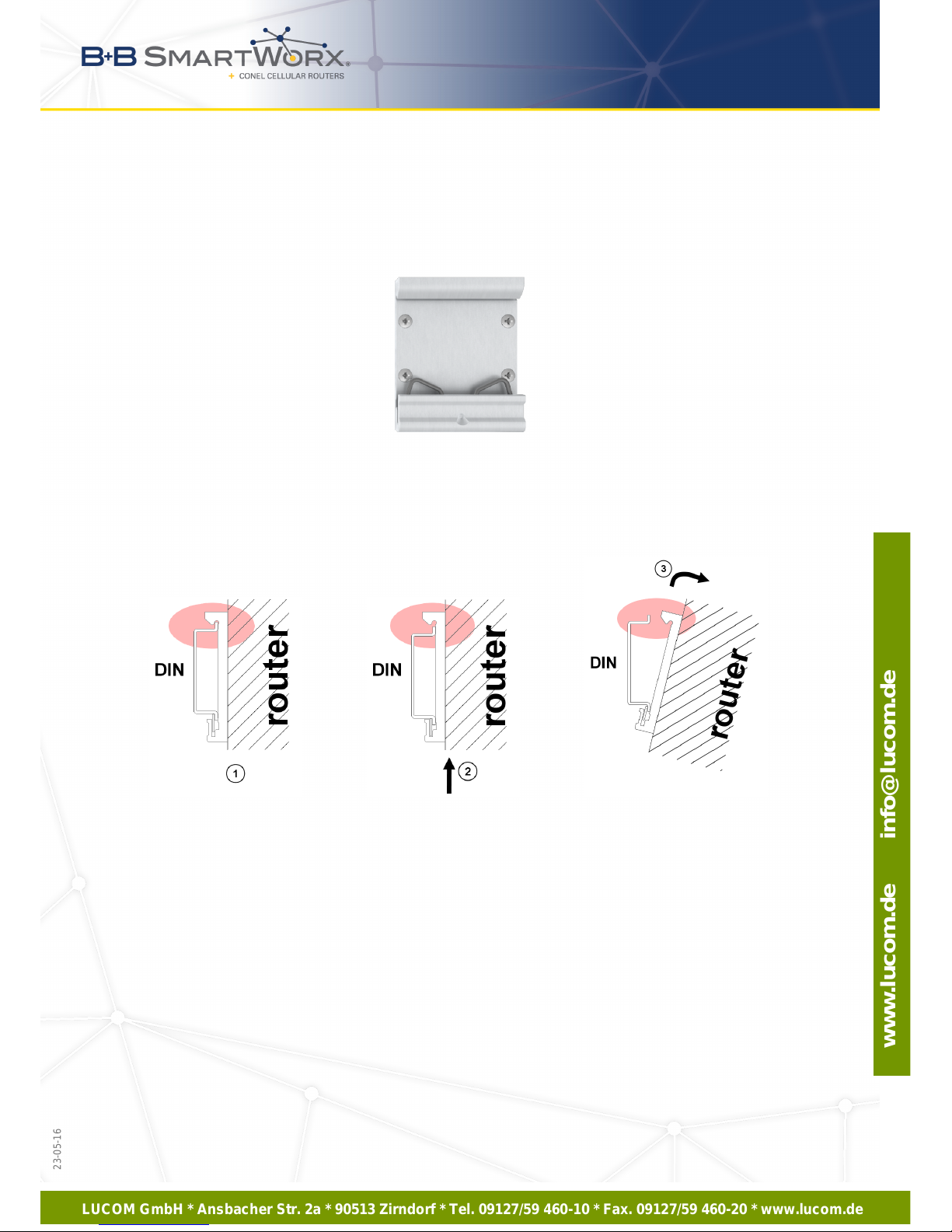

8 Default position of DIN holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

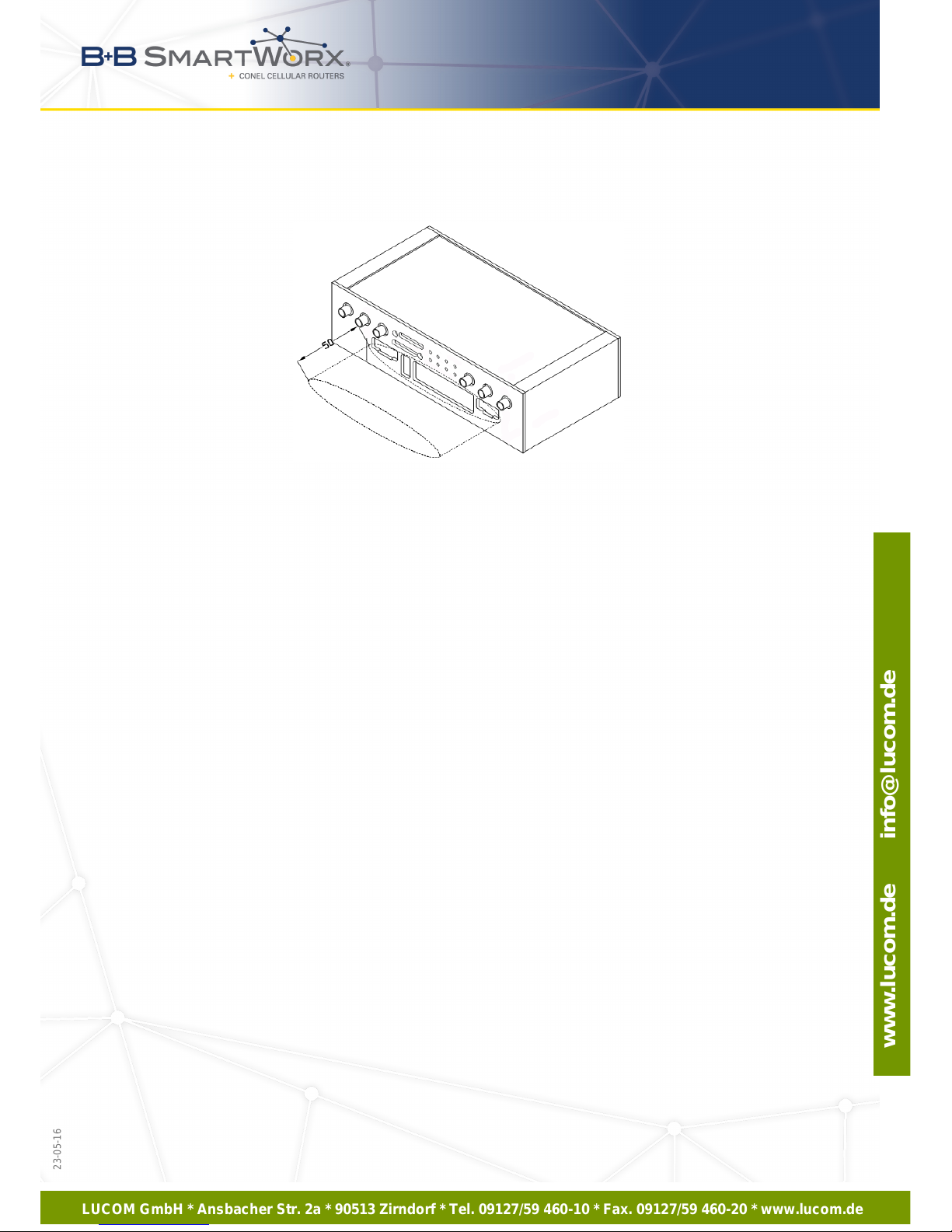

9 Removing from the DIN rail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

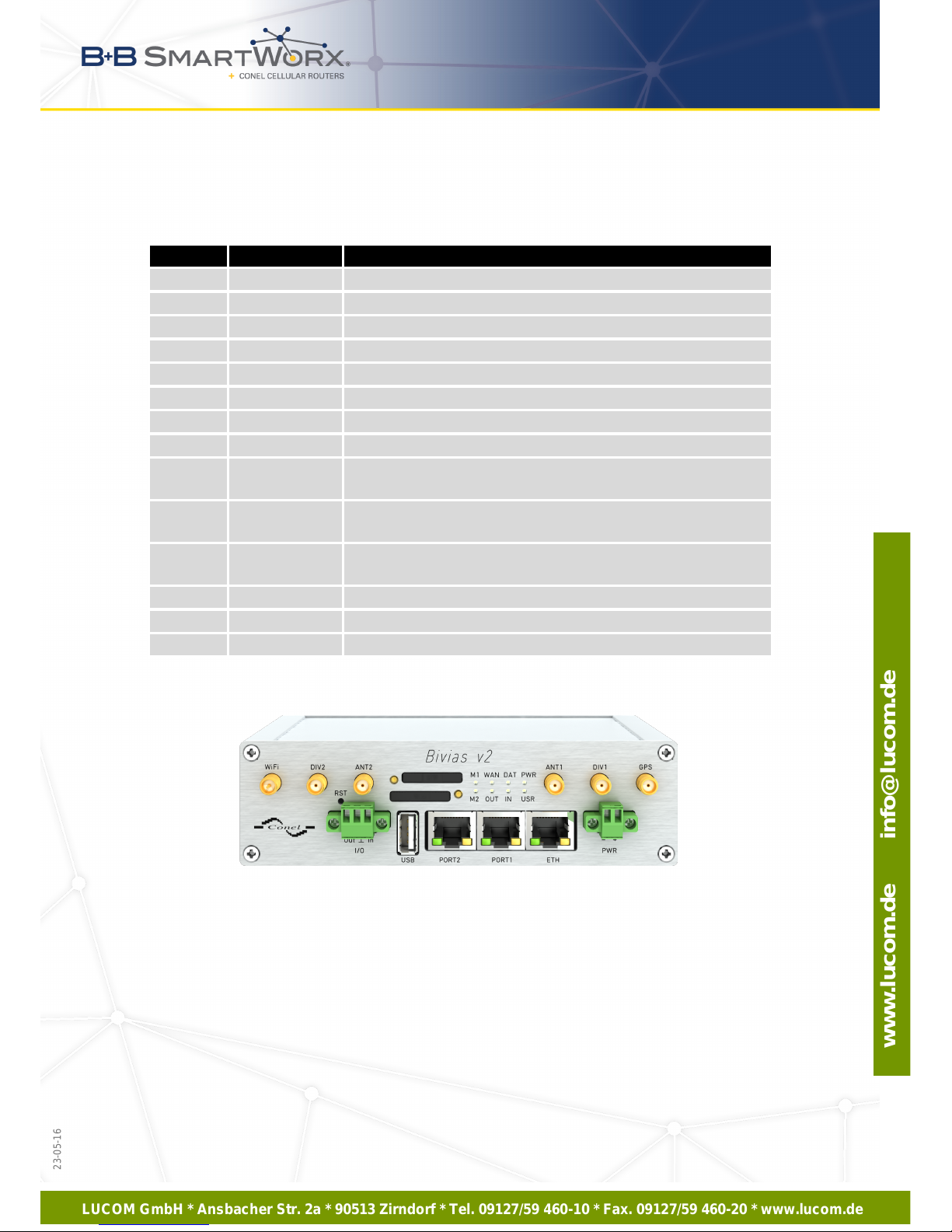

10 Front panel Bivias v2 SL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

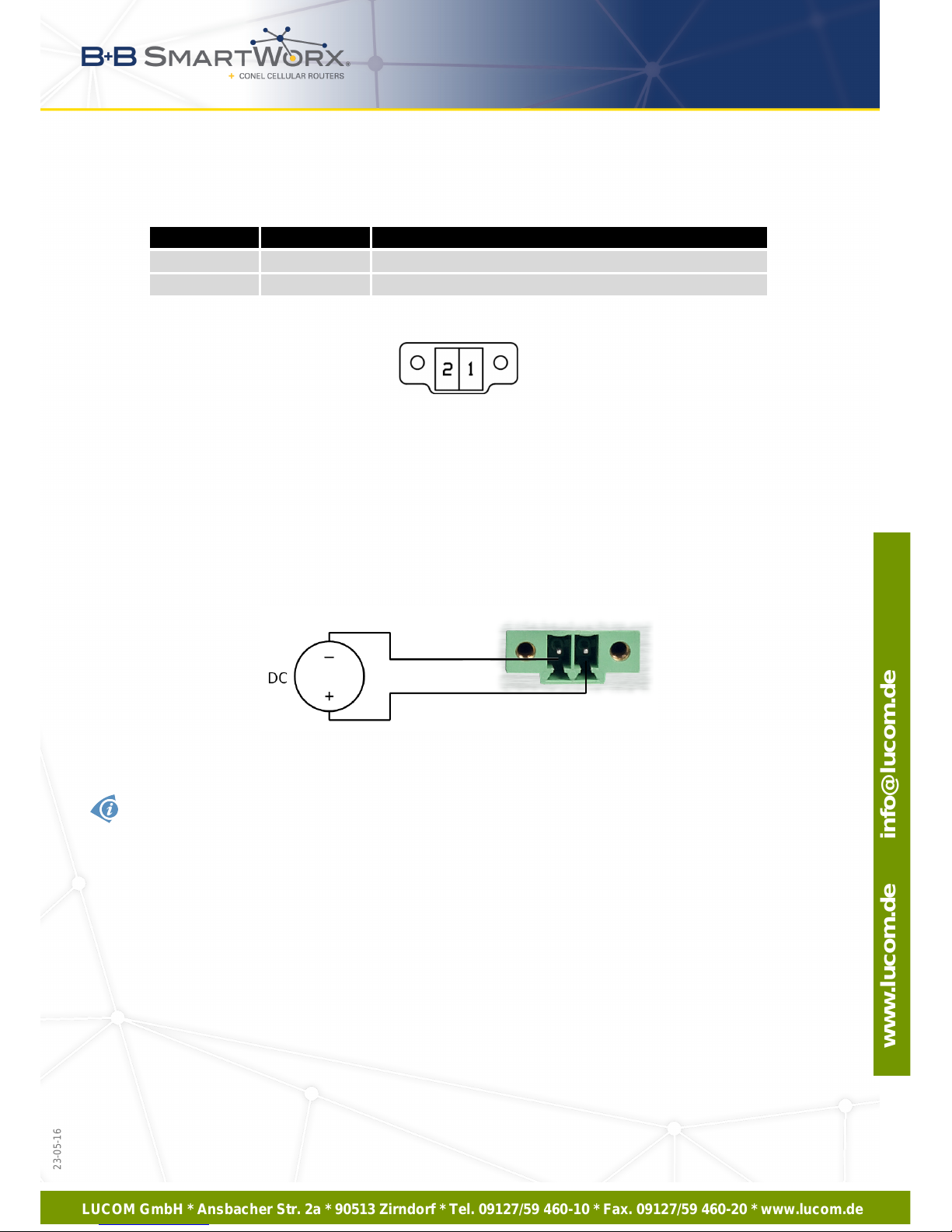

11 Power connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
12 Connection of power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
13 Connecting of the antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
14 Ejected SIM holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

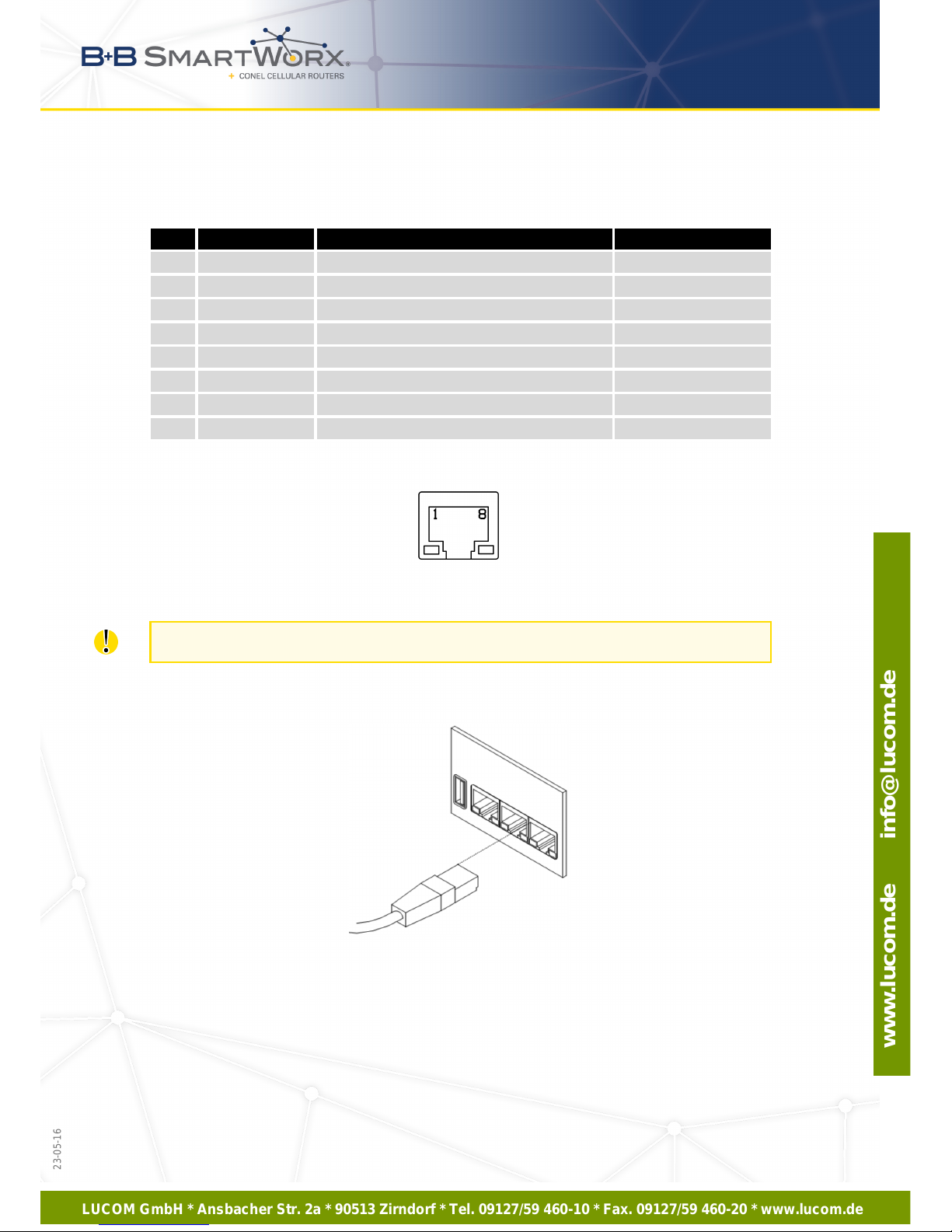

15 Ethernet connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
16 Connection of Ethernet cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
17 PORT1 cable connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
18 PORT2 cable connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

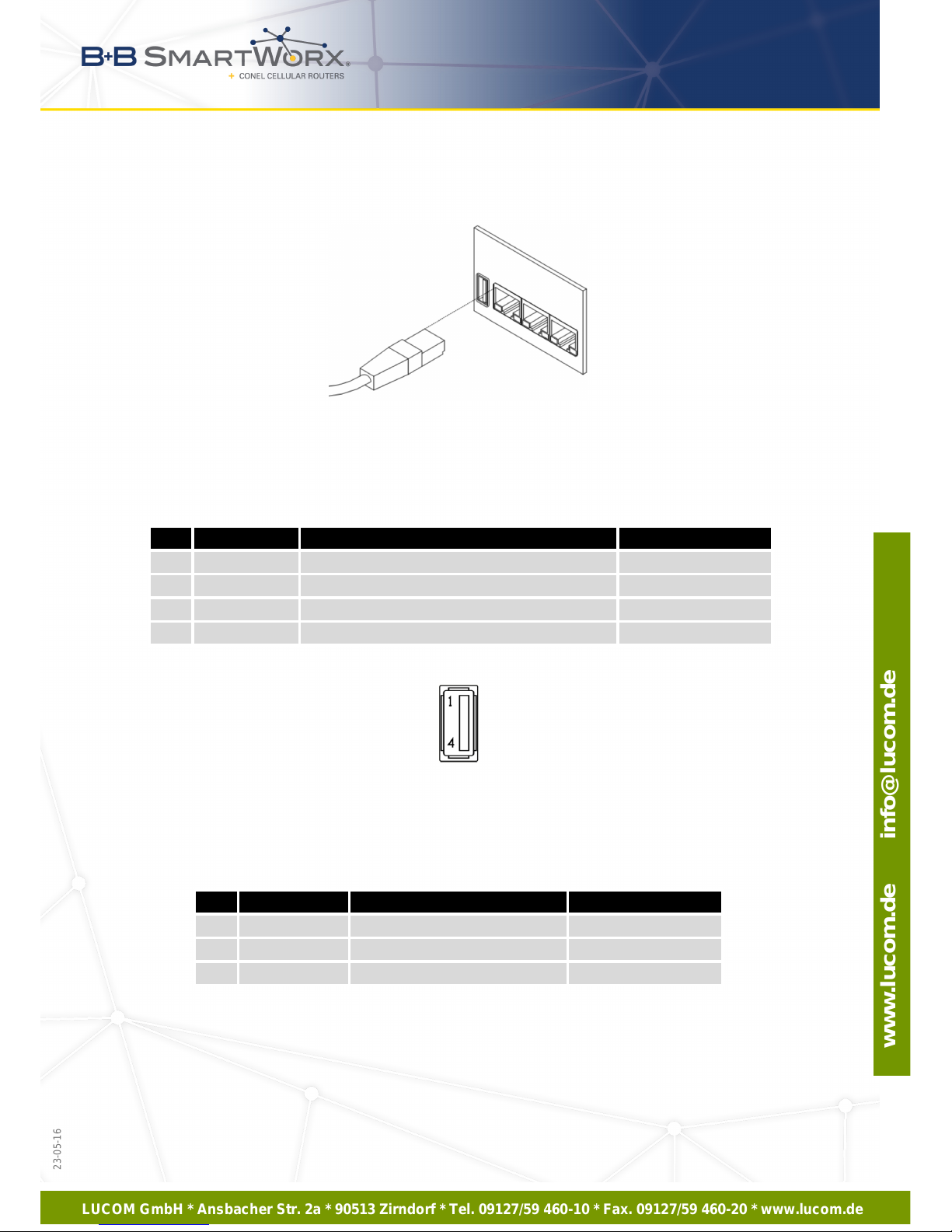

19 USB connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

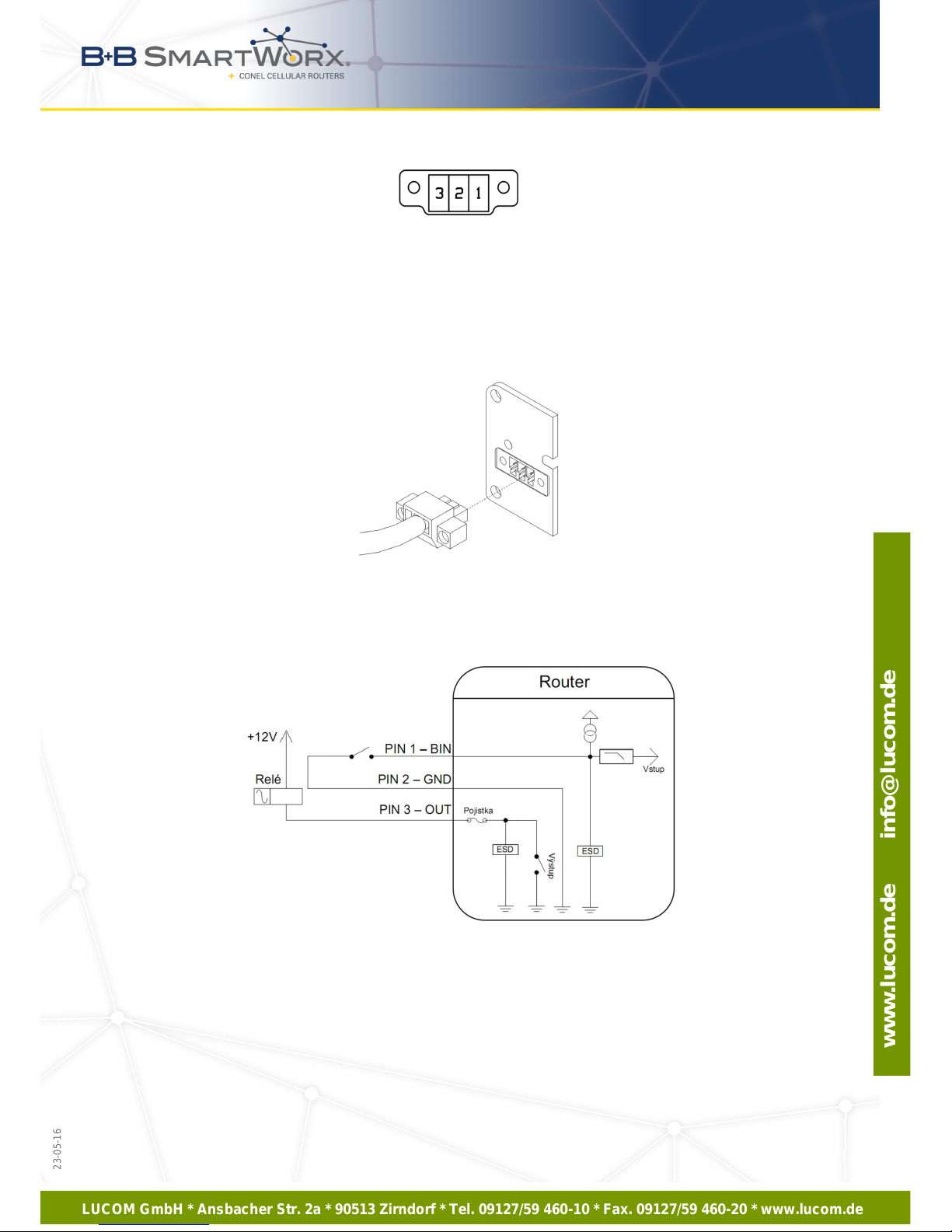

20 I/O connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
21 Connection of I/O cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
22 Connection of input and output to the router . . . . . . . . . . . . . . . . . . . . 22

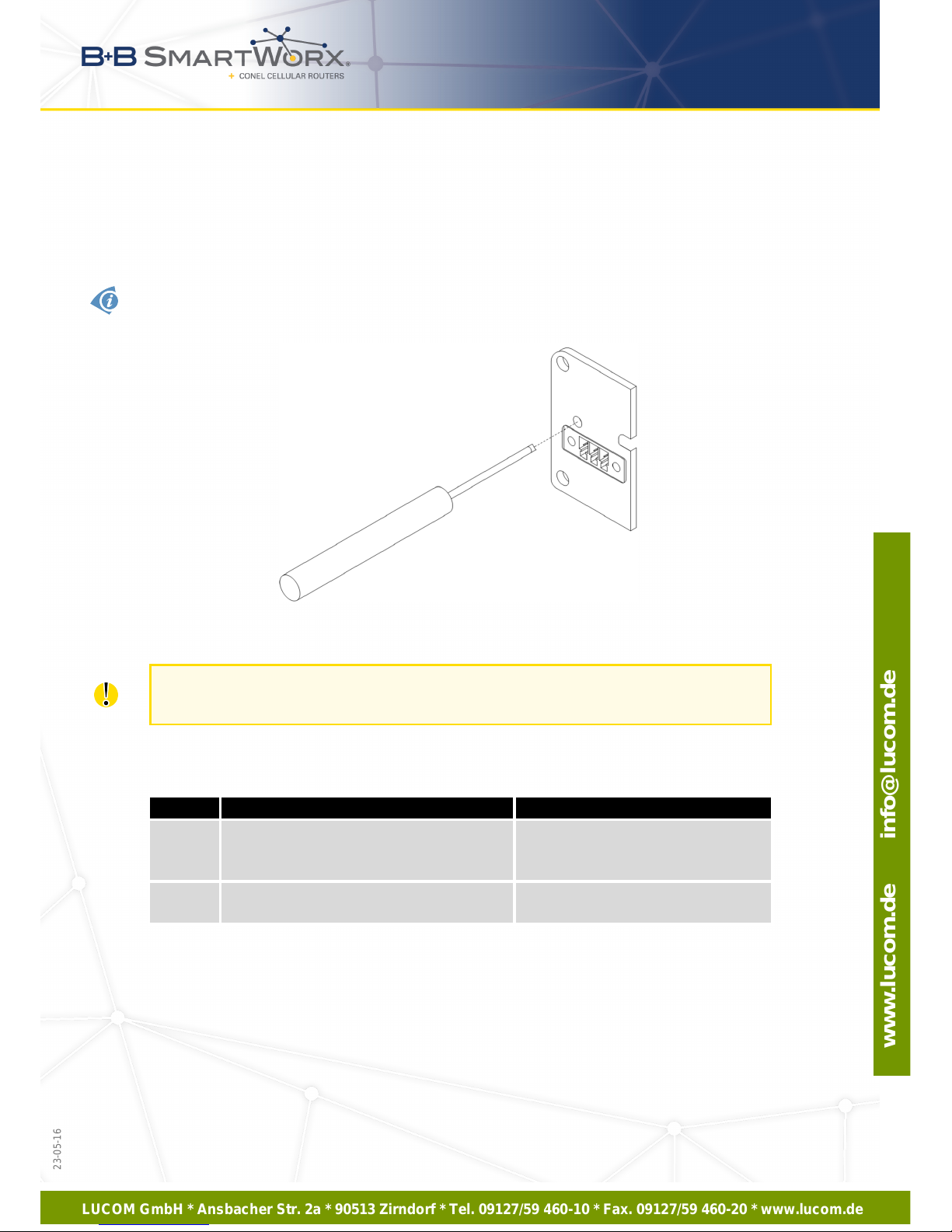

23 Router reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

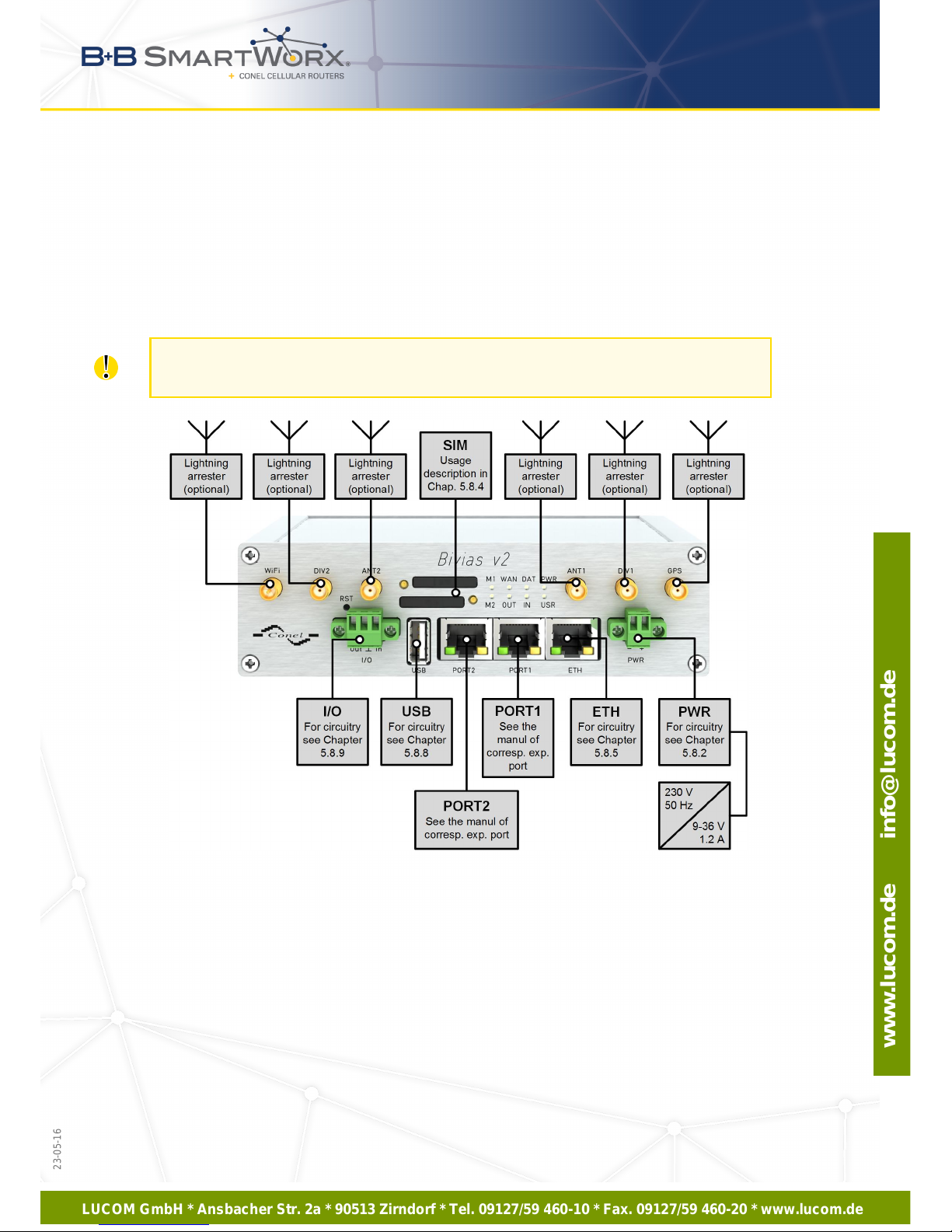

24 Router connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

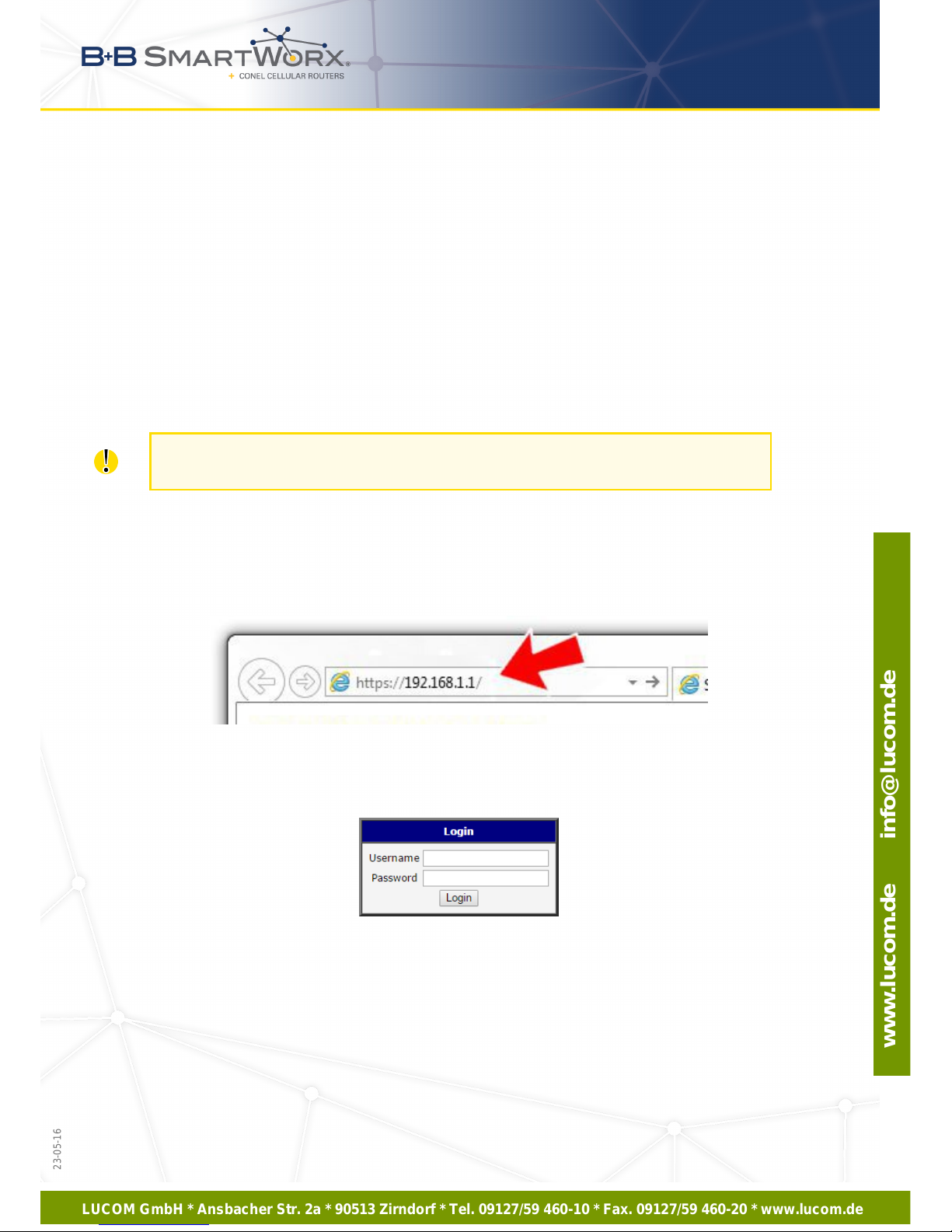

25 Entering the IP address of the router . . . . . . . . . . . . . . . . . . . . . . . . 25
26 Entering login information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

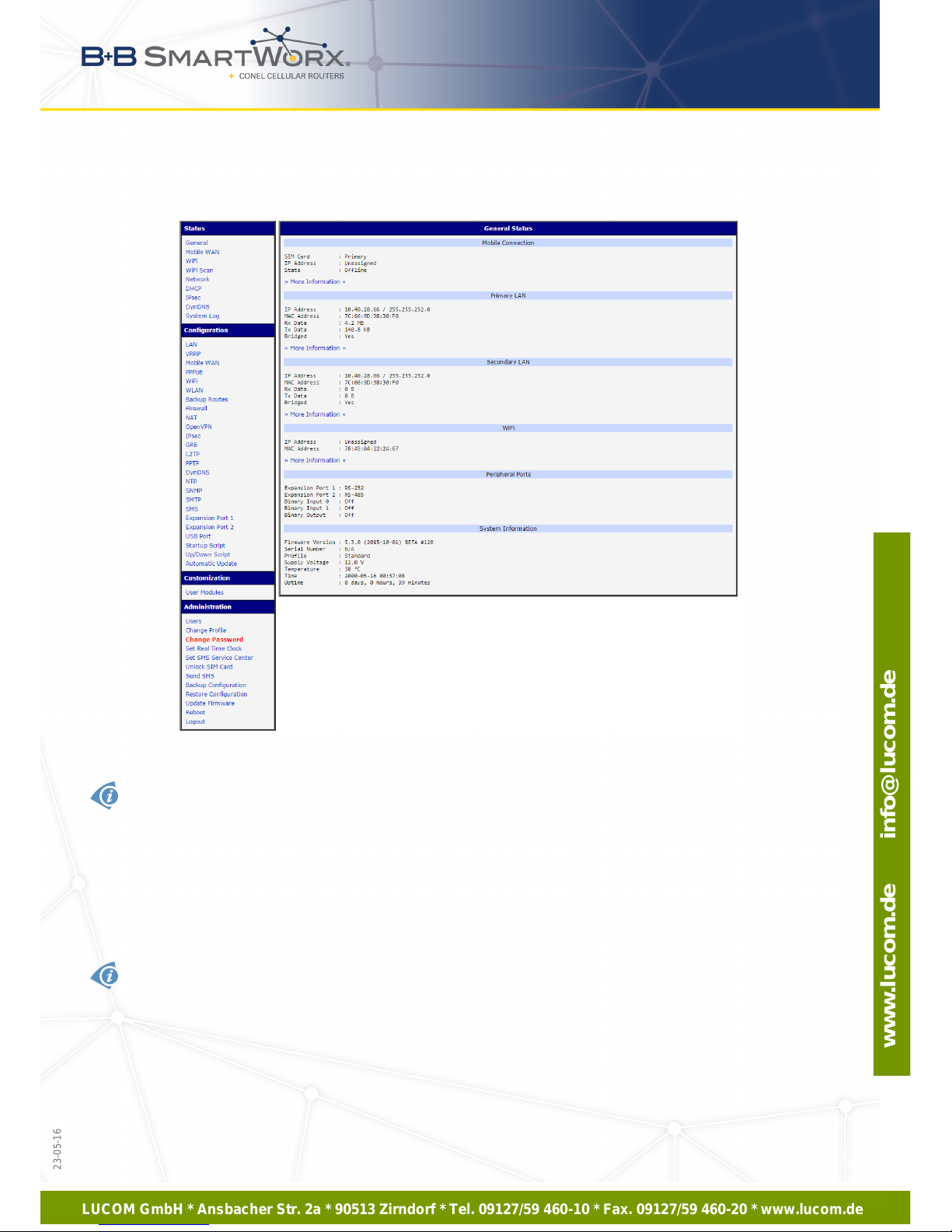

27 Router web interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
iv
23-05-16
www.lucom.de info@lucom.de
Page 6
LIST OF TABLES
List of Tables
1 Router versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Delivery identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Version of firmware module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4 Ordering codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5 Front panel description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6 Status indication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7 Connection of power connector . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
8 Connection of Ethernet connector . . . . . . . . . . . . . . . . . . . . . . . . . . 19
9 Connection of USB connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
10 Connection of I/O port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
11 Description of reset and restart router . . . . . . . . . . . . . . . . . . . . . . . 23
12 Basic parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
13 Standards and regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
14 LTE module (LL, LH and LC versions) . . . . . . . . . . . . . . . . . . . . . . . 28
15 HSPA+ module (LH, HH and HC versions) . . . . . . . . . . . . . . . . . . . . . 29
16 CDMA module (LC and HC versions) . . . . . . . . . . . . . . . . . . . . . . . . 29
17 Technical parameters of GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
18 Technical parameters of processor . . . . . . . . . . . . . . . . . . . . . . . . . 31
19 Technical parameters of I/O port . . . . . . . . . . . . . . . . . . . . . . . . . . 31
1
23-05-16
www.lucom.de info@lucom.de
Page 7
1. SAFETY INSTRUCTION
1. Safety Instruction
Please, observe the following instructions:
• The router must be used in compliance with all applicable international and national laws and in compliance with any special restrictions regulating the utilization of the router in prescribed applications and environments.
• To prevent possible injury and damage to appliances and to ensure compliance with all relevant provisions, use only the original accessories. Unauthorized modifications or the use of unapproved accessories may result in damage to the router and a breach of applicable regulations. Unauthorized modifications or use of unapproved accessories may void the warranty.
• The router can not be opened.
• Turn off the router and disconnect it from power supply before handling of the SIM card.
• Caution! The SIM card could be swallowed by small children.
• Input voltage must not exceed 36 V DC max.
• Do not expose the router to extreme ambient conditions. Protect the router against dust,
moisture and high temperature.
• The router should not be used in locations where flammable and explosive materials are present, including gas stations, chemical plants, or locations in which explosives are used. We remind the users of the duty to observe the restrictions concerning the utilization of radio devices at such places.
• Switch off the router when traveling by plane. Utilization of the router in a plane may endanger the operation of the plane or interfere with the mobile telephone network, and may be unlawful. Failure to obser ve these instructions may result in the suspension or cancellation of telephone services for the respective client, or, it may result in legal sanctions; it may also result in both eventualities.
• When using the router in the close proximity of personal medical devices, such as cardiac pacemakers or hearing aids, you must proceed with heightened caution.
• The router may cause interference when in the close proximity of TV sets, radio receivers or personal computers.
• It is recommended that you should create an appropriate copy or backup of all the im­portant settings that are stored in the memory of the device.
2
23-05-16
www.lucom.de info@lucom.de
Page 8
2. WEEE DIRECTIVE
2. Product Disposal Instructions
The WEEE (Waste Electrical and Electronic Equipment: 2002/96/EC) directive has been introduced to ensure that electrical/electronic products are recycled using the best available recovery techniques to minimize the impact on the environment. This product contains high quality materials and components which can be recycled. At the end of it’s life this product MUST NOT be mixed with other commercial waste for disposal. Check the terms and condi­tions of your supplier for disposal information.
3
23-05-16
www.lucom.de info@lucom.de
Page 9
3. ROUTER DESCRIPTION
3. Router Description
Industrial router Bivias v2 is equipped with two independent communication modules for wireless connectivity of various equipments and devices via Ethernet interface 10/100 to the internet or intranet. Each module can and should use the infrastructure of another cellular service provider. This router allows customer to combine modules for different mobile tech­nologies – LTE or HSPA+ technology on the first module position and LTE, HSPA+ or CDMA technology on the second position. Due to high download and upload speed is this device an ideal wireless solution for traffic and security camera systems, individual computers, LAN networks, automatic teller machines (ATM) and other self-service terminals and machines.
As a standard, Bivias v2 router is equipped with one Ethernet 10/100, one USB Host port, one binary Input/output (I/O) port and two SIM cards. The wide range of interface options of this router further expands an expansion ports designated as PORT1 and PORT2 which are mounted on the customer’s request. For PORT1 are available: Ethernet port 10/100, serial interface ports RS232, RS485, RS422, MBUS or inputs/outputs (I/O – CNT). PORT2 may be equipped with serial interfaces RS232, RS485, RS422, MBUS, wireless interfaces WIFI or WMBUS, SDH expansion port or inputs/outputs (I/O – CNT). Both of ports can be fitted with internal switch (exp. port SWITCH). This wireless router is supplied in a metal casing.
Configuration is done via web interface protected by password. The router supports cre­ation of VPN tunnels using technologies IPsec, OpenVPN, L2TP to ensure safe communica­tion. Web interface provides detail statistics about the router activities, signal strength, detailed log, etc. Cellular router supports functions: DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, control by SMS and many other functions.
Other diagnostic functions ensuring continuous communication include automatic inspec­tion of PPP connection offering an automatic restart feature – in case of connection losses, or hardware watchdog which monitors the status of the router. With the help of a special window (start up script window) you may insert Linux scripts for various actions. For some applications the key option to create several different configurations for one wireless router, the so-called profiles (maximum of 4), and the option to switch between them (for example via SMS, binary input status, etc.) is essential. Cellular routers Bivias v2 may automatically upgrade config­uration and firmware from server. This allows mass reconfiguration of many routers in one time.
The router also supports additional software like R-SeeNet for permanent traffic monitoring of routers or communication VPN server Digicluster.
Examples of possible applications
• mobile office
• fleet management
• security system
• telematic
• telemetric
• remote monitoring
• vending and dispatcher machines
4
23-05-16
www.lucom.de info@lucom.de
Page 10
4. CONTENTS OF PACKAGE
4. Contents of Package
Basic delivered set of router includes:
• router,
• power supply,
• crossover UTP cable,
• up to three external antennas,
• clip for the DIN rail,
• paper start guide.

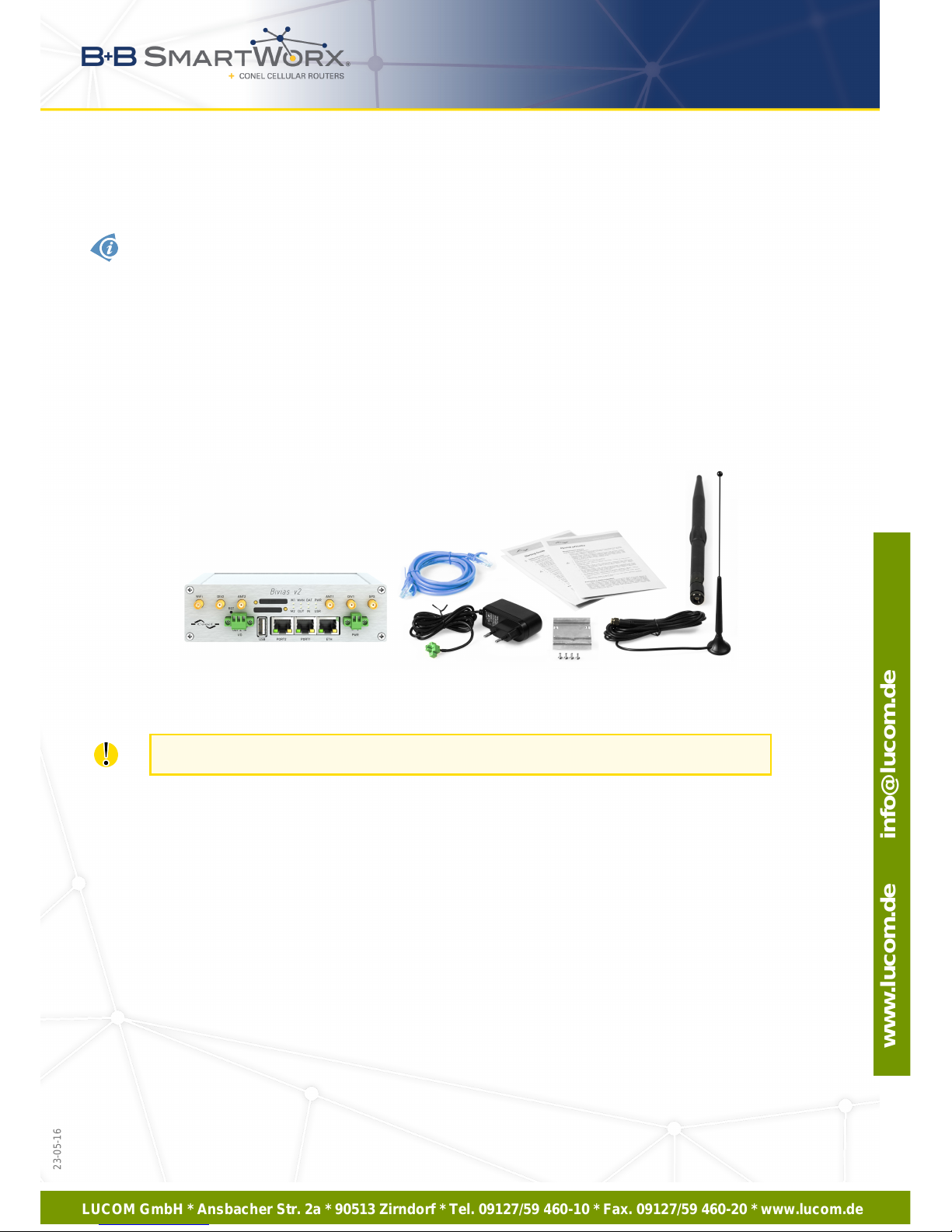

Figure 1: Contents of package
Temperature range for power supply is reduced to 0◦C to +40◦C!
As optional accessories can also be supplied the following expansion ports (up to two boards):
• RS232, RS485/422, MBUS, ETHERNET, CNT, SWITCH, WIFI, WMBUS or SDH.
• Separation columns for mounting expansion boards are included.
5
23-05-16
www.lucom.de info@lucom.de
Page 11
5. ROUTER DESIGN
5. Router Design
5.1 Router versions
Bivias v2 router is supplied in the following versions (see table below). All versions are available in the metal box.
Router versions Router Box
SIM1
SIM2
I/O
USB
PORT1
PORT2
ETH
Bivias v2 LL SL Metal 1 x 1 x 1 x 1 x 1 x 1 x 1 x
Bivias v2 LH SL Metal 1 x 1 x 1 x 1 x 1 x 1 x 1 x
Bivias v2 LC SL Metal 1 x 1 x 1 x 1 x 1 x 1 x 1 x
Bivias v2 HH SL Metal 1 x 1 x 1 x 1 x 1 x 1 x 1 x
Bivias v2 HC SL Metal 1 x 1 x 1 x 1 x 1 x 1 x 1 x
Table 1: Router versions

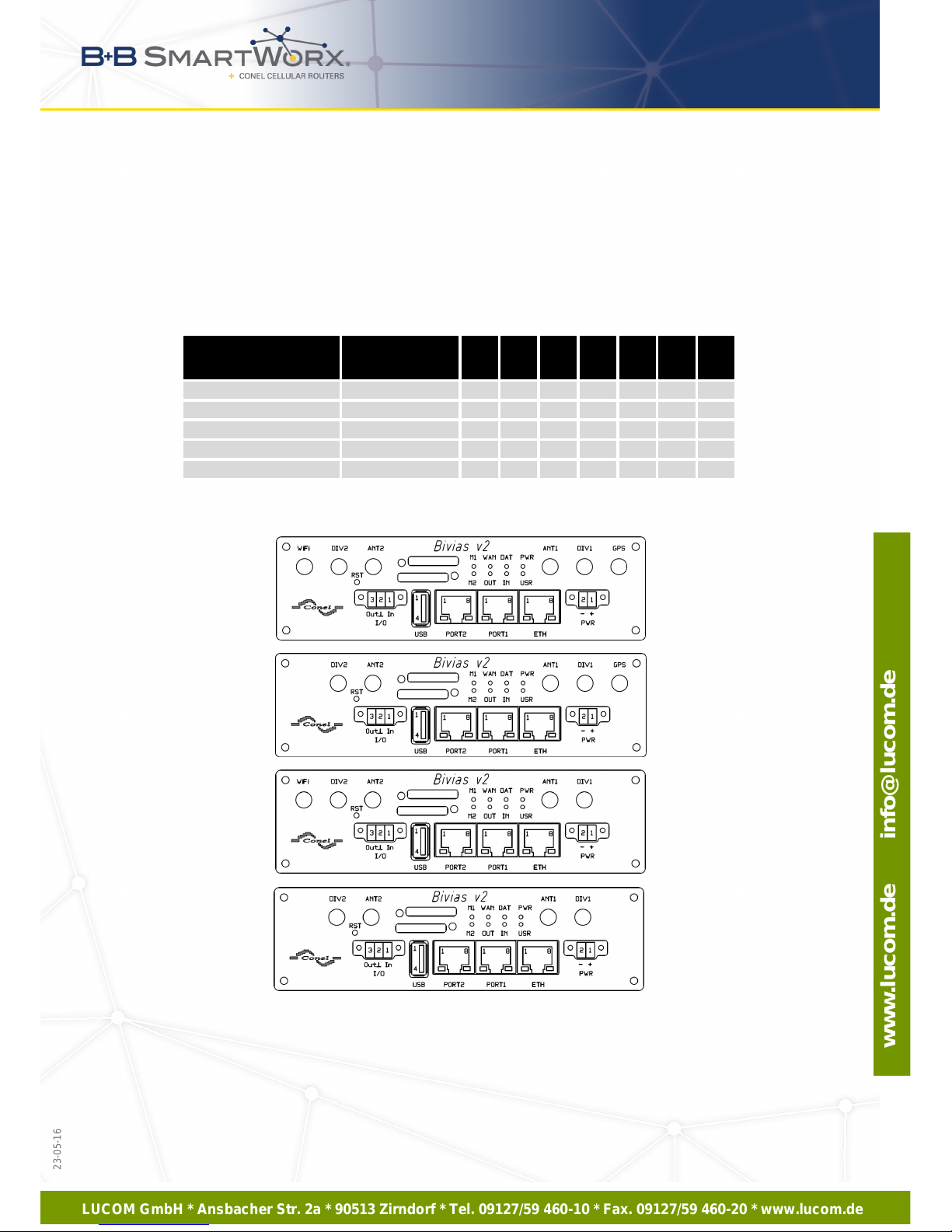

Figure 2: Front panels of Bivias v2 SL
6
23-05-16
www.lucom.de info@lucom.de
Page 12
5. ROUTER DESIGN
5.2 Delivery identification
Trade name Type name Other
Bivias v2 LL SL Bivias-v2 LTE & LTE version in the metal box
Bivias v2 LH SL Bivias-v2 LTE & HSPA+ version in the metal box
Bivias v2 LC SL Bivias-v2 LTE & CDMA version in the metal box
Bivias v2 HH SL Bivias-v2 HSPA+ & HSPA+ version in the metal box
Bivias v2 HC SL Bivias-v2 HSPA+ & CDMA version in the metal box
Table 2: Delivery identification

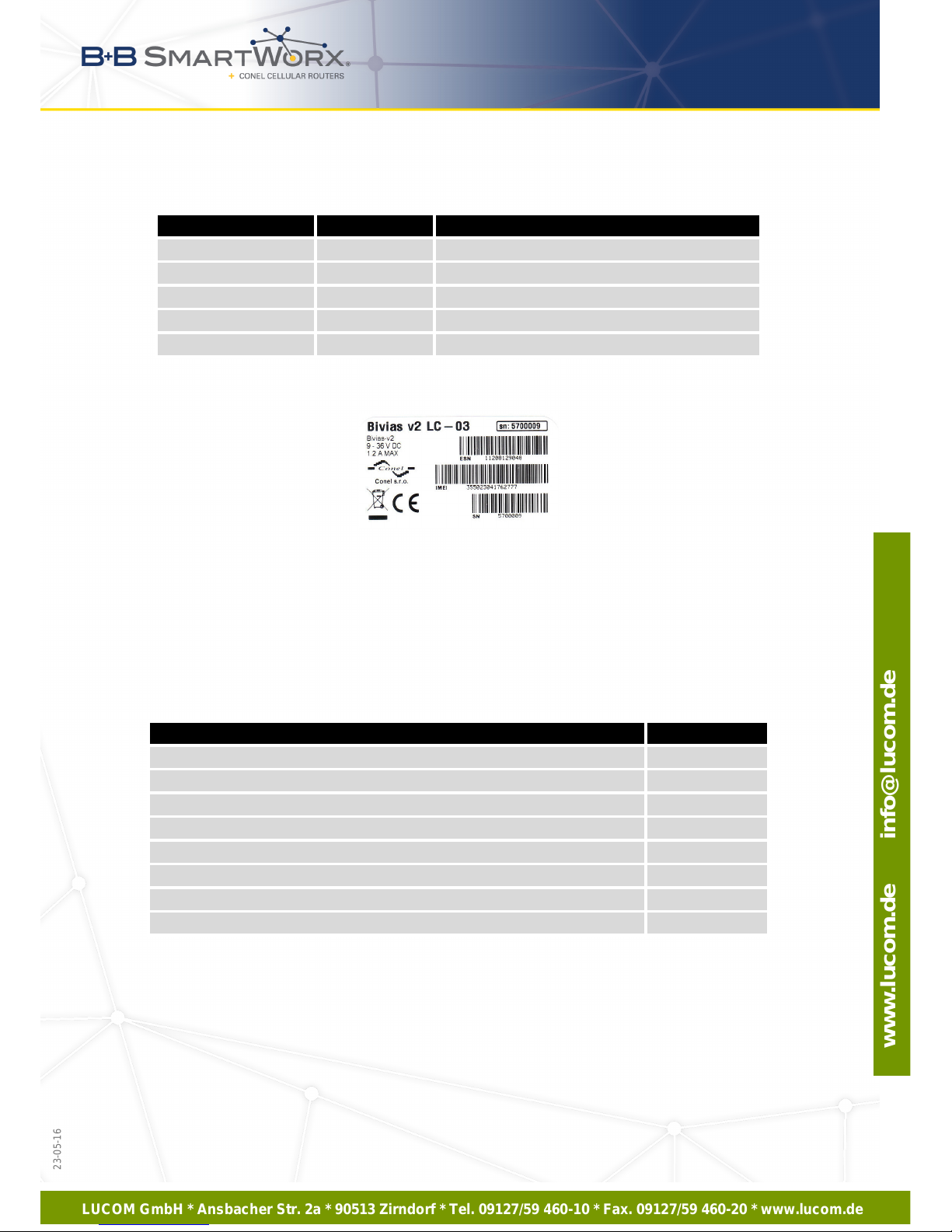

Figure 3: Example of the router label
5.3 Version of module firmware
In the case of specifications with CDMA module applies that each operator may have a different CDMA network, so it is necessary to generate a special firmware for each operator. Version of the firmware is indicated by two-digit code in the name of the product.
Operator Code
Poland Orange 01
Poland Plus 02
Czech Republic O2 03
Germany Inet 04
Sweden Net.1 05
Norway Net.1 06
Russia Skylink 07
Netherlands Alliander 15
Table 3: Version of firmware module
Example of trade name: Bivias v2 HC-01 SL
7
23-05-16
www.lucom.de info@lucom.de
Page 13
5. ROUTER DESIGN
5.4 Order codes
For all specifications with CDMA module, order codes are given for the Polish operator Orange. Another operator can be selected by changing two digits according to the table 3.
Expansion port Equipped port Ordering code
LTE/LTE without exp. port Bivias v2 LL SL set
LTE/LTE with Ethernet port PORT1 Bivias v2 LL ETH SL set
LTE/LTE with RS232 port PORT1 or PORT2 Bivias v2 LL RS232 SL set
LTE/LTE with RS458 port PORT1 or PORT2 Bivias v2 LL RS458 SL set
LTE/LTE with MBUS port PORT1 or PORT2 Bivias v2 LL MBUS SL set
LTE/LTE with CNT port PORT1 Bivias v2 LL CNT SL set
LTE/LTE with SWITCH port PORT1+PORT2 Bivias v2 LL SWITCH SL set
LTE/LTE with WIFI port PORT2 Bivias v2 LL WIFI SL set
LTE/LTE with WMBUS port PORT2 Bivias v2 LL WMBUS SL set
LTE/LTE with SDH port PORT2 Bivias v2 LL SDH SL set
LTE/HSPA+ without exp. port Bivias v2 LH SL set
LTE/HSPA+ with Ethernet port PORT1 Bivias v2 LH ETH SL set
LTE/HSPA+ with RS232 port PORT1 or PORT2 Bivias v2 LH RS232 SL set
LTE/HSPA+ with RS458 port PORT1 or PORT2 Bivias v2 LH RS458 SL set
LTE/HSPA+ with MBUS port PORT1 or PORT2 Bivias v2 LH MBUS SL set
LTE/HSPA+ with CNT port PORT1 Bivias v2 LH CNT SL set
LTE/HSPA+ with SWITCH port PORT1+PORT2 Bivias v2 LH SWITCH SL set
LTE/HSPA+ with WIFI port PORT2 Bivias v2 LH WIFI SL set
LTE/HSPA+ with WMBUS port PORT2 Bivias v2 LH WMBUS SL set
LTE/HSPA+ with SDH port PORT2 Bivias v2 LH SDH SL set
LTE/CDMA without exp. port Bivias v2 LC-01 SL set
LTE/CDMA with Ethernet port PORT1 Bivias v2 LC-01 ETH SL set
LTE/CDMA with RS232 port PORT1 or PORT2 Bivias v2 LC-01 RS232 SL set
LTE/CDMA with RS458 port PORT1 or PORT2 Bivias v2 LC-01 RS458 SL set
LTE/CDMA with MBUS port PORT1 or PORT2 Bivias v2 LC-01 MBUS SL set
LTE/CDMA with CNT port PORT1 Bivias v2 LC-01 CNT SL set
LTE/CDMA with SWITCH port PORT1+PORT2 Bivias v2 LC-01 SWITCH SL set
LTE/CDMA with WIFI port PORT2 Bivias v2 LC-01 WIFI SL set
LTE/CDMA with WMBUS port PORT2 Bivias v2 LC-01 WMBUS SL set
Continued on next page
8
23-05-16
www.lucom.de info@lucom.de
Page 14
5. ROUTER DESIGN
Continued from previous page
Expansion port Equipped port Ordering code
LTE/CDMA with SDH port PORT2 Bivias v2 LC-01 SDH SL set
HSPA+/HSPA+ without exp. port Bivias v2 HH SL set
HSPA+/HSPA+ with Ethernet port PORT1 Bivias v2 HH ETH SL set
HSPA+/HSPA+ with RS232 port PORT1 or PORT2 Bivias v2 HH RS232 SL set
HSPA+/HSPA+ with RS458 port PORT1 or PORT2 Bivias v2 HH RS458 SL set
HSPA+/HSPA+ with MBUS port PORT1 or PORT2 Bivias v2 HH MBUS SL set
HSPA+/HSPA+ with CNT port PORT1 Bivias v2 HH CNT SL set
HSPA+/HSPA+ with SWITCH port PORT1+PORT2 Bivias v2 HH SWITCH SL set
HSPA+/HSPA+ with WIFI port PORT2 Bivias v2 HH WIFI SL set
HSPA+/HSPA+ with WMBUS port PORT2 Bivias v2 HH WMBUS SL set
HSPA+/HSPA+ with SDH port PORT2 Bivias v2 HH SDH SL set
HSPA+/CDMA without exp. port Bivias v2 HC-01 SL set
HSPA+/CDMA with Ethernet port PORT1 Bivias v2 HC-01 ETH SL set
HSPA+/CDMA with RS232 port PORT1 or PORT2 Bivias v2 HC-01 RS232 SL set
HSPA+/CDMA with RS458 port PORT1 or PORT2 Bivias v2 HC-01 RS458 SL set
HSPA+/CDMA with MBUS port PORT1 or PORT2 Bivias v2 HC-01 MBUS SL set
HSPA+/CDMA with CNT port PORT1 Bivias v2 HC-01 CNT SL set
HSPA+/CDMA with SWITCH port PORT1+PORT2 Bivias v2 HC-01 SWITCH SL set
HSPA+/CDMA with WIFI port PORT2 Bivias v2 HC-01 WIFI SL set
HSPA+/CDMA with WMBUS port PORT2 Bivias v2 HC-01 WMBUS SL set
HSPA+/CDMA with SDH port PORT2 Bivias v2 HC-01 SDH SL set
Table 4: Ordering codes
Code for the second expansion port must be written after the first port. See example below:
• Version with two LTE modules, Ethernet board and WIFI port: Bivias v2 LL ETH WIFI SL set.
• Version with HSPA+ module, CDMA module, Ethernet board and WIFI port: Bivias v2 HC-01 ETH WIFI SL set.
9
23-05-16
www.lucom.de info@lucom.de
Page 15
5. ROUTER DESIGN
5.5 Basic dimensions of the router box
Figure 4: Basic dimensions of the router box
5.6 Mounting recommendations
• possibility to be put on a work surface,
• DIN rail EN 60715 with included clip CKD2.
For the most of applications with a built-in router in a switch board it is possible to recognize
two kinds of environments:
• no public and industry environment of low voltage with high interference,
• public environment of low voltage without high interference.
For both of these environments it is possible to mount router to a switch board, the following there is no need to have examination immunity or issues in connection with EMC according to EN 60439-1 ed.2:00 + A1:04.
Compliance of EN 60439-1 ed.2:00 + A1:04 specification it is necessary to observe next assembly of the router to the switch – board:
• For whip antennas we recommend to observe a distance of 6 cm from cables and metal surfaces on every side due to the elimination of interference. While using an external antenna except for the switch-board it is necessary to fit a lightening conductor.
10
23-05-16
www.lucom.de info@lucom.de
Page 16
5. ROUTER DESIGN
• Before mounting a router on sheet-steel we recommend using a "cable" antenna.
Figure 5: Space around antennas
• For every cables we recommend to bind the bunch, we recommend for this use:
– Length of the bunch (combination of power supply and data cables) can be maxi-
mum 1.5 m. If the length of data cables exceeds 1.5 m or in the event of, the cable leads towards the switch – board. We recommend installing over – voltage protec­tors (surge suppressors).
– With data cables they mustn’t carry cables with reticular tension ∼ 230 V/50 Hz.
Figure 6: Cable routing
11
23-05-16
www.lucom.de info@lucom.de
Page 17
5. ROUTER DESIGN
• Sufficient space must be left in front of individual connectors for handling of cables,
Figure 7: Space in front of connectors
• For correct function of the router we recommend to use in the switch-board earth-bonding distribution frame for grounding of power supply of router, data cables and antenna.
12
23-05-16
www.lucom.de info@lucom.de
Page 18
5. ROUTER DESIGN
5.7 Removing from the DIN rail
DIN holder is suitable for DIN rail according to EN 60715 standard only. Default position of CKD2 holder, which is used for mounting the router on a DIN rail, is shown in the following figure:
Figure 8: Default position of DIN holder
For removing from the DIN rail it is necessary to lightly push upward the router so that the top part of the CKD2 holder hitched to the DIN rail get out of this rail and then fold out the top part of the router away from the DIN rail.
Figure 9: Removing from the DIN rail
13
23-05-16
www.lucom.de info@lucom.de
Page 19
5. ROUTER DESIGN
5.8 Description of the front panel
On the front panel is the following:
Caption Connector Description
PWR 2-pin Connector for the power supply.
ETH RJ45 Connector for connection into the local computer network.
PORT1 RJ45 Connector for expansion port ETHERNET or SWITCH.
PORT2 RJ45 Connector for expansion port WIFI or SWITCH.
ANT1 SMA Connector for main antenna (first module).
DIV1 SMA Connector for diversity antenna (first module).
ANT2 SMA Connector for main antenna (second module).
DIV2 SMA Connector for diversity antenna (second module).
GPS SMA Connector for GPS antenna. Only if the router is equipped
with a module for LTE technology!
WiFi R-SMA Connector for WIFI antenna. Available only when the
router is equipped with an expansion port WIFI.
USB USB-A Host Connector for connection of USB devices to the router. Sup-
ports devices with PL-2303 and FTDI USB/RS232 converters.
I/O 3-pin Connector for connection of the binary input and output.
SIM1 — Holder for the first SIM card.
SIM2 — Holder for the second SIM card.
Table 5: Front panel description
Figure 10: Front panel Bivias v2 SL
14
23-05-16
www.lucom.de info@lucom.de
Page 20
5. ROUTER DESIGN
5.8.1 Status indication
About router status inform eight LED indicators on the front panel. ETH port, PORT1 and PORT2 have two additional LEDs that provide information about port status.
Caption Color State Description
M1 Green /
Orange
On Indicates the activity of the first module (green color).
In the case of "HC" version with two HSPA+ SIM cards, this LED diode indicates the operation of the first SIM card with green color and operation of the second SIM card with orange color.
M2 Orange On Indicates the activity of the second module
PWR Green Blinking
On Fast blinking
Router is ready Starting of the router Updating firmware
DAT Red Blinking Communication in progress on radio channel
WAN Yellow 1x flash per sec.
2x flash per sec.
3x flash per sec.
Signal strength is from –50 dBm to –69 dBm Signal strength is from –70 dBm to –89 dBm or differ­ence between neighbours cells is exactly 3 dBm Signal strength is from –90 dBm to –113 dBm or differ­ence between neighbours cells is smaller than 3 dBm
USR Yellow Function of this LED diode can be selected by user
OUT Green On Binary output active
IN Green On Binary input active
ETH Green On
Off
Selected 100 Mbit/s Selected 10 Mbit/s
ETH Yellow On
Blinking Off
The network cable is connected Data transmission The network cable is not connected
PORT Green Depends on the expansion port (see user’s manual for used port)
PORT Yellow Depends on the expansion port (see user’s manual for used port)
Table 6: Status indication
State indication of WAN LED is updated every 10 seconds.
15
23-05-16
www.lucom.de info@lucom.de
Page 21
5. ROUTER DESIGN
5.8.2 Power connector PWR
Panel socket 2-pin.
Pin number Signal mark Description
1 VCC(+) Positive pole of DC supply voltage (+9 to +36 V DC)
2 GND(-) Negative pole of DC supply voltage
Table 7: Connection of power connector
Figure 11: Power connector
Power supply for router is required between +9 V to +36 V DC supply. Protection against reversed polarity without signaling is built into the router.
The power consumption during receiving is 2.6 W. The peak power consumption during data sending is 5.5 W. However, values of consumption can be increased, if some expansion port is equipped. For correct operation it is necessary that the power source is able to supply a peak current of 1.2 A.
Circuit example:
Figure 12: Connection of power supply
The positive pole VCC is marked by a red socket on the power.
16
23-05-16
www.lucom.de info@lucom.de
Page 22
5. ROUTER DESIGN
5.8.3 Antenna connector ANT1, ANT2, DIV1, DIV2, GPS and WiFi
Both of main antennas and also both of diversity antennas are connected to Bivias v2 router using the SMA connector on the front panel. There is also available one SMA antenna connector using which GPS antenna can be connected (applies only to versions with LTE module). In case that the WIFI expansion port is equipped, reverse SMA connector (R-SMA) is used.
The router can not operate without connected both of main antennas designated as ANT1 and ANT2!
ANT1 and ANT2 connectors are used to connect main antennas of this router. For con­nection of diversity antennas are used DIV1 and DIV2 connectors. GPS antenna is connected using the connector of the same name. On user’s request, this router can be equipped with WiFi connector for connecting corresponding antenna.
The antenna is connected by screwing this antenna to the SMA connector on the front panel of the router (see figure below).
Figure 13: Connecting of the antenna
Diversity antenna improves radio features of the router at low signal strength.
17
23-05-16
www.lucom.de info@lucom.de
Page 23
5. ROUTER DESIGN
5.8.4 SIM card reader
The SIM card reader for 3 V and 1,8 V SIM cards is placed on the front panel of the router. For getting the router to work is necessary to insert an activated SIM card with an unblocked PIN code. The SIM cards might be of different adjusted APN (Access Point Name).
Changing the SIM card:
• Before handling of the SIM card disconnect the router from power supply!
• Press the small yellow button to eject the reader holder.
• Insert the SIM card into the reader holder and slide it in the reader (see figure
below).
Figure 14: Ejected SIM holder
18
23-05-16
www.lucom.de info@lucom.de
Page 24
5. ROUTER DESIGN
5.8.5 Ethernet Port ETH
Panel socket RJ45.
Pin Signal mark Description Data flow direction
1 TXD+ Transmit Data – positive pole Input/Output
2 TXD- Transmit Data – negative pole Input/Output
3 RXD+ Receive Data – positive pole Input/Output
4 — —
5 — —
6 RXD- Receive Data – negative pole Input/Output
7 — —
8 — —
Table 8: Connection of Ethernet connector
Figure 15: Ethernet connector
ATTENTION! ETH port is not PoE (Power over Ethernet) compatible!
Plug Ethernet cable into the RJ45 connector labeled as ETH (see figure below).
Figure 16: Connection of Ethernet cable
19
23-05-16
www.lucom.de info@lucom.de
Page 25
5. ROUTER DESIGN
5.8.6 PORT1
The PORT1 is equipped on customer’s request with one of the offered expansion ports:
• RS232
• RS485
• RS422
• ETHERNET
• MBUS
• CNT
• SWITCH (together with PORT2)
Description and examples of expansion ports connection can be found in user’s guide for corresponding expansion port.
Plug cable for the first expansion port into the RJ45 connector labeled as PORT1 (see figure below).
Figure 17: PORT1 cable connection
5.8.7 PORT2
The PORT2 is equipped on customer’s request with one of the offered expansion ports:
• RS232
• RS485
• RS422
• MBUS
• SDH
• SWITCH (together with PORT1)
• WIFI
• WMBUS
Description and examples of expansion ports connection can be found in user’s guide for corresponding expansion port.
20
23-05-16
www.lucom.de info@lucom.de
Page 26
5. ROUTER DESIGN
Plug cable for the second expansion port into the RJ45 connector labeled as PORT2 (see figure below).
Figure 18: PORT2 cable connection
5.8.8 USB Port
Panel socket USB-A.
Pin Signal mark Description Data flow direction
1 +5 V Positive pole of 5 V DC supply voltage, 0.5 A
2 USB data - USB data signal – negative pole Input/Output
3 USB data + USB data signal – positive pole Input/Output
4 GND Negative pole of DC supply voltage
Table 9: Connection of USB connector
Figure 19: USB connector
5.8.9 I/O Port
Panel socket 3-pin.
Pin Signal mark Description Data flow direction
1 BIN0 Binary input Input
2 GND Signal ground
3 OUT0 Binary output Output
Table 10: Connection of I/O port
21
23-05-16
www.lucom.de info@lucom.de
Page 27
5. ROUTER DESIGN
Figure 20: I/O connector
I/O user interface is designed for processing of binary input and control (setting) binary output. Binary output is not switched to ground in the default configuration. Maximum load binary output is 30 V / 100 mA. The constant current supplied by the binary input is 3 mA.
Connect I/O cable into the I/O connector on the front panel of the router and tighten locking screws (see figure below).
Figure 21: Connection of I/O cable
Example of a circuit describing connection of binary input and output to the router:
Figure 22: Connection of input and output to the router
22
23-05-16
www.lucom.de info@lucom.de
Page 28
5. ROUTER DESIGN
5.8.10 Reset
When PWR LED starts flashing on the front panel, it is possible to restore the default con­figuration of the router by pressing the RST button on the front panel. After pressing this button the default configuration is restored and then router reboots (green LED will be on).
For pressing the RST button could be used a narrow screwdriver.
Figure 23: Router reset
We recommend backing up configuration of the router (see Configuration manual for v2 routers) because reset of the router sets the configuration to the default state.
It is important to distinguish between reset and reboot the router.
Action Router behavior Invoking events
Reboot Turn off and then turn on router Disconnect and connect the power,
Press the Reboot button in the web configuration
Reset Restore default configuration and reboot
the router
Press RST button
Table 11: Description of reset and restart router
23
23-05-16
www.lucom.de info@lucom.de
Page 29
6. FIRST USE
6. First Use
6.1 Connecting the router before fir st use
Before putting the router into operation it is necessary to connect all components which are required to run your applications. Don’t forget to insert SIM card.
The router can not operate without connected antenna, SIM card and power supply. If the antenna is not connected, router can be damaged.
Figure 24: Router connection
24
23-05-16
www.lucom.de info@lucom.de
Page 30
6. FIRST USE
6.2 Start
The router is put into operation when the power supply is connected to this router. By default, the router will automatically start to log on to the default APN. DHCP server will start to assign addresses for devices on the Ethernet port ETH0. Router behavior can be changed via the web interface. This is described in detail in the Configuration manual.
The power consumption during receiving is 2.6 W. The peak power consumption during data sending is 5.5 W. However, values of consumption can be increased, if some expansion port is equipped. For correct operation it is necessary that the power source is able to supply a peak current of 1.2 A.
6.3 Configuration
Attention! If no SIM card is inserted in the router, it is not possible to operate. Inserted
SIM card must have activated data transmission.
6.3.1 Configuration over web browser
For status monitoring, configuration and administration of the router is available a web interface which can be accessed by entering the IP address of the router into the web browser. The default IP address of the router is 192.168.1.1.
Figure 25: Entering the IP address of the router
Configuration may be performed only by the user "root" with default password "root".
Figure 26: Entering login information
25
23-05-16
www.lucom.de info@lucom.de
Page 31
6. FIRST USE
After successfully entering login information user gains access to the router via his internet browser.
Figure 27: Router web interface
A detailed description of the router settings via the Web interface can be found in the document Configuration manual.
6.3.2 Configuration over Telnet
For status monitoring, configuration and administration of the router can be also used Telnet. After entering the IP address of the router you will be allowed to configure the router using commands. The default IP address of the router is 192.168.1.1. Configuration may be performed only by the user "root" with default password "root".
A detailed description of the router settings via the Telnet can be found in the document Con- figuration manual.
26
23-05-16
www.lucom.de info@lucom.de
Page 32
7. TECHNICAL PARAMETERS
7. Technical Parameters
7.1 Basic parameters
Bivias v2
Temperature range Function
Storage
-40◦C až +75◦C (LL, LH and HH versions)
-30◦C to +60◦C (LC and HC versions)
-40◦C to +85◦C
Protection IP20
Supply voltage 9 to 36 V DC
Consumption Reception
GPRS CDMA LTE/HSPA+
2.6 W up to 3.5 W up to 4.0 W up to 5.5 W
Dimensions 42 x 80 x 148 mm (DIN 35 mm)
Weight 350 g
Antenna connector 5x SMA – 50 Ohm
1x R-SMA – 50 Ohm (only for exp. port WIFI)
User interface ETH
USB PORT1 PORT2
Ethernet (10/100 Mbit/s) USB 2.0 On customer’s request On customer’s request
Table 12: Basic parameters
7.2 Standards and regulations
The router complies with the following standards and regulations.
Standards and regulations
Telecom and emission ETSI EN 301 511 v9.0.2, ETSI EN 301 526 v1.1.1,
ETSI EN 301 908-1 v5.2.1, ETSI EN 301 908-2 v5.2.1, ETSI EN 301 908-13 v5.2.1, ETSI EN 301 489-1 v1.8.1, ETSI EN 301 489-7 v1.3.1, ETSI EN 301 489-24 v1.4.1
EMC ETSI EN 301 489-1 v1.9.2
Safety EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
Table 13: Standards and regulations
27
23-05-16
www.lucom.de info@lucom.de
Page 33
7. TECHNICAL PARAMETERS
7.3 Technical parameters of module
7.3.1 LTE module (LL, LH and LC versions)
LTE module (LL, LH and LC versions)
LTE parameters Bit rate 100 Mbps (DL) / 50 Mbps (UL), UE CAT. 3
3GPP rel. 9 standard Supported bandwidths: 5 Mhz, 10 Mhz, 20 Mhz Supported frequencies: 800 / 900 / 1800 / 2100 / 2600 MHz
HSPA+ parameters Bit rate 42 Mbps (DL) / 5,76 Mbps (UL), UE CAT. 24, 6
3GPP rel. 5, 6, 7, 8 standard Supported frequencies: 850 / 900 / 1900 / 2100 MHz
UMTS parameters PS bit rate 384 kbps (DL) / 384 kbps (UL)
3GPP rel. 5, 6, 7, 8 standard W-CDMA FDD standard Supported frequencies: 850 / 900 / 1900 / 2100 MHz
GPRS/EDGE parameters Data throughput max. 236 kbps
3GPP rel. 99 standard GPRS multislot class 10 EDGE multislot class 12 Coding schemes CS 1 to 4, MCS 1 to 9 Supported frequencies: 850 / 900 / 1800 / 1900 MHz
Supported GPRS/EDGE power classes
GSM 850 CS: Class 4 (32 dBm) EGSM 900 CS: Class E2 (27 dBm) DCS 1800 CS: Class 1 (29 dBm) PCS 1900 CS: Class E2 (26 dBm)
Table 14: LTE module (LL, LH and LC versions)
7.3.2 HSPA+ module (LH, HH and HC versions)
HSPA+ module (LH, HH and HC versions)
HSPA+ parameters Bit rate 21,1 Mbps (DL) / 5,76 Mbps (UL)
3GPP rel. 7 standard UE CAT. 1 to 6, 8, 10, 12, 14 3GPP data compress
UMTS parameters PS bit rate 384 kbps (DL) / 384 kbps (UL)
CS bit rate 64 kbps (DL) / 64 kbps (UL) W-CDMA FDD standard
Continued on next page
28
23-05-16
www.lucom.de info@lucom.de
Page 34
7. TECHNICAL PARAMETERS
Continued from previous page
HSPA+ module (LH, HH and HC versions)
GPRS/EDGE parameters Bit rate 237 kbps (DL) / 59,2 kbps (UL)
GPRS multislot class 10, CS 1 to 4 EDGE multislot class 12, CS 1 to 4, MCS 1 to 9
Power classes EGSM 900: Class 4 (33 dBm)
GSM 1800/1900: Class 1 (30 dBm) EDGE 900/1800/1900: Class E2 UMTS/HSPA: Class 3
Supported channels GSM/GPRS/EDGE: 850/900/1800/1900 MHz
UMTS/HSDPA/HSUPA/HSPA+: 850/900/1900/2100 MHz
Table 15: HSPA+ module (LH, HH and HC versions)
7.3.3 CDMA module (LC and HC versions)
CDMA module (LC and HC versions)
CDMA parameters Rev. A: Bit rate 3,1 Mbps (DL) / 1,8 Mbps (UL)
Rev. B: Bit rate 14,7 Mbps (DL) / 5,4 Mbps (UL) Backward compatible with Rev.0
Transmit power +23,0 dBm ∼ +30,0 dBm
Supported bands 450MHz (Sub band A,B,L)
800MHz & 1900MHz dual or single
Table 16: CDMA module (LC and HC versions)
29
23-05-16
www.lucom.de info@lucom.de
Page 35
7. TECHNICAL PARAMETERS
7.4 Technical parameters of GPS
GPS specifications
Antenna 50 Ohms – active
Protocols NMEA 0183 v3.0
Frequency 1575.42 MHz
Sensitivity Tracking: -161 dBm
∗
Acquisition (Assisted): -158 dBm
∗∗
Acquisition (Standalone): -145 dBm
∗∗
Acquisition time Hot start: 1 s
Warm start: 29 s Cold start: 32 s
Accuracy Horizontal: < 2m (50 %); < 5 m (90 %)
Altitude: < 4 m (50 %); < 8 m (90 %) Velocity: < 0.2 m/s
Table 17: Technical parameters of GPS
∗
Tracking sensitivity is the lowest GPS signal level for which the device can still detect an
in-view satellite 98 % of the time when in sequential tracking mode.
∗∗
Acquisition sensitivity is the lowest GPS signal level for which the device can still detect an
in-view satellite 50 % of the time.
30
23-05-16
www.lucom.de info@lucom.de
Page 36
7. TECHNICAL PARAMETERS
7.5 Technical parameters of processor
32b ARM microprocessor
Memory 512 Mb DDR SDRAM
128 Mb FLASH 1 Mb MRAM
Interface Serial interface RS232
Ethernet interface 10/100 Mbit/s USB 2.0 interface
Table 18: Technical parameters of processor
7.6 Technical parameters of I/O port
Binary input and output
Input/Output Binary input
Binary output
Reed contact with trigger level 1.3 up to 1.4 V 100 mA / max. 30 V
Table 19: Technical parameters of I/O port
7.7 Technical parameters of expansion port
Technical parameters of expansion ports are provided in separate manuals.
31
23-05-16
www.lucom.de info@lucom.de
Page 37
8. RECOMMENDED LITERATURE
8. Recommended Literature
[1] Advantech B+B SmartWorx s.r.o.: Start guide, [2] Advantech B+B SmartWorx s.r.o.: Configuration manual, [3] Advantech B+B SmartWorx s.r.o.: User’s manual – Expansion port ETH, [4] Advantech B+B SmartWorx s.r.o.: User’s manual – Expansion port SWITCH, [5] Advantech B+B SmartWorx s.r.o.: User’s manual – Expansion port WIFI, [6] Advantech B+B SmartWorx s.r.o.: Application note – Expansion port mounting, [7] Advantech B+B SmartWorx s.r.o.: Application note – Programmer guide.
32
23-05-16
www.lucom.de info@lucom.de
Page 38
9. TROUBLESHOOTING
9. Troubleshooting
If you can not connect to the router from your PC, your network card may be configured the way it is not possible to connect to the router. Take one or more of the following steps to solve the problem:
• Select the communication rate 10 MB/s in the properties of your network card.
• Connect the router to the PC via Switch.
• Connect the router to the PC, start the router first and then start the PC after the
router’s initialization.
9.1 FAQ
- I have NAT enabled. My equipment is not connecting to the network.
• The device’s gateway has to be configured as the router.
- The router resets itself and the Ethernet connection fails.
• The router will not function without an antenna. Keep the antenna as far as possible from the power supply.
- I can’t access the Web server over NAT.
• The remote HTTP access of the router has to be disabled, the default server ad­dress has to be your web server and the gateway of the web server has to be the IP of the router.
- Mobile WAN connection fails. (DAT LED off)
• Check signal power. If the signal power is weak, you will have to use a better an­tenna. If the neighboring cells have a similar signal strength, you will need to use a directional antenna. For proper operation, the signal levels have to be in the range from -50 dBm to -90 dBm.
• It is necessary to set ping, which will check the connection and, in the case of failed ping, restart connection.
- Mobile WAN connection cannot be established. (DAT LED off)
• Recheck GPRS settings – APN, name, password and IP address.
• Try to enter PIN – verify if the SIM card has the PIN code set.
• In a private APN, switch the DNS server send off.
• Switch the system log on and observe where the error occurs.
33
23-05-16
www.lucom.de info@lucom.de
Page 39
9. TROUBLESHOOTING
- Ethernet connection fails or isn’t establishing.
• It is possible to turn auto negotiation off and set a rate and duplex manually on the Ethernet interface of the router.
- DynDNS doesn’t function.
• With private APN this is not functional.
• If the same IP address is recorded in your canonic name as dynamically assigned
address, it means that the operator is using NAT or firewall.
• Verify NAT using ping to the static server address.
• Verify Firewall accessing remotely to the router’s Web interface.
• The operator may not provide the address of DNS server and without DNS server’s
adress it is impossible to connect to the dyndns.org server. There will be these messages in the system log:
– DynDNS daemon started – Error resolving hostname: no such file or directory – Connect to DynDNS server failed
- L2TP or IPSec isn’t establishing.
• Check the system log for error messages.
- I switched the router to offline mode by SMS message, but the router is in online
mode after restart.
• SMS messages do not change the router configuration. They remain in effect only until the router is restarted.
- FTP doesn’t function.
• Router doesn’t support active FTP mode. It supports passive mode only.
- RS232 doesn’t function.
• Verify that the router supports RS232 communications. Also verify the RS232 com­munication settings. To do so, open the router’s configuration menu via the web browser, select the appropriate expansion port and verify the settings in the config­uration menu.
34
23-05-16
www.lucom.de info@lucom.de
Page 40
10. CUSTOMERS SUPPORT
10. Customers Support
You can find current information about this product on our website:
www.bb-smartcellular.eu
Upkeep-advices:
• The SIM-card must be handled carefully as with a credit card. Don’t bend, don’t scratch on this and do not expose to static electricity.
• During cleaning of the router do not use aggressive chemicals, solvents and abrasive cleaners!
Advantech B+B SmartWorx s.r.o. hereby declares that the router narrated in this user’s guide fits all basic demands of directive 1999/5/EC (R&TTE).
Router fits values of coefficient SAR defined by association ICNIRP and values of "About protection of health before non-ionized radiation".
Declaration of Conformity was issued and it is possible to find it on the Advan­tech B+B SmartWorx website (www.bb-smartcellular.eu/download) in respective product category or is available on request from producer.
35
23-05-16
www.lucom.de info@lucom.de
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
