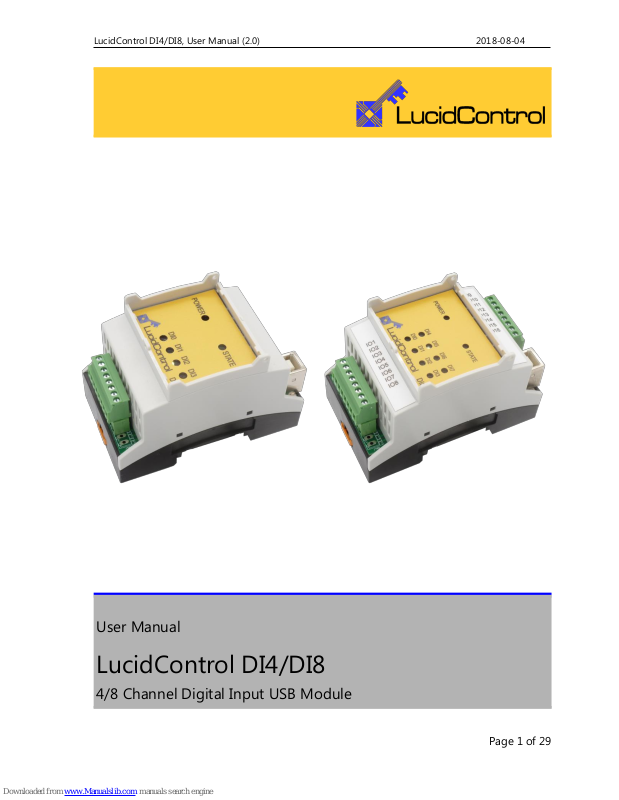

LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 1 of 29
User Manual
LucidControl DI4/DI8
4/8 Channel Digital Input USB Module
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 2 of 29
1 Introduction
This document describes the functionality of the LucidControl DI4/DI8 USB module with
4/8 digital inputs controllable via Universal Serial Bus.
A general description of the complete LucidControl product family can be found in the
document LucidControl User Manual.
This document explains the topics that are specific to the DI4/DI8 module.
2 Setup and Installation
Fig. 1 shows the sketch of the Digital Input DI8 module with
8 digital input channels.
The IO channels are split into the lower and the upper IO
connectors.
The lower IO connector (IO1 to IO8) provides terminals for
the channels DI0 to DI3.
The upper IO connector (IO9 to IO16) is mounted on DI8
module only. It provides terminals for the channels DI4 to
DI7.
The intended use of the DI4/DI8 module is the acquisition of digital signals. The
module must only be used for the intended use.
For this device it is explicitly stated that no potential (e.g. voltage) of more than
30V must be applied to any connector of the module. The modules must only be
used within the specified conditions.
Fig. 1 Digital Input Module
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 3 of 29
2.1 Configurations
Digital inputs have by nature only two states – they can be either LOW or HIGH. In order to
be compatible with different voltage signals, the DI4/DI8 module is available with three
threshold levels:
Threshold Level
V
LowMax
V
HighMin
5 V
2.5 V
3.5 V
10 V
6.0 V
8.5V
24 V
16.0 V
21.0 V
Tab. 1 Input Threshold Level
The table above shows the configurations and their input characteristics. All modules have
a voltage range below V
LowMax
which is treated as LOW state, and a voltage range above
V
HighMin
representing a HIGH state.
Input level restrictions
The range between V
LowMax
and V
HighMin
is forbidden by means that the state cannot be
determined correctly.
Example
For typical automation applications, 24 V inputs are often used. When interfacing 24 V
signals it needs to be ensured that in case of a LOW state a voltage equal or below 16 V is
applied to the input. Detecting a HIGH state requires a voltage of equal or higher than 21
V. For the range between 16 V and 21 V is used as a hysteresis which means that a once
set input is HIGH until the input voltages is lower than 17V.
2.2 Interface and Interconnection
2.2.1 USB Connection
Note
Please consider that the total power of one USB port is limited to 500 mA.
Note
Using an active USB-Hub with its own power supply allows the connection of additional
devices in the case that the host is not able to supply them.
LucidControl DI4/DI8 module is rated with a maximum current of 40 mA.
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 4 of 29
2.2.2 IO Connection
The LucidControl DI4/DI8 module is equipped with 4 opto-insulated and potentialinsulated inputs.
Fig. 2 shows the interconnection of the DI4 module in a typical
application.
The input signals are represented by voltage sources applying a
voltage within the valid threshold range to the inputs.
The terminals IO1, IO3, IO5, IO7 (and also IO9, IO11, IO13, IO15
for the DI8 module) are the positive voltage inputs.
The terminals IO2, IO4, IO6, IO8 (and IO10, IO12, IO14, IO16 for
the DI8 module) are the negative voltage inputs.
Fig. 3 illustrates the principle how the digital input
works. The signal applied to the terminals 1 and 2
sources an opto-coupler which insulates the electronic
of the module from the input signal.
All inputs are floating by means that they have no
common contacts (like ground) and are working
independently.
Applying a voltage above V
HighMin
between the input terminals 1 (resp. 3, 5, 7, ...) and 2
(resp. 4, 6, 8, ...) sources the LED of the opto-coupler and makes its transistor conductive
resulting in a digital HIGH state level. If the voltage is below V
LowMax
is applied this results in
a LOW state level.
All inputs are protected against overvoltage. Applying a voltage higher than
V
InMax
= 30 V may damage the input.
All inputs are protected against reverse polarity. Applying a voltage lower than –
V
InMax
= -30V may damage the input.
Fig. 2 Digital Input Module
Connection
Fig. 3 Digital Input Principle
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 5 of 29
2.2.3 Isolation of USB Interface (-ISO option)
Fig. 4 DI4 Module with isolated USB Interface
DI4 and DI8 modules are optionally available with isolated USB interface (-ISO option).
Fig. 4 shows the DI4 module with isolated USB interface.
The isolation consists of a galvanic barrier (red area) that isolates the IO module entirely
from the USB data lines and power supply lines. An isolated DC/DC converter separates the
power supply.
The main purpose of the isolated LucidControl module is the separation of the IO module
from the data processing equipment (e.g. the host computer). Non-Isolated IO modules
are conductive connected to the USB port also sharing a common ground line.
Harsh or noisy environments (e.g. with disturbances or long cables) may cause
measurement errors or malfunction of the data processing equipment or the IO module
caused by ground loops. This can be solved by the isolation of the USB port.
Another aspect is the protection of the data processing equipment from overvoltage. If for
example a voltage above the limits of the module is applied to the terminals this can
damage the module and the data processing equipment also.
The isolation limits the possible damage to the IO module itself.
USB isolation can be an option if a higher protection level required or if LucidControl IO
modules are operating in harsh environments.
Even when the isolation protects the data processing equipment from overvoltage
damage it does not protect from voltages > 50V!
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 6 of 29
Note:
All inputs of the DI4/DI8 module are isolated by an opto-coupler (Fig. 3).
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 7 of 29
2.3 Setup of Hard- and Software
Setting up LucidControl hardware is very easy:
1 Ensure that no signal is applied to the IO Connector
2 Connect LucidControl via USB with the computer
3 Applies for Microsoft Windows older than Windows 10 only: The system asks for an
installation file. This is not a driver but only an information file (INF). The file can be
downloaded from our website www.lucid-control.com/downloads
That’s all. LucidControl switches the green power LED on and the module is ready
for usage.
2.3.1 Windows
As mentioned the installation under Microsoft Windows (older than Windows 10) requires
the information file.
After finished installation the Windows Device Manager contains a new serial port (COM).
The module can be accessed using this port.
Note
Even if more than one module is connected to a computer Windows ensures that the same
serial port number is assigned to the module(s) after restart.
2.3.2 Linux
Despite to Windows installation under Linux the module is usable immediately after
connection without any additional steps. Linux installs /dev/ttyACM devices for any
module connected to the computer.
Note
By default Linux cannot ensure that the same /dev/ttyACM device is assigned to the same
module on restart. But as long as only one module is connected to the computer it is
ensured that it is accessible via /dev/ttyACM0.
This problem can be solved by the LucidIoCtrl command line tool which can create static
devices always pointing to a specific module. Moreover the device can be given useful
names e.g. dev/digitalIoKitchen.
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 8 of 29
2.3.3 Get command line LucidIoCtrl
LucidIoCtrl command line tool can be downloaded from our website:
www.lucid-control.com/downloads
This page provides the command line tool LucidIoCtrl for different architectures.
After downloading the program can be stored in a folder of choice.
Please see the section 3 of the general LucidControl User Manual for more information
about this helpful tool.
2.3.4 Ready for Take-Off
After the module was installed successfully (if it was necessary at all) the green Power LED
is switched on signaling that the module is ready for use.
Since the module was preconfigured for standard input mode, it can be used without
further configuration. The following examples demonstrate the functionality of the module
by using the LucidIoCtrl command line tool.
Windows Examples:
For all examples it is assumed that the module is connected to COM1.
Reading the values of all 4 input channels
LucidIoCtrl –dCOM1 –tL –c0,1,2,3 –r [ENTER]
-> CH0:00 CH1:00 CH2:00 CH3:00
Linux Examples:
For all examples it is assumed that the module is connected to /dev/ttyACM0.
Reading the values of all 4 input channels
LucidIoCtrl –d/dev/ttyACM0 –tL –c0,1,2,3 –r [ENTER]
-> CH0:00 CH1:00 CH2:00 CH3:00
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 9 of 29
3 Module Operation
3.1 Operation Modes
This section explains the operation of the different input modes and gives examples how
to configure and use them.
Each of the inputs of the module can work in one of the following modes:
Reflect Mode
Rising Edge Mode
Falling Edge Mode
Count Mode
In all modes the input values are captured and evaluated after a stable signal has been
detected.
Physical input value inversion:
Digital inputs distinguish between physical and logical input state. The physical state is
represented by the voltage applied to the input. The logical state is calculated by the input
handling and may be identical to the physical state.
In case of input inversion is enabled by setting inDiInverted to “on” the logical value is
inverted in relation to the physical input. This means that applying a voltage above V
HighMin
results in a HIGH physical input value but a LOW logical input value.
All input modes support the inversion of physical input value, but in practice it is useful for
Reflect Mode only.
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 10 of 29
3.1.1 Reflect Mode
Reflect Mode gives access to the logical input value directly.
Fig. 5 illustrates the processing of the inputs in Reflect
Mode.
As soon as the rising edge of the input signal is detected
it must remain stable over the interval T
Scan
. After T
Scan
has passed the input signal is captured and the input
value is set to the corresponding value.
In the case that a pulse is shorter than T
Scan
the pulse is
not valid. This scenario is shown in the first pulse of Fig.
6. While the first rising edge starts the scan timer the
falling edge stops it (indicated by the gray T
Scan
interval)
resulting in canceling the pulse detection.
Since the second pulse is longer than T
Scan
it is evaluated
as valid value.
Filtering digital signals and validating their stability can be used to surpress errors and to
make the recognition of digital inputs more relyable.
The scan interval T
Scan
is configurable by changing the parameter inDiScanTime which is
described in section 3.3.4 .
Fig. 7 illustrates the same input signal as Fig. 5 but with
inDiInverted set to “on” resulting in logical input value
being inverted in relation to the physical input value.
Fig. 7 Inverted Reflect Mode
Fig. 5 Reflect Mode Input Processing
Fig. 6 Reflect Mode Pulse Width
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 11 of 29
Reflect Mode is simple to use and fits the requirement of many applications, but it is
limited in detecting dynamic signals like pulses because the host computer is in charge of
detecting them.
Since most operating systems and USB are not able to handle tasks in very short intervals
(e.g. shorter than 10 ms) this is not reliable and pulses may be lost.
For such purpose edge detecting and counting modes provide more real time functionality
without reading the input value permanently.
LucidIoCtrl Command Line Tool Example
Configure output channel 0 for Reflect Mode
LucidIoCtrl –dCOM4 –c0 –sinDiMode=reflect [ENTER]
Read input channel 0
LucidIoCtrl –dCOM4 –c0 –tL -r [ENTER]
-> CH0:00
3.1.2 Edge Detection
For applications with very short input signal pulses the module provides two edge
detection modes. While in Rising Edge Mode the module is sensitive for input signal lowto-high transitions in Falling Edge Mode it recognizes high-to-low transitions.
Personal computers running Microsoft Windows® or Linux do not have a proper real-time
behavior for detecting fast input signals correctly. Because of multitasking it cannot be
ensured that a task will run within a specified interval. Assuming that short pulses (e.g.
shorter than 1 ms) should be detected the computer has to read the input value at least
1000 times per second which is not realistic. Otherwise it is possible that a pulse is located
between two readings of the computer and the pulse will be missed.
These two modes are useful in order to allow real-time detection of input signal transitions
without the host computer being affected. Fig. 8 shows that a recognized pulse and the
input value representing this pending event indicating that at least 1 transition occurred
between two readings of the computer.
By changing parameter diInScanTime the length of the shortest detectable pulse can be
adopted by changing scan interval time T
Scan
.
Example
The input should be able to detect an input signal pulse of 100 µs length.
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 12 of 29
One would say it is sufficient to read the input in reflect mode every 50 µs (with safety
time) in order to detect the transition by the computer. But probably the operating system
of the computer would violate the timing restrictions and pulses are lost.
By using the input configured in one of the two edge detection modes this can be solved
easily by setting T
Scan
= 90 µs (including safety). A detected edge will be pending until it is
read by the host computer. Assuming the host computer reads now every second it can
check if one ore more transition(s) occurred within the last second. The 1 second interval
can be realized by the host computer without problems.
Fehler! Kein gültiger Dateiname.
Configure output channel 0 for Rising Edge detection mode
LucidIoCtrl –dCOM4 –c0 –sinDiMode=risingEdge [ENTER]
Set T
Scan
to 90 µs
LucidIoCtrl –dCOM4 –c0 –sinDiScanTime=90000 [ENTER]
Read input channel 0
LucidIoCtrl –dCOM4 –c0 –tL -r [ENTER]
-> CH0:01
3.1.2.1 Rising Edge Mode
Fig. 8 shows a digital input signal and the corresponding
input value in Rising Edge Mode. After the high signal
was detected as valid it is noticeable that the set input
value is pending until the value is read by the host
computer.
Rising Edge Mode allows detecting low-to-high
transitions of the input signal without the host computer
being involved.
Fig. 8 Rising Edge Mode
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 13 of 29
3.1.2.2 Falling Edge Mode
For the Falling Edge Mode applies the same functionality
as for Rising Edge mode (see section 3.1.2.1) with the
one exception that not a rising but a falling transition
sets the input value.
While in Rising Edge Mode it is obvious that a low-to-
high transition sets the input value to “1” it must be
mentioned that in Falling Edge Mode a transition from
high-to-low sets the input value to “1”.
This shows that the input value in edge detection modes
does not refer the input signal rather than it must be
seen as a pending event. When the event (which can be either a low-to-high or high-tolow input signal transition) arises the input value is set to “1”.
3.1.3 Count Mode
Compared to other modes the Count Mode is different by means that it does not generate
an input value, but calculates the number of valid pulses accumulated within a time
specified by T
Count
. This mode allows to count pulses and to calculate frequencies of
periodical input signals.
Fig. 10 illustrates a typical periodical
input signal. In Count Mode all detected
pulses are accumulated until the
counting interval T
Count
finishes.
Fig. 11 shows the identical input signal,
but with a shorter counting interval.
After T
Count
has passed the valid count
value is accessible and the module starts
with a new measurement cycle.
Like in the other modes an input signal is
only regarded as valid when it was stable for at least the scan time T
Scan
. In Count mode
only stable pulses are accumulated (see the gray interrupted T
Scan
intervals).
Fig. 9 Falling Edge Mode
Fig. 10 Count Mode
Fig. 11 Count Mode Short Count Interval
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 14 of 29
Normally, T
Scan
timer is started on the rising edge of the input signal as it is shown in the
two pictures above. In the case that the parameter inDiInverted is set to “on” T
Scan
timer is
started on the falling edge of the input signal.
Accessing the input value in Count Mode returns the number of pulses of the last finished
scan interval cycle.
Fehler! Kein gültiger Dateiname.
Configure input channel 0 for Count Mode
LucidIoCtrl –dCOM4 –c0 –sinDiMode=count [ENTER]
Set Scan Time T
Scan
to 1ms
LucidIoCtrl –dCOM4 –c0 –sinDiScanTime=1000 [ENTER]
Set Count Time TCount to 1s
LucidIoCtrl –dCOM4 –c0 –sinDiCountTime=1000000 [ENTER]
Read number of pulses
LucidIoCtrl –dCOM4 –c0 –tN -r [ENTER]
-> CH0:0x0064 (100)
In this example 100 pulses of at least 1 millisecond length occured within a measurement
interval of 1 second.
Since the input value (number of pulses) is updated after count time has passed it takes 1
second to update the value. Decreasing count time results in a faster update of the input
value.
Note
While in other modes the value type “L” is specified, in Count Mode the value type must be
set to “N”. LucidIoCtrl returns the value in hexadecimal and decimal format.
3.1.3.1 Count Mode Options
In standard Count Mode the counter value is valid after count interval T
Count
has passed
and it overwrites previously detected pulses.
In order to count pulses of non-periodical input signals the module supports two
additional options inDiAddCounts and inDiResetCountsOnRead.
In the case inDiAddCounter is set to “off” the number of currently counted pulses is used
for update after T
Cycle
has finished. Previously counted pulses are overwritten and get lost.
In the case inDiAddCounter is “on” the number of currently counted pulses is added to the
counter containing the pulses of previous measurements.
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 15 of 29
In the case of inDiResetCounterOnRead set to “off” reading of the counter value does not
affect the counter value itself. In the case of inDiResetCounterOnRead is “on” the counter
value is reset after reading it.
In order to avoid overflows inDiAddCounter=”on” should be combined with
inDiResetCounterOnRead parameter.
Fig. 12 shows a typical input signal with
10 pulses in total which is not periodic.
This diagram shows the behavior and the
3 read values for both, inDiAddCounter
and inDiResetCounterOnRead switched
“on” which is the most useful mode.
The number of counts in the diagram refers to the internal counter which may differ from
the read number of counts by means that the read value is updated only after T
Count
has
finished.
On Read 1 the read value is 2 since the internal counter value after T
Count
has finished was
2. The counter value is reset on reading and 1 pulse is carried over to the next T
Count
inverval.
On Read 2 the read value is 3 because of the current pulse counter of 2 plus the carried
over counter value of 1 from the previous count interval. The counter value is reset on
read.
At the reading 3 the read value is 3. And the counter value is reset again
This example explains that there are no pulses lost even if there is a longer time in between
of subsequent readings.
Count mode with inDiAddCounter = “on”
In the case that inDiAddCounter is “on” and inDiResetCounterOnRead is “off” the behavior
changes that the pulses are accumulated but the counter is not reset on reading the value.
This causes the counter value is updated when count interval has finished and the current
counter is added to the last counter value. This may result in an overflow when the counter
value rolls over its maximum value of 65535.
The parameter inDiResetCounterOnRead has only an effect together with inDiAddCounter
set to “on”.
Tab. 2 explains the different count value results of the previous example for all options.
Fig. 12 Add Counter Mode
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 16 of 29
Mode
Value
Read 1
Value
Read 2
Value
Read 3
inDiAddCounter = “on”
inDiResetCounterOnRead = “on”
2 3 3
inDiAddCounter = “on”
inDiResetCounterOnRead = “off”
2 5 8
inDiAddCounter = “off”
inDiResetCounterOnRead = “off”
(Standard Count mode)
2 3 2
Tab. 2 Add Counter and Reset Counter on Read Results
3.2 Commands
After an input was set up correctly and configured it is possible to read the input value by
using the commands GetIo for a single value or GetIoGroup in order to read a group of
input values of the same type.
Accessing inputs and outputs is a very common task which is mostly identical for all Lucid
Control modules. Please refer to the section 3.2.1.1, 3.2.1.2 and 4.3 of the general
LucidControl manual for comprehensive information covering reading and writing of
inputs and outputs in general.
The following sections describe in detail the commands which are supported by the
DI4/DI8 module.
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 17 of 29
3.2.1 GetIo
This command reads the logic value of an input.
Tab. 3 shows the input values depending on the configured input mode.
Mode
Value
Reflect
Contains the logic input value as “00” or “01”
Edge Detection
Represents pending edge detected event with values “00” or
“01”
Count
Represents the number of valid pulses within count interval time
within the range of 0 … 65535
Tab. 3 GetIo Values
Command
GetIo
Access
Read
Opcode
0x46
LucidIoControl Command Line Tool
Call (-tL)
LucidIoCtrl –d[COMx] –c[Channel] –tL –r
Return
CHn:ll
n
Input Channel
ll
Input Digital Value
Call (-tN)
LucidIoCtrll –d[COMx] –c[Channel] –tN –r
Return
CHn:vv
n
Input Channel
vv
Input Count Value
Note
When using the LucidIoCtrl command line tool the distinction between GetIo and
GetIoGroup commands is not necessary since the program handles this automatically.
LucidIoCtrl Command Line Tool Example
Read input channel 0. The module is operating in Reflect or Edge Detection Mode
LucidIoCtrl –dCOM4 –c0 –tL -r [ENTER]
-> CH0:01
Read input channel 0 in the case that the module is operating in Count Mode
LucidIoCtrl –dCOM4 –c0 –tN -r [ENTER]
-> CH0:0x0064 (100)
Request Frame
OPC
P1
P2
LEN
0x46
Channel
Value Type
0
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 18 of 29
Value
Description
Channel
Number of input or output channel (Range: 0 ~ 7)
Value Type
Value Type
Supported Value Types
Value Type
Value Range
Size
Digital Logic Value
(0x00)
0x00 or 0x01
1 Byte
Digital Counter Value
(0x0A)
0 ~ 65,535
2 Bytes
Tab. 4 GetIo Request
Response Frame:
Status
LEN
Data Field
Status
Size
Value
In case of successful execution the command returns the value of the specified channel
number.
In the case of an error, the command returns Execution Status Code documented in
section 4.4 of the LucidControl User Manual.
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 19 of 29
3.2.2 GetIoGroup
This command reads the logic input values of a group of input of the same Value Type. See
also section 3.2.1.
Command
GetIoGroup
Access
Read
Opcode
0x48
LucidIoControl Command Line Tool
Call (-tL)
LucidIoCtrl –d[COMx] –c[Channels] –tL –r
Channels:
Comma separated list of channels e.g. –c0,1,3
Return
List of values sorted from lower to higher channels
CHn:xx
n
Input Channel
ll
Input Digital Value
Call (-tN)
LucidIoCtrl –d[COMx] –c[Channels] –tN –r
Channels:
Comma separated list of channels e.g. –c0,1,3
Return
List of values sorted from lower to higher channels
CHn:vv
n
Input Channel
vv
Input Counter Value
LucidIoCtrl Command Line Tool Example
Read input values of input channel 0, 1 and 3:
LucidIoCtrl –dCOM4 –c0,1,3 –tL –r [ENTER]
CH0:00 CH1:01 CH3:01
Request Frame
OPC
P1
P2
LEN
0x48
Channel
Mask
Value Type
0
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 20 of 29
Value
Description
Channel
Mask
Channel Mask
Specifies the output channels to access
Channel
Bit Position
Value
0 0 0x01 1 1
0x02 2 2
0x04 3 3
0x08 4 4
0x10 5 5
0x20 6 6
0x40
7
P1A 0
P1=0x80
P1A = 0x01
Values are bitwise or combined
Size of P1 is 1 or 2 bytes. If Bit 7 of P1 is set, a subsequent P1A is
expected.
Examples:
Accessing channel numbers:
0 and 3 Value = 0x01 OR 0x08 = 0x09
1 and 2 Value = 0x02 OR 0x04 = 0x06
1, 2 and 7 Value P1 = 0x02 OR 0x04 = 0x86
Value P1A = 0x01 (for channel 7)
Value
Type
Supported Value Types
Value Type
Value Range
Response Len
Digital Logic Value
(0x00)
0x00 oder 0x01
1 Byte
Digital Counter Value
(0x0A)
0 ~ 65,535
2 Bytes
Tab. 5 GetIoGroup Request
Response Frame:
Status
LEN
Data Field
Status
Length
Value
In case of successful execution the command returns the read values of the channels
specified in the Channel Mask.
In the case of an error, the command returns Execution Status Code documented in
section 4.4 of the LucidControl User Manual.
In the case of an error, the command returns Execution Status Code documented in
section 4.4 of the LucidControl User Manual.
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 21 of 29
Example of GetIoGroup Request:
The following request frame reads inputs 0, 1, 3, and 7
Opcode
P1
P1A
P2
Length
0x48
0x8B
0x01
0x00
0x00
Response Frame:
For input 0 = “0”, input 1 = “1”, input 3 = “1” and input 7 = “0”
Values in Data Field are in ascending order Channel 0, Channel 1, Channel3, and Channel7.
Header Field
Data Field
Status
LEN
Value
Channel 0
Value
Channel 1
Value
Channel 3
Value
Channel 7
0x00
0x04
0x00
0x01
0x01
0x00
3.3 Parameters
LucidControl modules allow configuration by a set of System Configuration Parameters
and IO Configuration Parameters.
The Parameters are accessible by the commands SetParam and GetParam. The sections
4.3.5 and 4.3.6 of the LucidControl User Manual describe them in detail.
The relevance of some parameters of the DI4/DI8 module may depend on the active mode
described in section 3.1.
3.3.1 inDiValue
This IO Configuration Parameter reflects the value of the input.
In Reflect Mode and Edge Detection Mode the parameter contains the input value as it can
also be read by GetIo or GetIoGroup command.
If the input is configured in Count Mode this parameter is “0”.
Parameter
inDiValue
Access
Read
Address
0x1000
Values
Input Value
Default Value
0x00
Parameter Type
1 Byte unsigned
LucidIoControl Command Line Tool
Parameter Name
inDiValue
Parameter Values
0x00 or 0x01
Call (Get)
LucidIoCtrl –d[COMx] –c[Channel] –ginDiValue
LucidIoCtrl Command Line Tool Example
Read value of input channel 0:
LucidIoCtrl –dCOM4 –c0 –ginDiValue [ENTER]
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 22 of 29
-> inDiValue=0
Note:
For normal operation it is recommended to use the function GetIo (3.2.1) in order to read
the input value.
3.3.2 inDiMode
This IO Configuration parameter configures the operation mode of the input.
Parameter
inDiMode
Access
Read / Write
Address
0x1100
Values
Input Mode
Byte
Mode
0x00
inactive
0x01
reflect
0x10
risingEdge
0x11
fallingEdge
0x20
count
Default Value
0x00
Parameter Type
1 Byte unsigned
LucidIoControl Command Line Tool
Parameter Name
inDiMode
Parameter Values
0x00 or 0x01
Call (Set)
LucidIoCtrl –d[COMx] –c[Channel] –sinDiMode=[Value] {-p}
{--default}
Call (Get)
LucidIoCtrl –d[COMx] –c[Channel] –ginDiMode
LucidIoCtrl Command Line Tool Example
Set operation mode of input channel 0 to Count Mode and make the setting persistent.
LucidIoCtrl –dCOM4 –c0 –sinDiMode=count –p [ENTER]
Read the operation mode of input channel 0
LucidIoCtrl –dCOM4 –c0 –ginDiMode [ENTER]
-> inDiMode=count
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 23 of 29
3.3.3 Bit Parameter inDiFlags
This IO Configuration Parameter groups Bit Parameters which are represented by one bit
e.g. having an “on” or “off” state only).
Parameter
inDiFlags
Access
Read / Write
Address
0x1101
Values
Consists of the following Bit Parameters
Bit Parameter
Bit Postion
inDiAddCounter
Bit 0
inDiResetCounterOnRead
Bit 1
inDiInverted
Bit 2
Default Value
0x00
Parameter Type
1 Byte unsigned
Note
The parameter inDiFlags cannot be accessed directly by using the Command Line Tool. The
Bit Parameters can be used instead.
Note:
When inDiFlags is changed by the SetParam command which is described in section 4.3.5
of the LucidControl User Manual the current setting of inDiFlags must be read before
updating it in order to prevent overwriting other Bit Parameters.
3.3.3.1 inDiInverted
This Bit Parameter configures the inversion of the physical input value.
See input modes descriptions in section 3.1 for more information.
Parameter
inDiFlags
Access
Read / Write
Address
0x1101
Bit Parameter in inDiFlags
Values
Bit Parameter
Bit Postion
inDiInverted
Bit 2
Default Value
Off
Parameter Type
1 Bit
LucidIoControl Command Line Tool
Parameter Name
inDiInverted
Parameter Values
on / off
Call (Set)
LucidIoCtrl –d[COMx] –c[Channel] –sinDiInverted=[Value]
{-p} {--default}
Call (Get)
LucidIoCtrl –d[COMx] –c[Channel] –ginDiInverted
LucidIoCtrl Command Line Tool Example
Enable inversion of physical input channel 0 and make the setting persistent.
LucidIoCtrl –dCOM4 –c0 –sinDiInverted=on –p [ENTER]
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 24 of 29
Read inversion of physical input channel 0
LucidIoCtrl –dCOM4 –c0 –ginDiInverted [ENTER]
-> inDiInverted=on
3.3.3.2 inDiAddCounter
This Bit Parameter controls how the counter value is updated after count interval time
T
Count
has finished. It is relevant in Count Mode only. (see section 3.1.3)
In the case inDiAddCounter is “off” the number of currently counted pulses is used for
update after count interval time T
Count
has finished. Previously counted pulses are
overwritten.
In the case inDiAddCounter is “on” the number of currently counted pulses is added to the
counter value of previous measurements.
In order to avoid overflows inDiAddCounter=”on” should be combined with
inDiResetCounterOnRead parameter.
Parameter
inDiFlags
Access
Read / Write
Address
0x1101
Shared bit in Parameter inDiFlags
Values
Bit Parameter
Bit Postion
inDiAddCounter
Bit 0
Default Value
Off
Parameter Type
1 Bit
LucidIoControl Command Line Tool
Parameter Name
inDiAddCounter
Parameter Values
on / off
Call (Set)
LucidIoCtrl –d[COMx] –c[Channel] –sinDiAddCounter=[Value]
{-p} {--default}
Call (Get)
LucidIoCtrl –d[COMx] –c[Channel] –ginDiAddCounter
LucidIoCtrl Command Line Tool Example
Enable counter add on update for input channel 0 and make the setting persistent.
LucidIoCtrl –dCOM4 –c0 –sinDiAddCounter=on –p [ENTER]
Read counter add setting of input channel 0
LucidIoCtrl –dCOM4 –c0 –ginDiAddCounter [ENTER]
inDiAddCounter=on
3.3.3.3 inDiResetCounterOnRead
This Bit Parameter controls how to update the counter value after reading it. It is relevant
in Count mode only. (see section 3.1.3)
In the case of inDiResetCounterOnRead is “off” reading of the counter value does not affect
the counter value itself.
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 25 of 29
In the case of inDiResetCounterOnRead is “on” the counter value is reset after reading it.
Parameter
inDiFlags
Access
Read / Write
Address
0x1101
Shared bit in Parameter inDiFlags
Values
Bit Parameter
Bit Postion
inDiResetCounterOnRead
Bit 1
Default Value
Off
Parameter Type
1 Bit
LucidIoControl Command Line Tool
Parameter Name
inDiResetCounterOnRead
Parameter Values
on / off
Call (Set)
LucidIoCtrl –d[COMx] –c[Channel]
-sinDiResetCounterOnRead=[Value] {-p} {--default}
Call (Get)
LucidIoCtrl –d[COMx] –c[Channel] –ginDiResetCounterOnRead
LucidIoCtrl Command Line Tool Example
Enable counter reset on read for input channel 0 and make the setting persistent.
LucidIoCtrl –dCOM4 –c0 –sinDiResetCounterOnRead=on –p [ENTER]
Read counter reset setting of input channel 0
LucidIoCtrl –dCOM4 –c0 –ginDiResetCounterOnRead [ENTER]
-> inDiResetCounterOnRead=on
3.3.4 inDiScanTime
This IO Configuration Parameter specifies the scan time T
Scan
of the digital input.
T
Scan
defines the scan time interval within the input signal must be stable in order to detect
it as valid.
Parameter
inDiScanTime
Access
Read / Write
Address
0x1111
Values
T
Scan
in µs (micro seconds)
80 µs ≤ T
Scan
≤ 1 s
Default Value
50,000 (50 ms)
Parameter Type
4 Bytes unsigned
LucidIoControl Command Line Tool
Parameter Name
inDiScanTime
Parameter Values
Time [µs]
Call (Set)
LucidIoCtrl –d[COMx] –c[Channel] –sinDiScanTime=[Time]
{-p} {--default}
Call (Get)
LucidIoCtrl –d[COMx] –c[Channel] –ginDiScanTime
LucidIoCtrl Command Line Tool Example
Set T
Scan
of input channel 0 to 1.5 s and make the setting persistent.
LucidIoCtrl –dCOM4 –c0 –sinDiScanTime=1500000 –p [ENTER]
Read T
Scan
parameter of input channel 0
LucidIoCtrl –dCOM4 –c0 –ginDiScanTime [ENTER]
-> inDiScanTime=1500000
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 26 of 29
3.3.5 inDiCountTime
This IO Configuration Parameter specifies the count time T
Count
of the digital input in Count
Mode.
The count interval specifies the time the pulses of the input signal are accumulated.
Parameter
inDiCountTime
Access
Read / Write
Address
0x1112
Values
T
Count
in µs (micro seconds)
1 ms ≤ T
Scan
≤ 1 h
Default Value
5,000,000 (5 s)
Parameter Type
4 Bytes unsigned
LucidIoControl Command Line Tool
Parameter Name
inDiCountTime
Parameter Values
Time [µs]
Call (Set)
LucidIoCtrl –d[COMx] –c[Channel] –sinDiCountTime=[Time]
{-p} {--default}
Call (Get)
LucidIoCtrl –d[COMx] –c[Channel] –ginDiCountTime
LucidIoCtrl Command Line Tool Example
Set T
Count
of input channel 0 to 10 s and make the setting persistent.
LucidIoCtrl –dCOM4 –c0 –sinDiScanTime=10000000 –p [ENTER]
Read T
Count
parameter of input channel 0
LucidIoCtrl –dCOM4 –c0 –ginDiCountTime [ENTER]
->inDiCountTime=10000000
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 27 of 29
4 Specification
Parameter
Condition
Value
Inputs
No of Input Channels
4/8
Inputs - Electrical Characteristics
Input Signal Maximum Low
Level
5V
U
05MaxLow
2.5 V
10V
U
10MaxLow
6.0 V
24V
U
24MaxLow
16.0 V
Input Signal Minimum High
Level
5V
U
05MinHigh
3.5 V
10V
U
10MinHigh
8.5 V
24V
U
24MinHigh
21.0 V
Maximum Input Voltage
U
Max
30 V
Maximum Reverse Input
Voltage
U
RMax
-30 V
Input Impedance
RIn
> 1 kΩ
Inputs – Timing Characteristic
T
Scan
t
Min
< T
Scan
< 1 s
T
Count
1 ms < T
Count
< 1 h
Minimum pulse length
t
Min
100 µs
Maximum Frequency of
Input Signal in Count Mode
DC 50 %
2,000 Hz
20% > DC
< 80%
500 Hz
Module – Host Interface
USB
2.0 Full Speed CDC Profil
Power Supply
USB Bus Powered with +5V
No additional Power Supply
needed.
Maximum Rated Supply Current
40 mA
Module – Environment
Temperature
Storage
-20 °C … +70 °C
Operation
0 °C … +55 °C
Humidity
< 85 % RH, non-condensing
Module – Housing
Dimensions L x W x H
90 x 54 x 62 mm
Weight (in total)
120 g
Assembly
Rail-Mount (EN 50022, TS35)
Protection Class (DIN 40050)
IP20
Module - Indicators
Operation and Status Indicator
Communication Indicator
Indicator for Input State (Enabled / Disabled)
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 28 of 29
5 Order Information and Accessories
Digital Input Devices
General format of order code
LCTR-DIn-I-voltage(-ISO)
Order Code
Product
LCTR-DI4-I-5
LucidControl Digital Input USB Module with 4 insulated
Channels for 5 Volt Signals
LCTR-DI4-I-10
LucidControl Digital Input USB Module with 4 insulated
Channels for 10 Volt Signals
LCTR-DI4-I-24
LucidControl Digital Input USB Module with 4 insulated
Channels for 24 Volt Signals
LCTR-DI8-I-5
LucidControl Digital Input USB Module with 8 insulated
Channels for 5 Volt Signals
LCTR-DI8-I-10
LucidControl Digital Input USB Module with 8 insulated
Channels for 10 Volt Signals
LCTR-DI8-I-24
LucidControl Digital Input USB Module with 8 insulated
Channels for 24 Volt Signals
Order Code (ISO)
Product
-ISO
With galvanic isolation of USB Interface
The following accessories are available:
Order Code
Product
64.200.0005
Plug-In Terminal 8-way 1,5 mm² wire
LucidControl DI4/DI8, User Manual (2.0) 2018-08-04
Page 29 of 29
6 Document Revision
Date
Rev.
2018/08/04
2.0
Added documentation of DI8 module
Added documentation of USB Isolation
deciphe it GmbH
Schäferstr. 5
87600 Kaufbeuren / Germany
www.lucid-control.com
Loading...
