Lucent Technologies Inc TLIU04C1 Datasheet

Advance Data Sheet, Rev. 2
April 1999

Features

■

Selectable microprocessor or direct logic control
modes.

■

Quad T1/E1 line interface.

■

Hardware and software reset options.

■

3-state outputs.

■

0.35 µm CMOS technology.

■

Compliant with:

AT&T

CB119 (10/79)

Bellcore

TR-54016 (89)
TR-TSY-000170 (10/97)
TR-TSY-000009 (5/86)
GR-499-CORE (12/95)
GR-253-CORE (12/95)

ANSI

T1.102 (93)
T1.231 (93)
T1.403 (95)

ITU-T

G.703 (88)
G.704 (91)
G.706 (91)
G.732 (88)
G.735-9 (88)
G.775 (11/94)
G.823-4 (3/93)
G.826 (11/93)
I.431 (3/93)

TLIU04C1 Quad T1/E1 Line Interface

■

Transmitter includes transmit encoder (B8ZS or
HDB3), pulse shaping, and line driver.

■

Five pulse equalization settings for template com­pliance at DSX cross connect.

■

Receive includes equalization, digital clock and
data recovery (immune to false lock), and receive
decoder (B8ZS or HDB3).

■

CEPT/E1 interference immunity as required by
G.703.

■

Transmit jitter <0.02 UI.

■

Receive generated jitter <0.05 UI.

■

Jitter attenuator selectable for use in transmit or
receive path. Jitter attenuation characteristics are
data pattern independent.

■

For use with 100 Ω DS1 twisted-pair, 120 Ω E1
twisted-pair, and 75 Ω E1 coaxial cable.

■

Common part available for transmit/receive
transformers.

■

Analog LOS alarm for signals less than –18 dB for
greater than 1 ms or 10 bit symbol periods to
255 bit symbol periods (selectable).

■

Digital LOS alarm for 100 zeros (DS1) or 255 zeros
(CEPT).

■

Diagnostic loopback modes.

■

Low power consumption.

Applications

■

T1/E1 network performance monitoring

■

SONET/SDH multiplexers

ETSI

TBR 12 (12/93)
TBR 13 (1/96)

■

–40 °C to +85 °C operating temperature range.

■

Fine-pitch (12.5 mil) surface-mount
package, 144-pin TQFP.

■

Asynchronous multip lexers (M13)

■

Digital access cross connects (DACs)

■

Channel banks

■

Digital radio base stations, remote wireless mod­ules

■

PBX interface

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Table of Contents

Contents Page

Features ........................................................................................................................................... ....................... 1

Applications .................................................. ...... ....... ...... ....... ...... ....... ...... ...... ....... ...... ....... .................................... 1

Description.................... ...................................... ....... ...... ....... ...... ....... ...... ............................... ............................... 8

Microprocessor Mode............................................................................................................................. ....... ...... .... 8

Overview ...................................... ...... ....... ...... ....... ...... ....... ...................................... .... ... ...... ....... ....................... 8

Pin Information................................................................................................................. .................................... 9

System Interface Pin Options............................................................................................................................. 14

Microprocessor Configuration Modes................................................................................................................. 14

Microprocessor Interface Pinout Definitions....................................................................................................... 15

Microprocessor Clock (MPCLK) Specifications.................................................................................................. 16

Internal Chip Select Function............................................................................................................................. 16

Microprocessor Interface Register Architecture ................................................................................................. 17

Block Diagrams......... ...... ...... ....... ...... ....... ....................................... ...... ...... ....... ...... ....... . ................................. 18

Data Recovery.................................................................................................................................................... 20

Jitter Accommodation and Jitter Transfer Without the Jitter Attenuator............................................................. 20

Receiver Configuration Modes........................ ....... ...... ....... ...... ....... ...... ...... ....... ............................................... 20

Clock/Data Recovery Mode (CDR)................................................................................................................. 20

Zero Substitution Decoding (CODE)............................................................................................................... 20

Alternate Logic Mode (ALM) ........................................................................................................................... 21

Alternate Clock Mode (ACM) .......................................................................................................................... 21

RLIU Alarms.................................................................................................................................................... 21

DS1 Receiver Specifications.............................................................................................................................. 23

Frequency Response Curves ......................................................................................................................... 24

CEPT Receiver Specifications ........................................................................................................................... 26

Frequency Response Curves ......................................................................................................................... 27

Output Pulse Generation.................................................................................................................................... 29

Jitter.................................................................................................................................................................... 29

Zero Substitution Encoding (CODE) .................................................................................................................. 30

Alarm Indication Signal Generator (XAIS) ...................................................................................................... 30

Transmitter Alarms............................................................................................................................................. 30

Loss of Transmit Clock (LOTC) Alarm............................................................................................................ 30

Transmit Driver Monitor (TDM) Alarm............................................................................................................. 30

DS1 Transmitter Pulse Template and Specifications......................................................................................... 31

CEPT Transmitter Pulse Template and Specifications ...................................................................................... 33

Jitter Attenuator.................................................................................................................................................. 34

Generated (Intrinsic) Jitter .............................................................................................................................. 34

Jitter Transfer Function ................................................................................................................................... 35

Jitter Accommodation ..................................................................................................................................... 35

Jitter Attenuator Enable .................................................................................................................................. 36

Jitter Attenuator Receive Path Enable (JAR).................................................................................................. 36

Jitter Attenuator Transmit Path Enable (JAT) ................................................................................................. 36

Frequency Response Curves ......................................................................................................................... 37

Loopbacks.......................................................................................................................................................... 41

Full Local Loopback (FLLOOP) ...................................................................................................................... 41

Remote Loopback (RLOOP)..................................... ....... ...... ....... ...... ....................................... ..................... 41

Digital Local Loopback (DLLOOP).................................................................................................................. 41

Powerdown (PWRDN)........................................................................................................................................ 42

Reset (

RESET

, SWRESET)................................................................................................................................ 42

2 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Table of Contents

(continued)

Contents Page

Loss of XCLK Reference Clock (LOXC)............................................................................................................. 42

In-Circuit Testing and Driver High-Impedance State (ICT

LIU Delay Values............. ...... ....... ...... ....... ...................................... ....... ...... ....... ...... ....... .................................. 42

Line Encoding/Decoding .................................................................................................................................... 43

Alternate Mark Inversion (AMI) ....................................................................................................................... 43

T1-Binary 8 Zero Code Suppression (B8ZS) .................................................................................................. 43

High-Density Bipolar of Order 3 (HDB3) ......................................................................................... ................ 43

Registers............................................................................................................................................................ 44

Alarm Registers (0000, 0001)......................................................................................................................... 44

Alarm Mask Registers (0010, 0011)................................................................................................................ 45

Global Control Registers (0100, 0101)............................................................................................................ 45

Channel Configuration and Control Registers (0110—1001, 1011, 1100)...................................................... 46

XCLK Reference Clock ...................................................................................................................................... 48

16x XCLK Reference Clock ............................................................................................................................ 48

Primary Line Rate XCLK Reference Clock and Internal Reference Clock Synthesizer.................................. 49

Power Supply Bypassing.................................................................................................................................... 49

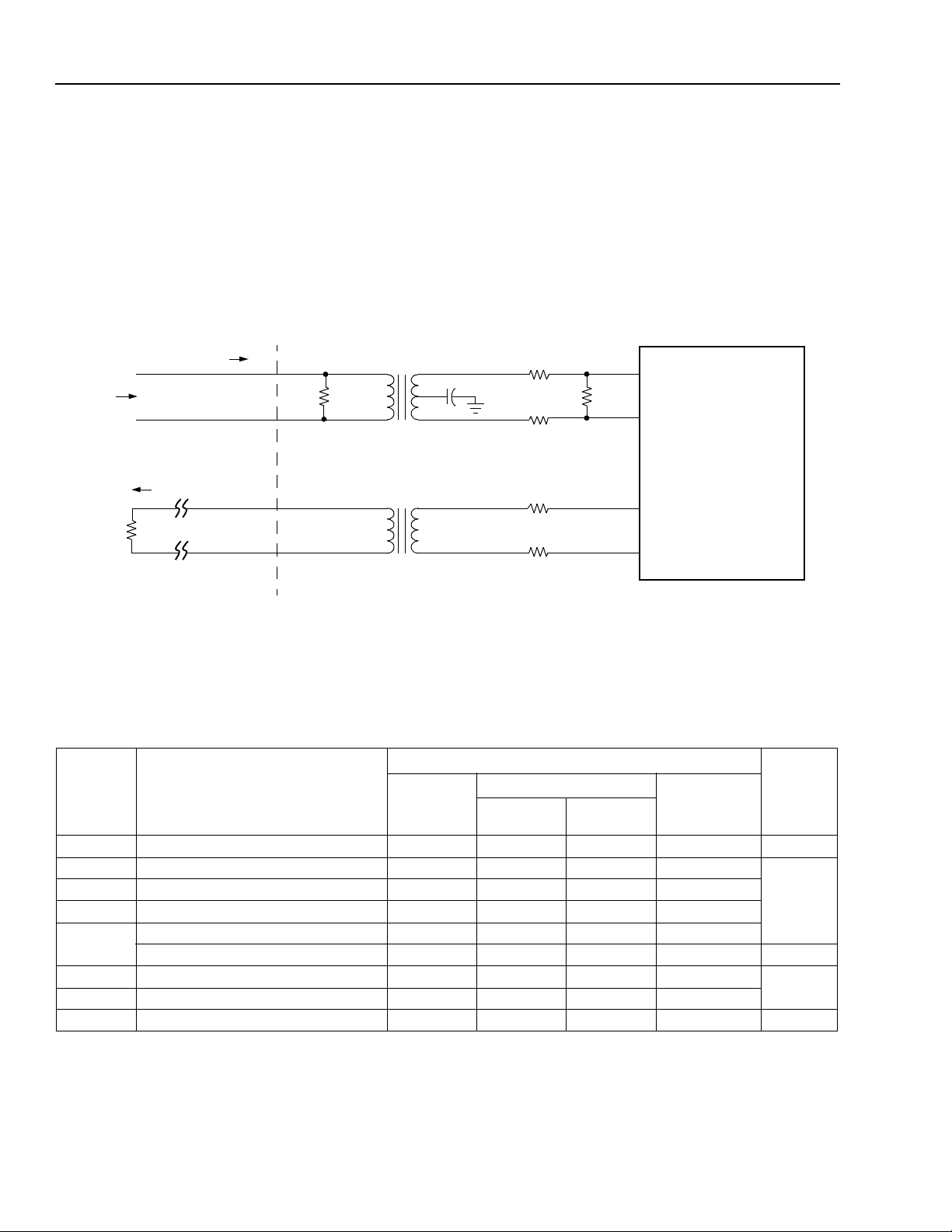

Line Circuitry ...................................................................................................................................................... 50

Absolute Maximum Ratings................................................................................................................................ 51

Handling Precautions ............................................. ...... ....... ...... ...... ....... ...... ....... ............................................... 51

Operating Conditions.......................................................................................................................................... 51

Power Requirements.......................................................................................................................................... 52

Electrical Characteristics.................................................................................................................................... 52

Microprocessor Interface Timing........................................................................................................................ 53

Data Interface Timing......................................................................................................................................... 59

Direct Logic Control Mode..................................................................................................................................... 60

Overview ............................................................................................................................................................ 60

Device Overview ................................................................................................................................................ 60

Pin Information ................................................................................................................................................... 61

System Interface Pin Options............................................................................................................................. 66

Block Diagrams .. ...... ....... ...... ....... ...... ....................................... ...... ....... ...... ....... ...... ....... . ................................. 67

Data Recovery.................................................................................................................................................... 69

Jitter Accommodation and Jitter Transfer Without the Jitter Attenuator............................................................. 69

Receiver Configuration Modes.................. ...... ....... ...... ....... ...... ...... ....... ...... ...................................................... 69

Clock/Data Recovery Mode (CDR)................................................................................................................. 69

Zero Substitution Decoding (CODE)......................... ....... ...... ...... ....... ...... ....... ...... ....... .................................. 69

Alternate Logic Mode (ALM) ........................................................................................................................... 69

Alternate Clock Mode (ACM) .......................................................................................................................... 69

RLIU Alarms.................................................................................................................................................... 70

DS1 Receiver Specifications.............................................................................................................................. 72

Frequency Response Curves.......................................................................................................................... 73

CEPT Receiver Specifications ........................................................................................................................... 75

Frequency Response Curves.......................................................................................................................... 76

Output Pulse Generation.................................................................................................................................... 78

Jitter.................................................................................................................................................................... 78

Transmitter Configuration Modes....................................................................................................................... 79

Zero Substitution Encoding (CODE)............................................................................................................... 79

Alarm Indication Signal Generator (XAIS)....................................................................................................... 79

Loss of Transmit Clock (LOTC) Alarm............................................................................................................ 79

Transmit Driver Monitor (TDM) Alarm............................................................................................................. 79

)................................................................................. 42

3Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Table of Contents

(continued)

Contents Page

DS1 Transmitter Pulse Template....................................................................................................................... 80

CEPT Transmitter Pulse Template..................................................................................................................... 81

Jitter Attenuator.................................................................................................................................................. 82

Generated (Intrinsic) Jitter .............................................................................................................................. 82

Jitter Transfer Function ................................................................................................................................... 83

Jitter Accommodation ..................................................................................................................................... 83

Jitter Attenuator Enable .................................................................................................................................. 84

Jitter Attenuator Receive Path Enable (JAR).................................................................................................. 84

Jitter Attenuator Transmit Path Enable (JAT) ................................................................................................. 84

Frequency Response Curves ......................................................................................................................... 85

Loopbacks.......................................................................................................................................................... 89

Full Local Loopback (FLLOOP
Remote Loopback (RLOOP

Digital Local Loopback (DLLOOP

Powerdown (PWRDN)........................................................................................................................................ 89

Reset (

Loss of XCLK Reference Clock (LOXC)............................................................................................................. 89

In-Circuit Testing and Driver High-Impedance State (ICT

LIU Delay Values................... ....... ...... ....... ...... ....................................... ...... ....... ...... ....... .................................. 89

Line Encoding/Decoding .................................................................................................................................... 90

XCLK Reference Clock ...................................................................................................................................... 91

Power Supply Bypassing.................................................................................................................................... 93

Line Circuitry ...................................................................................................................................................... 94

Absolute Maximum Ratings................................................................................................................................ 95

Handling Precautions ................................................... ....... ...... ....... ...... ...... ....... ...... ......................................... 95

Operating Conditions....... ....................................... ...... ....... ...... ....... ...... ...... ...................................................... 95

Power Requirements.......................................................................................................................................... 96

Electrical Characteristics.................................................................................................................................... 96

Data Interface Timing......................................................................................................................................... 97

Outline Diagram..................................................................................................................................................... 98

144-Pin TQFP ..................................................................................................................................................... 98

Ordering Information.............................................................................................................................................. 99

RESET

).................................................................................................................................................... 89

Alternate Mark Inversion (AMI) ....................................................................................................................... 90

T1-Binary 8 Zero Code Suppression .............................................................................................................. 90

High-Density Bipolar of Order 3 (HDB3)...... ....... ...... ....... ...... ....... ...... ...... ....... ...... ......................................... 90

16x XCLK Reference Clock ............................................................................................................................ 91

Primary Line Rate XCLK Reference Clock and Internal Reference Clock Synthesizer.................................. 92

) ...................................................................................................................... 89

)........................................................................................................................... 89

).................................................................................................................. 89

)................................................................................. 89

4 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

List of Figures

Figures Page

Figure 1. TLIU04C1 Microprocessor Mode Pin Diagram............................................................................... ...... ..... 9

Figure 2. TLIU04C1 Block Diagram, CMODE = 1 (Microprocessor Mode) ............................................................ 18

Figure 3. Block Diagram of the Quad Line Interface Unit (Single Channel) ........................................................... 19

Figure 4. DS1/T1 Receiver Jitter Accommodation Without Jitter Attenuator.......................................................... 24

Figure 5. DS1/T1 Receiver Jitter Transfer Without Jitter Attenuator ...................................................................... 25

Figure 6. CEPT/E1 Receiver Jitter Accommodation Without Jitter Attenuator ....................................................... 27

Figure 7. CEPT/E1 Receiver Jitter Transfer Without Jitter Attenuator ................................................................... 28

Figure 8. DSX-1 Isolated Pulse Template .............................................................................................................. 31

Figure 9. ITU-T G.703 Pulse Template ........ ...... ....... ...... ....... ...... ...... ....... ...... ....................................................... 33

Figure 10. DS1/T1 Receiver Jitter Accommodation with Jitter Attenuator.............................................................. 37

Figure 11. DS1/T1 Jitter Transfer of the Jitter Attenuator....................................................................................... 38

Figure 12. CEPT/E1 Receiver Jitter Accommodation with Jitter Attenuator........................................................... 39

Figure 13. CEPT/E1 Jitter Transfer of the Jitter Attenuator.................................................................................... 40

Figure 14. Line Termination Circuitry ..................................................................................................................... 50

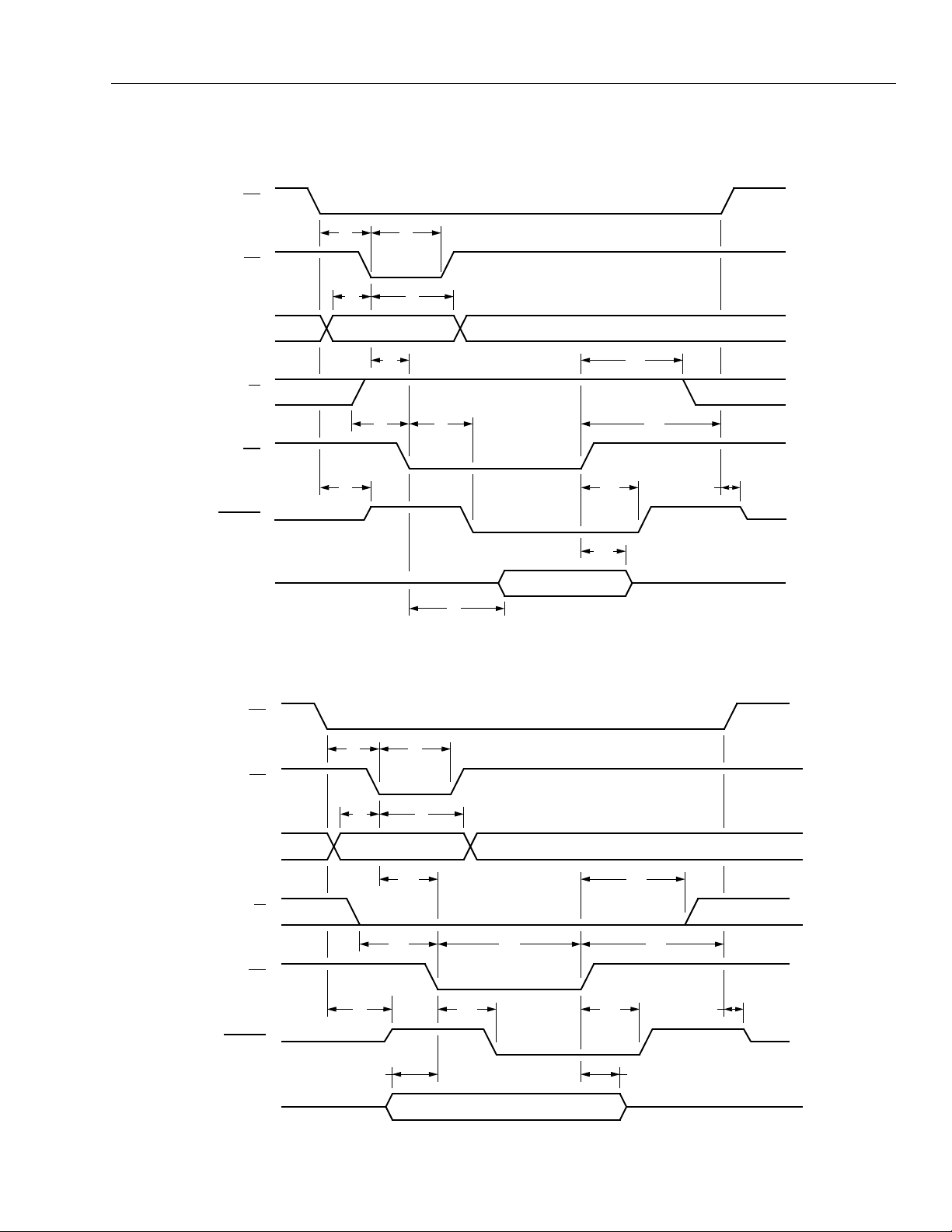

Figure 15. Mode 1—Read Cycle Timing (MPMODE = 0, MPMUX = 0) ................................................................. 55

Figure 16. Mode 1—Write Cycle Timing (MPMODE = 0, MPMUX = 0) ................................................................. 55

Figure 17. Mode 2—Read Cycle Timing (MPMODE = 0, MPMUX = 1) ................................................................. 56

Figure 18. Mode 2—Write Cycle Timing (MPMODE = 0, MPMUX = 1) ................................................................. 56

Figure 19. Mode 3—Read Cycle Timing (MPMODE = 1, MPMUX = 0) ................................................................. 57

Figure 20. Mode 3—Write Cycle Timing (MPMODE = 1, MPMUX = 0) ................................................................. 57

Figure 21. Mode 4—Read Cycle Timing (MPMODE = 1, MPMUX = 1) ................................................................. 58

Figure 22. Mode 4—Write Cycle Timing (MPMODE = 1, MPMUX = 1) ................................................................. 58

Figure 23. Interface Data Timing (ACM = 0)........................................................................................................... 59

Figure 24. TLIU04C1 Direct Logic Control Mode Pin Diagram............................................................................... 61

Figure 25. TLIU04C1 Block Diagram, CMODE = 0 (Direct Logic Mode)................................................................ 67

Figure 26. Block Diagram of the Quad Line Interface Unit (Single Channel)......................................................... 68

Figure 27. DS1/T1 Receiver Jitter Accommodation Without Jitter Attenuator........................................................ 73

Figure 28. DS1/T1 Receiver Jitter Transfer Without Jitter Attenuator .................................................................... 74

Figure 29. CEPT/E1 Receiver Jitter Accommodation Without Jitter Attenuator..................................................... 76

Figure 30. CEPT/E1 Receiver Jitter Transfer Without Jitter Attenuator ................................................................. 77

Figure 31. DSX-1 Isolated Pulse Template ............................................................................................................ 80

Figure 32. ITU-T G.703 Pulse Template ................................................................................................................ 81

Figure 33. DS1/T1 Receiver Jitter Accommodation with Jitter Attenuator.............................................................. 85

Figure 34. DS1/T1 Jitter Transfer of the Jitter Attenuator....................................................................................... 86

Figure 35. CEPT/E1 Receiver Jitter Accommodation with Jitter Attenuator........................................................... 87

Figure 36. CEPT/E1 Jitter Transfer of the Jitter Attenuator.................................................................................... 88

Figure 37. Line Termination Circuitry ..................................................................................................................... 94

Figure 38. Interface Data Timing (ACM = 0)........................................................................................................... 97

5Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

List of Tables

Tables Page

Table 1. Pin Descriptions....................................................................................................................................... 10

Table 2. System Interface Pin Mapping................................................................................................................. 14

Table 3. Microprocessor Configuration Modes...................................................................................................... 14

Table 4. MODE [1—4] Microprocessor Pin Definitions.......................................................................................... 15

Table 5. Microprocessor Input Clock Specifications.............................................................................................. 16

Table 6. LIU Register Bank ................................................................................................................................... 17

Table 7. Register Map for CODE Bits.................................................................................................................... 20

Table 8. Digital Loss of Signal Standard Select .................................................................................................... 22

Table 9. LOSSD and RCVAIS Control Configurations (Not Valid During Loopback Modes) ................................ 22

Table 10. DS1 RLIU Specifications....................................................................................................................... 23

Table 11. CEPT RLIU Specifications..................................................................................................................... 26

Table 12. Equalizer/Rate Control .......................................................................................................................... 29

Table 13. Register Map for CODE Bits.................................................................................................................. 30

Table 14. DSX-1 Pulse Template Corner Points (from CB119) ............................................................................ 31

Table 15. DS1 Transmitter Specifications ............................................................................................................. 32

Table 16. CEPT Transmitter Specifications........................................................................................................... 34

Table 17. Loopback Control .................................................................................................................................. 41

Table 18. AMI Encoding ........................................................................................................................................ 43

Table 19. DS1 B8ZS Encoding.............................................................................................................................. 43

Table 20. ITU HDB3 Coding and DCPAT Binary Coding...................................................................................... 43

Table 21. Alarm Registers..................................................................................................................................... 44

Table 22. Alarm Mask Registers ........................................................................................................................... 45

Table 23. Global Control Register (0100).............................................................................................................. 45

Table 24. Global Control Register (0101).............................................................................................................. 46

Table 25. Channel Configuration Registers (0110—1001).................................................................................... 46

Table 26. Channel Configuration Register (1011)................................................................................................. 47

Table 27. Control Register (1100) ......................................................................................................................... 47

Table 28. XCLK (16x, CLKS = 0) Timing Specifications ....................................................................................... 48

Table 29. XCLK (1x, CLKS = 1) Timing Specifications ......................................................................................... 49

Table 30. Termination Components by Application............................................................................................... 50

Table 31. Absolute Maximum Ratings................................................................................................................... 51

Table 32. ESD Threshold Voltage......................................................................................................................... 51

Table 33. Recommended Operating Conditions ................................................................................................... 51

Table 34. Power Consumption .............................................................................................................................. 52

Table 35. Power Dissipation.................................................................................................................................. 52

Table 36. Logic Interface Characteristics .............................................................................................................. 52

Table 37. Microprocessor Interface I/O Timing Specifications.............................................................................. 53

Table 38. Data Interface Timing ............................................................................................................................ 59

Table 39. Pin Descriptions..................................................................................................................................... 62

Table 40. System Interface Pin Mapping............................................................................................................... 66

Table 41. Digital Loss of Signal Standard Select .................................................................................................. 70

Table 42. LOSSD and RCVAIS Control Configurations (Not Valid During Loopback Modes) .............................. 71

Table 43. DS1 RLIU Specifications....................................................................................................................... 72

Table 44. CEPT RLIU Specifications..................................................................................................................... 75

Table 45. Equalizer/Rate Control .......................................................................................................................... 78

Table 46. DSX-1 Pulse Template Corner Points (from CB119) ............................................................................ 80

Table 47. DS1 Transmitter Specifications ............................................................................................................. 80

Table 48. CEPT Transmitter Specifications........................................................................................................... 82

Table 49. AMI Encoding ........................................................................................................................................ 90

Table 50. DS1 B8ZS Encoding.............................................................................................................................. 90

6 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

List of Tables

(continued)

Tables Page

Table 51. ITU HDB3 Coding and DCPAT Binary Coding...................................................................................... 90

Table 52. XCLK (16x, CLKS = 0) Timing Specifications........................................................................................ 91

Table 53. XCLK (1x, CLKS = 1) Timing Specifications.......................................................................................... 92

Table 54. XCLK Specifications.............................................................................................................................. 92

Table 55. Termination Components by Application............................................................................................... 94

Table 56. Absolute Maximum Ratings................................................................................................................... 95

Table 57. ESD Threshold Voltage......................................................................................................................... 95

Table 58. Recommended Operating Conditions ................................................................................................... 95

Table 59. Power Consumption.............................................................................................................................. 96

Table 60. Power Dissipation.................................................................................................................................. 96

Table 61. Logic Interface Characteristics .............................................................................................................. 96

Table 62. Data Interface Timing ............................................................................................................................ 97

7Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Description

The TLIU04C1 is a quad line interface containing four
line transmit and receive channels for use in both North
American (T1/DS1) and European (E1/CEPT) applica­tions. The line interface unit has the same functions as
the Lucent T7698.

The device can operate in either of two modes, chosen
by the logic state of a control pin. A direct logic control
mode provides the ability to define the architecture, ini­tiate loopbacks, and monitor alarms without connecting
to a microprocessor by setting the logic levels on con­trol pins. The microprocessor mode uses a parallel
microprocessor interface to allow the user to configure
the device. The interface is compatible with many com­mercially available microprocessors. The block dia­grams of the microprocessor and direct logic modes
are shown in Figure 2 and Figure 25, respectively.

The block diagram of the line interface unit is shown in
Figure 3 on page 19 (it is repeated as Figure 26). The
line receiver performs clock and data recovery using a
fully integrated digital phase-locked loop. This digital
implementation prevents false lock conditions that are
common when recovering sparse data patterns with
analog phase-locked loops.

Equalization circuitry in the receiver provides a high
level of interference immunity. As an option, the raw
sliced data (no retiming) can be output on the receive
data pins. Transmit equalization is implemented with
low-impedance output drivers that provide shaped
waveforms to the transformer, guaranteeing template
conformance. The quad device will interface to the digi­tal cross connect (DSX) at lengths of up to 655 ft. for
DS1 operation or to line impedances of 75 Ω or 120 Ω
for CEPT operation.

A selectable jitter attenuator may be placed in the
receive signal path for low-bandwidth line-synchronous
applications, or it may be placed in the transmit path for
multiplexer applications where DS1/CEPT signals are
demultiplexed from higher rate signals. The jitter atten­uator will perform the clock smoothing required on the
resulting demultiplexed gapped clock.

Microprocessor Mode

Overview

The TLIU04C1 device has the ability to operate in
either a microprocessor mode or a direct logic control
mode. The CMODE pin is used to determine the oper­ating mode. To configure the device for microprocessor
mode, the CMODE pin is pulled high.

The device is equipped with a microprocessor interface
that can operate with most commercially available
microprocessors. Inputs MPMUX and MPMODE
(pins 108 and 110) are used to configure this interface
into one of four possible modes, as shown in Table 3.
The MPMUX setting selects either a multiplexed 8-bit
address/data bus (AD[7:0]) or a demultiplexed 4-bit
address bus (A[3:0]) and an 8-bit data bus (AD[7:0]).
The MPMODE setting selects the associated set of
control signals required to access a set of registers
within the device.

When the microprocessor interface is configured to
operate in the multiplexed address/data bus modes
(MPMUX = 1), the user has access to an internal chip
select function that allows the microprocessor to selec­tively read/write a specific TLIU04C1 in a multiple
TLIU04C1 environment (see the Internal Chip Select
Function section, page 16).

The microprocessor interface can operate at speeds up
to 16.384 MHz in interrupt-driven or polled mode with­out requiring any wait-states. For microprocessors
operating at greater than 16.384 MHz, the
RDY_DTACK
the read/write cycles.

In the interrupt-driven mode, one or more device
alarms will assert the active-high INT output (pin 114)
once per alarm activation. After the microprocessor
reads the alarm status registers, the INT output will
deassert. In the polled mode, however, the micropro­cessor monitors the various device alarm status by
periodically reading the alarm status registers without
the use of INT. A variety of LIU mask controls are avail­able for control of the INT pin.

output is used to introduce wait-states in

8 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

Pin Informatio n

NC

NC

TCLK1

TPD1/TDATA1

144

143

142

GNDD

VDDD

NC
NC
NC
NC

VDDD

GNDD

NC
NC

TCLK2

TPD2/TDA TA2

TND2

RCLK2/ALOS2

RPD2/RDATA2

RND2/BPV2

GNDA2

RRING2

RTIP2

VDDA2

GNDX2

TRING2

VDDX2

TTIP2

GNDX2

NC
NC
NC
NC
NC
NC

NC

1
2
3
4
5
6

A3

7
8

A2

9

A1

10

A0

11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

141

37

3839404142434445464748495051525354555657585960616263646566676869707172

(continued)

GNDA1

RND1/BPV1

RPD1/RDATA1

TND1

RCLK1/ALOS1

140

139

138

137

136

RTIP1

RRING1

135

134

VDDA1

133

GNDX1

TRING1

132

131

VDDX1

TTIP1

GNDX1NCNCNCNCNCNCNCGNDD

130

129

128

127

126

125

124

123

122

121

120

VDDD

119

CMODE

118

CLKS

117

CLKM

116

RDY_DTACK

115

INTCSALE_AS

114

113

112

RD_R/W

111

MPMODE

110

GNDD

109

108
107
106
105
104
103
102
101
100

99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73

MPMUX
WR_DS
MPCLK
NC
NC
NC
NC
GNDX4
TTIP4
VDDX4
TRING4
GNDX4
VDDA4
RTIP4
RRING4
GNDA4
RND4/BPV4
RPD4/RDATA4
RCLK4/ALOS4
TND4
TPD4/TDATA4
TCLK4
NC
NC
GNDD
VDDD
AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
VDDD
GNDD

GNDD

NC

NCNCNC

NC

ICT

LOXC

RESET

NCNCNCNCNCNCNC

XCLK

VDDD

GNDD

TTIP3

GNDX3

VDDA3

VDDX3

GNDX3

TRING3

Figure 1. TLIU04C1 Microprocessor Mode Pin Diagram

RTIP3

GNDA3

RRING3

NC

TND3

RND3/BPV3

RPD3/RDATA3

RCLK3/ALOS3

NC

TCLK3

TPD3/TDA TA3

5-7728(F).a

9Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

Pin Information

(continued)

(continued)

Table 1. Pin Descriptions

Pin Symbol Ty pe

117 CLKS I

d

*

XCLK Select.

This pin selects either a 16x rate clock for XCLK (CLKS = 0)

Name/Description

or a primary line rate clock for XCLK (CLKS = 1).

d

116 CLKM I

XCLK Mode.

This pin must be set appropriately when using a primary line

rate clock for XCLK.
CEPT: CLKM = 1.

DS1: CLKM = 0.

d

118 CMODE I

Chip Mode.

This pin sets the chip mode for either direct logic mode or

microprocessor mode.
Microprocessor: CMODE = 1.

Direct Logic: CMODE = 0.

128, 132

GND

X

[1—4] P

Ground Reference for Line Drivers.

25, 29,
56, 60,

97, 101

129, 28,

57, 100

130, 27,

58, 99

131, 26,

59, 98

133, 24,

61, 96

134, 23,

62, 95

135, 22,

63, 94

136, 21,

TTIP[1—4] O

[1—4] P

V

DDX

TRING[1—4] O

[1—4] P

V

DDA

RTIP[1—4] I

RRING[1—4] I

GND

[1—4] P

A

Transmit Bipolar Tip.

Positive bipolar transmit data to the analog line

interface.

Power Supply for Line Drivers.

The TLIU04C1 device requires a 5 V ± 5%

power supply on these pins.

Transmit Bipolar Ring.

Negative bipolar transmit data to the analog line

interface.

Power Supply for Analog Circuitry.

The TLIU04C1 device requires a 5 V

± 5% power supply on these pins.

Receive Bipolar Tip.

Positive bipolar receive data from the analog line

interface.

Receive Bipolar Ring.

Negative bipolar receive data from the analog line

interface.

Ground Reference for Analog Circuitry.

64, 93

137, 20,

65, 92

RND/BPV[1—4] O

Receive Negative Data.

When in dual-rail (DUAL = 1: register 5, bit 4)
clock recovery mode (CDR = 1: register 5, bit 0), this signal is the received
negative NRZ data to the terminal equipment. When in data slicing mode
(CDR = 0), this signal is the raw sliced negative data of the front end.

Bipolar Violation.

When in single-rail (DUAL = 0: register 5, bit 4) clock
recovery mode (CDR = 1: register 5, bit 0), and CODE = 1 (register 5, bit 3),
this signal is asserted high to indicate the occurrence of a code violation in
the receive data stream. A code violation is a bipolar violation that is not
part of a zero substitution code. If CODE = 0, this signal is asserted to
indicate the occurrence of a bipolar violation in the received data.

* I = input, O = output, Iu indicates an input with internal pull-up; Id indicates an input with internal pull-down, P = power. Resistance value of all

internal pull-ups or pull-downs is 50 kΩ, unless otherwise specified.

10 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

Pin Information

Table 1. Pin Descriptions

Pin Symbol Type

138, 19,

66, 91

139, 18,

67, 90

140, 17,

68, 89

141, 16,

69, 88

142, 15,

70, 87

110 MPMODE I

108 MPMUX I

107 WR

111 RD

* I = input, O = output, Iu indicates an input with internal pull-up; Id indicates an input with internal pull-down, P = power. Resistance value of all

internal pull-ups or pull-downs is 50 kΩ, unless otherwise specified.

RPD/RDATA

RCLK/ALOS

(continued)

[1—4]

[1—4]

TND[1—4] I

TPD/TDATA

[1—4]

TCLK[1—4] I

_DS I

_R/W I

(continued)

(continued)

*

O

O

I

Name/Description

Receive Positive Data.

recovery mode (CDR = 1: register 5, bit 0), this signal is the received positive
NRZ data to the terminal equipment. When in data slicing mode (CDR = 0),
this signal is the raw sliced positive data of the front end.

Receive Data.

mode (CDR = 1: register 5, bit 0), this signal is the received NRZ data.

Receive Clock.

signal is the recovered receive clock for the terminal equipment. The duty
cycle of RCLK is 50% ± 5%.

Analog Loss of Signal.

signal is asserted high to indicate low amplitude receive data at the RTIP/
RRING inputs.

Transmit Negat i ve D ata.

the terminal equipment.

T ransmit Po sitive Data.

this signal is the transmit positive NRZ data from the terminal equipment.

Transmit Data.

signal is the transmit NRZ data from the terminal equipment.

Transmit Clock.

50 ppm) clock signal from the terminal equipment.

Microprocessor Mode.

latch enable type microprocessor read/write protocol with separate read and
write controls. Setting MPMODE = 0 allows the device to use the address
strobe type microprocessor read/write protocol with a separate data strobe
and a combined read/write control.

Microprocessor Multiplex Mode.

microprocessor interface to accept multiplexed address and data signals.
Setting MPMUX = 0 allows the microprocessor interface to accept
demultiplexed (separate) address and data signals.

Write (Active-Low).

microprocessor to initiate a write cycle.

Data Strobe (Active-Low).

data strobe for the microprocessor. When R/W
a low applied to this pin latches the signal on the data bus into internal
registers.

Read (Active- Low).

microprocessor to initiate a read cycle.

Read/Write.

microprocessor to initiate a read cycle or asserted low to initiate a write
cycle.

When in single-rail (DUAL = 0: register 5, bit 4) clock recovery

In clock recovery mode (CDR = 1: register 5, bit 0), this

When in single-rail mode (DUAL = 0: register 5, bit 4), this

DS1 (1.544 MHz ± 32 ppm) or CEPT (2.048 MHz ±

If MPMODE = 0 (pin 110), this pin is asserted high by the

When in dual-rail (DUAL = 1: register 5, bit 4) clock

In data slicing mode (CDR = 0: register 5, bit 0), this

This signal is the transmit negative NRZ data from

When in dual-rail mode (DUAL = 1: register 5, bit 4),

When MPMODE = 1, the device uses the address

Setting MPMUX = 1 allows the

If MPMODE = 1 (pin 110), this pin is asserted low by the

If MPMODE = 0 (pin 21), this pin becomes the

= 0 (pin 111) initiating a write,

If MPMODE = 1 (pin 110), this pin is asserted lo w b y th e

11Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

Pin Information

Table 1. Pin Descriptions

Pin Symbol Type

112 ALE_AS

113 CS

114 INT O

115 RDY_DTACK

(continued)

(continued)

(continued)

*

Address Latch Enable.

I

Name/Description

If MPMODE = 1 (pin 110), this pin becomes the
address latch enable for the microprocessor. When this pin transitions from
high to low, the address bus inputs are latched into the internal registers.

Address Strobe (Active-Low).

If MPMODE = 0 (pin 110), this pin becomes
the address strobe for the microprocessor. When this pin transitions from
high to low, the address bus inputs are latched into the internal registers.

u

Chip Select (Active-Low).

I

enable the microprocessor interface. If MP MUX = 1 (pin 108),

This pin is asserted low by the microprocessor to

CS

externally tied low to use the internal chip selection function. An internal
100 kΩ pull-up is on this pin.

Interrupt.

This pin is asserted high to indicate an interrupt produced by an
alarm condition in register 0 or 1. The activation of this pin can be masked by
various register bits.

Ready.

O

If MPMODE = 1 (pin 110), this pin is asserted high to indicate the
device has completed a read or write operation. This pin is in a 3-state
condition when CS

Data Transfer Acknowledge (Active-Low).

(pin 113) is high.

If MPMODE = 0 (pin 110), this
pin is asserted low to indicate the device has completed a read or write
operation.

can be

1, 12,

GND

D

Ground Reference for Microprocessor Interface and Digital Circuitry.

P
37, 48,
73, 84,

109, 120

2, 11,

47, 74,

V

DDD

Power Supply for Microprocessor Interface and Digital Circuitry.

P

TLIU04C1 device requires a 5 V ± 5% power supply on these pins.

The

83, 119

u

46 XCLK I

Reference Clock.

The clock signal used for clock and data recovery and

jitter attenuation. This clock must be ungapped and free of jitter.
For CLKS = 0, a 16x clock (for DS1, XCLK = 24.704 MHz ± 100 ppm and for

CEPT, XCLK = 32.768 MHz ± 100 ppm).
For CLKS = 1, a 1x clock (for DS1, XCLK = 1.544 MHz ± 100 ppm and for

CEPT, XCLK = 2.048 MHz ± 100 ppm).
To meet TBR 12/13 jitter accommodation requirements (JABW0 = 1), clock

tolerances must be ±20 ppm. An internal 100kΩ pull-up is on this pin.

45 LOXC O

Loss of XCLK.

This pin is asserted high when the XCLK signal (pin 46) is

not present.

44 RESET

u

Hardware Reset (Active-Low).

I

RESET

If

is forced low, all internal states in
the line interface paths are reset and data flow through each channel will be
momentarily disrupted. The

RESET

pin must be held low for a minimum of

10 µs.

* I = input, O = output, Iu indicates an input with internal pull-up; Id indicates an input with internal pull-down, P = power. Resistance value of all

internal pull-ups or pull-downs is 50 kΩ, unless otherwise specified.

12 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

Pin Information

Table 1. Pin Descriptions

Pin Symbol Type

43 ICT

(continued)

(continued)

(continued)

*

u

I

In-Circuit T est Contr ol (Active-Low).

are placed in a high-impedance state. Which output pins are affected is
controlled by the ICTMODE bit (register 4, bit 3).

75—82 AD[7:0] I/O

Microprocessor Interface Address/Data Bus.

these pins become the bidirectional, 3-statable data bus. If MPMUX = 1,
these pins become the multiplexed address/data bus. In this mode, only the
lower 4 bits (AD[3:0]) are used for the internal register addresses.

7—10 A[3:0] I

Microprocessor Interface Address.

become the address bus for the microprocessor interface registers. If
MPMUX = 1 (pin 108) and CS
high to use the internal chip selection function. The state of A[2:0] determines
the address of the device. The device is addressed when the state of pins
AD[6:4] matches the device address of A[2:0]. If this function is not used,
A[3:0] must be externally tied low.

106 MPCLK I

Microprocessor Interface Clock.

twice the frequency of the line clock (3.088 MHz for DS1 operation,

4.096 MHz for CEPT operation) to 16.384 MHz are supported.

* I = input, O = output, I

internal pull-ups or pull-downs is 50 kΩ, unless otherwise specified.

u

indicates an input with internal pull-up; Id indicates an input with internal pull-down, P = power. Resistance value of all

Name/Description

ICT

If

is forc ed low, certain output pi ns

If MPMUX = 0 (pin 108),

If MPMUX = 0 (pin 108), these pins

= 0 (pin 113), A3 (pin 7) can be externally tied

Microprocessor interface clock rates from

13Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

(continued)

System Interface Pin Options

The system interface can be configured to operate in a number of different modes. The different modes change the
functionality of the system interface pins, as shown in Table 2. Dual-rail or single-rail operation is possible using the
DUAL control bit (register 5, bit 4). Dual-rail mode is enabled when DUAL = 1; single-rail mode is enabled when
DUAL = 0. In dual-rail operation, data received from the line interface on RTIP and RRING appears on RPD and
RND at the system interface and data transmitted from the system interface on TPD and TND appears on TTIP and
TRING at the line interface. In single-rail operation, data received from the line interface on RTIP and RRING
appears on RDATA at the system interface and data transmitted from the system interface on TDATA appears on
TTIP and TRING at the line interface.

In both dual-rail and single-rail operation, the clock/data recovery mode is selectable via the CDR bit (register 5,
bit 0). When CDR = 1, the clock and data recovery is enabled and the system interface operates in a nonreturn-to­zero (NRZ) digital format, recovering the clock and data from the incoming pulses. When CDR = 0, the clock and
data recovery is disabled and the system interface operates on unretimed sliced data in RZ data format. No clock is
recovered, freeing up the RCLK pin to be used to indicate an analog loss of signal (ALOS). If the incoming pulse
height falls below –18 dB, the ALOS pin is asserted high, and remains high until the signal rises above –14 dB.

In single-rail mode only, B8ZS/HDB3 encoding/decoding may be selected by setting the control bits properly (see
the Zero Substitution Decoding (CODE) section, page 20, and the Zero Substitution Encoding (CODE) section,
page 30). When a coding violations occurs, the BPV pin is asserted high.

Table 2. System Interface Pin Mapping

Configuration

Dual-rail with Clock Recovery (DUAL = 1,

CDR = 1)
Dual-rail with Data Slicing (DUAL = 1, CDR = 0) ALOS RPD RND
Single-rail with Clock Recovery (DUAL = 0,

CDR = 1)
Single-rail with Data Slicing (DUAL = 0, CDR = 0) ALOS RPD RND

RCLK/

ALOS

RCLK RPD RND TPD TND

RCLK RDATA BPV TDATA Not Used

RPD/

RDATA

RND/BPV

TPD/

TDATA

TND

Microprocessor Configuration Modes

Table 3 highlights the four microprocessor modes controlled by the MPMUX and MPMODE inputs (pins 108 and

110).

Table 3. Microprocessor Configuration Modes

Mode MPMODE MPMUX Address/Data Bus Generic Control, Data, and

Output Pin Names

MODE 1 0 0 deMUXed

MODE 2 0 1 MUXed

MODE 3 1 0 deMUXed

MODE 4 1 1 MUXed

CS, AS, DS
CS, AS, DS
CS

, ALE, RD, WR, A[3:0], AD[7:0], INT, RDY

CS

, ALE, RD, WR, AD[7:0], INT, RDY

, R/W, A[3:0], AD[7:0], INT,
, R/W, AD[7:0], INT,

DTACK

DTACK

14 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

(continued)

Microprocessor Interface Pinout Definitions

The MODE 1—MODE 4 specific pin definitions are given in Table 4. Note that the microprocessor interface uses
the same set of pins in all modes.

Table 4. MODE [1—4] Microprocessor Pin Definitions

Configuration Pin

Number

MODE 1 107 WR_DS DS Input Active-Low Data Strobe

111 RD

112 ALE_AS
113 CS
114 INT INT Output Active-High Interrupt
115 RDY_DTACK

75—82 AD[7:0] AD[7:0] I/O — Data Bus

7—10 A[3:0] A[3:0] Input — Address Bus

106 MPCLK MPCLK Input — Microprocessor Clock

MODE 2

MODE 3

MODE 4

107 WR
111 RD

112 ALE_AS
113 CS CS Input Active-Low Chip Select
114 INT INT Output Active-High Interrupt
115 RDY_DTACK

75—82 AD[7:0] AD[7:0] I/O — Address/Data Bus

106 MPCLK MPCLK Input — Microprocessor Clock
107 WR
111 RD
112 ALE_AS ALE Input — Address Latch Enable
113 CS
114 INT INT Output Active-High Interrupt
115 RDY_DTACK

75—82 AD[7:0] AD[7:0] I/O — Data Bus

7—10 A[3:0] A[3:0] Input — Address Bus

106 MPCLK MPCLK Input — Microprocessor Clock
107 WR
111 RD
112 ALE_AS
113 CS
114 INT INT Output Active-High Interrupt
115 RDY_DTACK

75—82 AD[7:0] AD[7:0] I/O — Address/Data Bus

106 MPCLK MPCLK Input — Microprocessor Clock

Device Pin

Name

_R/W R/W Input — Read/Write

_DS DS Input Active-Low Data Strobe

_R/W R/W Input — Read/Write

_DS WR Input Active-Low Write

_R/W RD Input Active-Low Read

_DS WR Input Active-Low Write

_R/W RD Input Active-Low Read

Generic

Pin Name

AS Input — Address Strobe

CS Input Active-Low Chip Select

DTACK Output Active-Low Data Acknowledge

AS Input — Address Strobe

DTACK Output Active-Low Data Acknowledge

CS Input Active-Low Chip Select

RDY Output Active-High Ready

ALE Input — Address Latch Enable

CS Input Active-Low Chip Select

RDY Output Active-High Ready

Pin Type Assertion

Sense

R/W
R/W

R/W
R/W

Function

= 1 => Read
= 0 => Write

= 1 => Read
= 0 => Write

15Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

(continued)

Microprocessor Clock (MPCLK) Specifications

The microprocessor interface is designed to operate at clock speeds up to 16.384 MHz without requiring any wait­states. Wait-states may be needed if higher microprocessor clock speeds are required. The microprocessor clock
(MPCLK, pin 106) specification is shown in Table 5. This clock must be supplied only if the RDY_DTACK
outputs are required to be synchronous to MPCLK. Otherwise, the MPCLK pin must be connected to ground.

Table 5. Microprocessor Input Clock Specifications

Name Period and

Tolerance

MPCLK 61 to 323 5 5 27 27 ns

T

rise

Typ

T

fall

Typ

Duty Cycle

Min High Min Low

Unit

and INT

Internal Chip Select Function

When the microprocessor interface is configured to operate in the multiplexed address/data bus modes
(MPMUX = 1), the user has access to an internal chip select function. This function allows a microprocessor to
selectively read or write a specific TLIU04C1 device in a system of up to eight devices on the microprocessor bus.
Externally tying CS
vidual device addresses are established by externally connecting the other three address pins, A[2:0] (pins 8, 9,

10), to a unique address value in the range of 000 through 111. In order for a device to respond to the register read
or write request from the microprocessor, the address data bus AD[6:4] (pins 76, 77, 78) must match the specific
address defined on A[2:0]. If
devices will respond to a microprocessor write request. However, if
microprocessor read/write request.

= 0 (pin 113) and A3 = 1 (pin 7) on every device enables the internal chip select function. Indi-

CS

and A3 pins are tied low, the internal chip select function is disabled and all

CS

= 1, none of the devices will respond to the

The I/O timing specifications for the microprocessor interface are given on page 53.

16 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

(continued)

Microprocessor Interface Register Architecture

The register bank architecture of TLIU04C1 consists of a register bank for the quad line interface unit. The register
bank consists of sixteen 8-bit registers comprising the alarm, control, and configuration registers for the quad line
interface unit.

Table 6 shows the register bank architecture.

Table 6. LIU Register Bank

Designation Address Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 B it 0

Alarm Registers (Read Only)

0 0000
1 0001

2 0010
3 0011

4 0100

5 0101

6 0110
7 0111
8 1000

9 1001
10 1010
11 1011

12 1100

13 1101

14—15 1110—1111

LOTC2 TDM2 DLOS2 ALOS2 LOTC1 TDM1 DLOS1 ALOS1
LOTC4 TDM4 DLOS4 ALOS4 LOTC3 TDM3 DLOS3 ALOS3

Alarm Mask Registers (Read/Write)

MLOTC2 MTDM2 MDLOS2 MALOS2 MLOTC1 MTDM1 MDLOS1 MALOS1
MLOTC4 MTDM4 MDLOS4 MALOS4 MLOTC3 MTDM3 MDLOS3 MALOS3

Global Control Registers (Read/Write)

HIGHZ4 (1) HIGHZ3 (1) HIGHZ2 (1) HIGHZ1 (1) ICTMODE (0) LOSSTD

LOSSD ACM ALM DUAL CODE JAT JAR CDR

Channel Configuration Registers (Read/Write)

EQA1 EQB1 EQC1 LOOPA1 LOOPB1 XAIS1 MASK1 PWRDN1
EQA2 EQB2 EQC2 LOOPA2 LOOPB2 XAIS2 MASK2 PWRDN2
EQA3 EQB3 EQC3 LOOPA3 LOOPB3 XAIS3 MASK3 PWRDN3
EQA4 EQB4 EQC4 LOOPA4 LOOPB4 XAIS4 MASK4 PWRDN4

0000 000 0
0 CODE3 0 CODE4 0 0 0 0

CODE1 CODE2

0

000 0 00 0

JABW0

(0)

PHIZALM

(0)

RESERVED

PRLALM

(0)

PFLALM

(0)

SWRESET

(0)

RCVA IS

(0)

GMASK (1)

ALTIMER

(0)

Notes:
A numerical suffix appended to the bit name identifies the channel number.

Bits shown in parentheses indicate the state forced during a reset condition.
All registers must be configured by the user before the device can operate as required for the particular application.

17Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

Block Diagrams

TTIP[1—4]

TRING[1—4]

ICT

LOXC

RTIP[1—4]

RRING[1—4]

(continued)

CLOCK

MULTIPLIER

QUAD

TRANSMIT

SECTION

QUAD

LINE

INTERFACE

UNIT

QUAD
RECEIVE
SECTION

CLKS

4
4
4

4
4
4

CLKMXCLK

MICRO-

PROCESSOR

INTERFACE

TCLK[1—4]
TND[1—4]
TPD[1—4]
A[3:0]

AD[7:0]
RDY_DTACK

INT
WR

_DS
RD_R/W
ALE_AS

CS
MPMUX

MPMODE
MPCLK

RCLK[1—4]
RND[1—4]
RPD[1—4]

RESET

Figure 2. TLIU04C1 Block Diagram, CMODE = 1 (Microprocessor Mode)

5-7822(F).ar.1

18 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

Block Diagrams

(continued)

(continued)

The line interface block diagram is shown in Figure 3. For illustration purposes, only one of the four on-chip line
interfaces is shown. Pin names that apply to all four channels are followed by the designation [1—4].

DLOS

(CLOCK)

ALARM

INDICATION

SIGNAL (AIS)

JITTER

ATTE NUATO R

(RECEIVE PATH)

JITTER

ATTENUATO R

(TRANSMIT PATH)

LOSS

OF

TCLK

DLLOOP

DECODER

ENCODER

RND[1—4]
RPD[1—4]

RCLK[1—4]

RLOOP

TCLK[1—4]

TND[1—4]
TPD[1—4]

RTIP[1—4]

RRING[1—4]

FLLOOP

(NO LIU AI S)

TTIP[1—4]

TRING[1—4]

ALOS

TDM

TRANSMIT

DRIVER

EQUALIZER

(DURING LIU AIS)

MULTIPLIER

FLLOOP

16x

CLOCK

SLICERS

LOTC

PULSE

EQUALIZER

CLOCK AND

DATA

RECOVERY

PULSE-

WIDTH

CONTROLLER

(DATA)

INTXCLK

XCLK

CLKS

DIVIDE BY 16

Figure 3. Block Diagram of the Quad Line Interface Unit (Single Channel)

LOSS OF

XCLK

MONITOR

LOXC

5-4556(F).er.3

19Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

(continued)

Data Recovery

The receive line interface unit (RLIU) format is bipolar
alternate mark inversion (AMI). The data rate tolerance
is ±130 ppm (DS1) or ±80 ppm (CEPT). The receiver
first restores the incoming data and detects analog loss
of signal. Subsequent processing is optional and
depends on the programmable device configuration
established within the microprocessor interface regis­ters. The RLIU utilizes an equalizer to operate on line
length with up to 15 dB of loss at 772 kHz (DS1) or
13 dB loss at 1.024 MHz (CEPT). The signal is then
peak-detected and sliced to produce digital representa­tions of the data.

Selectable clock and data recovery, digital loss of sig­nal, jitter attenuation, and data decoding are per­formed. For applications bypassing the clock and data
recovery function (CDR = 0), the receive digital output
format is unretimed sliced data (RZ positive and nega­tive data). For clock and data recovery applications
(CDR = 1), the receive digital output format is non­return-to-zero (NRZ) with selectable dual-rail or single­rail system interface. The recovered clock (RCLK, pins
139, 18, 67, 90) is only provided when CDR = 1 (see
Table 2).

The clock is recovered by a digital phase-locked loop
that uses XCLK (pin 46) as a reference to lock to the
data rate component. Because the internal reference
clock is a multiple of the received data rate, the RCLK
output (pins 139, 18, 67, 90) will always be a valid DS1/
CEPT clock that eliminates false-lock conditions. Dur­ing periods with no receive input signal, the free-run
frequency of RCLK is defined to be either XCLK/16 or
XCLK, depending on the state of CLKS (pin 117).
RCLK is always active with a duty-cycle centered at
50%, deviating by no more than ±5%. Valid data is
recovered within the first few bit periods after the appli­cation of XCLK. The delay of the data through the
receive circuitry is approximately 1 to 14 bit periods,
depending on the CDR and CODE configurations.
Additional delay is introduced if the jitter attenuator is
selected for operation in the receive path (see the LIU
Delay Values section, page 42).

Jitter Accommodation and Jitter Transfer Without the Jitter Attenuator

in Figure 4 through Figure 7. Jitter transfer is indepen­dent of input ones density on the line interface.

Receiver Configuration Modes

Clock/Data Recovery Mode (CDR)

The clock/data recovery function in the receive path is
selectable via the CDR bit (register 5, bit 0). If CDR = 1,
the clock and data recovery function is enabled and
provides a recovered clock (RCLK) with retimed data
(RPD/RDATA, RND). If CDR = 0, the clock and data
recovery function is disabled, and the RZ data from the
slicers is provided over RPD and RND to the system. In
this mode, ALOS is available on the RCLK/ALOS pins,
and downstream functions selected by microprocessor
register 5 (JAR, ACM, LOSSD) are ignored.

Zero Substitution Decoding (CODE)

When single-rail operation is selected with DUAL = 0
(register 5, bit 4), the B8ZS/HDB3 decoding can be
selected. CODE = 1 selects the B8ZS/HDB3 decoding
operation in all four channels, regardless of the state of
the CODE[1—4] bits. The B8ZS/HDB3 decoding oper­ation can be selected for individual channels indepen­dently by setting CODE = 0 and programming
CODE[1—4] bits for the respective channels.

Note:

Encoding and decoding are not independent.

Selecting B8ZS/HDB3 decoding in the receiver
selects B8ZS/HDB3 encoding in the transmitter.

Table 7. Register Map for CODE Bits

Name

Register Bit

CODE 5 3
CODE1 12 7
CODE2 12 6
CODE3 11 6
CODE4 11 4

When decoding is selected for a given channel,
decoded receive data and code violations appear on
the RDATA and BPV pins, respectively. If coding is not
selected, receive data and any bipolar violations (such
as two consecutive ones of the same polarity) appear
on the RDATA and BPV pins, respectively.

Location

The RLIU is designed to accommodate large amounts
of input jitter. The RLIU’s jitter performance exceeds
the requirements shown in the RLIU Specifications
tables (Table 10 and Table 11). Typical receiver perfor­mance without the jitter attenuator in the path is shown

20 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

Receiver Configuration Modes

Alternate Logic Mode (ALM)

The alternate logic mode (ALM) control bit (register 5,
bit 5) selects the receive and transmit data polarity (i.e.,
active-high vs. active-low). If ALM = 0, the receiver cir­cuitry (and transmit input) assumes the data to be
active-low polarity. If ALM = 1, the receiver circuitry
(and transmit input) assumes the data to be active-high
polarity. The ALM control is used in conjunction with
the ACM control (register 5, bit 6) to determine the
receive data retiming mode.

Alternate Clock Mode (ACM)

The alternate clock mode (ACM) control bit (register 5,
bit 6) selects the positive or negative clock edge of the
receive clock (RCLK) for receive data retiming. The
ACM control is used in conjunction with ALM
(register 5, bit 5) control to determine the receive data
retiming modes. If ACM = 1, the receive data is retimed
on the positive edge of the receive clock. If ACM = 0,
the receive data is retimed on the negative edge of the
receive clock. Note that this control does not affect the
timing relationship for the transmitter inputs. See
Figure 23 on page 59.

RLIU Alarms

Analog Loss of Signal (ALOS) Alarm

nal detector monitors the receive signal amplitude and
reports its status in the analog loss of signal alarm bits
in registers 0 and 1. Analog loss of signal is indicated
(ALOS = 1) if the amplitude at the RRING and RTIP
inputs drop s m or e t h an ap p roximately 18 dB bel ow the
nominal signal amplitude. The ALOS alarm condition
will clear when the receive signal amplitude returns to
greater than 14 dB below normal. In this way, the ALOS
circuitry provides 4 dB of hysteresis to prevent alarm
chattering. The ALOS alarm status bit will latch the
alarm and remain set until being cleared by a read
(clear on read). Upon the transition from ALOS = 0 to
ALOS = 1, a microprocessor interrupt will be generated
if the corresponding ALOS interrupt mask bit (MALOS;
registers 2 and 3, bits 0 and 4), the channel mask bit
(MASK; registers 6—9, bit 1), or the global mask bit
(GMASK; register 4, bit 0) is not set.

(continued)

(continued)

. An analog sig-

The time required to detect ALOS is selectable. When
ALTIMER = 0 (register 12, bit 0), ALOS is declared
between 1 ms and 2.6 ms after losing signal as
required by I.431(3/93) and ETS-300-233 (5/94). If
ALTIMER = 1, ALOS is declared between 10 and 255
bit symbol periods after losing signal as required by
G.775 (11/95). The timing is derived from the XCLK
clock. The detection time is independent of signal
amplitude before the loss condition occurs. Normally,
ALTIMER = 1 would be used only in CEPT mode since
no T1/DS1 standards require this mode. In T1/DS1
mode, this bit should normally be zero.

The behavior of the receiver LIU outputs under ALOS
conditions is dependent on the loss shutdown control
bit (LOSSD; register 5, bit 7) in conjunction with the
receive alarm indicat ion sele ct con tr ol bit (RCVAIS;
register 12, bit 1) as described in the Loss Shutdown
(LOSSD) and Receiver AIS (RCVAIS) section on
page 22.

Digital Loss of Signal (DLOS) Alarm

signal (DLOS) detector guarantees the received signal
quality as defined in the appropriate ANSI, Bellcore,
and ITU standards. The digital loss of signal alarms are
reported in the alarm status registers 0 and 1. During
DS1 operation, digital loss of signal (DLOS = 1) is indi­cated if 100 or more consecutive zeros occur in the
receive data stream. The DLOS condition is deacti­vated when the average ones density of at least 12.5%
is received in 100 contiguous pulse positions. The
DLOS alarm status bit will latch the alarm and remain
set until being cleared by a read (clear on read). The
LOSSTD control bit (register 4, bit 2) selects the con­formance protocols for the DLOS alarm indication per
Table 8. Setting LOSSTD = 1 adds an additional con­straint that there are less than 15 consecutive zeros in
the DS1 data stream before DLOS is deactivated.

. A digital loss of

21Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

Receiver Configuration Modes

RLIU Alarms
Table 8. Digital Loss of Signal Standard Select

LOSSTD DS1 Mode CEPT Mode

0 T1M1.3/93-005, ITU-T G.775 ITU-T G.775
1 TR-TSY-000009 ITU-T G.775

During CEPT operation, DLOS is indicated when 255 or more consecutive zeros occur in the receive data stream.
The DLOS indication is deactivated when the average ones density of at least 12.5% is received in 255 contiguous
pulse positions. LOSSTD has no effect in CEPT mode.

Upon the transition from DLOS = 0 to DLOS = 1, a microprocessor interrupt will be generated if the corresponding
DLOS interrupt mask bit (MDLOS; registers 2 and 3, bits 1 and 5), the channel mask bit (MASK; registers 6—9,
bit 1) or the global mask bit (GMASK; register 4, bit 0) is not set.

The DLOS alarm may occur when FLLOOP is activated (see Loopbacks on page 41) due to the abrupt change in
signal level at the receiver input. Setting the FLLOOP alarm prevention, PFLALM = 1 (register 12, bit 2), prevents
the DLOS alarm from occurring when FLLOOP is activated by quickly resetting the receiver’s internal peak detec­tor. It will not prev ent the DLOS alarm during the FLLOOP period but only avoids the alarm created by the signal
amplitude transient.

(continued)

(continued)

(continued)

Loss Shutdown (LOSSD) and Receiver AIS (RCVAIS).

acts in conjunction with the receive alarm indication select (RCVAIS) control bit (register 12, bit 1) to place the digi­tal outputs in a predetermined state when a digital loss of signal (DLOS) or analog loss of signal (ALOS) alarm
occurs.

If LOSSD = 0 and RCVAIS = 0, the RND, RPD, and RCLK outputs will be unaffected by the DLOS alarm condition.
However, when an ALOS alarm condition is indicated in the alarm status registers, the RPD and RND outputs are
forced to their inactive state (dependent on ALM state) and the RCLK free runs (based on XCLK frequency).

If LOSSD = 0, RCVAIS = 1, and a DLOS or an ALOS alarm condition is indicated in the alarm status registers, the
RPD and RND outputs will present an alarm indication signal (AIS, all ones) based on the free-running clock fre­quency, and the RCLK free runs.

If LOSSD = 1, regardless of the state of RCV AIS, and a DLOS or an ALOS alarm condition is indicated in the alarm
status registers, the RPD and RND outputs are forced to their inactive state (dependent on ALM state) and the
RCLK free runs.

The RND, RPD, and RCLK signals will remain unaffected if any loopback (FLLOOP, RLOOP, DLLOOP) is activated
independent of LOSSD and RCVAIS settings.

The LOSSD and RCVAIS behavior is summarized in Table 9.

Table 9. LOSSD and RCVAIS Control Configurations (Not Valid During Loopback Modes)

LOSSD RCVAIS ALARM RPD/RND RCLK

0 0 ALOS 0 if ALM = 1, 1 if ALM = 0 Free Runs
0 0 DLOS Normal Data Recovered Clock

The loss shutdown control bit (LOSSD; register 5, bit 7)

0 1 ALOS AIS (all ones) Free Runs
0 1 DLOS AIS (all ones) Free Runs
1 X ALOS 0 if ALM = 1, 1 if ALM = 0 Free Runs
1 X DLOS 0 if ALM = 1, 1 if ALM = 0 Free Runs

22 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

Receiver Configuration Modes

RLIU Alarms

RLIU Bipolar Violation (BPV) Alarm.

(continued)

(continued)

(continued)

The bipolar violation (BPV) alarm is used only in the single-rail mode of
operation. When B8ZS(DS1)/HDB3(CEPT) coding is not used (i.e., CODE = 0), any violations in the receive data
(such as two or more consecutive ones on a rail) are indicated on the RND/BPV outputs. When B8ZS(DS1)/
HDB3(CEPT) coding is used (i.e., CODE = 1), the HDB3/B8ZS code violations are reflected on the RND/BPV out­puts.

DS1 Receiver Specifications

During DS1/T1 operation, the RLIU will perform as specified in Table 10.

Table 10. DS1 RLIU Specifications

Parameter Min Typ Max Unit Spec

Analog Loss of Signal:

Threshold to Assert
Threshold to Clear
Hysteresis
Time to Assert (ALTIMER = 0)

Receiver Sensitivity

†

17.5

13.5
—

1.0

18
14

4

—

11 15 — dB —

23

17.5
—

2.6

Jitter Transfer:

3 dB Bandwidth
Peaking

—
—

3.84
—

—

0.1

Generated Jitter — 0.04 0.05 UIp-p GR-499-CORE

Jitter Accommodation — — — — Figure 4 on page 24

Return Loss

51 kHz to 102 kHz
102 kHz to 1.544 MHz

1.544 MHz to 2.316 MHz

‡

:

14
20
16

—
—
—

—
—
—

Digital Loss of Signal:

Flag Asserted When Consecutive Bit

Positions Contain

100

—

—

Flag Deasserted When

Data Density Is and
Maximum Consecutive Zeros Are

12.5
—
—

* Below the nominal pulse amplitude of 3.0 V with the line circuitry specified (see Line Circuitry on page 50).
† Cable loss at 772 kHz.
‡ Using Lucent transformer 2795B and components listed in T able 30.

—
—
—

—
15
99

*

dB

*

dB

dB
ms

kHz

dB

dB
dB
dB

zeros

% ones

zeros
zeros

I.431

—
—

I.431

Figure 5 on page 25

Figure 11 on page 38

ITU-T G.824

Figure 10 on page 37

—
—
—

ITU-T G.775,

T1M1.3/93-005

—

TR-TRY-000009

ITU-T G.775, T1M1.3/

93-005

23Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

(continued)

DS1 Receiver Specifications

Frequency Response Curves

100 UI

28 UI

T1.408/I.431(DS1)/G.824(DS1)

10 UI

1.0 UI

(continued)

GR-499-CORE

(NON-SONET CAT II INTERFACES)

I.431(DS1), G.824(DS1)

TR-TSY-000009 (DS1, MUXes)

GR-499/1244-CORE (CAT I INTERFACES)

(SUBJECT TO DEVICE CHARACTERIZATION)

TYPICAL

0.1 UI

10 100 1k 10k1

FREQUENCY (Hz)

Figure 4. DS1/T1 Receiver Jitter Accommodation Without Jitter Attenuator

100k

5-5260(F)r.7

24 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

(continued)

DS1 Receiver Specifications

Frequency Response Curves

0

10

20

30

40

JITTER OUT/JITTER IN (dB)

50

(continued)

(continued)

(SUBJECT TO DEVICE CHARACTER IZATION)

TYPICAL

GR-499-CORE

(NON-SONET CAT II TO CAT II)

60

1 10 100 1k 10k

FREQUENCY (Hz)

Figure 5. DS1/T1 Receiver Jitter Transfer Without Jitter Attenuator

100k

5-5261(F)r.4

25Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

(continued)

CEPT Receiver Specifications

During CEPT/E1 operation, the RLIU will perform as specified in Table 11.

Table 11. CEPT RLIU Specifications

Parameter Min Typ Max Unit Spec

Analog Loss of Signal:

Threshold to Assert
Threshold to Clear
Hysteresis
Time to Assert (ALTIMER = 0)

Time to Assert (ALTIMER = 1)
Receiv er Sensitivity
Interference Immunity

†

‡

:

17.5

13.5
—

1.0
10

18
14

4
—
—

11 13.5 — dB —

912—dB ITU-T G.703

23

17.5
—

2.6

255

Jitter Transfer:

3 dB Bandwidth, Single Pole Roll Off
Peaking

—
—

5.1
—

—

0.5
Generated Jitter — 0.04 0.05 UIp-p ITU-T G.823, I.431
Jitter Accommodation — — — — Figure 6 on page 27

Return Loss

51 kHz to 102 kHz
102 kHz to 1.544 MHz

1.544 MHz to 2.316 MHz

§

:

14
20
16

—
—
—

—
—
—

Digital Loss of Signal:

Flag Asserted When Consecutive Bit

Positions Contain

Flag Deasserted When Data Density is

255

12.5

—
—

—
—

(LOSSTD = 1)

* Below the nominal pulse amplitude of 3.0 V with the line circuitry specified (see Line Circuitry on page 50).
† Cable loss at 1.024 MHz.
‡ Amount of cable loss for which the rec eiver will operate error-free in the presence of a –18 dB interference signal summing with the

intended signal source.

§ Using Lucent transformer 2795D or 2795C and components listed in Table 30.

*

dB

*

dB

dB

ms

UI

kHz

dB

dB
dB
dB

zeros

%ones

I.431, ETSI 300 233

—
—

I.431, ETSI 300 233

G.775

Figure 7 on page 28

Figure 13 on page 40

Figure 12 on page 39

ITU-T G.703

—

ITU-T G.775

26 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

(continued)

CEPT Receiver Specifications

Frequency Response Curves

100 UI

G.823

37 UI

10 UI

1.0 UI

I.431(CEPT)/ETS-300-011

I.431(CEPT)/ETS-300-011

(continued)

TYPICAL

(SUBJECT TO DEVICE CHARACTERIZATION)

G.823,ETSI-300-011A1

0.1 UI

10 100 1 k 10k1

FREQUENCY (Hz)

Figure 6. CEPT/E1 Receiver Jitter Accommodation Without Jitter Attenuator

100k

5-5262(F)r.8

27Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

(continued)

CEPT Receiver Specifications

Frequency Response Curves

0

10

20

30

40

JITTER OUT/JITTER IN (dB)

50

(continued)

(continued)

G.735-9 W/O JITTER REDUCER

TYPICAL

(SUBJECT TO DEVICE CHARACTERIZATION)

60

1 10 100 1k 10k

FREQUENCY (HZ)

Figure 7. CEPT/E1 Receiver Jitter Transfer Without Jitter Attenuator

100k

5-5263(F)r.4

28 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

(continued)

Output Pulse Ge neration

The transmitter accepts a clock with NRZ data in
single-rail mode (DUAL = 0: register 5, bit 4) or a clock
with positive and negative NRZ data in dual-rail mode
(DUAL = 1) from the system. The device converts this
data to a balanced bipolar signal (AMI format) with
optional B8ZS(DS1)/HDB3(CEPT) encoding and jitter
attenuation. Low-impedance output drivers produce
these pulses on the line interface. Positive ones are
output as a positive pulse on TTIP, and negative ones
are output as a positive pulse on TRING. Binary zeros
are converted to null pulses. The total delay of the data
from the system interface to the transmit driver is
approximately 3 to 11 bit periods, depending on the
code configuration (see the Zero Substitution Decoding
(CODE) section, page 20 and the Zero Substitution
Encoding (CODE) section, page 30).

Table 12. Equalizer/Rat e Control

Additional delay results if the jitter attenuator is
selected for use in the transmit path (see the LIU Delay
Values section).

Transmit pulse shaping is controlled by the on-chip
pulse-width controller and pulse equalizer. The pulse­width controller produces high-speed timing signals to
accurately control the transmit pulse widths. This elimi­nates the need for a tightly controlled transmit clock
duty cycle that is usually required in discrete imple­mentations. The pulse equalizer controls the ampli­tudes of the pulses. Different pulse equalizations are
selected through proper settings of EQA, EQB, and
EQC (registers 6—9, bits 5—7) as described in
Table 12.

EQA EQB EQC Service Clock

Rate

Transmitter Equalization

*

Maximum

Cable Loss

†

Feet Meters dB

0 0 0 DS1 1.544 MHz 0 ft. to 131 ft. 0 m to 40 m 0.6
0 0 1 131 ft. to 262 ft. 40 m to 80 m 1.2
0 1 0 262 ft. to 393 ft. 80 m to 120 m 1.8
0 1 1 393 ft. to 524 ft. 120 m to 160 m 2.4
1 0 0 524 ft. to 655 ft. 160 m to 200 m 3.0
101CEPT
1 1 0 120 Ω or 75 Ω (Option 1) —
111Not Used — — —

* In DS1 mode, the distance to the DSX f or 22 gauge PIC (ABAM) cable is specified. Use the maximum cable loss figures f or other cable types.

In CEPT mode, equalization is specified for coaxial or twisted-pair cable.
† Loss measured at 772 kHz.
‡ In 75 Ω applications, Option 1 is recommended ov er Option 2 for lower device power dissipation. Option 2 allows for the same transformer as

used in CEPT 120 Ω applications.

‡

2.048 MHz 75 Ω (Option 2) —

Jitter

The intrinsic jitter of the transmit path, i.e., the jitter at TTIP/TRING when no jitter is applied to TCLK (and the jitter
attenuator is not selected, JAT = 0), is typically 5 nsp-p and will not exceed 0.02 UIp-p.

29Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

(continued)

Zero Substitution Encoding (CODE )

Zero substitution B8ZS/HDB3 encoding can be acti­vated only in the single-rail system interface mode
(DUAL = 0). CODE = 1 selects the B8ZS/HDB3 encod­ing operation in all four channels, regardless of the
state of the CODE[1—4] bits. The B8ZS/HDB3 encod­ing operation can be selected for individual channels
independently by setting CODE = 0 and programming
CODE[1—4] bits for the respective channels.

Note:

Encoding and decoding are not independent.
Selecting B8ZS/HDB3 encoding in the transmit­ter selects B8ZS/HDB3 decoding in the receiver.

Table 13. Register Map for CODE Bits

Name

Register Bit

CODE 5 3
CODE1 12 7
CODE2 12 6
CODE3 11 6
CODE4 11 4

When coding is selected for a given channel, data
transmitted from the system interface on TDATA (pins
141, 16, 69, 88) will be B8ZS/HDB3 encoded before
appearing on TTIP and TRING at the line interface.

Alarm Indication Signal Generator (XAIS)

Location

Transmitter Alarms

Loss of Transmit Clock (LOTC) Alarm

A loss of transmit clock alarm (LOTC = 1; registers 0
and 1, bits 3 and 7) is indicated if any of the clocks in
the transmit path disappear. This includes loss of TCLK
input, loss of RCLK during remote loopback, loss of jit­ter attenuator output clock (when enabled), or the loss
of clock from the pulse-width controller.

For all of these conditions, a core transmitter timing
clock is lost and no data can be driven onto the line.
Output drivers TTIP and TRING are placed in a high­impedance state when this alarm condition is active.
The LOTC interrupt is asserted between 3 µs and
16 µs after the clock disappears, and deasserts imme­diately after detecting the first clock edge. The LOTC
alarm status bit will latch the alarm and remain set until
being cleared by a read (clear on read). Upon the tran­sition from LOTC = 0 to LOTC = 1, a microprocessor
interrupt will be generated if the corresponding LOTC
interrupt mask bit (MLOTC; registers 2 and 3, bits 3
and 7), the channel mask bit (MASK; registers 6—9,
bit 1), or the global mask bit (GMASK; register 4, bit 0)
is not set.

An LOTC alarm may occur when RLOOP is activated
and deactivated due to the phase transient that occurs
as TCLK switches its source to and from RCLK. Setting
the prevent RLOOP alarm bit (PRLALM = 1; LIU
register 12, bit 3) prevents the LOTC alarm from occur­ring at the activation and deactivation of RLOOP but
allows the alarm to operate normally during the
RLOOP active period.

When the transmit alarm indication signal control is set
(XAIS = 1) for a given channel (registers 6—9, bit 2), a
continuous stream of bipolar ones is transmitted to the
line interface. The TPD/TDATA and TND inputs are
ignored during this mode. The XAIS input is ignored
when a remote loopback (RLOOP) is selected using
loopback control bits (LOOPA and LOOPB; registers
6—9, bits 3 and 4). (See the Loopbacks section.)

The normal clock source for the AIS signal is TCLK. If
TCLK is not available (loss of TCLK detected), then the
AIS signal clock defaults to INTXCLK/16. INTXCLK is
either XCLK, or 16x XCLK, depending on the state of
the CLKS input pin. See Figure 3 on page 19, and
CLKS in Table 1, Pin Descriptions, on page 10. For any
of the above options, the clock tolerance must meet the
normal line transmission rates (DS1 1.544 MHz ±
32 ppm; CEPT 2.048 MHz ± 50 ppm).

30 Lucent Technologies Inc.

Transmit Driver Monitor (TDM) Alarm

The transmit driver monitor detects two conditions: a
nonfunctional link due to a fault on the primary of the
transmit transformer, or periods of no data transmis­sion. The transmit driver monitor alarm (TDM; registers
0 and 1, bits 2 and 6) is the ORed function of both
faults and provides information about the integrity of
the transmit signal path.

The first monitoring function is provided to detect non­functional links and protect the device from damage.

The alarm is set (TDM = 1) when one of the transmit­ter's line drivers (TTIP or TRING) is shorted to power
supply or ground, or TTIP and TRING are shorted
together. Under these conditions, internal circuitry pro­tects the device from damage and excessive power
supply current consumption by 3-stating the output
drivers. The monitor detects faults on the transformer
primary, but transformer secondary faults may not be
detected.

Advance Data Sheet, Rev. 2

1.0

0.5

0

–0.5

0 250 500 750 1000 1250

TIME (ns)

April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

Transmitter Alarms

Transmit Driver Monitor (TDM) Alarm

(continued)

(continued)

(continued)

The monitor operates by comparing the line pulses with
the transmit inputs. After 32 transmit clock cycles, the
transmitter is powered up in its normal operating mode.
The drivers attempt to correctly transmit the next data
bit. If the error persists, TDM remains active to elimi­nate alarm chatter and the transmitter is internally pro­tected for another 32 transmit clock cycles. This
process is repeated until the error condition is removed
and the TDM alarm is deactivated. The TDM alarm sta­tus bit will latch the alarm and remain set until being
cleared by a read (clear on read).

The second monitoring function is to indicate periods of
no data transmission. The alarm is set (TDM = 1) when
32 consecutive zeros have been transmitted, and the
alarm condition is cleared on the detection of a single
pulse. Again, the TDM alarm status bit will latch the
alarm and remain set until being cleared by a read
(clear on read). This alarm condition does not alter the
state or functionality of the signal path.

Upon the transition from TDM = 0 to TDM = 1, a micro­processor interrupt will be generated if the TDM inter­rupt mask bit (MTDM; registers 2 and 3, bits 2 and 6) is
not set and the GMASK bit (register 4, bit 0) is not set.

A TDM alarm may occur when RLOOP is activated and
deactivated. If the prevent RLOOP alarm bit (PRLALM;
register 12, bit 3) is not set, then RLOOP may activate
an LOTC alarm, which will put the output drivers TTIP
and TRING in a high-impedance state as described in
Loss of Transmit Clock (LOTC) Alarm on page 30. The
high-impedance state of the drivers may, in turn, gener­ate a TDM alarm. Setting the HIGHZ alarm prevention
PHIZALM = 1 (register 12, bit 4) prevents the TDM
alarm from occurring when the drivers are in a high­impedance state.

DS1 Transmitter Pulse Template and Specifi­cations

The DS1 pulse shape template is specified at the DSX
(defined by CB119 and ANSI T1.102) and is illustrated
in Figure 8. The device also meets the pulse template
specified by ITU-T G.703 (not shown).

5-1160(F)r.1

Figure 8. DSX-1 Isolated Pulse Template

Table 14. DSX-1 Pulse Template Corner Points

(from CB119)

Maximum Curve Minimum Curve

ns V ns V

0
250
325
325
425
500
675
725

1100
1250

—
—

0.05

0.05

0.80

1.15

1.15

1.05

1.05

–0.07

0.05

0.05
—
—

0
350
350
400
500
600
650
650
800
925

1100
1250

–0.05
–0.05

0.50

0.95

0.95

0.90

0.50
–0.45
–0.45
–0.20
–0.05
–0.05

31Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

DS1 Transmitter Pulse Template and Specifications

(continued)

(continued)

During DS1 operation, the TTIP and TRING pins will perform as specified in Table 15.

Table 15. DS1 Transmitter Specifications

Parameter Min Typ Max Unit Spec

Output Pulse Amplitude at DSX
Output Pulse Width at Line Side of

Transformer

1

1

Output Pulse Width at Device Pins

3, 4

5

1

2

:

TTIP and TRING
Positive/Negative Pulse Imbalance
Power Levels

772 kHz

1.544 MHz

1.In accordance with the line circuitry described (see Line Circuitry on page 50).

2.Total power difference.

3.Measured in a 2 kHz band around the specified frequency.

4.Using Lucent transformer 2795B and components in Table 30.

5.Below the power at 772 kHz.

2.5 3.0 3.5 V AT&T CB119,

325 350 375 ns

330 350 370 ns

—0.10.4dB

12.6
29

—

39

17.9
—

dBm

dB

ANSI T1.102

32 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

(continued)

CEPT Transmitter Pulse Template and Specifications

CEPT pulse shape template is specified at the system output (defined by ITU-T G.703) and is illustrated in
Figure 9.

269 ns

(244 + 25)

20%

50%

0%

10%
10%

20%

10%
10%

194 ns

(244 – 50)

244 ns

219 ns

(244 – 25)

20%

NOMINAL PULSE

10%
10%

V = 100%

488 ns

(244 + 244)

Figure 9. ITU-T G.703 Pulse Template

5-3145(F)r.1

33Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

CEPT Transmitter Pulse Template and Specifications

(continued)

(continued)

During CEPT operation, the transmitter tip/ring (TTIP/TRING pins) will perform as specified in Table 16.

Table 16. CEPT Transmitter Specifications

Parameter Min Typ Max Unit Spec

*

Output Pulse Amplitude

:
75 Ω
120 Ω

Output Pulse Width at Line Side of

2.13

2.7

2.37

3.0

2.61

3.3

219 244 269 ns

V
V

ITU-T G.703

Transformer*

Output Pulse Width at Device Pins TTIP

224 244 264 ns

and TRING*

Positive/Negative Pulse Imbalance:

Pulse Amplitude
Pulse Width

Zero Level (percentage of pulse

–4
–4

±1.5

±1

4
4

%
%

–5 0 5 %

amplitude)

Return Loss

51 kHz to 102 kHz
102 kHz to 2.048 MHz

2.048 MHz to 3.072 MHz

Return Loss

51 kHz to 102 kHz
102 kHz to 3.072 MHz

* In accordance with the line circuitry described (see Line Circuitry on page 50), measured at the transformer secondary.
† Using Lucent transformer 2795D or 2795C and components in Table 30.

†

(120 Ω):

†

(75 Ω):

9
15
11

7

9

—
—
—

—
—

—
—
—

—
—

dB
dB
dB

dB
dB

CH-PTT

ETS 300 166:

1993

Jitter Attenuator

A selectable jitter attenuator is provided for narrow-bandwidth jitter transfer function applications. When placed in
the LIU receive path, the jitter attenuator provides narrow-bandwidth jitter filtering for line synchronization. The jitter
attenuator can also be placed in the transmit path to provide clock smoothing for applications such as synchronous/
asynchronous demultiplexers. In these applications, TCLK will have an instantaneous frequency that is higher than
the data rate, and some periods of TCLK are suppressed (gapped) in order to set the average long-term TCLK fre­quency to within the transmit line rate specification. The jitter attenuator will smooth the gapped clock.

Generated (Intrinsic) Jitter

Generated jitter is the amount of jitter appearing on the output port when the applied input signal has no jitter. The
jitter attenuator of this device outputs a maximum of 0.05 UIp-p intrinsic jitter.

34 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

Jitter Attenuator

(continued)

(continued)

Jitter Transfer Function

The jitter transfer function describes the amount of jitter that is transferred from the input to the output over a range
of frequencies. The jitter attenuator exhibits a single-pole roll-off (20 dB/decade) jitter transfer characteristic that
has no peaking and a nominal filter corner frequency (3 dB bandwidth) of less than 4 Hz for DS1 operation and
approximately 10 Hz for CEPT operation. Optionally, a lower bandwidth of approximately 1.25 Hz can be selected
in CEPT operation by setting JABW0 = 1 (register 12, bit 5) for systems desiring compliance with ETSI-TBR12/13
jitter attenuation requirements. When configured to meet ETSI-TBR12/13, the clock connected to the XCLK input
must be ±20 ppm. For a given frequency, different jitter amplitudes will cause a slight variation in attenuation
because of finite quantization effects. Jitter amplitudes of less than approximately 0.2 UI will have greater attenua­tion than the single-pole roll-off characteristic. The jitter transfer curve is independent of data patterns. T ypical jitter
transfer curves of the jitter attenuator are given in Figure 11 and Figure 13.

Jitter Accommodation

The minimum jitter accommodation of the jitter attenuator occurs when the XCLK frequency and the input clock’s
long-term average frequency are at their extreme frequency tolerances. When the jitter attenuator is used in the
LIU transmit path, the minimum accommodation is 28 UIp-p at the highest jitter frequency of 15 kHz. Typical
receiver jitter accommodation curves including the jitter attenuator in the LIU receive path are given in Figure 10
and Figure 12.

When the jitter attenuator is placed in the data path, a difference between the XCLK/16 frequency and the incoming
line rate for receive applications, or the TCLK rate for transmit applications, will result in degraded low­frequency jitter accommodation performance. The peak-to-peak jitter accommodation (JAp-p) for frequencies from
above the corner frequency of the jitter attenuator (fc) to approximately 100 Hz is given by the following equation:

JAp-p 64



=



xclk

2f

∆∆

–

------------------------------------------------------------

data

data

f

–()

2πf

f

c

UI

where:
f

= 1.544 MHz for DS1 or 2.048 MHz for CEPT;

data

for JABW0 = 0, fc = 3.8 Hz for DS1 or 10 Hz for CEPT,
and for JABW0 = 1, fc = 1.25 Hz for CEPT;
∆f

= XCLK tolerance in ppm;

xclk

∆f

= data tolerance in ppm.

data

Note that for lower corner frequencies, the jitter accommodation is more sensitive to clock tolerance than for higher
corner frequencies. When JABW0 = 1 and the jitter attenuator is used in the receive data path, the tolerance on
XCLK should be tightened to ±20 ppm in order to meet the jitter accommodation requirements of TBR12/13 as
given in G.823 for line data rates of ±50 ppm.

35Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

Jitter Attenuator

Jitter Attenuator Ena ble

The jitter attenuator is selected using the JAR and JAT
bits (register 5, bits 1 and 2) of the microprocessor
interface. These control bits are global and affect all
four channels unless a given channel is in the power­down mode (PWRDN = 1). Because there is only one
attenuator function in the device, selection must be
made between either the transmit or receive path. If
both JAT and JAR are activated at the same time, the
jitter attenuator will be disabled.

Note that the power consumption increases slightly on
a per-channel basis when the jitter attenuator is active.
If jitter attenuation is selected, a valid XCLK (pin 46)
signal must be available.

Jitter Attenuator Receive Path Enable (JAR)

When the jitter attenuator receive bit is set (JAR = 1),
the attenuator is enabled in the receive data path
between the clock/data recovery and the decoder (see
Figure 3 on page 19). Under this condition, the jitter
characteristics of the jitter attenuator apply for the
receiver. The receive path will then exhibit the jitter
characteristics shown in Figure 10 through Figure 13. If
CDR = 0 (register 5, bit 0), the JAR bit is ignored
because clock recovery will be disabled.

(continued)

(continued)

Jitter Attenuator Transmit Path Enable (JAT)

When the jitter attenuator transmit bit is set (JAT = 1),
the attenuator is enabled in the transmit data path
between the encoder and the pulse-width controller/
pulse equalizer (see Figure 3 on page 19). Under this
condition, the jitter characteristics of the jitter attenuator
apply for the transmitter. When JAT = 0, the encoder
outputs bypass the disabled attenuator and directly
enter the pulse-width controller/pulse equalizer. The
transmit path will then pass all jitter from TCLK to line
interface outputs TTIP/TRING.

36 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

Jitter Attenuator

Frequency Response Curves

100 UI

28 UI

T1.408/I.431(DS1)/G.824(DS1)

10 UI

1.0 UI

(continued)

(continued)

GR-499-CORE

(NON-SONET CAT II INTERFACES)

I.431(DS1), G.824(DS1)

TR-TSY-000009 (DS1, MUXes)

GR-499/1244-CORE (CAT I INTERFACES)

(SUBJECT TO DEVICE CHARACTERIZATION)

TYPICAL

0.1 UI

10 100 1k 10k1

FREQUENCY (Hz)

Figure 10. DS1/T1 Receiver Jitter Accommodation with Jitter Attenuator

100k

5-5264(F)r.8

37Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

Jitter Attenuator

Frequency Response Curves

0

10

20

30

40

JITTER OUT/JITTER IN (dB)

50

60

(continued)

(continued)

(continued)

GR-253-CORE

TR-TSY-000009

TYPI CA L

(SUBJECT TO DEVICE CHARACTERIZATION)

1 10 100 1k 10k

FREQUENCY (Hz)

Figure 11. DS1/T1 Jitter Transfer of the Jitter Attenuator

100k

5-5265(F)r.4

38 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

Jitter Attenuator

Frequency Response Curves

100 UI

G.823

37 UI

10 UI

1.0 UI

I.431(CEPT)/ETS-300-011

I.431(CEPT)/ETS-300-011

(continued)

JABW0 = 1

(continued)

(continued)

JABW0 = 0

TYPICAL

(SUBJECT TO DEVICE CHARACTERIZATION)

G.823,ETSI-300-011A1

0.1 UI

10 100 1k 10k1

FREQUENCY (Hz)

Figure 12. CEPT/E1 Receiver Jitter Accommodation with Jitter Attenuator

100k

5-5266(F)r.8

39Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

Jitter Attenuator

Frequency Response Curves

0

10

20

30

(SUBJECT TO DEVICE CHARACTERIZATION)

40

JITTER OUT/JITTER IN (dB)

50

(continued)

TYPI CAL

(continued)

(continued)

I.431, G.735-9 WITH JITTER REDUCER

ETSI-300-011

ETSI TBR12/13

JABW0 = 1

G.735-9 AT NATIONAL BOUNDARIES

JABW0 = 0

60

1 10 100 1k 10k

FREQUENCY (Hz)

Figure 13. CEPT/E1 Jitter Transfer of the Jitter Attenuator

100k

5-5267(F)r.4

40 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

(continued)

Loopbacks

The device has three independent loopback paths that are activated using LOOPA and LOOPB (registers 6—9, bits
3 and 4) as shown in Table 17. The locations of these loopbacks are illustrated in Figure 3 on page 19.

Table 17. Loopback Control

Operation Symbol LOOPA LOOPB

Normal — 0 0
Full Local Loopback FLLOOP* 0 1
Remote Loopback RLOOP
Digital Local Loopback DLLOOP 1 1

* During the transmit AIS condition, the looped data will be the transmitted data from the

system and not the all-ones signal.

† Transmit AIS request is ignored.

Full Local Loopback (FLLOOP)

A full local loopback (FLLOOP) connects the transmit line driver input to the receiver analog front-end circuitry.
V alid transmit output data continues to be sent to the network. If the transmit AIS (all-ones signal) is sent to the net­work, the looped data is not affected. The ALOS alarm continues to monitor the receive line interface signal while
DLOS monitors the looped data.

†

10

See Digital Loss of Signal (DLOS) Alarm section on page 21 regarding the behavior of the DLOS alarm upon acti­vation of FLLOOP.

Remote Loopback (RLOOP)

A remote loopback (RLOOP) connects the recovered clock and retimed data to the transmitter at the system inter­face and sends the data back to the line. The receiver front end, clock/data recovery, encoder/decoder (if enabled)
jitter attenuator (if enabled), and transmit driver circuitry are all exercised during this loopback. The transmit clock,
transmit data, and XAIS inputs are ignored. Valid receive output data continues to be sent to the system interface.
This loopback mode is very useful for isolating failures between systems.

See Loss of Transmit Clock (LOTC) Alarm and Transmit Driver Monitor (TDM) Alarm on page 30 regarding the
behavior of the LOTC and TDM alarms upon activation and deactivation of RLOOP.

Digital Local Loopback (DLLOOP)

A digital local loopback (DLLOOP) connects the transmit clock and data through the encoder/decoder pair to the
receive clock and data output pins at the system interface. This loopback is operational if the encoder/decoder pair
is enabled or disabled. The AIS signal can be transmitted without any effect on the looped signal.

41Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

(continued)

Powerdown (PWRDN)

Each line interface channel has an independent power­down mode controlled by PWRDN (registers 6—9,
bit 0). This provides power savings for systems that use
backup channels. If PWRDN = 1, the corresponding
channel will be in a standby mode, consuming only a
small amount of power. It is recommended that the
alarm registers for the corresponding channel be
masked with MASK = 1 (registers 6—9, bit 1) during
powerdown mode. If a line interface channel in power­down mode needs to be placed into service, the chan­nel should be turned on (PWRDN = 0) approximately
5 ms before data is applied.

Reset (RESET, SWRESET)

The device provides both a hardware reset (
pin 44) and a software reset (SWRE SET; register 4,
bit 1) that are functionally equivalent. INT (pin 114) is
also cleared. The writable microprocessor interface
registers are not affected by reset, with the exception of
bits in register 4 (see the Global Control Registers
(0100, 0101) section). During a reset condition, data
transmission will be interrupted.

RESET

;

During the LOXC alarm condition, the clock recovery
and jitter attenuator functions are automatically dis­abled. Therefore, if CDR = 1 and/or JAR = 1, the RCLK,
RPD , RND, and DLOS outputs will be unknown. If CDR
= 0, there will be no effect on the receiver. If the jitter
attenuator is enabled in the transmit path (JAT = 1) dur­ing this alarm condition, then a Loss of Transmit Clock
alarm, LOTC = 1, will also be indicated.

In-Circuit Testing and Driver High-Imped­ance State (

The function of the
the ICTMODE bit (register 4, bit 3). If ICTMODE = 0

ICT

and
(TTIP, TRING, RCLK, RPD, RND, LOXC, RDY_
INT, AD[7:0]) are placed in a high-impedance state. For
in-circuit te sti ng, the
ICTMODE = 0 without having to write the bit. If
ICTMODE = 1 and
TRING outputs of all channels will be placed in a high­impedance state. The TTIP and TRING outputs have a
limiting high-impedance capability of approximately
8kΩ.

ICT

)

is activated (

ICT

input (pin 43) is determined by

ICT

= 0), then all output buffers

RESET

ICT

pin can be used to activate

= 0, then only the TTIP and

DTACK

LIU Delay Values

,

The reset condition is initiated by setting
SWRESET = 1 for a minimum of 10 µs. After releasing
the reset control (RESET
device will stay in the reset condition for approximately

2.7 ms to ensure stabilization of the PLL. After leaving
the reset condition (with
the bits in register 4 will be reset and may need to be
restored.

= 1 or SWRESET = 0), the

RESET

= 1 or SWRES ET = 0 ),

RESET

= 0 or

Loss of XCLK Reference Clock (LOXC)

The LOXC output (pin 45) is active when the XCLK ref­erence clock (pin 46) is absent. The LOXC flag is
asserted a maximum of 16 µs after XCLK disappears,
and deasserts immediately after detecting the first
clock edge of XCLK.

The transmit coder has 5 UI delay whether it is in the
path or not and whether it is B8ZS or HDB3. Its delay is
only removed when in single-rail mode. The remainder
of the transmit path has 4.6 UI delay. The receive
decoder has 5 UI delay whether it is in the path or not
and whether it is B8ZS or HDB3. Its delay is only
removed when in single-rail mode or CDR = 0. The
AFE (equalizer plus slicer) delay is nearly 0 UI delay.
The jitter attenuator delay is nominally 33 UI but can be
2 UI—64 UI depending on the state. The DPLL used for
timing recovery has 8 UI delay.

42 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

(continued)

Line Encoding/Decoding

Alternate Mark Inversion (AMI)

The default line code used for T1 is alternate mark inversion (AMI). The coding scheme represents a 1 with a pulse
or mark on the positive or negative rail and a 0 with no pulse on either rails. This scheme is shown in Table 18.

Table 18. AMI Encoding

Input Bit Stream 1011 0000 0111 1010
AMI Data –0+– 0000 0+–+ –0+0

The T1 ones de nsit y rule req uir es that in e very 24 bits of information to be tr ansm itte d, ther e mu st be at lea st th ree
pulses, and no more than 15 zeros may be transmitted consecutively.

AT&T Technical Reference 62411 for digital transmissions requires that in every 8 bits of information, at least one
pulse must be present.

T1-Binary 8 Zero Code Suppression (B8ZS)

Clear channel transmission can be accomplished using binary 8 zero code suppression (B8ZS). Eight consecutive
zeros are replaced with the B8ZS code. This code consists of two bipolar violations in bit positions 4 and 7 and
valid bipolar marks in bit positions 5 and 8. The receiving end recognizes this code and replaces it with the original
string of eight zeros. Table 19 shows the encoding of a string of zeros using B8ZS. B8ZS is recommended when
ESF format is used.

Table 19. DS1 B8ZS Encoding

Bit Positions 12345678

Before B8ZS 0000000010100000000
After B8ZS 000VB0VBB0B000VB0VB

High-Density Bipolar of Order 3 (HDB3)

The line code used for CEPT is described in ITU Rec. G.703 Section 6.1 as high-density bipolar of order 3 (HDB3).
HDB3 uses a substitution code that acts on strings of four zeros. The substitute HDB3 codes are 000V and B00V,
where V represents a violation of the bipolar rule and B represents as inserted pulse conforming to the AMI rule
defined in ITU Rec. G.701, item 9004. The choice of the B00V or 000V is made so that the number of B pulses
between consecutive V pulses is odd. In other words, successive V pulses are of alternate polarity so that no direct
current (dc) component is introduced. The substitute codes follow each other if the string of zeros continues. The
choice of the first substitute code is arbitrary. A line code error is defined as a bipolar violation and consists of two
pulses of the same polarity that is not defined as one of the two substitute codes. Coding violations are indicated as
bipolar violations. An example is shown in Table 20.

Table 20. ITU HDB3 Coding and DCPAT Binary Coding

Input Bit Stream 1011 0000 01 0000 0000 0000 0000
HDB3-Coded Data 1011 000V 01 000V B00V B00V B00V
HDB3-Coded Levels –0+– 000– 0+ 000+ –00– +00+ –00–

———

12345678

43Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

(continued)

Registers

As shown in Table 6 on page 17, the quad LIU registers consist of sixteen 8-bit registers (some of which are
reserved). Register 13 is an index register which must contain the value 00 to access the other 15 LIU registers.

Registers 0 and 1 are the alarm registers used for storing the various device alarm status and are read only. All
other registers are read/write. Registers 2 and 3 contain the individual mask bits for the alarms in registers 0 and 1.
Registers 4 and 5 are designated as the global control registers used to set up the functions for all four channels.
The channel configuration registers in registers 6 through 9 and register 12 are used to configure the individual
channel functions and parameters. Registers 10 and 11 must be cleared by the user after a powerup for proper
device operation; CODE3 and CODE4 may be set as desired. (See Table 26 on page 47.) Register 13 is the global
index register. Registers 14 and 15 are reserved for proprietary functions and must not be addressed during oper­ation. The following sections describe these registers in detail.

Alarm Registers (0000, 0001)

The bits in the alarm registers represent the status of the transmitter and receiver alarms LOTC , TDM, DLOS, and
ALOS for all four channels as shown in Table 21. The alarm indicators are active-high and automatically clear on a
microprocessor read if the corresponding alarm condition no longer exists. Persistent alarm conditions will cause
the bit to remain set. These are read-only registers.

Table 21. Alarm Registers

Bits Symbol

0, 4 ALOS[1—2] Analog loss of signal alarm for channels 1 and 2.
1, 5 DLOS[1—2] Digital loss of signal alarm for channels 1 and 2.
2, 6 TDM[1—2] Transmit driver monitor alarm for channels 1 and 2.
3, 7 LOTC[1—2] Loss of transmit clock alarm for channels 1 and 2.

0, 4 ALOS[3—4] Analog loss of signal alarm for channels 3 and 4.
1, 5 DLOS[3—4] Digital loss of signal alarm for channels 3 and 4.
2, 6 TDM[3—4] Transmit driver monitor alarm for channels 3 and 4.
3, 7 LOTC[3—4] Loss of transmit clock alarm for channels 3 and 4.

*The numerical suffix identifies the channel number.

*

Alarm Register (0)

Alarm Register (1)

Description

44 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

Registers

Alarm Mask Registers (0010, 0011)

The bits in the alarm mask registers in Table 22 allow the microprocessor to selectively mask each channel alarm
and prevent it from generating an interrupt. The mask bits correspond to the alarm status bits in the alarm registers
and are active-high to disable the corresponding alarm from generating an interrupt. These registers are read/write
registers.

Table 22. Alarm Mask Registers

Bits Symbol

0, 4 MALOS[1—2] Mask analog loss of signal alarm for channels 1 and 2.
1, 5 MDLOS[1—2] Mask digital loss of signal alarm for channels 1 and 2.
2, 6 MTDM[1—2] Mask transmit driver monitor alarm for channels 1 and 2.
3, 7 MLOTC[1—2] Mask loss of transmit clock alarm for channels 1 and 2.

0, 4 MALOS[3—4] Mask analog loss of signal alarm for channels 3 and 4.
1, 5 MDLOS[3—4] Mask digital loss of signal alarm for channels 3 and 4.
2, 6 MTDM[3—4] Mask transmit driver monitor alarm for channels 3 and 4.
3, 7 MLOTC[3—4] Mask loss of transmit clock alarm for channels 3 and 4.

*The numerical suffix identifies the channel number.

(continued)

*

(continued)

Description

Alarm Mask Register (2)

Alarm Mask Register (3)

Global Control Registers (0100, 0101)

The bits in the global control registers in Table 23 and Table 24 allow the microprocessor to configure the various
device functions over all the four channels. All the control bits (with the exception of LOSSTD and ICTMODE) are
active-high. These are read/write registers.

Table 23. Global Control Register (0100)

Bits Symbol Description

Global Control Register (4)

0 GMASK The GMASK bit globally masks all the channel alarms when GMASK = 1, pre-

venting all the receiver and transmitter alarms from generating an interrupt.
GMASK = 1 after a device reset.

1 SWRESET The SWRESET provides the same function as the hardware reset. It is used

for device initialization through the microprocessor interface.

2 LOSSTD The LOSSTD bit selects the conformance protocol for the DLOS receiver

alarm function.

3 ICTMODE The ICTMODE bit changes the function of the ICT

device reset.

4—7 HIGHZ[1—4] A HIGHZ bit is available for each individual channel. When HIGHZ = 1, the

TTIP and TRING transmit drivers for the specified channel are placed in a
high-impedance state. HIGHZ [1—4] = 1 after a device reset.

pin. ICTMODE = 0 after a

45Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

Registers

Global Control Registers (0100, 0101)
Table 24. Global Control Register (0101)

Bits Symbol

0 CDR The CDR bit is used to enable and disable the clock/data recovery function.
1 JAR The JAR is used to enable and disable the jitter attenuator function in the

2 JAT The JAT is used to enable and disable the jitter attenuator function in the trans-

3 CODE The CODE bit is used to enable the B8ZS/HDB3 zero substitution coding. It is

4 DUAL The DUAL bit is used to select single or dual-rail mode of operation.
5 ALM The ALM bit selects the transmit and receive data polarity (i.e., active-low or

6 ACM The ACM bit selects the positive or negative edge of the receive clock (RCLK

7 LOSSD The LOSSD bit selects the shutdown function for the digital loss of signal alarm

(continued)

receive path. The JAR and JAT control bits are mutually exclusive; i.e., either
JAR or the JAT control bit can be set, but not both.

mit path. The JAT and JAR control bits are mutually exclusive; i.e., either JAT or
the JAR control bit should be set, but not both.

used in conjunction with the DUAL bit and is valid only for single-rail operation.

active-high). The ALM and ACM bits are used together to determine the trans­mit and receive data retiming modes.

[1—4]) for receive data retiming. The ACM and ALM bits are used together to
determine the transmit and receive data retiming modes.

(DLOS).

(continued)

(continued)

Description

Global Control Register (5)

Channel Configuration and Control Registers (0110—1001, 1011, 1100)

The control bits in the channel configuration registers in Table 25 are used to select equalization, loopbacks,
AIS generation, channel alarm masking, and the channel powerdown mode for each channel (1—4). The
PWRDN[1—4], MASK[1—4], and XAIS[1—4] bits are active-high. These are read/write registers.

Control bits for zero substitution coding for channels 1—4 are listed in Table 26 and Table 27.

Table 25. Channel Configuration Registers (0110—1001)

Bits Symbol

0 PWRDN[1—4] The PWRDN bit powers down a channel when not used.
1 MASK[1—4] The MASK bit masks all interrupts for the channel.
2 XAIS[1—4] The XAIS bit enables transmission of an all-ones signal to the line inter-

3

LOOPB[1—4]

4
5

6
7

* A numerical suffix identifies the channel number.
† Channel suffix not shown in the description.

LOOPA[1—4]

EQC[1—4],
EQB[1—4],

EQA[1—4]

*

Channel Configuration Registers (6—9)

face.
The LOOPB and LOOPA bits select the channel loopback modes.

The EQC, EQB, and EQA bits select the type of service (DS1 or CEPT)
and the associated transmitter cable equalization/termination imped­ances.

Description

†

46 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

Registers

Channel Configuration and Control Registers (0110—1001, 1011, 1100

Table 26. Channel Configuration Register (1011)

Bits Symbol

0—3 — Reserved. Write to 0.

4 CODE4 The CODE4 bit selects B8ZS/HDB3 encoding (transmit) and decoding

5 — Reserved. Write to 0.
6 CODE3 The CODE3 bit selects B8ZS/HDB3 encoding (transmit) and decoding

7 — Reserved. Write to 0.

* A numerical suffix identifies the channel number.

Table 27. Control Register (1100)

Bit Symbol

0ALTIMER

1 RCVAIS

2 PFLALM The PFLALM prevents the DLOS alarm from occurring during FLLOOP activation.
3PRLALM

4PHIZALM

5 JABW0 The JABW0 bit selects the lower bandwidth jitter attenuator option in CEPT mode.
6 CODE2 The CODE2 bit selects B8ZS/HDB3 encoding (transmit) and decoding (receive) in

7 CODE1 The CODE1 bit selects B8ZS/HDB3 encoding (transmit) and decoding (receive) in

* A numerical suffix identifies the channel number .

(continued)

*

*

(continued)

) (continued)

Description

Channel Configuration Register (11)

(receive) in channel 4.

(receive) in channel 3.

Description

Control Register (12)

The ALTIMER bit is used to select the time required to declare ALOS. ALTIMER = 0
selects 1 ms—2.6 ms. ALTIMER = 1 selects 10 bit—255 bit periods.

The RCVAIS bit selects the shutdown function for the receiver during analog loss of
signal alarm (ALOS). RCVAIS operates in conjunction with the LOSSD bit.

The PRLALM prevents the LOTC alarm from occurring during RLOOP activation/
deactivation.

The PHIZALM prevents the TDM alarm from occurring when the driver is in a high­impedance state.

channel 2.

channel 1.

47Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

(continued)

XCLK Reference Clock

The device requires an externally applied clock, XCLK (pin 46), for the clock and data recovery function and the jit­ter attenuation option. XCLK must be a continuously active (i.e., ungapped, unjittered, and unswitched) and an
independent reference clock such as from an external system oscillator or system clock for proper operation. It
must not be derived from any recovered line clock (i.e., from RCLK or any synthesized frequency of RCLK).

XCLK may be supplied in one of four formats; 16x DS1, DS1, 16x CEPT, or CEPT. The format is selected globally
for the device by CLKS (pin 117) and CLKM (pin 116).

CLKS determines the relationship between the primary line data rate and the clock signal applied to XCLK. For
CLKS = 0, a clock at 16x the primary line data rate clock (24.704 MHz for DS1 and 32.768 MHz for CEPT) must be
applied to XCLK. For CLKS = 1, a primary line data rate clock (1.544 MHz for DS1 and 2.048 MHz for CEPT) must
be applied to XCLK.

The CLKS pin has an internal pull-down resistor allowing the pin to be left open, i.e., a no connect, in applications
using a 16x reference clock. The CLKS pin must be pulled up to V
clock.

CLKM determines whether the clock synthesizer is operating in CEPT or DS1 mode when XCLK is a primary line
data rate clock. For CLKM = 0, the clock synthesizer operates in DS1 mode (1.544 MHz). For CLKM = 1, the clock
synthesizer operates in CEPT mode (2.048 MHz). The CLKM pin is ignored when CLKS = 0.

The CLKM pin has an internal pull-down resistor allowing the pin to be left open, i.e., a no connect, in applications
using a DS1 line rate reference clock. The CLKM pin must be pulled up to V
data rate clock.

for applications using a primary line data rate

DD

for applications using a CEPT line

DD

16x XCLK Reference Clock

The specifications for XCLK using a 16x reference clock are defined in Table 28. The 16x reference clock is
selected when CLKS = 0.

Table 28. XCLK (16x, CLKS = 0) Timing Specifications

Value

Parameter

Unit

Min Typ Max

Frequency:

DS1
CEPT

Range*,

†

—
—

24.704

32.768

—
—

MHz
MHz

–100 — 100 ppm

Duty Cycle 40 — 60 %

* When JABW0 = 1 and the jitter attenuator is used in the receive data path, the tolerance on XCLK should be tightened to ±20 pp m in order to

meet the jitter accommodation requirements of TBR12/13 as given in G.823 for line data rates of ±50 ppm.

† If XCLK is used as the source for AIS (see Alarm Indication Signal Generator (XAIS) on page30), it must meet the nominal transmission

specifications of 1.544 MHz ± 32 ppm for DS1 (T1) or 2.048 MHz ± 50 ppm for CEPT (E1).

48 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

XCLK Reference Clock

(continued)

(continued)

Primary Line Rate XCLK Reference Clock and Internal Reference Clock Synthesizer

In some applications, it is more desirable to provide a reference clock at the primary data rate. In such cases, the
LIU can utilize an internal 16x clock synthesizer allowing the XCLK pin to accept a primary data rate clock. The
specifications for XCLK using a primary rate reference clock are defined in Table 29.

Table 29. XCLK (1x, CLKS = 1) Timing Specifications

Value

Parameter

Unit

Min T yp Max

Frequency:

DS1
CEPT

Range*,

†

—
—

1.544

2.048

—
—

MHz
MHz

–100 — 100 ppm
Duty Cycle 40 — 60 %
Rise and Fall Times

—— 5 ns

(10%—90%)

* When JABW0 = 1 and the jitter attenuator is used in the receive data path, the tolerance on XCLK should be tightened to ±20 pp m in order to

meet the jitter accommodation requirements of TBR12/13 as given in G.823 for line data rates of ±50 ppm.

† If XCLK is used as the source for AIS (see Alarm Indication Signal Generator (XA IS) on page 30), it must meet the nominal transmission

specifications of 1.544 MHz ± 32 ppm for DS1 (T1) or 2.048 MHz ± 50 ppm for CEPT (E1).

The data rate reference clock and the internal clock synthesizer are selected when CLKS = 1. In this mode, a valid
and stable data rate reference clock must be applied to the XCLK pin before and during the time a hardware reset
is activated (RESET
proper resetting of the clock synthesizer circuit. Upon the deactivation of the reset pin (RESET
extend the reset condition internally for approximately 1/2(2

= 0). The reset must be held active for a minimum of two data rate clock periods to ensure

= 1), the LIU will

12

– 1) line clock periods, or 1.3 ms for DS1 and
1 ms for CEPT after the hardware reset pin has become inactive, allowing the clock synthesizer additional time to
settle. No activity such as microprocessor read/write should be performed during this period. The device will be
operational 2.7 ms after the deactivation of the hardware reset pin. Issuing an LIU software restart (LIU_REG2
bit 5 (RESTART) = 1) does not impact the clock synthesizer circuit.

Power Supply Bypassing

External bypassing is required for all channels. A 1.0 µF capacitor must be connected between V
addition, a 0.1 µF capacitor must be connected between V
nected between V
plane connections are also required for V
log supply (V

DDA

and GNDA. Ground plane connections are required for GNDX, GNDD, and GNDA. Power

DDA

and V

DDX

DDD

) may require an inductive bead to be inserted between the power plane and the V

and GNDD, and a 0.1 µF capacitor must be con-

DDD

. The need to reduce high-frequency coupling into the ana-

channel.
Capacitors used for power supply bypassing should be placed as close as possible to the device pins for maximum

effectiveness.

and GNDX. In

DDX

pin of every

DDA

49Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

(continued)

Line Circuitry

The transmit and receive tip/ring connections provide a matched interface to the cable (i.e., terminating impedance
matches the characteristic impedance of the cable). The diagram in Figure 14 shows the appropriate external com­ponents to interface to the cable for a single transmit/receive channel. The component values are summarized in
Table 30, based on the specific application.

EQUIPMENT

INTERFACE

EQ

Z

L

R

RECEIVE DATA

TRANSMIT DATA

P

R

TRANSFORMER

1:N

N:1

R

R

C

C

R

R

T

R

T

R

R

RTIP

S

RRING

DEVICE

(1 CHANNEL)

TTIP

TRING

5-3693(F).d

Figure 14. Line Termination Circuitry

Table 30. Termination Components by Application

Resistor tolerances are ±1%. Transformer turns ratio tolerances are ±2%.

Symbol Name

C
R
R
R

Z

EQ

Center Tap Capacitor 0.1 0.1 0.1 0.1

C

Receive Primary Impedance 200 200 200 200

P

Receive Series Impedance 71.5 28.7 59 174

R

Receive Secondary Impedance 113 82.5 102 205

S

Equivalent Line Termination 100 75 75 120

1

DS1

Twisted

Pair

Cable Type

CEPT 75

Option 1

Ω

3

2

Coaxial

Option 2

CEPT 120

4

Twisted Pair

Unit

4

Ω

F

µ

Ω

Tolerance ±4 ±4 ±4 ±4 %
R
R

Transmit Series Impedance 0 26.1 15.4 26.1

T

Transmit Load Termination

L

5

100 75 75 120

Ω

N Transformer Turns Ratio 1.14 1.08 1.36 1.36 —

1. Use Lucent 2795B transformer.

2. For CEPT 75 Ω applications, Option 1 is recommended over Option 2 for lower device power dissipation. Option 2 increases power dissipa­tion by 13 mW per channel when driving 50% ones data. Option 2 allows for the use of the same transformer as in CEPT 120 Ω applica­tions.

3. Use Lucent 2795D transfor m er.

4. Use Lucent 2795C transfor m er.

5. A ±5% tolerance is allowed for the transmit load termination, R

L

.

50 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

(continued)

Absolute Maximum Ratings

Stresses in excess of the absolute maximum ratings can cause permanent or latent damage to the device. These
are absolute stress ratings only . Functional operation of the device is not implied at these or any other conditions in
excess of those given in the operational sections of this device specification. Exposure to absolute maximum rat­ings for extended periods can adversely affect device reliability.

Table 31. Absolute Maximum Ratings

Parameter Min Max Unit

dc Supply Voltage –0.5 6.5 V
Storage Temperature –65 125 °C
Maximum Voltage (digital pins) with Respect to V
Minimum Voltage (digital pins) with Respect to GND
Maximum Allowable Voltages (RTIP[1—4], RRING[1—4])

with Respect to V

Minimum Allowable Voltages (RTIP[1—4], RRING[1—4])

with Respect to GND

DD

DDD

D

—0.5V

–0.5 — V

—0.5V

–0.5 — V

Handling Precautions

Although protection circuitry has been designed into this device, proper precautions should be taken to avoid expo­sure to electrostatic discharge (ESD) during handling and mounting. Lucent employs a human-body model (HBM)
and charged-device model (CDM) for ESD-susceptibility testing and protection design evaluation. ESD voltage
thresholds are dependent on the circuit parameters used in the defined model. No industry-wide standard has
been adopted for the CDM. However, a standard HBM (resistance = 1500 Ω, capacitance = 100 pF) is widely used
and, therefore, can be used for comparison purposes. The HBM ESD threshold presented here was obtained by
using these circuit parameters.

Table 32. ESD Threshold Vo ltage

Device Model Voltage

TLIU04C1 HBM TBD

CDM (corner pins) T BD

CDM (noncorner pins) TBD

Operating Conditions

Table 33. Recommended Operating Conditions

Parameter Symbol Min Typ Max Unit

Ambient Temperature T
Power Supply V

A

DD

–40 — 85 °C

4.75 5.0 5.25 V

51Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

(continued)

Po wer Requirements

The majority of the power used by the TLIU04C1 device is used by the line drivers. Therefore, the power is very
dependent on data pattern and signal amplitude. The signal amplitude is a function of the transmit equalization in
DS1 mode. When configured for greater cable loss, the signal amplitude is greater at the output drivers, and thus
uses more power. For this reason, the power specification of Table 34 are given for various conditions. The typical
specification is for a quasi-random signal and the maximum specification is for a mark (all ones) pattern. The power
also varies somewhat for DS1 versus CEPT, so figures are given for both.

Table 34. Power Consumption

Parameter Power Unit

Typ Max

CEPT TBD TBD mW
DS1 TBD TBD mW
DS1 with Max Eq. TBD TBD mW

Power dissipation is the amount of power dissipated in the device. It is equal to the power drawn by the device
minus the power dissipated in the line.

Table 35. Power Dissipation

Parameter Power Unit

Typ Max

CEPT TBD TBD mW
DS1 TBD TBD mW
DS1 with Max Eq. TBD TBD mW

Electrical Characteristics

Table 36. Logic Interface Characteristics
Note:

* 100 pF allowed for AD[7:0] (pins 75—82).

The following internal resistors are provided: 50 kΩ pull-up on the
the CLKS and CLKM pins, and 100 kΩ pull-up on the
sink no more than 20 µA. The device uses TTL input and output buffers; all buffers are CMOS-compatible.

Parameter Symbol Test Conditions Min Max Unit

Input Voltage:

Low
High

Input Leakage I

V

IL

V

IH
L

Output Voltage:

Low

High
Input Capacitance C
Load Capacitance

*

V

OL

V

OH

I

C

L

ICT

CS

, and XCLK pins. This requires these input pins to

and

RESET

pins, 50 kΩ pull-down on

—

GND

2.1

V

0.8

DDD

D

V
V

——10µA

IOL = –5.0 mA

I

= 5.0 mA

OH

V

GND

DDD

D

– 0.5

V

0.4

DDD

V

V
— —3.0pF
— — 50 pF

52 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

(continued)

Microprocessor Interface Timing

The I/O timing specifications for the microprocessor interface are given in Table 37 and shown in Figures 15—22.
The microprocessor interface pins use CMOS I/O levels. All outputs, except the address/data bus AD[7:0], are
rated for a capacitive load of 50 pF. The AD[7:0] outputs are rated for a 100 pF load. The minimum read and write
cycle time is 200 ns for all device configurations.

Table 37. Microprocessor Interface I/O Timing Specifications

Symbol Configuration Parameter Setup

(ns)

(Min)

t1 Modes 1 and 2 AS
t2 Address Valid to AS
t3 AS
t4 CS
t5 R/W
t6 AS
t7 CS
t8 DS

t9 DS
t10 DS
t11 DS
t12 DS
t13 CS
t14 DS
t15 R/W
t16 AS
t17 DS
t18 Data Valid to DS
t19 DS
t20 DS
t21 Address Valid to AS
t22 AS

Asserted Width — 10 —

Asserted 10 — —
Asserted to Address Invalid — 10 —
Asserted to AS Asserted 10 — —

Valid to DS Asserted 5 — —
Asserted to DS Asserted 30 — —
Asserted to DTACK High — — 25
Asserted to DTACK Asserted — — 20
Asserted to Data Valid — — 50
Deasserted to CS Deasserted — 15 —
Deasserted to R/W Invalid — 5 —
Deasserted to DTACK Deasserted — — 20
Deasserted to DTACK High Impedance — — 10
Deasserted to Data Invalid — 5 —

Va lid to DS Asserted 5 — —
Asserted to DS Asserted 10 — —
Asserted Width — 5 —

Asserted 5 — —
Deasserted to Data Invalid — 10 —
Asserted to DTACK Asserted — — 20

Asserted 10 — —

Asserted to Address Invalid — 10 —

Hold

(ns)

(Min)

Delay

(ns)

(Max)

The read and write timing diagrams for all four microprocessor interface modes are shown in Figures 15—22.

53Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

Microprocessor Interface Timing

Table 37. Microprocessor Interface I/O Timing Specifications

Symbol Configuration Parameter Setup

t23 Modes 3 and 4 ALE Asserted Width — 10 —
t24 Address Valid to ALE Asserted 10 — —
t25 ALE Asserted to Address Invalid — 10 —
t26 CS
t27 ALE Asserted to RD
t28 CS
t29 Falling Edge of MPCLK to RDY Asserted — — 25
t30 RD
t31 RD
t32 RD
t33 RD
t34 CS
t35 ALE Asserted to WR
t36 WR
t37 Data Valid to WR
t38 WR
t39 WR
t40 WR
t41 Rising Edge of MPCLK to RDY Asserted — — 25
t42 Address Valid to ALE Asserted 10 — —
t43 ALE Asserted to Address Invalid — 10 —

(continued)

(continued)

Asserted to ALE Asserted 10 — —

Asserted to RDY Low — — 20

Asserted to Data Valid — — 50
Deasserted to Data Invalid — 5 —
Deasserted to RDY Deasserted — — 20
Deasserted to CS Deasserted — 15 —

Deasserted to RDY High Impedance — — 10

Asserted Width — 5 —

Deasserted to Data Invalid — 10 —
Deasserted to RDY Deasserted — — 20
Deasserted to CS Deasserted — 15 —

(continued)

Asserted 30 — —

Asserted 10 — —

Asserted 5 — —

Hold

(ns)

(Min)

(ns)

(Min)

Delay

(ns)

(Max)

The read and write timing diagrams for all four microprocessor interface modes are shown in Figures 15—22.

54 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

(continued)

Microprocessor Interface Timing

CS

t4 t1

AS

t2

A[3:0]

R/W

DS

DTACK

VALID ADDRESS

t5 t8

t7

(continued)

t3

t6

t11

t10

t12 t13

t14

AD[7:0]

t9

VALID DATA

5-7192(F)r.2

Figure 15. Mode 1—Read Cycle Timing (MPMODE = 0, MPMUX = 0)

CS

t4 t1

AS

t3

t16

t15 t17

t20

t11

t10

t12 t13

A[3:0]

R/W

DS

t2

VALID ADDRESS

t7

DTACK

t19

AD[7:0]

t18

VALID DATA

Figure 16. Mode 1—Write Cycle Timing (MPMODE = 0, MPMUX = 0)

5-7193(F)r.3

55Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

(continued)

Microprocessor Interface Timing

CS

t4 t1

AS

t6

R/W

t5 t9

DS

t7

DTACK

t21 t22

AD[7:0]

VALID

ADDRESS

(continued)

t8

VALID DATA

t14

t12

t11

t10

t13

5-7194(F)r.3

Figure 17. Mode 2—Read Cycle Timing (MPMODE = 0, MPMUX = 1)

CS

t4 t1

AS

t11

t12

t10

t13

R/W

DS

DTACK

t15

t7

t21 t22

t16

t17

t20

t18 t19

AD[7:0]

VALID

ADDRESS

VALID DATA

5-7195(F)r.4

Figure 18. Mode 2—Write Cycle Timing (MPMODE = 0, MPMUX = 1)

56 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

(continued)

Microprocessor Interface Timing

CS

t26 t23

ALE

A[3:0]

RD

RDY

AD[7:0]

VALID ADDRESS

t27

t28 t29

(continued)

t24

t25

t30 t31

VALID DATA

t32

t33

t34

MPCLK

5-7196(F)r.3

Figure 19. Mode 3—Read Cycle Timing (MPMODE = 1, MPMUX = 0)

CS

t26 t23

ALE

t24

t25

A[3:0]

WR

t28

RDY

AD[7:0]

VALID ADDRESS

t35

t36

t41

t37 t38

VALID DATA

t40

t39

t34

MPCLK

Figure 20. Mode 3—Write Cycle Timing (MPMODE = 1, MPMUX = 0)

5-7197(F)r.3

57Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Microprocessor Mode

(continued)

Microprocessor Interface Timing

CS

t26 t23

ALE

RD

t28 t29

RDY

t42 t43

AD[7:0]

MPCLK

VALID

ADDRESS

(continued)

t27

t33

t32 t34

t30 t31

VALID DATA

5-7198(F)r.2

Figure 21. Mode 4—Read Cycle Timing (MPMODE = 1, MPMUX = 1)

CS

t26 t23

ALE

WR

RDY

AD[7:0]

t42

t28

VALID

ADDRESS

t35

t41

t43 t38

t36

t39 t34

t37

VALID DATA

t40

MPCLK

5-7199(F)r.5

Figure 22. Mode 4—Write Cycle Timing (MPMODE = 1, MPMUX = 1)

58 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Microprocessor Mode

(continued)

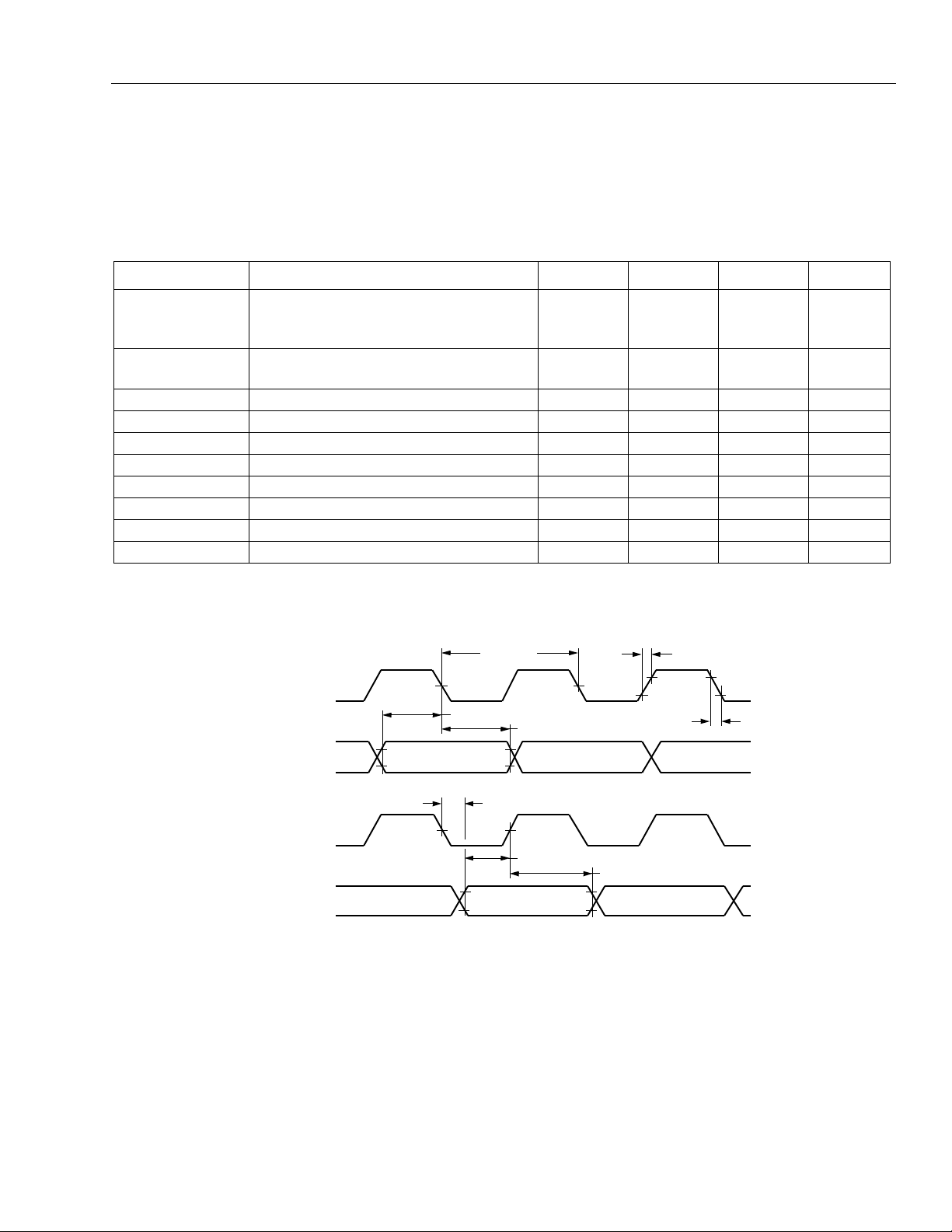

Data Interface Timing

Table 38. Data Interface Timing
Note:

* Refers to each individual bit period for JAT = 0 applications.
† Refers to each individual bit per iod for JAT = 1 applications using a gapped TCLK.

The digital system interface timing is shown in Figure 23 for ACM = 0. If ACM = 1, then the RCLK signal in
Figure 23 will be inverted.

Symbol Parameter Min Typ Max Unit

tTCLTCL Average TCLK Clock Period:

DS1
CEPT

tTDC TCLK Duty Cycle*

TCLK Minimum High/Low Time

†

—
—

30

100

647.7

488.0
—

—

—
—

70

—
tTDVTCL Transmit Data Setup Time 50 — — ns
tTCLTDX Transmit Data Hold Time 40 — — ns

tTCH1TCH2 Clock Rise Time (10%/90%) — — 40 ns

tTCL2TCL1 Clock Fall Time (90%/10%) — — 40 ns

tRCHRCL RCLK Duty Cycle 45 50 55 %
tRDVRCH Receive Data Setup Time 140 — — ns

tRCHRDX Receive Data Hold Time 180 — — ns

tRCLRDV Receive Propagation Delay — — 40 ns

ns
ns

%

ns

* Invert RCLK for ACM = 1.

TCLK-LIU

TPD-LIU

OR

TND-LIU

RCLK-LIU*

RPD-LIU

OR

RND-LIU

tTCLTCL

tTDVTCL

tTCLTDX

tRCLRDV

tRDVRCH

tTCL2TCL1

tRCHRDX

Figure 23. Interface Data Timing (ACM = 0)

tTCH1TCH2

5-1156(F).br.3

59Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Direct Logic Control Mode

Overview

The TLIU04C1 device has the ability to operate in either a microprocessor mode or a direct logic control mode. The
CMODE pin is used to determine the operating mode. To configure the device for direct logic control mode, the
CMODE pin is pulled low.

The device is equipped with direct logic control of the line interface configuration and options so that connection to
a microprocessor is not required. Control of the various functions is accomplished by providing a logic high or low
at the control pins. Functions such as E1/T1 modes, equalizer settings, diagnostic loopbacks, test modes, system
interface timing and polarity, and standards compliance options are controlled in this manner. Alarm conditions are
also indicated by output levels directly on device pins.

Device Overview

The TLIU04C1 is a four-channel device. The LIUs convert bipolar line data pulses into logic level terminal data, with
options for timing for jitter attenuation, equalization, zero bit coding, loopbacks, and other functions.

60 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Direct Logic Control Mode

Pin Information

RPD1/RDATA1

TPD1/TDATA1

TND1/CODE1

RCLK1

141

140

139

138

GNDD

VDDD

LOTC1

TDM1
DLOS1
ALOS1
ALOS2
DLOS2

TDM2
LOTC2

VDDD

GNDD

ALMT2

XAIS2

TCLK2
TPD2/TDATA2
TND2/CODE2

RCLK2

RPD2/RDATA2

RND2/BPV2

GNDA2

RRING2

RTIP2

VDDA2

GNDX2

TRING2

VDDX2

TTIP2

GNDX2

FLLOOP2

RLOOP2

DLLOOP2

EQA2
EQB2

EQC2

PWRDN2

ALMT1

XAIS1

TCLK1

144

143
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

142

37

3839404142434445464748495051525354555657585960616263646566676869707172

(continued)

RTIP1

RRING1

GNDA1

RND1/BPV1

137

136

135

134

VDDA1

GNDX1

TRING1

VDDX1

TTIP1

GNDX1

FLLOOP1

RLOOP1

DLLOOP1

EQA1

EQB1

EQC1

PWRDN1

GNDD

VDDD

CMODE

CLKS

CLKM

ACM

ALMNCDUAL

JA T

JAR

GNDD

133

132

131

130

129

128

127

126

125

124

123

122

121

120

119

118

117

116

115

114

113

112

111

110

109

108

PWRDN4

107

EQC4

106

EQB4

105

EQA4

104

DLLOOP4

103

RLOOP4

102

FLLOOP4

101

GNDX4

100

TTIP4

99

VDDX4

98

TRING4

97

GNDX4

96

VDDA4

95

RTIP4

94

RRING4

93

GNDA4

92

RND4/BPV4

91

RPD4/RDATA4

90

RCLK4

89

TND4/CODE4

88

TPD4/TDATA4

87

TCLK4

86

XAIS4

85

ALMT4

84

GNDD

83

VDDD

82

LOTC4

81

TDM4

80

DLOS4

79

ALOS4

78

ALOS3

77

DLOS3

76

TDM3

75

LOTC3

74

VDDD

73

GNDD

GNDD

JABW0

LOXC

VDDD

RESET

LOSSD

RCVAIS

LOSSTD

ALTIMER

GNDD

PWRDN3

EQB3

EQA3

EQC3

DLLOOP3

TTIP3

VDDX3

GNDX3

RLOOP3

FLLOOP3

TRING3

VDDA3

GNDX3

RTIP3

GNDA3

RRING3

RND3/BPV3

RPD3/RDATA3

ICT

XCLK

Figure 24. TLIU04C1 Direct Logic Control Mode Pin Diagram

RCLK3

TND3/CODE3

ALMT3

TPD3/TDA TA3

5-3684(F).b

XAIS3

TCLK3

61Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Direct Logic Control Mode

Pin Information

(continued)

(continued)

Table 39. Pin Descriptions

Pin Symbol Type*Qty Name/Description

117 CLKS

I

XCLK Select.

1

This pin selects either a 16x line rate clock for XCLK

d

(CLKS = 0) or a primary line rate clock for XCLK (CLKS = 1).

116 CLKM

I

XCLK Mode.

1

This pin sets the mode when using a primary line rate

d

clock for XCLK.
CEPT: CLKM = 1
DS1: CLKM = 0

130, 27,

58, 99

128, 132,

V

[1—4] P 4

DDX

GND

[1—4] P 8

X

Power Supply for Line Drivers.

power supply on these pins.

Ground Reference for Line Drivers.

25, 29,
56, 60,

97, 101

129, 28,

57, 100

131, 26,

59, 98

133, 24,

61, 96

136, 21,

TTIP[1—4] O 4

TRING[1—4] O 4

[1—4] P 4

V

DDA

[1—4] P 4

GND

A

Transmit Bipolar Tip.

Positive bipolar transmit data to the analog

line interface.

Transmit Bipolar Ring.

Negative bipolar transmit data to the

analog line interface.

Power Supply for Analog Circuitry.

5 V ± 5% power supply on these pins.

Ground Reference for Analog Circuitry.

64, 93

134, 23,

62, 95

135, 22,

63, 94

142, 15,

70, 87

141, 16,

69, 88

RTIP[1—4] I 4

RRING[1—4] I 4

TCLK[1—4] I 4

d

TPD/

I

TDATA[1—4]

Receive Bipolar Tip.

Positive bipolar receive data from the analog

line interface.

Receive Bipolar Ring.

Negative bipolar receive data from the

analog line interface.

Transmit Clock.

DS1 (1.544 MHz ± 32 ppm) or CEPT

(2.048 MHz ± 50 ppm) clock signal from the terminal equipment.

Transmit Data Positive Rail/Transmit Data.

4

used as 1.544 Mbits/s or 2.048 Mbits/s unipolar input data. If
dual = 1, this pin is used as the transmit data positive rail.

140, 17,

68, 89

TND/

CODE[1—4]

I

Transmit Data Negative Rail/Substitution Code Enable.

4

dual = 0, this pin is set to insert a B8ZS/HDB3 substitution code

d

(per EQA, EQB, EQC) on the transmit side and to remove the
substitution code on the receive side. If dual = 1, this pin is used as
the transmit data negative rail.

139, 18,

67, 90

138, 19,

66, 91

RCLK[1—4] O 4

RPD/

O4

RDATA[1—4]

Receive Clock.

This signal is the receive clock recovered from the

line data. The duty cycle of RCLK is 50% ± 5%.

Receive Data Positive Rail/Receive Data.

used as 1.544 Mbits/s or 2.048 Mbits/s unipolar output data with a
100% duty cycle. If dual = 1, this pin is used to receive data positive
rail.

The device requires a 5 V ± 5%

The device requires a

If dual = 0, this pin is

If

If dual = 0, this pin is

* I = input, O = output, Iu indicates an input with internal pull-up; Id indicates an input with internal pull-down, P = power. Resistance value of all

internal pull-ups or pull-downs is 50 kΩ, unless otherwise specified.

62 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Direct Logic Control Mode

Pin Information

Table 39. Pin Descriptions

(continued)

(continued)

(continued)

Pin Symbol Type*Qty Name/Description

137, 20,

65, 92

RND/

BPV[1—4]

O4

Receive Data Negative Rail/Bipolar Violation.

If dual = 0 (single­rail mode), this pin will be asserted (1 for ALM = 0, 0 for ALM = 1)
for one bit period after detection of a bipolar coding violation on the
receive analog data (RTIP, RRING). If dual = 1, this pin is used as
the receive data negative rail.

6, 7, 78, 79ALOS

[1—4] O 4

Analog Loss of Signal (Active-Low).

This pin is asserted low
when the data signal at the receiver inputs falls below a threshold
level. The pin is deasserted high when the signal rises above
another, slightly higher threshold. The difference between these
threshold levels provides hysteresis to prevent alarm chatter.

5, 8, 77, 80DLOS

[1—4] O 4

Digital Loss of Signal (Active-Low).

Guarantees the receive
signal quality as defined in the appropriate ANSI, Bellcore, and ITU
standards. During DS1 operation, DLOS

is asserted low if 100 or
more consecutive zeros occur in the receive data stream. In CEPT
operation, DLOS

is asserted low when 255 or more consecutive
zeros occur in the receive data stream. The pin is deasserted high
when a ones density greater than 12.5% is detected over the 100 or
255 pulse positions.

4, 9, 76,

81

TDM

[1—4] O 4

Transmit Drive Monitor (Active-Low).

Transmit driver monitor
detects two conditions: a nonfunctional link due to faults on the
primary of the transmit transformer, and periods of no data

3, 10, 75, 82LOTC

[1—4] O 4

transmission. TDM

Loss of Transmit Clock (Active-Low).

= 0 for active alarm.

= 0 when there is a

LOTC
loss of any of the clocks in the transmit path including the TCLK
input, RCLK in remote loopback, jitter attenuator output clock (when
enabled), or the pulse-width controller clock.

45 LOXC O 1

Loss of XCLK.

This pin is asserted high when the XCLK signal is

not present.

144, 13,

72, 85

ALMT

[1—4]

I

Alarm Test Enable (Active-Low).

4

forced as follows; DLOS

For ALMT

= 0, ALOS = 0, TDM = 0, LOTC = 0, and

= 0, alarm pins are

BPV = activate state per ALM. LOXC is forced high if ALMT
asserted for all four channels. ALMT

does not af fect data

is

u

transmission.

127, 30,

55, 102

FLLOOP

[1—4]

u

I

Full Local Loopback Enable (Active-Low).

4

for a full local loopback (transmit converter output to receive

†

This pin is cleared

converter input). Most of the transmit and receive analog circuitry is
exercised in this loopback.

126, 31,

54, 103

RLOOP

[1—4]

u

I

Remote Loopback Enable (Active-Low).

4

remote loopback (DSX to DSX). In remote loopback, a high on

†

This pin is cleared for a

XAIS inserts the AIS signal on the transmit side.

125, 32,

53, 104

DLLOOP

[1—4]

u

I

Digital Local Loopback Enable (Active-Low).

4

for a digital local loopback. Only the transmit and receive digital

†

This pin is cleared

sections are exercised in this loopback.

* I = input, O = output, Iu indicates an input with internal pull-up; Id indicates an input with internal pull-down, P = power. Resistance value of all

internal pull-ups or pull-downs is 50 kΩ, unless otherwise specified.

† Only one loopback mode can be enabled at a time. Enabling more than one results in all being deactivated.

63Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Direct Logic Control Mode

Pin Information

Table 39. Pin Descriptions

(continued)

(continued)

(continued)

Pin Symbol Type*Qty Name/Description

124, 33,

EQA[1—4]

52, 105

123, 34,

EQB[1—4]

51, 106

122, 35,

EQC[1—4]

50, 107

46 XCLK

I

d

I

d

I

u

I

Equalizer Control A.

4

One of three control pins for selecting

transmit equalizers and DS1/CEPT mode. See Table 45.

Equalizer Control B.

4

One of three control pins for selecting

transmit equalizers and DS1/CEPT mode. See Table 45.

Equalizer Control C.

4

One of three control pins for selecting

transmit equalizers and DS1/CEPT mode. See Table 45.

Reference Clock

1

. A valid reference clock must be provided at this

d

input. XCLK must be an independent, continuously active, 50%
duty cycle, ungapped, and unjittered clock to guarantee device
performance specifications. XCLK has an internal 100 kΩ pull-up
resistor. See Table 54.

143, 14,

71, 86

XAIS[1—4]

I

Transmit AIS.

4

This pin is set to insert the alarm indication signal

(all ones) on the transmit line interface. This control has priority

d

over a remote loopback if both are operated simultaneously.

39 RCVAIS

I

Receive AIS.

1

This pin selects the shutdown function for the

d

receiver during analog and digital loss of signal. RCVAIS operates
in conjunction with LOSSD. See Table 42.

42 LOSSD

I

Loss of Signal Shutdown Control.

1

This pin selects the shutdown

d

function for the receiver during analog and digital loss of signal.
LOSSD operates in conjunction with RCVAIS. See Table 42.

41 LOSSTD

I

Digital Loss of Signal Standard Selection.

1

The LOSSTD pin

d

selects the standard that is followed to deactivate a digital loss of
signal in DS1 mode. For LOSSTD = 0, DLOS

is deactivated when
the average ones density is at least 12.5% over 100 contiguous
pulse positions (T1M1.3/93-005, ITU-T G775). For LOSSTD = 1, an
additional constraint of less than 15 consecutive zeros is required
along with the 12.5% ones density (TR-TSY -000009). The LOSSTD
pin has no effect in CEPT mode, which requires 12.5% ones
density over 255 contiguous pulse positions (ITU-T G.7 75).

40 ALTIM ER

I

Analog Loss of Signal Timer .

1

This pin selec ts the time re quired to

detect an analog loss of signal. For ALTIMER = 0, ALOS

is

d

declared between 1 ms and 2.6 ms after losing signal as required
by I.431(3/93) and ETSI-300-233 (5/94). For AL TIMER = 1, ALOS

is
declared between 10 and 255 bit symbol periods after losing signal
as required by G.775 (11/95).

121, 36,

49, 108

PWRDN[1—4]

I

Powerdown Enable.

4

When this pin is activated (PWRDN = 1), the

circuitry of the channel is put into a standby mode in which minimal

d

power is consumed.

* I = input, O = output, Iu indicates an input with internal pull-up; Id indicates an input with internal pull-down, P = power. Resistance value of all

internal pull-ups or pull-downs is 50 kΩ, unless otherwise specified.

64 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Direct Logic Control Mode

Pin Information

Table 39. Pin Descriptions

(continued)

(continued)

(continued)

Pin Symbol Type*Qty Name/Description

111 JAT

I

Jitter Attenuator in the Transmit Pa th.

1

Setting JAT = 1 enables

d

the jitter attenuator in the transmit path for all four channels. Setting
JAT = 0 disables the jitter attenuator in the transmit path. If both
JAT = 1 and JAR = 1, the jitter attenuator is disabled.

110 JAR

I

Jitter Attenuator in the Receive Path.

1

Setting JAR = 1 enables

d

the jitter attenuator in the receive path for all four channels. Setting
JAR = 0 disables the jitter attenuator in the receive path. If both
JAT = 1 and JAR = 1, the jitter attenuator is disabled.

118 CMODE

I

Chip Mode.

1

This pin sets the chip mode for either direct logic mode

d

or microprocessor mode.
Microprocessor:CMODE = 1
Direct Logic: CMODE = 0

38 JABW0

I

Jitter Attenuator Bandwidth Adjust.

1

Setting this pin selects the

d

lower bandwidth jitter attenuator option in CEPT mode, lowering the
bandwidth from 10 Hz to 1.25 Hz. When this option is used, XCLK
must be ±20 ppm. See Table 54.

114 ALM I

d

Alternate Logic Mode (ALM).

1

If ALM = 0, the receiver circuitry
(and transmit input) assumes the data to be active-low polarity. If
ALM = 1, the data is assumed to be active-high polarity.

115 ACM I

d

Alternate Clock Mode (ACM).

1

The alternate clock mode control
pin selects the positive or negative clock edge of the receive clock
(RCLK) for receiver data retiming. For ACM = 1, the receive data is
retimed on the positive edge of the receive clock. When ACM = 0,
the receive data is retimed on the negative edge of the receive
clock. (This does not affect transmit clock timing.) See Figure 38.

112 DUAL

I

Dual-Rail Mode Select.

1

This pin is cleared (DUAL = 0) for single-

d

rail mode and set (DUAL = 1) for dual-rail mode.

44 RESET

I

Hardware Reset (Active-Low).

1

If RESET is forced low, all int ernal

u

states in the transceiver paths are reset and data flow through each
channel will be momentarily disrupted. The RESET

pin must be

held low for a minimum of 1 ms.

43 ICT

I

High-Impedance Mode (Active-Low).

1

When ICT = 0, all output
buffers (TTIP, TRING, RCLK, RPD, RND, LOXC, LOTC
DLOS

, ALOS) are placed in a high-impedance state. TTIP and

, TDM,

u

TRING outputs have a limited high-impedance capability of
approximately 8 kΩ.

2, 11, 47,

V

DDD

P6

Power Supply for Digital Circuitry.

74, 83,

119

1, 12, 37,

GND

D

P8

Ground Reference for Digital Circuitry.

48, 73, 84,

109, 120

113 NC — 1

* I = input, O = output, Iu indicates an input with internal pull-up; Id indicates an input with internal pull-down, P = power. Resistance value of all

internal pull-ups or pull-downs is 50 kΩ, unless otherwise specified.

No Connect.

65Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Direct Logic Control Mode

(continued)

System Interface Pin Options

The system interface can be configured to operate in a number of different modes. The different modes change the
functionality of the system interface pins, as shown in Table 40. Dual-rail or single-rail operation is possible using
the DUAL control pin (pin 112). Dual-rail mode is enabled when DUAL = 1; single-rail mode is enabled when
DUAL = 0. In dual-rail operation, data received from the line interface on RTIP and RRING appears on RPD and
RND at the system interface and data transmitted from the system interface on TPD and TND appears on TTIP and
TRING at the line interface. In single-rail operation, data received from the line interface on RTIP and RRING
appears on RDATA at the system interface and data transmitted from the system interface on TDATA appears on
TTIP and TRING at the line interface.

In single-rail mode only, TND is not needed for data and is used for controlling the B8ZS/HDB3 encoding/decoding.
The coding may be selected by pulling the CODE pins high. RND is also not needed for data in single-rail mode,
and is used for indicating bipolar violations. When a coding violations occurs, the BPV pin is asserted according to
the ALM setting (pin 114).

Table 40. System Interface Pin Mapping

Configuration RPD/RDATA RND/BPV TPD/TDATA TND/CODE

Single-rail mode (DUAL = 0) RDATA BPV TDATA CODE

Dual-rail mode (DUAL = 1) RPD RND TPD TND

66 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Direct Logic Control Mode

Block Diagrams

LOTC[1—4]

DLOS

ALOS
ALMT

PWRDN[1—4]

FLLOOP

RLOOP

DLLOOP

(continued)

TTIP[1—4]

TRING[1—4]

[1—4]

TDM

[1—4]
[1—4]

XAIS[1—4]

[1—4]
[1—4]

[1—4]

[1—4]
EQA[1—4]
EQB[1—4]
EQC[1—4]

RTIP[1—4]

RRING[1—4]

XCLK

CLOCK

MULTIPLIER

QUAD

TRANSMIT

SECTION

QUAD

LINE

INTERFACE

UNIT

QUAD
RECEIVE
SECTION

CLKS
CLKM

TCLK[1—4]
TND[1—4]
TPD[1—4]

ACM
ALM
DUAL
JAT
JAR
JABW0
RCVAIS
ALTIMER
LOSSTD
LOSSD
ICT
LOXC

RCLK[1—4]
RND[1—4]
RPD[1—4]

RESET

Figure 25. TLIU04C1 Block Diagram, CMODE = 0 (Direct Logic Mode)

5-7823(F)

67Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Direct Logic Control Mode

Block Diagrams

(continued)

(continued)

The line interface block diagram is shown in Figure 26. For illustration purposes, only one of the four on-chip line
interfaces is shown. Pin names that apply to all four channels are followed by the designation [1—4].

DLOS

(CLOCK)

ALARM

INDICATION

SIGNAL (AIS)

JITTER

ATTE NUATO R

(RECEIVE PATH)

JITTER

ATTENUATO R

(TRANSMIT PATH)

LOSS

OF

TCLK

DLLOOP

DECODER

ENCODER

RND[1—4]
RPD[1—4]

RCLK[1—4]

RLOOP

TCLK[1—4]

TND[1—4]
TPD[1—4]

RTIP[1—4]

RRING[1—4]

FLLOOP

(NO LIU AI S)

TTIP[1—4]

TRING[1—4]

ALOS

TDM

TRANSMIT

DRIVER

EQUALIZER

(DURING LIU AIS)

MULTIPLIER

FLLOOP

16x

CLOCK

SLICERS

LOTC

PULSE

EQUALIZER

CLOCK AND

DATA

RECOVERY

PULSE-

WIDTH

CONTROLLER

(DATA)

INTXCLK

XCLK

CLKS

DIVIDE BY 16

LOSS OF

XCLK

MONITOR

LOXC

5-4556(F).er.3

Figure 26. Block Diagram of the Quad Line Interface Unit (Single Channel)

68 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Direct Logic Control Mode

(continued)

Data Recovery

The receive line interface unit (RLIU) format is bipolar
alternate mark inversion (AMI). The data rate tolerance
is ±130 ppm (DS1) or ±80 ppm (CEPT). The receiver
first restores the incoming data and detects analog loss
of signal. Subsequent processing is optional and
depends on the programmable device configuration
established with the use of the direct logic control pins.
The RLIU utilizes an equalizer to operate on line length
with up to 15 dB of loss at 772 kHz (DS1) or 13 dB loss
at 1.024 MHz (CEPT). The signal is then peak­detected and sliced to produce digital representations
of the data.

Clock and data recovery, digital loss of signal, jitter
attenuation, and data decoding are performed. The
receive digital output format is non-return-to-zero
(NRZ) with selectable dual-rail or single-rail system
interface.

The clock is recovered by a digital phase-locked loop
that uses XCLK as a reference to lock to the data rate
component. Because the internal reference clock is a
multiple of the received data rate, the RCLK output will
always be a valid DS1/CEPT clock that eliminates
false-lock conditions. During periods with no receive
input signal, the free-run frequency of RCLK is defined
to be either XCLK/16 or XCLK, depending on the state
of CLKS. RCLK is always active with a duty-cycle cen­tered at 50%, deviating by no more than ±5%. Valid
data is recovered within the first few bit periods after
the application of XCLK. The delay of the data through
the receive circuitry is approximately 1 to 14 bit peri­ods, depending on the CODE configurations. Additional
delay is introduced if the jitter attenuator is selected for
operation in the receive path (see the LIU Delay V alues
section, page 89).

Jitter Accommodation and Jitter Transfer Without the Jitter Attenuator

Receiver Configuration Modes

Clock/Data Recovery Mode (CDR)

The clock/data recovery function in the receive path
can be bypassed by setting the FLLOOP
DLLOOP
tion of the twelve loopback pins results in the clock and
data recovery function being enabled and providing a
recovered clock (RCLK) with retimed data (RPD/
RDATA, RND). If all twelve of the loopback pins are
asserted, the clock and data recovery function is dis­abled, and the RZ data from the slicers is provided over
RPD and RND to the system. In this mode, down­stream functions selected by the JAR, ACM, and
LOSSD pins are ignored.

Zero Substitution Decoding (CODE)

When single-rail operation is selected with DUAL = 0,
the B8ZS/HDB3 decoding can be selected. CODE[1—
4] pulled high selects the B8ZS/HDB3 decoding opera­tion for each individual channel.

Note:

When decoding is selected for a given channel,
decoded receive data and code violations appear on
the RDATA and BPV pins, respectively. If coding is not
selected, receive data and any bipolar violations (such
as two consecutive ones of the same polarity) appear
on the RDATA and BPV pins, respectively.

Alternate Logic Mode (ALM)

The alternate logic mode (ALM) control pin selects the
receive and transmit data polarity (i.e., active-high vs.
active-low). If ALM = 0, the receiver circuitry (and trans­mit input) assumes the data to be active-low polarity. If
ALM = 1, the receiver circuitry (and transmit input)
assumes the data to be active-high polarity. The ALM
control is used in conjunction with the ACM control to
determine the receive data retiming mode.

pins for all channels low. Any other combina-

Encoding and decoding are not independent.
Selecting B8ZS/HDB3 decoding in the receiver
selects B8ZS/HDB3 encoding in the transmitter.

, RLOOP and

The RLIU is designed to accommodate large amounts
of input jitter. The RLIU’s jitter performance exceeds
the requirements shown in the RLIU Specifications
tables (Table 43 and Table 44). Typical receiver perfor­mance without the jitter attenuator in the path is shown
in Figure 27 through Figure 30. Jitter transfer is inde­pendent of input ones density on the line interface.

Alternate Clock Mode (ACM)

The alternate clock mode (ACM) control pin selects the
positive or negative clock edge of the receive clock
(RCLK) for receive data retiming. The ACM control is
used in conjunction with the ALM control to determine
the receive data retiming modes. If ACM = 1, the
receive data is retimed on the positive edge of the
receive clock. If ACM = 0, the receive data is retimed
on the negative edge of the receive clock. Note that this
control does not affect the timing relationship for the
transmitter inputs. See Figure 38 on page 97.

69Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Direct Logic Control Mode

Receiver Configuration Modes

RLIU Alarms

Analog Loss of Signal (ALOS

nal detector monitors the receive signal amplitude and
reports its status on the analog loss of signal alarm
pins. An analog loss of signal is indicated if the ampli­tude at the RRING and RTIP inputs drops more than
approximately 18 dB below the nominal signal ampli­tude. The ALOS
receive signal amplitude returns to greater than 14 dB
below normal. In this way, the ALOS
4 dB of hysteresis to prevent alarm chattering.

The time required to detect ALOS
ALTIMER = 0, ALOS

2.6 ms after losing signal as required by I.431(3/93)
and ETS-300-233 (5/94). If ALTIMER = 1, ALOS
declared between 10 and 255 bit symbol periods after
losing signal as required by G.775 (11/95). The timing
is derived from the XCLK clock. The detection time is
independent of signal amplitude before the loss condi­tion occurs . Normally, ALTIMER = 1 woul d be used o nly
in CEPT mode since no T1/DS1 standards require this
mode. In T1/DS1 mode, this pin should normally be
tied low.

alarm condition will clear when the

is declared between 1 ms and

(continued)

(continued)

) Alarm

. An analog sig-

circuitry provides

is selectable. When

is

The behavior of the receiver outputs under ALOS
ditions depends on the loss shutdown (LOSSD) control
pin in conjunction with the receiver AIS (RCVAIS) con­trol pin as described in the Loss Shutdown (LOSSD)
and Receiver AIS (RCVAIS) section on page 71.

Digital Loss of Signal (DLOS

signal (DLOS
quality as defined in the appropriate ANSI, Bellcore,
and ITU standards. The digital loss of signal alarms are
reported on the DLOS
tion, a digital loss of signal is indicated if 100 or more
consecutive zeros occur in the receive data stream.
The DLOS
ones density of at least 12.5% is received in 100 con­tiguous pulse positions. The LOSSTD control bit
selects the conformance protocols for the DLOS
indication per Table 41. Setting LOSSTD = 1 adds an
additional constraint that there are less than 15 con­secutive zeros in the DS1 data stream before DLOS
deactivated.

During CEPT operation, DLOS
or more consecutive zeros occur in the receive data
stream. The DLOS
average ones density of at least 12.5% is received in
255 contiguous pulse positions. LOSSTD has no effect
in CEPT mode.

) detector guarantees the received signal

alarm pins. During DS1 opera-

condition is deactivated when the average

indication is deactivated when the

) Alarm

is indicated when 255

. A digital loss of

con-

alarm

is

Table 41. Digital Loss of Signal Standard Select

LOSSTD DS1 Mode CEPT Mode

0 T1M1.3/93-005, ITU-T G.775 ITU-T G.775
1 TR-TSY-000009 ITU-T G.775

70 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Direct Logic Control Mode

Receiver Configuration Modes

RLIU ALARMS

Loss Shutdown (LOSSD) and Receiver AIS (RCVAIS).

tion with the receiver AIS (RCVAIS) control pin to place the digital outputs in a predetermined state when a digital
loss of signal (DLOS

If LOSSD = 0 and RCVAIS = 0, the RND, RPD, and RCLK outputs will be unaffected by the DLOS
However, when an ALOS
(dependent on ALM state) and the RCLK free runs (based on XCLK frequency).

If LOSSD = 0, RCV AIS = 1, and a DLOS
an alarm indication signal (AIS, all ones) based on the free-running clock frequency, and the RCLK free runs.

If LOSSD = 1, regardless of the state of RCVAIS, and a DLOS
RND outputs are forced to their inactive state (dependent on ALM state) and the RCLK free runs.

The RND, RPD, and RCLK signals will remain unaffected if any loopback (FLLOOP
independent of LOSSD and RCVAIS settings.

The LOSSD and RCVAIS behavior is summarized in Table 42.

Table 42. LOSSD and RCVAIS Control Configurations (Not Valid During Loopback Modes)

LOSSD RCVAIS ALARM RPD/RND RCLK

(continued)

) or analog loss of signal (ALOS) alarm occurs.

alarm condition exists, the RPD and RND outputs are forced to their inactive state

(continued)

(continued)

The loss shutdown control pin (LOSSD) acts in conjunc-

alarm condition.

or an ALOS alarm condition exists, the RPD and RND outputs will present

or an ALOS alarm condition exists, the RPD and

, RLOOP, DLLOOP) is activated

00ALOS
00DLOS
01ALOS
01DLOS
1XALOS
1XDLOS

RLIU Bipolar Violation (BPV) Alarm.

operation. When B8ZS(DS1)/HDB3(CEPT) coding is not used (i.e., CODE[1—4] = 0), any violations in the receive
data (such as two or more consecutive ones on a rail) are indicated on the RND/BPV outputs. When B8ZS(DS1)/
HDB3(CEPT) coding is used (i.e., CODE[1—4] = 1), the HDB3/B8ZS code violations are reflected on the RND/
BPV outputs.

The bipolar violation (BPV) alarm is used only in the single-rail mode of

0 if ALM = 1, 1 if ALM = 0 Free Runs

Normal Data Recovered Clock
AIS (all ones) Free Runs
AIS (all ones) Free Runs

0 if ALM = 1, 1 if ALM = 0 Free Runs
0 if ALM = 1, 1 if ALM = 0 Free Runs

71Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Direct Logic Control Mode

(continued)

DS1 Receiver Specifications

During DS1/T1 operation, the RLIU will perform as specified in Table 43.

Table 43. DS1 RLIU Specifications

Parameter Min Typ Max Unit Spec

Analog Loss of Signal:

Threshold to Assert
Threshold to Clear
Hysteresis
Time to Assert (ALTIMER = 0)

Receiv er Sensitivity

†

17.5

13.5
—

1.0

18
14

4

—

11 15 — dB —

23

17.5
—

2.6

Jitter Transfer:

3 dB Bandwidth
Peaking

—
—

3.84
—

—

0.1

Generated Jitter — 0.04 0.05 UIp-p GR-499-CORE

Jitter Accommodation — — — — Figure 27 on page 73

Return Loss

51 kHz to 102 kHz
102 kHz to 1.544 MHz

1.544 MHz to 2.316 MHz

‡

:

14
20
16

—
—
—

—
—
—

Digital Loss of Signal:

Flag Asserted When Consecutive Bit

Positions Contain

100

—

—

Flag Deasserted When

Data Density Is
and Maximum Consecutive Zeros Are

12.5
—
—

* Below the nominal pulse amplitude of 3.0 V with the line interface circuitry specified (see Line Circuitry on page 94).
† Cable loss at 772 kHz.
‡ Using Lucent transformer 2795B and components listed in Table55.

—
—
—

—
15
99

*

dB

*

dB

dB
ms

kHz

dB

dB
dB
dB

zeros

% ones

zeros
zeros

I.431

—
—

I.431

Figure 28 on page 74
Figure 34 on page 86

ITU-T G.824

Figure 33 on page 85

—
—
—

ITU-T G.775,

T1M1.3/93-005

—

TR-TRY-000009

ITU-T G.775, T1M1.3/

93-005

72 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Direct Logic Control Mode

DS1 Receiver Specifications

Frequency Response Curves

100 UI

28 UI

T1.408/I.431(DS1)/G.824(DS1)

10 UI

1.0 UI

(continued)

(continued)

GR-499-CORE

(NON-SONET CAT II INTERFACES)

I.431(DS1), G.824(DS1)

TR-TSY-000009 (DS1, MUXes)

GR-499/1244-CORE (CAT I INTERFACES)

(SUBJECT TO DEVICE CHARACTERIZATION)

TYPICAL

0.1 UI

10 100 1k 10k1

FREQUENCY (Hz)

Figure 27. DS1/T1 Receiver Jitter Accommodation Without Jitter Attenuator

100k

5-5260(F)r.7

73Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Direct Logic Control Mode

DS1 Receiver Specifications

Frequency Response Curves

0

10

20

30

40

JITTER OUT/JITTER IN (dB)

50

(continued)

(continued)

(continued)

(SUBJECT TO DEVICE CHARACTERIZATION)

TYPICAL

GR-499-CORE

(NON-SONET CAT II TO CAT II)

60

1 10 100 1k 10k

FREQUENCY (Hz)

Figure 28. DS1/T1 Receiver Jitter Transfer Without Jitter Attenuator

100k

5-5261(F)r.4

74 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Direct Logic Control Mode

(continued)

CEPT Receiver Specifications

During CEPT/E1 operation, the RLIU will perform as specified in Table 44.

Table 44. CEPT RLIU Specifications

Parameter Min Typ Max Unit Spec

Analog Loss of Signal:

Threshold to Assert
Threshold to Clear
Hysteresis
Time to Assert (ALTIMER = 0)

Time to Assert (ALTIMER = 1)
Receiver Sensitivity
Interference Immunity

†

‡

:

17.5

13.5
—

1.0
10

18
14

4
—
—

11 13.5 — dB —

912—dB ITU-T G.703

23

17.5
—

2.6

255

Jitter Transfer:

3 dB Bandwidth, Single Pole Roll Off
Peaking

—
—

5.1
—

—

0.5
Generated Jitter — 0.04 0.05 UIp-p ITU-T G.823, I.431
Jitter Accommodation — — — — Figure 29 on page 76

Return Loss

51 kHz to 102 kHz
102 kHz to 1.544 MHz

1.544 MHz to 2.316 MHz

§

:

14
20
16

—
—
—

—
—
—

Digital Loss of Signal:

Flag Asserted When Consecutive Bit

Positions Contain

Flag Deasserted When Data Density is

255

12.5

—
—

—
—

(LOSSTD = 1)

* Below the nominal pulse amplitude of 3.0 V with the line circuitry specified (see Line Interface Unit: Line Circuitry section).
† Cable loss at 1.024 MHz.
‡ Amount of cable loss for which the receiver will operate error-free in the presence of a –18 dB interference signal summing with the

intended signal source.

§ Using Lucent transformer 2795D or 2795C and components listed in Table 55.

*

dB

*

dB

dB

ms

UI

kHz

dB

dB
dB
dB

zeros

%ones

I.431, ETSI 300 233

—
—

I.431, ETSI 300 233

G.775

Figure 30 on page 77
Figure 36 on page 88

Figure 35 on page 87

ITU-T G.703

—

ITU-T G.775

75Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Direct Logic Control Mode

CEPT Receiver Specifications

Frequency Response Curves

100 UI

G.823

37 UI

10 UI

1.0 UI

I.431(CEPT)/ETS-300-011

I.431(CEPT)/ETS-300-011

(continued)

(continued)

TYPICAL

(SUBJECT TO DEVICE CHARACTERIZATION)

G.823,ETSI-300-011A1

0.1 UI

10 100 1 k 10k1

FREQUENCY (Hz)

Figure 29. CEPT/E1 Receiver Jitter Accommodation Without Jitter Attenuator

100k

5-5262(F)r.8

76 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Direct Logic Control Mode

CEPT Receiver Specifications

Frequency Response Curves

0

10

20

30

40

JITTER OUT/JITTER IN (dB)

50

(continued)

(continued)

(continued)

G.735-9 W/O JITTER REDUCER

TYPICAL

(SUBJECT TO DEVICE CHARACTERIZATION)

60

1 10 100 1k 10k

FREQUENCY (HZ)

Figure 30. CEPT/E1 Receiver Jitter Transfer Without Jitter Attenuator

100k

5-5263(F)r.4

77Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Direct Logic Control Mode

(continued)

Output Pulse Generation

The transmitter accepts a clock with NRZ data in single-rail mode (DUAL = 0) or a clock with positive and negative
NRZ data in dual-rail mode (DUAL = 1) from the system. The device converts this data to a balanced bipolar signal
(AMI format) with optional B8ZS(DS1)/HDB3(CEPT) encoding and jitter attenuation. Low-impedance output drivers
produce these pulses on the line interface. Positive ones are output as a positive pulse on TTIP, and negative ones
are output as a positive pulse on TRING. Binary zeros are converted to null pulses. The total delay of the data from
the system interface to the transmit driver is approximately 3 to 11 bit periods, depending on the code configuration
(see the Clock/Data Recovery Mode (CDR) section, page 69 and the Zero Substitution Encoding (CODE) section,
page 79).

Additional delay results if the jitter attenuator is selected for use in the transmit path (see the LIU Delay Values sec­tion).

Transmit pulse shaping is controlled by the on-chip pulse-width controller and pulse equalizer. The pulse-width con­troller produces high-speed timing signals to accurately control the transmit pulse widths. This eliminates the need
for a tightly controlled transmit clock duty cycle that is usually required in discrete implementations. The pulse
equalizer controls the amplitudes of the pulses. Different pulse equalizations are selected through proper settings
of the EQA, EQB, and EQC pins as described in Table 45.

Table 45. Equalizer/Rate Control

EQA EQB EQC Service Clock

Rate

Transmitter Equalization

*

Maximum

Cable Loss

†

Feet Meters dB

0 0 0 DS1 1.544 MHz 0 ft. to 131 ft. 0 m to 40 m 0.6
0 0 1 131 ft. to 262 ft. 40 m to 80 m 1.2
0 1 0 262 ft. to 393 ft. 80 m to 120 m 1.8
0 1 1 393 ft. to 524 ft. 120 m to 160 m 2.4
1 0 0 524 ft. to 655 ft. 160 m to 200 m 3.0
101CEPT
1 1 0 120 Ω or 75 Ω (Option 1) —
111Not Used — — —

* In DS1 mode, the distance to the DSX f or 22 gauge PIC (ABAM) cable is specified. Use the maximum cable loss figures for other cable types.

In CEPT mode, equalization is specified for coaxial or twisted-pair cable.
† Loss measured at 772 kHz.
‡ In 75 Ω applications, Option 1 is recommended ov er Option 2 for lower device power dissipation. Option 2 allows for the same transformer as

used in CEPT 120 Ω applications.

‡

2.048 MHz 75 Ω (Option 2) —

Jitter

The intrinsic jitter of the transmit path, i.e., the jitter at TTIP/TRING when no jitter is applied to TCLK (and the jitter
attenuator is not selected, JAT = 0), is typically 5 nsp-p and will not exceed 0.02 UIp-p.

78 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Direct Logic Control Mode

(continued)

Transmitter Configu ration Mo des

Zero Substitution Encoding (CODE)

Zero substitution B8ZS/HDB3 encoding can be acti­vated only in the single-rail system interface mode
(DUAL = 0). The B8ZS/HDB3 encoding operation can
be selected for individual channels independently by
setting the CODE[1—4] pins high for the respective
channels.

Note:

Encoding and decoding are not independent.

Selecting B8ZS/HDB3 encoding in the transmit­ter selects B8ZS/HDB3 decoding in the receiver.

When coding is selected for a given channel, data
transmitted from the system interface on TDATA will be
B8ZS/HDB3 encoded before appearing on TTIP and
TRING at the line interface.

Alarm Indication Signal Generator (XAIS)

When the transmit alarm indication signal control pin is
set (XAIS[1—4] = 1) for a given channel, a continuous
stream of bipolar ones is transmitted to the line inter­face. The TPD/TDATA and TND inputs are ignored dur­ing this mode. The XAIS input is ignored when a
remote loopback is selected using loopback control pin
(RLOOP) transmitter alarms.

The normal clock source for the AIS signal is TCLK. If
TCLK is not available (loss of TCLK detected), then the
AIS signal clock defaults to INTXCLK/16. INTXCLK is
either XCLK, or 16x XCLK, depending on the state of
the CLKS input pin. See Figure 26 on page 68, and
CLKS in Table 39, Pin Descriptions, on page 62.

For all of these conditions, a core transmitter timing
clock is lost and no data can be driven onto the line.
Output drivers TTIP and TRING are placed in a high­impedance state when this alarm condition is active.
The LOTC pin is asserted low between 3 µs and 16 µs
after the clock disappears, and deasserts immediately
after detecting the first clock edge.

Transmit Driver Monitor (TDM) Alarm

The transmit driver monitor detects two conditions: a
nonfunctional link due to a fault on the primary of the
transmit transformer, or periods of no data transmis­sion. The transmit driver monitor alarm (TDM[1—4]) is
the ORed function of both faults and provides informa­tion about the integrity of the transmit signal path.

The first monitoring function is provided to detect non­functional links and protect the device from damage.
The alarm is set (TDM = 0) when one of the transmit­ter's line drivers (TTIP or TRING) is shorted to power
supply or ground, or TTIP and TRING are shorted
together.

Under these conditions, internal circuitry protects the
device from damage and excessive power supply cur­rent consumption by 3-stating the output drivers. The
monitor detects faults on the transformer primary, but
transformer secondary faults may not be detected.

The monitor operates by comparing the line pulses with
the transmit inputs. After 32 transmit clock cycles, the
transmitter is powered up in its normal operating mode.
The drivers attempt to correctly transmit the next data
bit. If the error persists, TDM remains active to elimi­nate alarm chatter and the transmitter is internally pro­tected for another 32 transmit clock cycles. This
process is repeated until the error condition is removed
and the TDM alarm is deactivated.

Loss of Transmit Clock (LOTC) Alarm

A loss of transmit clock alarm (LOTC[1—4]) is indicated
if any of the clocks in the transmit path disappear. This
includes loss of TCLK input, loss of RCLK during
remote loopback, loss of jitter attenuator output clock
(when enabled), or the loss of clock from the pulse­width controller.

The second monitoring function is to indicate periods of
no data transmission. The alarm is set (TDM = 0) when
32 consecutive zeros have been transmitted and the
alarm condition is cleared on the detection of a single
pulse. This alarm condition does not alter the state or
functionality of the signal path.

79Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Direct Logic Control Mode

(continued)

DS1 Transmitter Pulse Template

The DS1 pulse shape template is specified at the DSX
(defined by CB119 and ANSI T1.102) and is illustrated
in Figure 31. The device also meets the pulse template
specified by ITU-T G.703 (not shown).

1.0

0.5

0

–0.5

0 250 500 750 1000 1250

TIME (ns)

Table 46. DSX-1 Pulse Template Corner Points

(from CB119)

Maximum Curve Minimum Curve

ns V ns V

0
250
325
325
425
500
675
725

1100
1250

—
—

0.05

0.05

0.80

1.15

1.15

1.05

1.05

–0.07

0.05

0.05
—
—

0
350
350
400
500
600
650
650
800
925

1100
1250

–0.05
–0.05

0.50

0.95

0.95

0.90

0.50
–0.45
–0.45
–0.20
–0.05
–0.05

5-1160(F)r.1

Figure 31. DSX-1 Isolated Pulse Template

During DS1 operation, the TTIP and TRING pins will perform as specified in Table 47.

Table 47. DS1 Transmitter Specifications

Parameter Min Typ Max Unit Spec

Output Pulse Amplitude at DSX

1

Output Pulse Width at Line Side of

Transformer

Output Pulse Width at Device Pins

TTIP and TRING
Positive/Negative Pulse Imbalance
Power Levels

1

3, 4

1

2

:

772 kHz

1.544 MHz

1. In accordance with the line circuitry described (see Line Circuitry on page 94).

2.Total power difference.

3.Measured in a 2 kHz band around the specified frequency.

4.Using Lucent transformer 2795B and components in Table 55.

5.Below the power at 772 kHz.

5

2.5 3.0 3.5 V AT&T CB119,

325 350 375 ns

330 350 370 ns

—0.10.4dB

12.6
29

—
39

17.9
—

dBm

dB

ANSI T1.102

80 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Direct Logic Control Mode

(continued)

CEPT Transmitter Pulse Template

CEPT pulse shape template is specified at the system output (defined by ITU-T G.703) and is illustrated in
Figure 32.

269 ns

(244 + 25)

20%

50%

0%

10%
10%

20%

10%
10%

194 ns

(244 – 50)

244 ns

219 ns

(244 – 25)

20%

NOMINAL PULSE

10%

10%

V = 100%

488 ns

(244 + 244)

Figure 32. ITU-T G.703 Pulse Template

5-3145(F)r.1

81Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Direct Logic Control Mode

CEPT Transmitter Pulse Template

(continued)

(continued)

During CEPT operation, the transmitter tip/ring (TTIP/TRING pins) will perform as specified in Table 48.

Table 48. CEPT Transmitter Specifications

Parameter Min Typ Max Unit Spec

Output Pulse Amplitude

75 Ω
120 Ω

:

2.13

2.7

2.37

3.0

2.61

3.3

V
V

ITU-T G.703

*

Output Pulse Width at Line Side of Transformer* 219 244 269 ns

*

Output Pulse Wi d th at D evice Pins TTIP and TRING

224 244 264 ns

Positive/Negative Pulse Imbalance:

Pulse Amplitude
Pulse Width

–4
–4

±1.5

±1

4
4

%

%
Zero Level (percentage of pulse amplitude) –5 0 5 %
Return Loss

51 kHz to 102 kHz
102 kHz to 2.048 MHz

2.048 MHz to 3.072 MHz

Return Loss

51 kHz to 102 kHz
102 kHz to 3.072 MHz

* In accordance with the line circuitry described (see Line Circuitry on page 94), measured at the transformer secondary.
† Using Lucent transformer 2795D or 2795C and components in Table 30.

†

(120 Ω):

†

(75 Ω):

9
15
11

7

9

—
—
—

—
—

—
—
—

—
—

dB
dB
dB

ETS 300 166:
dB
dB

CH-PTT

1993

Jitter Attenuator

A selectable jitter attenuator is provided for narrow-bandwidth jitter transfer function applications. When placed in
the LIU receive path, the jitter attenuator provides narrow-bandwidth jitter filtering for line synchronization. The jitter
attenuator can also be placed in the transmit path to provide clock smoothing for applications such as synchronous/
asynchronous demultiplexers. In these applications, TCLK will have an instantaneous frequency that is higher than
the data rate, and some periods of TCLK are suppressed (gapped) in order to set the average long-term TCLK fre­quency to within the transmit line rate specification. The jitter attenuator will smooth the gapped clock.

Generated (Intrinsic) Jitter

Generated jitter is the amount of jitter appearing on the output port when the applied input signal has no jitter. The
jitter attenuator of this device outputs a maximum of 0.05 UIp-p intrinsic jitter.

82 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Direct Logic Control Mode

Jitter Attenuator

(continued)

(continued)

Jitter Transfer Function

The jitter transfer function describes the amount of jitter that is transferred from the input to the output over a range
of frequencies. The jitter attenuator exhibits a single-pole roll-off (20 dB/decade) jitter transfer characteristic that
has no peaking and a nominal filter corner frequency (3 dB bandwidth) of less than 4 Hz for DS1 operation and
approximately 10 Hz for CEPT operation. Optionally, a lower bandwidth of approximately 1.25 Hz can be selected
in CEPT operation by setting JABW0 = 1 (register 12, bit 5) for systems desiring compliance with ETSI-TBR12/13
jitter attenuation requirements. When configured to meet ETSI-TBR12/13, the clock connected to the XCLK input
must be ±20 ppm. For a given frequency, different jitter amplitudes will cause a slight variation in attenuation
because of finite quantization effects. Jitter amplitudes of less than approximately 0.2 UI will have greater attenua­tion than the single-pole roll-off characteristic. The jitter transfer curve is independent of data patterns. T ypical jitter
transfer curves of the jitter attenuator are given in Figure 34 and Figure 36.

Jitter Accommodation

The minimum jitter accommodation of the jitter attenuator occurs when the XCLK frequency and the input clock’s
long-term average frequency are at their extreme frequency tolerances. When the jitter attenuator is used in the
LIU transmit path, the minimum accommodation is 28 UIp-p at the highest jitter frequency of 15 kHz. Typical
receiver jitter accommodation curves including the jitter attenuator in the LIU receive path are given in Figure 33
and Figure 35.

When the jitter attenuator is placed in the data path, a difference between the XCLK/16 frequency and the incoming
line rate for receive applications, or the TCLK rate for transmit applications, will result in degraded low­frequency jitter accommodation performance. The peak-to-peak jitter accommodation (JAp-p) for frequencies from
above the corner frequency of the jitter attenuator (fc) to approximately 100 Hz is given by the following equation:

JAp-p 64



=



xclk

2f

∆∆

–

------------------------------------------------------------

data

data

f

–()

2πf

f

c

UI

where:
f

= 1.544 MHz for DS1 or 2.048 MHz for CEPT;

data

for JABW0 = 0, fc = 3.8 Hz for DS1 or 10 Hz for CEPT,
and for JABW0 = 1, fc = 1.25 Hz for CEPT;
∆f

= XCLK tolerance in ppm;

xclk

∆f

= data tolerance in ppm.

data

Note that for lower corner frequencies, the jitter accommodation is more sensitive to clock tolerance than for higher
corner frequencies. When JABW0 = 1 and the jitter attenuator is used in the receive data path, the tolerance on
XCLK should be tightened to ±20 ppm in order to meet the jitter accommodation requirements of TBR12/13 as
given in G.823 for line data rates of ±50 ppm.

83Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Direct Logic Control Mode

Jitter Attenuator

Jitter Attenuator Ena ble

The jitter attenuator is selected using the JAR and JAT
pins. These control pins are global and affect all four
channels unless a given channel is in the powerdown
mode (PWRDN = 1). Because there is only one attenu­ator function in the device, selection must be made
between either the transmit or receive path. If both JAT
and JAR are activated at the same time, the jitter atten­uator will be disabled.

Note that the power consumption increases slightly on
a per-channel basis when the jitter attenuator is active.
If jitter attenuation is selected, a valid XCLK signal
must be available.

Jitter Attenuator Receive Path Enable (JAR)

When the jitter attenuator receive bit is set (JAR = 1),
the attenuator is enabled in the receive data path
between the clock/data recovery and the decoder (see
Figure 26 on page 68). Under this condition, the jitter
characteristics of the jitter attenuator apply for the
receiver. When JAR = 0, the clock/data recovery out­puts bypass the disabled attenuator and directly enter
the decoder function. The receive path will then exhibit
the jitter characteristics shown in Figure 27 through
Figure 30.

(continued)

(continued)

Jitter Attenuator Transmit Path Enable (JAT)

When the jitter attenuator transmit bit is set (JAT = 1),
the attenuator is enabled in the transmit data path
between the encoder and the pulse-width controller/
pulse equalizer (see Figure 26 on page 68). Under this
condition, the jitter characteristics of the jitter attenuator
apply for the transmitter. When JAT = 0, the encoder
outputs bypass the disabled attenuator and directly
enter the pulse-width controller/pulse equalizer. The
transmit path will then pass all jitter from TCLK to line
interface outputs TTIP/TRING.

84 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Direct Logic Control Mode

Jitter Attenuator

Frequency Response Curves

100 UI

28 UI

T1.408/I.431(DS1)/G.824(DS1)

10 UI

1.0 UI

(continued)

(continued)

GR-499-CORE

(NON-SONET CAT II INTERFACES)

I.431(DS1), G.824(DS1)

TR-TSY-000009 (DS1, MUXes)

GR-499/1244-CORE (CAT I INTERFACES)

(SUBJECT TO DEVICE CHARACTERIZATION)

TYPICAL

0.1 UI

10 100 1k 10k1

FREQUENCY (Hz)

Figure 33. DS1/T1 Receiver Jitter Accommodation with Jitter Attenuator

100k

5-5264(F)r.8

85Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Direct Logic Control Mode

Jitter Attenuator

Frequency Response Curves

0

10

20

30

40

JITTER OUT/JITTER IN (dB)

50

(continued)

(continued)

(continued)

GR-253-CORE

TR-TSY-000009

TYPI CAL

(SUBJECT TO DEVICE CHARACTERIZATION)

60

1 10 100 1k 10k

FREQUENCY (Hz)

Figure 34. DS1/T1 Jitter Transfer of the Jitter Attenuator

100k

5-5265(F)r.4

86 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Direct Logic Control Mode

JABW0 = 1

(continued)

(continued)

JABW0 = 0

Jitter Attenuator

Frequency Response Curves

100 UI

G.823

37 UI

10 UI

1.0 UI

I.431(CEPT)/ETS-300-011

I.431(CEPT)/ETS-300-011

(continued)

TYPICAL

(SUBJECT TO DEVICE CHARACTERIZATION)

G.823,ETSI-300-011A1

0.1 UI

10 100 1k 10k1

FREQUENCY (Hz)

Figure 35. CEPT/E1 Receiver Jitter Accommodation with Jitter Attenuator

100k

5-5266(F)r.8

87Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Direct Logic Control Mode

Jitter Attenuator

Frequency Response Curves

0

10

20

30

(SUBJECT TO DEVICE CHARACTERIZATION)

40

JITTER OUT/JITTER IN (dB)

50

(continued)

(continued)

TYPI CAL

(continued)

I.431, G.735-9 WITH JITTER REDUCER

ETSI-300-011

ETSI TBR12/13

JABW0 = 1

G.735-9 AT NATIONAL BOUNDARIES

JABW0 = 0

60

1 10 100 1k 10k

FREQUENCY (Hz)

Figure 36. CEPT/E1 Jitter Transfer of the Jitter Attenuator

100k

5-5267(F)r.4

88 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Direct Logic Control Mode

(continued)

Loopbacks

The device has three independent loopback paths that
are activated using the FLLOOP
pins. The locations of these loopbacks are illustrated in
Figure 26.

Full Local Loopback (FLLOOP

A full local loopback (FLLOOP
line driver input to the receiver analog front-end cir­cuitry. Valid transmit output data continues to be sent to
the network. If the transmit AIS (all-ones signal) is sent
to the network, the looped data is not affected. The
ALOS

alarm continues to monitor the receive line inter-

face signal while DLOS

Remote Loopback (RLOOP

A remote loopback (RLOOP
clock and retimed data to the transmitter at the system
interface and sends the data back to the line. The
receiver front end, clock/data recovery, encoder/
decoder (if enabled) jitter attenuator (if enabled), and
transmit driver circuitry are all exercised during this
loopback. The transmit clock, transmit data, and XAIS
inputs are ignored. Valid receive output data continues
to be sent to the system interface. This loopback mode
is very useful for isolating failures between systems.

Digital Local Loopback (DLLOOP

monitors the looped data.

, RLOOP, and DLLOOP

)

) connects the transmit

)

) connects the recovered

)

Reset (RESET)

The device provides a hardware reset (
When the device is in reset, all signal-path and alarm
monitor states are initialized to a known starting config­uration. During a reset condition, data transmission will
be interrupted.

The reset condition is initiated by setting
a minimum of 10 µs. On coming out of the reset condi­tion (RESET
allowed to ensure stabilization of the PLL.

= 1), a time of at least 2.7 ms should be

RESET

RESET

; pin 44).

= 0 for

Loss of XCLK Reference Clock (LOXC)

The LOXC output (pin 45) is active when the XCLK ref­erence clock (pin 46) is absent. The LOXC flag is
asserted a maximum of 16 µs after XCLK disappears,
and deasserts immediately after detecting the first
clock edge of XCLK.

During the LOXC alarm condition, the clock recovery
and jitter attenuator functions are automatically dis­abled. Therefore, if CDR = 1 and/or JAR = 1, the RCLK,
RPD , RND, and DLOS
= 0, there will be no effect on the receiver. If the jitter
attenuator is enabled in the transmit path (JAT = 1) dur­ing this alarm condition, then a loss of transmit clock
alarm, LOTC = 1, will also be indicated.

outputs will be unknown. If CDR

In-Circuit Testing and Driver High-Imped­ance State (ICT

)

A digital local loopback (DLLOOP
mit clock and data through the encoder/decoder pair to
the receive clock and data output pins at the system
interface. This loopback is operational if the encoder/
decoder pair is enabled or disabled. The AIS signal can
be transmitted without any effect on the looped signal.

) connects the trans-

Powerdown (PWRDN)

Each line interface channel has an independent power­down mode controlled by PWRDN. This provides
power savings for systems that use backup channels. If
PWRDN = 1, the corresponding channel will be in a
standby mode, consuming only a small amount of
power. If a line interface channel in powerdown mode
needs to be placed into service, the channel should be
turned on (PWRDN = 0) approximately 5 ms before
data is applied.

The affect of asserting the
output buffers (TTIP, TRING, RCLK, RPD, RND, LOXC,

DTACK

RDY_
ance state. The TTIP and TRING outputs have a limit­ing high-impedance capability of approximately 8 kΩ.

, INT, AD[7:0]) are placed in a high-imped-

ICT

input (pin 43) is that all

LIU Delay Values

The transmit coder has 5 UI delay whether it is in the
path or not and whether it is B8ZS or HDB3. Its delay is
only removed when in single-rail mode. The remainder
of the transmit path has 4.6 UI delay. The receive
decoder has 5 UI delay whether it is in the path or not
and whether it is B8ZS or HDB3. Its delay is only
removed when in single-rail mode or CDR = 0. The
AFE (equalizer plus slicer) delay is nearly 0 UI delay.
The jitter attenuator delay is nominally 33 UI but can be
2 UI—64 UI depending on the state. The DPLL used for
timing recovery has 8 UI delay.

89Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Direct Logic Control Mode

(continued)

Line Encoding/Decoding

Alternate Mark Inversion (AMI)

The default line code used for T1 is alternate mark inversion (AMI). The coding scheme represents a 1 with a pulse
or mark on the positive or negative rail and a 0 with no pulse on either rails. This scheme is shown in Table 49.

Table 49. AMI Encoding

Input Bit Stream 1011 0000 0111 1010
AMI Data –0+– 0000 0+–+ –0+0

The T1 ones density rule requires that in every 24 bits of information to be transmitted, there must be at least three
pulses, and no more than 15 zeros may be transmitted consecutively.

AT&T Technical Reference 62411 for digital transmissions requires that in every 8 bits of information, at least one
pulse must be present.

T1-Binary 8 Zero Code Suppression

Clear channel transmission can be accomplished using Binary 8 Zero Code Suppression (B8ZS). Eight consecu­tive zeros are replaced with the B8ZS code. This code consists of two bipolar violations in bit positions 4 and 7 and
valid bipolar marks in bit positions 5 and 8. The receiving end recognizes this code and replaces it with the original
string of eight zeros. Table 50 shows the encoding of a string of zeros using B8ZS. B8ZS is recommended when
ESF format is used.

Table 50. DS1 B8ZS Encoding

Bit Positions 12345678

Before B8ZS 0000000010100000000
After B8ZS 000VB0VBB0B000VB0VB

High-Density Bipolar of Order 3 (HDB3)

The line code used for CEPT is described in ITU Rec. G.703 Section 6.1 as high-density bipolar of order 3 (HDB3).
HDB3 uses a substitution code that acts on strings of four zeros. The substitute HDB3 codes are 000V and B00V,
where V represents a violation of the bipolar rule and B represents as inserted pulse conforming to the AMI rule
defined in ITU Rec. G.701, item 9004. The choice of the B00V or 000V is made so that the number of B pulses
between consecutive V pulses is odd. In other words, successive V pulses are of alternate polarity so that no direct
current (dc) component is introduced. The substitute codes follow each other if the string of zeros continues. The
choice of the first substitute code is arbitrary. A line code error is defined as a bipolar violation and consists of two
pulses of the same polarity that is not defined as one of the two substitute codes. Both excessive zeros and coding
violations are indicated as bipolar violations. An example is shown in Table 51.

Table 51. ITU HDB3 Coding and DCPAT Binary Coding

Input Bit Stream 1011 0000 01 0000 0000 0000 0000
HDB3-Coded Data 1011 000V 01 000V B00V B00V B00V
HDB3-Coded Levels –0+– 000– 0+ 000+ –00– +00+ –00–

———

12345678

90 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Direct Logic Control Mode

(continued)

XCLK Reference Clock

The device requires an externally applied clock, XCLK (pin 46), for the clock and data recovery function and the jit­ter attenuation option. XCLK must be a continuously active (i.e., ungapped, unjittered, and unswitched) and an
independent reference clock such as from an external system oscillator or system clock for proper operation. It
must not be derived from any recovered line clock (i.e., from RCLK or any synthesized frequency of RCLK).

XCLK may be supplied in one of four formats: 16x DS1, DS1, 16x CEPT, or CEPT. The format is selected globally
for the device by CLKS (pin 117) and CLKM (pin 116).

CLKS determines the relationship between the primary line data rate and the clock signal applied to XCLK. For
CLKS = 0, a clock at 16x the primary line data rate clock (24.704 MHz for DS1 and 32.768 MHz for CEPT) must be
applied to XCLK. For CLKS = 1, a primary line data rate clock (1.544 MHz for DS1 and 2.048 MHz for CEPT) must
be applied to XCLK.

The CLKS pin has an internal pull-down resistor allowing the pin to be left open, i.e., a no connect, in applications
using a 16x reference clock. The CLKS pin must be pulled up to V
clock.

CLKM determines whether the clock synthesizer is operating in CEPT or DS1 mode when XCLK is a primary line
data rate clock. For CLKM = 0, the clock synthesizer operates in DS1 mode (1.544 MHz). For CLKM = 1, the clock
synthesizer operates in CEPT mode (2.048 MHz). The CLKM pin is ignored when CLKS = 0.

The CLKM pin has an internal pull-down resistor allowing the pin to be left open, i.e., a no connect, in applications
using a DS1 line rate reference clock. The CLKM pin must be pulled up to V
data rate clock.

for applications using a primary line data rate

DD

for applications using a CEPT line

DD

16x XCLK Reference Clock

The specifications for XCLK using a 16x reference clock are defined in Table 52. The 16x reference clock is
selected when CLKS = 0.

Table 52. XCLK (16x, CLKS = 0) Timing Specifications

Value

Parameter

Unit

Min Typ Max

Frequency:

DS1
CEPT

Range*,

†

—
—

24.704

32.768

—
—

MHz
MHz

–100 — 100 ppm

Duty Cycle 40 — 60 %

* When JABW0 = 1 and the jitter attenuator is used in the receive data path, the tolerance on XCLK should be tightened to ±20 pp m in order to

meet the jitter accommodation requirements of TBR12/13 as given in G.823 for line data rates of ±50 ppm.

† If XCLK is used as the source for AIS (see Alarm Indication Signal Generator (XA IS) on page 79), it must meet the nominal transmission

specifications of 1.544 MHz ± 32 ppm for DS1 (T1) or 2.048 MHz ± 50 ppm for CEPT (E1).

91Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Direct Logic Control Mode

XCLK Reference Clock

(continued)

(continued)

Primary Line Rate XCLK Reference Clock and Internal Reference Clock Synthesizer

In some applications, it is more desirable to provide a reference clock at the primary data rate. In such cases, the
LIU can utilize an internal 16x clock synthesizer allowing the XCLK pin to accept a primary data rate clock. The
specifications for XCLK using a primary rate reference clock are defined in Table 53.

Table 53. XCLK (1x, CLKS = 1) Timing Specifications

Value

Parameter

Unit

Min Typ Max

Frequency:

DS1
CEPT

Range*,

†

—
—

1.544

2.048

—
—

MHz
MHz

–100 — 100 ppm
Duty Cycle 40 — 60 %
Rise and Fall Times

—— 5 ns

(10%—90%)

* When JABW0 = 1 and the jitter attenuator is used in the receive data path, the tolerance on XCLK should be tightened to ±20 pp m in order to

meet the jitter accommodation requirements of TBR12/13 as given in G.823 for line data rates of ±50 ppm.

† If XCLK is used as the source for AIS (see Alarm Indication Signal Generator (XAIS) on page79), it must meet the nominal transmission

specifications of 1.544 MHz ± 32 ppm for DS1 (T1) or 2.048 MHz ± 50 ppm for CEPT (E1).

The data rate reference clock and the internal clock synthesizer is selected when CLKS = 1. In this mode, a valid
and stable data rate reference clock must be applied to the XCLK pin before and during the time a hardware reset
is activated (RESET
proper resetting of the clock synthesizer circuit. Upon the deactivation of the reset pin (RESET
extend the reset condition internally for approximately 1/2(2

= 0). The reset must be held active for a minimum of two data rate clock periods to ensure

= 1), the LIU will

12

– 1) line clock periods, or 1.3 ms for DS1 and
1 ms for CEPT after the hardware reset pin has become inactive, allowing the clock synthesizer additional time to
settle. No activity such as microprocessor read/write should be performed during this period. The device will be
operational 2.7 ms after the deactivation of the hardware reset pin. Issuing an LIU software restart (LIU_REG2
bit 5 (RESTART) = 1) does not impact the clock synthesizer circuit.

The choices for XCLK are summarized in Table 54.

Table 54. XCLK Specifications

CLKS CLKM JABW0

*

Mode Specifications

0 0 0 16x DS1 24.740 MHz ± 32 ppm
0 1 0 16x CEPT 32.768 MHz ± 50 ppm
0 1 1 16x CEPT 32.768 MHz ± 20 ppm
1 0 0 DS1 1.544 MHz ± 32 ppm
1 1 0 CEPT 2.048 MHz ± 50 ppm
1 1 1 CEPT 2.048 MHz ± 20 ppm

* To meet TB R 12/13 for jitter accommodation.

92 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Direct Logic Control Mode

(continued)

Power Supply Bypassing

External bypassing is required for all channels. A 1.0 µF capacitor must be connected between V
addition, a 0.1 µF capacitor must be connected between V
nected between V
plane connections are also required for V
log supply (V

DDA

and GNDA. Ground plane connections are required for GNDX, GNDD, and GNDA. Power

DDA

DDX

and V

. The need to reduce high-frequency coupling into the ana-

DDD

) may require an inductive bead to be inserted between the power plane and the V

and GNDD, and a 0.1 µF capacitor must be con-

DDD

channel.
Capacitors used for power supply bypassing should be placed as close as possible to the device pins for maximum

effectiveness.

and GNDX. In

DDX

pin of every

DDA

93Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Direct Logic Control Mode

(continued)

Line Circuitry

The transmit and receive tip/ring connections provide a matched interface to the cable (i.e., terminating impedance
matches the characteristic impedance of the cable). The diagram in Figure 37 shows the appropriate external com­ponents to interface to the cable for a single transmit/receive channel. The component values are summarized in
Table 55, based on the specific application.

EQUIPMENT

INTERFACE

EQ

Z

L

R

RECEIVE DATA

TRANSMIT DATA

P

R

TRANSFORMER

1:N

N:1

R

R

C

C

R

R

T

R

T

R

R

RTIP

S

RRING

DEVICE

(1 CHANNEL)

TTIP

TRING

5-3693(F).d

Figure 37. Line Termination Circuitry

Table 55. Termination Components by Application

Resistor tolerances are ±1%. Transformer turns ratio tolerances are ±2%.

Symbol Name

C
R
R
R

Z

EQ

Center Tap Capacitor 0.1 0.1 0.1 0.1

C

Receive Primary Impedance 200 200 200 200

P

Receive Series Impedance 71.5 28.7 59 174

R

Receive Secondary Impedance 113 82.5 102 205

S

Equivalent Line Termination 100 75 75 120

1

DS1

Twisted

Pair

Option 1

Cable Type

CEPT 75

3

2

Coaxial

Ω

Option 2

CEPT 120

4

Twisted Pair

Unit

4

Ω

F

µ

Ω

Tolerance ±4 ±4 ±4 ±4 %
R
R

Transmit Series Impedance 0 26.1 15.4 26.1

T

Transmit Load Termination

L

5

100 75 75 120

Ω

N Transformer Turns Ratio 1.14 1.08 1.36 1.36 —

1. Use Lucent 2795B transformer.

2. For CEPT 75 Ω applications, Option 1 is recommended over Option 2 for lower device power dissipation. Option 2 increases power dissipa­tion by 13 mW per channel when driving 50% ones data. Option 2 allows for the use of the same transformer as in CEPT 120 Ω applica­tions.

3. Use Lucent 2795D transfor m er.

4. Use Lucent 2795C transfor m er.

5. A ±5% tolerance is allowed for the transmit load termination, R

L

.

94 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Direct Logic Control Mode

(continued)

Absolute Maximum Ratings

Stresses in excess of the absolute maximum ratings can cause permanent or latent damage to the device. These
are absolute stress ratings only . Functional operation of the device is not implied at these or any other conditions in
excess of those given in the operational sections of this device specification. Exposure to absolute maximum rat­ings for extended periods can adversely affect device reliability.

Table 56. Absolute Maximum Ratings

Parameter Min Max Unit

dc Supply Voltage –0.5 6.5 V
Storage Temperature –65 125 °C
Maximum Voltage (digital pins) with Respect to V
Minimum Voltage (digital pins) with Respect to GND
Maximum Allowable Voltages (RTIP[1—4], RRING[1—4])

with Respect to V

Minimum Allowable Voltages (RTIP[1—4], RRING[1—4])

with Respect to GND

DD

DDD

D

—0.5V

–0.5 — V

—0.5V

–0.5 — V

Handling Precautions

Although protection circuitry has been designed into this device, proper precautions should be taken to avoid expo­sure to electrostatic discharge (ESD) during handling and mounting. Lucent employs a human-body model (HBM)
and charged-device model (CDM) for ESD-susceptibility testing and protection design evaluation. ESD voltage
thresholds are dependent on the circuit parameters used in the defined model. No industry-wide standard has
been adopted for the CDM. However, a standard HBM (resistance = 1500 Ω, capacitance = 100 pF) is widely used
and, therefore, can be used for comparison purposes. The HBM ESD threshold presented here was obtained by
using these circuit parameters.

Table 57. ESD Threshold Vo ltage

Device Model Voltage

TLIU04C1 HBM TBD

CDM (corner pins) T BD

CDM (noncorner pins) TBD

Operating Conditions

Table 58. Recommended Operating Conditions

Parameter Symbol Min Typ Max Unit

Ambient Temperature T
Power Supply V

A

DD

–40 — 85 °C

4.75 5.0 5.25 V

95Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

TLIU04C1 Quad T1/E1 Line Interface April 1999

Direct Logic Control Mode

(continued)

Po wer Requirements

The majority of the power used by the TLIU04C1 device is used by the line drivers. Therefore, the power is very
dependent on data pattern and signal amplitude. The signal amplitude is a function of the transmit equalization in
DS1 mode. When configured for greater cable loss, the signal amplitude is greater at the output drivers, and thus
uses more power. For this reason, the power specification of Table 59 are given for various conditions. The typical
specification is for a quasi-random signal and the maximum specification is for a mark (all ones) pattern. The power
also varies somewhat for DS1 versus CEPT, so figures are given for both.

Table 59. Power Consumption

Parameter Power Unit

Typ Max

CEPT TBD TBD mW
DS1 TBD TBD mW
DS1 with Max Eq. TBD TBD mW

Power dissipation is the amount of power dissipated in the device. It is equal to the power drawn by the device
minus the power dissipated in the line.

Table 60. Power Dissipation

Parameter Power Unit

Typ Max

CEPT TBD TBD mW
DS1 TBD TBD mW
DS1 with Max Eq. TBD TBD mW

Electrical Characteristics

Table 61. Logic Interface Characteristics
Note:

* 100 pF allowed for microprocessor mode AD[7:0] (pins 75—82).

The following internal resistors are provided: 50 kΩ pull-up on the
the CLKS and CLKM pins, and 100 kΩ pull-up on the
sink no more than 20 µA. The device uses TTL input and output buffers; all buffers are CMOS-compatible.

Parameter Symbol Test Conditions Min Max Unit

Input Voltage:

Low
High

Input Leakage I

V

IL

V

IH
L

Output Voltage:

Low

High
Input Capacitance C
Load Capacitance

*

V

OL

V

OH

I

C

L

ICT

CS

, and XCLK pins. This requires these input pins to

and

RESET

pins, 50 kΩ pull-down on

—

GND

2.1

V

0.8

DDD

D

V
V

——10µA

IOL = –5.0 mA

I

= 5.0 mA

OH

V

GND

DDD

D

– 0.5

V

0.4

DDD

V

V
— —3.0pF
— — 50 pF

96 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Direct Logic Control Mode

(continued)

Data Interface Timing

Table 62. Data Interface Timing
Note:

* Refers to each individual bit period for JAT = 0 applications.
† Refers to each individual bit period for JAT = 1 applications using a gapped TCLK.

The digital system interface timing is shown in Figure 38 for ACM = 0. If ACM = 1, then the RCLK signal in
Figure 38 will be inverted.

Symbol Parameter Min Typ Max Unit

tTCLTCL Average TCLK Clock Period:

DS1
CEPT

tTDC TCLK Duty Cycle*

TCLK Minimum High/Low Time

†

—
—

30

100

647.7

488.0
—

—

—
—

70
—

tTDVTCL Transmit Data Setup Time 50 — — ns

tTCLTDX Transmit Data Hold Time 40 — — ns

tTCH1TCH2 Clock Rise Time (10%/90%) — — 40 ns

tTCL2TCL1 Clock Fall Time (90%/10%) — — 40 ns

tRCHRCL RCLK Duty Cycle 45 50 55 %
tRDVRCH Receive Data Setup Time 140 — — ns

tRCHRDX Receive Data Hold Time 180 — — ns

tRCLRDV Receive Propagation Delay — — 40 ns

ns
ns

%

ns

* Invert RCLK for ACM = 1.

TCLK-LIU

TPD-LIU

OR

TND-LIU

RCLK-LIU*

RPD-LIU

OR

RND-LIU

tTCLTCL

tTDVTCL

tTCLTDX

tRCLRDV

tRDVRCH

tTCL2TCL1

tRCHRDX

Figure 38. Interface Data Timing (ACM = 0)

tTCH1TCH2

5-1156(F).br.3

97Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

22.00

20

TLIU04C1 Quad T1/E1 Line Interface April 1999

Outline Diagram

144-Pin TQFP

Dimensions are in millimeters.

± 0.

20.00 ± 0.20

PIN #1 IDENTIFIER ZONE

1

36

109144

108

20.00

±

0.20

22.00

±

0.20

73

37 72

DETAIL A DETAIL B

1.40 ± 0.05

1.60 MAX
SEATING PLANE

0.08

5-3815(F)r.6

0.50 TYP

GAGE PLANE

SEATING PLANE

1.00 REF

0.25

0.45/0.75

0.05/0.15

0.19/0.27

0.106/0.200

M

0.08

98 Lucent Technologies Inc.

Advance Data Sheet, Rev. 2
April 1999 TLIU04C1 Quad T1/E1 Line Interface

Ordering Information

Device Code Package Temperature Comcode (Ordering Number)

TLIU04C1 144-Pin TQFP –40 °C to +85 °C 108420761

99Lucent Technologies Inc.

Advance Data Sheet, Rev. 2

T7698 Quad T1/E1 Line Interface and Octal T1/E1 Monitor April 1999

For additional information, contact your Microelectronics Group Account Manager or the following:
INTERNET:
E-MAIL:
N. AMERICA: Microelectronics Group, Lucent Technologies Inc., 555 Union Boulevard, Room 30L-15P-BA, Allentown, PA 18103

ASIA PACIFIC: Microelectronics Group, Lucent Technologies Singapore Pte. Ltd., 77 Science Park Drive, #03-18 Cintech III, Singapore 118256
CHINA: Microelectronics G r ou p, Lucent Technologies (China) Co., Ltd., A-F2, 23 /F, Zao Fong Universe Building, 1800 Zhon g S han Xi Road, Shanghai
JAPAN: Microelectronics Group, Lucent Technologies Japan Ltd., 7-18, Higashi-Gotanda 2-chome, Shinagawa-ku, Tokyo 141, Japan
EUROPE: Data Requests: MICROELECTRONICS GROUP DATALINE:

Lucent Technologies Inc. reserves the right to make changes to the product(s) or information contained herein without notice. No liability is assumed as a result of their use or application. No
rights under any patent accompany the sale of any such product(s) or information.

Copyright © 1999 Lucent Technologies Inc.
All Rights Reserved

http://www.lucent.com/micro
[e-mail]

1-800-372-2447
Tel. [phone]

200233 P. R. China

Tel. [phone]

Technical Inquiries: GERMANY:

, FAX [phone] (In CANADA:

, FAX [phone]

Tel . ( 86) 21 6440 0468, ext. 316

, FAX [phone]

FRANCE:

(39) 02 6608131

ITALY:

(49) 89 95086 0

(33) 1 40 45 77 00

(Milan), SPAIN:

1-800-553-2448

, F A X ( 86) 21 6440 0652

(Munich), UNITED KINGDOM:

(Paris), SWEDEN:

, FAX [phone])

Tel. [phone]

(46) 8 594 607 00

(34) 1 807 1441

(Madrid)

, FAX [phone]

(44) 1344 865 900

(Stockholm) , FINLAND:

(Ascot),

(358) 9 4354 2800

(Helsinki),

April 1999
DS99-158T1E1-02 (Replaces DS99-158T1E1-01)
