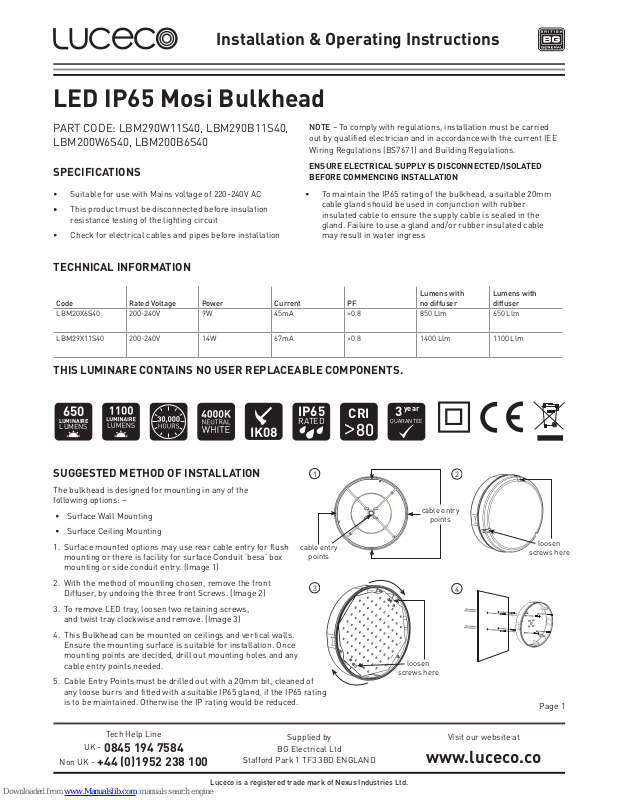

LED IP65 Mosi Bulkhead

PART CODE: LBM290W11S40, LBM290B11S40,
LBM200W6S40, LBM200B6S40

Installation & Operating Instructions

SPECIFICATIONS

• Suitable for use with Mains voltage of 220-240V AC

• This product must be disconnected before insulation

resistance testing of the lighting circuit

• Check for electrical cables and pipes before installation

NOTE – To comply with regulations, installation must be carried
out by qualified electrician and in accordance with the current IEE
Wiring Regulations (BS7671) and Building Regulations.

ENSURE ELECTRICAL SUPPLY IS DISCONNECTED/ISOLATED
BEFORE COMMENCING INSTALLATION

• To maintain the IP65 rating of the bulkhead, a suitable 20mm
cable gland should be used in conjunction with rubber
insulated cable to ensure the supply cable is sealed in the
gland. Failure to use a gland and/or rubber insulated cable
may result in water ingress

Page 1

SUGGESTED METHOD OF INSTALLATION

The bulkhead is designed for mounting in any of the
following options: –

• Surface Wall Mounting

• Surface Ceiling Mounting

1. Surface mounted options may use rear cable entry for flush
mounting or there is facility for surface Conduit ‘besa’ box
mounting or side conduit entry. (Image 1)

2. With the method of mounting chosen, remove the front
Diffuser, by undoing the three front Screws. (Image 2)

3. To remove LED tray, loosen two retaining screws,
and twist tray clockwise and remove. (Image 3)

4. This Bulkhead can be mounted on ceilings and vertical walls.
Ensure the mounting surface is suitable for installation. Once
mounting points are decided, drill out mounting holes and any
cable entry points needed.

5. Cable Entry Points must be drilled out with a 20mm bit, cleaned of
any loose burrs and fitted with a suitable IP65 gland, if the IP65 rating
is to be maintained. Otherwise the IP rating would be reduced.

4

1

cable entry

points

cable entry

points

2

loosen

screws here

3

loosen

screws here

CRI

80

>

IP65

RATED

3

GUARANTEE

year

650

LUMINAIRE

LUMENS

Code Rated Voltage Power Current PF

Lumens with
no diffuser

Lumens with
diffuser

LBM20X6S40 200-240V 9W 45mA >0.8 850 Llm 650 Llm

LBM29X11S40 200-240V 14W 67mA >0.8 1400 Llm 1100 Llm

TECHNICAL INFORMATION

THIS LUMINARE CONTAINS NO USER REPLACEABLE COMPONENTS.

WIRE UP

With the bulkhead securely fixed in the desired position,
make the electrical connection to the terminal block,
observing the correct polarity. (Image 5)

Note – the bulkhead is a class II construction and does not
require an earth connection, but a earth termination point is
fitted.

Once the electrical connections have been made, the gear
tray can be fitted back into position and secured by twisting
Anti-clockwise and tightening the 2no. Fixing screws.

Re-fit the front diffuser and tighten 3 securing screws. Turn
on power and operate. (Image 7)

5

6

tighten

screws here

Page 2

Tech Help Line

UK -

0845 194 7584

Non UK -

[phone]

Visit our website at

Luceco is a registered trade mark of Nexus Industries Ltd.

Supplied by

BG Electrical Ltd

Stafford Park 1 TF3 3BD ENGLAND

www.luceco.co

Installation & Operating Instructions

Environmental Protection W.E.E.E

This symbol is known as the “crossed-out wheelie Bin Symbol”. When this symbol is marked on a product or battery, It means that
it should not be disposed of with your general household waste. Some chemicals contained within electrical/electronic products or
batteries can be harmful to health and the environment. Only dispose of electrical/electronic/battery items in separate collection
schemes, which cater for the recovery and recycling of materials contained within. Your co-operation is vital to ensure the success of
these schemes and for the protection of the environment

WARRANTY

Products are protected by warranty for a period of 3 year warranty from date of purchase against defects in material and workmanship
(unless otherwise stated). Should a product fail to perform as described within the warranty period it will be repaired or replaced with
the same or equivalent product by Luceco, free of charge provided that you: (1) return the product to us with shipping charge prepaid,
(2) provide us with proof of the original date of purchase and (3) quote our return authorization number

Repaired or replaced products will be returned to you with shipping charges prepaid. Replacement products may be refurbished
or contain refurbished materials. If in our sole discretion, we are unable to repair or replace a defective product, we will refund the
purchase price of the product

This warranty will not apply if in our judgment, the product fails due to damage in shipment, handling, storage, accident, abuse or
misuse, or if it has been used in a manner not conforming to our product instructions, has been modified in any way, or has any serial
number removed or defaced. Repair or attempted repair will void this warranty. Our maximum liability under the terms of this warranty
is limited to the purchase price of the product covered by the warranty

The warranty is given under English Law. If any part of this warranty is deemed unenforceable (including any provision in which we
exclude our liability to you) the enforceability of any other parts of the warranty will not be affected. These terms do not reduce your
statutory rights

THESE TERMS AND CONDITIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
