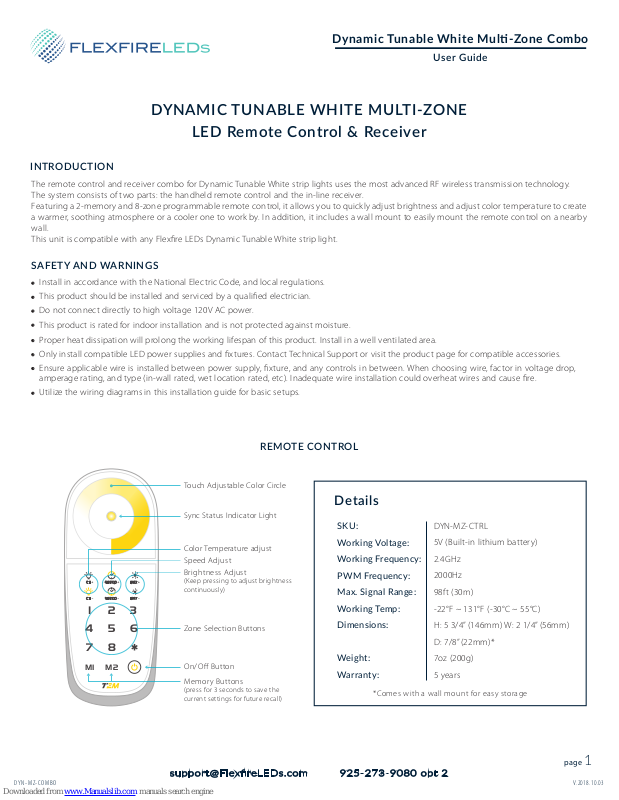

Page 1

Dynamic Tunable White Mul-Zone Combo

User Guide

DYNAMIC TUNABLE WHITE MULTI-ZONE

LED Remote Control & Receiver

INTRODUCTION

The remote control and receiver combo for Dynamic Tunable White strip lights uses the most advanced RF wireless transmission technology. The system consists of two parts: the handheld remote control and the in-line receiver. Featuring a 2-memory and 8-zone programmable remote control, it allows you to quickly adjust brightness and adjust color temperature to create a warmer, soothing atmosphere or a cooler one to work by. In addition, it includes a wall mount to easily mount the remote control on a nearby wall. This unit is compatible with any Flexﬁre LEDs Dynamic Tunable White strip light.

SAFETY AND WARNINGS

Install in accordance with the National Electric Code, and local regulations.

•

This product should be installed and serviced by a qualiﬁed electrician.

•

Do not connect directly to high voltage 120V AC power.

•

This product is rated for indoor installation and is not protected against moisture.

•

Proper heat dissipation will prolong the working lifespan of this product. Install in a well ventilated area.

•

Only install compatible LED power supplies and ﬁxtures. Contact Technical Support or visit the product page for compatible accessories.

•

Ensure applicable wire is installed between power supply, ﬁxture, and any controls in between. When choosing wire, factor in voltage drop,

•

amperage rating, and type (in-wall rated, wet location rated, etc). Inadequate wire installation could overheat wires and cause ﬁre.

Utilize the wiring diagrams in this installation guide for basic setups.

•

SPEED

I 2 3

4 5

7 8

MI M2

BRT

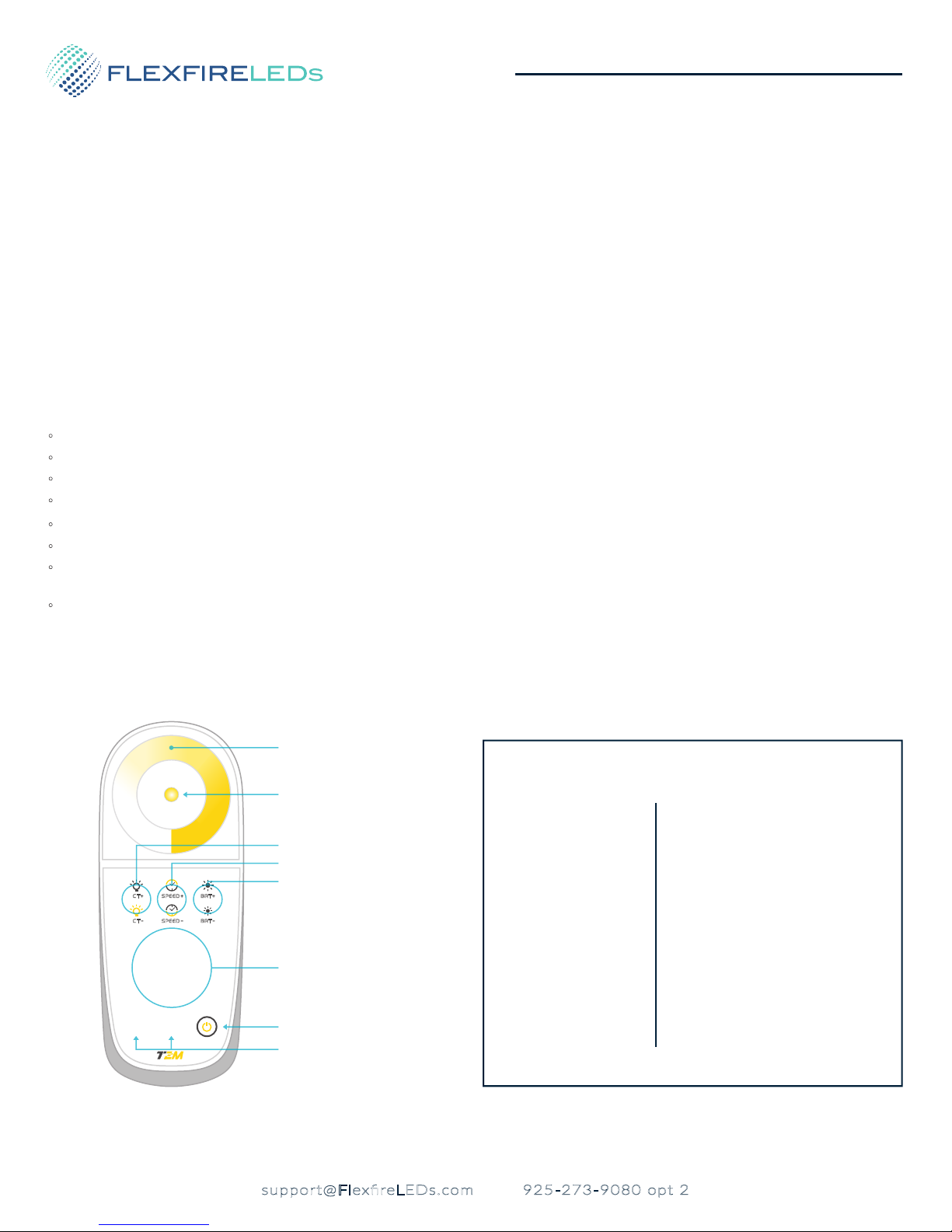

REMOTE CONTROL

Touch Adjustable Color Circle

Sync Status Indicator Light

Color Temperature adjust Speed Adjust

Brightness Adjust

(Keep pressing to adjust brightness continuously)

Zone Selection Buttons

On/Oﬀ Button

Memory Buttons

(press for 3 seconds to save the current settings for future recall)

Details

SKU:

Working Voltage:

Working Frequency:

PWM Frequency:

Max. Signal Range:

Working Temp:

Dimensions:

Weight:

Warranty:

*Comes with a wall mount for easy storage

DYN-MZ-CTRL

5V (Built-in lithium battery)

2.4GHz

2000Hz

98ft (30m)

-22°F ~ 131°F (-30°C ~ 55°C)

H: 5 3/4” (146mm) W: 2 1/4” (56mm)

D: 7/8” (22mm)*

7oz (200g)

5 years

DYN-MZ-COMBO

support@FlexﬁreLEDs.com 925-273-9080 opt 2

1page

V.2018.10.03

Page 2

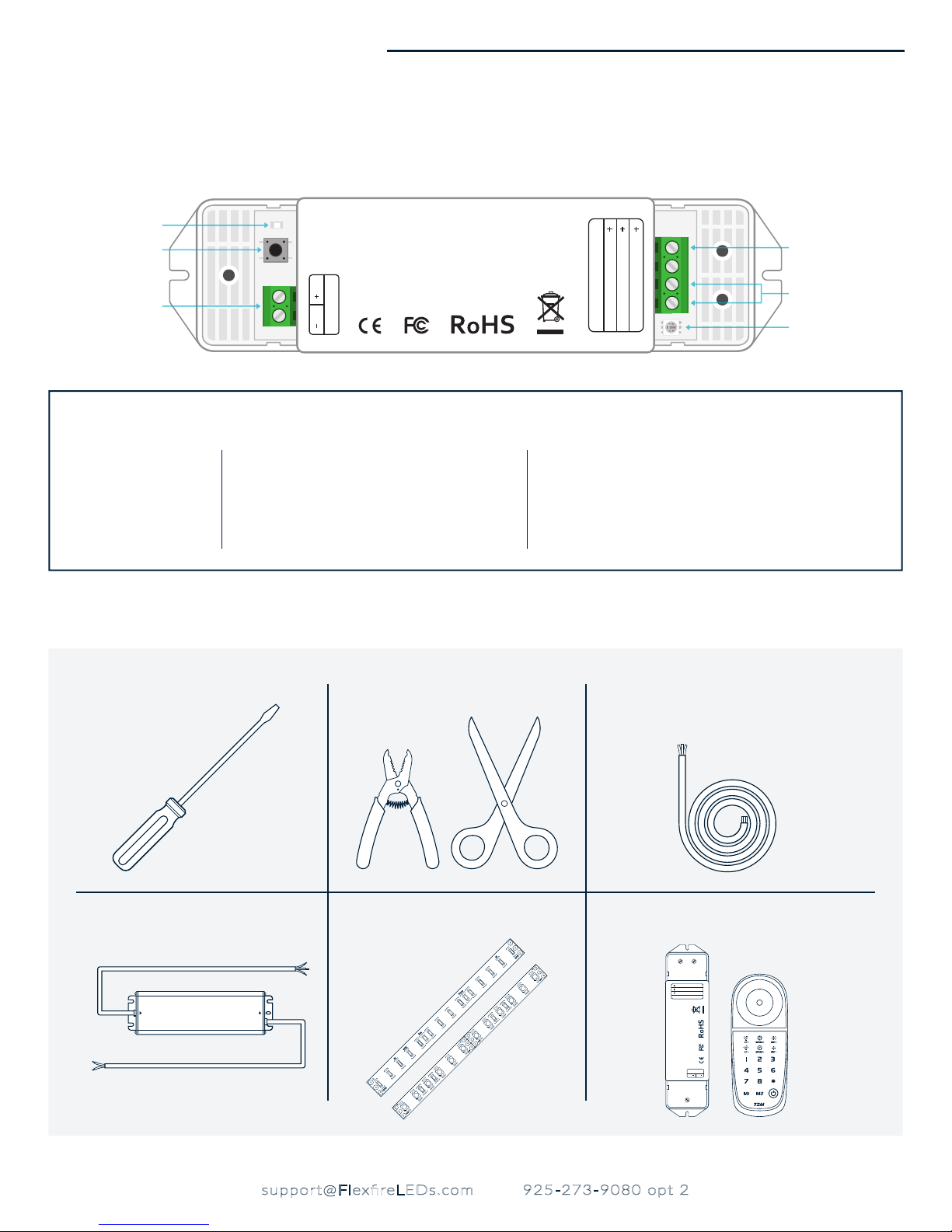

Power Indicator LED

Sync Button

Power Input Terminal

Details

RECEIVER

SETTING

ADRESS

LED CONTROLLER

MODEL: T3-CV

2.4G WIRELESS REMOTE CONTROL

DC DC

POWER INPUT: DC5V-DC24V

POWER

OUTPUT: 6Ax3CH

User Guide • Dynamic Tunable White Mul-Zone Combo

OUTPUT

BGR

Positive Channel

White Channels (Negative)

Color Indicator LED

SKU:

Input Voltage:

Max Current Load:

Max Output Power:

YOU’LL NEED

Small ﬂat-head screwdriver (4mm) Wire strippers or scissors 3-wire stranded low voltage wire for

SC-MZ-RCVR

5V-24V DC

6A x 2CH

12V: 144W, 24V: 288W

Working Temp:

Dimensions:

Weight:

Warranty:

-22°F ~ 131°F (-30°C ~ 55°C)

H: 6 15/16” (176mm) W: 1 3/4“ (45mm) D: 1 3/16” (30mm)

5.3oz (150g)

5 years

extended runs (consult an electrician for

wire gauge advice)

Low voltage non dimmable

power supply

DCAC

support@FlexﬁreLEDs.com 925-273-9080 opt 2

DYN-MZ-COMBO

Dynamic Tunable White LED strip Remote control & receiver

BGR

WNWWWWWNCV

OUTPUT

MODEL: T3-CV

2.4G WIRELESS REMOTE CONTROL

POWER INPUT: DC5V-DC24V

OUTPUT: 6Ax3CH

LED CONTROLLER

POWER

ADRESS

SETTING

DC DC

2page

V.2018.10.03

Page 3

User Guide • Dynamic Tunable White Mul-Zone Combo

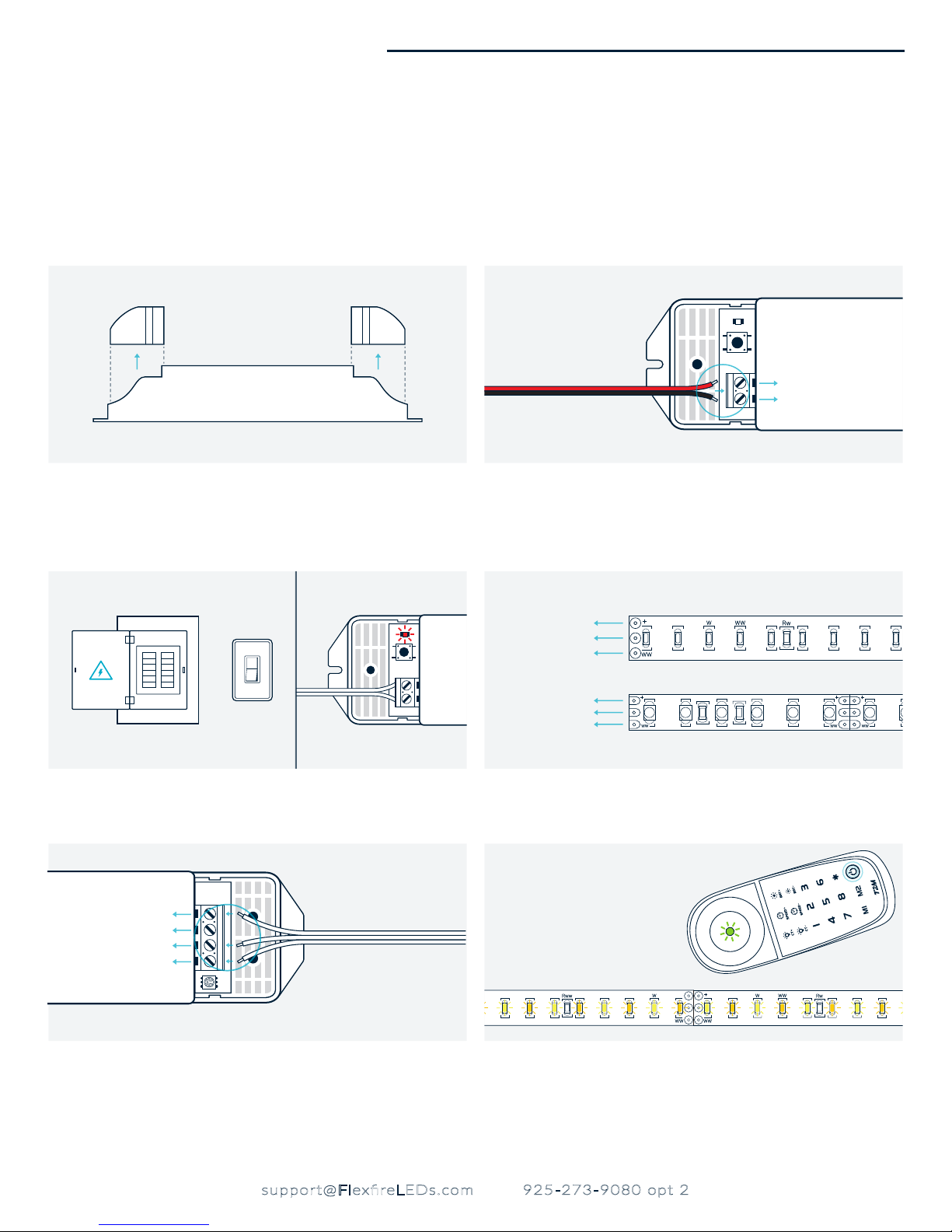

INSTALLATION

Always pre-test your LED setup prior to permanent installation. This will ensure all components work correctly. Be sure to check the amperage rating of the LED strip you’ve purchased so the receiver isn’t overloaded (max 6 amps per channel). Turn oﬀ the main AC breaker for the line you’ll be using before installing your low voltage power supply. If you experience any issues at all with your test set up, please be sure to contact us at After Sales Support.

1. 2.

Positive (DC+)

Negative (DC-)

Unscrew the left and right cover plates on the receiver. This will expose the Input and Output Power Terminals.

3. 4.

Turn the main breaker for the AC line back on to power your non-dimmable power supply. The red Power Indicator LED will turn on.

5. 6.

V+

Loosen the Power DC+ and DC- screws and insert the black wire from your low voltage non-dimmable power supply in the DC- channel and secure the screw. Then insert the red wire from the power supply in the DC+ channel and secure the screw.

UltraBright™ Architectural Dynamic Tunable White

Positive (+)

ColorBright™ Dynamic Tunable White

Look at your LED strip carefully and identify the positive (+), W and WW channels.

Loosen the Output V+, W and WW screws (leave the NC channel closed). Then connect the + wire from the LED strip to the V+ channel in the receiver and secure the screw. Do the same to match the rest of the wires to their respective “W“ and “WW“ channels.

support@FlexﬁreLEDs.com 925-273-9080 opt 2

DYN-MZ-COMBO

Press the Power Button on the remote control, the sync status indicator light and the LED strip will turn on.

3page

V.2018.10.03

Page 4

User Guide • Dynamic Tunable White Mul-Zone Combo

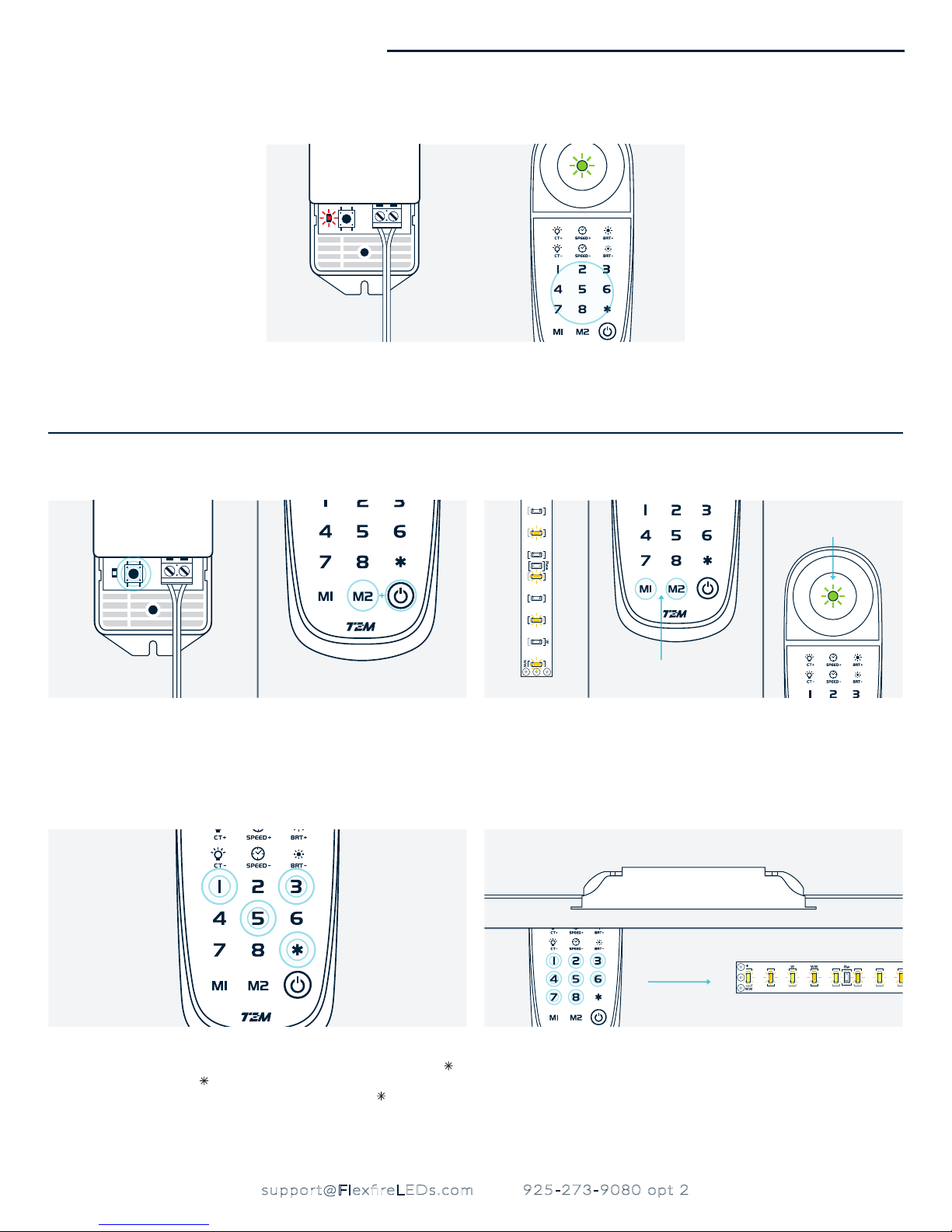

*Long Beep*

Press the black sync button on the receiver once. - The Power Indicator LED will remain static- then quickly press and hold the zone you wish to assign that receiver to (1-8) on the remote. The Power Indicator LED on the receiver will ﬂash faster, you’ll hear a long beep and the Sync Status Indicator Light on the remote will ﬂash 3 times. This indicates that the 2 devices have been synced.

ADDITIONAL FEATURES

*Beep Twice*

Unsyncing and reset

Press and hold the black sync button on the receiver until you hear it beep twice (about 10 seconds). The synced remotes will be forgotten. In case the remote acts abnormally, simply press and hold the M2 + Power buttons simultaneously until the remote turns oﬀ (about 3 seconds). The remote is now reset, and you can turn it back on after about one minute.

Flash 3 times

Hold to save

Memory Buons

Holding M1 or M2 (Memory 1 or Memory 2) for 3 seconds will save the current brightness and color temperature levels to a Memory Button. To indicate a Saved-memory the receiver will long beep and the Sync Status Indicator Light on the remote will ﬂash 3 times.

* Z z Z z Z *

press to turn on

Zone selecon

You can control several receivers simultaneously (ie: zones 1, 3 and 5). Press “ “ + zones you wish to control + “ “ (*135*) This will let you control all 3 zones at the same time. To control all your receivers at the same time press “ “ twice. You can also add unlimited receivers to one zone (ie: Zone 1 can have 10 receivers all controlled simultaneously).

support@FlexﬁreLEDs.com 925-273-9080 opt 2

DYN-MZ-COMBO

On/Oﬀ Zone control

To turn on a receiver, simply tap the zone number that it is synced to. To turn the receiver backoﬀ, Hold down thezone number that it is synced to until the lights go oﬀ.

4page

V.2018.10.03

Page 5

User Guide • Dynamic Tunable White Mul-Zone Combo

REMOTE CONTROL CHARGING

1. To charge the remote control, connect the mini USB cable to the remote and the opposite end of the cable to a regular USB port (computer or

USB charger).

2. The LED indicator on the remote will ﬂash to show that the remote is charging. If the remote is turned oﬀ, however, the indicator will not ﬂash.

3. When the battery is fully charged the LED light will remain static.

4. When not plugged in, the LED indicator on the remote will ﬂash to show that the battery is low and will need to be charged soon.

5. Do not allow the battery to become fully discharged. When the remote tells you the battery is low, it is a good idea to charge it.

6. When storing the remote for long periods of time, it's a good idea to leave it fully charged. Be sure to fully charge the battery at least every 3

months to extend its lifespan.

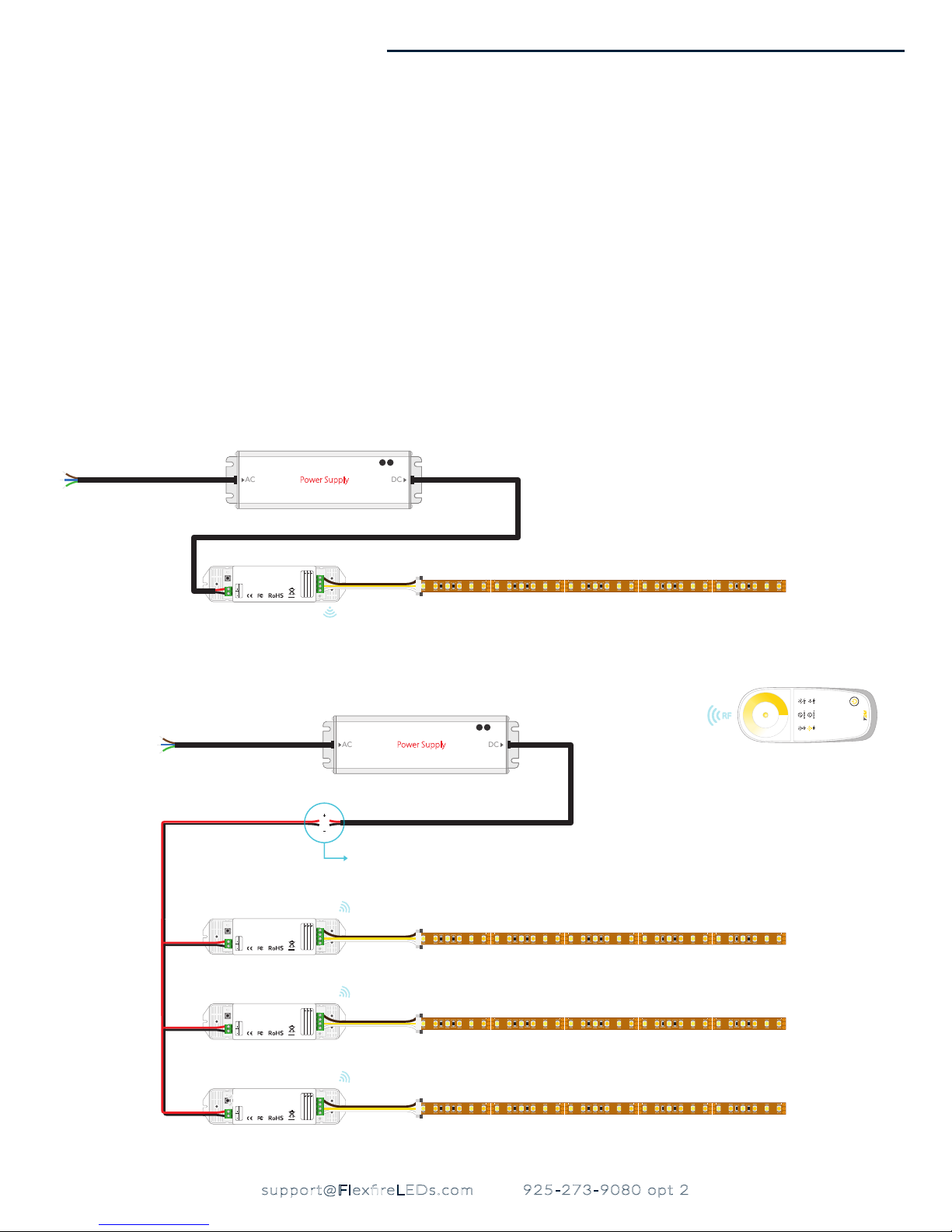

WIRING DIAGRAM

1. Single Receiver wiring

Power Supply

2. Mulple Receiver wiring

SETTING

ADRESS

LED CONTROLLER

MODEL: T3-CV

2.4G WIRELESS REMOTE CONTROL

DC DC

POWER INPUT: DC5V-DC24V

POWER

OUTPUT: 6Ax3CH

SETTING

ADRESS

LED CONTROLLER

MODEL: T3-CV

2.4G WIRELESS REMOTE CONTROL

DC DC

POWER INPUT: DC5V-DC24V

POWER

OUTPUT: 6Ax3CH

SETTING

ADRESS

LED CONTROLLER

MODEL: T3-CV

2.4G WIRELESS REMOTE CONTROL

DC DC

POWER INPUT: DC5V-DC24V

POWER

OUTPUT: 6Ax3CH

Zone 1

Zone 2

BGR

OUTPUT

LED Area 1

BRT

SPEED

I 2 3

7 8

4 5

MI M2

Power Supply

Zone Remote

Wire splice of your choice

BGR

OUTPUT

BGR

OUTPUT

LED Area 2

LED Area 3

Zone 3

SETTING

ADRESS

LED CONTROLLER

MODEL: T3-CV

2.4G WIRELESS REMOTE CONTROL

DC DC

POWER INPUT: DC5V-DC24V

POWER

OUTPUT: 6Ax3CH

OUTPUT

support@FlexﬁreLEDs.com 925-273-9080 opt 2

DYN-MZ-COMBO

BGR

LED Area 4

5page

V.2018.10.03

Page 6

User Guide • Dynamic Tunable White Mul-Zone Combo

TROUBLESHOOTING

- If your lights are not turning on or ickering:

• Check that the red Power Indicator LED on the Power Input side of the receiver is ﬂashing. If it’s not ﬂashing the receiver isn’t getting power,

make sure the polarity of the power supply wires match the polarity of the channels on the Power Input Terminal.

• If the red Power Indicator LED on the Power Input side is ﬂashing normally, check the polarity on the Power Output side. Make sure you have

matched the markings on the LED strip to the channels on the receiver.

• Make sure all the connections (solderless connectors, solder joints, terminal blocks, wire-nuts and spliced wires) are secure and making correct

contact.

• Check that you have a compatible power supply, low voltage non-dimmable power supply that is big enough to handle the load of the LED

strips you are using.

If you are missing color temperatures or they don’t match:

• Check the connections on the Power Output (LED side) of the receiver, the brown, yellow and white wires need to match the letters on each of

the channels V+, W and WW. Make sure the wires are properly stripped and contact in the screw terminals is done on the metal wire and not on the plastic insulation.

• If you have soldered the connection, make sure none of the solder points are touching each other, this will make the the channels that are

touching work simultaneously.

• If you are using solderless connectors, apply preasure on the connector. If the issue is resolved with preassure change that connector. It could

be faulty.

• Make sure you follow the letters indicating polarity on the LED strip throughout your setup when cutting the strip to avoid changing the color

temperature from one section to another.

If you can’t sync the receiver with the remote:

• Revise the previous sync instructions to sync, assign zones and reset the receiver or remote.

WARRANTY

Limited Warranty on Purchased Items:

All products sold by Flexﬁre LEDs and shipped within the 50 United States, Canada, and Mexico come with a limited warranty. This limited warranty does not include product failures that are the result of:

1. Not using a voltage regulated driver to connect the LED product or controls;

2. Connecting LED products to the wrong Output Voltage;

3. Improper connection of drivers, LED products, or controls;

4. Connecting LED products or controls directly to any AC power source;

5. Connecting drivers backwards to an AC power source;

6. Using products in an extremely hot or cold environment and/or without adequate ventilation as overheating will cause the LEDs and transform-

ers to fail more quickly;

7. Water damage to products not speciﬁcally sold as waterproof products;

8. Electrical power surges;

9. Damage from hail, ﬂooding, tornado, ﬁre, wind, earthquake, lightning, electrical storm, or any other natural disaster;

10. Damage caused by a vehicle or other accident;

11. Damage caused when transporting the item;

12. Damage to any products that were modiﬁed by the user, used for purposes other than as intended or directed, or connected to LED systems

or components not purchased from Flexﬁre LEDs.

This limited warranty also expressly excludes coverage for excessive wear and tear and/or physical or accidental abuse, loss, or theft. Improper repair or warranty service performed by someone other than Flexﬁre LEDs will void this warranty. Buyer is responsible for the safe transport of any item sent to Flexﬁre LEDs for warranty service.

If you have an item you believe to be faulty, contact Flexﬁre LEDs immediately and request tech support. You may be required to provide photos, videos, and/or descriptions of the item(s) not performing properly. It is Flexﬁre LEDs goal to troubleshoot thoroughly to eliminate any unnecessary time or hassle on behalf of the customer. Failure to comply and provide the information requested by Flexﬁre LEDs will result in a void of warranty.

If a product is deemed faulty by a technician/representative, then a return shipping label and a Return Merchandise Authorization (RMA) form will be sent out immediately. Once Flexﬁre LEDs receives the product, we will test the item(s) to better understand where the fault in the product lie(s).

DYN-MZ-COMBO

support@FlexﬁreLEDs.com 925-273-9080 opt 2

6page

V.2018.10.03

Page 7

User Guide • Dynamic Tunable White Mul-Zone Combo

Flexﬁre LEDs will NOT provide replacement items before the original items have been returned, tested, and deemed faulty. If you need a replacement item while the return process is taking place, then you can repurchase that item. Once the testing process is complete and assuming the product is faulty, a refund will be issued for the purchase price of the product. Flexﬁre LEDs will not refund shipping costs on replacement items

If the product is found to be working properly and the error lies in the installation, or with other non-Flexre LEDs products being used, then the product will be returned to the customer via our standard shipping method paid by the customer. If the customer has paid for a replacement item while the return process is being processed and the original product is found to be working properly, then the customer will receive the original product back and no refund.

Buyer’s sole right under this warranty is for repair or replacement of the defective item.

This warranty is not transferable and applies only to the original purchaser of such items, provided that products purchased from an authorized Flexﬁre LEDs reseller will also include the above limited warranty. Proof of purchase may be required.

Warranty Period:

In the event of a product defect or malfunction, Flexﬁre LEDs will cover the cost of the return shipping. This is only valid during the product’s warranty period stated by Flexﬁre LEDs. In this case a prepaid shipping label will be issued to the client via our standard shipping method.

• If the item is faulty, Flexﬁre LEDs will ship out a replacement at no charge.

• If the item is not faulty (still works), the client will need to pay for the shipping to get the product back to them.

DYN-MZ-COMBO

support@FlexﬁreLEDs.com 925-273-9080 opt 2

7page

V.2018.10.03
