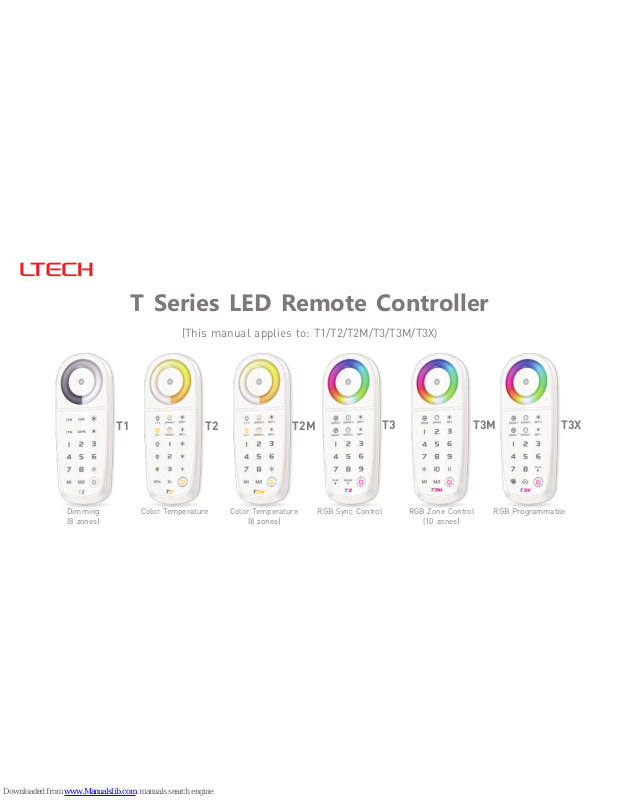

Page 1
Dimming
(8 zones)
RGB Sync Control RGB Zone Control
(10 zones)
RGB ProgrammableColor Temperature
Color Temperature
(8 zones)

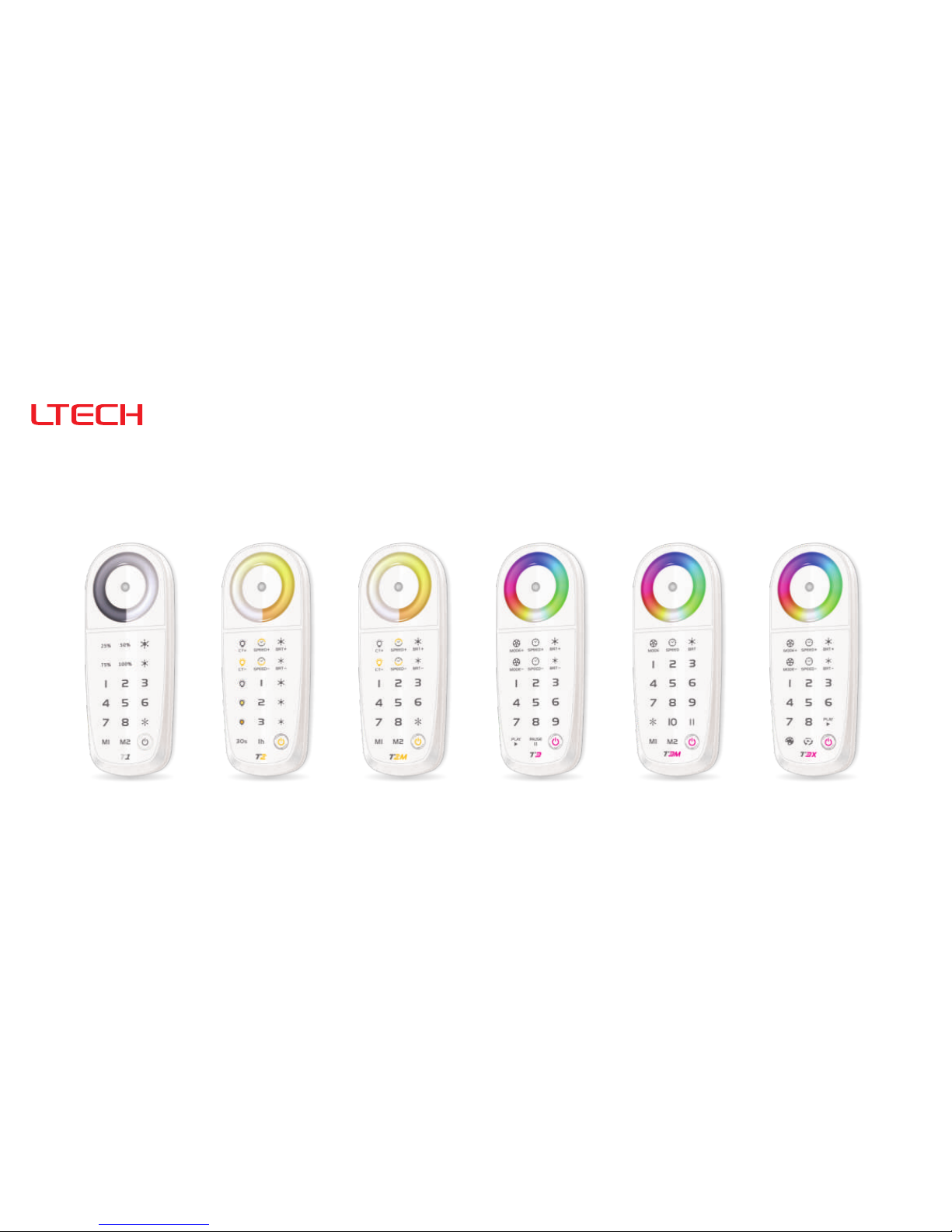

T1 T2 T2M
T3 T3M T3X
T Series LED Remote Controller
( T1/T2/T2M/T3/T3M/T3X) This manual applies to:
Page 2
Index
1~5
6 9
10 13
14 17
18 21
22 25
26 29
30
31
~
~
~
~
~
~
General Information
T1 (Dimming)
T2 (Color Temperature)
T2M (Color Temperature)
T3 (RGB)
T3M (RGB )
T3X (RGB)
After Service
Reset and Edit the Frequency Point
— 1 —
General Information
……………………………………………
………………………………………………………
……………………………………………
…………………………………………
……………………………………………………………
…………………………………………………………
…………………………………………………………
…………………………………………………………
……………………………
Page 3

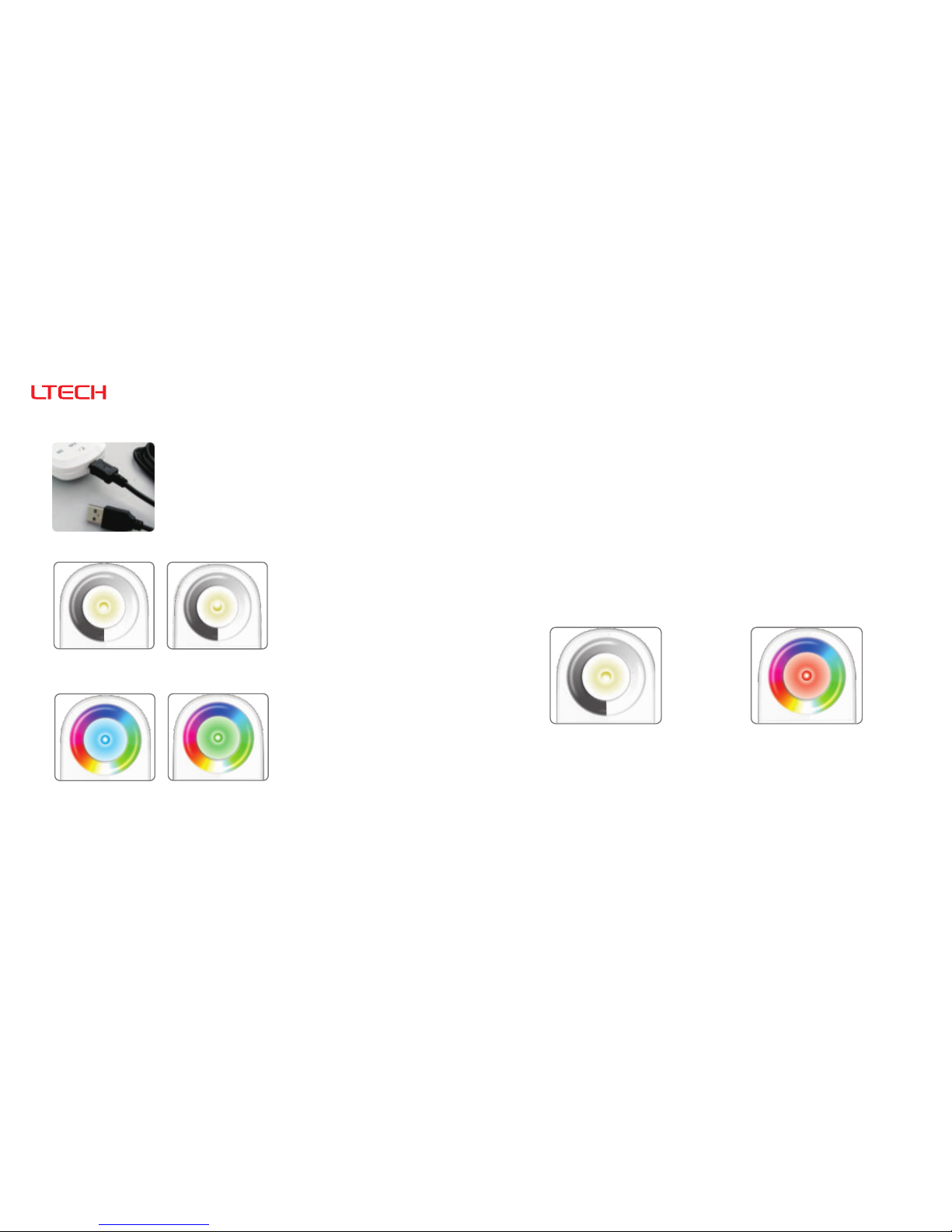

A Notice for the Remote Charging:
Fo r T2/T2M/T3/T3M/T3X,
the blue indicator light flickers
while charging, and turns
green means the charging is
completed.
When charging, please connect USB cable.
For T2/T2M/T3/T3M/T3X
Charging Completed
The remote can be chargeable even at the OFF state, on which the
indicator light is dark.
1.
2.
— 2 —
For T1
Charging Completed
For T1, the white indicator
light flickers while charging,
and turns lasting light means
the charging is completed.
3. No memory effect in the lithium battery of remote control. Follow
the standard charging procedure even for the first three times, no
need over charge.
T2/T2M/T3/T3M/T3X
For T1
4.
5.
LED indicator flickers
means low battery.
(White)
LED indicator flickers
means low battery.
(Red)
For
The remote should be full charged and stored at a ventilated and
dry place when long time no use, and please full recharge every
3 months.
Indicator light flickers meaning low battery and need to be charged.
(red light for T2/T2M/T3/T3M/T3X, white light for T1)
Charging in low battery will affect the life of battery.
General Information
Page 4
Charging Voltage:
Working Current:
Working Frequency:
RF Remote Distance:
Battery Capacity:
Dimensions:
Package Size:
Weight (G.W.):
5V (Built-in Lithium Battery)
<30mA
2.4GHz
30m
1000mAh
L145×W55×H22(mm)
L168×W96×H34(mm)
230g
dc
T1/T2/T2M/T3/T3M/T3X Remote Control
Compatible Remote:
Input Voltage:
Wireless Signal:
Max Current Load:
Max Output Power:
Working Temp.:
Dimensions:
Package Size:
Weight (G.W.):
T1/T2/T2M/T3/T3M/T3X
5～24Vdc
2.4GHz
6A × 3CH Max 18A
90W/216W/432W(5V/12V/24V)
-30℃～55℃
L175×W44×H30(mm)
L178×W48×H33(mm)
140g
T3-CV Receiving Controller

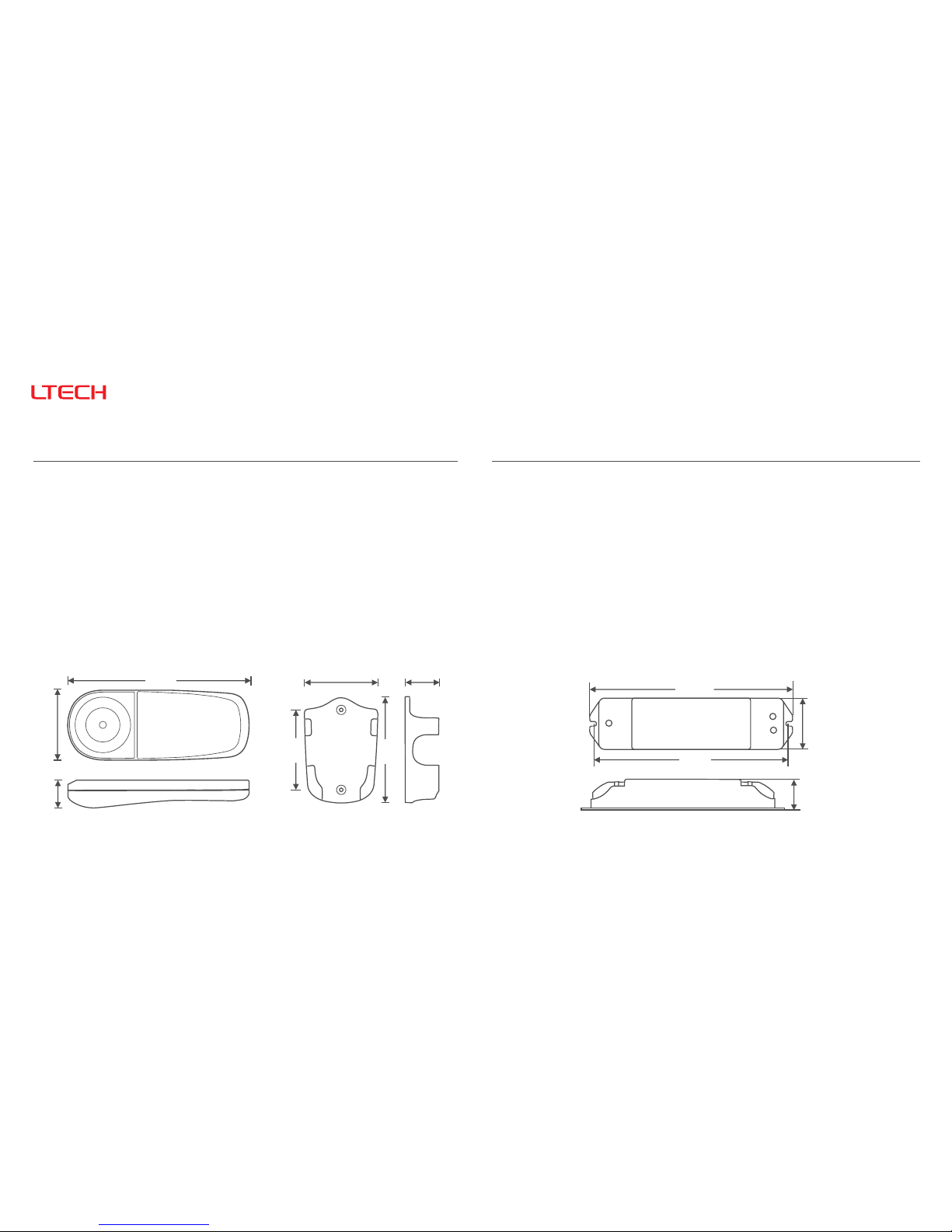

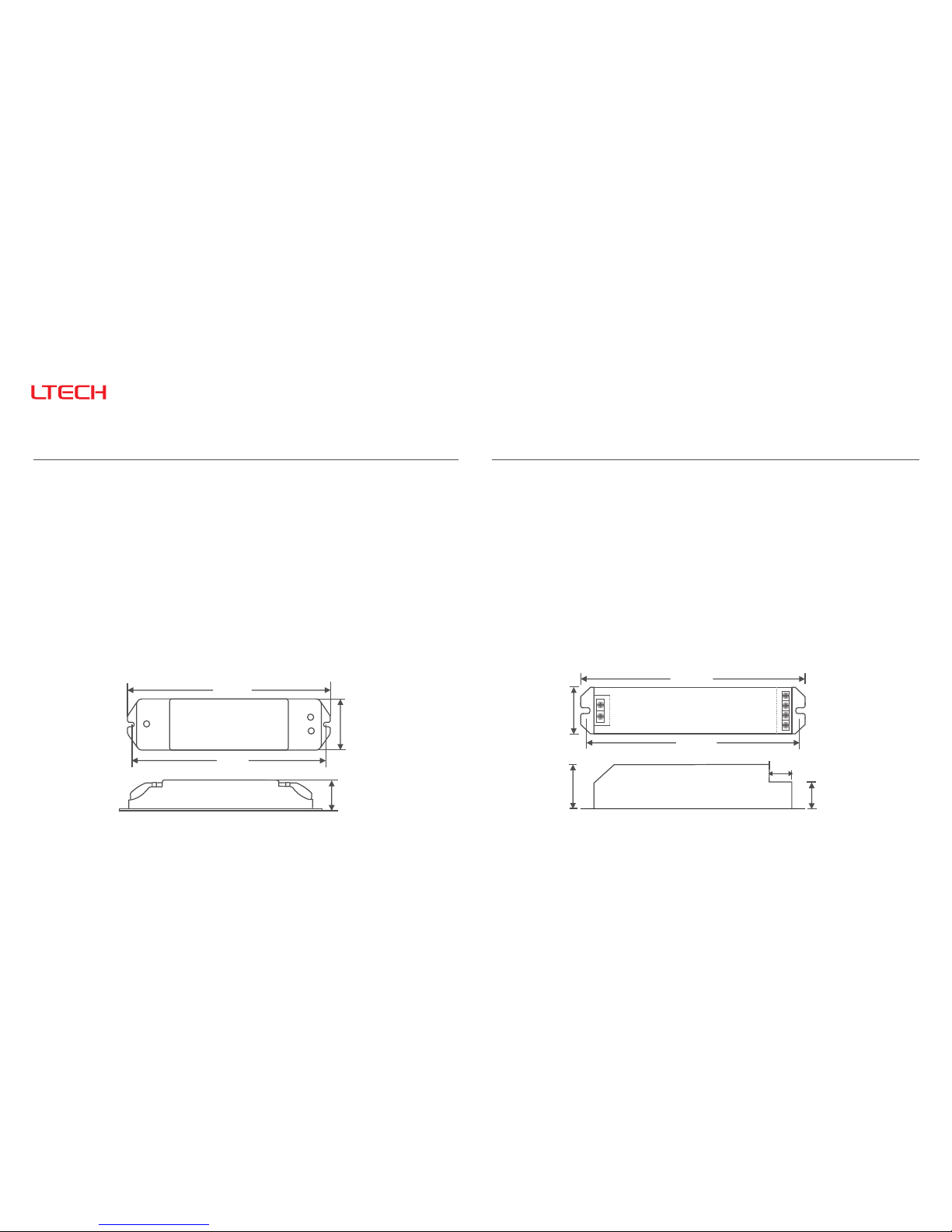

B Technical Specs:
T1/T2/T2M/T3/T3M/T3X
— 3 —
T3-CV
Remote Holder
General Information
55
145
22
27
60
86
65
175
170
44
30
Page 5
T1/T2/T2M/T3/T3M/T3X
2.4GHz
12～48Vdc
3-46Vdc
CC 350/700/1050mA × 3CH
1.05W～48.3W × 3CH Max 144.9W
-30℃～55℃
L175×W44×H30(mm)
L178×W48×H33(mm)
150g
Compatible Remote:
Wireless Signal:
Input Voltage:
Output Voltage:
Output Current:
Output Power:
Working Temp.:
Dimensions:
Package Size:
Weight (G.W.):
T3-CC Receiving Controller (Current 3 in 1)
T3-CC
— 4 —
Compatible Remote Control:
Wireless Signal:
Input Voltage:
Max Current Load:
Max Output Power:
Working Temp.:
Dimensions:
Package Size:
Weight (G.W.):
T3/T3M/T3X
2.4GHz
12～24Vdc
5A x 3CH Max 15A
180W/360W(12V/24V)
-30℃～55℃
L211×W40×H30(mm)
L215×W43×H33(mm)
165g
T3-5A Receiving Controller
General Information
T3-5A
40
16
15
203
211
30
175
170
44
30
Page 6
CV CONTROLLER
T3-5A
CC CONTROLLER
RUN
CV CONTROLLER
RUN
General Information
LED Lamp
Connected Socket
5~24V
Power Input
Socket
dc
Remote ID
Learning Button
LED Lamp
Connected Socket
12~48V
Power Input
Socket
dc
Remote ID
Learning Button
Current
Selection Switch
Operation Table
Running Light
Running Light
On/Off
Pause
Key
Mode
Keys
Speed
Keys
Brightness
Keys
LED Lamp Connected Socket
12~24V Power Input Socketdc

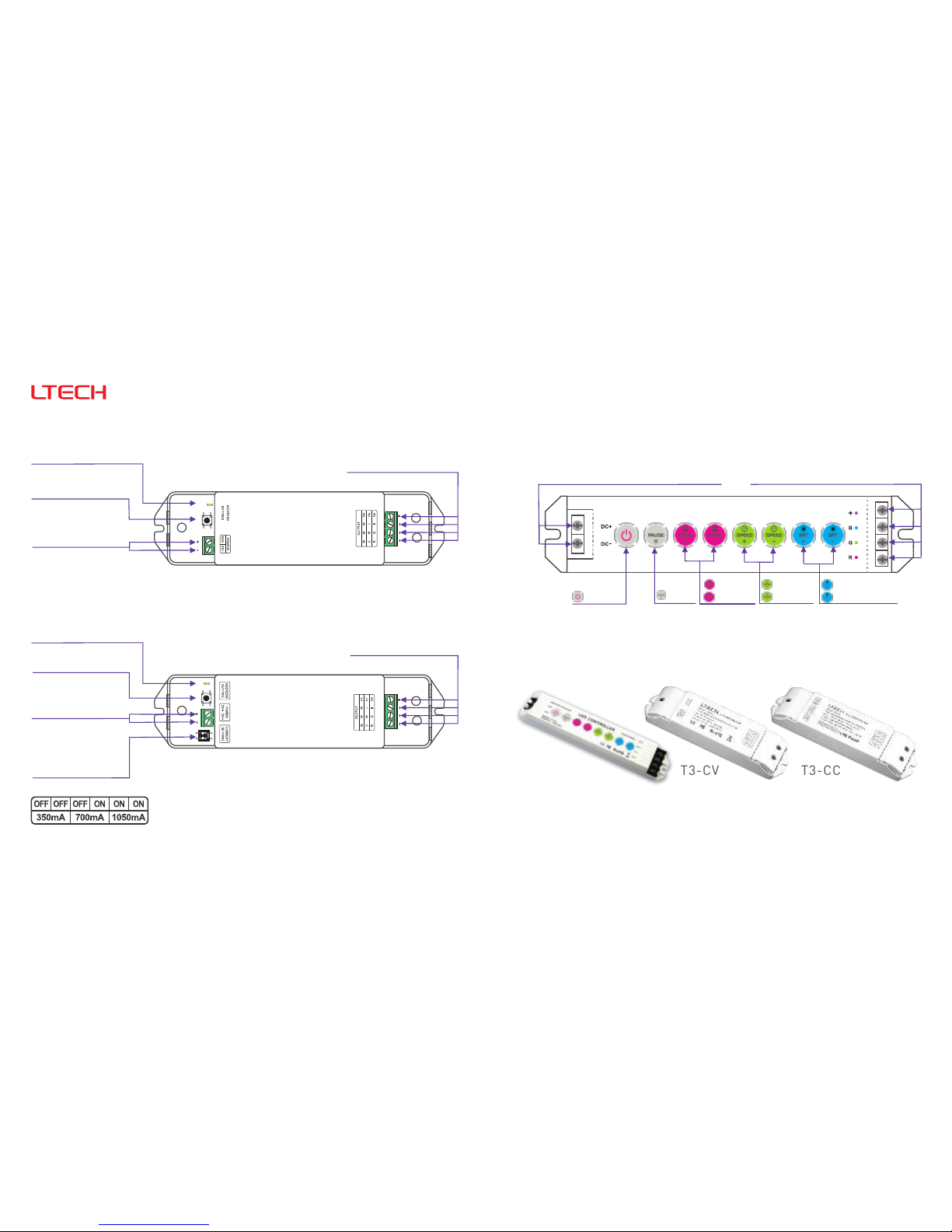

C Terminal of Receivers:
T3-CV
T3-CC
T3-5A
T3-CV T3-CC
T3-5A
— 5 —
Page 7
LED Dimming Controller (8 Zones)
T1
LED Dimming Controller

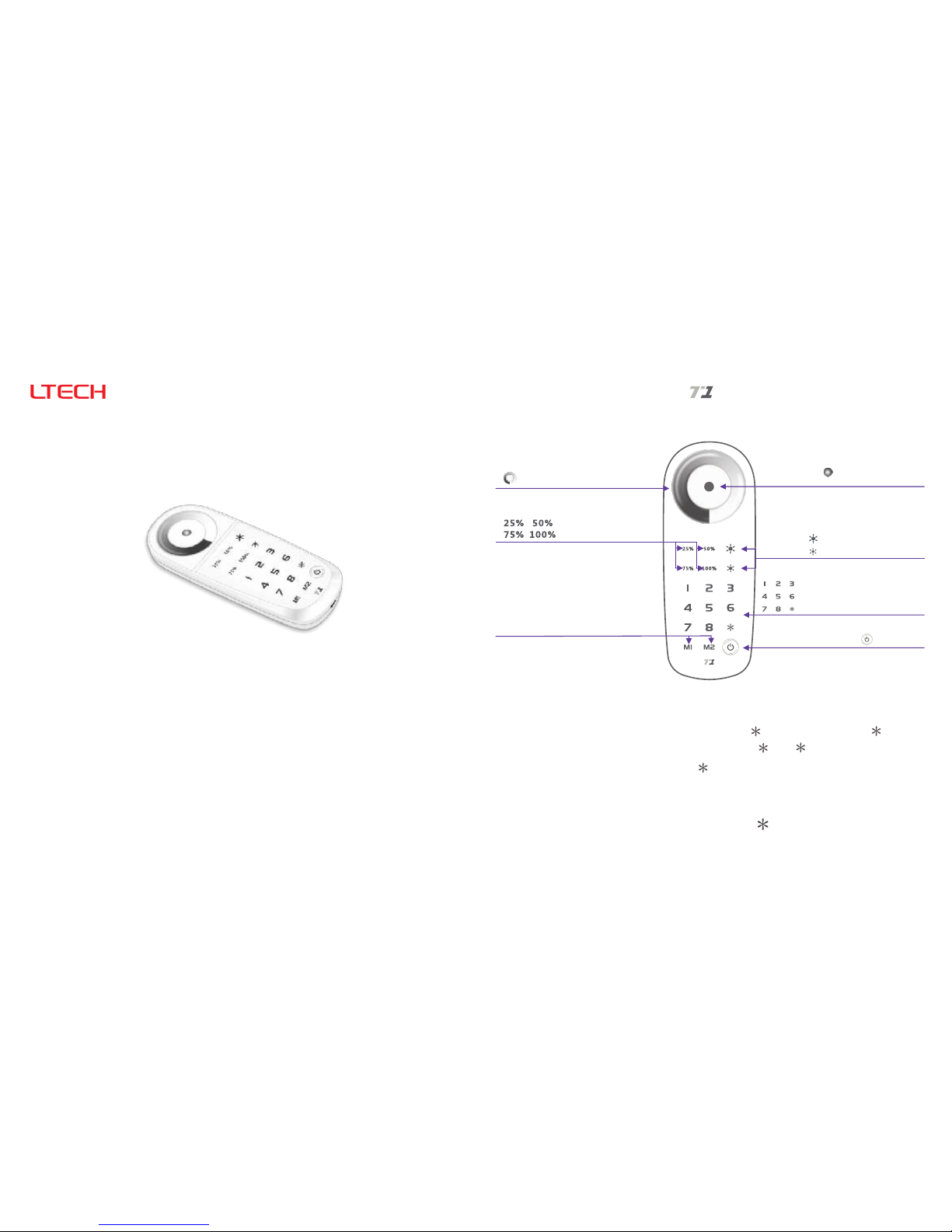

1. Operation Panel and Component Instruction:
On/Off
Touch Color Circle
Brightness
Shortcut Keys
Brightness Keys
Sync Status
Indicator Light
Scene-mode Keys
Zone Selection Keys
●
●
●
●
Select one of the zone: press any key of “1-8" on the remote.
M1 M2
Can RF remote the functions of dimming, quick brightness selection
and DIY and so on. User-friendly color wheel for brightness adjustment,
unique LED state light for sync change indicated, user can simply know
the LED working state from distance by checking the remote control.
Select zone control arbitrarily: press" + any number + ",
eg: take 456 as a zone, should press " 456 " .
All choose (8 zones): press " " twice.
When a zone is under inactive state, press the corresponding zone
No. to light up that zone.
Buzzer on/off: Press “Zone Selection Key” for 3 seconds.
T1 can realize the signal sync on multiple receivers, zone controlled
arbitrarily (no more than 8 zones) within effective distance, a very good
solution for the LED project needs sync/zone control wirelessly.
T1 remote works with T3-CV, T3-CC receiver.
(Press for 3s to save the scene
mode in the 8 current zone control.)
Zone Control : Instruction
— 6 —
Page 8
LED Dimming Controller (8 Zones)
If installing multiple receivers in one zone, repeat the above steps,
choose the same zone key when ID learning.
Learning ID:
Canceling ID:
A. Turn on the receiver and remote.
A. Turn on the receiver and remote.
B. Press “ID learning button” on the T3-CC/T3-CV receiver more
than 8s, the buzzer beep twice, delete all the learned remote.
B.
Short press "ID learning button" on the T3-CC/T3-CV receiver,
the running light keeps on, then long press any “1-8" “zone-selection
key” on the T1 remote, the running light returns to flash (the buzzer
long beep, the indicator light flashes 3 times), activated successful.
2. The Learning ID Method of Remote:
— 7 —
T1 remote works with T3-CV, T3-CC receiver.
Page 9
Unlimited receivers can be installed in per zone within the effective distance, no wiring needed between the receivers, the installed quantity
of LED receivers in per zone can be increased or decreased at any time based on the actual requirements. If you want to increase or
decrease the receivers, just activate or cancel the control ID on the remote control will be fine, no any changes and effects on other receivers.
3. System Diagram:
Spacing Zone-division
Centralized Zone-division
zone1
zon
e
1
z
o
ne1
zone1
z
o
n
e
4
zon
e
4
z
o
n
e
4
zo
n
e
4
z
o
n
e
4
zo
n
e3
zone3
zone3
zon
e3
z
one3
zo
n
e2
z
one
2
z
one2
z
o
n
e2
z
o
ne2
z
o
n
e
1
z
one1
zo
n
e4
zone3
z
o
ne2
n
e
z
o
1
n
e
8
z
o
n
e
7
z
o
n
e
6
z
o
n
e 5
z
o
n
e
4
z
o
n
e
3
z
o
n
e
2
z
o
LED Dimming Controller (8 Zones)
— 8 —
Page 10
T3-CC
CC receiver
T3-CC
CC receiver
T3-CC
CC receiver
T3-CV
T3-CV
T3-CV
CV receiver
CV receiver
CV receiver

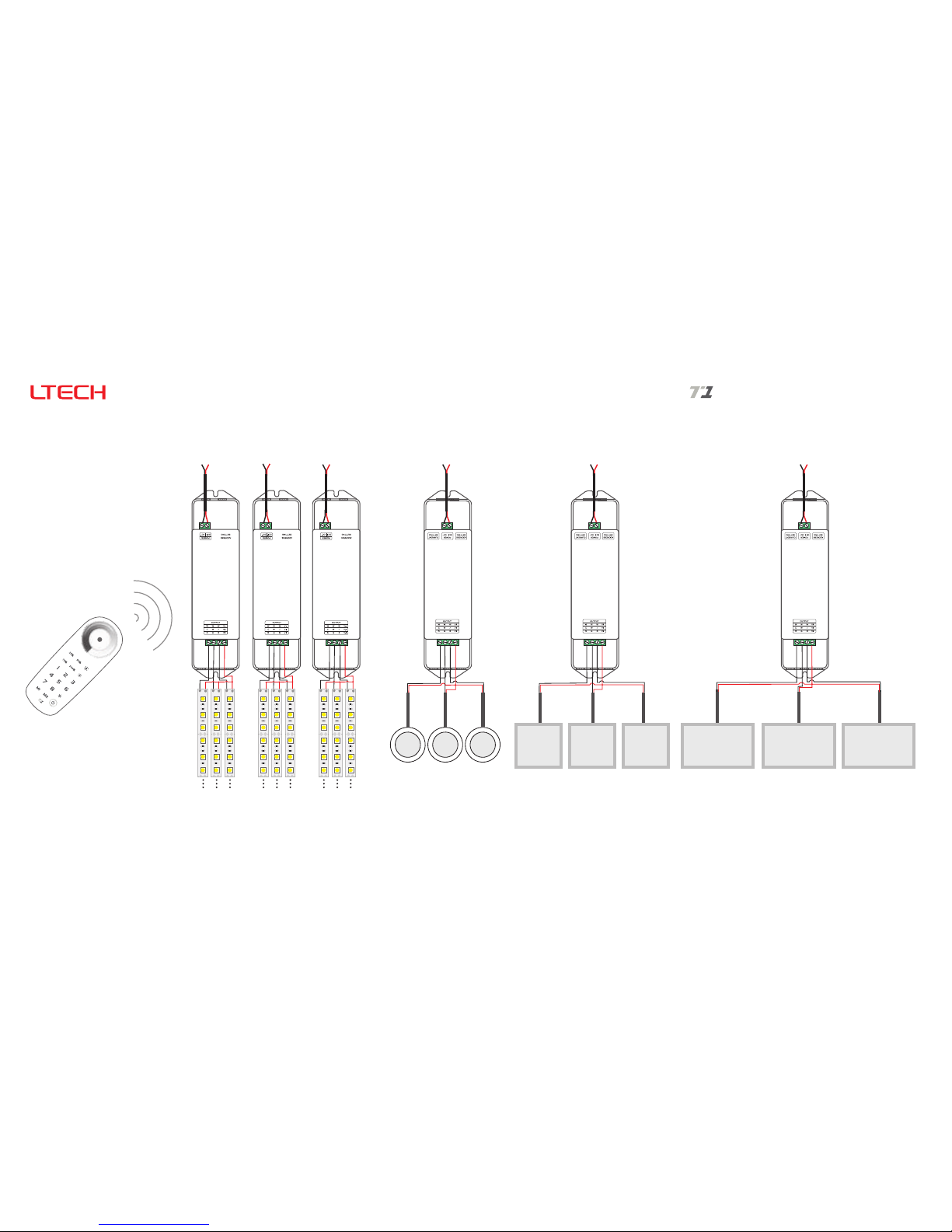

4. Wiring Diagram:
Single Color Strip
Round LED
Panel Light
Single Color Strip
Single Color Strip
LED Panel Light LED Panel Light
LED Dimming Controller (8 Zones)
……
CV
5~24Vdc 5~24Vdc 5~24Vdc
350mA
12~48Vdc 12~48Vdc 12~48Vdc
350mA
CC
1050mA
350mA
700mA 700mA 700mA
1050mA1050mA
……
CC CC
— 9 —
Page 11

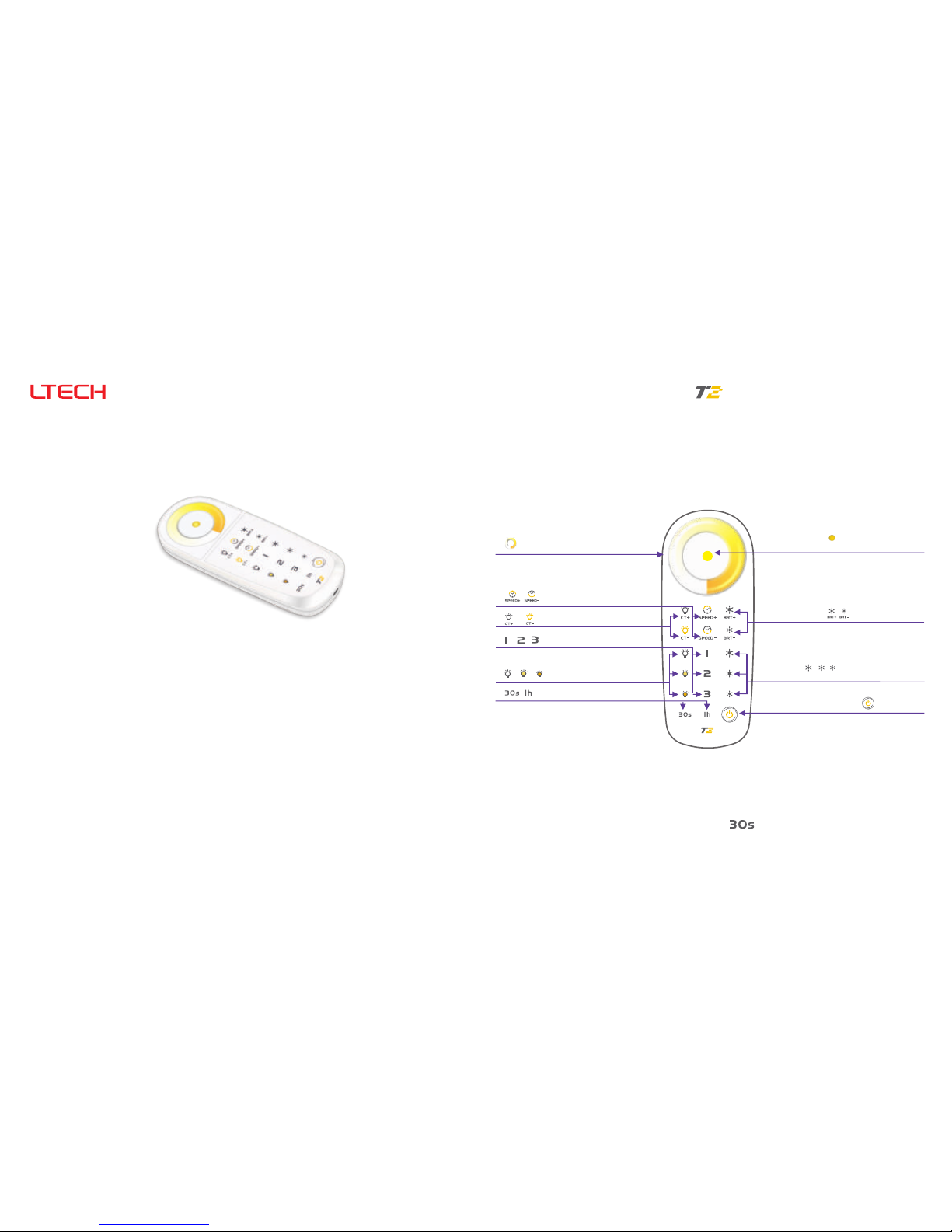

T2
LED Color Temperature Controller
LED Color Temperature Controllerl
1. Operation Panel and Component Instruction:
On/Off
Touch Color Circle
Speed+/Speed-
CT+/CTScene-mode Keys
CT Shortcut Keys
BRT+/BRT-
Sync Status
Indicator Light
Delay Off Keys
Brightness
Shortcut Keys
T2 can realize the signal sync on unlimited receivers within effective
distance, a very good solution for the LED project needs sync control
wirelessly.
Can RF remote the functions of color temperature dimming, quick
color temperature/brightness selection, DIY and delay off and so on.
User-friendly color wheel for color temperature adjustment, unique LED
state light for sync change indicated, user can simply know the LED
working state from distance by checking the remote control.
★Buzzer on/off: Press “Delay Off key” for 3 seconds.
(Press 3s to save)
(Keep pressing to adjust
brightness continuously.)
— 10 —
T2 remote works with T3-CV, T3-CC receiver.
Page 12
LED Color Temperature Controller
2. The Learning ID Method of Remote:
Learning ID:
Canceling ID:
1. Turn on the receiver and remote.
1. Turn on the receiver and remote.
2. Press “ID learning button” on the T3-CC/T3-CV receiver more
than 8s, the buzzer beep twice, delete all the learned remote.
2.
If you want to control multiple receivers synchronously, just follow
the above instructions for each receiver.
Short press "ID learning button" on the T3-CC/T3-CV receiver,
the running light keeps on, then long press any key on the T2
remote (except “On/Off” key), the running light returns to flash (the
buzzer long beep, the indicator light flashes 3 times), activated
successful.
— 11 —
T2 remote works with T3-CV, T3-CC receiver.
Page 13

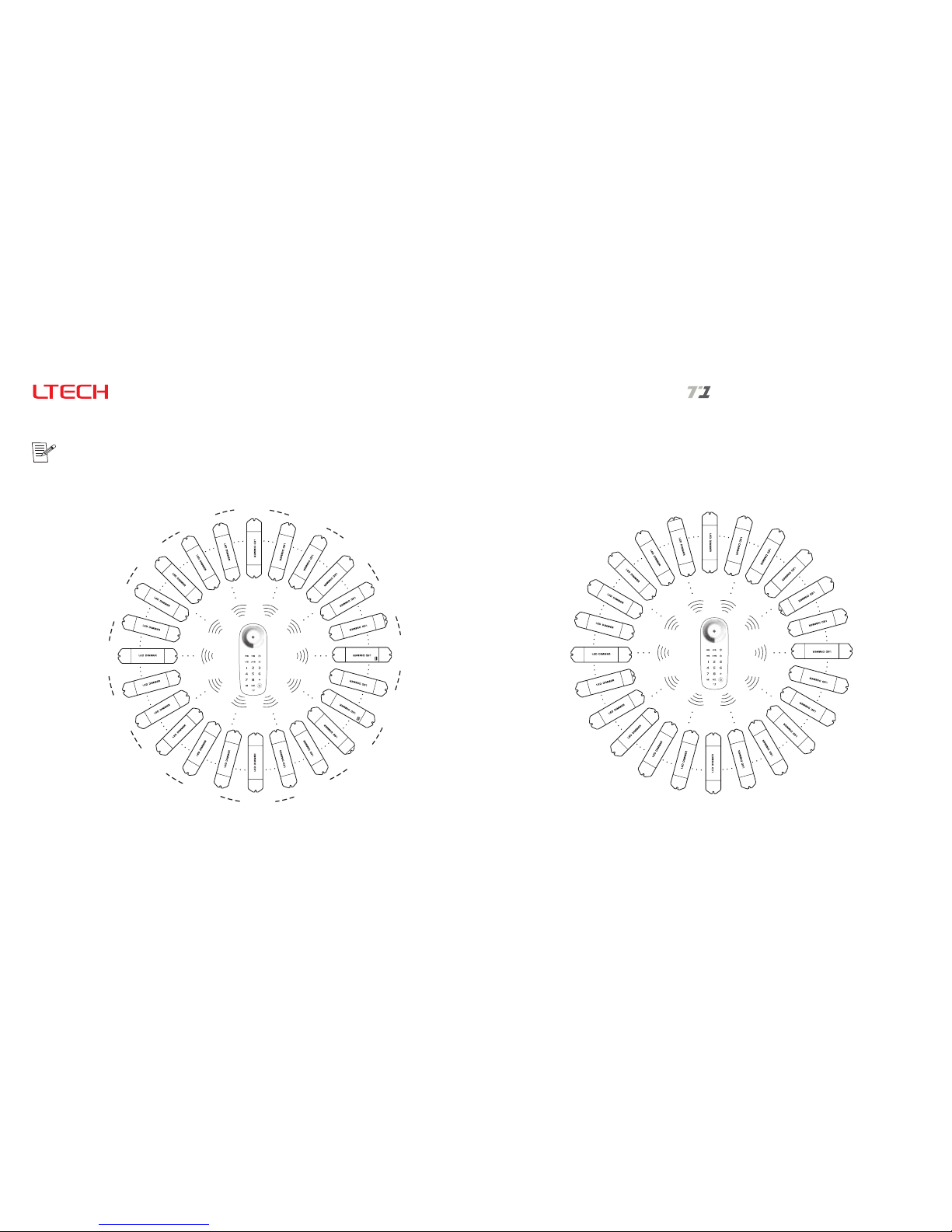

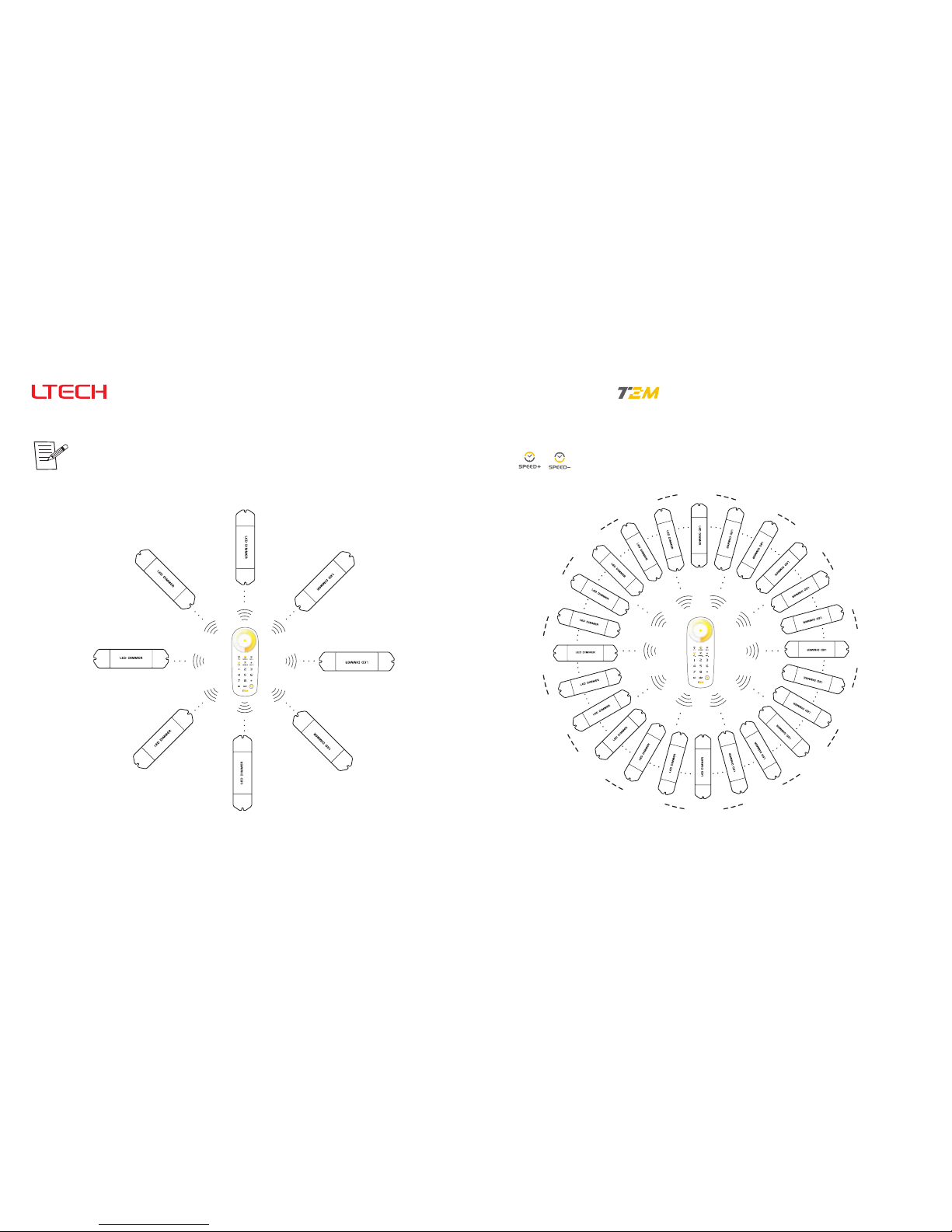

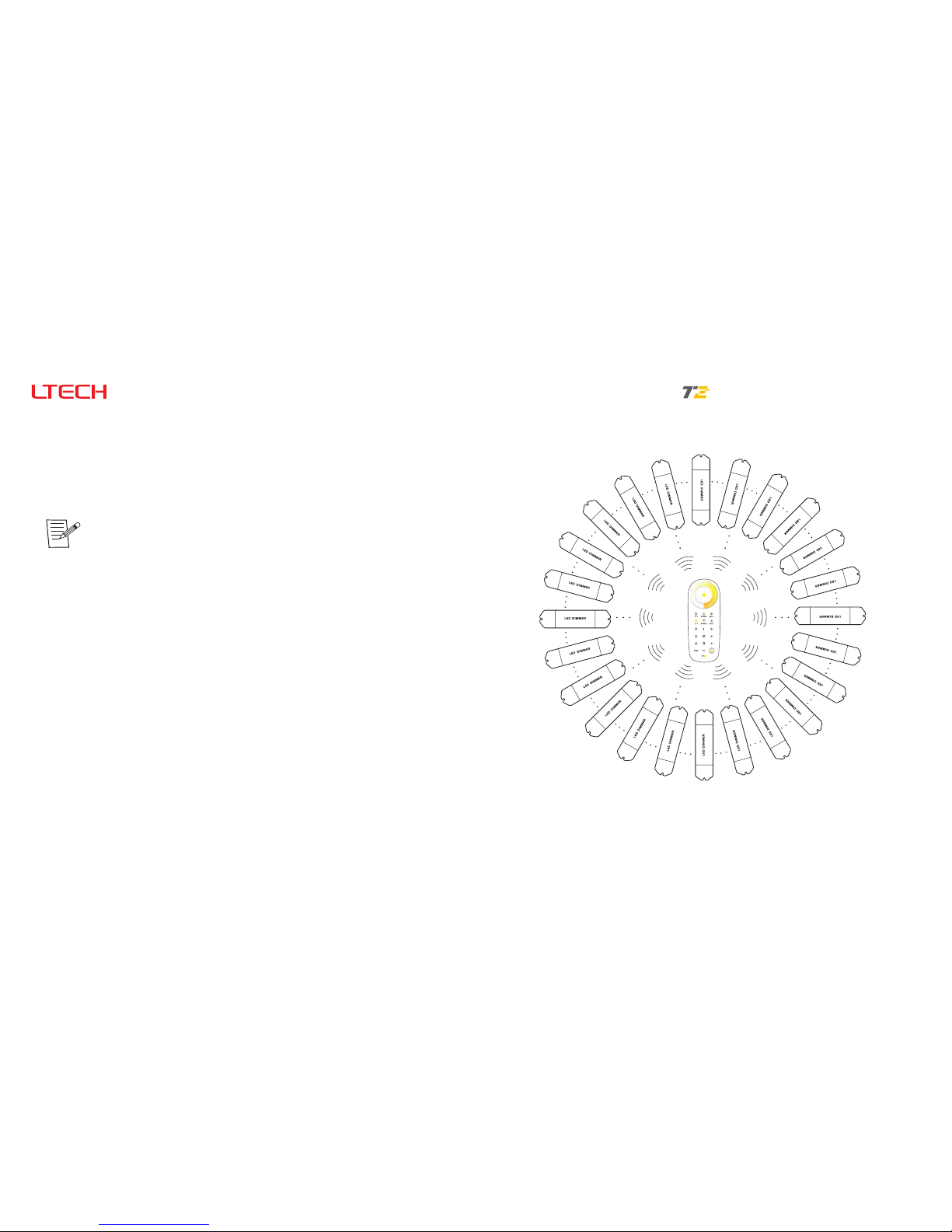

3. System Diagram:
Unlimited receivers can be installed within effective
distance, no wiring needed between the receivers, which
can be less or more in quantity according to your need
for the installation.
If you want to increase or decrease the receivers, just
activate or cancel the control ID on the remote control
will be fine, no any changes and effects on the other
receivers.
No quantity limit of the receivers.
LED Color Temperature Controllerl
— 12 —
Page 14
T3-CC
CC receiver
T3-CC
CC receiver
T3-CC
CC receiver

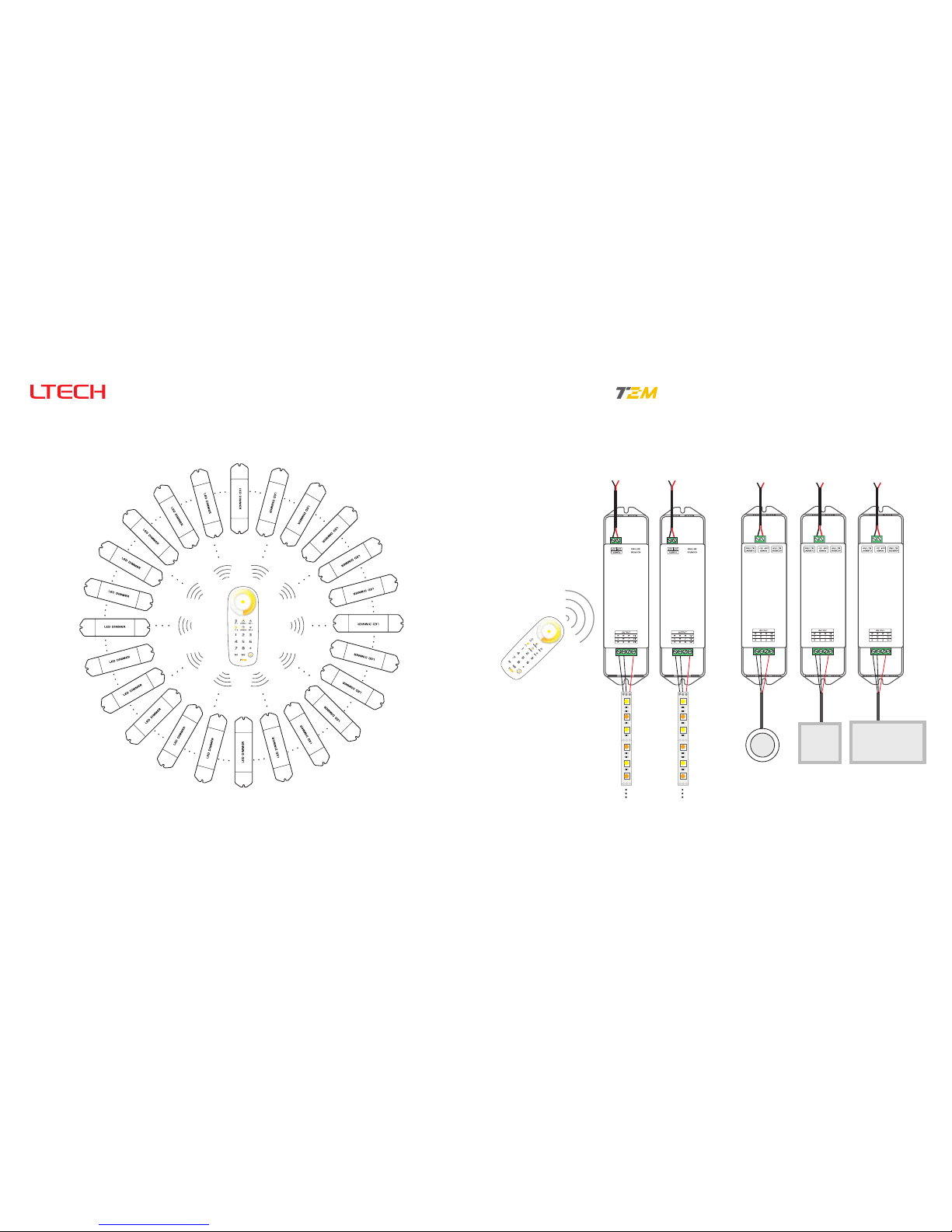

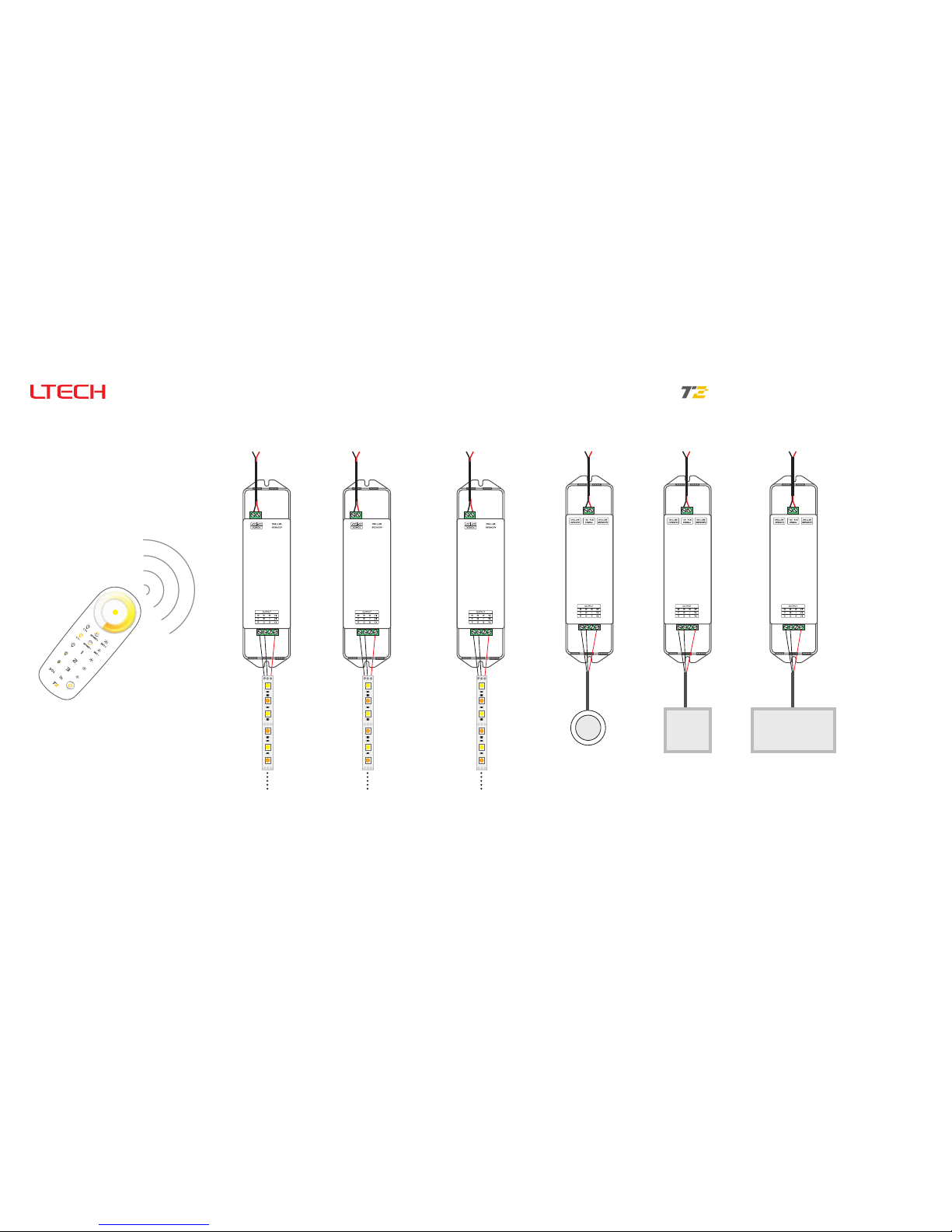

4. Wiring Diagram:
White/Warm White LED Strip
White/Warm White LED Strip
White/Warm White LED Strip
LED
Panel Light
LED
Panel Light
Round LED
Panel Light
LED Color Temperature Controller
— 13 —
CVCV
……
CV CCCCCC
350mA
700mA 1050mA
12~48Vdc12~48Vdc12~48Vdc
T3-CV
T3-CV
T3-CV
CV receiver
CV receiver
CV receiver
5~24Vdc 5~24Vdc 5~24Vdc
Page 15

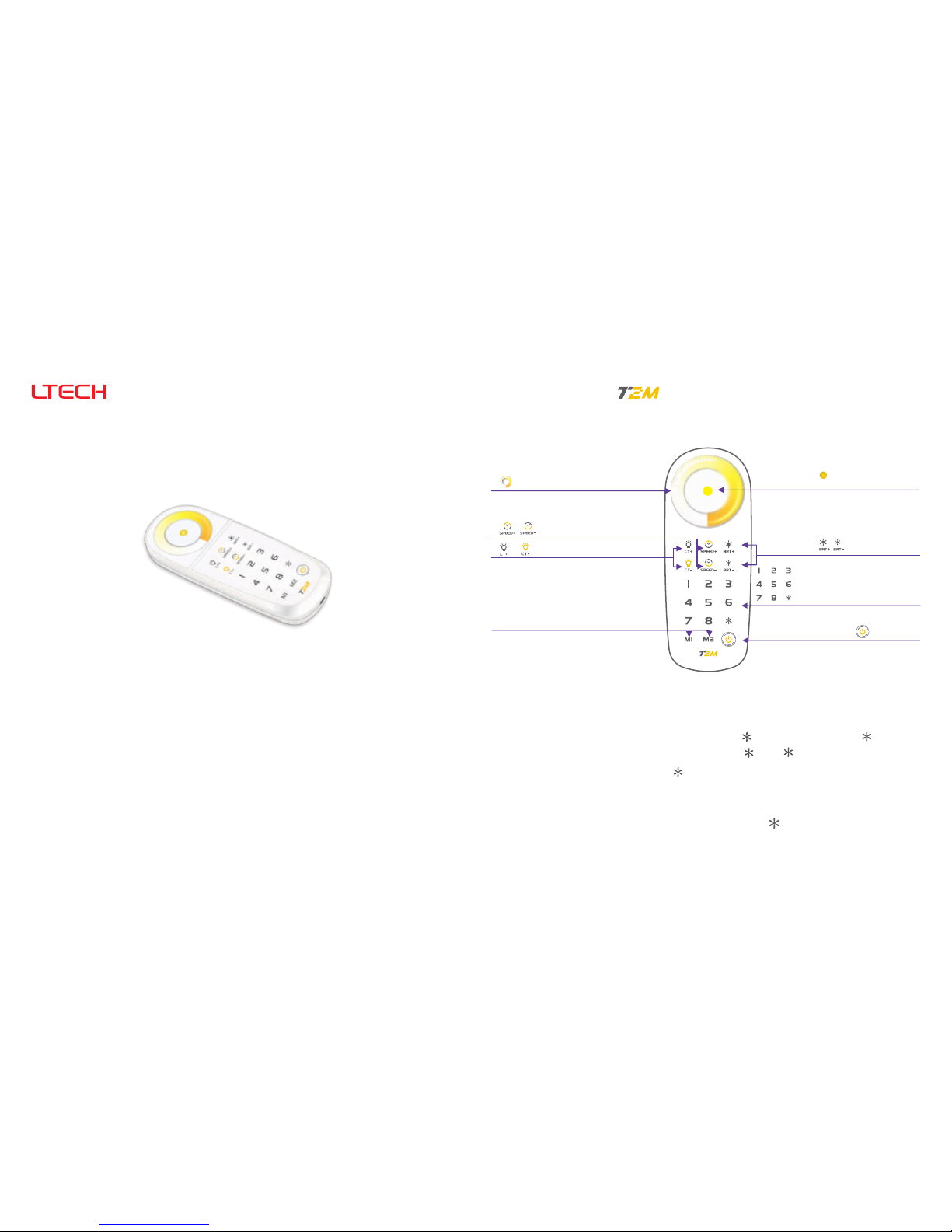

T2M
LED Color Temperature Controller
1. Operation Panel and Component Instruction:
On/Off
Touch Color Circle
Speed+/Speed-
CT+/CT-
BRT+/BRT-
Sync Status
Indicator Light
Scene-mode Keys
Zone Selection Keys
M1 M2
T2M can realize the signal sync on multiple receivers, zone controlled
arbitrarily (no more than 8 zones) within effective distance, a very good
solution for the LED project needs sync/zone control wirelessly.
Can RF remote the functions of color temperature touch adjustment,
brightness adjustment, and DIY scene modes. User-friendly color wheel
for color temperature adjustment, unique LED state light for sync change
indicated, user can simply know the LED working state from distance
by checking the remote control.
★Buzzer on/off: Press “Zone Selection Key” for 3 seconds.
●
●
●
●
Select one of the zone: press any key of “1-8" on the remote.
Select zone control arbitrarily: press" + any number + ",
eg: take 456 as a zone, should press " 456 ".
All choose(8 zones): press " " twice.
When a zone is under inactive state, press
light up that zone.
the corresponding zone
No. to
(Keep pressing to adjust
brightness continuously.)
(Press for 3s to save the scene
mode in the 8 current zone control.)
LED Color Temperature Controller (8 Zones)
Zone Control : Instruction
— 14 —
T2M remote works with T3-CV, T3-CC receiver.
Page 16
If installing multiple receivers in one zone, repeat the above steps,
choose the same zone key when ID learning.
Learning ID:
Canceling ID:
A. Turn on the receiver and remote. A. Turn on the receiver and remote.
B. Press “ID learning button” on the T3-CC/T3-CV receiver more
than 8s, the buzzer beep twice, delete all the learned remote.
B.
LED Color Temperature Controller (8 Zones)
2. The Learning ID Method of Remote:
Short press "ID learning button" on the T3-CC/T3-CV receiver,
the running light keeps on, then long press any “1-8" “zone-selection
key” on the T2M remote, the running light returns to flash (the buzzer
long beep, the indicator light flashes 3 times), activated successful.
— 15 —
T2M remote works with T3-CV, T3-CC receiver.
Page 17
3. System Diagram:
Centralized Zone-division
The receivers can be divided into 1~8 zones within effective
distance(1pc receiver per zone), no wiring needed between the
receivers.
If you don't need color temperature smooth mode by pressing
the , each zone can set up unlimited receivers and achieve
brightness, color temperature adjustment synchronously.
zone 1
zone
8
zone 7
zone
6
zone 5
zone
4
zone 3
zone
2
n
e
z
o
1
n
e
8
z
o
n
e
7
z
o
n
e
6
z
o
n
e 5
z
o
n
e
4
z
o
n
e
3
z
o
n
e
2
z
o
LED Color Temperature Controller (8 Zones)
— 16 —
Page 18
Spacing Zone-division
4. Wiring Diagram:
White/Warm White LED Strip
White/Warm White LED Strip
LED
Panel Light
LED
Panel Light
Round LED
Panel Light
LED Color Temperature Controller (8 Zones)
— 17 —
zone1
z
o
n
e
1
z
one1
zone1
z
o
n
e
4
z
one4
z
o
n
e4
z
on
e
4
zo
ne
4
z
one3
zone
3
zone3
zone3
zo
ne
3
zon
e
2
zon
e2
z
one
2
zon
e
2
z
o
n
e
2
zon
e
1
zo
ne1
z
o
n
e
4
zone3
z
one
2
……
CV CC
350mA
700mA 1050mA
5~24Vdc 5~24Vdc
12~48Vdc12~48Vdc12~48Vdc
T3-CV
T3-CV
CV receiver
CV receiver
T3-CC
T3-CC
T3-CC
CC receiver
CC receiver
CC receiver
Page 19

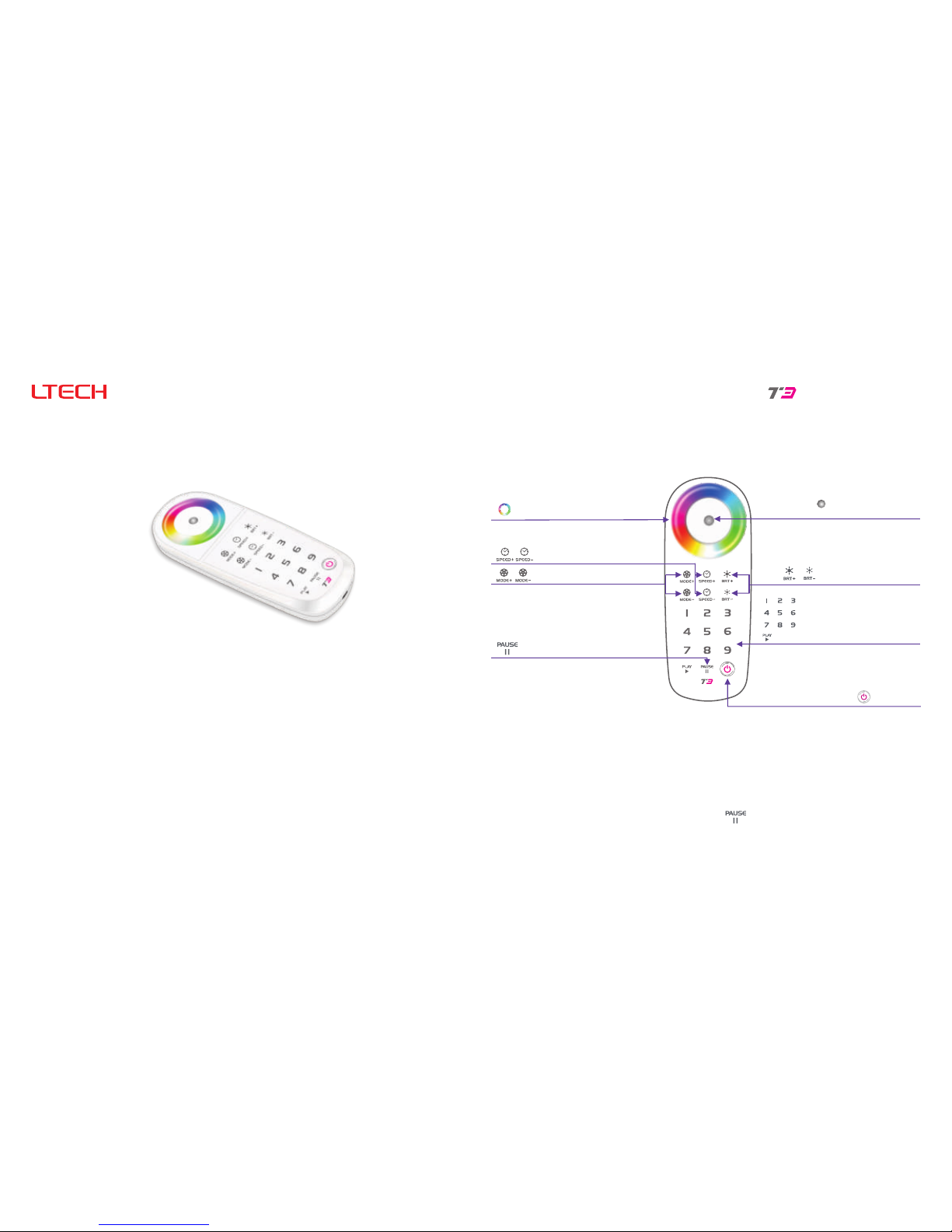

Mode Keys
Touch Full-color Circle
Speed Keys
Brightness Keys
Sync Status
Indicator Light
1. Operation Panel and Component Instruction:
On/Off
Pause Key
Scene-mode Keys
T3
LED RGB Controller
T3 can realize the signal sync on unlimited receivers within effective
distance, a very good solution for the LED project needs sync control
wirelessly.
Can RF remote the functions of switch, pause, changing modes,
changing speed and the brightness and so on. Built-in 32 changing
modes, you can save the changing modes in the shortcut key as you
like, which not only can call at any time, but also can combine into a
program to play in loop.
★Buzzer on/off: Press “Pause key” for 3 seconds.
Press"PLAY" key to play cycle
modes.(merely play the dynamic
effect, the static effect will be
skipped automatically)
(Long press 3s to save)
LED RGB Controller
— 18 —
T3 remote works with T3-CV, T3-CC, T3-5A receiver.
Page 20
If you need to control multiple receivers synchronously, follow the
above steps for each receiver.

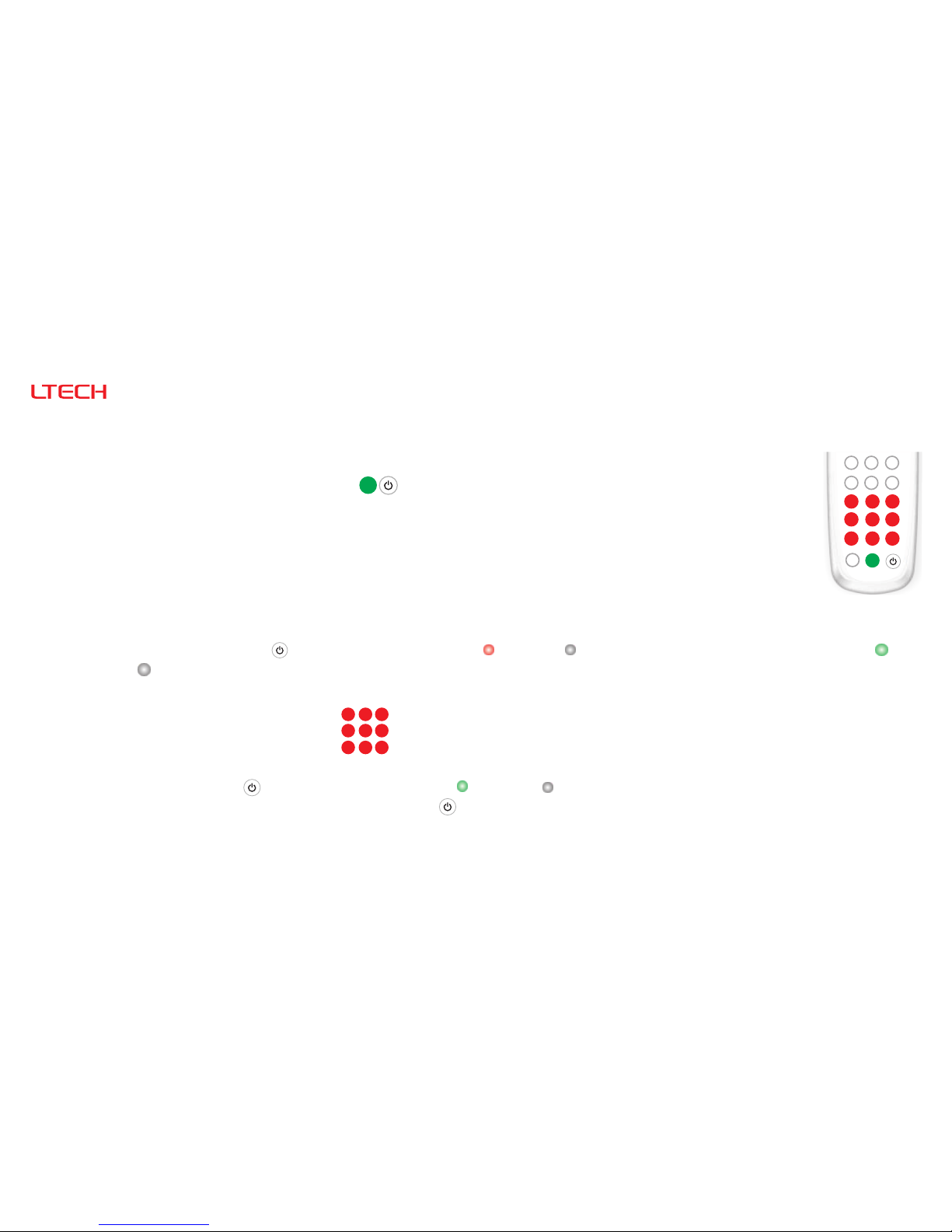

T3-CC/T3-CV Learning ID:
T3-CC/T3-CV Cancelling ID:
A. Turn on the receiver and remote.
B. Press “ID learning button” on the T3-CC/T3-CV receiver more
than 8s, the buzzer beep twice, delete all the learned remote.
T3-5A Learning ID:
T3-5A Cancelling ID:
A. Turn on the receiver and remote.
B. Press “on/off” on the T3-5A for 2s, there is a buzzer sound, keep
press, then press any key on the T3 (except “on/off” key) until the
indicator light flashes 3 times(the buzzer long beep at the same
time), learning ID successful, release all the keys.
A. Turn on the receiver and remote.
B. Press “on/off” on the T3-5A for 2s, there is a buzzer sound,
keep press, after 5s press any keys on the T3 (except “on/off”),
until the indicator light flashes 3 times, release all the keys.
A. Turn on the receiver and remote.
B.
LED RGB Controller
2. The Learning ID Method of Remote:
Short press "ID learning button" on the T3-CC/T3-CV receiver,
the running light keeps on, then long press any keys (except “on/off”)
on the T3, the running light returns to flash (the buzzer long beep,
the green light flashes 3 times), activated successful.
— 19 —
T3 remote works with T3-CV, T3-CC, T3-5A receiver.
Page 21

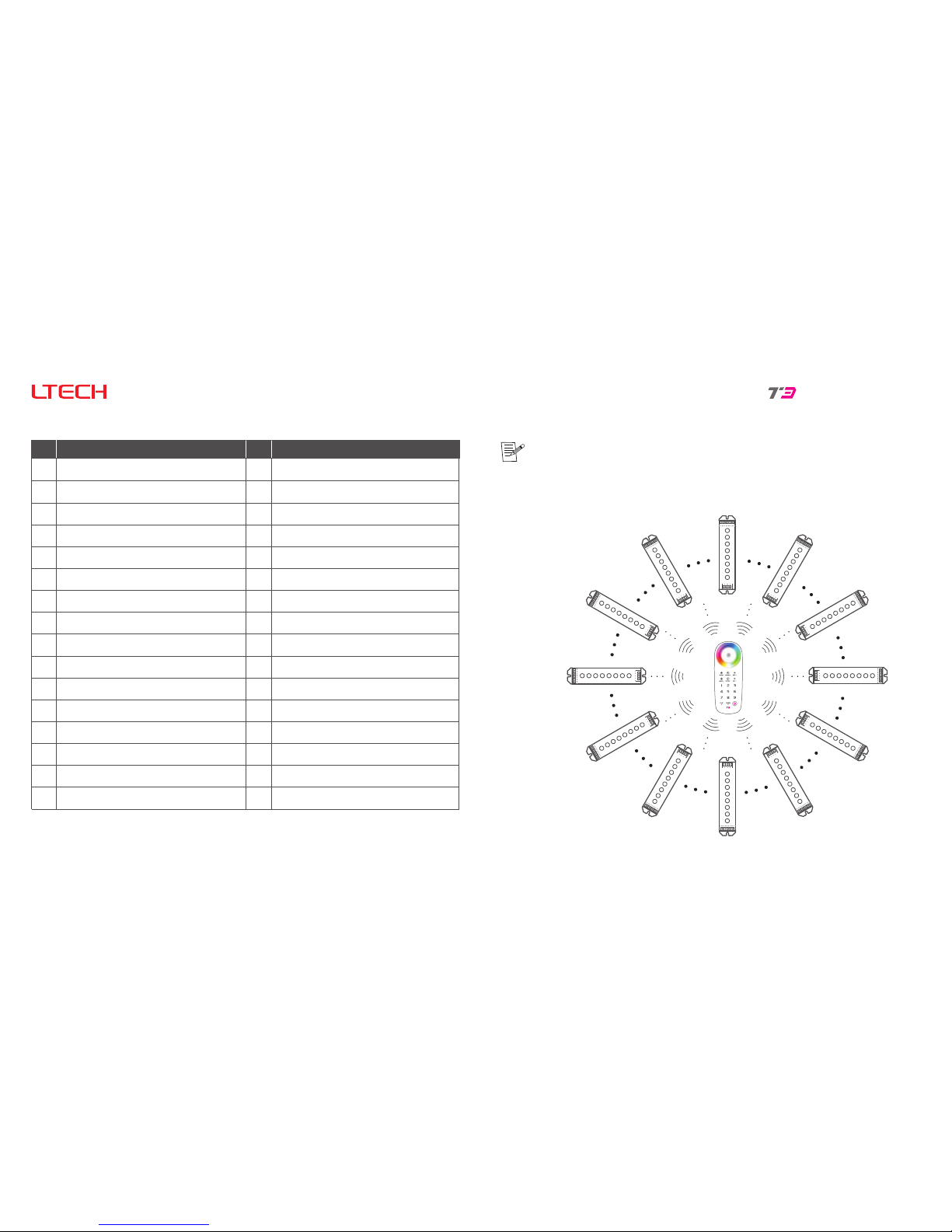

4. System Diagram:
Unlimited receivers can be installed within effective distance, no
wiring needed between the receivers, if you want to increase or
decrease the receivers, just activate or cancel the control ID will
be fine, no any changes and effects on other receivers.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
No.
Mode
No.
Mode
3. Tables of Changing Mode:
Static red
Static green
Static blue
Static yellow
Static purple
Static cyan
Static white
RGB jumping
7 colors jumping
White strobe
7 colors strobe
Red fade out and fade in
Green fade out and fade in
Blue Fade out and fade in
Yellow fade out and fade in
Purple fade out and fade in
Cyan fade out and fade in
White fade out and fade in
RGB fade out and fade in
Red/Green color smooth
Red/Blue color smooth
Green/Blue color smooth
Red/Yellow color smooth
Green/Cyan color smooth
Blue/Purple color smooth
Green/Yellow color smooth
Blue/Cyan color smooth
Red/Purple color smooth
Blue/White color smooth
Yellow/Purple/Cyan color smooth
RGB color smooth
Full-color smooth
Comment: Speed/Brightness adjustable.
LED RGB Controller
— 20 —
Page 22

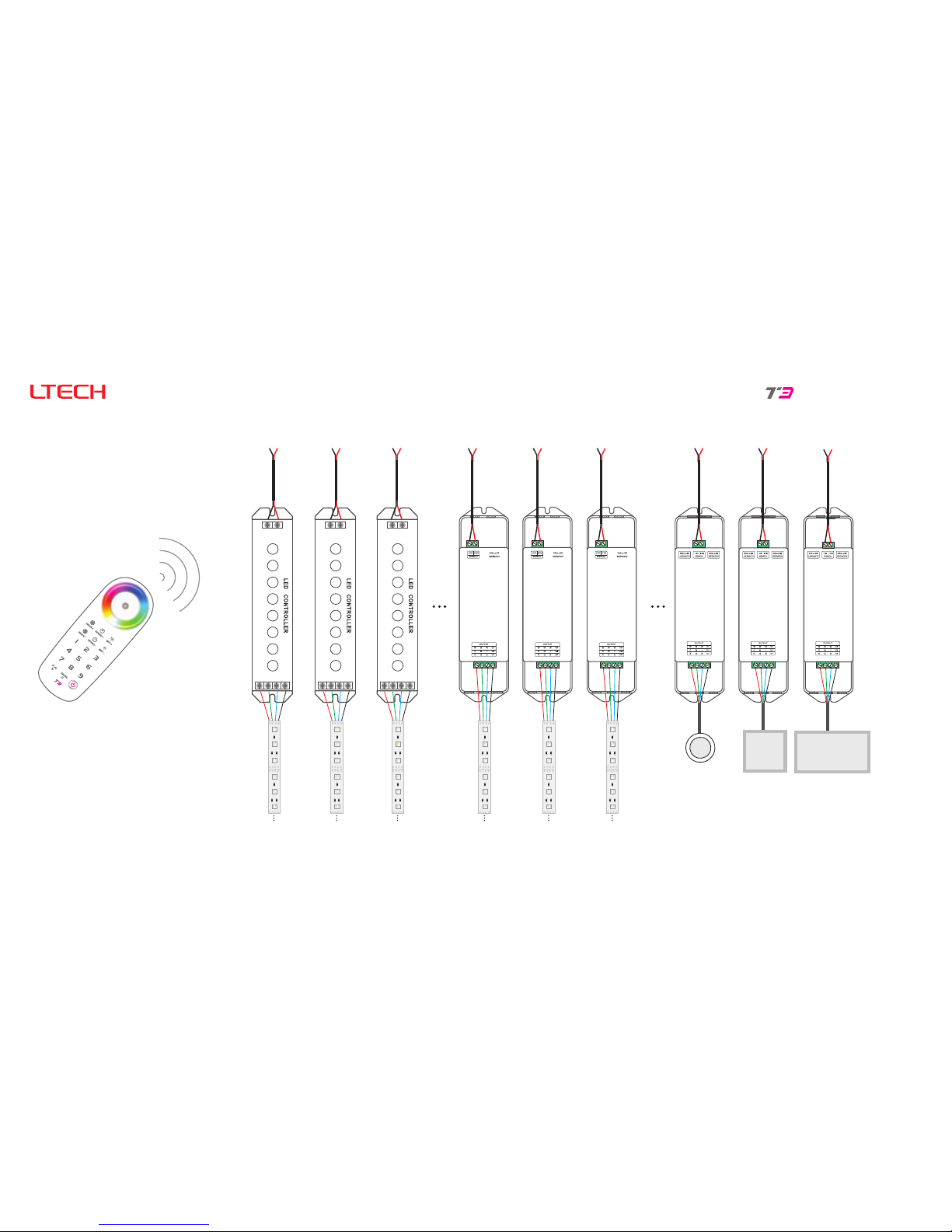

5. Wiring Diagram:
RGB Strip
RGB Strip
RGB Strip
RGB Strip
RGB Strip
RGB Strip
LED
Panel Light
LED
Panel Light
Round LED
Panel Light
LED RGB Controller
— 21 —
T3-CC
CC receiver
T3-CC
CC receiver
T3-CC
CC receiver
T3-CV
CV receiver
T3-CV
CV receiver
T3-CV
CV receiver
T3 -5A
T3 -5A
T3 -5A
CV
12~24Vdc 12~24Vdc 12~24Vdc 5~24Vdc
350mA
700mA 1050mA
CV CC
5~24Vdc 5~24Vdc 12~48Vdc 12~48Vdc 12~48Vdc
Page 23
On/Off
Pause Key
Mode Key
Zone Selection Keys
Scene-mode Keys
Touch Full-color Circle
Speed Key
Brightness Key
Sync Status
Indicator Light
M1
M2
32
10
6
5
4
9
87

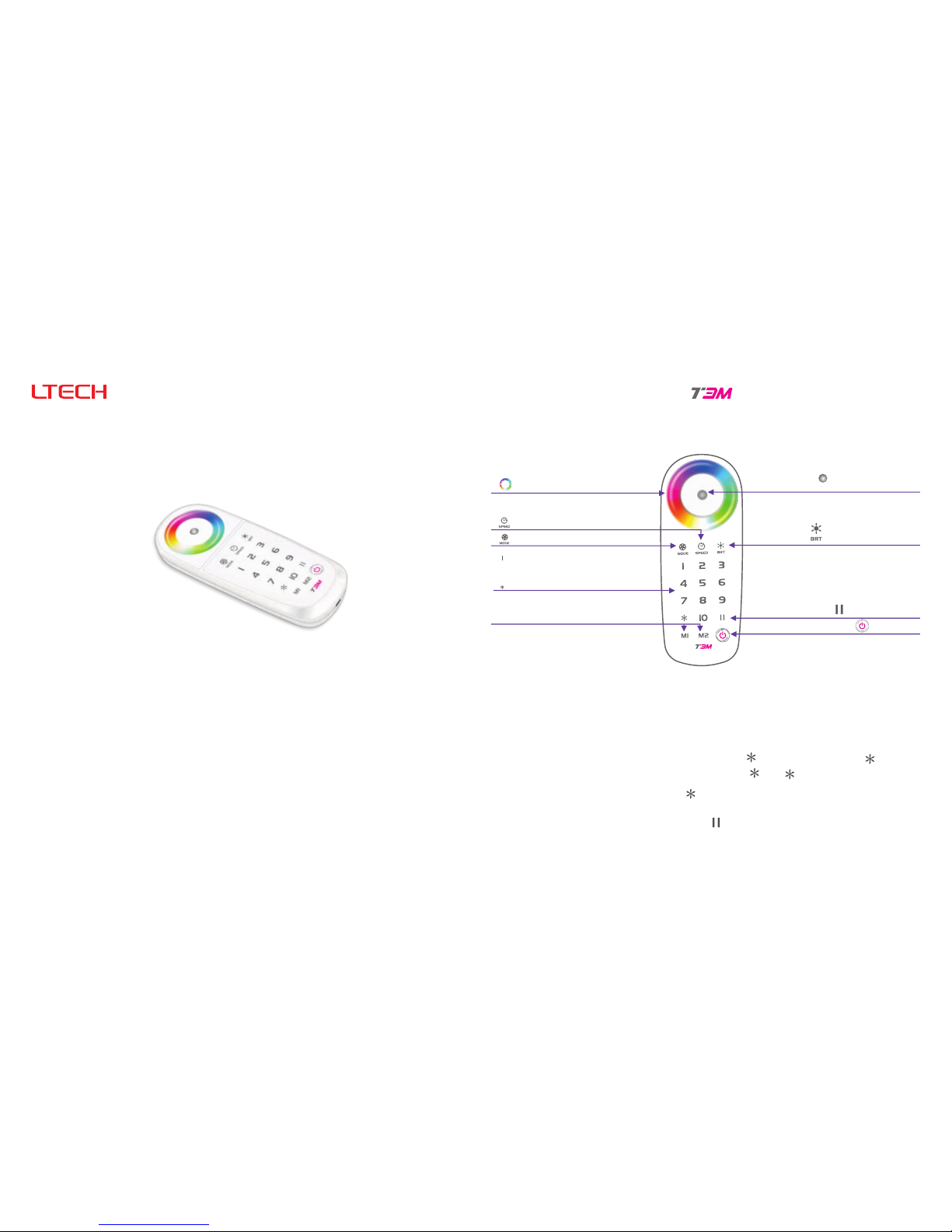

1. Operation Panel and Component Instruction:
T3M
LED RGB Controller
T3M can realize the signal sync on multiple receivers, zone controlled
arbitrarily (no more than 10 zones) within effective distance, a very good
solution for the LED project needs sync control wirelessly.
Can RF remote the functions of switch, pause, changing modes,
changing speed and the brightness and so on. Satisfied with your
requirement of sync control multiple zones, group control or control
separately, which it is easy to use.
★Buzzer on/off: Press “Pause key” for 3 seconds.
●
●
●
Select one of the zone: press any key of “1-10" on the remote.
Select zone control arbitrarily: press" + any number + ",
eg: take 456 as a zone, should press " 456 " .
All choose(10 zones): press " " twice.
Press for 3 seconds, can save
the scene mode
in the 10 current zone control
LED RGB Controller (10 Zones)
Zone Control : Instruction
— 22 —
T3M remote works with T3-CV, T3-CC, T3-5A receiver.
Page 24
T3-CC/T3-CV Learning ID:
T3-CC/T3-CV Cancelling ID:
A. Turn on the receiver and remote.
B.
T3-5A Learning ID:
T3-5A Cancelling ID:
A. Turn on the receiver and remote.
B.
A. Turn on the receiver and remote.
B.
A. Turn on the receiver and remote.
B.
LED RGB Controller (10 Zones)
Press “on/off” on the T3-5A for 2s, there is a buzzer sound,
keep press, then press any key of “1-10" zone on the T3M until the
indicator light of remote flashes 3 times (the buzzer long beep at
the same time), learning ID successful, release all the keys.
Press “on/off” on the T3-5A for 2s, there is a buzzer sound, keep
press, after 5s press any key of “1-10" zone on the T3M, until the
indicator light of remote flashes 3 times, release all the keys.
Press “ID learning button” on the T3-CC/T3-CV receiver more
than 8s, the buzzer beep twice, delete all the learned remote.
Short press "ID learning button" on the T3-CC/T3-CV receiver,
the running light keeps on, then long press any key of “1-10" zone
on the T3M remote, the running light returns to flash (the buzzer
long beep, the green light flashes 3 times), activated successful.
2. The Learning ID Method of Remote:
— 23 —
T3M remote works with T3-CV, T3-CC, T3-5A receiver.
Page 25

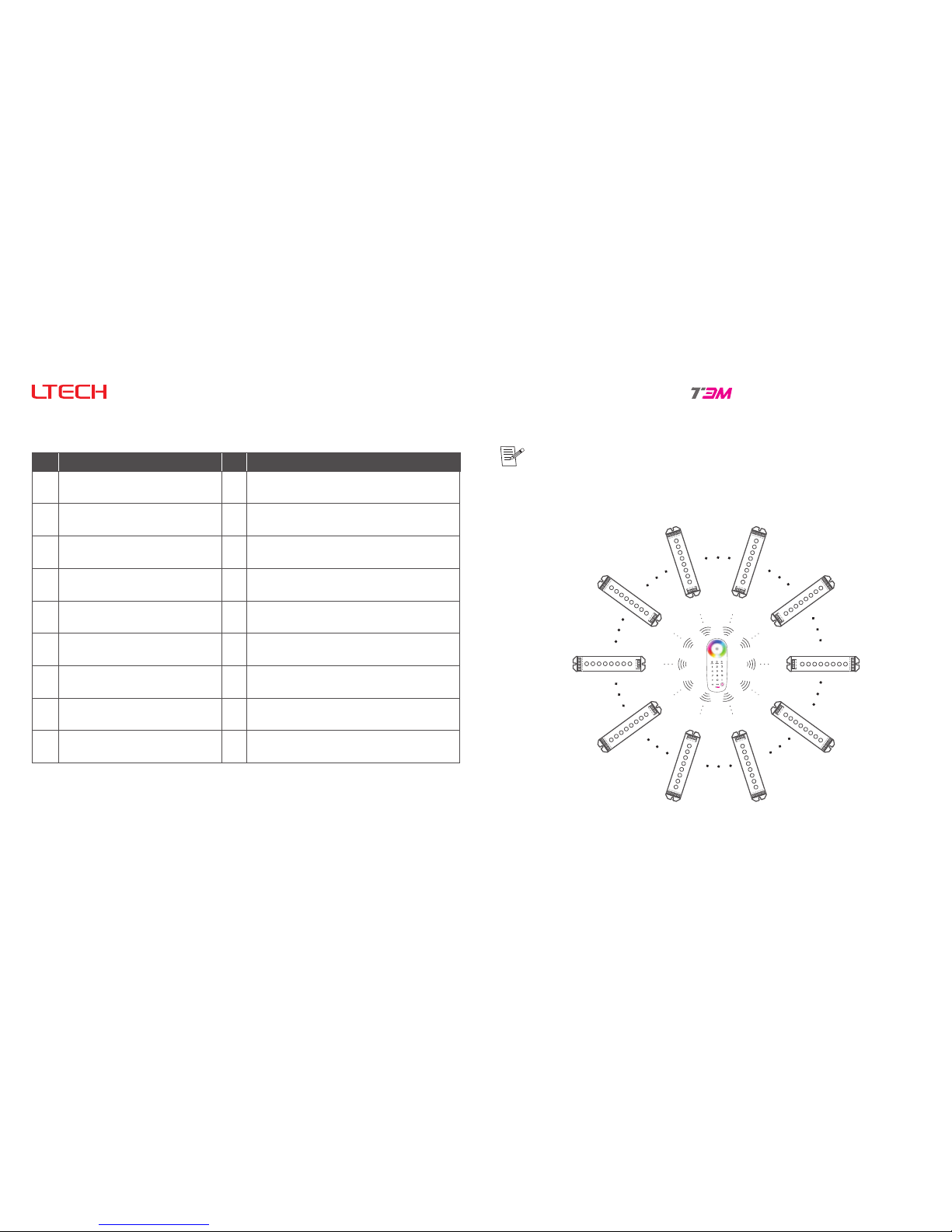

4. System Diagram:
The receivers can be divided into 1~10 zones within effective
distance(1pc receiver per zone), no wiring needed between the
receivers.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
No.
Mode
No.
Mode
3 colors jumping
7 colors jumping
White strobe
7 colors strobe
RGB fade out and fade in
Red/Green color smooth
Red/Blue color smooth
Green/Blue color smooth
Red/Yellow color smooth
Green/Cyan color smooth
Blue/Purple color smooth
Green/Yellow color smooth
Blue/Cyan color smooth
Red/Purple color smooth
Blue/White color smooth
Yellow/Purple/Cyan color smooth
RGB color smooth
Full-color smooth
3. Tables of Changing Mode:
Comment: Speed/Brightness adjustable.
zon
e
1
z
one
1
0
z
o
ne 9
zo
n
e 8
zo
n
e 7
zon e 6
zon
e 5
z
o
n
e 4
zo
n
e 3
zo
n
e 2
LED RGB Controller (10 Zones)
— 24 —
Page 26

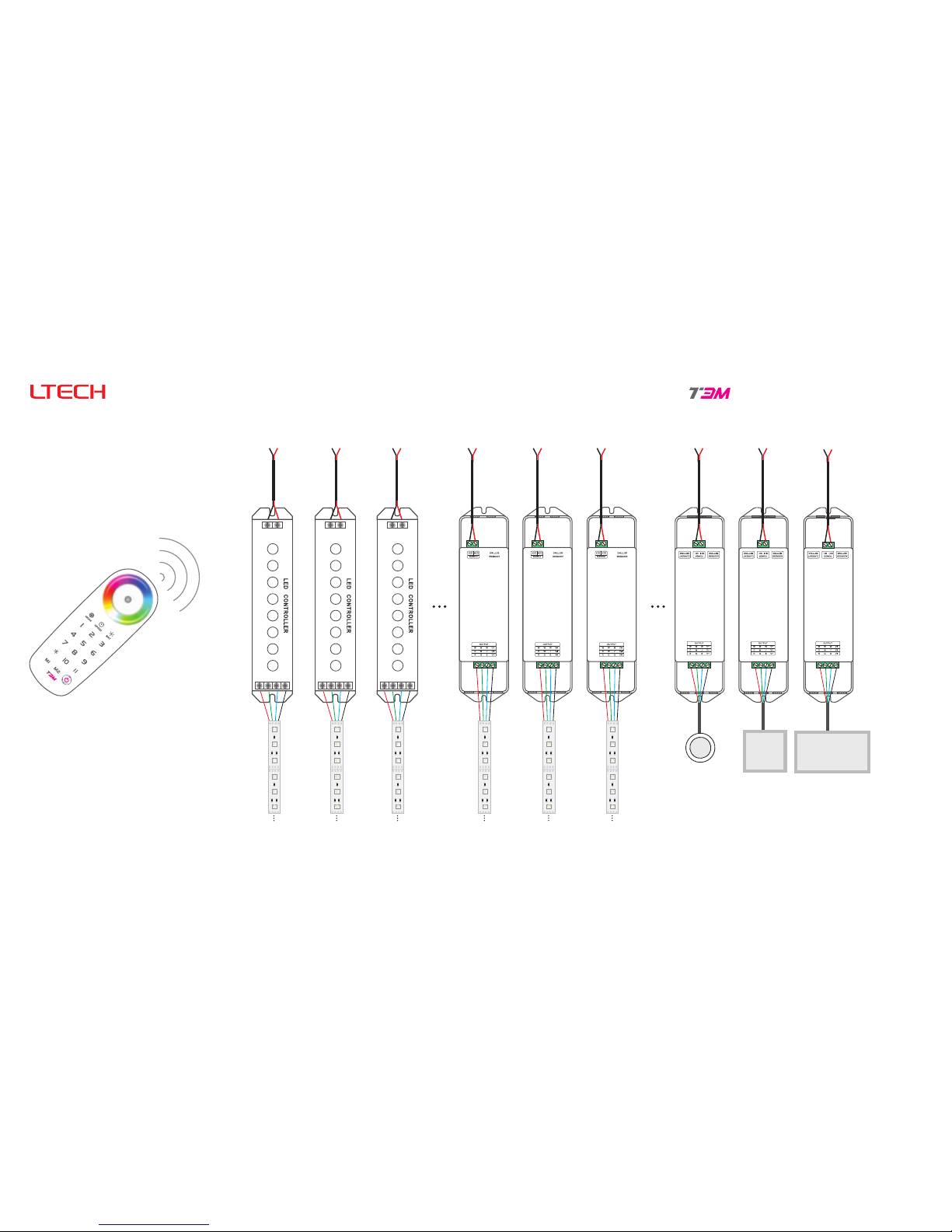

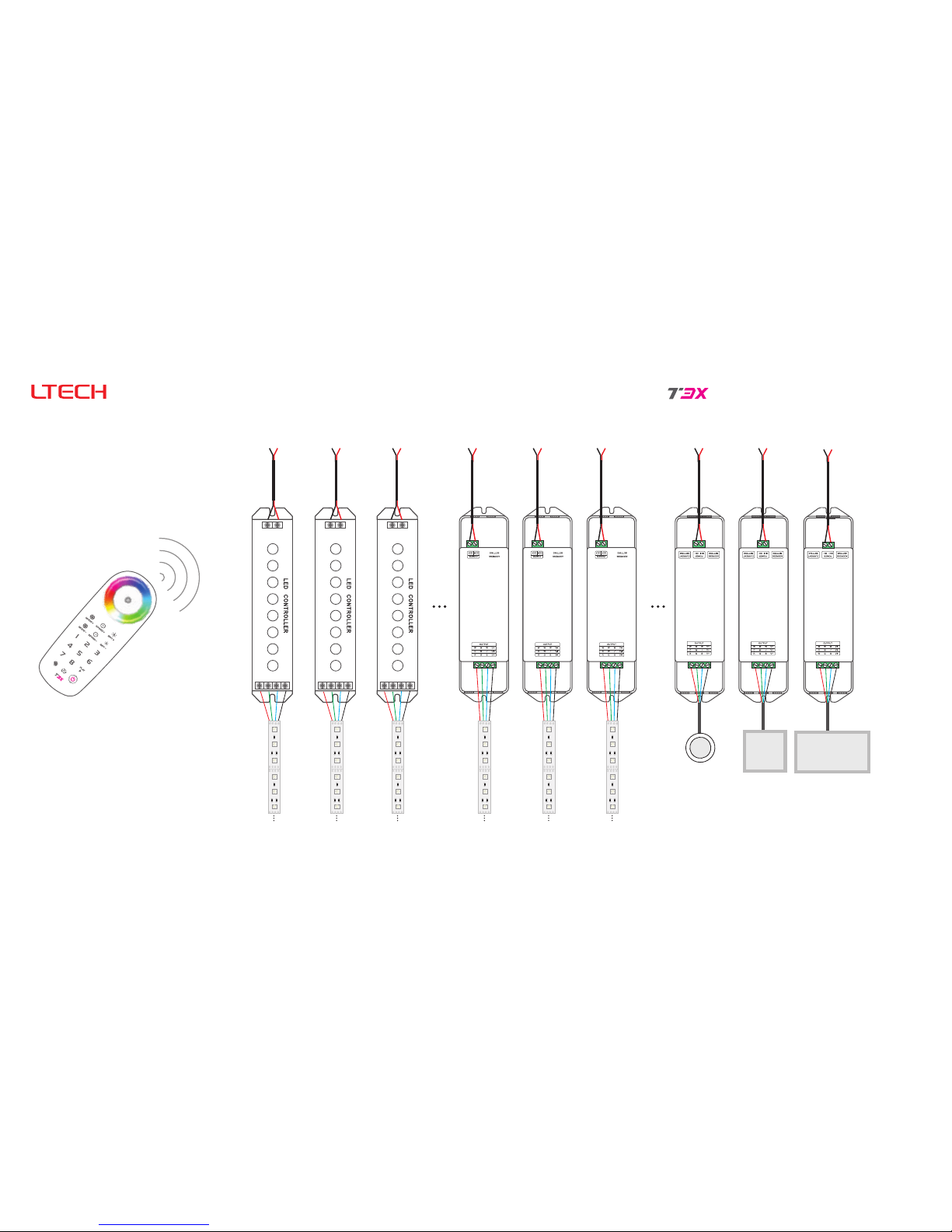

5. Wiring Diagram:
LED RGB Controller (10 Zones)
— 25 —
RGB Strip
RGB Strip
RGB Strip
RGB Strip
RGB Strip
RGB Strip
LED
Panel Light
LED
Panel Light
Round LED
Panel Light
T3-CC
CC receiver
T3-CC
CC receiver
T3-CC
CC receiver
T3-CV
CV receiver
T3-CV
CV receiver
T3-CV
CV receiver
T3 -5A
T3 -5A
T3 -5A
CV
12~24Vdc 12~24Vdc 12~24Vdc 5~24Vdc
350mA
700mA 1050mA
CV CC
5~24Vdc 5~24Vdc 12~48Vdc 12~48Vdc 12~48Vdc
Page 27

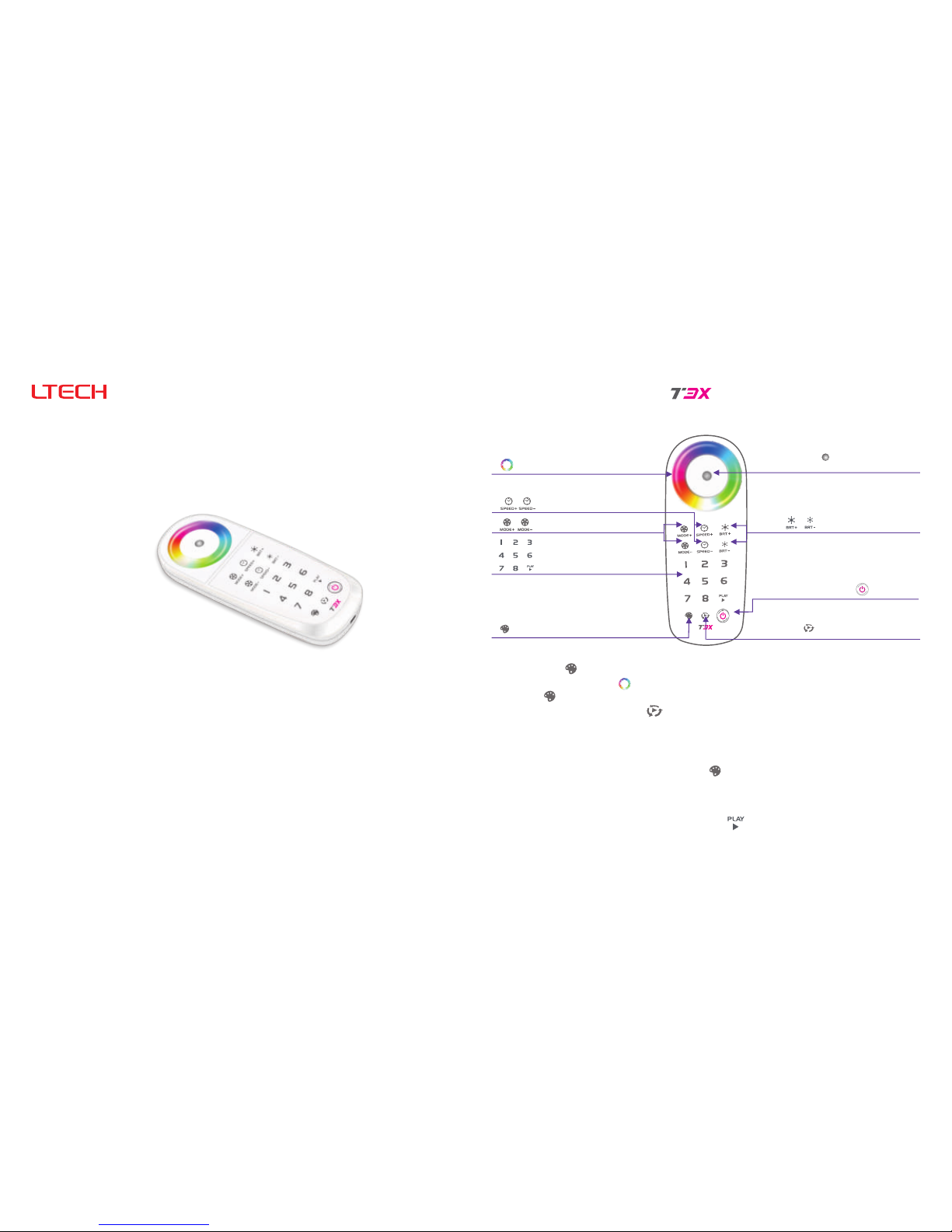

1. Operation Panel and Component Instruction:
T3X
LED RGB Programmable Controller
On/Off
Scene-mode Keys
Touch Full-color Circle
Sync Status
Indicator Light
DIY Key for Color Selection
Switch Key for
Changing Modes
Speed Keys
Mode Keys
Brightness Keys
T3X can realize the signal sync on unlimited receivers within effective
distance, a very good solution for the LED project needs sync control
wirelessly.
Can RF remote the functions of switch, pause, mode, speed and LED
brightness. More proudly, the T3X has the brand-new programmable
function, only 10 seconds to DIY a new change effect.
★Buzzer on/off: Press “Scene-mode Key” for 3 seconds.
●
●
Additional Functions:
Long press for 2 seconds to enter DIY programming function.
5. Save the new program into the “Scene-mode keys”.
4. Adjust the brightness and the speed by pressing the “SPEED” and “ BRT”.
3. After color selection, press to switch jumping/smooth/flickering changing effect.
2. Press to enter next color. (can save 1-10 colors)
1. Select any color on , the controller will save immediately.
Press “MODE” key under DIY function, can display the standard color for black,
red, green, blue, yellow, purple, cyan and white. Among them, black can be used
for editing fade in dimming effect, etc.
Long press ”DIY key for color selection” to clear the current color.
▲
▲
DIY Key for Color Selection
(Press"PLAY" to play cycle modes.
merely play the dynamic effect,
the static effect will be skipped)
(Press 3 seconds to save)
LED RGB Programmable Controller
Programming has never been so easy.
— 26 —
T3X remote works with T3-CV, T3-CC, T3-5A receiver.
Page 28
LED RGB Programmable Controller
T3-CC/T3-CV Learning ID:
T3-CC/T3-CV Cancelling ID:
A. Turn on the receiver and remote.
B. Press “ID learning button” on the T3-CC/T3-CV receiver more
than 8s, the buzzer beep twice, delete all the learned remote.
T3-5A Learning ID:
T3-5A Cancelling ID:
A. Turn on the receiver and remote.
B.
A. Turn on the receiver and remote.
B.
A. Turn on the receiver and remote.
B.
2. The Learning ID Method of Remote:
If you need to control multiple receivers synchronously, follow the
above steps for each receiver.
Press “On/Off” on the T3-5A for 2s, there is a buzzer sound,
keep press, then press any key on the T3X (except “On/Off” key)
until the indicator light flashes 3 times(the buzzer long beep at
the same time), learning ID successful, release all the keys.
Short press "ID learning button" on the T3-CC/T3-CV receiver,
the running light keeps on, then long press any key (except “On/Off”)
on the T3X remote, the running light returns to flash (the buzzer long
beep, the green light flashes 3 times), activated successful.
Press “On/Off” on the T3-5A for 2s, there is a buzzer sound,
keep press, after 5s press any key on the T3X (except “On/Off”),
until the indicator light flashes 3 times, release all the keys.
— 27 —
T3X remote works with T3-CV, T3-CC, T3-5A receiver.
Page 29

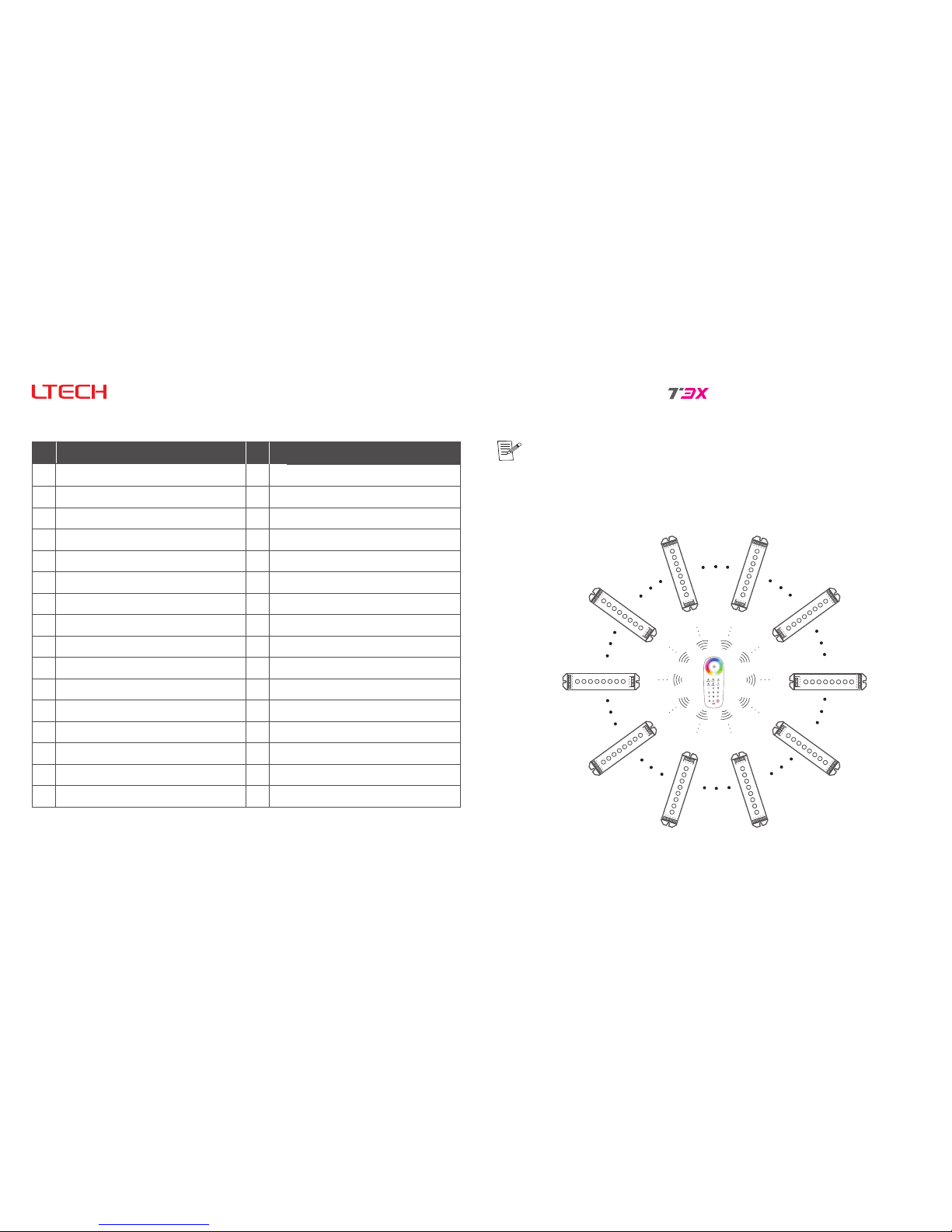

4. System Diagram:
3. Tables of Changing Mode:
Comment: Speed/Brightness adjustable.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
No.
Mode
No.
Mode
Static red
Static green
Static blue
Static yellow
Static purple
Static cyan
Static white
RGB jumping
7 colors jumping
White strobe
7 colors strobe
Red fade out and fade in
Green fade out and fade in
Blue fade out and fade in
Yellow fade out and fade in
Purple fade out and fade in
Cyan fade out and fade in
White fade out and fade in
RGB fade out and fade in
Red/Green color smooth
Red/Blue color smooth
Green/Blue color smooth
Red/Yellow color smooth
Green/Cyan color smooth
Blue/Purple color smooth
Green/Yellow color smooth
Blue/Cyan color smooth
Red/Purple color smooth
Blue/White color smooth
RGB color smooth
Full-color smooth
Yellow/Purple/Cyan color smooth
Unlimited receivers can be installed within effective distance, no
wiring needed between the receivers, if you want to increase or
decrease the receivers, just activate or cancel the control ID will
be fine, no any changes and effects on other receivers.
LED RGB Programmable Controller
— 28 —
Page 30
5. Wiring Diagram:
LED RGB Programmable Controller
— 29 —
RGB Strip
RGB Strip
RGB Strip
RGB Strip
RGB Strip
RGB Strip
LED
Panel Light
LED
Panel Light
Round LED
Panel Light
T3-CC
CC receiver
T3-CC
CC receiver
T3-CC
CC receiver
T3-CV
CV receiver
T3-CV
CV receiver
T3-CV
CV receiver
T3 -5A
T3 -5A
T3 -5A
CV
12~24Vdc 12~24Vdc 12~24Vdc 5~24Vdc
350mA
700mA 1050mA
CV CC
5~24Vdc 5~24Vdc 12~48Vdc 12~48Vdc 12~48Vdc
Page 31
After Service
Ⅰ. Attention:
Ⅱ. Warranty Agreement:
A. The product shall be installed and serviced by the qualified person.
G. If a fault occurs, please return the product to your supplier. Do not
attempt to fix this product by yourself.
F. Ensure all wire connections and polarities are correct before applying
power to avoid any damages to the LED lights.
E. Please ensure that adequate sized cable is used from the controller
to the LED lights to carry the current. Please also ensure that the
cable is secured tightly in the connector.
D. Please check if the output voltage of the LED power supply used
comply with the working voltage of the product.
C. Good heat dissipation will prolong the working life of the controller.
Please ensure good ventilation.
B. This product is non-waterproof. Please avoid the sun and rain.
When installed outdoors please ensure it is mounted in a water
proof enclosure.
A. We provide lifelong technical assistance with this product:
★ This manual only applies to this model. We reserve the right to
make changes without prior notice.
D. Any amendment or adjustment to this warranty must be approved
in writing by our company only.
C. Repair or replacement as provided under this warranty is the
exclusive remedy to the customer. We shall not be liable for any
incidental or consequential damages for breach of any stipulation
in this warranty.
B. Warranty exclusions below:
For faults beyond the 5-year warranty, we reserve the right to charge
for time and parts.
A 5-year warranty is given from the date of purchase. The warranty
is for free repair or replacement if cover manufacturing faults only.
Any man-made damages caused from improper operation, or
connecting to excess voltage and overloading.
The product appears to have excessive physical damage.
Damage due to natural disasters and force majeure.
The product has been replaced by a brand new product.
Warranty label, fragile label and unique barcode label have been
damaged.
— 30 —
Page 32
Reset and Edit the Frequency Point
Turn on the remote, long press the key for 5 seconds until the red light ( for T1) flashes 3 times, and then the green light
(white light for T1 ) flashes, the numbers of the flash will be the frequency point of the remote. you can only edit the frequency point after 3 seconds.
white light
In frequency changing state,
A. Reset Function:
B. Check and Edit the Frequency Point on the Remote:
Long press the 2 keys on the positions of simultaneously, release after 3 seconds, the remote will be auto off,
means reset completed. and then could restart the remote.
Feature: Reset function is available when remote operates abnormally.
Operation:
a.
b. Multiple remotes sync-control becomes available when they use the same frequency point.
Revising the frequency point to eliminate the external disturbance. 12 revisable frequency points for user.
Attn: After reset or revised the frequency points in the remote, receivers only can be used after relearn the ID.
Feature:
Check the Frequency Point on the Remote:
Edit the Frequency Point on the Remote:
Method 2:
Method 1:
1
4
7
2
5
8
3
6
9
A
Short press any key on the positions of , the frequency point will be “1-9” correspondingly, the light will flash in the same
numbers. Then press any key or touch the color circle to exit the frequency edit state.
Long press “on/off” key over 5 seconds, the green light (white light for T1) flashes, the flash times plus 1 means the frequency
point accumulate 1. In short, long press the “on/off” key over 5 seconds each time, the frequency point will accumulate 1, which will
again become value 1 when added to 12, and that cycle repeats.
Remotes of the same frequency point, only one remote could be used to execute the learning ID process, the rest needs to be off.
Reset and Edit the Frequency Point
Update Time:2016.01.21_A5
— 31 —
1
4
7
2
5
8
3
6
9
A
Page 33
Charing Voltage: 5Vdc (Built-in Lithium Battery)
Working Current: ≤30mA
Working Frequency: 2.4GHz
Remote Distance: 30m
With USB Charging Port
T Series LED Remote Controller
Parameters
warranty
5 years
Architectural ornament: business area, airport, subway station.
Interior decoration: hotel, shopping mall, square, restaurant,
pub, home furnishing, etc.
Signboard, billboard.
Anywhere else, where uses LED for dimming, color temperature
and full color adjustment.
Applied Range
Loading...
