LS tractor XG3025, XG3025H, XG3135, XG3140, XG3140H Operator's Manual

LS TRACTOR

OPERATOR'S MANUAL

LS TRACTOR

OPERATOR'S MANUAL

PO Box 70, Battleboro, NC 27809
Tel : [phone]
Fax : [phone]

www.lstractor.com
www.lstractorusa.com

INNOVATIVE

TECHNOLOGY

PARTNER

OHSAS 18001

XG-SERIES

XG3025 XG3025H

P/NO

52120001/00

DATE

20150000

i

FOREWORD

Emission Warranty

Warranty coverage

Mitsubishi Heavy Industries, Ltd. warrants to the ultimate purchaser and each subsequent purchaser that the new

nonroad engine, including all parts of its emission-control system, meets two conditions:(1) It is designed, built, and

equipped so it conforms at the time of sale to the ultimate purchaser with applicable regulation of the U.S. Environ-

mental Protection Agency. If the vehicle in which the engine is installed is registered in the state of California, a sep-

arate California emission regulation also applies.(2) It is free from defects in materials and workmanship that may

keep it from meeting these requirements.

Warranty period

The emission warranty period is shown below.However, if your engine warranty period is longer than the emission

warranty period, the emission warranty period extends to same as the engine warranty period.Below warranty

period shall begin on the date the new non-road engine is delivered to the ultimate purchaser.

Warranted parts

Mitsubishi Heavy Industries, Ltd. warrants the parts which will increase the emission of pollutants when they

become defective.

The followings are examples.

I. All the engine parts relating to the systems below are included in the exhaust-gas related components:

1. Air-induction system.

2. Fuel system.

3. Ignition system.

4. Exhaust gas recirculation systems.

II. The parts below are also included in the exhaust-gas related components:

1. Aftertreatment devices.

2. Crankcase ventilation valves.

The following warranty applies to the engines that have been certified to the emission regulation of the U.S. Envi-

ronmental Protection Agency.

If your engine is certified as

And its maxi-

mum power is

And its rated speed is Warranty period

Variable speed or constant
speed

kW < 19 Any speed

1,500 hours or 2 years, whichever

comes first.

Constant speed 19 ≤ kW < 37

3,000 min

-1

or higher

1,500 hours or 2 years, whichever

comes first.

Constant speed 19 ≤ kW < 37

Less than 3,000 min

-1

3,000 hours or 5 years, whichever

comes first.

Variable speed 19 ≤ kW < 37 Any speed

3,000 hours or 5 years, whichever

comes first.

Variable speed or constant
speed

37 ≤ kW Any speed

3,000 hours or 5 years, whichever

comes first.

ii

FOREWORD

3. Sensors.

4. Electronic control units.

III. The parts below also included in the evaporative emission gas related components:

1. Fuel Tank.

2. Fuel Cap.

3. Fuel Line.

4. Fuel Line Fittings.

5. Clamps*.

6. Pressure Relief Valves*.

7. Control Valves*.

8. Control Solenoids*.

9. Electronic Controls*.

10. Vacuum Control Diaphragms*.

11. Control Cables*.

12. Control Linkages*.

13. Purge Valves.

14. Vapor Hoses.

15. Liquid/Vapor Separator.

16. Carbon Canister.

17. Canister Mounting Brackets.

18. Carburetor Purge Port Connector.

*parts related to evaporation-evaporation-emission-gas control system.

IV. Emission-related components also include any other part whose only purpose is to reduce emissions or whose

failure will increase emissions without significantly degrading engine/equipment performance.

Owner's Responsibility

The owner of the engine is responsible for the performance of the required maintenance listed in this operation

manual.

In accordance with 40 CFR 1068.115, Mitsubishi Heavy Industries, Ltd. makes no warranties if the operator

caused the problem through improper maintenance or use.

iii

FOREWORD

California Emission Control Warranty Statement:

your Warranty Rights and Obligations

The California Air Resources Board (CARB) is pleased to explain the emission control system warranty on

you 2013 or later engine. In California, new off-road engines must be designed, built, and equipped to meet the

State's stringent anti-smog standards. Mitsubishi Heavy Industries, Ltd. must warrant the emission control system

on your engine for the periods of time listed below provided there has been no abuse, neglect or improper mainte-

nance of your engine.

Your emission control system may include parts such as the fuel-injection system and the air induction system. Also

included may be hoses, belts, connectors and other emission-related assemblies.

Where a warrantable condition exists, Mitsubishi Heavy Industries, Ltd. will repair your off-road engine at no cost to

you including diagnosis, parts, and labor.

Manufacurer's warranty coverage:

The 2013 and later off-road engines are warranted for the warranty period (Same as warranty period of EPA Emis-

sion Warranty in this manual). If any emission-related part on your engine is defective, the part will be repaired or

replaced by Mitsubishi Heavy Industries, Ltd.

Owner's Warranty Responsiblities

As the off-road engine owner, you are responsible for the performance of the required maintenance listed in

your owner's manual. Mitsubishi Heavy Industries, Ltd. recommends that you retain all receipts covering mainte-

nance on your off-road engine, but Mitsubishi Heavy Industries, Ltd. can not deny warranty solely for the lack of

receipts or for your failure to ensure the performance of all scheduled maintenance.

As the off-road engine owner, you should, however, be aware that our company may deny you warranty coverage

if your off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifica-

tions.

Your engine is designed to operate on diesel fuel only. Use of any other fuel may result in your engine no longer

operating in compliance with California's emissions requirements.

You are responsible for initiating the warranty process. The ARB suggests that you present your off-road engine to

a Mitsubishi Heavy Industries, Ltd. dealer or distributor dealer as soon as problem exists. The warranty repairs

should be completed by the dealer or distributor as expeditiously as possible.

If you have any questions regarding your warranty rights and responsibilities, you should contact Mitsubishi
Engine North America at 1-630-268-0750.

The following warranty applies to the engines that have been certified the emission regulation of the California Air

Resources Board (CARB).

iv

FOREWORD

Warranty coverage

(a) The warranty period shall begin on the date the engine or equipment is delivered to an ultimate purchaser.The

use of alternate fuels shall not void the warranties on any engine certified to use such fuel.

(b) Mitsubishi Heavy Industries, Ltd. of each off-road compression-ignition engine shall warrants to the ultimate pur-

chaser and each subsequent purchaser of the engine registered in the state of California that the engine is:

(1) Designed, built and equipped so as to conform with all applicable regulations adopted by the Air Resources

Board pursuant to its authority in Chapters 1 and 2,Part 5,Division 26 of the Health and Safety Code;and.

(2) Free from defects in materials and workmanship which cause the failure of a warranted part to be identical

in all material respects to the parts as described in Mitsubishi Heavy Industries, Ltd.'s application for certifi-

cation for a period of 5 years or 3,000 hours of operation, whichever occurs first,for all engines rated at 19kW

and greater,except as noted below. In the absence of a device to measure hours of use, the engine shall be

warranted for a period of 5 years. For all engines rated less than 19 kW, and for constant-speed engines

rated under 37 kW with rated speeds higher than or equal to 3,000 min

-1

, the period of 2 years or 1,500

hours of operation, whichever occurs first, shall apply. In the absence of a device to measure hours of use,

the engine shall be warranted for a period of 2 years.

(c) The warranty on emission-related parts shall be interpreted as follows:

(1) Any warranted part which is not scheduled for replacement as required maintenance in the written instruc-

tions required by Subsection (e) shall be warranted for the warranty period defined in Subsection (b) (2). If

any such part fails during the period of warranty coverage, it shall be repaired or replaced by Mitsubishi

Heavy Industries, Ltd. according to Subsection (4) below. Any such part repaired or replaced under the war-

ranty shall be warranted for the remaining warranty period.

(2) Any warranted part which is scheduled only for regular inspection in the written instructions required by Sub-

section (e) shall be warranted for the warranty period defined in Subsection (b) (2). A statement in such writ-

ten instructions to the effect of "repair or replace as necessary" shall not reduce the period of warranty

coverage. Any such part repaired or replaced under the warranty shall be warranted for the remaining war-

ranty period.

(3) Any warranted part which is scheduled for replacement as required maintenance in the written instructions

required in Subsection (e) shall be warranted for the period of time prior to the first scheduled replacement

point for that part. If the part fails prior to the first scheduled replacement, the part shall be repaired or re-

placed by Mitsubishi Heavy Industries, Ltd. according to Subsection (4) below. Any such part repaired or

replaced under the warranty shall be warranted for the remaining warranty period.

(4) Repair or replacement of any warranted part under the warranty provisions of this article shall be performed

at no charge to the owner at a warranty station.

(5) Notwithstanding the provisions of Subsection (4) above, warranty services or repairs shall be provided at all

Mitsubishi Heavy Industries, Ltd. distribution centers that are franchised to service the subject engines.

(6) The owner shall not be charged for diagnostic labor that leads to the determination that a warranted part is

in fact defective, provided that such diagnostic work is performed at a warranty station.

(7) Mitsubishi Heavy Industries, Ltd. shall be liable for damages to other engine components proximately caused

by failure under warranty of any warranted part.

(8) Throughout the engine's warranty period defined in Subsection (b) (2), Mitsubishi Heavy Industries, Ltd. shall

maintain a supply of warranted parts sufficient to meet the expected demand for such parts.

(9) Any replacement part, as defined in Section 1900(b)(13), Title 13, may be used in the performance of any

maintenance or repairs and must be provided without charge to the owner. It is not necessary for replace-

ment parts to be the same brand or by the same manufacturer as the original part sold with the engine. Such

use shall not reduce the warranty obligations of Mitsubishi Heavy Industries, Ltd.

(10) Add-on or modified parts, as defined in Section 1900(b)(1) and (b)(10), Title 13, that are not exempted by

v

FOREWORD

(B)

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

(C) Selective catalyst reduction.

vi

FOREWORD

hardware.

(D) Pulleys, belts and idlers.

(E) Emission control information labels

(F) Any other part with the primary purpose of reducing emissions or that can increase emissions during fail-

ure without significantly degrading engine performance

(e) Mitsubishi Heavy Industries, Ltd. shall furnish with each new engine written instructions for the maintenance and

use of the engine by the owner.

Contents

2. Instruction for Safe Operation

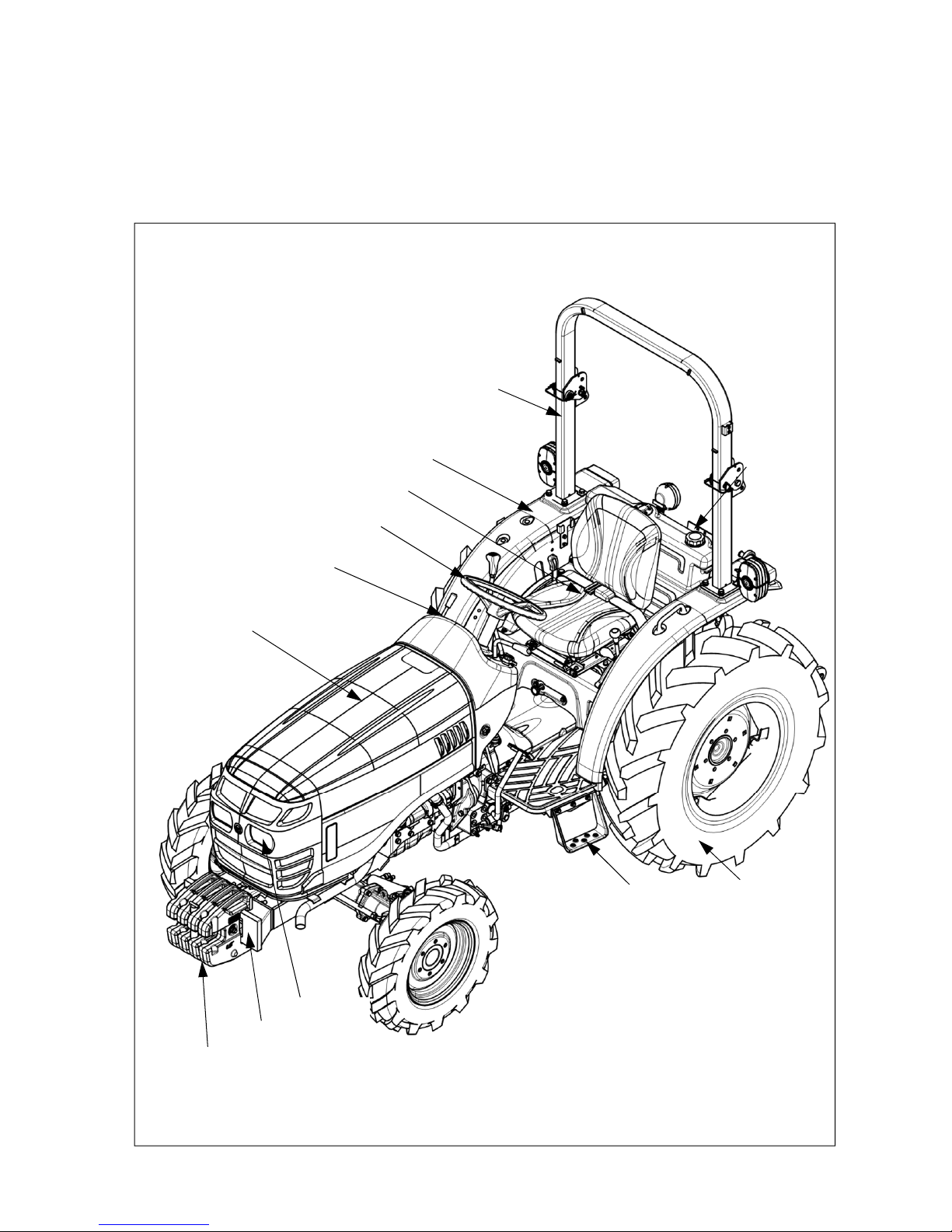

(1)Thenameofeachpart····································2-1

2-1. Boarding and Exiting the tractor

(1)Boardingthetractor······································2-2
(2)Driver’sseat··········································2-2
(3)Seatadjustment·········································2-3
(4)Seatbelt··············································2-3
(5)Exitingthetractor········································2-4

2-2. Safety Device

(1) Hood (Bonnet) · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ······2-5
(2) Fender · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 2-5
(3)PTOsafetycoverandprotectioncap·························2-5
(4)Roll-OverProtectiveStructure(ROPS)(optional) ·················2-6

1. General Notices for Safety

1-1. Before using the tractor ·································1-1
1-2. Safety Precautions (Read this for safety before using)

(1)Noticesbeforeusingthetractor·····························1-4
(2)NoticeswhenstartingEngine ······························1-7

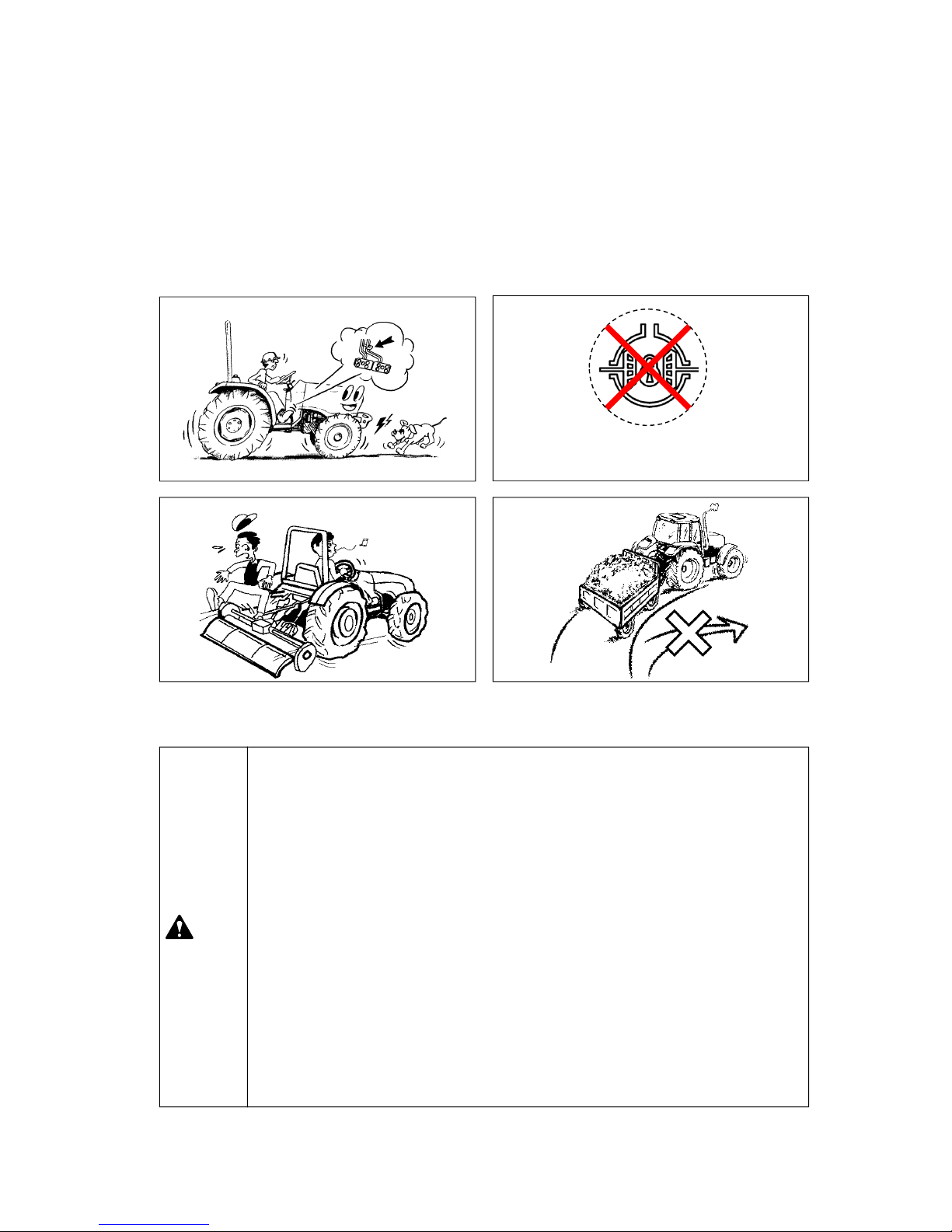

(3)Noticeswhileoperating/usingthetractor······················1-8
(4) Notices when connecting Implement · · · · · · · · · · · · ············1-10
(5)Noticeswhentowingthetractor····························1-11
(6)Noticeswhentransportingthetractor························1-11
(7)Noticeswhenservicingthetractorafterwork ··················1-12
(8) Notices when handling Diesel Fuel ··························1-13
(9)Noticeswhenleavingthetractor···························1-14
(10)NoticesrelatingtoToxicsubstances························1-14

1-3. Long-term storage

(1) Preparation for storage ··································1-15
(2) Check & Maintenance during storage ························1-16
(3)PreparationforReuse···································1-16

1-4. Notices for “Use & Disposal” related to the environment ········1-17

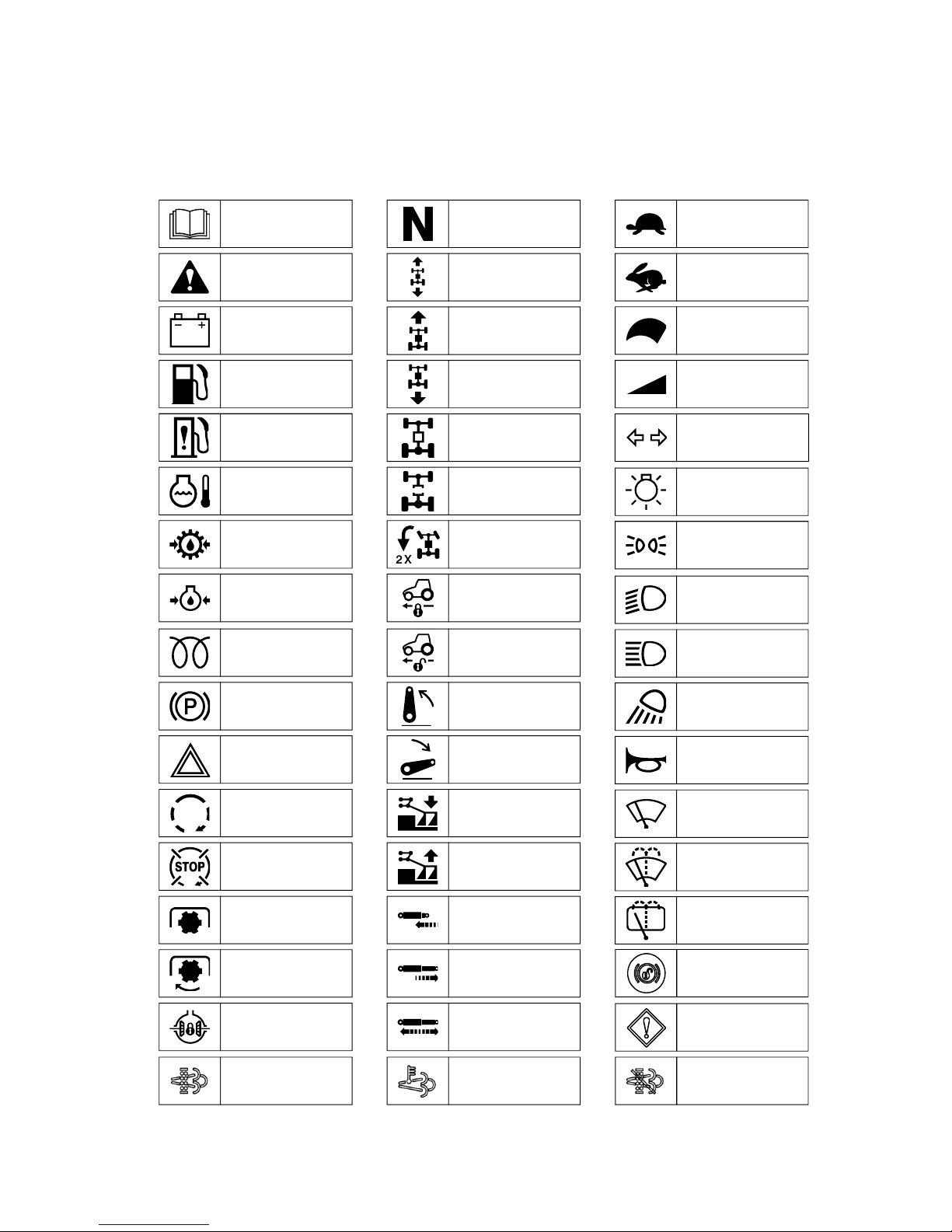

1-5. Symbols ·············································1-18
1-6. Safety Decals

(1) Handling and Maintenance of Safety Decals ···················1-19
(2)SafetyDecalsandattachingposition·························1-19

Contents

3. Instruments and Controls

3-1. Instrument panel and Front controls

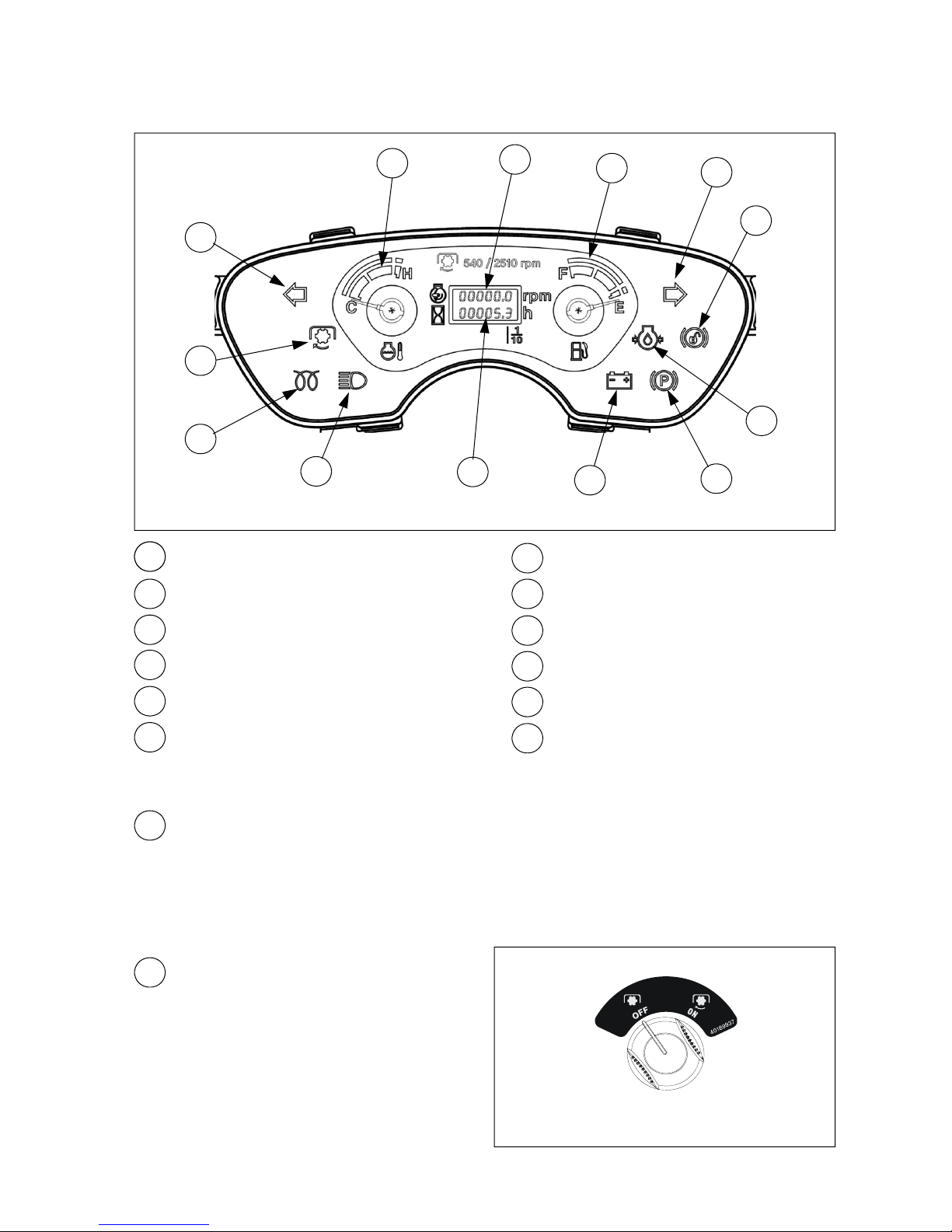

(1) Instrument panel ········································3-1
(2)Keyswitch·············································3-6
(3)Turnsignallightswitch····································3-6
(4)Lightswitch···········································3-6
(5)Hornswitch(iffitted)····································3-7
(6)Hazardwarninglightswitch·······························3-7
(7) PTO switch (Independent PTO) · · · · · · · · · · · · · · · · · · · · ·········3-8
(10) Shuttle lever

··········································3-9

(11) Throttle lever

··········································3-9

(12) Throttle pedal (Mechanical) · ······························3-9
(13) Clutch pedal (Mechanical) · · ·····························3-10
(14) Brake pedals ·········································3-10
(15)Parkingbrakelever····································3-11
(16) HST forward/reverse pedal (HST type) ·······················3-11
(17)Cruisecontrollever(HSTtype)····························3-12

3-2. Left / Right-hand controls

(1)Maingearshiftlever···················

··················· 3-14

(2) Differential lock pedal ································

··· 3-14

(3)Worklightswitch(iffitted)·······························

· · 3-15

(4) Range gear shift lever · · · · · · · ···························

· · 3-15

(5)Fourwheeldriverlever(4WD)···························

··· 3-16

(6)MiddlePTOlever(iffitted)······························

· · 3-16

3-3. Hydraulic System

(1)Safetyprecautions·····································3-17
(2)Steeringsystem········································3-18
(3)HydraulicliftControl····································3-19
(4)RemotecontrolleverandQuickcoupler(iffitted)················3-20
(5)Joysticklever(iffitted) ···································3-21
(6)HydraulicSystemDiagram ································3-22

Contents

4. Operation and Work

4-1. Engine start and stop

(1)Enginestart············································4-1
(2)Startincoldweather·····································4-3
(3)Enginestop············································4-4

4-2. How to drive and stop

(1)Howtodrive ·········································· 4-5
(2) Changing speed ········································4-7
(3)Emergencystop········································4-8
(4)Stoppingtractor········································4-9
(5)Drivingtractorontheroad ·······························4-10
(6)Parking··············································4-11

4-3. How to handle new tractor

(1)Checkpoints··········································4-12
(2) Notices in handling new tractor· ···························4-12

4-4. Attaching Implement

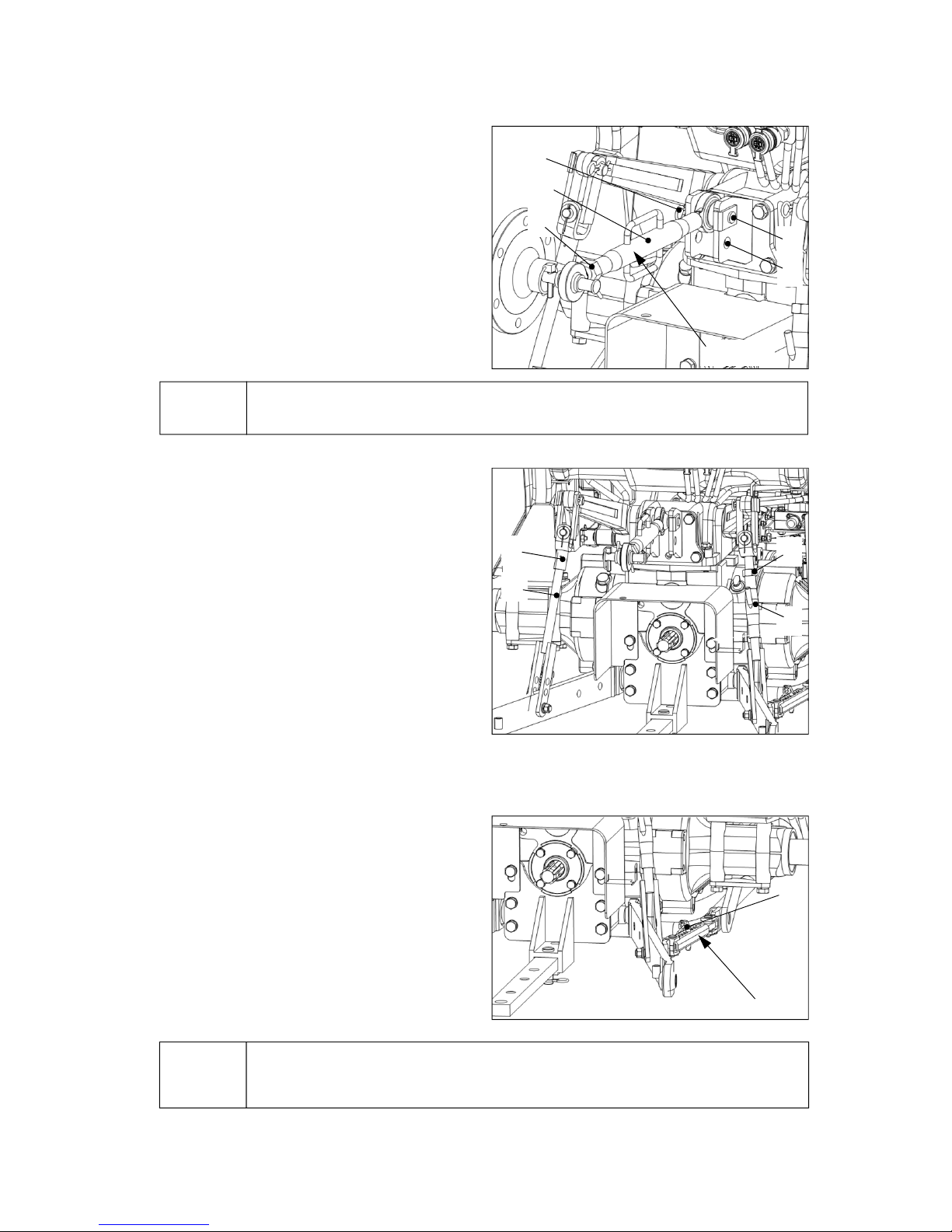

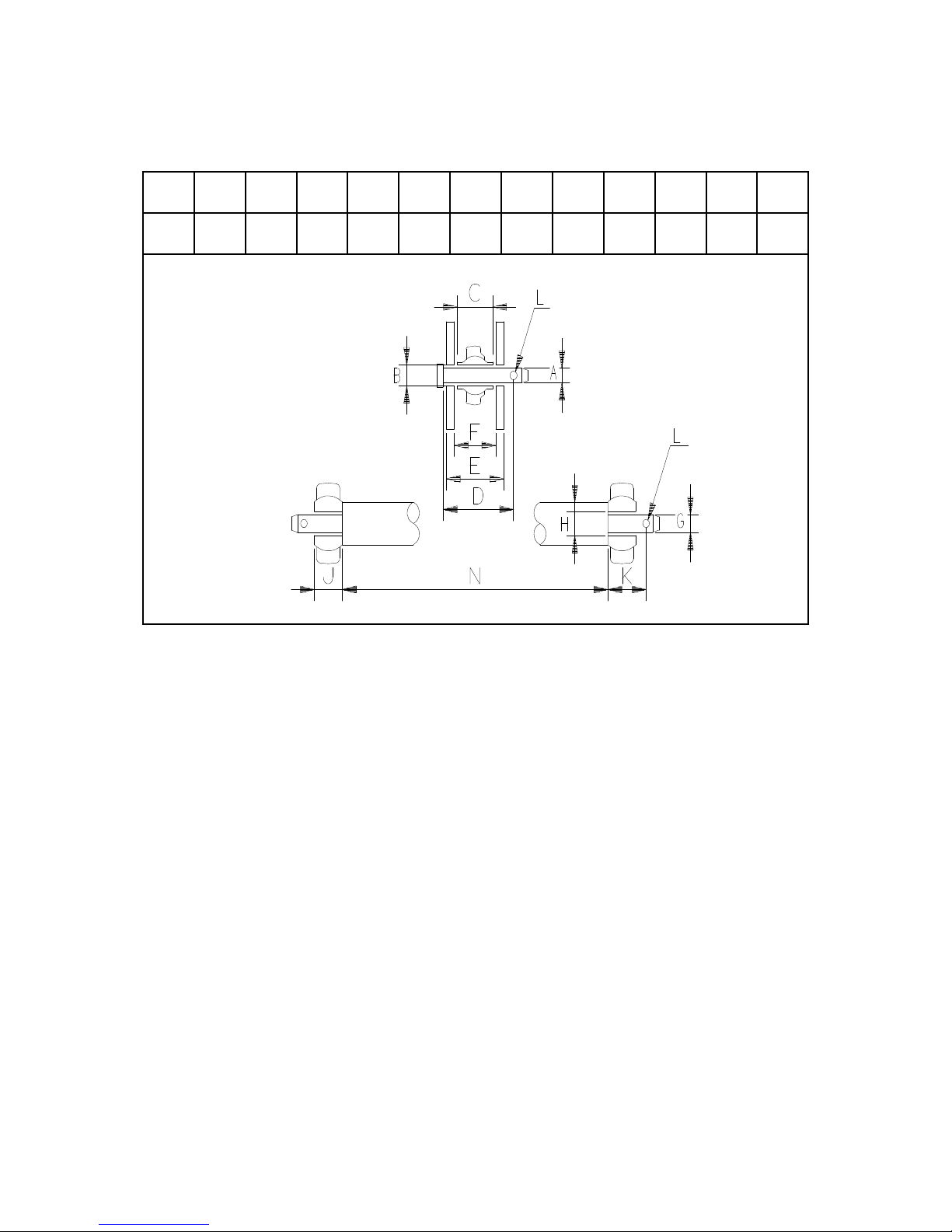

(1)3-pointlinkage·········································4-13
(2)Powertake-off(PTO)shaft·······························4-17
(3)HitchandDrawbar(optional)·······························4-19
(4) 7-Pole connector (optional)································4-20
(5)Technicallymaximumpermissiblemass······················4-21
(6) Tires and Load capacity · · · · · ·····························4-22
(7)Adjustingwheeltracksandtirereplacement···················4-23
(8) Using Front-end loader (optional) · · · · · · · · · · · · · · · · · · · · · · · · · · · 4-26
(9)AdjustingSteeringangle·································4-28
(10) Recommended maximum specification of implements ···········4-29

4-5. Driving Speed········································4-30

5. Lubrication and Maintenance

5-1. Access for maintenance ··································5-1
5-2. Maintenance chart ······································5-2
5-3. Lubricants and Capacity ·································5-6
5-4. First 50 hour check ·····································5-7
5-5. Check before starting (Daily check)

(1)Engineoil·············································5-8
(2)Fueltank·············································5-9
(3) Instrument panel & Indicators ······························5-9
(4)Turnsignallights,LightsandHorn···························5-10

Contents

6. Dimension and Specification ·······················6-1

(5)Enginecoolant·········································5-11
(6) Air cleaner (Dry type)····································5-11
(7)CleaningofRadiatorandRadiatorscreen·····················5-12
(8)Tireairpressure&damage································5-12
(9)Tighteningstateofboltsandnutsofeachpart ··················5-13
(10) Adjustment of Clutch pedal play (Mechanical type)··············5-13
(11) Adjustment of brake pedal play ····························5-14
(12)AdjustingHSTcontrollinkage(HSTtype)·····················5-15

5-6. Every 50 hour check

(1)Lubricatinggreasenipple·································5-16
(2)CleaningofRadiatorandRadiatorscreen·····················5-16
(3)CheckingTransmissionoil································5-17
(4)CheckingFrontaxleoil···································5-17
(5)Batterycheck·········································5-17
(6) Air cleaner (Dry type)····································5-17
(7) Hydraulic hoses and Leakage · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 5-17

5-7. Every 250 hour check

(1)ReplacingEngineoilandFilter·····························5-18
(2)ReplacingHydraulicoilfilter·······························5-19
(3)TensionadjustmentofEnginebelt···························5-20
(4)Toe-in···············································5-20

5-8. Every 500 hour check

(1) Changing Front axle oil ···································5-21
(2) Changing Transmission oil ································5-21
(3)ReplacingFuelfiltercartridge······························5-22
(4) Replacing Air cleaner element (Dry type)······················5-22
(5)AdjustingEnginevalveclearance···························5-23
(6)CheckingNozzleinjectionpressure··························5-23

5-9. Every 2-year check

(1)ReplacingEnginecoolant·································5-24

5-10. General maintenance (When required)

(1) Air-bleeding from Fuel system · ·····························5-26
(2)Fuse&Mainfuse·······································5-28
(3) Battery handling and Notices ·······························5-30

5-11. Troubleshooting ·····································5-34

1 -1

1. General Notices for Safety

1-1. Before using the tractor

※ Have to read and understand this operator’s manual carefully and
always refer to information and prescriptions outlined in this
manual to prevent all potential health and safety risks.

◆ General information for intended use

z Your tractor is designed and manufactured to pull, to carry, to supply the power a variety of mounted

or towed equipment for agriculture. Do not use the product for other purposes than intended by the
manufacturer and outlined in this manual. Do not use this tractor for light/heavy forestry applications.

z Do not use the product beyond its limits of terrain gradient and stability than outlined in this manual.

Using the tractor beyond these limits may cause a overturning accident.

z Do not use the tractor on higher speeds than allowed by the load of the tractor and road condition.

Always choose a suitable driving speed to maintain the stability of the tractor.

z Do not use the tractor near or on soft verges of canals and brooks or banks and verges that are

undermined by rodents. The tractor may sink sideways and roll-over.

z Do not use the tractor on brittle bridge heads and poor bridge floors, These constructions may

collapse and cause overturning of the tractor. Always check out the condition and carrying
capacity of bridges and ramps prior to engage.

z Do not use the tractor without wearing the seat belt and Roll-Over Protective Structure (ROPS)

during operations where roll-over or tip-over hazards exist. The ROPS will only be fully effective when
the driver remains attached to his/her seat.

z Do not use equipment mounted on the tractor which is not correctly matching and firmly fixed.

Such equipment may increase the risk for roll-over and hit the tractor when coming loose.

z Do not use the tractor in combination with equipment arbitrary, without having consulted the

specific operator’s manual provided with the equipment. This manual alone cannot provide you

with all the information about safety operation of the combination.

z Do not use the tractor beyond its limits of dynamic stability. High speed, abrupt maneuvers, and

fast and short cornering will increase the risk of roll-over.

z Do not use the tractor for overloaded pulling work, in cases where you don’t know if the load will

yield, for instance when pulling stumps. The tractor may flip over when the stump is not yielding.

z Be extremely cautious when working with the tractor on forage silos without lateral con crete walls.

A wide track setting may improve the lateral stability of the tractor.

z Be cautious that the center of gravity of the tractor may increase when the front-end loader is

loaded or the three-point linkage are raised. In these conditions, the tractor may roll-over earlier than
expected.

z Do not step down from the tractor without shutting down the PTO, shifting the transmission

to neutral and applying the parking brak e.

1 -2

◆ Safety Mark Description

- In the places where the cautions in usage are required, the marks such as “DANGER”, “WARNING”,
“CAUTION” are found.

- You should comply with the description marked on the decals attached on the product or the conten ts
marked with safety mark in this Operator's Manual..

Warning – This indicates a potential dangero us situation that may cause a serious
injury or death if not avoided.

Caution – This indicates a potential dangerous situation that may cause a light
injury or damage to the properties if not avoide d .

Notice – This indicates the instructions for right use for the safety of persons or
products.

Danger – This indicates a fatal dangerous situation that may cause a serious injury
or death if not avoided.

Notice

Caution

Warning

Danger

z Never remove or modify or change the driver’s protection device or safety device arbitrary.
z You must take the necessary precautions to always be aware of the possible presence of

bystanders, certainly when maneuvering in confined areas. Keep people away from the tractor during
work. Pay the necessary attention while operating next to public roads or footpaths. Thrown objects
can get projected outside the field and hit unprotected people like bikers or pedestrians. Wait until it is
clear of bystanders.

z Do not violate the local traffic rules related to public roads and highways.
z Do not allow riders on the tractor; do not allow people standing on the access way or step to the

cab when the tractor is moving. Your view to the left will be obstructed and a rider risks to fall from the
tractor during unforeseen or abrupt movements.

z This tractor has only one operator station and is a one man operated vehicle. Other people on or

around the tractor during normal operation are not allowed.

z Always stay clear from implements operating area and especially do not stand between tractor

and trailed vehicle either three-point linkage when operating lift controls; ensure no bystanders

are near these operating areas.

z This tractor may be equipped with a number of sensors to control safety functio ns. Do not attempt

to bypass any function on the tractor. You will be exposed to serious hazards, and moreover, the

behavior of the tractor may become unpredictable.

z The manufacturer will not be responsible for the damage or safety problems caused by maintenance

or repair with non-genuine parts. It must be requested to use the genuine parts.

z When cleaning the tractor by using high pressurized water, do not inject water directly to the

electronic parts, wiring, air intake pipe, hot engine or muffler inside the bonnet.

z Maintenance and repair of the tractor is performed by skilled technical experts with the proper

tools authorized by the manufacturer.

z For damage or accidents caused by misuse or operation in violation of these rules, the manufacturer

and its distributors will not have any responsibility and warranty.

z Keep this operator’s manual for future reference at hand (on the tractor).

1 -3

◆ Terminology

When reading this Operator's Manual, refer to
the right figure for the discrimination of the front/
rear/ left/ right direction.

Front

Rear

RightLeft

Fig.1-4

TM number

Fig.1-1

Fig.1-2

Fig.1-3

Chassis No.

Engine No.

Hour meter

◆ Product Identification

Your tractor has a exclusive chassis number and
engine number marked with product serial number
tag to identify the product. (See Fig.1-1)

In case of requesting service or parts from your

dealer, dealer will need chassis serial number,

engine serial number, TM number and also running
hours displayed on the instrument panel. (See Fig.
1-3)

1 -4

1-2. Safety Precautions - read this for safety before using.

(1) Notices before using the tractor

z For Safety Instruction : Before using the tractor,

read this Operator's Manual carefully and
understand the instructions fully for the safety
prevention and right usage of the tractor and then
use the tractor safely according to the instructions.

Read Operator’s
Manual.

▶Additional seat (where fitted) is used for driver training or instruction. Do not permit

anyone to ride on the tractor.

Warning

z Operator’s condition : The persons such as

patients, drunks, people on drugs, etc. are never
allowed to operate this tractor.
Only educated operators can use the tractor
after learning the usage of controls for moving,
stopping, turning and other operating.

z Suitable Clothes & Protect Entanglement :

When checking or operating the tractor, wear
tight fitting clothes and safety equipment instead
of loose or long clothes. Also, slippers, high
heel shoes are not suitable for operation. Wear
the low shoes or work shoes or boo ts.

Warning

▶Do not approach the rotating shaft such as PTO shaft or cooling fan, especia lly,

with loose clothing and long clothes. The entanglement in rotating shaft can cause
serious injury or death.

▶Stop the engine and be sure PTO shaft is stopped before getting near it.

z Keep Riders off : Riders on the tractor or implements obstruct the operator’s view and can be

thrown off the tractor. It can cause a serious injury or death. Riders should not be carried on the
tractor at any time.

z Safety Decals : For right use and personal safety of the operator, the safety decals are attached to

the parts related with safety operation. Before using the tractor, comply with the safety instructions.
(For further information, refer to the section 1-6, “Safety Decals”)

Especially, special cares must be taken for using the tractor in the places where the safety

signs such as Danger, Warning, Caution etc. are marked. (See page 1-2)

1 -5

z Protect Children : Pay special attention to children (or a child) while using the tractor or during

storage.

- Make sure children keep a safe distance from the tractor and all implements before using the
tractor. Be alert to the presence of children.

- Do not let children or an untrained person operate the tractor.

- Do not allow children to approach the tractor while the engine is running.

- When parking the tractor, remove the ignition key and lower implements to the ground for
children’s safety.

▶As children are very curious, they may do unexpected movements or actions.

Special care must be taken, when operating tractor or equipment.

Warning

z Lamps : Do not modify the lamps or change the bulb capacity arbitrarily.

▶ Modified lamps or change bulb capacity may cause the traffic accident by

disturbing approaching driver’s views.

▶ If the lamp is blown out, replace it immediately with a genuine part. In case of

driving at night, it may cause a traffic accident.

Warning

z Periodical Check : “Lubrication and Maintenance” must be performed periodically. If necessary,

do it immediately and if not, it may cause a failure, reduction of product life or physical injury.

* Periodic Lubrication and Maintenance
Fuel, Oil, Filter, Air cleaner, Battery, Belt, Cable, Grease, Ped als such as clutch and brake ped al,
Tire air pressure, Wheel bolts, Toe-in, Electrical wirings, other items related to safety.

z Genuine Parts : When replacing parts, you must use “Genuine Parts” of LS tractor. Contact your

authorized local dealer. If not, it may cause a reduction of product life, failure and serious injury.

z Restrict Maintenance : If repairing or changing some components or settings arbitrary, the

performance of the tractor can NOT be guaranteed, and may void the warranty. And also,
maintenance of the heavy weighted parts without special tools may cause serious injury. These
works have to be treated by well-educated and skilled service experts.
If required to check or repair the tractor due to such a trouble, or having any question about your
tractor, contact your authorized local dealer.

* The items that are not allowed to be modified or removed arbitrarily by user are as below :

- Protection structures such as PTO cover, Guards, Safet y frame(Roll-ba r), Cab, etc.

- Engine components, Fuel injection control and setting, etc.

- Automatic control equipment, Lamps, Transmission, Hydraulic valve and pressure setting s.

- Other parts that detail and where complicated adjustments are needed.

1 -6

z Protective Structures : For the operator’s safety, various protective structures, i.e. Bonnet (Hood),

Fan cover, PTO safety cover, PTO shaft protection cap, Roll-bar or another Roll-over Protective
Structure, etc are attached on the tractor. If these structures are modified or removed by user
arbitrarily, it may cause serious accident. Such behaviors are prohibited strictly.

Warning

▶ The Protective Structure and interconnecting components are a certified system.

Any damage, Fire, corrosion or modification will weaken the structure and reduce
your protection. If this occurs, the Protective Structure MUST be replaced with a
new one. Contact your authorized local dealer for Protective Structure inspection
and replacement.

▶ In case of an accident, fire, tip or roll-over, the following MUST be performed by a

qualified technician before operating the tractor again.

- The Protective Structure MUST be replaced.

- The mounting or suspension for the Protective Structure , operator seat and
suspension, seat belt and mounting compo nen ts and wiring within the operat or’s
protective system MUST be carefully inspected for damage.

- All damaged parts MUST be replaced.

▶ DO NOT attach any device to the Protective Structure for pulling purposes.
▶ DO NOT weld, drill holes, attempt to straighten or repair the protective

structure. The modification can reduce the structural integrity of the
structure which can cause death or serious injury in the event of fire, tip, roll
over, collision or accident and void the warranty.

z Level of protection of the FOPS (Falling Objects Protective Structure) : This tractor does NOT

provide any protection against falling objects according to OECD code 10 stan da rd. It is
recommended to use a certified FOPS structure when working with front-end loaders.

z Level of protection against hazardous substances : This tractor does NOT provide any

protection against hazardous substances. Do not use the tractor with crop sprayers in hazardous
area.

z Level of protection of the OPS (Operators Protection Structure) : This tractor does NOT

provide any protection against

- low hanging wires and branches in the forest, orchard or construction area, etc.

- toppling trees, primarily in case a rear-mounted tree grab-crane is mounted at the rear of the

tractor.

- penetrating objects in the operator’s enclosure, primarily in case a winch is mounted at the rear of
the tractor.

- potential risks by using any optional equipment that might be available to deal with those hazards.

NEVER enter or operate these hazardous area without certified Operator Protective Structure
installed.

1 -7

Warning

▶Do not start the engine in a closed area. The poisonous exhaust gas can cause

fatal damage to the driver or persons around.

Starter motor

(2) Notices when starting Engine

z Check each part with reference of “5. Lubrication

and Maintenance” in this manual. If necessary,
repair or replace it immediately. Especially,

check if safety protection structures or
covers are attached originally and the bolts
and nuts are tightened well.

z Before starting, check again if there are other

workers or children around the tractor and
implements and keep a safe distance.

z Start engine and operate the tractor after sitting

on the driver’s seat correctly with seat belt

fastened.

z Place the shuttle lever, transmission gear lever

in NEUTRAL and especially check if parking
brake is applied.

z Lower the implements on the ground.
z Ensure that rear view mirrors and the other

mirrors (if fitted) are adjusted correctly, and
check the operation of the headlights and other

lights.

z For driver’s safety, to prevent an unintentional

start, movement and operation, several and
various start-safety interlock devices may be
equipped on your tractor. And, these installation
may need to do correct operation and follow the
procedure strictly. Read carefully section 4-1,

“Engine start and stop” in this manual before

trying to start engine.

z Do not short across the starter motor terminals

to start engine. It may cause a sudden start and
serious injury or death.

z Keep maintenance tools away from engine after

check and repair.

1 -8

z Connect left and right brake pedals while driving

on the road. (if fitted)

z DO NOT use differential lock device while

driving on the road or turning in the field.

z DO NOT ride your foot on the brake pedal or

clutch pedal.

z Lower the driving speed enough before turning a

sharp curve. Especially, when you drive the
tractor with implements, make the turning radius
wider.

z DO NOT start or stop the tractor suddenly.

Engage the clutch and brake softly. If not, front
wheels can be lifted up and it is very dangerous.

z Do not jump up and down while tractor is moving.

When getting off or on the tractor, use the grip or
handrail and sub step to prevent falls.

(3) Notices while operating/using the tractor

z Ventilation

Warning

▶It is very dangerous to work in

a closed area. The poison ou s
exhaust gas may cause serious
damage to the human body. If
you should work in this area,
make sure to ventilate well and
put on the protective mask.

z When driving the tractor in reverse, lower the

engine speed. Make sure to check if there is any
obstacle or person in the rear.

z DO NOT permit other people and especially

children approach within working area while
operating tractor and equipment.

z Noise and Vibration : When working between buildings or in confined spaces, the sound pressure

level can be increased. Wear suitable ear protectors in high noise level conditions. When working
with equipment in the field, vibration intensity from equipment may be increased. To reduce the harm
to the body, take a rest periodically.

1 -9

z When working at the edge of steep slope, take

special care about a turn-over.

z When working, wear the protection equipment

and tighten the seat belt.

z If the authorized passenger seat are not installed,

keep riders off.

z On a downhill, operate the throttle pedal and

brake pedal slowly and DO NOT drive while the
transmission gear is in NEUTRAL.

z To climb a steep slope, drive tractor slowly in

reverse up the slope rather than forward. It is
much safer.

z When turning the tractor on a slope, pay

attention to safety especially.

z When crossing a high ridge, let down the

implement and go straight across the ridge at
low speed.

z When connecting the implements to the

front/rear of the tractor, install the proper
additional weights in the rear/front of the tractor
to keep the balance of the tractor.

z Obey the traffic rules while driving on public

roads. Do not exceed the local legal speed limit.
Use a beacon or slow moving vehicle (SMV) to
indicate that the vehicle is slow moving.

z If you can not drive the tractor due to a failure,

move the tractor to a safe place and install
troubled vehicle (safety tripod).
(Day : backward 100m ( 328 ft )

Night : backward 200m ( 656 ft))

z Do not overuse the fuel, oil, etc and pay attention not to contact the skin directly. Generally, these

materials contain harmful materials to the human body. When you work in a area where hazardous
chemicals are sprayed, check the cabin filter (if fitted) and replace the filter with suitable one for the
purpose being used. To protect the body completely from these harmful materials, wear a safe
protection equipment such as mask, and clean the body after working.

1 -10

z Attach or detach the implement on wide and

level ground.

z Do not use the tractor in combination with

equipment arbitrary, without having consulted
the specific operator’s manual provided with the
equipment.

z You have to stay clear from the three-point

linkage when controlling it. Do not stay between
tractor and implement.

z Do not stay between tractor and trailed vehicle

for connecting/disconnecting or checking it.
Trailed vehicle may roll down or tractor can
move reverse.

z When towing the trailed vehicle, use only hitch

or drawbar. Do not tow by connecting with any
other structures.

z When connecting heavy implements, apply the

parking brake and use the wheel chock.

z Do not attach over-weighted implement.

▶Before connecting or checking the implement, put PTO switch to OFF and place

PTO gear lever in Neutral position.

▶When attaching or detaching the implement, make sure to fix the implement and

tighten the three point hitch pins correctly. If not, the serious troubles and injury can
occur during the operation.

▶If heavy loaded trailer is connected to 3-point linkage or any structure, it can cause

turnover or failure and serious injury. Make sure to use towing hitch or authorized
draw bar.

Warning

(4) Notices when connecting Implement

▶When connecting or disconnecting hydraulic coupler, lower implement on the

ground, turn off engine and check if the pressure of hydraulic line is released.

▶ When installing the implement having big hydraulic cylinders or lines, check oil

level in tractor transmission housing after installing the implements.

Caution

1 -11

z Check the horizontal and vertical permissible load of the hitch (or drawbar) before towing. The load

is different with trailer brake, and stopping distance increases with speed and weight of towed loads
and slope. Make sure you consider the total weight of the equipment and its load. (See section 4.
“Hitch and Drawbar” )

z Drive slowly when towing extremely heavy loads.
z Do not tow trailers that are not fitted with an independent braking system.

(5) Notices when towing the tractor

(6) Notices when transporting the tractor

z When transporting the tractor by truck, trailer,

etc, use suitable equipment or facilities to
load or unload the tractor.

z Fix the tractor tightly to the vehicle with heavy-

duty straps or chains.

z When fixing the rear of the tractor, use the hitch

or hitch support.

z When fixing the front of the tractor, use the

towing hook.

z When driving on public roads, the transporting

vehicle must have signs and lights required by
local regulation to avoid collision with a vehicle.

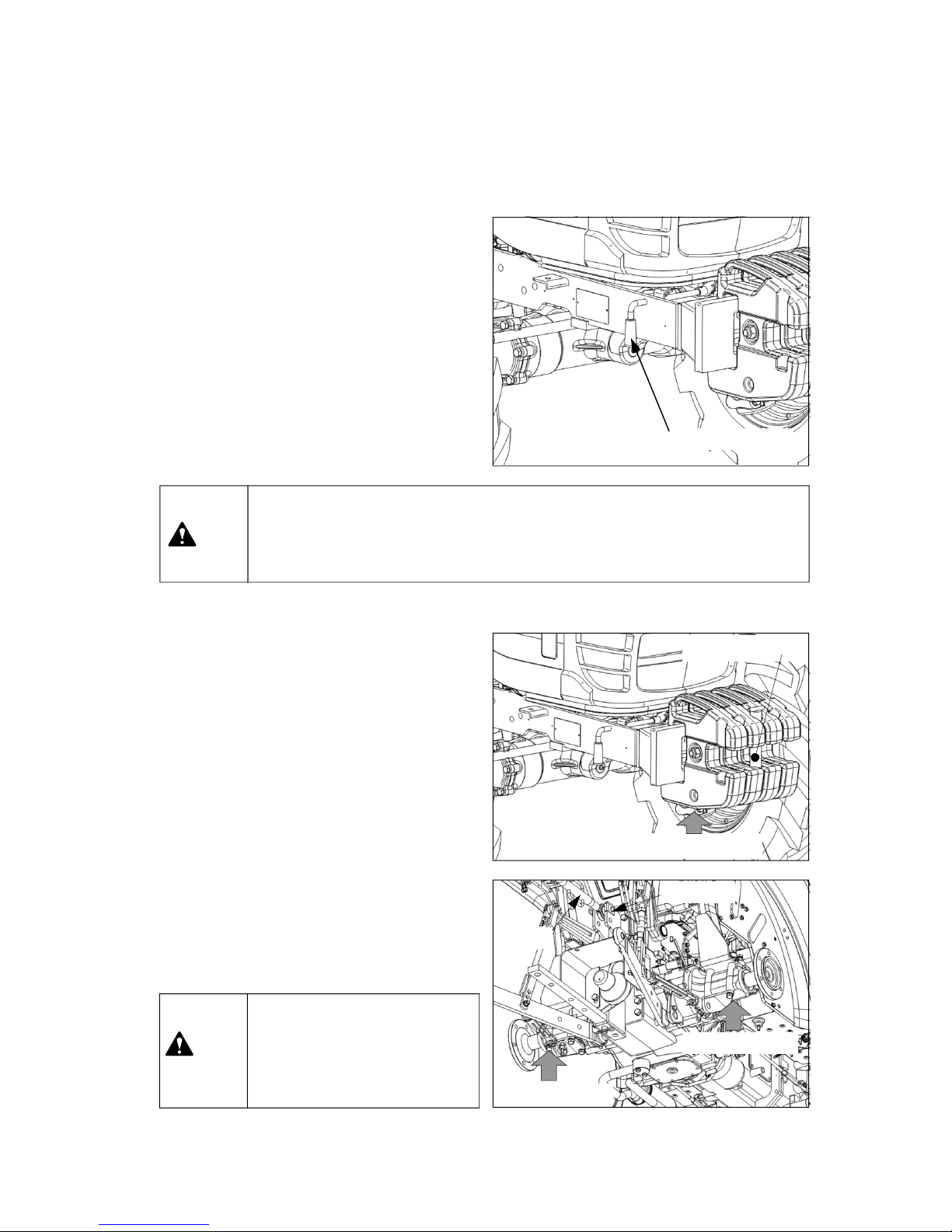

z If your tractor needs to be towed for a short

distance, use the hitch (or drawbar) or front
towing hook. Do not connect to other structures
such as rear axle, ROPS, front axle, steering
components for towing.

z Tractor can be steered for a short distance

without engine running, but it will be hard to turn
the steering wheel. If possible, run the engine for
steering and lubrication.

z When being towed, disengage the 4WD,

differential lock, parking brake and place all gear
shift levers in neutral position.

▶ When fixing the tractor, do not hook or connect chains to the 4WD shaft, steering

cylinder, tie-rod or front axle. These can be damaged by the chain or excessive
strain.

▶ In case of turbocharg er engin e (where fitted), cover the exhaus t outlet to protect

that the turbocharger does not rotate by air without lubrication.

Caution

1 -12

(7) Notices when servicing the tractor after work

z The check and maintenance must be performed after stopping the engine and cooling down

the engine sufficiently.

Warning

▶When opening the radiator cap,

hot cooling water or steam may
explode. Remove the cap using
a thick rag or glove to prevent
serious burns.

z Keep an approved fire extinguisher and First-aid-kit on your tractor.
z Never fill the fuel tank while the engine is running or the engine is hot. And never smoke or have

open flames around fuel tank.

z To prevent fire or explosion, keep flames or sparks away from battery. Do not grind, smoke, or weld

near a battery. For further information, see section 5-10-(3), “Battery handling and Notices”.

▶Always remove grounded (-) battery clamp first and assemble it last. If not, it

can cause an explosion by spark.

▶The gas generated from the battery is explosive. Keep cigarettes, sparks and

flames away from battery. Never check battery charge by placing a metal object
across the terminals.

▶Sulfuric acid in battery electrolyte is poisonous. It is strong enough to burn skin,

clothing and can cause blindness if splashed into eyes. Do not touch the battery or
liquid by bare hand without gloves or any protection. Flush eyes with clean water for
about 20 minutes If the electrolyte is splashed into the eyes. Get medical attention
immediately.

▶Do not short circuit the battery posts with metal items.
▶Battery post, terminals and related accessories contain lead and lead compounds.

MUST WASH YOUR HANDS AFTER HANDLING.

Warning

z DO NOT pour water into the radiator or engine

when the engine is hot. The engine or radiator
may crack.

Warning

▶Before removing hydraulic pipes or hoses and other parts, make sure to check that

hydraulic pressure is relieved completely. The leaks of pressurized oil can cause a
fatal physical injury.

▶Use proper protection equipments, befo re servicing hydrau lic system.
▶Before connecting or disconnecting the hydraulic quick coupler, lower the

implements to the ground, and check that hydraulic pressure is relieved.

z Before checking or repairing hydraulic system and fuel system, make sure the engine is stopped,

and all the transmission gears are in neutral, and lower the implements to the ground. The

leaks of pressurized fluid can cause a fatal physical injury. If injured by leaking fluid, get medical
attention immediately.

1 -13

(8) Notices when handling Diesel Fuel

z Do not mix gasoline, alcohol or blended fuels to diesel fuel. These mixtures are explosive in fuel

tank.

z Never remove the fuel cap or refuel with the engine running or hot.
z Do not smoke while refueling the tractor. Keep any type of flame away.
z Maintain control of the fuel filler nozzle when filling the fuel tank.
z Do not fill the fuel tank to capacity. Fill only to the bottom of the filler neck to allow room for

expansion.

z Wipe up spilled fuel immediately and always

tighten the fuel tank cap securely.

z If the original fuel tank cap is lost, replace it with

an approved one.

z Never use fuel for cleaning purposes.
z Arrange fuel purchases so that summer grade

fuels are not held over and used in the winter.

z Before operating with Bio-Diesel, contact your

authorized local dealer for information relating to

the use and storage of Bio-Diesel.

z Before servicing the tractor, attach a “DO NOT

OPERATE” warning tag to the tractor in an area

that will be visible.

See other side

Reason :

DO NOT

OPERATE

DO NOT

OPERATE

Signed by :

Tel :

z Keep the area used for servicing the tractor

clean and dry. Wet or oily floors are slippery. It

can be dangerous when working with electrical
equipment.

z Remove all litter or debris from the tractor.

Especially check the engine area and exhaust
system.

z Electric sensors, switches, harness and engine

control unit (ECU) are very sensitive and
delicate. Strictly prohibit injecting water,

mechanical impulse and any kind of welding
on engine.

z When lifting heavy parts like engine, axle, tire

etc, make sure to check the lifting facilities

have enough strength and capacity.

z Do not attempt to remove or unfasten the air conditioning components arbitrary. There is a

possible to be severely frostbitten or injured by escaping refrigerant. Contact your authorized local

dealer to work air conditioning systems. (if fitted)

1 -14

z Stop the tractor on level ground.
z Place the transmission gear in neutral and put

PTO switch to OFF position.

z Lower the mounted implements on the ground.
z Apply the parking brake.
z Stop the engine and remove the ignition key.
z Before you leave the operator’s station, wait for

engine and all moving parts to stop.

z Have to apply the wheel chock when parking the

tractor on a slope unavoidably.

▶ When parking the tractor on a slope unavoidably while attaching the loaded

equipment, the tractor may move even if the parking brake is applied. Apply the
wheel chock and low speed transmission gear as follow.

-. Mechanical : downhill ⇒ Reverse 1gear / uphill ⇒ Forward 1gear

-. HST type : Lowest gear

Caution

(9) Notices when leaving the tractor

(10) Notices relating to T oxic substances

z Exhaust gas and some its constituents of the Diesel engine are known to the State of California to

cause cancer, birth defects, and other reproductive harm. (California proposition 65)

z Battery post, terminals and related accessories contain lead and lead compounds. MUST WASH

YOUR HANDS AFTER HANDLING.

z When handling engine oil, diesel fuel, anti-freeze solution and other chemical substan ces, wear

protective clothes, mask and gloves.

1 -15

1-3. Long-term storage

Lift rod

Lift arm

Locker (Hook)

Clutch pedal

(1) Preparation for storage

※ Wash the tractor cleanly and follow the

procedure as below.

z Apply grease or lubricant oil or spray paint to the

non-painted metal to avoid corrosion. Keep the
tractor in a covered, dry and well-ventilated
place.
Temperature : 10℃ ~ 35℃ (50℉ ~ 95℉)
Humidity : 45% ~ 70%

z Place all controls, including electrical switches,

in neutral position and apply the wheel chocks to
the tires and disengage the parking brake.

z Check the lubricant level of each parts and if the

engine oil has exceeded 100 hours of work,
change the oil and run the engine for 5 minutes
at idle rpm.

z Drain engine coolant completely. If the engine

coolant is anti-freeze solution, it is not necessary
to drain but check its density.

z Fill the fuel tank full with fuel.
z Loosen all drive belts and clean the air cleaner.
z Loosen the rubber plug (if fitted) under the clutch

chamber to drain water.

z Remove the battery, clean the cover and smear

the terminals with grease. Place the battery in a
ventilated place not less than 10°C (50°F) and
away from direct sunlight.

z Remove the lift-rod and place the lift-arm to the

highest position to lubricate the internal cylinder.

z Depress clutch pedal fully and apply the clutch

pedal locker. This locker prevent clutch disk from
sticking to engine. (Mechanical only)

z If possible, fit stands or other suitable supports under the axles to raise the wheel off the ground.

And let the air out of the tires. If not, check the tire pressure from time to time.

z Remove the ignition key.
z Cover the tractor with a non-water-proof cover.
z If the implements are attached, lower the implements on a support off the ground.

1 -16

(2) Check & Maintenance during storage

z Apply grease or lubricant oil to non-painted metal to avoid corrosion.
z Check the leakage of fuel, oil and coolant. If necessary, repair the damaged part.
z Check if the tire air pressure is normal.
z Have to start engine periodically, at least every 6 month for lubrication in fuel injection pump.
z The battery should be charged about once a month not to be discharged entirely.

▶ As the electrolyte of battery is sulfuric acid, it is emits the explosive and poisonous

gas. It is strong enough to burn skin, clothing and can cause blindness if splashed
into eyes.

- Keep the sparks and flames and cigarettes away from the battery.

- When handling the battery, wear safety glasses to protect the eyes.

- If the electrolyte contacts the eyes and skin, wash with water immediately and go
to see a doctor.

▶ When removing and storing batte ry, select dry and cool place out of reach of

children.

Caution

(3) Preparation for Reuse

※ When using first after long-term storage, check each part as below.

z Check the damaged part or loosen part.
z Check the leakage of fuel, coolant, engine oil, transmission and front axle oil.
z Check the level and density of the engine coolant.
z Check the level of engine, transmission, rear and front axle oil, and fuel.

(For further information, refer to the section 5, “Lubrication and Maintenance” in this manual.)

z Check all drive belts carefully, paying particular attention to the point where the straight run of the belt

starts to bend around the pulley. Check the vee groove in the pulley for corrosion.

z Electric system check

- Is there any open circuit or any other problem in the wiring?

- Is there any problem of the instruments?

- Is the charging state of the battery sufficient?

z Start engine, and check the engine oil pressure indicator and battery charging indicat or in the

instrument panel. These indicators have to be turned off while engine is running.

z Run the engine at a fast idling speed (suggest 1000/1500 rpm) until normal operating temperat ure is

registered, and check the surroundings for oil, fuel and coolant leakag e.

Warning

▶ When restarting engine at the end of long-term storage, follow the instructions of

the “Preparation for Reuse” as below.

1 -17

1-4. Notices for ”Use & Disposal” related to the environment

Soil, air and water are essential elements for human life. To contribute to environmen t

preservation of the Earth, we are trying to minimize the environment pollution necessitated by
general business activity such as product design, manufacturing, distributio n, etc.
Several substances and products derived from chemical and petroche mical prod ucts are major
portion of environment pollution and must be disposed of according to environment laws or
related regulations, and common sense.
We’d like to notify the following items for “Use & Disposal” related to environment preservation.

1. Avoid the overloaded work after reading the operator's manual.
Overloaded work may reduce the life of the product as well as the unburned exhaust gas
occurred during overload work becomes the major cause of air pollution.

2. When you replace various oils (engine, transmission, anti-freeze solution) directly, do not
throw the exhausted waste oil to any place.
This may pollute the soil and water seriously and also is prohibited legally. If violating, you
would be responsible for that by civil or criminal case. The waste oil must be disposed
according to the environment laws.

3. Use the product according to the operator's manual and if the life of product ended, do not
throw away (or dispose) to any place. The rust water or oil coming from the disposed
product may cause the pollution of soil or water. Thus, the wasted product must be
disposed lawfully, contact your authorized local dealer nearby.

4. Modern lubricants contain additives. Do not burn the disposed oil or fuel in conventional
heating systems.

5. When handling fuel, lubricants oil and coolants, do not left to be absorbed into the ground.
They must be collected and disposed in a suitable manner.

6. Do not adjust the setting of the fuel delivery system. This will alter the emission of
exhaust fumes.

1 -18

Gear Neutral

The followings show the symbols and its meaning used for the tractor.

1-5. Symbols

Low speed

High speed

Engine speed
control (throttle)

Engine speed
control (throttle)

Position control
(Up)

Position control
(Down)

Draft control
(Deep)

Draft control
(Shallow)

Forward/Rearward

Forward

Backward

4WD disconnection

4WD connection

Quick turn

(optional)

Parking brake

Turn signal
light

Headlights
(downward)

Side lights

Headlights
(upward)

Work light

Light switch

Emergency lights

Cylinder rod
(shorten)

Cylinder rod
(extend)

Cylinder rod
(floating)

Window wiper

Window wiper
/ Washer (front)

Window wiper
/ Washer (rear)

Cruise drive
(optional)

Cruise drive
release (optional)

Fuel level

Refer to operator’s
Manual.

Fuel filter

Battery charging

Caution!

Transmission
oil pressure

Engine oil press­ure

Engine coolant
temperature

Diesel engine
preheat

Differential lock
device

horn

Engine stop

PTO in operation

PTO stop

Engine start

One side brake
light (optional)

DPF temperatureDPF regeneration DPF inhibited

Engine warning

1 -19

(2) Safety Decals and Attaching position

1-6. Safety Decals

(1) Handling and Maintenance of Safety Decals

z For intended use and personal safety of the operator, the safety decals (labels) are attached to the

parts related with safety operation.

z Before operating or maintenance of the tractor, check the position and read the instructions carefully.

▶ The instructions described on the safety decals are very important for the safety of

the operator and workers around. If ignored, it may cause the death or serious
injury.

▶ If the decals are dirty, wash them with soap water and wipe with soft rags. Do not

use the thinner, acetone, or other harsh chemicals as it may erase the instructions.

▶ If the decal is detached or damaged, replace it with a new one on original position.
▶ When cleanin g the tractor with pressurized water, the decals can be detac hed .
▶ If a decal is on a part that is replaced, make sure the decal is attached on the new

part.

Caution

z If you find “Read Operator’s Manual” symbol (1) in

the decals, refer to the appropriate page of the
operator’s manual for further information regarding
operation, adjustment and maintenan ce.

1

3

1

2

7 8

9 6 10

3

511

4

1 -20

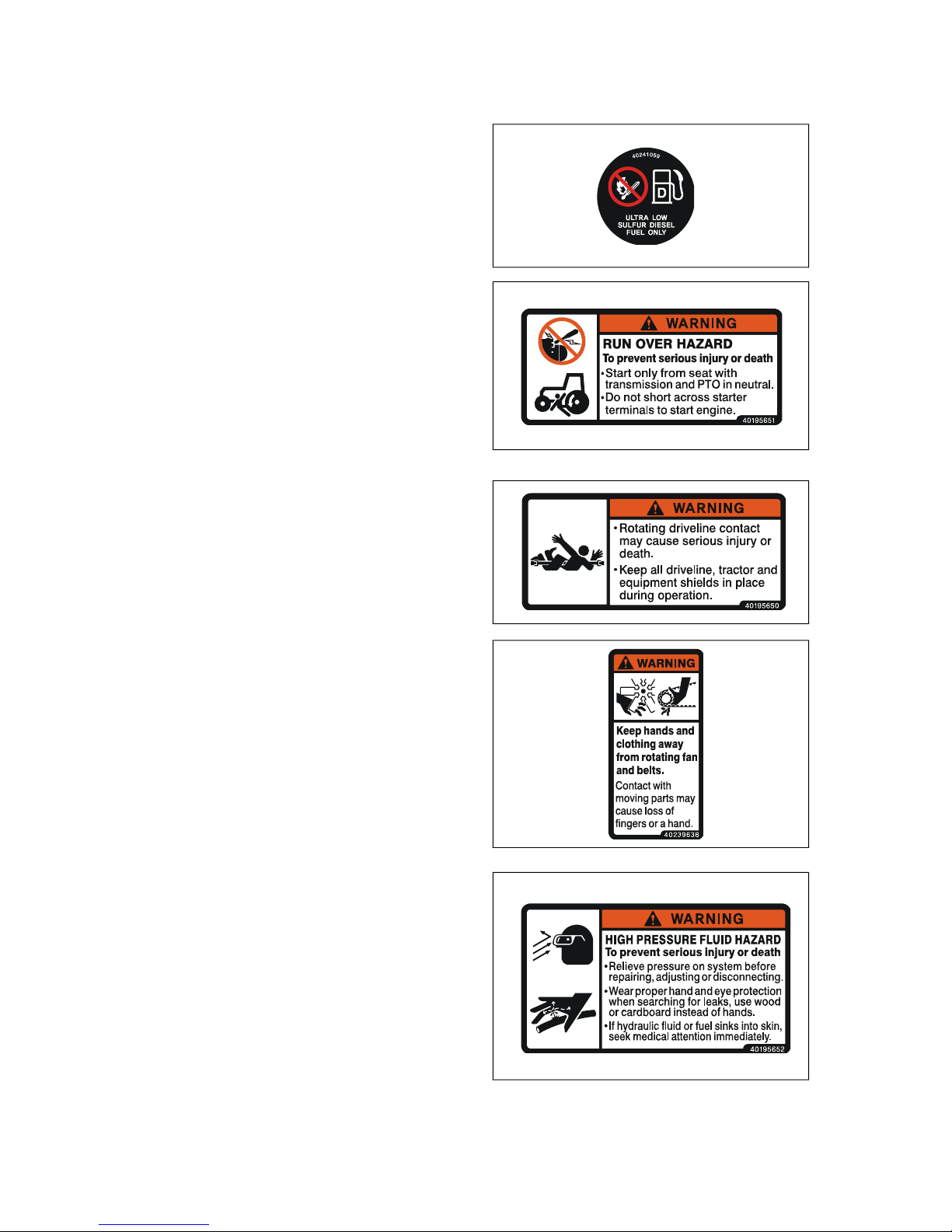

1. Location : On top of the Fuel Cap

- Ultra low sulfur diesel fuel only.

- Do not smoke while refueling and keep any
type of flame away.

- Part No. : 40241059

2. Location : On the left-hand side of the
operator’s platform, at the front of the
platform.

- RUN OVER HAZARD

- To prevent serious injury or death;

• Start only from seat with transmission and

PTO in neutral.

• DO NOT short across starter terminals to start

engine.

- Part No. : 40195651

3. Location : On top of rear PTO guard.

- Rotating driveline contact may cause serious

injury or death.

- Keep all driveline, tractor and equipment

shields in place during operation.

- Part No. : 40195650

4. Location : On the left/right-hand side of the
fan shroud.

- Keep hands clothing away from the rotating fan

and belts.

- Contact with moving parts may cause loss of

fingers or a hand.

- Failure to comply could result in death or

serious injury.

- Part No. : 40239638

5. Location : On top of left-hand fender.

- HIGH PRESSURE FLUID HAZARD

- To prevent serious injury or death;

• Relieve pressure on system before repairing,

adjusting or disconnecting.

• Wear proper hand and eye protection when

searching for leaks, use wood or cardboard
instead of hands.

• If hydraulic fluid or fuel sinks into skin, seek

medical attention immediately.

- Part No. : 40195652

1 -21

6. Location : On top of the left-hand fender

- TO PREVENT DEATH OR SERIOUS INJURY;

- Keep Roll-over Protective Structure fully

upright and locked.

- Do not operate vehicle without ROPS locking

pins in position.

- When ROPS must be lowered:

• Drive with extreme care.

• Seat belt use is not recommended.

• Do not attempt to fold ROPS when a canopy

is fitted.

• ROPS is heavy. Always work with an
assistant when lowering or raising the ROPS.

- No roll-over protection is provided when ROPS
is in lowered position.

- Part No. : 40234715

8. Location : Under the hood, in the middle of
the bonnet hinge.

- TO PREVENT SERIOUS INJURY OR DEATH;

Beware hot part. Keep clear of muffler to avoid
injury.

- Failure to comply could result in serious injury.

- Part No. : 40239636

7. Location : On top of air intake pipe.

- TO PREVENT DEATH OR SERIOUS INJURY;

High pressure steam and hot water. Remove
filler cap with extreme care.

- Failure to comply could result in death or

serious injury.

- Part No. : 40297729

WARNING

1 -22

9. Location : On top of the left-hand fender

① CAUTION

- PTO selector & lever must be in OFF position

to start engine.

- Do not operate on hard surfaces with 4WD

engaged.

② WARNING

- TO PREVENT SERIOUS INJURY OR DEATH;

• After first hour of operation and daily thereafter,

check front and rear wheel lug nuts and bolts
for proper torque.

• PTO - keep hands, feet and clothing away from

PTO & other moving parts.

• Disengage PTO and shut off engine before

servicing tractor or implements, or attaching /
detaching implements.

• Keep all safety shields in place for your

protection.

• Pull only from approved drawbar or lower links

of 3-point hitch at horizontal position or below.

• Lock tractor brake pedals together for travel on

roads or highways.

• Always apply parking brake and shift

transmission to neutral before dismounting.

• Always use a seat belt when you operate the

tractor.

• Allow no riders on tractor or implements.

• Do not use a seat belt when operating with

folding ROPS in lowered position.

• Engine exhaust fumes can cause death or

sickness. Always try to work in a ventilated
area.

• Disengage the differential lock when turning

the tractor. Always disengage the differential
lock when driving on roads.

• Depress on or both brake pedals to disengage

the differential lock.

- Failure to comply could result in death or

serious injury.

- Part No. : 40195656

1 -23

10. Location : On the left-hand side of the
ROPS frame.

- TO PREVENT SERIOUS INJURY OR DEATH;

• Never operate a tractor without a certified

ROPS.

• Always fasten seat belt when operating tractor

with ROPS in upright position.

• Do not operate the tractor on steep slopes or

drop-off.

• Avoid sharp turns at high speeds.

• Use of ROPS and seat belt reduce the chance

of injury or death in roll-over or upset occu r.

• Do not attach ropes or chains to ROPS for

pulling purpose.

- Failure to comply could result in death or

serious injury.

- Part No. : 40234561

11. Location : On the right-hand fender.
(optional)

- JOYSTICK LEVER USAGE.

- TO AVOID PERSONAL INJURY; Wrong

operation causes serious injury easily.
Push the lever(1) in to lock the joystick in
neutral.

- Failure to comply could result in death or

serious injury.

- Part number : 40226388

2 -1

2. Instruction for Safe Operation

(1) The name of each part

① Roll-Bar type

Hood

(Bonnet)

Steering wheel

Safety frame

(Roll bar)

Driver’s seat

Fuel tank

Headlights

Tire

Sub step

Front weight

(optional)

Instrument panel

Fender

Bumper

(optional)

2 -2

2-1. Boarding and Exiting the tractor

(1) Boarding the tractor

① Roll-Bar type

z Whenever possible, use the left-hand side step

for boarding.

z When boarding the tractor, use the sub-step,

grab handle and steering wheel on the left fender.

z Do not jump up/down for your safety.

▶ Operator’s condition : The persons such as patients, drunks, people on drugs,

etc. are never allowed to operate this tractor.
Only well educated operators can use the tractor after learning the usage of
controls for moving, stopping, turning and other operating.

▶ Do not grasp the gear levers when entering the cabin from the right-hand side.

Caution

Sub step

Grab handle

warning

▶DO NOT arbitrarily remove the seat switch. When replacing the seat, check if the

seat switch has been changed together. If not, the engine can not be started.

(2) Driver’s seat

z At the lower end of the seat, there is a switch to

detect that operator is sitting in driver’s seat.

z If the operator gets up from the seat while

engine is running, the engine will stop

automatically for safety in case of ;
① gettin g up from the seat for more than 2
seconds with HST pedal NOT in neutral position.

② the HST pedal is in NEUTRAL and rear PTO is
engaged without applying parking brake.

③ the Middle PTO lever (optional) is engaged.

z Before leaving the driver’s seat,

- turn the PTO switch to OFF.

- place the middle PTO lever (optional) in OFF.

- apply the parking brake.

Seat switch

2 -3

warning

▶DO NOT put your hand under the seat while sitting. It may cause a injury by seat

suspension.

▶DO NOT adjust the seat position while driving.

(3) Seat adjustment

z Before operating the tractor, adjust the position of

driver’s seat according to body size and length.

z Seat F/R adjustment lever

1) After sitting on driver’s seat, lift the seat F/R
adjustment lever up to release the lock.

2) Move the driver’s seat forward or backward
according to driver’s body length.

3) Release the seat F/R adjustment lever and
ensure that seat is locked.

z Keep the released seat belt on the seat belt rest

after working.

z To prevent weathering of driver’s seat, raise the

seat forward.

Seat F/R
adjustment lever

(4) Seat belt

z Always wear the seat belt before operating the

tractor and adjust the belt to fit the operator.

1. Insert the seat belt end into the buckle until a
“click” indicates it is properly engaged.

2. To remove the seat belt from the buckle,
press the red release button on the buckle.

z Check the seat belt regularly. If damaged or

frayed, replace it with a new one.

Warning

▶If not wearing the seat belt, it may cause serious injury in case of accident.

- During operation, it must be required to wear seat belt with a cab or safety frame
installed.

- After wearing the seat belt, adjust the belt to fit the operator.

▶If safety frame is folded down for frame model, do not wear the seat belt.

Buckle

Seat belt

2 -4

(5) Exiting the tractor

z Whenever possible, use the left-hand side step

for boarding/exiting.

z When exiting the tractor, use the sub-step, grab

handle and steering wheel on the left fender.

z Do not jump up/down for your safety.

Sub step

Grab handle

2 -5

2-2. Safety Device

(1) Hood (Bonnet)

z Hood is a protection device to prevent an

unintended access to the rotating parts around

engine; cooling fan, fan belt and rotating shaft

and pulley.

z Do not remove and modify the hood.

(2) Fender

z Fender is a protection device to prevent an

unintended access to the rear tires and to
prevent mud from irrupting to the driver.

z Do not remove and modify the fender.

Hood (Bonnet)

Fender

PTO shaft
protection cap

PTO safety cover

Warning

▶If you contact the rotating shaft, it may cause a severe injury.

- DO NOT touch shaft which is rotating.

- DO NOT remove the safety cover.

- Avoid loose clothes that can easily be rolled up in the revolving shaft.

(3) PTO safety cover and protection cap

z PTO safety cover is a protection device to

prevent an unintended access to the PTO shaft
and to prevent an accident causing by the
rotating drive shaft.

z Do not remove the PTO safety cover. If the PTO

safety cover or protection cap is damaged or
removed, replace it with a genuine part.

z Do not step on the PTO safety cover.
z After using the PTO shaft, apply grease and

insert the PTO shaft protection cap.

2 -6

① Safety frame (Fixed Roll-bar)

z DO NOT remove the safety frame arbitrary. This

structure will reduce the risk of serious injury or
death.

z DO NOT modify or repair the safety frame. The

welding, bending, drilling, grinding, or cutting of
any part of the safety frame, it can weaken the
structure.

z If the safety frame is loosened or removed for

any reason, make sure that all parts reinstalled
correctly before operating the tractor.

Warning

▶ If the safety frame is damaged or deformed, contact to your local authorized dealer

to replace it with a new one.

▶ Unless the safety frame is applied correctly, it may cause a serious acciden t on

tractor when being overturned.

Safety frame

(Fixed Roll-bar)

(4) Roll-Over Protective Structure (ROPS) (optional)

2 -7

z How to fold the safety frame.

1. Loosen the safety frame bolts②④and nuts
(both sides) loosely. (Do not unfasten it
completely)

2. Remove the pins③ on the both side and fold the
safety frame backward.

- Be careful of the possibility that your head, hand
and shoulder might be hurt by sudden folding
result from the weight of the safety frame.

3. Set the holes of the frame ① and ⑤ in line, and
put the pins③ into the hole to fix the safety
frame and apply the snap pin.

4. Fasten the bolts②④and nuts (both sides)
tightly.

z When standing the safety frame up, follow the

same procedure.

2

4

3

5

1

Warning

▶ Do not modify or remove safety frame arbitrarily for safety.
▶ Unless the safety frame is applied correctly, it may cause a serious acciden t on

tractor when being overturned.

- Be sure to stand the safety frame up completely and tighten the bolts, pins and

nuts correctly.

▶ In case of folding the safety frame.

- Do cooperate with more than 2 people when folding or standing up the safety

frame as it’s heavy.

- Be careful not to be injured by sudden folding, which might occur when folding or

standing up the safety frame, results from its weight.

- Do not wear seatbelt when the safety frame is folded down.

- Do stand the safety frame up again as soon as the work is finished.

② Safety frame (Foldable Roll-bar)

Safety frame

(Roll-bar)

z DO NOT remove the safety frame arbitrary. This

structure will reduce the risk of serious injury or
death.

z DO NOT modify or repair the safety frame. The

welding, bending, drilling, grinding, or cutting of
any part of the safety frame, it can weaken the
structure.

z If the safety frame is loosened or removed for any

reason, make sure that all parts reinstalled
correctly before operating the tractor.

3 -1

3. Instruments and Controls

3-1. Instrument panel and Front controls

Important to owner , read carefully

Mechanical type

Clutch pedal

Light switch

Turn signal
light switch

Shuttle lever

Throttle lever

Key switch

Parking brake lever

Brake pedals

Throttle pedal

Instrument panel

PTO switch

3 -2

HST type

Brake pedals

Light switch

Turn signal
light switch

Throttle lever

Key switch

Parking brake lever

HST forward pedal

Instrument panel

HST reverse pedal

PTO switch

Cruise control lever

3 -3

(1) Instrument panel

1

2

6

7

8

9

10

11

12

3

4

5

21

Turn signal indicator (Left / Right)

3

Cold start aid indicator

2

PTO operation indicator

4

High beam indicator

5

Engine coolant temperature gauge

6

Tachometer

7

Hour meter

8

Fuel level gauge

9

Battery charging indicator

12

Engine oil pressure indicator

10

Parking brake indicator

11

One side brake indicator (Not used)

1

Turn signal indicator (Left / Right)

z When turning the turn signal light switch to the

left/right direction, the front and rear turn
signal lights are blinked. At this time, this
indicator shall blink simultaneously.

1

2

PTO operation indicator

z When turning PTO switch ON while the engine

is running and PTO lever (if fitted) is engaged,
the PTO shaft shall rotate and this indicator
shall be turned on.

PTO switch

3 -4

3

Cold start aid indicator

z When turning start-key switch to “Preheat”

position, this indicator shall be ON.

z When turning start-key switch to “Start”

position, this indicator shall be ON as well.

6

7

3

5

4

4

High beam indicator

z When turning the light switch to HIGH BEAM,

the high beam of the front head light and this
indicator shall be ON at the same time.

5

Engine coolant temperature gauge

z This gauge indicates the temperature of engine coolant.
z The closer the needle approaches “H”, the higher the temperature of engine coolant is.
z If the needle of engine coolant temperature gauge indicates red zone, Stop the engine

immediately and check the engine cooling system. (coolant, radiator screen, fan belt, …)

z The radiator and coolant is very hot. When checking the coolant level, comply with instructions of

the section 5 “Maintenance and Lubrication” in this manual.

6

Tachometer

z Tachometer shows running engine speed. (revolutions per minute)

7

Hour meter

z The number 0005.3 in hour meter shows that the tractor has been used for 5.3hours.

(5hours and 18minutes).

8

9

z This indicator shall be ON when turning the key

switch to ON position, and shall be OFF after
starting engine.

z If not, contact your authorized local dealer for

checking electrical charging system.

9

Battery charging indicator

z This gauge indicates the remaining amount of

fuel. If the needle indicates “E”, fill the fuel tank
immediately

8

Fuel level gauge

3 -5

10

11

12

z This indicator shall be ON when turning the

key switch to ON position, and shall be OFF
after starting engine.

z If not, contact your authorized local dealer for

checking engine lubrication system.

12

Engine oil pressure indicator

z This indicator shall be ON when pressing

brake pedal.

10

Parking brake indicator

11

One side brake indicator (Not used)

z This indicator is not used.

3 -6

Preheat

OFF

ON

Start

Turn signal
light switch

(3) Turn signal light switch

z This switch is used to give information to other

vehicles when turning to the left or right.

z If turning the switch to clockwise, the right turn

signal lights are blinking.

-If turning the switch to counter-clockwise, the
left turn signal lights are blinking.

▶ When chang ing direction

during running on the road,
operate the turn signal lights to
inform other vehicles of your
direction.

Left turn

Right turn

Caution

(2) Key switch

z “Preheat” – Engine glow (Cold start aid)
z “OFF” - power off (engine stop)
z “ON” - power on & automatic glow
z “Start” - engine start

▶ Because the safety switch for start is engaged, start the tractor after pressing

clutch pedal.

▶ If the tractor is not in use, the ignition key should be removed.

Caution

Key switch

(4) Light switch

z OFF - Instrument panel and lights are OFF

▶When passing with other vehicles in the opposite lane at night, turn the hea dligh ts

to low beam not to disturb oncoming cars.

Light switch

Caution

- Instrument panel, sidelights and hazard
warning lights are ON.

- Instrument panel, sidelights and
headlights (high beam) are ON.
(use when working)

- Instrument panel, sidelights, headlights
(low beam) and hazard warning lights
are ON. (use when driving)

3 -7

(5) Horn switch (if fitted)

z Press the upper side of the switch for sounding

off the horn.

Light switch

①

②

▶If you use the hazard warning lights for a long time, it may cause a increase of

electrical power consumption. Do not use the hazard warning lights for a long time.

Notice

(6) Hazard warning light switch

z This is used to warn other drivers to pay

attention to emergency status.

z This function is integrated to the light switch for

USA market.

z By turning the light switch (1) once to the

clockwise, all turn signal lights are blinked.

z Hazard warning light is automatically on by

turning on the driving light. (Low beam)

Horn switch

3 -8

PTO switch

(7) PTO switch (Independent PTO)

z The engine starts only when PTO switch is

placed in OFF position for safety.

z After starting engine, you must comply with the

following instruction about the PTO operation.

1. Check the safety around the implement.

2. Place the PTO gear lever (if fitted) to suitable
position for your work condition.

3. Place the PTO switch to ON position. The
PTO shaft shall rotate.

4. When the PTO is rotating, PTO operation
indicator on the instrument panel shall be ON.

5. If you want to stop the PTO temporarily while
operating, push the PTO switch to OFF position.

▶ Before attaching or checking the PTO driven equipment,

- Always place the PTO switch in OFF position, and PTO gear lever(if fitted) in
NEUTRAL position.

▶ Even If releasing clutch pedal or lifting 3-point linkage to maximum position, PTO

shall not be stopped. Pay attention to the surroundings to prevent a accident.

▶ Do not engag e the PTO at high engine speed. Sudden engag ement can cause

damage to some implements and PTO clutch. Engage PTO at low RPM, and then
raise the engine speed up.

Warning

ON : PUSH AND TURN
OFF : PUSH

3 -9

(8) Shuttle lever (Mechanical

synchro-shuttle)

z This is used to select Forward or Reverse.
z Forward : Push the lever forward.

Reverse : Pull the lever backward.

z Before reversing the tractor, lower the engine

rpm and check the safety behind the tractor.

▶ The synchro-shu ttle shift lever allows any forward range or reverse to be shifted

while the tractor is moving slowly. However, the clutch must be disengaged and the
engaged by means of clutch pedal. Make sure to depress clutch pedal fully and
release it gradually to take up load smoothly, but sudden gear shifting may cause
transmission damage. It is recommended to stop the tractor before operating the
shuttle lever.

Caution

Forward

Reverse

Shuttle lever

(10) Throttle pedal (Mechanical)

z This pedal is used to control engine speed when

running on the road.

z When using the Throttle pedal, the throttle lever

must be placed on Low speed.

Throttle pedal

(9) Throttle lever

z This lever is used to control engine speed.

- Pull it backward for Low speed.

- Push it forward for High speed.

z For mechanical model, the throttle lever must be

used only for work field. When driving on the
road, place the throttle lever to low speed, and
use the throttle pedal.

Throttle lever

High speed

Low speed

3 -10

▶ DO NOT ride your foot on the clutch pedal while driving.
▶ As the start safety switch is installed for the operato r’s safety, Have to depress the

clutch pedal fully for starting engine.

Caution

Clutch pedal

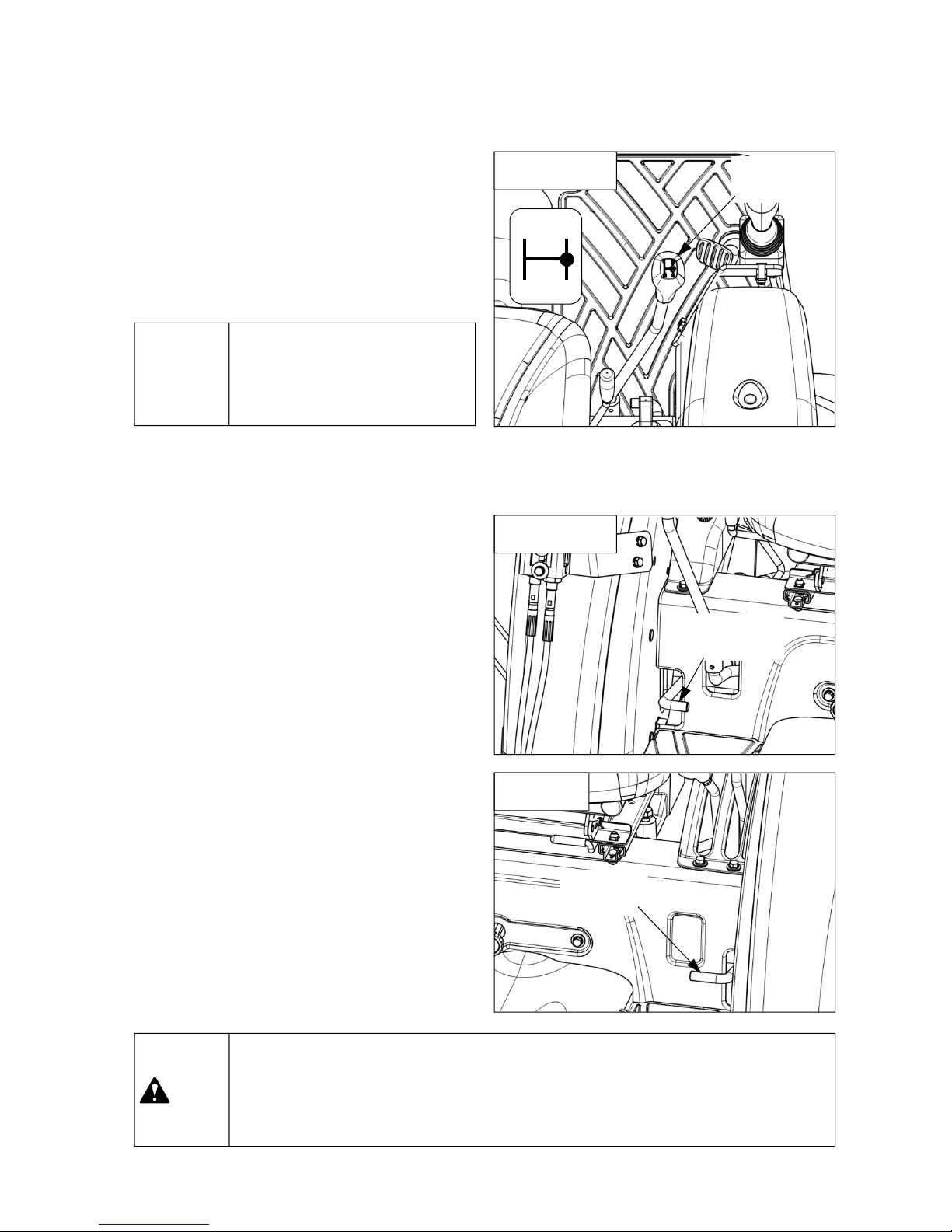

(12) Brake pedals

z The brake pedals of your tractor can be operated

independently after disconnecting the brake
pedal lock pin. The left/right brake pedals
transmit braking force on each wheel.

z When stopping the tractor, press both brake

pedals together.

z To reduce the turning radius in the work field,

remove the brake pedal lock pin, and press only
the left/right pedal firmly.

z DO NOT press the one side brake pedal while

the differential lock is engaged. It may cause
damage or failure of the axles.

Caution

▶When driving on the road,

engage the left/right brake
pedal by the lock pin.

- If pressing one side of brake
when running, the tractor may
turnover.

▶ While driving, do not ride brake

and clutch pedal.

Brake pedal lock pin

Brake pedals

Brake pedal
lock pin

Brake pedals

MEC

HST

(1 1) Clutch pedal (Mechanical)

z This is used to engage or disengage the main

transmission clutch for starting engine and
shifting transmission gear.

z Depress the clutch pedal quickly and fully, and

release it slowly.

z Even if depressing clutch pedal, PTO shaft can

not be stopped.

Refer to the section 3-1-(7), “PTO switch” in this
manual.

3 -11

(14) HST forward/reverse pedal

(HST type)

z Press the HST forward pedal slowly in order to

move forward and if release the pedal, it returns
back to the NEUTRAL position, and tractor stops.

z The HST reverse pedal is as same as the HST

forward pedal operation.

warning

▶Press the brake pedal to prevent stopping distance from being extended when

driving in high speed .

▶DO NOT operate the pedal hastily. It may cause a shock to you.

HST

reverse

pedal

HST

forward

pedal

(13) Parking brake lever

z Connect brake pedals each other with brake

connection plate.

z Push down the parking brake lever while

pressing the brake pedals and check that
serrated part is engaged to left brake pedal.

z Release the brake pedals slowly to check

slippage of the tractor.

z To release the parking brake, just press the

brake pedals little harder and check if parking
brake lever goes to its original position by spring.

Caution

▶ DO NOT drive the tractor while parking brake is engaged. It may cause damage of

brake or parking brake system.

Parking brake
lever

Release

Park

Parking brake
lever

Release

Park

3 -12

(15) Cruise control lever (HST

Type)

z For cruise drive, push down the cruise control

lever with pressing the HST forward pedal. And
then, the HST pedal shall be fixed at that
position and the driving speed of the tractor shall
be maintained constantly.

z To exit the cruise control drive ;

1) Press the brake pedal down or

2) Press the HST pedal forward little more.
And then, the HST pedal returns to the neutral
position and the cruise drive shall be stopped.

▶ During the cruise drive, DO NOT press the HST reverse pedal to release the cruise

drive or to reverse the tractor. After stopping the cruise drive as above described,
use the HST reverse pedal.

▶ DO NOT try to raise the cruise control lever up to quit the cruise control drive. It

may cause a failure of the cruise control linkage system.

warning

Cruise control lever

Cruise drive

Release

HST forward
pedal

3 -13

3-2. Left / Right-hand controls

4WD lever

Important to owner , read carefully

Mechanical type

Range gear
shift lever

Middle PTO

lever (if fitted)

Differential lock pedal

Main gear shift lever

4WD lever

Range gear
shift lever

Middle PTO

lever (if fitted)

Differential lock pedal

HST type

(See page 3-19)
(See page 3-20)

(See page 3-19)

(See page 3-19)
(See page 3-20)

(See page 3-19)

3 -14

(1) Main gear shift lever

(Mechanical)

z Four speed gear shift is available.
z Main gear shift lever can be shifted with just

depressing clutch pedal without stopping tractor.

Notice

▶Operate main gear shift lever

by correct H pattern. If operated
diagonally, it may cause a
failure.

Main gear
shift lever

4

2

31

Differential
lock pedal

(2) Differential lock pedal

z When the rear wheel is slipping and the tractor

can not move forward, stop the tractor
temporarily and press the differential lock pedal.

z Differential lock is effective for working on

slippery ground.

z If engaged, both rear wheels will rotate at equal

speed. So, It disturbs steering operation and you
cannot turn.

z Take your foot off the pedal to release the

differential lock. If the traction is equalized, the
lock is released automatically.

z If the differential lock does not disengaged (i.e.

the turning radius is larger than normal and the
turning is not smooth), depress the clutch pedal
and/or press left/right one-side brake pedal
slightly for a second each other.

z This pedal is installed on the step floor, but the

location is ;

- the right-hand side for mechanical model

- the left-hand side for HST model.

Mechanical

Differential
lock pedal

HST

▶Do not turn the tractor with pressing the differential lock pedal.
▶Do not use this differential lock pedal while driving on public road.
▶Do not engage differential lock when one wheel is spinning.

Warning

Mechanical

3 -15

(3) Work light switch (if fitted)

z There is a switch to turn on the rear work light.
z Operate the switch in the right figure.

▶When driving on the road at night, do not let the rear work light stay ON. It may

cause a disturbance to the driver of the following car.

Caution

ON

OFF

Range gear
shift lever

Mechanical

Notice

▶ Operate range gear shift lever correctly. If operated diagona lly, it may cause a

failure.

M

L

H

Range gear
shift lever

HST type

M

L

N

H

(4) Range gear shift lever

① Mechanical type

z Three speed gear shift is available.
z Before operating range gear shift lever, HAVE

TO STOP the tractor completely.

② HST type

z Three speed gear shift and NEUTRAL position

is available.

z Before operating range gear shift lever, HAVE

TO STOP the tractor completely.

3 -16

(5) Four wheel drive lever (4WD)

z This lever is used to engage/disengage the four

wheel drive (4WD).

z Before operating the 4WD lever, press the clutch

pedal and stop the tractor completely.

z Pull the 4WD lever upward for engaging 4WD.
z 4WD is very effective in the following cases.

- When increasing the towing power for heavy
work.

- In case of working in sandy soil.

- To prevent tractor from spinning in wet land.

Four wheel
drive lever

4WD

2WD

(6) Middle PTO lever (if fitted)

z This lever is used to engage/disengage the

middle PTO shaft (optional).

z Before operating the Middle PTO lever, place

the PTO switch in OFF position and wait until the
shaft is stopped completely.

z Pull the middle PTO lever upward to engage the

middle PTO gear.

z For further the middle PTO shaft, see section 4-

4-(2), “Power take-off(PTO) shaft”

Middle PTO lever

ON

3 -17

3-3. Hydraulic system

(1) Safety precautions

z Hydraulic oil leaking under pressure can penetrate the skin and cause infection or other injury. To

prevent personal injury, comply with as below.

-. Relieve all pressure before disconnecting hydraulic lines.

-. Before applying pressure, make sure all connections are tight and components are in good
condition.

-. Never use your hand to check for suspected leaks under pressure.

-. If injured by leaking fluid, get medical attention immediately.

z The hydraulic hoses and fittings on your tractor meet engineering specifications for the particular

function. When replacing damaged parts, use only manufacture authorized service parts.

z Care in hydraulic hose installation is a must:

-. Make sure pressure is relieved before starting installation procedure.

-. DO NOT kink or twist a hose, failure may occur. Properly route the hose.

-. Have a certified hydraulic technician install the hose.

-. Remove air from the hydraulic system after installing any hydraulic component.

z Periodically check hydraulic system for leaks or damaged parts - kinked, crushed, flattened, hard

blistered, heat cracked, charred, twisted, soft or loose covered hoses and fittings.

z DO NOT pull or apply external forces to the hose. The hose may fail and cause injury.
z Keep all persons away from the working area. If a hose fails, mechanisms controlled by fluid power

can become hazardous. Lifted mechanisms can fall to the ground, steering system may fail, etc.

z Stay clear of a pressurized hose assembly that has blown apart. Hose fittings can be thrown off at

high speed and a loose hose can whip around with great force.

z Hydraulic oil can reach high temperatures. Allow fluid to cool before servicing the system.
z Vibration can reduce hose service life. Make sure all retaining clamps and/or devices are secured.
z Environmental conditions can cause hose and fittings to deteriorate. Inspect hydraulic hoses

periodically. Replace worn or damaged hoses and fittings.

Warning

▶Before removing hydraulic pipes or hoses and other parts, make sure to check that

hydraulic pressure is relieved completely. The leaks of pressurized oil can cause a
fatal physical injury.

▶Use proper protection equipments, before servicing hydraulic system.
▶Before connecting or disconnecting the hydraulic quick coupler, lower the

implements to the ground, and check that hydraulic pressure is relieved.

z Before checking or repairing the hydraulic system, make sure the engine is stopped, and all the

transmission gears are in neutral, and lower the implements to the ground.

3 -18

▶If the engine is stopped, the steering wheel is not turned easily because hydraulic

pump does not work. But this is not a pump failure.

▶After turning the steering wheel while driving, the steering wheel is not returned

back to neutral automatically.

Notice

(2) Steering system

z As the steering system of your tractor has a hydraulic pump, valve and etc., it provides you more

convenience to operate the steering wheel.

z Notices when using the steering system.

1. If there is too much of a load in front loader bucket, it could be difficult to operate the steering wheel.
In this case, reduce the size of the load.

2. After turning the steering wheel fully, do not turn the steering wheel to the same direction again. As
the unnecessary force is applied, this could damage to the steering system. Especially, DO NOT
operate the steering wheel excessively. If the front wheel mired in a ditch, the rim could be affected
and damaged.

3. If it sounds abnormal when operating the steering wheel, this means that there is some air in the
steering components and line. In this case, turn the steering wheel to the left and right fully and hold
it for about 5 seconds, and the air shall bleed out and the abnormal noise shall disappear. If it’s not

cleared, contact your authorized local dealer for repair.

4. When starting engine in cold weather, an abnormal noise may occur. In this case, warm up the
tractor before using to reduce the oil viscosity.

5. If you use the tractor for a long time while turning the steering wheel fully, the oil temperature will
increase which may cause the reduction of the product life or the failure of hydraulic and steering
system.

3 -19

Remote control lever
(if fitted)

(3) Hydraulic lift Control (Mechanical Hydraulic Lift, MHL)

z The hydraulic lift system is operated by the position control lever.

Position control lever

Joystick lever(if fitted)

Down speed control lever

Position control lever

Stopper A

① Position control

z This mode sets the position of implements freely

by position control lever operation. Generally,
this mode is used for tiller, fertilizer distributor,
mower, rake etc. In this case, operate the lever
as follows.

1.Push the position control lever forward and let
the implement down by its own weight.

2.Move up the lever to the desired position, the
rear implement shall be located on the position
corresponding to the lever position.

3.If necessary, fix the lowest position of the lever
with the stopper A at the desired position.

3 -20

Down speed control knob

Fast

Slow & lock

② Down speed control knob

z Turn the knob to the clockwise to lower the

implement slowly and to the counter-clockwise
to rise speed faster. If turning it clockwise to the
end, the implement is fixed and even if lowering
down the position control lever, the implement
does not let down.

- Tiller : Slow in down speed

- Plough : Fast in down speed

z Do not over tighten control knob. It may cause

damage to the control valve.

z When working in hard ground, slow down the

down speed to avoid the bounding of the
implements.

▶When driving on the road, replacing tiller blades or removing grass around the tiller

blades, turn the down-speed control knob clockwise slightly to lock.

▶The knob may turn about two revolutions. Do not over-tighten the knob.

Warning

when pushing

when pulling

(3) Remote control lever and Quick coupler (if fitted)

z These levers are used to operate the hydraulic cylinder and/or motor of the implement attached to

the tractor.

z Pull the remote control lever backward, and the hydraulic pressure can be delivered to the upper

coupler of the related lever and lower coupler shall be connected to the oil tank.

z Each lever of the remote control valve can be operated respectively, and when operating the levers

at the same time, the one received less pressure begins to start first.

z After connecting and preliminary operating the hydraulic equipment, check again transmission oil

level of the tractor.

Lever 1

Pull

Push

Lever 2

Lever 2Lever 1

3 -21

(4) Joystick lever (if fitted)

z Remote joystick lever helps to operate front-end

loader comfortably.

z Joystick can be operated at 4 directions as

shown in the right figure.

z If you move joystick diagonally, boom and

bucket may be operated at the same time. In this
case, less loaded cylinder may be moved first.

z When you want to float bucket, lower the loader

and push forward the lever at floating position.

After finishing work, pull the lever and place it in

neutral position.

z Locking lever shown in the right figure is used to

lock the joystick lever.

- Pull from the joystick : Unlock

- Push to the joystick : Lock

z For further information, See section 4-4-(8),

“Using Front-end loader” in this manual.

Locking lever

(safety device)

Joystick lever

Lock

▶To prevent an accident, place the locking lever to lock position when you do not use

the joystick lever.

Warning

Boom up

Boom down

Bucket up

Bucket dump

Bucket float

<Meaning of symbols>

3 -22

(5) Hydraulic System Diagram

Mechanical type

1. Hydraulic oil filter

2. Steering pump

3. Steering unit

4. Steering cylinder

5. Independent PTO valve

6. Hydraulic lift pump

7. Front outlet valve or
Front loader valve (optional)

8. Remote control valve

(optional)

9. Hydraulic lift control valve

10. Down speed control valve

11. Hydraulic lift cylinder

12. Safety valve

13. Oil tank (Transmission)

13

3 -23

HST

1. Hydraulic filter

2. Steering pump

3. Steering unit

4. Steering cylinder

5. Independent PTO valve

6. HST filter

7. Oil cooler

8. HST unit

9. Hydraulic lift pump

10. Front outlet valve or
Front loader valve (optional)

11. Remote control valve

(optional)

12. Hydraulic lift control valve

13. Down speed control valve

14. Safety valve

15. Hydraulic lift cylinder

16. Oil tank

4 -1

4. Operation and Work

4-1. Engine start and stop

Key switch

Shuttle lever

PTO switch

Throttle lever

Clutch pedal

Brake pedals

Parking brake

1. Sit in driver’s
seat and apply
parking brake

2. Place main gear shift, range gear
shift lever, shuttle lever in NEUTRAL
and PTO switch in OFF position.

3. Push throttle lever to
the middle position of
the full throttle.

5. Wait until the cold start
aid indicator is OFF.
(about 10 seconds)

6. Depress clutch pedal
fully and turn key switch
to START position. As
soon as the engine
starts, release the key
switch to ON position.

8. Run engine for a few
minutes to allow engine oil
and transmission oil to
warm up.

Mechanical type

4. Turn key switch to ON
and check if the battery
charging indicator and
cold start aid indicator
are ON.

7. Check if the battery
charging indicator and
engine oil pressure indicator
are OFF.
If not, stop the engine
immediately and check the
problem.

(1) Engine start

Caution

▶Check each part before starting

the engine.

▶Check if there is some other

people around before starting.

▶Place all the levers and

switches in NEUTRAL or OFF
position.

4 -2

HST type

Brake pedals

HST reverse pedal

Throttle lever

HST forward pedal

PTO switch

Key switch

3. Push throttle lever to
the middle position of
the full throttle.

1. Sit in driver’s
seat and apply
parking brake

2. Place the range gear shift lever
and HST forward/reverse pedal in
NEUTRAL, and PTO switch in OFF.

5. Wait until the cold start
aid indicator is OFF.
(about 10 seconds)

4. Turn key switch to ON
and check if the battery
charging indicator and
cold start aid indicator
are ON.

6. Turn key switch to
START position. As
soon as the engine
starts, release the key
switch to ON position.

8. Run engine for a few
minutes to allow engine oil
and transmission oil to
warm up.

7. Check if the battery
charging indicator and
engine oil pressure indicator
are OFF.
If not, stop the engine
immediately and check the
problem.

Parking brake lever

Caution

▶Check each part before starting

the engine.

▶Check if there is some other

people around before starting.

▶Place all the levers and

switches in NEUTRAL or OFF
position.

4 -3

Warning

▶Only start engine outdoors or in a well ventilated place, as the engine exhaust

fumes may cause sickness or death.

▶To avoid an explosion, never use starting fluid to start engine.
▶Start engine only from the driver’s seat with placing all the transmission gear levers

in NEUTRAL

▶DO NOT start engine by shorting across the terminals of the starter motor. If the

engine is started, the tractor can move suddenly.

Caution

▶If clutch pedal is not depressed fully or PTO switch is not OFF, the engine can not

be started even if turning the key switch to START position. (for mechanical type)

▶If HST pedal is not in NEUTRAL or PTO switch is not OFF or opera to r doe s not sit

on the driver’s seat, the engine can not be started even if turning the key switch to
START position. (for HST type)

▶DO NOT operate starter motor more than 10 seconds. If the engine does not start,

wait for 1~2 minutes before restarting.

▶When the engine is running, DO NOT turn the key switch to START position. It may

cause a failure of the starter motor.

▶In the cold weather, warm-up the engine. If using the tractor suddenly in the cold

weather, the engine life can be reduced.

(2) Start in cold weather

z Push the throttle lever to the middle position of full throttle.
z Start the engine after cold start aid indicator goes OFF. (If fitted)
z If engine runs rough, press the throttle pedal down 2~3 times for a while. (Mechanical type)
z If engine runs smoothly, carry out the warm-up for 5~10 minutes at about 1500 rpm.
z Use the engine oil for winter in cold weather.

Refer to the section 5-3, “Lubricants and Capacity” or the last page in this manual.

z Use the diesel for winter when it is very cold weather. It is much easier to start engine.

▶When storing the tractor in the cold weather, the battery must be removed and

stored in a cool and dry place where it is warm and is isolated from the children.

▶Allowing engine to idle for a long time will waste fuel and cause a build up of carbon.

Caution

4 -4

(3) Engine Stop

z Pull the throttle lever backward to reduce the

engine speed and place the key switch on “OFF”
position to stop the engine.

▶ To stop the engine after finishing hea vy work, run engine for 5 minutes in low idle

rpm. If you stop the engine suddenly, the engine life could be reduced.

Notice

Throttle lever

Key switch

4 -5

▶Release clutch pedal slowly. If releasing the clutch pedal suddenly, the gear life can

be reduced and it may cause sudden start.

Notice

4-2. How to drive and stop

(1) How to drive

1. Pull position control lever backward to lift
the implement after starting engine.

2. Press clutch pedal fully and place all the
transmission gear levers (main, range,
shuttle lever) on the suitable position.

3. Pressing brake pedals, and release parking
brake lever.

4. Release clutch pedal slowly with pressing
throttle pedal slowly.

Mechanical type

Position control lever

Main gear shift lever

Range gear shift lever

Throttle pedal

Brake pedals

Shuttle lever
Clutch pedal

Throttle lever

4 -6

HST type

1. Pull position control lever back to lift the

implement up after starting engine.

2. Set the engine speed more than 1500

rev/min.

3. Place the range gear shift lever to the

suitable position.

4. Press the brake pedals and release the

parking brake lever.

5. Press the HST forward/reverse pedal down

slowly to move the tractor.

6. If necessary, move the cruise control lever

downward to fix the driving speed constantly.

▶ If pressing brake pedals or HST forward pedal down deeper, the cruise control

drive shall be stopped.

▶ For HST model, there is a switch on the driver’s seat to control engine cut-off for

driver’s safety. If the operator leaves the driver’s seat without safety measures, the
engine shall be stopped automatically. For further information, see section 2-1-(2).

▶ When driving or working with a tractor, operate it more than 1500 rev/min.
▶ Press the HST forward/reverse pedal slowly. If pressing these pedals hastily, the

tractor can be started suddenly.

Caution

Position control lever

Range gear shift lever

HST reverse pedals

Brake pedals

Throttle lever

Parking brake lever

Cruise control lever

HST forward pedals

4 -7

(2) Changing speed

z Depress the clutch pedal fully and operate all the

shift lever correctly.

z Before operating all the transmission gear levers

including main gear shift lever, HAVE TO STOP
the tractor completely.

Mechanical type

HST type

z Just pressing the HST forward/reverse pedal

makes it possible to travel forward or in reverse.
Moving (forward/ reverse), neutral and changing
speed can be controlled by the HST pedals.

z The range gear shift lever must be operated in

the neutral state of the HST pedals, and after the
tractor has stopped completely.

z Push the throttle lever forward for high speed.
z Set driving speed properly depending on the

road condition.

Clutch pedal

HST

reverse

pedal

HST

forward

pedal

4 -8

(3) Emergency Stop

1. Press the clutch pedal and brake pedals at
the same time to stop the tractor. Turn off the
key switch.

2. DO NOT release clutch pedal until all
moving parts have been stopped.

Mechanical type

3. Apply parking brake.

3. Apply parking brake.

1. Release HST forward/reverse pedal and

press down the brake pedals immediately.

HST type

2. Pull throttle lever backward to decrease the
engine speed.

Clutch pedal

Throttle lever

Brake pedals

Key switch

HST reverse pedals

Brake pedals

Throttle lever

Parking brake lever

HST forward pedals

Key switch

Parking brake lever

4 -9

1. Press clutch and brake pedals. Place all the
transmission gear levers in neutral and PTO
switch to OFF and release the clutch pedal.

3. Apply parking brake and release brake
pedals slowly.

2. Lower implements to the ground and turn
key switch to OFF position.

(4) Stopping tractor

Caution

▶ DO NOT depart from the tractor with the transmission gear placed in NEUTRAL

and the parking brake is not applied. The tractor may move down. Apply parking
brake at all times before leaving the tractor.

▶ Remove ignition key always after stopping engine.

Mechanical type

1. Release HST forward/reverse pedal slowly
and pull throttle lever backward to reduce the
engine speed and then place the range gear
shift lever in NEUTRAL and PTO switch to
OFF.

3. Apply parking brake and release brake
pedals slowly.

2. Lower implements to the ground and turn
key switch to OFF position..

HST Type

Clutch pedal

Throttle lever

Brake pedals

Key switch

HST reverse pedals

Brake pedals

Throttle lever

Parking brake lever

HST forward pedals

Key switch

Parking brake lever

PTO switch

PTO switch

4 -10

(5) Driving tractor on the road

z When facing downhill, DO NOT place the gear lever in NEUTRAL position.
z When driving the tractor on a unpaved road by attaching an implement to 3-point linkage, place the

gear lever to low speed and DO NOT lift the implement up to the highest position. When the tractor
bumps an obstacle, it may cause the jolting of the implement and the failure of hydraulic system.
(In this case, place the position control lever on ¾ rising position of full stroke for safety.)

DO NOT USE DIFF-LOCK

▶ Connect left/right brake pedals with brake pedal connecting pin before driving. (if

fitted).

▶ Avoid a sudden start, sudden brake and sudden turning.
▶ DO NOT allow people on the tractor or other implements.
▶ DO NOT place the baggag e on the tractor or implement.
▶ Place PTO gea r lever in neutral (if fitted) and put PTO switch in “OFF” position.
▶ DO NOT use different ial lock ped al and move 4WD lever to “2WD” position.
▶ When traveling with implement on the rear 3-point linkage, tighten the stabilizer to

avoid lateral movement.

▶ When traveling with implements installed , turn slowly by wide turnin g radius.
▶ While traveling, DO NOT ride your foot on the clutch pedal (if fitted) or brake pedal.
▶ While traveling, DO NOT ope rate any implement such as tiller, loader etc.

Caution

4 -11

(6) Parking

z Stop the tractor on a level surface, not a slope.
z Disengage PTO and place all the transmission

shift levers in NEUTRAL position.

z Lower the mounted implements on the ground.
z Apply parking brake.
z Stop engine and remove ignition key.
z Before you leave the operator’s station, wait for

engine and all moving parts to stop.

z Have to apply the wheel chocks when parking

the tractor on a slope unavoidably.

▶If it is necessary to park the tractor on a slope, furthermore with loaded trailer, the

tractor may roll down, even though the parking brake is applied. In this case, apply
all the gears in lowest speed and apply chocks or blocks to all the tires.

- Mechanical : downward slope ⇒ reverse 1 gear / upward slope ⇒ forward 1 gear.

- HST type : Apply the lowest gear of the range gear lever.

Caution

4 -12

(2) Notices in handling new tractor

z To get the best performance, comply with the following instructions.

- DO NOT start or stop the tractor suddenly.

- DO NOT carry out heavy loaded work and DO
NOT increase the engine rpm to high speed
suddenly.

- Despite warm temperature outside, carry out
warming up the engine for approximately 5
minutes at 1500 rev/min

z After using first 50 hours,

- Replace the engine oil filter and hydraulic oil filters after first 50 hours of work, and check each
part of your tractor as reference of chapter 5-4, “First 50 hour check” in this manual.

- If possible, contact your authorized local dealer for “First 50 hour check”.

4-3. How to handle new tractor

(1) Check points

※ For new tractor, the following must be checked once again even thou gh there was sufficient quality

management, inspection, regulating of each part in the factory.

z Appearance check

- Is there any damage while transporting?

z Engine cooling system check

- Is there anti-freeze solution in the radiator?
And any leakage?

z Fuel system check

- Is there any leakage of fuel in the fuel system?

z Oil level check

- Is there optimal oil amount in each part ?

z Electric system check

- Is there any cut-off or any other problem in the
wiring?

- Is there any problem to operate the instruments?

- Is the state of battery charging sufficient?

4 -13

(1) 3-point linkage

4-4. Attaching Implement

Warning

▶Before attaching/detaching implement, place PTO switch in OFF position and PTO

gear lever (if fitted) in neutral position, and apply parking brake.

▶When attaching/detaching implement, make sure to assemble and tighte n the

connecting parts correctly.

▶If the tractor is used to tow heavy loads, always use the approved drawbar or hitch

to avoid injury. Never connect to lower link or upper link of 3-point linkage. If not, it
may cause tipping or turnover.

▶DO NOT connect implements that require more power than can be generated by

your tractor.

▶Never stand between implement and tractor when connec ting implement.
▶DO NOT change the setting pressure of the relief valve arbitrarily to increase the lift

capacity of the 3-point linkage. It can cause fatal damage to the hydraulic system.

z When attaching the implement, comply with the followings.

1. Set the implement upright on a level surface and approach the implement in reverse.

2. Stop the tractor on attaching position and apply the parking brake.

3. Connect the lower link(3) to implement and insert firmly the lock pin. (left, right)

4. Connect the upper link(5) to implement and insert firmly the lock pin. Wide adjustable range of the
upper link provides you easier attachment.

5. Fix the implement firmly with stabilizer(2).(left, right).

①

④

③

⑤

②

⑥

⑦

① Lift rod (LH)
② Stabilizer
③ Lower link
④ Lift rod (RH)
⑤ Upper link
⑥ Lift rod pin
⑦ Upper link pin

4 -14

① Upper link installation and

adjustment

z Select the suitable attaching hole(2) depending

on the implement.

z Adjust the length of the upper link by turning the

sleeve(4) after releasing the locking nut (3).

z Fasten the locking nut (3).
z Adjustment range : 400~750mm (15.7~29.5 in)

▶ Insert the snap-pin(6) firmly to prevent the upper link pin(5) from being escaped.

Notice

② Adjustment of lift-rod (Left/Right)

z For lift rod (LH), detach the upper side from the

lift arm and adjust the length by turning the
upper side (1).

-Adjustment range : 492~502mm (19.4~19.8 in)

z For lift rod (RH), turn the handle(4) to the right to

shorten the rod. If turning it to the left, the rod is
elongated. After adjustment, tighten the locking
nut(3).

- Adjustment range : 445~538mm (17.5~21.2 in)

z If assembling the lower link to the upper hole of

the lift rod, it can additionally shorten the length
by 63mm(2.5 in).

⑥

④

②

⑤

③

④

③

①

②

①

Telescopic stabilizer

③ Adjustment of stabilizer (optional)

- Telescopic type

z Pull up the link pin(1) and find a suitable hole

with adjusting the stabilizer’s length.

z Insert the link pin(1) into the hole and let it

tightened firmly by locking spring.

▶When adjusting the stabilizer’s length, adjust the implement’s swinging clearance to

be 20~40mm (0.8~1.6 in.) left and right.

Notice

Upper link

4 -15

④ Reference of Implement installation part

AB

C

(MAX)D(MIN)E(MAX)F(MIN)

GHJ KLN

CAT1

19

(0.74)

19.3

(0.75)44(1.73)76(2.99)69(2.71)

44.5

(1.75)22(0.86)

22.4

(0.88)35(1.38)39(1.53)12(0.47)

683

(26.8)

Unit : mm(inch)

4 -16

⑤ Handling of the 3-point linkage

z When driving without attached implement, comply with the followings.

1. Fix upper link(5) with the fixing hook.

2. Connect stabilizer(2) to the lower link(3) to avoid the lateral movement of the lower link.

3. Connect lower link strap to both lower links(3) (if fitted, chain type stabilizer only)

z If 3-point linkage is not necessary, raise 3-point linkage to maximum height and fix it by turning the

down speed control knob, or remove it as follow.

1. Remove upper link pin(8) and upper link(5).

2. Detach rear side of the stabilizer(2) from the lower link(3) while holding lower link tightly not to fall
down.

3. Remove lift rod (LH), lift rod (RH) and stabilizer(2) step by step.

4. Remove lower link(3) carefully not to get hurt due to its weight.

①

④

③

⑤

②

⑥

⑦

① Lift rod (LH)
② Stabilizer
③ Lower link
④ Lift rod (RH)
⑤ Upper link
⑥ Lift rod pin
⑦ Upper link pin

4 -17

(2) Power take-off (PTO) shaft

① Safety precautions

z When PTO shaft is rotating, NEVER APPROACH the shaft.
z Check if PTO shield is attached correctly. If the shield is removed or damaged, replace it with a new

one.

z Suitable Clothes & Protect Entanglement :

When checking or attaching implement to the
PTO shaft, wear tight fitting clothes and safety
equipment instead of loose or long clothes. Also,
slippers, high heel shoes are not suitable. Wear
the suitable clothes.

Warning

▶Do not approach the rotating shaft such as PTO shaft or cooling fan, especially,

with loose clothing and long clothes. The entanglement in rotating shaft can cause
serious injury or death.

▶Stop the engine and be sure PTO shaft is stopped before getting near it.

PTO gear(s) 1

PTO / Engine speed 540 / 2509 rpm

Rotation direction Clockwise (When looking at PTO shaft end)

Shaft dimension

(Unit : inch)

(3.0 in)

(1.5 in)

(0.34 in)

(1.1 in)

(1 3/8 in)

(Teeth : 6T)

② Specification and Dimension of the rear PTO shaft

4 -18

Module : DP 16/32

Number of Teeth : 15T

(1.77 in.)

(0.94 in.)

(0.84 in.)

(0.98 in.)

MID PTO 1 speed gear (15T)

PTO / Engine speed 2000 / 2545 rpm

Rotation direction Counter clockwise (When looking at PTO shaft end)

Shaft dimension

(Unit : inch)

③ Specification and Dimension of the middle PTO shaft (optional)

④ Attaching the PTO drive shaft

z When connecting PTO drive shaft to the PTO shaft and implement, make sure to check the fixing

status of the locking pins.

z When attaching implements with power take-off drive shafts, refer to the drawings as below.
z After installing implements,

- check the inclination of the PTO drive shaft,

- check the interference with PTO safety cover and other structure,

- check the effective engaging length of the PTO drive shaft according to the position of the 3-point

linkage.

z The stiff inclination of the drive shaft makes a loud noise and may cause a failure of the driveline.

4 -19

Hitch

Snap pin

Hitch pin

(3) Hitch and Drawbar (optional)

z When attaching towing equipments, use the hitch

or drawbar. DO NOT use the 3-point linkage or
other parts. If so, the tractor could be overturned.

z Insert the hitch pin and snap pin correctly after

attaching/detaching equipment.

z DO NOT exceed maximum permissible vertical

and horizontal load as below.

Snap pin

Lock pin
Drawbar

▶ Pulling from the tractor rear axle or any point above the axle may cause the tractor

to overturn. Use always the drawbar or hitch for pulling work.

▶ Do not tow equipment withou t brakes, weighin g more than twice the tractor weight.
▶ When locking the hitch or drawbar with pin after aligning to the towing equipmen t,

apply the parking brake and stop the engine.

▶ Before transp orting equ ipment on public roads, make sure you comply with your

local traffic regulation.

Caution

Hitch Drawbar

Unbraked towable
mass

1690kg

(3726 lb)

1300kg

(2866 lb)

Independently braked
towable mass

3380kg

(7452 lb)

2800kg

(6173 lb)

Inertia-braked towable
mass

3380kg

(7452 lb)

2800kg

(6173 lb)

Hydraulic or pneumatic
braked towable mass

N/A N/A

① Hitch

z Vertical load : 900kg (1984 lb)
z Horizontal load : 3600kg (7937 lb)

② Drawbar

z It is used to tow the equipments having 2 axles.
z It is available to adjust the length of the draw bar

after removing snap pin and lock-pin in the right
figure. After adjusting, assemble the pins firmly.

z Vertical load : 350kg(772 lb) (When pulling)

450kg(992 lb) (When pushing)

z Horizontal load : 2800kg (6173 lb)

When pulling

Regular position

When pushing

z Technically permissible maximum towable mass(es) are as below .

4 -20

(4) 7-Pole connector (optional)

z The one of the standard 7-pole trailer connectors is provided and is mounted at the rear of the tractor.

The connections of the 7-pole connector (viewed from the rear of the tractor) are as follows;

z ASAE Version

Pin No. Function

1 Ground (Earth)
2 Working light
3 Left turn signal light
4 Brake light
5 Right turn signal light
6 License number plate light
7 Auxiliary

7-Pole Connector (ASAE)

4 -21

(5) Technically maximum permissible mass

z When working with front loader or rear heavy loaded attachments installed to the 3-point linkage,

install ballast weights on the counter-part axle to maintain the front and rear weight balance of the
tractor. If not, front or rear axle can be strained by the overloaded weight.

z When working with the front loader, place the attached rear weight to the highest position and turn

the down speed control knob to the “lock” position.

z DO NOT exceed the total maximum permissible mass and/or permissible maximum mass on

each axle declared by manufacturer as below, even if the load capacity of the tire is sufficient.

z If the load capacity of the tires is lower than maximum permissible mass on each axle, the

maximum mass on each axle must be loaded under the load capacity of the tire.

Check the load capacity of the tires.

▶ Maximum permissible mass is measured with only the front or rear wheels on the

scales inclusive of ballasts and with mounted equipments in the raised position.

▶ Do not exceed the maximum permissible mass abov e and/or the load

capacity of the tires. Overloaded operation may invalidate the warranty.

▶ DO NOT change the setting pressure of the relief valve arbitrarily to increase the

lift capacity of the front loader or 3-point linkage. It can cause fatal damage to the
hydraulic system and front axle.

Caution

* includes front mounted equipment or loader in the raised position but without load in the bucket.

z Restrict operation : In case of driving speed does not exceed 8km/h (5 mph) and standard

front/rear wheel track (refer to the section 4-4-(7), “Adjusting wheel track and tire replacement” in this
manual), intermittent maximum permissible load of the front axle can be ;
1995kg (4398 lb) for all models. Have to check the load capacity of the tires. (See next page).

All models Remarks

Technically total maximum

permissible mass

2508kg (5529 lb)

It may depend on the load

capacity of the tires.

(See next page)

Front axle (*) 1163kg (2564 lb)

Rear axle 1755kg (3869 lb)

4 -22

(6) Tires and Load capacity

(*) 1 : Front axle, 2 : Rear axle

Axle No.

(*)

Tires

Standard tire air pressure

(kg/cm2)

Load capacity (x2)

(kg)

Maximum mass(es)

(kg)

1 7-14 4PR 1.8 (180 KPa, 26 psi) 740 (1786 lb)

2495kg (5500 lb)

2 11.2-24 8PR 2.4 (240 KPa, 35 psi) 2470 (4894 lb)

1 7-16 4PR 1.8 (180 KPa, 26 psi) 810 (1786 lb)

2508kg (5529 lb)

2 12.4-24 6PR 1.6 (160 KPa, 23 psi) 2400 (4806 lb)

1 6-14 4PR 2.0 (200 KPa, 28 psi) 610 (1786 lb)

2365kg (5214 lb)

2 9.5-24 6PR 2.1 (210 KPa, 30 psi) 1880 (3505 lb)

Optional Tire

1 200/70R16 2.4 (240 KPa, 35 psi) 1340 (2954 lb)

2508kg (5529 lb)

2 320/70R24 1.6 (160 KPa, 23 psi) 2500 (5512 lb)

1 240/70R16 2.4 (240 KPa, 35 psi) 1800 (3968 lb)

2508kg (5529 lb)

2 380/70R24 1.6 (160 KPa, 23 psi) 3300 (7275 lb)

1 25x8.50-14-4PR 1.5 (150 KPa, 22 psi) 1198 (2641 lb)

2508kg (5529 lb)

2 41x14.00-20-4PR 1.8 (180 KPa, 25 psi) 2794 (6160 lb)

1 25x8.50-14-6PR 3.5 (350 KPa, 50 psi) 1814 (3999 lb)

2508kg (5529 lb)

2 43x16.00-20-4PR 1.4 (140 KPa, 20 psi) 4118 (9079 lb)

4 -23

(7) Adjusting Wheel tracks and tire replacement

② Rear wheel

z When altering rear wheel track, check the radial

and lateral clearance between rear tire and
tractor chassis as below.

- A : 15mm (0.6 in) (Minimum)

- B : 30mm (1.2 in) (Minimum)

z When refitting the wheels or/and rim disk, tighten

the bolts and nuts to the following torques then
check periodically as the instructions of section 5
in this manual.

① Rim-disk nuts (M16) : 220 ~ 270 N.m

(163 ~ 199 lbf.ft)

② Wheel nuts (M16) : 216 ~ 245 N.m

(159 ~ 181 lbf.ft)

z The track widths in the following pages are only

for specific wheels (7-14 4PR / 11.2-24 8PR)
and may vary by depending on tire size.

▶The tractor wheels are very heavy, BE CAREFUL.
▶When removing the wheels, proceed with extreme caution, use a suitable hoist and

specific equipment to move the heavy parts.

Warning

▶ When adjust ing the wheel track, pay atten tion to the direction of tire lugs. If it

shows “/\” shape when looked behind, it is correct.

▶ Actual settings may vary depending on the brand of the rim and type of tire.

Notice

① Front wheel

z The rim and disk assembly of the front wheel is

not adjustable type.

See next page for the details.

“A”

“B”

FENDER

4 -24

① Front wheel track – 7-14 4PR with rim & disk (W5x14)

Unit : mm (inch)

1115(43.9 in.)

1207(47.5 in.)

(Standard track)

4 -25

② Rear wheel track - 11.2-24 8PR with rim & disk (W10x24)

Unit : mm (inch)

1139(44.9 in.)

N/A

N/A

1167(46.0 in.)

1215(47.9 in.)

1215(47.9 in.)

1321(52.0 in.)

1091 (43.0 in.)

(Standard track)

4 -26

① Safety precautions

z Multi-functional joystick lever provides you more

convenient operation for front-end loader.

z When operating the tractor with front-end loader,

the center of gravity of the tractor may be higher,

and the stability of the vehicle may be worse
than unattached vehicle.

-. DO NOT drive fast on a traffic load. The rolling
or tipping of the tractor can be happened easily.

-. When loading/unloading the bucket on a slope,
move the tractor straight against the slope.

-. DO NOT try to approach a stiff slope.

-. Attach the ballast weight on the 3-point linkage
to prevent the overload of the front axle, and to
improve the stability of the vehicle.

z When working with front-end loader, the front

visibility of the tractor may be worse than
unattached vehicle. Have to observe people and
other vehicles around the tractor.

z DO NOT allow people to pass under the front-

end loader.

z DO NOT allow people on the bucket.

(8) Using Front-end loader (optional)

▶After using the front-end loader, lock the joystick lever to prevent the accident.

(if fitted)

▶When leaving the tractor, lower down the front-end loader on the ground.

Warning

▶Have to strictly observe the following precautions;

- Do not lift the front-end loader to a height from which objects may fall or roll onto
the driver.

- Use always the correct attachment (grab forks, buckets.. etc) for the specific task
to perform and ensure that the load is securely kept in place.

Warning

Locking lever

(safety device)

Joystick lever

Lock

4 -27

② Attaching points for Front-end loader

z When attaching the front-end loader, refer to the drawings as below.

4 -28

1) Loosen the locking nut on both sides.

2) Connect the front hook of the tractor to the crane
by using specified wire. And, lift up the front axle
off the ground sufficiently.

3) Lift up one side of the front axle fully and turn the
steering wheel to the left and right with checking
that the clearances between tire and other parts
are over 20mm (0.8in.) at least.

4) At this time, set each steering stoppe r of the both
sides to be contacted with the cast. Check all the
possible interferences by combinations of the
steering and oscillation of the front axle.

5) Tighten the locking nuts of the each side.

(9) Adjusting Steering Angle

① 4WD models

z If the front wheel track is altered or front tires are replaced with bigger ones than current

specifications, or in case that a front equipment is attached, the steering angle must be checked and/
or adjusted as required.

Steering stopper

Locking nut

▶DO NOT shorten the length of the steering stopper rather than factory condition.

If the stopper does not contact at maximum steering condition, it can damage the
steering cylinder or tie-rod.

Notice

4 -29

(10) Recommended Maximum Specification of Implements

z When attaching implements to the tractor, refer to the followings recommended as maximum

specification of each implement. DO NOT attach bigger implements than this specification. For other
implements, contact your authorized local dealer.

No. Implements Specification XG3025 / XG3025H

1

Trailer

(with 4-wheel)

Max vertical load See section 4-4-(3) in this manual

2

Trailer

(with 2-wheel)

Max vertical load See section 4-4-(3) in this manual

3 Mid mower Max cutting width

1676 mm

(66 in.)

4

Rear mounted

mower

Max cutting width

1676 mm

(66 in.)

5 Flail Mower Max cutting width

1524 mm

(60 in.)

6 Sickle Bar Max cutting width

1676 mm

(66 in.)

7

Rear mounted

Sprayer

Max tank capacity

250 kg

(551 lb)

8 Pull type Sprayer Max tank capacity

1400~1690kg

(2800~3380 lb)

9 Rotary Tiller Max tilling width

1520 mm

(59 in)

10 Bottom Plow Max size

1110 mm

(43 in.)

11

Disk harrow

(pull type)

Max working width -

12 Manure Spreader Max volume

1400~1690 kg

(2800~3380 lb)

13 Front blade Max working width

1660 mm

(65 in.)

14 Rear blade Max working width

1524 mm

(60 in.)

15 Front loader

Max lift capacity

(Bucket pivot point)

743 kg

(1640 lb)

16 Landscape Rake Max working width

1524mm

(60 in.)

17 Box blade Max working width

1400 mm

(55 in.)

18 Backhoe

Max weight

(W/O Bucket)

470 kg

(1036 lbs)

19 Snow Blade Max. width

1524 mm

(60 in.)

20 Snow Blower Max. working width

1524 mm

(60 in.)

4 -30

4-5. Driving speed

z The driving speed of tractor or the revolution speed of PTO depends on the work, tire and ground

condition. For safety, operate the tractor at suitable speed .

z Table of driving speed (unit : km/h / (mile/h))

Note) Engine rated speed : 2500 rev/min, Dynamic load radius : 525.5mm (20.7 in.)

Front tire : 7-14 4PR, Rear tire : 11.2-24 8PR

Range

gear

12 3

Main gear 1 2 3 4 1 2 3 4 1 2 3 4

Forward

1.1

(0.7)

1.7

(1.0)

2.2

(1.3)

2.7

(1.7)

3.1

(1.9)

4.5

(2.8)

5.9

(3.7)

7.2

(4.5)

9.5

(5.9)

13.9
(8.6)

18.0

(11.2)

22.2

(13.8)

Reverse

1.1

(0.7)

1.6

(1.0)

2.1

(1.3)

2.6

(1.6)

3.1

(1.9)

4.5

(2.8)

5.8

(3.6)

7.2

(4.5)

9.4

(5.8)

13.7
(8.5)

17.8

(11.0)

21.9

(13.6)

HST Type

Front tire : 7-14 4PR, Rear tire : 11.2-24 8PR

Note) Engine rated speed : 2500 rev/min, Dynamic load radius : 525.5mm (20.7 in.)

Range gear 1 2 3

Forward

0~6.05

(0~3.76)

0~12.35

(0~7.67)

0~24.69

(0~15.34)

Reverse

0~6.05

(0~3.76)

0~12.35

(0~7.67)

0~24.69

(0~15.34)

Mechanical Type

5 -1

z

For safety, the hood must be closed and
correctly latched before operating the tractor.

z

The hood is hinged at the rear and a gas
cylinder is attached to provide easy access to
the engine for check and maintenance.

z

To open the hood, turn the hood opening knob
clockwise and lift the hood up.

z

To close the hood, pull the hood and push it
down to locking position slightly.

5-1. Access for maintenance

①

Opening Hood

▶

After the engine has stopped completely, you have to open the hood for checking.

▶

If you open the hood while the engine is running, it can cause serious damage by
the intended or unintended access to the rotating shaft, pulley, V-belt, cooling fan of
the engine or engine application parts. PLEASE BE CAREFUL.

Caution

5. Lubrication and Maintenance

z

The jacking points for maintenance is depending
on serviced parts case by case. Do not hesitate
to contact your authorized local dealer for asking.

z

Do not use the front axle assembly or steering
linkage and cylinder for jacking point. These
components have some rotating pivots and/or
does not have enough structural strength.

z

For general maintenance, use flat surface under
the engine frame end or bumper for jacking point,
and connect additionally hoist to the front towing
hook for safety.

z

For rear jacking points, flat surface under the
rear axle housing is recommended, and
additionally use the top-link bracket and its pin
for lifting point after removing the top-link.

②

Jacking points

▶

When lifting the rear of the
tractor, apply chocks to the slots
between front axle and engine
frame symmetrically to prevent
the rolling of the front axle.

Caution

Rear jacking point

Rear jacking point

Top link pin

Top link

Hood opening knob

Front jacking point

Front towing hook

5 -2

5-2. Maintenance chart

Mechanical type

z Periodic maintenance not only extends the service life of the tractor but also serves to ensure safe operation. The

maintenance chart shows the standard service intervals. If you notice any abnormal symptoms, make sure to carry
out the inspection and maintenance work, regardless of recommended service intervals in this maintenance chart.

z Appropriate service intervals vary depending on the usage and operating conditions. In extreme dusty/dirty environments,

the service intervals have to be shorter than normal condition.

5

9

14

4

13

21

17

8

7

6

23

10

16

3

22

1

18

19

15

20

2

24

25

12

11

5 -3

★

First Replacement ●Replacement ▲Check, Adjustment and Supply ■Clean up

No. Checking Parts Page No.

Check period (hr)

Daily 50 250 500 2-year

1 Fuel tank 5-9

▲

2 Fuel filter 5-22

▲●

3 Engine oil 5-6, 5-8, 5-18

▲★●

4 Engine oil filter 5-6, 5-18

★●

5 Engine coolant 5-11, 5-24

▲●

6 Radiator screen 5-12, 5-16

▲■

7 Air cleaner 5-11, 5-17, 5-22

▲■ ●

8 Battery 5-17, 5-30

▲

9 Fan belt tension 5-6, 5-20

▲

(First)

▲

10 Valve clearance 5-23

▲

11 Nozzle injection pressure 5-23

▲

12 Hydraulic oil filter 5-6, 5-19

★●

13 Transmission oil 5-17, 5-21

▲●

14 Front axle oil 5-17, 5-21

▲●

15 Steering cylinder 5-16

▲

16

Front axle holder &

Steering arm

5-16

▲

17 3-Point linkage 5-16

▲

18 Clutch pedal play 5-13

▲

19 Brake pedal play 5-14

▲

20

Turn signal lights,

Lights, Horn

5-10

▲

21

Instrument panel &

Indicators

5-9

▲

22 Bolts and Nuts retighten 5-13

▲

23 Tire air pressure 5-12

▲

24 Toe-in 5-20

▲

25 Hydraulic hoses 5-17

▲

5 -4

HST type

z Periodic maintenance not only extends the service life of the tractor but also serves to ensure safe operation. The

maintenance chart shows the standard service intervals. If you notice any abnormal symptoms, make sure to carry
out the inspection and maintenance work, regardless of recommended service intervals in this maintenance chart.

z Appropriate service intervals vary depending on the usage and operating conditions. In extreme dusty/dirty environments,

the service intervals have to be shorter than normal condition.

5

9

14

4

13

21

17

8

7

6

23

10

16

3

22

1

19

18

15

20

2

24

25

12

11

5 -5

★

First Replacement ●Replacement ▲Check, Adjustment and Supply ■Clean up

No. Checking Parts Page No.

Check period (hr)

Daily 50 250 500 2-year

1 Fuel tank 5-9

▲

2 Fuel filter 5-22

▲●

3 Engine oil 5-6, 5-8, 5-18

▲★●

4 Engine oil filter 5-6, 5-18

★●

5 Engine coolant 5-11, 5-24

▲●

6 Radiator screen 5-12, 5-16

▲■

7 Air cleaner 5-11, 5-17, 5-22

▲■ ●

8 Battery 5-17, 5-30

▲

9 Fan belt tension 5-6, 5-20

▲

(First)

▲

10 Valve clearance 5-23

▲

11 Nozzle injection pressure 5-23

▲

12 Hyd. oil filter & HST filter 5-6, 5-19

★●

13 Transmission oil 5-17, 5-21

▲●

14 Front axle oil 5-17, 5-21

▲●

15 Steering cylinder 5-16

▲

16

Front axle holder &

Steering arm

5-16

▲

17 3-Point linkage 5-16

▲

18 HST pedal neutral state 5-15

▲

19 Brake pedal play 5-14

▲

20

Turn signal lights,

Lights, Horn

5-10

▲

21

Instrument panel &

Indicators

5-9

▲

22 Bolts and Nuts retighten 5-13

▲

23 Tire air pressure 5-12

▲

24 Toe-in 5-20

▲

25 Hydraulic hoses 5-17

▲

5 -6

5-3. Lubricants and Capacity

Lubricants Capacity International Standard

Recommended

products

Engine coolant

(Radiator)

4.9 L

(1.3 U.S.gals.)

ASTM D5216

Soft water (50%) +

Anti-freeze (50%)

Fuel

28 L

(7.4 U.S.gals.)

ASTM D975 No.2

Ultra low sulfur

diesel fuel

Engine oil

(Crank case)

4.2 L

(1.1 U.S.gals.)

API CF-4 or CG-4

KIXX DL

(Manufacturer :

GS Caltex)

Transmission oil
(common use for
hydraulic lift and
steering system)

32 L

(8.5 U.S.gals.)

API GL4

ISO VG 46/68

LSTH570

( Manufacturer :

GS Caltex or S-OIL

TOTAL Co. Ltd.)

Front axle oil

6.5 L

(1.7 U.S.gals.)

API GL4

SAE 80W

EPK 80W90

(Manufacturer :

S-OIL TOTAL Co. Ltd.)

Grease

(Front axle holder,

Steering cylinder pin,

3-point linkage, etc.)

Proper

amount

NLGI 2

Starting
Temperature
℃(℉)

Oil
Viscosity

-30

(-22)

-25

(-13)

-20
(-4)

-15
(-5)

-10

14)-5(23)0(32)

-10

(50)20(68)30(86)40(104)

SAE 10W-30

SAE 15W-40

SAE 5W-20

RECOMMENDED OIL VISCOSITIES

The correct engine oil viscosity grade is dependent upon ambient temperature. Refer to the chart below
when selecting oil for your tractor engine.

In areas where prolonged periods of extreme temperatures are encountered, local lubricant practices
are acceptable; such as the use of SAE 5W 30 in extreme low temperatures or SAE 50 in extreme high
temperatures.
