LSI Logic MegaRAID SCSI 320-0X, MegaRAID SCSI 320-0, MegaRAID SCSI 320-2X, MegaRAID SCSI 320-4X, MegaRAID Express 500 Product Manual

MegaRAID Adapters

Host Bus Adapters

LSI Logic

Distribution Product Guide

Whether you’re an IT professional or an
OEM, you can depend on LSI Logic to
deliver the standard storage solutions you
need. Our innovative storage products
include I/O controllers, SCSI and Fibre
Channel Host Bus Adapters (HBAs), and
RAID storage adapters, all designed to give
you the performance, reliability, efficiency
and availability your application demands.

As the global leader in the standard storage
industry, LSI Logic supports customers the
world over, with market-leading SCSI, serial
ATA and Fibre Channel technology. Our long­term stability, expertise and commitment to
innovation ensure that you’ll always benefit
from the latest technology, backed by the
solid foundation that only an industry leader
like LSI Logic can promise.

Advanced Controllers & HBAs

For more than 20 years, LSI Logic
has provided industry-leading storage
solutions to major OEMs, such as Compaq,
Sun Microsystems, Hewlett-Packard and Intel.
Thanks to our success with these programs,
we can now deliver multi-platform, innovative,
quality products for your applications, as well.

Leading LSI Logic technologies include the
evolving SAS interface and our exclusive
Fusion-MPT

TM

architecture. Using industry-

standard ARM



processor technology, Fusion­MPT uniquely employs the same device driver
that supports Ultra320 SCSI, serial ATA and
Fibre Channel, so you no longer need to
develop, install and qualify separate device
drivers for each physical interface. OEMs can
invest in a single I/O architecture that allows
them to choose the best physical interface for
the application, while retaining the flexibility
to migrate to emerging technologies.

Powerful Information Protection

LSI Logic Product Highlights

• Industry's first shipping PCI SCSI RAID storage adapter

with Ultra320 SCSI support. . . . . . . . . . . . . . . . . 4

• First six-channel Serial ATA RAID solution

now sampling. . . . . . . . . . . . . . . . . . . . . . . . . .7

• Powerful processor-based and software assisted ATA

RAID solutions. . . . . . . . . . . . . . . . . . . . . . . . . . 8

• 2 Gbit Fibre Channel host bus adapters set the

performance standard. . . . . . . . . . . . . . . . . . . . 9

• LSI Logic Ultra320 SCSI controllers first to full production,

now shipping in volume . . . . . . . . . . . . . . . . . .10

• Value Line host bus adapters -- Same high-performance

SCSI HBAs -- at dramatically reduced prices . . . . .12

2

So not only is Fusion-MPT the fastest and most
efficient architecture for high-performance
controllers, it’s also the most versatile.

LSI Logic’s Ultra320 SCSI controller implementation
more than doubles the bandwidth and performance
of previous-generation Ultra160 SCSI solutions,
with features like paced transfers, packetized
protocol, Quick Arbitrate & Select (QAS) and
Retained Training Information (RTI). Integrated
Mirroring‘ (RAID-1) of two Ultra320 SCSI hard
drives provides "hot spare" capability. PCI SCSI
host bus adapters, designed around LSI Logic’s
innovative technologies and features sets, offer
unparalleled performance, reliability and
interoperability, a must for today’s I/O-intensive
desktop, server and workstation environments.

With more than 10 years’ experience in Fibre
Channel technology, we offer a full spectrum of
Fibre Channel products for hubs, switches,
workstations, servers and storage systems. Our line
of host bus adapters leads the industry in perform­ance, reliability and distance-to-inter­connect, to fully support today’s
storage area networks. In fact, no
other company has more experience
or competency in technologies (SCSI, gigabit
Ethernet, Fibre Channel), form factors (compact
PCI, low-profile PCI, PCI mezzanine) and operating
systems including Windows NT/2000/XP/.NET,
Solaris, Linux and more.

Powerful RAID Solutions

Powered by a proven firmware engine and
common interface across product lines, LSI Logic’s
MegaRAID controllers balance features, perform­ance and price, to deliver superior flexibility,
reliability and cost-effective operation. Our
complete spectrum of PCI-RAID solutions range from
highly integrated RAID-on-motherboard (ROMB)
and RAID-on-chip (ROC) technologies to
high-performance host-based serial ATA and ATA

RAID adapters. Each LSI Logic MegaRAID system
features straightforward setup, configuration and
management utilities, including:

• Online capacity expansion and
RAID level migration;

• Unified firmware for easier, more
compatible upgrades;

• Hot key, GUI and Web interfaces; and

• Background initialization for Quick RAID 5 setup.

The complete MegaRAID feature set ensures that
information is always protected and available,
even during back-up, rebuild or enhancement
operations.

Advanced hardware design features include:

• Half-size and low-profile form factors for slim-line
desktops and "blade"-style server arrays, in
environments where space is a consideration;

• Transportable battery-backed memory, for
complete protection of data, even in the event of
controller failure; and

• Combination of PCI RAID and motherboard­based RAID within the same system, for
simplified expansion and optimum utilization of
existing server resources.

What’s more, LSI Logic’s MegaRAID controllers
support all major operating systems, including
Linux, Netware and Windows NT/2000/XP.

Convenient Distribution

Strategic partnerships with distributors such as
Arrow Electronics, Avnet, Insight Electronics, Bell
Microproducts and Tech Data allow us to offer our
competitively priced board-level solutions to system
integrators and value-added resellers worldwide.

Our MegaRAID

products increase

levels of

redundancy with

consistency across

platforms, transparency

to users and minimal

administrative

overhead for

technology

professionals and

integrators.

MegaRAID SCSI 320-1

MegaRAID SCSI 320-0

MegaRAID SCSI 320-0 - First-to-Market Ultra320 RAID. This entry-level zero-channel RAID (ZCR) solution requires motherboard
interrupt steering logic and routing circuitry to control SCSI device embedded on the motherboard.

• Full MegaRAID feature set

• Intel® 80302 processor

• Half size, low profile form factor

• IA-64 ready

• 64-bit, 66 MHz PCI 2.2

• Integrated ECC SDRAM cache memory

MegaRAID SCSI 320-1 - First-to-Market Ultra320 RAID. This full-featured single-channel solution offers powerful single channel
Ultra320 performance based on LSI Logic's 53C1020 for high performance workstation and entry-level server environments

• Full MegaRAID feature set

• Intel® 80302 processor

• One LSI 53C1020 single-channel Ultra320 SCSI controller

• Half size, low profile PCI form factor

• IA-64 ready

• 64-bit, 66MHz PCI 2.2

• Integrated ECC SDRAM cache memory

MegaRAID SCSI 320-2 - First-to-Market Ultra320 RAID. This dual channel solution features extensive fault tolerance capabilities
including optional battery-backed cache memory.

• Full MegaRAID feature set

• Intel® 80302 processor

• One LSI 53C1030 dual-channel Ultra320 SCSI controller

• Half size PCI form factor

• IA-64 ready

• 64-bit, 66MHz PCI 2.2

• Supports up to 256MB 100MHz ECC SDRAM

• Optional battery backup

• Optional battery backed cache support

Ultra320 MegaRAID Products

MegaRAID SCSI PCI Products

LSI Logic was the first to offer advanced PCI SCSI RAID storage adapters with Ultra320 support. Backed by the technology for
64-bit addressing, a robust RAID feature set, and advanced memory and caching policies, LSI Logic’s Ultra320 MegaRAID
solutions deliver enterprise-class data throughput and fault tolerant capabilities, plus easy-to-use management utilities – features
that are essential for both high-end servers and workstations where performance, reliability and availability are key.

MegaRAID SCSI 320-2

4

MegaRAID SCSI 320-0X* – The innovative PCI-X zero channel RAID (ZCR) solution requires motherboard interrupt steering logic
and routing circuitry to control SCSI device embedded on the motherboard.

• Full MegaRAID feature set

• 400MHz Intel® Xscale™ 80321 processor

• Half size, low profile form factor

• 64-bit, 66/133MHz PCI 2.2/PCI-X 1.0

• Integrated 100Mhz DDR ECC SDRAM cache memory

• Optional battery backup daughter card

MegaRAID SCSI 320-2X* – Featuring the innovative LSI Logic Ultra320 PCI-X SCSI controller, this solution maximizes two-channel

• Full MegaRAID feature set

• 400MHz Intel® Xscale™ 80321 processor

• One LSI 53C1030 dual-channel Ultra320 SCSI controller

• PCI-X half size form factor

• 64-bit, 66/133MHz PCI 2.2/PCI-X 1.0

• Up to 256MB 100MHz DDR ECC SDRAM

• Optional battery backup

• Optional battery backed cache support

MegaRAID SCSI 320-4X* – LSI Logic four-channel PCI-X RAID solutions offer
unmatched storage performance featuring LSI Logic’s full MegaRAID feature set coupled
with 400 MHz processing power, industry-leading Ultra320 SCSI technology
and DDR memory support.

• 400MHz Intel® Xscale™ 80321 processor

• Two LSI 53C1030 dual-channel Ultra320 SCSI controller

• PCI-X full size form factor

• 64-bit, 66/133MHz PCI 2.2/PCI-X 1.0

• 4Ch SCSI 320M

• Up to 256MB 100MHz DDR ECC SDRAM

• Optional battery backup

• Optional battery backed cache support

MegaRAID SCSI PCI-X Products

Ultra320 PCI-X MegaRAID Products

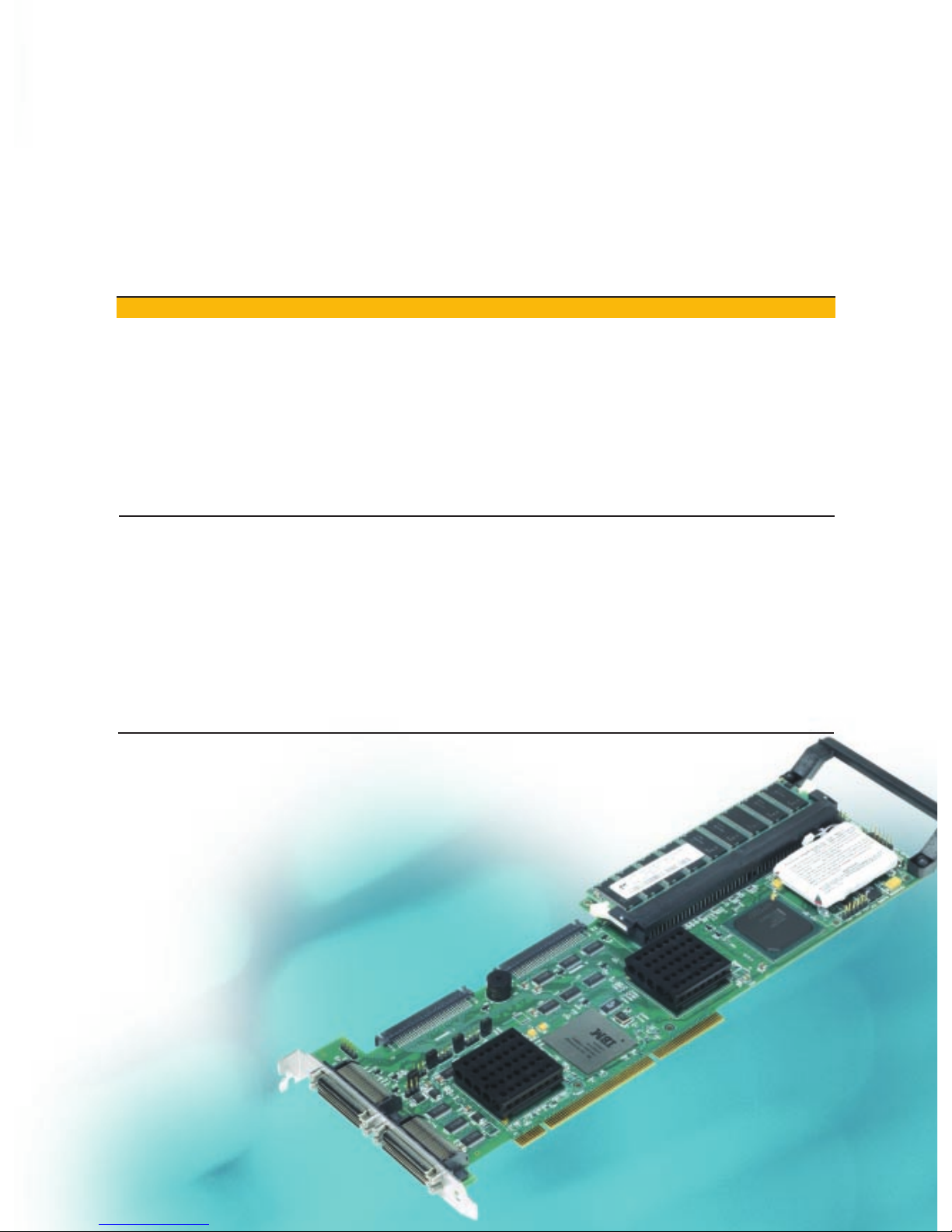

MegaRAID SCSI 320-4X

LSI Logic’s MegaRAID solutions are available to support PCI-X 1.0 and, thus, address the need for increased bandwidth of PCI
devices. With PCI-X, you can design systems and devices that operate at clock speeds up to 133 MHz or 1 GB/s. What’s more,
PCI-X protocol enhancements enable devices to operate much more efficiently, providing more useable bandwidth at any clock
frequency. The PCI-X product family includes innovative zero-, dual- and four-channel RAID solutions that couple LSI Logic’s proven,
full-featured MegaRAID firmware engine with advanced hardware designs. Boasting a 400 MHz I/O processor and 100 MHz DDR
memory support, LSI Logic PCI-X MegaRAID technology offers system builders unmatched storage I/O performance for extremely
data-intensive storage environments.

* Customers should contact their local LSI Logic sales

representative for availability and sampling program details.

5

MegaRAID Express 500 – most popular single-channel SCSI RAID controller in the world features
powerful, advanced MegaRAID features at a very low cost.

• High performance Intel i960 RISC I/O processor driving a single Ultra160 SCSI channel

• Windows NT/2000 cluster support

• PCI 2.2 compliant

• Supports up to 15 hard drives at RAID levels 0, 1, 3, 5, 10, 30 and 50

• Up to 128MB ECC SDRAM via single DIMM slot

MegaRAID Elite 1600 – the most popular two channel controller in the world, and its faster successor, the
MegaRAID Elite 1650, feature 64-bit, 66MHz PCI performance with optional battery backup.

• Extensive fault-tolerant capabilities

• IA-64 ready, with advanced Intel I/O processor driving two Ultra160 SCSI channels

• Windows NT/2000 cluster support

• Supports up to 30 hard drives with RAID levels 0, 1, 3, 5, 10, 30, and 50

• Supports up to 256MB 100MHz ECC SDRAM (128MB on the Elite 1600)

MegaRAID Enterprise 1600 – the most powerful four channel controller available, featuring 64-bit,
66MHz PCI interface and transportable battery backup.

• Extensive fault-tolerant capabilities, with on-board transportable battery backup

• IA-64 ready, with a high performance Intel i960 RISC I/O processor driving four Ultra160 SCSI channels

• Windows NT/2000 cluster support

• Supports up to 60 hard drives with 32 drives per logical array, with RAID levels 0, 1, 3, 5, 10, 30 and 50

• Auto resume during array rebuild/reconstruction

• Supports up to 128MB ECC SDRAM

MegaRAID Enterprise Products

Ultra160 MegaRAID Products

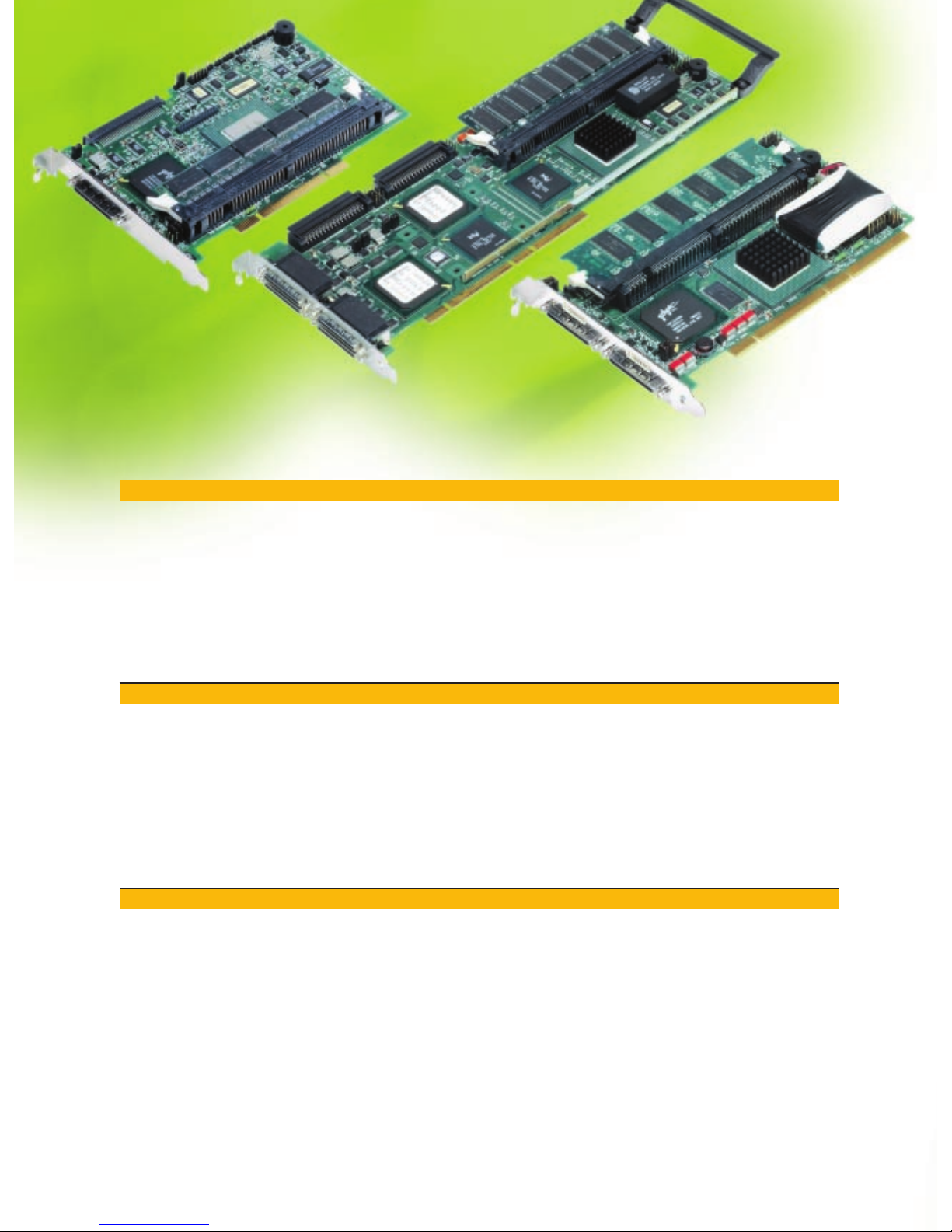

MegaRAID Express 500

MegaRAID Elite 1650

MegaRAID Enterprise 1600

MegaRAID Elite Products

MegaRAID Express Products

6

With LSI Logic’s Serial ATA solutions, you can take advantage of an evolutionary replacement for the Parallel ATA physical storage
interface. Serial ATA is scalable and allows future enhancements to the computing platform, with a roadmap expecting to span over
10 years.

Other advantages of Serial ATA include:

• Easier upgrade of storage devices

• Point-to-point configuration

• Hot pluggable drive support

• Improved power management

• Simpler configuration, without many of the previous requirements on jumper and settings

• Thinner Serial ATA cables, up to one meter long, to address concerns about airflow and allow smaller
and more versatile chassis designs

• Improved silicon designs, for lower pin counts and lower voltages

MegaRAID SATA 150-6* – First-to-Market SATA RAID Storage Adapters offer LSI Logic’s full MegaRAID feature set and supports
six SATA 150 drive channels, integrated 100 MHz ECC SDRAM and onboard processor.

• Intel® 80302 processor

• 64-bit, 66 MHz PCI 2.2

• Half size form factor

• Six SATA 150 channels

• Battery backup support

• 64MB integrated 100Mhz ECC SDRAM

• Hot swap support native in SATA protocol handled through Firmware on the card

• Backplane and 3rd party enclosure management support

MegaRAID SATA 150-2* – Featuring two SATA 150 channels and powered by LSI Logic’s MegaRAID
IDEal Software RAID solution, the MegaRAID SATA 150-2 is ideal for low-cost desktop,
workstation and entry-level server environments.

• Low profile PCI form factor

• One Sil 3112A SATA controller

• 32bit, 66MHz PCI 2.2

• Two SATA 150 channels

• Also available as non-RAID adapter solution

MegaRAID SATA 150-8* -- LSI Logic's enterprise-class Serial ATA RAID solution
will offer eight high-performance SATA channels in a half-size form factor.

• Full MegaRAID feature set

• Eight SATA 150 channels

• Intel® 80302 processor

• 64-bit, 66MHz, PCI 2.2

• PCI half size form factor

SATA MegaRAID Products

MegaRAID SATA Products

What Is Serial ATA?

MegaRAID SATA 150-6

* Customers should contact their local LSI Logic sales representative for availability and sampling program details.

7

MegaRAID i4 – The cost-effective MegaRAID i4 offers the same advanced RAID functionality found in today’s high-performance
PCI SCSI RAID solutions.

• Four-channel ATA/100 RAID

• Full MegaRAID feature set

• Intel®i960RS processor

• PCI half size form factor

• 16 MB of integrated ECC SDRAM

ATA RAID Solutions featuring MegaRAID IDEal RAID software offer sub entry-level server and workstation environments an
economical solution for data redundancy and increased system performance. IDEal RAID solutions also offer an easy migration
path to processor-based solutions that offer data parity across RAID arrays (RAID 5).

MegaRAID ATA 133-2 – LSI Logic’s next-generation ATA/133 based RAID solution. The MegaRAID ATA 133-2, powered by
MegaRAID IDEal Software, offers faster IO performance in a low-profile form factor for added ease of integration into tight form
factor environments.

• RAID 0, 1 & 10 supported

• 48-bit LBA (Logical Block Addressing) for drives larger than 137 GB

• CMD 680 with flash support

• 32bit, 33MHz PCI 2.2, MD2 size (low profile)

• Two internal ATA 133 channels

MegaRAID IDE 100 – dual channel ATA/100 RAID storage adapter. Entry level IDE RAID featuring extremely low price point
and easy-to-use management and configuration utilities

• RAID 0, 1 & 10 supported

• Links multiple drives into a single virtual array

• Rebuilds data in the background with hot spare

ATA MegaRAID Products

MegaRAID ATA Products

MegaRAID ATA 133-2

MegaRAID i4

LSI Logic ATA RAID products feature both non-processor and processor-based implementation to meet a wide range of entry-level and
sub-entry-level server and performance workstation environments.

8

LSI40919H -- 64-bit PCI Fibre Channel Single-Channel Host Adapter. This copper-connector, rackmount HBA is designed for
multi-purpose applications, including high-performance disk drives, RAID and JBOD mass storage systems. The single 2Gbit channel
enables speeds of up to 400MB/s and supports concurrent SCSI and IP protocol.

• 2Gbit channel – up to 400 MB/s, full duplex

• Switch, loop and point-to-point topologies supported

• Auto-negotiation for legacy connect (1 or 2 Gbit)

• Concurrent SCSI and IP protocol

• FC-tape support

• CIM-based server management

• Sun and Intel compatible

• 5-year limited warranty

LSI44929O -- 2 Gbit Fibre Channel Dual-Channel Host Adapter. The LSI44929O, with multi-mode optical connection, is the
ideal choice for enterprise applications when connected to multiple clusters. This low-profile HBA saves additional rack space by
providing two independent fibre channels on one host adapter, for clustered or SAN environments.

• 2 independent 2Gbit channels – up to 400 MB/s, full duplex per port

• Switch, loop and point-to-point topologies support

• Auto-negotiation for legacy connect (1 or 2 Gbit)

• Concurrent SCSI and IP protocol

• Concurrent target mode and SCSI initiator support

• FC-tape support

• CIM-based server management

• Sun and Intel compatible

• 5-year limited warranty

Fibre Channel Host Bus Adapter Products

LSI Logic Fibre Channel Host Bus Adapters (HBAs) deliver a new level of reliability, speed and distance in interconnect technology.
Designed with a low-profile PCI form factor, these adapters are available in cost-effective, single-channel models, ideal for
workstations or entry-level servers, or in dual-channel models, for high-performance applications such as digital media, data
warehousing or data mining. All LSI Logic Fibre Channel HBAs incorporate our exclusive Fusion-MPT architecture, for high throughput
and low I/O latency in Fibre Channel switched-network topologies and conventional arbitrated-loop designs.

Fibre Channel Host Bus Adapters

LSI40919H

LSI44929O

9

LSI22320-R – The LSI Logic LSI22320-R Ultra320 SCSI Dual Channel host adapter delivers the speed and bandwidth required by
today's data intensive storage applications. With PCI-X throughput of 1056 MBps and optional Integrated Mirroring capabilities,
this adapter is ideal for enterprise servers and high performance workstations working in environments where data intensive, high
capacity and high availability applications are being used.

• Ultra320 SCSI, PCI-X 133MHz

• 640 MBps of Ultra320 speeds on two channels

• Fusion-MPT architecture featuring 100,000 IO/s

• Integrated Mirroring for boot volume and OS protection

• Connects up to 30 internal/external connects such as JBOD, RAID, hard disk drives

• Supports all major operating systems

• Supports Sun and Intel based systems

• 5 year limited warranty

LSI21320 – The LSI Logic LSI21320 Ultra320 SCSI Dual Channel host adapter is ideal for use in high performance workstations
and entry-level to mid-range servers. With 320 MBps and capability of up to 100,000 I/Os per second, this adapter is ideal for
transferring high speed and high capacity data.

•

Ultra320 SCSI, PCI-X 133MHz

•

640 MBps of Ultra320 speeds on two channels

•

Fusion-MPT architecture featuring 100,000 IO/s

•

Connects up to 30 internal/external connects such as JBOD, RAID, hard disk drives

•

Supports all major operating systems

•

Supports Sun and Intel based systems

•

5 year limited warranty

SCSI Host Bus Adapter Products

Ultra320 SCSI Host Bus Adapter Products

LSI Logic Ultra320 HBAs utilizes Fusion-MPT

TM

architecture that allows for thinner drivers for better performance (up to 100,000 I/Os
per sec) while adding value and flexibility at the firmware level. Powered by the industry's first PCI-X to dual-channel and single­channel Ultra320 SCSI controllers, LSI Logic Ultra320 HBAs are designed to power today's fastest64-bit/133 MHz PCI-X systems.

LSI21320

10

LSI22320-R

LSI21040 – The LSI21040 features one Ultra160 SCSI channel for maximum performance and one single-ended channel for
legacy SCSI devices. The LSI21040 leverages the dual-channel LSI53C1010 Ultra160 SCSI controller, which supports Ultra160
SCSI and offers features that ensure robust Ultra160 SCSI system operation.

• True multi-function PCI device with one high performance channel for Ultra160 SCSI devices

• One legacy SCSI channel for single-ended internal peripheral support

• Connects up to 30 devices

• Ensures data integrity by intelligently validating the compatibility of your SCSI domain with SureLINK technology

• Device driver support for all major operating systems.

Ultra160 SCSI Host Bus Adapter Products

LSI20860 -- 32-bit PCI to Ultra SCSI Host Adapter. This single-channel HBA is our lowest cost adapter and is ideal for legacy

peripheral desktop SCSI connectivity applications. Featuring an 8-bit Ultra SCSI host adapter with a 32-bit bus master (DMA) PCI
host interface, the LSI20860 connects up to seven devices and easily attaches desktop PCs to peripherals such as non-bootable
SCSI hard drives and other SCSI devices.

• Provides low-cost SCSI connectivity for desktop and workstation applications

• Supports CD-ROMS, tape storage devices and popular high-capacity, removable media devices (Iomega

TM

and SyquestTM)

• SCSI activity LED connector

• TolerANT signaling technology ensures greater data integrity

• Allows intermixing of Ultra and Fast devices on SCSI bus

• 5-year limited warranty

Ultra SCSI Host Bus Adapter Products

Ultra320 SCSI Host Bus Adapter Products

LSI20320 – The LSI Logic LSI20320 Ultra320 SCSI Single Channel host adapter is the right choice for increasing internal storage

performance within ISP, rackmount and high performance workstations. Designed for applications that don't require as many
external connections, this cost effective solution gives you the performance you need, at a price that is right.

•

Ultra320 SCSI, PCI-X 133MHz

•

320 MBps data transfer rates

•

MD2 form factor, low profile bracket available upon request

•

Fusion-MPT architecture featuring 50,000 IO/s

•

Connects up to 15 internal/external connects such as JBOD, RAID, hard disk drives

•

Supports all major operating systems

• S

upports Sun and Intel based systems

•

5 year limited warranty

LSI20860

LSI21040

11

LSIU160 Value Line -- Ultra160 SCSI Single-Channel Host Adapter. This all-purpose server SCSI adapter is ideal for any
application requiring high I/O performance, data integrity and scalability with a low implementation risk. The LSIU160 features
Ultra160 SCSI both internally, when connecting high-performance hard disk drives, and externally, for connecting drive enclosures
and peripherals.

• High-performance single-channel Ultra160 SCSI solution

• Supports multi-tasking operation systems

• SureLINK

TM

domain validation technology ensures data integrity

• Fully backward compatible with older SCSI devices, protecting legacy device investments

• Supports one-button disaster recovery for tape drives, for rapid data recovery

• Supports Windows and Linux operating systems with SDMS software

• 3-year limited warranty

LSIU80LVD Value Line -- Ultra2 LVD SCSI Host Adapter. This single-channel adapter’s Ultra2 LVD connection offers higher per­formance (80MB/s), longer cable length (12m) and higher reliability than Ultra SCSI, at an affordable price, making it the ideal
solution for direct-attach storage of tape and optical drive/libraries to a workstation or server. The LSIU80LVD automatically switches
from single-ended operation for legacy Fast/Ultra devices to universal low-voltage differential (LVD) operation, when LVD-enabled or
Ultra2 devices are connected.

• Supports wide (16-bit) Ultra2, Ultra and Fast SCSI devices

• Incorporates LVDlink

TM

technology, for the data reliability of differential signaling, without the

high cost of high-voltage differential (HVD) transceivers

• Supports LVD or single-ended SCSI devices

• SureLINK domain validation technology ensures data integrity

• Supports one-button disaster recovery for tape drives, for rapid data recovery

• Supports Windows and Linux operating systems with SDMS software

• 3-year limited warranty

Ultra Value Line SCSI Host Bus Adapter Products

Ultra Value Line SCSI Host Bus Adapter Products

LSI Logic SCSI host bus adapters deliver the performance and power that OEMs, VARs and system integrators depend on to keep
data moving faster and more reliably. LSI Logic's SCSI HBAs feature SureLINK

TM

domain validation technology, which detects the

configuration of the SCSI bus and automatically tests and adjusts the SCSI transfer rate to optimize interoperability.

LSIU160 Value Line

LSIU80LVD Value Line

12

LSIU40SE Value Line -- Ultra SE SCSI Host Adapter. This multi-function board provides two identical, independent, single-ended
Ultra SCSI channels, for increased connectivity without utilizing additional PCI slots. The single board delivers a powerful dual­channel, multi-tasking interface for Ultra SCSI peripherals, including disk, tape, CD-ROM and other SCSI devices, in applications
requiring SE connections.

• PCI 32-bit, 33 MHz

• Connects up to 30 internal/external devices such as JBOD, RAID, scanners

• On-board configuration utility allows viewing and changing of default configuration settings

for the host adapter and connected SCSI peripherals

• Modifies on-board terminators, depending on cable configuration and LEDs, to assist termination power monitoring

• Supports Windows and Linux

• 3-year limited warranty

LSIU40HVD Value Line -- Ultra HVD SCSI Host Adapter. With two identical, independent differential Ultra SCSI channels, this
multi-function board offers increased connectivity in fewer PCI slots. In applications requiring HVD-connected peripherals, the
LSIU40HVD provides a powerful multi-tasking interface for Ultra SCSI peripherals, such as RAID storage, tape libraries and other
SCSI devices.

• PCI 32-bit, 33 MHz

• Dual channel Ultra SCSI

• Connects up to 30 internal/external devices such as JBOD, RAID, scanners

• On-board configuration utility allows viewing and changing of default configuration settings

for the host adapter and connected SCSI peripherals

• Modifies on-board terminators, depending on cable configuration and LEDs, to assist termination power monitoring

• Supports Windows and Linux

• 3-year limited warranty

Ultra Value Line SCSI Host Bus Adapter Products

LSIU40HVD Value Line

LSIU40SE Value Line

13

Host Adapter Solutions
from LSI Logic

LSI Logic is a leader in the industry
because of our engineering expertise and
ability to combine a variety of I/O
functions on a single Host Adapter. These
functions include; SCSI, Ethernet, Gigabit
Ethernet, Video, and Fibre Channel.
Providing users with as many as seven I/O
functions on a single adapter, LSI allows
users to conserve PCI slots, improve system
reliability, and maximize port density.

• Low profile host adapters - LSI Logic
introduced the first low-profile SCSI Host
Adapters designed for 1U and 2U high

rackmount servers. The family of
HBAs includes Ultra SCSI, Ultra2
SCSI, Ultra160 SCSI, Ultra320

SCSI, and Fibre Channel to meet
the needs of server designers and system
integrators.

• Dual channel SCSI and Fibre Channel
adapters - Dual channel boards are

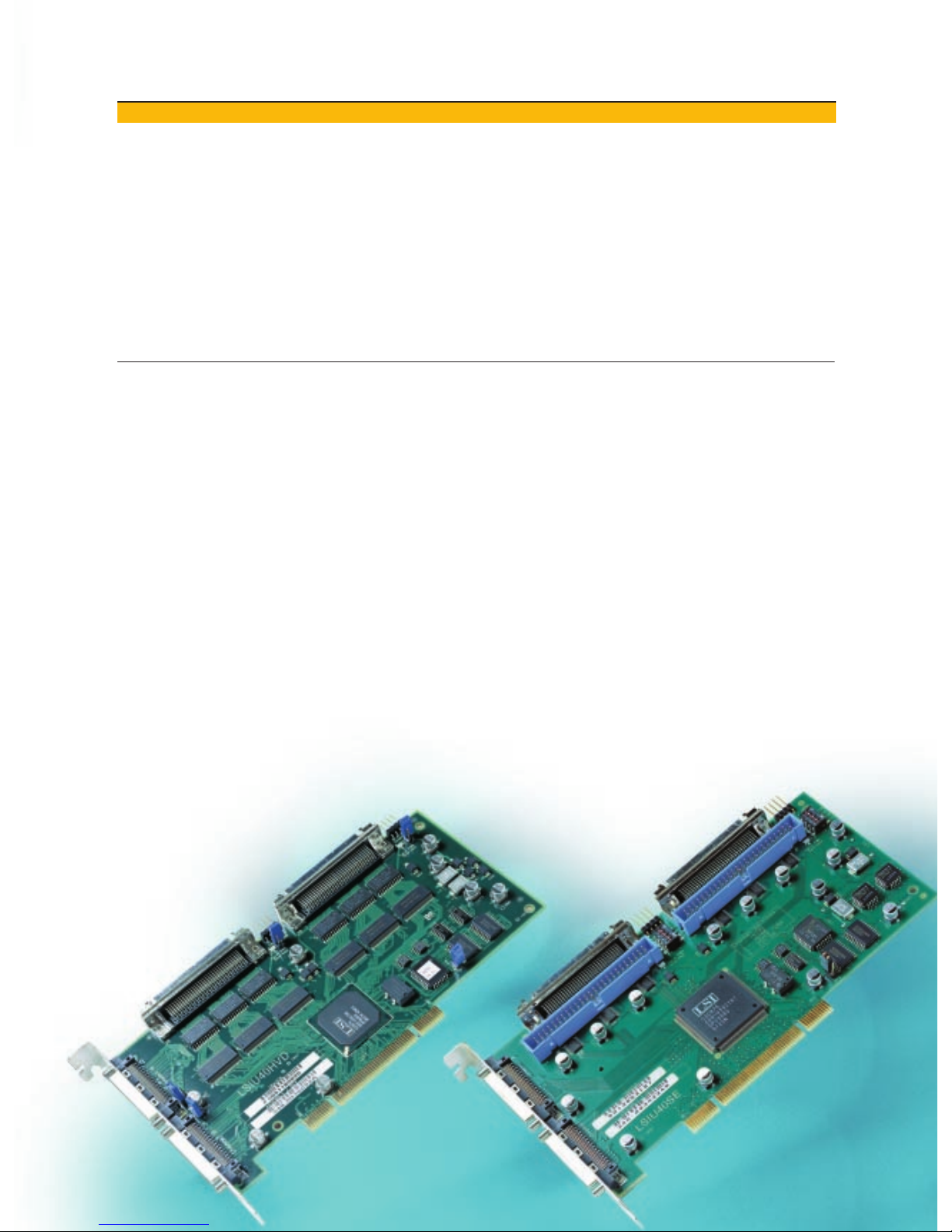

designed for enterprise servers that feature
two high performance
channels. These boards handle heavy I/O
requirements in high-end applications.

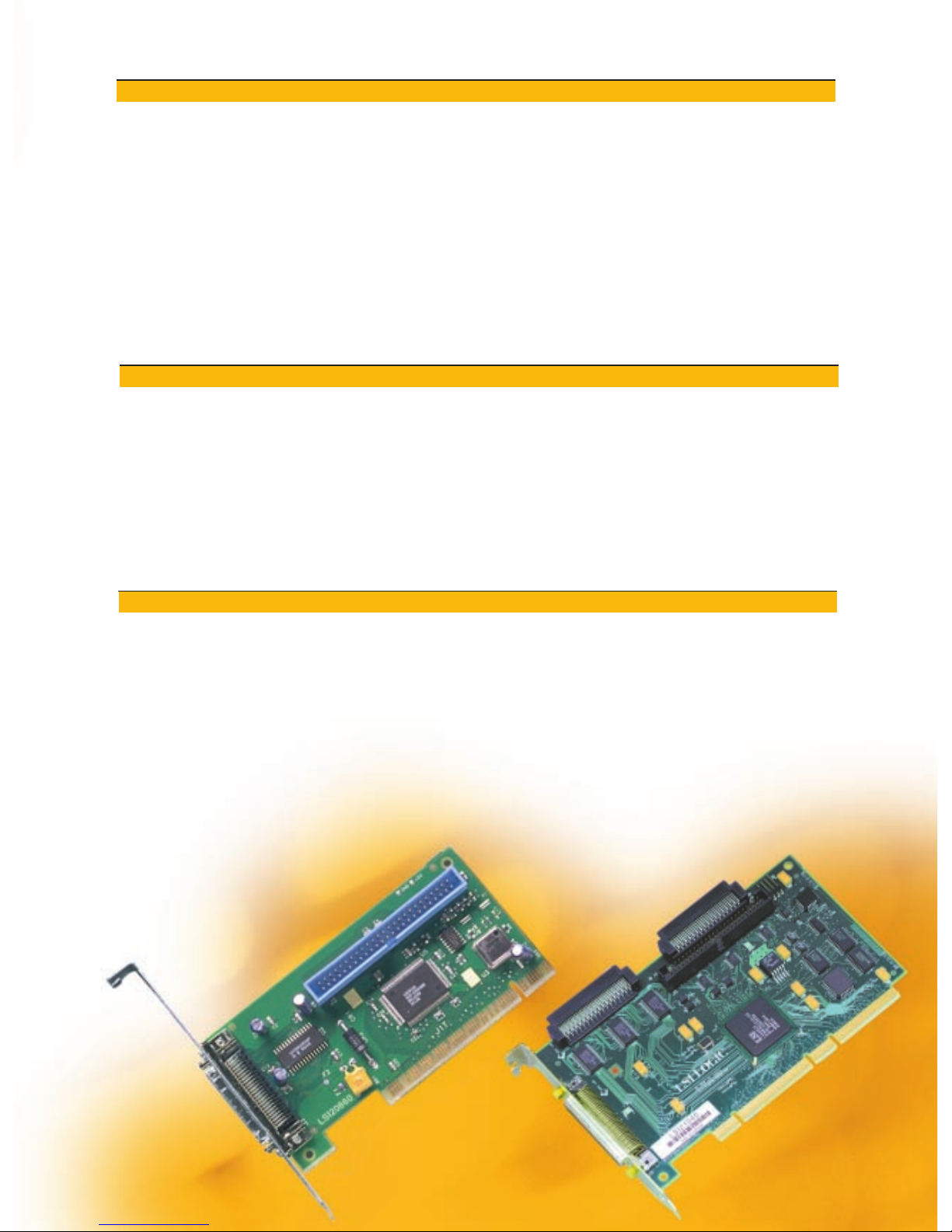

• Single channel SCSI and Fibre Channel
adapters for workstations and entry-level
servers.

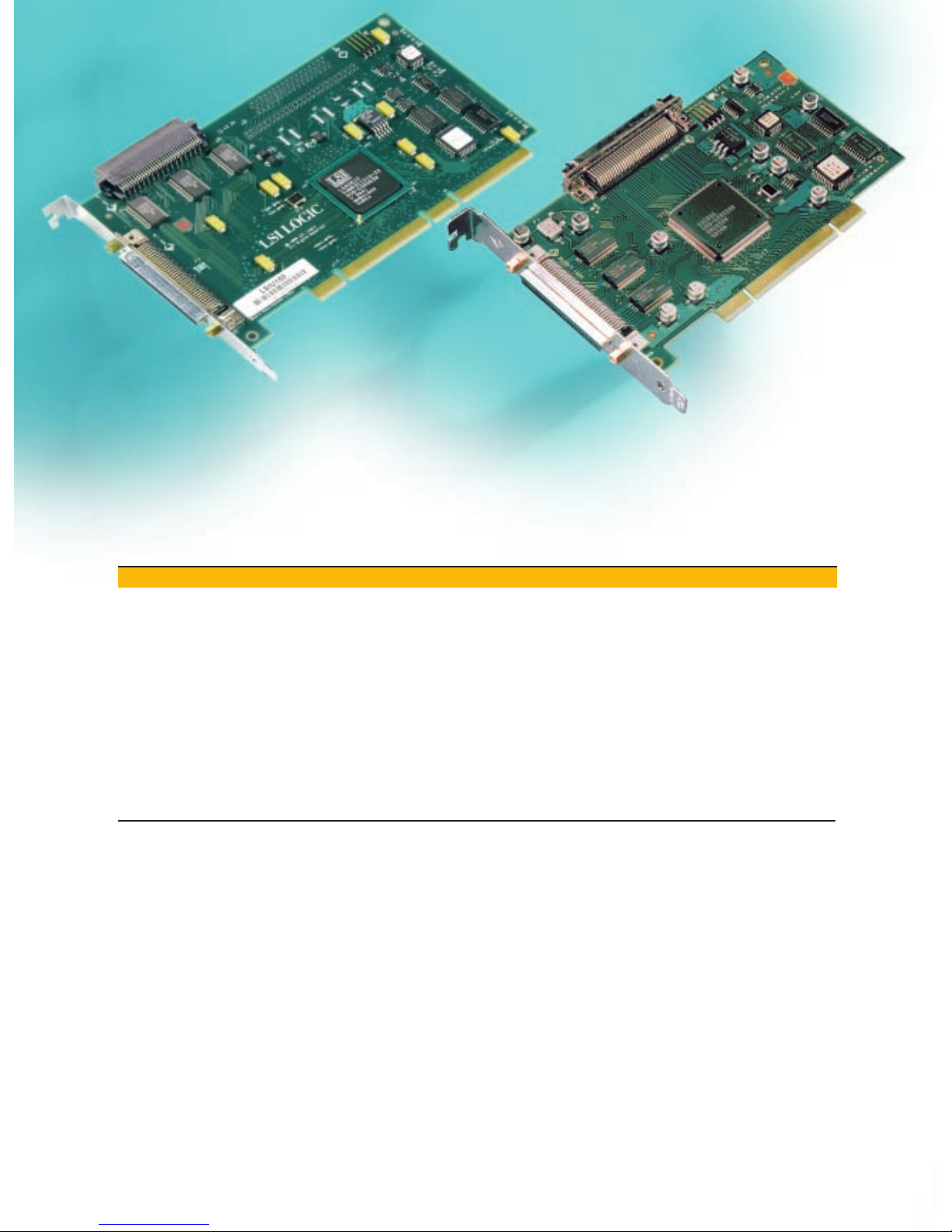

• Internal legacy SCSI adapters for
servers, tape back-up, CD-ROM.

• External legacy SCSI adapters for
peripheral attach.

• Multi-function and combination adapters
– You will find that line of our adapters
enable users to achieve the highest levels
of overall system performance while
conserving valuable PCI slots by placing
numerous functions on one board.

Custom Capabilities to meet your
specific requirements

LSI Logic offers turnkey capabilities in
custom host adapter board design to meet
OEM specific needs and technical require­ments. These turnkey solutions include
engineering resources to full product line
production in LSI Logic ISO9001 certified
worldwide manufacturing operations. In
addition, the multifunction host adapter
product line allows us to fit multiple,
specific technology requirements onto one
adapter saving valuable space within the
system. We also have many technologies
to choose from depending on speed,
bandwidth, distance, and form factor
needs including Low Profile PCI and
CompactPCI(tm).

Software And Interoperability You
Can Count On

Data reliability and system performance
are crucial to mission critical applications.
LSI Logic has software that you can count
on. The SDMS(tm) software is designed to
work with Ultra, Ultra2 and Ultra160 SCSI
product lines and we are proud to
introduce Fusion-MPT software for easily
migrating to future I/O technologies. For
a complete 2Gbit Fibre Channel host bus
adapter interoperability matrix, visit
http://interop.lsilogic.com.

Convenient Kits Provide Everything
You Need

Most host adapters are available as indi­vidual boards or in boxed kits containing
everything you need to install a SCSI or
Fibre Channel board in your system. To
speed design and system expansion
activities, you can obtain most host
adapters boxed with cables, software and
documentation or custom configured for
original equipment manufacturers.

Host Bus Adapter Solutions From LSI Logic

For more information, please visit the
LSI Logic web site at:

www.lsilogic.com

LSI Logic Corporation

North American Headquarters
Milpitas, CA
Tel: [phone]
Tel: [phone]

RAID Storage Adapters Division

Norcross, GA
Tel: [phone]
Tel: [phone]
Fax: [phone]
Fax: [phone]

Host Adapter Group

Southborough, MA
Tel: [phone]
Fax: [phone]

LSI Logic Europe Ltd.

European Headquarters
United Kingdom
Tel: [phone]
Fax: [phone]

LSI Logic Asia, Inc. Taiwan Branch

Taipei, Taiwan, R.O.C.
Tel: [phone]
Fax: [phone]

LSI Logic Hong Kong Limited

Kowloon Tong Office
Tel: [phone]
Fax: [phone]

LSI Logic KK Headquarters

Tokyo, Japan
Tel: [phone]
Fax: [phone]

ISO 9001 Certified
LSI Logic, the LSI Logic logo design, MegaRAID, and Fusion-MPT
are trademarks or registered trademarks of LSI Logic Corporation.
All other brand and product names may be trademarks of their
respective companies.

LSI Logic Corporation reserves the right to make changes to any
products and services herein at any time without notice. LSI Logic
does not assume any responsibility or liability arising out of the appli­cation or use of any product or service described herein, except as
expressly agreed to in writing by LSI Logic; nor does the purchase,
lease, or use of a product or service from LSI Logic convey a license
under any patent rights, copyrights, trademark rights, or any other of
the intellectual property rights of LSI Logic or of third parties.

Copyright © 2002 by LSI Logic Corporation
All rights reserved.

Order No. RSA CAT 1.0
08/02 – Printed in the USA
