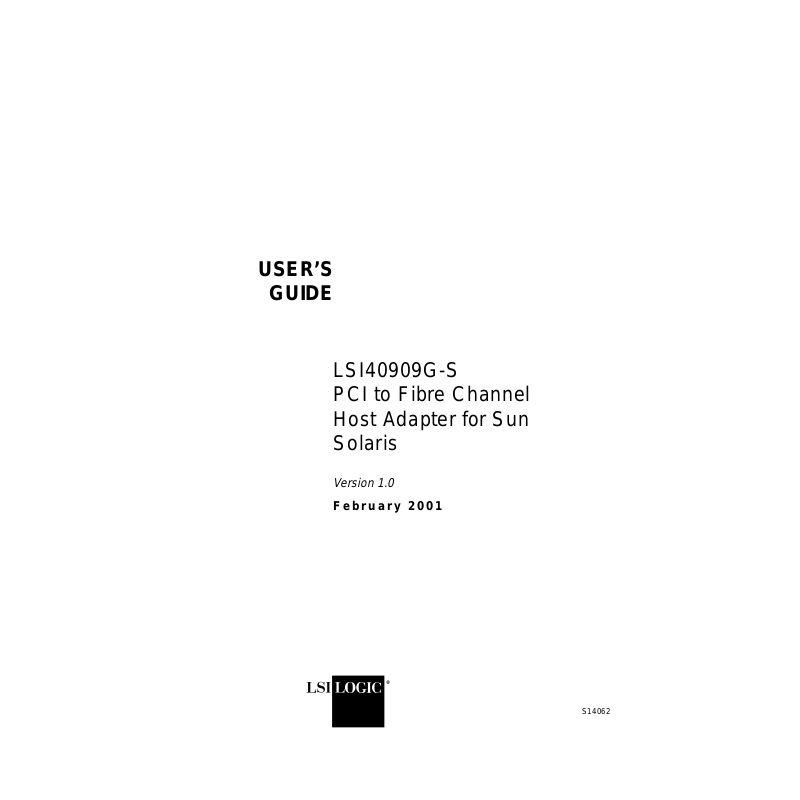

LSI 40909G-S User Manual

USER’S
GUIDE
LSI40909G-S PCI to Fibre Channel Host Adapter for Sun Solaris
Version 1.0
®
S14062
Electromagnetic Compatibility Notices
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Shielded cables for SCSI connection external to the cabinet are used in the compliance testing of this Product. LSI Logic is not responsiblefor any radio ortelevision interference caused byunauthorized modification of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by LSI Logic. The correction of interferences caused by such unauthorized modification, substitution, or attachment will be the responsibility of the user.
The LSI Logic LSI40909G-S is tested to comply with FCC standards for home or office use.
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du
Canada.
This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.
LSI Logic Corporation North American Headquarters Milpitas, CA
408.433.8000
ii
This document contains proprietary information of LSI Logic Corporation. The information contained herein is not to be used by or disclosed to third parties without the express written permission of an officer of LSI Logic Corporation.
LSI Logic products are not intended for use in life-support appliances, devices, or systems. Use of any LSI Logic product in such applications without written consent of the appropriate LSI Logic officer is prohibited.
Document DB14-000180-00, First Edition (February 2001). This document describes the LSI Logic LSI40909G-S PCI to Fibre Channel Host Adapter for Sun Solaris and will remain the official reference source for all revisions/releases of this product until rescinded by an update.
To receive product literature, visit us at http://www.lsilogic.com.
LSI Logic Corporation reserves the right to make changes to any products herein at any time without notice. LSI Logic does not assume any responsibility or liability arising out of the application or use of any product described herein, except as expressly agreed to in writing by LSI Logic; nor does the purchase or use of a product from LSI Logic convey a license under any patent rights, copyrights, trademark rights, or any other of the intellectual property rights of LSI Logic or third parties.
Copyright © 2001 by LSI Logic Corporation. All rights reserved. TRADEMARK ACKNOWLEDGMENT
The LSI Logic logo design, MetaStor, and Fusion-MPT are registered trademarks or trademarks of LSI Logic Corporation. Sun and Solaris are trademarks or registered trademarks of Sun Microsystems, Inc. All other brand and product names may be trademarks of their respective companies.
DB
iii
iv
Audience
Organization
Preface
This book is the primary reference and user’s guide for the LSI Logic LSI40909G-S PCI to Fibre Channel Host Adapter for Sun Solaris board. It contains a complete functional description for the LSI40909G-S as well as complete physical and electrical specifications.
This document assumes that you have some familiarity with Fibre Channel protocol and related support devices and will benefit persons installing and using the LSI40909G-S.
This document has the following chapters and appendix:
Chapter 1, LSI40909G-S Description, defines the interfaces and
characteristics of the LSI40909G-S.
Chapter 2, Installing the LSI40909G-S, provides both quick and
detailed installation instructions.
Chapter 3, Software Installation, describes the installation
procedures for the Fusion-MPT and Fibre Channel drivers.
Chapter 4, LSI40909G-S Technical Characteristics, describes the
physical and operational environments of the LSI40909G-S.
Appendix A, Glossary of Terms and Abbreviations, provides
definitions of various terminology that is referenced throughout this user’s guide.
Preface v
Related Publications
LSIFC909 Fibre Channel I/O Processor Technical Manual,
Order Number S14029.A
Revision Record
Revision Date Remarks
1.0 02/01 First printing.
vi Preface
Contents
Chapter 1 LSI40909G-S Description
1.1 General Description 1-1
1.2 Features 1-1
1.2.1 PCI Interface 1-1
1.2.2 FC Interface 1-2
1.2.3 Board Characteristics 1-2
1.2.4 FC Link Activity/Link Fault LED 1-3
Chapter 2 Installing the LSI40909G-S
2.1 Quick Installation Procedure 2-1
2.2 Detailed Installation Procedure 2-2
2.2.1 Before You Start 2-2
2.2.2 Inserting the Host Adapter 2-2
Chapter 3 Software Installation
3.1 Installing the Sun SPARC Solaris Fusion-MPT™ Drivers 3-1
3.1.1 Features 3-2
3.1.2 System Requirements 3-2
3.1.3 Verifying Correct Installation 3-2
3.1.4 Identifying the FC Disks 3-4
3.1.5 Persistent Device Naming 3-5
3.1.6 itmpt Device Driver 3-7
3.2 Installing the itmpt Sun SPARC Solaris FC Driver 3-7
3.2.1 Existing System Installation 3-7
3.2.2 Network Installation Procedure 3-12
3.3 Troubleshooting 3-15
Contents vii
Chapter 4 LSI40909G-S Technical Characteristics
4.1 Physical Environment 4-1
4.1.1 Physical Characteristics 4-1
4.1.2 Electrical Characteristics 4-2
4.1.3 Thermal, Atmospheric Characteristics 4-2
4.1.4 Electromagnetic Compliance 4-3
4.1.5 Safety Characteristics 4-3
4.2 Operational Environment 4-3
4.2.1 The PCI Interface 4-3
4.2.2 The FC Interface 4-4
4.2.3 The FC Link Activity/Link Fault LED 4-4
4.3 IEEE Unique Address 4-4
Appendix A Glossary of Terms and Abbreviations
Customer Feedback
Figures
2.1 Hardware Connections for the LSI40909G-S 2-4
2.2 Inserting the Host Adapter 2-5
3.1 System Devices Listing 3-3
3.2 FC Disk Devices Listing 3-4
3.3 Persistent Device Mapping 3-6
3.4 Clearing an Entry 3-7
3.5 pkgadd Procedure 3-9
3.6 Completing Floppy Disk Installation 3-10
3.7 Completing Floppy Disk Installation (Continued) 3-10
3.8 /kernel/drv/ssd.conf 3-11
4.1 LSI40909G-S Components 4-2
Tables
3.1 Resource Requirements 3-2
3.2 Error Messages 3-15
viii Contents
3.75 pc 10.25 pc 11.25 pc 38.25 pc
34.5 pc
4.333 pc
Chapter 1 LSI40909G-S Description
12 pc
12.938 pc
This chapter describes the LSI40909G-S PCI to Fibre Channel (FC) Host Adapter board and includes these topics:
Section 1.1, “General Description,” page 1-1
Section 1.2, “Features,” page 1-1

1.1 General Description

The LSI Logic LSI40909G-S provides an FC interface to Sun Solaris PCI computer systems. This board is referred to as the LSI40909G-S throughout this guide. The LSI40909G-S uses the LSIFC909 FC I/O Processor chip.
13.851 pc
34.732 pc

1.2 Features

This section provides an overview of the PCI Interface, the FC Interface, and Board Characteristics for the LSI40909G-S.

1.2.1 PCI Interface

PCI interfaces I/O components to the processor and memory subsystems in equipment ranging from PCs to servers. The PCI interface operates as a 64-bit DMA bus master capable of 64-bit addressing. The LSIFC909 contains the PCI functionality for the LSI40909G-S.
LSI40909G-S PCI to Fibre Channel Host Adapter for Sun Solaris 1-1
48.583 pc
52.5 pc
3.75 pc 10.25 pc 11.25 pc 38.25 pc
34.5 pc
The PCI interface includes these features:
4.333 pc
Full 64-bit DMA bus master
LSIFC909 functionality:
Zero wait-state bus master data bursts up to 1 Kbyte – Complies with PCI Local Bus Specification, Revision 2.2 – 3.3 V interface (5.0 V tolerant)
Serial EEPROM configuration storage
Card edge keyed as a universal add-in card

1.2.2 FC Interface

The LSIFC909 contains the FC functionality for the LSI40909G-S. The LSIFC909 generates signal timing and link protocol in compliance with FC standards.
The FC interface includes these features:
44.25 pc
1 Gigabit Giga-Bit Interface Converter (GBIC) connection
LSIFC909 functionality:
Class 3, Arbitrated Loop (AL) – 2 Kbyte frame payloads – Multiframe buffering
1 Gigabit/s serial link
Link fault LED

1.2.3 Board Characteristics

The LSI40909G-S board characteristics are:
PCI board dimensions: 168 x 98 mm (6.625 x 3.875 inches)
PCI Universal 64-bit card edge connector
FC Link Activity LED
In Chapter 4, “LSI40909G-S Technical Characteristics,” Figure 4.1 illustrates the mechanical drawing for this host adapter board.
48.583 pc
1-2 LSI40909G-S Description
52.5 pc
3.75 pc 10.25 pc 11.25 pc 38.25 pc
34.5 pc

1.2.4 FC Link Activity/Link Fault LED

4.333 pc
The LSI40909G-S provides a dual-purpose LED visible through the bracket which indicates activity on the FC link when the LED is green. This LED turns yellow when there has been a fault on the FC link.
44.25 pc
48.583 pc
Features 1-3
52.5 pc
3.75 pc 10.25 pc 11.25 pc 38.25 pc
34.5 pc
4.333 pc
44.25 pc
48.583 pc
1-4 LSI40909G-S Description
52.5 pc
3.75 pc 10.25 pc 11.25 pc 38.25 pc
34.5 pc
4.333 pc
Chapter 2 Installing the LSI40909G-S
12 pc
12.938 pc
This chapter provides instructions on how to install the LSI40909G-S and includes these topics:
Section 2.1, “Quick Installation Procedure,” page 2-1
Section 2.2, “Detailed Installation Procedure,” page 2-2

2.1 Quick Installation Procedure

This section provides an overview of the installation procedure. If you are an experienced computer user with prior host adapter installation and FC setup experience, this section may sufficiently describe the procedure for you. If you prefer a more detailed guidance for installing the LSI40909G-S, proceed to Section 2.2, “Detailed Installation Procedure.”
13.851 pc
34.732 pc
For safe and proper installation, check the user’s manual supplied with your computer and perform the following steps.
Step 1. Step 2. Remove the LSI40909G-S from the packing and check that it is
Step 3. Open your PC cabinet and select an appropriate open PCI slot. Step 4. Insert the host adapter board. Step 5. Make any configuration changes. Step 6. Close your PC cabinet cover. Step 7. Connect the FC cable to the LSI40909G-S.
LSI40909G-S PCI to Fibre Channel Host Adapter for Sun Solaris 2-1
Ground yourself
not damaged.
Figure 2.1 illustrates an example of this host adapter board.
Also refer to Figure 4.1 on page 4-2 to see a more detailed drawing of this board.
before removing this host adapter board.
48.583 pc
52.5 pc
3.75 pc 10.25 pc 11.25 pc 38.25 pc
34.5 pc
4.333 pc

2.2 Detailed Installation Procedure

This section provides step-by-step instructions for installing the LSI40909G-S. If you are experienced in these tasks, you may prefer to use Section 2.1, “Quick Installation Procedure.”

2.2.1 Before You Start

Before starting, look through the following task list to get an overall idea of the steps you will be performing. If you are not confident you can perform the tasks as described here, LSI Logic recommends getting assistance.
Each FC host adapter that you install can act as host for up to 126 Arbitrated Loop FC devices, not including the adapter itself. Follow the detailed instructions in the next section to successfully install the host adapter board.

2.2.2 Inserting the Host Adapter

44.25 pc
For safe and proper installation, use the user’s manual supplied with your computer. Perform the following steps to install the LSI40909G-S.
Step 1.
Ground yourself
before removing this host adapter board.
Step 2. Remove the LSI40909G-S from the packing and check that it is
not damaged.
Figure 2.1 illustrates an example of this host adapter board.
Also refer to Figure 4.1 on page 4-2 to see a more detailed drawing of this board.
Step 3. Switch off the computer and unplug power cords for all
components in your system.
Step 4. Remove the cover from your computer per the instructions in
the user’s manual for your system to access the PCI slots.
Caution:
Ground yourself
by touching a metal surface before removing the cabinet top. Static charges on your body can damage electronic components. Handle plug-in boards by
48.583 pc
2-2 Installing the LSI40909G-S
52.5 pc
3.75 pc 10.25 pc 11.25 pc 38.25 pc
34.5 pc
the edge; do not touch board components or gold
4.333 pc
connector contacts. The use of a static ground strap is recommended.
Step 5. Locate the slots for PCI plug-in board installation.
Refer to the computer’s user’s manual to confirm the location of the PCI slots.
The LSI40909G-S requires a 32-bit or 64-bit PCI slot that allows bus master operation. If a 32-bit PCI slot is used, the portion of the J1 connector opposite the bracket remains uninserted. See Figure 2.2.
Note: For the LSI40909G-S to function as a 64-bit device, it must
be inserted in a 64-bit PCI slot. If the LSI40909G-S is inserted in a 32-bit PCI slot, it will function as a 32-bit device.
Step 6. Remove the blank bracket panel on the back of the computer
aligned with the PCI slot you intend to use. Save the bracket screw.
44.25 pc
48.583 pc
Detailed Installation Procedure 2-3
52.5 pc
3.75 pc 10.25 pc 11.25 pc 38.25 pc
34.5 pc

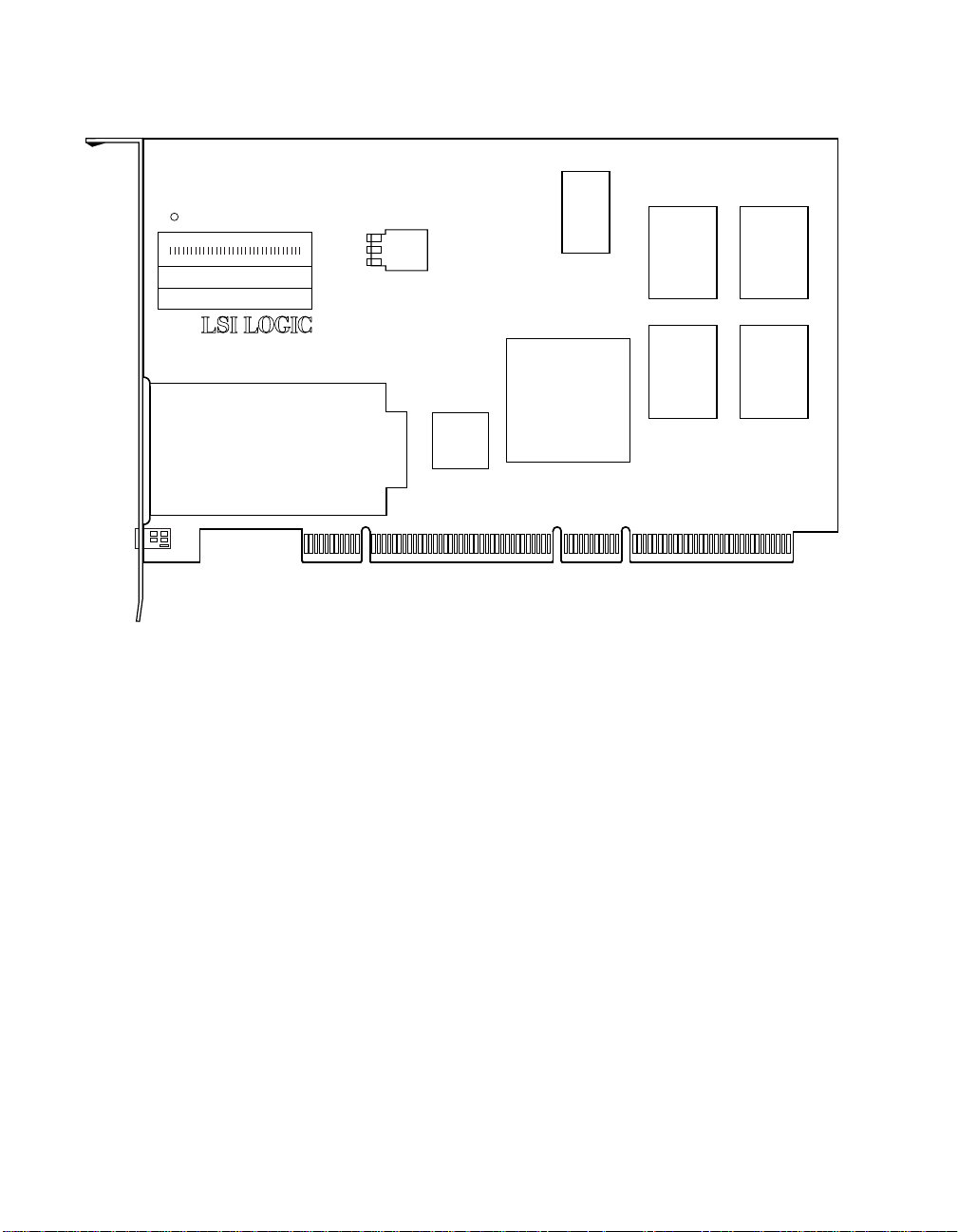

Figure 2.1 Hardware Connections for the LSI40909G-S
4.333 pc
44.25 pc
GBIC
Connector J2
Fibre Channel
Link Activity/
Link Fault LED
LSI40909G-S PCI Bus
Edge Connector J1
Step 7. Carefully insert edge connector J1 (see Figure 2.1) of the host
adapter into the PCI slot. Make sure the edge connector is properly aligned before
pressing the board into place as shown in Figure 2.2. The bracket around connector J2 should fit where you removed the blank panel.
2-4 Installing the LSI40909G-S
48.583 pc
52.5 pc
3.75 pc 10.25 pc 11.25 pc 38.25 pc
34.5 pc
Figure 2.2 Inserting the Host Adapter
Bracket Screw
4.333 pc
44.25 pc
32-bit PCI Slots
64-bit PCI Slots
Step 8. Secure the board with the bracket screw (see Figure 2.2) before
making the external FC link connection.
Step 9. Connect the FC cable to the LSI40909G-S.
48.583 pc
Detailed Installation Procedure 2-5
52.5 pc
3.75 pc 10.25 pc 11.25 pc 38.25 pc
34.5 pc
4.333 pc
44.25 pc
48.583 pc
2-6 Installing the LSI40909G-S
52.5 pc
Chapter 3 Software Installation
This chapter describes the features and use of the LSI Logic/IntraServer device drivers for the Solaris operating system 2.6, 2.7, and 2.8. This chapter includes these topics:
Section 3.1, “Installing the Sun SPARC Solaris Fusion-MPT™
Drivers,” page 3-1
Section 3.2, “Installing the itmpt Sun SPARC Solaris FC Driver,”
page 3-7
Section 3.3, “Troubleshooting,” page 3-15
For the most up-to-date information on drivers, please visit:
http://www.intraserver.com/support/drivers.html

3.1 Installing the Sun SPARC Solaris Fusion-MPT™ Drivers

The LSI Logic LSI40909G-S offers the highest possible performance on Sun Solaris systems. The LSI Logic Fusion-MPT FC driver (itmpt) is optimized for low CPU overhead and high I/O throughput, making use of the LSI Logic Fusion-MPT architecture.
The LSI Logic FC adapters have built-in Fcode, designed to operate in the Sun OpenBoot environment, allowing FC devices to be available to the OpenBoot (ok) prompt.
The LSI Logic driver, itmpt, allows the Solaris operating system to interface with FC devices connected to the LSI40909G-S. This driver takes advantage of new hardware features in the LSI40909G-S to minimize CPU utilization, including interrupt coalescing, which can result in less than one interrupt per I/O.
LSI40909G-S PCI to Fibre Channel Host Adapter for Sun Solaris 3-1

3.1.1 Features

The following features of the LSI40909G-S minimize CPU utilization:
Uses state of the art Fusion-MPT interface, providing support for FC,
SCSI, and RAID devices with a single binary image.
Provides highly efficient, low CPU usage architecture.
Multiport functionality minimizes slot usage.
66 MHz/64-bit PCI interface provides maximum I/O bandwidth.
Supports multiple host adapters.
Supports scatter/gather.
Supports multiprocessor environments.

3.1.2 System Requirements

Your SPARC Solaris system must have the available resources as listed in Table 3.1 in order to install the LSI40909G-S.
Table 3.1 Resource Requirements
Resource Requirement
Host Bus Slot Sun Solaris system with available PCI slot Operating system Solaris 2.6 release or later Network Boot Server Sparc or Intel Solaris boot server Firmware OpenBoot PROM Version 3.0 or greater
1. Only required if you will be using the LSI Logic module to support your System disk.
After installing the module in an appropriate PCI slot and making all the necessary internal and external connections to the module, power on the host system.

3.1.3 Verifying Correct Installation

Use this procedure to verify installation of your LSI Logic/IntraServer FC adapter before booting your system:
Step 1. Power on the system.
3-2 Software Installation
1
Step 2. When the banner is displayed, press the Stop-A keys to
interrupt the boot process and stop at the ok prompt.
Step 3. Use the show-devs command to list the system devices. You
should see an output similar to the followingexample, as shown in Figure 3.1:
Figure 3.1 System Devices Listing
ok show-devs
/SUNW,UltraSPARC-IIi@0,0 /pci@1f,0 /virtual-memory /memory@0,10000000 /aliases /options /openprom /chosen /packages /pci@1f,0/pci@1 /pci@1f,0/pci@1,1 /pci@1f,0/pci@1/pci@2 /pci@1f,0/pci@1/IntraServer,Ultra2-scsi@1 /pci@1f,0/pci@1/pci@2/IntraServer,fc@4 /pci@1f,0/pci@1/pci@2/IntraServer,fc@4/disk /pci@1f,0/pci@1/pci@2/IntraServer,fc@4/tape /pci@1f,0/pci@1/IntraServer,Ultra2-scsi@1/tape /pci@1f,0/pci@1/IntraServer,Ultra2-scsi@1/disk /openprom/client-services …
Note: /pci@1f,0/pci@1/pci@2/IntraServer,fc@4
identifies the first FC interface on an LSI Logic/IntraServer 7000 Series adapter.
The above is an example. The output of show-devs may vary depending on your system and configuration. Use the corresponding entries on your system, not those given here.
If these devices are not listed, check that the adapter is correctly installed, and reseat the adapter if necessary.
Installing the Sun SPARC Solaris Fusion-MPT™ Drivers 3-3

3.1.4 Identifying the FC Disks

The probe-scsi-all command is used to identify the FC disk devices on your LSI Logic/IntraServer adapter, as shown in Figure 3.2.
Figure 3.2 FC Disk Devices Listing
ok probe-scsi-all
/pci@1f,0/pci@1/IntraServer,Ultra2-scsi@1 Target 0 Unit 0 Disk IBM DNES-309170W SA30
/pci@1f,0/pci@1/pci@2/IntraServer,fc@7
MPT Firmware Version 1.00
Target 0 Unit 0 Disk SEAGATE ST39173FC 6615 WWN 220000203710d063 ID 111d2
Target 1 Unit 0 Disk SEAGATE ST39173FC 6258 WWN 220000203710c09b ID 111d6
Target 2 Unit 0 Disk SEAGATE ST39173FC 6258 WWN 220000203710b066 ID 111d5
Target 3 Unit 0 Disk SEAGATE ST39173FC 6258 WWN 220000203710b063 ID 111d3
Target 4 Unit 0 Disk SEAGATE ST39173FC 6258 WWN 220000203710b04f ID 111d4
Target 5 Unit 0 Disk SEAGATE ST39173FC 6615 WWN 2200002037104f73 ID 111d9
Target 6 Unit 0 Disk SEAGATE ST39173FC 6615 WWN 2200002037102d0f ID 111d1
3-4 Software Installation
If the FC disks on your LSI Logic/IntraServer adapter are not identified by your system, check the following:
1. Are all the FC cables correctly connected to the disk enclosure?
2. Is the disk enclosure powered up?
3. If the external disk enclosure required a loopback connector, is the
loopback connector correctly installed?

3.1.5 Persistent Device Naming

Under certain configurations, such as when the FC disk is the boot device of a system, it may be preferable to lock a target disk to a unit number. LSI Logic/IntraServer Fcode allows the system administrator to write a nonvolatile map of IDs to the FC controller. The following is an example of how to map devices in the persistent device table.
Select the controller you want to modify, as shown in Figure 3.3:
Installing the Sun SPARC Solaris Fusion-MPT™ Drivers 3-5
Figure 3.3 Persistent Device Mapping
ok show-disks
a) /pci@1f,0/pci@1/IntraServer,fc@2/disk b) /pci@1f,0/pci@1/IntraServer,Ultra2-scsi@1/disk c) /pci@1f,0/pci@1,1/ide@3/cdrom d) /pci@1f,0/pci@1,1/ide@3/disk e) /pci@1f,0/pci@1,1/ebus@1/fdthree@14,3203f0 q) NO SELECTION
Enter Selection, q to quit: a /pci@1f,0/pci@1/IntraServer,fc@2/disk has been selected.
Type ^Y (Control-Y) to insert it in the command line. e.g. ok nvalias mydev ^Y for creating devalias mydev for /pci@1f,0/pci@1/IntraServer,fc@2/disk
ok select/pci@1f,0/pci@1/IntraServer,fc@2 ok show-children
MPT Firmware Version 1.00
Target 0 Unit 0 Disk SEAGATE ST39173FC 6615 WWN 200000203710c4e8 PortID a3
ok set-persistent(Note: issue command with no parameters to print this help)
usage is <current-target-id> <persistent-target-id> set-persistent
ok 0 0 set-persistent ok show-persistent
Entry 1 WWN 200000203710c4e8 Target 0
ok
3-6 Software Installation
To clear an entry in the persistent device map, use the clear-persistent command, as shown in Figure 3.4:
Figure 3.4 Clearing an Entry
ok 1 clear-persistent
Entry 1 has been cleared
ok show-persistent
ok
Entry 1 has been deleted from the table, and the table is now empty.

3.1.6 itmpt Device Driver

The LSI Logic/IntraServer itmpt driver is designed to Sun Microsystems SCSA specifications for device drivers. This driver allows connection of FC devices to LSI Logic/IntraServer adapter cards on PCI-based machines.
The following sections describe the procedures to install the driver on Solaris.

3.2 Installing the itmpt Sun SPARC Solaris FC Driver

The LSI Logic LSI40909G-S uses the itmpt FC driver for Solaris. This driver is included with your adapter kit.
Note: If you plan to use an LSI Logic/IntraServer FC adapter for
your
system disk
as described in Section 3.2.2, “Network Installation Proce-
dure,” in order to load the device driver during installation.

3.2.1 Existing System Installation

These instructions provide details to install the LSI Logic/IntraServer itmpt driver to an existing Solaris operating system installation.
Note: You must be logged on as root to perform the installation.
Installing the itmpt Sun SPARC Solaris FC Driver 3-7
,you
must
use the installation procedure
3.2.1.1 Floppy Disk Install
If you received the drivers on a floppy diskette, follow these steps: Step 1. Place the diskette in the floppy drive and execute the volcheck
Step 2. Change the directory to the root of the floppy
Step 3. Execute the pkgadd procedure to add the itmpt driver to the
command to ensure the system sees the floppy.
(e.g. "cd /floppy/floppy0").
operating system. Example: pkgadd(
space
)-d(
space
).
You will see the display on the screen as shown in Figure 3.5 through
Figure 3.7.
3-8 Software Installation
Figure 3.5 pkgadd Procedure
The following packages are available:
1 TImpt LSI Logic/IntraServer FusionMPT(tm) Fibrechannel/SCSI drivers
(sparc) itmpt kit version 1.1
Select package(s) you wish to process (or 'all' to process all packages). (default: all) [?,??,q]: 1
Processing package instance <ITImpt> from </floppy/intraserver>
LSI Logic/IntraServer FusionMPT(tm) Fibrechannel/SCSI drivers (sparc) itmpt kit version 1.1
IntraServer Technology, Inc / LSI Logic
Using </> as the package base directory.
## Processing package information. ## Processing system information.
2 package pathnames are already properly installed.
## Verifying disk space requirements. ## Checking for conflicts with packages already installed. ## Checking for setuid/setgid programs.
Installing the itmpt Sun SPARC Solaris FC Driver 3-9
Figure 3.6 Completing Floppy Disk Installation
This package contains scripts which will be executed with superuser permission during the process of installing this package.
Do you want to continue with the installation of <ITImpt> [y,n,?] y
Installing LSI Logic/IntraServer FusionMPT(tm) Fibrechannel/SCSI drivers as <ITImpt>
## Installing part 1 of 1. /kernel/drv/itmpt /kernel/drv/itmpt.conf
[ verifying class <none> ]
## Executing postinstall script. installing /kernel/drv/sparcv9/itmpt
Updating /kernel/drv/ssd.conf with itmpt entries...
Entries added. For support of more than 15 targets or nonzero LUNs it may be necessary to edit /kernel/drv/ssd.conf to add additional entries.
See Figure 3.8 for additional information.
Figure 3.7 Completing Floppy Disk Installation (Continued)
Following installation, please reboot the system to properly configure and load the drivers.
Installation of <ITImpt> was successful.
To support nonzero LUNs, which is default for most RAID controllers such as the LSI Logic MetaStor®,you /kernel/drv/ssd.conf as shown in Figure 3.8:
3-10 Software Installation
must
edit the file
Figure 3.8 /kernel/drv/ssd.conf
Example: With just the default entry for each target in /kernel/drv/ssd.conf, only
devices at LUN 0 will be probed.
name="ssd" parent="itmpt" target=0;
To add nonzero LUN support, replace the above entry with an entry for each LUN to probe, such as:
name="ssd" parent="itmpt" target=0 lun=0; name="ssd" parent="itmpt" target=0 lun=1; name="ssd" parent="itmpt" target=0 lun=2; name="ssd" parent="itmpt" target=0 lun=3;
This should be done for any targets that need to probe for multiple LUNs.
Step 4. The itmpt device driver is now installed. Reboot the machine to
reconfigure the system and to recognize the new devices.
3.2.1.2 Distribution File Install
If you received the drivers in an itmpt_install.tar.Z file, follow these steps: Step 1. Uncompress and untar the itmpt_install.tar.Z file by typing the
following commands in order to create a directory named install:
uncompress itmpt_install.tar.Z tar -xvf itmpt_install.tar cd install
Step 2. Execute the pkgadd process as described in the previous
section to add the itmpt driver to the operating system:
Note: If you change the disk drive configuration of your machine,
it may be necessary to issue the command: touch(
space
)/reconfigure
and then reboot the system in order for the system to detect and correctly install your new disks.
Installing the itmpt Sun SPARC Solaris FC Driver 3-11

3.2.2 Network Installation Procedure

If you are using your LSI Logic/IntraServer adapter to support your Sparc Solaris system disk, you must install the Solaris operating system using a network install. This section describes a complete installation of Solaris to a client system using LSI Logic/IntraServer FC adapters for the system disk. The method described in this section allows you to install the LSI Logic/IntraServer itmpt driver onto a network boot kit, making it available during the Sparc installation process.
If you are simply installing an LSI Logic/IntraServer adapter as an additional storage adapter in an existing system, use the driver installation procedure described in Section 3.2.1.2, “Distribution File
Install.”
3.2.2.1 Setting up a Boot/Install Server
Refer to the “Preparing to Install Solaris Software Over the Network,” section of the Solaris Advanced Installation Guide, available at
http://docs.sun.com.
The basic steps to set up a boot and install server are as follows: Step 1. Insert your Solaris distribution CD in your boot/install server’s
CD-ROM drive.
Step 2. Change your directory to the Tools area on your distribution CD:
cd /cdrom/cdrom0/Solaris_2.7/Tools
Step 3. Use the setup_install_server script to copy the boot and
installation files to your boot/install server:
./setup_install_server /export/home/install
3.2.2.2 Installing the itmpt Driver on the Boot/Install Server
After you have set up your network boot and install server, follow these steps run the install.sh script with the –n parameter to copy the driver kit to the boot server’s boot files:
Step 1. Place the diskette in the floppy drive and execute the volcheck
command to ensure the system sees the floppy.
Step 2. Change the directory to the root of the floppy:
3-12 Software Installation
cd /floppy/floppy0
Step 3. Execute the install.sh shell script to add the itmpt driver to
the boot installation area:
./install.sh –n /export/home/install/Solaris_2.7
Notes:
For Solaris 2.8 boot files, the directory would be
/export/home/install/Solaris_2.8.
The message “major number maximum based on server, not client”
can safely be ignored.
Running the install.sh script this way copies and installs the LSI Logic/IntraServer drivers into the Tools/Boot/ area of the boot files and allows LSI Logic/IntraServer adapters to be booted for installation using the bootserver.
3.2.2.3 Adding Clients to Your Boot/Install Server
For each machine that boots into the boot/install server, follow these steps to add a client entry on the boot/install server:
Step 1. Change the directory to the boot/install kit:
cd /export/home/install/Solaris_2.7/Tools
Step 2. Use the add_install_client script to add the client machine
./add_install_client -i ipaddr
-e ethernetid client_name platform_group
Where:
ipaddr is the tcp/ip address of the client ethernetid is the ethernet hardware (mac) address of
the client
client_name is the client’s system name platform_group is the client’s vendor defined hardware
group
Example: ./add_install_client -i 192.168.103.124 –e
00:08:26:02:25:34 sunsys sun4u
Installing the itmpt Sun SPARC Solaris FC Driver 3-13
Note:
You can obtain the platform_group from a machine of the same type as the target client using the command
.
3.2.2.4 Booting the Client Using the itmpt FC Driver
Now you can begin the installation of the Solaris operating system to the client target machine using the boot and install server. On the client machine, boot the network install kit you created in the preceding steps as follows:
ok boot net -v
Note: It is important to choose "Manual Reboot" rather than "Auto
Reboot" during the installation of Solaris on the target machine. If you choose "Auto Reboot", you will not have the opportunity to complete the installation of the LSI Logic/IntraServer FC drivers and your system will fail to boot.
After the installation has completed and the system is waiting to be manually rebooted, proceed to a console window and run the following script:
uname –m
/sbin/itmptinst
This copies and installs the drivers from the boot server to the newly created Solaris installation. After this script has been run, the LSI Logic/IntraServer device driver installation is complete and the system can be rebooted.
3-14 Software Installation
Notes: The message “major number maximum based on server,

3.3 Troubleshooting

Table 3.2 lists some potential error messages that may be preceded by
a warning message displayed by the operating system. In the message descriptions below the itmpt<n> signifies that <n> can be replaced by some number assigned to it by the operating system. That value helps to identify the bus that is reporting the error.
not client” can safely be ignored. Your Sun machine will prompt you to allow power saving
automatic shutdown. You must answernoto this question if you are using the LSI Logic/IntraServer adapter to support your boot disk.
If you change the disk drive configuration of your machine, it may be necessary to issue the command:
touch /reconfigure
and then reboot the system in order for the system to detect and correctly install your new disks.
Table 3.2 Error Messages
Error Messages Explanation
itmpt<n>: This hardware not supported by this driver.
itmpt<n>: Failed to map device registers.
itmpt<n>: Hardware not properly enabled by system, cmd=xxxxh.
Troubleshooting 3-15
itmpt has been told to control an MPT device that is made by a manufacturer other than LSI Logic/IntraServer. This adapter requires a special driver provided by that manufacturer. Please contact the manufacturer for assistance.
itmpt was unable to access the hardware registers necessary for operation. The operating system did not properly configure the PCI device. Make sure your adapter has LSI Logic/IntraServer Fcode, and that the adapter is working correctly at the SUN OBP prompt.
The system has not properly enabled the configuration resources that itmpt needs in order to use this hardware. The cmd=xxxxh value needs to be reported to LSI Logic/IntraServer technical support.
Table 3.2 Error Messages (Cont.)
Error Messages Explanation
itmpt<n>: Could not allocate memory to read configuration data.
itmpt<n>: Unable to make reset notification callbacks.
itmpt<n>: ddi_dma_unbind_handle: failed
itmpt<n>: ddi_dma_numwin() failed. – itmpt<n>: ddi_dma_getwin() failed. – itmpt<n>: ddi_dma_alloc_handle:
xxh unknown/impossible. itmpt<n>:
ddi_dma_buf_bind_handle: DDI_DMA_INUSE impossible.
itmpt<n>: ddi_dma_buf_bind_handle: xxh unknown/impossible.
itmpt<n>: No KeyROM found. Hardware contains no valid license.
The driver was unable to allocate memory required to process the configuration data. This means that the configuration was not properly determined. To fix this you may need to manually configure the driver using the itmpt.conf file.
The itmpt was unable to notify the target device driver of a bus reset. The target driver may start to malfunction.
The operating system failed to respond to the named routine in a known manner. This is a fatal error that is not recoverable. Please report this error to technical support.
The adapter is not a valid LSI Logic/IntraServer adapter licensed for use with Solaris.
itmpt<n>: Hi-level interrupts not supported.
itmpt<n>: Device in a slave-only slot and is unusable.
itmpt<n>: Failed to attach. This adapter will not be installed.
itmpt<n>: Unable to obtain soft state structure.
itmpt<n>: Failed to attach interrupt handler.
The adapter is in a slot that cannot be used with this driver. Please try moving the adapter to a different PCI slot.
Because of one of the previous two errors, this adapter could not be "attached" to the I/O subsystem and will not be accessible. See the previous error message and solve that problem.
The driver was unable to initialize a required data structure and therefore did not load. Please call technical support.
The driver was unable to initialize the interrupt handler as required. Please call technical support.
3-16 Software Installation
Table 3.2 Error Messages (Cont.)
Error Messages Explanation
itmpt<n>: The adapter is malfunctioning or is of an unknown type.
itmpt<n>: The adapter is malfunctioning.
itmpt<n>: Failed to create minor node required for DMI interface.
itmpt<n>: Could not attach to the SCSI subsystem.
itmpt<n>: Failed to allocate memory.
itmpt<n>: Unbind failed! The driver had a problem when attempting to unload itself.
The driver is not able to communicate with the hardware. You may need to update your driver or your hardware.
The driver was unable to create an entry point for the DMI device driver. If you are not using the DMI device driver then you may safely ignore this message.
The driver was unable to communicatewith the SCSI/FC device driver that is part of the operating system. You may need to update your driver.
The driver was unable to allocate the memory needed during initialization. You may have run out of available memory.
This is a fatal error.
Troubleshooting 3-17
3-18 Software Installation
Chapter 4 LSI40909G-S Technical Characteristics
This chapter provides specific details about the physical environment associated with the LSI40909G-S. This chapter includes these topics:
Section 4.1, “Physical Environment,” page 4-1
Section 4.2, “Operational Environment,” page 4-3
Section 4.3, “IEEE Unique Address,” page 4-4

4.1 Physical Environment

This section provides information about the physical, electrical, thermal, and safety characteristics of the LSI40909G-S. Additionally, these boards are compliant with electromagnetic standards set by the FCC.

4.1.1 Physical Characteristics

The LSI40909G-S is a PCI short card; the dimensions are 168 x 98 mm (6.625 x 3.875 inches). J1 is the PCI edge connector. The external FC connection is made through a 1 Gigabit/s GBIC optical module.
The component height on the top and bottom of the board conforms to the PCI Local Bus Specification, Revision 2.2. Figure 4.1 illustrates the components on the LSI40909G-S.
LSI40909G-S PCI to Fibre Channel Host Adapter for Sun Solaris 4-1
Figure 4.1 LSI40909G-S Components
2000 LSI Logic
C
All Rights Reserved
Product Name
Assembly Numbers/Rev
0001234567
123456
VR2
J1
GBIC
CR3

4.1.2 Electrical Characteristics

Under normal conditions, the LSI40909G-S maximum power requirement is:+5VDC,± 5%, 1.0 A, and over the operating range 0 °Cto55°C. Under abnormal conditions + 5 V current may be higher.
U10
U7
LSIFC909
J1_T
Flash
U1
SRAM SRAM
SRAM SRAM
U5
U8
U6
U9
The PCI PRSNT1/ and PRSNT2/ pins are set to indicate a 7.5 W maximum configuration.
4.1.3 Thermal, Atmospheric Characteristics
The thermal, atmospheric characteristics of the LSI40909G-S are:
Temperature range: 0 °Cto55°C (dry bulb)
Relative humidity range: 5% to 90% noncondensing
Maximum dew point temperature: 32 °C
4-2 LSI40909G-S Technical Characteristics
The following parameters define the storage and transit environment for the LSI40909G-S:
Storage Temperature: − 45 °Cto+85°C (dry bulb)
Relative Humidity Range: 5% to 95% noncondensing

4.1.4 Electromagnetic Compliance

These boards minimize electromagnetic emissions,susceptibility,and the effects of electromagnetic discharge. The boards comply with Class B and carry markings for CE, VCCI, Canada, C-Tick, and FCC.

4.1.5 Safety Characteristics

The bare boards meet or exceed the requirements of UL flammability rating 94 V0. The bare boards are also marked with the supplier’s name or trademark, type, and UL flammability rating. Because these boards are installed in a PCI bus slot, all voltages are below the SELV 42.4 V limit.

4.2 Operational Environment

Use the LSI40909G-S in PCI computer systems with an ISA/EISA bracket type. The LSI Logic supplied FC BIOS and firmware operate the boards. An on-board flash memory device and a serial EEPROM are provided to allow BIOS code and open boot code support through PCI.

4.2.1 The PCI Interface

The PCI interface operates as a 64-bit DMA bus master. Edge connector J1 makes the PCI connection, which provides connections on both the front and back of the board. The signal definitions and pin numbers conform to the PCI Local Bus Specification, Revision 2.2. See that specification for more details regarding the signal assignments. The on-board regulators provide power to the board’s 3.3 V devices.
Note: The PCI + 3.3 V pins are tied together and decoupled with
Operational Environment 4-3
high frequency bypass capacitors to ground. No current from these + 3.3 V pins is used on the board. The board derives power from the + 5 V pins, directly and through a
3.3 V voltage regulator. The PCI + 3 V/+ 5 V pins are used to differentiate between a 5 V or a 3.3 V PCI signaling environment.

4.2.2 The FC Interface

The LSI40909G-S Fibre Channel interfaceprovides an opticalconnection to the FC link. The GBIC board uses an SCA connector and rail set which accepts a GBIC module.

4.2.3 The FC Link Activity/Link Fault LED

The LSI40909G-S provides a dual-purpose LED visible through the bracket which indicates activity on the FC link when the LED is green. This LED turns yellow when there has been a fault on the FC link.

4.3 IEEE Unique Address

Each LSI40909G-S is provided with a unique IEEE address. The last six hexadecimal characters of this address appear on a label on the board. This address is stored in the serial EEPROM on the board, and is also used for the worldwide name.
4-4 LSI40909G-S Technical Characteristics
3.75 pc 10.25 pc 11.25 pc 38.25 pc
34.5 pc
4.333 pc
Appendix A Glossary of Terms and Abbreviations
12 pc
12.938 pc
8B/10B A data encoding scheme developed by IBM, translating byte wide data
to an encoded 10-bit format.
ANSI American National Standards Institute. The coordinating organization for
voluntary standards in the United States.
13.851 pc
34.732 pc
Arbitrated Loop Topology (FC-AL)
BER Bit Error Rate. Bit A binary digit. The smallest unit of information a computer uses. The
Broadcast Sending a transmission to all N_Ports on a fabric. Bus A collection of unbroken signal lines across which information is
Bus Mastering A high-performance way to transfer data. The host adapter controls the
Byte A unit of information consisting of eight bits. Channel A point-to-point link, the main task of which is to transport data from one
A FC Topology that provides a low cost solution to attach multiple ports in a loop without hubs and switches.
value of a bit (0 or 1) represents a two-way choice, such as on or off, true or false, and so on.
transmitted from one part of a computer system to another. Connections to the bus are made using taps on the lines.
transfer of data directly to and from system memory without bothering the computer’s microprocessor. This is the fastest way for multitasking operating systems to transfer data.
point to another.
LSI40909G-S PCI to Fibre Channel Host Adapter for Sun Solaris A-1
48.583 pc
52.5 pc
3.75 pc 10.25 pc 11.25 pc 38.25 pc
34.5 pc
Configuration Refers to the way a computer is setup; the combined hardware
4.333 pc
components (computer, monitor, keyboard, and peripheral devices) that make up a computer system; or the software settings that allow the hardware components to communicate with each other.
CPU Central Processing Unit. The “brain” of the computer that performs the
actual computations. The term Microprocessor Unit (MPU) is also used.
44.25 pc
Crosspoint­Switched
Highest performance FC fabric, providing a choice of multiple path routings between pairs of F_Ports.
Topology (FC-XS)
DMA Direct Memory Access. A method of moving data from a storage device
directly to RAM, without using the CPU’s resources.
DMA Bus Master
A feature that allows a peripheral to control the flow of data to and from system memory by blocks, as opposed to PIO (Programmed I/O) where the processor is in control and the flow is by byte.
Device Driver A program that allows a microprocessor (through the operating system)
to direct the operation of a peripheral device.
EEPROM Electronically Erasable Programmable Read Only Memory. A memory
chip typically used to store configuration information.
EISA Extended Industry Standard Architecture. An extension of the 16-bit ISA
bus standard. It allows devices to perform 32-bit data transfers.
Exchange A term that refers to one of the FC “building blocks”, composed of one
or more nonconcurrent sequences for a single operation.
Fabric FC defined interconnection methodology that handles routing in FC
networks.
FC-EP The future FC Enhanced Physical standard, which will build on and is
compatible with FC-PH.
FC-PH FC Physical standard, consisting of the three lower levels;
FC-0, FC-1, and FC-2.
FC-0 Lowest level of the FC Physical standard, covering the physical
characteristics of the interface and media.
A-2 Glossary of Terms and Abbreviations
48.583 pc
52.5 pc
3.75 pc 10.25 pc 11.25 pc 38.25 pc
34.5 pc
FC-1 Middle level of the FC-PH standard, defining the 8B/10B
4.333 pc
encoding/decoding and transmission protocol.
FC-2 Highest level of FC-PH, defining the rules for signaling protocol and
describing transfer of the frame, sequence, and exchanges.
FC-3 The hierarchical level in the FC standard that provides common services,
such as striping definition.
FC-4 The hierarchical level in the FC standard that specifies the mapping of
Upper Layer Protocols (ULPs) to levels below.
FCC Federal Communications Commission. FCP Fibre Channel Protocol. FDDI Fiber Distributed Data Interface. ANSI option for a Metropolitan Area
Network (MAN); a network based on the use of optical fiber cable to transmit data at 100 Mbits/s.
44.25 pc
Fibre Channel Service
The common FC-4 level protocol for all services, transparent to the fabric type or topology.
Protocol (FSP) File A named collection of information stored on a disk. Firmware Software that is permanently stored in ROM. Therefore, it can be
accessed during boot time.
F_Port “Fabric” port, the access point of the fabric for physically connecting the
user’s N_Port.
FL_Port An F_Port that contains arbitrated loop functions. Frame A linear set of transmitted bits that define a basic transport element. Hard Disk A disk made of metal and permanently sealed into a drive cartridge. A
hard disk can store very large amounts of information.
HAL Hardware Abstraction Layer. HIPPI High Performance Parallel Interface. An 800 Mbits/s interface to
supercomputer networks (formerly known as high speed channel) developed by ANSI.
Glossary of Terms and Abbreviations A-3
48.583 pc
52.5 pc
3.75 pc 10.25 pc 11.25 pc 38.25 pc
34.5 pc
Host The computer system in which a SCSI host adapter is installed. It uses
4.333 pc
the SCSI host adapter to transfer information to and from devices attached to the SCSI bus.
Host Adapter A circuit board or integrated circuit that provides a SCSI bus connection
to the computer system.
IP Internet Protocol. IPI Intelligent Peripheral Interface. ISA Industry Standard Architecture. A type of computer bus used in most
PCs. It allows devices to send and receive data up to 16 bits at a time.
Kbyte Kilobyte. A measure of computer storage equal to 1024 bytes. LCT Logical Configuration Table. LLC Logical Link Control. Local Bus A way to connect peripherals directly to computer memory. It bypasses
the slower ISA and EISA buses. PCI is a local bus standard.
44.25 pc
L_Port An FC port which supports the arbitrated loop topology. Link_Control_
Facility
A termination card that handles the logical and physical control of the FC link for each mode of use.
Login Server Entity within the FC fabric that receives and responds to login requests. LUN Logical Unit Number. An identifier, zero to seven, for a logical unit. Mbyte Megabyte. A measure of computer storage equal to 1024 kilobytes. MFA Message Frame Address. Multicast Refers to delivering a single transmission to multiple destination N_Ports. NIC Network Interface Card. N_Port “Node” port, an FC defined hardware entity at the node end of a link. NL_Port An N_Port that contains arbitrated loop functions.
48.583 pc
A-4 Glossary of Terms and Abbreviations
52.5 pc
3.75 pc 10.25 pc 11.25 pc 38.25 pc
34.5 pc
Operating System
A program that organizes the internal activities of the computer and its peripheral devices. An operating system performs basic tasks such as
4.333 pc
moving data to and from devices, and managing information in memory. It also provides the user interface.
Operation A term, defined in FC-2, that refers to one of the FC “building blocks”
composed of one or more, possibly concurrent, exchanges.
Ordered Set An FC term referring to four 10-bit characters (a combination of data and
special characters) that provide low level link functions, such as frame demarcation and signaling between two ends of a link. It provides for initialization of the link after power-on and for some basic recovery actions.
Originator An FC term referring to the initiating device. Parity Checking A way to verify the accuracy of data transmitted over the SCSI bus. One
bit in the transfer is used to make the sum of all the 1 bits either odd or even (for odd or even parity). If the sum is not correct, an error message appears.
44.25 pc
PCI Peripheral Component Interconnect. A local bus specification that allows
connection of peripherals directly to computer memory. It bypasses the slower ISA and EISA buses.
PDB Packet Descriptor Block. PIO Programmed Input/Output. A way the CPU can transfer data to and from
memory using the computer’s I/O ports. PIO is usually faster than DMA, but requires CPU time.
Port The hardware entity within a node that performs data communications
over the FC link.
Port Address Also Port Number. The address through which commands are sent to a
host adapter board. This address is assigned by the PCI bus.
Port Number See Port Address. RAM Random Access Memory. The computer’s primary working memory in
which program instructions and data are stored and are accessible to the CPU. Information can be written to and read from RAM. The contents of RAM are lost when the computer is turned off.
48.583 pc
Glossary of Terms and Abbreviations A-5
52.5 pc
3.75 pc 10.25 pc 11.25 pc 38.25 pc
34.5 pc
Responder An FC term referring to the answering device. RISC Core LSIFC909 chips contain a RISC (Reduced Instruction Set Computer)
processor, programmed through microcode scripts.
ROM Read Only Memory. Memory from which information can be read but not
changed. The contents of ROM are not erased when the computer is turned off.
SAN Storage Area Network. SCAM SCSI Configured AutoMatically. A method to automatically allocate SCSI
IDs using software when SCAM compliant SCSI devices are attached.
Scatter/Gather A device driver feature that lets the host adapter modify a transfer data
pointer so that a single host adapter transfer can access many segments of memory. This minimizes interrupts and transfer overhead.
SCB SCSI Command Block. SCSI Small Computer System Interface. A specification for a high-performance
peripheral bus and command set. The original standard is referred to as
44.25 pc
SCSI-1.
4.333 pc
SCSI-2 The current SCSI specification which adds features to the original
SCSI-1 standard.
SCSI ID A way to uniquely identify each SCSI deviceon the SCSI bus. Each SCSI
bus has eight available SCSI IDs numbered 0 through 7 (or 0 through 15 for Wide SCSI). The host adapter usually gets ID 7 giving it priority to control the bus.
Sequence A term referring to one of the FC “building blocks”, composed of one or
more related frames for a single operation.
SGL Scatter Gather List. SNAP SubNetwork Access Protocol. Synchronous
Data Transfer
One of the ways data is transferred over the SCSI bus. Transfers are clocked with fixed frequency pulses. This is faster than asynchronous data transfer. Synchronous data transfers are negotiated between the SCSI host adapter and each SCSI device.
48.583 pc
A-6 Glossary of Terms and Abbreviations
52.5 pc
3.75 pc 10.25 pc 11.25 pc 38.25 pc
34.5 pc
System BIOS Controls the low level POST (Power-On Self-Test), and basic operation
4.333 pc
of the CPU and computer system.
TID Target ID. Topology The logical and/or physical arrangement of stations on a network. ULP Upper Layer Protocol. VCCI Voluntary Control Council for Interference. Virtual Memory Space on a hard disk that can be used as if it were RAM. VPD Vendor Product Data. Word A two byte (or 16 bit) unit of information. X3T9 A technical committee of the Accredited Standards Committee X3, titled
X3T9 I/O Interfaces. It is tasked with developing standards for moving data in and out of central computers.
44.25 pc
48.583 pc
Glossary of Terms and Abbreviations A-7
52.5 pc
3.75 pc 10.25 pc 11.25 pc 38.25 pc
34.5 pc
4.333 pc
44.25 pc
48.583 pc
A-8 Glossary of Terms and Abbreviations
52.5 pc

Customer Feedback

We would appreciate your feedback on this document. Please copy the following page, add your comments, and fax it to us at the number shown.
If appropriate, please also fax copies of any marked-up pages from this document.
Important: Please include your name, phone number, fax number, and
company address so that we may contact you directly for clarification or additional information.
Thank you for your help in improving the quality of our documents.
LSI40909G-S PCI to Fibre Channel Host Adapter for Sun Solaris
Reader’s Comments
Fax your comments to: LSI Logic Corporation
Technical Publications M/S E-198 Fax: 408.433.4333
Please tell us how you rate this document:
Channel Host Adapter for Sun Solaris User’s Guide.
LSI40909G-S PCI to Fibre
Place a check mark
in the appropriate blank for each category.
Excellent Good Average Fair Poor
Completeness of information ____ ____ ____ ____ ____ Clarity of information ____ ____ ____ ____ ____ Ease of finding information ____ ____ ____ ____ ____ Technical content ____ ____ ____ ____ ____ Usefulness of examples and
illustrations
Overall manual ____ ____ ____ ____ ____
____ ____ ____ ____ ____
What could we do to improve this document?
If you found errors in this document, please specify the error and page number. If appropriate, please fax a marked-up copy of the page(s).
Please complete the information below so that we may contact you directly for clarification or additional information.
Name Date Telephone
Fax Title Department Mail Stop Company Name Street City, State, Zip
Customer Feedback
U.S. Distributors by State
A. E. Avnet Electronics
http://www.hh.avnet.com
B. M. Bell Microproducts,
Inc. (for HAB’s)
http://www.bellmicro.com
I. E. Insight Electronics
http://www.insight-electronics.com
W. E. Wyle Electronics
http://www.wyle.com
Alabama
Daphne I. E. Tel: 334.626.6190 Huntsville A. E. Tel: 256.837.8700 B. M. Tel: 256.705.3559 I. E. Tel: 256.830.1222 W. E. Tel: 800.964.9953
Alaska
A. E. Tel: 800.332.8638
Arizona
Phoenix A. E. Tel: 480.736.7000 B. M. Tel: 602.267.9551 W. E. Tel: 800.528.4040 Tempe I. E. Tel: 480.829.1800 Tucson A. E. Tel: 520.742.0515
Arkansas
W. E. Tel: 972.235.9953
California
Agoura Hills B. M. Tel: 818.865.0266 Granite Bay B. M. Tel: 916.523.7047 Irvine A. E. Tel: 949.789.4100 B. M. Tel: 949.470.2900 I. E. Tel: 949.727.3291 W. E. Tel: 800.626.9953 Los Angeles A. E. Tel: 818.594.0404 W. E. Tel: 800.288.9953 Sacramento A. E. Tel: 916.632.4500 W. E. Tel: 800.627.9953 San Diego A. E. Tel: 858.385.7500 B. M. Tel: 858.597.3010 I. E. Tel: 800.677.6011 W. E. Tel: 800.829.9953 San Jose A. E. Tel: 408.435.3500 B. M. Tel: 408.436.0881 I. E. Tel: 408.952.7000 Santa Clara W. E. Tel: 800.866.9953 Woodland Hills A. E. Tel: 818.594.0404 Westlake Village I. E. Tel: 818.707.2101
Colorado
Denver A. E. Tel: 303.790.1662 B. M. Tel: 303.846.3065 W. E. Tel: 800.933.9953 Englewood I. E. Tel: 303.649.1800 Idaho Springs B. M. Tel: 303.567.0703
Connecticut
Cheshire A. E. Tel: 203.271.5700 I. E. Tel: 203.272.5843 Wallingford W. E. Tel: 800.605.9953
Delaware
North/South A. E. Tel: 800.526.4812
Tel: 800.638.5988 B. M. Tel: 302.328.8968 W. E. Tel: 856.439.9110
Florida
Altamonte Springs B. M. Tel: 407.682.1199 I. E. Tel: 407.834.6310 Boca Raton I. E. Tel: 561.997.2540 Bonita Springs B. M. Tel: 941.498.6011 Clearwater I. E. Tel: 727.524.8850 Fort Lauderdale A. E. Tel: 954.484.5482 W. E. Tel: 800.568.9953 Miami B. M. Tel: 305.477.6406 Orlando A. E. Tel: 407.657.3300 W. E. Tel: 407.740.7450 Tampa W. E. Tel: 800.395.9953 St. Petersburg A. E. Tel: 727.507.5000
Georgia
Atlanta A. E. Tel: 770.623.4400 B. M. Tel: 770.980.4922 W. E. Tel: 800.876.9953 Duluth I. E. Tel: 678.584.0812
Hawaii
A. E. Tel: 800.851.2282
Idaho
A. E. Tel: 801.365.3800 W. E. Tel: 801.974.9953
Illinois
North/South A. E. Tel: 847.797.7300
Tel: 314.291.5350 Chicago B. M. Tel: 847.413.8530 W. E. Tel: 800.853.9953 Schaumburg I. E. Tel: 847.885.9700
Indiana
Fort Wayne I. E. Tel: 219.436.4250 W. E. Tel: 888.358.9953 Indianapolis A. E. Tel: 317.575.3500
Iowa
W. E. Tel: 612.853.2280 Cedar Rapids A. E. Tel: 319.393.0033
Kansas
W. E. Tel: 303.457.9953 Kansas City A. E. Tel: 913.663.7900 Lenexa I. E. Tel: 913.492.0408
Kentucky
W. E. Tel: 937.436.9953 Central/Northern/ Western A. E. Tel: 800.984.9503
Tel: 800.767.0329 Tel: 800.829.0146
Louisiana
W. E. Tel: 713.854.9953 North/South A. E. Tel: 800.231.0253
Tel: 800.231.5775
Maine
A. E. Tel: 800.272.9255 W. E. Tel: 781.271.9953
Maryland
Baltimore A. E. Tel: 410.720.3400 W. E. Tel: 800.863.9953 Columbia B. M. Tel: 800.673.7461 I. E. Tel: 410.381.3131
Massachusetts
Boston A. E. Tel: 978.532.9808 W. E. Tel: 800.444.9953 Burlington I. E. Tel: 781.270.9400 Marlborough B. M. Tel: 800.673.7459 Woburn B. M. Tel: 800.552.4305
Michigan
Brighton I. E. Tel: 810.229.7710 Detroit A. E. Tel: 734.416.5800 W. E. Tel: 888.318.9953 Clarkston B. M. Tel: 877.922.9363
Minnesota
Champlin B. M. Tel: 800.557.2566 Eden Prairie B. M. Tel: 800.255.1469 Minneapolis A. E. Tel: 612.346.3000 W. E. Tel: 800.860.9953 St. Louis Park I. E. Tel: 612.525.9999
Mississippi
A. E. Tel: 800.633.2918 W. E. Tel: 256.830.1119
Missouri
W. E. Tel: 630.620.0969 St. Louis A. E. Tel: 314.291.5350 I. E. Tel: 314.872.2182
U.S. Distributors by State (Continued)
Montana
A. E. Tel: 800.526.1741 W. E. Tel: 801.974.9953
Nebraska
A. E. Tel: 800.332.4375 W. E. Tel: 303.457.9953
Nevada
Las Vegas A. E. Tel: 800.528.8471 W. E. Tel: 702.765.7117
New Hampshire
A. E. Tel: 800.272.9255 W. E. Tel: 781.271.9953
New Jersey
North/South A. E. Tel: 201.515.1641
Tel: 609.222.6400 Mt. Laurel I. E. Tel: 856.222.9566 Pine Brook B. M. Tel: 973.244.9668 W. E. Tel: 800.862.9953 Parsippany I. E. Tel: 973.299.4425 Wayne W. E. Tel: 973.237.9010
New Mexico
W. E. Tel: 480.804.7000 Albuquerque A. E. Tel: 505.293.5119
New York
Hauppauge I. E. Tel: 516.761.0960 Long Island A. E. Tel: 516.434.7400 W. E. Tel: 800.861.9953 Rochester A. E. Tel: 716.475.9130 I. E. Tel: 716.242.7790 W. E. Tel: 800.319.9953 Smithtown B. M. Tel: 800.543.2008 Syracuse A. E. Tel: 315.449.4927
North Carolina
Raleigh A. E. Tel: 919.859.9159 I. E. Tel: 919.873.9922 W. E. Tel: 800.560.9953
North Dakota
A. E. Tel: 800.829.0116 W. E. Tel: 612.853.2280
Ohio
Cleveland A. E. Tel: 216.498.1100 W. E. Tel: 800.763.9953 Dayton A. E. Tel: 614.888.3313 I. E. Tel: 937.253.7501 W. E. Tel: 800.575.9953 Strongsville B. M. Tel: 440.238.0404 Valley View I. E. Tel: 216.520.4333
Oklahoma
W. E. Tel: 972.235.9953 Tulsa A. E. Tel: 918.459.6000 I. E. Tel: 918.665.4664
Oregon
Beaverton B. M. Tel: 503.524.1075 I. E. Tel: 503.644.3300 Portland A. E. Tel: 503.526.6200 W. E. Tel: 800.879.9953
Pennsylvania
Mercer I. E. Tel: 412.662.2707 Philadelphia A. E. Tel: 800.526.4812 B. M. Tel: 877.351.2355 W. E. Tel: 800.871.9953 Pittsburgh A. E. Tel: 412.281.4150 W. E. Tel: 440.248.9996
Rhode Island
A. E. 800.272.9255 W. E. Tel: 781.271.9953
South Carolina
A. E. Tel: 919.872.0712 W. E. Tel: 919.469.1502
South Dakota
A. E. Tel: 800.829.0116 W. E. Tel: 612.853.2280
Tennessee
W. E. Tel: 256.830.1119 East/West A. E. Tel: 800.241.8182
Tel: 800.633.2918
Texas
Arlington B. M. Tel: 817.417.5993 Austin A. E. Tel: 512.219.3700 B. M. Tel: 512.258.0725 I. E. Tel: 512.719.3090 W. E. Tel: 800.365.9953 Dallas A. E. Tel: 214.553.4300 B. M. Tel: 972.783.4191 W. E. Tel: 800.955.9953 El Paso A. E. Tel: 800.526.9238 Houston A. E. Tel: 713.781.6100 B. M. Tel: 713.917.0663 W. E. Tel: 800.888.9953 Richardson I. E. Tel: 972.783.0800 Rio Grande Valley A. E. Tel: 210.412.2047 Stafford I. E. Tel: 281.277.8200
Utah
Centerville B. M. Tel: 801.295.3900 Murray I. E. Tel: 801.288.9001 Salt Lake City A. E. Tel: 801.365.3800 W. E. Tel: 800.477.9953
Vermont
A. E. Tel: 800.272.9255 W. E. Tel: 716.334.5970
Virginia
A. E. Tel: 800.638.5988 W. E. Tel: 301.604.8488 Haymarket B. M. Tel: 703.754.3399 Springfield B. M. Tel: 703.644.9045
Washington
Kirkland I. E. Tel: 425.820.8100 Maple Valley B. M. Tel: 206.223.0080 Seattle A. E. Tel: 425.882.7000 W. E. Tel: 800.248.9953
West Virginia
A. E. Tel: 800.638.5988
Wisconsin
Milwaukee A. E. Tel: 414.513.1500 W. E. Tel: 800.867.9953 Wauwatosa I. E. Tel: 414.258.5338
Wyoming
A. E. Tel: 800.332.9326 W. E. Tel: 801.974.9953
Direct Sales Representatives by State (Components and Boards)
E. A. Earle Associates E. L. Electrodyne - UT GRP Group 2000 I. S. Infinity Sales, Inc. ION ION Associates, Inc. R. A. Rathsburg Associ-
ates, Inc. SGY Synergy Associates,
Inc.
Arizona
Tempe E. A. Tel: 480.921.3305
California
Calabasas I. S. Tel: 818.880.6480 Irvine I. S. Tel: 714.833.0300 San Diego E. A. Tel: 619.278.5441
Illinois
Elmhurst R. A. Tel: 630.516.8400
Indiana
Cicero R. A. Tel: 317.984.8608 Ligonier R. A. Tel: 219.894.3184 Plainfield R. A. Tel: 317.838.0360
Massachusetts
Burlington SGY Tel: 781.238.0870
Michigan
Byron Center R. A. Tel: 616.554.1460 Good Rich R. A. Tel: 810.636.6060 Novi R. A. Tel: 810.615.4000
North Carolina
Cary GRP Tel: 919.481.1530
Ohio
Columbus R. A. Tel: 614.457.2242 Dayton R. A. Tel: 513.291.4001 Independence R. A. Tel: 216.447.8825
Pennsylvania
Somerset R. A. Tel: 814.445.6976
Texas
Austin ION Tel: 512.794.9006 Arlington ION Tel: 817.695.8000 Houston ION Tel: 281.376.2000
Utah
Salt Lake City E. L. Tel: 801.264.8050
Wisconsin
Muskego R. A. Tel: 414.679.8250 Saukville R. A. Tel: 414.268.1152
Sales Offices and Design Resource Centers
LSI Logic Corporation Corporate Headquarters
1551 McCarthy Blvd Milpitas CA 95035
Tel: 408.433.8000 Fax: 408.433.8989
NORTH AMERICA California
Irvine
18301 Von Karman Ave Suite 900 Irvine, CA 92612
Tel: 949.809.4600
Fax: 949.809.4444 Pleasanton Design Center
5050 Hopyard Road, 3rd Floor Suite 300 Pleasanton, CA 94588
Tel: 925.730.8800 Fax: 925.730.8700
San Diego
7585 Ronson Road Suite 100 San Diego, CA 92111
Tel: 858.467.6981 Fax: 858.496.0548
Silicon Valley
1551 McCarthy Blvd Sales Office M/S C-500 Milpitas, CA 95035
Tel: 408.433.8000
Fax: 408.954.3353
Design Center M/S C-410 Tel: 408.433.8000 Fax: 408.433.7695
Wireless Design Center
11452 El Camino Real Suite 210 San Diego, CA 92130
Tel: 858.350.5560 Fax: 858.350.0171
Colorado
Boulder
4940 Pearl East Circle Suite 201 Boulder, CO 80301
Tel: 303.447.3800
Fax: 303.541.0641 Colorado Springs
4420 Arrowswest Drive Colorado Springs, CO 80907
Tel: 719.533.7000 Fax: 719.533.7020
Fort Collins
2001 Danfield Court Fort Collins, CO 80525
Tel: 970.223.5100 Fax: 970.206.5549
Florida
Boca Raton
2255 Glades Road Suite 324A Boca Raton, FL 33431
Tel: 561.989.3236 Fax: 561.989.3237
Georgia
Alpharetta
2475 North Winds Parkway Suite 200 Alpharetta, GA 30004
Tel: 770.753.6146 Fax: 770.753.6147
Illinois
Oakbrook Terrace
Two Mid American Plaza Suite 800 Oakbrook Terrace, IL 60181
Tel: 630.954.2234 Fax: 630.954.2235
Kentucky
Bowling Green
1262 Chestnut Street Bowling Green, KY 42101
Tel: 270.793.0010 Fax: 270.793.0040
Maryland
Bethesda
6903 Rockledge Drive Suite 230 Bethesda, MD 20817
Tel: 301.897.5800 Fax: 301.897.8389
Massachusetts
Waltham
200 West Street Waltham, MA 02451
Tel: 781.890.0180
Fax: 781.890.6158 Burlington - Mint Technology
77 South Bedford Street Burlington, MA 01803
Tel: 781.685.3800 Fax: 781.685.3801
Minnesota
Minneapolis
8300 Norman Center Drive Suite 730 Minneapolis, MN 55437
Tel: 612.921.8300
Fax: 612.921.8399
New Jersey
Red Bank
125 Half Mile Road Suite 200 Red Bank, NJ 07701
Tel: 732.933.2656 Fax: 732.933.2643
Cherry Hill - Mint Technology
215 Longstone Drive Cherry Hill, NJ 08003
Tel: 856.489.5530 Fax: 856.489.5531
New York
Fairport
550 Willowbrook Office Park Fairport, NY 14450
Tel: 716.218.0020 Fax: 716.218.9010
North Carolina
Raleigh
Phase II 4601 Six Forks Road Suite 528 Raleigh, NC 27609
Tel: 919.785.4520 Fax: 919.783.8909
Oregon
Beaverton
15455 NW Greenbrier Parkway Suite 235 Beaverton, OR 97006
Tel: 503.645.0589 Fax: 503.645.6612
Texas
Austin
9020 Capital of TX Highway North Building 1 Suite 150 Austin, TX 78759
Tel: 512.388.7294 Fax: 512.388.4171
Plano
500 North Central Expressway Suite 440 Plano, TX 75074
Tel: 972.244.5000
Fax: 972.244.5001 Houston
20405 State Highway 249 Suite 450 Houston, TX 77070
Tel: 281.379.7800 Fax: 281.379.7818
Canada Ontario
Ottawa
260 Hearst Way Suite 400 Kanata, ON K2L 3H1
Tel: 613.592.1263
Fax: 613.592.3253
INTERNATIONAL France
Paris
LSI Logic S.A. Immeuble Europa
53 bis Avenue de l'Europe B.P. 139 78148 Velizy-Villacoublay Cedex, Paris
Tel: 33.1.34.63.13.13
Fax: 33.1.34.63.13.19
Germany
Munich
LSI Logic GmbH
Orleansstrasse 4 81669 Munich
Tel: 49.89.4.58.33.0
Fax: 49.89.4.58.33.108 Stuttgart
Mittlerer Pfad 4 D-70499 Stuttgart
Tel: 49.711.13.96.90
Fax: 49.711.86.61.428
Italy
Milan
LSI Logic S.P.A.
CentroDirezionaleColleoniPalazzo Orione Ingresso 1 20041 Agrate Brianza, Milano
Tel: 39.039.687371
Fax: 39.039.6057867
Japan
Tokyo
LSI Logic K.K.
Rivage-Shinagawa Bldg. 14F 4-1-8 Kounan Minato-ku, Tokyo 108-0075
Tel: 81.3.5463.7821
Fax: 81.3.5463.7820 Osaka
Crystal Tower 14F 1-2-27 Shiromi Chuo-ku, Osaka 540-6014
Tel: 81.6.947.5281
Fax: 81.6.947.5287
Sales Offices and Design Resource Centers (Continued)
Korea
Seoul
LSI Logic Corporation of Korea Ltd
10th Fl., Haesung 1 Bldg. 942, Daechi-dong, Kangnam-ku, Seoul, 135-283
Tel: 82.2.528.3400 Fax: 82.2.528.2250
The Netherlands
Eindhoven
LSI Logic Europe Ltd
World Trade Center Eindhoven Building ‘Rijder’ Bogert 26 5612 LZ Eindhoven
Tel: 31.40.265.3580 Fax: 31.40.296.2109
Singapore
Singapore
LSI Logic Pte Ltd
7 Temasek Boulevard #28-02 Suntec Tower One Singapore 038987
Tel: 65.334.9061 Fax: 65.334.4749
Sweden
Stockholm
LSI Logic AB
Finlandsgatan 14 164 74 Kista
Tel: 46.8.444.15.00
Fax: 46.8.750.66.47
Taiwan
Taipei
LSI Logic Asia, Inc. Taiwan Branch
10/F 156 Min Sheng E. Road Section 3 Taipei, Taiwan R.O.C.
Tel: 886.2.2718.7828 Fax: 886.2.2718.8869
United Kingdom
Bracknell
LSI Logic Europe Ltd
Greenwood House London Road Bracknell, Berkshire RG12 2UB
Tel: 44.1344.426544
Fax: 44.1344.481039
Sales Offices with
Design Resource Centers
International Distributors
Australia
New South Wales
Reptechnic Pty Ltd
3/36 Bydown Street Neutral Bay, NSW 2089
Tel: 612.9953.9844
Fax: 612.9953.9683
Belgium Acal nv/sa
Lozenberg 4 1932 Zaventem
Tel: 32.2.7205983 Fax: 32.2.7251014
China
Beijing
LSI Logic International Services Inc.
Beijing Representative Office
Room 708 Canway Building 66 Nan Li Shi Lu Xicheng District Beijing 100045, China
Tel: 86.10.6804.2534 to 38 Fax: 86.10.6804.2521
France
Rungis Cedex
Azzurri Technology France
22 Rue Saarinen Sillic 274 94578 Rungis Cedex
Tel: 33.1.41806310 Fax: 33.1.41730340
Germany
Haar
EBV Elektronik
Hans-Pinsel Str. 4 D-85540 Haar
Tel: 49.89.4600980 Fax: 49.89.46009840
Munich
Avnet Emg GmbH
Stahlgruberring 12 81829 Munich
Tel: 49.89.45110102 Fax: 49.89.42.27.75
Wuennenberg-Haaren
Peacock AG
Graf-Zepplin-Str 14 D-33181 Wuennenberg-Haaren
Tel: 49.2957.79.1692 Fax: 49.2957.79.9341
Hong Kong
Hong Kong
AVT Industrial Ltd
Unit 608 Tower 1 Cheung Sha Wan Plaza 833 Cheung Sha Wan Road Kowloon, Hong Kong
Tel: 852.2428.0008 Fax: 852.2401.2105
Serial System (HK) Ltd
2301 Nanyang Plaza 57 Hung To Road, Kwun Tong Kowloon, Hong Kong
Tel: 852.2995.7538 Fax: 852.2950.0386
India
Bangalore
Spike Technologies India Private Ltd
951, Vijayalakshmi Complex, 2nd Floor, 24th Main, J P Nagar II Phase, Bangalore, India 560078
Tel: 91.80.664.5530
Fax: 91.80.664.9748
Israel
Tel Aviv
Eastronics Ltd
11 Rozanis Street P.O. Box 39300 Tel Aviv 61392
Tel: 972.3.6458777 Fax: 972.3.6458666
Japan
Tokyo
Daito Electron
Sogo Kojimachi No.3 Bldg 1-6 Kojimachi Chiyoda-ku, Tokyo 102-8730
Tel: 81.3.3264.0326 Fax: 81.3.3261.3984
Global Electronics Corporation
Nichibei Time24 Bldg. 35 Tansu-cho Shinjuku-ku, Tokyo 162-0833
Tel: 81.3.3260.1411 Fax: 81.3.3260.7100 Technical Center Tel: 81.471.43.8200
Marubeni Solutions
1-26-20 Higashi Shibuya-ku, Tokyo 150-0001
Tel: 81.3.5778.8662 Fax: 81.3.5778.8669
Shinki Electronics
Myuru Daikanyama 3F 3-7-3 Ebisu Minami Shibuya-ku, Tokyo 150-0022
Tel: 81.3.3760.3110 Fax: 81.3.3760.3101
Yokohama-City
Innotech
2-15-10 Shin Yokohama Kohoku-ku Yokohama-City, 222-8580
Tel: 81.45.474.9037 Fax: 81.45.474.9065
Macnica Corporation
Hakusan High-Tech Park 1-22-2 Hadusan, Midori-Ku, Yokohama-City, 226-8505
Tel: 81.45.939.6140 Fax: 81.45.939.6141
The Netherlands
Eindhoven
Acal Nederland b.v.
Beatrix de Rijkweg 8 5657 EG Eindhoven
Tel: 31.40.2.502602 Fax: 31.40.2.510255
Switzerland
Brugg
LSI Logic Sulzer AG
Mattenstrasse 6a CH 2555 Brugg
Tel: 41.32.3743232 Fax: 41.32.3743233
Taiwan
Taipei
Avnet-Mercuries Corporation, Ltd
14F, No. 145, Sec. 2, Chien Kuo N. Road Taipei, Taiwan, R.O.C.
Tel: 886.2.2516.7303 Fax: 886.2.2505.7391
Lumax International Corporation, Ltd
7th Fl., 52, Sec. 3 Nan-Kang Road Taipei, Taiwan, R.O.C.
Tel: 886.2.2788.3656 Fax: 886.2.2788.3568
Prospect Technology Corporation, Ltd
4Fl., No. 34, Chu Luen Street Taipei, Taiwan, R.O.C.
Tel: 886.2.2721.9533 Fax: 886.2.2773.3756
Wintech Microeletronics Co., Ltd
7F., No. 34, Sec. 3, Pateh Road Taipei, Taiwan, R.O.C.
Tel: 886.2.2579.5858 Fax: 886.2.2570.3123
United Kingdom
Maidenhead
Azzurri Technology Ltd
16 Grove Park Business Estate Waltham Road White Waltham Maidenhead, Berkshire SL6 3LW
Tel: 44.1628.826826 Fax: 44.1628.829730
Milton Keynes
Ingram Micro (UK) Ltd
Garamonde Drive Wymbush Milton Keynes Buckinghamshire MK8 8DF
Tel: 44.1908.260422 Swindon
EBV Elektronik
12 Interface Business Park Bincknoll Lane Wootton Bassett, Swindon, Wiltshire SN4 8SY
Tel: 44.1793.849933 Fax: 44.1793.859555
Sales Offices with
Design Resource Centers
Loading...
