USER’S

GUIDE

LSI20160SingleChannel Ultra160 SCSI to PCI Host Adapter

Version 1.0

December 2001

DB15-000231-00

Electromagnetic Compatibility Notices

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Shielded cables for SCSI connection external to the cabinet are used in the compliance testing of this Product. LSI Logic is not responsible for any radio or televisioninterference caused by unauthorized modiﬁcation of this equipment or the substitution or attachment of connecting cables and equipment other than those speciﬁed by LSI Logic. The correction of interferences caused by such unauthorized modiﬁcation, substitution, or attachment will be the responsibility of the user.

The LSI Logic LSI20160 is tested to comply with FCC standards for home or ofﬁce use.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du

Canada.

This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.

LSI Logic Corporation North American Headquarters Milpitas, CA

408.433.8000

This document contains proprietary information of LSI Logic Corporation. The information contained herein is not to be used by or disclosed to third parties without the express written permission of an ofﬁcer of LSI Logic Corporation.

LSI Logic products are not intended for use in life-support appliances, devices, or systems. Use of any LSI Logic product in such applications without written consent of the appropriate LSI Logic ofﬁcer is prohibited.

Document DB15-000231-00, First Edition (December 2001) This document describes the LSI Logic LSI20160 Single Channel Ultra160 SCSI to PCI Host Adapter and will remain the ofﬁcial reference source for all revisions/releases of this product until rescinded by an update.

To receive product literature, visit us at http://www.lsilogic.com.

LSI Logic Corporation reserves the right to makechanges to any products herein at any time without notice. LSI Logic does not assume any responsibility or liability arising out of the application or use of any product described herein, except as expressly agreed to in writing by LSI Logic; nor does the purchase or use of a product from LSI Logic convey a license under any patent rights, copyrights, trademark rights, or any other of the intellectual property rights of LSI Logic or third parties.

The LSI Logic logo design, LVDlink, SCRIPTS, SDMS, SureLINK, and TolerANT are registered trademarks or trademarks of LSI Logic Corporation. All other brand and product names may be trademarks of their respective companies.

iii

Audience

Organization

Preface

This book is the primary reference and user’s guide for the LSI Logic LSI20160 Single Channel Ultra160 SCSI to PCI Host Adapter. It contains a complete functional description for the LSI20160 board as well as complete physical and electrical speciﬁcations.

This document assumes that you have some familiarity with SCSI protocol and related support devices and will beneﬁt persons installing and using the LSI20160.

This document has the following chapters and appendix:

• Chapter 1, Describing the LSI20160, deﬁnes the interfaces and

characteristics of the LSI20160.

• Chapter 2,Installing the LSI20160,provides both quick anddetailed

installation instructions.

• Chapter 3, Technical Speciﬁcations, describes the physical and

operational environments of the LSI20160.

• Appendix A, Glossary of Terms and Abbreviations, provides

deﬁnitions of various terminology that is referenced throughout this user’s guide.

LSI20160 Single Channel Ultra160 SCSI to PCI Host Adapter v

Related Publications

PCI Storage Device Management System SDMS™ 4.0 User’s Guide, Version 11, Order Number S14007.B

LSI53C1000 PCI to Ultra160 SCSI Controller Technical Manual, Version 2.1, Order Number S14050.A

Revision History

Revision Date Remarks

1.0 12/01 Final version.

vi Preface

Contents

Chapter 1 Describing the LSI20160

1.1 General Description 1-1

1.2 Features 1-2

1.2.1 PCI Interface 1-2

1.2.2 SCSI Interface 1-3

1.2.3 Board Characteristics 1-4

1.2.4 SCSI Activity LED Interface 1-4

1.3 Ultra160 SCSI Beneﬁts 1-4

1.3.1 Double Transition (DT) Clocking 1-4

1.3.2 Cyclic Redundancy Check (CRC) 1-5

1.3.3 Asynchronous Information Protection (AIP) 1-5

1.4 SureLINK™ Ultra160 SCSI Domain Validation Beneﬁts 1-5

1.5 LVDlink™ Technology Beneﬁts 1-5

1.6 TolerANT®Technology Beneﬁts 1-6

Chapter 2 Installing the LSI20160

2.1 Quick Installation Procedure 2-1

2.2 Detailed Installation Procedure 2-2

2.2.1 Before You Start 2-2

2.2.2 Selecting a PCI Slot 2-3

2.2.3 Inserting the Host Adapter 2-4

2.2.4 Connecting SCSI Peripherals 2-6

2.2.5 SCSI Bus Termination 2-15

2.2.6 Setting SCSI IDs 2-18

2.3 Completing the Installation 2-20

Chapter 3 Technical Speciﬁcations

3.1 Physical Environment 3-1

3.1.1 Physical Characteristics 3-1

LSI20160 Single Channel Ultra160 SCSI to PCI Host Adapter vii

3.1.2 Electrical Characteristics 3-2

3.1.3 Thermal, Atmospheric Characteristics 3-3

3.1.4 Electromagnetic Compliance 3-3

3.1.5 Safety Characteristics 3-3

3.2 Operational Environment 3-4

3.2.1 The PCI Interface 3-4

3.2.2 The SCSI Interface 3-7

3.2.3 The LED Interface 3-8

3.3 Subsystem ID and Subsystem Vendor ID 3-9

Appendix A Glossary of Terms and Abbreviations

Customer Feedback

viii Contents

Figures

2.1 Hardware Connections for the LSI20160 2-4

2.2 Inserting the Host Adapter 2-5

2.3 SCSI Cables 2-6

2.4 Internal SCSI Ribbon Cable to Host Adapter 2-7

2.5 Internal SCSI Ribbon Cable to Internal SCSI Device Connection 2-8

2.6 Connecting Additional Internal SCSI Devices 2-9

2.7 Multiple Internal SCSI Devices Chained Together 2-10

2.8 SCSI LED Connector 2-11

2.9 External Cable to Host Adapter 2-12

2.10 External Cable to External SCSI Device 2-13

2.11 Multiple External SCSI Devices Chained Together 2-14

2.12 Internal SCSI Device Termination 2-16

2.13 External SCSI Device Termination 2-17

3.1 LSI20160 Mechanical Drawing 3-2

Tables

2.1 SCSI ID Record 2-19

3.1 Maximum Power Requirements 3-2

3.2 PCI Connector J1 (Front) 3-5

3.3 PCI Connector J1 (Back) 3-6

3.4 SCSI Interface 3-7

3.5 LED Connector J3 Pinout 3-8

3.6 Subsystem ID and Subsystem Vendor ID 3-9

xii

Chapter 1 Describing the LSI20160

This chapter describes the LSI20160 Single Channel Ultra160 SCSI to PCI Host Adapter interface to PCI computer systems and includes these topics:

• Section 1.1, “General Description,” page 1-1

• Section 1.2, “Features,” page 1-2

• Section 1.3, “Ultra160 SCSI Beneﬁts,” page 1-4

• Section 1.4,“SureLINK™ Ultra160 SCSI Domain Validation Beneﬁts,”

page 1-5

• Section 1.5, “LVDlink™ Technology Beneﬁts,” page 1-5

• Section 1.6, “TolerANT® Technology Beneﬁts,” page 1-6

1.1 General Description

The LSI Logic LSI20160 provides one SCSI-3, Ultra160 SCSI interface to PCI computer systems that require BIOS support on the add-in SCSI adapter. Installing this adapter in your PCI system allows connection of SCSI devices over a SCSI bus.

The LSI20160 provides one Ultra160 SCSI channel. The LSI20160 supports Low Voltage Differential (LVD) and Single-Ended (SE) SCSI. This board supports Fast/Ultra/Ultra2 SCSI devicesas well as the newest Ultra160 SCSI devices.

The LSI Logic Storage Device Management System (SDMS™) software operates the board. The design of the board does not prevent other SCSI software from being used with it. BIOS support for this host adapter is incorporated on the board in a 128 Kbyte Flash device. The onboard controller for the LSI20160 is the LSI53C1000 PCI to Ultra160 SCSI Controller.

LSI20160 Single Channel Ultra160 SCSI to PCI Host Adapter 1-1

The LSI53C1000 contains a SCSI SCRIPTS™ processor that permits both DMA and SCSI commands to be fetched from host memory or internal SCRIPTS RAM. Algorithms written in SCSI SCRIPTS control the actions of the SCSI and DMA cores. The SCRIPTS processor executes complex SCSI bus sequences independently of the host CPU.

In addition to this guide there is another reference that you will ﬁnd useful. The LSI Logic PCI Storage Device Management System SDMS 4.0 User’s Guide contains product information and installation instructions.

1.2 Features

This section provides an overview of the PCI interface, the SCSI interface, and board characteristics for the LSI20160.

1.2.1 PCI Interface

The PCI interface operates as a 32-bit DMA bus master, where the connection is made through the J1 edge connector.

The PCI interface includes these features:

• Complies with PCI Local Bus Speciﬁcation, Revision 2.2

• Complies with PC99

• Complies with PCI Bus Power Management Speciﬁcation,

Revision 1.1

• Supports 32-bit 33 MHz word data bursts with variable burst lengths

• Bursts 4/8, 8/16, 16/32, or 32/64 Qword/Dword transfers across the

PCI bus

• Bursts up to 264 Mbytes/s (@ 33 MHz) with zero wait-state bus

master data

• Supports the PCI Cache Line Size (CLS) register

• Prefetches up to 8 Dwords of SCRIPTS instructions

• Supports PCI Write and Invalidate, Read Line, and Read Multiple

commands

• Supports universal 3.3 V and 5 V PCI bus signaling environment

1-2 Describing the LSI20160

1.2.2 SCSI Interface

The SCSI interface is made through connectors J2 and J4. Figure 2.1 shows the location of these connectors. The SCSI interface includes these features:

• Provides one wide Ultra160 SCSI channel

• Provides two connectors:

– 68-pin VHDCI for the external connection – 68-pin high density for the internal connection

• Supports SE and LVD signaling: 16-bit SE or LVD interfaces

• Supports LVD/SE termination

• Supports Fast, Ultra, Ultra2, and Ultra160 data transfer capability

– Ultra160 SCSI LVD synchronous transfers at up to 160 Mbytes/s

• Supports Domain Validation, Double Transition (DT) data transfers,

and Cyclic Redundancy Check (CRC)

• Supports variable block size and scatter/gather data transfers

• Protects nondata phases with Asynchronous Information Protection

(AIP)

• Supports two termination control options:

– Use manual shunts on connector J2 and J4 to disable

termination

– Provide software control using GPIO3 to enable or disable the

terminators

• Supplies SCSI termination power (TERMPWR) source with

autoresetting circuit breaker

• Includes SCSI Plug and Play

• Provides Flash EEPROM for BIOS conﬁguration storage

• Includes 8 Kbytes internal RAM for SCRIPTS instruction storage

• Provides a SCSI activity LED connector (J3)

Features 1-3

1.2.3 Board Characteristics

The board characteristics are

• PCI board dimensions

Approximately 4.721 x 2.536 inches

• Universal 32-bit PCI card edge connector

• Standard bracket available

1.2.4 SCSI Activity LED Interface

The J3 connector is a four-wire arrangement on the LSI20160 that represents the SCSI activity LED interface. Table 3.5 on page 3-8 lists the signal name and pin numbers for this LED interface.

1.3 Ultra160 SCSI Beneﬁts

Ultra160 SCSI is an extension of the SPI-3 draft standard that allows faster synchronous SCSI data transfer rates than Ultra2 SCSI. When enabled, Ultra160 SCSI performs 80 megatransfers per second resulting in approximately double the synchronous data transfer rates of Ultra2 SCSI. The LSI53C1000 performs 16-bit, Ultra160 SCSI synchronous data transfers as fast as 160 Mbytes/s. This advantage is most noticeable in heavily loaded systems or large block size applications such as video on-demand and image processing.

1.3.1 Double Transition (DT) Clocking

The Ultra160 data transfer speed is accomplished using DT clocking. DT clocking refers to transferring data on both rising and falling edges of the request and acknowledge signals. Double-edge clocking doubles data transfer speeds without increasing the clock rate.

1-4 Describing the LSI20160

1.3.2 Cyclic Redundancy Check (CRC)

Ultra160 SCSI includes CRC which offers higher levels of data reliability by ensuring complete integrity of transferred data. CRC is a 32-bit scheme, referred to as CRC-32. CRC is guaranteed to detect all single bit errors, any two bits in error, or any combination of errors within a single 32-bit range.

1.3.3 Asynchronous Information Protection (AIP)

The LSI53C1000 also supports AIP, which protects all nondata phases, including command, status, and messages. CRC, along with AIP, provides end-to-end protection of the SCSI I/O.

1.4 SureLINK™ Ultra160 SCSI Domain Validation Beneﬁts

SureLINK software represents the very latest SCSI interconnect management solution. It ensures robust and low risk Ultra160 SCSI implementations by extending the Domain Validation guidelines documented in the ANSI T10 SPI-3 speciﬁcations. Domain Validation veriﬁes that the system is capable of transferring data at Ultra160 speeds, allowing it to renegotiate to lower speed and bus width if necessary.

SureLINK software is the control for the manageability enhancements in the LSI53C1000. Fully integrated in the SDMS software solution, SureLINK software provides Domain Validation at boot time, as well as throughout system operation.

1.5 LVDlink™ Technology Beneﬁts

The LSI20160 supports LVD for SCSI, a signaling technology that increases the reliability of SCSI data transfers over longer distances than are supported by SE SCSI. The low current output of LVD allows the I/O transceivers to be integrated directly onto the chip. LVDlink technology lowers the amplitude of noise reﬂections and allows higher transmission frequencies. LVD provides a long-term migration path to even faster SCSI transfer rates without compromising signal integrity, cable length, or connectivity.

SureLINK™ Ultra160 SCSI Domain Validation Beneﬁts 1-5

Important: All bus devices must be LVD or SE. If a High Voltage

Differential (HVD) device is detected, the board puts the SCSI bus in the high impedance state and shuts down.

1.6 TolerANT®Technology Beneﬁts

The LSI20160 features TolerANT technology, which includes active negation on the SCSI drivers and input signal ﬁltering on the SCSI receivers. The beneﬁts of TolerANT technology include increased immunity to noise when the signal is going HIGH, better performance due to balanced duty cycles, and improved fast SCSI transfer rates. In addition, TolerANT SCSI devices do not cause glitches on the SCSI bus at power up or power down, so other devices on the bus are also protected from data corruption.

When it is used with the LVDlink transceivers, TolerANT technology provides excellent signal quality and data reliability in real world cabling environments. TolerANT input signal ﬁltering is a built-in feature of the LSI53C1000 device as well as all LSI Logic SCSI devices.

1-6 Describing the LSI20160

Chapter 2 Installing the LSI20160

This chapter provides instructions on how to install the LSI20160 and includes these topics:

• Section 2.1, “Quick Installation Procedure,” page 2-1

• Section 2.2, “Detailed Installation Procedure,” page 2-2

• Section 2.3, “Completing the Installation,” page 2-20

2.1 Quick Installation Procedure

This section provides an overview of the installation procedure. If youare an experienced computer user with prior host adapter installation and SCSI bus setup experience, this section may sufﬁciently describe the procedure for you. If you prefer more detailed guidance for installing the LSI20160, proceed to Section 2.2, “Detailed Installation Procedure.”

For safe and proper installation, check the user’s manual supplied with your computer and perform the following steps.

Step 1. Ground yourself before handling the host adapter board. Step 2. Remove the LSI20160 from its packing and examine it for any

damage.

Figure 2.1 shows an example of this host adapter board.

Step 3. Switch off and unplug the system. Step 4. Open your PC cabinet. Step 5. Locate the PCI slots on your computer. Step 6. Insert the LSI20160 into the selected PCI slot. Step 7. Connect the internal and external SCSI peripherals.

LSI20160 Single Channel Ultra160 SCSI to PCI Host Adapter 2-1

Step 8. Connect the LED cable to J3 on your SCSI host adapter, if you

wish to connect the LED to the SCSI LED connector. Step 9. Terminate the SCSI bus.

The SCSI bus requires proper termination and no duplicate

SCSI IDs. Step 10. Set the peripheral SCSI IDs. Step 11. Make any conﬁguration changes. Step 12. Close your PC cabinet cover. Step 13. Make all external SCSI bus connections. Step 14. Refer to the PCI Storage Device Management System

SDMS 4.0 User’s Guide (or the guide for the software you will

use) to load the driver software for your particular operating

system.

2.2 Detailed Installation Procedure

This section provides step-by-step instructions for installing the LSI20160, and connecting it to your SCSI peripherals. If you are experienced in these tasks, you may prefer to use the preceding

Section 2.1, “Quick Installation Procedure.”

2.2.1 Before You Start

Before starting, read through the steps deﬁned within the detailed installation procedure. If you are not conﬁdent that you can perform the tasks as described in this section, LSI Logic suggests getting assistance.

The SCSI host adapter acts on your computer’s behalf as the host to your suite of SCSI peripherals. Each chain of SCSI peripheral devices and their host adapter work together and are referred to as a SCSI bus.

Each SCSI host adapter that you install can act as host for up to 15 peripheral devices, not including the adapter itself.

2-2 Installing the LSI20160

2.2.2 Selecting a PCI Slot

For safe and proper installation, check the user’s manual supplied with your computer and perform the following steps.

Step 1. Ground yourself before removing the host adapter board from

its package. Step 2. Remove the LSI20160 from its packing and verify it is not

damaged.

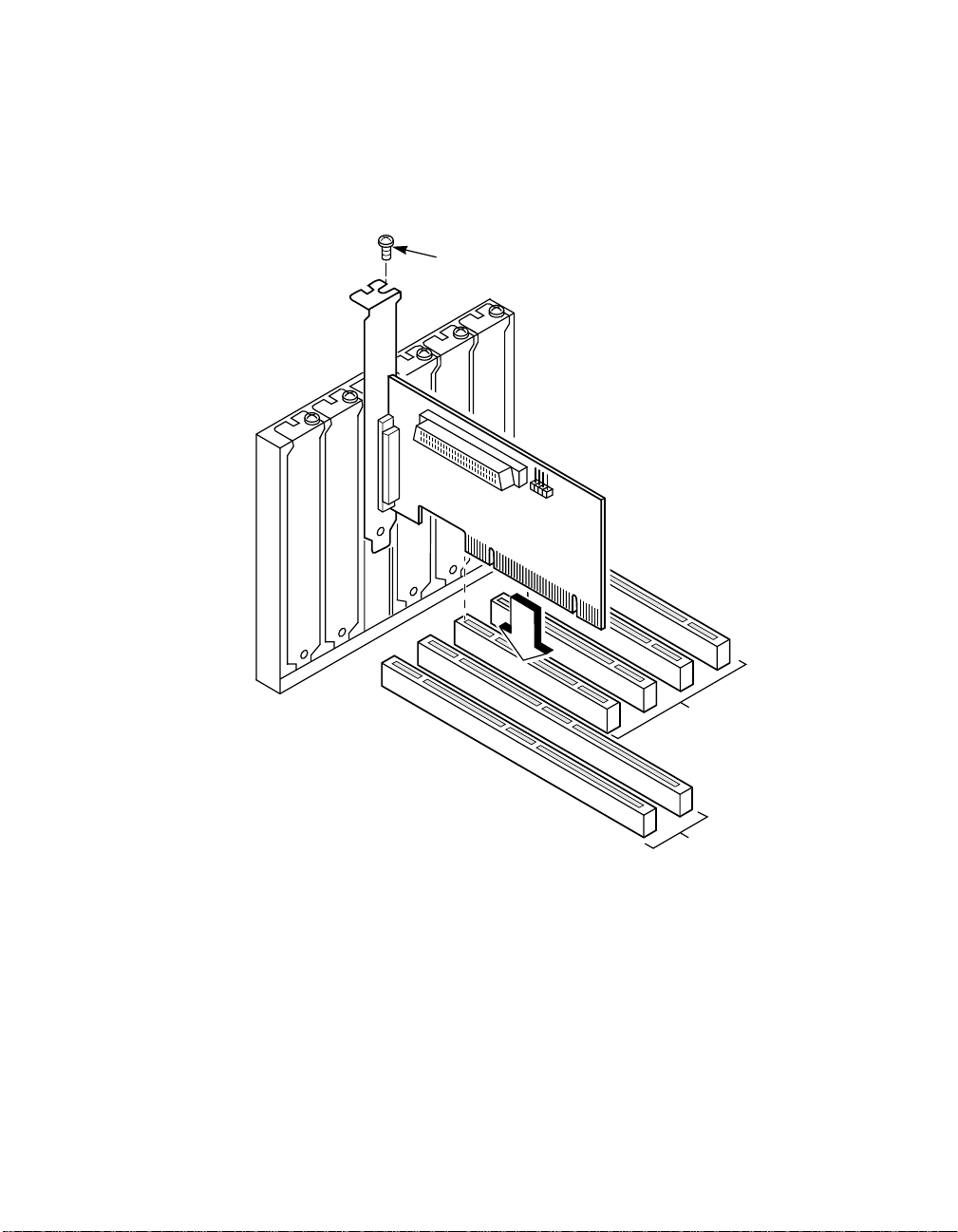

Figure 2.1 shows an example of this host adapter board.

Step 3. Switch off and unplug the system. Step 4. Remove the cabinet cover on your computer to access the PCI

slots.

Caution: Ground yourself by touching a metal surface before

Step 5. Locate the PCI slots on your computer.

Refer to the user’s manual supplied with your computer to

conﬁrm the location of the PCI slots. Also, the LSI20160

requires a PCI slot that allows bus master operation and

provides 3.3 Volts. Figure 2.2 is a representative drawing of a

computer mainboard.

handling boards. Static charges on your body can damage electronic components. Handle plug-in boards by the edge; do not touch board components or gold connector contacts. The use of a static ground strap is recommended.

Detailed Installation Procedure 2-3

2.2.3 Inserting the Host Adapter

Perform the following steps to install the LSI20160 in your PC mainboard. Step 1. Remove the blank bracket panel on the back of the computer

aligned with the PCI slot you intend to use.

Save the bracket screw. Step 2. Carefully insert the edge connector J1 of the host adapter into

the PCI slot.

Make sure the edge connector is properly aligned before

pressing the board into place. The bracketaround connector J2

should ﬁt where the blank bracket panel was removed. Refer to

Figures 2.1 and 2.2.

Figure 2.1 Hardware Connections for the LSI20160

68-pin Internal

High Density SCSI

Connector J4

Busy LED Connector J3

68-pin VHDCI

External SCSI

Connector J2

Note: You may notice that the components on a PCI host adapter

face the opposite way from non-PCI adapter boards you have in your system. This is correct. The board is keyed to go in only one way.

2-4 Installing the LSI20160

LSI20160 to PCI Bus

Edge Connector J1

Step 3. Secure the bracket with the bracket screw before making the

internal and external SCSI bus connections. Figure 2.2 shows

an example on how to insert your host adapter.

Figure 2.2 Inserting the Host Adapter

Bracket Screw

32-bit Slots

64-bit Slots

Detailed Installation Procedure 2-5

2.2.4 Connecting SCSI Peripherals

All internal SCSI bus connections to the LSI20160 can be made with an unshielded, 68-conductor ribbon cable (see Figure 2.3). One side of this cable is marked with a color to indicate the pin-1 side. The connectors on this cable are keyed to ensure proper pin-1 connection. Some internal cables come with an LVD/SE terminator on one end. This end should be furthest from the host adapter.

All external SCSI bus connections to the LSI20160 are made with shielded, 68-conductor cables (see Figure 2.3). The connectors on this cable are always keyed to ensure proper pin-1 connection.

Figure 2.3 SCSI Cables

SCSI Cable for Internal Connections

SCSI Cable for External Connections

68-pin High Density

2-6 Installing the LSI20160

68-pin VHDCI

2.2.4.1 Making Internal SCSI Bus Connections

This section provides step-by-step instructions for making internal SCSI bus connections. If you only have external connections, skip to

Section 2.2.4.3, “Making External SCSI Bus Connections.”

Step 1. Plug a 68-pin connector on the end of the internal SCSI ribbon

cable into connector J4. Figure 2.4 illustrates how to make this

connection.

Figure 2.4 Internal SCSI Ribbon Cable to Host Adapter

Detailed Installation Procedure 2-7

Step 2. Plug the 68-pin connector on the other end of the internal SCSI

ribbon cable into the SCSI connector on the internal SCSI

device.

Pin 1 must match on all connections. The lead in the cable

adjacent to pin 1 is colored. Figure 2.5 illustrates a connection

to an internal SCSI device.

Figure 2.5 Internal SCSI Ribbon Cable to Internal SCSI Device

Connection

If you have more than one internal SCSI device, you must have

a cable with at least as many connectors as devices.

2-8 Installing the LSI20160

Step 3. Plug in any additional internal SCSI devices, as required. Refer

to the example in Figure 2.6.

Figure 2.7 illustrates the connection of multiple internal SCSI

devices chained together. Make sure to match pin 1 on all

connections.

Figure 2.6 Connecting Additional Internal SCSI Devices

Detailed Installation Procedure 2-9

Figure 2.7 Multiple Internal SCSI Devices Chained Together

2.2.4.2 Making Activity LED Connection

Most PC cabinets are designed with a front panel LED to indicate bus activity. It may already be connected to an existing IDE controller. If you want, you can connect the LED to the SCSI LED connector.

Connect the LED cable to J3 on your SCSI host adapter, as shown in

Figure 2.8.

The Busy LED connector J3 is not keyed. The J3 connector is a 4-pin one row right angle header. Some LED cables have only two wires. In this case, place the connector on one end of J3. If the LED does not light during SCSI bus activity, you may have to rotate the LED cable 180˚ on J3 or move it to the other end of the jack.

2-10 Installing the LSI20160

After the correct connection is established, the front panel LED indicates activity on the SCSI bus. Refer to Table 3.5 on page 3-8 for connector pinout information.

Figure 2.8 SCSI LED Connector

LED

Cable

LED Connector J3

Detailed Installation Procedure 2-11

2.2.4.3 Making External SCSI Bus Connections

This section provides step-by-step instructions for making external SCSI bus connections.

Step 1. Plug the 68-pin VHDCI connector on one end of a shielded

external high density cable (see Figure 2.3) into the host

adapter connector J2.

This connector is exposed on the back panel of your computer.

Figure 2.9 illustrates where this connection is made.

Figure 2.9 External Cable to Host Adapter

2-12 Installing the LSI20160

Step 2. Plug the 68-pin connector on the other end of the shielded

external SCSI cable into the SCSI connector on your external

SCSI device.

Figure 2.10 illustrates a connection to an external SCSI device.

Figure 2.10 External Cable to External SCSI Device

Detailed Installation Procedure 2-13

Step 3. Chain any additional SCSI devices together with shielded

external SCSI cables.

Figure 2.11 shows an example of multiple external SCSI

devices that are chained together.

Figure 2.11 Multiple External SCSI Devices Chained Together

2-14 Installing the LSI20160

2.2.5 SCSI Bus Termination

The devices making up the SCSI bus are connected serially (chained together) with SCSI cables. The ﬁrst and last physical SCSI devices connected on the ends of the SCSI bus must have their terminators active. All other SCSI devices on the bus must have their terminators removed or disabled.

Termination control has two options which allow a different termination mode:

• Termination can be disabled by placing a manual shunt over the

post. When the shunt is off, the terminator is active. When the shunt is on the post, the terminator is disabled.

• Termination can be enabled or disabled for a speciﬁc channel using

software control with GPIO3.

LVD peripheral devices are normally terminated with external terminators, but are sometimes set with jumpers or with a switch on the peripheral. Refer to the peripheral manufacturer’s instructions and to the user’s manual for your computer for information on how to identify the terminator setting of each device and how to change it.

The LSI20160 automatically controls SCSI bus termination for two different bus conﬁgurations (see Figure 2.1). The two bus conﬁgurations are

• Termination on

• Termination off

You can disable termination in two ways:

• Use BIOS software control, where the BIOS termination option is

changed from Automatic to Off.

• Manually place a shunt on the post of the respective jumpers, J2DIS

and J4DIS.

Detailed Installation Procedure 2-15

2.2.5.1 Internal SCSI Terminations

If you are making internal SCSI device connections on your host adapter, you must terminate the last internal device on the SCSI bus. You must disable the termination on all other devices. Termination on your host adapter is automatically enabled in this case if there are no external SCSI devices connected through J2.

Figure 2.12 shows an example of how termination is determined for this

SCSI bus conﬁguration.

Figure 2.12 Internal SCSI Device Termination

Last Device on

Chain-

Termination

Enabled

2-16 Installing the LSI20160

Does Not End ChainTermination Disabled

Host Adapter Automatically Terminated

2.2.5.2 External SCSI Terminations

If you are making external SCSI device connections on your host adapter, you must terminate the last external device on the SCSI bus. Termination on all other devices must be disabled. Termination on your host adapter is automatically enabled in this case if there are no internal devices connected through J4.

Figure 2.13 shows an example of how termination is determined for this

SCSI bus conﬁguration on your host adapter.

Figure 2.13 External SCSI Device Termination

Last Device on Chain-Termination Enabled

Does Not End Chain-Termination Disabled

Host Adapter Automatically Terminated

Detailed Installation Procedure 2-17

2.2.6 Setting SCSI IDs

You must set each SCSI device and the host adapter to a separate SCSI ID. The IDs are 0 through 7 for an 8-bit bus and 0 through 15 for a 16-bit bus. SCSI ID 7 is the preset host adapter setting, giving it the highest priority on the SCSI bus. If you plan to boot your computer from a hard disk drive on the SCSI bus, that drive should have SCSI ID 0, or the lowest SCSI ID on the bus. The PCI Storage Device Management System SDMS 4.0 User’s Guide explains how to set your host adapter ID using the SCSI BIOS Conﬁguration Utility.

The peripheral device SCSI IDs are usually set with jumpers or with a switch on the peripheral. Refer to the peripheral manufacturer’s instructions and to the user’s manual for your computer to determine the ID of each device and how to change it. No duplication of SCSI IDs is allowed on a SCSI bus.

Step 1. Determine the SCSI ID of each device on the SCSI bus. Note

Step 2. Make any necessary changes to the SCSI IDs and record the

any duplications.

IDs for future reference. Correct any duplications at this time.

Table 2.1 on page 2-19 is provided as a place to keep this

record.

2-18 Installing the LSI20160

Table 2.1 SCSI ID Record

SCSI ID SCSI Device

15 14 13 12 11 10

9 8 7 LSI20160 (default) 6 5 4 3 2 1 0

Detailed Installation Procedure 2-19

2.3 Completing the Installation

Before replacing the cover on your computer, review this installation procedure check list. This can save you effort later.

Verify Installation Procedures Done

Host adapter connection in PCI bus slot secure Internal SCSI bus connections secure (pin-1 continuity) External SCSI bus connections secure Proper SCSI bus termination established Unique SCSI IDs set and recorded for each device

Step 1. Replace the cabinet cover on your computer. Step 2. Plug in all power cords, and switch on power to all devices and

your computer. Step 3. Wait for your computer to boot up. Step 4. Refer to the LSI Logic PCI Storage Device Management

System SDMS 4.0 User’s Guide (or the guide for the software

you will use) to load the driver software for your particular

operating system and to change the conﬁguration of your host

adapter, if needed.

2-20 Installing the LSI20160

Chapter 3 Technical Speciﬁcations

This chapter discusses the physical environment associated with the LSI20160. It includes a mechanical drawing of this board, which is shown in Figure 3.1. It also includes these topics:

• Section 3.1, “Physical Environment,” page 3-1

• Section 3.2, “Operational Environment,” page 3-4

• Section 3.3, “Subsystem ID and Subsystem Vendor ID,” page 3-9

3.1 Physical Environment

This section discusses the physical, electrical, thermal, and safety characteristics of the LSI20160. Additionally, this board is compliant with electromagnetic standards set by the FCC.

3.1.1 Physical Characteristics

The dimensions of the LSI20160 are 4.721 x 2.536 inches. Edge connector J1 makes the PCI connection. The component height on the top and bottom of the LSI20160 follows the PCI speciﬁcation.

Connector J4 is a 68-pin high density connector that makes the internal SCSI connection. Connector J2 is a 68-pin VHDCI connector that makes the external SCSI connection. The J2 connector extends through the standard bracket, which is attached to the face of the connector outside of the cabinet where the LSI20160 is installed. Connector J3 provides connection to the computer’s drive activity LED. It is a 4-pin, one-row, right-angle header.

LSI20160 Single Channel Ultra160 SCSI to PCI Host Adapter 3-1

Figure 3.1 LSI20160 Mechanical Drawing

J4 Channel A Ultra160 SCSI LVD only

J2 Channel A Ultra160 SCSI LVD/SE

Note:

• J1: PCI 32-bit universal type board edge connector.

• J2: 68-pin VHDCI connector for external SCSI connection.

• J4: 68-pin high density internal SCSI connection.

• J3: 4-pin low density unshrouded right-angle LED connector.

• Subsystem Vendor ID is 1000.

• Subsystem ID is 1060.

3.1.2 Electrical Characteristics

The LSI20160 maximum power requirements that include SCSI TERMPWR under normal operation are shown in Table 3.1:

Table 3.1 Maximum Power Requirements

J3 LED

LSI53C1000

J1T-PCI

+5 V DC 5% 1.3 A Over the operating range 0–55 °C (with SCSI

+5 V DC 5% 0.40 A Over the operating range 0–55 ˚C (without

+3.3 V DC 5% 1.00 A Over the operating range 0–55 ˚C

The PCI PRSNT1 and PRSNT2 pins are set to indicate a 7.5 W maximum conﬁguration.

3-2 Technical Speciﬁcations

TERMPWR, supplied to external connection)

SCSI TERMPWR, supplied to external connection)

Under abnormal conditions, such as a short on SCSI TERMPWR, + 5 V current may be higher. At temperatures of at least 25 °C, a current of 8 A is sustained no longer than 0.5 seconds before the self-resetting TERMPWR short circuit protection device opens.

3.1.3 Thermal, Atmospheric Characteristics

The thermal, atmospheric characteristics of the LSI20160 are:

• Temperature range: 0 °Cto55°C (dry bulb)

• Relative humidity range: 5% to 90% noncondensing

• Maximum dew point temperature: 32 °C

The following parameters deﬁne the storage and transit environment for the LSI20160:

• Temperature range: − 45 °C to + 105 °C (dry bulb)

• Relative humidity range: 5% to 90% noncondensing

3.1.4 Electromagnetic Compliance

This board is tested to and meets class B regulatory requirements for the United States, Canadian, European, Japanese, and Australian markets. This board carries the appropriate markings (FCC, CE, VCCI, C-Tick) indicating such compliance.

3.1.5 Safety Characteristics

The bare board meets or exceeds the requirements of UL ﬂammability rating 94 V0. The bare board is also marked with the supplier’s name or trademark, type, and UL ﬂammability rating. Since this board is installed in a PCI bus slot, all voltages are below the SELV 42.4 V limit.

Physical Environment 3-3

3.2 Operational Environment

The LSI20160 is designed for use in PCI computer systems with a standard bracket type. The SDMS software operates the board, but the design of the board does not prevent the use of other software. An onboard Flash memory device allows you to use BIOS code and open boot code support through PCI and a serial EEPROM.

3.2.1 The PCI Interface

The PCI interface operates as a 32-bit DMA bus master. The connection is made through edge connector J1, which provides connections on both the front and back of the board. The signal deﬁnitions and pin numbers conform to the PCI Local Bus Speciﬁcation, Revision 2.2 standard. The signal assignments appear in Table 3.2, Table 3.3, and Table 3.4.

Note: The LSI20160 uses 3.3 V pins to run the LSI53C1000 and

some other parts. The LSI20160 requires 3.3 V from the PCI + 3.3 V power rail for proper operation.

3-4 Technical Speciﬁcations

Table 3.2 PCI Connector J1 (Front)

Signal Name Pin Signal Name Pin

−12 V 1 AD17 32 TCK 2 C_BE2

GND 3 GND 34 TDO 4 IRDY

+5 V 5 +3.3 V 36 +5 V 6 DEVSEL

INTB

INTD GND(PRSNT1

) 9 PERR

7 GND 8 LOCK

2 2

RESERVED 10 +3.3 V 41 GND(PRSNT2

) 11 SERR

KEYWAY 12 +3.3 V 43 KEYWAY 13 C_BE1

RESERVED 14 AD14 45 GND 15 GND 46 CLK 16 AD12 47 GND 17 AD10 48 REQ

18 M66EN (LVD) 49 3 V/5 V 19 KEYWAY 50 AD31 20 KEYWAY 51 AD29 21 AD08 52 GND 22 AD07 53 AD27 23 +3.3 V 54 AD25 24 AD05 55 +3.3 V 25 AD03 56 C_BE3

26 GND 57 AD23 27 AD01 58 GND 28 3 V/5 V 59

AD21 29

ACK64 AD19 30 +5 V 61 +3.3 V 31 +5 V 62

1. Shaded lines are not connected.

2. Active LOW signal.

37 38 39 40

Operational Environment 3-5

)

Table 3.3 PCI Connector J1 (Back)

Signal Name Pin Signal Name Pin

TRST

1 AD16 32 +12 V 2 +3.3 V 33 TMS 3 FRAME

TDI 4 GND 35 +5 V 5 TRDY

INTA INTC

6 GND 37

7STOP

+5 V 8 +3.3 V 39 RESERVED 9 SDONE 40 3 V/5 V 10 SBO

RESERVED 11 GND 42 KEYWAY 12 PAR 43 KEYWAY 13 AD15 44 RESERVED 14 +3.3 V 45 RST

15 AD13 46 3 V/5 V 16 AD11 47 GNT

17 GND 48 GND 18 AD09 49 RESERVED 19 KEYWAY 50 AD30 20 KEYWAY 51 +3.3 V 21 C_BE0

AD28 22 +3.3 V 53 AD26 23 AD06 54 GND 24 AD04 55 AD24 25 GND 56 IDSEL 26 AD02 57 +3.3 V 27 AD00 58 AD22 28 3 V/5 V 59 AD20 29

REQ64

GND 30 +5 V 61 AD18 31 +5 V 62

1. Shaded lines are not connected.

2. Active LOW signal.

3-6 Technical Speciﬁcations

3.2.2 The SCSI Interface

The SCSI interface conforms to ANSI X 3T10.11/1142. The SCSI interface operates as 16-bit, synchronous or asynchronous, SE or LVD, and supports Ultra160 SCSI protocols. Arbitration is supported for 8-bit (at lower SCSI speeds) and 16-bit. Active SE or LVD SCSI termination is provided automatically. The LSI20160 supplies the SCSI termination power.

Connector J2 makes the external connection, which provides LVD/SE SCSI termination. Connector J4 makes the internal connection, which only provides LVD SCSI termination.

Table 3.4 shows the signal assignments for J2 and J4.

Table 3.4 SCSI Interface

Signal Name Pin Signal Name Pin Signal Name Pin

SD12+ 1 SACK+ 24 SD7− 47 SD13+ 2 SRST+ 25 SDP− 48 SD14+ 3 SMSG+ 26 GND 49 SD15+ 4 SSEL+ 27 Cable_prnt 50 SDP1+ 5 SC_D+ 28 TERMPWR 51 SD0+ 6 SREQ+ 29 TERMPWR 52 SD1+ 7 SI_O+ 30 N/C 53 SD2+ 8 SD8+ 31 GND 54 SD3+ 9 SD9+ 32 SATN− 55 SD4+ 10 SD10+ 33 GND 56 SD5+ 11 SD11+ 34 SBSY− 57 SD6+ 12 SD12− 35 SACK− 58 SD7+ 13 SD13− 36 SRST− 59 SDP+ 14 SD14− 37 SMSG− 60 GND 15 SD15− 38 SSEL− 61 DIFFSENS 16 SDP1− 39 SC_D− 62 TERMPWR 17 SD0− 40 SREQ− 63 TERMPWR 18 SD1− 41 SI_O− 64 N/C 19 SD2− 42 SD8− 65 GND 20 SD3− 43 SD9− 66 SATN+ 21 SD4− 44 SD10− 67 GND 22 SD5− 45 SD11− 68 SBSY+ 23 SD6− 46

Operational Environment 3-7

3.2.3 The LED Interface

The LSI20160 LED interface is a four-wire arrangement that allows you to connect an LED harness to the board. The GPIO0_FETCH line has a maximum output low voltage of 0.4 V and minimum output low current of 16 mA. It is driven low to complete the circuit when a harness with an LED is attached. The J3 connector provides the LED connection on the LSI20160. Table 3.5 lists the signal and pin numbers for the LED interface.

Table 3.5 LED Connector J3 Pinout

Signal Name Pin

A_LED+ 1 A_LED− 2 A_LED− 3

A_LED+ 4

3-8 Technical Speciﬁcations

3.3 Subsystem ID and Subsystem Vendor ID

Table 3.6 provides the Subsystem ID and System Vendor ID for the

LSI20160. The serial EEPROM on this board contains the ID numbers. During system initialization, the system loads the ID numbers into the Subsystem Vendor ID and Subsystem ID registers of the LSI20160 SCSI Controller (the LSI53C1000). For more information on the operation of the Subsystem Vendor ID and Subsystem ID registers, refer to the LSI53C1000 PCI to Ultra160 SCSI Controller Technical Manual.

Table 3.6 Subsystem ID and Subsystem Vendor ID

Subsystem ID

Subsystem Vendor ID 1000

Subsystem ID 1060

Subsystem ID and Subsystem Vendor ID 3-9

3-10 Technical Speciﬁcations

Appendix A Glossary of Terms and Abbreviations

160/m An industry initiative extension of the Ultra160 SCSI speciﬁcation that

requires support of Double Transition Clocking, Domain Validation, and Cyclic Redundancy Check (CRC).

Active Termination

Address A speciﬁc location in memory, designated either numerically or by a

AIP Asynchronous Information Protection provides error checking for

Asynchronous Data Transfer

BIOS Basic Input/Output System. Software that provides basic read/write

Bit A binary digit. The smallest unit of information a computer uses. The

Bus A collection of unbroken signal lines across which information is

The electrical connection required at each end of the SCSI bus, composed of active voltage regulation and a set of termination resistors. Ultra, Ultra2, and Ultra160 SCSI require active termination.

symbolic name.

asynchronous, nondata phases of the SCSI bus. One of the ways data is transferred over the SCSI bus. It is slower than

synchronous data transfer.

capability. Usually kept as ﬁrmware (ROM based). The system BIOS on the mainboard of a computer is used to boot and control the system. The SCSI BIOS on your host adapter acts as an extension of the system BIOS.

value of a bit (0 or 1) represents a two-way choice, such as on or off, true or false, and so on.

transmitted from one part of a computer system to another. Connections to the bus are made using taps on the lines.

LSI20160 Single Channel Ultra160 SCSI to PCI Host Adapter A-1

Bus Mastering A high-performance way to transfer data. The host adapter controls the

transfer of data directly to and from system memory without interrupting the computer’s microprocessor. This is the fastest way for multitasking operating systems to transfer data.

Byte A unit of information consisting of eight bits. CISPR A special international committee on radio interference (Committee,

International and Special, for Protection in Radio).

Conﬁguration Refers to the way a computer is setup; the combined hardware

components (computer, monitor, keyboard, and peripheral devices) that make up a computer system; or the software settings that allow the hardware components to communicate with each other.

CRC Cyclic Redundancy Check is an error detection code used in Ultra160

SCSI. Four bytes are transferred with the data to increase the reliability of data transfers. CRC is used on the Double Transition (DT) Data-In and DT Data-Out phases.

CPU Central Processing Unit. The “brain” of the computer that performs the

actual computations. The term Microprocessor Unit (MPU) is also used.

DMA Bus Master

A feature that allows a peripheral to control the ﬂow of data to and from system memory by blocks, as opposed to PIO (Programmed I/O) where the processor is in control and the ﬂow is by byte.

Device Driver A program that allows a microprocessor (through the operating system)

to direct the operation of a peripheral device.

Differential SCSI A hardware conﬁguration for connecting SCSI devices. It uses a pair of

lines for each signal transfer (as opposed to Single-Ended SCSI which references each SCSI signal to a common ground).

DMI Desktop Management Interface. Domain

Validation

Domain Validation is a software procedure in which a host queries a device to determine its ability to communicate at the negotiated Ultra160 data rate.

Double Transition (DT) Clocking

A-2 Glossary of Terms and Abbreviations

In DT Clocking data is sampled on both the asserting and deasserting edge of the REQ/ACK signal. DT Clocking may only be implemented on an LVD SCSI bus.

Dword A double word is a group of four consecutive bytes or characters that are

stored, addressed, transmitted, and operated on as a unit. The lower two address bits of the least signiﬁcant byte must equal zero in order to be Dword aligned.

EEPROM Electronically Erasable Programmable Read Only Memory. A memory

chip typically used to store conﬁguration information. See NVRAM.

EISA Extended Industry Standard Architecture. An extension of the 16-bit ISA

bus standard. It allows devices to perform 32-bit data transfers.

External SCSI Device

A SCSI device installed outside the computer cabinet. These devices are connected in a continuous chain using speciﬁc types of shielded cables.

Fast-20 The SCSI Trade Association (STA) supports the use of “Ultra SCSI” over

the term “Fast-20”. Please see Ultra SCSI.

Fast-40 The SCSI Trade Association (STA) supports the use of “Ultra2 SCSI”

over the term “Fast-40”. Please see Ultra2 SCSI.

Fast SCSI A standard for SCSI data transfers. It allows a transfer rate of up to

10 Mbytes/s over an 8-bit SCSI bus and up to 20 Mbytes/s over a 16-bit SCSI bus.

FCC Federal Communications Commission. File A named collection of information stored on a disk. Firmware Software that is permanently stored in ROM. Therefore, it can be

accessed during boot time.

Hard Disk A disk made of metal and permanently sealed into a drive cartridge. A

hard disk can store very large amounts of information.

Host The computer system in which a SCSI host adapter is installed. It uses

the SCSI host adapter to transfer information to and from devices attached to the SCSI bus.

Host Adapter A circuit board or integrated circuit that provides a SCSI bus connection

to the computer system.

Internal SCSI Device

A SCSI device installed inside the computer cabinet. These devices are connected in a continuous chain using an unshielded ribbon cable.

A-3

IRQ Interrupt Request Channel. A path through which a device can get the

immediate attention of the computer’s CPU. The PCI bus assigns an IRQ path for each SCSI host adapter.

ISA Industry Standard Architecture. A type of computer bus used in most

PCs. It allows devices to send and receive data up to 16 bits at a time.

Kbyte Kilobyte. A measure of computer storage equal to 1024 bytes. Local Bus A way to connect peripherals directly to computer memory. It bypasses

the slower ISA and EISA buses. PCI is a local bus standard.

Logical Unit A subdivision, either logical or physical, of a SCSI device (actually the

place for the device on the SCSI bus). Most devices have only one logical unit, but up to eight are allowed for each of the eight possible devices on a SCSI bus.

LUN Logical Unit Number. An identiﬁer, zero to seven, for a logical unit. LVDlink Low Voltage Differential link allows greater Ultra2 SCSI device

connectability and longer SCSI cables. LVDlink lowers the amplitude of noise reﬂections and allows higher transmission frequencies. Detailed information may be found in Section 1.5, “LVDlink™ Technology

Beneﬁts,” page 1-5.

Mainboard A large circuit board that holds RAM, ROM, the microprocessor, custom

integrated circuits, and other components that make a computer work. It also has expansion slots for host adapters and other expansion boards.

Main Memory The part ofa computer’s memory which is directly accessible by the CPU

(usually synonymous with RAM).

Mbyte Megabyte. A measure of computer storage equal to 1024 kilobytes. Motherboard See Mainboard. In some countries, the term Motherboard is not

appropriate.

Multitasking The executing of more than one command at the same time. This allows

programs to operate in parallel.

Multithreading The simultaneous accessing of data by more than one SCSI device. This

increases the data throughput.

A-4 Glossary of Terms and Abbreviations

NVRAM NonVolatile Random Access Memory. Actually an EEPROM

(Electronically Erasable Read Only Memory chip) used to store conﬁguration information. See EEPROM.

Operating System

A program that organizes the internal activities of the computer and its peripheral devices. An operating system performs basic tasks such as moving data to and from devices, and managing information in memory. It also provides the user interface.

Parity Checking A way to verify the accuracy of data transmitted over the SCSI bus. The

parity bit in the transfer is used to make the sum of all the 1 bits either odd or even (for odd or even parity). If the sum is not correct, the information may be retransmitted or an error message may appear.

Passive Termination

The electrical connection required at each end of the SCSI bus, composed of a set of resistors. It improves the integrity of bus signals.

PC99 A set of design standards that developers must comply with to be

Windows NT compatible.

PCI Peripheral Component Interconnect. A local bus speciﬁcation that allows

connection of peripherals directly to computer memory. It bypasses the slower ISA and EISA buses.

Peripheral Devices

A piece of hardware (such as a video monitor, disk drive, printer, or CD-ROM) used with a computer and under the computer’s control. SCSI peripherals are controlled through a SCSI host adapter.

Pin-1 Orientation

The alignment of pin 1 on a SCSI cable connector and the pin-1 position on the SCSI connector into which it is inserted. External SCSI cables are always keyed to insure proper alignment, but internal SCSI ribbon cables sometimes are not keyed.

PIO Programmed Input/Output. A way the CPU can transfer data to and from

memory using the computer’s I/O ports. PIO is usually faster than DMA, but requires CPU time.

Port Address Also Port Number. The address through which commands are sent to a

host adapter board. This address is assigned by the PCI bus.

Port Number See Port Address. Queue Tags A way to keep track of multiple commands that allow for increased

throughput on the SCSI bus.

A-5

RAM Random Access Memory. The computer’s primary working memory in

which program instructions and data are stored and are accessible to the CPU. Information can be written to and read from RAM. The contents of RAM are lost when the computer is turned off.

RISC Core LSI Logic SCSI chips contain a RISC (Reduced Instruction Set

Computer) processor, programmed through SCRIPTS microcode.

ROM Read Only Memory. Memory from which information can be read but not

changed. The contents of ROM are not erased when the computer is turned off.

SCAM SCSI Conﬁgured AutoMatically. A method to automatically allocate SCSI

IDs using software when SCAM compliant SCSI devices are attached.

SCSI Small Computer System Interface. A speciﬁcation for a high-performance

peripheral bus and command set. The original standard is referred to as SCSI-1.

SCSI-2 The SCSI speciﬁcation which adds features to the original SCSI

standard.

SCSI-3 The SCSI speciﬁcation which adds features to the SCSI-2 standard. SCSI Bus A host adapter and one or more SCSI peripherals connected by cables

in a linear chain conﬁguration. The host adapter may exist anywhere on the chain, allowing connection of both internal and external SCSI devices. A system may have more than one SCSI bus by using multiple host adapters.

SCSI Device Any device that conforms to the SCSI standard and is attached to the

SCSI bus by a SCSI cable. This includes SCSI host adapters and SCSI peripherals.

SCSI ID A way to uniquely identify each SCSI device on the SCSI bus. Each

SCSI bus has eight available SCSI IDs numbered 0 through 7 (or 0 through 15 for Wide SCSI). The host adapter usually gets the highest ID (7 or 15) giving it priority to control the bus.

SCSI SCRIPTS A SCSI programming language that works with the SCRIPTS processor.

The SCRIPTS processor fetches SCRIPTS instructions from system memory to control processor operation.

A-6 Glossary of Terms and Abbreviations

SCRIPTS Processor

The SCRIPTS processor allows users to ﬁne tune SCSI operations with regard to unique vendor commands or new SCSI speciﬁcations. The SCRIPTS processor fetches SCRIPTS instructions from system memory to control processor operation.

SDMS Storage Device ManagementSystem. An LSI Logic software productthat

manages SCSI system I/O.

Single-Ended SCSI

A hardware speciﬁcation for connecting SCSI devices.It references each SCSI signal to a common ground. This is the most common method (as opposed to differential SCSI which uses a separate ground for each signal).

STA SCSI Trade Association. A group of companies that cooperate to

promote SCSI parallel interface technology as a viable mainstream I/O interconnect for commercial computing.

SureLINK The domain validation method developed and used by LSI Logic.

SureLINK provides three levels of integrity checking: Basic (level 1), Enhanced (level 2), and Margined (level 3).

Synchronous Data Transfer

One of the ways data is transferred over the SCSI bus. Transfers are clocked with ﬁxed frequency pulses. This is faster than asynchronous data transfer. Synchronous data transfers are negotiated between the SCSI host adapter and each SCSI device.

System BIOS Controls the low-level POST (Power-On Self-Test), and basic operation

of the CPU and computer system.

TolerANT A technology developed and used by LSI Logic to improve data integrity,

data transfer rates, and noise immunity through the use of active negation and input signal ﬁltering.

Ultra SCSI A standard for SCSI data transfers. It allows a transfer rate of up to

20 Mbytes/s over an 8-bit SCSI bus and up to 40 Mbytes/s over a 16-bit SCSI bus. SCSI Trade Association (STA) supports using the term “Ultra SCSI” over the older term “Fast-20”.

Ultra2 SCSI A standard for SCSI data transfers. It allows a transfer rate of up to

40 Mbytes/s over an 8-bit SCSI bus, and up to 80 Mbytes/s over a 16-bit SCSI bus. SCSI Trade Association (STA) supports using the term “Ultra2 SCSI” over the term “Fast-40”.

A-7

Ultra160 SCSI A standard for SCSI data transfers. It allows a transfer rate of up to

160 Mbytes/s over a 16-bit SCSI bus.

VCCI Voluntary Control Council for Interference. VDE Verband Deucher Elektroniker (Association of German Electrical

Engineers).

VHDCI Very High Density Cable Interconnect. Virtual Memory Space on a hard disk that can be used as if it were RAM. Wide SCSI A SCSI-2 feature allowing16-bit or 32-bit transfers on the SCSI bus. This

dramatically increases the transfer rate over the standard 8-bit SCSI bus.

Wide Ultra SCSI The SCSI Trade Association (STA) term for SCSI bus width 16-bits, SCSI

bus speed maximum data rate 40 Mbytes/s.

Wide Ultra2 SCSI

The SCSI Trade Association (STA) term for SCSI bus width 16-bits, SCSI bus speed maximum data rate 80 Mbytes/s.

Word A two byte (or 16-bit) unit of information.

A-8 Glossary of Terms and Abbreviations

Index

asynchronous information protection

feature of Ultra160 SCSI 1-5

board characteristics 1-4, 3-1 board software 1-1 bracket type 1-4 bus configurations 2-15

, 3-4

completing the installation

using a checklist 2-20 connecting the SCSI peripherals 2-6 connector

J1 3-1

J2 3-1

J3 3-8

J4 3-1 cyclic redundancy check

feature of Ultra160 SCSI 1-5

descriptions

PCI interface 1-2

SCSI activity LED interface 1-4

SCSI interface 1-3 detailed installation procedure 2-2 to 2-5 domain validation

benefits 1-5 double transition clocking

feature of Ultra160 SCSI 1-4

, 3-4

, 3-8

, 3-7

EEPROM

for configuration storage 1-3 electrical characteristics 3-2 electromagnetic compliance 3-3 external SCSI bus connections

external chaining 2-14

making 2-12

to external device 2-13 external SCSI terminations 2-17

features

board characteristics 1-4 PCI interface 1-2 SCSI interface 1-3

, 3-1

, 3-4

, 3-7

input signal filtering

on SCSI receivers 1-6 inserting the host adapter 2-4 internal SCSI bus connections

additional internal devices 2-9

internal chaining 2-10

making 2-7

to internal device 2-8 internal SCSI device terminations 2-16

LED

busy J3 connector 2-10

cables 2-10

interface

J3 connector 3-8

making connection 2-10 to 2-11 LSI20160 host adapter

connecting SCSI peripherals 2-6

features 1-2 to 1-4

inserting 2-4

LED interface 1-4

maximum power requirements 3-2

operational environment 3-4 to 3-8

physical environment 3-1 to 3-3

selecting a PCI slot 2-3 LSI53C1000 device

performing Ultra160 SCSI 1-4

using TolerANT technology 1-6 LVD peripheral devices 2-15 LVD SCSI termination 3-7 LVDlink technology 1-5

maximum power 3-2 mechanical drawing 3-2

LSI20160 Single Channel Ultra160 SCSI to PCI Host Adapter IX-1

operational environment 3-4 to 3-8

PCI board dimensions 1-4, 3-1 PCI connector 3-5 to 3-6 PCI interface 1-2, 3-4 PCI slot

selecting 2-3 peripheral devices 2-18 physical environment 3-1 to 3-3 preset host adapter setting

SCSI ID 2-18

quick installation procedure 2-1 to 2-2

safety characteristics 3-3 SCSI

activity LED interface 1-4

bus termination 2-15

cables 2-6

connecting peripherals 2-6

devices using TolerANT technology 1-6

disabling termination 2-15

drivers

active negation 1-6 interface 1-3 making external connections 2-12 to 2-14 making internal connections 2-7 to 2-10 plug and play 1-3 receivers

SE or LVD termination 3-7 setting IDs 2-18 termination power 1-3

SCSI BIOS configuration utility

using 2-18

serial EEPROM

containing system ID numbers 3-9

signal assignments

PCI interface 3-4 SCSI interface 3-7

software

operating the board 1-1

standard bracket 3-1 subsystem ID 3-9 subsystem vendor ID 3-9 SureLINK software

for domain validation 1-5

, 3-7

input signal filtering 1-6

, 2-20

TolerANT technology 1-6

benefits 1-6

transfer capability 1-3

UL flammability rating 3-3 Ultra160 SCSI 1-4

asynchronous information protection 1-5 benefits 1-4 cyclic redundancy check 1-5 double transition 1-4 SureLINK software 1-5

termination

disabling 2-15 external SCSI connections 2-17 internal SCSI connections 2-16 SCSI bus 2-15 SE or LVD SCSI 3-7

thermal, atmospheric characteristics 3-3

IX-2

Customer Feedback

We would appreciate your feedback on this document. Please copy the following page, add your comments, and fax it to us at the number shown.

If appropriate, please also fax copies of any marked-up pages from this document.

Important: Please include your name, phone number, fax number, and

company address so that we may contact you directly for clariﬁcation or additional information.

Thank you for your help in improving the quality of our documents.

LSI20160 Single Channel Ultra160 SCSI to PCI Host Adapter

Reader’s Comments

Fax your comments to: LSI Logic Corporation

Technical Publications M/S E-198 Fax: 408.433.4333

Please tell us how you rate this document: LSI20160 Single Channel Ultra160 SCSI to PCI Host Adapter User’s Guide. Place a check mark in the appropriate blank for each category.

Excellent Good Average Fair Poor

Completeness of information ____ ____ ____ ____ ____ Clarity of information ____ ____ ____ ____ ____ Ease of ﬁnding information ____ ____ ____ ____ ____ Technical content ____ ____ ____ ____ ____ Usefulness of examples and

illustrations

Overall manual ____ ____ ____ ____ ____

____ ____ ____ ____ ____

What could we do to improve this document?

If you found errors in this document, please specify the error and page number. If appropriate, please fax a marked-up copy of the page(s).

Please complete the information below so that we may contact you directly for clariﬁcation or additional information.

Name Date Telephone

Fax Title Department Mail Stop Company Name Street City, State, Zip

Customer Feedback

You can ﬁnd a current list of our U.S. distributors, international distributors, and sales ofﬁces and design resource centers on our web site at

http://www.lsilogic.com/contacts/na_salesofﬁces.html

LSI 20160 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1.1 General Description

1.2 Features

1.2.1 PCI Interface

1.2.2 SCSI Interface

1.2.3 Board Characteristics

1.2.4 SCSI Activity LED Interface

1.3.1 Double Transition (DT) Clocking

1.3.2 Cyclic Redundancy Check (CRC)

1.3.3 Asynchronous Information Protection (AIP)

2.1 Quick Installation Procedure

2.2 Detailed Installation Procedure

2.2.1 Before You Start

2.2.2 Selecting a PCI Slot

2.2.3 Inserting the Host Adapter

2.2.4 Connecting SCSI Peripherals

2.2.5 SCSI Bus Termination

2.2.6 Setting SCSI IDs

2.3 Completing the Installation

3.1 Physical Environment

3.1.1 Physical Characteristics

3.1.2 Electrical Characteristics

3.1.3 Thermal, Atmospheric Characteristics

3.1.4 Electromagnetic Compliance

3.1.5 Safety Characteristics

3.2 Operational Environment

3.2.1 The PCI Interface

3.2.2 The SCSI Interface

3.2.3 The LED Interface

3.3 Subsystem ID and Subsystem Vendor ID

Customer Feedback
