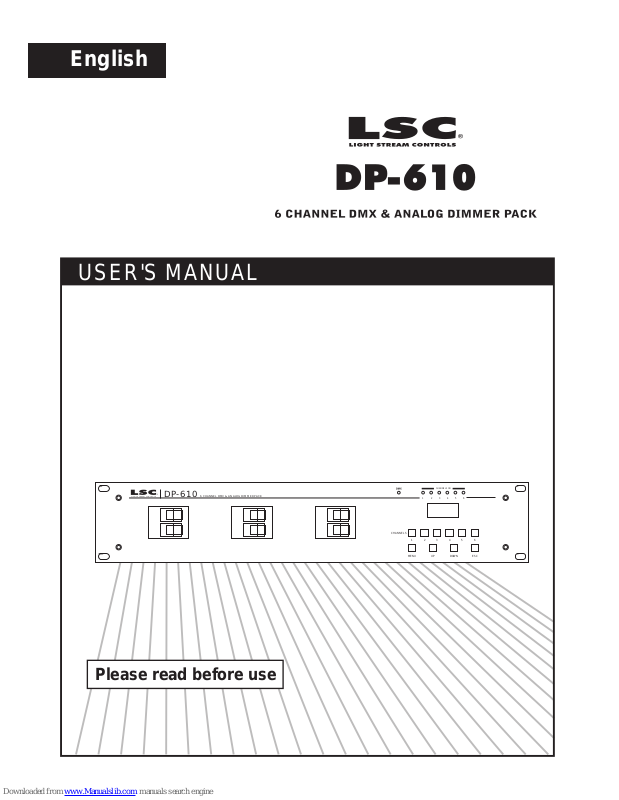

Page 1
Please read before use
USER'S MANUAL
English
CH.1 CH.3
CH.2 CH.4
CH.5
CH.6
MENU UP
DOWN
ESC
1 2 3 4 5 6
CHANNELS
1 2 3 4 5 6
6 CHANNEL DMX & ANALOG DIMMER PACK
DP-610
CHANNELS ON
LIGHT STREAM CONTROLS
Page 2
Page 3
Contents
Features 1
Technical Specifications 15
General Instructions 2
1. Overview 3
2. Menu System 7
1.1 Front View 3
2.1 Beginning Menu 7
2.2 Basic Menus 8
2.2.1 DMX fail 8
2.2.2 Phase Correction 9
2.2.3 DMX Address 10
2.2.4 Preheat 11
2.2.5 Curve 13
1.2 Rear View 5
Improvement and changes to
specifications, design and this
manual, may be made at any time
without prior notice.
All rights reserved.
2.1.1 Adjust channel intensity temporarily 7
2.1.2 Adjust whole intensity temporarily 7
Page 4
Features
Thank you for your purchase. This product
features include:
1
Microcomputer control
Separate DMX addressing for each channel
Each channel can be programmed with the DMX address,
and the preheat of the lamps
12 chase programs can be recalled as required, chase speed is adjustable
Chase programs 1-12, DMX Hold, Analogue can be selectable in the event
that DMX failure.
Phase correction activates linear dimming(0-100%).
Control curve can be selectable from Linear/Switch/Square.
Analogue input works without any adjustment
The short circuit protection for each channel with the
use of 10A circuit breaker
LCD shows clear menu and vivid dynamic images
Electronic protection against over temperature and short circuits.
Power failure memory
Page 5
2
General Instructions
WARNING!
CAUTION!
Please read through this operating instructions before installing or using
your new product. After you have finished reading the instructions, put
them away in a safe place for future reference.
This product must be earthed.
This product is intended for indoor use only.
Do not make any inflammable liquids, water or metal objects enter
the unit.
Disconnect the power when not use for extended period.
Do not dismantle or modify the unit.
Do not use the unit in places subject to excessive humidity, vibration
or bumps.
No user serviceable parts inside, do not attempt repairs. Should you
product fail, contact your local dealer.
To prevent fire or shock hazard, do not expose this product under
high temperature or moisture area.
Provide occasional ventilation during use.
Page 6
CH.1 CH.3
CH.2 CH.4
CH.5
CH.6
MENU UP
DOWN
ESC
1 2 3 4 5 6
CHANNELS
1 2 3 4 5 6
6 CHANNEL DMX & ANALOG DIMMER PACK
DP-610
CHANNELS ON
LIGHT STREAM CONTROLS
1. Overview
1.1 Front View
3
1
23
4
5
6
7
8
9
Page 7
1. Overview
1. 2x8 LCD Display
Shows the current activities or adjustments of menus.
1.1 Front View
4
2. Channel LEDx6
These LEDs show the activities of corresponding channels.
3. DMX LED
This LED blinks when DMX signal is present.
5. MENU Button
Tap this button to enter basic menus or sub-menus.
6. UP Button
Tap this button to scroll through menus or to increase values .
7. DOWN Button
Tap this button to scroll through menus or to decrease values .
4. Channel Buttonx6
These buttons are used to change the intensity of corresponding channel.
8. ESC Button
Tap this button to go back last menu level or to leave menu system.
In Beginning menu, this button is used to reverse the change direction
of channel setting.
9. Circuit Breakerx6(10A)
Page 8
1. Overview
1.2 Rear View
5
12
4
35
1. Power Input
AC 120V~50/60Hz,60A max.
2. Terminal Output
Single phase: 10A/CH., Total 60A
Three phase: 10A/CH., Total 20A
. DMX INPUT
This connector accepts DMX input signal.
(For details, please refer to the wiring diagram printed on the top cover.)
3. DMX OUTPUT
This connector sends DMX signal through to the next DMX device.
4
5. Analogue Input
DC 0-10V pulse signal.
Page 9
1. Overview
6
1.2 Rear View
ANALOG
INPUT DC 0-10V
CH2
CH1
CH3
CH6
CH4
CH5
GND
1. Ground
2. Data-
3. Data+
DMX OUT
1
2
3
1. Ground
2. Data-
3. Data+
DMX IN
1
2
3
LOADING
AC INPUT
L
L3 L2 L1
N
SINGLE PHASE CONNECTION
CH.6
CH.5
CH.4
CH.3
CH.2 CH.1
NL LN NL LN NL LN
THREE-PHASE CONNECTION
LOADING
6
5
4 3 2 1
L3
L1
L2
AC INPUT
L3
L3
L1
L1
N L2
L2
NL LN NL LN NL LN
1. Either three-phase four-wire input or single phase input
is allowed.
2. When single phase input, L1, L2, L3 must be short-
circuited via wires.
3. When three phase input, neutral wire must be securely
connected.
CAUTION
N'ouvrez pas..risque de choc electrique
Warning :This apparatus must be earthed
Risk of Electric Shock
Disconnect Input Power
Before Opening
POWER INPUT: .......AC 120V~ 50-60Hz,60A MAX
OUTPUT: ..................................10A /CH, Total 60A.
SINGLE
PHASE
THREE
PHASE
POWER INPUT: .......AC 120V~ 50-60Hz, 60A MAX
OUTPUT: .........................10A/CH, Max 20A/Phase.
Page 10
2. Menu System
2.1 Beginning Menu
7
Apply power to this unit, firstly the LCD reads the revision of software, then
Beginning Menu is displayed. Beginning Menu consists of a row of dynamic
images and a row of characters , the first row represents the intensity value,
and the second row indicates the channel.
2.1.1 Adjust channel intensity temporarily
CHANNEL
1 2
3
4
5
6
MENU UP DOWN ESC
Tap the channel button to select desired
channel intensity, each tap will change
intensity once.
Pressing the button for two seconds
changes channel intensity quickly.
Tap ESC button, changing direction
of channel intensity will be reversed.
2.1.2 Adjust whole intensity temporarily
CHANNEL
1 2
3
4
5
6
MENU UP DOWN ESC
Tap UP/DOWNl button to select desired
intensity, each tap will change intensity once.
Pressing the button for two seconds
changes channel intensity quickly.
1 123456
1 123456
1 123456
Page 11
2. Menu System
2.2 Basic Menus
8
MENU UP DOWN ESC
In Beginning Menu, tap MENU button to
enter Basic Menus system.
There are 5 menus: DMX Fail, Phase
Correction, DMX Address, Preheat and
Curve, you can use UP/DOWN button to
scroll through the menus.
Tap ESC button to leave Basic Menus
system.
2.2.1 DMX Fail
MENU UP DOWN ESC
1. Tap UP/DOWN button to scroll to DMX
Fail menu.
MENU UP DOWN ESC
2. Tap MENU button to enter sub-menu
system. You can use UP/DOWN button
to select Hold/Analog/Prog. 1-12.
[Hold]: Last received DMX signal is held.
[Analog]: The analogue input(0-10v) is activated.
[Prog. 1-12]: Starts internal programs 1-12.
3. If you select Hold or Analog, you can tap ESC
button to exit.
MENU UP DOWN ESC
Dmx fail
Dmx fail
Hold
Dmx fail
Dmx fail
Analog
Page 12
2.2.1 DMX Fail
2. Menu System
9
4. If you select Prog. 1-12, tap ESC button, speed
menu is activated,.
You can select the chasing speed from 0.1 to
20 seconds using UP/DOWN button.
After you've finished your setting, tap ESC
button to exit.
MENU UP DOWN ESC
2.2.2 Phase Correction
MENU UP DOWN ESC
1. Tap UP/DOWN button to scroll to Phase
Correction menu.
Pha corr
Speed
00.4s
MENU UP DOWN ESC
2. Tap MENU button to enter sub-menu
system. You can use UP/DOWN button
to select Yes/No.
Pha corr
Yes
[Yes]: Linear dimming is activated.
[No]: Non-linear dimming is activated.
MENU UP DOWN ESC
3. Tap ESC button to exit.
Pha corr
Yes
MENU UP DOWN ESC
Speed
00.4s
Page 13
2.2.3 DMX Address
2. Menu System
10
MENU UP DOWN ESC
1. Tap UP/DOWN button to scroll to DMX
Address menu.
Dmx addr
MENU UP DOWN ESC
2. Tap MENU button to enter sub-menu
system. You can use UP/DOWN button
to select Block/Single.
Block
[Block]: Complete dimmer(6 channels) has only
one start address.
[Single]: The DMX address of each channel is
selectable, several channels can select
the same DMX addresses.
Dmx addr
MENU UP DOWN ESC
3. Tap UP/DOWN button to scroll to Block/Single menu, and tap MENU to
enter Block/Single mode.
Block
Dmx addr
4.
In Block mode, you can use UP/DOWN button
to select the start address from [001-512].
MENU UP DOWN ESC
[001]
Start
MENU UP DOWN ESC
[001]
Start
+
Page 14
2. Menu System
2.2.3 DMX Address
11
5.
In Single mode, tap MENU to select between
channel and address.
MENU UP DOWN ESC
[001]
Chan[1]
6. When channel is activated, tap UP/DOWN
button to select from [1-6]; when address is
activated, tap UP/DOWN button to select
from[001-512].
MENU UP DOWN ESC
[001]
Chan[1]
7.
Tap ESC button to exit.
MENU UP DOWN ESC
Dmx addr
2.2.4 Preheat
MENU UP DOWN ESC
1. Tap UP/DOWN button to scroll to Preheat
menu.
Preheat
Page 15
2. Menu System
2.2.4 Preheat
12
MENU UP DOWN ESC
2. Tap MENU button to enter sub-menu
system.
All
Preheat
MENU UP DOWN ESC
3. Tap UP/DOWN button to select between All/Single mode, and tap MENU
to enter All/Single mode.
All
Preheat
MENU UP DOWN ESC
[000%]
All
+
MENU UP DOWN ESC
4. In All mode, tap UP/DOWM to select preheat
value of all channels between 000%-050%.
[000%]
All
MENU UP DOWN ESC
5. In Single mode, tap MENU to select between
channel and preheat value.
[000%]
Chan[1]
Page 16
2. Menu System
2.2.4 Preheat
13
6. When channel is activated, tap UP/DOWN
button to select from [1-6]; when preheat is
activated, tap UP/DOWN button to select
from [000%-050%].
MENU UP DOWN ESC
[050%]
Chan[1]
7.
Tap ESC button to exit.
MENU UP DOWN ESC
Preheat
2.2.5 Curve
MENU UP DOWN ESC
1. Tap UP/DOWN button to scroll to Curve
menu.
Curve
MENU UP DOWN ESC
2. Tap MENU button to enter sub-menu
system.
Linear
Curve
Page 17
2. Menu System
2.2.5 Curve
14
MENU UP DOWN ESC
3. Tap UP/DOWM button to select from Linear/
Switch/Square.
Linear
Curve
MENU UP DOWN ESC
4. Tap ESC button to exit.
Curve
5. You can tap ESC button to return to
Beginning Menu.
CHANNEL
1 2
3
4
5
6
MENU UP DOWN ESC
1 123456
Page 18
Technical Specifications
15
Power Input ........................................................ AC 120V~50-60Hz
Channel Output(Single phase)............................ 10A/CH., Total 60A
Channel Output(Three phases).......... 10A/CH., Total 20A per phase
DMX Output ............................................... 3 pin female XLR socket
DMX Input ..................................................... 3 pin male XLR socket
Analogue Input ............................................ 0-10V, 8-pin DIN socket
Dimensions .............................................................. 482x390x90mm
Weight(appro.) ......................................................................... 9.0 kg
Page 19
Page 20
Rev 1.0 January 2003
24-004-0893
All rights reserved
Printed in China
