Page 1
TOLL FREE 866-626-7826 LIFESTYLE SOLUTIONS
U.S. PATENT NUMBER D677,070 S
Page 2

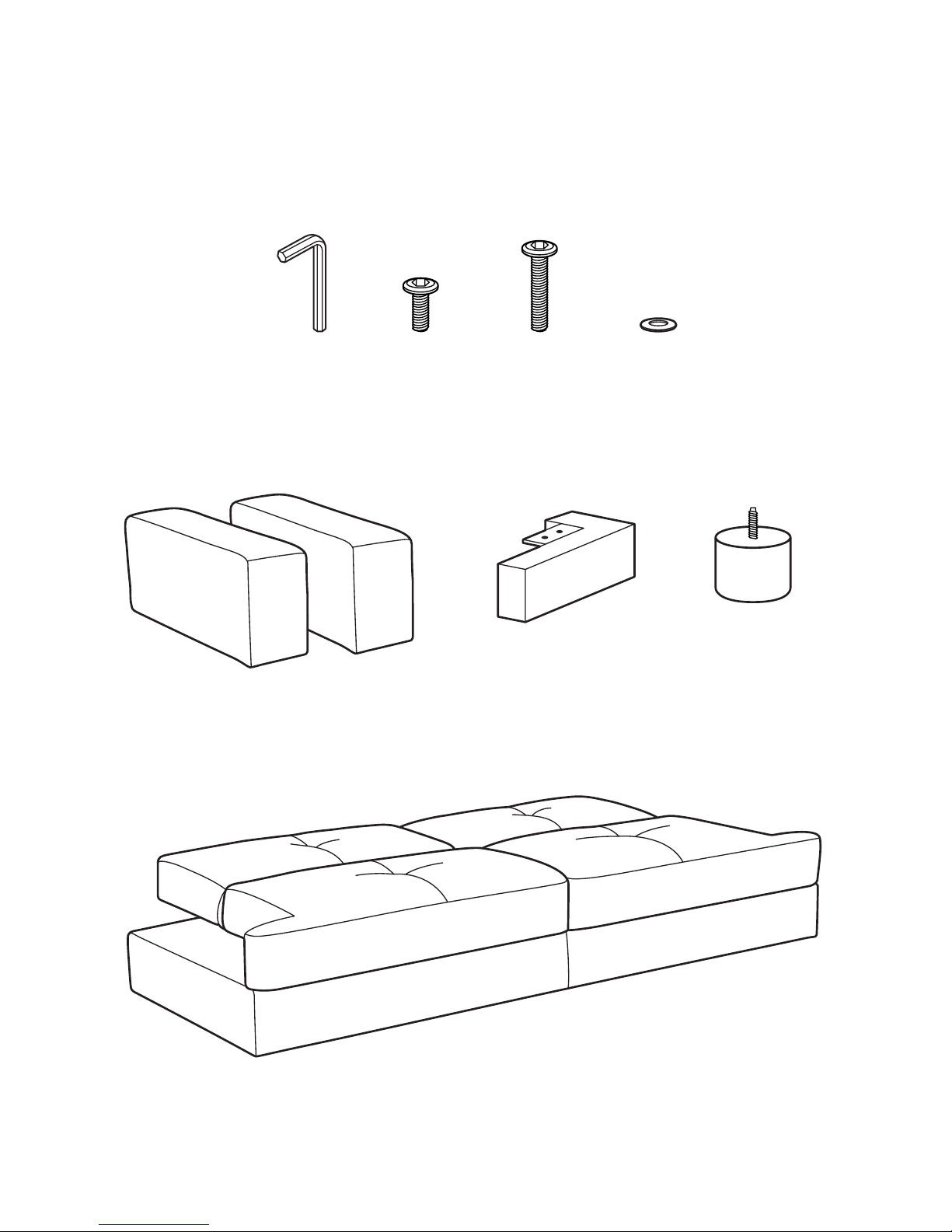

PARTS AND HARDWARE
Avoid using sharp objects such as a knife to cut open packing as you may accidentally damage the upholstery.
2 of 8
Washer
4x
Center Support Leg
1x
Armrest
1 Pair
Leg
4x
Allen Key
1x
Short Bolt
8x
Long Bolt
4x
Sofa Body
1x
Page 3
3 of 8
ASSEMBLY INSTRUCTIONS
CAUTION: At least two adults are required to safely complete performing this task.
Other lifting attempts may risk back injury due to large and heavy part(s).

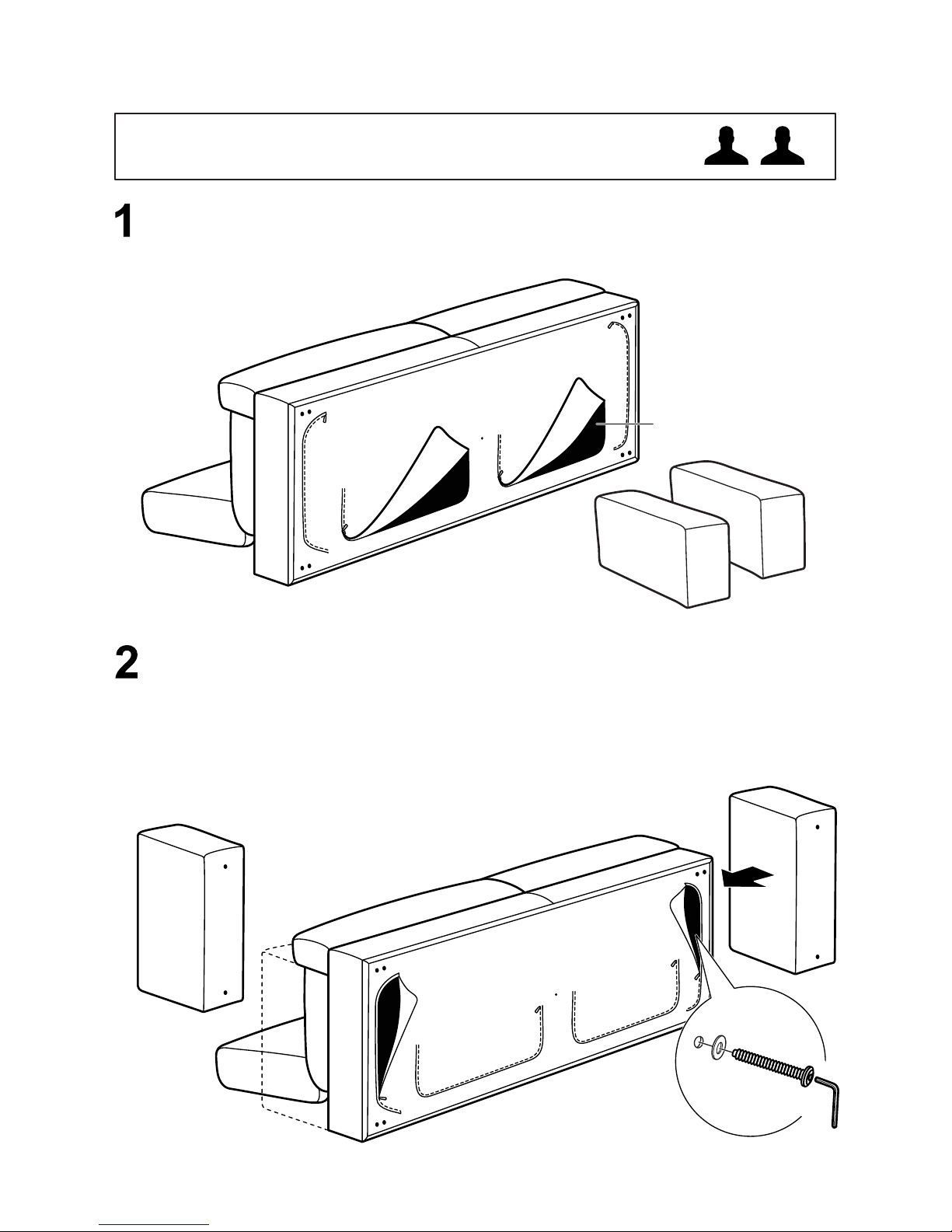

Carefully unpack and place sofa body unit upright on a clean flat surface to show
the base as shown. Unpack hardware from the zipped storage compartment beneath
sofa body.
Unzip both side compartments on the base and locate the pre-drilled holes inside.
Align armrest into position (see below) and secure with two long bolts and washers
for each armrest from inside with Allen key.
Repeat step for other armrest, ensuring both are fully secured and zip shut
when complete.
PARTS AND HARDWARE
STORAGE COMPARTMENT
Page 4
4 of 8

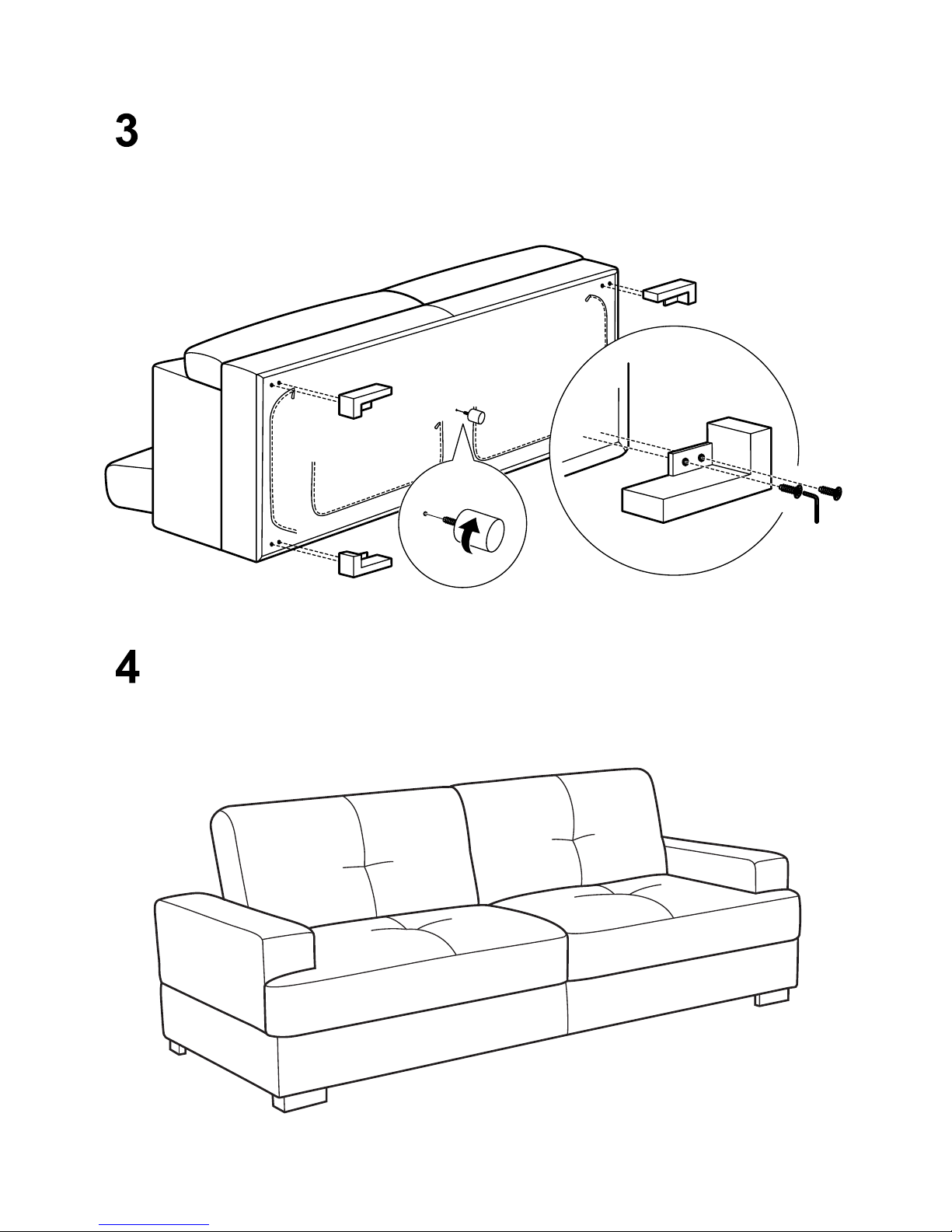

Align all four legs in correct orientation (as shown below) and secure with two short
bolts each using the Allen key.
Secure center support leg by screwing into pre-drilled holes on center of the base
by hand and avoid overtightening.
Finally, carefully lift and turn assembled unit onto its legs.
Two persons required to avoid personal injury.
Page 5
5 of 8

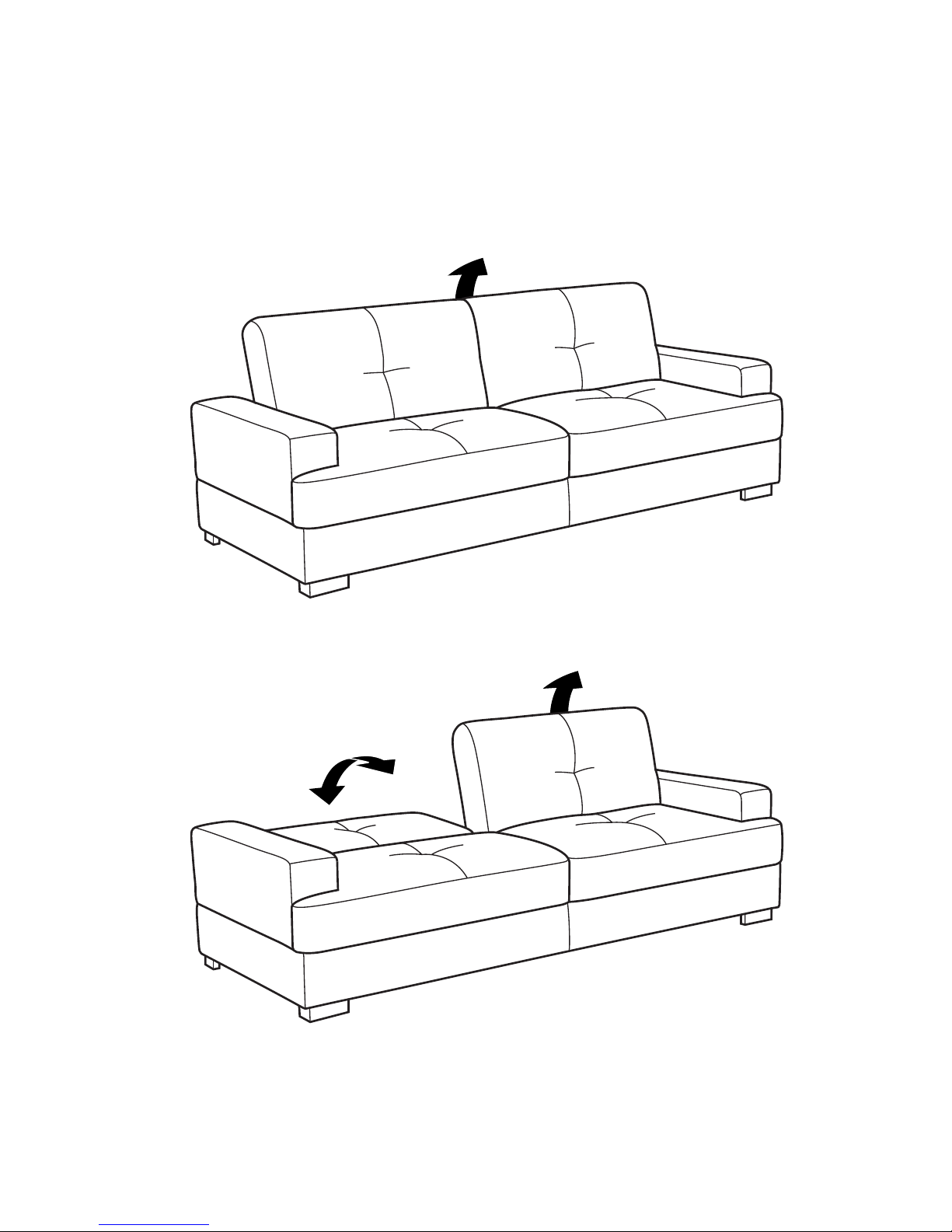

Converting to Sofa or Splitback
Standing at the side of the unit (from bed position), lift backrest to the desired position
and secure in place by releasing to the sound of a click.
OPERATING YOUR UNIT
Page 6
6 of 8

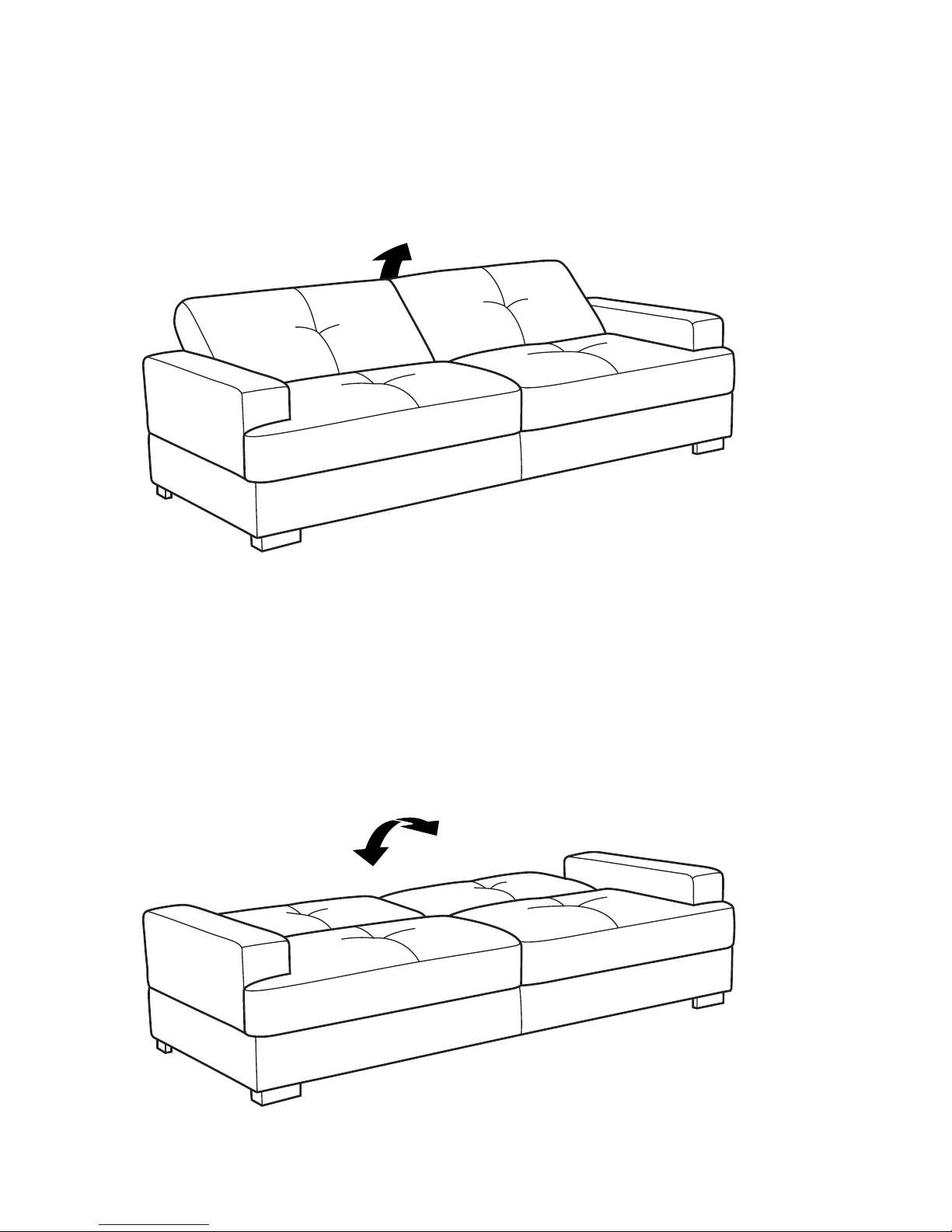

Converting to Lounger
In bed position, lift backrest upwards with each click sound until the desired lounge
position is reached.
Converting to Bed
From sofa or lounge position, lift backrest all the way upwards until the last click is heard
which unlocks the mechanism and carefully return to a flat position.
Page 7
Rev.120903
