Page 1
TOLL FREE 866-626-7826 LIFESTYLE SOLUTIONS
8 of 8
Rev.03032016

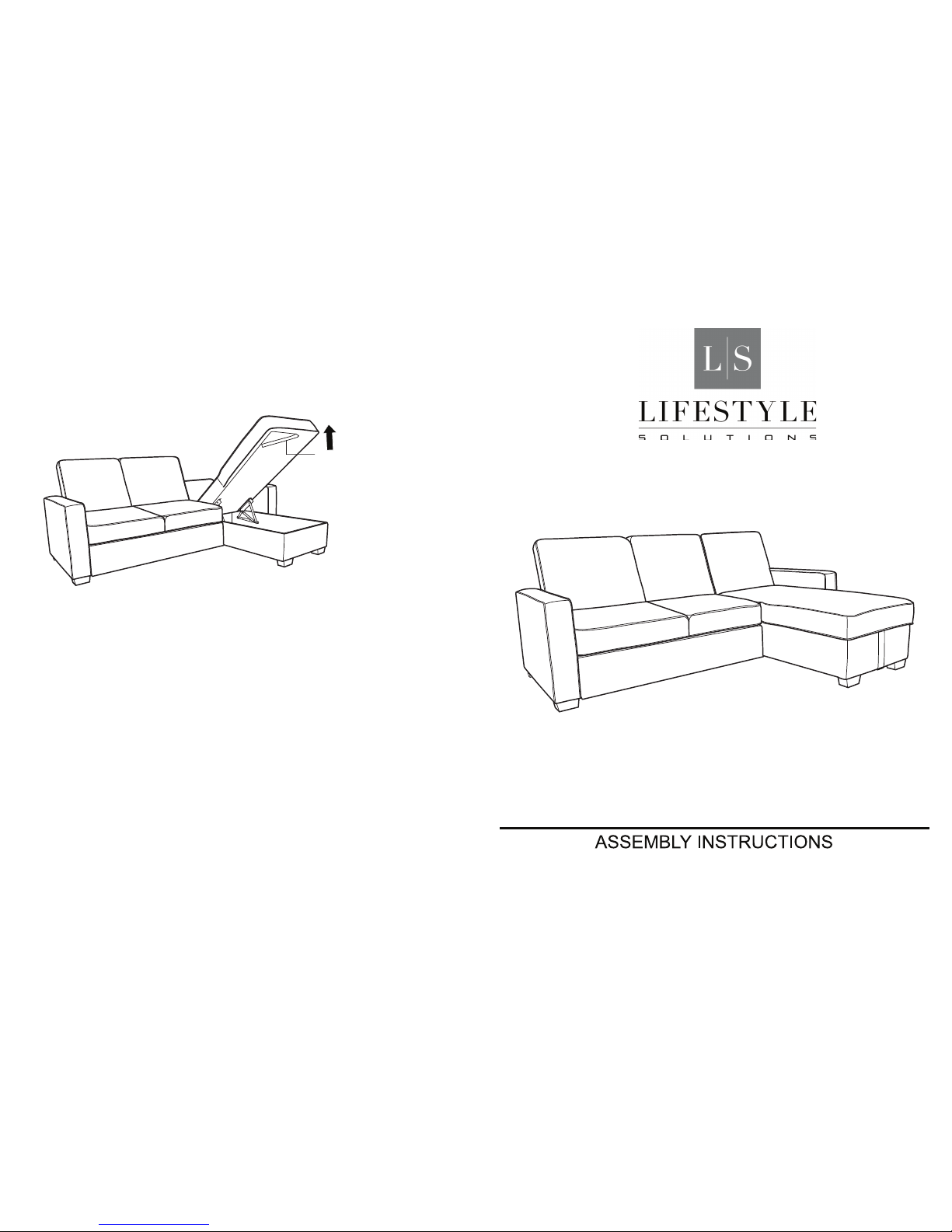

Accessing Storage Compartment
Unfasten the safety strap from the velcro located on the bottom of the chaise and simply lift up the
chaise’s cushion to access the storage.
The safety strap can be secured to the velcro underneath the chaise’s cushion.
CHAELA
U.S. PATENT NUMBER D720,943S
Safety Strap
When not using the storage compartment, secure the safety strap with velcro to the chaise’s base.
Page 2
PARTS AND HARDWARE
Avoid using sharp objects such as a knife to cut open packing as you may accidentally damage the upholstery.
M5 x 30 x 80mm Allen Key
1x
M8 x 50mm Bolt
8x
M8 Washer
(Outer Dim. 24mm)
8x
Leg
8x
Loveseat Body
1x
Chaise Body
1x
7 of 8
2 of 8
STEP 3 : Lift up the bed cushion from the bed tray by using both straps on the front of the bed cushion.
Press and adjust the bed cushion to ensure it aligns with the seat cushion.
Finally, please ensure to place the the front of the bed cushion on top of bed tray’s panel.
Right Arm
1x
Left Arm
1x
Page 3
3 of 8
6 of 8
ASSEMBLY INSTRUCTIONS
CAUTION: At least two adults are required to safely complete performing this task.
Other lifting attempts may risk back injury due to large and heavy part(s).
By using wood dowels as a guide, secure four legs into the base of chaise body
and two legs into the base of each arm by using bolts, washers and allen key.
Splitback
Converting to Bed
STEP 1 : From sofa or lounger position, lift the backrest all the way upwards until the last click is heard,
which unlocks the mechanism. Carefully return to a flat position.
Carefully place the sofa body and chaise body unit on a clean flat surface.
Unpack parts and hardware located inside the chaise’s storage that can be
accessed by unfastening the safety strap from the velcro. Simply lift up the
chaise’s cushion.
Parts and Hardware
Safety Strap
Converting to Lounger
Standing at the side of the unit (from bed position), lift the backrest to the desired
position and secure it in place by releasing to the sound of a click.
Lounger
STEP 2 : Pull out the panel of the bed tray as shown below.
Page 4
5 of 8
4 of 8

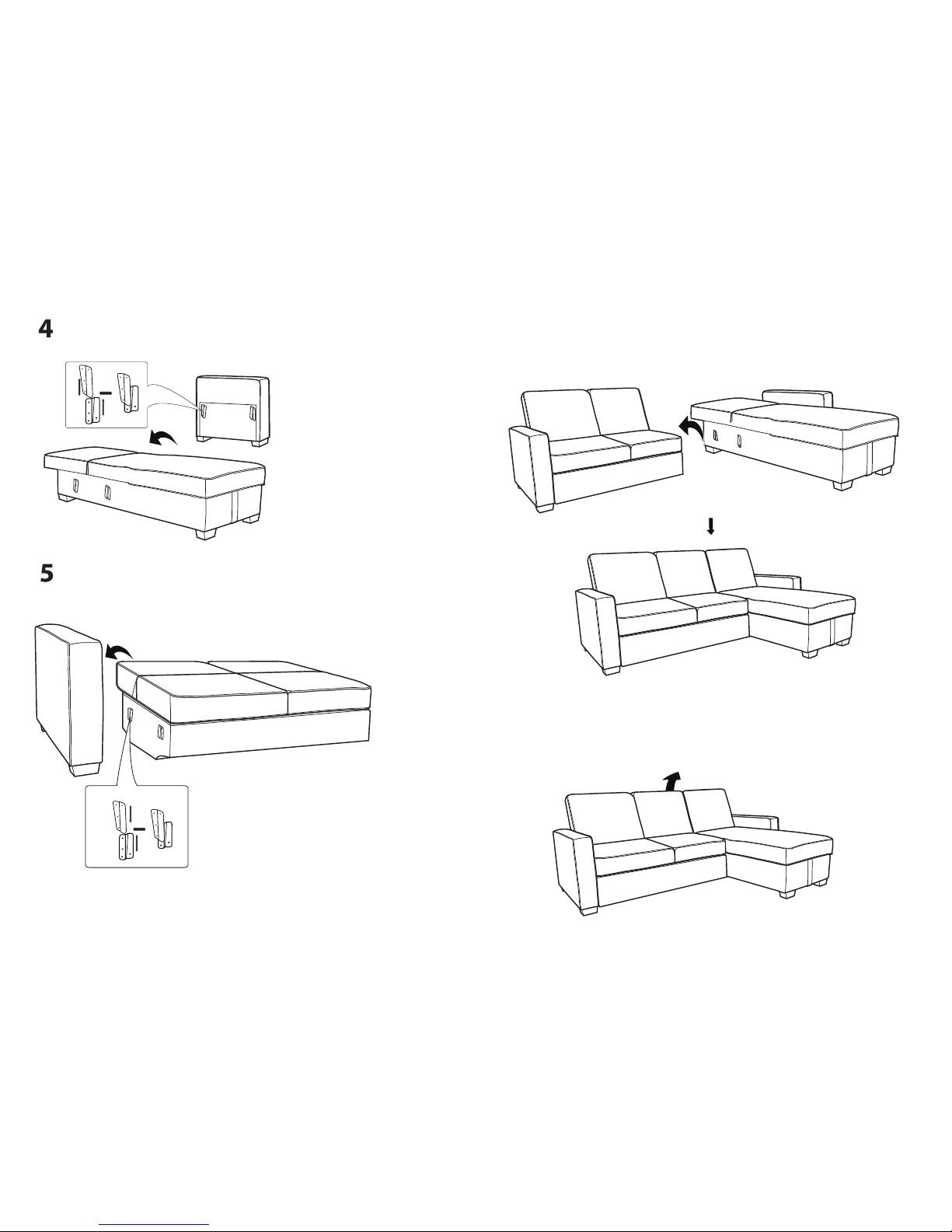

Align the right armrest and chaise together with the brackets on both parts facing
together. Lift the armrest and slot it into the brackets on left side of chaise body as
shown.
OPERATING YOUR UNIT
Converting to Sofa or Splitback
Standing at the side of the unit (from bed position), lift the backrest to the desired position and
secure it in place by releasing to the sound of a click.
Sofa
Align the left armrest and loveseat together with the brackets on both parts facing
together. Lift the loveseat body and slot it into the brackets of the armrest as shown.
Finally, place the loveseat body and chaise body by aligning the metal bracket
together. Lift the chaise body and slot the metal bracket into the loveseat’s
metal bracket. Please ensure both brackets are properly connected.
6
