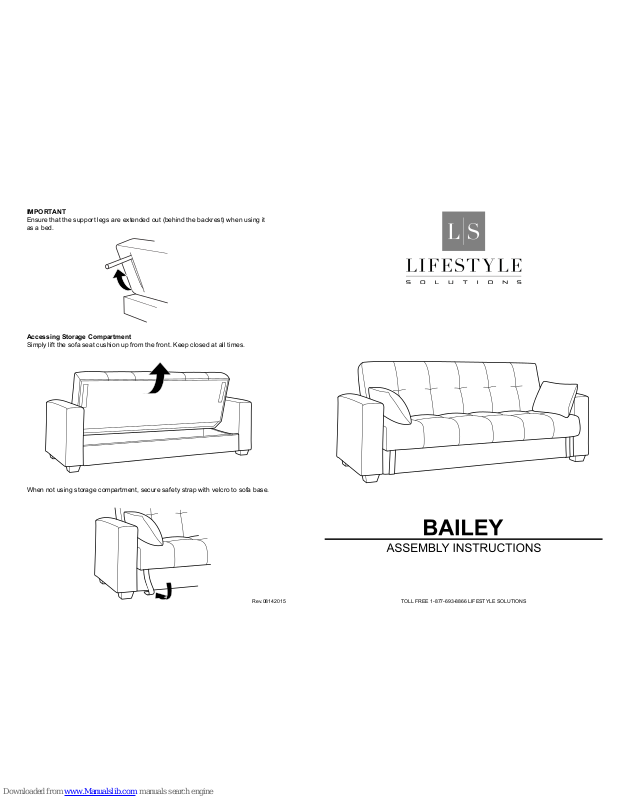

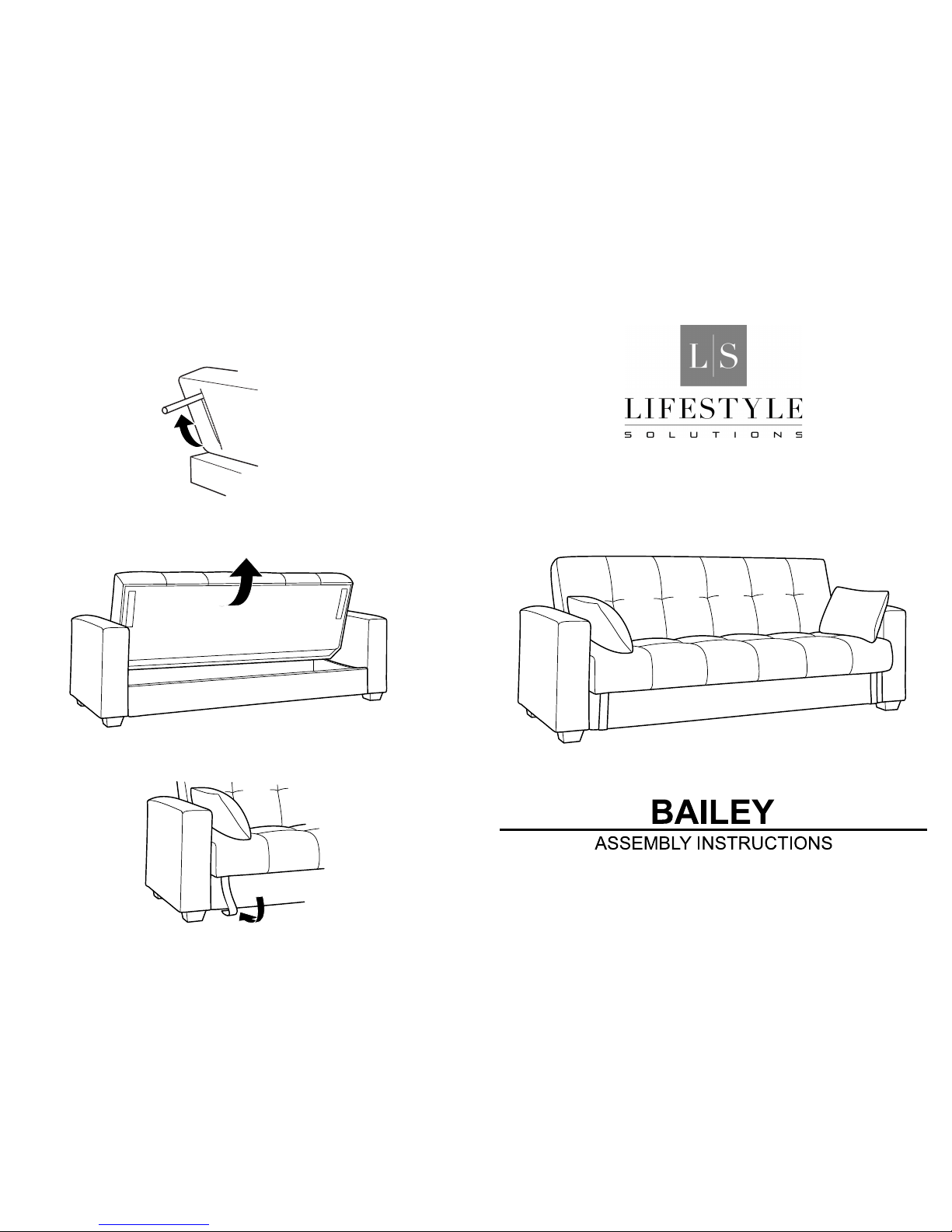

Accessing Storage Compartment
Simply lift the sofa seat cushion up from the front. Keep closed at all times.
IMPORTANT
Ensure that the support legs are extended out (behind the backrest) when using it
as a bed.
When not using storage compartment, secure safety strap with velcro to sofa base.
TOLL FREE 1-877-693-8866 LIFESTYLE SOLUTIONS
Page 2
7 of 8
2 of 8
Pillow Cushion
1 Pair
Sofa Cushion
1x
Storage Body
1x
Armrest
1 Pair

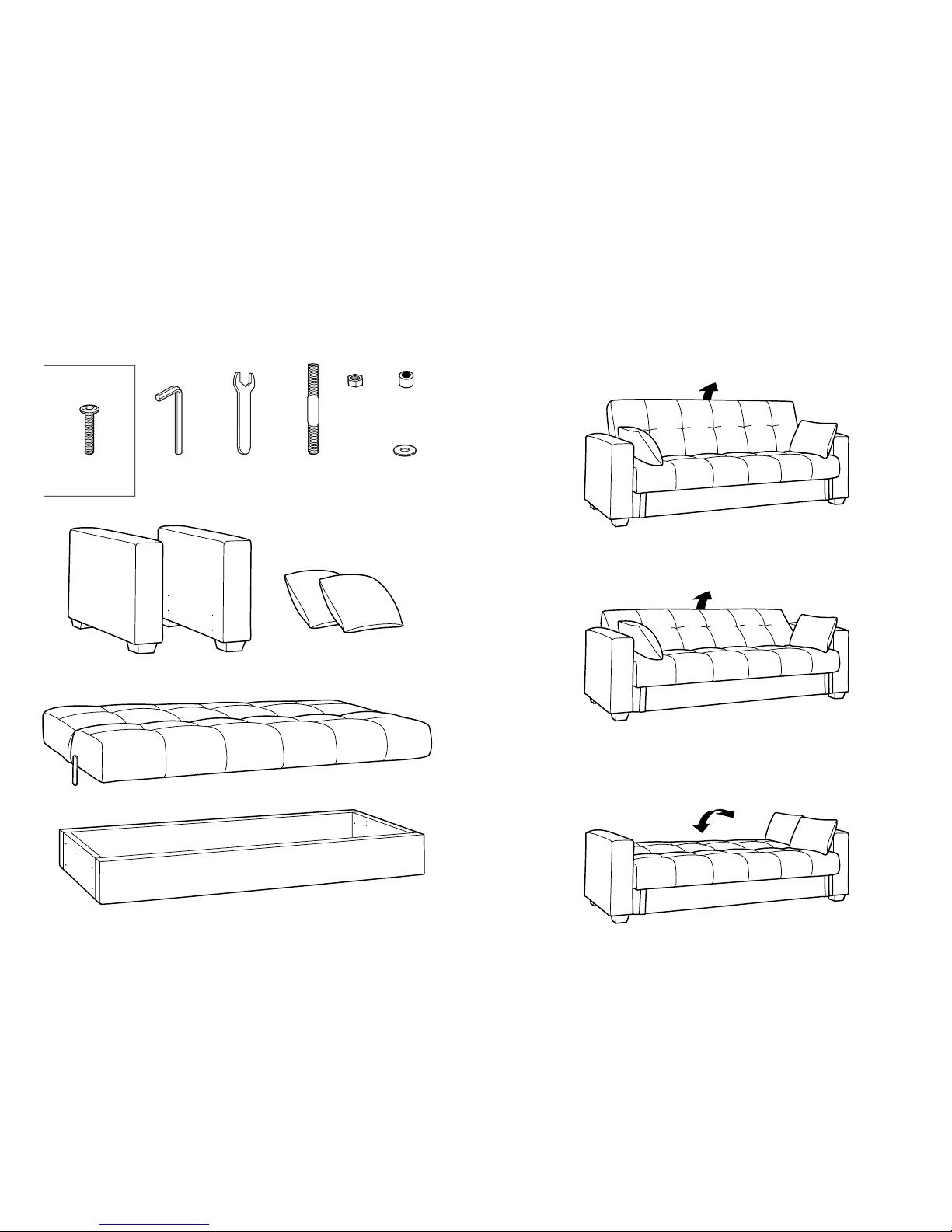

PARTS AND HARDWARE
Avoid using sharp objects such as a knife to cut open packing as you may accidentally damage the upholstery.
Converting to Sofa
Standing at the side of the unit (from bed position), lift backrest to the desired position
and secure in place by releasing to the sound of a click.
Converting to Lounger
In bed position, lift backrest upwards with each click sound until the desired lounge
position is reached.
Converting to Bed
From sofa or lounge position, lift backrest all the way upwards until the last click is heard
which unlocks the mechanism and carefully return to a flat position.
OPERATING YOUR UNIT
M5 Allen Key
1x
M8 Nut
8x
13mm
Mini Spanner
x1
M8 Washer
(Outer Dim. 22mm)
8x
Plastic Cap
8x
M8 x90mm
Threaded Rod
8x
M8 x 35mm Bolt
4x
Already attached to storage,
please see assembly step 1
Page 3
3 of 8
ASSEMBLY INSTRUCTIONS
CAUTION: At least two adults are required to safely complete performing this task.
Other lifting attempts may risk back injury due to large and heavy part(s).

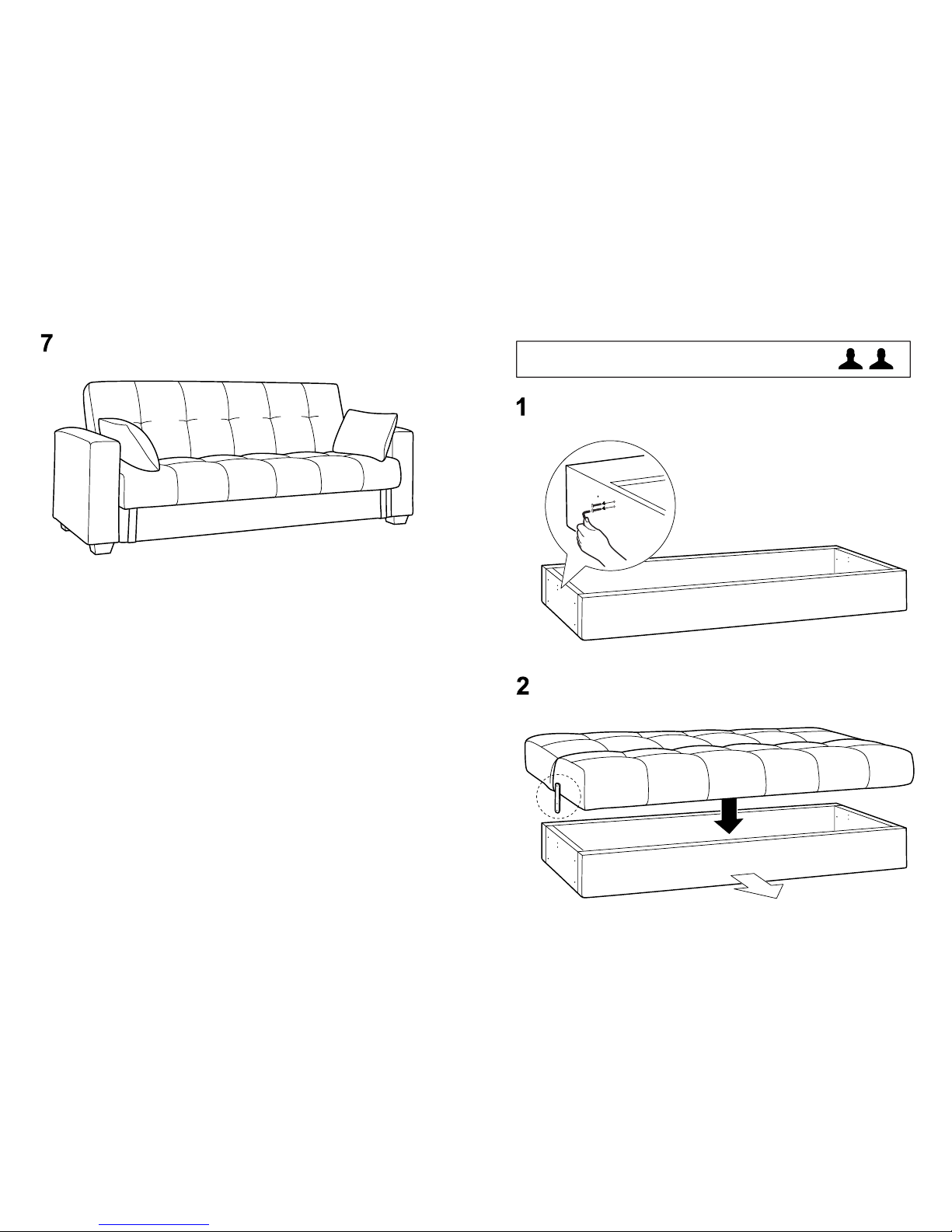

Lay storage body unit on a clean flat surface cleared for assembly. Remove temporary
fitted bolts from pre-drilled holes on both sides of the storage body unit.
Carefully align sofa cushion on top to join the (pre-fixed) metal bar to the storage
body unit.
6 of 8
ENSURE ORIENTATION OF BOTH SOFA CUSHION
AND STORAGE BODY ARE AS SHOWN
Repeat step for other armrest, ensuring both are fully secured.
Page 4
5 of 8

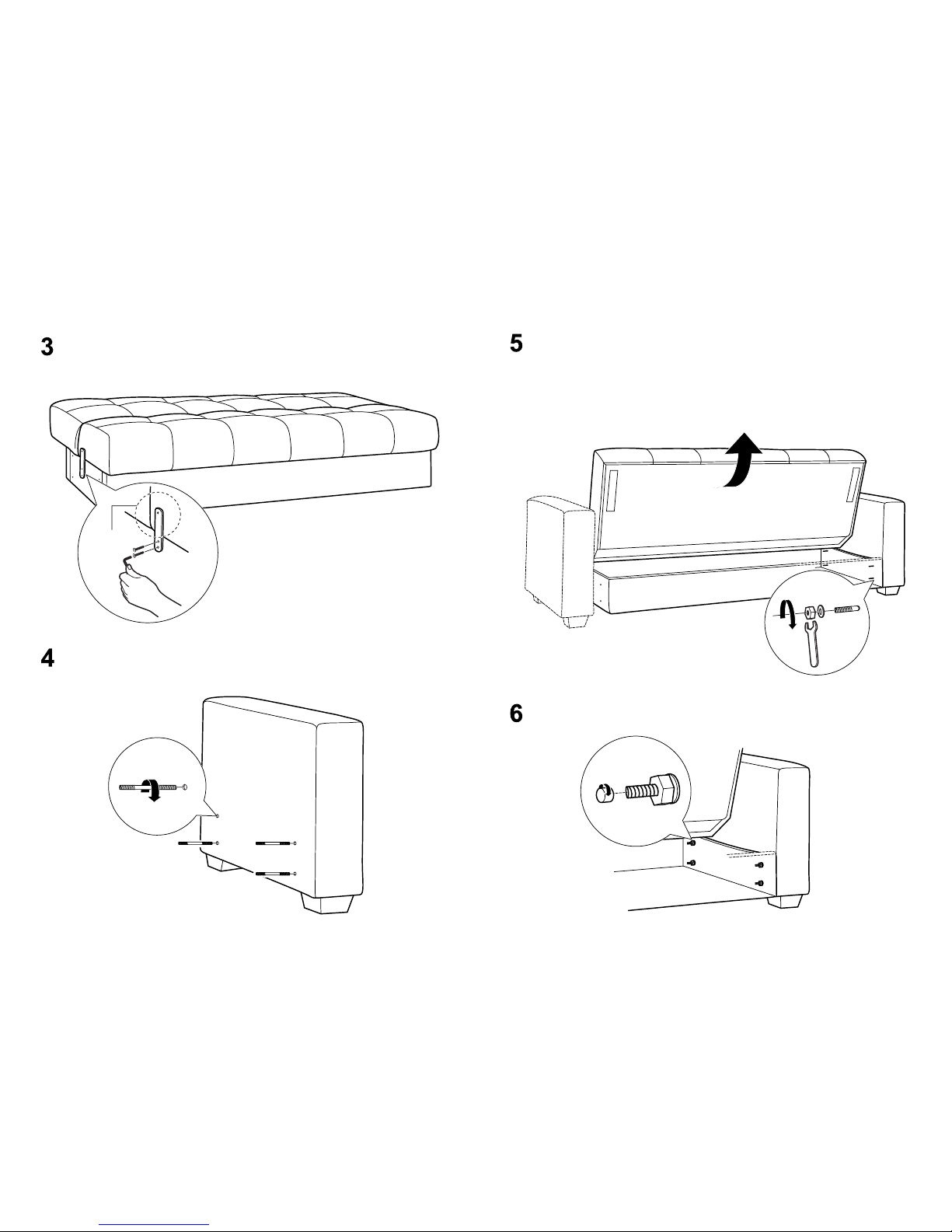

Secure two bolts for each metal bar back into pre-drilled holes using provided
Allen key until firmly tight.
Screw in four threaded rods into pre-drilled holes on the inner side of armrest by hand
until about half of the thread is exposed. Repeat steps for other armrest.
PRE-FIXED
Locate pre-drilled holes on the side of sofa body and match the orientation with
the correct armrest.
Now, carefully join armrest (with the four threaded bolts exposed) with sofa body by
aligning and going through the four pre-drilled holes at the side of sofa body.
Secure all four threaded bolts with washers and nuts from inside with mini spanner,
making sure there is no movement.
Use the plastic cap to conceal expose threaded rod.
