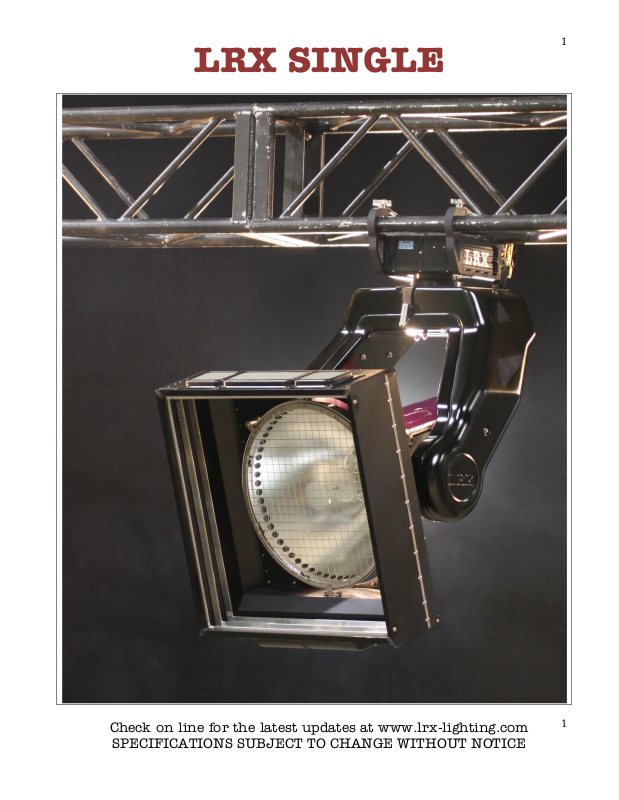

LRX SINGLE
1
1
Check on line for the latest updates at www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
LRX SINGLE
2
2
WARNING
READ EQUIPMENT MANUFACTURES
MANUAL BEFORE USING THIS PRODUCT
SAFETY INSTRUCTIONS
User must be authorized, qualified and certified in jurisdiction of use.
It is the user’s responsibility and obligation to determine and comply with
all applicable laws and regulations.
Do not operate if unit appears damaged.
Always use approved safety cables secured to a point capable of supporting
the total weight of the load.
In case of malfunction disconnect all power supplies, discontinue use, notify
supplier.
Area under fixture must be cordoned off at all times and kept clear of all
personnel.
Prior to operation a daily inspection and log are required.
For handling information see page twelve.
Do not operate without lens in place
If using a power trolley with this fixture please refer to “LRX Power Trolley”
manual.
THERE ARE NO USER SERVICEABLE PARTS.
IF YOU ARE UNSURE ABOUT ANYTHING SUSPEND USE OF THE PRODUCT.
Questions contact LRX LLC service representative at lrx-lighting.com and go
to contact page.
For the latest version of this manual please visit “lrx-lighting.com”
Check on line for the latest updates at www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
LRX SINGLE
3
3
DANGER
Dangerous voltages are present when power is supplied to the fixture.
This fixture has more than one power supply. Disconnect all power supplies
before installation or removal of the lamps.
Ensure all power supplies are off when connecting or disconnecting any
cabling.
Ensure lamp power supply matches lamp manufactures specification.
Always stand clear of fixture during ignition cycle.
Power must be removed when not in use and when data signal is removed.
Ensure fixture meets all local codes prior to operation.
Safety power lockout procedures must be followed.
Safe electrical and working practices must be observed.
WARNING
This fixture has rotating parts with pinch points.
Fixture may move without warning.
No personal within range of motion.
Never operate with any covers missing.
Fixture has fans which start automatically, without warning.
WARNING
High energy light output will burn skin and ignite combustible materials. Do
not operate in the proximity of materials that are adversely affected by heat
or light.
Lamp housing becomes very hot when in operation.
Never look directly at the light source
When fixtures are mounted in close proximity to one another, care must be
taken so that output energy from one fixture is not directed at another
fixture or electrical cabling.
Check on line for the latest updates at www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
LRX SINGLE
4
4
FIXTURE ADDRESSING
Fixture addressing is performed at the rear of the fixture hanger assembly.
The fixture can be programmed to operate in DMX mode or FIXTURE mode
(for use with the hand controller). Because each LRX fixture requires sixteen
DMX channels for operation, FIXTURE mode is merely a convenient way of
skipping DMX channels in 16 channel increments, beginning with DMX
channel #001. Additionally, fixture mode provides power to a connected hand
controller, which is also designed to work in 16 channel increments.
DMX Connector pin out: (also see important note below)
Pin 1 = ground
Pin 2 = Data negative
Pin 3 = Data positive
Pin 4 = 12VDC negative
Pin 5 = 12 VDC positive
When the LRX fixture is in FIXTURE mode, pins 4 & 5 on the DMX IN
connector become energized to 12VDC to supply power to the hand controller.
No power is supplied to pins 4 & 5 when in DMX mode. Ensure that fixture is
in the correct mode prior to connecting DMX lines. Always connect the hand
controller to the fixture with the power off. Damage could result if attempting
to connect the hand controller to the LRX fixture while the power is on.
The mode (square icon) on the left is used to toggle between DMX mode and
FIXTURE mode. FIXTURE mode is designated by a capital ‘F’ in the left-most
digit, with the remaining two digits indicating the fixture number. E.g.
F01=fixture#1, etc. DMX mode is shown as a three digit number from 001 to
512. Once the mode is selected the fixture number or DMX address can be
increased or decreased using the up/down arrows on right side of the switch
assembly. When the correct FIXTURE/address has been selected, the store
(round icon) button second from the left is pressed and held (until the display
stops flashing) to store that address.
It is important to note that the LRX
fixture will not begin responding to a newly selected FIXTURE/DMX address
until it has been stored by pressing and holding the store (round icon) button.
If the display is flashing, this is a warning that the displayed FIXTURE/DMX
address does not match the address that fixture is currently responding to.
Saving the displayed address tells the fixture to begin listening and responding
to the new address. If the address is not stored within five seconds it will
return to the previous set
Check on line for the latest updates at www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
LRX SINGLE
5
5
The LRX fixture always writes the last saved address and mode to non-volatile
memory, such that in the event of a power interruption, the fixture will power
up with the mode and address it was using before the power interrupt.
Pressing and holding the mode button will provide access to the hour meter.
Once in hour meter mode press the up icon to display bulb hours, indicated as
a scrolling number. It will show as a blank digit followed by three digits then a
decimal place and two more digits (i.e. _120.59). The bulb hours can be reset
by pressing and holding the store button until the meter zeros, about five
seconds.
To display fixture hours, press the down icon. Fixture hours will be displayed
as a scrolling number with an “F” prefix. This can’t be reset by the user.
Check on line for the latest updates at www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
LRX SINGLE
6
6
DMX CHANNEL ALLOCATION
When using the LRX with a lighting console or other device that offers
discrete control over the DMX channels, they are used by the fixture as follows:
Where N= base channel of fixture. [LRX DMX address shown on display]:
N + (0-9) = motor control (depends on MODE)
N+10 = GEL fan ON/OFF (OFF<127<=ON)
N+11 = lamp control (unimplemented)
N+12 = motor control MODE: N+12<127 = BUMP MODE
N+12>=127 = FADER MODE
N+13 = reserved (future use)
N+14 = reserved (future use)
N+15 = reserved (future use)
If (MODE = BUMP): (n+12<128)
(N+0 > 127) = pan left
(N+1 > 127) = pan right
(N+2 > 127) = tilt up
(N+3 > 127) = tilt down
(N+4 > 127) = spot
(N+5 > 127) = flood
(N+6 > 127) = trolley left
(N+7 > 127) = trolley right
(N + 8, 9) = reserved (future use)
If (MODE=FADER): (n+12>=128)
(N+0 < 64) = pan left
(N+0 > 127) = pan right
(N+1 < 64) = tilt up
(N+1 > 127) = tilt down
(N+2 < 64) = spot
(N+2 > 127) = flood
(N+3 < 64) = trolley left
(N+3 > 127) = trolley right
(N+4 thru 9) = reserved (future use); each motor above is stopped
when the fader is in the middle of its range (DMX value 64-127)
Check on line for the latest updates at www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
LRX SINGLE
7
7
HAND CONTROLLER
The hand controller will allow fixture selection,(up to 32 fixtures), control of
tilt - up/down, pan - left/right and flood/spot functions and will also shut off
individual gel cooling fans or all gel cooling fans connected to that controller.
All switches act as momentary type. When the “Individual Gel Fan Stop” switch
is held the gel fan for the fixture indicated on the display stops. When the “All
Gel Fans Stop” switch is held all gel fans connected to that hand controller will
stop.
Check on line for the latest updates at www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
LRX SINGLE
8
8
FIXTURE SPECIFCATIONS
Electrical:
Control power: Volts – 120 AC – non-dimmed feed line.
Hertz – 50 - 60
Amps – 2.0
U- Ground plug
Metal Halide Lamps:
6KWSE: 125VAC / 48 amps approximate
12KWSE: 160 VAC / 75 amps approximate
18KWSE– 225 VAC / 85 amps approximate
Tungsten Lamps: 10KWSE Volts: 120/240 VAC - 83/41.5 amps approx.
12KWSE Volts: 120/240 VAC - 100/50 amps approx.
Head Input Connector:
Input is configured to accept Arri 12/18K connector.
LRX fixture connector: Cannon part# CB0-28A16PS-A232
Tungsten mode requires an input connector with tails that mate to local
distribution.
a. Pin “C” = Line
b. Pin “H” = Neutral
c. Pin “B” = Ground
Or see wiring diagram for pin connections.
Physical
Tilt from horizontal: +20 degrees to negative two hundred & twenty-five
degrees
Pan - 340 degrees
Weight - 156 pounds
Designed to accept gel frames: 30” X 30”
Fixture mounting hooks have been designed to mate with truss chords
not greater than two inches (50.8mm) in diameter
Check on line for the latest updates at www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
LRX SINGLE
9
9
Check on line for the latest updates at www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
LRX SINGLE
10
10
FILTER INSTALLATION
LRX Lighting offers several high quality extreme temperature color
correction and diffusion filters. These filters will not burn or change
color and should be the first choice.
Custom colors can be produced to your specifications, please allow four
to eight weeks lead time.
LRX Lighting currently stocks:
¼ CTO
½ CTO
Full CTO
Steel Blue
Cyan 60
¼ Plus Green
½ White Diffusion
Full White Diffusion
Industry standard gel type color correction or diffusion filters should be
placed in the center slot with heat shield placed in the inside slot and the
outside slot. The heat shield in the outside slot helps to maintain the
column of cool air created by the filter fans.
If a color correction filter and a diffusion filter are both required the
color filter should be placed in the outside slot, the diffusion filter placed
in the center slot and heat shield in the inside slot. This provides the
longest filter life.
It has been reported to us that using two layers of ¼ CTO (with at least
one inch of air separation) to achieve ½ CTO is possible and might
provide better results than a single piece of ½ CTO.
Should the cooling fans on the gel frame holder become a sound problem
they can be shut off temporarily using the gel fan stop switches located
on the fixture hand controller or the appropriate DMX channel!
Note: filter life will be compromised, keep off time to a minimum.
Check on line for the latest updates at www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
LRX SINGLE
11
11
Roscoe Heat Shield
Roscoe Heat Shield
Color or diffusion
filter
Check on line for the latest updates at www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
LRX SINGLE
12
12
Fixture lifting points
Fixture approximately
156 pounds
HANDLING OF FIXTURE
Heavy lift, minimum two persons, the weight is approximately 156 pounds.
Hanging of the fixture creates a number of potential pinch points.
Use fixture lifting handles provided as well as the yoke tubes.
If there are any concerns regarding handling please contact your
supervisor.
Ensure hanger bolts are installed immediately after hanging, before the
ratchet straps are tensioned.
Ratchet straps must have a minimum of one and a half wraps around the
ratchet drum at all times.
Removal of shipping case covers require two persons to lift. Always use
lifting points to avoid potential pinch points.
Check on line for the latest updates at www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
LRX SINGLE
13
13
Ensure 1.5 wraps
on ratchet drum
Hanger Bolt
Check on line for the latest updates at www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
LRX SINGLE
14
14
MOUNTING THE LIGHT IN THE SHIPPING CASE
Re-installing the fixture into the shipping case
IMPORTANT: Align tilt line-up marks, located on the tilt bearing
assembly. See illustration below. Gel frame holder damage could result if
forced into position in shipping case.
Align hanger so that the fixture is pointed straight ahead.
The fixture should be left in spot position with the socket tightened
slightly to prevent the t-handle from turning out during shipping.
Install onto shipping frame, tighten T-bolts and ratchet straps and
ensure there is a minimum of 1.5 wraps on the ratchet drum. See picture
below,
Always store shipping cases in a dry
location
Check on line for the latest updates at www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
LRX SINGLE
15
15
LAMP INSTALLATION
A number of hazards exist during lamp installation please refer to
safety warnings on page two.
Follow lamp manufactures instructions regarding use and handling of their
product.
This fixture has more than one power supply. Disconnect all power supplies
before installation or removal of the lamps.
Allow lamps to cool before removing.
Prior to installing the lamp, check lamp contacts and wire ends for signs of
arcing or over-heating. If lamp contacts or wiring appear damaged remove
from service.
Ensure power supply matches lamp type, voltage and wattage.
The required lamp should be fully seated when installed and firmly locked
in place using the lamp lock tool supplied.
NOTE: the Metal halide lamp manufacturers suggest operating the lamp
with the lamp support rod up, as it produces a more stable arc.
Lamps should be wiped with 99% alcohol and clean paper towels or lint free
cloth after installation.
Clean, close and lock the lens.
Close and secure the lamp lock door.
Heat shield must always be used in front of the lamp. This provides
protection for the lens from rain and also helps to contain the glass
fragments in event of lamp breakage.
Ensure power supply matches lamp type and wattage. The use of dimmers
for tungsten lamps is strongly recommended.
Bringing tungsten lamps to full power without pre-warming the bulb and
fixture may break the U.V. lens.
Check gel fan and lamp fan for proper operation. When control power is
applied to the fixture, the lamp fan will start and run for ten minutes then
shut off, the gel fan will start and run for ten seconds then shut off. The
lamp and gel fan will restart when power is applied to the lamp and run for
ten minutes after power is removed from the lamp. It is very important to
leave control power to the lamp after it has been shut off to allow for fan
cooling of the lamp and housing. Overheating can damage the lamp and
internal components.
Check on line for the latest updates at www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
16
16
LRX SINGLE
IMPORTANT:
When LRX extended 6KSE lamps are
not available a socket extender will be required
to compensate for the shorter A.C.L. of the
standard 6KSE lamp.
Part number - G38-6X
Check on line for the latest updates at www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
LRX SINGLE
17
17
INSTALLATION OF FIXTURES ON TRUSS
OR TELESCOPIC TYPE MAN LIFTS
THIS FIXTURE MUST BE MOUNTED ON A LEVEL TRUSS.
Installation structure must be designed and approved to safely carry all
anticipated loads.
It is the user’s responsibility and obligation to determine and comply with
all applicable laws and regulations.
The installation and operation of this unit must be carried out by
authorized and qualified personnel.
Hanger bolts in hanger assembly must be installed. Both ratchet straps
must be clipped onto their respective anchor point.
Ratchet straps require minimum of 1.5 wraps on the ratchet to ensure they
remain tight.
Always use approved safety cables secured to a point capable of supporting
the total weight of the load.
All power and data cables
When fixtures are mounted in close proximity to each other, care must be
taken so that output energy from one fixture is not directed at another
fixture or electrical cabling.
If cable rollers are required refer to “LRX Cable Roller” manual.
If LRX truss is to be installed, ensure that load is centered and evenly
applied to basket. Maximum capacity for LRX truss is 500 pounds evenly
distributed.
Never use damaged or compromised trusses or equipment.
Follow all lift manufactures guide-lines for load/wind capacities and de-
rating as required. Refer to the aerial equipment operator manuals & special
supplement for “Authorized and Trained Set Lighting Technicians and
Studio Grips”.
must
have a strain relief attached.
Check on line for the latest updates at www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
18
18
Load must be centered front
to back as well as side to side
Using two truss plates (1/2” X 3”)
per side, a minimum of two
structural members must be
captured. Fasten using ½” X 4”
bolts with washers, lock washers
and nuts – four places
`
LRX SINGLE
Check on line for the latest updates at www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
LRX SINGLE
19
19
TROUBLE SHOOTING GUIDE
NO DISPLAY AT REAR OF HANGER ASSEMBLY
Ensure 120vac power to fixture is live and on a non-dimmed line.
Remove DMX connectors and inspect contact pins for damage and signs of
corrosion
Inspect 120 volt U ground supply wire for cuts or mechanical damage
Inspect U ground plug contacts.
Power switch is on (up position)
FIXTURE DOESN’T RESPOND TO ANY FUNCTIONS
REQUESTED FROM HAND CONTROLLER
Establish power is correct and display is functioning properly, see above.
Test with another hand controller if available. If still unresponsive proceed
to next step.
Remove DMX connectors and inspect contact pins for damage and no signs
of corrosion. Note all five wires and pins are required to operate hand
controller.
Check hanger display for proper addressing and mode. For use with hand
controller the fixture display must show the “F” prefix; not the three digit
DMX channel and the display must not be flashing.
It is important to note that the LRX fixture will not begin responding to a
newly selected FIXTURE/DMX address until it has been stored by pressing
and holding the store (round icon) button. If the display is flashing, this is
a warning that the displayed FIXTURE/DMX address does not match the
address that the fixture is currently responding to.
Plug hand controller directly into fixture, at this point the hand controller
should light up and DMX light on the fixture should also light up. At this
point if the unit is not operational test with another hand controller.
Ensure the address at the fixture matches the address on the hand
controller.
If still not operational, place fixture into DMX mode and test with an
alternative DMX source.
Call for service
Check on line for the latest updates at www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
LRX SINGLE
20
20
TILT, PAN OR FOCUS MOTOR
NOT OPERATING CORRECTLY.
Head moves freely without control:
This may indicate the fixture has received impact and the drive gear has
been damaged or drive may have become disengaged.
Head not moving on one axis but other axis is fine
Test with another hand controller if available. If still unresponsive proceed
to next step.
This may indicate the fixture has received impact and the drive gear has
been damaged or drive may have become disengaged.
Actuate drive function and listen for motor operation. The tilt and pan drive
assemblies use a slip clutch inline between the motor and drive gear as a
protective measure, this clutch will slip and make a clicking sound once
each revolution when driven by the motor, if the clutch has exceeded it
preset limits.
If any of these conditions exist, suspend use of the product and call for
service.
There are no user serviceable parts.
LAMPS NOT WORKING
TUNGSTEN MODE LAMP NOT WORKING
Fixture must have 120VAC at the control input (u ground plug), not a
dimmed line and display at the rear of the hanger assembly must be lit.
Check head extension cables and fixture panel mount connector pins
Ensure correct lamp input power is available at head cable.
Power switch at hanger must be in the on position and LED display lit.
Check that the lamp lock door is closed and door interlock switch is
operating.
Flip power switch on and off and listen for contactor assembly to click in
and out.
Ensure lamp is OK, disconnect power supplies, remove lamp from fixture
and perform a visual inspection and check continuity. We have seen lamps
that look OK, but the feed wire is broken inside near the base.
Check socket contacts and wiring.
Check on line for the latest updates at www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
LRX SINGLE
21
21
METAL HALIDE MODE LAMP NOT IGNITING
Fixture must have 120VAC at the control input (u ground plug), not a
dimmed line and display at the rear of the hanger assembly must be lit.
Check that the lamp lock door is closed and door interlock switch is
operating.
Flip power switch on and off and listen for contactor assembly to click in
and out.
Check head extension cables and panel mount connector pins (paying
particular attention to the small pins are not dislodged or damaged which
would cause improper contact.
Install lamp ensure is properly seated (ceramic against ceramic and the
contact tee bolt clamp is tight).
Test with a ballast (ensure output matches lamp wattage) and a head
extension cable that are known to be good.
Ensure line voltage to ballast input is above 205 VAC when under load.
Check socket contacts and wiring to socket. Check for signs of overheating
contacts or arcing.
Wet ballasts will need to be placed in a warm dry location and allowed to dry
before attempting to use.
Hot restrike: it is important to note that if the power to the U ground plug
is interrupted the lamp will shut off, and will require a fifteen minute
cooling cycle. Power should be restated as soon as possible to allow the fans
to cool the fixture and lamp.
TUNGSTEN OR METAL HALIDE LAMP RUNS AND
SHUTS OFF AFTER TEN OF MORE MINUTES
Check lamp cooling fan (not the gel fan) for air flow and obstructions. The
air intake is located in the underbody of the yoke on the lamp left side.
The lamp fan should turn on and run for ten minutes when the control
system is first powered on and operate for ten minutes then shut off. The
fan will then restart when the lamp is started.
Check that the lamp lock door is properly closed.
Check that control system voltage at the fixture is 120 VAC, long cable runs
can significantly reduce voltage, thus decreasing fan performance.
Check on line for the latest updates at www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
Loading...
