Lpower Avenger GX User Manual

User Manual

Welcome to Lumapower

Please take a moment to register your product on our Web site at
http://www.Lumapower.com. It enables us to keep you posted on our latest advancements,
and helps us to better understand our customers and build products that meet their needs
and Expectations.
This product has been designed and manufactured to the highest quality standards. However ,
if something does go wrong with this product, Lumapower and its national distributors
warrant free of charge labour and replacement parts in any country served by an official
distributor.

Unpacking: Check the product carefully. If it has been damaged in transit, report the
damage immediately by calling your dealer and/or the shipping company that delivered it.

Read Instructions. All the safety and operating instructions should be read before the
product is operated.

Follow Instructions. All operating and use instructions should be followed.

Replacement Parts. When replacement parts are required, be sure the replacement parts

have the same characteristics as the original part. Unauthorized substitutions may cause

damage to the unit.

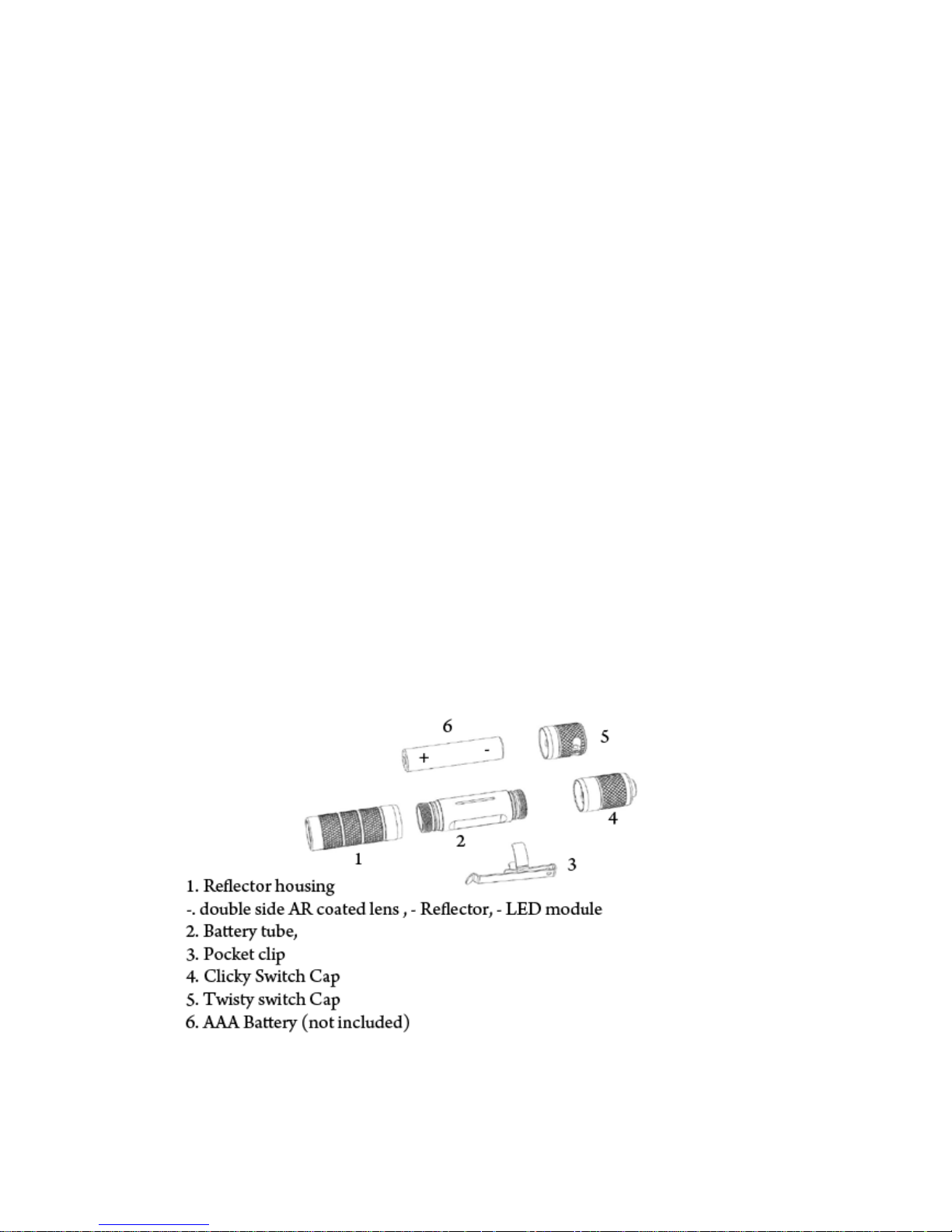

Introduction

Lumapower Avenger GX supports input voltage from 0.9V to 3.3V. It is powered b y 1 x AAA
batteries. Avenger GX is fitted with pure white LED module driven by current regulation
circuitry to achieve a consistent level of light output for the useable life of the batteries.

Avenger GX features a forward clic ky switch and m ulti-level d igital outp ut control c ircuit with
memory functions.

Clicky Style :

Half-press the tail switch to power on Avenger GX momentary, full press to lock it for constant
on. Another full press to release the lock (power off)

Twisty Style :

Turn Battery tube with clockwise motion to LED housing for power-on, release for power-off.
Power On and Off within 1 second to change output level.

Digital output control and Memory

Half press (Twist and Release) to cycle the output from Low, Medium and High.
At each output level, with a full press to lock it (twisty style).
During selected level power on within 1 second, you can change the output by power off and
on. As the selected level powered over 1 second will activate the memory-IC to store the
status and remains the same output with your next start.
The memory-IC retains last mode for easy usage.

Battery Installation

Unscrew the Reflector housing (or tail switch) and insert new batteries with positive ends

towards LED assembly. Replace reflector housing (tail cap) and hand tighten. Depress tailcap

pushbutton switch to test.

Note: It would not light if battery is inserted in wrong direction.

Avenger GX will not work if wrong battery insertion.

Thread Lock System at Reflector housing.

Never use rechargeable Li-ion battery with Avenger GX.

CAUTION: Avenger GX flashlights are hi gh-output lighti ng devices. Due to possible

eye injury, DO NOT look directly into the reflector when the light is switched on.
Safety is your responsibility, too.
External surface temperature will rise during prolonged operation; this is a normal operating
phenomenon.

Battery Replacement

If there is significant decrease in brightness of light output you should replace the battery.
Unscrew the LED-engine and remove the old battery. Insert a new battery as mentioned in

Battery Installation Guide

WARNING: Lithium batteries can expl ode or cause burns if disassembl ed, shorted,

recharged, exposed to water, fire, or high temperatures. Do not place loose batteries i n a
pocket, purse or other container containing metal objects or store with hazardous or
combustible materials. Store in cool, dry, ventilated area. Follow applicable laws and
regulations for disposal.

Maintenance

Clean and lubricate threads with a clean cloth and apply thin coat of silicon-based lubricant to

rubber O-rings. Note: Do not use petroleum-based lubrication on O-rings. After prol onged
exposure to moisture, the bezel and batteries should be removed, inspected, and dried i f
necessary

.

WARNING: Lumapower reflector is made with high precision process. Do not touch

or clean the reflecting surface using any cloth which may cause damage to the surface
material affecting the illuminating performance.

Non-use Periods.

If Avenger GX is left unused for long period, the installed battery should be removed from the
unit.

Output & Runtime

Accurately specifying light output (lumens) and runtime is complicated for LED flashlights.
Installed batteries and operating temperature are the main factors affecting the light output
and runtime. Lumapower doesn’t guarantee its products can reach the specification under the
using condition of users.

Specification

LED : Cree XP-E R2
Reflector : S MO type
Output : 4 Lumens to 75 Lumens (max) with 1.2V NiMH battery
Runtime : 90 minutes at High, 220 minutes at Medium, 1000 minutes at Low
(1.2V NiMH 1000mAh)
Batteries : 1.2V NiMH, 1.5V AA
Length : 86.5mm (Twisty style), 94.5mm (Clicky style)
Bezel/Tail Diameter : 15mm
Body Diameter : 14mm
Material : T6061 aircraft aluminum
Body coating : Type III HA Black
Accessories : spare o-rings, pocket clips, key holder, lanyard, both tail
switches.

Specifications: All product specifications/features are subject to change without notification.
