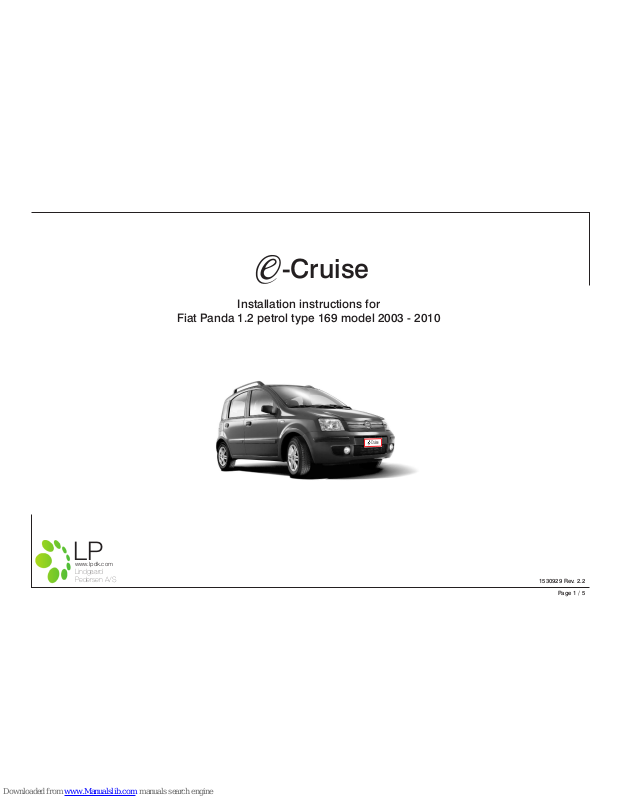

LP e-cruise Installation Instruction

Page 1 / 5

Installation instructions for

Fiat Panda 1.2 petrol type 169 model 2003 - 2010

-Cruise

-

Cr

u

i

s

e

1530929 Rev. 2.2

www.lpdk.com

LP

Lindgaard
Pedersen A/S

Some good advice.

· Always disconnect the negativ cable from the battery, before installing.

· Always use the enclosed installation instruction for installing the E-Cruise.

· The rev. number on the unitlabel and the installation guide must be the same.

· Be aware that eg. radio code might has to be typed in.

· Find a location to install the unit and control switch.

· If any wire(s) left, then cut off and insulate.

· Only use multimeter to measure.

· Always drive the car for a complete test, before assemble the car.

· Flying lead(s) must be soldered.

· All wire connections are viewed from wire side.

To make the installationen easier, the complete installation instruction should
be read through, before the installation is started.

This installation instruction, contains information, how to install the E-Cruise,
which is not a Do-It-Yourself job.
Modern cars are equipped with electronic, which can be costly damaged by
inappropriate treatment.

Lindgaard · Pedersen A/S can not be held responsible, for any error caused
by wrong installation.

Check that all the parts are included in the kit.

1 pcs. Unit.
1 pcs. 14-p connector.
1 pcs. 12-p connector.
1 pcs. Clutch switch.
5 pcs. Cableties.
1 pcs. Installation guide.
1 pcs. Owners manual.

Before installation.

Page 2 / 5

1530929 Rev. 2.2

www.lpdk.com

LP

Lindgaard
Pedersen A/S

Fiat Panda 1.2 petrol type 169 model 2003 - 2010
