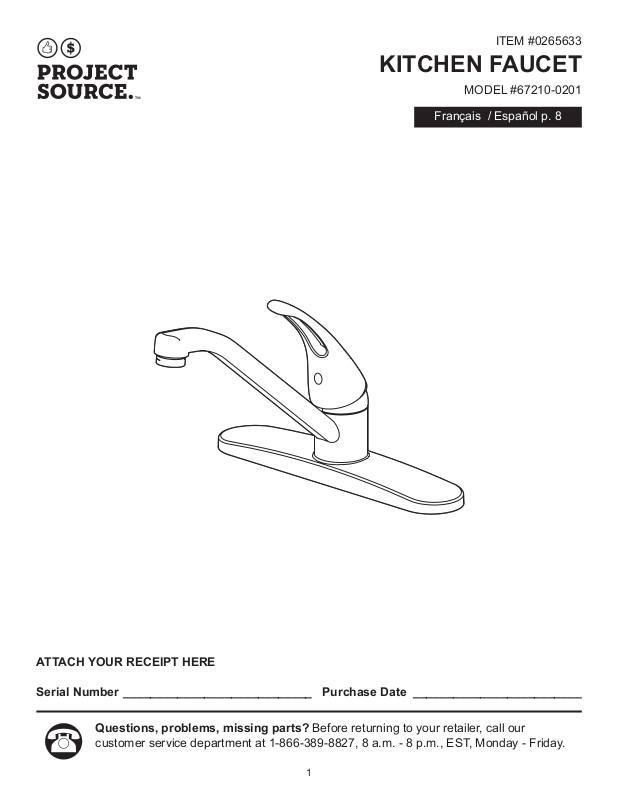

ITEM #0265633
KITCHEN FAUCET
MODEL #67210-0201
Français / Español p. 8
ATTACH YOUR RECEIPT HERE
Serial Number ____________________________ Purchase Date _________________________
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-866-389-8827, 8 a.m. - 8 p.m., EST, Monday - Friday.
1
PACKAGE CONTENTS
A
B
C
PART DESCRIPTION QUANTITY
A Faucet 1
B Mounting Nut (Preassembled to Faucet (A)) 2
C Puttty Plate 1
2
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate, or install
the product.
WARNING
• Follow the installation instructions carefully. Proper installation is the installer’s responsibility.
• Failure to follow correct installation procedures can result in the faucet being loose, which can
result in serious injury.
CAUTION
• Check local building codes before you begin installation to ensure compliance.
PREPARATION
Before beginning the assembly of this product, make sure all parts are present. Compare parts with
the package contents list. If any part is missing or damaged, do not attempt to assemble the product.
Contact customer service for replacement parts.
Estimated Assembly Time: 45 minutes (including removal of old faucet)
Tools Required for Assembly (not included): Adjustable Wrench, Phillips Screwdriver, Silicone
Sealant, Allen Wrench
Helpful Tools (not included): Basin Wrench, Water Supply Lines
3
ASSEMBLY INSTRUCTIONS
1. Shut off the water supply and remove the
old faucet.
2. Install the faucet:
a. Remove the preassembled mounting
nuts (B) from the facuet (A) and place
the faucet (A) in position on the sink.
b. From under the sink, thread the
mounting nuts (B) onto the faucet (A).
c. Tighten the mounting nuts (B).
1
2
A
3. Connect a 1/2 in. IPS faucet connector or
coupling nuts (not included) with 3/8 in.
O.D. ball-nose risers (not included) to the
water supplies underneath the sink using
wrenches (not included).
Note: Refer to the local plumbing codes for
permissible types of water supply
connectors.
C
B
3
4
OPERATION INSTRUCTIONS
1. After the installation is complete:
1
a. Remove the aerator on the faucet (A).
b. Turn on the water supply and allow both
hot and cold water to run for at least one
A
minute each.
c. While the water is running, check for leaks.
d. Replace the aerator.
CARE AND MAINTENANCE
• Clean carefully by gently wiping with a grit-free damp cloth.
• Use only mild soap with water.
• Never use acids, harsh chemicals, or abrasive detergents to clean the faucet surface.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
There is a leak under the handle. The cartridge is damaged. Remove the handle and replace
the cartridge, seats and springs.
There is an inconsistent waterow pattern.
The aerator is dirty or does not
t correctly on the faucet.
Unscrew the aerator and check
the rubber washer or replace
the aerator.
The spout/aerator has a leak. The cartridge is damaged. Remove the handle and replace
the cartridge.
5
WARRANTY
This faucet has been manufactured under the highest standard of workmanship. All parts of this
faucet are warranted to be free from leaks or drips during domestic use for as long as the original
purchaser owns this product. THIS EXCLUDES INDUSTRIAL, COMMERCIAL, OR BUSINESS USE.
The manufacturer will replace FREE OF CHARGE, under the warranty conditions the entire unit or
any part (at our option) which proves defective in material and/or workmanship under normal installation, use and service. This warranty is limited to defective parts as stated. All costs of removal and
installation of the faucet, including the replacement of warranty parts are the responsibility of the
purchaser. The manufacturer shall not be liable for incidental, consequential or special damages aris-
ing at or in connection with product use or performance except as may otherwise be accorded by law.
This warranty gives you specic legal rights, and you may also have other rights which may vary from
state to state. Any damage to this faucet as a result of misuse, abuse, neglect, accident, improper
installation, or any use violating instructions furnished by us, WILL VOID THIS WARRANTY. When re-
questing warranty service, you will need to present a copy of your sales receipt as proof of purchase.
To obtain warranty service, call our customer service department at 1-866-389-8827.
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-866-389-8827, 8 a.m. - 8 p.m., EST,
Monday - Friday.
PART DESCRIPTION QUANTITY
1 Handle RP13186*
2 Set Screw RP50113
3 Index Bonnet RP10006
4 Adjustable Ring RP70371
5 Cap RP80330*
6 Cam RP70334
7 Cam Packing RP70108
8 Cartridge RP22007
9 Disc and Spring RP22008
10 Aerator RP30004*
11 Washer RP64070
12 O-Ring RP60032
13 Bolt RP50040
14 Mounting Nut RP56036
* Available in Polished Chrome Finish.
1
2
4
3
5
6
7
8
9
11
12
10
13
14
Printed in China
6
