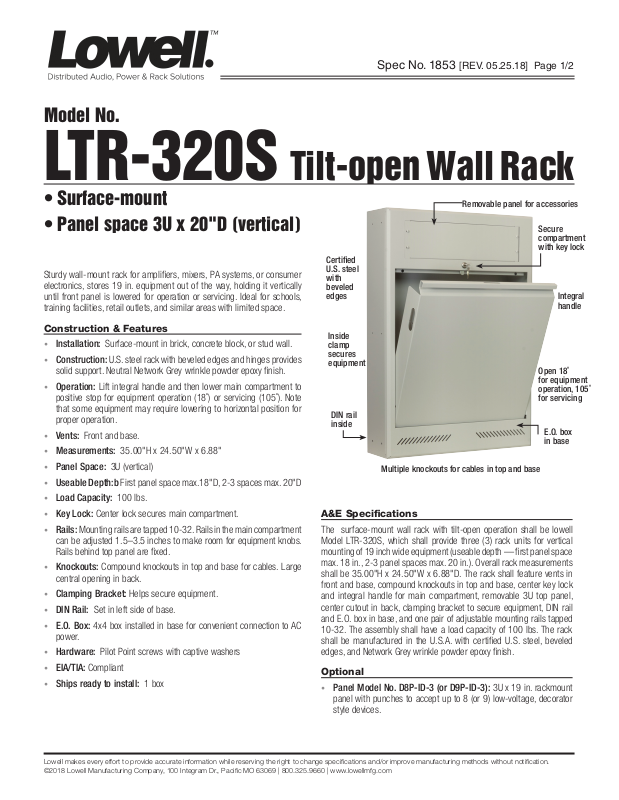

Lowel Light Mfg LTR-320S Specifications
Spec No. 1853 [REV. 05.25.18] Page 1/2
Model No.
LTR-320S Tilt-open Wall Rack
• Surface-mount
• Panel space 3U x 20"D (vertical)
Sturdy wall-mount rack for ampliers, mixers, PA systems, or consumer
electronics, stores 19 in. equipment out of the way, holding it vertically
until front panel is lowered for operation or servicing. Ideal for schools,
training facilities, retail outlets, and similar areas with limited space.
Construction & Features
• Installation: Surface-mount in brick, concrete block, or stud wall.
• Construction: U.S. steel rack with beveled edges and hinges provides
solid support. Neutral Network Grey wrinkle powder epoxy nish.
• Operation: Lift integral handle and then lower main compartment to
positive stop for equipment operation (18˚) or servicing (105˚). Note
that some equipment may require lowering to horizontal position for
proper operation.
• Vents: Front and base.
• Measurements: 35.00"H x 24.50"W x 6.88"
• Panel Space: 3U (vertical)
• Useable Depth:b First panel space max.18"D, 2-3 spaces max. 20"D
• Load Capacity: 100 lbs.
• Key Lock: Center lock secures main compartment.
• Rails: Mounting rails are tapped 10-32. Rails in the main compartment
can be adjusted 1.5–3.5 inches to make room for equipment knobs.
Rails behind top panel are xed.
• Knockouts: Compound knockouts in top and base for cables. Large
central opening in back.
• Clamping Bracket: Helps secure equipment.
• DIN Rail: Set in left side of base.
• E.O. Box: 4x4 box installed in base for convenient connection to AC
power.
• Hardware: Pilot Point screws with captive washers
• EIA/TIA: Compliant
• Ships ready to install: 1 box
Removable panel for accessories
Secure
compartment
with key lock
Certied
U.S. steel
with
beveled
edges
Inside
clamp
secures
equipment
DIN rail
inside
Multiple knockouts for cables in top and base
A&E Specifications
The surface-mount wall rack with tilt-open operation shall be lowell
Model LTR-320S, which shall provide three (3) rack units for vertical
mounting of 19 inch wide equipment (useable depth — rst panel space
max. 18 in., 2-3 panel spaces max. 20 in.). Overall rack measurements
shall be 35.00"H x 24.50"W x 6.88"D. The rack shall feature vents in
front and base, compound knockouts in top and base, center key lock
and integral handle for main compartment, removable 3U top panel,
center cutout in back, clamping bracket to secure equipment, DIN rail
and E.O. box in base, and one pair of adjustable mounting rails tapped
10-32. The assembly shall have a load capacity of 100 lbs. The rack
shall be manufactured in the U.S.A. with certied U.S. steel, beveled
edges, and Network Grey wrinkle powder epoxy nish.
Optional
• Panel Model No. D8P-ID-3 (or D9P-ID-3): 3U x 19 in. rackmount
panel with punches to accept up to 8 (or 9) low-voltage, decorator
style devices.
Integral
handle
Open 18˚
for equipment
operation, 105˚
for servicing
E.O. box
in base
Lowell makes every effort to provide accurate information while reserving the right to change specications and/or improve manufacturing methods without notication.
©2018 Lowell Manufacturing Company, 100 Integram Dr., Pacic MO 63069 | 800.325.9660 | www.lowellmfg.com
Technical Drawings
Spec No. 1853 [REV. 05.25.18] Page 2/2
Measurements are inches unless indicated otherwise.
Lowell makes every effort to provide accurate information while reserving the right to change specications and/or improve manufacturing methods without notication.
©2018 Lowell Manufacturing Company, 100 Integram Dr., Pacic MO 63069 | 800.325.9660 | www.lowellmfg.com
