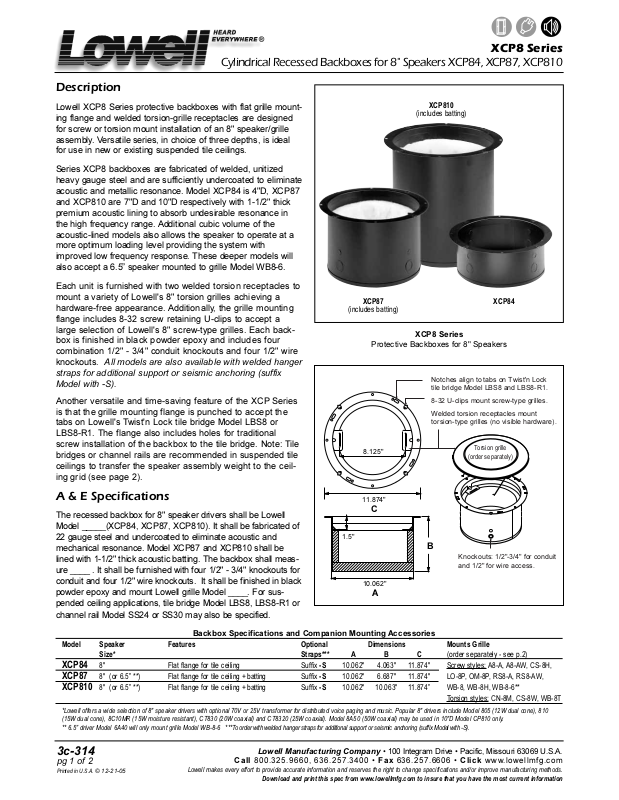

XCP8 Series
Cylindrical Recessed Backboxes for 8" Speakers XCP84, XCP87, XCP810
XCP810
(includes batting)
XCP84
Backbox Specifications and Companion Mounting Accessories
Model Speaker Features Optional Dimensions Mounts Grille
Size* Straps*** A B C (order separately - see p.2)
XCP84 8" Flat flange for tile ceiling Suffix -S 10.062" 4.063" 11.874" Screw styles: A8-A, A8-AW, CS-8H,
XCP87 8" (or 6.5” **) Flat flange for tile ceiling + batting Suffix -S 10.062" 6.687" 11.874" LO-8P, OM-8P, RS8-A, RS8-AW,
XCP810 8" (or 6.5” **) Flat flange for tile ceiling + batting Suffix -S 10.062" 10.063" 11.874” WB-8, WB-8H, WB-8-6**
Torsion styles: CN-8M, CS-8W, WB-8T
*Lowell offers a wide selection of 8" speaker drivers with optional 70V or 25V transformer for distributed voice paging and music. Popular 8" drivers include Model 805 (12W dual cone), 810
(15W dual cone), 8C10MR (15W moisture resistant), CT830 (20W coaxial) and CT8320 (25W coaxial). Model 8A50 (50W coaxial) may be used in 10"D Model CP810 only.
** 6.5” driver Model 6A40 will only mount grille Model WB-8-6 ***To order with welded hanger straps for additional support or seismic anchoring (suffix Model with -S).
B
A
C
XCP87
(includes batting)
XCP8 Series
Protective Backboxes for 8" Speakers
Description
Lowell XCP8 Series protective backboxes with flat grille mounting flange and welded torsion-grille receptacles are designed
for screw or torsion mount installation of an 8" speaker/grille
assembly. Versatile series, in choice of three depths, is ideal
for use in new or existing suspended tile ceilings.
Series XCP8 backboxes are fabricated of welded, unitized
heavy gauge steel and are sufficiently undercoated to eliminate
acoustic and metallic resonance. Model XCP84 is 4"D, XCP87
and XCP810 are 7"D and 10"D respectively with 1-1/2" thick
premium acoustic lining to absorb undesirable resonance in
the high frequency range. Additional cubic volume of the
acoustic-lined models also allows the speaker to operate at a
more optimum loading level providing the system with
improved low frequency response. These deeper models will
also accept a 6.5” speaker mounted to grille Model WB8-6.
Each unit is furnished with two welded torsion receptacles to
mount a variety of Lowell's 8" torsion grilles achieving a
hardware-free appearance. Additionally, the grille mounting
flange includes 8-32 screw retaining U-clips to accept a
large selection of Lowell's 8" screw-type grilles. Each backbox is finished in black powder epoxy and includes four
combination 1/2" - 3/4" conduit knockouts and four 1/2" wire
knockouts. All models are also available with welded hanger
straps for additional support or seismic anchoring (suffix
Model with -S).
Another versatile and time-saving feature of the XCP Series
is that the grille mounting flange is punched to accept the
tabs on Lowell's Twist'n Lock tile bridge Model LBS8 or
LBS8-R1. The flange also includes holes for traditional
screw installation of the backbox to the tile bridge. Note: Tile
bridges or channel rails are recommended in suspended tile
ceilings to transfer the speaker assembly weight to the ceiling grid (see page 2).
A & E Specifications
The recessed backbox for 8" speaker drivers shall be Lowell
Model _____(XCP84, XCP87, XCP810). It shall be fabricated of
22 gauge steel and undercoated to eliminate acoustic and
mechanical resonance. Model XCP87 and XCP810 shall be
lined with 1-1/2" thick acoustic batting. The backbox shall measure ____ . It shall be furnished with four 1/2" - 3/4" knockouts for
conduit and four 1/2" wire knockouts. It shall be finished in black
powder epoxy and mount Lowell grille Model ____. For suspended ceiling applications, tile bridge Model LBS8, LBS8-R1 or
channel rail Model SS24 or SS30 may also be specified.
8.125"
Notches align to tabs on Twist'n Lock
tile bridge Model LBS8 and LBS8-R1.
8-32 U-clips mount screw-type grilles.
Welded torsion receptacles mount
torsion-type grilles (no visible hardware).
Torsion grille
(order separately)
11.874"
1.5"
10.062"
6.69"
Knockouts: 1/2"-3/4" for conduit
and 1/2" for wire access.
XCP8 Series
Cylindrical Recessed Backboxes for 8" Speakers XCP84, XCP87, XCP810
Lowell Manufacturing Company • 100 Integram Drive • Pacific, Missouri 63069 U.S.A.
Call 800.325.9660, 636.257.3400 • Fax 636.257.6606 • Click www.lowellmfg.com
Lowell makes every effort to provide accurate information and reserves the right to change specifications and/or improve manufacturing methods.
Download and print this spec from www.lowellmfg.com to insure that you have the most current information
AUDIO
12”/10”
Speakers &
Accessories
8”
Speakers &
Accessories
6”
Speakers &
Accessories
4”
Speakers &
Accessories
Horn
Speakers &
Accessories
Masking
Speakers &
Generators
Control
Accessories
& Electronics
Tile Bridge & Rail Details
LBS8 23.75"L Square opening with screw or Twist'n Lock backbox mounting.
LBS8-R1 23.75"L Round opening with screw or Twist'n Lock backbox mounting.
SS-24 23.75"L Channel rails (pair)
SS-30 30"L Channel rails (pair)
Companion accessories for backbox Models XCP84, XCP87, XCP810 (order separately)
A8-A
A8-AW
OM8-P
CS-8H
RS8-A
RS8-AW
LO-8P
WB-8H
WB-8
LBS8
SS Series rails
CN-8M (torsion) CS-8W (torsion)
WB8-6
mounts 6.5” drivers only
WB-8T (torsion)
Grille Details
Grille Speaker Grille Mounting Material Color Backbox + T-Bridge
Model Size* Size Provisions (if required for
suspended ceilings)
A8-A 8" 12.875" Dia. 8 screws Alum. Brushed Alum.
A8-AW 8" 12.875" Dia. 8 Screws Alum. White
CS-8H 8" 12.875" Dia. 4 screws, 4 studs Steel White
CN-8M 8" 12.5" Dia. Torsion*** Steel White
CS-8W 8" 12.875" Dia. Torsion*** Steel White
LO8-P 8" 12.625" Dia. 4 screws, 4 bosses Plastic White XCP84, XCP87, XCP810 ..................LBS8, LBS8-R1 or SS rails
OM8-P 8" 12.625" Dia. 4 screws, 4 bosses Plastic White
RS8-A 8" 12.875" Dia. 8 screws Alum. Brushed Alum
RS8-AW 8" 12.875" Dia. 8 screws Alum. White
WB-8 8" 12.875" Dia. 4 Screws, 4 studs Steel White
WB-8H 8" 12.875" Dia. 8 Screws Steel White
WB-8T 8" 12.875" Dia. Torsion*** Steel White
WB8-6 6.5” ** 12.875" Dia. 4 screws, 4 studs Steel White XCP87, XCP810..................................LBS8, LBS8-R1 or SS rails
*Lowell offers a wide selection of 8" speaker drivers with optional 70V or 25V transformer for distributed voice paging and music. Popular 8" drivers include Model 805 (12W dual cone), 810 (15W
dual cone), 8C10MR (15W moisture resistant), CT830 (20W coaxial), and CT8320 (25W coaxial). Model 8A50 (50W coaxial) may be used in 10"D Model XCP810 only.
** 6.5” driver Model 6A40 will only mount grille Model WB-8-6 .
***Torsion grilles can accept a maximum driver/transformer weight of 3.5lbs. (typically drivers with a 10oz. magnet); Models CT8320 and 8A50 are too heavy to be supported by a torsion grille.
LBS8-R1
3c-314
pg 2 of 2
