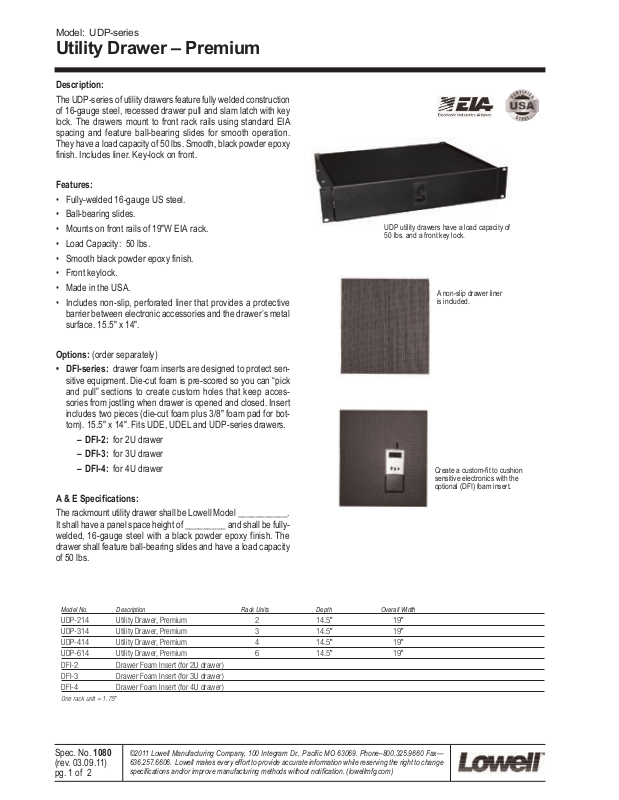

Lowell UDP-214 Specifications
Model: UDP-series
Utility Drawer – Premium
Description:
The UDP-series of utility drawers feature fully welded construction
of 16-gauge steel, recessed drawer pull and slam latch with key
lock. The drawers mount to front rack rails using standard EIA
spacing and feature ball-bearing slides for smooth operation.
They have a load capacity of 50 lbs. Smooth, black powder epoxy
finish. Includes liner. Key-lock on front.
Features:
• Fully-welded 16-gauge US steel.
• Ball-bearing slides.
• Mounts on front rails of 19"W EIA rack.
• Load Capacity: 50 lbs.
• Smooth black powder epoxy finish.
• Front keylock.
• Made in the USA.
• Includes non-slip, perforated liner that provides a protective
barrier between electronic accessories and the drawer’s metal
surface. 15.5" x 14".
UDP utility drawers have a load capacity of
50 lbs. and a front key lock.
A non-slip drawer liner
is included.
Options: (order separately)
• DFI-series: drawer foam inserts are designed to protect sen-
sitive equipment. Die-cut foam is pre-scored so you can “pick
and pull” sections to create custom holes that keep accessories from jostling when drawer is opened and closed. Insert
includes two pieces (die-cut foam plus 3/8" foam pad for bottom). 15.5" x 14". Fits UDE, UDEL and UDP-series drawers.
– DFI-2: for 2U drawer
– DFI-3: for 3U drawer
– DFI-4: for 4U drawer
A & E Specifications:
The rackmount utility drawer shall be Lowell Model ___________.
It shall have a panel space height of _________ and shall be fullywelded, 16-gauge steel with a black powder epoxy finish. The
drawer shall feature ball-bearing slides and have a load capacity
of 50 lbs.
Model No. Description Rack Units Depth Overall Width
UDP-214 Utility Drawer, Premium 2 14.5" 19"
UDP-314 Utility Drawer, Premium 3 14.5" 19"
UDP-414 Utility Drawer, Premium 4 14.5" 19"
UDP-614 Utility Drawer, Premium 6 14.5" 19"
DFI-2 Drawer Foam Insert (for 2U drawer)
DFI-3 Drawer Foam Insert (for 3U drawer)
DFI-4 Drawer Foam Insert (for 4U drawer)
One rack unit = 1.75
"
Create a custom-fit to cushion
sensitive electronics with the
optional (DFI) foam insert.
Spec. No. 1080
(rev. 03.09.11)
pg. 1 of 2
©2011 Lowell Manufacturing Company, 100 Integram Dr., Pacific MO 63069. Phone–800.325.9660 Fax—
636.257.6606. Lowell makes every effort to provide accurate information while reserving the right to change
specifications and/or improve manufacturing methods without notification. (lowellmfg.com)
UDP-214
16.86"
14.50"
3.47" 3.32"
UDP-314
UDP-414
1.13"
1.13"
19.00"
16.86"
19.00"
16.86"
14.50"
1.13"
14.50"
1.13"
.23"
.23"
1.48"
1.48"
5.22"
.34"
.34"
1.13"
2.25"
3.00"
14.50"
19.00"
18.31"
19.00"
18.31"
14.50"
.250" x .375"
OBROUND
5.07"
.34"
3.47"
1.13"
.34"
5.22"
UDP-614
1.13"
1.13"
16.86"
19.00"
19.00"
14.50"
1.13"
10.47"
14.50"
1.13"
.34"
1.48"
4.00"
1.48"
14.50"
6.97"
10.32"
19.00"
18.31"
.34"
1.48"
7.50"
1.48"
6.82"
.250" x .375" OBROUND
19.00"
18.31"
.34"
6.97"
.34"
10.47"
.250" x .375" OBROUND
Spec. No. 1080
(rev. 03.09.11)
pg. 2 of 2
©2011 Lowell Manufacturing Company, 100 Integram Dr., Pacific MO 63069. Phone–800.325.9660 Fax—
636.257.6606. Lowell makes every effort to provide accurate information while reserving the right to change
specifications and/or improve manufacturing methods without notification. (lowellmfg.com)
