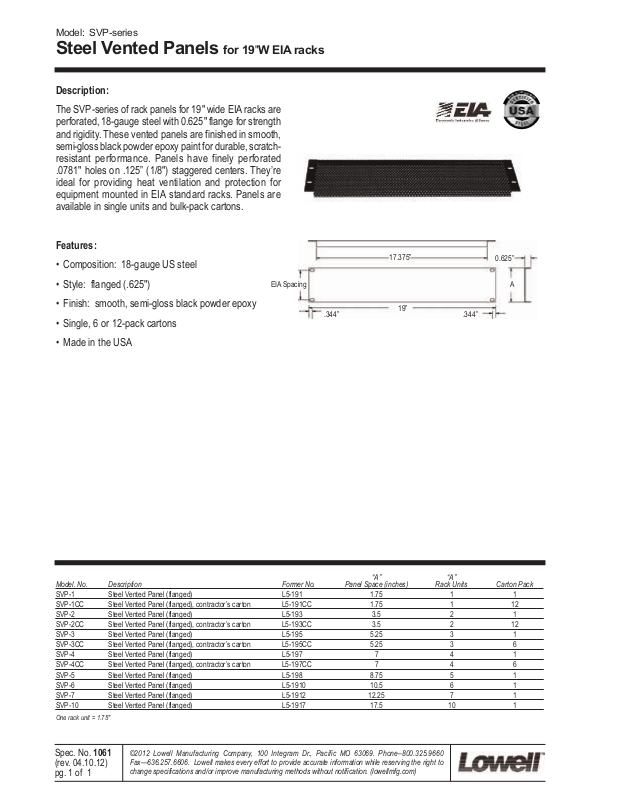

Lowell SVP-1 Specifications

Model: SVP-series

Steel Vented Panels for 19"W EIA racks

Description:

The SVP-series of rack panels for 19" wide EIA racks are
perforated, 18-gauge steel with 0.625" flange for strength
and rigidity. These vented panels are finished in smooth,
semi-gloss black powder epoxy paint for durable, scratch­resistant performance. Panels have finely perforated
.0781" holes on .125” (1/8") staggered centers. They’re
ideal for providing heat ventilation and protection for
equipment mounted in EIA standard racks. Panels are
available in single units and bulk-pack cartons.

Features:

• Composition: 18-gauge US steel

17.375”

0.625”

• Style: flanged (.625")

• Finish: smooth, semi-gloss black powder epoxy

EIA Spacing

.344” .344”

19”

A

• Single, 6 or 12-pack cartons

• Made in the USA

Model. No. Description Former No. Panel Space (inches) Rack Units Carton Pack

SVP-1 Steel Vented Panel (flanged) L5-191 1.75 11
SVP-1CC Steel Vented Panel (flanged), contractor’s carton L5-191CC 1.75 1 12
SVP-2 Steel Vented Panel (flanged) L5-193 3.5 21
SVP-2CC Steel Vented Panel (flanged), contractor’s carton L5-193CC 3.5 2 12
SVP-3 Steel Vented Panel (flanged) L5-195 5.25 31
SVP-3CC Steel Vented Panel (flanged), contractor’s carton L5-195CC 5.25 36
SVP-4 Steel Vented Panel (flanged) L5-197 741
SVP-4CC Steel Vented Panel (flanged), contractor’s carton L5-197CC 746
SVP-5 Steel Vented Panel (flanged) L5-198 8.75 51
SVP-6 Steel Vented Panel (flanged) L5-1910 10.5 61
SVP-7 Steel Vented Panel (flanged) L5-1912 12.25 71
SVP-10 Steel Vented Panel (flanged) L5-1917 17.5 10 1

One rack unit = 1.75"

“A” “A”

Spec. No. 1061
(rev. 04.10.12)
pg. 1 of 1

©2012 Lowell Manufacturing Company, 100 Integram Dr., Pacific MO 63069. Phone–800.325.9660
Fax—636.257.6606. Lowell makes every effort to provide accurate information while reserving the right to
change specifications and/or improve manufacturing methods without notification. (lowellmfg.com)
