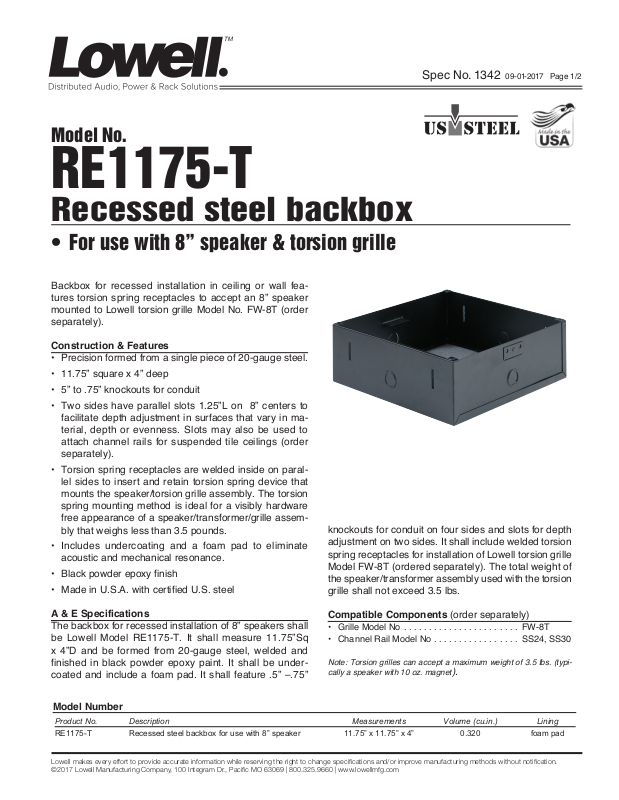

Lowell RE1175-T Specifications
Model No.
RE1175-T
Recessed steel backbox
• For use with 8” speaker & torsion grille
Backbox for recessed installation in ceiling or wall features torsion spring receptacles to accept an 8” speaker
mounted to Lowell torsion grille Model No. FW-8T (order
separately).
Construction & Features
• Precision formed from a single piece of 20-gauge steel.
• 11.75” square x 4” deep
• 5” to .75” knockouts for conduit
• Two sides have parallel slots 1.25”L on 8” centers to
facilitate depth adjustment in surfaces that vary in material, depth or evenness. Slots may also be used to
attach channel rails for suspended tile ceilings (order
separately).
• Torsion spring receptacles are welded inside on parallel sides to insert and retain torsion spring device that
mounts the speaker/torsion grille assembly. The torsion
spring mounting method is ideal for a visibly hardware
free appearance of a speaker/transformer/grille assembly that weighs less than 3.5 pounds.
• Includes undercoating and a foam pad to eliminate
acoustic and mechanical resonance.
• Black powder epoxy finish
• Made in U.S.A. with certified U.S. steel
knockouts for conduit on four sides and slots for depth
adjustment on two sides. It shall include welded torsion
spring receptacles for installation of Lowell torsion grille
Model FW-8T (ordered separately). The total weight of
the speaker/transformer assembly used with the torsion
grille shall not exceed 3.5 lbs.
Spec No. 1342 09-01-2017 Page 1/2
A & E Specifications
The backbox for recessed installation of 8” speakers shall
be Lowell Model RE1175-T. It shall measure 11.75”Sq
x 4”D and be formed from 20-gauge steel, welded and
finished in black powder epoxy paint. It shall be undercoated and include a foam pad. It shall feature .5” –.75”
Model Number
Product No. Description Measurements Volume (cu.in.) Lining
RE1175-T Recessed steel backbox for use with 8” speaker 11.75” x 11.75” x 4” 0.320 foam pad
Lowell makes every effort to provide accurate information while reserving the right to change specications and/or improve manufacturing methods without notication.
©2017 Lowell Manufacturing Company, 100 Integram Dr., Pacic MO 63069 | 800.325.9660 | www.lowellmfg.com
Compatible Components (order separately)
• Grille Model No ....................... FW-8T
• Channel Rail Model No ................. SS24, SS30
Note: Torsion grilles can accept a maximum weight of 3.5 lbs. (typically a speaker with 10 oz. magnet).
Technical Drawings
11.00”
Spec No. 1342 09-01-2017 Page 2/2
11.00”
