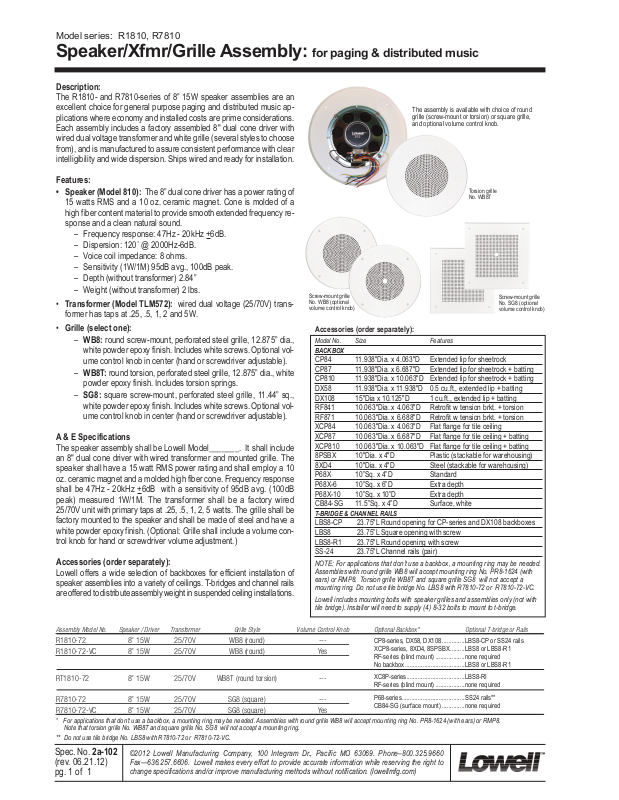

Lowell R1810-72 Specifications
Model series: R1810, R7810
Speaker/Xfmr/Grille Assembly: for paging & distributed music
escription:
D
The R1810- and R7810-series of 8” 15W speaker assemblies are an
excellent choice for general purpose paging and distributed music applications where economy and installed costs are prime considerations.
Each assembly includes a factory assembled 8" dual cone driver with
wired dual voltage transformer and white grille (several styles to choose
from), and is manufactured to assure consistent performance with clear
intelligibility and wide dispersion. Ships wired and ready for installation.
The assembly is available with choice of round
grille (screw-mount or torsion) or square grille,
and optional volume control knob.
Features:
Speaker (Model 810): The 8” dual cone driver has a power rating of
•
15 watts RMS and a 10 oz. ceramic magnet. Cone is molded of a
high fiber content material to provide smooth extended frequency response and a clean natural sound.
– Frequency response: 47Hz - 20kHz +
6dB.
– Dispersion: 120˚ @ 2000Hz-6dB.
– Voice coil impedance: 8 ohms.
– Sensitivity (1W/1M) 95dB avg., 100dB peak.
– Depth (without transformer) 2.84”
– Weight (without transformer) 2 lbs.
• Transformer (Model TLM572): wired dual voltage (25/70V) transformer has taps at .25, .5, 1, 2 and 5W.
• Grille (select one):
– WB8: round screw-mount, perforated steel grille, 12.875” dia.,
white powder epoxy finish. Includes white screws. Optional volume control knob in center (hand or screwdriver adjustable).
– WB8T: round torsion, perforated steel grille, 12.875” dia., white
powder epoxy finish. Includes torsion springs.
– SG8: square screw-mount, perforated steel grille, 11.44” sq.,
white powder epoxy finish. Includes white screws. Optional volume control knob in center (hand or screwdriver adjustable).
A & E Specifications
The speaker assembly shall be Lowell Model_______. It shall include
an 8" dual cone driver with wired transformer and mounted grille. The
speaker shall have a 15 watt RMS power rating and shall employ a 10
oz. ceramic magnet and a molded high fiber cone. Frequency response
shall be 47Hz - 20kHz +
6dB with a sensitivity of 95dB avg. (100dB
peak) measured 1W/1M. The transformer shall be a factory wired
25/70V unit with primary taps at .25, .5, 1, 2, 5 watts. The grille shall be
factory mounted to the speaker and shall be made of steel and have a
white powder epoxy finish. (Optional: Grille shall include a volume control knob for hand or screwdriver volume adjustment.)
Accessories (order separately):
Lowell offers a wide selection of backboxes for efficient installation of
speaker assemblies into a variety of ceilings. T-bridges and channel rails
are offered to distribute assembly weight in suspended ceiling installations.
Torsion grille
No. WB8T
Screw-mount grille
No. WB8 (optional
volume control knob)
Accessories (order separately):
odel No. Size Features
M
BACKBOX
CP84 11.938"Dia. x 4.063"D Extended lip for sheetrock
CP87 11.938"Dia. x 6.687"D Extended lip for sheetrock + batting
CP810 11.938"Dia. x 10.063"D Extended lip for sheetrock + batting
DX58 11.938"Dia. x 11.938"D 0.5 cu.ft., extended lip + batting
DX108 15"Dia x 10.125"D 1 cu.ft., extended lip + batting
RF841 10.063"Dia. x 4.063"D Retrofit w tension brkt. + torsion
RF871 10.063"Dia. x 6.688"D Retrofit w tension brkt. + torsion
XCP84 10.063"Dia. x 4.063"D Flat flange for tile ceiling
XCP87 10.063"Dia. x 6.687"D Flat flange for tile ceiling + batting
XCP810 10.063"Dia. x 10.063"D Flat flange for tile ceiling + batting
8PSBX 10"Dia. x 4"D Plastic (stackable for warehousing)
8XD4 10"Dia. x 4"D Steel (stackable for warehousing)
P68X 10”Sq. x 4”D Standard
P68X-6 10”Sq. x 6”D Extra depth
P68X-10 10”Sq. x 10”D Extra depth
CB84-SG 11.5”Sq. x 4”D Surface, white
T-BRIDGE & CHANNEL RAILS
LBS8-CP 23.75"L Round opening for CP-series and DX108 backboxes
LBS8 23.75”L Square opening with screw
LBS8-R1 23.75"L Round opening with screw
SS-24 23.75"L Channel rails (pair)
NOTE: For applications that don’t use a backbox, a mounting ring may be needed.
Assemblies with round grille WB8 will accept mounting ring No. PR8-1624 (with
ears) or RMP8. Torsion grille WB8T and square grille SG8 will not accept a
mounting ring. Do not use tile bridge No. LBS8 with R7810-72 or R7810-72-VC.
Lowell includes mounting bolts with speaker grilles and assemblies only (not with
tile bridge). Installer will need to supply (4) 8-32 bolts to mount to t-bridge.
crew-mount grille
S
o. SG8 (optional
N
olume control knob)
v
Assembly Model No. Speaker / Driver Transformer Grille Style Volume Control Knob Optional Backbox* Optional T-bridge or Rails
R1810-72 8” 15W 25/70V WB8 (round) --R1810-72-VC 8” 15W 25/70V WB8 (round) Yes
RT1810-72 8” 15W 25/70V WB8T (round torsion) ---
R7810-72 8” 15W 25/70V SG8 (square) --R7810-72-VC 8” 15W 25/70V SG8 (square) Yes
* For applications that don’t use a backbox, a mounting ring may be needed. Assemblies with round grille WB8 will accept mounting ring No. PR8-1624 (with ears) or RMP8.
Note that torsion grille No. WB8T and square grille No. SG8 will not accept a mounting ring.
** Do not use tile bridge No. LBS8 with R7810-72 or R7810-72-VC.
Spec. No. 2a-102
(rev. 06.21.12)
pg. 1 of 1
©2012 Lowell Manufacturing Company, 100 Integram Dr., Pacific MO 63069. Phone–800.325.9660
Fax—636.257.6606. Lowell makes every effort to provide accurate information while reserving the right to
change specifications and/or improve manufacturing methods without notification. (lowellmfg.com)
CP8-series, DX58, DX108 ..............LBS8-CP or SS24 rails
XCP8-series, 8XD4, 8SPSBX.........LBS8 or LBS8-R1
RF-series (blind mount) ..................none required
No backbox.....................................LBS8 or LBS8-R1
XC8P-series....................................LBS8-RI
RF-series (blind mount) ..................none required
P68-series.......................................SS24 rails**
CB84-SG (surface mount) ..............none required
