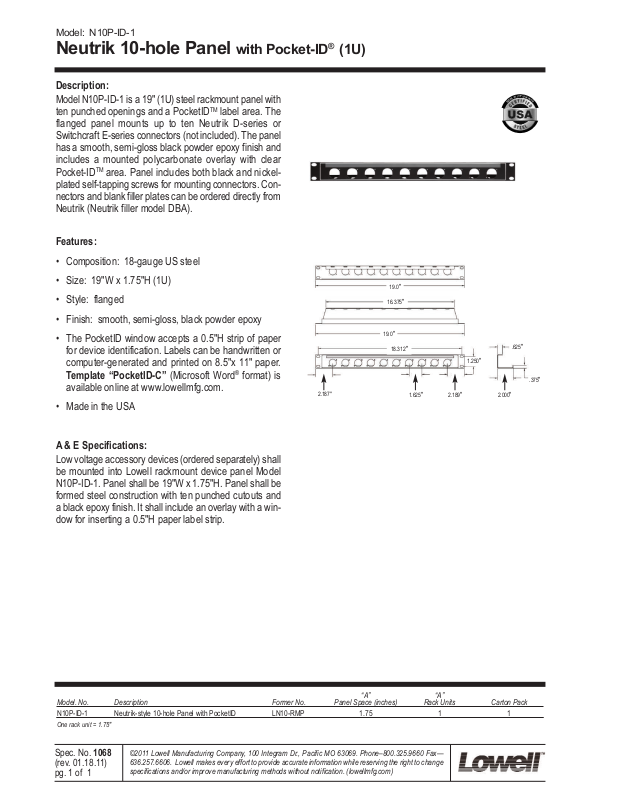

Lowell N10P-ID-1 Specifications
Model: N10P-ID-1
Neutrik 10-hole Panel with Pocket-ID
Description:
Model N10P-ID-1 is a 19" (1U) steel rackmount panel with
ten punched openings and a PocketID
flanged panel mounts up to ten Neutrik D-series or
Switchcraft E-series connectors (not included). The panel
has a smooth, semi-gloss black powder epoxy finish and
includes a mounted polycarbonate overlay with clear
TM
Pocket-ID
area. Panel includes both black and nickelplated self-tapping screws for mounting connectors. Connectors and blank filler plates can be ordered directly from
Neutrik (Neutrik filler model DBA).
Features:
• Composition: 18-gauge US steel
TM
label area. The
®
(1U)
• Size: 19"W x 1.75"H (1U)
• Style: flanged
• Finish: smooth, semi-gloss, black powder epoxy
• The PocketID window accepts a 0.5"H strip of paper
for device identification. Labels can be handwritten or
computer-generated and printed on 8.5"x 11" paper.
Template “PocketID-C” (Microsoft Word
®
format) is
available online at www.lowellmfg.com.
• Made in the USA
A & E Specifications:
Low voltage accessory devices (ordered separately) shall
be mounted into Lowell rackmount device panel Model
N10P-ID-1. Panel shall be 19"W x 1.75"H. Panel shall be
formed steel construction with ten punched cutouts and
a black epoxy finish. It shall include an overlay with a window for inserting a 0.5"H paper label strip.
2.187"
19.0"
16.375"
19.0"
18.312"
1.625" 2.189"
.625"
1.250"
.375"
2.000"
Model. No. Description Former No. Panel Space (inches) Rack Units Carton Pack
N10P-ID-1 Neutrik-style 10-hole Panel with PocketID LN10-RMP 1.75 11
One rack unit = 1.75"
Spec. No. 1068
(rev. 01.18.11)
pg. 1 of 1
©2011 Lowell Manufacturing Company, 100 Integram Dr., Pacific MO 63069. Phone–800.325.9660 Fax—
636.257.6606. Lowell makes every effort to provide accurate information while reserving the right to change
specifications and/or improve manufacturing methods without notification. (lowellmfg.com)
“A” “A”
