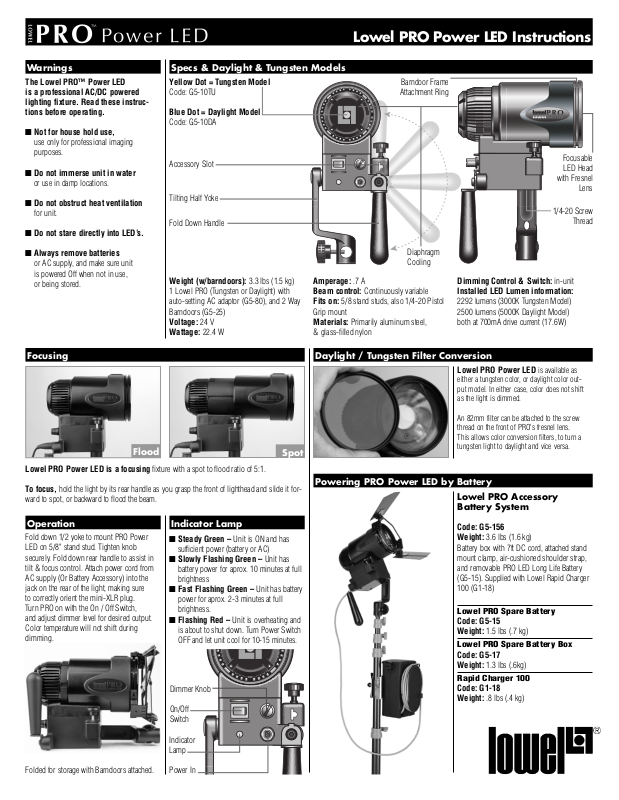

Lowel PRO Power LED Instructions
Warnings
The Lowel PRO™ Power LED
is a professional AC/DC powered
lighting fixture. Read these instructions before operating.
n Not for house hold use,
use only for professional imaging
purposes.
Do not immerse unit in water
n
or use in damp locations.
n Do not obstruct heat ventilation
for unit.
n Do not stare directly into LED’s.
n Always remove batteries
or AC supply, and make sure unit
is powered Off when not in use,
or being stored.
Focusing
Specs & Daylight & Tungsten Models
Yellow Dot = Tungsten Model
Code: G5-10TU
Blue Dot = Daylight Model
Code: G5-10DA
Accessory Slot
Tilting Half Yoke
Fold Down Handle
Weight (w/barndoors): 3.3 lbs (1.5 kg)
1 Lowel PRO (Tungsten or Daylight) with
auto-setting AC adaptor (G5-80), and 2 Way
Barndoors (G5-25)
Voltage: 24 V
Wattage: 22.4 W
Amperage: .7 A
Beam control: Continuously variable
Fits on: 5/8 stand studs, also 1/4-20 Pistol
Grip mount
Materials: Primarily aluminum steel,
& glass-filled nylon
Daylight / Tungsten Filter Conversion
Barndoor Frame
Attachment Ring
Diaphragm
Cooling
Focusable
LED Head
with Fresnel
1/4-20 Screw
Thread
Dimming Control & Switch: in-unit
Installed LED Lumen information:
2292 lumens (3000K Tungsten Model)
2500 lumens (5000K Daylight Model)
both at 700mA drive current (17.6W)
Lowel PRO Power LED
either a tungsten color, or daylight color output model. In either case, color does not shift
as the light is dimmed.
is available as
Lens
Flood
Lowel PRO Power LED is a focusing fixture with a spot to flood ratio of 5:1.
To focus, hold the light by its rear handle as you grasp the front of lighthead and slide it for-
ward to spot, or backward to flood the beam.
Operation
Fold down 1/2 yoke to mount PRO Power
LED on 5/8" stand stud. Tighten knob
securely. Fold down rear handle to assist in
tilt & focus control. Attach power cord from
AC supply (Or Battery Accessory) into the
jack on the rear of the light, making sure
to correctly orient the mini-XLR plug.
Turn PRO on with the On / Off Switch,
and adjust dimmer level for desired output.
Color temperature will not shift during
dimming.
Indicator Lamp
n Steady Green – Unit is ON and has
sufficient power (battery or AC)
n Slowly Flashing Green – Unit has
battery power for aprox. 10 minutes at full
brightness
n Fast Flashing Green – Unit has battery
power for aprox. 2-3 minutes at full
brightness.
n Flashing Red – Unit is overheating and
is about to shut down. Turn Power Switch
OFF and let unit cool for 10-15 minutes.
Dimmer Knob
On/Off
Switch
Spot
An 82mm filter can be attached to the screw
thread on the front of PRO's fresnel lens.
This allows color conversion filters, to turn a
tungsten light to daylight and vice versa.
Powering PRO Power LED by Battery
Lowel PRO Accessory
Battery System
Code: G5-156
Weight: 3.6 lbs (1.6 kg)
Battery box with 7ft DC cord, attached stand
mount clamp, air-cushioned shoulder strap,
and removable PRO LED Long Life Battery
(G5-15). Supplied with Lowel Rapid Charger
100 (G1-18)
Lowel PRO Spare Battery
Code: G5-15
Weight: 1.5 lbs (.7 kg)
Lowel PRO Spare Battery Box
Code: G5-17
Weight: 1.3 lbs (.6kg)
Rapid Charger 100
Code: G1-18
Weight: .8 lbs (.4 kg)
Folded for storage with Barndoors attached.
Indicator
Lamp
Power In
Page 2
Light Controls
PRO Power LED Softbox
Code: G5-30
Weight: 1.2 lbs (.6 kg)
Collapsible softbox attaches easily
to PRO Power LED Accessory slot
and sets up quickly, to give soft
flattering output.
Focus PRO LED to Flood position to fill diffuser screen with
light output.
Lowel PRO Power LED Instructions
Tota-brella
Photographic umbrellas convert relatively
hard light sources, such as spotlights, into
relatively soft sources that provide soft shadows and highlights.
Silver
Code: T1-25,
Reflective umbrella.
White
Code: T1-26
White nylon umbrella that produces a softer
light and also may be used as a large diffuser.
To Mount Umbrella
insert umbrella shaft into PRO's Accessory
Slot, and lock with knob.
PRO LED Gel Frame
Code: G5-40
Holds 5 x 6" gels. Unfold
frame, extending frame bar and
insert through Accessory Slot.
Lock with knob. Pans and tilts
with the light, collapses for
torage.
s
RO LED Gels
P
Code: G5-78
For correcting tungsten to daylight color
1 Full Day Blue,
1/2 Day Blue,
1
Code: G5-79
For correcting daylight to tungsten color
1 Full CTO
1 1/2 CTO
1 1/4 Day Blue,
Frost
2
1 1/4 CTO
2 Frost
Recommended Mounts
Lowel PRO Handle
Code: G5-41
For hand holding Lowel PRO Power
LED. Handle with 1/4-20 screwthreaded post, attaches to underside
of light.
Tota-clamp
Code: T1-30
Weight: 4 oz (113 g)
Clamps onto pipes and objects
up to 1 7/8" (4.8 cm) thick.
Safety Cable (3)
Code: CM-50
Size: 34" (86.4 cm)
Braided stainless-steel cable adds
security to lights and accessories
that are attached to overhead pipes,
beams, dropped-ceiling grids, etc.
(Set of 3).
Uni TO Stand
Code: UN-55
Size: 21.5" (54.6 cm)
folded.
Maximum height:
7'11" (2.4 m)
Base diameter: 43"
Barndoors
Use the clip-on 360° rotating
barndoors to trim unwanted output spill,
(for example: to reduce risk of shadow in
your shot caused by use of overhead boom
microphones). The 2 doors are spring
clipped to the rotating frame, and can be
repositioned as needed. They will expand
for use with PRO's wide flood beam.
To remove the barn door
frame from the light,
loosen the locking knob
sufficiently to release the
spring tension of the
frame. When reattaching,
make sure the guides
of the frame are fully
resting in the recessed
groove of the frame
attachment ring.
PRO Expandable
Barndoor Leaf
Code: G5-24
To supplement the 2 supplied barndoors
for 3 or 4 door use. Can also combine with
PRO Gel Frame & diffusion to create smaller
soft box effect.
For location studio use, hang PRO LED upside down from Tota-clamp. Always use securely
with Safety Cable, looped thru the hole in the stand yoke, and around the pipe.
