Instruction manual

Photometer-System

600

PM600_1c 03/2013

Safety precautions

CAUTION

Reagents are formulated exclusively for chemical analysis and must not be used for

any other purpose. Reagents must not get into the hands of children. Some of the

reagents contain substances which are not entirely harmless environmentally. Be

aware of the ingredients and take proper care when disposing of the test solution.

CAUTION

Please read this instruction manual before unpacking, setting up or using the

photometer. Please read the method description completely before performing

the test. Be aware of the risks of using the required reagents by reading the MSDS

(Material Safety Data Sheets). Failure could result in serious injury to the operator or

damage to the instrument.

MSDS: www.lovibond.com

CAUTION

The accuracy of the instrument is only valid if the instrument is used in an

environment with controlled electromagnetic disturbances according to DIN 61326.

Wireless devices, e.g. wireless phones, must not be used near the instrument.

Revision_1c 03/2013

PM600_1c 03/2013

Table of contents

Part 1 Methods

................................................................................................... 5

1.1 Table of Methods ..................................................................................................... 6

Alkalinity-total (Alkalinity-m, m-Value) ............................................................................... 8

Alkalinity-total HR (Alkalinity-m HR, m-Value HR) ............................................................ 10

Bromine .......................................................................................................................... 12

Chlorine .......................................................................................................................... 14

Chlorine with tablet ........................................................................................................ 16

differentiated determination (free, combined, total) .................................................... 16

free Chlorine ............................................................................................................... 18

total Chlorine .............................................................................................................. 19

Chlorine HR with tablet ................................................................................................... 20

differentiated determination (free, combined, total) .................................................... 20

free Chlorine ............................................................................................................... 22

total Chlorine .............................................................................................................. 23

Copper with tablet .......................................................................................................... 24

differentiated determination (free, combined, total) .................................................... 25

free Copper ................................................................................................................ 26

total Copper ............................................................................................................... 27

CyA-TEST (Cyanuric acid) ................................................................................................ 28

Hardness, Calcium with Calcio tablet .............................................................................. 30

Iron with tablet ............................................................................................................... 32

Ozone ............................................................................................................................. 34

in presence of Chlorine ............................................................................................... 36

in absence of Chlorine ................................................................................................ 38

Phosphate, ortho LR with tablet ...................................................................................... 40

pH value with tablet ........................................................................................................ 42

Sodium hypochlorite ....................................................................................................... 44

1.2 Important notes ........................................................................................... 46

1.2.1 Correct use of reagents .................................................................................. 46

1.2.2 Cleaning of vials and accessories for analysis .................................................. 46

1.2.3 Guidelines for photometric measurements ..................................................... 46

1.2.4 Sample dilution techniques ............................................................................. 48

1.2.5 Correcting for volume additions ..................................................................... 48

PM600_1c 03/2013

Part 2 Instrument Manual ......................................................................... 49

2.1 Operation ..................................................................................................... 50

2.1.1 Set up ............................................................................................................ 50

2.1.2 Saving data – Important Notes ....................................................................... 50

2.1.3 Replacement of batteries ................................................................................ 50

2.1.4 Instrument (explosion drawing) ...................................................................... 51

2.2 Overview of function keys ......................................................................... 53

2.2.1 Overview ........................................................................................................ 53

2.2.2 Displaying time and date ................................................................................ 54

2.2.3 User countdown ............................................................................................. 54

2.2.4 Display backlight ............................................................................................ 54

2.3 Operation mode .......................................................................................... 55

2.3.1 Automatic switch off ...................................................................................... 55

2.3.2 Selecting a method ........................................................................................ 55

2.3.2.1 Method Information (F1) ................................................................................ 55

2.3.2.2 Chemical Species Information ......................................................................... 56

2.3.3 Differentiation ................................................................................................ 56

2.3.4 Performing Zero ............................................................................................. 56

2.3.5 Performing Tests ............................................................................................. 57

2.3.6 Ensuring reaction periods (countdown) ........................................................... 57

2.3.7 Changing chemical species ............................................................................. 58

2.3.8 Storing results ................................................................................................ 58

2.3.9 Printing results (Infra-Red Interface Module) (optional) .................................... 59

2.3.10 Perform additional measurements .................................................................. 59

2.3.11 Selecting a new method ................................................................................. 60

2.3.12 Measure absorbance ...................................................................................... 60

2.4 Photometer settings: Table of Mode Functions ........................................ 61

2.4.1 blank because of technical requirements ........................................................ 62

2.4.2 Instrument basic settings 1 ............................................................................. 62

2.4.3 Printing of stored results ................................................................................. 66

2.4.4 Recall / delete stored results............................................................................ 71

2.4.5 Calibration ..................................................................................................... 76

2.4.6 Lab function ................................................................................................... 82

Proﬁ-Mode ..................................................................................................... 82

One Time Zero ............................................................................................... 83

2.4.7 User operations .............................................................................................. 84

PM600_1c 03/2013

User method list ............................................................................................. 84

User Concentration Methods .......................................................................... 86

User Polynomials ............................................................................................ 88

Delete User Methods ...................................................................................... 91

Print Data of User Methods ............................................................................ 92

Initialise User Method System ......................................................................... 93

2.4.8 Special functions ............................................................................................ 94

Langelier Saturation Index .............................................................................. 94

2.4.9 Instrument basic settings 2 ............................................................................. 96

2.4.10 Instrument special functions /service ............................................................... 97

2.5 Data transfer ................................................................................................ 98

2.5.1 Data Printing .................................................................................................. 98

2.5.2 Data transfer to a personal computer ............................................................. 98

2.5.3 Internet Updates ............................................................................................ 98

Part 3 Enclosure ................................................................................................ 99

3.1 Unpacking .................................................................................................. 100

3.2 Delivery contents ...................................................................................... 100

3.3 blank because of technical requirements ................................................ 100

3.4 Technical data ............................................................................................ 101

3.5 Abbreviations ............................................................................................ 102

3.6 Troubleshooting ........................................................................................ 103

3.6.1 Operating messages in the display / error display .......................................... 103

3.6.2 General ........................................................................................................ 105

3.7 Declaration of CE-Conformity .................................................................. 106

PM600_1c 03/2013

Part 1

Methods

PM600_1c 03/2013

1.1 Table of Methods

* = free, combined, total; T = tablet; LR = low range

No. Analysis Reagent Range Displayed asMethod

[nm]

OTZ Page

Alkalinity, total T

tablet 5-200 mg/l CaCO3Acid/Indicator

1,2,5

610 8

Alkalinity HR, total T

tablet 5-500 mg/l CaCO3Acid/Indicator

1,2,5

610 10

80 Bromine T tablet 0.05-13 mg/l Br

DPD

530 12

100 Chlorine T * tablet 0.01-6 mg/l Cl

DPD

1,2,3

530 14, 16

103 Chlorine HR T * tablet 0.1-10 mg/l Cl

DPD

1,2,3

530 14, 20

150 Copper T * tablet 0.05-5 mg/l Cu Biquinoline

560 24

160

CyA-TEST T

tablet 0-160 mg/l CyA Melamine 530 28

191 Hardness, Calcium 2Ttablet 0-500 mg/l CaCO

Murexide

560 30

220 Iron T tablet 0.02-1 mg/l Fe PPST

560

300

Ozone (DPD) T

tablet 0.02-2 mg/l O

DPD/Glycine

530 34

319 Phosphate, T

ortho LR

tablet 0.05-4 mg/l PO

Ammoniummolybdate

2,3

660 40

330 pH-Value T tablet 6.5-8.4 — Phenolred

560 42

212 Sodium

hypochlorite T

tablet 0.2-16 % NaOCl Potassium

iodide

530 44

PM600_1c 03/2013

1.1 Methods

The precision of Lovibond® Reagent Systems (tablets, powder packs and tube tests) is identical to the precision speciﬁed in standards literature such as American Standards (AWWA), ISO etc.

Most of the data referred to in these standard methods relates to Standard Solutions. Therefore they are not readily applicable to drinking-, boiler- or waste-water, since various interferences can have a major inﬂuence on the accuracy of the method. For this reason we don’t state such potentially misleading data.

Due to the fact that each sample is different, the only way to check the tolerances (‘precision’) is the Standard Additions Method.

According to this method, ﬁrst the original sample is tested. Then further samples (2 to 4) are taken and small amounts of a Standard Solution are added, and further results are obtained. The amounts added range from approximately half, up to double the amount present in the sample itself.

These supplementary results make it possible to estimate the actual concentration of the original sample by comparison.

Literature

The reagent formulations are based on internationally recognised test methods. Some are described in national and/or international guidelines.

Deutsche Einheitsverfahren zur Wasser-, Abwasser- und Schlammuntersuchung1. Standard Methods for the Examination of Water and Wastewater; 18th Edition, 19922. Photometrische Analysenverfahren, Schwedt, 3.

Wissenschaftliche Verlagsgesellschaft mbH, Stuttgart 1989 Photometrische Analyse, Lange / Vejdelek, Verlag Chemie 19804. Colorimetric Chemical Analytical Methods, 9th Edition, London5.

Notes for searching:

OTZ (OneTimeZero) switching on and off, see Mode 55, page 83

Alkalinity-m -> Alkalinity, total Cyanuric acid -> CyA-TEST Calcium Hardness -> Hardness, Calcium m-Value -> Alkalinity, total total Hardness -> Hardness, total

Langelier Saturation -> Mode function 70 Index (Water Balance)

PM600_1c 03/2013

1.1 Methods

Alkalinity, total = Alkalinity-m = m-Value with Tablet

5 – 200 mg/l CaCO

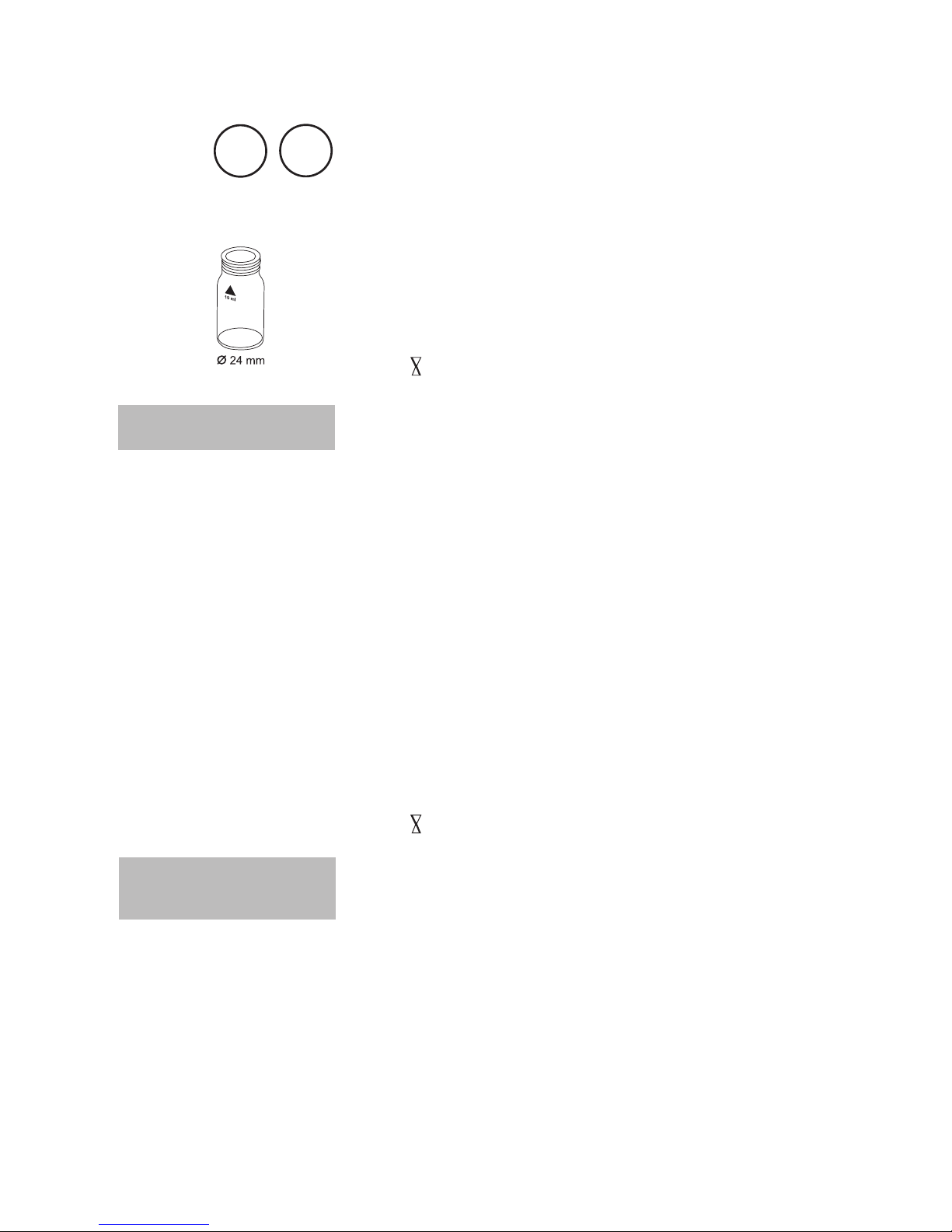

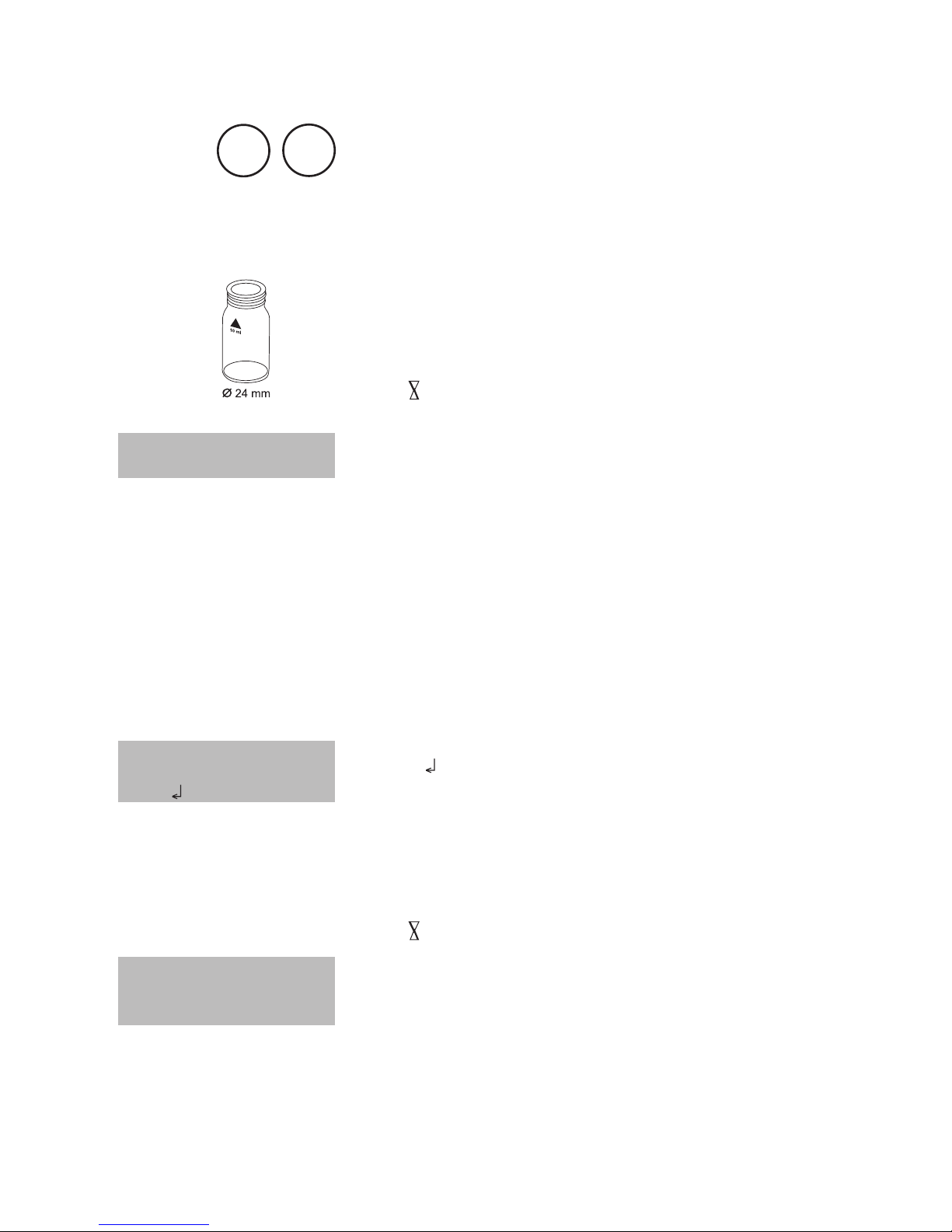

1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap.

2. Place the vial in the sample chamber making sure that the

marks are aligned.

3. Press ZERO key.

4. Remove the vial from the sample chamber.

5. Add one ALKA-M-PHOTOMETER tablet straight from the foil to the water sample and crush the tablet using a clean stirring rod.

6. Close the vial tightly with the cap and swirl several times until the tablet is dissolved.

7. Place the vial in the sample chamber making sure that the

marks are aligned.

8. Press TEST key.

The result is shown in the display as total Alkalinity.

prepare Zero press ZERO

Zero accepted prepare Test press TEST

PM600_1c 03/2013

1.1 Methods

Notes:

The terms total Alkalinity, Alkalinity-m, m-Value and Alkalinity to pH 4.3 are identical.1. For accurate results exactly 10 ml of water sample must be taken for the test.2. Conversion table: 3.

Acid demand to pH 4.3

DIN 38 409 (KS4.3)

German

°dH*

English

°eH*

French

°fH*

1 mg/l CaCO

0.02 0.056 0.07 0.1

*Carbonate hardness (reference = Hydrogencarbonate-anions) Example: 10 mg/l CaCO

= 10 mg/l x 0.056 = 0.56 °dH

10 mg/l CaCO3 = 10 mg/l x 0.02 = 0.2 mmol/l

4. CaCO3 °dH °eH °fH

°aH

PM600_1c 03/2013

1.1 Methods

Alkalinity HR, total = Alkalinity-m HR = m-Value HR with Tablet

5 – 500 mg/l CaCO

1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap.

2. Place the vial in the sample chamber making sure that the

marks are aligned.

3. Press ZERO key.

4. Remove the vial from the sample chamber.

5. Add one ALKA-M-HR PHOTOMETER tablet straight from the foil to the water sample and crush the tablet using a clean stirring rod.

6. Close the vial tightly with the cap and swirl several times until the tablet is dissolved.

7. Press [

] key.

Wait for a reaction period of 1 minute.

8. Remix the solution.

9. Place the vial in the sample chamber making sure that the

marks are aligned.

10. Press TEST key.

The result is shown in the display as total Alkalinity.

prepare Zero press ZERO

Zero accepted prepare Test press TEST

Countdown 1:00 start:

PM600_1c 03/2013

1.1 Methods

Notes:

For veriﬁcation of the result look carefully at the bottom of the vial. If a thin yellow layer 1. forms, then mix the vial again. This ensures that reaction is complete. Reread the result.

Conversion table: 2.

Acid demand to pH 4.3

DIN 38 409 (KS4.3)

German

°dH*

English

°eH*

French

°fH*

1 mg/l CaCO

0.02 0.056 0.07 0.1

*Carbonate hardness (reference = Hydrogencarbonate-anions) Example: 10 mg/l CaCO

= 10 mg/l x 0.056 = 0.56 °dH

10 mg/l CaCO3 = 10 mg/l x 0.02 = 0.2 mmol/l

3. CaCO3 °dH °eH °fH

°aH

PM600_1c 03/2013

1.1 Methods

Bromine with Tablet

0.05 – 13 mg/l Br

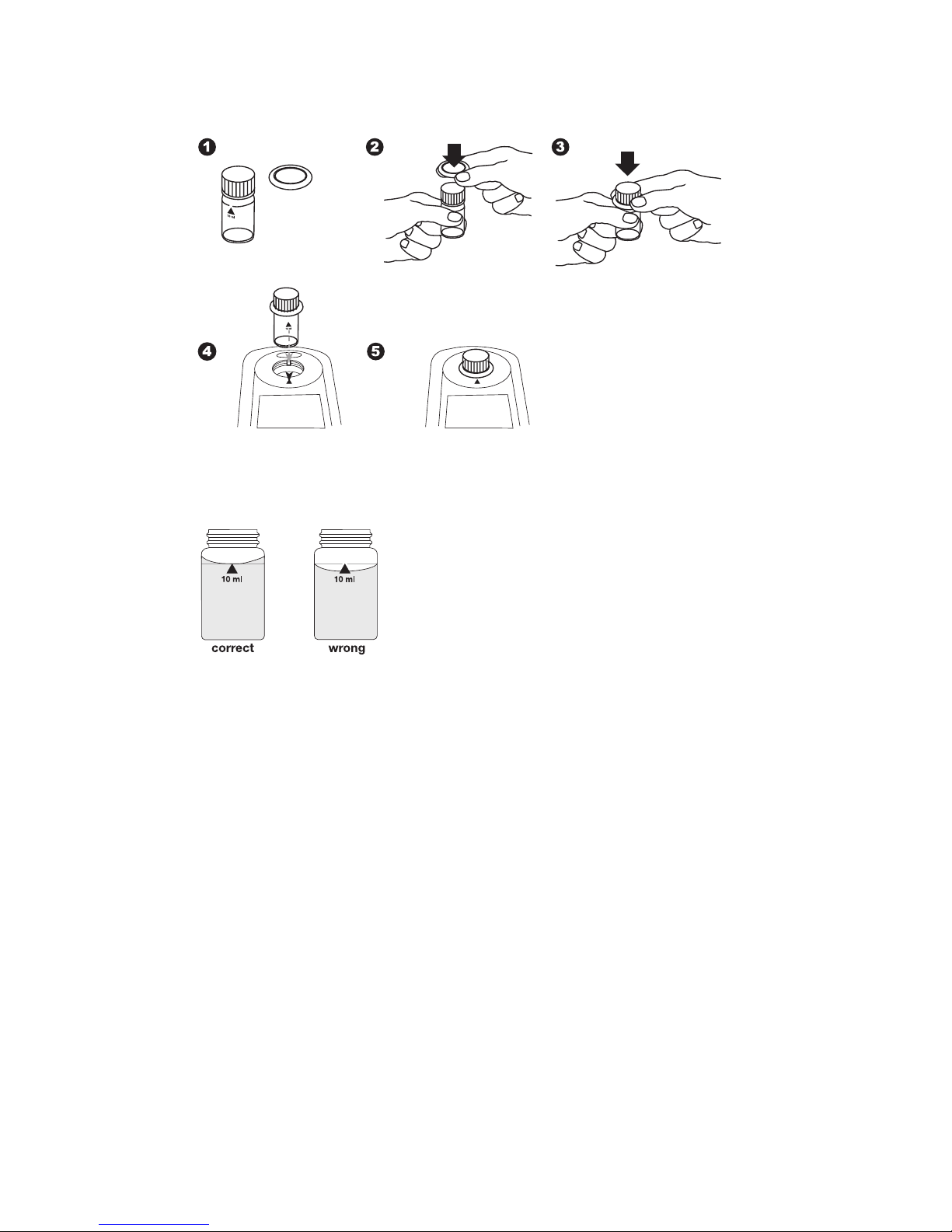

1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap.

2. Place the vial in the sample chamber making sure that the

marks are aligned.

3. Press ZERO key.

4. Remove the vial from the sample chamber and empty it, leaving a few drops remaining in the vial.

5. Add one DPD No. 1 tablet straight from the foil and crush the tablet using a clean stirring rod.

6. Add water sample to the 10 ml mark.

7. Close the vial tightly with the cap and swirl several times until the tablet is dissolved.

8. Place the vial in the sample chamber making sure that the

marks are aligned.

9. Press TEST key.

The result is shown in the display in mg/l Bromine.

prepare Zero press ZERO

Zero accepted prepare Test press TEST

PM600_1c 03/2013

1.1 Methods

Notes:

Vial cleaning: 1. As many household cleaners (e.g. dishwasher detergent) contain reducing substances,the subsequent determination of Bromine may show lower results. To avoid any measurement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glassware into Sodium hypochlorite solution (0.1 g/l) forone hour, then rinse all glassware thoroughly with deionised water.

Preparing the sample: 2. When preparing the sample, the lost of Bromine, e.g. by pipetting or shaking, must be avoided. The analysis must take place immediately after taking the sample.

The DPD colour development is carried out at a pH value of 6.2 to 6.5. The reagent 3. tablet therefore contains a buffer for the pH adjustment. Strong alkaline or acidic water samples must be adjusted between pH 6 and pH 7 before the reagent is added (use 0.5 mol/l Sulfuric acid resp. 1 mol/l Sodium hydroxide).

Exceeding the measuring range: 4. Concentrations above 22 mg/l Bromine can lead to results showing 0 mg/l. In this case, the water sample must be diluted with water free of Bromine. 10 ml of the diluted sample should be mixed with the reagent and the measurement repeated.

Oxidising agents such as Chlorine, Ozone etc. interfere as they react in the same way as 5. Bromine.

PM600_1c 03/2013

1.1 Methods

Chlorine with Tablet

0.01 – 6 mg/l Cl

Chlorine HR with Tablet

0.1 – 10 mg/l Cl

The following selection is shown in the display:

for the differentiated determination of free, combined and total Chlorine.

for the determination of free Chlorine.

for the determination of total Chlorine.

Select the desired determination with the arrow

keys [

] and [ ]. Conﬁrm with [ ] key.

Chlorine >> diff free total

>> diff

>> free

>> total

PM600_1c 03/2013

1.1 Methods

Notes:

Vial cleaning: 1. As many household cleaners (e.g. dishwasher detergent) contain reducing substances, the subsequent determination of Chlorine may show lower results. To avoid any measurement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glassware into Sodium hypochlorite solution (0.1 g/l) for one hour, then rinse all glassware thoroughly with deionised water.

For individual testing of free and total Chlorine, the use of different sets of glassware is 2. recommended (EN ISO 7393-2, 5.3)

Preparing the sample: 3. When preparing the sample, the lost of Chlorine, e.g. by pipetting or shaking, must be avoided. The analysis must take place immediately after taking the sample.

The DPD colour development is carried out at a pH value of 6.2 to 6.5. The reagents 4. therefore contain a buffer for the pH adjustment. Strong alkaline or acidic water samples must be adjusted between pH 6 and pH 7 before the reagent is added (use 0.5 mol/l Sulfuric acid resp. 1 mol/l Sodium hydroxide).

Exceeding the measuring range: 5. Concentrations above: 10 mg/l Chlorine using tablets (method 100) can lead to results showing 0 mg/l. In this case, the water sample must be diluted with water free of Chlorine. 10 ml of the diluted sample should be mixed with the reagent and the measurement repeated.

Turbidity (can lead to errors): 6. The use of the DPD No. 1 tablet (method 100) in samples with high Calcium ion contents* and/or high conductivity* can lead to turbidity of the sample and therefore incorrect measurements. In this case, the reagent tablet DPD No. 1 High Calcium should be used as an alternative. If turbidity does occur after the DPD No. 3 tablet has been added, this can be prevented by using the DPD No. 1 HIGH CALCIUM tablet and the DPD No.3 High Calcium tablet. The DPD No. 1 High Calcium should only be used in combination with the DPD No.3 High Calcium.

* it is not possible to give exact values, because the development of turbidity depends on the nature of the sample.

If ??? is displayed at a differentiated test result see page 104.7. Oxidizing agents such as Bromine, Ozone etc. interfere as they react in the same way as 8.

Chlorine.

PM600_1c 03/2013

1.1 Methods

Chlorine, differentiated determination with Tablet

0.01 – 6 mg/l Cl

1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap.

2. Place the vial in the sample chamber making sure that the

marks are aligned.

3. Press ZERO key.

4. Remove the vial from the sample chamber and empty it, leaving a few drops remaining in the vial.

5. Add one DPD No. 1 tablet straight from the foil and crush the tablet using a clean stirring rod.

6. Add water sample to the 10 ml mark.

7. Close the vial tightly with the cap and swirl several times until the tablet is dissolved.

8. Place the vial in the sample chamber making sure that the

marks are aligned.

9. Press TEST key.

10. Remove the vial from the sample chamber.

11. Add one DPD No. 3 tablet straight from the foil to the same water sample and crush the tablet using a clean stirring rod.

12. Close the vial tightly with the cap and swirl several times until the tablet is dissolved.

prepare Zero press ZERO

Zero accepted prepare T1 press TEST

PM600_1c 03/2013

1.1 Methods

13. Place the vial in the sample chamber making sure that the marks are aligned.

14. Press TEST key. Wait for a reaction period of 2 minutes.

After the reaction period is ﬁnished the measurement starts automatically.

The result is shown in the display in:

mg/l free Chlorine mg/l combined Chlorine mg/l total Chlorine

Notes:

See page 15

T1 accepted prepare T2 press TEST

Countdown 2:00

*,** mg/l free Cl *,** mg/l comb Cl *,** mg/l total Cl

PM600_1c 03/2013

1.1 Methods

Chlorine, free with Tablet

0.01 – 6 mg/l Cl

1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap.

2. Place the vial in the sample chamber making sure that the

marks are aligned.

3. Press ZERO key.

4. Remove the vial from the sample chamber and empty it, leaving a few drops remaining in the vial.

5. Add one DPD No. 1 tablet straight from the foil and crush the tablet using a clean stirring rod.

6. Add water sample to the 10 ml mark.

7. Close the vial tightly with the cap and swirl several times until the tablet is dissolved.

8. Place the vial in the sample chamber making sure that the

marks are aligned.

9. Press TEST key.

The result is shown in the display in mg/l free

Chlorine.

Notes:

See page 15

prepare Zero press ZERO

Zero accepted prepare Test press TEST

PM600_1c 03/2013

1.1 Methods

Chlorine, total with Tablet

0.01 – 6 mg/l Cl

1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap.

2. Place the vial in the sample chamber making sure that the

marks are aligned.

3. Press ZERO key.

4. Remove the vial from the sample chamber and empty it, leaving a few drops remaining in the vial.

5. Add one DPD No. 1 tablet and one DPD No. 3 tablet straight from the foil and crush the tablets using a clean stirring rod.

6. Add water sample to the 10 ml mark.

7. Close the vial tightly with the cap and swirl several times until the tablets are dissolved.

8. Place the vial in the sample chamber making sure that the

marks are aligned.

9. Press TEST key. Wait for a reaction period of 2 minutes.

After the reaction period is ﬁnished the measurement starts automatically.

The result is shown in the display in mg/l total Chlorine.

Notes:

See page 15

prepare Zero press ZERO

Zero accepted prepare Test press TEST

Countdown 2:00

PM600_1c 03/2013

1.1 Methods

Chlorine HR, differentiated determination with Tablet

0.1 – 10 mg/l Cl

1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap.

2. Place the vial in the sample chamber making sure that the

marks are aligned.

3. Press ZERO key.

4. Remove the vial from the sample chamber and empty it, leaving a few drops remaining in the vial.

5. Add one DPD No. 1 HR tablet straight from the foil and crush the tablet using a clean stirring rod.

6. Add water sample to the 10 ml mark.

7. Close the vial tightly with the cap and swirl several times until the tablet is dissolved.

8. Place the vial in the sample chamber making sure that the

marks are aligned.

9. Press TEST key.

10. Remove the vial from the sample chamber.

11. Add one DPD No. 3 HR tablet straight from the foil to the same water sample and crush the tablet using a clean stirring rod.

prepare Zero press ZERO

Zero accepted prepare T1 press TEST

PM600_1c 03/2013

1.1 Methods

12. Close the vial tightly with the cap and swirl several times until the tablet is dissolved.

13. Place the vial in the sample chamber making sure that the

marks are aligned.

14. Press TEST key. Wait for a reaction period of 2 minutes.

After the reaction period is ﬁnished the measurement

starts automatically.

The result is shown in the display in:

mg/l free Chlorine mg/l combined Chlorine mg/l total Chlorine

Notes:

See page 15

T1 accepted prepare T2 press TEST

Countdown 2:00

*,** mg/l free Cl *,** mg/l comb Cl *,** mg/l total Cl

PM600_1c 03/2013

1.1 Methods

Chlorine HR, free with Tablet

0.1 – 10 mg/l Cl

1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap.

2. Place the vial in the sample chamber making sure that the

marks are aligned.

3. Press ZERO key.

4. Remove the vial from the sample chamber and empty it, leaving a few drops remaining in the vial.

5. Add one DPD No. 1 HR tablet straight from the foil and crush the tablet using a clean stirring rod.

6. Add water sample to the 10 ml mark.

7. Close the vial tightly with the cap and swirl several times until the tablet is dissolved.

8. Place the vial in the sample chamber making sure that the

marks are aligned.

9. Press TEST key.

The result is shown in the display in mg/l free

Chlorine.

Notes:

See page 15

prepare Zero press ZERO

Zero accepted prepare Test press TEST

PM600_1c 03/2013

1.1 Methods

Chlorine HR, total with Tablet

0.1 – 10 mg/l Cl

1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap.

2. Place the vial in the sample chamber making sure that the

marks are aligned.

3. Press ZERO key.

4. Remove the vial from the sample chamber and empty it, leaving a few drops remaining in the vial.

5. Add one DPD No. 1 tablet and one DPD No. 3 tablet straight from the foil and crush the tablets using a clean stirring rod.

6. Add water sample to the 10 ml mark.

7. Close the vial tightly with the cap and swirl several times until the tablets are dissolved.

8. Place the vial in the sample chamber making sure that the

marks are aligned.

9. Press TEST key. Wait for a reaction period of 2 minutes.

After the reaction period is ﬁnished the measurement

starts automatically.

The result is shown in the display in mg/l total

Chlorine.

Notes:

See page 15

prepare Zero press ZERO

Zero accepted prepare Test press TEST

Countdown 2:00

PM600_1c 03/2013

1.1 Methods

Copper with Tablet

0.05 – 5 mg/l Cu

The following selection is shown in the display:

for the differentiated determination of free, combined and total Copper.

for the determination of free Copper.

for the determination of total Copper.

Select the desired determination with the arrow keys [

] and [ ]. Conﬁrm with [ ] key.

Note:

1. If ??? is displayed at the diffentiated test result see page 104.

Copper >> diff free total

>> diff

>> free

>> total

PM600_1c 03/2013

1.1 Methods

Copper, differentiated determination with Tablet

0.05 – 5 mg/l Cu

1. Fill a clean vial (24 mm Ø) with 10 ml of the water

sample, close tightly with the cap.

2. Place the vial in the sample chamber making sure that

the

marks are aligned.

3. Press ZERO key.

4. Remove the vial from the sample chamber.

5. Add one COPPER No. 1 tablet straight from the foil

to the water sample and crush the tablet using a clean stirring rod.

6. Close the vial tightly with the cap and swirl several times

until the tablet is dissolved.

7. Place the vial in the sample chamber making sure that

the

marks are aligned.

8. Press TEST key.

9. Remove the vial from the sample chamber.

10. Add one COPPER No. 2 tablet straight from the foil

to the same water sample and crush the tablet using a clean stirring rod.

11. Close the vial tightly with the cap and swirl several times

until the tablet is dissolved.

12. Place the vial in the sample chamber making sure that

the

marks are aligned.

13. Press TEST key.

The result is shown in the display in: mg/l free Copper mg/l combined Copper mg/l total Copper

*,** mg/l free Cu

*,** mg/l comb Cu *,** mg/l total Cu

Zero accepted prepare T1 press TEST

prepare Zero press ZERO

T1 accepted prepare T2 press TEST

PM600_1c 03/2013

1.1 Methods

Copper, free with Tablet

0.05 – 5 mg/l Cu

1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap.

2. Place the vial in the sample chamber making sure that the

marks are aligned.

3. Press ZERO key.

4. Remove the vial from the sample chamber.

5. Add one COPPER No. 1 tablet straight from the foil to the water sample and crush the tablet using a clean stirring rod.

6. Close the vial tightly with the cap and swirl several times until the tablet is dissolved.

7. Place the vial in the sample chamber making sure that the

marks are aligned.

8. Press TEST key.

The result is shown in the display in mg/l free Copper.

prepare Zero press ZERO

Zero accepted prepare Test press TEST

PM600_1c 03/2013

1.1 Methods

Copper, total with Tablet

0.05 – 5 mg/l Cu

1. Fill a clean vial (24 mm Ø) with 10 ml of the water

sample, close tightly with the cap.

2. Place the vial in the sample chamber making sure that

the

marks are aligned.

3. Press ZERO key.

4. Remove the vial from the sample chamber.

5. Add one COPPER No. 1 tablet and one COPPER

No. 2 tablet straight from the foil to the water sample and crush the tablets using a clean stirring rod.

6. Close the vial tightly with the cap and swirl several times

until the tablets are dissolved.

7. Place the vial in the sample chamber making sure that

the

marks are aligned.

8. Press TEST key.

The result is shown in the display in mg/l total Copper.

prepare Zero press ZERO

Zero accepted prepare Test press TEST

PM600_1c 03/2013

1.1 Methods

CyA-TEST (Cyanuric acid) with Tablet

0 – 160 mg/l CyA

1. Fill a clean vial (24 mm Ø) with 5 ml of the water sample and 5 ml deionised water (Note 1), close tightly with the cap.

2. Place the vial in the sample chamber making sure that the

marks are aligned.

3. Press ZERO key.

4. Remove the vial from the sample chamber.

5. Add one CyA-TEST tablet straight from the foil to the prepared water sample and crush the tablet using a clean stirring rod.

6. Close the vial tightly with the cap and swirl several times until the tablet is dissolved (Note 2, 3).

7. Place the vial in the sample chamber making sure that the

marks are aligned.

8. Press TEST key.

The result is shown in the display in mg/l Cyanuric acid.

prepare Zero press ZERO

Zero accepted prepare Test press TEST

PM600_1c 03/2013

1.1 Methods

Notes:

Use deionised water or tap water free of Cyanuric acid.1. If Cyanuric acid is present a cloudy solution will occur. 2.

Small single particles are not necessarily caused by Cyanuric acid. Dissolve the tablet completely (therefore swirl the vial approx. 1 minute). 3.

Un-dissolved particles of the tablet can cause results that are too high.

PM600_1c 03/2013

1.1 Methods

Hardness, Calcium 2T with Tablet

0 – 500 mg/l CaCO

1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap.

2. Place the vial in the sample chamber making sure that the

marks are aligned.

3. Press ZERO key.

4. Remove the vial from the sample chamber.

5. Add one CALCIO H No. 1 tablet straight from the foil to the 10 ml water sample, crush the tablet using a clean stirring rod and dissolve the tablet completely.

6. Add one CALCIO H No. 2 tablet straight from the foil to the same water sample and crush the tablet using a clean stirring rod.

7. Close the vial tightly with the cap and swirl gently several times until the tablet is completely dissolved.

8. Place the vial in the sample chamber making sure that

the

marks are aligned.

9. Press TEST key.

Wait for a reaction period of 2 minutes.

After the reaction period is ﬁnished the measurement starts automatically.

The result is shown in the display as Calcium Hardness.

Zero accepted prepare Test press TEST

prepare Zero press ZERO

Countdown 2:00

9 1

PM600_1c 03/2013

1.1 Methods

Notes:

1. To optimise the readings an optional batch related calibration can be performed using Mode 40, see page 76.

2. Strong alkaline or acidic water samples must be adjusted to a pH-value between pH 4 and 10 before the tablets are added (use 1 mol/l Hydrochloride acid resp. 1 mol/l Sodium hydroxide).

3. For accurate test results exactly 10 ml of water sample must be taken for the test.

4. This method was developed from a volumetric procedure for the determination of Calcium Hardness. Due to undeﬁned conditions, the deviations from the standardised method may be greater.

5. The tolerance of the method is increasing with higher concentrations. When diluting samples, this should be taken in account, always measuring in the ﬁrst third of the range.

6. Interferences:

 •Magnesiumhardnessupto200mg/lCaCO3 does not interfere.  •Ironconcentrationabove10mg/lmaycauselowresults.  •Zincconcentrationabove5mg/lmaycausehighresults.

CaCO

°dH °eH °fH °aH

PM600_1c 03/2013

1.1 Methods

Iron (Note 1) with Tablet

0.02 – 1 mg/l Fe

Determination of total dissolved Iron Fe

and Fe

*This information refers to analysis of the water sample without digestion.

1. Fill a clean vial (24 mm Ø) with 10 ml of the water

sample, close tightly with the cap.

2. Place the vial in the sample chamber making sure that

the

marks are aligned.

3. Press ZERO key.

4. Remove the vial from the sample chamber.

5. Add one IRON LR tablet straight from the foil to the

water sample and crush the tablet using a clean stirring rod.

6. Close the vial tightly with the cap and swirl several times

until the tablet is dissolved.

7. Place the vial in the sample chamber making sure that

the

marks are aligned.

8. Press TEST key.

Wait for a reaction period of 5 minutes.

After the reaction period is ﬁnished the measurement starts automatically.

The result is shown in the display in mg/l Iron (Fe

2+/3+

Notes:

This method determines the total dissolved Iron as Fe1.

and Fe3+.

The IRON (II) LR tablet is used for differentiation – as described above – instead of the 2. IRON LR tablet. Fe3+ = Fe

2+/3+

– Fe

For the determination of total dissolved and undissolved iron digestion is required. 3. An example is described on page 135.

prepare Zero press ZERO

Zero accepted prepare Test press TEST

Countdown 5:00

PM600_1c 03/2013

1.1 Methods

Notes:

Digestion procedure for the determination of total dissolved and undissolved iron.

Add 1 ml of concentrated sulfuric acid to 100 ml water sample. Heat and boil for 10 1. minutes or until all particles are dissolved. After cooling down, the sample is set to a pH-value of 3 to 6 by using ammonia solution. Reﬁll with deionised water to the previous volume of 100 ml and mix well. 10 ml of this pre-treated solution is used for the following analysis. Perform as described by the selected test method.

Water which has been treated with organic compounds like corrosion inhibitors must 2. be oxidised where necessary to break down the iron. Therefore add 1 ml concentrated sulfuric acid and 1 ml concentrated nitric acid to 100 ml water sample and boil to approx. half volume. After cooling down, proceed as described above.

result Bresult A

minus

= Fe

+ Fe

IRON LR

tablet

IRON (II) LR

tablet

method

220

dissolved Iron

dissolved and

undissolved Iron

Filtration Digestion

Iron Determination

PM600_1c 03/2013

1.1 Methods

Ozone with Tablet

0.02 – 2 mg/l O

The following selection is shown in the display:

for the determination of Ozone in the presence of Chlorine.

for the determination of Ozone in the absence of Chlorine.

Select the desired method with the arrow keys [

] and [ ]. Conﬁrm with [ ] key.

Ozon >> with Cl without Cl

>> with Cl

>> without Cl

PM600_1c 03/2013

1.1 Methods

Notes:

Vial cleaning: 1. As many household cleaners (e.g. dishwasher detergent) contain reducing substances, the subsequent determination of Ozone may show lower results. To avoid any measurement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glassware into Sodium hypochlorite solution (0.1 g/l) for one hour, then rinse all glassware thoroughly with deionised water.

Preparing the sample: 2. When preparing the sample, the lost of Ozone, e.g. by pipetting or shaking, must be avoided. The analysis must take place immediately after taking the sample.

The DPD colour development is carried out at a pH value of 6.2 to 6.5. The reagent 3. tablet therefore contains a buffer for the pH adjustment. Strong alkaline or acidic water samples must be adjusted between pH 6 and pH 7 before the tablet is added (use 0.5 mol/l Sulfuric acid resp. 1 mol/l Sodium hydroxide).

Exceeding the measuring range: 4. Concentrations above 6 mg/l Ozone can lead to results showing 0 mg/l. In this case, the water sample must be diluted with water free of Ozone. 10 ml of the diluted sample should be mixed with the reagent and the measurement repeated.

If ??? is displayed at the diffentiated test result see page 104.5. Oxidising agents such as Bromine, Chlorine etc. interfere as they react in the same way 6.

as Ozone.

PM600_1c 03/2013

1.1 Methods

Ozone, in the presence of Chlorine with Tablet

0.02 – 2 mg/l O

1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap.

2. Place the vial in the sample chamber making sure that the

marks are aligned.

3. Press ZERO key.

4. Remove the vial from the sample chamber and empty it, leaving a few drops remaining in the vial.

5. Add one DPD No. 1 tablet and one DPD No. 3 tablet straight from the foil and crush the tablets using a clean stirring rod.

6. Add water sample to the 10 ml mark.

7. Close the vial tightly with the cap and swirl several times until the tablets are dissolved.

8. Place the vial in the sample chamber making sure that the

marks are aligned.

9. Press TEST key.

Wait for a reaction period of 2 minutes.

After the reaction period is ﬁnished the measurement

starts automatically.

10. Remove the vial from the sample chamber, empty the vial, rinse vial and cap several times.

11. Fill a second clean vial with 10 ml of water sample.

12. Add one GLYCINE tablet straight from the foil and crush the tablet using a clean stirring rod.

prepare Zero press ZERO

Zero accepted prepare T1 press TEST

Countdown 2:00

0 0

PM600_1c 03/2013

1.1 Methods

13. Close the vial tightly with the cap and swirl several times until the tablet is dissolved.

14. Add one DPD No. 1 tablet and one DPD No. 3 tablet straight from the foil into the ﬁrst cleaned vial and crush the tablets using a clean stirring rod.

15. Transfer the contents of the second vial (Glycine

solution) into the prepared vial (point 14).

16. Close the vial tightly with the cap and swirl several times until the tablets are dissolved.

17. Place the vial in the sample chamber making sure that the

marks are aligned.

18. Press TEST key.

Wait for a reaction period of 2 minutes.

After the reaction period is ﬁnished the measurement

starts automatically.

The result is shown in the display in:

mg/l Ozone

mg/l total Chlorine

Notes:

See page 35

Countdown 2:00

T1 accepted prepare T2 press TEST

*,** mg/l O

*,** mg/l total Cl

PM600_1c 03/2013

1.1 Methods

Ozone, in absence of Chlorine with Tablet

0.02 – 2 mg/l O

1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap.

2. Place the vial in the sample chamber making sure that the

marks are aligned.

3. Press ZERO key.

4. Remove the vial from the sample chamber and empty it, leaving a few drops remaining in the vial.

5. Add one DPD No. 1 tablet and one DPD No. 3 tablet straight from the foil and crush the tablets using a clean stirring rod.

6. Add water sample to the 10 ml mark.

7. Close the vial tightly with the cap and swirl several times until the tablets are dissolved.

8. Place the vial in the sample chamber making sure that the

marks are aligned.

9. Press TEST key. Wait for a reaction period of 2 minutes.

After the reaction period is ﬁnished the measurement starts automatically.

The result is shown in the display in

mg/l Ozone.

Notes: See page 35.

prepare Zero press ZERO

Zero accepted prepare Test press TEST

Countdown 2:00

PM600_1c 03/2013

1.1 Methods

Phosphate, ortho LR with Tablet

0.05 – 4 mg/l PO

1. Fill a clean vial (24 mm ø) with 10 ml of the water sample, close tightly with the cap.

2. Place the vial in the sample chamber making sure that the marks

aligned.

3. Press ZERO key.

4. Remove the vial from the sample chamber.

5. Add one PHOSPHATE No. 1 LR tablet straight from the foil to the water sample and crush the tablet using a clean stirring rod.

6. Add one PHOSPHATE No. 2 LR tablet straight from the foil to the same water sample and crush the tablet using a clean stirring rod.

7. Close the vial tightly with the cap and swirl gently several times until the tablet is dissolved.

8. Place the vial in the sample chamber making sure that

the marks

aligned.

9. Press TEST key.

Wait for a reaction period of 10 minutes.

After the reaction period is ﬁnished the measurement

starts automatically.

The result is shown in the display as ortho-Phosphate.

prepare Zero press ZERO

Zero accepted prepare Test press TEST

Countdown 10:00

PM600_1c 03/2013

1.1 Methods

Notes

Only ortho-Phosphate ions PO1.

react. The tablets must be added in the correct sequence.2. The test sample should have a pH-value between 6 and 7.3. Interferences: 4.

Higher concentrations of Cu, Ni, Cr (III), V (V) and W (VI) interfere due to their colour. Silicates do not interfere (masked by Citric acid in the tablets).

Conversion: 5. mg/l P = mg/l PO4 x 0.33 mg/l P2O5= mg/l PO4 x 0.75

6. PO4 P

P2O

PM600_1c 03/2013

1.1 Methods

pH value 6.5 – 8.4 with Tablet

1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap.

2. Place the vial in the sample chamber making sure that the

marks are aligned.

3. Press ZERO key.

4. Remove the vial from the sample chamber.

5. Add one PHENOL RED PHOTOMETER tablet straight from the foil to the water sample and crush the tablet using a clean stirring rod.

6. Close the vial tightly with the cap and swirl several times until the tablet is dissolved.

7. Place the vial in the sample chamber making sure that the

marks are aligned.

8. Press TEST key.

The result is shown in the display as pH-value.

prepare Zero press ZERO

Zero accepted prepare Test press TEST

PM600_1c 03/2013

1.1 Methods

Notes:

For photometric determination of pH values only use PHENOL RED tablets in black 1. printed foil pack and marked with PHOTOMETER.

Water samples with low values of Alkalinity-m (below 35 mg/l CaCO2.

) may give wrong

pH readings. pH values below 6.5 and above 8.4 can produce results inside the measuring range. 3.

A plausibility test (pH-meter) is recommended. The accuracy of the colorimetric determination of pH values depends on various 4.

boundary conditions (buffer capacity of the sample, salt contents etc.). Salt error 5.

Correction of test results (average values) for samples with salt contents of:

Indicator Salt content

Phenol red 1 molar

– 0.21

2 molar

– 0.26

3 molar

– 0.29

The values of Parson and Douglas (1926) are based on the use of Clark and Lubs buffers. 1 Mol NaCl = 58.4 g/l = 5.8 %

PM600_1c 03/2013

1.1 Methods

Sodium hypochlorite (Soda bleaching lye) with Tablet

0.2 – 16 % w/w NaOCl

Preparation:

1. Fill a 5 ml plastic syringe with the test solution, ensuring that all air bubbles are expelled. Transfer the 5 ml test solution slowly into a 100 ml beaker and dilute to the 100 ml mark with chlorine-free water. Mix thoroughly.

2. Fill a 5 ml plastic syringe with the diluted test solution (step 1) to the 1 ml mark, ensuring that all air bubbles are expelled. Transfer the 1 ml test solution slowly into a 100 ml beaker and dilute to the 100 ml mark with chlorine-free water. Mix thoroughly.

Performing test procedure:

1. Fill a clean vial (24 mm Ø) with 10 ml of the prepared water sample, close tightly with the cap.

2. Place the vial in the sample chamber making sure that the

marks are aligned.

3. Press ZERO key.

4. Remove the vial from the sample chamber.

5. Add one CHLORINE HR (KI) tablet straight from the foil to the water sample and crush the tablet using a clean stirring rod.

6. Add one ACIDIFYING GP tablet straight from the foil to the same water sample and crush the tablet using a clean stirring rod.

7. Close the vial tightly with the cap and swirl several times until the tablets are dissolved.

prepare Zero press ZERO

PM600_1c 03/2013

1.1 Methods

8. Place the vial in the sample chamber making sure that the marks are aligned.

9. Press TEST key.

The result is shown in the display in % w/w as availa-

ble chlorine present in the original sample of Sodium hypochlorite.

Notes:

Please pay attention when handling sodium hypochlorite. The material has a very strong 1. alkalinity and can cause corrosion. Contact with eyes, skin and clothes etc.has to be avoided. Refer to the detailed information the producer supplied with the product.

The tablets must be added in the correct sequence.2. This method provides a fast and simple test. The test can be performed on site but the 3.

result will not be as precise as a laboratory method. By strictly following the test procedure, an accuracy of +/- 1 weight % can be achieved.4.

Zero accepted prepare Test press TEST

PM600_1c 03/2013

1.2 Important notes

1.2.1 Correct use of reagents

The reagents must be added in the correct sequence.

Tablet reagents:

The tablet reagents should be added to the water sample straight from the foil without touching them with the ﬁngers.

1.2.2 Cleaning of vials and accessories for analysis

Vials, caps and stirring rods should be cleaned thoroughly after each analysis to prevent interferences.

Procedure:

Clean vials and accessories after each analysis as soon as possible.

a. Clean vials and accessories with laboratory detergent (e.g. Extran® MA 02 (neutral, phosphatic), Extran® MA 03 (alkaline, phosphate-free) from Merck KGaA).

b. Rinse thoroughly with tap water. c. On demand (see Notes) perform special cleaning as required, e.g.: rinse with diluted

Hydrochloric acid solution. d. Rinse thoroughly with deionised water.

1.2.3 Guidelines for photometric measurements

Vials, caps and stirring rods should be cleaned thoroughly after each analysis to prevent 1. interferences. Even minor reagent residues can cause errors in the test result.

The outside of the vial must be clean and dry before starting the analysis. Clean the outside 2. of the vials with a towel. Fingerprints or other marks will be removed.

If there is no deﬁned vial for the blank, the zeroing and the test must be carried out with 3. the same vial as there may be slight differences in optical performance between vials.

The vials must be positioned in the sample chamber for zeroing and test with the 4.

mark

on the vial aligned with the mark on the instrument. Always perform zeroing and test with closed vial cap. Only use cap with sealing ring.5. Bubbles on the inside wall of the vial lead to incorrect measurements. To prevent this, 6.

remove the bubbles by swirling the vial before performing the test. Avoid spillage of water in the sample chamber. If water should leak into the instrument 7.

housing, it can destroy electronic components and cause corrosion. Contamination of the lens in the sample chamber can result in errors. Check at regular 8.

intervals and – if necessary – clean the light entry surfaces of the sample chamber using a moist cloth or cotton buds.

Large temperature differences between the instrument and the environment can lead to 9. errors – e.g. due to the formation of condensation in the area of the lens or on the vial.

To avoid errors caused by stray light do not use the instrument in bright sunlight.10.

PM600_1c 03/2013

Correct position of the vial (Ø 24 mm):

Correct ﬁlling of the vial:

PM600_1c 03/2013

1.2.4 Sample dilution techniques

Proceed as follows for accurate dilutions:

Pipette the water sample (see table) into a 100 ml volumetric ﬂask and ﬁll up to 100 ml mark with deionised water. Swirl to mix the contents.

Water sample

[ml]

Multiplication

factor

1 100

2 50

5 20

10 10

25 4

50 2

Pipette the required volume of the diluted sample into the vial and proceed as described in the test methods.

Caution:

1. Dilution decreases accuracy.

2. Do not dilute water samples for measurement of pH-values. This will lead to incorrect test results. If “Overrange” is displayed use another instrument (e.g. pH-meter).

1.2.5 Correcting for volume additions

If a larger volume of acid or base is used to pre-adjust the pH-value, a volume correction of the displayed result is necessary.

Example:

For adjusting the pH-value of a 100 ml water sample 5 ml of acid had to be added. The corresponding displayed result is 10 mg/l.

Total volume = 100 ml + 5 ml = 105 ml

Correction factor = 105 ml / 100 ml = 1.05

Corrected result = 10 mg/l x 1.05 = 10.5 mg/l

PM600_1c 03/2013

Part 2

Instrument Manual

PM600_1c 03/2013

2.1 Operation

2.1.1 Set up

Before working with the photometer insert the batteries (delivery contents). See chapter 2.1.2 Saving data – Important Notes, 2.1.3 Replacement of batteries.

Before using the photometer perform the following settings in the Mode-Menu:

MODE 10: select language• MODE 12: set date and time• MODE 34: perform „Delete data“• MODE 69: perform “User m. init” to initialise the userpolynomial system•

See chapter 2.4 Photometer settings.

2.1.2 Saving data – Important Notes

The batteries save data (stored results and photometer setting). During battery change the data in the photometer is saved for 2 minutes. If the change

time exceeds 2 minutes all stored data and settings are lost. Recommendation: for replacement a screwdriver and new batteries must be available.

2.1.3 Replacement of batteries

See chapter 2.1.2 "Saving data - important notes" before replacing batteries.

1. Switch the instrument off.

2. If necessary remove vial from the sample chamber.

3. Place the instrument upside down on a clean and even surface.

4. Unscrew the four screws (A) of the battery compartment cover (B).

5. Lift off battery compartment cover at the notch (C).

6. Remove old batteries (D).

7. Place 4 new batteries. Ensuring the correct polarity!

8. Replace the battery compartment cover. Check the seal ring (E) of the notch to make sure if is tight-ﬁtting

9. Tighten the screws carefully.

CAUTION

Dispose of used batteries in accordance with all federal, state and local regulations.

PM600_1c 03/2013

CAUTION: To ensure that the instrument is water proof:

seal ring (E) must be in position• battery compartment cover (B) must be ﬁxed with the four screws•

2.1.4 Instrument (explosion drawing):

(A) screws

(B) battery compartment cover

(D) batteries: 4 batteries (AA/LR6)

(E) seal ring

(F) instrument back

(D) batteries

(E) seal ring

(F) instrument back

(B) battery compartment cover

(A) screws

AA/LR6

LR6

AA/LR6

PM600_1c 03/2013

2.2 Overview of function keys

2.2.1 Overview

Switching the photometer on or off

Press shift key to achieve ﬁgures key 0-9. Keep the shift key depressed and press desired ﬁgures key. e.g.: [Shift] + [1][1]

Returning to selection of methods or previous menu

Function key: description in the text if key available

Conﬁrming

Menu of photometer settings and further functions

Moving the cursor up or down

Storing of displayed test result

Performing Zero

Performing Test

Displaying date and time / user countdown

Decimal point

ON OFF

Mode

Esc

Zero

Test

Shift

Store

2 5

PM600_1c 03/2013

2.2.2 Displaying time and date:

Press [“clock”] key.

The display shows:

After 15 seconds the photometer reverts to the previous display automatically

or press [

] key or [ESC].

2.2.3 User countdown

With this function the operator is able to deﬁne his own countdown.

Press [“clock”] key.

The display shows time and date:

Press [“clock”] key.

The display shows:

Either press [

] key to accept the last used user count-

down.

press any number key to start entering a new value

The entry comprises two digits each. Enter minutes and seconds, e.g.: 2 minutes, 0 seconds = [Shift] + [0][2][0][0]. Conﬁrm with [

] key.

The display shows:

Start countdown with [

] key.

After countdown has ﬁnished the photometer reverts to the previous display automatically.

2.2.4 Display backlight

Press the [Shift] + [F1] key to turn the display backlight on or off. The backlight is switched off automatically during the measurement.

19.30.20 2012-06-15

Countdown mm : ss 99 : 99

Countdown 02:00

start:

19:30:22 2012-06-15

Esc

0 02 0

Shift

PM600_1c 03/2013

2.3 Operation mode

Switch the photometer on by pressing the [ON/OFF] key.

The photometer performs an electronic self-test.

2.3.1 Automatic switch off

The instrument switches off automatically after 20 minutes. This is indicated 30 seconds before by a beeper. Press any key to avoid the instrument switching off. As long as the instrument is working (for example countdown or printing) the automatic switch off is inactive.

2.3.2 Selecting a method

The display shows a selection:

There are two possibilities to select the required method:

a) enter method-number directly e.g.: [Shift] + [8] [0] to select Bromine

b) press arrow key [

] or [ ] to select the required method

from the displayed list.

Conﬁrm with [ ] key.

2.3.2.1 Method Information (F1)

Use [F1] key to switch between the compact and the detailed list for method selection.

Example: Line 1: Method number, Method name Line 2: Range Line 3: Kind of reagent Line 4: Vial Line 5-7: Used reagent

selftest ...

>> 30 Alkalinity-tot T 31 Alkal.-tot HR T 80 Bromine T

100 Chlorine

0.02-6 mg/l Cl

Tablet 24 mm DPD No 1 DPD No 3

ON OFF

Shift

8 0

PM600_1c 03/2013

2.3.2.2 Chemical Species Information

Pressing the [F2] key the display shows a list with available chemical species and corresponding ranges. Changing chemical species see chapter 2.3.7 page 58.

Line 1: Method number, Method name Line 2: Range with chemical species 1 Line 3: Range with chemical species 2 Line 4: Range with chemical species 3

2.3.3 Differentiation

Differentiation is possible in some methods (e.g. Chlorine). The photometer then requires the type of determination.

Press arrow key [

] or [ ] to select the required determi-

nation.

Conﬁrm with [

] key.

2.3.4 Performing Zero

The display shows:

Prepare a clean vial as described in “Method“ and place the vial in the sample chamber making sure that the marks are aligned.

Press [ZERO] key.

The display shows:

prepare Zero press ZERO

Zero accepted prepare Test press TEST

Chlorine >> diff free total

Chemical Species

Information Information

Methods

Information

Method List

Method

319 Phosphate LR T

0.05-4 mg/l PO

0.02-1.3 mg/l P

0.04-3 mg/l P2O

Zero

PM600_1c 03/2013

2.3.5 Performing Tests

When zero calibration is complete, remove the vial from the sample chamber and perform the tests as described under “Method“.

When the results have been displayed:

- with some methods you can change between different chemical species

- you can store and/or print out the results

- perform further analysis with the same zero

- select a new method

2.3.6 Ensuring reaction periods (countdown)

To ensure compliance with reaction periods a time delay is incorporated: the countdown. There are two kinds of countdowns:

 •Press[ ] key. Prepare water sample, start countdown with [ ] key and proceed as described in the mode description. The vial must not be placed in the sample chamber.

 •Press[TEST]key. Prepare the water sample as described in the method description and place the vial in the sample chamber. The display shows the countdown by pressing the [TEST] key and the countdown is started automatically. After the reaction period is ﬁnished the measurement starts automatically.

Notes:

1. It is possible to ﬁnish the working countdown by pressing the [

] key. Reading starts immediately. In this case the operator is responsible for ensuring the necessary reaction period. Non-compliance with reaction periods leads to incorrect test results.

2. The time remaining is displayed continuously. The beeper indicates the last 10 seconds.

Countdown 1:59

Countdown 2:00

start:

Test

PM600_1c 03/2013

2.3.7 Changing chemical species

For some methods there is a possibility to change the chemical species of the test result. If the test result is displayed press arrow key [ ] or [ ].

Example:

319 Phosphate LR T

-----[ ]----> 319 Phosphate LR T <---- [ ] ----- 319 Phosphate LR T

0.05-4 mg/l PO4 0.02-1.3 mg/l P 0.04-3 mg/l P2O

<---- [ ] ----- ------ [ ] ---->

1.00 mg/l PO4 0.33 mg/l P 0.75 mg/l P2O

If the species of a test result is changed the displayed range is adjusted automatically. For an already stored result it is not possible to change the chemical species. The last displayed chemical species is kept by the instrument and will be displayed if this method is used the next time. If there is the possibility to change the chemical species for a method it is described in the manual. The arrows indicate the possible chemical species and are printed below the notes of the method:

P2O

2.3.8 Storing results

Press [STORE] key while the test result is displayed.

The display shows:

 •Weadviseyoutoenteranumericcode(upto6places). (A Code No. can contain references to the operator or the sampling location.)

After entering conﬁrm with [

] key.

 •If a codenumber is notnecessary conrm bypressing [

] directly. (The assignment for the Code No. is then 0

automatically.)

The entire data set is stored with date, time, Code No., method and test result.

The display shows:

The test result is then shown again.

Code-No.: _ _ _ _ _ _

Stored!

Shift

0 00 0 01

Store

PM600_1c 03/2013

Note:

The display shows the number of free data sets.

If there are less than 30 data sets free the display shows:

Clear the memory as soon as possible (see “Deleting stored results”). If memory capacity is used up it is impossible to save additional test results.

2.3.9 Printing results (Infra-Red Interface Module) (optional)

If the IRiM (see chapter 2.5) is switched on and the printer is connected, it is possible to print out the test results (without saving it beforehand).

Press [F3] key.

The entire data set is printed with date, time, Code No., method and test result. Printing example:

100 Chlorine T

0.02-6 mg/l Cl

Proﬁ-Mode: no 2012-07-01 14:53:09 Test No.: 1 Code-Nr.: 007

4.80 mg/l Cl

The test No. is an internal number that is set automatically if a test result is stored. It appears only on the print out.

2.3.10 Perform additional measurements

To perform additional tests using the same method:

 •Press[TEST]key

The display shows:

Conﬁrm with [TEST] key

 •Press [ZERO] key to perform a new zero calibration.

The display shows:

Zero accepted prepare Test press TEST

prepare Zero press ZERO

Storage: only 29 free records left

Storage: 900 free records left

Test

Zero

PM600_1c 03/2013

2.3.11 Selecting a new method

Press [ESC] key to return to method selection.

Or enter the required method number directly, e.g. [Shift] + [1][6][0] for CyA-TEST (Cyanuric acid).

Conﬁrm with [

] key.

2.3.12 Measure absorbance

Range: –2600 mAbs to +2600 mAbs

Method-No. Title

910 mAbs 530 nm

920 mAbs 560 nm

940 mAbs 610 nm

Select the desired wavelength from the method list or by entering the corresponding method number directly.

The display shows e.g.:

Always carry out zeroing using a ﬁlled (e.g. deionised water) vial.

The display shows:

Carry out measurement of the sample.

The display shows e.g.:

TIP: To ensure complete reaction times the user countdown may be helpful (chapter 2.2.3, page 54).

Zero accepted prepare Test press TEST

910 mAbs 530 nm

-2600 mAbs - + 2600 mAbs prepare Zero press ZERO

500 mAbs

Esc

1 06

PM600_1c 03/2013

2.4 Photometer settings: Table of Mode Functions

MODE-Function No. Description Page

Calibration 40 Special method calibration 76

Clear calibration 46 Deleting user calibration 81

Clock 12 Setting date and time 63

Countdown 13 Switching the countdown on/off to ensure reaction

times

Delete data 34 Deleting all stored results 75

Key beep 11 Switching the acoustic signal on/off to indicate key-

pressing

Langelier 70 Calculation of Langelier saturation Index

(Water Balance)

Language 10 Selecting language 62

LCD contrast 80 Setting the display contrast 96

LCD brightness

Setting the display brightness

Method list 60 User method list, adaption 84

M list all on 61 User method list, switching on all methods 85

M list all off 62 User method list, switching off all methods 85

OTZ 55 One Time Zero (OTZ) 83

Print 20 Printing all stored results 66

Print, code no. 22 Print only results of a selected Code No. range 68

Print, date 21 Print only results of a selected time period 67

Print, method 23 Print only results of one selected method 69

Printing parameters 29 Setting of printing options 70

Proﬁ-Mode 50 Switching the detailed operator instructions on/off 82

Signal beep 14 Switching the acoustic signal on/off to indicate end

of reading

Storage 30 Displaying all stored results 71

Stor.,

code

32 Displaying only results of a selected Code No. range 73

Stor.,

date

31 Displaying only results of a selected time period 72

Stor.,

method

33 Displaying only results of one selected method 74

System info 91 Information about the instrument

e.g. current software version

Temperature 71 Selection of °C or °F for Langelier Mode 70 95

PM600_1c 03/2013

2.4.1 blank because of technical requirements

2.4.2 Instrument basic settings 1

Selecting a language

Press [MODE], [Shift] + [1][0] keys.

Conﬁrm with [

] key.

The display shows:

Press arrow key [

] or [ ] to select the required language

from the displayed list.

Conﬁrm with [

] key.

<Language> Deutsch >> English Francais

MODE-Function No. Description Page

User calibration 45 Storage of user calibration 80

User concentration 64 Entering the data necessary to run

a user concentration method

User polynoms 65 Entering the data necessary to run a user polynomial 88

User methods clear 66 Delete all data of a user polynomial or

of a concentration method

User methods print 67 Print out all data stored with mode 64

(concentration) or mode 65 (polynomial)

User methods init 69 Initialise the user method system

(polynomial and concentration)

The selected settings are kept by the photometer even when switched off. To change photometer settings a new setting is required.

Mode

PM600_1c 03/2013

Key beep

Press [MODE], [Shift] + [1][1] keys.

Conﬁrm with [

] key.

The display shows:

 •Press[Shift]+[0]keystoswitchthekeybeepoff.

 •Press[Shift]+[1]keystoswitchthekeybeepon.

Conﬁrm with [

] key.

Note:

In the case of methods with reaction periods, an acoustic signal still sounds during the last 10 seconds of the countdown even if the key beep is switched off.

Setting date and time

Press [MODE], [Shift] + [1][2] keys.

Conﬁrm with [

] key.

The display shows:

The entry comprises two digits each.

Enter year, month and day,

e.g.: 14. May 2012 = [Shift] + [1][2][0][5][1][4]

Enter hours and minutes

e.g.: 3.07 p.m. = [Shift] + [1][5][0][7]

Conﬁrm with [

] key.

Note:

While conﬁrming date and time with [

] key the seconds are adjusted to zero automatically.

<Key-Beep> ON: 1 OFF: 0

<clock> yy-mm-dd hh:mm _ _-_ _-_ _ _ _:_ _

yy-mm-dd hh:mm 12-05-14 _ _:_ _

yy-mm-dd hh:mm 12-05-14 15:07

Mode

PM600_1c 03/2013

Countdown (Ensuring reaction periods)

Some methods require a reaction period. This reaction period is incorporated in the method as standard with the countdown function. It is possible to switch the countdown off for all methods:

Press [MODE], [Shift] + [1][3] keys.

Conﬁrm with [

] key.

The display shows:

 •Press[Shift]+[0]keystoswitchthecountdownoff.

 •Press[Shift]+[1]keystoswitchthecountdownon.

Conﬁrm with [

] key.

Notes:

1. It is possible to interrupt the working countdown by pressing the [

] key (application e.g. serial analysis). The “user countdown” is also available if the countdown is switched off.

2. If the countdown function is switched off, the operator is responsible for ensuring the necessary reaction period. Non-compliance with reaction periods leads to incorrect test results.

<Countdown> ON: 1 OFF: 0

Mode

PM600_1c 03/2013

Signal beep

Performing a zero or a measurement takes 8 seconds. The photometer indicates the end of zeroing or measuring by a short beep.

Press [MODE], [Shift] + [1][4] keys.

Conﬁrm with [

] key.

The display shows:

• Press [Shift] +[0] keysto switch the signal beep off.

• Press[Shift]+[1]keystoswitchthesignalbeepon.

Conﬁrm with [

] key.

Note:

In the case of methods with reaction periods, an acoustic signal still sounds during the last 10 seconds of the countdown even if the key beep is switched off.

<Signal-Beep> ON: 1 OFF: 0

Mode

PM600_1c 03/2013

2.4.3 Printing of stored results

Printing all results

Press [MODE], [Shift] + [2][0] keys.

Conﬁrm with [

] key.

The display shows:

Press [

] key for printing out all stored test results.

The display shows e.g.:

After printing the photometer goes back to <Mode-Menu> automatically.

Note:

It is possible to cancel the entry by [ESC]. All stored data are printed out.

See chapter 2.5.1 Data Printing.

<Print> Print all Data Start: cancel: ESC

Test No.:

Mode

PM600_1c 03/2013

Printing results of a selected time period

Press [MODE], [Shift] + [2][1] keys.

Conﬁrm with [

] key.

The display shows:

Enter year, month and day for the ﬁrst day of the required period, e.g.: 14 May 2012 = [Shift] + [1][2][0][5][1][4]

Conﬁrm with [

] key.

The display shows:

Enter year, month and day for the last day of the required period, e.g.: 19 May 2012 = [Shift] + [1][2][0][5][1][9]

Conﬁrm with [

] key.

The display shows:

Press [

] key and all stored results in the selected date range

are printed.

After printing the photometer goes back to mode menu automatically.

Note:

It is possible to cancel the entry by [ESC]. If you want to print only results of one day enter the same date twice to determine the period.

<Print> sorted: date from yy-mm-dd __-__-__

to yy-mm-dd __-__-__

from 2012-05-14 to 2012-05-19 Start: cancel: ESC

Mode

PM600_1c 03/2013

Printing results of a selected Code No. range

Press [MODE], [Shift] + [2][2] keys.

Conﬁrm with [

] key.

The display shows:

Enter numeric code number (up to 6 places) for the ﬁrst required Code No., e.g.: [Shift] + [1].

Conﬁrm with [

] key.

The display shows:

Enter numeric code number (up to 6 places) for the last required Code No., e.g.: [Shift] + [1][0].

Conﬁrm with [

] key.

The display shows:

Press [

] key and all stored results in the selected code

number range are printed.

After printing the photometer goes back to mode menu automatically.

Note:

It is possible to cancel the entry by [ESC]. If you want to print only results of one code number enter the same code number twice. If you want to print all results without code no. (code no. is 0) enter Zero [0] twice.

from 000001 to 000010 Start: cancel: ESC

<Print> sorted: Code-No. from _ _ _ _ _ _

to _ _ _ _ _ _

Mode

PM600_1c 03/2013

Printing results of one selected method

Press [MODE], [Shift] + [2][3] keys.

Conﬁrm with [

] key.

The display shows:

Select the required method from the displayed list or enter the method-number directly.

Conﬁrm with [

] key.

In case of differentiated methods select the required kind of determination and conﬁrm with [

] key.

The display shows:

Press [

] key and all stored results of the selected method

are printed.

After printing the photometer goes back to mode menu automatically.

Note:

It is possible to cancel the entry by [ESC].

<Print> >>20 Acid demand 30 Alkalinity-tot 40 Aluminium T

<Print> method 30 Alkalinity-tot Start: cancel: ESC

Mode

PM600_1c 03/2013

Printing Parameter

Press [MODE], [Shift] + [2][9] keys.

Conﬁrm with [

] key.

The display shows:

Press [Shift] + [2] keys to select ”Baud rate”.

The display shows:

Press arrow key [

] or [ ] to select the required baud rate.

(1200, 2400, 4800, 9600, 14400, 19200)

Conﬁrm with [

] key.

End with [ESC] key.

Back to Mode Menu with [ESC] key.

Back to method selection with [ESC] key.

<printing parameter> 2: Baud rate

cancel: ESC

<Baud rate> is: 19200 select: [ ] [ ] save: cancel: ESC

Mode

Esc

PM600_1c 03/2013

2.4.4 Recall / delete stored results

Recall all stored results

Press [MODE], [Shift] + [3][0] keys.

Conﬁrm with [

] key.

The display shows:

The stored data sets are displayed in chronological order, starting with the latest stored test result. Press [

] key and

all stored results are displayed.

• Press[F3]keytoprintthedisplayedresult.

• Press[F2]keytoprintallresults.

• Endwith[ESC].

• Pressarrowkey[

]

to display the following test result.

• Pressarrowkey[ ] to display the previous test result.

If there are no test results in memory the display shows:

no data

<Storage> display all data Start: cancel: ESC print: F3 print all: F2

Mode

PM600_1c 03/2013

Recall results of a selected time period

Press [MODE], [Shift] + [3][1] keys.

Conﬁrm with [

] key.

The display shows:

Enter year, month and day for the ﬁrst day of the required period, e.g.: 14 May 2012 = [Shift] + [1][2][0][5][1][4]

Conﬁrm with [

] key.

The display shows:

Enter year, month and day for the last day of the required period, e.g.: 19 May 2012 = [Shift] +[1][2][0][5][1][9]

Conﬁrm with [

] key.

The display shows:

• Press[

] key and all stored results in the selected date

range are displayed.

• Press[F3]keytoprintthedisplayedresult.

• Press[F2]keytoprintallselectedresults.

• Endwith[ESC].

Note:

It is possible to cancel the entry by [ESC]. If you want to recall only results of one day enter the same date twice to determine the time period.

<Storage> sorted: date from yy-mm-dd __-__-__

to yy-mm-dd __-__-__

from 2012-05-14 to 2012-05-19 Start: cancel: ESC print: F3 print all: F2

Mode

PM600_1c 03/2013

Recall results of a selected Code No. range

Press [MODE], [Shift] + [3][2] keys.

Conﬁrm with [

] key.

The display shows:

Enter numeric code number (up to 6 places) for the ﬁrst required Code No., e.g.: [Shift] + [1].

Conﬁrm with [

] key.

The display shows:

Enter numeric code number (up to 6 places) for the last required Code No., e.g.: [Shift] + [1][0].

Conﬁrm with [

] key.

The display shows:

• Press [

] key and all stored results in the selected

Code No. range are displayed.

• Press[F3]keytoprintthedisplayedresult.

• Press[F2]keytoprintallselectedresults.

• Endwith[ESC].

Note:

It is possible to cancel the entry by [ESC]. If you want to recall only results of one code number enter the same code number twice. If you want to recall all results without code no. (code no. is 0) enter Zero [0] twice.

<Storage> sorted: Code-No. from _ _ _ _ _ _

to _ _ _ _ _ _

from 000001 to 000010 Start:

cancel: ESC print: F3 print all: F2

Mode

PM600_1c 03/2013

Recall results of one selected method

Press [MODE], [Shift] + [3][3] keys.

Conﬁrm with [

] key.

The display shows:

Select the required method from the displayed list or enter the method number directly.

Conﬁrm with [

] key.

In case of differentiated methods select the required kind of determination and conﬁrm with [

] key.

The display shows:

• Press [ ] key and all stored results of the selected method are displayed.

• Press[F3]keytoprintthedisplayedresult.

• Press[F2]keytoprintallselectedresults.

• Endwith[ESC].

<Storage> >>20 Acid demand 30 Alkalinity-tot 40 Aluminium T

<Storage> method 30 Alkalinity-tot Start: cancel: ESC print: F3 print all: F2

Mode

PM600_1c 03/2013

Delete stored results

Press [MODE], [Shift] + [3][4] keys.

Conﬁrm with [

] key.

The display shows:

Press [Shift] + [0] keys to retain the data sets in me-• mory.

After pressing keys [Shift] + [1] the following acknow-• ledgment is displayed:

Press [

] key to delete.

ATTENTION: All stored test results are deleted

or cancel without deleting data by pressing [ESC] key.

Note:

All stored test results are deleted.

<Delete data> Delete all data? YES : 1 NO : 0

<Delete data> Delete data

Do not delete: ESC

Mode

PM600_1c 03/2013

2.4.5 Calibration

Calcium Hardness Method 191 – Calibration of a method blank

Press [MODE], [Shift] + [4] [0] keys.

Conﬁrm with [

] key.

The display shows:

Press [Shift] + [1] keys.

The display shows:

1. Fill a clean vial (24 mm Ø) with exactly 10 ml of deio- nised water, close tightly with the cap.

2. Place the vial in the sample chamber making sure that the

marks are aligned.

3. Press ZERO key.

4. Remove the vial from the sample chamber.

5. Pipette 100 ml of water free of calcium to an appropriate beaker (note 2, 3).

6. Add 10 CALCIO H No. 1 tablets straight from the foil to the 100 ml of water, crush the tablets using a clean stirring rod and dissolve the tablets completely.

7. Add 10 CALCIO H No. 2 tablets straight from the foil to the same water, crush the tablets using a clean stirring rod and dissolve the tablets completely.

8. Press [

] key.

Wait for a reaction period of 2 minutes.

<Calibration> M191 Calcium Hardness 2T prepare ZERO press ZERO

<Calibration> 1: M191 Ca-Hardness 2 2: M191 0 Jus. Reset 3: M170 Fluoride L

Zero accepted Countdown 2:00 start:

Mode

Zero

PM600_1c 03/2013

After the reaction period is ﬁnished proceed as follows:

9. Rinse the vial (24 mm Ø) with the coloured sample from the beaker and ﬁll with 10 ml of the sample.

10. Press TEST key.

The batch related method blank is saved.

Press [

] key,

to go back to mode menu.

Notes:

1. If a new batch of CALCIO tablets is used a calibration of the method blank has to be performed to optimise the results.

2. Deionised or tap water

3. If no water free of Calcium is available these ions can be masked by using EDTA. Preparation: Add 50 mg (a spatula-tipful) EDTA to 100 ml water and dissolve.

4. To achieve the most accurate method blank it is important to adhere exactly to the sample volume of 100 ml.

Calcium Hardness Method 191 – Reset method blank to factory calibration

Press [MODE], [Shift] + [4] [0] keys.

Conﬁrm with [

] key.

The display shows:

Press [Shift] + [2] keys.

The display shows:

Press [Shift] + [0] keys to keep the method blank.

Press [Shift] + [1] keys to erase the method blank and set the value back to factory calibration.

The instrument goes back to mode menu automatically.

<Calibration> M191 Calcium Hardness 2T Reset ? YES: 1, NO: 0

<Calibration> 1: M191 Ca-Hardness 2 2: M191 0 Jus. Reset 3: M170 Fluoride L

prepare TEST press TEST

stored

Mode

PM600_1c 03/2013

User Calibration

If a test method is user calibrated the method name is displayed inverse.

Procedure:

• Prepareastandardofknownconcentrationandusethisstandardinsteadofthesample

according to the test procedure.

• ItisrecommendtousewellknownstandardswhichareformulatedaccordingtoDINEN,

ASTM or other international norms or to use certiﬁed standards which are commercially available.

• Aftermeasuringthisstandardsolutionitispossibletochangethedisplayedresultsto

the required value.

• Ifamethodusesamathematicequationforthecalculationoftheresult,itisonly

possible to calibrate the basic tests since all the other tests use the same polynomial.

• Thesameappliesforsometestprocedureswhichuseapolynomialfromanothertest

procedure.

Return to factory calibration: If the user calibration is deleted the factory calibration is automatically activated.

PM600_1c 03/2013

Table

No. Method Recommended range for user calibration

30 Alkalinity-total 50–150 mg/l CaCO

31 Alkalinity-total HR T 50 – 300 mg/l CaCO

80 Bromine Calibration with basic test 100 Chlorine free

100 Chlorine T 0.5–1.5 mg/l Cl

103 Chlorine HR T 0.5–6 mg/l Cl

150 Copper T 0.5–1.5 mg/l Cu

160 CyA-TEST 30– 60 mg/l CyA

191 Hardness, Calcium 100– 200 mg/l CaCO

220 Iron T 0.3–0.7 mg/l Fe

300 Ozone (DPD) Calibration with basic test 100 Chlorine free

330 pH-Value T 7.6 –8.0

320 Phosphate LR T 1–3 mg/l PO

212 Sodium hypochlorite 8 %

PM600_1c 03/2013

Store user calibration

Perform the required method as described in the manual using a standard of known concentration instead of the water sample.

If the test result is displayed press [MODE], [Shift] + [4] [5] keys and conﬁrm with [

] key.

The display shows:

Pressing the arrow key [

] once increases the displayed

result.

Pressing the arrow key [

] once decreases the displayed

result.

Press keys till the displayed result corresponds to the value of the standard.

Conﬁrm with [

] key to store the new calibration factor.

Cancel user calibration by pressing [ESC] key.

The display shows:

Now the method name is displayed inverse and the test result is calculated with the new calibration factor.

100 Chlorine T

0.02-6 mg/l Cl2

0.90 mg/l free Cl2

Mode

<user calibration> 100 Chlorine T

0.02-6 mg/l Cl2

0.90 mg/l free Cl2 up: , down: save:

Jus Factor saved

100 Chlorine T

0.02-6 mg/l Cl2

1.00 mg/l free Cl2

PM600_1c 03/2013

Delete user calibration

This chapter only applies for methods which can be user calibrated.

Select the required method.

Instead of zeroing the instrument press [MODE], [Shift] + [4][6] keys and conﬁrm with [

] key.

The display shows:

Press [Shift] + [1] keys to delete user calibration.

Press [Shift] + [0] keys to keep the valid user calibration.

The instrument goes back to Zero-query automatically.

<user calibration> 100 Chlorine T

0.02-6 mg/l Cl2 clear user calibration? YES: 1, NO: 0

100 Chlorine T

0.02-6 mg/l Cl2

prepare ZERO press ZERO

Mode

PM600_1c 03/2013

2.4.6 Lab function

Reduced operator guidance => “Proﬁ-Mode“

This function may be used for routine analyses with many samples of one method. The following information is always stored in the methods:

a) Method b) Range c) Date and time d) Differentiation of results e) Detailed operator instruction f) Compliance with reaction periods

If the Proﬁ-Mode is active, the photometer provides only a minimum of operator instructions. The criteria speciﬁed above in d, e, f are no longer included.

Press [MODE], [Shift] + [5][0] keys in succession.

Conﬁrm with [

] key.

The display shows:

Press [Shift] + [0] keys to switch the Proﬁ-Mode off. •

Press [Shift] + [1] keys to switch the Proﬁ-Mode on.•

The display shows:

Conﬁrm with [

] key.

Note:

Storage of test results is possible. When results are stored the display also shows “Proﬁ-Mode” . The selected settings are kept by the photometer even whein it is switched off. To change photometer setting a new setting is required.

<Proﬁ-Mode> ON : 1 OFF : 0

Mode

switched off

switched on

PM600_1c 03/2013

One Time Zero (OTZ)

OneTimeZero is available for all methods where Zero is performed in a 24 mm Ø round vial with sample water (see chapter 1.1 Table of Methods).

OneTimeZero can be used for different tests providing the tests are performed with the same sample water and under the same test conditions. When changing the method, it is not necessary to perform a new Zero. The test can be carried out straight away.

When the instrument is ﬁrst being used for an OTZ compatible method and OneTimeZero is activated, the instrument will request a new Zero with “prepare OT-Zero”. Perform Zero as described in the method. This Zero will be stored and used for all methods with OTZ function until the instrument is switched off.

If necessary, a new Zero can be performed by pressing [Zero] key at any time.

Switching the “OTZ-Function“ on and off:

Press [MODE], [Shift] + [5][5] keys.

Conﬁrm with [

] key.

The display shows:

Press [Shift] + [0] keys to switch the OTZ off.•

Press [Shift] + [1] keys to switch the OTZ on.•

The display shows:

Conﬁrm with [

] key.

The instrument goes back to mode menu automatically.

Note:

The speciﬁed accuracy is valid for all test results when Zero is performed for each test (OneTimeZero function is switched off).

<OneTimeZero> ON : 1 OFF : 0

Mode

switched off

switched on

PM600_1c 03/2013

2.4.7 User operations

User method list

After switching on the instrument a scroll list of all available methods is automatically shown in the display. To shorten this list according to the requirements of the user it is possible to create a user deﬁned scroll list.

The program structure requires that this list must have at least one active (switched on) method. For this reason it is necessary to activate ﬁrst all required methods and then to switch off the automatically activated one if this method is not required.

User-method list, adaptation

Press [MODE], [Shift] + [6][0] keys.

Conﬁrm with [

] key.

The display shows:

Start with [

] key.

The complete method list is displayed.

Methodswithapoint[•]behindthemethodnumberwillbe

displayed in the method selection list. Methods without a point will not be displayed in the method selection list.

Press key [

] or [ ] to select the required method from the

displayed list.

Switchwith[F2]keybetween“active”[•]and“inactive”[ ].

Select next method, activate or inactivate it and continue.

Conﬁrm with [

] key.

Cancel without storing by pressing [ESC] key.

Recommendation:

If only a few methods are required it is recommended to perform Mode 62 ﬁrst, followed by Mode 60.

All user Polynomials (1-25) and Concentrations (1-10) are displayed in the method list, although they are not programmed by the user. Non-programmed user methods can’t be activated!

selected: •

toggle: F2 save: cancel: ESC

<Method list> >> 30•Alkalinity-tot

40•Aluminium 50•Ammonium

....

>> 30•Alkalinity-tot

>> 30 Alkalinity-tot

>> 30•Alkalinity-tot

Mode

PM600_1c 03/2013

User method list, switch all methods on

This mode function activates all methods. After switching on the instrument a scroll list of all available methods is automatically shown in the display.

Press [MODE], [Shift] + [6][1] keys.

Conﬁrm with [

] key.

The display shows:

• Press[Shift]+[1]keystodisplayallmethodsinthemethod

selection list.

• Press[Shift]+[0]keystokeepthevalidmethodselection

list.

The instrument goes back to mode menu automatically.

User method list, switch all methods off

The program structure requires that the method list must have at least one active (switched on) method. For this reason the instrument activates one method automatically.

Press [MODE], [Shift] + [6][2] keys.

Conﬁrm with [

] key.

The display shows:

• Press[Shift]+[1]keystodisplayonlyonemethodinthe

method selection list.

• Press[Shift]+[0]keystokeepthevalidmethodselection

list.

The instrument goes back to mode menu automatically.

<Mlist all on> switch on all methods YES: 1, NO: 0

<Mlist all off> switch off all methods YES: 1, NO: 0

Mode

PM600_1c 03/2013

User Concentration Methods

It is possible to enter and store up to 10 User Concentration Methods. Therefor you need 2 to 14 standards of known concentration and one blank (deionised water or reagent blank value). The Standards should be measured with increasing concentrations and from the brightest to the darkest colouration. The measuring range for „Underrange“ and „Overrange“ is deﬁned with –2600 mAbs* and +2600 mAbs*. After selection of a method the concentration of the lowest and highest used standard is displayed as measuring range. The operation range should be within this range to achieve best results.

*1000 mAbs = 1 Abs = 1 E (displayed)

Entering a User Concentration:

Press [MODE], [Shift] + [6][4] keys.

Conﬁrm with [

] key.

Entry Procedure:

The display shows:

Enter a method number in the range from 850 to 859,

e.g.: [Shift] + [8][5][0]

Conﬁrm with [

] key.

Note:

if the entered number has already been used to save a concentration the display shows the query:

•Press[Shift]+[0]or[ESC]keystogobacktomethodno.

query.

•Press[Shift]+[1]keystostartentrymode.

Enter the required wavelength, e.g.: [Shift] + [2] for

560 nm.

Press [

] or [ ] keys to select the required unit.

Conﬁrm with [

] key.

< User concentr.> choose no.: ____ (850-859)

choose unit: >>

mg/l g/l mmol/l mAbs µg/l E A %

Overwrite conc. meth.? YES: 1, NO: 0

wavelength: 1: 530 nm 2: 560 nm 3: 610 nm

Mode

8 05

PM600_1c 03/2013

Press the appropriate numerical key to select the required resolution, e.g.: [Shift] + [3] for 0.01.

Note: Please enter the required resolution according to the instrument pre-sets:

range max. resolutions

0.000 ...9.999 0.001

10.00 ...99.99 0.01

100.0... 999.9 0.1

1000 ...9999 1

Measurement procedure with standards of known concentration:

The display shows:

Prepare Zero and press [Zero] key.

Note: Use deionised water or reagent blank value.

The display shows:

Enter the concentration of the ﬁrst standard; e.g.: [Shift] + [0][.][0][5]

• Onestepbackwith[ESC].

• Press[F1]keytoresetnumericalinput.

Conﬁrm with [

] key.

The display shows:

Prepare the ﬁrst standard and press [Test] key.

The display shows the input value and the measured absorption value. Conﬁrm with [

] key.

Enter the concentration of the second standard; e.g.: [Shift] + [0][.][1]

• Onestepbackwith[ESC].

• Press[F1]keytoresetnumericalinput.

Conﬁrm with [

] key.

< User concentr.> prepare Zero press ZERO

choose resolution 1: 1 2: 0.1 3: 0.01 4: 0.001

< User concentr.> S1: 0.05 mg/l prepare press TEST

< User concentr.> Zero accepted S1: +________

| ESC | F1

S1 accepted S2: +________

| ESC | F1

S1: 0.05 mg/l mAbs: 12

0 0 5

0 1

Test

Zero

PM600_1c 03/2013

User Polynomials

It is possible to enter and store up to 25 User Polynomials. The program allows the user to apply a Polynomial up to the 5th degree:

y = A + Bx + Cx

+ Dx3 + Ex4 + Fx5

If only a Polynomial of a lower degree is necessary the other coefﬁcients are speciﬁed as zero (0), e.g.: for the 2nd degree is D, E, F = 0.

The values of the coefﬁcients A, B, C, D, E, F must be entered in an academic notation with maximal 6 decimal places, e.g.: 121,35673 = 1,213567E+02

<User polynoms> choose no.: ____ (800-824)

Entering a User Polynomial:

Press [MODE], [Shift] + [6][5] keys.

Conﬁrm with [

] key.

The display shows:

Enter a method number in the range from 800 to 824, e.g.: [Shift] + [8][0][0]

Prepare the second standard and press [Test] key.

The display shows the input value and the measured absorption value. Conﬁrm with [

] key.

Note:

• Perform as described above to measure further stan- dards.

• Theminimumofmeasuredstandardsis2.

• Themaximumofmeasuredstandardsis14(S1toS14).

If all required standards or the maximum value of 14 standards are measured press [Store] key.

The display shows:

The instrument goes back to the mode menu automatically.

Now the concentration is stored in the instrument and can be recalled by entering its method number or selecting it from the displayed method list.

TIP: Save all your concentration data in a written form because in case of power outage (e.g. changing the battery) all concentration data will be lost and must be entered again.

You might want to use Mode 67 to transfer all concentration data to a PC.

stored!

S2: 0.10 mg/l prepare press TEST

S2 accepted S3: +________

| ESC | F1 | Store

S2: 0.10 mg/l mAbs: 150

Mode

8 00

Store

PM600_1c 03/2013

Conﬁrm with [ ] key.

Note:

if the entered number has already been used to save a polynomial the display shows the query:

• Press[Shift]+[0]or[ESC]keystogobacktomethodno.

query.

• Press[Shift]+[1]keystostartentrymode.

Enter the required wavelength, e.g.: [2] for 560 nm.

• Press[

] or [ ] key to change between plus and minus

sign

• EnterdataofthecoefcientAincludingdecimalpoint,

e.g.: [Shift] + [1][.][3][2]

• Press[F1]keytoresetnumericalinput.

Conﬁrm with [

] key.

• Press[

] or [ ] key to change between plus and minus

sign

•

Enter the exponent of the coefﬁcient A, e.g.: [Shift] + [3]

Conﬁrm with [ ] key.

Successively the instrument queries the data for the other coefﬁcients (B, C, D, E and F).

Note: If zero [0] is entered for the value of the coefﬁcient, the input of the exponent is omitted automatically.

Conﬁrm every input with [

] key.

Enter measurement ranges from – 2600 to +2600 mAbs.

• Press[

] or [ ] key to change between plus and minus

sign.

• EnterthevaluesinAbsorbance(mAbs)fortheupperlimit

(Max) and the lower limit (Min).

Conﬁrm every input with [

] key.

A: 1.32____ E+____

B: +________

measurement range Min mAbs: +________ Max mAbs: +________

< User polynoms> y = A+Bx+Cx2+Dx3+ Ex4+Fx5 A: +________

Overwrite polynom? YES: 1, NO: 0

wavelength: 1: 530 nm 2: 560 nm 3: 610 nm

1 3 2

PM600_1c 03/2013

Press [ ] or [ ] keys to select the required unit.

Conﬁrm with [

] key.

Press the appropriate numerical key to select the required resolution, e.g.: [Shift] + [3] for 0.01.

Note: Please enter the required resolution according to the instrument pre-sets:

range max. resolutions

0.000 ...9.999 0.001

10.00 ...99.99 0.01

100.0... 999.9 0.1

1000 ...9999 1

The display shows:

The instrument goes back to the mode menu automatically.

Now the polynomial is stored in the instrument and can be recalled by entering its method number or selecting it from the displayed method list.

TIP: Save all your polynomial data in a written form because in case of power outage (e.g. changing the battery) all polynomial data will be lost and must be entered again.

You might want to use Mode 67 to transfer all polynomial data to a PC.

choose resolution 1: 1 2: 0.1 3: 0.01 4: 0.001

stored!

choose unit: >> mg/l g/l mmol/l mAbs µg/l E A %

PM600_1c 03/2013

Delete User Methods (Polynomial or Concentration)

In principle a valid user method can be overwritten. An existing user method (Polynomial or Concentration) can be totally deleted as well and is

removed out of the method selection list:

Press [MODE], [Shift] + [6][6] keys.

Conﬁrm with [

] key.

The display shows:

Enter the number of the User Method you want to delete (in the range from 800 to 824 or 850 to 859), e.g.: [Shift] + [8][0][0]

Conﬁrm with [

] key.

The query is displayed:

• Press[Shift]+[1]keystodeletetheselected

User Method.

• Press[Shift]+[0]keystokeepthevalidUserMethod.

The instrument goes back to mode menu automatically.

<User m. clear> choose no.: _______ (800-824), (850-859)

M800 delete? YES: 1, NO: 0

Mode

8 00

PM600_1c 03/2013

Print Data of User Methods (Polynomials & Concentration)

With this Mode function all data (e.g. wavelength, unit ...) of stored user polynomials and concentration methods can be printed out or transferred with HyperTerminal to a PC.

Press [MODE], [Shift] + [6][7] keys.

Conﬁrm with [

] key.

The display shows:

Press [ ] key to print out the data (e.g. wavelength, unit, ...) of all stored User Methods.

The display shows e.g.:

After data transfer the photometer goes back to mode menu automatically.

M800 M803 ...

<User m. print> Start:

Mode

PM600_1c 03/2013

Initialise User Method System (Polynomials & Concentration)

Power loss will cause incoherent data. The user method system must be initialised with this mode function to set it to a predeﬁned state.

ATTENTION: All stored user methods (polynomial & concentration) are deleted with initialisation.

Press [MODE], [Shift] + [6][9] keys.

Conﬁrm with [

] key.

The display shows:

Conﬁrm with [

] key.

The query is displayed:

• Press[Shift]+[1]keystostartinitialisation.

• Press[Shift]+[0]keystotocancelwithoutinitialisation.

The instrument goes back to mode menu automatically.

<User m. init> Start:

Initialising? YES: 1, NO: 0

Mode

PM600_1c 03/2013

2.4.8 Special functions

Langelier Saturation Index (Water Balance)

For calculation the following tests are required:

• pH-value

• Temperature

• Calciumhardness

• TotalAlkalinity

• TDS(TotalDissolvedSolids)

Run each test separately and note the results. Calculate the Langelier Saturation Index as described:

Calculation of Langelier Saturation Index

With Mode 71 (see below) it is possible to select between degree Celsius or degree Fahrenheit.

Press [MODE], [Shift] + [7][0] keys.

Conﬁrm with [

] key.

The display shows:

Enter the temperature value (T) in the range between 3 and 53°C and conﬁrm with [

] key. If °F was selected, enter the

temperature value in the range between 37 and 128°F.

The display shows:

Enter the value for Calcium hardness (CH) in the range b

etween 50 and 1000 mg/l CaCO3 and conﬁrm with [ ]

key.

The display shows:

Enter the value for Total Alkalinity (TA) in the range between 5 and 800 mg/l CaCO

and conﬁrm with [ ] key.

The display shows:

Enter the value for TDS (Total Dissolved Solids) in the range between 0 and 6000 mg/l and conﬁrm with [

] key.

calcium hardness 50<=CH<=1000 +_ _ _ _

<Langelier> temperature °C: 3°C <=T<=53°C +_ _ _ _

tot. alkalinity 5<=TA<=800 +_ _ _ _

total dissol. solids 0<=TDS<=6000 +_ _ _ _

Mode

PM600_1c 03/2013

The display shows:

Enter the pH-value in the range between 0 and 12 and conﬁrm with [

] key.

The display shows the Langelier Saturation Index.

Press [

] key to start new calculation.

Return to mode menu by pressing [ESC] key.

Operating error:

Values out of deﬁned range:

The entered value is too high.

The entered value is too low.

Conﬁrm display message with [

] key and enter a value in

the deﬁned range.

Selection of temperature unit

Entering the temperature value is possible in degree Celsius or degree Fahrenheit. Therefore the following preselection is (once) required.

Press [MODE], [Shift] + [7][1] keys.

Conﬁrm with [

] key.

The display shows:

Press [Shift] + [1] keys to select degree Celsius.

Press [Shift] + [2] keys to select degree Fahrenheit.

The instrument goes back to mode menu automatically.

pH value 0<=pH<=12 +_ _ _ _

<Langelier> Langelier saturation index

0.00 Esc

CH<=1000 mg/l CaCO3!

CH>=50 mg/l CaCO3!

<temperature> 1: °C 2: °F

Examples:

Mode

PM600_1c 03/2013

2.4.9 Instrument basic settings 2

Adjusting display contrast

Press [MODE], [Shift] + [8][0] keys.

Conﬁrm with [

] key.

The display shows:

• Pressarrow key [

] to increase contrast of the LCD

display about one unit.

• Pressarrowkey [

] to decrease contrast of the LCD

display about one unit.

• Press[Store] key to increase contrast of the LCD display about ten units.

• Press[Test] key to decrease contrast of the LCD display about ten units.

Conﬁrm with [

] key.

Adjusting display brightness

Press [MODE] [8] [1] keys.

Conﬁrm with [

] key.

The display shows:

Press [

] key to increase brightness of the display about

one unit.

Press [

] key to decrease brightness of the display about

one unit.

Mode

Store

Test

1 1

Mode

1 1

10 10

PM600_1c 03/2013

2.4.10 Instrument special functions /service

Photometer-Information

Press [MODE], [Shift] + [9][1] keys.

Conﬁrm with [

] key.

This method informs you about the current software version, about the number of performed tests and free memory capacity.

Press arrow key [

] to display the number of performed

tests and free memory capacity.

Finish with [ESC] key.

<System-Info> Software: V201.001.1.001.002 more: , cancel: Esc

<System-Info> Number of Tests: 139 free records left 999 cancel: Esc

Mode

Press [Store] key to increase brightness of the display about ten units.

Press [Test] key to decrease brightness of the display about ten units.

The display shows:

The brightness can be selected between 0 and 254 units, e.g.: 200.

Conﬁrm with [

] key.

Test

Store

0...254 : 200

10 10

PM600_1c 03/2013

2.5 Data transfer

To print data or to transmit to a PC the optional IRiM (Infra-Red Interface Module) is required.

2.5.1 Data Printing

Besides the IRiM module the following printer is required to print data directly using the USB Interface of the module: HP Deskjet 6940.

2.5.2 Data transfer to a personal computer

Besides the IRiM a transfer program, is required to transmit test results. Please ﬁnd detailed information in the IRiM manual or at our homepage in the download-

area.

2.5.3 Internet Updates

To connect the instrument to the serial interface of a computer the optional connection cable with integrated electronic system is required.

It is possible to update new software applications and additional languages via the internet. Please ﬁnd detailed information at our homepage in the download-area.

How to open and close the battery compartment cover see chapter 2.1.3!

Please Note:

To prevent loss of stored test results store or print them out before performing an Update.

If the update procedure is interrupted (eg. interruption of connection, LoBat., etc.) the instrument isn´t able to work (no display). The instrument will only work again after completing the data transfer.

RJ 45 connector

Lovibond PM600 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
