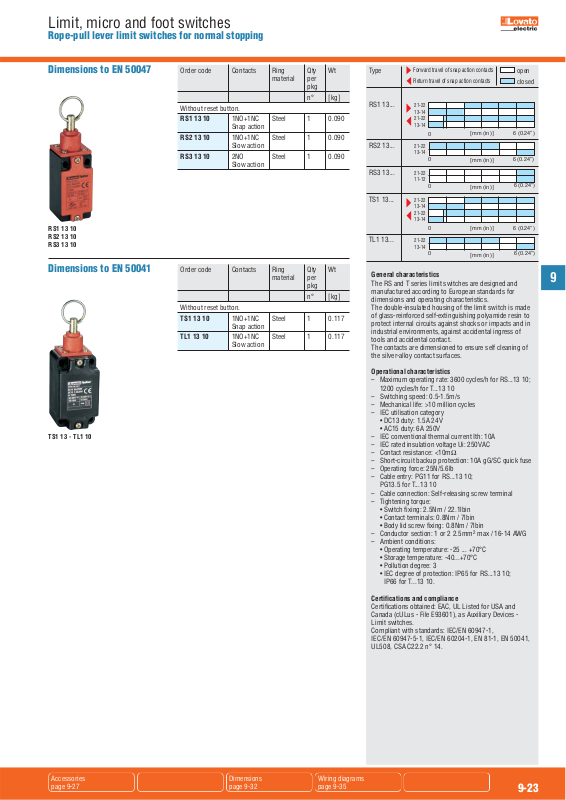

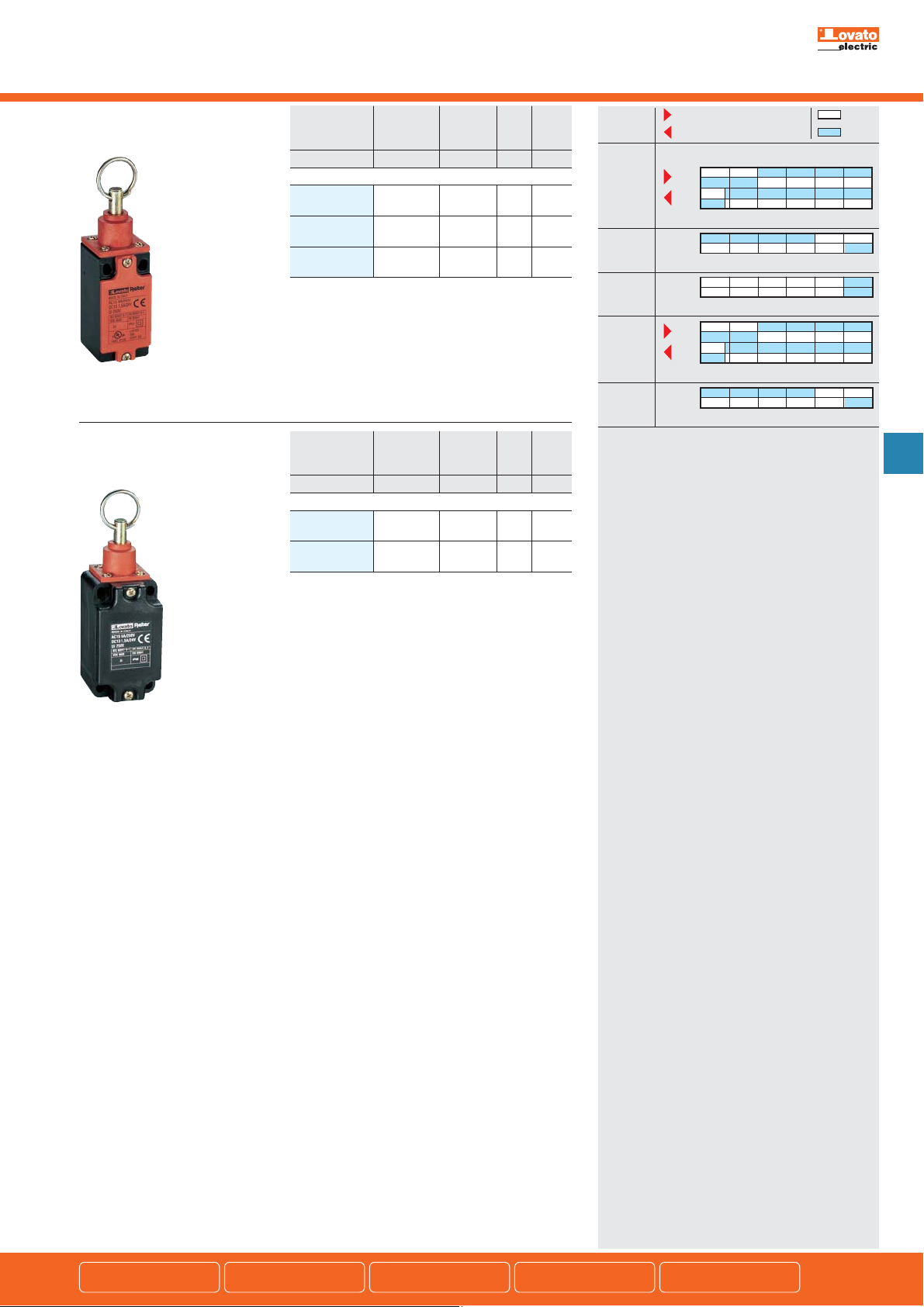

Limit, micro and foot switches
Rope-pull lever limit switches for normal stopping
Dimensions to EN 50047
RS1 13 10
RS2 13 10
RS3 13 10
Dimensions to EN 50041
Order code Contacts Ring Qty Wt
material per
pkg
n° [kg]
Without reset button.
RS1 13 10 1NO+1NC Steel 1 0.090
Snap action
RS2 13 10 1NO+1NC Steel 1 0.090
Slow action
RS3 13 10 2NO Steel 1 0.090
Slow action
Order code Contacts Ring Qty Wt
material per
pkg
n° [kg]
Without reset button.
TS1 13 10 1NO+1NC Steel 1 0.117
Snap action
TL1 13 10 1NO+1NC Steel 1 0.117
Slow action
Type open
closed
RS1 13...
RS2 13...
RS3 13...
TS1 13...
TL1 13...
Forward travel of snap action contacts
Return travel of snap action contacts
21-22
13-14
21-22
13-14
21-22
13-14
21-22
11-12
21-22
13-14
21-22
13-14
21-22
13-14
0
0
0
0
0
[mm (in)]
[mm (in)]
[mm (in)]
[mm (in)]
[mm (in)]
6 (0.24”)
6 (0.24”)
6 (0.24”)
6 (0.24”)
6 (0.24”)
General characteristics
The RS and T series limit switches are designed and
manufactured according to European standards for
dimensions and operating characteristics.
The double-insulated housing of the limit switch is made
of glass-reinforced self-extinguishing polyamide resin to
protect internal circuits against shocks or impacts and in
industrial environments, against accidental ingress of
tools and accidental contact.
The contacts are dimensioned to ensure self cleaning of
the silver-alloy contact surfaces.
9
TS1 13 - TL1 10
Operational characteristics
Maximum operating rate: 3600 cycles/h for RS...13 10;
–
1200 cycles/h for T...13 10
– Switching speed: 0.5-1.5m/s
– Mechanical life: >10 million cycles
– IEC utilisation category
• DC13 duty: 1.5A 24V
• AC15 duty: 6A 250V
– IEC conventional thermal current Ith: 10A
– IEC rated insulation voltage Ui: 250VAC
– Contact resistance: <10mΩ
– Short-circuit backup protection: 10A gG/SC quick fuse
– Operating force: 25N/5.6lb
– Cable entry: PG11 for RS...13 10;
PG13.5 for T...13 10
– Cable connection: Self-releasing screw terminal
– Tightening torque:
• Switch fixing: 2.5Nm / 22.1lbin
• Contact terminals: 0.8Nm / 7lbin
• Body lid screw fixing: 0.8Nm / 7lbin
– Conductor section: 1 or 2 2.5mm
2
max / 16-14 AWG
– Ambient conditions:
• Operating temperature: -25 ... +70°C
• Storage temperature: -40...+70°C
• Pollution degree: 3
• IEC degree of protection: IP65 for RS...13 10;
IP66 for T...13 10.
Certifications and compliance
Certifications obtained: EAC, UL Listed for USA and
Canada (cULus - File E93601), as Auxiliary Devices Limit switches.
Compliant with standards: IEC/EN 60947-1,
IEC/EN 60947-5-1, IEC/EN 60204-1, EN 81-1, EN 50041,
UL508, CSA C22.2 n° 14.
Accessories
page 9-27
Dimensions
page 9-32
Wiring diagrams
page 9-35
9-23
