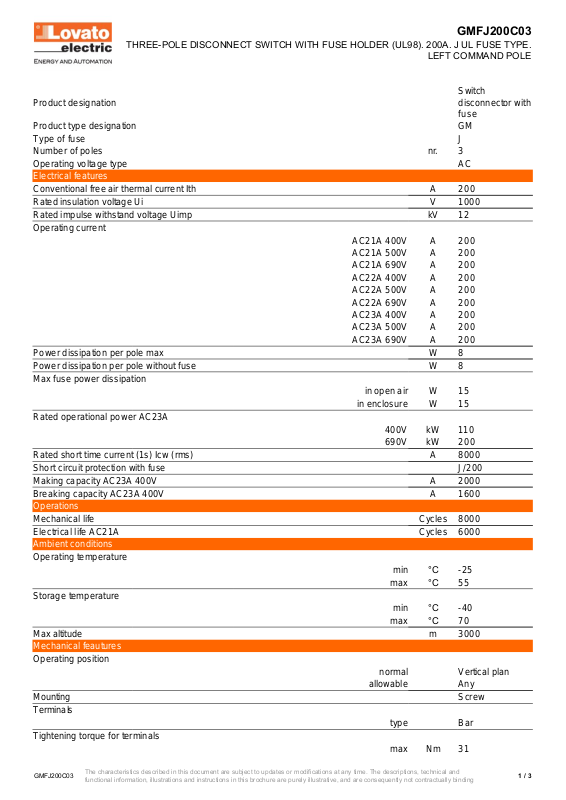

Page 1
Product designation
Switch
disconnector with
fuse
Product type designation GM
Type of fuse J
Number of poles nr. 3
Operating voltage type AC
Electrical features
Conventional free air thermal current Ith A 200
Rated insulation voltage Ui V 1000
Rated impulse withstand voltage Uimp kV 12
Operating current
AC21A 400V A 200
AC21A 500V A 200
AC21A 690V A 200
AC22A 400V A 200
AC22A 500V A 200
AC22A 690V A 200
AC23A 400V A 200
AC23A 500V A 200
AC23A 690V A 200
Power dissipation per pole max W 8
Power dissipation per pole without fuse W 8
Max fuse power dissipation
in open air W 15
in enclosure W 15
Rated operational power AC23A
400V kW 110
690V kW 200
Rated short time current (1s) Icw (rms) A 8000
Short circuit protection with fuse J/200
Making capacity AC23A 400V A 2000
Breaking capacity AC23A 400V A 1600
Operations
Mechanical life Cycles 8000
Electrical life AC21A Cycles 6000
Ambient conditions
Operating temperature
min °C -25
max °C 55
Storage temperature
min °C -40
max °C 70
Max altitude m 3000
Mechanical feautures
Operating position
normal Vertical plan
allowable Any
Mounting Screw
Terminals
type Bar
Tightening torque for terminals
max Nm 31
GMFJ200C03
THREE-POLE DISCONNECT SWITCH WITH FUSE HOLDER (UL98). 200A. J UL FUSE TYPE.
LEFT COMMAND POLE
GMFJ200C03
The characteristics described in this document are subject to updates or modifications at any time. The descriptions, technical and
functional information, illustrations and instructions in this brochure are purely illustrative, and are consequently not contractually binding
1 / 3
Page 2
max Ibft 23
Tightening torque for fuse links bolts Nm 4
Tightening torque for terminal lug Nm 8
Terminal kit lugs GMX501
Weight g 3000
Frontal IP degree IP20
Pollution degree 3
UL technical data
Compliance UL98
General purpose current rating A 200
Operating voltage max V 600
Horsepower/FLA current three phase motor
240V 60/154
480V 125/156
600V 150/144
Short circuit rating kA 200
Short circuit rating with fuse J/200

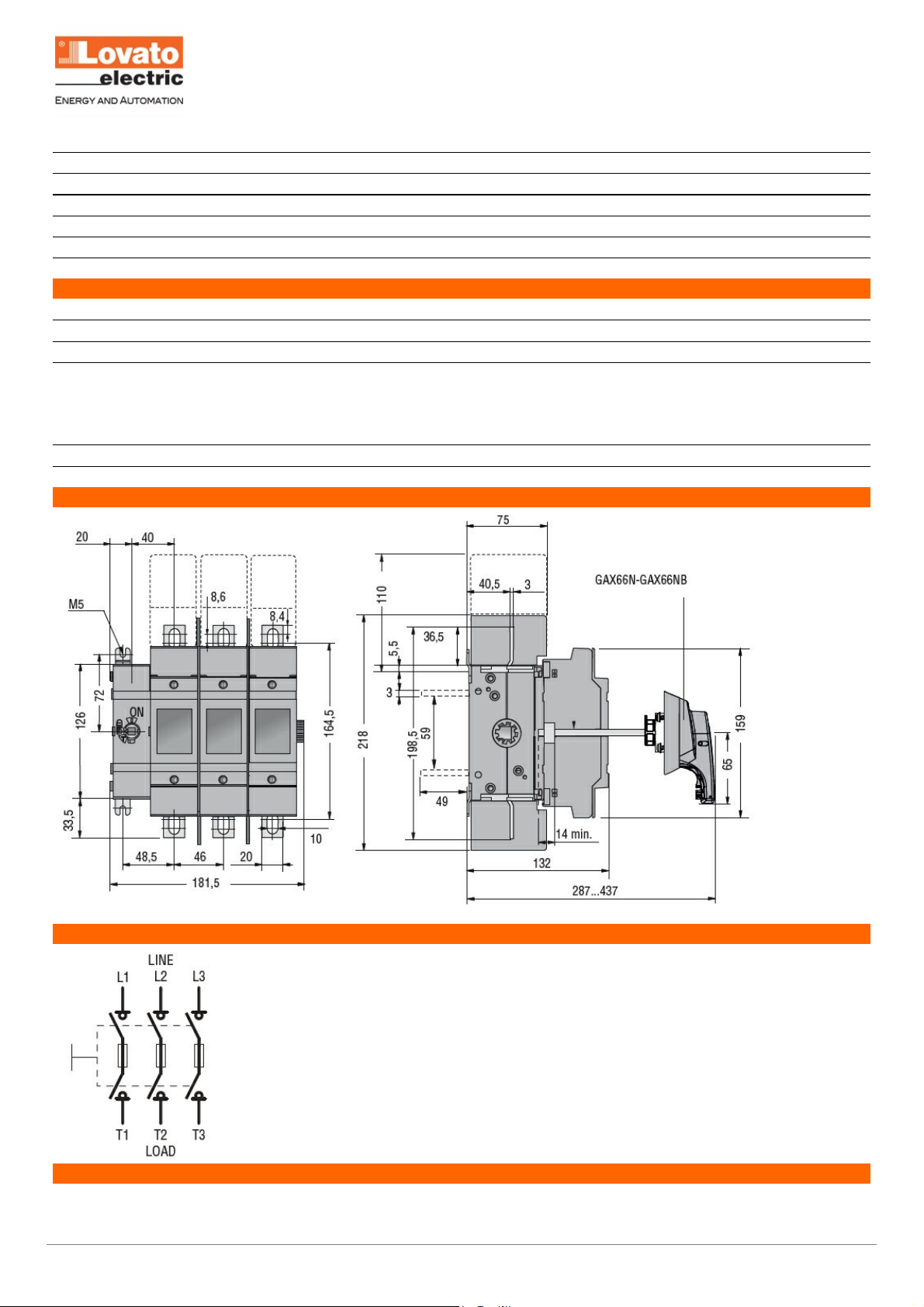

Dimensions
Wiring diagrams
Certifications and compliance
Compliance
IEC/EN 60947-1
GMFJ200C03
THREE-POLE DISCONNECT SWITCH WITH FUSE HOLDER (UL98). 200A. J UL FUSE TYPE.
LEFT COMMAND POLE
GMFJ200C03
The characteristics described in this document are subject to updates or modifications at any time. The descriptions, technical and
functional information, illustrations and instructions in this brochure are purely illustrative, and are consequently not contractually binding
2 / 3
Page 3
IEC/EN 60947-3
Certifications
cULus according to UL98/CSA C22.2 n°4
GMFJ200C03
THREE-POLE DISCONNECT SWITCH WITH FUSE HOLDER (UL98). 200A. J UL FUSE TYPE.
LEFT COMMAND POLE
GMFJ200C03
The characteristics described in this document are subject to updates or modifications at any time. The descriptions, technical and
functional information, illustrations and instructions in this brochure are purely illustrative, and are consequently not contractually binding
3 / 3
