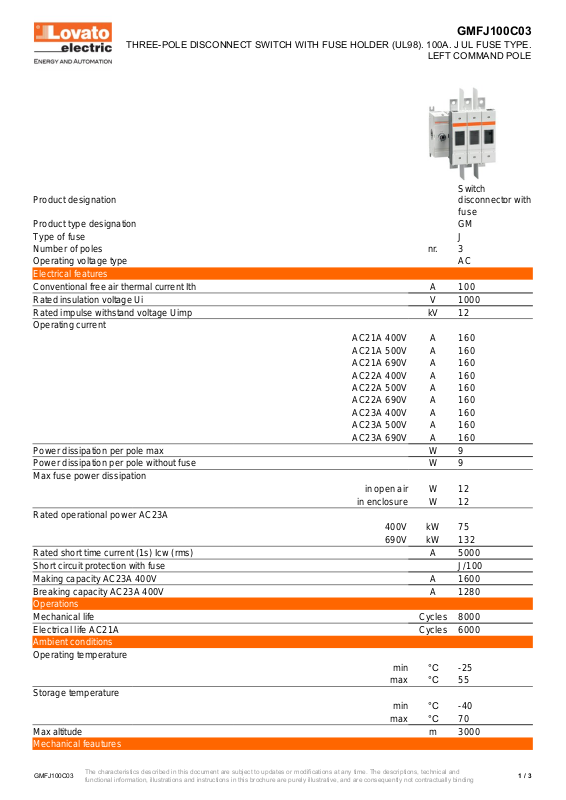

Page 1
Product designation
Switch
disconnector with
fuse
Product type designation GM
Type of fuse J
Number of poles nr. 3
Operating voltage type AC
Electrical features
Conventional free air thermal current Ith A 100
Rated insulation voltage Ui V 1000
Rated impulse withstand voltage Uimp kV 12
Operating current
AC21A 400V A 160
AC21A 500V A 160
AC21A 690V A 160
AC22A 400V A 160
AC22A 500V A 160
AC22A 690V A 160
AC23A 400V A 160
AC23A 500V A 160
AC23A 690V A 160
Power dissipation per pole max W 9
Power dissipation per pole without fuse W 9
Max fuse power dissipation
in open air W 12
in enclosure W 12
Rated operational power AC23A
400V kW 75
690V kW 132
Rated short time current (1s) Icw (rms) A 5000
Short circuit protection with fuse J/100
Making capacity AC23A 400V A 1600
Breaking capacity AC23A 400V A 1280
Operations
Mechanical life Cycles 8000
Electrical life AC21A Cycles 6000
Ambient conditions
Operating temperature
min °C -25
max °C 55
Storage temperature
min °C -40
max °C 70
Max altitude m 3000
Mechanical feautures
GMFJ100C03
THREE-POLE DISCONNECT SWITCH WITH FUSE HOLDER (UL98). 100A. J UL FUSE TYPE.
LEFT COMMAND POLE
GMFJ100C03
The characteristics described in this document are subject to updates or modifications at any time. The descriptions, technical and
functional information, illustrations and instructions in this brochure are purely illustrative, and are consequently not contractually binding
1 / 3
Page 2
Operating position
normal Vertical plan
allowable Any
Mounting Screw
Terminals
type Bar
Tightening torque for terminals
max Nm 13.5
max Ibft 10
Tightening torque for fuse links bolts Nm 4
Tightening torque for terminal lug Nm 5.5
Terminal kit lugs GMX500
Weight g 1815.
Frontal IP degree IP20
Pollution degree 3
UL technical data
Compliance UL98
General purpose current rating A 100
Operating voltage max V 600
Horsepower/FLA current three phase motor
240V 30/80
480V 60/77
600V 75/77
Short circuit rating kA 200
Short circuit rating with fuse J/100

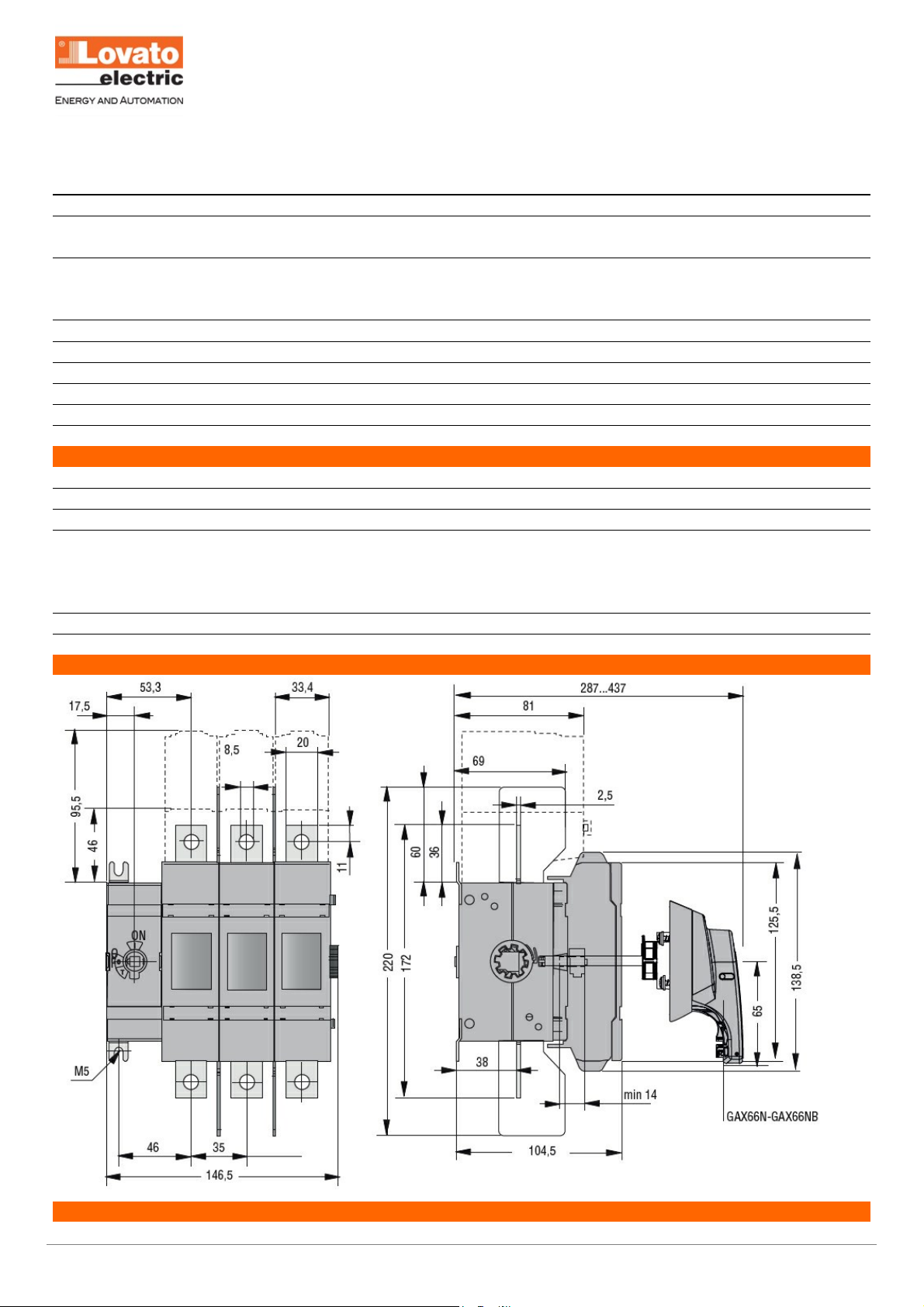

Dimensions

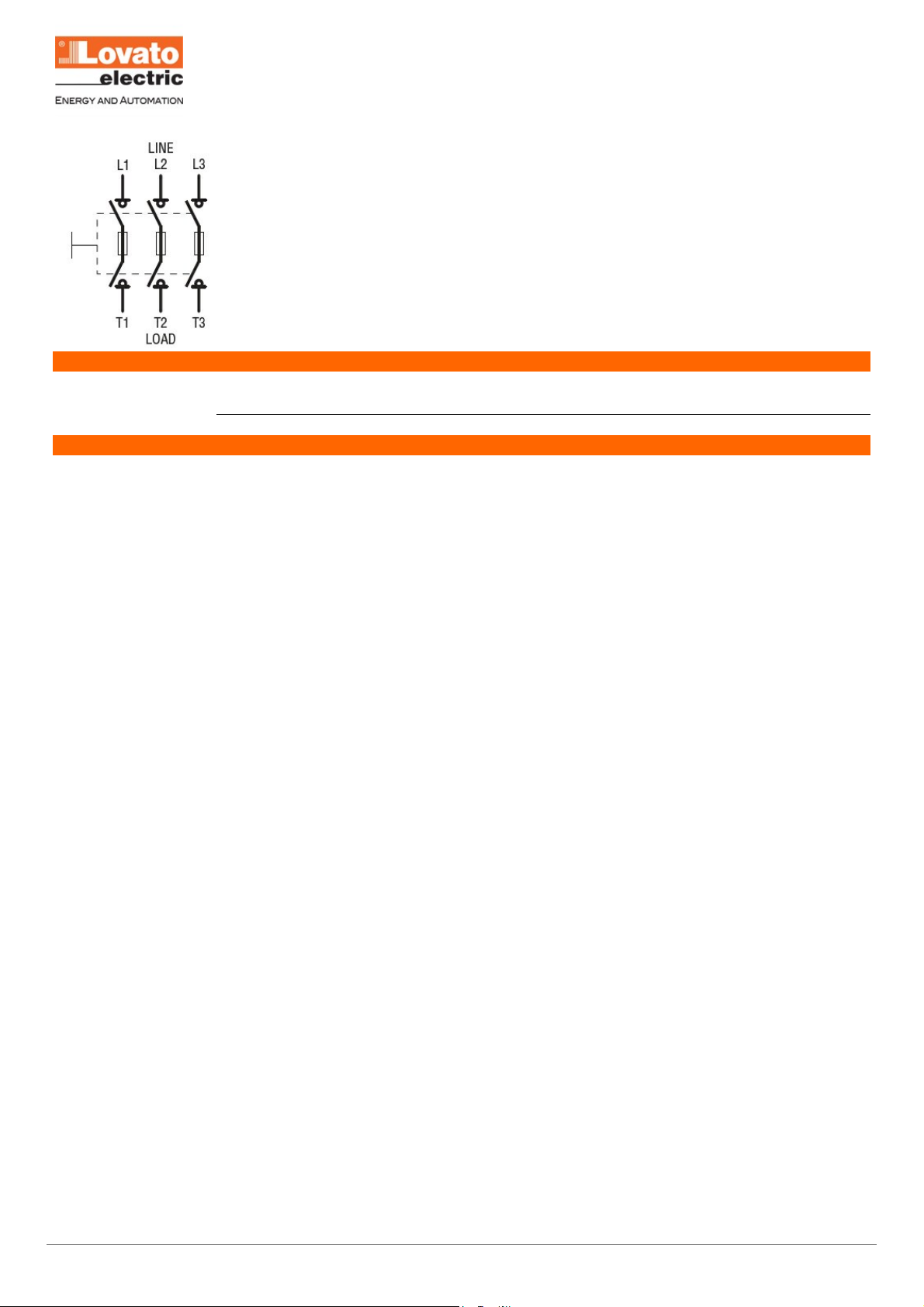

Wiring diagrams
GMFJ100C03
THREE-POLE DISCONNECT SWITCH WITH FUSE HOLDER (UL98). 100A. J UL FUSE TYPE.
LEFT COMMAND POLE
GMFJ100C03
The characteristics described in this document are subject to updates or modifications at any time. The descriptions, technical and
functional information, illustrations and instructions in this brochure are purely illustrative, and are consequently not contractually binding
2 / 3
Page 3
Certifications and compliance
Compliance
IEC/EN 60947-1
IEC/EN 60947-3
Certifications
cULus according to UL98/CSA C22.2 n°4
GMFJ100C03
THREE-POLE DISCONNECT SWITCH WITH FUSE HOLDER (UL98). 100A. J UL FUSE TYPE.
LEFT COMMAND POLE
GMFJ100C03
The characteristics described in this document are subject to updates or modifications at any time. The descriptions, technical and
functional information, illustrations and instructions in this brochure are purely illustrative, and are consequently not contractually binding
3 / 3
