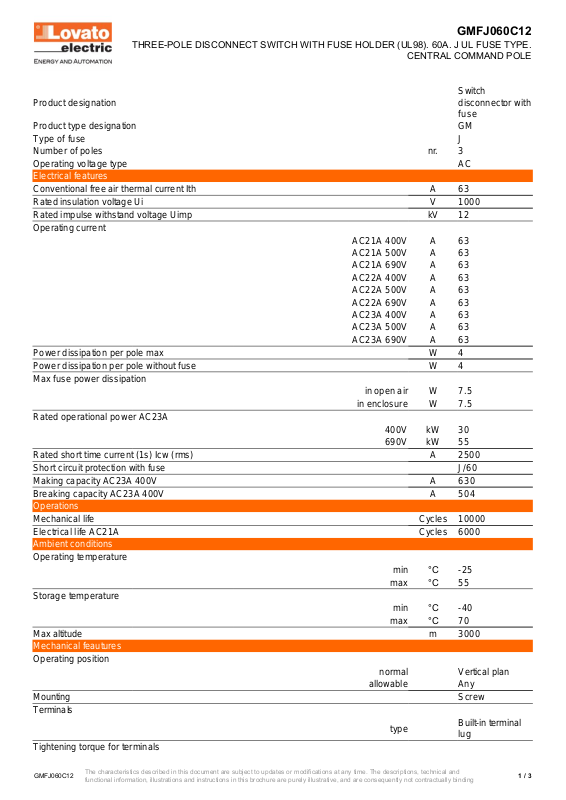

Product designation
Switch
disconnector with
fuse
Product type designation GM
Type of fuse J
Number of poles nr. 3
Operating voltage type AC
Electrical features
Conventional free air thermal current Ith A 63
Rated insulation voltage Ui V 1000
Rated impulse withstand voltage Uimp kV 12
Operating current
AC21A 400V A 63
AC21A 500V A 63
AC21A 690V A 63
AC22A 400V A 63
AC22A 500V A 63
AC22A 690V A 63
AC23A 400V A 63
AC23A 500V A 63
AC23A 690V A 63
Power dissipation per pole max W 4
Power dissipation per pole without fuse W 4
Max fuse power dissipation
in open air W 7.5
in enclosure W 7.5
Rated operational power AC23A
400V kW 30
690V kW 55
Rated short time current (1s) Icw (rms) A 2500
Short circuit protection with fuse J/60
Making capacity AC23A 400V A 630
Breaking capacity AC23A 400V A 504
Operations
Mechanical life Cycles 10000
Electrical life AC21A Cycles 6000
Ambient conditions
Operating temperature
min °C -25
max °C 55
Storage temperature
min °C -40
max °C 70
Max altitude m 3000
Mechanical feautures
Operating position
normal Vertical plan
allowable Any
Mounting Screw
Terminals
type
Built-in terminal
lug
Tightening torque for terminals
GMFJ060C12
THREE-POLE DISCONNECT SWITCH WITH FUSE HOLDER (UL98). 60A. J UL FUSE TYPE.
CENTRAL COMMAND POLE
GMFJ060C12
The characteristics described in this document are subject to updates or modifications at any time. The descriptions, technical and
functional information, illustrations and instructions in this brochure are purely illustrative, and are consequently not contractually binding
1 / 3
Page 2
max Nm 3.5
max Ibft 2.5
Conductor section
min (IEC) mm² 2.5
max (IEC) mm² 25.
min (AWG) 14
max (AWG) 4
Weight g 1135.
Frontal IP degree IP20
Pollution degree 3
UL technical data
Compliance UL98
General purpose current rating A 60
Operating voltage max V 600
Horsepower/FLA current three phase motor
240V 15/42
480V 30/40
600V 52/52
Short circuit rating kA 200
Short circuit rating with fuse J/60

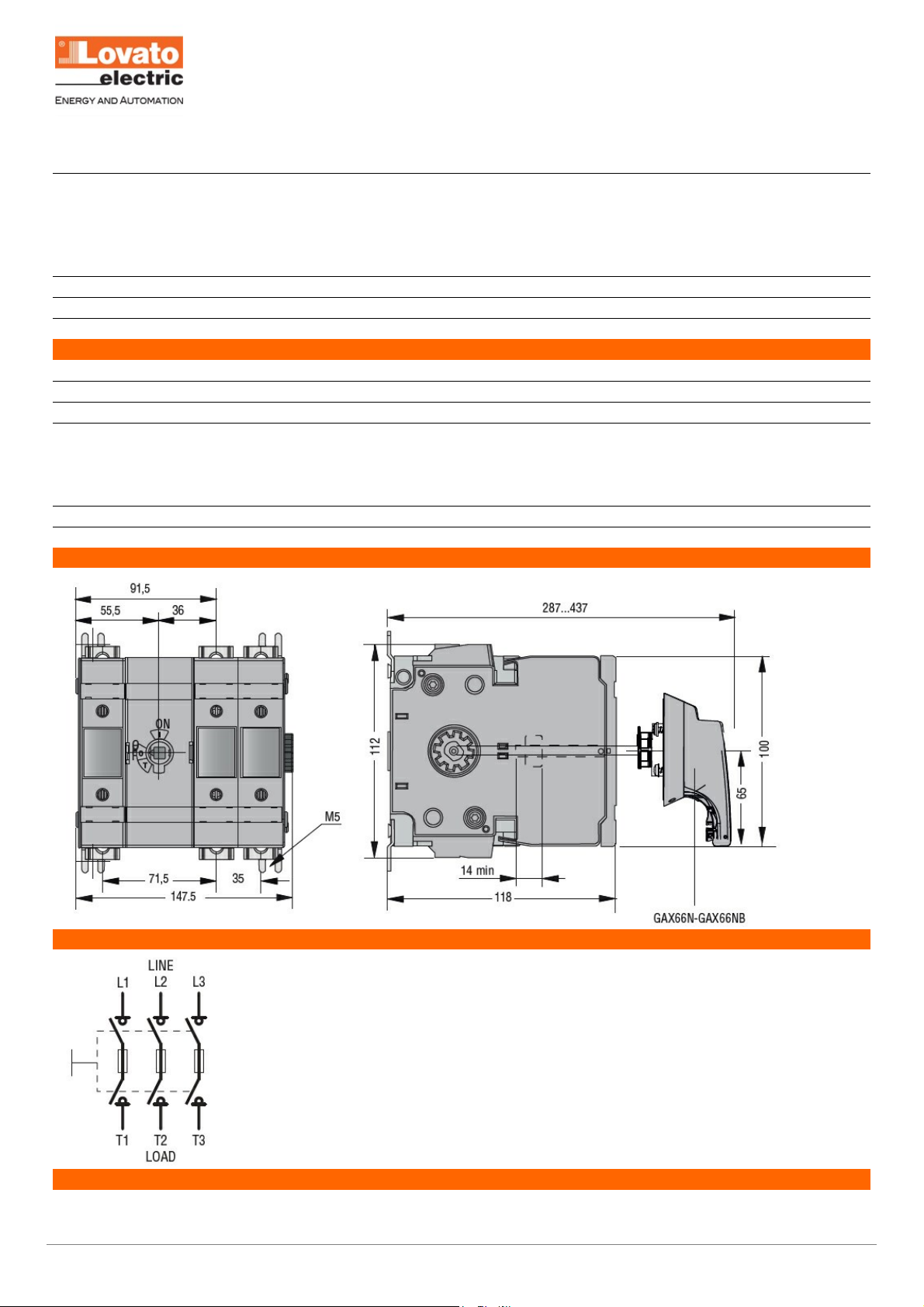

Dimensions
Wiring diagrams
Certifications and compliance
Compliance
IEC/EN 60947-1
GMFJ060C12
THREE-POLE DISCONNECT SWITCH WITH FUSE HOLDER (UL98). 60A. J UL FUSE TYPE.
CENTRAL COMMAND POLE
GMFJ060C12
The characteristics described in this document are subject to updates or modifications at any time. The descriptions, technical and
functional information, illustrations and instructions in this brochure are purely illustrative, and are consequently not contractually binding
2 / 3
Page 3
IEC/EN 60947-3
Certifications
cULus according to UL98/CSA C22.2 n°4
