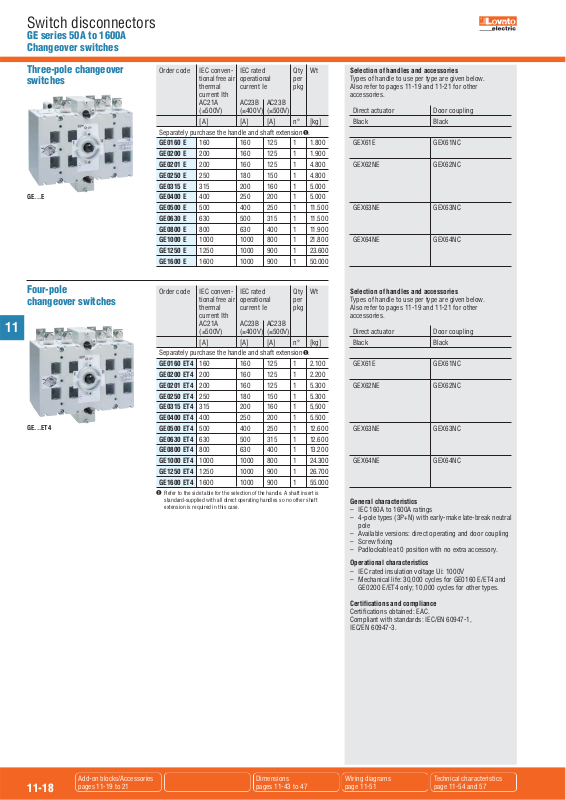

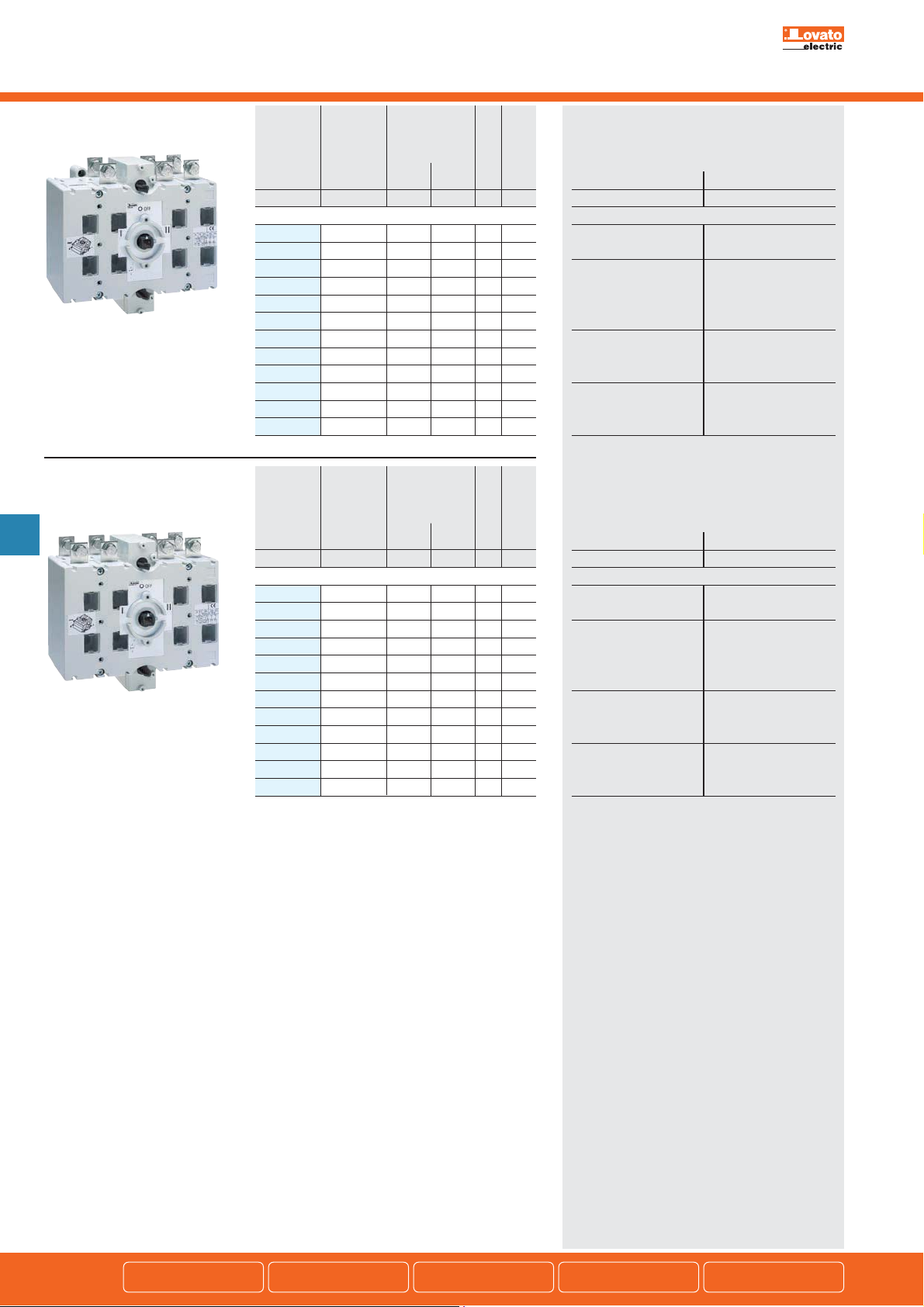

Switch disconnectors
GE series 50A to 1600A
Changeover switches
Three-pole changeover
switches
GE...E
Four-pole
changeover switches
11
GE...ET4
Order code IEC conven- IEC rated Qty Wt
tional
thermal current Ie
current Ith
AC21A AC23B AC23B
(500V) (400V) (500V)
[A] [A] [A] n° [kg]
Separately purchase the handle and shaft extension.
GE0160 E 160 160 125 1 1.800
GE0200 E 200 160 125 1 1.900
GE0201 E 200 160 125 1 4.800
GE0250 E 250 180 150 1 4.800
GE0315 E 315 200 160 1 5.000
GE0400 E 400 250 200 1 5.000
GE0500 E 500 400 250 1 11.500
GE0630 E 630 500 315 1 11.500
GE0800 E 800 630 400 1 11.900
GE1000 E 1000 1000 800 1 21.800
GE1250 E 1250 1000 900 1 23.600
GE1600 E 1600 1000 900 1 50.000
Order code IEC conven- IEC rated Qty Wt
tional
thermal current Ie
current Ith
AC21A AC23B AC23B
(500V) (400V) (500V)
[A] [A] [A] n° [kg]
Separately purchase the handle and shaft extension.
GE0160 ET4 160 160 125 1 2.100
GE0200 ET4 200 160 125 1 2.200
GE0201 ET4 200 160 125 1 5.300
GE0250 ET4 250 180 150 1 5.300
GE0315 ET4 315 200 160 1 5,500
GE0400 ET4 400 250 200 1 5.500
GE0500 ET4 500 400 250 1 12.600
GE0630 ET4 630 500 315 1 12.600
GE0800 ET4 800 630 400 1 13.200
GE1000 ET4 1000 1000 800 1 24.300
GE1250 ET4 1250 1000 900 1 26.700
GE1600 ET4 1600 1000 900 1 55.000
Refer to the side table for the selection of the handle. A shaft insert is
standard-supplied with all direct operating handles so no other shaft
extension is required in this case.
free air
operational per
free air
operational per
pkg
pkg
Selection of handles and accessories
Types of handle to use per type are given below.
Also refer to pages 11-19 and 11-21 for other
accessories.
Direct actuator Door coupling
Black Black
GEX61E GEX61NC
GEX62NE GEX62NC
GEX63NE GEX63NC
GEX64NE GEX64NC
Selection of handles and accessories
Types of handle to use per type are given below.
Also refer to pages 11-19 and 11-21 for other
accessories.
Direct actuator Door coupling
Black Black
GEX61E GEX61NC
GEX62NE GEX62NC
GEX63NE GEX63NC
GEX64NE GEX64NC
General characteristics
– IEC 160A to 1600A ratings
– 4-pole types (3P+N) with early-make late-break neutral
pole
– Available versions: direct operating and door coupling
– Screw fixing
– Padlockable at 0 position with no extra accessory.
Operational characteristics
– IEC rated insulation voltage Ui: 1000V
– Mechanical life: 30,000 cycles for GE0160 E/ET4 and
GE0200 E/ET4 only; 10,000 cycles for other types.
11-18
Add-on blocks/Accessories
pages 11-19 to 21
Dimensions
pages 11-43 to 47
Certifications and compliance
Certifications obtained: EAC.
Compliant with standards: IEC/EN 60947-1,
IEC/EN 60947-3.
Wiring diagrams
page 11-51
Technical characteristics
page 11-54 and 57
