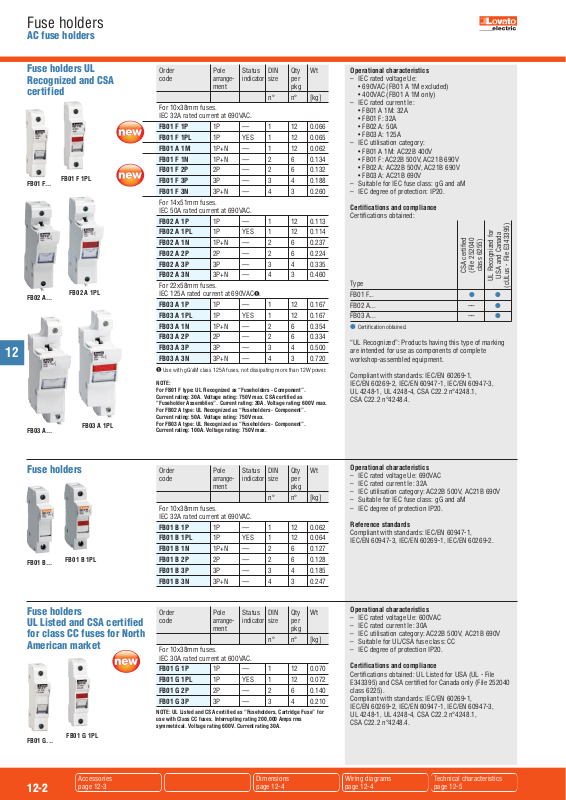

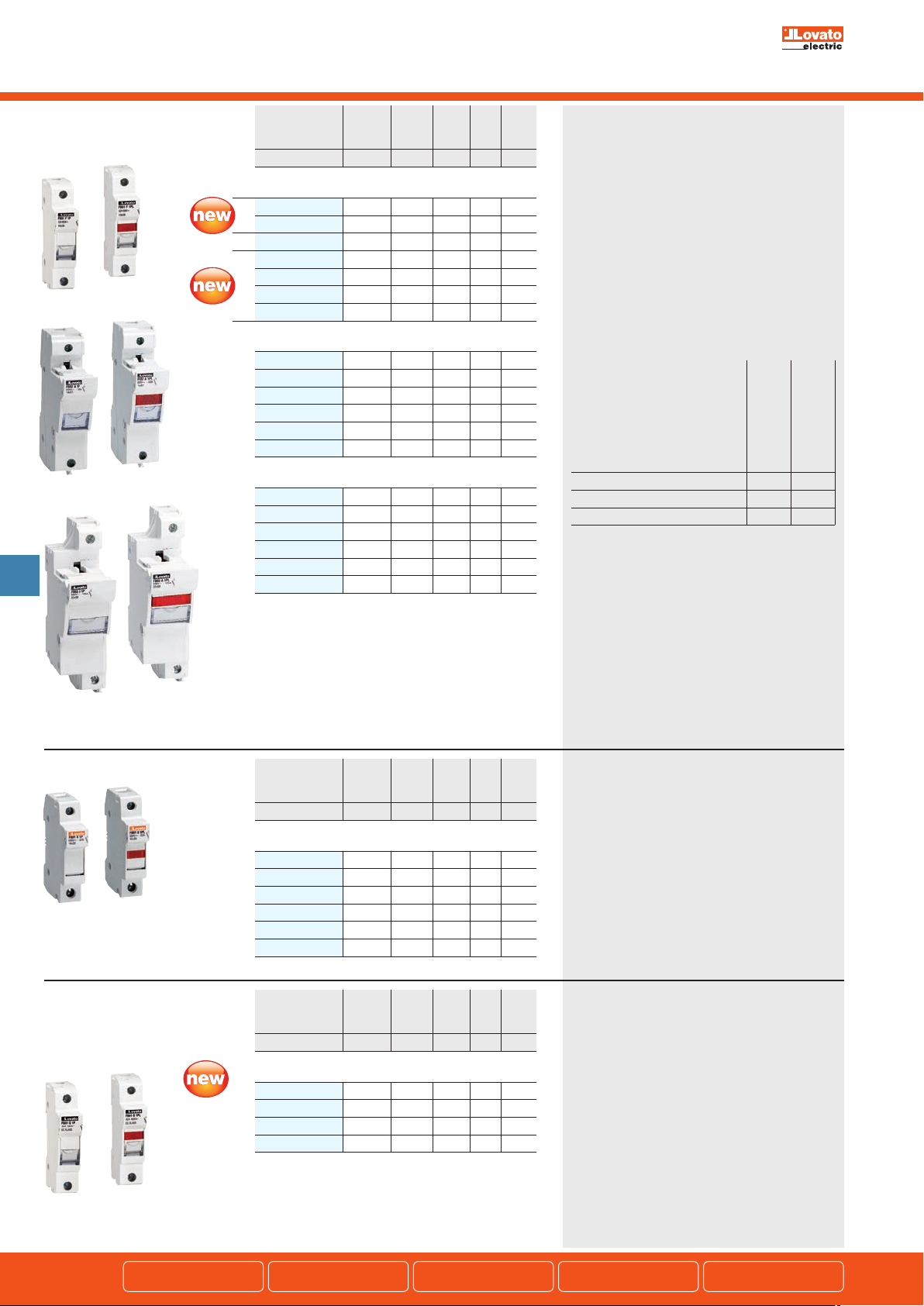

Fuse holders
AC fuse holders
Fuse holders UL
Recognized and CSA
certified
FB01 F...
FB02 A...
FB01 F 1PL
12
FB03 A...
FB02 A 1PL
FB03 A 1PL
Order Pole Status DIN Qty Wt
code
ment pkg
n° n° [kg]
For 10x38mm fuses.
IEC 32A rated current at 690VAC.
FB01 F 1P 1P — 1 12 0.066
FB01 F 1PL 1P YES 1 12 0.065
FB01 A 1M 1P+N — 1 12 0.062
FB01 F 1N 1P+N — 2 6 0.134
FB01 F 2P 2P — 2 6 0.132
FB01 F 3P 3P — 3 4 0.188
FB01 F 3N 3P+N — 4 3 0.260
For 14x51mm fuses.
IEC 50A rated current at 690VAC.
FB02 A 1P 1P — 1 12 0.113
FB02 A 1PL 1P YES 1 12 0.114
FB02 A 1N 1P+N — 2 6 0.237
FB02 A 2P 2P — 2 6 0.224
FB02 A 3P 3P — 3 4 0.335
FB02 A 3N 3P+N — 4 3 0.460
For 22x58mm fuses.
IEC 125A rated current at 690VAC∂.
FB03 A 1P 1P — 1 12 0.167
FB03 A 1PL 1P YES 1 12 0.167
FB03 A 1N 1P+N — 2 6 0.354
FB03 A 2P 2P — 2 6 0.334
FB03 A 3P 3P — 3 4 0.500
FB03 A 3N 3P+N — 4 3 0.720
Use with gG/aM class 125A fuses, not dissipating more than 12W power.
∂
NOTE:
For FB01 F type: UL Recognized as “Fuseholders - Component”.
Current rating: 30A. Voltage rating: 750V max. CSA certified as
“Fuseholder Assemblies”. Current rating: 30A. Voltage rating: 600V max.
For FB02 A type: UL Recognized as “Fuseholders - Component”.
Current rating: 50A. Voltage rating: 750V max.
For FB03 A type: UL Recognized as “Fuseholders - Component”.
Current rating: 100A. Voltage rating: 750V max.
arrange- indicator size
per
Operational characteristics
– IEC rated voltage Ue:
• 690VAC (FB01 A 1M excluded)
• 400VAC (FB01 A 1M only)
– IEC rated current Ie:
• FB01 A 1M: 32A
• FB01 F: 32A
• FB02 A: 50A
• FB03 A: 125A
– IEC utilisation category:
• FB01 A 1M: AC22B 400V
• FB01 F: AC22B 500V, AC21B 690V
• FB02 A: AC22B 500V, AC21B 690V
• FB03 A: AC21B 690V
– Suitable for IEC fuse class: gG and aM
– IEC degree of protection: IP20.
Certifications and compliance
Certifications obtained:
class 6255)
(File 252040
CSA certified
Type
FB01 F... ll
FB02 A... –– l
FB03 A... –– l
Certification obtained.
l
“UL Recognized”: Products having this type of marking
are intended for use as components of complete
workshop-assembled equipment.
Compliant with standards: IEC/EN 60269-1,
IEC/EN 60269-2, IEC/EN 60947-1, IEC/EN 60947-3,
UL 4248-1, UL 4248-4, CSA C22.2 n°4248.1,
CSA C22.2 n°4248.4.
USA and Canada
UL Recognized for
(cULus - File E343395)
Fuse holders
FB01 B...
FB01 B 1PL
Fuse holders
UL Listed and CSA certified
for class CC fuses for North
American market
FB01 G...
FB01 G 1PL
Order Pole Status DIN Qty Wt
code
ment pkg
n° n° [kg]
For 10x38mm fuses.
IEC 32A rated current at 690VAC.
FB01 B 1P 1P — 1 12 0.062
FB01 B 1PL 1P YES 1 12 0.064
FB01 B 1N 1P+N — 2 6 0.127
FB01 B 2P 2P — 2 6 0.128
FB01 B 3P 3P — 3 4 0.185
FB01 B 3N 3P+N — 4 3 0.247
Order Pole Status DIN Qty Wt
code
ment pkg
n° n° [kg]
For 10x38mm fuses.
IEC 30A rated current at 600VAC.
FB01 G 1P 1P — 1 12 0.070
FB01 G 1PL 1P YES 1 12 0.072
FB01 G 2P 2P — 2 6 0.140
FB01 G 3P 3P — 3 4 0.210
NOTE: UL Listed and CSA certified as “Fuseholders, Cartridge Fuse” for
use with Class CC fuses. Interrupting rating 200,000 Amps rms
symmetrical. Voltage rating 600V. Current rating 30A.
arrange- indicator size
arrange- indicator size
per
per
Operational characteristics
– IEC rated voltage Ue: 690VAC
– IEC rated current Ie: 32A
– IEC utilisation category: AC22B 500V, AC21B 690V
– Suitable for IEC fuse class: gG and aM
– IEC degree of protection IP20.
Reference standards
Compliant with standards: IEC/EN 60947-1,
IEC/EN 60947-3, IEC/EN 60269-1, IEC/EN 60269-2.
Operational characteristics
– IEC rated voltage Ue: 600VAC
– IEC rated current Ie: 30A
– IEC utilisation category: AC22B 500V, AC21B 690V
– Suitable for UL/CSA fuse class: CC
– IEC degree of protection IP20.
Certifications and compliance
Certifications obtained: UL Listed for USA (UL - File
E343395) and CSA certified for Canada only (File 252040
class 6225).
Compliant with standards: IEC/EN 60269-1,
IEC/EN 60269-2, IEC/EN 60947-1, IEC/EN 60947-3,
UL 4248-1, UL 4248-4, CSA C22.2 n°4248.1,
CSA C22.2 n°4248.4.
