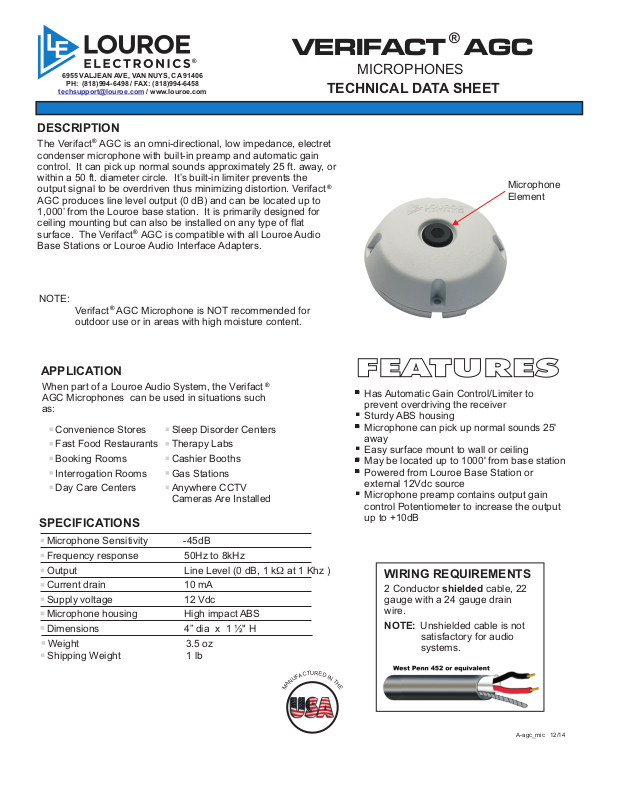

VERIFACT AGC
6955 VALJEAN AVE, VAN NUYS, CA 91406
PH: (818)994-6498 / FAX: (818)994-6458
/ www.louroe.com[email protected]
DESCRIPTION
The Verifact AGC is an omni-directional, low impedance, electret
condenser microphone with built-in preamp and automatic gain
control. It can pick up normal sounds approximately 25 ft. away, or
within a 50 ft. diameter circle. It’s built-in limiter prevents the
output signal to be overdriven thus minimizing distortion. Verifact
AGC produces line level output (0 dB) and can be located up to
1,000’ from the Louroe base station. It is primarily designed for
ceiling mounting but can also be installed on any type of flat
surface. The Verifact AGC is compatible with all Louroe Audio
Base Stations or Louroe Audio Interface Adapters.
®
®
TECHNICAL DATA SHEET
®
®
MICROPHONES
Microphone
Element
NOTE:
Verifact AGC Microphone is NOT recommended for
®
outdoor use or in areas with high moisture content.
APPLICATION
When part of a Louroe Audio System, the Verifact
AGC Microphones can be used in situations such
as:
Convenience Stores
Fast Food Restaurants
Booking Rooms
Interrogation Rooms
Sleep Disorder Centers
Therapy Labs
Cashier Booths
Gas Stations
Day Care Centers Anywhere CCTV
Cameras Are Installed
SPECIFICATIONS
Microphone Sensitivity
Frequency response
Output
Current drain
Supply voltage 12 Vdc
Microphone housing High impact ABS
Dimensions
Weight
Shipping Weight
-45dB
50Hz to 8kHz
Line Level (0 dB, 1 kW at 1 Khz )
10 mA
4” " dia x 1 ½ H
3.5 oz
1 lb
®
R
U
T
E
D
C
A
F
U
N
A
M
+
Has Automatic Gain Control/Limiter to
prevent overdriving the receiver
+
Sturdy ABS housing
+
Microphone can pick up normal sounds 25'
away
+
Easy surface mount to wall or ceiling
+
May be located up to 1000' from base station
+
Powered from Louroe Base Station or
external 12Vdc source
+
Microphone preamp contains output gain
control Potentiometer to increase the output
up to +10dB
WIRING REQUIREMENTS
2 Conductor shielded cable, 22
gauge with a 24 gauge drain
wire.
NOTE: Unshielded cable is not
satisfactory for audio
systems.
I
N
T
H
E
FEATURES
A-agc_mic 12/14
