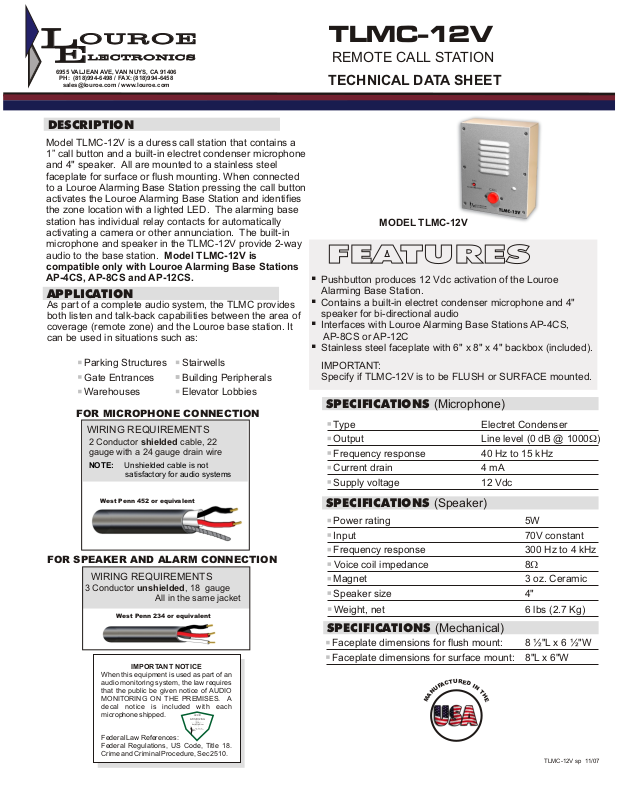

Page 1
LL
OUROEOUROE
EE
6955 VALJEAN AVE, VAN NUYS, CA 91406
LEC TRON ICSLEC TRON ICS
PH: (818)994-6498 / FAX: (818)994-6458
[email protected] / www.louroe.com
DESCRIPTION
Model TLMC-12V is a duress call station that contains a
1” call button and a built-in electret condenser microphone
and 4" speaker. All are mounted to a stainless steel
faceplate for surface or flush mounting. When connected
to a Louroe Alarming Base Station pressing the call button
activates the Louroe Alarming Base Station and identifies
the zone location with a lighted LED. The alarming base
station has individual relay contacts for automatically
activating a camera or other annunciation. The built-in
microphone and speaker in the TLMC-12V provide 2-way
audio to the base station. Model TLMC-12V is
compatible only with Louroe Alarming Base Stations
AP-4CS, AP-8CS and AP-12CS.
APPLICATION
As part of a complete audio system, the TLMC provides
both listen and talk-back capabilities between the area of
coverage (remote zone) and the Louroe base station. It
can be used in situations such as:
Parking Structures
Gate Entrances
Warehouses
FOR MICROPHONE CONNECTION
WIRING REQUIREMENTS
2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire
NOTE: Unshielded cable is not
satisfactory for audio systems
Stairwells
Building Peripherals
Elevator Lobbies
TLMC-12V
REMOTE CALL STATION
TECHNICAL DATA SHEET
MODEL TLMC-12V
FEATURESFEATURES
+
Pushbutton produces 12 Vdc activation of the Louroe
Alarming Base Station.
+
Contains a built-in electret condenser microphone and 4"
speaker for bi-directional audio
+
Interfaces with Louroe Alarming Base Stations AP-4CS,
AP-8CS or AP-12C
+
Stainless steel faceplate with 6" x 8" x 4" backbox (included).
IMPORTANT:
Specify if TLMC-12V is to be FLUSH or SURFACE mounted.
SPECIFICATIONS (Microphone)
Type
Output
Frequency response
Current drain
Supply voltage
Electret Condenser
Line level (0 dB @ 1000W)
40 Hz to 15 kHz
4 mA
12 Vdc
West Penn 452 or equivalent
FOR SPEAKER AND ALARM CONNECTION
WIRING REQUIREMENTS
3 Conductor unshielded, 18 gauge
All in the same jacket
West Penn 234 or equivalent
IMPORTANT NOTICE
When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A
deca l notice is incl uded w ith ea ch
microphone shipped.
Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.
AUDIO
MONITORING
On
These Premises
OUROE
L
LECTRONICS
E
SPECIFICATIONS (Speaker)
Power rating
Input
Frequency response
Voice coil impedance
Magnet
Speaker size
Weight, net 6 lbs (2.7 Kg)
5W
70V constant
300 Hz to 4 kHz
8
3 oz. Ceramic
4"
SPECIFICATIONS (Mechanical)
Faceplate dimensions for flush mount:
Faceplate dimensions for surface mount:
R
U
E
T
D
C
A
F
U
N
A
M
I
N
T
H
E
8 ½"L x 6 ½"W
8"L x 6"W
TLMC-12V sp 11/07
