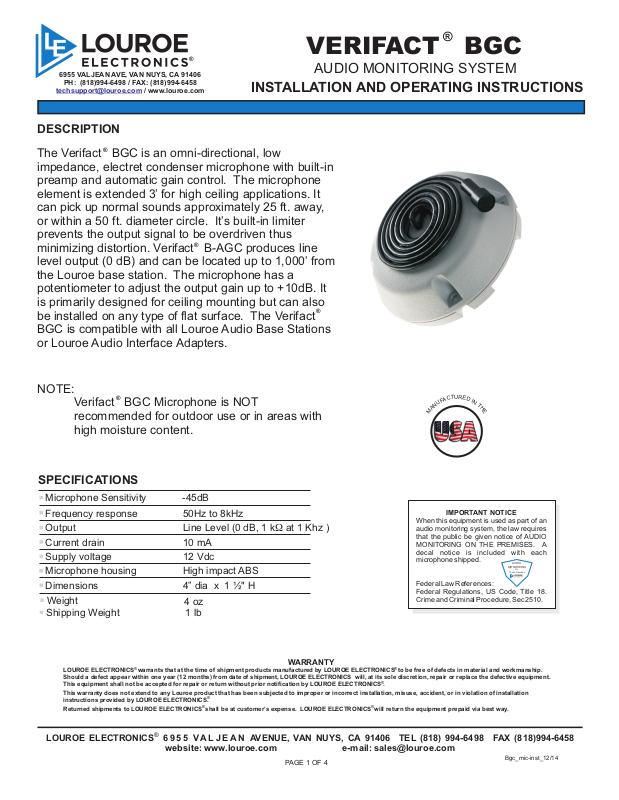

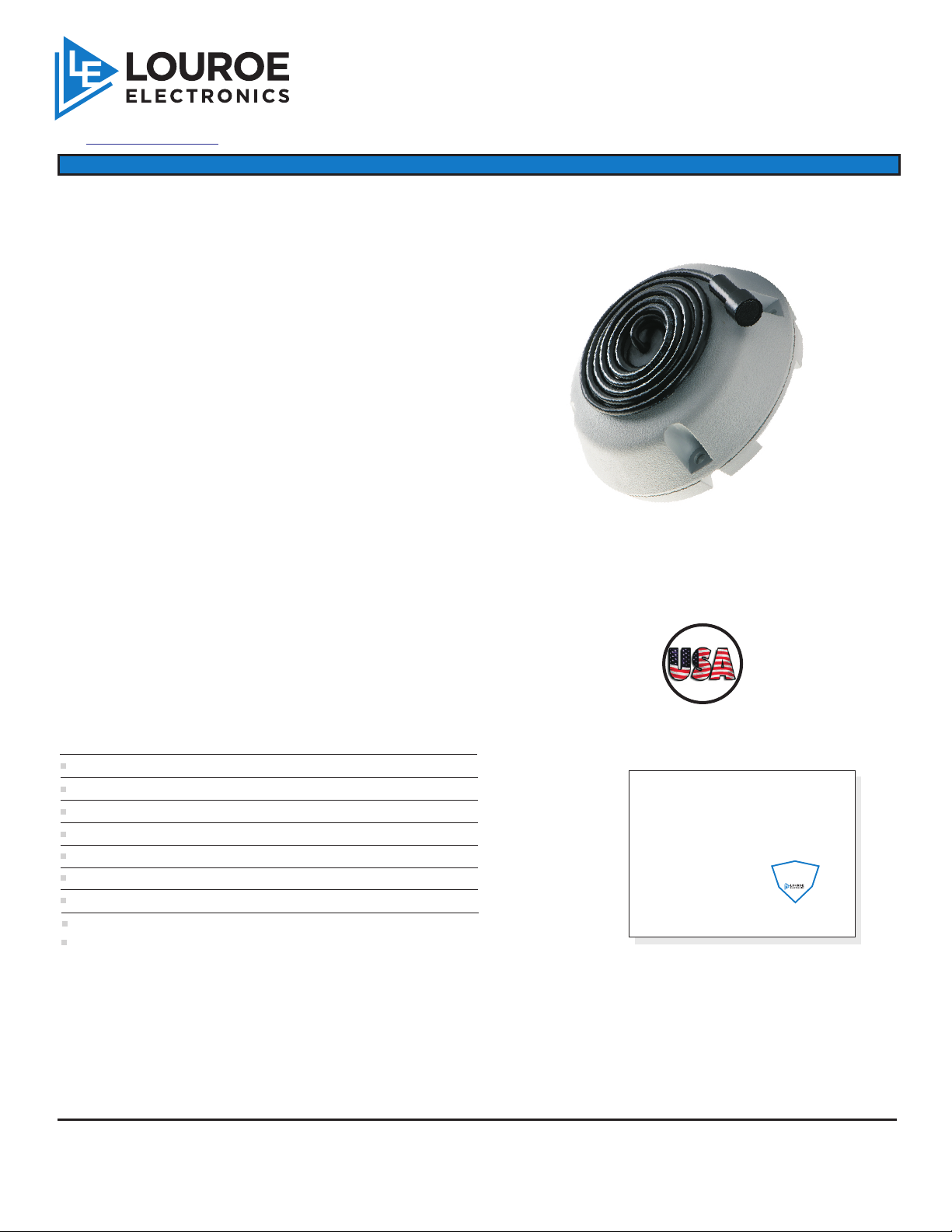

DESCRIPTION
®
®
VERIFACT BGC
AUDIO MONITORING SYSTEM
INSTALLATION AND OPERATING INSTRUCTIONS
The Verifact BGC is an omni-directional, low
®
impedance, electret condenser microphone with built-in
preamp and automatic gain control. The microphone
element is extended 3’ for high ceiling applications. It
can pick up normal sounds approximately 25 ft. away,
or within a 50 ft. diameter circle. It’s built-in limiter
prevents the output signal to be overdriven thus
minimizing distortion. Verifact B-AGC produces line
®
level output (0 dB) and can be located up to 1,000’ from
the Louroe base station. The microphone has a
potentiometer to adjust the output gain up to +10dB. It
is primarily designed for ceiling mounting but can also
be installed on any type of flat surface. The Verifact
®
BGC is compatible with all Louroe Audio Base Stations
or Louroe Audio Interface Adapters.
NOTE:
Verifact BGC Microphone is NOT
®
recommended for outdoor use or in areas with
high moisture content.
R
U
T
E
D
C
A
I
F
U
N
A
M
N
T
H
E
SPECIFICATIONS
Microphone Sensitivity
Frequency response
Output
Current drain
Supply voltage 12 Vdc
Microphone housing High impact ABS
Dimensions
Weight
Shipping Weight
LOUROE ELECTRONICS warrants that at the time of shipment products manufactured by LOUROE ELECTRONICS to be free of defects in material and workmanship.
Should a defect appear within one year (12 months) from date of shipment, LOUROE ELECTRONICS will, at its sole discretion, repair or replace the defective equipment.
This equipment shall not be accepted for repair or return without prior notification by LOUROE ELECTRONICS .
This warranty does not extend to any Louroe product that has been subjected to improper or incorrect installation, misuse, accident, or in violation of installation
instructions provided by LOUROE ELECTRONICS.
Returned shipments to LOUROE ELECTRONICS shall be at customer’s expense. LOUROE ELECTRONICS will return the equipment prepaid via best way.
LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
-45dB
50Hz to 8kHz
Line Level (0 dB, 1 kW at 1 Khz )
10 mA
4” " dia x 1 ½ H
4 oz
When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A
deca l noti ce is included with each
microphone shipped.
Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.
1 lb
WARRANTY
®
®
®
website: www.louroe.com e-mail: [email protected]
PAGE 1 OF 4
®
®
®
