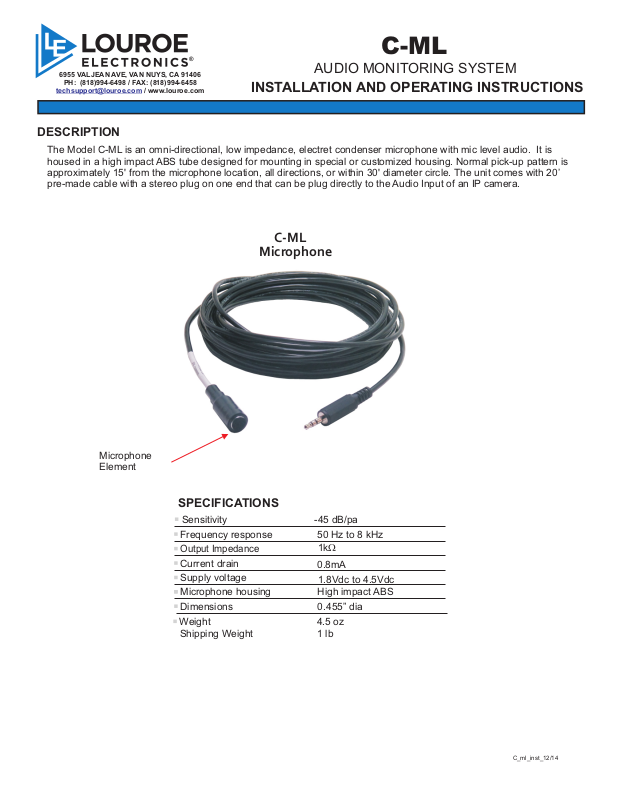

DESCRIPTION
®
C-ML
AUDIO MONITORING SYSTEM
INSTALLATION AND OPERATING INSTRUCTIONS
The Model C-ML is an omni-directional, low impedance, electret condenser microphone with level audio. It is
housed in a high impact ABS tube designed for mounting in special or customized housing. Normal pick-up pattern is
approximately 15' from the microphone location, all directions, or within 30' diameter circle. The unit comes with 20’
pre-made cable with a stereo plug on one end that can be plug directly to the Audio Input of an IP camera.
mic
C-ML
Microphone
Microphone
Element
SPECIFICATIONS
Sensitivity
Frequency response
Output Impedance
Current drain
Supply voltage
Microphone housing High impact ABS
Dimensions
Weight
Shipping Weight
-45 dB/pa
50 Hz to 8 kHz
1kW
0.8mA
1.8Vdc to 4.5Vdc
0.455” dia
4.5 oz
1 lb
C_ml_inst_12/14
Page 2
INSTALLATION AND OPERATING INSTRUCTIONS
MICROPHONE CONNECTION
Connect the other end of the cable with a 3.5mm Stereo
Plug to the Audio Input of the IP camera.The camera
has to be configured to Mic level settings.
MICROPHONE
IMPORTANT NOTICE
When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A
deca l noti ce is includ ed wit h each
microphone shipped.
Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.
AUDIO
MONITORING
On
These Premises
®
20’ PRE-MADE CABLE
MANUFACTURED
IN THE
TO IP CAMERA AUDIO INPUT
IP CAMERA
LOUROE ELECTRONICS warrants that at the time of shipment products manufactured by LOUROE ELECTRONICS to be free of defects in material and workmanship.
Should a defect appear within one year (12 months) from date of shipment, LOUROE ELECTRONICS will, at its sole discretion, repair or replace the defective equipment.
This equipment shall not be accepted for repair or return without prior notification by LOUROE ELECTRONICS .
This warranty does not extend to any Louroe product that has been subjected to improper or incorrect installation, misuse, accident, or in violation of installation
instructions provided by LOUROE ELECTRONICS.
Returned shipments to LOUROE ELECTRONICS shall be at customer’s expense. LOUROE ELECTRONICS will return the equipment prepaid via best way.
LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
®
®
®
WARRANTY
®
®
®
(818)
website: www.louroe.com e-mail: [email protected]
