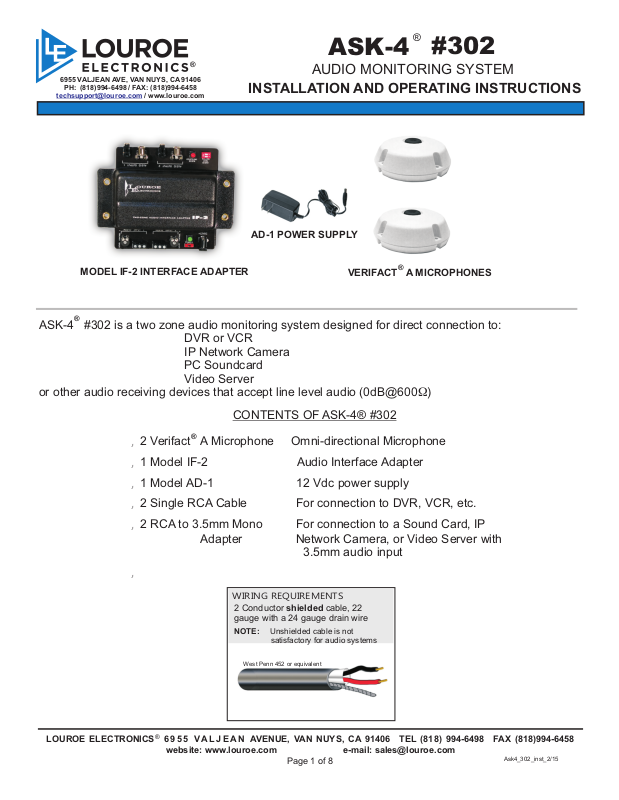

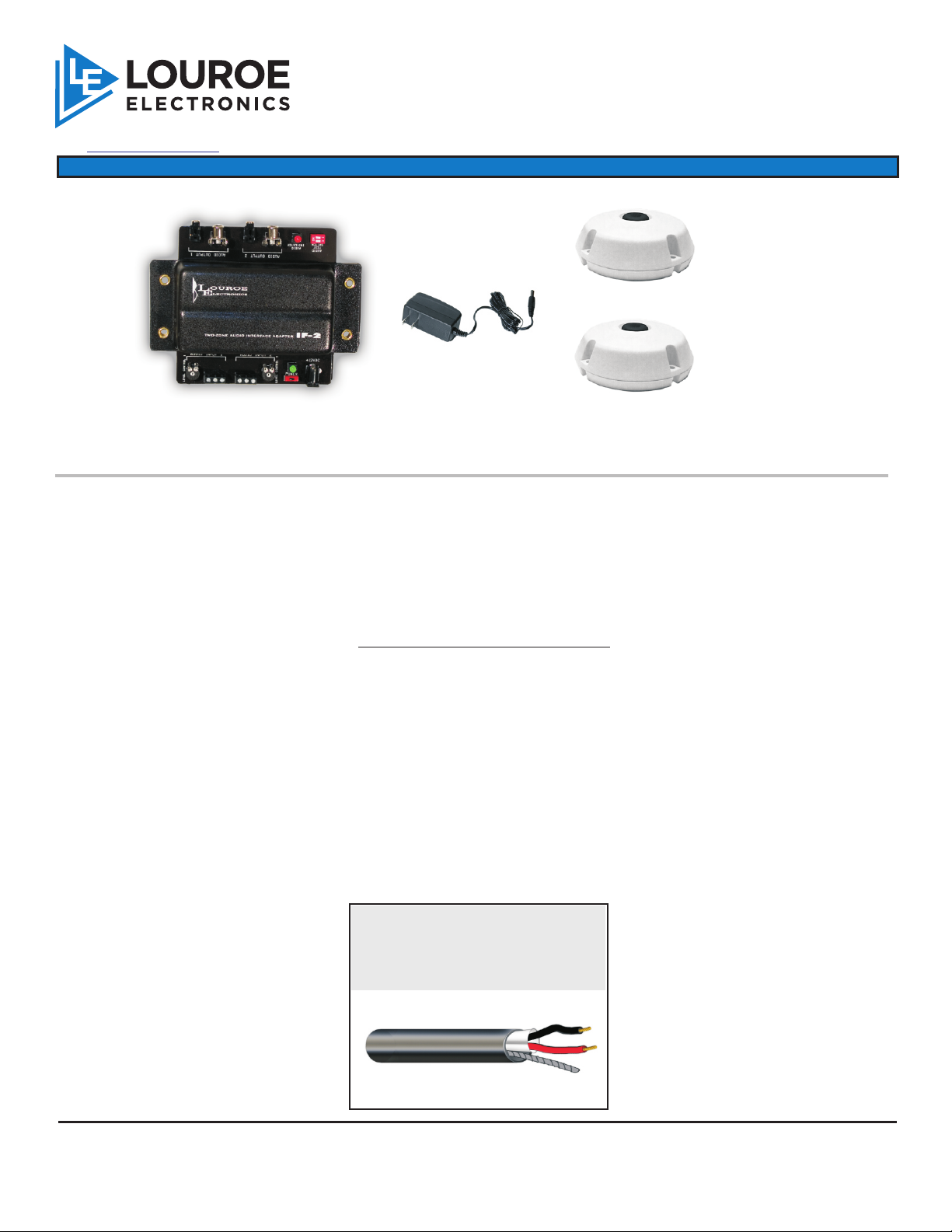

Page 1
®
6955 VALJEAN AVE, VAN NUYS, CA 91406
PH: (818)994-6498 / FAX: (818)994-6458
/ www.louroe.com[email protected]
®
ASK-4
#302
AUDIO MONITORING SYSTEM
INSTALLATION AND OPERATING INSTRUCTIONS
AD-1 POWER SUPPLY
MODEL IF-2 INTERFACE ADAPTER
ASK-4 #302 is a two zone audio monitoring system designed for direct connection to:
®
VERIFACT A MICROPHONES
®
DVR or VCR
IP Network Camera
PC Soundcard
Video Server
or other audio receiving devices that accept line level audio (0dB@600W)
CONTENTS OF ASK-4® #302
,2 Verifact A Microphone Omni-directional Microphone
®
,1 Model IF-2 Audio Interface Adapter
,1 Model AD-1 12 Vdc power supply
,2 Single RCA Cable For connection to DVR, VCR, etc.
,2 RCA to 3.5mm Mono For connection to a Sound Card, IP
Adapter Network Camera, or Video Server with
3.5mm audio input
,
WIRING REQUIREMENTS
2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire
NOTE: Unshielded cable is not
LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
website: www.louroe.com e-mail: [email protected]
satisfactory for audio systems
West Penn 452 or equivalent
Page 1 of 8
(818)
Ask4_302_inst_2/15
Page 2
INSTALLATION AND OPERATING INSTRUCTIONS
WIRING REQUIREMENTS
2 conductor shielded, 22 gauge, with a 24 gauge drain wire.
West Penn 452 or equivalent
MICROPHONE INSTALLATION - MECHANICAL
Model A Microphone is designed for surface mounting to a ceiling or wall. Microphone will pick up
sounds 15’ away from all directions. For best results, install microphone as close to desired area of
coverage as possible. Avoid mounting microphone to ceiling heights in excess of 10’, or near air
vents, refrigeration units, or other audio interferences.
NOTE: Make wiring connection on back side of microphone before installing microphone to ceiling or
flat surface.
MICROPHONE INSTALLATION - ELECTRICAL
Located on back side of microphone is a terminal block marked A, B and C.
A is 12 Vdc
B is Audio
C is Ground (common)
Using recommended wiring, connect as follows:
RED wire to terminal A (12Vdc)
BLACK wire to terminal B (Audio)
BARE wire to terminal C (Ground)
NOTE: If using wiring from other manufacturers,
color code may vary.
Repeat connections for the second microphone.

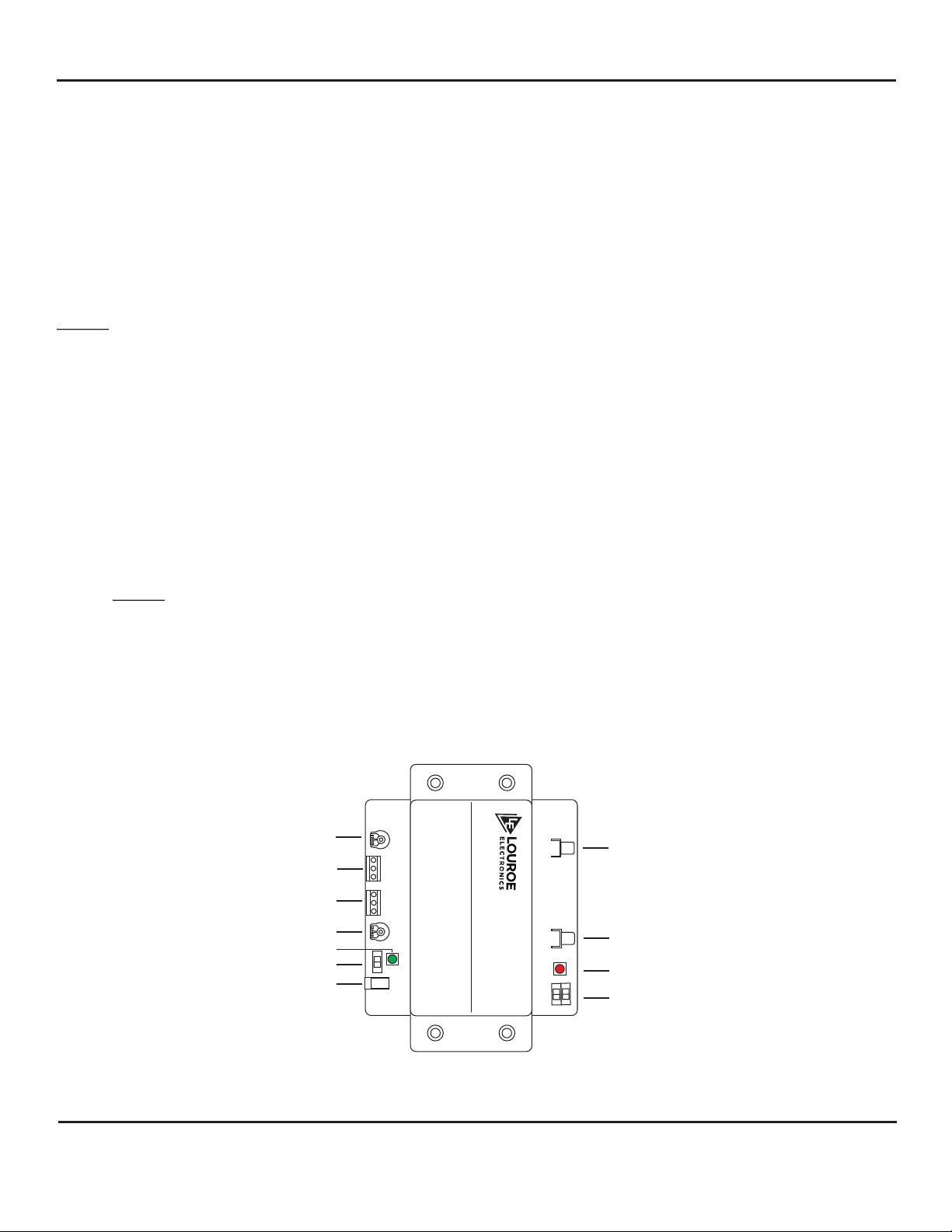

LOUROE MODEL IF-2 AUDIO INTERFACE ADAPTER
LEVEL CONTROL 1
LEVEL CONTROL 2
AUDIO INPUT
1
AUDIO INPUT
2
+12 Vdc
2 ZONE AUDIO INTERFACE ADAPTER
IF-2
AUDIO OUT CONTROL 1
MICROPHONE INPUT 1
MICROPHONE INPUT 2
AUDIO OUT CONTROL 2
POWER LED
POWER SWITCH
POWER JACK
AUDIO OUTPUT 1
®
2
AUDIO OUTPUT
AUDIO OUT 1
AUDIO OUT 2
AUDIO INDICATOR
AUDIO TEST SWITCH
LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
website: www.louroe.com e-mail: [email protected]
Page 2 of 8
(818)
Ask4_302_inst_2/15
Page 3
INSTALLATION AND OPERATING INSTRUCTIONS
MECHANICAL INSTALLATION - MODEL IF-2 INTERFACE ADAPTER
The IF-2 Interface Adapter serves as an interface device between the microphone and the audio
receiver (DVR/VCR, PC sound card, etc.). The IF-2 can be installed several ways:
1) Wall mounted close to DVR/VCR or IP Network Camera, etc.
2) Attached to side of the receiving device using two-way ¼” adhesive tape
(not provided)
MICROPHONE CONNECTION TO IF-2 INTERFACE ADAPTER
Bring in other end of wiring from microphone and connect to “Microphone Input 1” terminal block on
IF-2 marked, A, B and C. Connect as follows:
Terminal A of microphone to terminal A of IF-1 12Vdc
Terminal B of microphone to terminal B of IF-1 Audio Output
Terminal C of microphone to terminal C of IF-1 Ground (common)
Repeat connections for zone 2 for the second microphone by connecting it to Microphone Input 2
terminal block.
To apply power to the system, Model AD-1 12Vdc power supply is included. First connect small end
(female 90° plug) into 12Vdc jack on IF-1, then connect 2-prong power block to a standard 110Vac
outlet or power strip.
CONNECTION BETWEEN IF-2 INTERFACE ADAPTER AND DVR/VCR WITH RCA TYPE AUDIO
CONNECTIONS
To make connection to DVR/VCR, plug the RCA cable (supplied) into the RCA type audio output jack
located on the output side of Model IF-2. Connect other end of RCA cable to the DVR/VCR’s
“AUDIO IN” jack (see drawing on page 4). Repeat connection for zone 2 or the second output of
the IF-2.
CONNECTION BETWEEN IF-2 AND AN IP NETWORK CAMERA, DVR, VIDEO SERVER WITH
3.5mm MONO TYPE AUDIO CONNECTIONS
To make connection to IP Network Camera, plug the RCA to 3.5mm mono adaptor (supplied) into
one end of the RCA cable and connect that end to the camera audio input. Connect the other end
with RCA plug to the Audio Out 1 located on the output side of IF-2. Repeat connections for zone 2
or for Audio Out 2, the other output of the IF-2 (see drawing on page 5).
.
LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
website: www.louroe.com e-mail: [email protected]
Page 3 of 8
(818)
Ask4_302_inst_2/15
Page 4
INSTALLATION AND OPERATING INSTRUCTIONS

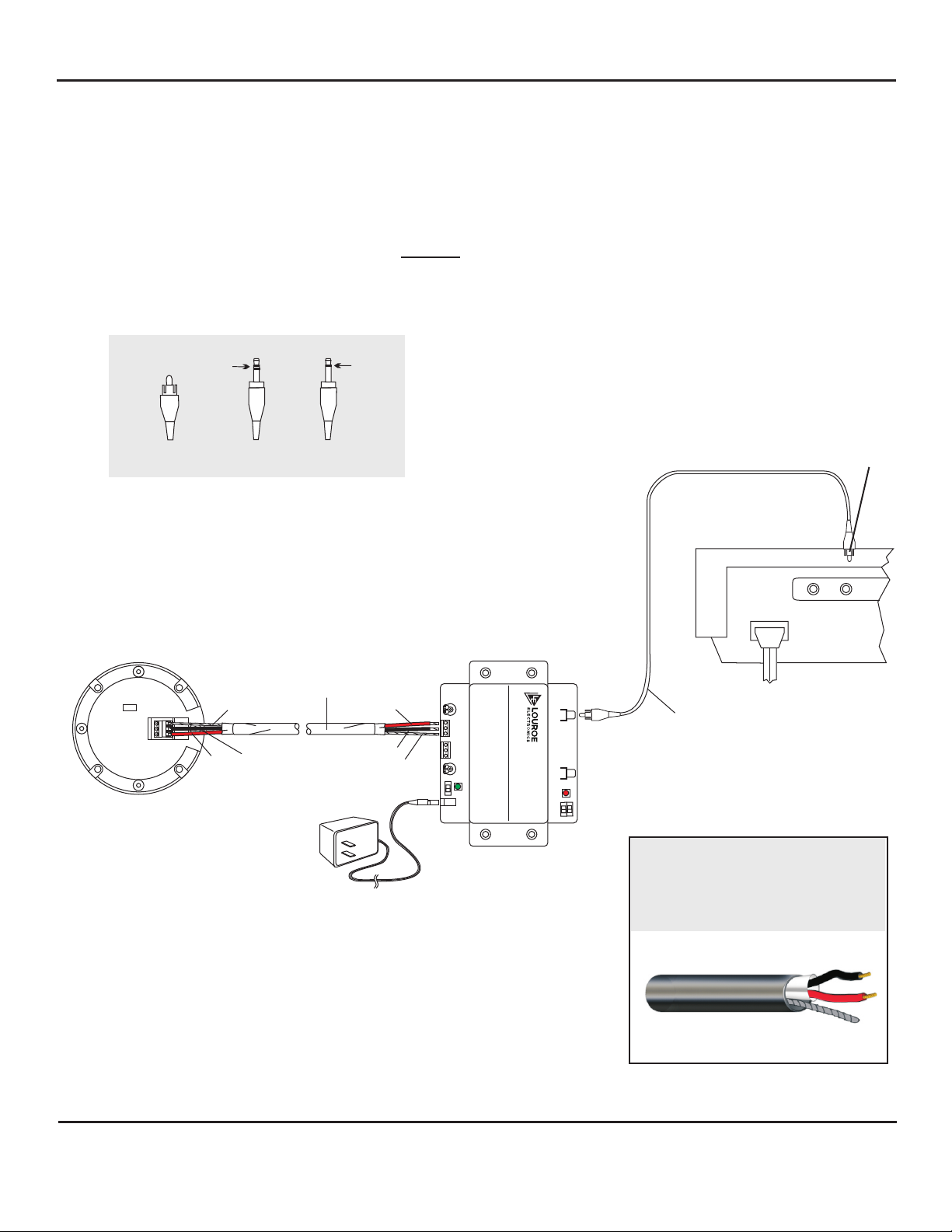

INTERCONNECTION DIAGRAM
FOR
®
LOUROE ASK-4 302 AUDIO
MONITORING SYSTEM AND DVR/VCR, VIDEO SERVER, ETC.
WITH RCA AUDIO INPUT
Plug Identification
two bands
stereo
RCA PLUG
3.5mm
STEREO
RCA Plug used for this application
3.5mm
MONO
one band
mono
RCA AUDIO INPUT
REAR PANEL OF
RECORDING DEVICE
OUT IN
L
N
A B C
VER IFA CT A
L N
BARE
A
RED
RED
BLACK
BARE
LEVEL CONTROL 1
LEVEL CONTROL 2
AUDIO INPUT 1
AUDIO INPUT 2
+12 Vdc
2 ZONE AUDIO INTERFACE ADAPTER
IF-2
AUDIO OUTPUT 1
®
AUDIO OUTPUT 2
RCA connection cable
Model AD-1
+12 Vdc
POWER
SUPPLY
LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
MODEL IF-2
Interface Adapter
WIRING REQUIREMENTS
2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire
NOTE: Unshielded cable is not
satisfactory for audio systems
West Penn 452 or equivalent
(818)
website: www.louroe.com e-mail: [email protected]
Page 4 of 8
Ask4_302_inst_2/15
Page 5
INSTALLATION AND OPERATING INSTRUCTIONS

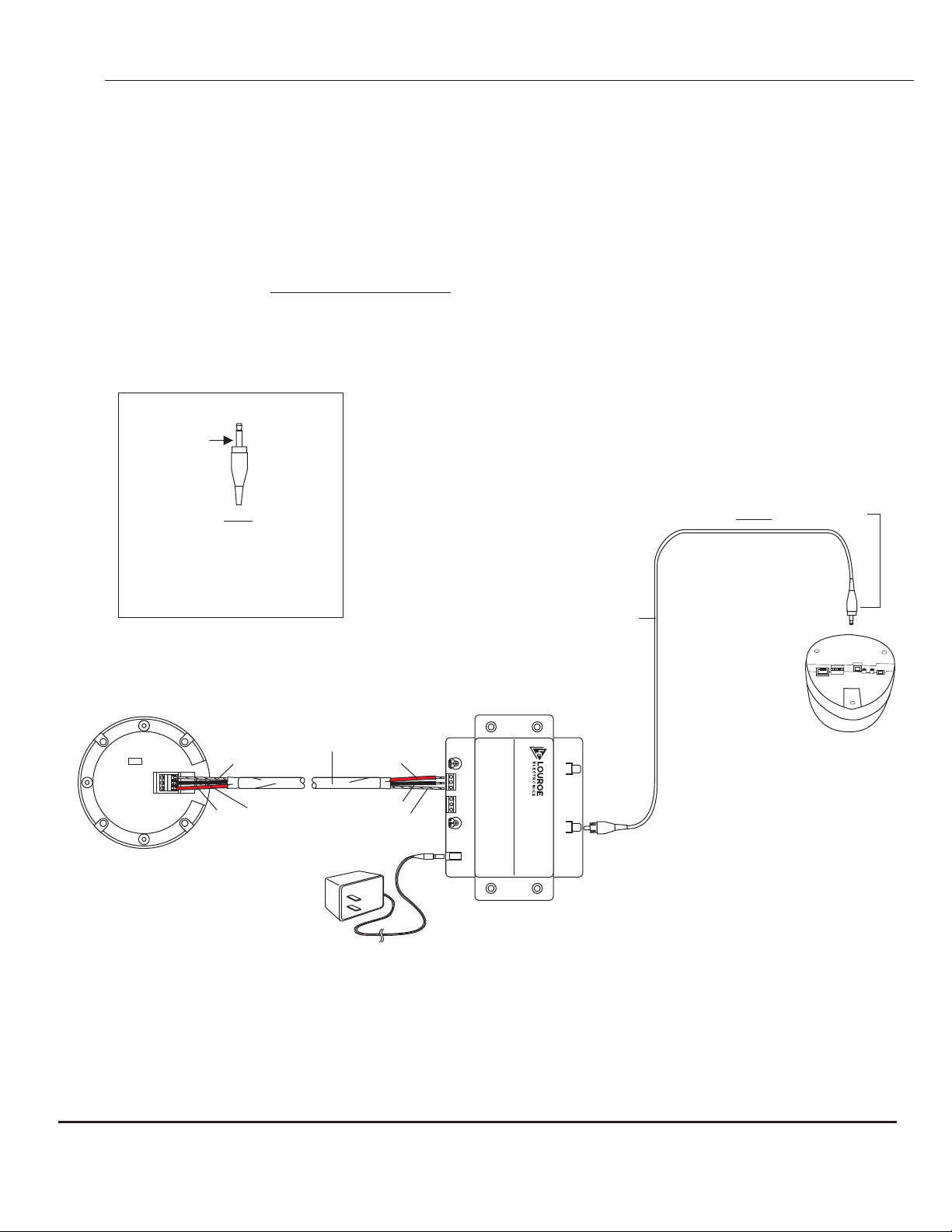

INTERCONNECTION DIAGRAM
FOR LOUROE
ASK-4 302
AUDIO MONITORING SYSTEM
AND AN IP NETWORK CAMERA, DVR, VIDEO SERVER WITH
3.5mm MONO AUDIO INPUT
one band
mono
®
3.5mm MONO PLUG
RCA to 3.5mm mono adaptor plug
3.5mm Mono cable used
with this application
RCA to RCA cable
L
N
A B C
VER IFA CT A
L N
BARE
A
RED
RED
BLACK
BARE
LEVEL CONTROL 1
LEVEL CONTROL 2
AUDIO INPUT 1
AUDIO INPUT 2
+12 Vdc
2 ZONE AUDIO INTERFACE ADAPTER
IF-2
AUDIO OUTPUT 1
®
AUDIO OUTPUT 2
RCA plug
IP NETWORK CAMERA
Model AD-1
+12 Vdc
POWER
SUPPLY
MODEL IF-2
Interface Adapter
LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
(818)
website: www.louroe.com e-mail: [email protected]
Page 5 of 8
Ask4_302_inst_2/15
Page 6
INSTALLATION AND OPERATING INSTRUCTIONS
SENSITIVITY SWITCH OF MICROPHONE
For special installations that require less microphone sensitivity, a sensitivity switch has
been added to the microphone pre-amp (PC board) and has two positions - N and L:
N represents normal sensitivity (0dB output into 1KW)
L represents low sensitivity (-6dB output into 1 KW)
NOTE: Louroe™ Verifact microphones are always shipped with the sensitivity switch in
normal (N) position. Do not change unless required.
To make an adjustment, use a small screwdriver and move slide switch from N to L.
Sensitivity switch is located on the backside of Verifact™ A Microphone.
SPECIFICATIONS (IF-2 Interface Adapter)
Input impedance
Output impedancel
Power supply
Dimensions
Audio output gain
Weight
17.5 KΩ @ 1kHz
600Ω @1kHz
12Vdc, 500 mA
6 1/8”L x 4 5/8”W x 1 3/8”H
up to +10dB
7 oz
SPECIFICATIONS (Microphone - Model A)
Type
Output
Frequency response
Current drain
Supply voltage
Dimensions
Weight
Shipping Weight
Electret Condenser
Line Level (0 dB 600W @ 1 kHZ)
50 Hz to 15 kHz ± 1 dB
10 mA
12Vdc
4"Dia x 1 ½"H
3.5 oz
2 lbs
LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
website: www.louroe.com e-mail: [email protected]
Page 7 of 8
(818)
Ask4_302_inst_2/15
Page 7
When this equipment is used as part of an audio monitoring system,
the law requires that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A decal notice is included with
each microphone shipped.
Federal Law References:
Federal Regulations, US Code, Title 18. Crime and Criminal
Procedure, Sec 2510.
IMPORTANT NOTICE
MONITORING
These Premises
AUDIO
On
®
LOUROE ELECTRONICS warrants that at the time of shipment products manufactured by LOUROE ELECTRONICS to be free of defects in material and workmanship.
Should a defect appear within one year (12 months) from date of shipment, LOUROE ELECTRONICS will, at its sole discretion, repair or replace the defective equipment.
This equipment shall not be accepted for repair or return without prior notification by LOUROE ELECTRONICS .
This warranty does not extend to any Louroe product that has been subjected to improper or incorrect installation, misuse, accident, or in violation of installation
instructions provided by LOUROE ELECTRONICS.
Returned shipments to LOUROE ELECTRONICS shall be at customer’s expense. LOUROE ELECTRONICS will return the equipment prepaid via best way.
