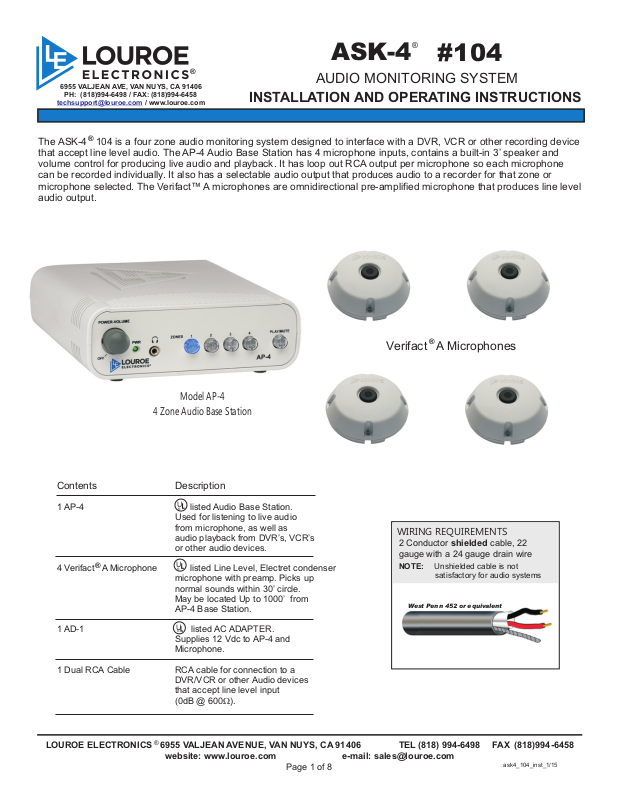

ASK-4
#104
AUDIO MONITORING SYSTEM
INSTALLATION AND OPERATING INSTRUCTIONS
The ASK-4 104 is a four zone audio monitoring system designed to interface with a DVR, VCR or other recording device
®
that accept line level audio. The AP-4 Audio Base Station has 4 microphone inputs, contains a built-in 3’ speaker and
volume control for producing live audio and playback. It has loop out RCA output per microphone so each microphone
can be recorded individually. It also has a selectable audio output that produces audio to a recorder for that zone or
microphone selected. The Verifact™ A microphones are omnidirectional pre-amplified microphone that produces line level
audio output.

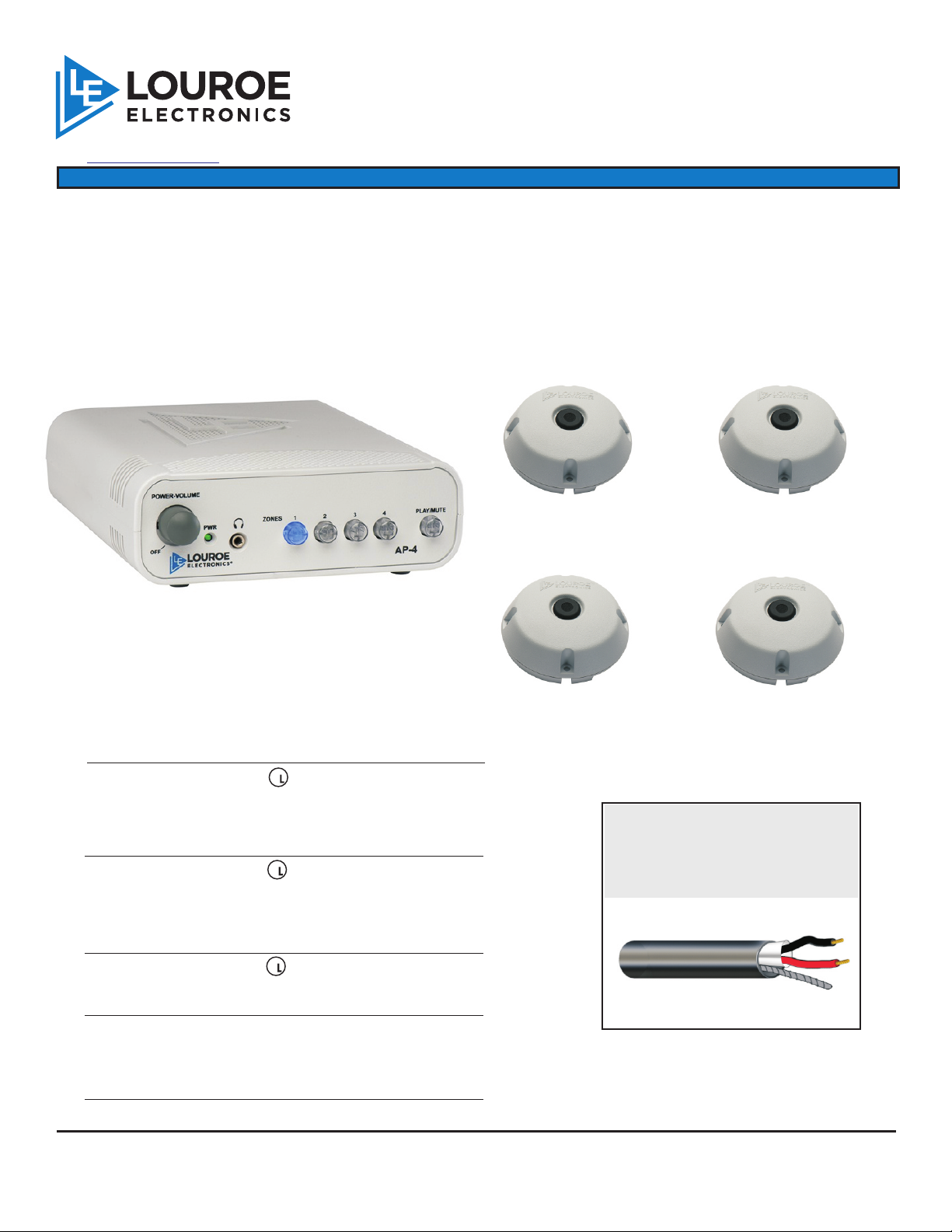

Verifact A Microphones
®
Model AP-4
4 Zone Audio Base Station
Contents Description
U
1 AP-4 listed Audio Base Station.
Used for listening to live audio
4 Verifact A Microphone listed Line Level, Electret condenser
1 AD-1 listed AC ADAPTER.
1 Dual RCA Cable RCA cable for connection to a
LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
®
from microphone, as well as
audio playback from DVR’s, VCR’s
or other audio devices.
U
®
microphone with preamp. Picks up
normal sounds within 30’ circle.
May be located Up to 1000’ from
AP-4 Base Station.
U
®
Supplies 12 Vdc to AP-4 and
Microphone.
DVR/VCR or other Audio devices
that accept line level input
(0dB @ 600?).
®
website: www.louroe.com e-mail: [email protected]
Page 1 of 8
WIRING REQUIREMENTS
2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire
NOTE: Unshielded cable is not
West Penn 452 or equivalent
(818)
satisfactory for audio systems
ask4_104_inst_1/15
Page 2
INSTALLATION AND OPERATING INSTRUCTIONS
4
5
DESCRIPTION AND FUNCTION OF PARTS
[1] - Play/Mute Switch Used when playing back audio from a recorder or mute the audio
2
3

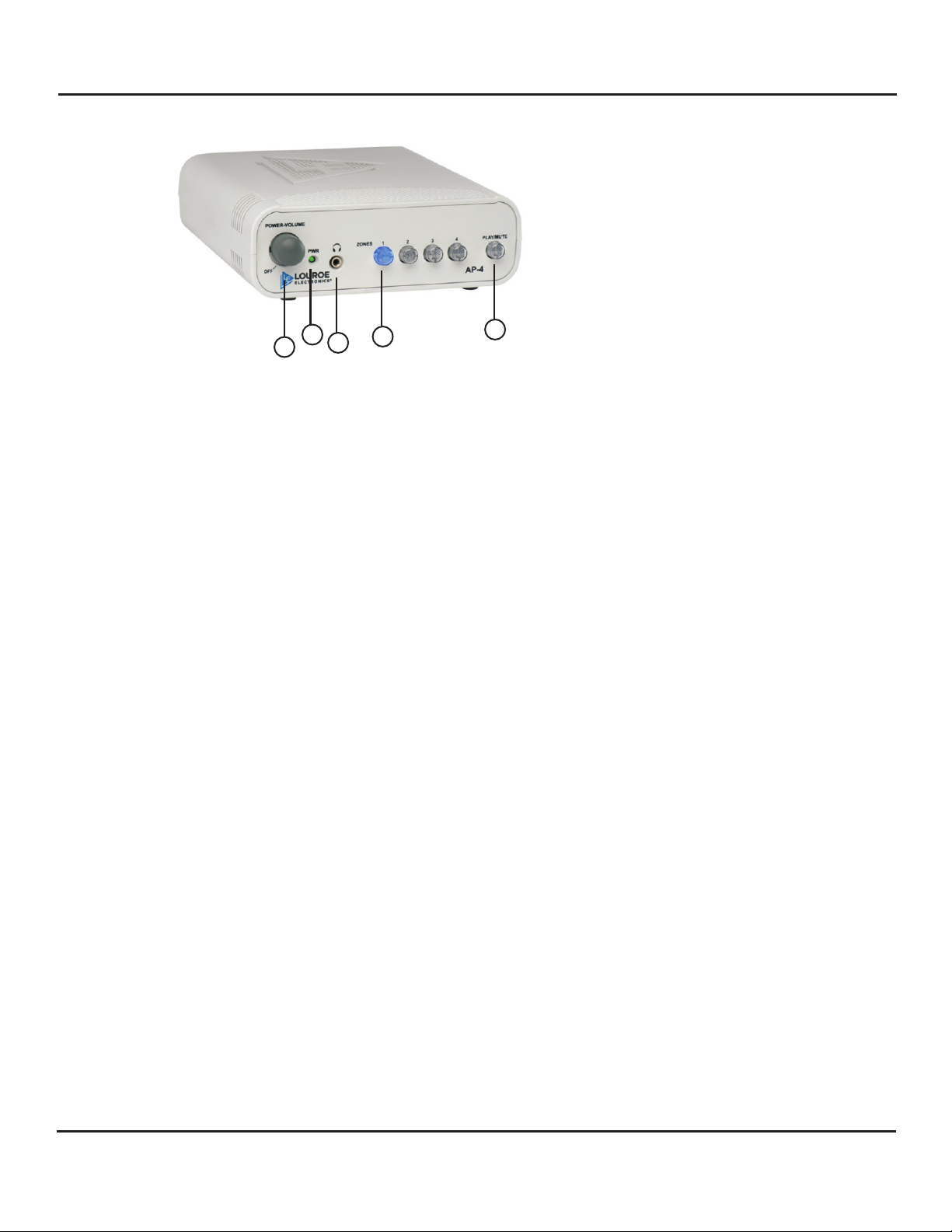

Fig. 1 Front of AP-4
from the microphone. No audio is heard on the Speaker[7] when
this switch is ON.
1
Fig.1 Front view of AP-4
AP-2 and AP-8 have the
same features except
for the number of Zones
[2] - Zone Selector Switches Select zone for monitoring. Press switch of desired zone to listen
to live audio. Pressing more than one zone is possible when it is
necessary to monitor more than one zone at a time, but audio
may be difficult to understand if there is audio activity at several
zones. Zone switches light blue when press indicating active
zone.
[3] - Headset Jack Used for private listening. Any stereo headset with 8 to 600?
impedance maybe used. Mutes speaker output when use.
[4] - Power Indicator Lights (green) when power is turned ON.
[5] - Power-Volume Knob Rotating knob clockwise turns ON power to the unit as indicated
by the Power Indicator[4] light. Rotating further clockwise
increases the volume of the monitored audio as heard through
the Monitor Speaker[7].
LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
website: www.louroe.com e-mail: [email protected]
Page 2 of 8
(818)
ask4_104_inst_1/15
Page 3
INSTALLATION AND OPERATING INSTRUCTIONS
6
7
11
DESCRIPTION AND FUNCTION OF PARTS
[6] - Mic Input 3-Pin Terminal Block Connects to remote Louroe microphones.
9
8
zone
10

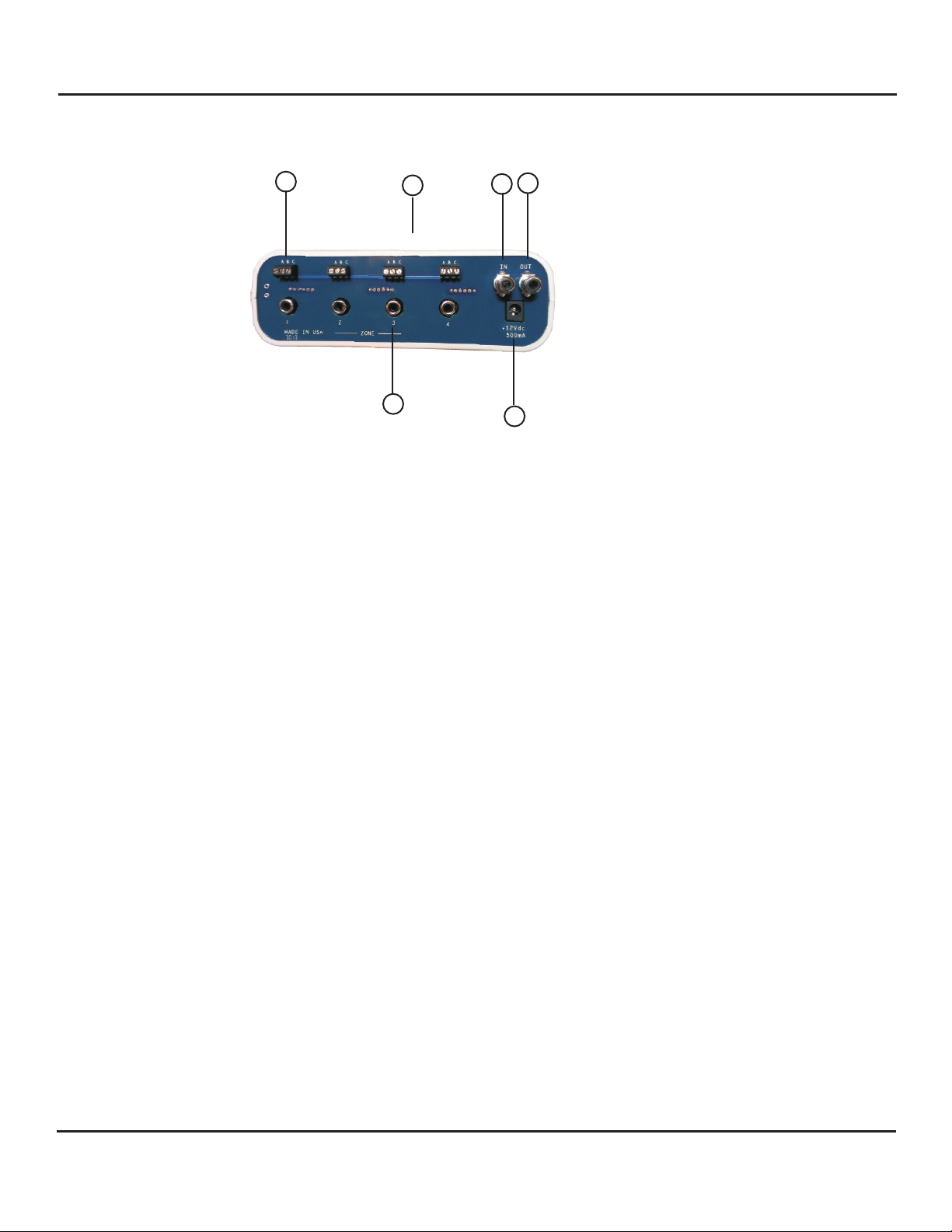

Fig.2 Rear view of AP-4
AP-2 and AP-8 have the
same features except
for the number of terminal
blocks and mic output
jacks for each
[7] - Monitor Speaker Provides live audio through the 3” built-in speaker. Muted when
a headset is connected to Headset Jack[3].
[8] - Audio In Jack (RCA) Receives audio playback from DVR/VCR, etc. and is broadcast
through the built-in speaker. [7].
[9] - Audio Out Jack (RCA) Provides audio to DVR/VCR for recording or to other audio
devices accepting line level input when any of the Zone Selector
Switches[2] are activated or push in. The audio output to this
jack will be the audio selected by the Zone Selector Switches[2].
[10]- Power Jack Accepts 12Vdc from external power supply (included)
[11] - Mic Output Jack Used for connection to a DVR with multiple audio inputs or to a
soundcard module for audio recording. May also be used for
paralleling to a second Louroe audio base station.
LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
website: www.louroe.com e-mail: [email protected]
Page 3 of 8
(818)
ask4_104_inst_1/15
Page 4
INSTALLATION AND OPERATING INSTRUCTIONS
MICROPHONE CONNECTIONS TO AP-4
All Louroe Verifact Microphones contain a 3-pin terminal block marked A, B, C. All Louroe base stations contain similar
3-pin terminal blocks marked A, B, C. Refer to interconnection diagram p 5.
1) Take one end of recommended cable to first microphone location and connect:
2) Run other end of cable to the AP-4 Base Station location and connect to the 3-pin terminal block of the audio
3) Repeat the same procedure for the remaining microphones using the additional terminal blocks marked zone
CONNECTING AP-4 TO A RECORDING DEVICE (DVR, ETC.)
A) If connecting to a VCR or to a DVR with one audio input:
®
A = 12Vdc Power (red wire)
B = Audio Output (black wire)
C = Common Ground (bare wire)
Red wire to terminal A (12Vdc)
Black wire to terminal B (Audio Output)
Bare wire to terminal C (Ground)
zone in which the remote microphone is assigned (example zone 1). Again connect Red wire to Pin A, Black
wire to Pin B and Bare wire to Pin C.
2, zone 3, etc.
1) Connect an RCA cable to the Audio Out jack [9] of AP-4 and connect other end to Audio In (or line in)
of VCR/DVR
2) To record, press the Zone Selector Switch [1] located on front panel of base station for the audio zone
to be recorded
3) For audio playback, connect another RCA cable from Audio Out (or line out) of VCR/DVR to Audio In
[8] of AP-4
4) Press in the Play/Mute Switch[1] of front panel
5) Press the play or playback button on VCR/DVR to start audio playback. Playback will be broadcast
through the base station’s built-in speaker. As an alternate playback may be channeled through a
CCTV monitor with amplifier or through DVR’s speaker system
2) If connecting to a DVR with multiple audio inputs or to a soundcard module:
AP-4 has 4 line level RCA Mic Output Jacks [11]
1) Connect RCA cables between the Mic Output Jacks [11] and Audio Inputs of DVR
2) For audio playback from base station (AP-4), press in the Play/Mute Switch[1] located on base
station’s front panel. Playback may also be channeled through other audio sources
3) To select a specific audio zone for playback, refer to DVR’s instruction manual
APPLYING POWER TO THE AP-4
A 12Vdc power supply is included with the above units. First connect the small end with the 90° plug to the above
units DC Jack[11] and connect large end to a standard 120Vac outlet or power strip.
Maximum distance between AP-4, etc. and Louroe microphones is 1,000 ft. (305m)
LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
website: www.louroe.com e-mail: [email protected]
Page 4 of 8
(818)
ask4_104_inst_1/15
Page 5
INSTALLATION AND OPERATING INSTRUCTIONS

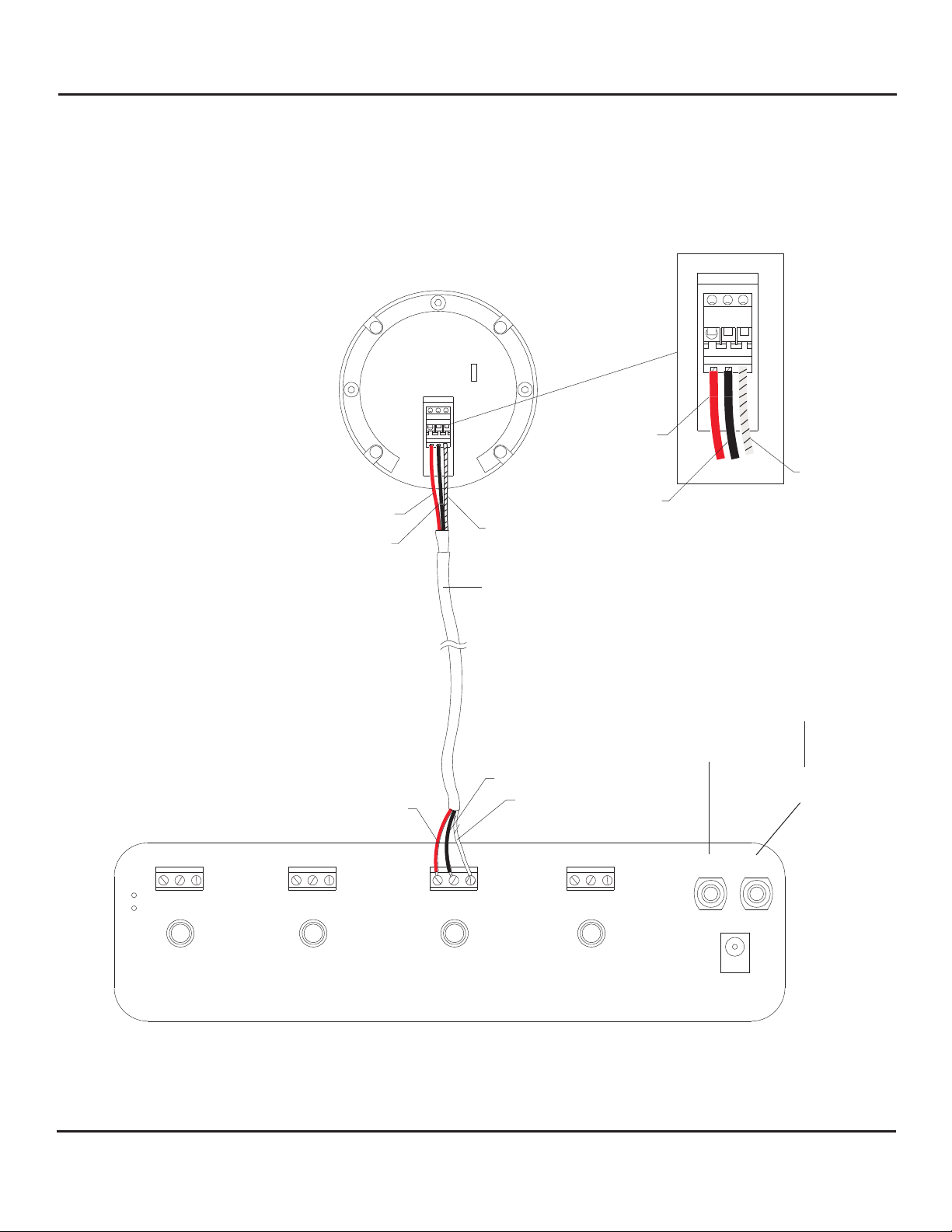

INTERCONNECTION DIAGRAM FOR VERIFACT A MICROPHONE
®
AND AP-4 BASE STATION
(CONNECTIONS ARE SIMILAR TO AP-2 AND AP-8)
CBA
N
VERIFACT A MICROPHONE
®
A B C
L
Red(A)
Black(B)
Red(A)
Bare(C)
Black(B)
WIRING REQUIREMENTS
2 Cond Shielded Cable
22 Gauge with a 24 Gauge
Drain wire.
Bare(C)
SELECTABLE
AUDIO OUTPUT
Use for audio playback
from recording device
Use if recording device
has only one Audio Input
Red(A)
Black(B)
Bare(C)
REAR OF AP-4 BASE STATION
A
B
1
LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
A
CC
B
2
website: www.louroe.com e-mail: [email protected]
A
C
B
3
Page 5 of 8
A
C
B
4
(818)
IN OUT
12Vdc
ask4_104_inst_1/15
Page 6
INSTALLATION AND OPERATING INSTRUCTIONS
OPERATION AND TEST
After microphones and power supply are connected, proceed as follows:
1) Turn on power to the unit by rotating the Power-Volume Knob[5] clockwise to “ON” position. The Power
Indicator LED [4] will illuminate, indicating power to the unit. Rotate Power-Volume Knob[5] further
clockwise to increase the volume of monitored audio.
2) Press Zone Selector Switch[2] marked zone 1. Audio from zone 1 should be present at the Monitor
Speaker[7]. The Zone Selector Switch[2] is lighted indicating audio for that zone is present. If there is no
audio, remove wires connected to Mic Input 3-Pin Terminal Block[6] for zone 1 at the rear of the unit. With a
DC voltmeter, check that 12 Vdc is present at terminals “A” and “C”. If voltage is not present, unit has a
problem with its power supply. If voltage is present, check to assure that wires are connected properly to the
right terminals. Otherwise microphone is defective. Call factory for assistance.
3) Repeat step 2 for the remainder of the zones.
4) When a recorder is connected to the unit, press Play/Mute Switch[1]. Switch lights up indicating unit is in
playback or mute mode. Start recording live audio. The Play/Mute Switch[1] must be depressed or in the
“OUT” position when a recorder is not connected to the unit.
5) Playback recorded audio through the AP-4, etc. built-in amplifier and speaker.
6) The Play/Mute Switch[1] can be used to mute the audio heard on the speaker. The orange light is On when
this switch is engaged. This function doesn’t mute the audio going to the DVR.
SUMMARY
Please check that wiring and power connections conform to the above instructions. In the event of a malfunction, refer to
the troubleshooting guide, next page. Should the problem persist, factory assistance is available from 8:00 AM to 4:00
PM (Pacific Time) by calling (818) 994-6498.
LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
website: www.louroe.com e-mail: [email protected]
Page 6 of 8
(818)
ask4_104_inst_1/15
Page 7
INSTALLATION AND OPERATING INSTRUCTIONS
TROUBLESHOOTING
II. No audio present.
a. Using a DC Voltmeter, check the voltage across terminal “A” and “C” (”A” positive; “C” ground) of the Mic 3-Pin
Terminal Block[12]. It should read 12V. The microphone requires 12Vdc to work.
1) Check connections to the microphone.
b. Remove the wire connected to the “B” terminal of the Mic 3-Pin Terminal Block. Using an AC meter (set to
lowest voltage range), check the presence of audio from the microphone. Place the meter leads between wire
removed (positive) and terminal “C” (ground). Generate some loud noise close to the remote microphone
while observing the meter reading. If audio is present, the meter reading will start to fluctuate. If there is no
movement, the remote microphone is defective. Call factory for assistance.
Factory assistance is available between 8:30 AM to 4:00 PM Pacific time. Call (818) 994-6498.
SPECIFICATIONS (AP-4)
Monitor power output 1W @ 8
Audio output impedance
Audio input impedance 10k
Freq. response 100 Hz to 10kHz
Headphone impedance
Current Drain
Power input 12 Vdc, 500mA
Dimensions 6 5/8"W x 8 5/8 x 2 1/8"H"L
Weight 1lb 7oz
SPECIFICATIONS - Verifact A
Type Electret Condenser
Frequency response
Output
Current drain
Supply voltage 12 Vdc
Microphone housing High impact anti-static ABS
Dimensions
Weight
1K?
8 to 600
200mA
®
40 Hz to 15 kHz ± 1 dB
Line Level (0dBV, 600? @ 1kHz)
10 mA
4” " dia x 1 ½ H
3.5 oz
Weight (Shipping) of kit
LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
website: www.louroe.com e-mail: [email protected]
4 lbs
Page 7 of 8
(818)
ask4_104_inst_1/15
Page 8
MANUFACTURED
IN THE
IMPORTANT NOTICE
When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A
decal notice is included with each
microphone shipped.
Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.
AUDIO
MONITORING
On
These Premises
®
LOUROE ELECTRONICS warrants that at the time of shipment products manufactured by LOUROE ELECTRONICS to be free of defects in material and workmanship.
Should a defect appear within one year (12 months) from date of shipment, LOUROE ELECTRONICS will, at its sole discretion, repair or replace the defective equipment.
This equipment shall not be accepted for repair or return without prior notification by LOUROE ELECTRONICS .
This warranty does not extend to any Louroe product that has been subjected to improper or incorrect installation, misuse, accident, or in violation of installation
instructions provided by LOUROE ELECTRONICS.
Returned shipments to LOUROE ELECTRONICS shall be at customer’s expense. LOUROE ELECTRONICS will return the equipment prepaid via best way.
LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
®
®
®
WARRANTY
®
®
®
(818)
website: www.louroe.com e-mail: [email protected]
Page 8 of 8
