AUDIO BASE STATIONS
®
AP-2TB

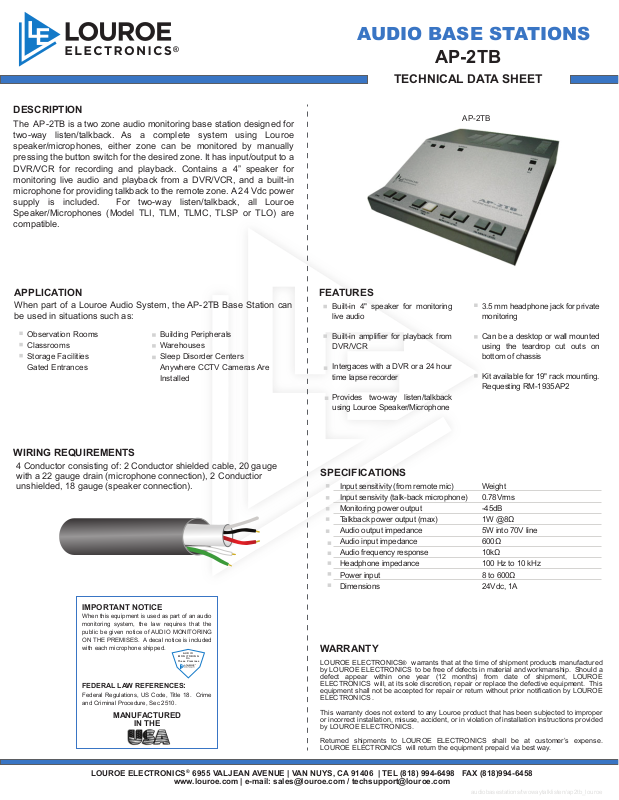

TECHNICAL DATA SHEET
DESCRIPTION
The AP-2TB is a two zone audio monitoring base station designed for
two-way listen/talkback. As a complete system using Louroe
speaker/microphones, either zone can be monitored by manually
pressing the button switch for the desired zone. It has input/output to a
DVR/VCR for recording and playback. Contains a 4” speaker for
monitoring live audio and playback from a DVR/VCR, and a built-in
microphone for providing talkback to the remote zone. A 24 Vdc power
supply is included. For two-way listen/talkback, all Louroe
Speaker/Microphones (Model TLI, TLM, TLMC, TLSP or TLO) are
compatible.
APPLICATION
When part of a Louroe Audio System, the AP-2TB Base Station can
be used in situations such as:
Observation Rooms
Classrooms
Storage Facilities
Gated Entrances
Building Peripherals
Warehouses
Sleep Disorder Centers
Anywhere CCTV Cameras Are
Installed
FEATURES
Built-in 4" speaker for monitoring
live audio
Built-in amplifier for playback from
DVR/VCR
Intergaces with a DVR or a 24 hour
time lapse recorder
Provides two-way listen/talkback
using Louroe Speaker/Microphone
AP-2TB
3.5 mm headphone jack for private
monitoring
Can be a desktop or wall mounted
using the teardrop cut outs on
bottom of chassis
Kit available for 19" rack mounting.
Requesting RM-1935AP2
WIRING REQUIREMENTS
4 Conductor consisting of: 2 Conductor shielded cable, 20 gauge
with a 22 gauge drain (microphone connection), 2 Conductior
unshielded, 18 gauge (speaker connection).
IMPORTANT NOTICE
When this equipment is used as part of an audio
monitoring system, the law requires that the
public be given notice of AUDIO MONITORING
ON THE PREMISES. A decal notice is included
with each microphone shipped.
FEDERAL LAW REFERENCES:
Federal Regulations, US Code, Title 18. Crime
and Criminal Procedure, Sec 2510.
MANUFACTURED
IN THE
AUDIO
MONITORING
On
These Premises
®
SPECIFICATIONS
Input sensitivity (from remote mic)
Input sensivity (talk-back microphone)
Monitoring power output
Talkback power output (max)
Audio output impedance
Audio input impedance
Audio frequency response
Headphone impedance
Power input
Dimensions
Weight
0.78Vrms
-45dB
1W @8Ω
5W into 70V line
600Ω
10kΩ
100 Hz to 10 kHz
8 to 600Ω
24Vdc, 1A
WARRANTY
LOUROE ELECTRONICS® warrants that at the time of shipment products manufactured
by LOUROE ELECTRONICS to be free of defects in material and workmanship. Should a
defect appear within one year (12 months) from date of shipment, LOUROE
ELECTRONICS will, at its sole discretion, repair or replace the defective equipment. This
equipment shall not be accepted for repair or return without prior notification by LOUROE
ELECTRONICS .
This warranty does not extend to any Louroe product that has been subjected to improper
or incorrect installation, misuse, accident, or in violation of installation instructions provided
by LOUROE ELECTRONICS.
Returned shipments to LOUROE ELECTRONICS shall be at customer’s expense.
LOUROE ELECTRONICS will return the equipment prepaid via best way.
