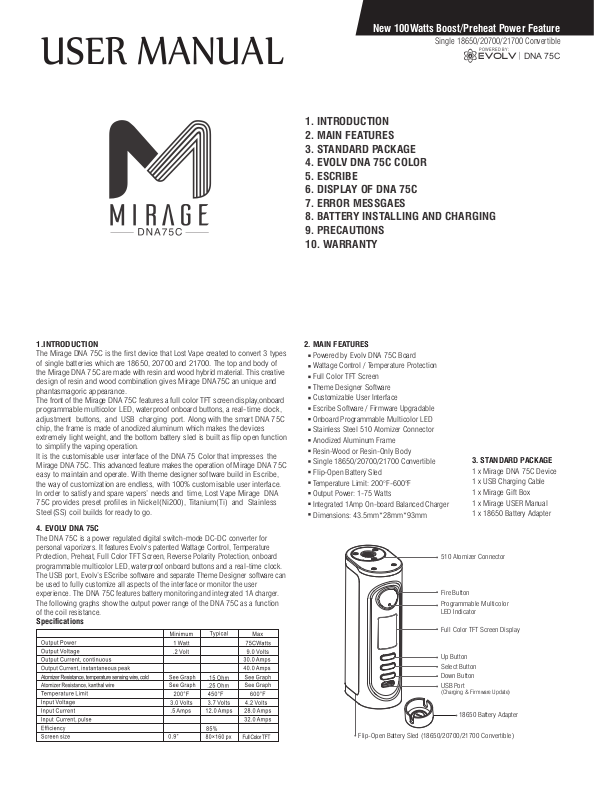

USER MANUAL

New 100Watts Boost/Preheat Power Feature

Single 18650/20700/21700 Convertible

POWERED BY:

1. INTRODUCTION

2. MAIN FEATURES

3. STANDARD PACKAGE

4. EVOLV DNA 75C COLOR

5. ESCRIBE

6. DISPLAY OF DNA 75C

7. ERROR MESSGAES

8. BATTERY INSTALLING AND CHARGING

9. PRECAUTIONS

10. WARRANTY

DNA 75C

1.INTRODUCTION

The Mirage DNA 75C is the first device that Lost Vape created to convert 3 types
of single batteries which are 18650, 20700 and 21700. The top and body of
the Mirage DNA 75C are made with resin and wood hybrid material. This creative
design of resin and wood combination gives Mirage DNA75C an unique and
phantasmagoric appearance.
The front of the Mirage DNA 75C features a full color TFT screen display,onboard

programmable multicolor LED, waterproof onboard buttons, a real-time clock,
adjustmentbuttons,andUSBchargingport. Along with the smart DNA 75C

chip, the frame is made of anodized aluminum which makes the devices
extremely light weight, and the bottom battery sled is built as flip open function
to simplify the vaping operation.

It is the customisable user interface of the DNA 75 Color that impressesthe

Mirage DNA 75C. This advanced feature makes the operation of Mirage DNA 75C
easy to maintain and operate. With theme designer software build in Escribe,
the way of customization are endless, with 100% customisable user interface.

In order to satisfy and spare vapers’ needs andtime, Lost Vape MirageDNA
75C provides preset profiles in Nickel(Ni200), Titanium(Ti)andStainless

Steel(SS) coil builds for ready to go.

4. EVOLV DNA 75C

The DNA 75C is a power regulated digital switch-mode DC-DC converter for
personal vaporizers. It features Evolv's patented Wattage Control, Temperature
Protection, Preheat, Full Color TFT Screen, Reverse Polarity Protection, onboard
programmable multicolor LED, waterproof onboard buttons and a real-time clock.
The USB port, Evolv’s EScribe software and separate Theme Designer software can
be used to fully customize all aspects of the interface or monitor the user
experience. The DNA 75C features battery monitoring and integrated 1A charger.
The following graphs show the output power range of the DNA 75C as a function
of the coil resistance.

Specifications

2. MAIN FEATURES

Powered by Evolv DNA 75C Board
Wattage Control / Temperature Protection
Full Color TFT Screen
Theme Designer Software
Customizable User Interface
Escribe Software / Firmware Upgradable
Onboard Programmable Multicolor LED
Stainless Steel 510 Atomizer Connector
Anodized Aluminum Frame
Resin-Wood or Resin-Only Body
Single 18650/20700/21700 Convertible
Flip-Open Battery Sled
Temperature Limit: 200°F-600°F
Output Power: 1-75 Watts
Integrated 1Amp On-board Balanced Charger
Dimensions: 43.5mm*28mm*93mm

510 Atomizer Connector

Fire Button

Programmable Multicolor
LED Indicator

Full Color TFT Screen Display

3. STANDARD PACKAGE

1 x Mirage DNA 75C Device
1 x USB Charging Cable
1 x Mirage Gift Box
1 x Mirage USER Manual
1 x 18650 Battery Adapter

Up Button
Select Button
Down Button

USB Port

(Charging & Firmware Update)

18650 Battery Adapter

Flip-Open Battery Sled (18650/20700/21700 Convertible)

Output Power

The following graphs show the output power range of the DNA 75C as a function of
the coil resistance.

5. ESCRIBE

Escribe is a software package used to configure, monitor and modify the operation
of your DNA 75C. It installs on a Windows PC and connects to your DNA 75C
using the USB port. Escribe has a separate manual and tutorials which can be
found on Evolv'ssite. Users must go to the Escribe and update the latest firmware
before using the device.
http://www.evolvapor.com/
http://www.evolvapor.com/manuals/EScribeManual.pdf

6. DISPLAY OF DNA 75C
Display

The DNA 75C has a full color 80 x 160 px TFT screen.

92%

Watts

Preheat

Enable
Power 100W

440

Temp

Punch

8. BATTERY INSTALLING AND CHARGING
Installing Battery:

If using 18650, put the included battery adapter cap on the negative side of the
18650 battery, then place the 18650 battery into the device.
If using 20700/21700, just place the battery into the device.

External charging (Recommended):

Remove battery from device.

Follow charginginstructionswith using charger.

Internal charging:

The DNA 75C has a built in 1A USB charger. It automatically detects the type of
USB power supply it is connected to, so it can be plugged into standard PC USB
ports or higher power chargers.

9. PRECAUTIONS

Please read the following safety recommendations before using this device.

1.This device is intended for users over the age of 18, and not by minors,women
who are pregnant or breast feeding, or people with or at risk of heartdisease, high
blood pressure, hypertension, diabetes, or taking medicine fordepression or
asthma.

2.This products is sold purely for recreational purpose, it is not a smoking

cessation product and has not been tested as SSsuch.

3.Please ensure this product is kept away from extreme high and low temperatures
and moist environment while in use or stored.

4.The manufacturer is not responsible for any damage or personal injurycaused by
inappropriate, incorrect or irresponsible use of the device. Use ofany illegal or
prohibited products with this device will void the warranty.

5.Do not over-tighten the atomizer onto the 510 connector, the atomizer should be

snug, not tight. over-tightening may cause damage to the threadingand the delrin
insulator.

6.This is a high end and powerful device capable of providing a high voltageto the

atomizer. We recommend only using the 18650/20700/21700 battery that are rated
no less than 30A.

7.Due care and attention must be followed when using this mod. This is for
experienced vaperswithextensiveknowledgeofhowelectronicdeviceswork

along with access to the appropriate safety tools. Please ensure proper precautions
are taken when using these devices as to not cause damage and/or harm to the

atomizer, device, or yourself. Use at your ownrisk.

8.Battery safety is very important. If you remove the battery from the device,please

store it in a dry place, at room temperature, and away from direct sunlight. The

batteries should never be left unattended while charging. Pleasetake extra care
when youremoving/replacing the battery. Always dispose ofbatteries in a safe
manner, into a designated containers for batteryrecycling.

7. ERROR MESSAGES

The DNA 75C will indicate a variety of error states.
Check Atomizer: The DNA does not detect an atomizer, the atomizer has shorted
out, or the atomizer resistance is incorrect for the power setting.

Shorted: The atomizer or wiring are short circuited.
Weak Battery: The battery needs to be charged, or a higher amp rated battery

needs to be used. If this happens, the DNA 75C will continue to fire the atomizer,
but will not be able to provide the desired wattage. The Weak Battery message will
continue to display for a few seconds after the end of the puff.
Check Battery: The battery is deeply discharged and needs to be charged, or is
damaged. If this happens, the DNA 75C will not fire the atomizer. The Check
Battery message will continue to display for a few seconds after attempting to fire
the device. User should remove and replace the battery.
Temperature Protected: The heating coil reached the maximum allowed
temperature during the puff. If this happens, the DNA 75C will continue to fire, but
will not be able to provide the desired wattage.
Ohms Too High: The resistance of the atomizer coil is too high for the current
wattage setting. If this happens, the DNA 75C will continue to fire, but will not be
able to provide the desired wattage. The Ohms Too High message will continue to
display for a few seconds after the end of puff.
Ohms Too Low: The resistance of the atomizer coil is too low for the current
wattage setting. If this happens, the DNA 75C will continue to fire, but will not be
able to provide the desired wattage. The Ohms Too Low message will continue to
display for a few seconds after the end of puff.
Too Hot: The DNA 75C has onboard temperature sensing. It will shut down and
display this message if the internal board temperature becomes excessive.

10. WARRANTY

LOST VAPE Mirage DNA 75C are covered by a 6 months limited warranty from the
date of your retail purchase.The warranty will be void if there are any signs that the

product has been physically damaged, dropped or abused in any way.

For warranty issues, please contact LOST VAPE official retailers and distributors

for their warranty and return policy. LOST VAPE’s warranty doesnot apply to
products purchased through unauthorized vendors.

www.lostvape.com

Facebook.com/LostVapeLtd

Instagram: LOST_VAPE

Designed and Manufactured by LOST VAPE LTD.

Copyright © 2017 LOST VAPE. All Rights Reserved
