LORUS W120, W130, W121 Instruction Manual

Download

Page 1

Button B : • Calendar (month, date and day)

display in the time/calendar display.

• Start/stop in the stopwatch function.

• Selection of the digits to be adjusted in the alarm setting function and the time/calendar setting function.

Button C : • Alarm display in the time/cal-

endar display.

• Split/split release/reset in the stopwatch function.

• Setting the digits in the alarm setting function and the time/ calendar setting function.

• Stopping the alarm in any display.

Button

B while keeping button C pressed:

Engagement and disengagement of the alarm and the time signal.

Button C while keeping button B pressed:

Changeover of the calendar (month and date) display.

Buttons B & C:

Alarm test in the time/calendar display.

■ CHARACTERISTICS

1. Time/calendar display: Hour, minute, seconds, date, day of the week and month.

2. Automatic calendar adjustment: Calendar adjusts automatically for odd and even months except February of leap years.

3. Time indication: Changeover between 12-hour and 24-hour indications is possible.

4. Stopwatch: 24 hour stopwatch with 1/ 100 second readout up to 1 hour and with 1 second readout after the first 1 hour. Split time measurement is available.

5. Alarm: The alarm rings at the designated hour and minutes for 20 seconds.

6. Hourly time signal: Can be set to ring every hour on the hour with a single “beep”.

7. Illuminating light: The light illuminates the display in the dark.

■ HOW TO SET THE DUAL CALEN-

DAR DISPLAY

1 Press button “B” to show the calendar (month,

date, and day) display. The calendar display is shown while button “B” is kept pressed.

2 The month and the date change places

with each other with each press of button “C” while keeping button “B” pressed.

INSTRUCTION MANUAL

CAL. W120 (RBZ SERIES) CAL. W121 (RB6 SERIES) CAL. W130 (RBN SERIES)

NREW120C

11-99

■

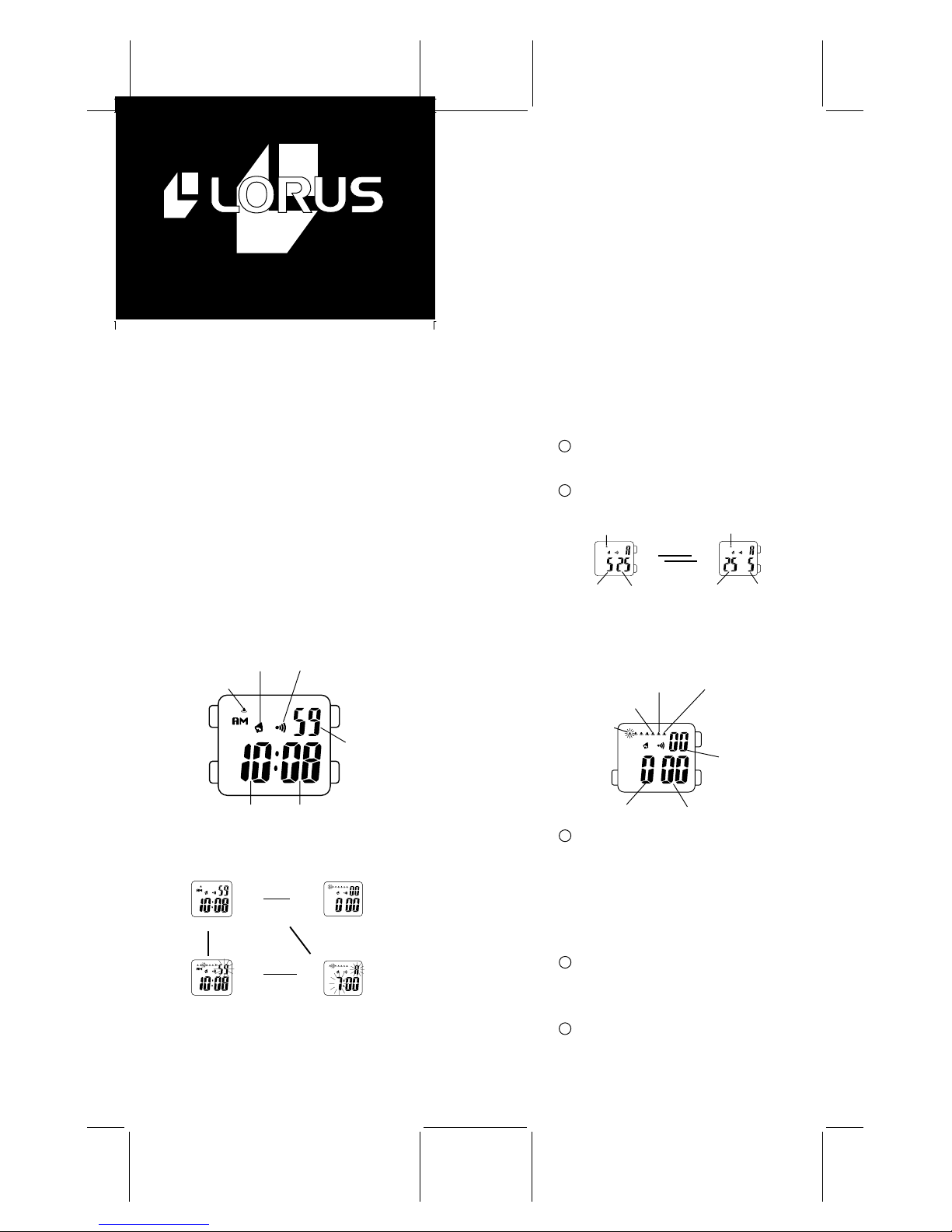

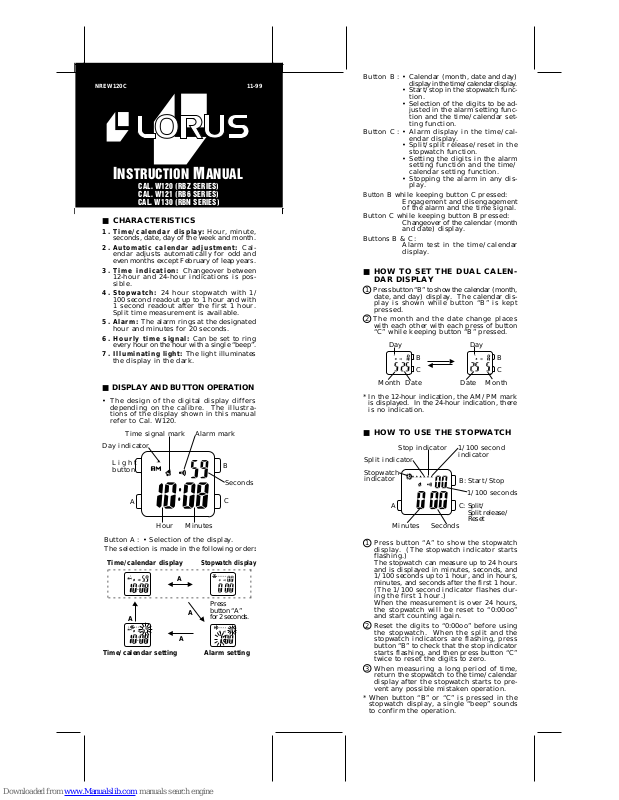

DISPLAY AND BUTTON OPERATION

Button A : • Selection of the display. The selection is made in the following order:

▲

▼

▲

----------------------------

------

----------------------------

Time/calendar display

Stopwatch display

▼

Time/calendar setting Alarm setting

Press button “A” for 2 seconds.

• The design of the digital display differs

depending on the calibre. The illustrations of the display shown in this manual refer to Cal. W120.

Light button

Day indicator

Time signal mark Alarm mark

Seconds

MinutesHour

*In the 12-hour indication, the AM/PM mark

is displayed. In the 24-hour indication, there is no indication.

DateMonth

Day Day

B C

▼

▲

B C

Date Month

■ HOW TO USE THE STOPWATCH

C: Split/

Split release/ Reset

1/100 seconds

B: Start/Stop

Stopwatch indicator

Split indicator

Stop indicator 1/100 second

indicator

SecondsMinutes

1 Press button “A” to show the stopwatch

display. (The stopwatch indicator starts flashing.) The stopwatch can measure up to 24 hours and is displayed in minutes, seconds, and 1/100 seconds up to 1 hour, and in hours, minutes, and seconds after the first 1 hour. (The 1/100 second indicator flashes during the first 1 hour.) When the measurement is over 24 hours, the stopwatch will be reset to “0:00oo” and start counting again.

2 Reset the digits to “0:00oo” before using

the stopwatch. When the split and the stopwatch indicators are flashing, press button “B” to check that the stop indicator starts flashing, and then press button “C” twice to reset the digits to zero.

3 When measuring a long period of time,

return the stopwatch to the time/calendar display after the stopwatch starts to prevent any possible mistaken operation.

* When button “B” or “C” is pressed in the

stopwatch display, a single “beep” sounds to confirm the operation.

Page 2

Accumulated elapsed time measurement

Start Stop Restart ResetStop

BB B BC

Restart and stop can be repeated by pressing button “B”.

Measurement between two competitors

Split time measurement

Start

BC BC

Split

Split release

Stop Reset

Finish (First runner)

Finish (Second runner)

Start

Finish time

of 2nd

competitor

ResetStop

Measurement and release of split time can be repeated by pressing button “C”.

Finish

time of 1st

competitor

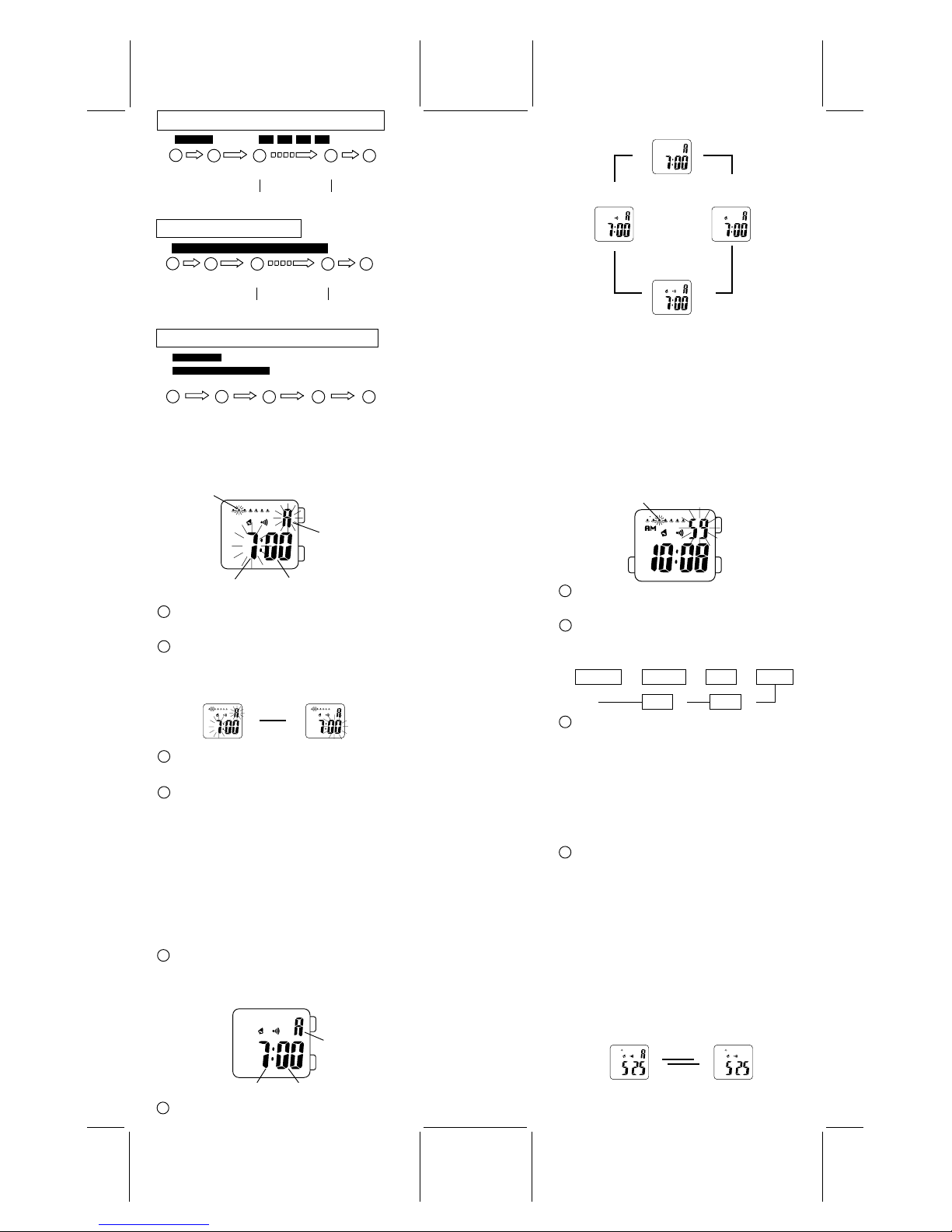

■ HOW TO SET THE ALARM

Alarm and time signal are disengaged.

▼

Time signal is engaged. Alarm is disengaged.

▼

Alarm and time signal are engaged.

▲

The alarm rings at the designated time for 20 seconds and stops. However, the alarm can be stopped manually by pressing button “C” in any display.

▲

■ ALARM TEST

Alarm is engaged. Time signal is disengaged.

The alarm can be tested with a beeping sound by pressing buttons “B” and “C” at the same time in the time/calendar display.

■ HOW TO STOP THE ALARM

■

HOW TO SET THE TIME/CALENDAR

1 Press button “A” to activate the time/calendar

setting function. (The time/calendar setting indicator and the second digits start flashing.)

2 Selection of the digits to be adjusted (flash-

ing) is made in the following order by pressing button “B”.

3 One digit (flashing) is advanced with each

press of button “C”. (The digits except seconds are advanced quickly by keeping button “C” pressed.)

• Seconds setting Press button “C” in accordance with a time signal. The seconds are reset to “00” and start immediately. When the seconds count any number from “30” to “59” and button “C” is pressed, one minute is added and the seconds are immediately reset to “00”.

4 After all the adjustments are completed,

press button “A” to return to the time/ calendar display.

Note: When setting the hour digits, be sure

to check that the AM/PM mark is correctly set.

Seconds Minutes MonthHour

Day

Date

→→→

←←

↑

■

HOW TO CHANGEOVER THE 12-HOUR AND THE 24-HOUR INDICATIONS

In the calendar or the alarm display, each press of button “A” changes over the time indication display from the 12-hour to the 24hour and vice versa.

• Changeover in the calendar display 24-hour

12-hour

▼

▲

Time/calendar setting indicator

[Keeping button “B” pressed]

2 With each press of button “B” while keep-

ing button “C” pressed, the engagement and disengagement of the alarm and the time signal are made as follows:

■ HOW TO ENGAGE AND DISENGAGE

THE ALARM AND THE TIME SIGNAL

Alarm display

1 Press button “C” in the time/calendar dis-

play to show the alarm display. The alarm display is shown while button “C” is kept pressed.

“A” (AM)

Hour Minutes

Note: When setting the hour digits, be sure

to check that the “A” (AM)/“P” (PM) mark is correctly set.

3 One digit (flashing) is advanced with each

press of button “C”. The digits are advanced quickly by keeping button “C” pressed.

4 After all the adjustments are completed,

press button “A” to return to the time/ calendar display. (The display returns directly to the time/ calendar display and not to the time/calendar setting.)

1 Press button “A” for 2 seconds to activate

the alarm setting function. (The alarm set indicator starts flashing.)

2 Press button “B” to activate the “Hour” or

“Minute” setting. The display changes in the following order with each press of button “B”.

▲

▼

Hour setting

Minute setting

“A” (AM)

MinutesHour

Alarm set indicator

Page 3

• Changeover in the alarm display 24-hour

12-hour

▼

▲

* When the “A” (AM)/“P” (PM) mark disap-

pears, the calendar or the alarm display is shown in the 24-hour indication.

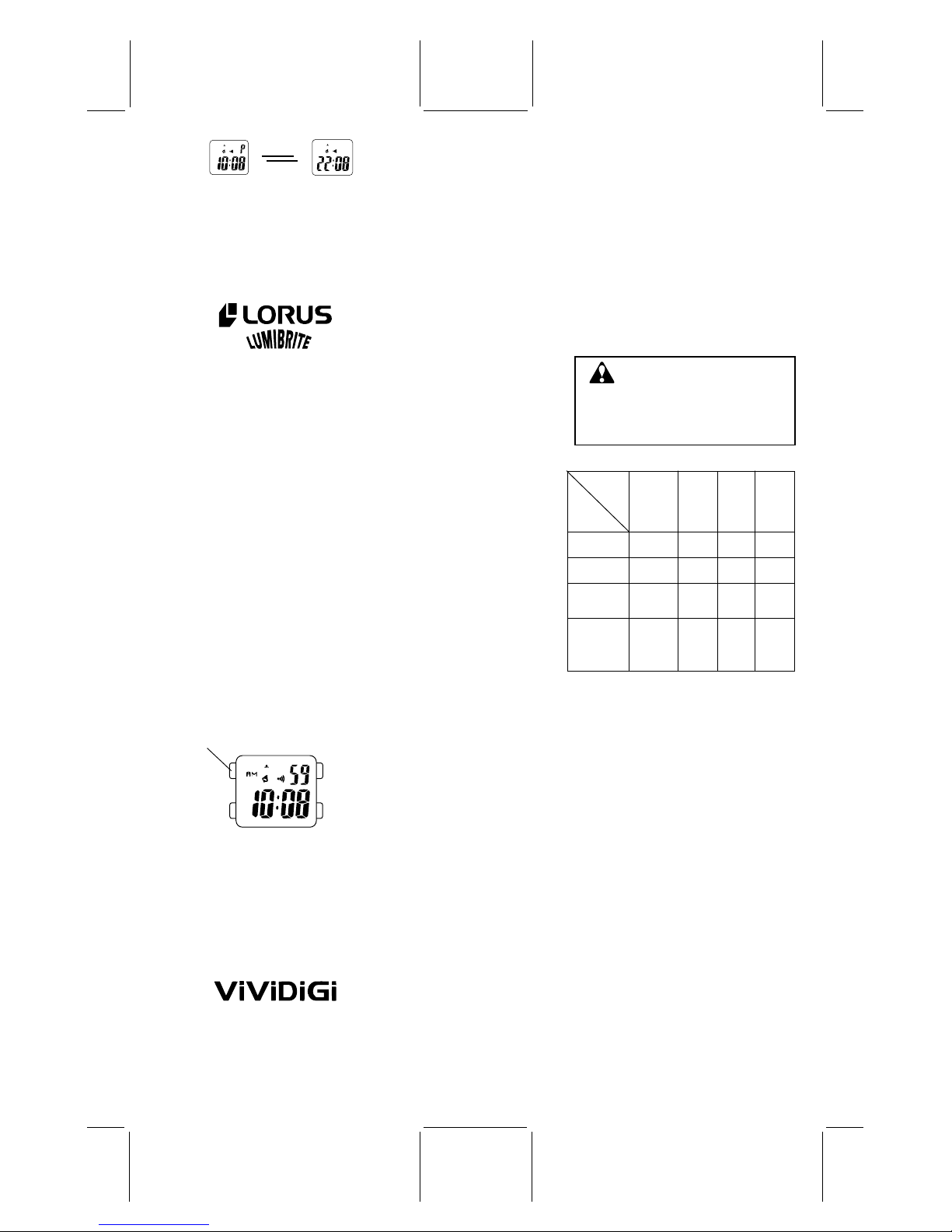

■ LUMIBRITE WATCH

(dial, hands, buttons, case, bezel, strap, etc.)

✩ If your watch is a LORUS LUMIBRITE watch,

it has following features.

LORUS LUMIBRITE watches absorb and store light energy from natural and artificial light sources and emit light in the dark. They are made of environmentally friendly material, and therefore, are harmless to human beings and the environment.

• With a full charge, LORUS LUMIBRITE watches glow in the dark hours longer than conventional luminous watches of this type. If exposed to a light of more than 500 lux (i.e., the brightness of a typical office) for approximately 10 minutes, or direct sunlight for 2 minutes, they will glow for hours.

• Since LORUS LUMIBRITE watches emit the light they store, the brightness will decrease gradually over time. The length of time they will glow may also differ slightly depending on such factors as the brightness of and distance from the light source used to charge the watch.

■ ILLUMINATING LIGHT

■ BATTERY CHANGE

The miniature battery PANASONIC CR2025 which powers your watch should last approximately 8 years. However, because it is inserted at the factory, the actual life of the battery once in your possession may be less than the specified period. Be sure to replace the battery to prevent any possible malfunction as soon as it runs down. To replace the battery, we recommend taking the watch to a local watch repair shop.

Note: If the alarm is used for more than 10

seconds a day and/or the illuminating light for more than 4 seconds a day, the battery life may be less than the specified period.

■ CARE OF YOUR LORUS WATCH

• BATTERY

• WATER RESISTANT

indication

WATER

RESISTANT

WATER

RESISTANT

(50 M/5 BAR)*

WATER

RESISTANT

100 M/

10 BAR or

above

Condition

of use

Accidental contact with water, such as splashes and rain

Swimming and taking a shower

Skin

diving

Scuba diving

Indication on the dial/ case back

NO NO NO NO

YES YES NO NO

YES NO NO NO

YES YES YES NO

()

CAUTION

Do not expose the old battery to fire or recharge it. Keep it at a place beyond the reach of children. If a child swallows it, consult a doctor immediately.

* If your watch is 200 M/20 BAR, 100 M/10

BAR or 50 M/5 BAR water resistant, it is so indicated on the dial/case back.

• Do not operate the buttons when the watch is wet.

• If the watch is exposed to salt water, rinse it in fresh water and then wipe it thoroughly dry.

Caution:

Leather straps are not water resistant except so indicated, even if the watch head is water resistant.

• ALLERGIC REACTION

Because the case and band touch the skin directly, it is important to clean them regularly. If not, shirt sleeves may be stained and those with delicate skin may develop a rash. Please wear the watch with some play to avoid any possible allergic reaction. If you develop a rash on your wrist, stop wearing and consult a physician.

• MAGNETISM

Your watch will not be affected by magnetism generated by household electric appliances.

• SHOCKS AND VIBRATIONS

Your watch may be worn for normal sports activities, but be careful not to drop it or hit it on hard surfaces.

• TEMPERATURE

Your watch is preadjusted so that constant accuracy may be insured at normal temperature.

■ SERVICE

When your LORUS watch requires repair or servicing, please see the enclosed WARRANTY/GUARANTEE.

Printed in China

When the light button is pressed and released in the time/calendar or stopwatch display, or in the alarm setting or time/calendar setting function, the light illuminates the display for 4 seconds for easy viewing in the dark.

Light button

■ ViViDiGi

ViViDiGi is a new type of liquid crystal panel that makes possible various colors and high contrast.

• Excellent light reflection and transmission make the display bright and clear.

• Various color options are available.

• Either the whole panel or the displayed data only can be illuminated.

* Features vary in different models.

[Keeping button “C” pressed]
