LOREX Technology SG-7960 User Manual

960-Hour Time Lapse Video Cassette Recorder 960-Hour Time Lapse Video Cassette Recorder

Be sure to read carefully and follow all the SAFETY
INFORMATION on pages i, ii, iii.
Keep the manual in a safe place for future reference.

960-Hour Time Lapse Video Cassette Recorder

User’s Guide

SG-7960

960-Hour Time Lapse Video Cassette Recorderi 960-Hour Time Lapse Video Cassette Recorder

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert
the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and servicing instructions in the literature accompanying the
appliance.

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT,

FULLY INSERT.

IMPORTANT SAFEGUARDS

In addition to the careful attention devoted to quality standards in the manufacture of your
video product, safety is a major factor in the design of every instrument. However, safety is
your responsibility too. This sheet lists important information that will help to assure your
enjoyment and proper use of the video product and accessory equipment. Please read them
carefully before operating and using your video product.

Installation

1 Read and Follow Instructions – All the safety and operating instructions should be read before the

video product is operated. Follow all operating instructions.

2 Retain Instructions – The safety and operating instructions should be retained for future

reference.
3 Heed W arnings – Comply with all warnings on the video product and in the operating instructions.
4 Polarization – This video product is equipped with a polarized alternating -current line plug (a plug

having one blade wider than the other). This plug will fit into the power outlet only one way.

This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the

plug. If the plug still fails to fit, contact your electrician to replace your obsolete outlet. To prevent

electric shock, do not use this polarized plug with an extension cord, receptacle, or other outlet

unless the blades can be fully inserted without blade exposure. If you need an extension cord,

use a polarized cord.
5 Power Sources – This video product should be operated only from the type of power source

indicated on the marking label. If you are not sure of the type of power supply to your home,

consult your video dealer or local power company. For video products intended to operate from

battery power, or other sources, refer to the operating instructions.

Safety information

41 960-Hour Time Lapse Video Cassette Recorder 960-Hour Time Lapse Video Cassette Recorder ii

6 Overloading – Do not overload wall outlets or extension cords as this can result in a risk of fire or

electric shock. Overloaded AC outlets, extension cords, frayed power cords, damaged or cracked
wire insulation, and broken plugs are dangerous. They may result in a shock or fire hazard.
Periodically examine the cord, and if its appearance indicates damage or deteriorated insulation,
have it replaced by your service technician

7

P

ower-Cord Protection – Power-supply cords should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them, paying particular attention to cords
at plugs, convenience receptacles, and the point where they exit from the video product.

8 Ventilation – Slots and openings in the case are provided for ventilation to ensure reliable

operation of the video product and to protect it from overheating. These openings must not be
blocked or covered. The openings should never be blocked by placing the video product on a bed,
sofa, rug, or other similar surface. This video product should never be placed near or over a
radiator or heat register. This video product should not be placed in a built-in installation such as
a bookcase or rack unless proper ventilation is provided or the video product manufacturer’s
instruction’s have been followed.

9 Attachments – Do not use attachments unless recommended by the video product manufacture

as they may cause a hazard.

10 Water and Moisture – Do not use this video product near water- for example, near a bath tub,

wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool and the like.
Caution : Maintain electrical safety. Powerline operated equipment or accessories connected to
this unit should bear the UL listing mark or CSA certification mark on the accessory itself and
should not be modified so as to defeat the safety features. This will help avoid any potential
hazard from electrical shock or fire. If in doubt, contact qualified service personnel.

11 Accessories – Do not place this video product on an unstable cart, stand,

tripod, bracket, or table. The video product may fall, causing serious injury to
a child or adult as well as serious damage to the video product. Use this video
product only with a cart, stand, tripod, bracket, or table recommended by the
manufacturer or sold with the video product. Any mounting of the product
should follow the manufacturer’s instructions and use a mounting accessory
recommended by the manufacturer.

12 A video product and cart combination should be moved with care. Quick stops, excessive force,

and uneven surfaces may cause the video product and cart combination to overturn.

13 Power Lines – An outside antenna system should not be located in the vicinity of overhead power

lines, other electric light or power circuits, or where it can fall into such power lines or circuits.
When installing an outside antenna system, extreme care should be taken to keep from touch­ing or approaching such power lines or circuits as contact with them might be fatal. Installing an
outdoor antenna can be hazardous and should be left to a professional antenna installer.

Specifications

General Specifications

Recording method Dual-azimuth 4-head rotating helical scanning system
Audio recording In 2, 6, and 18 hour modes
Tape speed 33.35 m/sec (2 hour mode)
Specified video cassette tape VHS 1/2 inch video cassette tape
Recording/playback time 2, 6, 18, 24, 36 hours(when using T-120 tape)
Fast forward/rewind time Within 3 minutes(when using T-120 tape)
Television system NTSC color TV system

Video

Recording method Luminance signal : FM recording

~0.8V Down-converted subcarrier phase shift system
Video input 1 Vp-p, BNC, 75Ω, unbalanced
Video output 1 Vp-p, BNC, 75Ω, unbalanced
Horizontal resolution Black & white mode 350 lines

Color mode 300 lines

Audio

Input RCA pin jack more than 47kΩ -8.8dBm, unbalanced
Output RCA pin jack less than 1.5kΩ -7.8dBm, unbalanced
Microphone input -60 dBs, 3.5mm mini jack, 10kΩ, unbalanced

Connectors

Alarm input DC 4~5V(Open), DC 0~0.8V(Closed)/5.7kΩ
Alarm output DC 4~5V(H), DC 0~0.8V(L)/5.7kΩ
Panic input DC 4~5V(Open), DC 0~0.8V(Closed)/5.7kΩ
End output DC 4~5V(H), DC 0~0.8V(L)/5.7kΩ
Warning output DC 4~5V(H), DC 0~0.8V(L)/5.7kΩ
Series input DC 4~5V(H), DC 0~0.8V(L)/5.7kΩ
Series output DC 4~5V(H), DC 0~0.8V(L)/5.7kΩ
Switch output DC 4~5V(H), DC 0~0.8V(L)/5.7kΩ
Common 0V( GND)

Other Specifications

Operating temperature range 41ºF - 104ºF
Operating humidity range 80% or less
Power requirements AC 120V , 60 Hz
Power consumption 17W
Dimensions 360(W) x 90(H) x 289(D)
Weight approximately 4kg

NOTE : The specifications and external appearance of this unit are subject to change
without notice.

Use

14 Cleaning – Unplug this video product from the wall outlet before cleaning. Do not use liquid

cleaners or aerosol cleaners. Use a damp cloth for cleaning.

15 Object and Liquid Entry – Never push objects of any kind into this video product through

openings as they may touch dangerous voltage points or “short-out” parts that could result in a
fire or electric shock. Never spill liquid of any kind on the video product.

16 Lightning – For added protection for this video product during a lightning storm, or when it is left

unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the
antenna or cable system. This will prevent damage to the video product due to lightning and
power line surges.

Service

17 Servicing-Do not attempt to service this video product yourself as opening or removing covers

may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.

18 Conditions Requiring Service-Unplug this video product from the wall outlet and refer servicing

to qualified service personnel under the following conditions.
A. When the power-supply cord or plug is damaged.
B. If liquid has been spilled, or objects have fallen into the video product.
C. If the video product has been exposed to rain or water.
D. If the video product does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions. Improper
adjustment of other controls may result in damage and will often require extensive work by a

qualified technician to restore the video product to its normal operation.
E. If the video product has been dropped or the cabinet has been damaged.
F. When the video product exhibits a distinct change in performance-this indicates a need for

service.

19 Replacement Parts – When replacement parts are required, have the service technician verify

that the replacements used have the same safety characteristics as the original parts. Use of
replac ments specified by the video product manufacturer can prevent fire, electric shock, or
other hazards.

20 Safety Check – Upon completion of any service or repairs to this video product, ask the service

technician to perform safety checks recommended by the manufacturer to determine that the
video product is in safe operating condition.

21 Wall or Ceiling Mounting – The product should be mounted to a wall or ceiling only as recom-

mended by the manufacturer.

22 Heat – The product should be situated away from heat sources such as radiators, heat registers,

stoves, or other products (including amplifiers) that produce heat.

Note to CATV system installer

This reminder is provided to call the CATV system installer’s attention to Section 820-40 of the NEC
which provides guidelines for proper grounding and, in particular, specifies that the cable ground
shall be connected to the grounding system of the building, as close to the point of cable entry as
practical.

iii 960-Hour Time Lapse Video Cassette Recorder 960-Hour Time Lapse Video Cassette Recorder 40

POSSIBLE CAUSE

The date and time are not correct.
The unit is not set to timer record-

ing stand-by mode.
“N” is selected for the TIMER

PROGRAM SET.

“NO” is selected for alarm recording
in the ALARM REC SET menu.

The tracking adjustment is wrong.

The video heads need cleaning.

“NO” is selected for the date and
time in the DISPLAY SET menu.
The date and time go off the ON­SCREEN by pressing the DISPLAY
button.

Problem with the system or tape.

SYMPTOM

Timer recording
is not working.

Alarm recording
is not working

Noise in the
playback picture.

The date and
time are not
recorded.

The cassette
tape cannot be
ejected

CORRECTIVE ACTION

- Set the date and time correctly.

- Press the POWER/TIMER button to
display “ ” on the display panel.

- Be sure to select “Y” for the TIMER
PROGRAM SET.

- Be sure to select “YES” for alarm
recording.

- Adjust it by using the manual
tracking.

- Press the PLAY button in the play­back mode.

- Clean the video heads.

- Be sure to select “YES” for the
display.

- Press the DISPLAY button to show
the date and time.

- Unplug the power cord then plug it
back in.

Periodic Inspection and Maintenance

Periodic inspection and maintenance should be referred to your dealer. If
there is noise in the playback picture, and it cannot be corrected using the
tracking control, it may indicate that the video heads need cleaning. The
video heads should be cleaned and inspected every 1,000 hours. The video
heads usage can be checked using initial menu, running time.

System Down

If the unit does not function at all, try the following.
1 Unplug the power cord then plug it back in.
2 Reset the memory. (Press the RESET button. Under normal conditions,

do not touch the RESET button)

3 If the problem is not corrected after performing steps 1 and 2, consult

your dealer.

✔

• Press the RESET
button for more
than 5 seconds to
perform the reset.
Running Time will
not be reset.

39 960-Hour Time Lapse Video Cassette Recorder 960-Hour Time Lapse Video Cassette Recorder iv

Locations of controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Digital display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Back panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Types of on-screen displays and Display Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Video Cassettes Tapes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Changing the on-screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Normal Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Program Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Alarm Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Panic Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Series Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Autorepeat Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Normal Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Normal Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Tracking Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Audio Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Special Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Picture Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Still Image .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Vertical Lock Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Slow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Recording Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Alarm Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Alarm Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Index Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Other functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Tape Counter (Zero Search) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Setting the Security Lock (Set Lock) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Setting the SW Out Terminal Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Setting the Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Changing the Alarm Recording Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

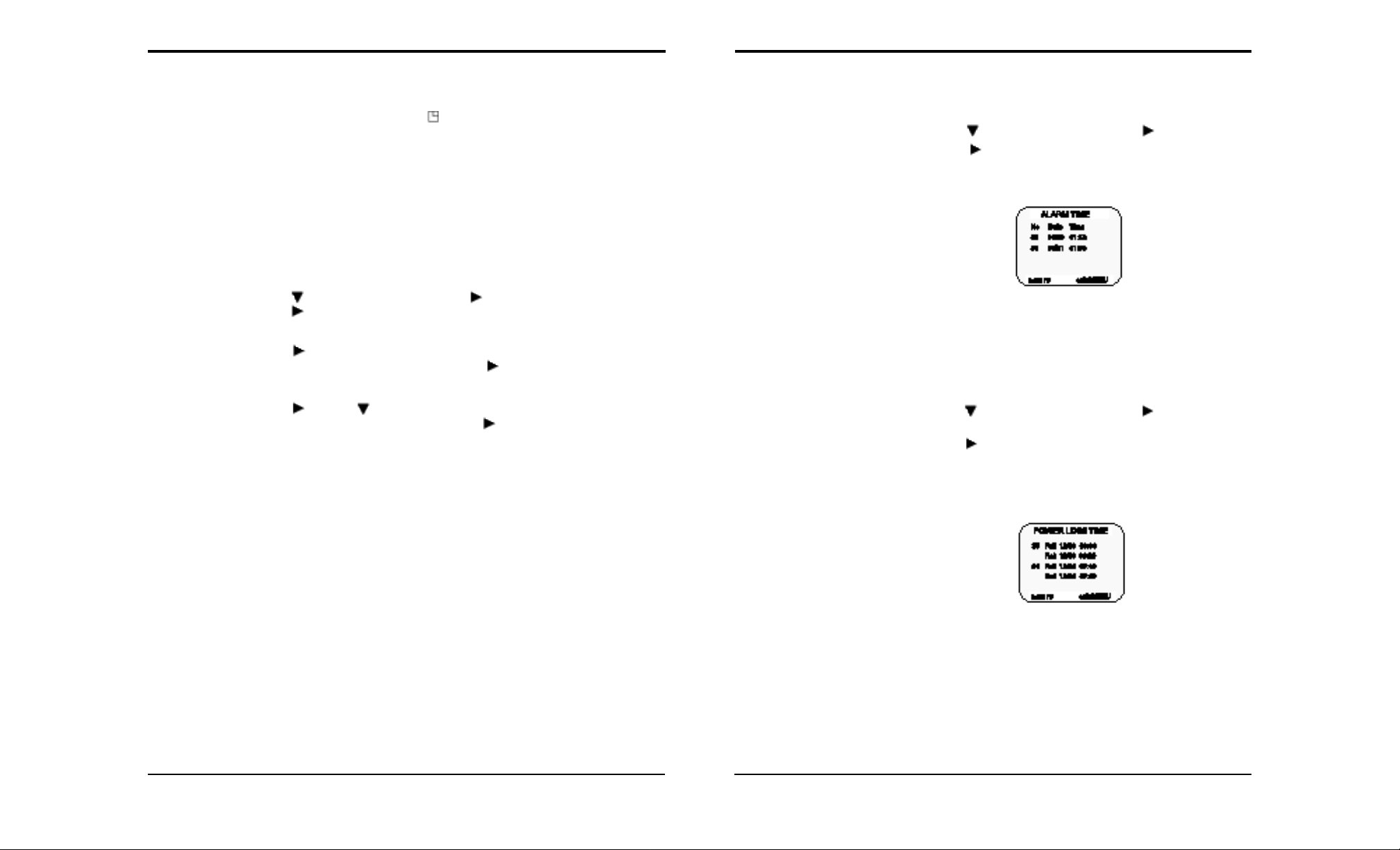

Checking the Power Loss Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Checking Usage Duration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Setting In/Out Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Daily Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Contents

Troubleshooting Guide

If the unit does not operate normally when you follow the instructions indicated in the manual, please
refer to the table below.

SYMPTOM

No power.

No image
displayed on the
monitor TV.

The buttons do
not respond.

Unit will not go
into record
mode.

Autorepeat is
not working.

POSSIBLE CAUSE

The power cord is not correctly
connected to the wall outlet.

The unit is in timer recording stand­by mode.

The connections are not correct.
The power to the camera and/or
monitor TV is not turned on.

The unit is in timer recording stand­by mode.

Alarm recording.

Panic recording.

The security lock (SET LOCK) is
engaged.

The loaded cassette has no
erasure prevention tab.

“NO” is selected for autorepeat
recording in the REC MODE SET
menu.
During autorepeat recording when
there is an alarm input, autorepeat
recording is canceled.

CORRECTIVE ACTION

- Connect the power cord firmly into
the wall outlet.

- This is normal, not a malfunction.

- Check that all connections are
correct.

- Turn all connected devices on.

- Press the POWER/TIMER button.

- Wait for the alarm recording to end.

- Press the STOP button for 3
seconds to stop.

- Wait for the panic recording to end.

- Press the STOP button for 3
seconds to stop.

- Cancel the security lock.

- Load a cassette tape with erasure­prevention tab or cover the tab hole
with adhesive tape.

- Be sure to select “YES” for
autorepeat recording.

- Set “YES” again for autorepeat
recording.

Locations of controls and indicators

Front panel

1 960-Hour Time Lapse Video Cassette Recorder 960-Hour Time Lapse Video Cassette Recorder 38

1 STOP button 15 MENU button
2 REC button 16 SHIFT ( ) /
3 REC CHECK button TRACKING (-) button
4 EJECT button 17 SHIFT ( ) /
5 CASSETTE LOADING TRACKING (+) button

DOOR 18 REC/PLAY SPEED ( )
6 DISPLAY PANEL button (SET - button)
7 PLAY button 19 REC/PLAY SPEED ( )
8 REW button button (SET + button)
9 FF button 20 AUDIO ON button
10 PAUSE/STILL button 21 DISPLAY button
11 REMOTE SENSOR 22 POWER (TIMER)
12 REMOCON LOCK button

switch 23 COUNTER button
13 SET LOCK switch 24 CLEAR button
14 RESET button

The following daily inspections are recommended in order to
assure long-term and trouble-free operation of the unit.

The daily inspections are particularly important if using
autorepeat recording.

Inspection Procedure

1 Turn on the power to the camera, TV monitor and other

connected devices.
2 Check that the image received on the TV monitor is correct.
3 Check that the on-screen display of the date and time is

correct.
4 Press the REW button to rewind the recorded tape a few

seconds.
5 Press the PLAY button and check that the playback image is

correct.

• Check in particular playback of time lapse recording (18 or
24 hour mode)

6 Check that the recorded date and time are correct.

✔

• If the security lock is engaged,
it has to be released before
proceeding with theinspection.

• If any problem is discovered
during the inspection, unplug
the power cord and consult
your dealer.

Daily Inspection

37 960-Hour Time Lapse Video Cassette Recorder 960-Hour Time Lapse Video Cassette Recorder 2

Digital Display

2 Cassette indicator :

Comes on when a cassette is loaded.

3 Record check indicator : REC

Flashes on during record check

4 Alarm indicator :

Flashes on when an alarm is being recorded and stops
flashing after alarm recording.

5 Timer Recording indicator :

Comes on when in timer recording stand-by mode, or
during a timer recording

Operation Mode Indicator

1 Record(REC) REC
2 Record pause (REC PAUSE) REC +
3 Playback (PLAY)
4 Still image (STILL) +

5 Fast forward (FF)
6 Rewind (REW)
7 CUE(CUE) + +
8 Review(REVIEW) + +
9 Slow(Pause Still + FF, Pause Still + REW) +

1 Operation Indicators display the actual operation mode.

Connecting to a Multiview System for a Alarm Recording

3 960-Hour Time Lapse Video Cassette Recorder 960-Hour Time Lapse Video Cassette Recorder 36

6 Power Loss indicator :

Flashes on after power loss.

7 CNT indicator : CNT

Comes on when the tape or alarm counter is on.

8 SPD indicator : SPD

Comes on when the play or recording speed is on.

9 AM indicator : AM

(PM : “AM” off)

10 RMC.L indicator : RMC.L

Comes on when the RMC LOCK sw is set to the “ON” position.

11 S.REC indicator : S.REC

Comes on when “YES” is selected in the menu for the series recording.

12 R.REC indicator : R.REC

Comes on when “YES” is selected in the menu for the repeat recording.

13 SET LOCK SW indicator :

Comes on when the SET LOCK sw is set to the “ON” position.

14 Mode display

TAPE COUNTER display (eg:10:HOUR,59:MINUTE)

– Maximum Hour : 19 - Maximum Minute : 59

ALARM COUNTER display (eg: A:Alarm, 32:Alarm No.)
PLAY/REC SPEED display (eg: 960H:Play/Recording Speed)
TIME display (eg: 7:HOUR , 07:MINUTE)
ERROR display (eg: E:Error , 04:Error No.)

– E-01 : The cassette cannot be loaded or unloaded.
– E-02 : The tape stops.
– E-03 : The drum can not rotate properly.
– E-04 : The tape is cut/broken.

AUDIO ON display (eg: A:Audio , 12H:Play Speed)

If you are also using a LOREX Multi View system, use the following diagrams as
a guide to connecting the VCR for normal or alarm recording.

Connecting to a Multiview System for Normal Recording

35 960-Hour Time Lapse Video Cassette Recorder 960-Hour Time Lapse Video Cassette Recorder 4

Back Panel

1 AC POWER CORD
2 WARNING OUT terminal
3 SERIES IN terminal
4 COM terminal
5 SERIES OUT terminal
6 SW OUT terminal
7 VIDEO OUT jack
8 VIDEO IN jack
9 AUDIO IN jack
10 TAPE END terminal
11 PANIC IN terminal
12 COM terminal
13 ALARM OUT terminal
14 ALARM IN terminal
15 MIC (microphone input) jack
16 AUDIO OUT jack

SW OUTPUT Terminal

While recording, a pulse signal(DC 5V) is output at the SW OUT
terminal after each recording period. This terminal is usually
connected to the switch input of devices like a camera switching
unit, or a quad compressor.

1) Low

2) High

SERIES OUTPUT Terminal

During recording, when the end of the tape is reached, the output
becomes DC 5V .

SERIES INPUT Terminal

If the input becomes DC 5V for 200 msec or more, the VCR
starts series recording.

WARNING OUTPUT Terminal

1) “High”
If the error display on the display panel continues to flash,

the output becomes DC 5V. If the POWER button is
pressed, the emergency mode is released. then the output
becomes 0V.

2) “Low”
If the error display on the display panel continues to flash,

the output becomes 0V. If the POWER button is pressed,
the emergency mode is released. then the output becomes
DC 5V.

Remote Control

5 960-Hour Time Lapse Video Cassette Recorder 960-Hour Time Lapse Video Cassette Recorder 34

1 POWER(TIMER) button
2 PLAY/STILLTRACKING + button
3 PLAY/STILLTRACKING - button
4 PAUSE / STILL + button
5 PAUSE/STILL - button
6 PLAY button
7 FF button
8 STOP button
9 EJECT button
10 REC/PLAY SPEED button
11 SHIFT button
12 SHIFT button
13 SET + button
14 SET - button
15 DISPLAY button
16 COUNTER button
17 CLEAR button
18 PAUSE / STILL button
19 REW button
20 AUDIO ON button
21 ● REC button
22 PLAY SPEED button
23 CHECK button
24 MENU button

ALARM INPUT Terminal

This terminal is to connect PIR sensors, door contacts or any
type of motion detectror.

1) “N/C” (Normally CLOSED Switch Circuit)
If the input becomes DC 5V for 500 msec or more, the VCR

starts alarm recording.

2) “N/O” (Normally OPEN Switch Circuit)
If the input becomes 0V for 500 msec or more, the VCR

starts alarm recording.

ALARM OUTPUT Terminal

This terminal is to connect to any external source, such as a
siren, etc.

1) “High”
When an alarm input is received and the unit is recording,

the output becomes DC 5V. Once the alarm recording is
over, the output returns to 0V.

2) “Low”
When an alarm input is received and the unit is recording,

the output becomes 0V. Once the alarm recording is over,
the output returns to DC 5V.

PANIC INPUT Terminal

1) “N/C” (Normally CLOSED Switch Circuit)
If the input becomes DC 5V for 500 msec or more, the VCR

starts panic recording.

2) “N/O” (Normally OPEN Switch Circuit)
If the input becomes 0V for 500 msec or more, the VCR

starts panic recording.

TAPE END(OUT) Terminal

1) “High”
During recording, when the end of the tape is reached, the

output becomes DC 5V.

2) “Low”
During recording, when the end of the tape is reached, the

output becomes DC 0V.

33 960-Hour Time Lapse Video Cassette Recorder 960-Hour Time Lapse Video Cassette Recorder 6

Connect the video camera and monitor TV as shown in the
figure below.

NOTE : Make sure to turn the power off on all devices before
making the connections.

Connections

Power Cord Installation

Insert the plug of the power cord into an outlet.

✔

• For more details, please
refer to the manuals
accompanying all other
devices. If the connections
are not made properly, it
may cause a fire or
damage the equipment.

Checking Usage Duration

1 Press the MENU button to display the initial MENU.
2 Press the SHIFT button to move the arrow mark ( ) to “Running

Time.” Press the SHIFT button to display the Running Time.

Running Time : The video heads usage duration.

3 Press the MENU button, the normal screen is displayed.

Setting In/Out terminals

1 Press the MENU button to display the initial MENU.
2 Press the SHIFT button to display the VCR MODE SET menu.
3 Press the SHIFT button to move the arrow mark ( ) to In/Output

Set.

4 Press the SHIFT button to display the IN/OUTPUT SET menu.

5 Press the SHIFT button to move the arrow mark ( ) for the

desired item.
6 Press the SHIFT button to set “Open” or “Closed”, “High” or “Low”.
7 Press the MENU button three times, the normal screen is displayed.

✔

• The Running Time
data cannot be reset
even though the reset
button is pressed. If
the RESET button is
pressed, all data can
be reset except the
running time data.

Types of On-screen Displays and Display Sequence

• If the VCR is in timer recording stand-by mode (the “ “ indicator is displayed on the display panel),

the on-screen displays will not be available. First press the Power/Timer button, to cancel the record­ing stand-by mode, then proceed with the VCR programming. When finished, press the Power/Timer
button again to return the VCR to timer recording stand-by mode.

• When a menu is displayed, recording will not be possible.

• Press the MENU button three times, the setting procedure is now completed and the normal screen is

displayed.

• During recording or playback the menus cannot be displayed.

See page 8 – A, B, C.

A • Press the MENU button. (First time)

• Press the SHIFT button to move the arrow mark ( ) downward for the desired item.

• Press the SHIFT button to select the desired item, then the desired menu is displayed.

• Press the MENU button to return to the normal screen from the initial menu.

B • Press the SHIFT button to select the desired item.

• Press the SET - (or +) button to set or Press the SHIFT button to select “YES” or “NO”.

• Press the MENU button to return to the initial menu.

C • Press the SHIFT (or SHIFT )button to select the desired item.

• Press the SET - (or +) button to set or Press the SHIFT button to select.

• Press the MENU button to return to the previous menu.

7 960-Hour Time Lapse Video Cassette Recorder 960-Hour Time Lapse Video Cassette Recorder 32

✔

• The data for the
previous alarm
recordings, past 35,
is erased.

✔

• POWER LOSS …
the number of power
losses and the date
and time of the 35
most recent power
losses and recover­ies are displayed.

Checking the Alarm Recording Times

1 Press the MENU button to display the initial MENU.
2 Press the SHIFT button to move the arrow mark ( ) to Alarm Time.
3 Press the SHIFT button to display the ALARM TIME menu.

• The number of alarm triggers and the 35 most recent alarm recording
times are displayed.

4 Press the MENU button twice, the normal screen is displayed.

Checking Power Loss Times

1 Press the MENU button to display the initial MENU.
2 Press the SHIFT button to move the arrow mark ( ) to Power Loss

Time.

3 Press the SHIFT button to display the POWER LOSS TIME menu.

• The number of power losses, and the 35 most recent power loss times
are displayed.

4 Press the MENU button twice, the normal screen is displayed.

31 960-Hour Time Lapse Video Cassette Recorder 960-Hour Time Lapse Video Cassette Recorder 8

A

B

C

7 Press the MENU button, the normal screen is displayed.

• The setting procedure is now complete.

Setting the Buzzer

1 Press the MENU button to display the initial MENU.
2 Press the SHIFT button to select VCR Mode Set. The VCR MODE

SET menu is displayed.

3 Press the SHIFT

button to move the arrow mark ( ) to Buzzer Set.

4 Press the SHIFT button to set “YES” for the functions described

below.

•

The buzzer will be heard whenever a button is pressed.

✔

In the following
cases, the buzzer
will be heard approx­imately 5 times.

– If the REC button

is pressed while a
cassette without
erasure-prevention
tab is loaded.

– If a cassette, with-

out the erasure­prevention tab, is
loaded while the
timer is set.

– If there is a series

recording input
while a cassette
without erasure­prevention tab is
loaded.

– If the TIMER

button is pressed
without inserting a
cassette.

✔

• If “NO” is set, the
buzzer will not
operate.

9 960-Hour Time Lapse Video Cassette Recorder

960-Hour Time Lapse Video Cassette Recorder 30

✔

• If you try to record on
a cassette without the
erasure-prevention
tab, the VCR will eject
the cassette.

• If the TIMER button is
pressed when a
cassette without the
erasure-prevention tab
is loaded, the VCR will
eject the cassette, the
timer recording indica­tor ( ) will start flash­ing and a buzzer willl
sound if “YES” is set in
the menu for buzzer.

✔

• When the cassette is
loaded, the cassette
indicator “ “ will light
on the display panel.

• The counter display
will switch to the reset
counter“0H 00M 00S”
display on the monitor
screen. (“0H 00M” on
the display panel.)

✔

• Do not insert any
object in the cassette
loading slot, as that
may cause injury and
damage to the VCR.

• If your hand gets stuck
in the cassette loading
slot, unplug the power
cord and consult the
dealer where the unit
was bought. Do not
forcibly pull the hand
out as that may cause
severe injuries.

Use only video cassette tapes bearing the logo.
This VCR was primarily designed for use with T-120 cassette tapes. It is

recommended to use T-120 VHS video cassette tapes for optimal
performance.

Handling Cassette Tapes

Cassette tapes should always be stored vertically in their cases, away from
high temperatures, magnetic fields, direct sunlight, dirt, dust and locations
subject to mold formation.

Do not tamper with the cassette mechanism.
Never touch the tape with your fingers.
Protect cassette tapes from shocks or strong vibrations.

To protect your recordings

After having recorded a tape, if you wish to keep the recording, use a flat­head screwdriver to break off the erasure-prevention tab on the cassette.

To record again on a tape without erasure-prevention tab, cover the hole
with adhesive tape.

Erasure-prevention tab

To prevent accidental erasure, remove the tab after
recording.

To record again, cover the hole with vinyl tape.

Loading

Place the cassette, label side up, in
the loading slot. Gently push the
center of the cassette until it is loaded
automatically.

Unloading

In STOP mode, press the EJECT button. The cassette is automatically
ejected.

Video Cassette Tapes

✔

• While the security
lock is engaged, all
commands are
disabled.

• The security lock
should not be
engaged while a
menu is displayed.

✔

• If “TIMING” is set to
FRAME (see step 6),
“FRAME” will be
indicated instead of
“FIELD”.

Setting the Security Lock (Set Lock)

The security lock function is designed to prevent accidental stopping of
recording if the STOP button is pressed inadvertently.

1 Set the SET LOCK switch to “ON” position.

• “ “

is displayed on the display panel.

2 To cancel the security lock, set the SET LOCK switch to “OFF” position.

• “ “

will be erased from the display panel.

Setting the SW Out Terminal Output

Synchronization pulses for multiplexers can be obtained from the SW OUT
terminal.

1 Press the MENU button, to display the initial MENU.
2 Press the SHIFT button to move the arrow mark ( ) to SW OUT

Terminal Set.

3 Press the SHIFT button to display the SW OUT TERMINAL SET

menu.

4 Press the SHIFT button to set “FIELD” (or “FRAME”).

• With each press of the SHIFT button, the setting will change as
indicated below.

5 Press the SHIFT button, to select Timing.
6 Press the SHIFT button to set the “TIMING”.

• FIELD . . .1 pulse is output after each set number of fields.

• FRAME . .1 pulse is output after each set number of frames.

29 960-Hour Time Lapse Video Cassette Recorder 960-Hour Time Lapse Video Cassette Recorder 10

Example: To set the clock to April 12, 2000 at 9:30

Clock Setting

1 Turn the power on to all devices used.
2 Press the MENU button, the initial MENU is displayed.

The arrow mark ( ) is located in “VCR Mode Set”.

Initial Menu

Setting the Clock

3 Press the SHIFT button, the VCR MODE SET menu is displayed.

The arrow mark ( ) is located in “Clock Set”.

5 Press the SET - (or +) button to set the hours (eg : 09), then press

the SHIFT button.

4 Press the SHIFT button, the CLOCK SET menu is displayed.

Tape Counter (Zero Search)

Using the counter, it is easy to find a desired recording.
1 Press the CLEAR button, at the beginning of the desired recording.

• The counter will be reset to “0H 00M 00S” (on screen).

• The counter will be reset to “0H 00M”(on the display panel).

2 After recording or playback, press the Menu button to display the initial

MENU.
3 Press the SHIFT button to move the arrow mark ( ) to Search Select.
4 Press the SHIFT button to display the SEARCH SELECT menu. The

SEARCH SELECT menu is displayed.

5 Press the SHIFT button to move the arrow mark ( ) to Zero Search.
6 Press the SHIFT button to search the counter “0H 00M 00S” (“0H 00M”

on the display panel).

• The display returns to the normal screen.

• The tape is rewound or advanced to the counter “0H 00M 00S”
reading(“0H 00M” on the display panel).

✔

• When you insert a
cassette, the
counter always
resets to zero.

• There is no tape
counter indication for
the blank
portions of tape.

• In the 2-hour record­ing speed mode
only, the tape
counter indicates
real hours, minutes
and seconds.

• In the other SP
recording speed
modes (24H, 36H),
the tape counter
indication is a ratio
of the 2-hour mode
base indication. (In
24-hour recording
mode, each
“second” of the tape
counter actually
represents approxi­mately 24/2 =12 real
seconds.)

• There may be a
slight discrepancy
between the position
shown on the tape
counter and the
actual tape position.

• When rewinding the
tape past the “0H
00M 00S” position
(“0H 00M” on the
display panel), a
minus(-) is dis­played.

Other Functions

6 Press the SET - (or +) button to set the minutes (eg : 30), then press the

SHIFT button.
7 The seconds are already set to “00”.
8 Press the SHIFT button.
9 Press the SET - (or +) button to set the month (eg 04), then press the SHIFT

button.

10 Press the SET - (or +) button to set the day (eg : 12), then press the SHIFT

button.

11 Press the SET - (or +) button to set the year (eg : 00 for 2000).

• The last 2 digits only are displayed.

• The day of the week is set automatically.

12 Press the MENU button three times, the normal screen is displayed.

• The setting procedure is now complete.

11 960-Hour Time Lapse Video Cassette Recorder 960-Hour Time Lapse Video Cassette Recorder 28

Alarm Scan

1 Repeat steps 1 to 3.
2 Press the SHIFT button to search forward or in reverse without enter-

ing a specific alarm number.

• The display returns to the normal screen.

• The VCR will advance (or rewind) the tape at high speed, and play­back the first 5 seconds of every alarm recording.

• To cancel the alarm scan mode, press the STOP button.

3 While the desired recording is being played back, press the PLAY button.

• Playback will start, and alarm scan is cancelled.

Index Search

1 Repeat steps 1 to 2.
2 Move the arrow mark ( ) to the FF or REW in the Index Search mode

as you want to search.

3 Press the SHIFT button to search forward or in reverse.

• The display returns to the normal screen.

• The VCR will advance (or rewind) the tape at high speed and playback

the first 5 seconds of every normal recording.

• To cancel the index search mode, press the STOPbutton.

4 While the desired recording is being played back, press the PLAY button.

• Playback will start, and index search is cancelled.

✔

•

In the index search
mode, SHIFT
button should be used
to search forward or in
reverse ( Index FF
/REW).

27 960-Hour Time Lapse Video Cassette Recorder 960-Hour Time Lapse Video Cassette Recorder 12

Changing the On-Screen Display

Selecting the On-screen Display

You can select whether or not to display the time, date, frame counter, alarm
counter, counter title.

1 Turn the power on to all devices used.
2 Press the MENU button. The initial MENU is displayed. The arrow mark

( ) is located in “VCR Mode Set”.

Initial MENU

3 Press the SHIFT button to select the VCR Mode Set, then the VCR

MODE SET menu is displayed.

4 Press the SHIFT button, until the arrow mark ( ) points to “Display

set”.

5 Press the SHIFT button to select Display Set, then the DISPLAY SET

menu is displayed.

Alarm Search

1 Press the Menu button to display the initial menu.
2 Press the SHIFT button to select Search Select, then press the SHIFT

button to display the SEARCH SELECT menu.

3 Move the arrow mark ( ) to FF or REW in the Alarm Search mode as

you want to search.

4 Press the SET -(or +) button to enter the number of alarm marks you

want to search, press the SHIFT button to search forward or in
reverse.

• The display returns to the normal screen.

• The VCR will locate the desired alarm recording and begin playback.

✔

• The items for
which “YES” is set
are recorded. The
items for which
“NO” is set at step
6 above are not
recorded.

13 960-Hour Time Lapse Video Cassette Recorder 960-Hour Time Lapse Video Cassette Recorder 26

6 Press the SET - (or +) button to set “YES” for the functions described

below.

Time . . . . . . .The time is displayed.

Date . . . . . . . .The Month-Day-Year is displayed.

Frame Cnt . . .The number of frames is displayed.

Alarm Cnt . . . .The number of alarms is displayed.

Counter . . . . .The counter is displayed.

Title . . . . . . . .The title is displayed.

• A maximum of 20 characters can be used (letters, numbers or spaces).

7 Press the SHIFT button to set the display position.
8 Press the SET - (or +) button to set the position of the time, date, frame

cnt. alarm cnt. to “L-Bottom (or R-Bottom).

• If any of 4 items is set, the position of 4 items is changed identically.

9 Press the SET - (or +) button to set the position of the counter and title to

“C-Top” (or “R-Top” or “L-Top”)

If one of 2 items is set, the position of 2 items is changed identically.
L-Top / C-Top / R-Top
: Left Top / Center Top / Right Top
L-Bottom / R-Bottom
: Left Bottom / Right Bottom

10 Press the MENU button three times, the normal screen is displayed.

The setting procedure is now complete.

Picture Search

1 Press the FF/CUE (or REW/REVIEW) button, during normal playback.

• The image can be seen while the tape is advanced (or rewound) at
high speed.

2 To return to normal playback, press the PLAY button.

Still Image

1 Press the PAUSE/STILL button, during normal playback.

• A still image can be viewed.

2 To return to normal playback, press the PLAY button.

• With each press of the PAUSE/STILL button, the still image is
advanced one image (frame).

Vertical Lock Control

During still image mode,
1 Press the TRACKING + button to reduce the vertical rolling of the

image.

2 If it cannot be corrected, press the TRACKING - button.

Slow

1 With each press of the FF button, during still image mode, the slow

speed will change as indicated below.
1/15times

→ 1/20times → 1/30times (forward direction)

2 With each press of the REW button, during still image mode, the slow

speed will change as indicated below.
1/15times

→ 1/10times → 1/5times (forward direction)

3 To return to normal playback, press the PLAY button.

Recording Check

During recording, press the REC CHECK button.

• The tape will be rewound for about 5 seconds and slow play mode will
be performed. The VCR will then return to the previous recording
mode.

✔

• During picture
search, noise
(horizontal bars) will
appear in the
picture.

• The sound is muted.

✔

• If still mode contin­ues for 5 minutes or
more, the VCR will
go into stop mode to
avoid damaging the
tape.

• If the image is
unstable (rolling
vertically), adjust the
tracking control to
correct.

✔

• During recording
check operation,
recording is
suspended
momentarily

.

Special Playback

25 960-Hour Time Lapse Video Cassette Recorder 960-Hour Time Lapse Video Cassette Recorder 14

✔

• If the Repeat Rec Set
is set to “NO” in the
REC MODE SET
menu, recording will
continue to the end of
the tape, then stop
and the tape will be
ejected.

✔

• A tape recorded on
this VCR cannot be
played back on
another make of time
lapse VCR.

• If you press the REC
button and the loaded
cassette has no
erasure-prevention
tab, the VCR will eject
the cassette.

• During recording, the
Menu button will not
function (the menu
cannot be accessed).

✔

• If you playback the
recorded part where
recording check was
performed, noise may
appear.

• If you change the
recording speed dur­ing recording, noise or
a missing signal may
result.

✔

• During pause, the
image appears on
screen but it is not
recorded.

• If a recording pause
continues for 5 min­utes or more, the VCR
will go into stop mode
to avoid damage to
the tape.

Normal Recording

Normal Recording

1 Turn the power on to all devices used.
2 Load a cassette tape with erasure prevention tab in place.
3 Press the REC/PLAY SPEED (or ) button to set the recording

speed.

• The recording speed is displayed on-screen and on the display panel.

• If you don’t want to record the recording speed, counter, title, time,
date etc, press the DISPLAY button, then start recording.

4 Press the REC button.

• The “REC” indicator is displayed on the display panel and recording
starts

.

5 To stop recording, press the STOP button.

<Recording Speed>

✔

• A slow motion effect
or accelerated play­back effect can be
achieved by using a
slower or faster play­back speed than the
speed used for
recording.

✔

• Noise will appear in
the image when
audio playback is
used in 12/24- hour
mode.

Normal Playback

Normal Playback

1 Turn on the power to the TV monitor.
2 Load the video cassette tape.
3 Press the REC/PLAY SPEED (or ) button to select the playback

speed.

• The selected playback speed is displayed on the display panel.

• A tape recorded with SP heads can be played in 2 / 12 / 24 / 36 / 48 /
72 / 96 / 120 / 168 / 240 / 360 / 480 / 720 / 960 / Hour.

4 Press the PLAY button.

• Playback starts.

• If necessary, adjust the tracking to eliminate the noise from the picture.

5 To stop playback, press the STOP button.

• To advanced or rewind the tape, press the FF/CUE or REW/REVIEW
button.

Tracking Control

If there is noise in the image during playback,
1 While looking at the playback picture, press and hold the TRACKING +

button to minimize the noise.
2 If it cannot be minimized, press the TRACKING - button.
3 Press the play button in the playback mode.

Audio Playback

Audio playback is only possible in 2-hour, 12-hour and 24- hour modes.
The playback speed has to be the same as the recording speed, for normal

playback of the audio.
For a tape recorded in 2-hour, 12-hour, and 24-hour modes, press the

AUDIO ON button after pressing the PLAY button. “A” will be displayed to the
left of the playback speed on the display panel. Press the AUDIO ON button
again to remove “A”.

Record Pause

Recording can be interrupted temporarily.
1 Press the PAUSE/STILL button during recording.

• The “REC” and

“ ”

indicators are displayed on the display panel.

2 To resume recording, press the REC button, or press the PAUSE/STILL

button again.

Recording

Speeds

2
12
24
36
48
72
96

120
168
240
360
480
720
960

Maximum recording

duration (with an

T-120 cassette tape)

Standard mode

Time Lapse mode

Recording

interval

1/60 second

0.12

0.22

0.32

0.42

0.62

0.82

1.02

1.42

2.02

3.02

4.02

6.02

8.02

Audio

Recording

Possible

Not possible

Tape Motion

Continuous

Intermittent

Program Timer Recording

There are two program timer recording methods, daily recording or recording on
certain days of multiple weeks (weekly recording).

Example 1 : To record on every Thursday from 10 : 00 to 18 : 00 , in 24­hour mode (recording speed)

1 Make sure that the set date and time are correct.
2 Load a cassette tape with erasure prevention tab in place.
3 Press the MENU, SHIFT , SHIFT , SHIFT buttons in sequence to

display the TIMER PROGRAM SET(1) menu.

• The white block cursor is on “SUN” (Sunday)

.
4 Press the SHIFT button, until the cursor is on “THU”.
5 Press the SHIFT button.

• The cursor is moved to the recording start hour position.

6 Press the SET - (or +) button to set the recording start hour (eg : 10), then

press the SHIFT button.

• The cursor is moved to the recording start minutes position.

7 Press the SET - (or +) button to set the recording start minute (eg : 00), then

the SHIFT button.

• The cursor is moved to the recording stop hour position.

8 Press the SET - (or +) button to set the recording stop hour (eg : 06), then

press the SHIFT button.

• The cursor is moved to the recording stop minutes position.

15 960-Hour Time Lapse Video Cassette Recorder 960-Hour Time Lapse Video Cassette Recorder 24

Autorepeat Recording

Autorepeat Recording

The same tape can be recorded over many times. Please note that
if you activate this feature you will lose the entire previous recording.

1 Press the Menu, SHIFT , SHIFT button in sequence to

display the REC MODE SET menu.

2 Press the SHIFT button to make the arrow mark ( ) point to

Repeat Rec Set.

3 Press the SHIFT button to set the desired autorepeat record-

ing mode.

NO … Autorepeat recording doesn’t take place.
YES… Autorepeat recording takes place.

“R.REC” will light on the display panel.

4 Press the Menu button two times, the normal screen is displayed.

• The setting procedure is now complete.

5 Press the REC button.

• Recording will start. When the tape’s end is reached, the VCR
will rewind it to the beginning regardless of the counter
memory, and recording will resume.

✔

• If during autorepeatrecording
there is an alarm trigger,
“ “ is displayed on the
display panel and alarm
recording will take place.
Autorepeat recording will
continue after alarm
recording has completed its
programmed duration.

9 Press the SET - (or +) button to set the recording stop minutes

(eg : 00), then press the SHIFT button.

10 Press the SET - (or +) button to select the recording speed (eg : 24),

then press the SHIFT button.

• The cursor is moved to the N/Y position.

11 Press the SET - (or +) button to select “Y”.

Y . . . . . recording will take place

N . . . . . recording will not take place

Programmed timer recording Example 1

• Repeat steps 4 to 13 to program timer recordings for other days of the
week.

• To set two or more timer recordings the same day of the week, press
the SHIFT button, until the cursor located in the day of the week for
the second recording, then press the SET - (or +) button, to set the
desired day of the week. With each press of the SET - ( or +) button,
the day will change as indicated below.

SET - : ← direction , SET + : → direction

23 960-Hour Time Lapse Video Cassette Recorder 960-Hour Time Lapse Video Cassette Recorder 16

✔

• If the set stop time is
earlier than or the
same time as the set
start time, the VCR
will consider the stop
time to be the follow­ing day.

✔

• During series
recording, auto­repeat recording or
timer recording are
not possible.

• If in the REC
MODE SET menu,
“Series Rec Set” is
set to “NO”, series
recording will not
be possible.

3 Press the REC button on VCR No.1.

• Recording will start in series recording mode.

4 Set the security lock on VCR No.1.

• When the end of the tape on VCR No.1 is reached, the output at the
SERIES OUT terminal will switch signal. This will start recording on
VCR No.2, the tape will stop and be ejected on VCR No.1.

✔

• To modify or cancel
timer recording, press
the POWER/TIMER
button to cancel the
timer recording mode.

17 960-Hour Time Lapse Video Cassette Recorder 960-Hour Time Lapse Video Cassette Recorder 22

12 Press the MENU button three times, the normal screen is displayed.
13 Press the POWER/TIMER button.

• The timer recording indicator “ “ will light on the display panel. The
VCR is now in timer recording stand-by mode.

Example 2 : To record everyday from 10 : 00 to 18 : 00, in 24-hour

mode (recording speed)

1 Repeat steps 1 to 3.
2 Press the SHIFT button, until the cursor is on “DLY”. The MENU

below is displayed.

3 Repeat steps 5 to 13.

Programmed timer recording Example 2

Changing a Program Timer Recording

1 Press the MENU, SHIFT , SHIFT , SHIFT buttons in sequence

to display the TIMER PROGRAM SET(1) menu.

2 Press the SHIFT (or ) button, until the cursor is located in the

setting to correct.

3 Press the SET - (or +) button, to correct the setting.

• Press the MENU button three times until the normal screen is
displayed.

4 Press the POWER/TIMER button.

Item VCR No.1 VCR No.2

and on

Cassette tape Loaded Loaded
Operation mode Stop Stop
Repeat Rec Set “NO” “NO”
Series Rec Set “YES” “YES”
Timer recording OFF (not set) OFF (not set)
Security lock switch

(SET LOCK switch) “OFF” “ON”

This feature is similar to an alarm recording, but the recording time is
not pre-selected. When there is a panic input at the PANIC IN termi­nal, recording will start and continue for up to 2 hours.

Using 2 VCRs or more, the series recording function lets you switch
recording from one unit to the next (only with VCRs of the same
model as this one).

Series Recording Setup

1 Connect 2 VCRs or more as illustrated below.
2 Set the following items as indicated.

Panic Recording

Series Recording

21 960-Hour Time Lapse Video Cassette Recorder 960-Hour Time Lapse Video Cassette Recorder 18

To Cancel a Program Timer Recording

1 Repeat step 1 above.
2 Press the SHIFT (or ) button until the cursor is located in the “Y”

corresponding to the timer recording to cancel.
3 Press the SET - (or +) button, to select “N”.
4 Press the MENU button three times until the normal screen is displayed.
5 Press the POWER/TIMER button.

• The clear button can erase the programmed timer recording in the line
that the cursor is located.

Notes...

• During timer recording all the buttons on the VCR, except the STOP
button, are disabled. If the STOP button is pressed for three seconds
during timer recording, the recording will stop. During timer recording
stand-by, press the POWER/TIMER button if the buttons do not respond.

• If there is a power loss, the recording will be interrupted. When the power
is restored, the recording will resume if the stop time has not yet been
reached, and “ “ will be flashing on the display panel. The VCR inter­nal battery is completely charged after the VCR has been connected to an
AC power outlet for 48 hours, and it will maintain all the VCR settings
memory for up to 30 days.

• Set the timer recordings so that the recording times do not overlap. If they
do, the one with the earliest recording start time will have priority.
(See chart below)

• If the cassette tape is ejected while timer recording is set, the buzzer will
be heard 5 times (when the buzzer function is set to “YES”.)

Connecting to a Lorex Monitor for Alarm Recording

Alarm Recording Setting

Alarm recording is performed when there is an input (trigger) at the ALARM
IN terminal “ “ is displayed on the display panel.

1 Make all necessary connections.
2 Press the MENU, SHIFT , SHIFT buttons in sequence to display

the REC MODE SET menu.

3 Press the SHIFT button until the arrow mark ( ) points to ALARM

REC SET.

4 Press the SHIFT button to display the ALARM REC SET menu.

5 Press the SHIFT button to select “YES” or “NO”.

• YES The alarm recording takes place when there is alarm trigger
input

• NO The alarm recording does not take place

6 Press the SHIFT button to set the Alarm speed.
7 Press the SHIFT button to select the desired recording speed.

• 2H 2-hour mode recording

• 6H 12-hour mode recording

• 18H 24-hour mode recording

8 Press the SHIFT button to set the alarm duration
9 Press the SHIFT button to select the desired recording duration.

• Auto : Records as long as the alarm signal is being input. (Minimum 2
minutes is recorded.)

• 3/5/10/15/20/25/30 MIN : Recording for the set duration. (MIN : minute)

• T.END : Records until the tape end is reached when there is alarm
trigger input.

19 960-Hour Time Lapse Video Cassette Recorder 960-Hour Time Lapse Video Cassette Recorder 20

Alarm Recording

✔

• During alarm
recording all buttons
are disabled except
the STOP button. If
the STOP button is
pressed, the alarm
recording will stop.

• If an alarm trigger is
received while
alarm recording is in
progress, the
recording duration
for the second
alarm will be calcu­lated from that
point.

• When there is a
power loss during
alarm recording, if
the power is
restored within the
recording set
duration, alarm
recording will
continue.

✔

• Alarm Counter Reset
can be performed by
pressing the CLEAR
key in “AlarmTime” of
Initial Menu screen.

Alarm Recording Counter Display

During alarm recording, “ “ will be flashing on the display panel.
The maximum display number of alarm triggers is “35”, at the next

alarm recording the counter will indicate “00”.

Connecting to a Lorex Monitor for Normal Recording
